A Gelatin-Based Film with Acerola Pulp: Production, Characterization, and Application in the Stability of Meat Products
Abstract
1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Characterization of Acerola Pulp
2.3. Active Film Production
2.4. Film Characterization
2.4.1. Visual Aspects and Thickness
2.4.2. Color Parameters and pH
2.4.3. Water Vapor Permeability (WVP)
2.4.4. Total Phenolic, DPPH and TEAC
2.5. Applications of Active Films in Meat Products
2.5.1. Color Parameters
2.5.2. pH
2.5.3. Water Holding Capacity (WHC) and Shear Strength (SS)
2.5.4. Weight Loss (WL)
2.6. Biodegradability in Soil
2.7. Statistical Analysis
3. Results and Discussion
3.1. Characterization of Acerola Pulp
3.2. Film Characterization
3.2.1. Visual Aspects, Thickness, and Color Parameters
3.2.2. pH and Water Vapor Permeability
3.2.3. Total Phenolic Compounds, DPPH and FRAP
3.3. Evaluation of the Stability of Meat Products
3.3.1. Visual Aspects, pH, and Color Difference
3.3.2. Water Holding Capacity and Shear Strength

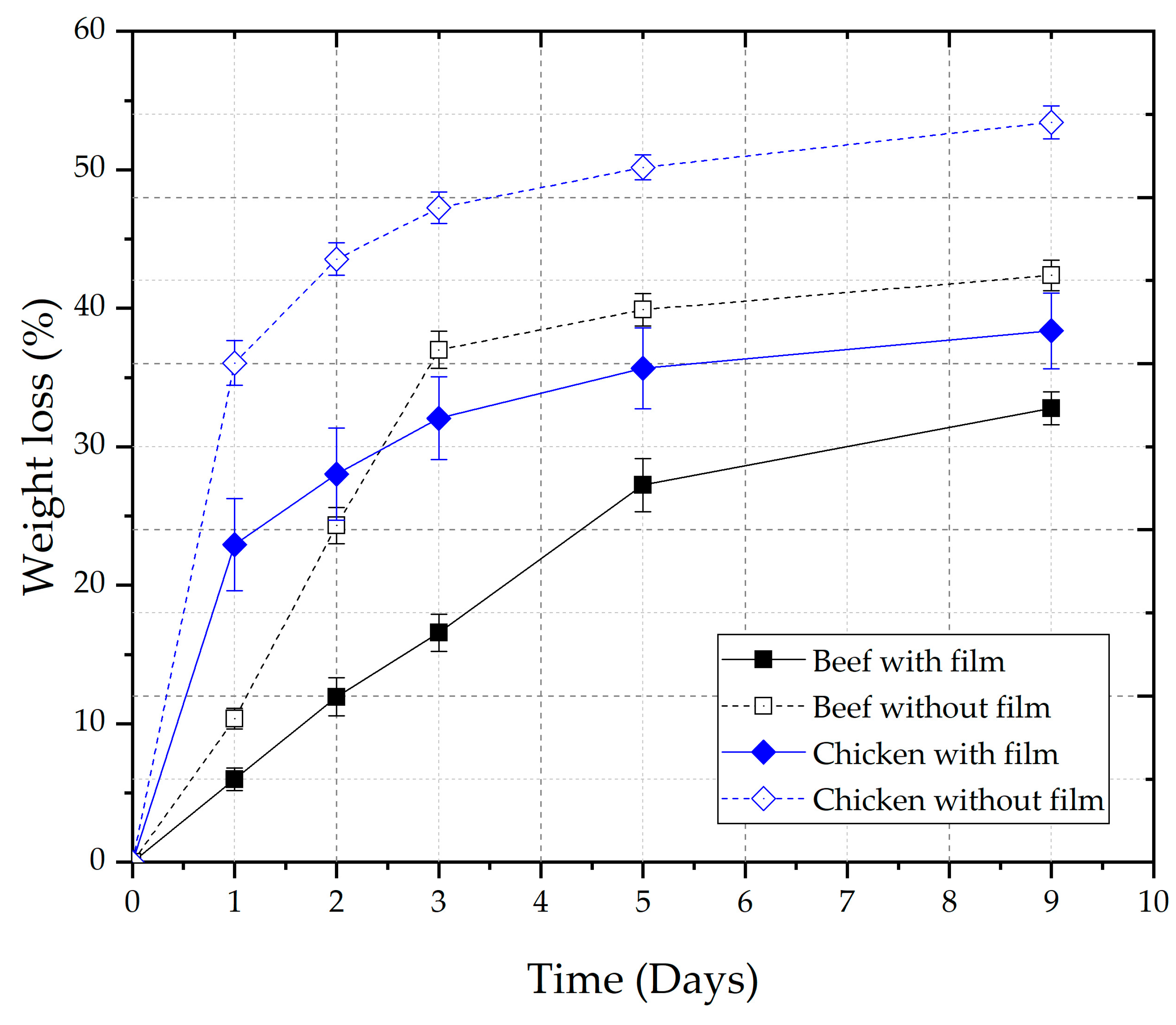

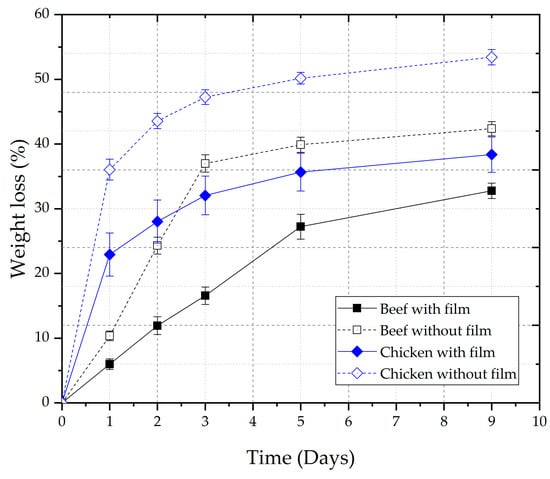

3.3.3. Weight Loss
3.4. Biodegradability in Soil
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Nielsen, J.H.; Sorensen, B.; Skibsted, L.H.; Bertelsen, G. Oxidation in Pre-cooked Minced Pork as Influenced by Chill Storage of Raw Muscle. Meat Sci. 1997, 46, 191–197. [Google Scholar] [CrossRef] [PubMed]
- Contini, C.; Álvarez, R.; O’Sullivan, M.; Dowling, D.P.; Gargan, S.Ó.; Monahan, F.J. Effect of an active packaging with citrus extract on lipid oxidation and sensory quality of cooked turkey meat. Meat Sci. 2014, 96, 1171–1176. [Google Scholar] [CrossRef] [PubMed]
- Bermúdez-Oria, A.; Rodríguez-Gutiérrez, G.; Rubio-Senent, F.; Fernández-Prior, Á.; Fernández-Bolaños, J. Effect of edible pectin-fish gelatin films containing the olive antioxidants hydroxytyrosol and 3,4-dihydroxyphenylglycol on beef meat during refrigerated storage. Meat Sci. 2019, 148, 213–218. [Google Scholar] [CrossRef] [PubMed]
- Han, B.; Chen, P.; Guo, J.; Yu, H.; Zhong, S.; Li, D.; Liu, C.; Feng, Z.; Jiang, B. A Novel Intelligent Indicator Film: Preparation, Characterization, and Application. Molecules 2023, 28, 3384. [Google Scholar] [CrossRef]
- Nogueira, G.F.; Meneguetti, B.B.; Soares, I.H.B.T.; Soares, C.T.; Bevilaqua, G.; Fakhouri, F.M.; Oliveira, R.A. Multipurpose arrowroot starch films with anthocyanin-rich grape pomace extract: Color migration for food simulants and monitoring the freshness of fish meat. Int. J. Biol. Macromol. 2024, 265, 130934. [Google Scholar] [CrossRef]
- Barbosa, T.C.M.; Grisi, C.V.B.; da Fonseca, S.B.; Meireles, B.R.L.d.A.; Cordeiro, A.M.T.d.M. Effect of active gelatin-starch film containing Syzygium cumini and Origanum vulgare extract on the preservation of lamb burgers. Meat Sci. 2022, 191, 108844. [Google Scholar] [CrossRef]
- Pereira, P.F.M.; de Sousa, P.P.H.; Veronica, C.; Tonon, R.V. Anthocyanin-sensitized gelatin-ZnO nanocomposite based film for meat quality assessment. Food Chem. 2022, 372, 131228. [Google Scholar] [CrossRef]
- Li, X.; Liu, A.; Ye, R.; Wang, Y.; Wang, W. Fabrication of gelatin-laponite composite films: Effect of the concentration of laponite on physical properties and the freshness ofmeat during storage. Food Hydrocoll. 2015, 44, 390–398. [Google Scholar] [CrossRef]
- Gupta, V.; Biswas, D.; Roy, S. A Comprehensive Review of Biodegradable Polymer-Based Films and Coatings and Their Food Packaging Applications. Materials 2022, 15, 5899. [Google Scholar] [CrossRef]
- Hamann, D.; Puton, B.M.S.; Comin, T.; Colet, R.; Valduga, E.; Zeni, J.; Steffens, J.; Junges, A.; Backes, G.T.; Cansian, R.L. Active edible films based on green tea extract and gelatin for coating of fresh sausage. Meat Sci. 2022, 194, 108966. [Google Scholar] [CrossRef]
- Lima, R.P.; Carrea, D.A.; Garcia, V.A.S.; Filgueiras, C.T.; Fakhouri, F.M.; Velasco, J.I. Development of Gelatin-Based Renewable Packaging with Melaleuca alternifolia Essential Oil for Chicken Breast Preservation. Polymers 2025, 17, 646. [Google Scholar] [CrossRef] [PubMed]
- Gao, S.; Zhang, Y.; Wang, R.; Li, F.; Zhang, Y.; Zhu, S.; Wei, H.; Zhao, L.; Fu, Y.; Ye, F. Fabrication and characterization of betulin/hydroxypropyl-beta-cyclodextrin inclusion complex nanofibers: A potential edible antibacterial and antioxidant packaging material. Food Chem. 2025, 481, 144059. [Google Scholar] [CrossRef] [PubMed]
- Nogueira, G.F.; Oliveira, R.A.; Velasco, J.I.; Fakhouri, F.M. Methods of Incorporating Plant-Derived Bioactive Compounds into Films Made with Agro-Based Polymers for Application as Food Packaging: A Brief Review. Polymers 2020, 12, 2518. [Google Scholar] [CrossRef]
- Ahmed, I.; Lin, H.; Zou, L.; Brody, A.L.; Li, Z.; Qazi, I.M.; Pavase, T.R.; Lv, L. A comprehensive review on the application of active packaging technologies to muscle foods. Food Control 2017, 82, 163–178. [Google Scholar] [CrossRef]
- Hazarika, K.K.; Konwar, A.; Borah, A.; Saikia, A.; Barman, P.; Hazarika, S. Cellulose nanofiber mediated natural dye based biodegradable bag with freshness indicator for packaging of meat and fish. Carbohydr. Polym. 2023, 300, 120241. [Google Scholar] [CrossRef]
- Leelaphiwat, P.; Pechprankan, C.; Siripho, P.; Bumbudsanpharoke, N.; Harnkarnsujarit, N. Effects of nisin and EDTA on morphology and properties of thermoplastic starch and PBAT biodegradable films for meat packaging. Food Chem. 2022, 369, 130956. [Google Scholar] [CrossRef]
- Moura, C.F.H.; Oliveira, L.S.; Souza, K.O.; Franca, L.G.; Ribeiro, L.B.R.; Souza, P.A.; Miranda, M.R.A. Acerola (Malpighia emarginata DC.); Elsevier Inc.: Amsterdam, The Netherlands, 2018; ISBN 9780128031384. [Google Scholar]
- de Oliveira, A.C.; Valentim, I.B.; Silva, C.A.; Bechara, E.J.H.; de Barros, M.P.; Mano, C.M.; Goulart, M.O.F. Total phenolic content and free radical scavenging activities of methanolic extract powders of tropical fruit residues. Food Chem. 2009, 115, 469–475. [Google Scholar] [CrossRef]
- Vasavilbazo-Saucedo, A.; Almaraz-Abarca, N.; González-Ocampo, H.A.; Ávila-Reyes, J.A.; González-Valdez, L.S.; Luna-González, A.; Delgado-Alvarado, E.A.; Torres-Ricario, R. Phytochemical characterization and antioxidant properties of the wild edible acerola malpighia umbellata rose. CYTA-J. Food 2018, 16, 698–706. [Google Scholar] [CrossRef]
- Miskinis, R.d.A.S.; do Nascimento, L.Á.; Colussi, R. Bioactive compounds from acerola pomace: A review. Food Chem. 2023, 404, 134613. [Google Scholar] [CrossRef]
- Mezadri, T.; Villaño, D.; Fernández-Pachón, M.S.; García-Parrilla, M.C.; Troncoso, A.M. Antioxidant compounds and antioxidant activity in acerola (Malpighia emarginata DC.) fruits and derivatives. J. Food Compos. Anal. 2008, 21, 282–290. [Google Scholar] [CrossRef]
- Realini, C.E.; Guàrdia, M.D.; Díaz, I.; García-Regueiro, J.A.; Arnau, J. Effects of acerola fruit extract on sensory and shelf-life of salted beef patties from grinds differing in fatty acid composition. Meat Sci. 2015, 99, 18–24. [Google Scholar] [CrossRef] [PubMed]
- Azeredo, H.M.C.; Miranda, K.W.E.; Rosa, M.F.; Nascimento, D.M.; de Moura, M.R. Edible films from alginate-acerola puree reinforced with cellulose whiskers. LWT 2012, 46, 294–297. [Google Scholar] [CrossRef]
- Instituto Adolfo Lutz. 1a Edição Digital; Instituto Adolfo Lutz: São Paulo, Brazil, 2008. [Google Scholar]
- Ministério da Agricultura. Portaria no 76 de 26 de Novembro de 1986. Dispõe Sobre os Métodos Analíticos de Bebidas e Vinagre; Diário Oficial da República Federativa do Brasil: Brasília, Brazil, 1986. [Google Scholar]
- Manhar, S.; Suresh, P.K. Diltiazem-loaded buccoadhesive patches for oral mucosal delivery: Formulation and in vitro characterization. J. Appl. Pharm. Sci. 2013, 3, 75–79. [Google Scholar]
- Föger, F.; Kopf, A.; Loretz, B.; Albrecht, K.; Bernkop-Schnürch, A. Correlation of in vitro and in vivo models for the oral absorption of peptide drugs. Amino Acids 2008, 35, 233–241. [Google Scholar] [CrossRef]
- ASTM E 96; Standard Test Methods for Water Vapor Transmission of Materials. ASTM International: West Conshohocken, PA, USA, 2010. [CrossRef]
- Singleton, V.L.; Orthofer, R.; Lamuela-Raventós, R.M. Analysis of total phenols and other oxidation substrates and antioxidants by means of folin-ciocalteu reagent. Methods Enzymol. 1998, 299, 152–178. [Google Scholar] [CrossRef]
- Brand-Willians, W.; Cuvelier, M.E.; Berset, C. Use a free radical method to evaluate antioxidant activity. LWT-Food Sci. Technol. 1995, 28, 20–25. [Google Scholar] [CrossRef]
- Li, G.; Chen, P.; Zhao, Y.; Zeng, Q.; Ou, S.; Zhang, Y.; Wang, P.; Chen, N.; Ou, J. Isolation, structural characterization and anti-oxidant activity of a novel polysaccharide from garlic bolt. Carbohydr. Polym. 2021, 267, 118194. [Google Scholar] [CrossRef]
- Benzie, I.; Strain, J. The Ferric Reducing Ability of Plasma (FRAP) as a Measure of “Antioxidant Power: The FRAP Assay”. Anal. Biochem. 1996, 239, 70–76. [Google Scholar] [CrossRef]
- ASTM Calculation of Color Tolerances and Color Differences from Instrumentally Measured Color Coordinates 1. Annu. B. ASTM Stand. 2005, i, 1–10.
- Maran, J.P.; Sivakumar, V.; Thirugnanasambandham, K.; Sridhar, R. Degradation behavior of biocomposites based on cassava starch buried under indoor soil conditions. Carbohydr. Polym. 2014, 101, 20–28. [Google Scholar] [CrossRef]
- Brasil Instrução normativa MAPA no 01, de 07-01-2000. 2000. Available online: https://sogi8.sogi.com.br/Manager/texto/arquivo/exibir/arquivo?eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9AFFIjAvMTAwNi9TR19SZXF1aXNpdG9fTGVnYWxfVGV4dG8vMC8wL0RPQ1VNRU5UTyAxLnBkZi8wLzAiAFF-PrY0AgIRKZ-v7L2u54yTTXEsLtTom6nh_2Ohh3bv6A (accessed on 2 July 2025).
- Dantas, E.A.; Costa, S.S.; Cruz, L.S.; Bramont, W.B.; Costa, A.S.; Padilha, F.F.; Druzian, J.I.; Machado, B.A.S. Characterization and evaluation of the antioxidant properties of biodegradable fi lms incorporated with tropical fruit pulps. Cienc. Rural. 2015, 45, 142–148. [Google Scholar] [CrossRef]
- Ribeiro, H.L.; Brito, E.S.; Souza Filho, M.d.s.M.; Azeredo, H.M.C. Montmorillonite as a reinforcement and color stabilizer of gelatin films containing acerola juice. Appl. Clay Sci. 2018, 165, 1–7. [Google Scholar] [CrossRef]
- Santhosh, R.; Sarkar, P. Jackfruit seed starch/tamarind kernel xyloglucan/zinc oxide nanoparticles-based composite films: Preparation, characterization, and application on tomato (Solanum lycopersicum) fruits. Food Hydrocoll. 2022, 133, 107917. [Google Scholar] [CrossRef]
- Ramírez, C.; Gallegos, I.; Ihl, M.; Bifani, V. Study of contact angle, wettability and water vapor permeability in carboxymethylcellulose (CMC) based film with murta leaves (Ugni molinae Turcz) extract. J. Food Eng. 2012, 109, 424–429. [Google Scholar] [CrossRef]
- Al-Hassan, A.A.; Norziah, M.H. Starch-gelatin edible films: Water vapor permeability and mechanical properties as affected by plasticizers. Food Hydrocoll. 2012, 26, 108–117. [Google Scholar] [CrossRef]
- da Silva, N.C.; de Barros-Alexandrino, T.T.; Assis, O.B.G.; Martelli-Tosi, M. Extraction of phenolic compounds from acerola by-products using chitosan solution, encapsulation and application in extending the shelf-life of guava. Food Chem. 2021, 354, 129553. [Google Scholar] [CrossRef]
- Laurindo, L.F.; Takeda, L.N.; Machado, N.M.; Otobii, A.M.M.B.; Goulart, R.A.G.; Catharin, V.C.S.; Silva, L.R.; Barbalho, S.M.; Direito, R. Health benefits of acerola (Malpighia spp) and its by-products: A comprehensive review of nutrient-rich composition, pharmacological potential, and industrial applications. Food Biosci. 2024, 62, 105422. [Google Scholar] [CrossRef]
- Forrest, J.C.; Pére, B.S. Fundamentos de Ciencia de la Carne; Editorial Acribia, S.A.: Zaragoza, Spain, 1979. [Google Scholar]
- Szmańko, T.; Lesiów, T.; Górecka, J. The water-holding capacity of meat: A reference analytical method. Food Chem. 2021, 357, 129727. [Google Scholar] [CrossRef]
- Rebouças, L.d.O.S.; Lemos, L.L.d.A.; Soares, D.C.E.; Santos, T.C.L.; de Assis, A.P.P.; Campelo, M.C.d.S.; da Silva, J.B.A.; Lima, P.d.O. Physical and sensorial quality of Litopenaeus vannamei shrimp cultivated in freshwater Lucas. Rev. Ciênc. Agrovet. 2017, 16, 473–479. [Google Scholar] [CrossRef]
- Choi, Y.M.; Lee, S.H.; Choe, J.H.; Rhee, M.S.; Lee, S.K.; Joo, S.T.; Kim, B.C. Protein solubility is related to myosin isoforms, muscle fiber types, meat quality traits, and postmortem protein changes in porcine longissimus dorsi muscle. Livest. Sci. 2010, 127, 183–191. [Google Scholar] [CrossRef]
- Bowker, B.; Zhuang, H. Detection of razor shear force differences in broiler breast meat due to the woody breast condition depends on measurement technique and meat state. Poult. Sci. 2019, 98, 6170–6176. [Google Scholar] [CrossRef] [PubMed]
- Ramos, E.M.; Gomide, L.A.d.M. Avaliação da Qualidade de Carnes: Fundamentos e Metodologias; UFV: Abbotsford, BC, Canada, 2017. [Google Scholar]
- Martucci, J.F.; Ruseckaite, R.A. Biodegradation of three-layer laminate films based on gelatin under indoor soil conditions. Polym. Degrad. Stab. 2009, 94, 1307–1313. [Google Scholar] [CrossRef]
- Abrusci, C.; Marquina, D.; Del Amo, A.; Corrales, T.; Catalina, F. A viscometric study of the biodegradation of photographic gelatin by fungi isolated from cinematographic films. Int. Biodeterior. Biodegrad. 2006, 58, 142–149. [Google Scholar] [CrossRef]
Property | Results |
---|---|
Moisture (%) | 92.93 ± 0.06 |
Ashes (%) | 0.48 ± 0.04 |
pH | 3.74 ± 0.04 |
Titratable acidity (g/100 g citric acid) | 13.77 ± 0.33 |
Water activity (Aw) | 0.98 ± 0.01 |
Total soluble solids (°Brix) | 7.37 ± 0.16 |
Analysis | Concentrations of Acerola Pulp (g/100 g Filmogenic Solution) | |||
---|---|---|---|---|
60 | 70 | 80 | 90 | |
Thickness | 0.10 ± 0.01 c | 0.11 ± 0.01 bc | 0.13 ± 0.02 ab | 0.14 ± 0.02 a |
pH | 6.30 ± 0.19 a | 5.98 ± 0.08 b | 5.93 ± 0.21 b | 6.06 ± 0.20 b |
WVP | 1.48 ± 0.04 c | 1.43 ± 0.03 c | 1.71 ± 0.04 b | 1.90 ± 0.06 a |
Color parameters | ||||
L* | 76.61 ± 0.82 a | 73.45 ± 1.09 b | 69.75 ± 1.42 c | 67.55 ± 1.23 d |
a* | 20.34 ± 1.03 d | 24.57 ± 1.26 c | 29.20 ± 1.62 b | 32.85 ± 2.41 a |
b* | 40.84 ± 3.85 c | 45.97 ± 1.87 b | 51.09 ± 1.70 a | 53.43 ± 1.66 b |
TFC | 2884.17 ± 70.24 d | 3108.17 ± 72.46 c | 3609.51 ± 85.68 b | 3935.02 ± 96.05 a |
DPPH 1 | 84.36 ± 0.75 a | 84.45 ± 0.80 a | 84.36 ± 0.75 a | 84.60 ± 0.85 a |
FRAP | 1.05 ± 0.09 a | 1.07 ± 0.04 a | 1.08 ± 0.09 a | 1.10 ± 0.12 a |
Analysis | BS | BS Without Film | CS | CS Without Film |
---|---|---|---|---|
pHDay1 | - | 5.68 ± 0.03 | - | 5.84 ± 0.03 |
pHDay9 | 6.00 ± 0.04 bA | 6.28 ± 0.16 aB | 5.95 ± 0.01 bA | 6.51 ± 0.02 aA |
∆E* | 7.88 ± 0.62 bA | 13.08 ± 1.0 aB | 18.05 ± 0.17 bB | 21.80 ± 1.90 aA |
WHC (%) | 98.70 ± 0.15 aA | 98.65 ± 0.16 aA | 98.14 ± 1.13 aA | 90.74 ± 12.88 bB |
SS (kgf) | 2.45 ± 0.17 bB | 3.46 ± 0.59 aB | 3.91 ± 2.08 bA | 5.81 ± 0.24 aA |
