Article

B-box Proteins in Arachis duranensis: Genome-Wide Characterization and Expression Profiles Analysis

by
Hanqi Jin
†,
Mengge Xing
†,
Chunmei Cai
and
Shuai Li
*
College of Life Sciences, Key Lab of Plant Biotechnology in Universities of Shandong Province, Qingdao Agricultural University, Qingdao 266109, China
*
Author to whom correspondence should be addressed.
†
These authors have contributed equally to this work.
Agronomy 2020, 10(1), 23; https://doi.org/10.3390/agronomy10010023
Submission received: 5 November 2019 / Revised: 12 December 2019 / Accepted: 19 December 2019 / Published: 23 December 2019
(This article belongs to the Section Crop Breeding and Genetics)
Browse Figures
Versions Notes

Abstract

:
B-box (BBX) proteins are important factors involved in plant growth and developmental regulation, and they have been identified in many species. However, information on the characteristics and transcription patterns of BBX genes in wild peanut are limited. In this study, we identified and characterized 24 BBX genes from a wild peanut, Arachis duranensis. Many characteristics were analyzed, including chromosomal locations, phylogenetic relationships, and gene structures. Arachis duranensis B-box (AdBBX) proteins were grouped into five classes based on the diversity of their conserved domains: I (3 genes), II (4 genes), III (4 genes), IV (9 genes), and V (4 genes). Fifteen distinct motifs were found in the 24 AdBBX proteins. Duplication analysis revealed the presence of two interchromosomal duplicated gene pairs, from group II and IV. In addition, 95 kinds of cis-acting elements were found in the genes’ promoter regions, 53 of which received putative functional predictions. The numbers and types of cis-acting elements varied among different AdBBX promoters, and, as a result, AdBBX genes exhibited distinct expression patterns in different tissues. Transcriptional profiling combined with synteny analysis suggests that AdBBX8 may be a key factor involved in flowering time regulation. Our study will provide essential information for further functional investigation of AdBBX genes.

1. Introduction

Transcription factors are essential components of signal transduction pathways in plants. They often work as activators or suppressors, binding cis-acting elements in target promoter regions to regulate downstream gene expression [1,2]. Various transcription factor families are found in plants, which are involved in many different response pathways. Among these gene families, zinc-finger transcription factors, possess a conserved domain that can bind metal ions like zinc and interact with DNA, RNA or proteins, and members of that large transcription factor family play critical roles in plant growth and development [3,4,5,6]. Based on the diversification of their protein sequences and structures, zinc-finger genes are further classified into several distinct subfamilies [3]. A subgroup of zinc-finger proteins containing B-box (BBX) conserved domains, which are thought to be involved in protein–protein interactions, is designated as the BBX family and is highly conserved across all multicellular species [4,7,8,9].
Two types of BBX domains, B-box1 and B-box2, have been identified based on their consensus sequences and the spacing of their zinc-binding residues [4,10,11,12]. In Arabidopsis, 21 and 11 of the 32 BBX proteins contain two and one BBX domains, respectively [3,4]. In addition to the conserved BBX domain, some BBX family members contain additional specific domains, such as the CCT (for CONSTANS, CONSTANS-LIKE, TOC1) and VP (valine-proline) domains. Seventeen Arabidopsis BBX proteins contain a CCT domain close to their C terminus. Arabidopsis BBX proteins are grouped into five classes based on differences in the type and number of BBX and CCT domains. Classes I and II members have two BBX domains and one CCT domain, while class III members have one BBX and one CCT domain. Class IV members have two different BBX domains, and group V members have only one BBX domain [3,4,13].
BBX proteins are involved in the regulation of many signaling pathways, including those associated with flowering time, the circadian clock, seedling photomorphogenesis, and abiotic stress [4]. CONSTANS (CO/BBX1) was the first BBX protein identified in Arabidopsis. Overexpression of CO accelerates flowering time under both long day (LD) and short day (SD) conditions. Mutation of CO significantly delays flowering time under LD, while the flowering time of CO is similar to wild-type plants under SD [14,15,16]. CO binds directly to CO-responsive elements (CORE) and CCAAT-box elements in the promoter region of FLOWERING LOCUS T (FT) to promote FT expression, which is in turn responsible for the acceleration of flowering time [17,18,19,20,21]. The CO-FT flowering time regulatory pathway is conserved in other species [22,23,24,25,26,27,28,29,30,31]. For example, Heading date 1 (Hd1), the rice CO ortholog, participates in the regulation of the rice FT orthologs Heading date 3a (OsHd3a) and Flowering Locus T1 (OsRFT1) [24,25]. Hd1 promotes flowering time under SD but delays flowering time under LD [22]. In addition, some CO-like (COL) proteins in Arabidopsis are also involved in flowering time or circadian clock regulation, including BBX2, BBX3, BBX4, BBX6, and BBX7. BBX18, BBX24, and BBX32 are also thought to be involved in abiotic and biotic stress responses [4].
Peanut is an important oil crop widely cultivated in many countries. The allotetraploid Arachis hypogaea (AABB, 2n = 4x = 40) is thought to be derived from the hybridization and polyploidization of two diploid peanuts, Arachis duranensis (AA genome) and Arachis ipaensis (BB genome) [26,32,33]. Many genes in cultivated peanut might retain some functions of the original gene in wild peanut, and the investigation of wild peanut genes will provide useful information for further analysis of cultivated peanut gene functions. The development of the peanut genome database in recent years now permits investigation of peanut gene functions [33,34,35,36,37]. Although there is considerable information on BBX gene function in other species, there is less research on the role of BBX genes in peanut development. In this study, we identified and characterized 24 BBX proteins from one of the wild peanut species, A. duranensis. We investigated many characteristics of its BBX genes, including structures, conserved motifs, chromosome locations, phylogenetic relationships, gene duplications, cis-acting elements, and tissue expression profiles. Our study provides essential information for further functional characterization of BBX proteins in wild and cultivated peanut.

2. Materials and Methods

2.1. Identification of BBX Members in A. duranensis

The amino acid sequences of the BBX conserved domain (PF00643) and Arabidopsis BBX proteins, downloaded from Arabidopsis genome database TAIR, were used as blast queries against the peanut genome database to search for A. duranensis, Arachis ipaensis, and Arachis hypogaea BBX genes (Peanut genome database version: Arachis hypogaea Tifrunner 1.0, Arachis duranensis 1.0 and Arachis ipaensis 1.0) [33]. All output candidate genes were assessed using the Pfam database (Pfam 32.0, September 2018, 17,929 entries) [38] and the InterPro program [39] to confirm the presence of BBX domains and remove genes without conserved BBX domains. The B-box1 and B-box2 domains were determined as described by Crocco et al. [12]. The first B-box that appeared in the N terminal position was called B-box1 and the second was termed B-box2. The positions of the BBX and CCT domains in each Arachis duranensis B-box (AdBBX) protein were analyzed with Pro Scan program. The genomic lengths, coding sequence (CDS) lengths, and amino acid numbers of the AdBBX genes were obtained from the peanut genome database. The gene GC contents were determined using MegAlign software of Lasergene (DNASTAR, Madison, WI, USA). Chemical features of the AdBBX proteins, including molecular weight and theoretical iso-electric point, were obtained using ProtParam [40].

2.2. Sequence Alignment and Phylogenetic Relationship Analyses

The amino acid sequences of BBX and CCT domains were aligned with ClustalW2 software (2.1, Nanyang Technological University, Singapore) [41], and the results were used to generate an alignment map using DNAMAN software (Version 5.2.2, LinnonBiosoft, Vaudreuil, Quebec, Canada). To analyze the evolutionary relationships among the AdBBX genes and other well-studied BBX genes, full-length BBX amino acid sequences from A. duranensis, rice, and Arabidopsis were aligned by Clustal-X2, and the alignment results were used to construct a phylogenetic tree in MEGA7.0 using the neighbor-joining method [42]. The BBX proteins from A. duranensis, Arachis ipaensis and Arachis hypogaea were also aligned to construct a phylogenetic tree in MEGA7.0 using the neighbor-joining method.

2.3. Gene Structure, Conserved Motif, and Sequence Logo Analyses

The genomic and CDS sequences of the AdBBX genes were downloaded from the peanut genome database [33] and used for the analysis of gene structure using the Gene Structure Display Server (GSDS) [43]. To investigate conserved motifs in these proteins, full-length AdBBX amino acid sequences were obtained from the peanut genome database and analyzed using MEME tools [44]. In addition, the sequence logos of BBX (B-box1 and B-box2) and CCT conserved domains were investigated using the online WebLogo platform [45].

2.4. Chromosomal Location, Synteny, and Gene Duplication Analyses

AdBBX genes were mapped to the peanut genome to identify their chromosomal locations and physical positions. A chromosomal distribution map was generated using Mapinspect software (Mike Lischke, Berlin, Germany). To investigate the synteny relationships of related genome regions in different species, putative orthologous genes surrounding CO orthologs/homologs from soybean and A. duranensis were identified by a BLASTP search as previously described [46,47], and the blast results were used to generate a synteny map. To analyze the duplicated gene pairs, we clustered AdBBX, AiBBX, and AhBBX genes using OrthoMCL software [48] with amino acid sequences more than 70% similar, and visualized the duplicated gene pairs using Circos software as previously described, respectively [49,50].

2.5. Cis-Acting Element Analysis

Promoter sequences, 2 kb upstream of the initiation codon of each gene, were obtained from the peanut genome database [33] and used for cis-acting element analysis using PlantCARE [51]. The cis-acting elements were classified based on their putative functions.

2.6. Analysis of Gene Expression in Different Tissues

To investigate the expression of AdBBX genes in different A. duranensis tissues, RNA-seq datasets were downloaded from the peanut genome database [33,34,35,36,37,52,53] and used for transcription analysis. The A. hypogaea gene expression profiles were mapped to A. duranensis for the construction of a heatmap with MeV 4.9.0 (Multiple Experiment Viewer) [52,53].

3. Results

3.1. Identification of BBX Genes in A. duranensis

To identify BBX genes in A. duranensis, we used the amino acid sequences of the BBX conserved domain (PF00643) and 32 Arabidopsis BBXs as blast queries against the peanut genome database. We then used Pfam and Pro Scan to confirm the presence of conserved BBX domains in the resulting candidate genes. A total of 24 BBX genes were found in A. duranensis. The characteristics of these AdBBX genes were investigated, and detailed information is provided in Table 1. AdBBX genes exhibited diversity in genomic length, CDS length, amino acid number, isoelectric point, molecular weight, and GC content (Table 1). The genomic lengths of AdBBX genes ranged from 468 bp (AraduF08JS) to 4,564 bp (AraduBV95P), the CDS lengths ranged from 468 bp (AraduF08JS) to 1,641 bp (AraduVV0J1), and the numbers of deduced amino acids ranged from 155 to 546 (Table 1). GC content represents the stability of the genes to some degree, and we therefore investigated GC content of the AdBBX genes. The GC contents in AdBBX genes ranged from 32.13% (Aradu1V7PF) to 52.72% (Aradu28KTI). The isoelectric points of the proteins varied from 4.16 (AraduF08JS) to 8.85 (Aradu28KTI), and their molecular weights ranged from 17,020.4 (AraduF08JS) to 61,012.7 (AraduVV0J1).

3.2. Chromosomal Distribution of AdBBXs

To investigate the chromosomal locations of AdBBXs, we mapped the genes to the peanut genome to determine their physical positions. The AdBBX genes were named from AdBBX1 to AdBBX24 based on their chromosomal distribution (Figure 1, Table 1). Among the 24 AdBBX genes, 13 were located on the plus strand and 11 were located on the minus strand (Table 1). Nine of the 10 peanut chromosomes contained AdBBX genes, and only chromosome 2 contained none (Figure 1 and Table 1). Chromosome 3 contained the largest number of AdBBX genes, with six AdBBX members, followed by chromosomes 6, 7, 9, and 10, with three AdBBXs on each. AdBBX2, AdBBX3, and AdBBX4 were located close together on chromosome 3 (the distance between AdBBX2 and AdBBX3 was 1,443,512 bp and the distance between AdBBX3 and AdBBX4 was 165,285 bp), as were AdBBX5 and AdBBX6 (the distance between AdBBX5 and AdBBX6 was 1,050,315 bp). AdBBX20 and AdBBX21 (the distance between them was 608,968 bp) were also located close together on chromosome 9. Most AdBBX genes were located on the chromosome arms, but three (AdBBX14, AdBBX17, and AdBBX18) were found on the middle portions of the chromosomes.

3.3. Protein Sequence and Classification Analysis of AdBBX Genes

BBX proteins are classified into five subgroups based their conserved domains, including the types and numbers of BBX and CCT domains [3,4]. We analyzed conserved domains in the AdBBX proteins and found two distinct BBX domains (B-box1 and B-box2) and one CCT domain. To further investigate the conserved amino acid sequences in these domains, logos of A. duranensis B-box1 (CX2CX8CX2DXAXLCX2CDX2VHX2NXLX3H, where X represents any amino acid), B-box2 (CX2CX4AX3CX7CX2CDX3HX9H), and CCT (RX5RX3KX7KX2RYX2RKX2AX2RXRXKGRFXK) were produced using Weblogo [45] (Figure 2). The amino acid sequences of the B-box1, B-box2, and CCT domains were also aligned to analyze corresponding positions of the conserved amino acid sequences (Figure 3).
To further investigate the evolutionary relationships among the AdBBXs, we created a phylogenetic tree based on their amino acid sequences (Figure 4a). Conserved domain analysis revealed that 16 of the 24 AdBBX proteins had two BBX domains (i.e., B-box1 and B-box2), 11 members contained a CCT domain, and seven had both BBX domains and a CCT domain (Figure 4b). The AdBBX proteins were also grouped into five subfamilies based on the diversity of their conserved domains (Figure 4c). Group I and II, which differed in the details of their B-box2 domain, had a B-box1, B-box2, and CCT domain. There were three and four members of classes I and II, respectively, in A. duranensis. Class III had a B-box1 and a CCT domain and contained four members. Group IV had both a B-box1 and B-box2 domain and was the largest group in A. duranensis with nine members. Most AdBBX genes in the same class were clustered together, except for AdBBX5 (AraduJ5IAH), which had a distinct relationship with other class III genes and a closer relationship with class V subfamily members (Figure 4a). However, the number of BBX genes from A. ipaensis and A. hypogaea in each group showed differences from A. duranensis. Group I, II, III, IV, and V contained 2, 4, 5, 9, and 5 members in A. ipaensis, and 1, 2, 10, 8, and 19 in A. hypogaea, respectively (Figures S1 and S2). To analyze the evolutional relationship of peanut BBX genes, a phylogenetic tree was constructed using BBX genes from A. duranensis, A. ipaensis, and A. hypogaea (Figure S3). Most of the genes from A. duranensis and A. ipaensis in each group were clustered into the same clades, while many genes from A. hypogaea in the same group were not clustered together, indicating BBX genes in cultivated peanut might have changed a lot during evolution.
To obtain information from well-studied BBX genes in other species, we also analyzed the evolutionary relationships among BBX genes from Arabidopsis, rice, and A. duranensis (Figure S4). Phylogenetic analysis revealed that AdBBX8 and AdBBX24 grouped with the well-studied flowering time genes At5g15840 (CO) and Os06g16370 (Hd1) from Arabidopsis and rice, respectively [4], indicating that one or both of these genes may play an important role in flowering time regulation in A. duranensis.

3.4. Gene Structures and Conserved Motifs of AdBBX Genes

To investigate exon–intron organization, the genomic and CDS sequences of AdBBXs obtained from the peanut genome database were analyzed using the Gene Structure Display Server [43]. The exon numbers of AdBBX genes ranged from one (AdBBX19 and AdBBX22) to five (AdBBX4), and the intron numbers ranged from zero (AdBBX19 and AdBBX22) to six (AdBBX4 and AdBBX5). Nine AdBBX genes had both 5′ and 3′ untranslated regions (UTRs), four genes had only 3′ UTRs, three genes had only 5′ UTRs, and eight genes had no predicted UTRs (Figure 5a). To further investigate the conservation and diversity of AdBBX protein structures, the putative motifs of these genes were predicted using MEME tools. Fifteen distinct motifs were found across the AdBBX proteins (Figure 5b, Figure S5). Among these motifs, motifs 1 and 5 were found in all the AdBBX proteins. Conservation of AdBBX protein structures was observed among genes that clustered into the same classes. For example, all class I members shared five motifs, including motifs 1, 2, 3, 4, and 5, and all class II members shared six motifs, including motifs 1, 2, 4, 5, 14, and 15. In addition, structural diversity was also found among the AdBBX proteins. The motif numbers in AdBBX proteins varied from two (AdBBX19) to seven (AdBBX7, AdBBX10, and AdBBX21), and some motifs were only found in specific AdBBX proteins. For example, motif 2 was specific to class I, II, and III proteins and was considered to be the CCT domain, and motif 15 was only found in class II proteins.

3.5. Duplication Analysis of BBX Genes in A. duranensis

Polyploidy is a common feature of flowering plant evolution and produces many duplicated gene pairs. The wild peanut A. duranensis is thought to have experienced one round of whole genome duplication [33,34,35,36,37]. We investigated the duplication of AdBBX genes and found two interchromosomal duplicated gene pairs (AdBBX2/AdBBX17 and AdBBX8/AdBBX24), but no tandem duplicated gene pairs (Figure 6). These duplicated genes were located on chromosomes 3, 4, 8, and 10, respectively. Moreover, the duplicated genes AdBBX2/AdBBX17 were found to belong to group IV and AdBBX8/AdBBX24 belonged to group II, and no duplicated gene pairs were found among the other groups. We also investigated duplication gene pairs in A. ipaensis and found two duplication events (AraipAS7FB/AraipP77MW, AraipWH6UQ/AraipS98FB), and all these genes were found to belong to group IV (Figure S6). Moreover, the allotetraploid A. hypogaea contained 16 duplication events, and these genes, group II, III, IV, and V contained 1, 10, 4, and 17 members, respectively (Figure S7).

3.6. Analysis of Cis-Acting Elements in AdBBX Promoter Regions

Cis-acting elements in promoter regions have critical roles in regulating plant gene expression. To further understand the expression responses of AdBBX genes, we identified cis-acting elements in AdBBX promoter regions 2 kb upstream of the initiation codon using PlantCARE [51]. Ninety-five kinds of cis-acting elements were identified, and 53 were predicted to have putative functions. These included seven development-related elements, five environmental stress-related elements, four site-binding-related elements, nine hormone-responsive elements, four promoter-related elements, and 24 light-responsive elements (Table S1). Binding sites in all 24 AdBBX genes related to development, including circadian control, metabolism regulation, stem expression, seed-specific regulation, cell differentiation, and cell cycle regulation (Figure 7a), environmental stress, including anaerobic conditions, drought, low temperature, and defense (Figure 7b), and hormones, including abscisic acid (ABA), gibberellic acid (GA), auxin, and jasmonic acid (MeJA) (Figure 7c), were identified in these promoters. The numbers and types of cis-acting elements varied among the AdBBX promoters, suggesting that the AdBBX genes have diverse roles in plant developmental regulation (Table 2). All the AdBBX promoters contained light-responsive elements, which were represented to be the most abundant element type in each of the AdBBX promoters, hormone-responsive elements, and promoter-related elements (Table 2, Supplementary Table S1), suggesting that the AdBBX genes share some common pathways in plant developmental regulation. The promoter-related elements CCAAT-box and TATA-box were found in all AdBBX promoter regions and likely constitute the basic components of the promoters. The light-responsive element, Box4, was identified in all AdBBX promoters except that of AdBBX13 (Table S1), indicating that AdBBX genes play important roles in Box4-mediated light response pathways.

3.7. Expression Patterns of AdBBX Genes in Different Tissues

To shed light on the potential functions of AdBBX genes during plant development, we investigated the expression levels of the 24 AdBBX genes in 22 different tissues (Figure 8). AdBBX genes showed distinct expression patterns among tissues, highlighting their functional diversity. For example, AdBBX1 and AdBBX23 were expressed at high levels in most tissues. In contrast, AdBBX3, AdBBX5, AdBBX15, AdBBX18, and AdBBX24 showed low expression in all tissues, suggesting that they may function only during specific stages of development in these tissues. AdBBX21 was expressed at high levels in root nodules but showed low expression in other tissues, including roots, indicating that it may be involved in the formation of A. duranensis root nodules.
CO homologs are key factors in flowering time regulation in many species, and we therefore investigated the expression of A. duranensis orthologs of Arabidopsis CO and rice Hd1 (i.e., AdBBX8 and AdBBX24). AdBBX8 was highly expressed in leaves, flowers, pistils, and Aerial Gyn Ti, while AdBBX24 was expressed at low levels in all tissues. Some duplicated gene pairs, such as AdBBX3/AdBBX15, were expressed at similar levels in all tissues (Figure 8), suggesting functional conservation in the duplicated genes. In contrast, other duplicated pairs differed in their expression patterns. For example, AdBBX9 was highly expressed in leaves and roots, while its duplicate AdBBX4 exhibited low expression in the same tissues (Figure 8).

4. Discussion

In the past decades, the characterization of BBX genes, such as Arabidopsis CO and rice Hd1, has greatly increased our understanding of the molecular mechanisms involved in plant development. Peanut is an important crop around the world and provides essential oil for daily life, thus the investigation of peanut BBX genes is therefore useful for understanding and improving peanut development. In this study, we identified and characterized 24 BBX proteins from the wild peanut A. duranensis and carried out a comprehensive analysis of these genes.
BBX genes have changed during plant evolution, and the numbers and types of BBXs vary among different species [3,4,7,8,54]. For example, A. duranensis, Arabidopsis, rice, and pear contain 24, 32, 30, and 25 BBX members, respectively, and class IV contains the largest number of BBX genes in each species (Table S2). The genome sizes of diploid A. duranensis [33,55], Arabidopsis [56], rice [57], and pear [58] are 1.25 GB, 125 Mb, 466 Mb, and 512 Mb, respectively. Thus, genome size has no direct relationship to the number of BBX genes in these plants. Genes containing both BBX and CCT domains encode CO or CO-like (COL) proteins, and many Arabidopsis CO-like genes (COL) are thought to be involved in circadian clock or flowering time regulation [4]. Approximately half of the BBX proteins are identified as CO or COL members (classes I, II, and III) (Figure 4) in Arabidopsis (53.13%), rice (56.67%), pear (44%), and A. duranensis (45.83%), suggesting that the evolution of CO and COL genes may be broadly conserved in these plants. In addition, the genome size of A. hypogaea (40 BBX members) is close to the sum of A. duranensis and A. ipaensis genomes, but the number of BBX genes in A. hypogaea is less than the sum of those in the A. duranensis (24 BBX members) and A. ipaensis (25 BBX members) genomes, indicating that BBX genes might be lost during evolution.
The cis-acting elements in promoter regions influence gene transcription, and differences in the type and number of cis-acting elements are responsible for differences in gene expression. AtBBX genes participate in the regulation of many pathways, including flowering time, the circadian clock, abiotic stress response, and photomorphogenesis [3,4]. Different numbers and types of cis-acting elements were found in the AdBBX promoter regions, underscoring the functional diversity of these genes. Many BBX genes in Arabidopsis are involved in light input signal pathways [4]. Light responsive elements were the most abundant elements in each of the AdBBX promoters, suggesting that AdBBXs may also be involved in light-dependent regulation pathways. Moreover, many cis-acting elements were also identified in the promoter regions of low expressed genes, including AdBBX3, AdBBX5, AdBBX15, AdBBX18, and AdBBX24 (Figure 8). Many factors in addition to cis-acting elements affect gene expression in plants. For example, epigenetic modification and somatic genome variation also influence gene expression in many organisms [59]. Whether low-expressed AdBBX genes were influenced by these factors requires further investigation.
CO is an important factor involved in the regulation of flowering time in Arabidopsis, and it is highly expressed at the apex of seedlings and young leaves [60]. CO accelerates flowering time by activating the transcription of the Rafkinase inhibitor protein (RAF)-kinase-inhibitor-like protein, FT. AdBBX8 and AdBBX24 are close A. duranensis homologs of CO (Figure S4). Soybean CO orthologs, GmCOL1a, GmCOL1b, GmCOL2a, and GmCOL2b, are also involved in flowering time regulation [61]. Genes derived from the same common ancestor may have similar functions, and we therefore investigated synteny relationships among CO orthologs/homologs from soybean (GmCOL1a, GmCOL1b, GmCOL2a, and GmCOL2b) and A. duranensis (AdBBX8 and AdBBX24) (Figure S8). Synteny analysis revealed that AdBBX8 had a closer relationship to soybean GmCOL1a and GmCOL1b than did AdBBX24. In contrast, AdBBX8 and AdBBX24 showed similar close relationships to soybean GmCOL2a and GmCOL2b. AdBBX8 was expressed highly in leaves, flowers, pistils, and aerial gyn Ti, but AdBBX24 exhibited extremely low expression in all tissues (Figure 8). These results suggest that AdBBX8 may play a similar role to CO in flowering time regulation, and that AdBBX24 may be a redundant gene that has lost its functions during evolution. In addition, CO is regulated by the circadian clock and its expression changes during the day [62]. AdBBX24 may therefore be expressed at a different time of day than the one at which the plants were sampled. Much work remains to be done to fully understand the functions of AdBBX8 and AdBBX24 in flowering time regulation.
Gene duplication produces new genes during evolution in many species. Some duplicated genes lose function, and some evolve new functions, compared to the original gene [63,64]. As a result, the allotetraploid Arachis hypogaea produces much more duplicated events than the sum of that in wild species Arachis duranensis and Arachis ipaensis (Figures S6 and S7). Two duplicated gene pairs were found in A. duranensis, and these duplication events occurred in class II and IV subfamilies, respectively, whose members contains two BBX domains (Figure 6). In addition, duplicated gene pairs had different exon–intron structures (Figure 5a), and their cis-acting promoter elements differed (Table 2), indicating functional differentiation of these gene pairs during evolution. The duplicated gene pairs contained similar motifs (Figure 5b), and some duplicated genes showed similar expression in specific tissues, such as AdBBX2/AdBBX17 (Figure 8), indicating that these duplicated genes may have retained some original functions and may participate in common pathways.

5. Conclusions

In the present study, we identified and characterized 24 BBX genes from wild peanut, A. duranensis. We investigated their conserved domains, gene structures, phylogenetic relationships, chromosomal distributions, gene duplications, synteny relationships, cis-acting elements, and gene expression. Our results will not only be useful for understanding AdBBX genes but will also provide essential information for further functional analysis of these genes in A. duranensis.

Supplementary Materials

Supplementary Materials can be found at https://www.mdpi.com/2073-4395/10/1/23/s1. Figure S1. Phylogenetic analysis of AiBBX proteins. A phylogenetic tree was generated from protein sequences in MEGA 7 using the neighbor-joining method. The yellow, red, blue, purple, and green gene names indicate class I, II, III, IV, and V members, respectively. Figure S2. Phylogenetic analysis of AhBBX proteins. A phylogenetic tree was generated from protein sequences in MEGA 7 using the neighbor-joining method. The yellow, red, blue, purple, and green gene names indicate class I, II, III, IV, and V members, respectively. Figure S3. Phylogenetic analysis of AdBBX, AiBBX, and AhBBX proteins. A phylogenetic tree was generated from protein sequences in MEGA 7 using the neighbor-joining method. The yellow, red, blue, purple, and green gene names indicate class I, II, III, IV, and V members, respectively. Figure S4. Evolutionary relationship analysis of AdBBX proteins. Amino acid sequences of BBX proteins from A. duranensis, rice, and Arabidopsis were used to generate a phylogenetic tree with MEGA 7.0 using the neighbor-joining method. Figure S5. Sequence logos of 15 distinct motifs in 24 AdBBX proteins. Figure S6. Duplication analysis of AiBBX genes. The chromosomes are indicated by different colors, and the duplicated gene pairs are marked with lines. Figure S7. Duplication analysis of AhBBX genes. The chromosomes are indicated by different colors, and the duplicated gene pairs are marked with lines. Figure S8. Synteny analysis of CO orthologs/homologs in soybean and A. duranensis. The putative orthologous genes surrounding CO orthologs/homologs from soybean (GmCOL1a, GmCOL1b, GmCOL2a, and GmCOL2b) and A. duranensis (AdBBX8 and AdBBX24) were identified by BLASTP search. Synteny between AdBBX8, AdBBX24, and (a) GmCOL1a, (b) GmCOL1b, (c) GmCOL2a, and (d) GmCOL2b are shown. The red boxes indicate our target genes, and the green boxes indicate genes surrounding the CO orthologs/homologs. Gm, Glycine max. Table S1. Function analysis of the cis-acting elements in AdBBX promoter regions. The classifications, names, and putative functions of related cis-acting elements are predicted and listed. Table S2. The numbers and types of BBX proteins in Arabidopsis, rice, pear, and Arachis duranensis.

Author Contributions

S.L. conceived and designed the experiments and wrote the manuscript. H.J. and M.X. conducted the experiments, bioinformatics work, and created the figures. C.C. contributed with valuable discussions and edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (grant 31971898, 31601372), and the Qingdao Agricultural University Scientific Research Foundation (grant 6631115039, 6631119010).

Acknowledgments

The authors thank the reviewers for their valuable suggestions during the revision of the manuscripts.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

BBXB-box
CCTCONSTANS, CONSTANS-LIKE and TIMING OF CAB1
LDLong day
SDShort day
VPvaline-proline
COCONSTANS
CORECO-responsive elements
FTFLOWERING LOCUS T
COLCO-like
GSDSGene Structure Display Server program
ABAAbscisic acid
GAGibberellic acid
AdArachis duranensis
GmGlycine max
OsOryza sativa
pIIsoelectric point
MWMolecular weight

References

  1. Riechmann, J.L.; Heard, J.; Martin, G.; Reuber, L.; Jiang, C.; Keddie, J.; Adam, L.; Pineda, O.; Ratcliffe, O.J.; Samaha, R.R.; et al. Arabidopsis transcription factors: Genome-wide comparative analysis among eukaryotes. Science 2000, 290, 2105–2110. [Google Scholar] [CrossRef] [PubMed]
  2. Kielbowicz-Matuk, A. Involvement of plant C2H2-type zinc finger transcription factors in stress responses. Plant Sci. 2012, 185–186, 78–85. [Google Scholar] [CrossRef] [PubMed]
  3. Khanna, R.; Kronmiller, B.; Maszle, D.R.; Coupland, G.; Holm, M.; Mizuno, T.; Wu, S.H. The Arabidopsis B-Box zinc finger family. Plant Cell 2009, 21, 3416–3420. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Gangappa, S.N.; Botto, J.F. The BBX family of plant transcription factors. Trends Plant Sci. 2014, 19, 460–470. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, W.; Yuan, J.; Cheng, T.; Tang, M.; Sun, K.; Song, S.; Xu, F.; Dai, C. Flowering-mediated root-fungus symbiosis loss is related to jasmonate-dependent root soluble sugar deprivation. Plant Cell Environ. 2019, 1–19. [Google Scholar] [CrossRef] [PubMed]
  6. Ronald, J.; Davis, S.J. Focusing on the nuclear and subnuclear dynamics of light and circadian signalling. Plant Cell Environ. 2019, 42, 2871–2884. [Google Scholar] [CrossRef]
  7. Huang, J.; Zhao, X.; Weng, X.; Wang, L.; Xie, W. The rice B-Box zinc finger gene family: Genomic identification, characterization, expression profiling and diurnal analysis. PLoS ONE 2012, 7, e48242. [Google Scholar] [CrossRef] [Green Version]
  8. Cao, Y.; Han, Y.; Meng, D.; Li, D.; Jiao, C.; Jin, Q.; Lin, Y.; Cai, Y. B-BOX genes: Genome-wide identification, evolution and their contribution to pollen growth in pear (Pyrus bretschneideri Rehd.). BMC Plant Biol. 2017, 17, 156. [Google Scholar] [CrossRef] [Green Version]
  9. Shalmani, A.; Jing, X.Q.; Shi, Y.; Muhammad, I.; Zhou, M.R.; Wei, X.Y.; Chen, Q.Q.; Li, W.Q.; Liu, W.T.; Chen, K.M. Characterization of B-BOX gene family and their expression profiles under hormonal, abiotic and metal stresses in Poaceae plants. BMC Genom. 2019, 20, 27. [Google Scholar] [CrossRef]
  10. Massiah, M.A.; Simmons, B.N.; Short, K.M.; Cox, T.C. Solution structure of the RBCC/TRIM B-box1 domain of human MID1: B-box with a RING. J. Mol. Biol. 2006, 358, 532–545. [Google Scholar] [CrossRef]
  11. Massiah, M.A.; Matts, J.A.; Short, K.M.; Simmons, B.N.; Singireddy, S.; Yi, Z.; Cox, T.C. Solution structure of the MID1 B-box2 CHC(D/C)C2H2 Zinc-binding domain: Insights into an evolutionarily conserved RING fold. J. Mol. Biol. 2007, 369, 1–10. [Google Scholar] [CrossRef] [PubMed]
  12. Crocco, C.D.; Botto, J.F. BBX proteins in green plants: Insights into their evolution, structure, feature and functional diversification. Gene 2013, 531, 44–52. [Google Scholar] [CrossRef] [PubMed]
  13. Griffiths, S.; Dunford, R.P.; Coupland, G.; Laurie, D.A. The evolution of CONSTANS-like gene families in barley, rice, and Arabidopsis. Plant Physiol. 2003, 131, 1855–1867. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Putterill, J.; Robson, F.; Lee, K.; Simon, R.; Coupland, G. The CONSTANS gene of Arabidopsis promotes flowering and encodes a protein showing similarities to zinc finger transcription factors. Cell 1995, 80, 847–857. [Google Scholar] [CrossRef] [Green Version]
  15. Samach, A.; Onouchi, H.; Gold, S.E.; Ditta, G.S.; Schwarz-Sommer, Z.; Yanofsky, M.F.; Coupland, G. Distinct roles of CONSTANS target genes in reproductive development of Arabidopsis. Science 2000, 288, 1613–1616. [Google Scholar] [CrossRef] [Green Version]
  16. Valverde, F.; Mouradov, A.; Soppe, W.; Ravenscroft, D.; Samach, A.; Coupland, G. Photoreceptor regulation of CONSTANS protein in photoperiodic flowering. Science 2004, 303, 1003–1006. [Google Scholar] [CrossRef] [Green Version]
  17. Tiwari, S.B.; Shen, Y.; Chang, H.C.; Hou, Y.; Harris, A.; Ma, S.F.; McPartland, M.; Hymus, G.J.; Adam, L.; Marion, C.; et al. The flowering time regulator CONSTANS is recruited to the FLOWERING LOCUS T promoter via a unique cis-element. New Phytol. 2010, 187, 57–66. [Google Scholar] [CrossRef]
  18. Wenkel, S.; Turck, F.; Singer, K.; Gissot, L.; Le Gourrierec, J.; Samach, A.; Coupland, G. CONSTANS and the CCAAT Box binding complex share a functionally important domain and interact to regulate flowering of Arabidopsis. Plant Cell 2006, 18, 2971–2984. [Google Scholar] [CrossRef] [Green Version]
  19. Ben-Naim, O.; Eshed, R.; Parnis, A.; Teper-Bamnolker, P.; Shalit, A.; Coupland, G.; Samach, A.; Lifschitz, E. The CCAAT binding factor can mediate interactions between CONSTANS-like proteins and DNA. Plant J. 2006, 46, 462–476. [Google Scholar] [CrossRef] [Green Version]
  20. Luccioni, L.; Krzymuski, M.; Sánchez-Lamas, M.; Karayekov, E.; Cerdán, P.D.; Casal, J.J. CONSTANS delays Arabidopsis flowering under short days. Plant J. 2019, 97, 923–932. [Google Scholar] [CrossRef]
  21. Luo, X.; Gao, Z.; Wang, Y.; Chen, Z.; Zhang, W.; Huang, J.; Yu, H.; He, Y. The NUCLEAR FACTOR-CONSTANS complex antagonizes Polycomb repression to derepress FLOWERING LOCUS T expression in response to inductive long days in Arabidopsis. Plant J. 2018, 95, 17–29. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Yano, M.; Katayose, Y.; Ashikari, M.; Yamanouchi, U.; Monna, L.; Fuse, T.; Baba, T.; Yamamoto, K.; Umehara, Y.; Nagamura, Y.; et al. Hd1, a major photoperiod sensitivity quantitative trait locus in rice, is closely related to the Arabidopsis flowering time gene CONSTANS. Plant Cell 2000, 12, 2473–2483. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Li, S.; Ying, Y.; Secco, D.; Wang, C.; Narsai, R.; Whelan, J.; Shou, H. Molecular interaction between PHO2 and GIGANTEA reveals a new crosstalk between flowering time and phosphate homeostasis in Oryza sativa. Plant Cell Enviton. 2017, 40, 1487–1499. [Google Scholar] [CrossRef] [PubMed]
  24. Komiya, R.; Ikegami, A.; Tamaki, S.; Yokoi, S.; Shimamoto, K. Hd3a and RFT1 are essential for flowering in rice. Development 2008, 135, 767–774. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Komiya, R.; Yokoi, S.; Shimamoto, K. A gene network for long-day flowering activates RFT1 encoding a mobile flowering signal in rice. Development 2009, 136, 3443–3450. [Google Scholar] [CrossRef] [Green Version]
  26. Kochert, G.; Halward, T.; Branch, W.D.; Simpson, C.E. RFLP variability in peanut (Arachis hypogaea L.) cultivars and wild species. Theor. Appl. Genet. 1991, 81, 565–570. [Google Scholar] [CrossRef]
  27. Beinecke, F.A.; Grundmann, L.; Wiedmann, D.R.; Schmidt, F.J.; Caesar, A.S.; Zimmermann, M.; Lahme, M.; Twyman, R.M.; Prufer, D.; Noll, G.A. The FT/FD-dependent initiation of flowering under long-day conditions in the day-neutral species Nicotiana tabacum originates from the facultative short-day ancestor Nicotiana tomentosiformis. Plant J. 2018, 96, 329–342. [Google Scholar] [CrossRef] [Green Version]
  28. Wu, F.; Sedivy, E.J.; Price, W.B.; Haider, W.; Hanzawa, Y. Evolutionary trajectories of duplicated FT homologues and their roles in soybean domestication. Plant J. 2017, 90, 941–953. [Google Scholar] [CrossRef] [Green Version]
  29. Eom, H.; Park, S.J.; Kim, M.K.; Kim, H.; Kang, H.; Lee, I. TAF15b, involved in the autonomous pathway for flowering, represses transcription of FLOWERING LOCUS C. Plant J. 2018, 93, 79–91. [Google Scholar] [CrossRef] [Green Version]
  30. Jing, Y.; Guo, Q.; Zha, P.; Lin, R. The chromatin-remodelling factor PICKLE interacts with CONSTANS to promote flowering in Arabidopsis. Plant Cell Environ. 2019, 42, 2495–2507. [Google Scholar] [CrossRef]
  31. Jin, H.; Tang, X.; Xing, M.; Zhu, H.; Sui, J.; Cai, C.; Li, S. Molecular and transcriptional characterization of phosphatidyl ethanolamine-binding proteins in wild peanuts Arachis duranensis and Arachis ipaensis. BMC Plant Biol. 2019, 19, 484. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Moretzsohn, M.C.; Gouvea, E.G.; Inglis, P.W.; Leal-Bertioli, S.C.; Valls, J.F.; Bertioli, D.J. A study of the relationships of cultivated peanut (Arachis hypogaea) and its most closely related wild species using intron sequences and microsatellite markers. Ann. Bot. 2013, 111, 113–126. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Bertioli, D.J.; Cannon, S.B.; Froenicke, L.; Huang, G.; Farmer, A.D.; Cannon, E.K.; Liu, X.; Gao, D.; Clevenger, J.; Dash, S.; et al. The genome sequences of Arachis duranensis and Arachis ipaensis, the diploid ancestors of cultivated peanut. Nat. Genet. 2016, 48, 438–446. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, X.; Li, H.; Pandey, M.K.; Yang, Q.; Wang, X.; Garg, V.; Li, H.; Chi, X.; Doddamani, D.; Hong, Y.; et al. Draft genome of the peanut A-genome progenitor (Arachis duranensis) provides insights into geocarpy, oil biosynthesis, and allergens. Proc. Natl. Acad. Sci. USA 2016, 113, 6785–6790. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Bertioli, D.J.; Jenkins, J.; Clevenger, J.; Dudchenko, O.; Gao, D.; Seijo, G.; Leal-Bertioli, S.C.M.; Ren, L.; Farmer, A.D.; Pandey, M.K.; et al. The genome sequence of segmental allotetraploid peanut Arachi shypogaea. Nat. Genet. 2019, 51, 877–884. [Google Scholar] [CrossRef] [Green Version]
  36. Chen, X.; Lu, Q.; Liu, H.; Zhang, J.; Hong, Y.; Lan, H.; Li, H.; Wang, J.; Liu, H.; Li, S.; et al. Sequencing of cultivated peanut, Arachis hypogaea, yields insights into genome evolution and oil improvement. Mol. Plant 2019, 12, 920–934. [Google Scholar] [CrossRef] [Green Version]
  37. Zhuang, W.; Chen, H.; Yang, M.; Wang, J.; Pandey, M.K.; Zhang, C.; Chang, W.C.; Zhang, L.; Zhang, X.; Tang, R.; et al. The genome of cultivated peanut provides insight into legume karyotypes, polyploid evolution and crop domestication. Nat. Genet. 2019, 51, 865–876. [Google Scholar] [CrossRef]
  38. El-Gebali, S.; Mistry, J.; Bateman, A.; Eddy, S.; Luciani, A.; Potter, S.; Qureshi, M.; Richardson, L.; Salazar, G.; Smart, A.; et al. The Pfam protein families database in 2019. Nucleic Acids Res. 2019, 47, 427–432. [Google Scholar] [CrossRef]
  39. Finn, R.; Attwood, T.; Babbitt, P.; Bateman, A.; Bork, P.; Bridge, A.; Chang, H.; Dosztányi, Z.; El-Gebali, S.; Fraser, M.; et al. InterPro in 2017–beyond protein family and domain annotations. Nucleic Acids Res. 2017, 45, 190–199. [Google Scholar] [CrossRef]
  40. Gasteiger, E.; Hoogland, C.; Gattiker, A.; Duvaud, S.; Wilkins, M.R.; Appel, R.D.; Bairoch, A. Protein identification and analysis tools in the ExPASy Server. In The Proteomics Protocols Handbook; John, M.W., Ed.; Humana Press: New York, NY, USA, 2005; pp. 571–607. [Google Scholar]
  41. Oliver, T.; Schmidt, B.; Nathan, D.; Clemens, R.; Maskell, D. Using reconfigurable hardware to accelerate multiple sequence alignment with clustalw. Bioinformatics 2005, 21, 3431–3432. [Google Scholar] [CrossRef]
  42. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Hu, B.; Jin, J.; Guo, A.Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0. An upgraded gene feature visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Bailey, T.L.; Boden, M.; Buske, F.A.; Frith, M.; Grant, C.E.; Clementi, L.; Ren, J.; Li, W.W.; Noble, W.S. Meme suite: Tools for motif discovery and searching. Nucleic Acids Res. 2009, 37, W202–W208. [Google Scholar] [CrossRef] [PubMed]
  45. Crooks, G.E.; Hon, G.; Chandonia, J.M.; Brenner, S.E. WebLogo: A sequence logogenerator. Genome Res. 2004, 14, 1188–1190. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Zhang, D.; Zhao, M.; Li, S.; Sun, L.; Wang, W.; Cai, C.; Dierking, E.C.; Ma, J. Plasticity and innovation of regulatory mechanisms underlying seed oil content mediated by duplicated genes in the palaeopolyploid soybean. Plant J. 2017, 90, 1120–1133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Li, S.; Ding, Y.; Zhang, D.; Wang, X.; Tang, X.; Dai, D.; Jin, H.; Lee, S.H.; Cai, C.; Ma, J. Parallel domestication with a broad mutational spectrum of determinate stem growth habit in leguminous crops. Plant J. 2018, 96, 761–771. [Google Scholar] [CrossRef] [Green Version]
  48. Fischer, S.; Brunk, B.P.; Chen, F.; Gao, X.; Harb, O.S.; Iodice, J.B.; Shanmugam, D.; Roos, D.S.; Stoeckert, C.J. Using OrthoMCL to assign proteins to OrthoMCL-DB groups or to cluster proteomes into new ortholog groups. Curr. Protoc. Bioinformatics 2011, 35, 1–19. [Google Scholar]
  49. Krzywinski, M.; Schein, J.; Birol, I.; Connors, J.; Gascoyne, R.; Horsman, D.; Jones, S.J.; Marra, M.A. Circos: An information aesthetic for comparative genomics. Genome Res. 2009, 19, 1639–1645. [Google Scholar] [CrossRef] [Green Version]
  50. Hou, L.; Zhang, Z.; Dou, S.; Zhang, Y.; Pang, X.; Li, Y. Genome-wide identification, characterization, and expression analysis of the expansin gene family in Chinese jujube (Zizi phusjujuba Mill.). Planta 2019, 249, 815–829. [Google Scholar] [CrossRef]
  51. Lescot, M.; Dehais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouze, P.; Rombauts, S. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef]
  52. Saeed, A.I.; Sharov, V.; White, J.; Li, J.; Liang, W.; Bhagabati, N.; Braisted, J.; Klapa, M.; Currier, T.; Thiagarajan, M.; et al. TM4: A free, open-source system for microarray data management and analysis. Biotechniques 2003, 34, 374–378. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Clevenger, J.; Chu, Y.; Scheffler, B.; Ozias-Akins, P. A developmental transcriptome map for allotetraploid Arachis hypogaea. Front. Plant Sci. 2016, 7, 1446. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Liu, X.; Li, R.; Dai, Y.; Chen, X.; Wang, X. Genome-wide identification and expression analysis of the B-box gene family in the Apple (Malus domestica Borkh.) genome. Mol. Genet. Genomics 2018, 293, 303–315. [Google Scholar] [CrossRef] [PubMed]
  55. Samoluk, S.S.; Robledo, G.; Podio, M.; Chalup, L.; Ortiz, J.P.; Pessino, S.C.; Seijo, J.G. First insight into divergence, representation and chromosome distribution of reverse transcriptase fragments from L1 retrotransposons in peanut and wild relative species. Genetica 2015, 143, 113–125. [Google Scholar] [CrossRef] [Green Version]
  56. Initiative, A.G. Analysis of the genome sequence of the flowering plant Arabidopsis thaliana. Nature 2000, 408, 796–815. [Google Scholar] [CrossRef] [Green Version]
  57. Yu, J.; Hu, S.; Wang, J.; Wong, G.K.-S.; Li, S.; Liu, B.; Deng, Y.; Dai, L.; Zhou, Y.; Zhang, X.; et al. A draft sequence of the rice genome (Oryza sativa L. ssp. indica). Science 2002, 296, 79–92. [Google Scholar] [CrossRef]
  58. Wu, J.; Wang, Z.; Shi, Z.; Zhang, S.; Ming, R.; Zhu, S.; Khan, M.A.; Tao, S.; Korban, S.S.; Wang, H.; et al. The genome of the pear (Pyrus bretschneideri Rehd.). Genome Res. 2013, 23, 396–408. [Google Scholar] [CrossRef] [Green Version]
  59. Li, X.Q.; Xing, T.; Du, D. Identification of top-ranked proteins withina directional protein interaction network using the pagerank algorithm: Applications in humans and plants. Curr. Issues Mol. Biol. 2016, 20, 13–28. [Google Scholar]
  60. An, H.; Roussot, C.; Suárez-López, P.; Corbesier, L.; Vincent, C.; Piñeiro, M.; Hepworth, S.; Mouradov, A.; Justin, S.; Turnbull, C.; et al. CONSTANS acts in the phloem to regulate a systemic signal that induces photoperiodic flowering of Arabidopsis. Development 2004, 131, 3615–3626. [Google Scholar] [CrossRef] [Green Version]
  61. Wu, F.; Price, B.W.; Haider, W.; Seufferheld, G.; Nelson, R.; Hanzawa, Y. Functional and evolutionary characterization of the CONSTANS gene family in short-day photoperiodic flowering in soybean. PLoS ONE 2014, 9, e85754. [Google Scholar] [CrossRef]
  62. Suárez-López, P.; Wheatley, K.; Robson, F.; Onouchi, H.; Valverde, F.; Coupland, G. CONSTANS mediates between the circadian clock and the control of flowering in Arabidopsis. Nature 2001, 410, 1116–1120. [Google Scholar] [CrossRef] [PubMed]
  63. Kondrashov, F.A.; Rogozin, I.B.; Wolf, Y.I.; Koonin, E.V. Selection in the evolution of gene duplications. Genome Biol. 2002, 3, research0008. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Wang, Z.; Zhou, Z.; Liu, Y.; Liu, T.; Li, Q.; Ji, Y.; Li, C.; Fang, C.; Wang, M.; Wu, M.; et al. Functional evolution of phosphatidyl ethanolamine binding proteins in soybean and Arabidopsis. Plant Cell 2015, 27, 323–336. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Agronomy 10 00023 g001 550

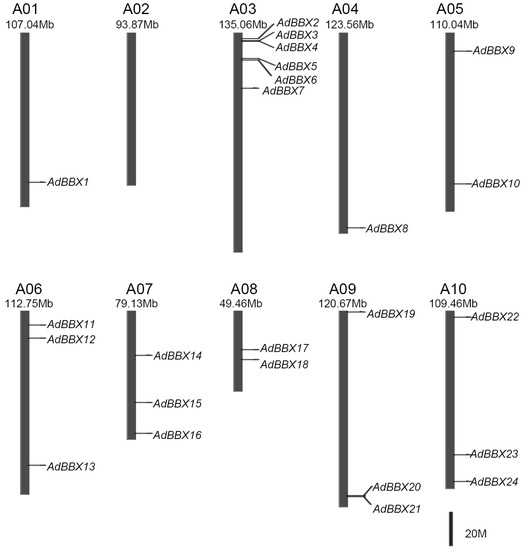

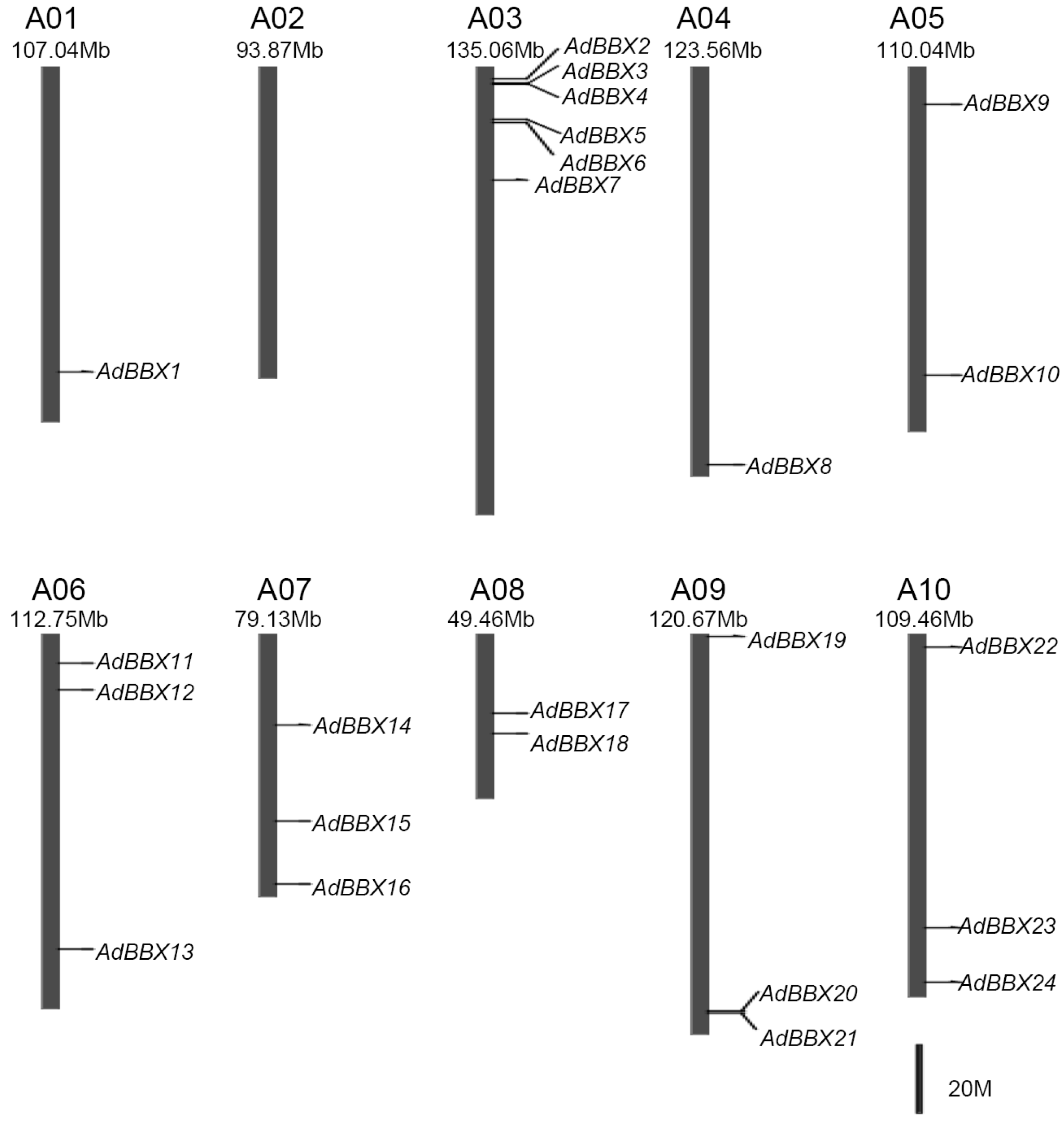

Figure 1. Chromosomal distribution of AdBBX genes. Chromosome number and length are shown.
Figure 1. Chromosomal distribution of AdBBX genes. Chromosome number and length are shown.
Agronomy 10 00023 g001
Agronomy 10 00023 g002 550

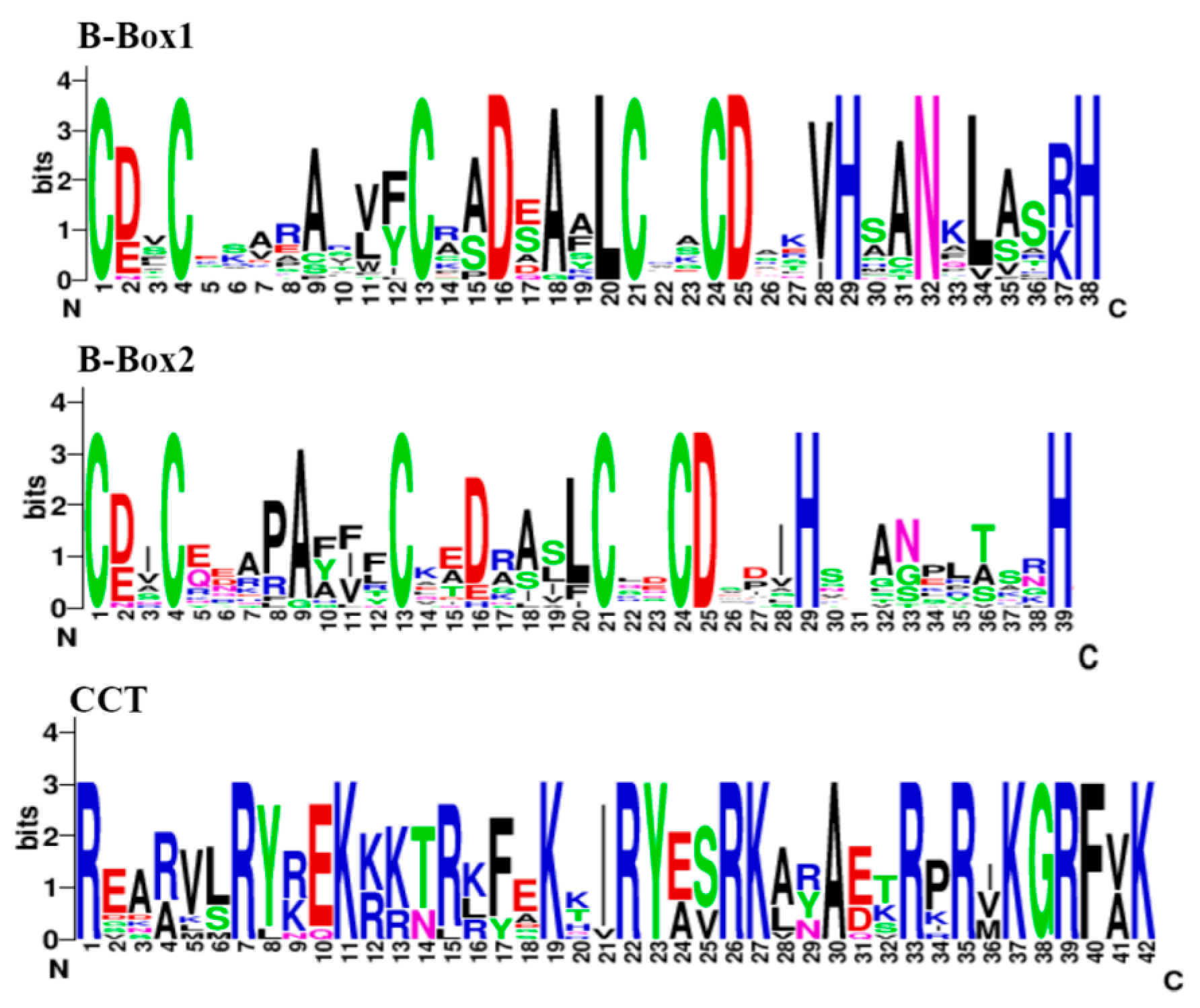

Figure 2. The motif logos of B-box1, B-box2, and CCT (CONSTANS, CONSTANS-LIKE, TOC1) domains. The x-axis indicates the conserved sequences of these domains, and the height of each letter indicates the conservation of each residue.
Figure 2. The motif logos of B-box1, B-box2, and CCT (CONSTANS, CONSTANS-LIKE, TOC1) domains. The x-axis indicates the conserved sequences of these domains, and the height of each letter indicates the conservation of each residue.
Agronomy 10 00023 g002
Agronomy 10 00023 g003 550

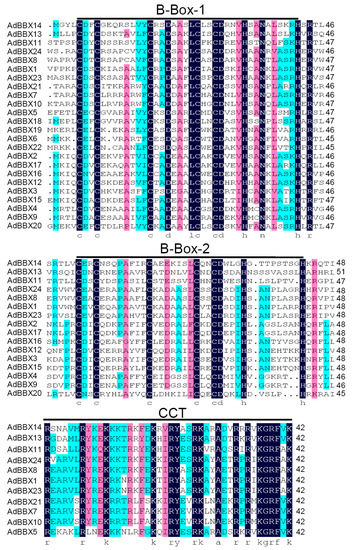

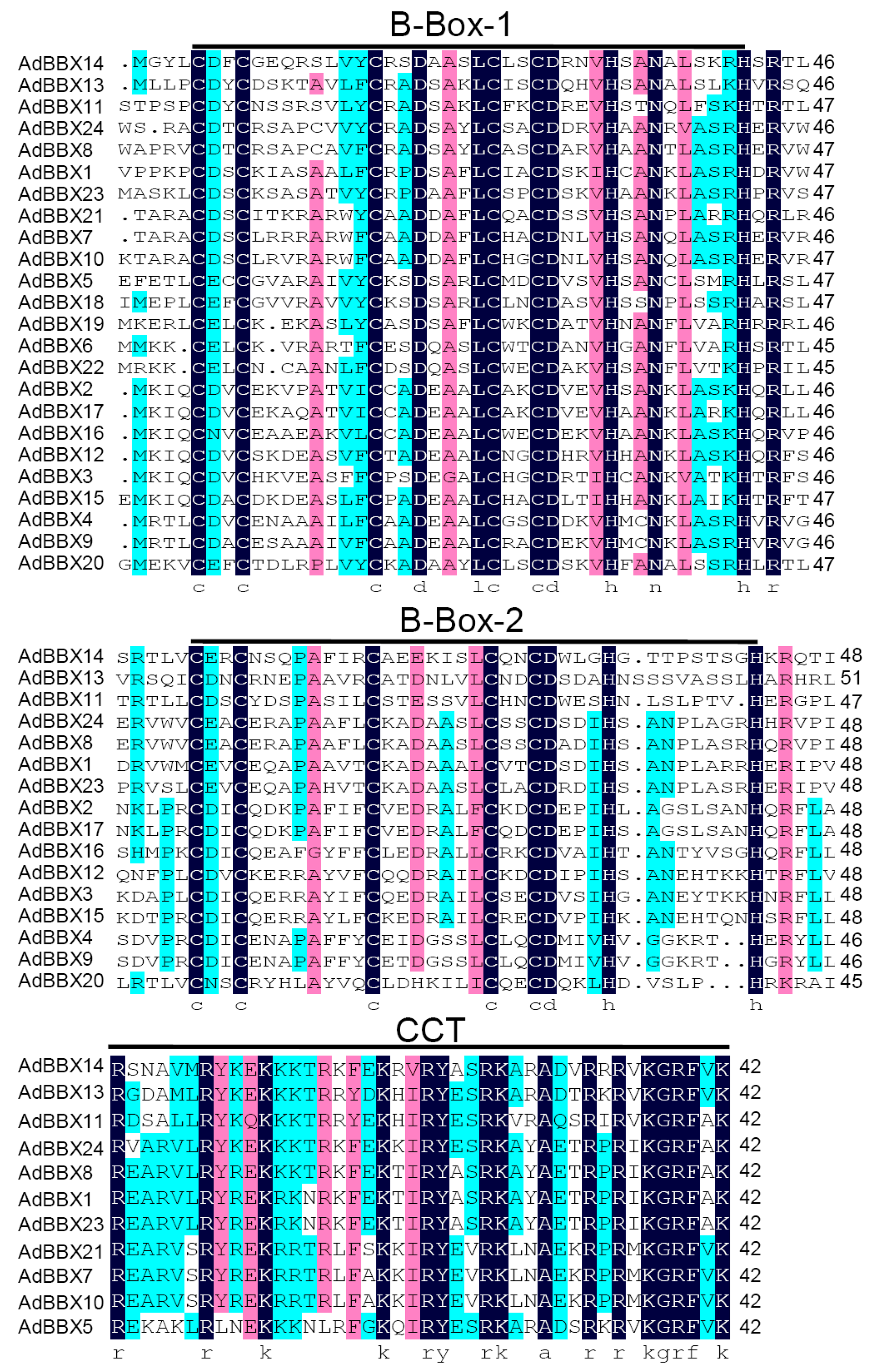

Figure 3. Multiple sequence alignments of B-box1, B-box2, and CCT domains. The amino acid sequences of the conserved B-box1, B-box2, and CCT domains were aligned, and identical and similar amino acids are shaded.
Figure 3. Multiple sequence alignments of B-box1, B-box2, and CCT domains. The amino acid sequences of the conserved B-box1, B-box2, and CCT domains were aligned, and identical and similar amino acids are shaded.
Agronomy 10 00023 g003
Agronomy 10 00023 g004 550

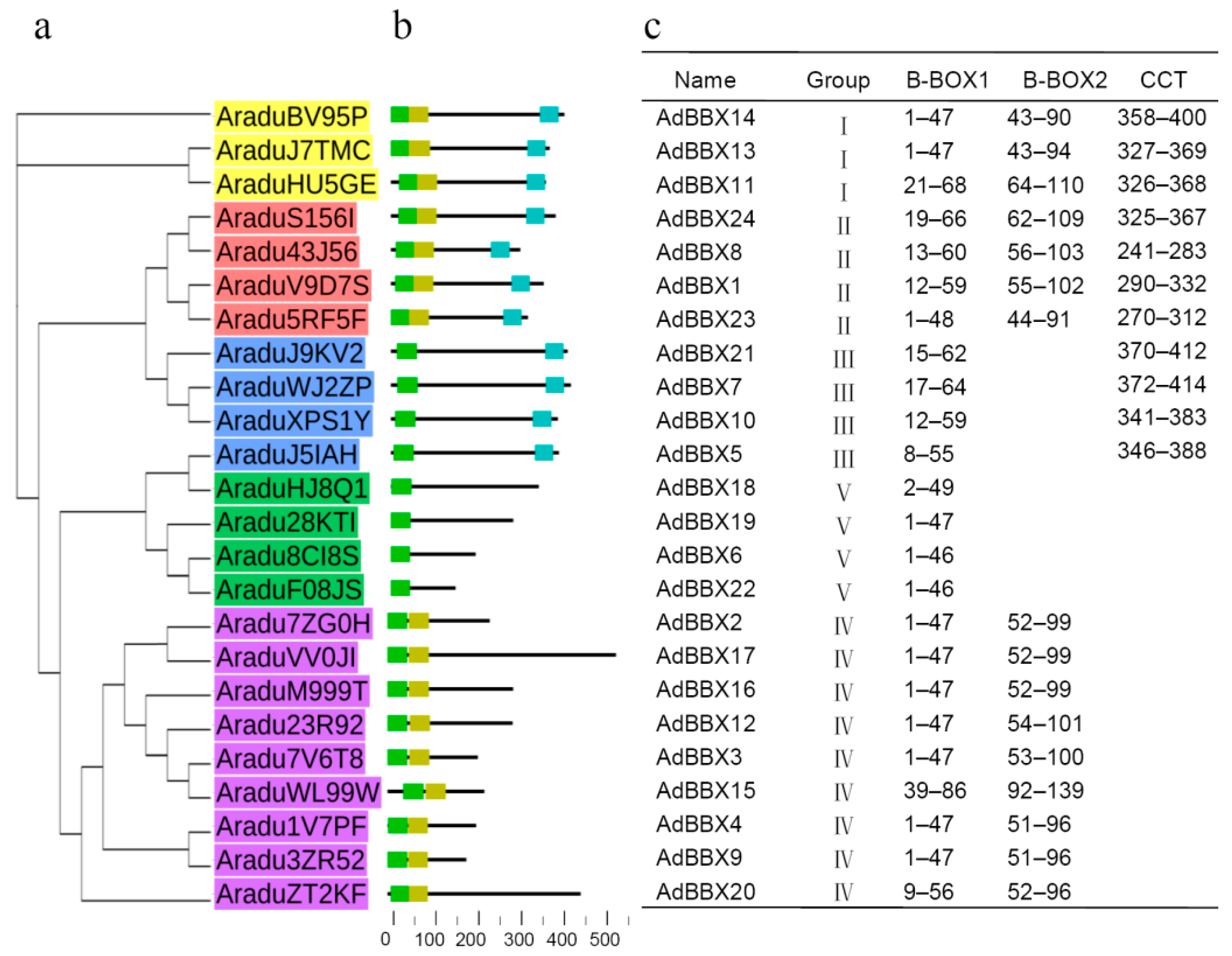

Figure 4. Phylogenetic and structure analyses of AdBBX proteins. (a) A phylogenetic tree was generated from protein sequences in MEGA 7 using the neighbor-joining method. The yellow, red, blue, purple, and green gene names indicate class I, II, III, IV, and V members, respectively. (b) The positions of conserved domains in each AdBBX protein are represented and the green, pale brown, and cyan boxes indicate B-box1, B-box2, and CCT domains, respectively. (c) The classification of AdBBX members and the position of each domain.
Figure 4. Phylogenetic and structure analyses of AdBBX proteins. (a) A phylogenetic tree was generated from protein sequences in MEGA 7 using the neighbor-joining method. The yellow, red, blue, purple, and green gene names indicate class I, II, III, IV, and V members, respectively. (b) The positions of conserved domains in each AdBBX protein are represented and the green, pale brown, and cyan boxes indicate B-box1, B-box2, and CCT domains, respectively. (c) The classification of AdBBX members and the position of each domain.
Agronomy 10 00023 g004
Agronomy 10 00023 g005 550

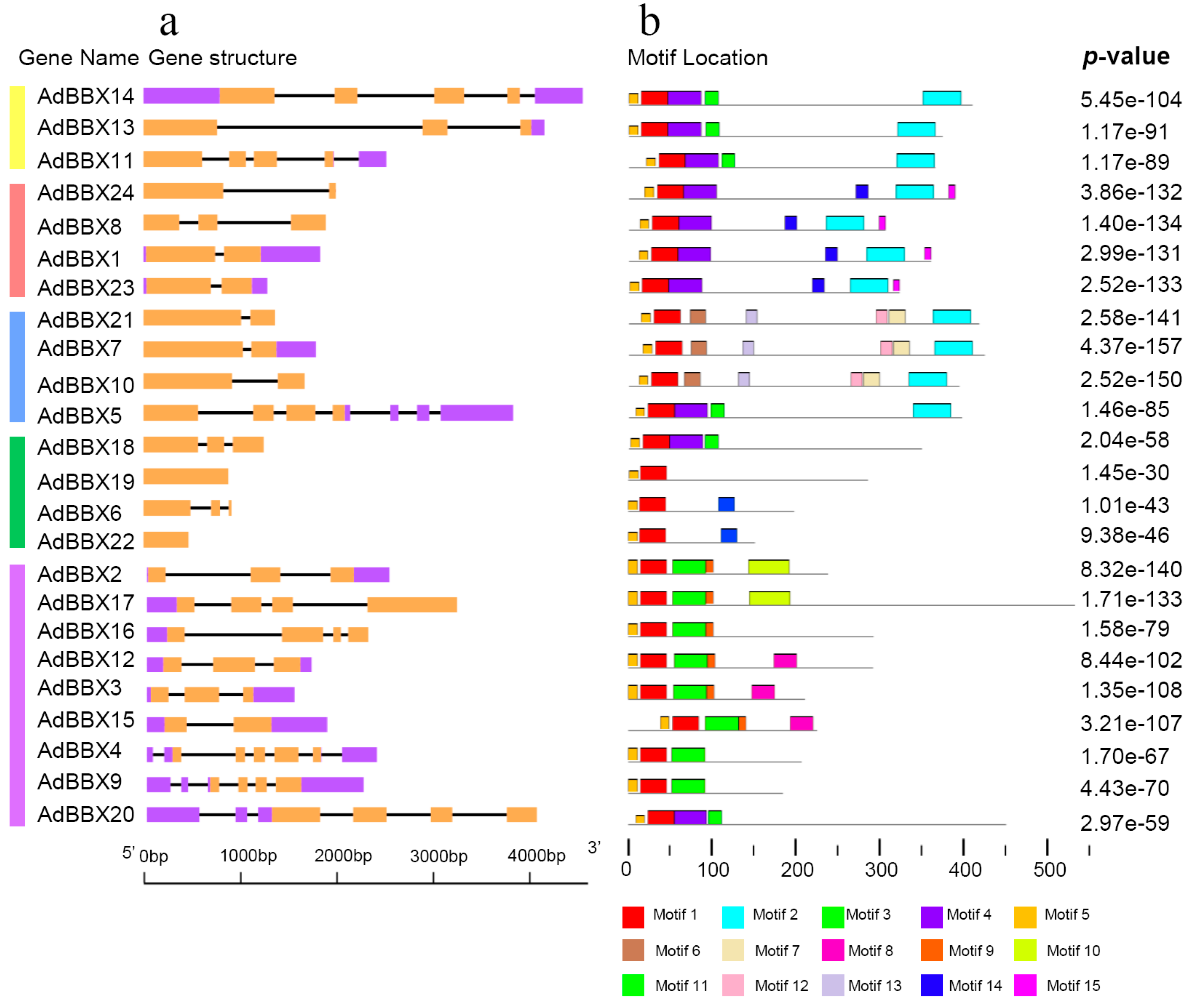

Figure 5. Analyses of exon–intron organization and conserved motifs of AdBBX genes. (a) The exon–intron organization of AdBBX genes. Purple, orange, and black boxes indicate untranslated regions (UTRs), exons, and introns, respectively. (b) The motifs of AdBBX proteins identified by MEME tools. Colored boxes 1–15 indicate different motifs.
Figure 5. Analyses of exon–intron organization and conserved motifs of AdBBX genes. (a) The exon–intron organization of AdBBX genes. Purple, orange, and black boxes indicate untranslated regions (UTRs), exons, and introns, respectively. (b) The motifs of AdBBX proteins identified by MEME tools. Colored boxes 1–15 indicate different motifs.
Agronomy 10 00023 g005
Agronomy 10 00023 g006 550

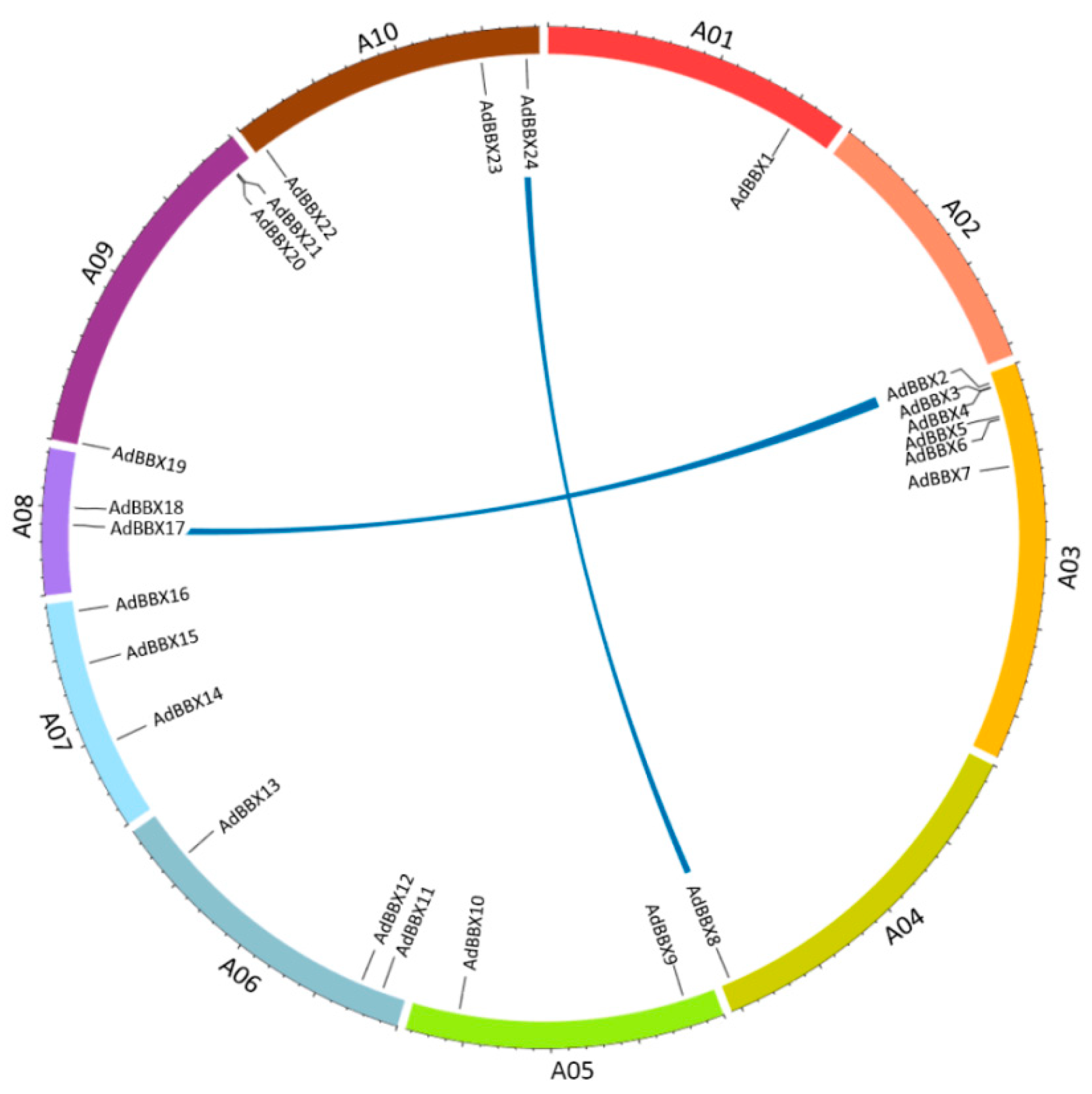

Figure 6. Duplication analyses of AdBBX genes. The chromosomes are indicated by different colors, and the duplicated gene pairs are marked with lines.
Figure 6. Duplication analyses of AdBBX genes. The chromosomes are indicated by different colors, and the duplicated gene pairs are marked with lines.
Agronomy 10 00023 g006
Agronomy 10 00023 g007 550

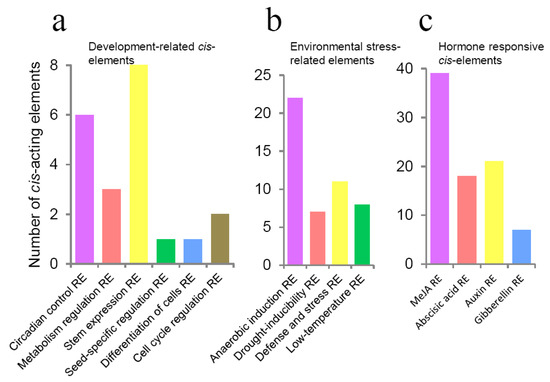

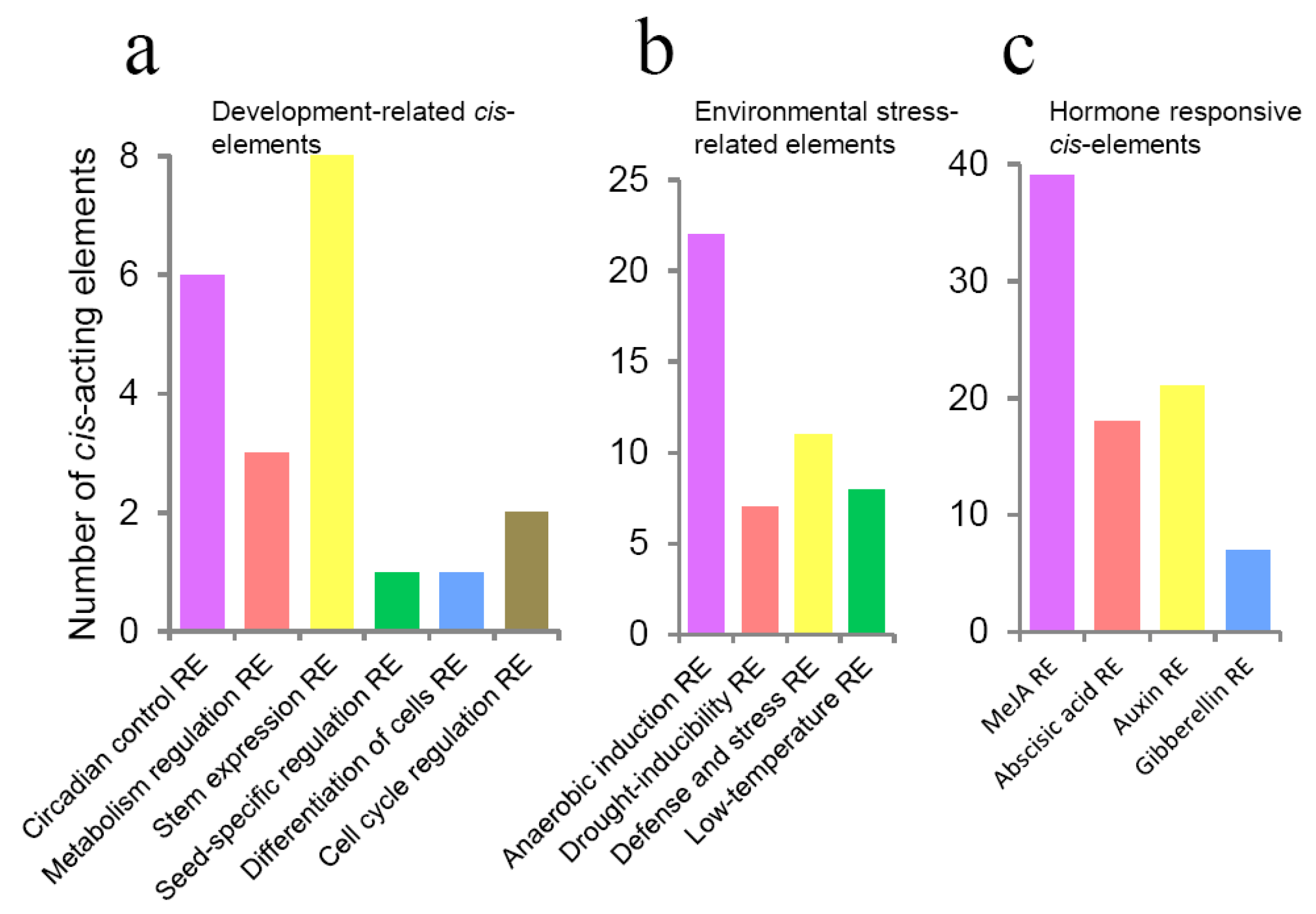

Figure 7. Cis-acting element analysis of AdBBX promoter regions. (a) Development-related cis-elements (circadian control, metabolism regulation, stem expression, seed-specific regulation, differentiation of cells, and cell cycle regulation) in AdBBX promoters. (b) Environmental stress–related cis-elements (anaerobic, drought, low temperature, and defense) in AdBBX promoter regions. (c) Hormone responsive cis-elements (abscisic acid, gibberellic acid, auxin, and jasmonic acid) in AdBBX promoter regions.
Figure 7. Cis-acting element analysis of AdBBX promoter regions. (a) Development-related cis-elements (circadian control, metabolism regulation, stem expression, seed-specific regulation, differentiation of cells, and cell cycle regulation) in AdBBX promoters. (b) Environmental stress–related cis-elements (anaerobic, drought, low temperature, and defense) in AdBBX promoter regions. (c) Hormone responsive cis-elements (abscisic acid, gibberellic acid, auxin, and jasmonic acid) in AdBBX promoter regions.
Agronomy 10 00023 g007
Agronomy 10 00023 g008 550

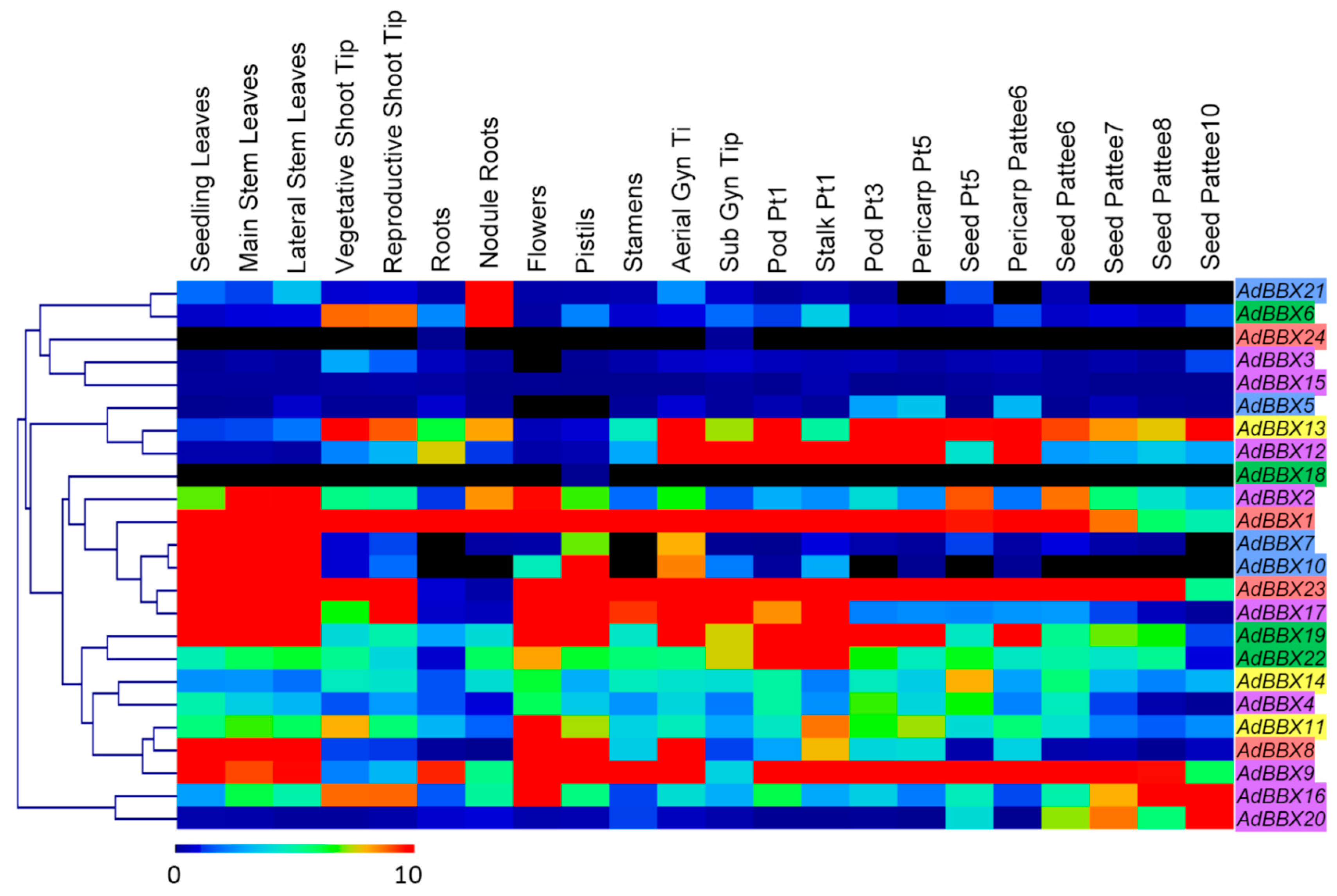

Figure 8. Expression patterns of AdBBX genes in 22 different tissues. Twenty-two peanut tissues were downloaded from the peanut genome database [53] and used for heat map analysis.
Figure 8. Expression patterns of AdBBX genes in 22 different tissues. Twenty-two peanut tissues were downloaded from the peanut genome database [53] and used for heat map analysis.
Agronomy 10 00023 g008
Table
Table 1. Identification of Arachis duranensis B-box (AdBBX) members.
Table 1. Identification of Arachis duranensis B-box (AdBBX) members.
Gene IDGenomic Length/bpCDS Length/bpNo.of AAGC%pIMol. Wt (Da)StrandChr5′ End3′ EndGene Name
AraduV9D7S1837109836548.89%6.5939,720.5+A0191,890,65791,892,493AdBBX1
Aradu7ZG0H251973524435.03%5.0926,830.5−A033,490,0433,492,561AdBBX2
Aradu7V6T8153565121636.81%5.6323,896.5+A034,936,0734,937,607AdBBX3
Aradu1V7PF239063921232.13%5.8323,720.7−A035,102,8925,105,281AdBBX4
AraduJ5IAH3841120940233.66%4.9844,409.8+A0315,759,93915,763,779AdBBX5
Aradu8CI8S91561220347.98%4.4822,189.3+A0316,814,09416,815,008AdBBX6
AraduWJ2ZP1792129343043.81%5.4848,100.6+A0333,948,19333,949,984AdBBX7
Aradu43J56189493331040.60%7.1233,922.1−A04120,041,625120,043,518AdBBX8
Aradu3ZR52225357018937.28%6.2320,945.9−A0511,384,52811,386,780AdBBX9
AraduXPS1Y1674120039937.46%5.545,440.5+A0593,078,33693,080,009AdBBX10
AraduHU5GE2523111337038.13%6.0341,278.9+A068,755,5618,758,083AdBBX11
Aradu23R92171190029939.22%6.3832,697.9+A0616,881,15616,882,866AdBBX12
AraduJ7TMC4164114037937.58%6.5741,756.3+A0694,914,15294,918,315AdBBX13
AraduBV95P4564124841537.12%5.1445,093.2−A0727,306,39727,310,960AdBBX14
AraduWL99W187369623139.14%6.7725,455.6−A0756,363,51756,365,389AdBBX15
AraduM999T230090330039.78%4.9832,359.4−A0775,340,46975,342,768AdBBX16
AraduVV0JI3222164154638.08%6.4461,012.7+A0823,797,35323,800,574AdBBX17
AraduHJ8Q11249106535440.30%4.6139,302.6+A0829,919,05529,920,303AdBBX18
Aradu28KTI88288229352.72%8.8532,390.3+A09592,000592,881AdBBX19
AraduZT2KF4052138946237.66%5.0351,996.2−A09113,442,542113,446,593AdBBX20
AraduJ9KV21368127242346.78%6.2447,360.9−A09114,055,561114,056,928AdBBX21
AraduF08JS46846815542.52%4.1617,020.4−A103,740,4213,740,888AdBBX22
Aradu5RF5F128798432751.83%6.5135,690.8−A1088,380,48688,381,772AdBBX23
AraduS156I2354118539435.39%4.8143,580+A10104,730,37610,473,2729AdBBX24
Chr, chromosome number; CDS, coding sequence; AA, amino acid; pI, isoelectric point; Mol. Wt, molecular weight.
Table
Table 2. Number and type of cis-acting elements in each AdBBX promoter region.
Table 2. Number and type of cis-acting elements in each AdBBX promoter region.
Gene NameDevelopment-Related ElementsEnvironmental Stress-Related ElementsHormone-Responsive ElementsLight-Responsive ElementsPromoter-Related ElementsSite-Binding Related ElementsOthers
AdBBX1215112117
AdBBX232363115
AdBBX301232015
AdBBX422332112
AdBBX511383116
AdBBX600332115
AdBBX722452219
AdBBX812182113
AdBBX903472116
AdBBX1012442018
AdBBX1112462317
AdBBX120145209
AdBBX1312272112
AdBBX14022112013
AdBBX1532454120
AdBBX16123102019
AdBBX1701592115
AdBBX1801372016
AdBBX19135102224
AdBBX2003362015
AdBBX2105493117
AdBBX2223382011
AdBBX2313563119
AdBBX2402672015

Share and Cite

MDPI and ACS Style

Jin, H.; Xing, M.; Cai, C.; Li, S. B-box Proteins in Arachis duranensis: Genome-Wide Characterization and Expression Profiles Analysis. Agronomy 2020, 10, 23. https://doi.org/10.3390/agronomy10010023

AMA Style

Jin H, Xing M, Cai C, Li S. B-box Proteins in Arachis duranensis: Genome-Wide Characterization and Expression Profiles Analysis. Agronomy. 2020; 10(1):23. https://doi.org/10.3390/agronomy10010023

Chicago/Turabian Style

Jin, Hanqi, Mengge Xing, Chunmei Cai, and Shuai Li. 2020. "B-box Proteins in Arachis duranensis: Genome-Wide Characterization and Expression Profiles Analysis" Agronomy 10, no. 1: 23. https://doi.org/10.3390/agronomy10010023

APA Style

Jin, H., Xing, M., Cai, C., & Li, S. (2020). B-box Proteins in Arachis duranensis: Genome-Wide Characterization and Expression Profiles Analysis. Agronomy, 10(1), 23. https://doi.org/10.3390/agronomy10010023

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
