Growth Response of Cassava to Deficit Irrigation and Potassium Fertigation during the Early Growth Phase

by
Daniel O. Wasonga
*,
Jouko Kleemola
,
Laura Alakukku
and
Pirjo S.A. Mäkelä
Department of Agricultural Sciences, University of Helsinki, P.O. Box 27, FIN-00014 Helsinki, Finland
*
Author to whom correspondence should be addressed.
Agronomy 2020, 10(3), 321; https://doi.org/10.3390/agronomy10030321
Submission received: 27 January 2020 / Revised: 14 February 2020 / Accepted: 24 February 2020 / Published: 26 February 2020
(This article belongs to the Special Issue Optimizing Plant Water Use Efficiency for a Sustainable Environment)
Browse Figures
Versions Notes

Abstract

:
Cassava (Manihot esculenta Crantz) experiences intermittent water deficit and suffers from potassium (K) deficiency that seriously constrains its yield in the tropics. Currently, the interaction effect between deficit irrigation and K fertigation on growth and yield of cassava is unknown, especially during the early growth phase. Therefore, pot experiments were conducted under controlled greenhouse conditions using cassava cuttings. Treatments initiated at 30 days after planting included three irrigation doses (30%, 60%, 100% pot capacity) and five K (0.01, 1, 4, 16, and 32 mM) concentrations. The plants were harvested 90 days after planting. Decreasing irrigation dose to 30% together with 16 mM K lowered the leaf water potential by 69%, leaf osmotic potential by 41%, photosynthesis by 35%, stomatal conductance by 41%, water usage by 50%, leaf area by 17%, and whole-plant dry mass by 41%, compared with full-irrigated plants. Lowering the K concentration below 16 mM reduced the values further. Notably, growth and yield were decreased the least compared with optimal, when irrigation dose was decreased to 60% together with 16 mM K. The results demonstrate that deficit irrigation strategies could be utilized to develop management practices to improve cassava productivity by means of K fertigation under low moisture conditions.

1. Introduction

A global challenge for the agricultural sector is to produce more food with less water [1]. Developing new scientific strategies that allow crops to use water efficiently could be crucial in a world with a growing population [2]. Thus, water application strategies focused on increased agricultural water productivity, such as deficit irrigation coupled with potassium (K) fertigation to investigate multiple alternatives, have a pivotal role to play in sustainable crop production. Cassava (Manihot esculenta Crantz) is a major food crop for more than 800 million people in the tropics, providing more than 60% of daily calorific needs [3]. Cassava leaves are widely consumed, due to the high contents of protein, minerals, vitamins, lipids, and fiber, compared with roots that are mainly rich in carbohydrates [4,5]. Cassava is alternatively used as a processed food, animal feed, starch for pharmaceutical industries, and bioethanol for vehicles [6,7]. Even though cassava is considered drought-tolerant [8,9], the crop experiences intermittent water deficit [10] and suffers from K deficiency [11,12], which seriously constrains its yield in the tropics.
Water deficit restricts cassava growth and yield by decreasing the soil-water potential, which in turn limits stomatal conductance [13,14], resulting in reduced photosynthesis [15], number of leaves, and the individual leaf size [8,16]. It also leads to a reduction in shoot growth [17] and subsequent reduction in fresh and dry biomass [18,19]. Cassava shoot and root biomass can decrease by 70% under conditions of water deficit [20,21] but are more pronounced if the water deficit occurs during the first 1−5 months after planting [18,22] since plant leaf expansion and tuberous root development initiate during this period.
Cakmak and Engels [23] showed that water deficit increases the plant K requirement. K alleviates water deficit in plants by regulating the cell osmotic potential (Ψs) to maintain the turgor pressure (Ψp) required for cell functioning [24] and regulating the stomatal movement that aids in minimizing water losses during drought, leading to maintain the carbon dioxide (CO2) fixation [25]. K also plays a key role in partitioning photosynthates to storage roots [26,27] and activation of enzymes [28]. It also increases heat tolerance in plants [26]. Byju et al. [29] estimated that cassava requires a total uptake of 15.6 K kg ha−1 to produce a single metric ton of dry root yield. Thus, improving K nutrition in drought areas with low inherent soil fertility could increase cassava productivity. Lately, cassava yields have been improved through irrigation [30,31] and nutrient application [29,32]. Studies of K nutrition in cassava have also been performed [33,34] with granular K application. However, no studies have combined water deficit strategies and K fertigation in cassava to elaborate its effect on growth and yield. Moreover, understanding how young cassava plants respond to deficit irrigation and K fertigation during the early growth phase is essential for holistic agronomic management to ensure improvements in terms of growth and marketable yield under drought conditions. Therefore, the objective of this work is to assess the effects of interaction between deficit irrigation and K fertigation on growth and yield response of biofortified cassava during the early growth phase.

2. Materials and Methods

2.1. Plant Material and Growth Conditions

Four pot experiments were conducted with single-stem cuttings (25 cm) of yellow cassava “Mutura” cultivar (Kenya Agricultural and Livestock Research Organization (KALRO), Nairobi, Kenya). Cuttings were planted in 5-L pots containing 1.7 kg of pre-fertilized potting mix (pH 5.5, N–P–K: 17–4–25, organic matter: 25–40%, Kekkilä Karkea ruukutusseos, W R8014; Kekkilä Oy, Vantaa, Finland). The potting mix was saturated with water and allowed to drain overnight, and the maximum soil water holding capacity (1600 g pot−1) was calculated as the difference between water applied and water drained. The pots were placed in the greenhouse at the University of Helsinki, Finland, under controlled conditions with day/night temperatures of 28/20 °C and relative humidity of 55% ± 5%. High-pressure sodium lamps (Master son-t; Philips Lighting N.V., Eindhoven, The Netherlands) provided a 12-h photoperiod with photosynthetic photon flux density (PPFD) of 600 μmol photosynthetically active radiation (PAR) m−2 s−1 at the top of the canopy. The plants were watered every second day on the soil surface until drainage for 30 days, and the side shoots were trimmed to maintain single-stemmed plants. At 30 days after planting (DAP), treatments lasting 60 days were initiated. There were three irrigation doses (30%, 60%, 100% pot capacity) in all four experiments that were further split into a range of K (potassium chloride (KCl); Sigma-Aldrich Chemie GmbH, Munich, Germany) concentrations of 0.01 mM (EXP. I, III, IV), 1 mM (EXP. I, II, III, IV), 4 mM (EXP. II, IV), 16 mM (EXP. I, II, III), and 32 mM (EXP. III, IV) of irrigation water. Plants were watered every second day with full-strength Hoagland solution [35] in which the K concentration was modified. The experiments were arranged in a completely randomized design with four (EXP. I, in total 36 pots) to eight (EXP. II, III, IV, in total 72 pots each) replicates.

2.2. Measurements

Morpho-physiological traits were measured at 15-day intervals, beginning 30 DAP between 11:00 and 13:00 h from the three uppermost fully expanded leaves of each plant. The leaf temperature was measured, using an infrared thermometer (Fluke 574; Fluke Corporation, Everett, WA, USA). The chlorophyll content was measured with an Apogee MC-100 meter (Apogee Instruments, Logan, UT, USA). Net photosynthesis and stomatal conductance were measured with a portable photosynthesis meter (LI-6400; LI-COR, Lincoln, NE, USA). The plant height was measured from the soil level to the tip of the plant. The leaf water potential (Ψw) was measured according to McCutchan and Shackel [36] by first covering the leaflets with bags made of black plastic on the inside and aluminum foil on the outside to prevent leaf transpiration. After 1 h, the leaflets were detached and leaf Ψw was measured, using a pressure chamber (Soilmoisture Equipment Corp; Goleta, CA, USA). The osmolality was analyzed from the leaves used for the Ψw measurements, using a freezing-point depression osmometer (Micro-Osmometer 3300 M; Advanced Instruments, Norwood, MA, USA) as described by Mäkelä et al. [37]. The osmotic potential (Ψs) was calculated from the osmolality values as π (osmotic pressure, MPa) = cRT, where RT (R is the gas constant (J mol–1 K–1), T is absolute temperature (K)) is 2.48 and c the osmolality (osmol kg–1). Leaf turgor (Ψp) was estimated as Ψw–Ψs. The pots were weighed every second day before irrigation and K treatment application to monitor water usage.
The plants were harvested at 90 DAP by cutting the stems at the soil surface. Leaves were detached from the plants, and the roots were carefully washed with water to remove soil. The fresh weight of the leaves, stems, and roots was recorded. The green and senescent leaves were then separated, and the green leaf area was measured with a portable leaf area meter (LI-3000; LI-COR, Lincoln, NE, USA). The green leaves and tuberous roots were divided into two subsamples. One subsample of each was snap-frozen in liquid N2 and stored at −20 °C until further analysis. The other subsample was dried in a forced-air chamber at 70 °C for 72 h, weighed, ground to pass a 0.5-mm sieve using a centrifugal mill (ZM200; Retsch, Haan, Germany) and stored at room temperature until further analysis.

2.3. Potassium Analysis

The K content was analyzed from the ground leaf and root subsamples. Plant material (250 mg) was weighed into polytetrafluoroethylene (PTFE) Teflon tubes (CEM Corp; Matthews, NC, USA) and 6 mL of 15.2 M nitric acid (68% w/v; VWR International BVBA, Leuven, Belgium) and 1 mL of 9.8 M hydrogen peroxide (30% w/v; Merck KGaA, Darmstadt, Germany) were added for microwave digestion (MARS 240/50; MARSXpress, CEM). The digested samples were filtered through paper (Whatman grade no. 42, pore size 2.5 µm; GE Healthcare, Gloucester, Cheltenham, UK), diluted in purified water and stored at −20 °C. Elemental analysis was conducted with an inductively coupled plasma-optical emission spectrometer (iCAP 6200; Thermo Fisher Scientific, Cambridge, UK) with every 20th sample as standard.

2.4. Statistical Analyses

Data of the four experiments were combined and analyzed as one experiment, after subjecting to contrast analysis for experimental differences. To show the effects of irrigation doses, K concentrations, and their interactions as fixed effects on traits measured, a two-way ANOVA was carried out. Differences were considered significant when the p-values were <0.05, and means were compared using Tukey’s multiple range test. In addition, a two-tailed Pearson correlation was calculated to measure the patterns of relationship among the traits measured. All statistical analyses were carried out using R program (version 3.5.1; R Development Core Team, Vienna, Austria) [38].

3. Results

3.1. Physiological Parameters

The irrigation and K doses showed significant interactive effects on leaf Ψw and Ψs (Figure 1). When irrigation dose was decreased to 30% together with 0.01 mM K, leaf Ψw and Ψs were each lowered to −2.7 MPa by 90 DAP but increasing the K concentration to 32 mM increased leaf Ψw to −1.6 MPa and leaf Ψs to −1.8 MPa. Conversely, when irrigation dose was decreased to 60% together with 0.01 mM K, leaf Ψw and Ψs were each lowered to –2.3 MPa; however, increasing the K concentration to 32 mM increased leaf Ψw to −0.8 MPa and leaf Ψs to −1.3 MPa by 90 DAP. In general, leaf Ψw and Ψs values remained maximum in full irrigated plants together with 32 mM K.
The different irrigation and K doses significantly affected leaf Ψp but showed no interactive effects (Table 1). Leaf Ψp greatly reduced when irrigation dose was decreased to 30% rather than to 60%, compared with full-irrigated plants (100%). Notably, increasing the K concentration to either 16 or 32 mM resulted in increased Ψp by 90 DAP, regardless of the irrigation doses. In addition, the Ψp loss point or the critical potential was observed at 90 DAP, where leaf Ψp was greatly reduced when irrigation dose was decreased to 30% and K concentration was 0.01 mM.
Plant water usage followed a trend similar to that observed in leaf Ψw (Figure 1). Decreasing irrigation dose to 30% together with 0.01 mM K caused an 80% reduction in water usage between 30 and 90 DAP. However, when the K concentration was increased to 32 mM, water usage reduced by 45% compared with full-irrigated plants. Notably, decreasing irrigation dose to 60% together with 16 mM K only caused a 13% reduction in water usage compared with full-irrigated plants.
Moreover, the irrigation and K doses showed significant interactive effects on net photosynthesis, stomatal conductance, leaf temperature, and leaf chlorophyll (Figure 2 and Figure 3). Decreasing irrigation dose to 30% together with 0.01 mM K reduced the net photosynthesis and stomatal conductance by 70% and leaf chlorophyll by 51% between 30 and 90 DAP. However, when the K concentration was increased to 16 mM, the net photosynthesis reduced by 35%, stomatal conductance by 41%, and leaf chlorophyll by 34% between 30 and 90 DAP, compared with full-irrigated plants. In contrast, decreasing irrigation dose to 60% together with 0.01 mM K reduced net photosynthesis by 56%, stomatal conductance by 42%, and leaf chlorophyll by 38% between 30 and 90 DAP. Moreover, increasing the K concentration to 16 mM reduced the net photosynthesis by 21%, stomatal conductance by 19%, and leaf chlorophyll by 18%. In all, decreasing irrigation dose to 60% together with 16 mM K resulted in the least reduction in net photosynthesis and stomatal conductance, although the least reduction in leaf chlorophyll was observed when irrigation dose was decreased to 60% together with 32 mM K.
The leaf temperature increased when the irrigation dose was decreased, but the leaf temperature declined when the K concentration was increased (Figure 2). At 90 DAP, the leaf temperature was highest (34 °C) when irrigation dose was decreased to 30% together with 0.01 mM K, but when the K was increased to 16 mM, the leaf temperature was low (26 °C). Likewise, when irrigation dose was decreased to 60% together with 0.01 mM K, the leaf temperature was 28 °C, but when K was increased to either 16 or 32 mM, the leaf temperature was 26 °C. In all, decreasing irrigation dose to 60% together with 32 mM K showed the lowest leaf temperature (25 °C) between 30 and 90 DAP compared with full-irrigated plants.

3.2. Growth Parameters

The irrigation and K doses showed interactive effects on plant height (Figure 4). The plants were 49% shorter by 90 DAP when irrigation dose was decreased to 30% but 27% shorter when irrigation dose was decreased to 60%, compared with full-irrigated plants. Notably, lowering the K concentration below 16 mM resulted in shorter plants, regardless of the irrigation doses. The plants were 72% shorter when irrigation dose was decreased to 30% together with 0.01 mM K but were 52% shorter when K was increased to 16 mM K by 90 DAP, compared with full-irrigated plants. The smallest difference in heights was obtained when irrigation dose was decreased to 60% together with 32 mM K, compared with full-irrigated plants.
The plant leaf area, tuber number, leaf dry mass, stem dry mass, root dry mass, and whole-plant dry mass differed significantly with the irrigation and K doses and their interactions (Table 2). Decreasing irrigation doses substantially reduced these parameter values, while increasing the K increased their values. The plant leaf areas were 17% smaller and whole-plant dry mass was 41% lower when irrigation dose was decreased to 30% together with 16 mM K, compared with full-irrigated plants. In contrast, the plant leaf areas were 8% smaller and whole-plant dry mass was 13% lower when irrigation dose was decreased to 60% together with 16 mM K. This treatment combination showed the least decrease compared with full-irrigated plants. Otherwise, the largest leaf areas were obtained in full-irrigated plants together with 16 or 32 mM K, which were similar, whereas the highest whole-plant dry mass was obtained in full-irrigated plants with 32 mM K.
The leaf, stem, and root dry mass followed trends similar to that observed with whole-plant dry mass. Decreasing irrigation dose to 30% together with 16 mM K resulted in fewer tubers. Conversely, the tubers were much fewer when the K concentration was lowered below 16 mM. Substantially high numbers of tubers were obtained when irrigation dose was decreased to 60% together with 16 or 32 mM K, which did not vary.

3.3. Correlation of Physiological and Growth Traits

Statistically significant relationships were observed among the traits measured (Table 3). Net photosynthesis was highly correlated (0.906 ≤ r ≤ 0.980; p < 0.05) with stomatal conductance, leaf Ψw, leaf Ψs, leaf chlorophyll, water usage, and whole-plant dry mass. Positive associations (0.719 ≤ r ≤ 0.897; p < 0.05) were also found between plant leaf area, plant height, tuber number, and water usage. However, the leaf temperature correlated negatively (−0.923 ≤ r ≤ −0.772; p < 0.05) with all traits measured.

3.4. Potassium Content

The irrigation and K doses significantly affected the K content but showed no interactive effects (Table 4). When irrigation dose was decreased to 30%, the K content in the roots was 14% lower, but when irrigation dose was decreased to 60%, the K content in the roots was 9% lower. Increasing the K concentration to 32 mM resulted in the highest K content in both the leaves and roots. In general, K contents were all higher in the leaves than in the roots.

4. Discussion

Our findings show that water deficit and the K concentrations influence the water status of young cassava plants, thereby affecting the leaf gas exchange and causing a decline in growth and yield. Decreasing irrigation dose to 30% together with 0.01 mM K lowered leaf Ψw and Ψs greatly, while leaf Ψp was five times lower at the end of our experimental period (90 DAP) compared with full-irrigated plants (100%). The decrease in Ψs in response to the water stress imposed is an osmotic adjustment mechanism used by most plants to adjust to water-limited environments [39] and contributes to Ψp maintenance at low Ψw [40,41]. Osmotic adjustment enables leaf Ψp maintenance for the same leaf Ψw, thus supporting stomatal conductance [42], and improves root capacity for water uptake [43]. Moreover, our results showed that increasing the K concentration to 32 mM increased both leaf Ψw and Ψs. This effect could have been related to the high K+ solute concentration in the leaves, which seemed to increase the Ψs, as evident from elemental K content analyzed in the leaves. Furthermore, K is one of the primary osmotic solutes that contribute to osmotic adjustment in plants by altering the Ψs and enabling plant cells to retain water and maintain Ψp [44,45].
Reduction in water usage parallelled the decrease in leaf Ψw. Significant positive correlations (r = 0.923) observed between water usage and stomatal conductance suggest that the reduction in water usage was probably induced by stomatal closure. Cassava responds to initial water deficit by partial stomatal closure and nearly complete stomatal closure during extreme water deficit [8,17]. Duque and Setter [46] suggested that stomatal closure protects the leaf from severe water loss and protects photosynthetic systems and cellular structures from irreversible damage. Our results showed that effective water usage was greatest when irrigation dose was decreased to 60% together with 32 mM K, given the high amount of dry mass observed relative to full-irrigated plants. High dry mass production under water deficit is achieved when plants divert a large portion of available soil moisture towards stomatal conductance [47]. The water usage and stomatal conductance data further suggest that partial stomatal closure occurred at about 60 DAP when the water level was decreased to 30% or 60% of pot capacity. The marked increase in water usage, regardless of the irrigation doses when the K concentration was increased to 32 mM, suggests that high levels of K increased the leaf Ψs and consequently increased Ψw, resulting in Ψp maintenance and increased water usage.
The observed depletions in net photosynthesis was significantly associated with a significant reduction in stomatal conductance. Our results showed that the decline in net photosynthesis was more pronounced when irrigation dose was decreased to 30% together with 0.01 mM K, but less pronounced when irrigation dose was decreased to 60% of pot capacity. Even more, the strong positive correlation observed between net photosynthesis and stomatal conductance (r = 0.939) and leaf Ψw (r = 0.941) suggests that photosynthesis was limited by stomatal closure in response to a limited water supply. The decline in leaf chlorophyll due to decreased irrigation doses additionally limited photosynthesis. This decline in leaf chlorophyll is considered a non-stomatal limiting factor [48] and is prevalent under water-deficit conditions, causing decreased photosynthetic activity [49]. Chlorophyll degradation also occurs in K-deficient plants [25], which further inhibits photosynthesis. Conversely, low-K nutrition diminishes Hill reaction activity [50] and the rate of production of adenosine triphosphate (ATP) and reduces nicotinamide adenine dinucleotide phosphate (NADP) in chloroplasts [51], resulting in reduced net photosynthesis. In contrast, increasing the K concentration to 16 mM increased net photosynthesis by increasing leaf Ψw and leaf Ψp, which in turn increased stomatal conductance, resulting in increased net photosynthesis. Moreover, Ψp determines stomatal aperture and closure [52,53], and the extent of stomatal closure in cassava during water deficit levels corresponds to the decline in net photosynthesis [8,54]. The enhanced need for K by plants under water deficit appears to be related to the fact that K is required for the maintenance of photosynthetic CO2 fixation [25].
The leaf temperatures increased above the ambient greenhouse temperature (27 °C) when irrigation doses were decreased. Our results showed that increased leaf temperature corresponded to decreased net photosynthesis as indicated by the significant negative correlations between leaf temperature and net photosynthesis (r = −0.912), and between leaf temperature and leaf Ψw (r = −0.898). This observation implies that the rise in leaf temperature was occasioned by stomata closure in response to a decline in Ψw. High leaf temperature leads to heat stress, and photosynthesis is more sensitive to heat stress under water deficit [55]. Thus, C3–C4 plants such as cassava rely on evaporative cooling to lower leaf temperature [56]. Despite decreased irrigation doses, increasing the K concentration to 16 mM and above appeared to lower leaf temperature. This was attributed to the role of high K concentration, which increased stomatal conductance and, thus, prevented leaf temperature from reaching harmful levels [57].
Plant leaf area and plant height were greatly reduced when irrigation dose was decreased to 30% together with 0.01 mM K. These reductions could be linked to the decrease observed in leaf Ψw, low Ψp, decreased stomatal conductance, and declined net photosynthesis. Raza et al. [58] showed that water deficit initiates a series of biochemical and physiological processes that result in a reduction in crop growth and yield. The small leaf areas (0.37 m2) and short plants (56 cm) observed at the end of the experiment when irrigation dose was decreased to 30% together with 0.01 mM K were probably due to the effects of low leaf Ψp. In comparison, plant leaf areas and plant height increased due to increased Ψp when irrigation dose was decreased to 60% of pot capacity. These observations concur with Alves and Setter [9], who found decreased leaf area expansion in cassava 8 days after initiation of water deficit. Nesreen et al. [59] reported reduced leaf area, plant height, and stem diameter in cassava subjected to water deficit under greenhouse conditions. Moreover, optimal leaf area development is important to photosynthesis and dry mass yield [60].
Leaf dry mass, root dry mass, whole-plant dry mass, and tuber number were equally reduced when irrigation dose was decreased to 30% together with 0.01 mM K. These reductions can be largely attributed to the decline in net photosynthesis and reduced leaf areas that were influenced by the low Ψw, Ψs, and Ψp. Duque and Setter [46] reported a 78% loss in total plant dry weight in cassava after 31-days of water deficit treatment. El-Shakwy and Cadavid [61] observed reductions in leaf area index and shoot and root biomass when they initiated water stress in three cassava cultivars for 2 to 8 months after planting. Nevertheless, increasing the K concentration to 16 mM improved the growth and yield of young cassava plants, regardless of decreased irrigation doses. This could be ascribed to the high levels of K that reduced the negative effects on plant-water relationships and improved net photosynthesis. This observation agrees with the findings of Mengel and Arneke [44], who reported improved water status and high dry mass in cassava supplied with high levels of K (4 mM) in comparison to low-K (0.1 mM) treatments. There were no tubers when irrigation dose was decreased to 30% together with 0.01 mM K, whereas four tubers were observed when K was increased to 16 mM. High levels of K increase the translocation of photosynthates to the storage roots [62], and the photosynthates initiate cassava tuberous root growth during the early growth phase [8,21].
The critical nutrient contents of K observed in this investigation fall within the sufficient range as those obtained by Nguyeh et al. [63] in field-grown cassava at four months after planting. The decreased K contents observed when irrigation doses were decreased were probably due to the limited water supply, which possibly limited the K uptake from the rhizosphere. Plants experiencing both water and K deficiency tended to show decreases in K accumulation rates, while those grown in K-rich soil maintained high rates of K accumulation during most of the season [64]. Moreover, our findings show that increasing K from 16 to 32 mM did not result in additional growth and yield benefits, regardless of the irrigation doses. Thus, it appears that 32 mM K was excessive and could have limited the uptake of other cations, creating a nutrient imbalance [65].

5. Conclusions

Our investigation showed significant interactions between deficit irrigation and K, whereby decreasing irrigation dose to 60% together with 16 mM K resulted in the least reduction in growth and yield. Thus, it seems that deficit irrigation strategies could be used as a tool to develop management practices to improve cassava productivity by means of K fertigation under low moisture field conditions. The experiments allowed analytical investigation of the effects of the irrigation and K doses without interference from underlying abiotic and biotic factors. Nevertheless, the present investigation had certain limitations such as the use of pots, which could have constrained plant growth, and the use of a controlled greenhouse environment, which varies from field environments. Therefore, further tests with several cassava cultivars under field conditions are warranted to compare these findings.

Author Contributions

Conceived and designed the experiment D.O.W., P.S.A.M., and J.K.; contributed the reagents/materials P.S.A.M.; conducted the experiments D.O.W.; supervised the research P.S.A.M., J.K., and L.A.; performed the statistical analysis D.O.W., and P.S.A.M.; wrote the first draft of the manuscript D.O.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by CIMO Finland (TM-17-10552) and the Ella and Georg Ehrnrooth Foundation. The open access publication fee was covered by the University of Helsinki.

Acknowledgments

We gratefully acknowledge Markku Tykkyläinen, Afrane Yaw, and Marjo Kilpinen for their technical assistance with the greenhouse and laboratory activities. We thank the Kenya Agricultural and Livestock Research Organization (KALRO) for providing the cassava cuttings used in this investigation.

Conflicts of Interest

The authors declare no conflict of interest. The funders played no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript or in the decision to publish the results.

References

  1. Toumi, J.; Er-Raki, S.; Ezzahar, J.; Khabba, S.; Jarlan, L.; Chehbouni, A. Performance assessment of AquaCrop model for estimating evapotranspiration, soil water content and grain yield of winter wheat in Tensift Al Haouz (Morocco): application to irrigation management. Agric. Water Manag. 2016, 163, 219–235. [Google Scholar] [CrossRef]
  2. Cantero-Navarro, E.; Romero-Aranda, R.; Fernández-Muñoz, R.; Martínez-Andújar, C.; Pérez-Alfocea, F.; Albacete, A. Improving agronomic water use efficiency in tomato by rootstock-mediated hormonal regulation of leaf biomass. J. Plant Sci. 2016, 251, 90–100. [Google Scholar] [CrossRef] [PubMed]
  3. Burns, A.; Gleadow, R.; Cliff, J.; Zacarias, A.; Cavagnaro, T. Cassava: the drought, war and famine crop in a changing world. Sustainability 2010, 2, 3572–3607. [Google Scholar] [CrossRef] [Green Version]
  4. Wobeto, C.; Corrêa, A.D.; Abreu, C.M.P.; Santos, C.D.; Abreu, J.R. Nutrients in the cassava (Manihot esculenta Crantz) leaf meal at three ages of the plant. Food Sci. Technol. 2006, 26, 865–869. [Google Scholar] [CrossRef] [Green Version]
  5. Montagnac, J.A.; Davis, C.R.; Tanumihardjo, S.A. Nutritional value of cassava for use as a staple food and recent advances for improvement. Compr. Rev. Food Sci. Food Saf. 2009, 8, 181–194. [Google Scholar] [CrossRef]
  6. Balagopalan, C. Cassava utilization in food, feed and industry. In Cassava: Biology, Production and Utilization; Hillock, R.J., Thresh, J.M., Bellotti, A.C., Eds.; CABI: Wallingford, Oxfordshire, UK, 2002; pp. 301–318. [Google Scholar]
  7. Tonukari, N.J.; Ezedom, T.; Enuma, C.C.; Sakpa, S.O.; Avwioroko, O.J.; Eraga, L.; Odiyoma, E. White gold: cassava as an industrial base. Am. J. Plant Sci. 2015, 6, 972–979. [Google Scholar] [CrossRef] [Green Version]
  8. El-Sharkawy, M.A. Cassava biology and physiology. Plant Mol. Biol. 2004, 56, 481–501. [Google Scholar] [CrossRef]
  9. Alves, A.A.C.; Setter, T.L. Response of cassava leaf area-expansion to water deficit: Cell proliferation, cell expansion and delayed development. Ann. Bot. 2004, 94, 605–613. [Google Scholar] [CrossRef] [Green Version]
  10. Oguntunde, P.G. Whole-plant water use and canopy conductance of cassava under limited available soil water and varying evaporative demand. Plant Soil. 2005, 278, 371–383. [Google Scholar] [CrossRef]
  11. Howeler, R.H. Long-term effect of cassava cultivation on soil productivity. J. Field Crops Res. 1991, 26, 1–18. [Google Scholar] [CrossRef]
  12. El-Sharkawy, M.A.; De Tafur, S.M. Comparative photosynthesis, growth, productivity, and nutrient use efficiency among tall and short-stemmed rain-fed cassava cultivars. Photosynthetica. 2010, 48, 173–188. [Google Scholar] [CrossRef]
  13. Ike, I.F.; Thurtell, G.W.; Thurlell, G.W. Osmotic adjustment in indoor grown cassava in response to water stress. Physiol. Plant. 1981, 52, 257–262. [Google Scholar] [CrossRef]
  14. El-Sharkawy, M.A.; Cock, J.H. Water use efficiency of cassava. I. Effects of air humidity and water stress on stomatal conductance and gas exchange. Crop Sci. 1984, 24, 497–502. [Google Scholar] [CrossRef]
  15. El-Sharkawy, M.A. Stress-tolerant cassava: the role of integrative ecophysiology-breeding research in crop improvement. J. Soil Sci. 2012, 2, 162–186. [Google Scholar] [CrossRef] [Green Version]
  16. Alves, A.A.C.; Setter, T.L. Response of cassava to water deficit: leaf area growth and abscisic acid. J. Crop Sci. 2000, 40, 131–137. [Google Scholar] [CrossRef]
  17. Calatayud, P.A.; Llovera, E.; Bois, J.F.; Lamaze, T. Photosynthesis in drought-adapted cassava. Photosynthetica 2000, 38, 97–104. [Google Scholar] [CrossRef]
  18. Bakayoko, S.; Tschannen, A.; Nindjin, C.; Dao, D.; Girardin, O.; Assa, A. Impact of water stress on fresh tuber yield and dry matter content of cassava (Manihot esculenta Crantz) in Côte d’Ivoire. Afr. J. Agric. Res. 2009, 4, 21–27. [Google Scholar]
  19. Vandegeer, R.; Miller, R.E.; Bain, M.; Gleadow, R.M.; Cavagnaro, T.R. Drought adversely affects tuber development and nutritional quality of the staple crop cassava (Manihot esculenta Crantz). Funct. Plant Biol. 2013, 40, 195–200. [Google Scholar] [CrossRef] [Green Version]
  20. El-Sharkawy, M.A. Drought-tolerant cassava for Africa, Asia, and Latin America. BioScience 1993, 43, 441–451. [Google Scholar] [CrossRef]
  21. Alves, A.A.C. Cassava botany and physiology. In Cassava: Biology, Production and Utilization; Hillocks, R.J., Tres, J.M., Bellotti, A.C., Eds.; CABI: Wallingford, Oxfordshire, UK, 2002; pp. 67–89. [Google Scholar]
  22. Baker, G.R.; Fukai, S.; Wilson, G.L. Response of cassava to water deficits at various stages of growth in the subtropics. Aust. J. Agric. Res. 1989, 40, 517–528. [Google Scholar] [CrossRef]
  23. Cakmak, I.; Engels, C. Role of mineral nutrients in photosynthesis and yield formation. In Mineral Nutrition of Crops; Rengel, Z., Ed.; Haworth Press: New York, NY, USA, 1999; pp. 141–168. [Google Scholar]
  24. Ahmad, I.; Maathuis, F.J.M. Cellular and tissue distribution of potassium; physiological relevance, mechanisms and regulation. J. Plant Physiol. 2014, 171, 708–714. [Google Scholar] [CrossRef] [PubMed]
  25. Cakmak, I. The role of potassium in alleviating detrimental effects of abiotic stresses in plants. J. Plant Nutr. Soil Sci. 2005, 168, 521–530. [Google Scholar] [CrossRef]
  26. Oosterhuis, D.M.; Loka, D.A.; Kawakami, E.M.; Pettigrew, W.T. The physiology of potassium in crop production. Adv. Agron. 2014, 126, 203–233. [Google Scholar]
  27. Susan John, K.; Suja, G.; Sheela, M.N.; Ravindran, C.S. Potassium: the key nutrient for cassava production, tuber quality and soil productivity—An overview. J. Root Crops 2010, 36, 132–144. [Google Scholar]
  28. Zörb, C.; Senbayram, M.; Peiter, E. Potassium in agriculture–Status and perspectives. J. Plant Physiol. 2014, 171, 656–669. [Google Scholar]
  29. Byju, G.; Nedunchezhiyan, M.; Ravindran, C.S.; Mithra, V.S.S.; Ravi, V.; Naskar, S.K. Modelling the response of cassava to fertilizers: a site-specific nutrient management approach for greater tuberous root yield. Commun. Soil Sci. Plant Anal. 2012, 43, 1149–1162. [Google Scholar] [CrossRef]
  30. Odubanjo, O.O.; Olufayo, A.A.; Oguntunde, P.G. Water use, growth and yield of drip irrigated cassava in a humid tropical environment. Soil Water Res. 2011, 6, 10–20. [Google Scholar] [CrossRef]
  31. Santanoo, S.; Vongcharoen, K.; Banterng, P.; Vorasoot, N.; Jogloy, S.; Roytrakul, S.; Theerakulpisut, P. Seasonal variation in diurnal photosynthesis and chlorophyll fluorescence of four genotypes of cassava (Manihot esculenta Crantz) under irrigation conditions in a tropical savanna climate. Agronomy 2019, 9, 206. [Google Scholar] [CrossRef] [Green Version]
  32. Sopheap, U.; Patanothai, A.; Aye, T.M. Nutrient balances for cassava cultivation in Kampong Cham province in Northeast Cambodia. Int. J. Plant Prod. 2012, 6, 37–58. [Google Scholar]
  33. Imas, P.; John, S.K. Potassium Nutrition of Cassava; e-ifc No. 34; International Potash Institute: Zug, Switzerland, 2013; Volume 34, pp. 13–18. [Google Scholar]
  34. Ezui, K.S.; Franke, A.C.; Mando, A.; Ahiabor, B.D.K.; Tetteh, F.M.; Sogbedji, J.; Janssen, B.H.; Giller, K.E. Fertiliser requirements for balanced nutrition of cassava across eight locations in West Africa. J. Field Crops Res. 2016, 185, 69–78. [Google Scholar] [CrossRef] [Green Version]
  35. Hoagland, D.R.; Arnon, D.I. The water-culture method for growing plants without soil. Calif. Agric. Exp. Stat. 1950, Cir. 347, 1–39. [Google Scholar]
  36. McCutchan, H.; Shackel, K.A. Stem-water potential as a sensitive indicator of water stress in prune trees (Prunus domestica L. cv. French). J. Am. Soc. Hortic. Res. 1992, 117, 606–611. [Google Scholar] [CrossRef] [Green Version]
  37. Mäkelä, P.; Munns, R.; Colmer, T.D.; Condon, A.G.; Peltonen-Sainio, P. Effect of foliar applications of glycinebetaine on stomatal conductance, abscisic acid and solute concentrations in leaves of salt- or drought-stressed tomato. Aust. J. Plant Physiol. 1998, 25, 655–663. [Google Scholar] [CrossRef]
  38. R Core Team. A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2018. [Google Scholar]
  39. Morgan, J.M. Osmoregulation and water stress in higher plants. Ann. Rev. Plant Physiol. 1984, 35, 299–319. [Google Scholar] [CrossRef]
  40. Radin, J.W. Physiological consequences of cellular water deficits: osmotic adjustment. In Limitations to Efficient Water Use in Crop Production; Taylor, H.M., Jordan, W.R., Sinclair, T.R., Eds.; American Society of Agronomy, Inc, Crop Science Society of America, Inc., Soil Science Society of America, Inc.: Madison, WI, USA, 1983; pp. 267–276. [Google Scholar]
  41. Blum, A. Drought resistance, water-use efficiency, and yield potential–are they compatible, dissonant, or mutually exclusive? Aust. J. Agric. Res. 2005, 56, 1159–1168. [Google Scholar] [CrossRef]
  42. Sellin, A. Hydraulic and stomatal adjustment of Norway spruce trees to environmental stress. Tree Physiol. 2001, 21, 879–888. [Google Scholar] [CrossRef] [Green Version]
  43. Chimenti, C.A.; Marcantonio, M.; Hall, A.J. Divergent selection for osmotic adjustment results in improved drought tolerance in maize (Zea mays L.) in both early growth and flowering phases. Field Crops Res. 2006, 95, 305–315. [Google Scholar] [CrossRef]
  44. Mengel, K.; Arneke, W.W. Effect of potassium on the water potential, the pressure potential, the osmotic potential and cell elongation in leaves of Phaseolus vulgaris. J. Plant Physiol. 1982, 54, 402–408. [Google Scholar] [CrossRef]
  45. Wang, M.; Zheng, Q.; Shen, Q.; Guo, S. The critical role of potassium in plant stress response. Int. J. Mol. Sci. 2013, 14, 7370–7390. [Google Scholar] [CrossRef] [Green Version]
  46. Duque, L.O.; Setter, T. Cassava response to water deficit in deep pots: root and shoot growth, ABA, and carbohydrate reserves in stems, leaves and storage roots. Trop. Plant Biol. 2013, 6, 199–209. [Google Scholar] [CrossRef]
  47. Blum, A. Effective use of water (EUW) and not water-use efficiency (WUE) is the target of crop yield improvement under drought stress. Field Crops Res. 2009, 112, 119–123. [Google Scholar] [CrossRef]
  48. Anjum, S.A.; Xie, X.; Wang, L.; Saleem, M.F.; Man, C.; Lei, W. Morphological, physiological and biochemical responses of plants to drought stress. Afr. J. Agric. Res. 2016, 6, 2026–2032. [Google Scholar]
  49. Tuna, A.L.; Kaya, C.; Muhammad, A. Potassium sulfate improves water deficit tolerance in melon plants grown under glasshouse conditions. J. Plant Nutr. 2010, 33, 1276–1286. [Google Scholar] [CrossRef]
  50. Spencer, D.; Possinghami, J.V. The effect of nutrient deficiences on the Hill reaction of isolated chloroplasts from tomato. Aust. J. Biol. Sci. 1960, 13, 441–455. [Google Scholar] [CrossRef] [Green Version]
  51. Terry, N.; Ulrich, A. Effects of Potassium Deficiency on the Photosynthesis and Respiration of Leaves of Sugar Beet. J. Plant Physiol. 1973, 51, 783–786. [Google Scholar] [CrossRef] [Green Version]
  52. Boyer, J.S. Leaf enlargement and metabolic rates in corn, soybean, and sunflower at various leaf water potentials. J. Plant Physiol. 1970, 46, 233–235. [Google Scholar] [CrossRef] [Green Version]
  53. Franks, P.J.; Cowan, I.R.; Tyerman, S.D.; Cleary, A.I.; Lloyd, J.; Farquhar, G.D. Guard-cell pressure aperture characteristics measured with the pressure probe. Plant Cell Environ. 1995, 18, 795–800. [Google Scholar] [CrossRef]
  54. Itani, J.; Oda, T.; Numao, T. Studies on mechanisms of dehydration postponement in cassava leaves under short-term soil water deficits. J. Plant Prod Sci. 1999, 2, 184–189. [Google Scholar] [CrossRef]
  55. Björkman, O.; Badger, M.R.; Armond, P.A. Response and adaptation of photosynthesis to high temperatures. In Adaptation of Plants to Water and High Temperatures Stress; Turner, N.C., Kramer, P.J., Eds.; Wiley: New York, NY, USA, 1980; pp. 233–249. [Google Scholar]
  56. El-Sharkawy, M.A. International research on cassava photosynthesis, productivity, eco-physiology and responses to environmental stresses in the tropics. Photosynthetica. 2006, 44, 481–512. [Google Scholar] [CrossRef]
  57. Crawford, A.J.; McLachlan, D.H.; Hetherington, A.M.; Franklin, K.A. High temperature exposure increases plant cooling capacity. Curr. Biol. 2012, 22, 386–397. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Raza, M.A.S.; Saleem, M.F.; Shah, G.M.; Khan, I.H.; Raza, A. Exogenous application of glycinebetaine and potassium for improving water relations and grain yield of wheat under drought. J. Soil Sci. Plant Nutr. 2014, 14, 348–364. [Google Scholar] [CrossRef] [Green Version]
  59. Nesreen, A.S.H.; Eisa, S.S.; Amany, A. Morphological and Chemical Studies on Influence of Water Deficit on Cassava. World J. Agric. Res. 2013, 9, 369–376. [Google Scholar]
  60. Farooq, M.; Wahid, A.; Kobayashi, N.; Fujita, D.; Basra, S.M.A. Plant drought stress: effects, mechanisms and management. Agron. Sustain. Dev. 2009, 29, 185–212. [Google Scholar] [CrossRef] [Green Version]
  61. El-Sharkawy, M.A.; Cadavid, L.F. Response of cassava to prolonged water stress imposed at different stages of growth. J. Exp. Agric. 2002, 38, 253–264. [Google Scholar] [CrossRef]
  62. Vreugdenhil, D. Source-to-sink gradient of potassium in the phloem. Planta 1985, 163, 238–240. [Google Scholar] [CrossRef]
  63. Nguyen, H.; Schoenau, J.J.; Nguyen, D.; Van Rees, K.; Boehm, M. Effects of long-term nitrogen, phosphorus, and potassium fertilization on cassava yield and plant nutrient composition in North Vietnam. Plant Nutr. 2007, 25, 425–442. [Google Scholar] [CrossRef]
  64. Grzebisz, W.; Gransee, A.; Szczepaniak, W.; Diatta, J. The effects of potassium fertilization on water-use efficiency in crop plants. J. Plant Nutr. Soil Sci. 2013, 176, 355–374. [Google Scholar] [CrossRef]
  65. Howeler, R. Sustainable Soil and Crop Management of Cassava in Asia; Centro Internacional de Agricultura Tropical (CIAT): Cali, Colombia, 2014; Volume 389, p. 280. [Google Scholar]
Agronomy 10 00321 g001 550

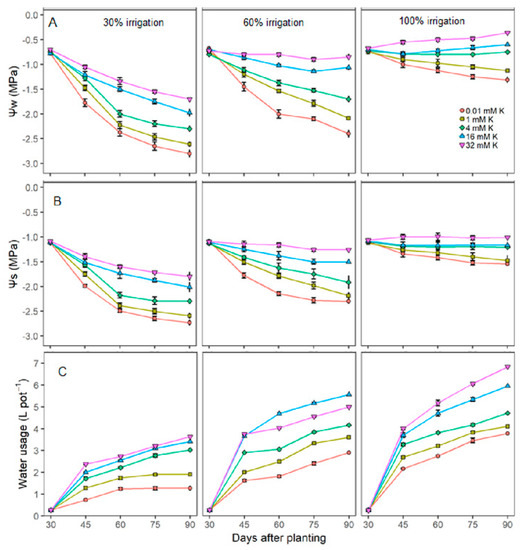

Figure 1. Leaf water potential Ψw (A), leaf osmotic potential Ψs (B), and water usage (C) of young cassava plants in response to deficit irrigation and K fertigation. The treatments were initiated 30 days after planting and lasted 60 days. The data from four separate experiments were combined and shown as the means ± standard error of 4 to 16 replicate plants.
Figure 1. Leaf water potential Ψw (A), leaf osmotic potential Ψs (B), and water usage (C) of young cassava plants in response to deficit irrigation and K fertigation. The treatments were initiated 30 days after planting and lasted 60 days. The data from four separate experiments were combined and shown as the means ± standard error of 4 to 16 replicate plants.
Agronomy 10 00321 g001
Agronomy 10 00321 g002 550

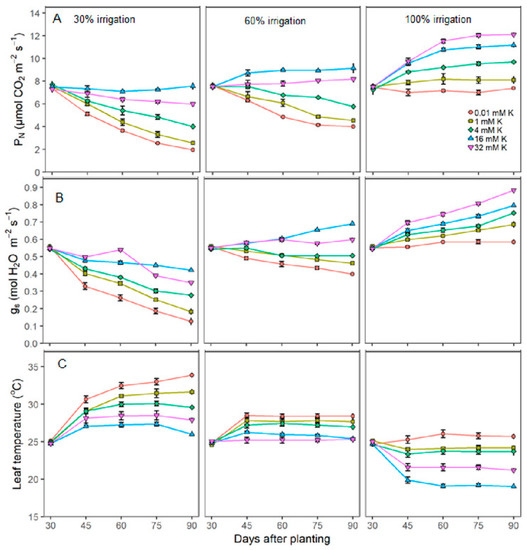

Figure 2. Net photosynthesis PN (A), stomatal conductance gs (B), and leaf temperature (C) of young cassava plants in response to deficit irrigation and K fertigation. The treatments were initiated 30 days after planting and lasted 60 days. The data from four separate experiments were combined and shown as the means ± standard error of 4 to 16 replicate plants.
Figure 2. Net photosynthesis PN (A), stomatal conductance gs (B), and leaf temperature (C) of young cassava plants in response to deficit irrigation and K fertigation. The treatments were initiated 30 days after planting and lasted 60 days. The data from four separate experiments were combined and shown as the means ± standard error of 4 to 16 replicate plants.
Agronomy 10 00321 g002
Agronomy 10 00321 g003 550

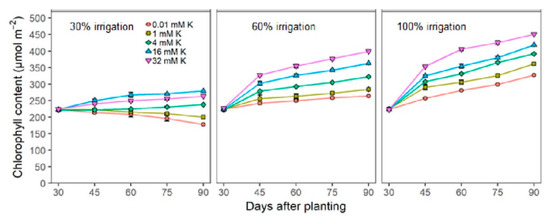

Figure 3. Leaf chlorophyll content of young cassava plants in response to deficit irrigation and K fertigation. Treatments were initiated 30 days after planting and lasted 60 days. The data from four separate experiments were combined and shown as the means ± standard error of 4 to 16 replicate plants.
Figure 3. Leaf chlorophyll content of young cassava plants in response to deficit irrigation and K fertigation. Treatments were initiated 30 days after planting and lasted 60 days. The data from four separate experiments were combined and shown as the means ± standard error of 4 to 16 replicate plants.
Agronomy 10 00321 g003
Agronomy 10 00321 g004 550

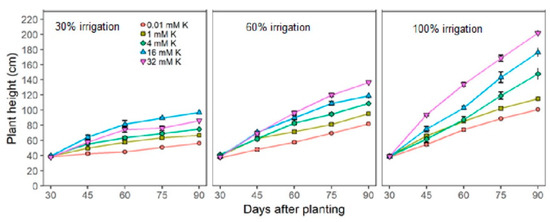

Figure 4. Plant height of young cassava plants in response to deficit irrigation and K fertigation. The treatments were initiated 30 days after planting and lasted 60 days. The data from four separate experiments were combined and shown as the means ± standard error of 4 to 16 replicate plants.
Figure 4. Plant height of young cassava plants in response to deficit irrigation and K fertigation. The treatments were initiated 30 days after planting and lasted 60 days. The data from four separate experiments were combined and shown as the means ± standard error of 4 to 16 replicate plants.
Agronomy 10 00321 g004
Table
Table 1. Leaf turgor (Ψp) of young cassava plants in response to deficit irrigation and K fertigation. The treatments were initiated 30 days after planting and lasted 60 days. The data from four separate experiments were combined and shown as the means ± standard error of 4–16 replicate plants.
Table 1. Leaf turgor (Ψp) of young cassava plants in response to deficit irrigation and K fertigation. The treatments were initiated 30 days after planting and lasted 60 days. The data from four separate experiments were combined and shown as the means ± standard error of 4–16 replicate plants.
TreatmentLeaf Turgor (MPa)
30 DAP45 DAP60 DAP75 DAP90 DAP
Irrigation30%0.460.390.29 a0.18 a0.11 a
60%0.480.430.37 b0.36 b0.30 b
100%0.480.490.50 c0.51 c0.55 c
S.E.M (df = 3–15)0.0170.0360.0390.0340.038
Potassium0.01 mM0.470.40.290.25 a0.10 a
1 mM0.480.420.350.30 ab0.24 b
4 mM0.460.430.380.34 b0.32 c
16 mM0.480.460.450.43 c0.45 d
32 mM0.480.480.470.46 c0.49 d
S.E.M (df = 3–15)0.0220.0460.050.0440.05
p-value (<0.05)I 0.738 0.134 0.001 <0.001<0.001
K 0.964 0.710 0.068 0.004 <0.001
I × K0.8960.9981.0000.9970.288
Means followed by different letters in the same column are different (Tukey’s test p < 0.05). DAP = days after planting; I = irrigation; K = potassium; S.E.M. = standard error of the mean; df = degrees of freedom.
Table
Table 2. Plant leaf area, leaf dry mass, shoot dry mass, root dry mass, and whole-plant dry mass of 90-day-old cassava plants in four pot experiments. Deficit irrigation and K fertigation were initiated 30 days after planting and lasted 60 days. The data from separate experiments were combined and shown as the means of 4 to 16 replicate plants.
Table 2. Plant leaf area, leaf dry mass, shoot dry mass, root dry mass, and whole-plant dry mass of 90-day-old cassava plants in four pot experiments. Deficit irrigation and K fertigation were initiated 30 days after planting and lasted 60 days. The data from separate experiments were combined and shown as the means of 4 to 16 replicate plants.
TreatmentPlant Leaf Area (m2)Dry Mass (g)
LeavesShootRootsWhole-Plant
IrrigationPotassium
30%0.01 mM0.37 a16.9 a13.6 a11.0 a41.4 a
1 mM0.38 a20.0 ab24.6 bcd13.5 ab58.1 b
4 mM0.44 ab20.6 ab24.4 bcd17.7 bc62.7 b
16 mM0.57 d29.7 c29.4 cde25.5 d84.6 c
32 mM0.48 bc20.6 ab27.7 bcd27.5 d75.8 c
60%0.01 mM0.38 a23.3 b19.0 ab22.8 d65.0 b
1 mM0.48 b33.6 cd33.3 de26.8 d93.6 d
4 mM0.59 d33.7 cd33.0 de34.7 e101.4 de
16 mM0.63 de39.9 e37.5 ef46.8 gh124.2 h
32 mM0.62 de33.6 de33.6 de41.3 fg108.6 ef
100%0.01 mM0.42 ab34.8 d20.8 abc24.7 d80.3 c
1 mM0.56 cd32.1 cd44.5 fg38.5 ef115.2 fg
4 mM0.62 de35.3 d47.2 g39.1 ef121.6 gh
16 mM0.68 e40.5 d44.8 fg55.0 i140.3 i
32 mM0.68 e40.2 d50.9 g51.8 hi142.9 i
S.E.M (df = 3–15)0.0160.861.921.121.82
p-value (<0.05)I<0.001<0.001<0.001<0.001<0.001
K<0.001<0.001<0.001<0.001<0.001
I × K<0.001<0.0010.001<0.001<0.001
Means followed by different letters in the same column are different (Tukey’s test p < 0.05). S.E.M. = standard error of the mean; df = degrees of freedom; I = irrigation; K = potassium.
Table
Table 3. Pearson correlation matrix for morpho-physiological traits of young cassava plants in response to deficit irrigation and K fertigation.
Table 3. Pearson correlation matrix for morpho-physiological traits of young cassava plants in response to deficit irrigation and K fertigation.
LDMRDMWPDTBNLAPLHChlLTPNgsΨwΨsΨpWUS
LDM1
RDM0.826 **1
WPD0.875 **0.951 **1
TBN0.719 **0.825 **0.834 **1
LA0.736 **0.832 **0.887 **0.743 **1
PLH0.792 **0.897 **0.911 **0.812 **0.823 **1
Chl0.857 **0.928 **0.936 **0.777 **0.832 **0.930 **1
LT−0.807 **−0.870 **−0.894 **−0.809 **−0.772 **−0.869 **-0.889 **1
PN0.838 **0.915 **0.933 **0.823 **0.835 **0.928 **0.939 **−0.912 **1
gs0.881 **0.906 **0.940 **0.781 **0.786 **0.892 **0.951 **−0.923 **0.939 **1
Ψw0.825 **0.896 **0.915 **0.759 **0.819 **0.890 **0.953 **−0.898 **0.941 **0.956 **1
Ψs0.802 **0.869 **0.886 **0.725 **0.792 **0.865 **0.929 **−0.880 **0.921 **0.936 **0.975 **1
Ψp0.682 **0.746 **0.763 **0.662 **0.690 **0.737 **0.781 **−0.725 **0.763 **0.773 **0.820 **0.671 **1
WUS0.831 **0.935 **0.933 **0.775 **0.864 **0.931 **0.964 **−0.868 **0.931 **0.923 **0.946 **0.928 **0.761 **1
**: differences between traits are significant at p < 0.01. LDM = leaf dry mass; RDM = root dry mass; WPD = whole-plant dry mass; TBN = tuber number; LA = leaf area; PLH = plant height; Chl = leaf chlorophyll; LT = leaf temperature; PN = net photosynthesis; gs = stomatal conductance; Ψw = leaf water potential; Ψs = leaf osmotic potential; Ψp = leaf turgor; WUS = water usage.
Table
Table 4. Potassium (K) content in the leaves and roots of 90-day-old cassava plants in four pot experiments. Deficit irrigation and K fertigation were initiated 30 days after planting and lasted 60 days. The data from separate experiments were combined and shown as the means of 4 to 16 replicate plants.
Table 4. Potassium (K) content in the leaves and roots of 90-day-old cassava plants in four pot experiments. Deficit irrigation and K fertigation were initiated 30 days after planting and lasted 60 days. The data from separate experiments were combined and shown as the means of 4 to 16 replicate plants.
TreatmentK Content (g kg−1 Dry Matter)
LeavesRoots
Irrigation30%12.6 a9.9
60%14.6 b10.5
100%14.7 b11.5
S.E.M (df = 3–15)0.890.73
p–value (<0.05)0.010.061
Potassium0.01 mM11.1 a3.6 a
1 mM12.2 a10.0 b
4 mM14.5 ab11.3 b
16 mM14.8 ab13.7 c
32 mM17.4 b14.7 c
S.E.M (df = 3–15)1.080.49
p–value (<0.05)<0.001<0.001
Means followed by different letters in the same column are different (Tukey’s test p < 0.05). S.E.M. = standard error of the mean; df = degrees of freedom.

Share and Cite

MDPI and ACS Style

Wasonga, D.O.; Kleemola, J.; Alakukku, L.; Mäkelä, P.S.A. Growth Response of Cassava to Deficit Irrigation and Potassium Fertigation during the Early Growth Phase. Agronomy 2020, 10, 321. https://doi.org/10.3390/agronomy10030321

AMA Style

Wasonga DO, Kleemola J, Alakukku L, Mäkelä PSA. Growth Response of Cassava to Deficit Irrigation and Potassium Fertigation during the Early Growth Phase. Agronomy. 2020; 10(3):321. https://doi.org/10.3390/agronomy10030321

Chicago/Turabian Style

Wasonga, Daniel O., Jouko Kleemola, Laura Alakukku, and Pirjo S.A. Mäkelä. 2020. "Growth Response of Cassava to Deficit Irrigation and Potassium Fertigation during the Early Growth Phase" Agronomy 10, no. 3: 321. https://doi.org/10.3390/agronomy10030321

APA Style

Wasonga, D. O., Kleemola, J., Alakukku, L., & Mäkelä, P. S. A. (2020). Growth Response of Cassava to Deficit Irrigation and Potassium Fertigation during the Early Growth Phase. Agronomy, 10(3), 321. https://doi.org/10.3390/agronomy10030321

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
