Genome-Wide Identification of WRKY Gene Family and Expression Analysis under Abiotic Stress in Barley

by
Junjun Zheng
,
Ziling Zhang
,
Tao Tong
,
Yunxia Fang
,
Xian Zhang
,
Chunyu Niu
,
Jia Li
,
Yuhuan Wu
,
Dawei Xue
and
Xiaoqin Zhang
*
College of Life and Environmental Sciences, Hangzhou Normal University, Hangzhou 311121, China
*
Author to whom correspondence should be addressed.
Agronomy 2021, 11(3), 521; https://doi.org/10.3390/agronomy11030521
Submission received: 24 January 2021 / Revised: 1 March 2021 / Accepted: 5 March 2021 / Published: 11 March 2021
(This article belongs to the Section Crop Breeding and Genetics)
Browse Figures
Review Reports Versions Notes

Abstract

:
The WRKY gene family consists of transcription factors that are widely distributed in plants and play a key role in plant growth and development, secondary metabolite synthesis, biotic and abiotic stress responses, and other biological processes. In this study, 86 WRKY proteins were identified from the barley genome database using bioinformatics and were found to be distributed unevenly on seven chromosomes. According to the structure and phylogenetic relationships, the proteins could be classified into three groups and seven subgroups. The multiple sequence alignment results showed that WRKY domains had different conserved sites in different groups or subgroups, and some members had a special heptapeptide motif. Protein and gene structure analysis indicated that there were significant differences between the groups in terms of the distribution of WRKY motifs and the number of introns in barley. Tissue expression pattern analysis demonstrated that the transcription levels of most genes exhibited tissue and growth-stage specificity. In addition, the analysis of cis-elements in the promoter region revealed that almost all HvWRKYs had plant hormone or stress response cis-elements, and there were differences in the numbers between groups. Finally, the transcriptional levels of 15 HvWRKY genes under drought, cadmium, or salt stress were analyzed by quantitative real-time PCR. It was found that most of the gene expression levels responded to one or more abiotic stresses. These results provide a foundation for further analysis of the function of WRKY gene family members in abiotic stress.

1. Introduction

The WRKY proteins belong to a class of transcription factors that contain special domains. They are called WRKY proteins due to their conserved WRKYGQK amino acid core sequences in the N-terminal of their characteristic domains [1]. They all regulate gene transcription by binding to the conserved W-box in the promoter region of the target gene. WRKY proteins can be divided into three groups based on their sequence characteristics: group I contains two WRKY domains, and group II and group III both contain one WRKY domain. However, group II has a C-terminal zinc-finger structure of C2H2, and group III has a zinc-finger structure of C2HC. Based on phylogenetic relationships, group II proteins can be further divided into five subgroups: II a, II b, II c, II d, and II e [1].
WRKY transcription factors are widespread in plants, participating in many metabolic pathways such as plant growth, development, pathogen tolerance, abiotic stress responses, and senescence [2]. Among these functions, there have been extensive studies in the field of abiotic stress. For example, under cadmium (Cd) stress, AtWRKY13 gene expression is induced. The overexpression of AtWRKY13 leads to a decrease in Cd accumulation and the enhancement of Cd tolerance, and the loss of its function will lead to increased Cd accumulation and sensitivity. Furthermore, studies have showed that AtWRKY13 can directly bind to the promoter of the PDR8 gene to activate its transcription, and the Arabidopsis thaliana (L.) Heynh. ABC transporter PDR8 is a Cd extrusion pump that confers Cd tolerance in plants, thus positively regulating Cd tolerance in A. thaliana [3]. The overexpression of the soybean transcription factor GmWRKY49 in A. thaliana can improve the salt tolerance of plants, and similar results have been observed in soybean composite seedlings overexpressing GmWRKY49, confirming that GmWRKY49 is a positive regulator in the salt tolerance pathway of soybean [4]. In rice, the OsWRKY11 gene can directly bind to the promoter of RAB21 to mediate the drought response. The ectopic expression of the OsWRKY11 gene can enhance the tolerance of plants to drought stress [5]. ZmWRKY106 can regulate the expression of stress-related genes through the abscisic acid (ABA) signaling pathway. The overexpression of ZmWRKY106 significantly improved the drought and heat tolerance of A. thaliana [6].
SPF1, the first member of the WRKY gene family, was isolated from sweet potato (Ipomoea batatas (L.) Lam.). SPF1 can recognize the SP8 sequences in the 5′ upstream regions of sporamin and β-amylase genes and participate in the establishment of the sugar signaling pathway [7]. Since then, especially with the development of whole-genome sequencing, the WRKY gene family has been identified in many plants, such as A. thaliana, with more than 70 members [2,8]; rice, with 107 members [9]; soybean, with 182 members [10]; pineapple, with 54 members [11]; tomato, with 81 members [12]; cotton, with 116 members [13]; and Brachypodium distachyon (L.) Beauv., with 86 members [14].
Barley (Hordeum vulgare L.) is the fourth-largest cereal crop in the world after maize, rice, and wheat. It is one of the oldest food crops and feed crops. The genome of barley has been completely established, which has facilitated widespread molecular biology research in this plant [15,16]. However, there are few reports on the identification of the WRKY gene family in barley and its involvement in abiotic stress. In this study, all of the barley WRKY proteins from the genomic database were identified and subjected to phylogenetic analysis, alignment of conserved domains, analysis of gene and protein structure, and cis-element analysis of the promoter region. In addition, we analyzed the transcription levels of these genes at different growth stages and in different tissues according to the available data, and Morex barley seedlings were treated with salt, polyethylene glycol (PEG) 6000, and cadmium chloride (CdCl2) stress. The transcription levels of 15 HvWRKY genes were determined by quantitative real-time (qRT)-PCR to evaluate the response of the genes to abiotic stress. This study provides a foundation for the identification and further functional analysis of WRKY family members in barley, thus facilitating the cultivation of stress-resistant cultivars and improving the yield and quality of barley.

2. Materials and Methods

2.1. Identification of WRKY Family Members in Barley and Their Chromosomal Locations

The FASTA files of candidate sequences containing WRKY domain were downloaded from the Leibniz-Institut Für Pflanzengenetik Und Kulturpflanzenforschung IPK Barley BLAST Server (https://webblast.ipk-gatersleben.de/barley_ibsc/downloads/; accessed on 25 February 2019).The hidden Markov model (HMM) based on the Arabidopsis WRKY protein downloaded from the TAIR website (https://www.arabidopsis.org/; accessed on 3 March 2019) was used to identify barley WRKY protein in HMMER 3.0 [17] In all, 103 sequences containing the WRKY DNA binding domain (PF03106) were identified as candidate proteins. The redundant sequences were deleted online on the CD-hit website (http://weizhong-lab.ucsd.edu/cdhit-web-server/cgi-bin/index.cgi?cmd=cd-hit; accessed on 3 March 2019) [18], the identity of the cutoff sequence was set to 0.9, and 98 non-redundant sequences were reserved. Then, these sequences were submitted to the Statistical Metabolomics Analysis-An R Tool (SMART) website to confirm whether there were WRKY domains [19]. After removing the sequences without typical WRKY domains, 86 HvWRKY proteins were obtained. The MG2C v2.1 website (http://mg2c.iask.in/mg2c_v2.1/; accessed on 24 June 2019) [20] was used to visualize the distribution of the WRKY gene on seven barley chromosomes. TBtools was used to analyze tandem duplication and segmental duplication of barley WRKY genes, as well as the synteny relationship among four plant genomes [21].

2.2. Phylogenetic Analysis of WRKY Family Members and Sequence Alignment

The amino acid sequences of WRKY proteins in Arabidopsis thaliana and barley were alignment by ClustalX2.1 [22]. Based on the amino acid sequences of the WRKY domain in Arabidopsis and barley, the phylogenetic tree of WRKY was constructed by neighbor-joining (NJ) method of MEGA7.0 with 1000 bootstrap replications [23]. Then, visualization and optimization were carried out in iTOL [24]. All WRKY domain sequences of predicted HvWRKY proteins were aligned using DNAMAN software.

2.3. Structural Analysis of WRKY Genes

The motifs of all predicted HvWRKY proteins were analyzed by the MEME function of TBtools [19]. The parameters of MEME are as follows: set any number of motifs for each sequence; the maximum motif number is 10; the motif width is between 10 and 50 aa, and the rest parameters are the default values. The gene sequence of each predicted HvWRKY protein was downloaded from the barley genome database. The distribution pattern of intron was analyzed by Gene Structure Display Server (GSDS) (http://gsds.cbi.pku.edu.cn/; accessed on 12 April 2019) [25]. SPSS v20.0 one-way ANOVA was used to analyze the number of introns in each group. The Tukey method was used for pairwise comparison.

2.4. Expression Profile of WRKY Genes at Different Growth Stages and in Different Tissues

According to the expression levels of genes from 15 samples at different growth stages and from different tissues provided by the IPK Barley BLAST Server (https://webblast.ipk-gatersleben.de/barley_ibsc/; accessed on 8 March 2019), the expression profiles of 86 genes were drawn by MeV software [26]. The 15 samples were collected from embryos, etiolated seedlings, seedling roots, seedling shoots, epidermal strips, developing inflorescences, inflorescences rachis, roots, third internode of the tillers, lodicule, lemma, palea, developing grains (5 days after pollination), developing grains (15 days after pollination), and senescing leaves. After the expression levels were normalized in MeV, different colors were used to show different expression levels.
The expression patterns of the different genes were clustered by hierarchical clustering, and the genes with different expression patterns were grouped by setting the distance threshold of the gene tree to 4.0. Then, the hierarchical clustering (HCL) tree was obtained to show the relative expression of HvWRKY genes at different growth stages and in different tissues.

2.5. Stress-Related cis-Elements in HvWRKY Promoter Regions

The upstream sequence (2000 bp) of the HvWRKY gene was downloaded from EnsemblPlants (http://plants.ensembl.org/Hordeum_vulgare/Info/Index; accessed on 20 April 2019). Ten stress related cis-elements of the HvWRKY upstream sequence were identified by PlantCARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/; accessed on 27 April 2019) [27], and the distribution of cis-elements in each group was statistically analyzed.

2.6. Abiotic Stress Treatment at the Barley Seedling Stage

The barley variety Morex was used as the research material. The seeds were spread on wet filter paper and germinated for 48 h at 24 °C in darkness, transferred to 96-well plates and cultured in Hoagland’s medium, and then grown in a chamber at 24 °C with a 14/10 h light/dark cycle. The two-leaf-stage seedlings were treated with 200 mM NaCl, 20% (w/v) PEG6000, and 50 μM CdCl2 to induce salt, drought, and cadmium stress, respectively. After 24 h of treatment, the shoots were cut off in groups, immersed in liquid nitrogen for rapid freezing, and then transferred for storage at −80 °C for RNA extraction.

2.7. Quantitative RT-PCR Analysis of the HvWRKY Gene Response to Abiotic Stress

According to the gene expression characteristics, 15 HvWRKY genes were selected and their transcriptional changes under three stress treatments were detected by qRT-PCR. The reference gene was HvActin (HORVU1Hr1G002840). The primers were designed by Primer Premier v5.0, and the sequence information of all primers is shown in Table S1. The AxyPrepTM Multisource Total RNA Miniprep Kit (Axygene, Union City, CA, USA) was used to isolate total RNA. Genomic DNA was digested and RNA was reverse transcribed into cDNA using a HifairTM II 1st Strand cDNA Synthesis Kit (Yeasen, Shanghai, China). The qRT-PCR was performed in a Bio-Rad CFX system using the Hieff® qPCR SYBR Green Master Mix (Yeasen, Shanghai, China). The PCR conditions were 1 min at 95 °C followed by 40 cycles of 10 s at 95 °C, 20 s at 60 °C, and 20 s at 72 °C. The relative expression of the gene was calculated using the 2−∆∆Ct method. The results are the mean ± standard deviation (SD) of three replicate experiments.

3. Results

3.1. Identification and Chromosomal Locations of HvWRKYs

In this study, we identified 86 candidate genes containing the WRKY domain by genome-wide analysis and named them HvWRKY1 to HvWRKY86 according to their location on the barley chromosome. The physicochemical properties of the family members were analyzed. The results (Table S2) showed that the length of the 86 proteins ranged from 117 (HvWRKY33) to 1573 (HvWRKY64) amino acids. The predicted molecular weights (MWs) ranged from 13 to 177 kDa, and the isoelectric points (pIs) ranged from 4.73 (HvWRKY3) to 10.17 (HvWRKY53). The results of chromosome mapping (Figure S1) showed that 82 of the 86 HvWRKY genes could be mapped to seven linkage groups of barley. Among them, there were 21 HvWRKY genes on chromosome 3, which was the highest, and only five HvWRKY genes on chromosome 6, which was the lowest. In addition, four genes could not be specifically mapped to any linkage group.
Five tandem duplications involving 11 HvWRKY genes (HvWRKY9/10/11 on chromosome 1, HvWRKY30/31 and HvWRKY37/38 on chromosome 3, HvWRKY81/82 on chromosome 7, and HvWRKY84/85 without anchoring chromosome) were identified in barley WRKY family members using MCScanX of TBtools (Figure S1). In addition, 13 pairs of segmentally duplicated genes of the WRKY family were found in the barley genome (Figure 1). The synteny analysis among rice, B. distachyon, barley, and A. thaliana showed different degrees of correlation (Figure 2). The number of collinear gene pairs among monocots was much greater than that between barley and A. thaliana, indicating that the collinearity of WRKY family members between A. thaliana and barley was lower.

3.2. Phylogenetic Classification of HvWRKY Genes

Based on the number of WRKY domains and the type of zinc-finger motifs, the HvWRKY proteins were divided into three groups. Group I contained two WRKY domains (one at the N-terminal and the other at the C-terminal) and their zinc-finger motifs were C2H2 type. Group II contained a WRKY domain, and the zinc-finger motif pattern was C2H2. Group III had a WRKY domain and a C2HC zinc-finger motif. There were 10, 42, and 34 HvWRKY proteins belonging to group I, group II, and group III, respectively. The zinc-finger structure of the type III protein HvWRKY18 was incomplete.
In order to further classify the barley WRKY genes, 86 HvWRKY proteins and 72 domains of Arabidopsis WRKY proteins were used to construct a phylogenetic tree (Figure 3). It was found that HvWRKY76 had only one WRKY domain, but its domain was clustered between the C-terminal WRKY domain of the group I protein, and thus HvWRKY76 may be sourced from a complete group I WRKY protein that lost an N-terminal WRKY domain. Therefore, HvWRKY76 is classified as a group I WRKY protein. Group II could be further divided into five subgroups (II a–II e) according to the phylogenetic relationships. Subgroup II a, II b, II c, II d, and II e contained 5, 4, 16, 7, and 10 members, respectively (Figure 3).

3.3. Multiple Sequence Alignment of WRKY Domains

The multiple sequence alignment results showed that WRKY domains had different conserved sites in different groups or subgroups, especially the zinc-finger structure (Figure 4). All of the WRKY domains from the group I proteins contained a WRKYGQK sequence, and they all possessed a C2H2-type zinc finger (CX3-4CX22-23HXH). A WRKY domain and C2H2 zinc finger (CX4-5CX21-24HXH) were observed in all 42 group-II proteins. Among them, five members of subgroup II c contained a WRKYGKK sequence, and one member of subgroup II d contained a WKKYGQK sequence, while the others all had conservative WRKYGQK sequences. Among the 34 group III proteins contained one WRKY domain, five members contained a WRKYGEK sequence, and two members contained WKKYGQK or WTKYGQK. All of the other members possessed conserved WRKYGQK sequences. With the exception of HvWRKY18, the group III HvWRKYs possessed a C2HC zinc finger (CX3-4CX23-31HXC).

3.4. Conserved Motifs of HvWRKY and the Structure of Their Genes

A total of 10 motifs were identified in the barley WRKY proteins by MEME motif analysis (Figure 5). Each HvWRKY possessed a different motif composition. Motif 1 was annotated as a WRKY DNA binding motif (data not shown), which is the basic feature of WRKY transcription factors, with at least one motif 1 in all HvWRKY proteins. Motif 2 was located in the middle of the WRKY domain and exists in most proteins. Motif 3 was found only in group I and subgroup II b/II c proteins. Motifs 4 and 9 appeared in group I/II and group III proteins due to different zinc-finger types. Motif 5/8/10 was found only in a few group III proteins. Motif 6 was mainly distributed in group II a/II b and group III proteins. Motif 7 was found only in group II d and group III proteins.
Gene structure analysis showed that most HvWRKYs had at least one intron, and the number of exons ranged from two to seven, except for seven genes (HvWRKY1/9/10/11/12/16/54) (Figure 6). A HvWRKY gene with three exons was the most frequent type, accounting for 47.7% of the total. The statistical results of the number of introns in each group showed that the genes encoding group I and subgroup II b proteins had the most introns (Figure S2).

3.5. Analysis of Expression Levels at Different Growth Stages and in Different Tissues

The expression patterns of genes are often related to their functions, and the analysis of expression patterns can inform functional research. The expression patterns of 86 HvWRKYs genes in 15 samples of different tissues at different growth stages were divided into 13 groups, and seven genes did not belong to any group (Figure 7).
Among them, Group 3 contained two HvWRKY genes that were highly expressed in young inflorescences; these genes may be involved in inflorescence development. Group 9 contained six HvWRKY genes that were highly expressed in senescent leaves, indicating that these genes may be involved in the process of leaf senescence. Group 10 contained 18 HvWRKY genes that were highly expressed in the roots, suggesting that these genes may play a role in the roots. Group 11 contained seven HvWRKY genes that were highly expressed in the roots of seedlings, indicating that these genes may be involved in the root development of seedlings. Group 13 contained 10 HvWRKY genes that were highly expressed in the third internode of the developing tillers, implying that these genes may be involved in the growth and development of stems. In addition, HvWRKY2 was highly expressed in the inflorescence rachis, indicating that HvWRKY2 might be involved in the formation of ear traits. The high expression of HvWRKY44 in the developing grains after five days of flowering indicated that HvWRKY44 might play a role in the early development of grains.

3.6. Analysis of cis-Elements

In order to elucidate the signal transduction pathway of HvWRKYs in plants and the regulatory mechanisms during the stress response, the distribution of 10 cis-elements in the HvWRKY promoter region was analyzed. The 10 stress-response elements included ABRE (ABA response), AuxRR-core (auxin response), CGTCA-motif (MeJA response), LTR (low-temperature response), MBS (MYB transcription factor binding site involved in drought induction), P-box (gibberellin response), TCA-element (salicylic acid response), TC-rich repeats (defense and stress response), TGA-element (auxin-responsive element), and W-box (WRKY transcription factor binding site in the defense response).
In this study, only two genes (HvWRKY84 and HvWRKY85) did not possess any of these cis-elements. Elements related to phytohormone regulation were identified in most HvWRKY promoters (Figure S3). A total of 74 (86%) HvWRKYs had one or more ABREs, suggesting that these genes may respond to ABA. The CGTCA motif involved in the MeJA response also existed in 74 genes. Some cis-elements related to stress were also found in some HvWRKY promoter regions. For example, there were 46 HvWRKYs containing one or more W-box elements in their promoter regions. In addition, LTR, MBS, and TC-rich repeats were found in 41, 38, and eight genes, respectively. According to the cis-element statistics of each group (Figure 8), the promoter region of group I member possessed more MBS and less AuxRR-core and TCA-element. There were more ABRE, TCA-element, TC-rich repeats, and W-box and less LTR in the promoter regions of group II members. Group III had more AuxRR-core and TGA-element and less W-box.

3.7. Transcriptional Responses of HvWRKY Genes to Abiotic Stresses

Many gene families in barley respond to abiotic stresses such as salt, drought, and heavy metals [28,29]. By comprehensively considering the protein subcellular localization, tissue expression level, and protein properties, we selected 15 genes to analyze expression levels under abiotic stress. We used qRT-PCR to analyze the expression profiles of these 15 HvWRKY genes under PEG6000, CdCl2, and salt treatment (Figure 9). It can be seen from the figure that most of the 15 HvWRKY genes responded to abiotic stress at the transcriptional level. Following PEG6000 treatment, the expression levels of four genes. (HvWRKY1, 3, 24, 83) increased by more than twofold, among which the expression of HvWRKY3 was 13 times higher than that of the control, and the expression of two genes (HvWRKY32 and HvWRKY80) decreased significantly. The expression levels of seven genes (HvWRKY1, 3, 13, 15, 24, 43, 55) were increased by more than twofold following treatment with CdCl2. The expression levels of HvWRKY3 and HvWRKY24 were 20- and 10-fold higher than those of the control, respectively. The expression levels of two genes (HvWRKY32 and HvWRKY80) decreased significantly, and the expression of HvWRKY80 decreased to one-fifth of the control. After NaCl treatment, the expression levels of six genes (HvWRKY1, 27, 15, 43, 71, 83) were increased by more than 1.5 times, and the expression levels of four genes (HvWRKY3, 24, 32, 80) were significantly decreased, and the expression levels of HvWRKY3 and HvWRKY24 were 1/33 and 1/5 of the control, respectively. Overall, the transcription of four genes (HvWRKY1, 13, 15, 83) was upregulated under the three stress treatments. On the contrary, two genes (HvWRKY32 and HvWRKY80) were inhibited. In addition, three genes (HvWRKY28, 43, 71) were upregulated under salt and Cd stress but were inhibited under simulated drought conditions. Two genes (HvWRKY3 and HvWRKY24) were upregulated under simulated drought and Cd stress but were inhibited under salt stress. HvWRKY53 was upregulated under drought and Cd stress but was hardly responsive to salt stress. HvWRKY27 and HvWRKY55 were upregulated only under Cd stress but hardly responded to the other two stresses.

4. Discussion

The WRKY gene family exists widely in plant genomes. As more and more plant genomes are being sequenced, the distribution of the WRKY family in the plant kingdom has been increasingly studied [12,30,31,32]. In this study, we identified 86 WRKY family members in the barley genome. The WRKY domain is the key sequence that determines the specific binding of the WRKY protein to the cis-element W-box. The multiple sequence alignment results of the WRKY domain of the HvWRKY proteins showed that the conserved sequences of the WRKYGQK heptapeptide of 13 HvWRKY proteins varied (Figure 4). According to previous studies, this variation may affect the interaction between WRKY proteins and downstream target genes [33,34]. Therefore, these genes should be further studied for their function and binding specificity. In other monocotyledonous plants, such as rice and maize [35,36,37], the loss and gain of the WRKY domain is common, which is an important driving force for the expansion of the WRKY gene family. In barley, we found that the N-terminal WRKY domain of HvWRKY76 was lost, which was consistent with previous results. It has been reported that the DNA binding activity of the N-terminal WRKY domain is not as strong as that of the C-terminal WRKY domain, and there are more variations in the N-terminal WRKY domain. In accordance with previous studies, the WRKY domains of subgroup II a and II b were clustered together with the C-terminal WRKY domains of group I proteins. These results indicate that the WRKY domains of subgroup II a and II b are more closely related to the C-terminal WRKY domains of group I proteins. Similar to other plants [14,32,38], WRKY also exhibits tandem and segmental duplication in barley, indicating that gene replication plays an important role in the formation of the WRKY gene family in barley.
Many studies show that the WRKY gene is involved in the regulation of plant growth and development [39,40]. In this study, we analyzed the expression patterns of the HvWRKY gene using available transcriptome data at different developmental stages and tissues. Based on the phylogenetic relationships, we obtained some insight into the biological functions of barley WRKY genes by comparison with the known functions of WRKY genes of A. thaliana. HvWRKY13 clustered with AtWRKY23 of A. thaliana, and AtWRKY23 can mediate embryo development [41]. In the expression profile, we found that HvWRKY13 was highly expressed in the lemma and palea, which are near to the seeds, suggesting that this gene is related to embryo or seed development. In addition, HvWRKY21 and HvWRKY72 clustered together with AtWRKY12, which is expressed in stems and regulates the formation of secondary cell walls [42]. In the expression profile, HvWRKY21 and HvWRKY72 were highly expressed in the internodes of the tillers, suggesting that the two genes may have similar functions as AtWRKY12. The group III WRKY protein is believed to play an important role in the plant response to stresses [43]. We found that 11 of the 18 Group 10 HvWRKY genes that were highly expressed in the roots of seedlings were group III proteins. This proportion (61%) was significantly higher than that of the group III proteins in all of the WRKY family members (39.5%). We speculated that some WRKY group III proteins may play a role in stress-response regulation in barley roots.
Previous studies have shown that subgroup II c WRKY transcription factors can regulate abiotic stress tolerance [44], and some members participate via the ABA signaling pathway [45]. In this study, four subgroup II c genes (HvWRKY1, HvWRKY13, HvWRKY15, and HvWRKY83) were all upregulated under simulated drought, Cd, and salt treatments. This suggests that WRKY II c may be involved in the positive regulation of the barley response to these three stresses. There are ABRE elements in the promoter region of these four genes, suggesting that these genes are upregulated through the ABA pathway, which is consistent with previous studies. With the exception of HvWRKY1, the other three genes have a W-box in their promoter region, which indicates that these genes may have autoregulation or cross-regulation with other WRKY genes. The promoter region of HvWRKY43 in response to Cd and salt treatments contained the ABRE, CGTCA-motif, and TGA-element at the transcriptional level, indicating that HvWRKY43 may participate in the response to heavy metal and salt stress through the ABA, MeJA, or auxin signaling pathways.

5. Conclusions

Based on the available genomic data, 86 HvWRKY proteins were identified. The genes encoding these proteins were distributed unevenly on seven chromosomes of barley, and there were five tandem duplications and 13 pairs of segmentally duplicated genes. In addition, WRKY family members of rice, Brachypodium distachyon, barley, and Arabidopsis thaliana showed different number of collinear gene pairs. These 86 proteins could be divided into three groups or seven subgroups according to their structure and phylogenetic relationship, the motif distribution showed obvious group differences, and the sequence differences of WRKY domain also matched our classification. Based on the cis-element analysis of the promoter region, we hypothesized that many HvWRKYs are involved in phytohormone signaling and abiotic stress response, and the frequency of some elements was different among three groups. Transcriptional analysis of 15 HvWRKY genes under PEG6000, cadmium, and salt treatment revealed that some HvWRKY genes responded to one or more abiotic stresses. Our study provides a foundation for further functional research and identification of the barley WRKY gene family, thus assisting in elucidating the molecular mechanisms of the barley response to abiotic stress.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4395/11/3/521/s1, Figure S1: Distribution of HvWRKY genes on barley chromosomes, Figure S2: Comparison of the average number of introns in WRKY gene family members of each group or subgroup, Figure S3: cis-Elements distribution of HvWRKYs promoters, Table S1: The primer sequence used in qRT-PCR, Table S2: Basic information of protein and nucleic acid of WRKY gene family members in barley.

Author Contributions

Conceptualization, D.X. and X.Z. (Xiaoqin Zhang); methodology, J.Z., T.T. and D.X.; software, J.Z. and Z.Z.; validation, J.Z., T.T. and X.Z. (Xian Zhang); formal analysis, J.Z., Y.F. and C.N.; resources, D.X., Y.W. and X.Z. (Xiaoqin Zhang); data curation, J.Z. and Z.Z.; writing—original draft preparation, J.Z., C.N. and J.L.; writing—review and editing, Y.F., D.X. and X.Z. (Xiaoqin Zhang). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (31401316) and the Hangzhou Scientific and Technological Program (20140432B03).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Eulgem, T.; Rushton, P.J.; Robatzek, S.; Somssich, I.E. The WRKY superfamily of plant transcription factors. Trends Plant Sci. 2000, 5, 199–206. [Google Scholar] [CrossRef]
  2. Rushton, P.J.; Somssich, I.E.; Ringler, P.; Shen, Q.J. WRKY transcription factors. Trends Plant Sci. 2010, 15, 247–258. [Google Scholar] [CrossRef]
  3. Sheng, Y.B.; Yan, X.X.; Huang, Y.; Han, Y.Y.; Zhang, C.; Ren, Y.B.; Fan, T.T.; Xiao, F.M.; Liu, Y.S.; Cao, S.Q. The WRKY transcription factor, WRKY13, activates PDR8 expression to positively regulate cadmium tolerance in Arabidopsis. Plant Cell Environ. 2019, 42, 891–903. [Google Scholar] [CrossRef]
  4. Xu, Z.L.; Raza, Q.; Xu, L.; He, X.L.; Huang, Y.H.; Yi, J.X.; Zhang, D.Y.; Shao, H.B.; Ma, H.X.; Ali, Z. GmWRKY49, a Salt-Responsive Nuclear Protein, Improved Root Length and Governed Better Salinity Tolerance in Transgenic Arabidopsis. Front. Plant Sci. 2018, 9, 809. [Google Scholar] [CrossRef]
  5. Lee, H.; Cha, J.; Choi, C.; Choi, N.; Ji, H.S.; Park, S.R.; Lee, S.; Hwang, D.J. Rice WRKY11 Plays a Role in Pathogen Defense and Drought Tolerance. Rice 2018, 11, 5. [Google Scholar] [CrossRef]
  6. Wang, C.T.; Ru, J.N.; Liu, Y.W.; Li, M.; Zhao, D.; Yang, J.F.; Fu, J.D.; Xu, Z.S. Maize WRKY Transcription Factor ZmWRKY106 Confers Drought and Heat Tolerance in Transgenic Plants. Int. J. Mol. Sci. 2018, 19, 3046. [Google Scholar] [CrossRef] [Green Version]
  7. Ishiguro, S.; Nakamura, K. Characterization of a cDNA encoding a novel DNA.binding protein, SPF1, that recognizes SP8 sequences in the 5’ upstream regions of genes coding for sporamin and β-amylase from sweet potato. Mol. Gen. Genet. 1994, 244, 563–571. [Google Scholar] [CrossRef]
  8. Wang, Q.S.; Wang, M.H.; Zhang, X.Z.; Hao, B.J.; Kaushik, S.K.; Pan, Y.C. WRKY gene family evolution in Arabidopsis thaliana. Genetica 2011, 139, 973. [Google Scholar] [CrossRef]
  9. Wu, K.L.; Guo, Z.J.; Wang, H.H.; Li, J. The WRKY Family of Transcription Factors in Rice and Arabidopsis and Their Origins. DNA Res. 2005, 12, 9–26. [Google Scholar] [CrossRef] [Green Version]
  10. Bencke-Malato, M.; Cabreira, C.; Wiebke-Strohm, B.; Bucker-Neto, L.; Mancini, E.; Osorio, M.B.; Homrich, M.S.; Turchetto-Zolet, A.C.; Carvalho, M.C.D.; Stolf, R. Genome-wide annotation of the soybean WRKY family and functional characterization of genes involved in response to Phakopsora pachyrhizi infection. BMC Plant Biol. 2014, 14, 236. [Google Scholar] [CrossRef] [Green Version]
  11. Xie, T.; Chen, C.J.; Li, C.H.; Liu, J.R.; Liu, C.Y.; He, Y.H. Genome-wide investigation of WRKY gene family in pineapple: Evolution and expression profiles during development and stress. BMC Genom. 2018, 19, 490. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Huang, S.X.; Gao, Y.F.; Liu, J.K.; Peng, X.L.; Niu, X.L.; Fei, Z.J.; Cao, S.Q.; Liu, Y.S. Genome-wide analysis of WRKY transcription factors in Solanum lycopersicum. Mol. Genet. Genom. 495–513. [CrossRef]
  13. Dou, L.L.; Zhang, X.H.; Pang, C.Y.; Song, M.Z.; Wei, H.L.; Fan, S.L.; Yu, S.X. Genome-wide analysis of the WRKY gene family in cotton. Mol. Genet. Genom. 2014, 289, 1103–1121. [Google Scholar] [CrossRef] [PubMed]
  14. Wen, F.; Zhu, H.; Li, P.; Jiang, M.; Mao, W.Q.; Ong, C.; Chu, Z.Q. Genome-wide evolutionary characterization and expression analyses of WRKY family genes in Brachypodium distachyon. DNA Res. 2014, 21, 327–339. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Tong, T.; Fang, Y.X.; Zhang, Z.L.; Zheng, J.J.; Zhang, X.; Li, J.; Niu, C.Y.; Xue, D.W.; Zhang, X.Q. Genome-wide identification and expression pattern analysis of the KCS gene family in barley. Plant Growth Regul. 2021, 93, 89–103. [Google Scholar] [CrossRef]
  16. Tong, T.; Fang, Y.X.; Zhang, Z.L.; Zheng, J.J.; Lu, X.L.; Zhang, X.Q.; Xue, D.W. Genome-wide identification, phylogenetic and expression analysis of SBP-box gene family in barley (Hordeum vulgare L.). Plant Growth Regul. 2020, 90, 137–149. [Google Scholar] [CrossRef]
  17. Finn, R.D.; Clements, J.; Eddy, S.R. HMMER Web Server: Interactive Sequence Similarity Searching. Nucleic Acids Res. 2011, 39, W29–W37. [Google Scholar] [CrossRef] [Green Version]
  18. Huang, Y.; Niu, B.F.; Gao, Y.; Fu, L.M.; Li, W.Z. CD-HIT Suite: A web server for clustering and comparing biological sequences. Bioinformatics 2010, 26, 680–682. [Google Scholar] [CrossRef] [PubMed]
  19. Letunic, I.; Bork, P. 20 years of the SMART protein domain annotation resource. Nucleic Acids Res. 2018, 46, 493–496. [Google Scholar] [CrossRef]
  20. Chao, J.T.; Kong, Y.Z.; Wang, Q.; Sun, Y.H.; Gong, D.P.; Lv, J.; Liu, G.S. MapGene2Chrom, a tool to draw gene physical map based on Perl and SVG languages. Hereditas 2015, 37, 91–97. [Google Scholar] [CrossRef]
  21. Chen, C.J.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.H.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  22. Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R. Clustal W and Clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef] [Green Version]
  23. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [Green Version]
  24. Letunic, I.; Bork, P. Interactive Tree Of Life (iTOL) v4: Recent updates and new developments. Nucleic Acids Res. 2019, 47, 256–259. [Google Scholar] [CrossRef] [Green Version]
  25. Guo, A.Y.; Zhu, Q.H.; Chen, X.; Luo, J.C. GSDS: A gene structure display server. Hereditas 2007, 29, 1023–1026. [Google Scholar] [CrossRef]
  26. Saeed, A.I.; Sharov, V.; White, J.; Li, J.; Liang, W.; Bhagabati, N.; Braisted, J.; Klapa, M.; Currier, T.; Thiagarajan, M. TM4: A free, open-source system for microarray data management and analysis. Biotechniques 2003, 34, 374–378. [Google Scholar] [CrossRef] [Green Version]
  27. Rombauts, S.; Déhais, P.; Montagu, M.V.; Rouzé, P. PlantCARE, a plant cis-acting regulatory element database. Nucleic Acids Res. 1999, 27, 295–296. [Google Scholar] [CrossRef] [Green Version]
  28. Zhang, Z.L.; Tong, T.; Fang, Y.X.; Zheng, J.J.; Zhang, X.; Niu, C.Y.; Li, J.; Zhang, X.Q.; Xue, D.W. Genome-wide identification of barley ABC genes and their expression in response to abiotic stress treatment. Plants 2020, 9, 1281. [Google Scholar] [CrossRef] [PubMed]
  29. Zhang, L.T.; Wang, S.Y.; Chen, Y.Y.; Dong, M.Y.; Fang, Y.X.; Zhang, X.; Tong, T.; Zhang, Z.L.; Zheng, J.J.; Xue, D.W. Genome-wide identification of the F-box gene family and expression analysis under drought and salt stress in barley. Phyton-International J. Exp. Bot. 2020, 89, 229–251. [Google Scholar] [CrossRef]
  30. Huang, X.S.; Li, K.Q.; Xu, X.Y.; Yao, Z.H.; Jin, C.; Zhang, S.L. Genome-wide analysis of WRKY transcription factors in white pear (Pyrus bretschneideri) reveals evolution and patterns under drought stress. BMC Genom. 2015, 16, 1104. [Google Scholar] [CrossRef] [Green Version]
  31. Guo, C.L.; Guo, R.R.; Xu, X.Z.; Gao, M.; Li, X.Q.; Song, J.Y.; Zheng, Y.; Wang, X.P. Evolution and expression analysis of the grape (Vitis vinifera L.) WRKY gene family. J. Exp. Bot. 2014, 65, 1513–1528. [Google Scholar] [CrossRef]
  32. He, H.S.; Dong, Q.; Shao, Y.H.; Jiang, H.Y.; Zhu, S.W.; Cheng, B.J.; Xiang, Y. Genome-wide survey and characterization of the WRKY gene family in Populus trichocarpa. Plant Cell Rep. 2012, 31, 1199–1217. [Google Scholar] [CrossRef]
  33. Verk, M.C.; Pappaioannou, D.; Neeleman, L.; Bol, J.F.; Linthorst, H.J.M. A novel WRKY transcription factor is required for induction of PR-1a gene expression by salicylic acid and bacterial elicitors. Plant Physiol. 2008, 146, 1983–1995. [Google Scholar] [CrossRef] [Green Version]
  34. Zhou, Q.Y.; Tian, A.G.; Zou, H.F.; Xie, Z.M.; Lei, G.; Huang, J.; Wang, C.M.; Wang, H.W.; Zhang, J.S.; Chen, S.Y. Soybean WRKY-type transcription factor genes, GmWRKY13, GmWRKY21, and GmWRKY54, confer differential tolerance to abiotic stresses in transgenic Arabidopsis plants. Plant Biotechnol. J. 2008, 6, 486–503. [Google Scholar] [CrossRef] [PubMed]
  35. Brand, L.H.; Fischer, N.M.; Harter, K.; Kohlbacher, O.; Wanke, D. Elucidating the evolutionary conserved DNA-binding specificities of WRKY transcription factors by molecular dynamics and in vitro binding assays. Nucleic Acids Res. 2013, 41, 9764–9778. [Google Scholar] [CrossRef] [PubMed]
  36. Wei, K.F.; Chen, J.; Chen, Y.F.; Wu, L.J.; Xie, D.X. Molecular phylogenetic and expression analysis of the complete WRKY transcription factor family in maize. DNA Res. 2012, 19, 153–164. [Google Scholar] [CrossRef] [Green Version]
  37. Ross, C.A.; Liu, Y.; Shen, Q.J. The WRKY gene family in rice (Oryza sativa). J. Integr. Plant Biol. 2007, 49, 827–842. [Google Scholar] [CrossRef]
  38. Kaliyappan, R.; Viswanathan, S.; Suthanthiram, B.; Subbaraya, U.; Somasundram, S.M.; Muthu, M. Evolutionary expansion of WRKY gene family in banana and its expression profile during the infection of root lesion nematode, Pratylenchus coffeae. PLoS ONE 2016, 11, e0162013. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Du, C.; Ma, B.J.; Wu, Z.G.; Li, N.N.; Zheng, L.L.; Wang, Y.C. Reaumuria trigyna transcription factor RtWRKY23 enhances salt stress tolerance and delays flowering in plants. J. Plant Physiol. 2019, 239, 38–51. [Google Scholar] [CrossRef]
  40. Phukan, U.J.; Jeena, G.S.; Shukla, R.K. WRKY transcription factors: Molecular regulation and stress responses in plants. Front. Plant Sci. 2016, 7, 760. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Grunewald, W.; Smet, I.D.; Rybel, B.D.; Robert, H.S.; Cotte, B.V.D.; Willemsen, V.; Gheysen, G.; Weijers, D.; Friml, J.; Beecjman, T. Tightly controlled WRKY23 expression mediates Arabidopsis embryo development. EMBO Rep. 2013, 14, 1136–1142. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Wang, H.Z.; Avci, U.; Nakashima, J.; Hahn, M.G.; Chen, F.; Dixon, R.A. Mutation of WRKY transcription factors initiates pith secondary wall formation and increases stem biomass in dicotyledonous plants. Proc. Natl. Acad. Sci. USA 2010, 107, 22338–22343. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Wang, Y.Y.; Feng, L.; Zhu, Y.X.; Li, Y.; Yan, H.W.; Xiang, Y. Comparative genomic analysis of the WRKY III gene family in populus, grape, arabidopsis and rice. Biol. Direct 2015, 10, 48. [Google Scholar] [CrossRef] [Green Version]
  44. Wang, C.; Deng, P.Y.; Chen, L.L.; Wang, X.T.; Ma, H.; Hu, W.; Yao, N.C.; Feng, Y.; Chai, R.H.; Yang, G.X. A Wheat WRKY Transcription Factor TaWRKY10 Confers Tolerance to Multiple Abiotic Stresses in Transgenic Tobacco. PLoS ONE 2013, 8, e65120. [Google Scholar] [CrossRef]
  45. Wu, M.; Liu, H.L.; Han, G.M.; Cai, R.H.; Pan, F.; Xiang, Y. A moso bamboo WRKY gene PeWRKY83 confers salinity tolerance in transgenic Arabidopsis plants. Sci. Rep. 2017, 7, 11721. [Google Scholar] [CrossRef] [Green Version]
Agronomy 11 00521 g001 550

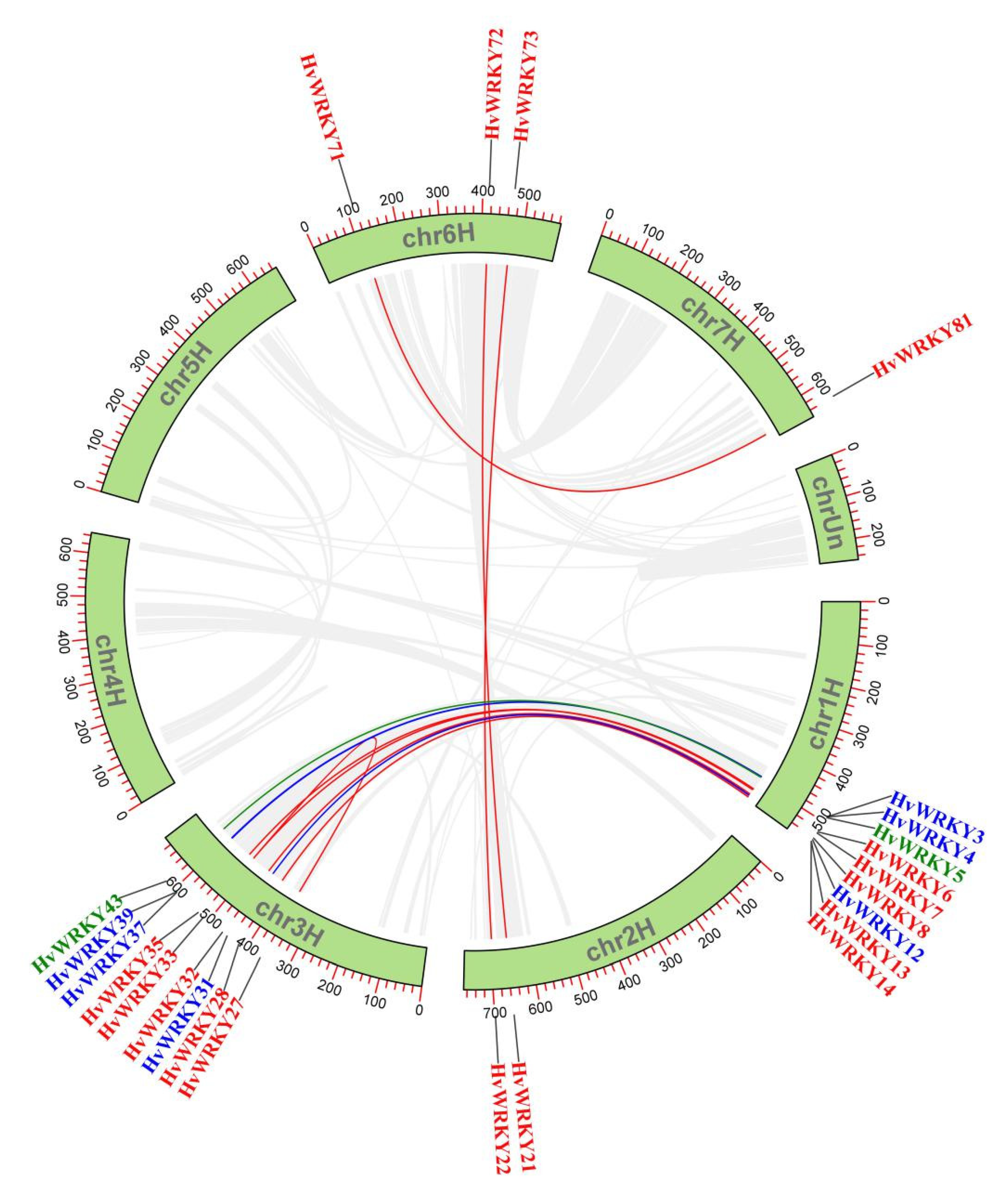

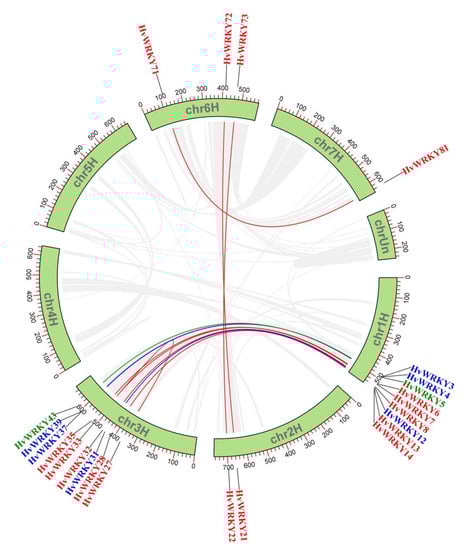

Figure 1. The segmental duplication of WRKY family in barley. The Circos map drawn by TBtools shows the position relationship of 12 pairs of segmental duplication gene pairs detected in barley genome. The scale outside the chromosome represents physical position (Mb). The green font is group I WRKY, red is group II, and blue is group III.
Figure 1. The segmental duplication of WRKY family in barley. The Circos map drawn by TBtools shows the position relationship of 12 pairs of segmental duplication gene pairs detected in barley genome. The scale outside the chromosome represents physical position (Mb). The green font is group I WRKY, red is group II, and blue is group III.
Agronomy 11 00521 g001
Agronomy 11 00521 g002 550

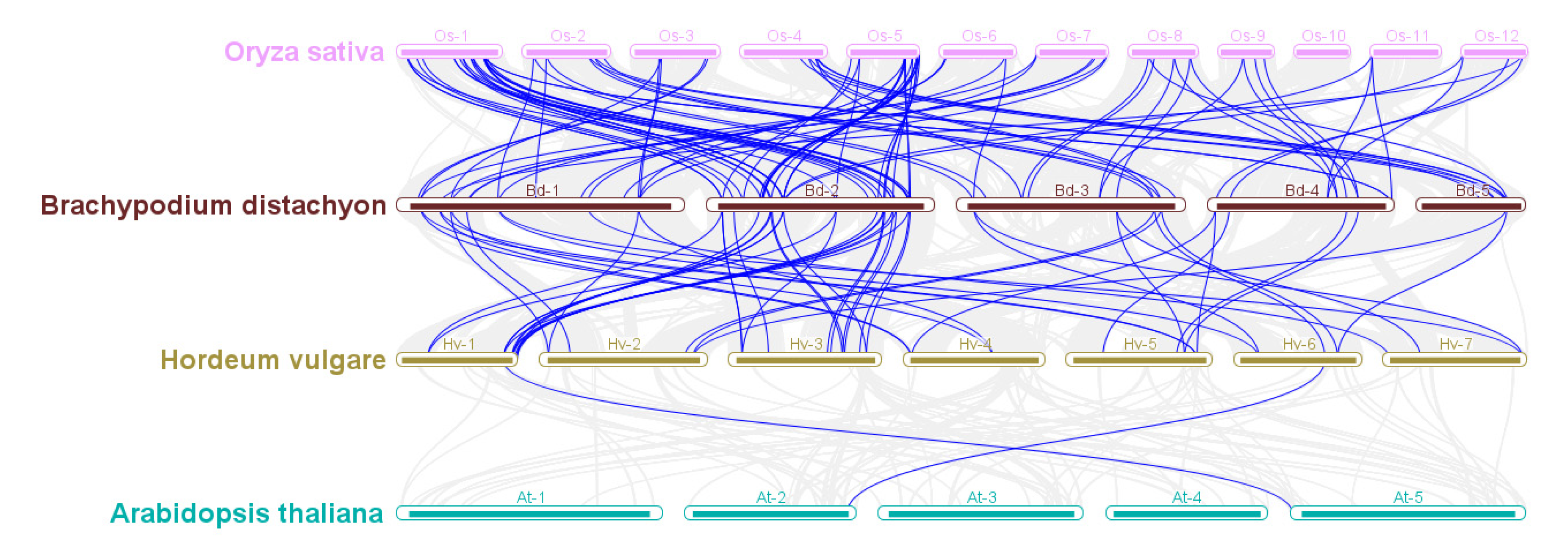

Figure 2. Collinearity analysis of WRKY genes in Oryza sativa L. (pink), Brachypodium distachyon (brown), Hordeum vulgare (grey), and Arabidopsis thaliana (blue). Each horizontal bar represents a chromosome. The orthologous WRKY genes were linked using blue curves.
Figure 2. Collinearity analysis of WRKY genes in Oryza sativa L. (pink), Brachypodium distachyon (brown), Hordeum vulgare (grey), and Arabidopsis thaliana (blue). Each horizontal bar represents a chromosome. The orthologous WRKY genes were linked using blue curves.
Agronomy 11 00521 g002
Agronomy 11 00521 g003 550

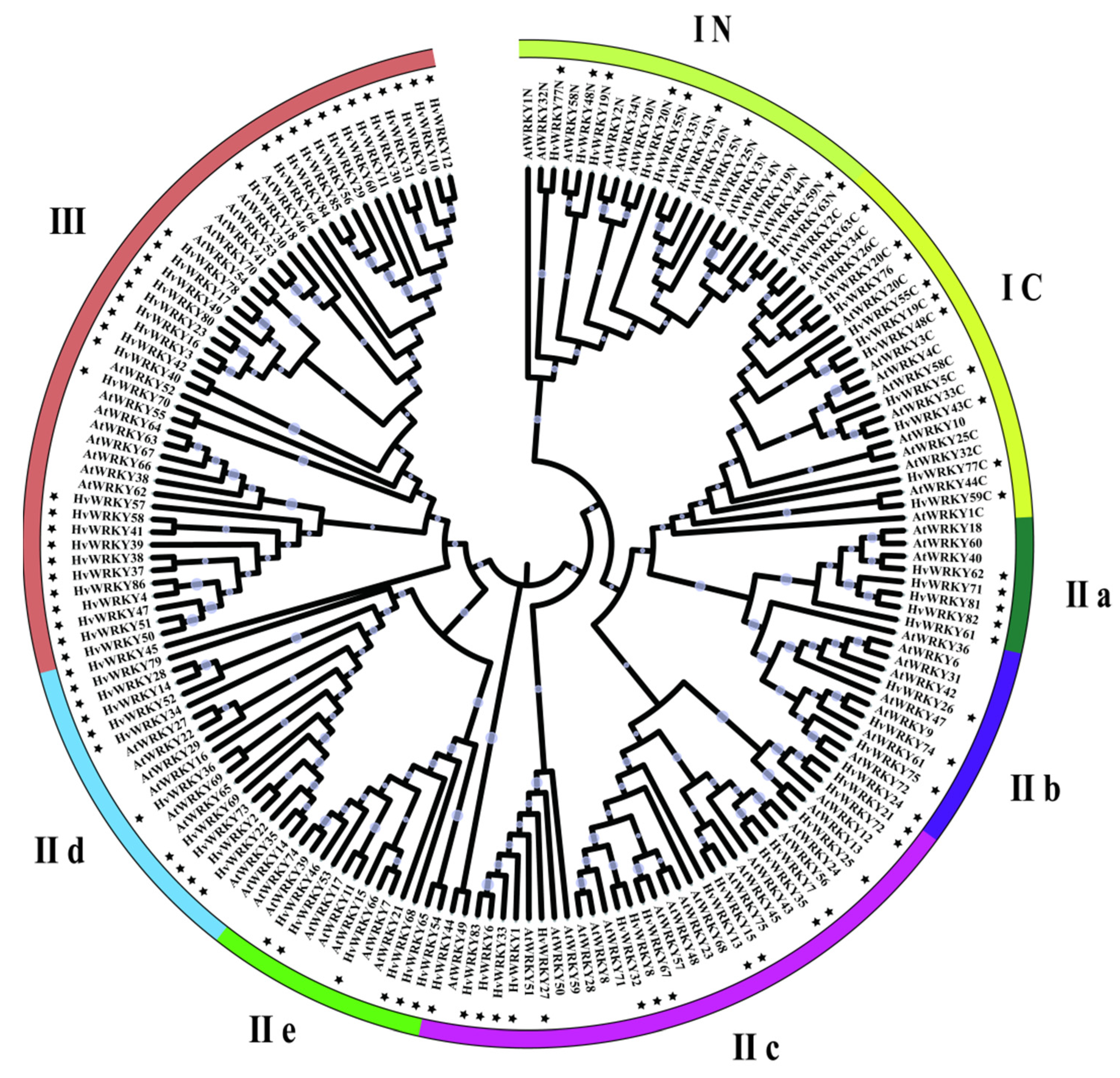

Figure 3. Phylogenetic relationship of barley and Arabidopsis WRKY proteins. The names of groups and subgroups have been marked outside the ring. “N” and “C” represent the N-terminal and C-terminal WRKY domains of group I members. Asterisks indicate that the WRKY protein comes from barley. The dot size represents bootstrap values. ClustalX is used for multiple sequence alignments of WRKY domain. Phylogenetic tree was constructed by MEGA7.0 using the neighbor-joining (NJ) method with 1000 bootstrap replications.
Figure 3. Phylogenetic relationship of barley and Arabidopsis WRKY proteins. The names of groups and subgroups have been marked outside the ring. “N” and “C” represent the N-terminal and C-terminal WRKY domains of group I members. Asterisks indicate that the WRKY protein comes from barley. The dot size represents bootstrap values. ClustalX is used for multiple sequence alignments of WRKY domain. Phylogenetic tree was constructed by MEGA7.0 using the neighbor-joining (NJ) method with 1000 bootstrap replications.
Agronomy 11 00521 g003
Agronomy 11 00521 g004 550

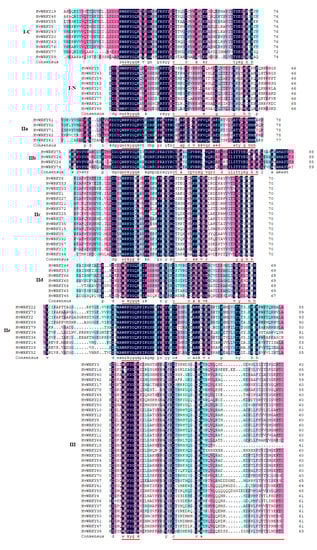

Figure 4. Multiple sequence alignments of WRKY domains in each group of HvWRKY proteins. The WRKYGQK core motif and zinc finger structure have been marked with red underline. Each group was aligned on a heptapeptide core motif. Dark blue shading represents a homology level of 100% in a group or subgroup, pink ≥ 75%, and light blue ≥ 50%.
Figure 4. Multiple sequence alignments of WRKY domains in each group of HvWRKY proteins. The WRKYGQK core motif and zinc finger structure have been marked with red underline. Each group was aligned on a heptapeptide core motif. Dark blue shading represents a homology level of 100% in a group or subgroup, pink ≥ 75%, and light blue ≥ 50%.
Agronomy 11 00521 g004
Agronomy 11 00521 g005 550

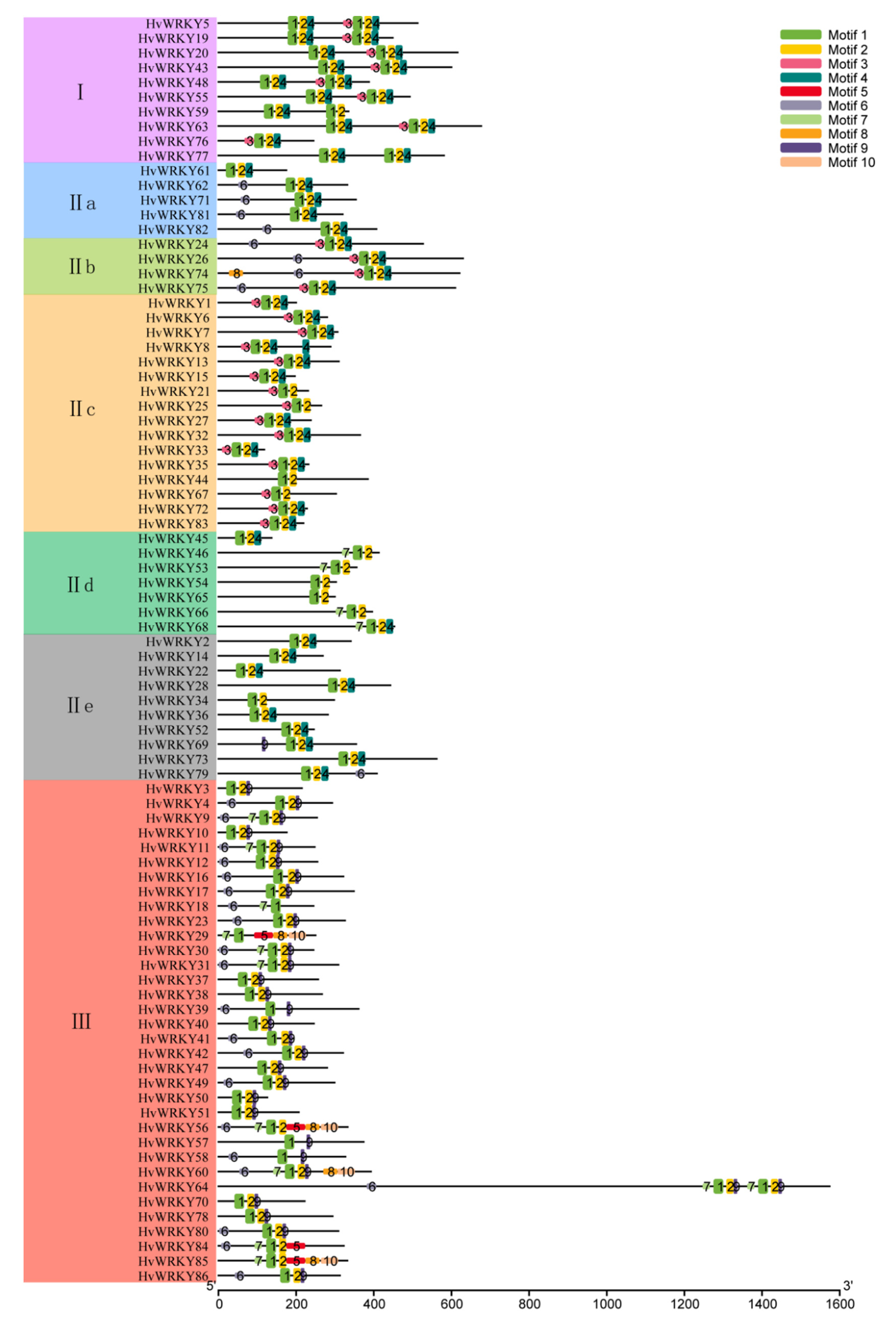

Figure 5. Distribution of conserved motifs of HvWRKY protein in each group. Ten motifs were predicted by MEME and are shown in different colors. Motifs 1/2/4/9 were all located in the WRKY domain and represented by a wider rectangle.
Figure 5. Distribution of conserved motifs of HvWRKY protein in each group. Ten motifs were predicted by MEME and are shown in different colors. Motifs 1/2/4/9 were all located in the WRKY domain and represented by a wider rectangle.
Agronomy 11 00521 g005
Agronomy 11 00521 g006 550

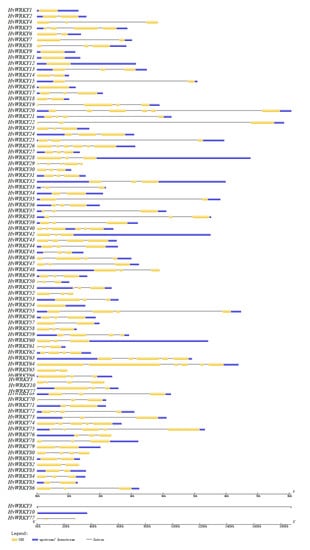

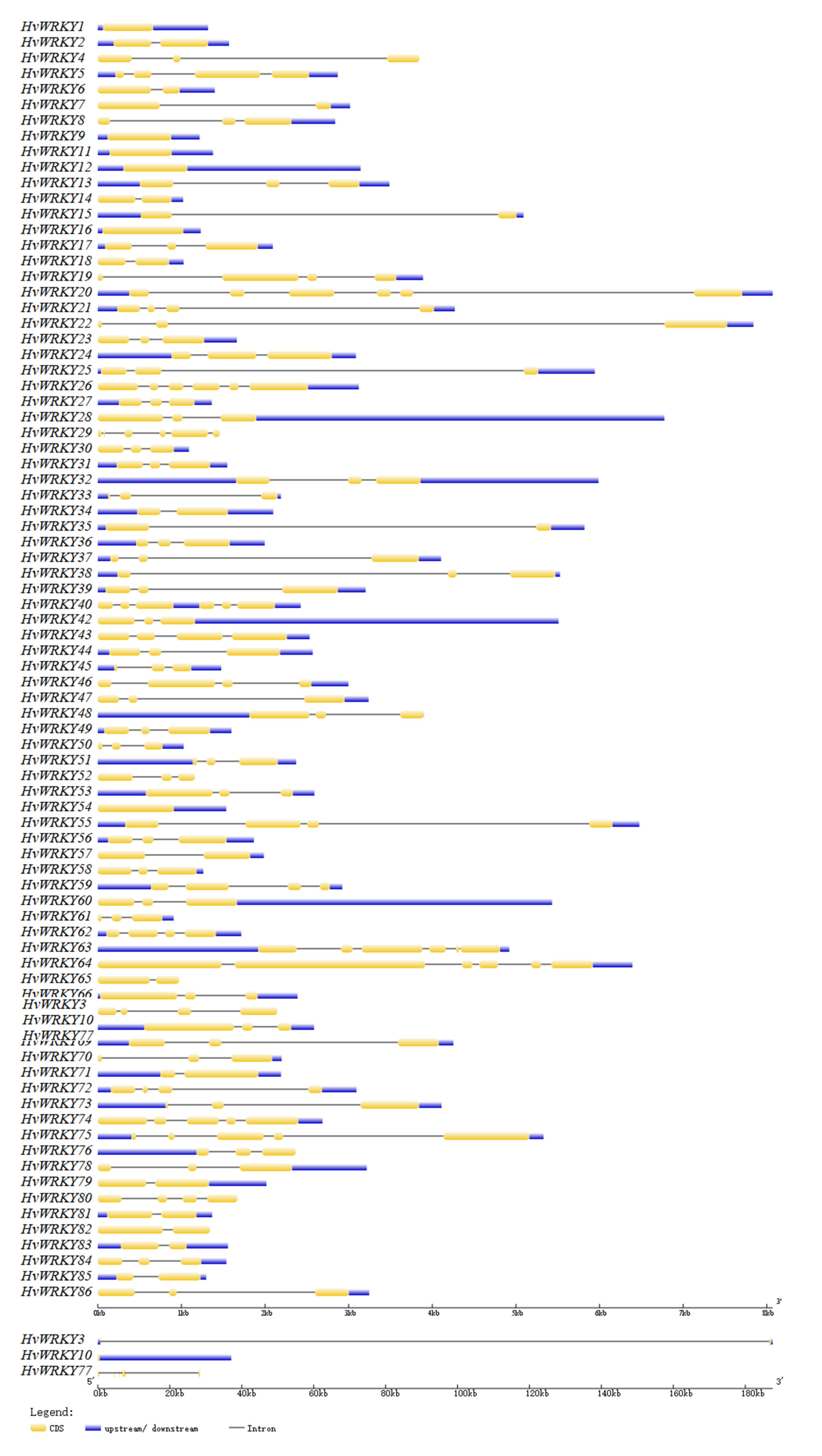

Figure 6. Intron–exon structure of HvWRKY gene. The gene structure of HvWRKY was analyzed by GSDS. The yellow block represents the coding sequence (CDS), the blue block represents the 5’ or 3’ untranslated region (UTR), and the black line represents intron. Three genes (HvWRKY3, HvWRKY10, HvWRKY77) are displayed on a smaller scale.
Figure 6. Intron–exon structure of HvWRKY gene. The gene structure of HvWRKY was analyzed by GSDS. The yellow block represents the coding sequence (CDS), the blue block represents the 5’ or 3’ untranslated region (UTR), and the black line represents intron. Three genes (HvWRKY3, HvWRKY10, HvWRKY77) are displayed on a smaller scale.
Agronomy 11 00521 g006
Agronomy 11 00521 g007 550

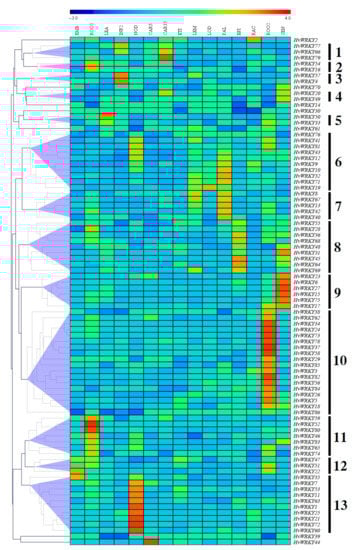

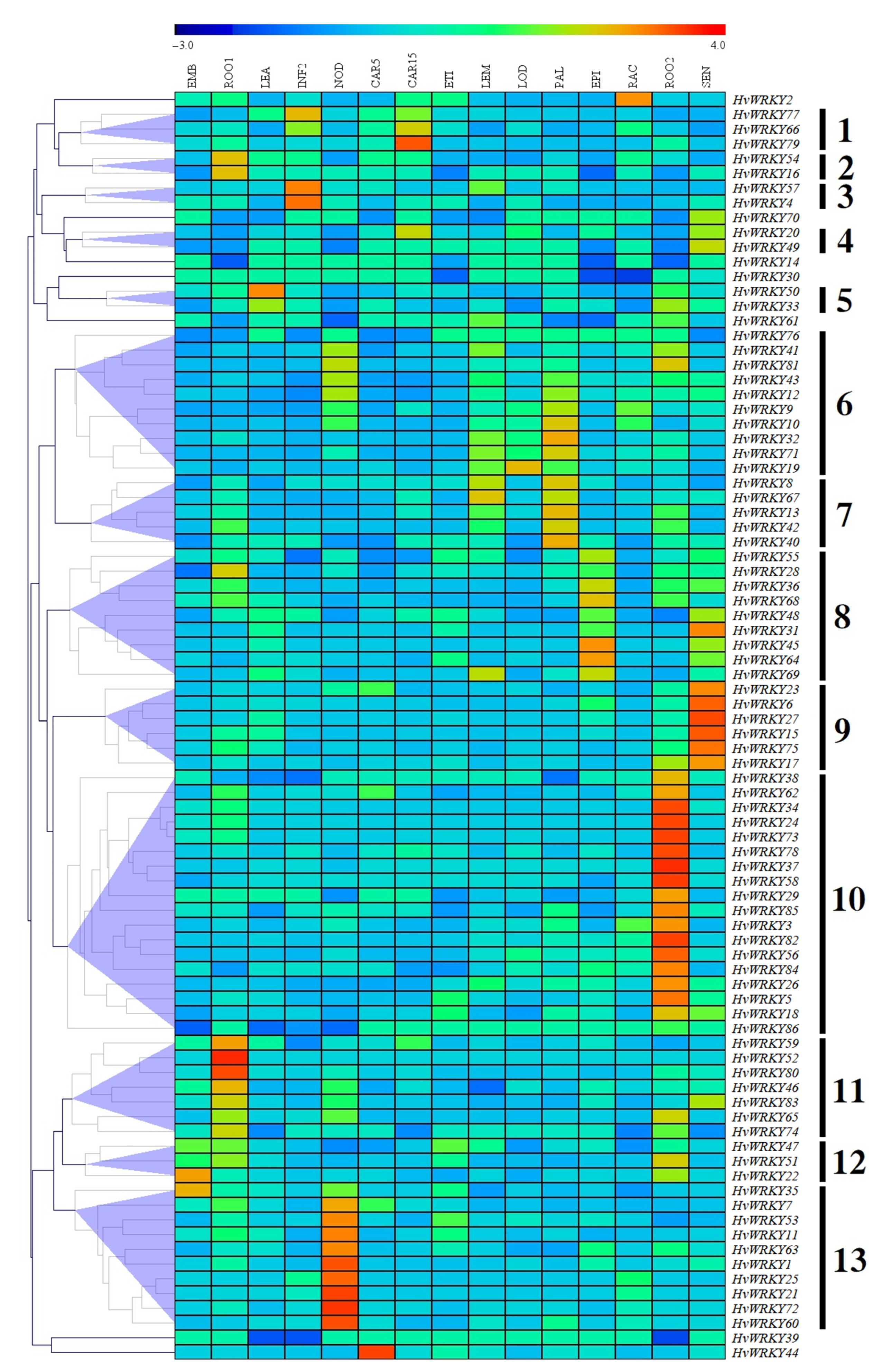

Figure 7. The relative transcription level of the HvWRKY genes in different growth stages and tissues. Blue represents lower expression, red represents higher expression, and the number on the right represents the groups of expression patterns. The sample sources are as follows: EMB: 4 day embryos; ETI: etiolated seedling, dark condition (10 DAP); ROO1: roots from seedlings (10 cm shoot stage); LEA: shoots from seedlings (10 cm shoot stage); EPI: epidermal strips (28 DAP); INF2: developing inflorescences (1–1.5 cm); RAC: inflorescences, rachis (35 DAP); ROO2: roots (28 DAP); NOD: developing tillers, 3rd internode (42 DAP); LOD: inflorescences, lodicule (42 DAP); LEM: inflorescences, lemma (42 DAP); PAL: dissected inflorescences, palea (42 DAP); CAR5: developing grain (5 DAP), CAR15: developing grain (15 DAP); SEN: senescing leaves (56 DAP).
Figure 7. The relative transcription level of the HvWRKY genes in different growth stages and tissues. Blue represents lower expression, red represents higher expression, and the number on the right represents the groups of expression patterns. The sample sources are as follows: EMB: 4 day embryos; ETI: etiolated seedling, dark condition (10 DAP); ROO1: roots from seedlings (10 cm shoot stage); LEA: shoots from seedlings (10 cm shoot stage); EPI: epidermal strips (28 DAP); INF2: developing inflorescences (1–1.5 cm); RAC: inflorescences, rachis (35 DAP); ROO2: roots (28 DAP); NOD: developing tillers, 3rd internode (42 DAP); LOD: inflorescences, lodicule (42 DAP); LEM: inflorescences, lemma (42 DAP); PAL: dissected inflorescences, palea (42 DAP); CAR5: developing grain (5 DAP), CAR15: developing grain (15 DAP); SEN: senescing leaves (56 DAP).
Agronomy 11 00521 g007
Agronomy 11 00521 g008 550

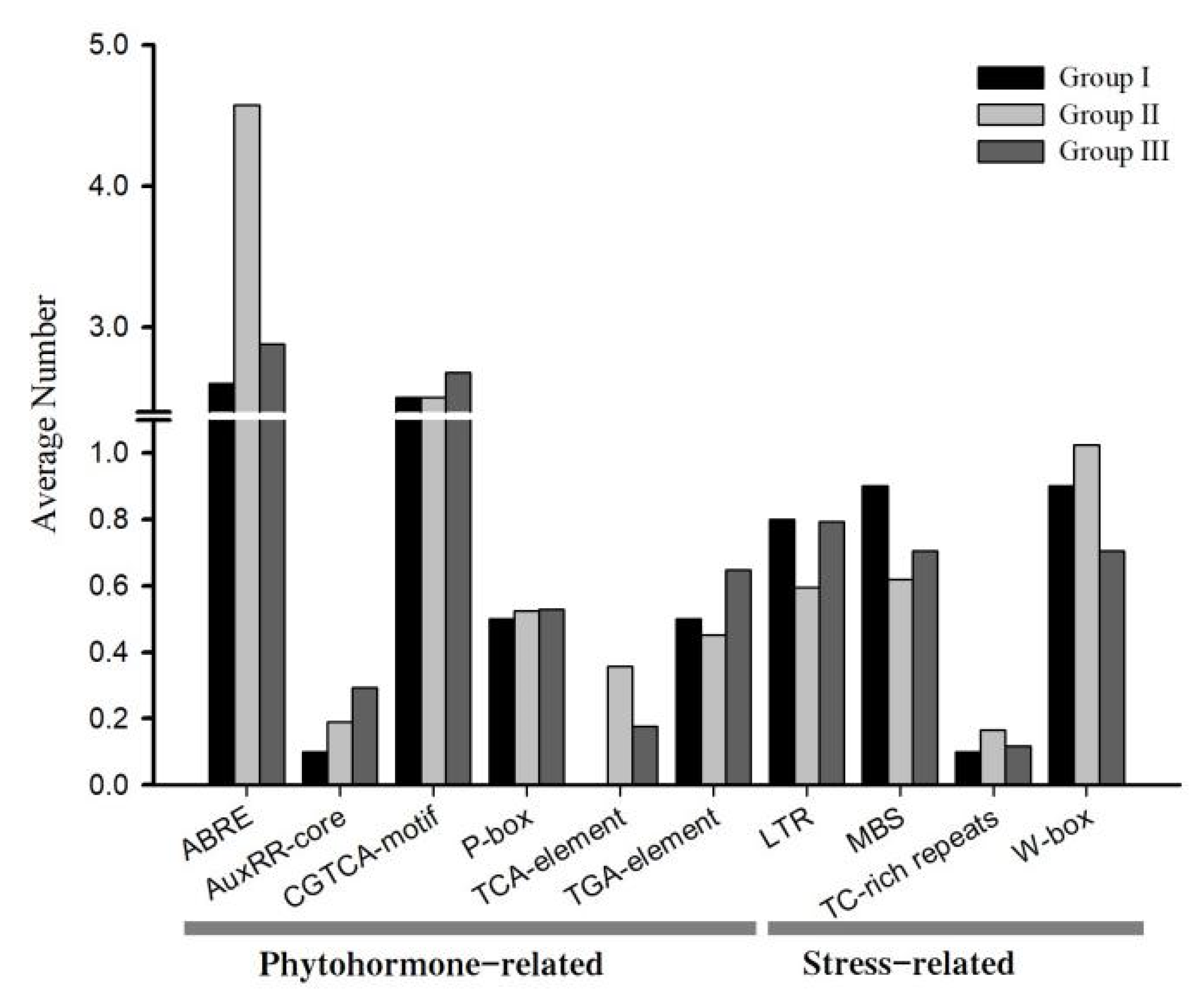

Figure 8. Distribution of cis-elements in promotor of HvWRKYs in each group. Six cis-elements on the left side were phytohormone response elements and four elements on the right side were stress related elements.
Figure 8. Distribution of cis-elements in promotor of HvWRKYs in each group. Six cis-elements on the left side were phytohormone response elements and four elements on the right side were stress related elements.
Agronomy 11 00521 g008
Agronomy 11 00521 g009 550

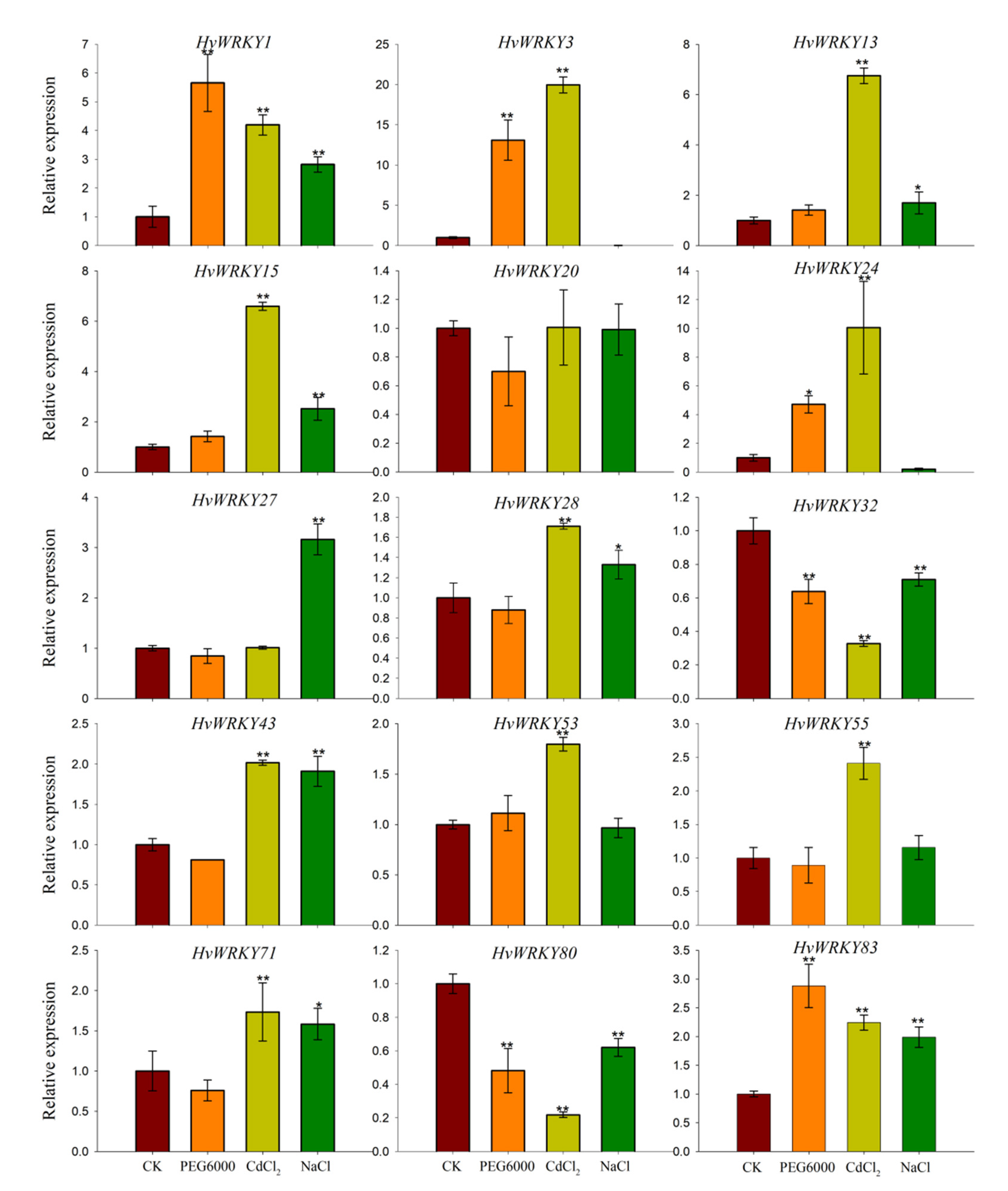

Figure 9. Relative expression of 15 HvWRKY genes under PEG6000, CdCl2, and NaCl treatments. The data were calculated by the 2−∆∆Ct method. The internal reference gene was Actin, and the error line represented the standard deviation (n = 3). Significant differences were determined by one-way ANOVA test: * p < 0.05; ** p < 0.01.
