Phosphorus Mobilization in Plant–Soil Environments and Inspired Strategies for Managing Phosphorus: A Review

by
Muhammad Ibrahim
1,2,
Muhammad Iqbal
3,
Yu-Ting Tang
4,
Sardar Khan
5,
Dong-Xing Guan
6 and
Gang Li
1,7,8,*
1
CAS Engineering Laboratory for Recycling Technology of Municipal Solid Waste, CAS Key Lab of Urban Environment and Health, Institute of Urban Environment, Chinese Academy of Sciences, Xiamen 361021, China
2
Department of Environmental Sciences, Faculty of Life Sciences, University of Okara, Okara 56130, Pakistan
3
Department of Botany, Faculty of Life Sciences, University of Okara, Okara 56130, Pakistan
4
School of Geographical Sciences, Faculty of Science and Engineering, University of Nottingham, Ningbo 315100, China
5
Department of Environmental Sciences, University of Peshawar, Peshawar 25120, Pakistan
6
Zhejiang Provincial Key Laboratory of Agricultural Resources and Environment, Institute of Soil and Water Resources and Environmental Science, College of Environmental and Resource Sciences, Zhejiang University, Hangzhou 310058, China
7
Zhejiang Key Lab of Urban Environmental Processes and Pollution Control, CAS Haixi Industrial Technology Innovation Center in Beilun, Ningbo 315830, China
8
Jiaxing Key Lab of Soil Health, Yangtze Delta Region Healthy Agriculture Institute, Jiaxing 314503, China
*
Author to whom correspondence should be addressed.
Agronomy 2022, 12(10), 2539; https://doi.org/10.3390/agronomy12102539
Submission received: 13 August 2022 / Revised: 28 September 2022 / Accepted: 10 October 2022 / Published: 17 October 2022
(This article belongs to the Special Issue The Role of Mineral Elements in the Crop Growth and Production)
Browse Figures
Review Reports Versions Notes

Abstract

:
Crop productivity and yield are adversely affected by the deficiency of P in agricultural soil. Phosphate fertilizers are used at a large scale to improve crop yields globally. With the rapid increase in human population, food demands are also increasing. To see that crop yields meet demands, farmers have continuously added phosphate fertilizers to their arable fields. As the primary source of inorganic phosphorous, rock phosphate is finite and the risk of its being jeopardized in the foreseeable future is high. Therefore, there is a dire need to improve plant-available P in soil, using feasible, environmentally friendly technologies developed on the basis of further understanding of P dynamics between soil and plants. This study systemically reviews the mechanism of P uptake and P-use efficiency by plants under starvation conditions. The recent advances in various strategies, especially imaging techniques, over the period 2012–2021 for the measurement of plant-available P are identified. The study then examines how plants fulfill P requirements from tissue-stored P during P starvation. Following this understanding, various strategies for increasing plant-available P in agricultural soil are evaluated. Finally, an update on novel carriers used to improve the P content of agricultural soil is provided.

1. Introduction

Phosphorus (P) is a fundamental macronutrient required for optimum plant growth and development in the agricultural sector [1]. Phosphorus was discovered in 1669 by Hennig Brandt, a German merchant. It is one of the 12 most abundant elements in the Earth’s crust. The only isotope that occurs naturally is phosphorus-31 (31P). Phosphorus non-availability is a serious issue and is considered the main limiting factor for decreased crop yields in the modern agricultural ecosystem [2]. In acidic soil, soil P is mostly immobilized in two forms, i.e., inorganic phosphorus (Pi) and organic phosphorus (Po). It may be trapped with mineral compounds of iron (Fe) or aluminum (Al) hydroxides, or it can be incorporated into rocks rich in mineral oxides, such as hematite, goethite, and gibbsite [3]. In alkaline soil, P is trapped in less soluble mineral compounds (variscite, strengite, and apatite) of magnesium (Mg) and calcium (Ca) [4]. Po accounts for 30% to 50% of the total phosphorus (Pt) present in soil, primarily in the form of inositol phosphates, phospholipids, and sugar phosphates [5]. Soil mineralization reactions are generally activated by soil microbes coupled with enzyme phosphatase in the plant rhizosphere to release Pi from fixed P reservoirs. Environmental factors, such as soil pH, temperature, moisture content, and physicochemical properties (texture, organic matter, and electric conductivity), affect the mineralization process. Plants naturally uptake Pi from soil solutions in the form of H2PO4,− and HPO42−, which are available in a narrow pH range (6.0–6.5). Pi accounts for 35% to 70% of the Pt present in soil solutions [6]. However, if Pi is immobilized in soil solid or transformed to Po, it will largely be unavailable to plants.
In modern agricultural practice, farmers apply chemical phosphate fertilizers to increase crop growth and yield. Intensive use of P fertilizer causes excessive P accumulation in soil [7]. Only 10–20% of the total P applied to soil is taken up by plants as Pi [8]. Part of the accumulated P in fertilizers applied to soil leaches into surrounding water bodies, thus affecting water quality. This is the reason artificially applied P fertilizers are not recommended for soil fertility, due to the risks of underground water contamination. Chemical fertilizers boost soil P levels temporarily. Furthermore, rock phosphate reserves (non-renewable P sources) are continuously declining. In the coming 50–100 years, it is estimated that natural sources of P reservoirs will be exhausted [9]. Therefore, it is essential to understand P dynamics in the soil environment, specifically the way plants uptake P, so as to identify possible alternatives to enhance P uptake from soil. This review first updated knowledge about P immobilization in the soil environment and the mechanism of plant P uptake and then discussed the inspired strategies applied for the improvement of available P in low-P soil in the agricultural sector. The recommendation of a suitable approach (strategy) was then summarized for sustainable soil P management.

2. Phosphorus Mobilization in the Plant Rhizosphere

The rhizosphere is the central and critical zone in the plant–soil environment, where maximum adsorption of nutrients, especially P, takes place from soil to plants [10]. Various biochemical and physiological processes, particularly the excretion of hormones, organic acids, and phosphatases, change the plant rhizosphere zone [11]. These processes are the main drivers of many changes occurring in the plant rhizosphere. Nutrient-use efficiency and crop yields are controlled not only by the physiological and biological processes that take place in the plant rhizosphere but also by microbial dynamics and their abundance in the rhizosphere zone [12]. Phosphorus is gradually being depleted in the plant-root rhizospheric zone due to slow mobility and solubility coupled with root uptake, resulting in P dynamics away from the root rhizosphere to upper plant parts. The decreased mobility of available P results in that plant requirements cannot be met. To maintain the constant requirements of plants, rhizospheric soluble P should be replaced 20 to 50 times per day by P supplements from bulk soil [13]. Soil is a medium for the storage and transformation of nutrients, including P. Many soil biochemical processes occur at various spatial and temporal scales, influencing the bioavailability and cycling of P. Diffusive gradients in thin films (DGT) is an in situ technique that has been used to study P bioavailability in soils and P dynamics in the plant rhizosphere at two-dimensional high resolution [14]. The DGT method employs a passive sampler composed mainly of a binding layer and a diffusive layer. For P imaging using DGT, available P firstly flows through the diffusive layer and is immediately-bound onto the binding layer. Afterwards, post-deployment assessment of P in the binding layer by 1D/2D slicing-colorimetry, computer/colorimetric imaging densitometry (CID), or laser ablation inductively coupled plasma mass spectrometry (LA–ICP–MS) acquires available P distributions at sub-mm spatial resolution. Table 1 represents DGT imaging technique data for different plant rhizospheres. The introduction of DGT as an imaging tool for measuring in-situ high-resolution P distribution in the rhizosphere is a large step toward a comprehensive understanding of P dynamics in soil-plant system.

3. Mechanism of P Uptake and Consumption by Plants

Soil contains a high amount of total phosphorus (Pt), composed of inorganic phosphorus (Pi) and organic phosphorus (Po), but only a small amount of P is available for plant uptake [22]. From soil solutions, plants obtain Pi in the form of orthophosphate anions (H2PO4− and HPO42−) (Figure 1). A study [23] reported that, in most agricultural soil, the concentration of orthophosphate is very low. In P-deficient conditions, P might be supplied from other P pools to meet plant nutritional requirements. A large P concentration difference occurs between plant roots and bulk soil when P is rapidly depleted [24]. The rate of P diffusion in plant roots in most soils is not high enough to overcome the localized P difference (created due to P uptake in soil); therefore, P deficiency occurs in most cases. Previous studies have shown that, for plant growth and developmental processes, P uptake capacity is insufficient and has become a limiting factor in many regions globally [25]. Therefore, for sufficient P uptake, the importance of root architecture cannot be ignored. In many cases, roots show active responses towards P deficiency in soil [17]. The root characteristics for high P uptake include sharp, long, and deep root systems, as well as high root-to-shoot biomass ratios [26]. The common characteristics of plants include extensive root branching [27], the occurrence of a large number of root hairs, and long specific roots developed to reach P-nutrient-rich regions (sub-layers) in the soil [28]. Brassica napus L., Zea mays L., and Triticum aestivum L. have fibrous roots and exhibit high P uptake as compared to the plant species Vicia faba L., Glycine max L., and Lupinus albus L. [29].
Nutrient P is the main component of membrane lipids and nucleic acids (DNA) in plant cells and is essential for many biochemical and physiological processes. In the absence of sufficient P, plants sharply develop adaptive mechanisms not only to gain sufficient P by facilitating P uptake but also to utilize internal tissue-stored P by maintaining the P life cycle in the plant–soil environment, thus decreasing P utilization and readjusting old tissue-stored P for better performance of plant functions (Figure 1). In the cellular vacuole, about 85% to 95% of Pi is present. In P-deficient conditions, the vacuolar Pi flux is insufficient to fill the rapid gap due to cytosolic Pi reduction [15]. Therefore, in the Golgi membrane, a phosphate transporter, PHT4;6, is present, which might transport Pi from the Golgi complex [30] to fulfill the shortage of P. In plant-cell chloroplasts, another phosphate transporter, PHT2; 1, is also available, which might maintain concentrations of Pi in plant cells in P-deficient circumstances. A previous study revealed that, under P-deficient conditions, dual-targeted purple acid phosphatase isozyme (At PAP26) was necessary for Pi accumulation and that phosphatase enzymes were needed for the secretion of Pi from phosphate monoesters in Arabidopsis thaliana [31]. For the mobilization of P from RNA, two genes (At RNS1 and RNS2) and ribonucleases are essential during P deficiency. Leaf senescence also stimulates these two ribonuclease genes and phosphatase enzymes during P-remobilization processes, further supporting this phenomenon [32]. Under P-scarcity conditions, membrane lipid composition can be changed through increased non-P lipid and decreased phospholipid formation [33]. At the cellular level, the decomposition of diacylglycerol by phospholipases C and D and degradation of phospholipids into Pi is mediated under P deficiency [34]. In addition, by the action of two enzymes, SQD1 and SQD2, cellular diacylglycerol is further converted into sulfolipids and galactolipids [35].
Furthermore, plant cells in P-scarcity and starvation conditions could also utilize respiratory cellular routes, bypassing Pi reactions and adenylate [36]. Shortly, for efficient uptake and utilization of available P, plants effectively adopt several biochemical, physiological, and morphological changes [37]. Efficient P utilization and nutrition for the complex network in plants are necessary. Phosphate signaling pathways and their molecular mechanisms respecting P have been reported previously [38]. Transcriptional factors (PHR1), ubiquitin E2 conjugate (PHO2), and microRNA (miRNA) are important players in this network for the regulation of PHO1, PHT, RNS, and ATPase genes at various levels during P deficiency. The hormonal network and sugar-signaling pathways might also be involved during P deficiency [39].

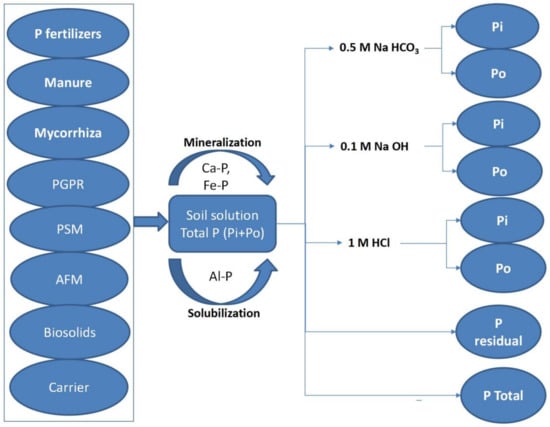

4. Inspired Strategies for Managing Phosphorus in Agricultural Soil

Several inspired strategies have been used for the improvement of plant-available P and its fractions, as shown in Figure 2. The progress of these strategies is a focus of this subsection.

4.1. Phosphate Fertilizer Application

Chemical P fertilizer application in arable fields is the most widely and long-used strategy to increase as well as precipitate the fixed P in agricultural soil for efficient utilization by crop plants [40]. This strategy is helpful for the initial depletion of fixed P and enhances crop yields to some extent. However, due to the massive applicaton of inorganic phosphate fertilizers by the agricultural sector, the P use efficiency (PUE) in crop farming continue dropping in the developing countries. This makes the P concentration in soil cannot catch up with that required to reach the optimum level for crop growth and development. Anthropogenic activities, such as fertilization, have significantly affected the terrestrial P cycle [41]. In soil, the level of P is much lower (10 µM) than levels of plant tissue-stored P (5–10 mM) [42]. Applications of chemical P fertilizers are required because of low P availability and fixed P in the soil to enhance crop growth and yield [43]. In addition, phosphate fertilizers are applied to low-P soil in the form of monocalcium phosphate (MCP) and monopotassium phosphate (MPP). Monophosphate fertilizer application prominently affects soil biochemical and physiological processes and, through the wetting process, creates huge amounts of protons and phosphate and finally establishes a P-rich zone in the soil to which it is applied [44]. Further processes create precipitation reactions, direct reactions, and adsorption reaction zones.
The P-saturated region (direct reaction zone) is acidic, ranging from pH 1.0 to 1.6 [45]. Due to its acidic nature, rapid movement of metal ions occurs. These released metal ions react with Pi in the direct reaction zone, thus enhancing further precipitation of Pi. Metal ions and P chemically interact and form complex molecules of Fe-P, Al-P, and Mg-P compounds [46]. Phosphorus is tightly bound in such compounds and is scarcely accessible to various plant species. Thus, new aggregates of monocalcium and dicalcium phosphate are produced in calcareous soil gradually. With the passage of time, these aggregates are converted into apatite (a stable form of calcium phosphate). The addition of balanced fertilizer matching the treated soil’s physical and chemical characteristics might be an efficient and suitable approach for enhancing plant growth and development in P-deficient agricultural soil.

4.2. Manure Application

Manure application is also a promising strategy to enhance P-use efficiency in agricultural soil. To increase soil fertility and P concentration, manure is frequently used as an amendment in agricultural soil on a routine basis. In manure, the concentration of total P is variable [47]. Manure contains approximately 70% of total P in the labile form, while Pi constitutes 50% to 90% [48]. In addition, organic phosphorus (Po) is also present in the form of nucleic acids and phospholipids [49]. The mineralization process increases the soil Po content in manure-amended soil. Furthermore, mineralization reactions dissolve molecules of organic acids into calcium phosphate [50]. With soil amendment of manure, P adsorption on soil particles greatly decreased. Manure soil application also changes the P availability and pH level. Large molecules of hydroxyls and carboxyls of humic acid, as well as negatively charged sites in manure, strongly compete with Pi in amended soil for adsorption [51]. However, the transformation mechanism of P between Pi and Po pools needs further research in manure-amended soil.

4.3. Mycorrhizal Application

Mycorrhizal fungal application to P-deficient soil is an alternative strategy to the use of phosphate fertilizers for enhancing plant growth and available P. Mycorrhiza, particularly arbuscular mycorrhizal fungi (AMF), establish symbiotic associations (70%) with the roots of higher plants called angiosperms and contribute to P nutrition significantly [52]. Mycorrhiza associated with complex root systems have the same P reservoirs in soil as available to other plant species [53]. A previous study [54] investigated alternative reservoirs of P that are used both by ectomycorrhiza and AMF. In such symbiotic associations, AMF receive carbon (C) sources from host plants while constantly supplying P nutrition through an extensive hyphal system to their host plants. In stress conditions, for sustainable agricultural productivity, the nutritional effect of AMF is very beneficial in the formation of soil aggregates and the establishment of plants. Through a symbiotic relationship, the chief advantage of AMF is increased P uptake. Mycorrhizal plants showed better growth than non-mycorrhizal plants, having AMF pathways as well as increased P uptake, in a previous report [55]. However, in some reported cases, even mycorrhizal plants with AMF pathways did not show sufficient P uptake, and plant growth was stopped. A previous study [56] revealed that, via the solubilization process, AMF hyphal exudates alone solubilized more P from soil reservoirs than plant-root exudates, suggesting that, through the solubilization process, mycorrhiza can enhance P uptaek of the plants. The secretion of phosphatase enzymes from the fungal hyphal mycelia of AMF fungi has been investigated and it was found that it could significantly increase the utilization and mineralization of organic P [57]. Mycorrhizal plant P acquisition increases through extraradical mycelia that penetrate deep into P reservoir sources in the soil and transform it into roots and subsequently into other plant parts. Large surface areas, as well as high mycorrhizal hyphal densities, could also contribute to enhanced orthophosphate uptake by plants. In mycorrhizal-associated plants, elevated uptake can usually be explained in terms of enhanced P utilization through the hyphal system from indigenous soil P reservoirs [58]. Mycorrhizal plants use two pathways (direct and mycelial) for sufficient P uptake. The first one occurs at the soil–plant interface via root hairs called direct pathways. The second pathway occurs through fungal mycelia and is called the mycorrhizal pathway [59].

4.4. Plant Growth-Promoting Bacteria Application

The inoculation of plant growth-promoting bacteria (PGPB), applied as an alternative to chemical fertilizers, is based on P solubilization, N2 fixation, phytohormone secretion, vitamin synthesis, and organic P mineralization [60]. Plant growth-promoting bacteria application to soil is a natural method for increasing soil P concentrations by the P-solubilization mechanism [61]. Numerous PGPB have been isolated from different soil environments, and their effects on plant growth and development have been reported [62]. Most of the studies have concentrated on PGPR, which perform functions associated with P solubilization to increase P availability to the host plant [63]. A diverse array of PGPR, such as species of Bacillus, Enterobacter, Pseudomonas, and Serratia, have been found to be involved in P mobilization, e.g., dissolving Ca-P by lowering pH, unlocking P bound to Al and Fe oxides through the exudation of organic acids, as well as mineralization of organic P through enzyme phosphatase. The mentioned PGPR have been considered as potentially effective inoculants for improved crop growth and yield. However, some researchers have reported that the direct inoculation of PGPR into soil did not enhance plant biomass and P uptake capacity, due to variations in P-related soil properties as well as enzyme activities that were limited by certain environmental factors [64]. Previous findings [65] revealed a low survival rate for PGPR due to low nutrient concentrations as well as competition with indigenous soil microbial, fungal, protozoan, and nematode populations.
Phosphate-solubilizing microorganisms (PSMs) solubilize orthophosphate from different inorganic and organic sources [66]. Phosphate-solubilizing microorganisms include Rhizobium, Bacillus, and Pseudomonas species, as well as different species of fungi, such as Penicillium and Aspergillus species [67]. In laboratory experiments, rock phosphates (Ca5 (PO4)3OH, Ca10(PO4)6F2) and calcium compounds, such as tricalcium phosphate (Ca3(PO4)2), are mainly used for the identification of PSMs. The quantity of released soluble P is particularly dependent on the P source; therefore, various microorganisms solubilize different sources of P [68]. Fungal species were previously extensively studied with respect to their abilities to effectively solubilize Al and Fe phosphate sources [69]. Variation in the pH of culture media plays an important role in the solubilization of calcium phosphate. The secretion of organic anions, such as lactate, oxalate, citrate, and gluconate, by PSMs is linked to the acidification of solution media [70]. PSMs improve the solubilization and, ultimately, mobilization of poorly soluble P-binding Ca-P and Al-P compounds by chelating organic anions (Table 2). Many studies have reported increased P uptake and solubilization by various crops inoculated with PSMs in controlled conditions [71,72].
In field experiments, the functional mechanism of PSM is more complicated and has proved very difficult to explain clearly in the presence of many indigenous soil microbes and varying environmental conditions [84]. This may be due to a lack of suitable and precise methods for the introduction of PSMs into soil environments, gaps in knowledge about the interactions of PSMs with indigenous organisms, and poor understanding of P dynamics in soil [85]. Penicillium significantly solubilized P and enhanced wheat growth in laboratory experiments [86]. Microbes play a key role in unlocking soil-bound organic P through a process called mineralization. PSM inoculation enhanced organic P availability as well as plant biomass in greenhouse experiments. In addition, microbial biomass is essential for maintaining an optimum level of Po and Pi in soil solutions. Upon the death and decay of microbial biomass, P is available to plants in soil [87].
The PSM inoculation technique has proved effective, helpful, and efficient respecting plant rhizospheres, where there are large quantities of microbial biomass that are quickly metabolized into carbon [88]. However, P mobilization in the plant rhizosphere associated with PSMs requires additional confirmation and investigation. The mineralization of organic and inorganic P and microbial-activated phosphate solubilization are essential processes through which microbes obtain P from soil. However, in some cases, PSMs are unable to mobilize enough P above their demands to meet plant requirements. The P cycle in soil and microbial biomass indeed demonstrate an essential pathway for P mobilization in different, available, including soil, P pools. Different physiological processes disturb organic P pools and thus render them unavailable to the plant–soil ecosystem [89]. The importance of this mechanism in plant rhizospheres needs further research in detail in complex environments. The inoculation of crops with PSMs is a method frequently used, and some PSMs are already commercialized [90]. However, in long-term field applications, these inoculants have to compete for their survival with native soil nematodes and microbes. This technology is still in its infancy and suitable approaches for the solubilization of mineral-fixed P are being explored. The issues with the application of this technology include (1) inoculum survival and colonization, (2) host plant inoculum specificity, and the (3) limited commercialization value and insufficient effects on plant growth and developmental processes [91]. PSM inoculants are applied to the soil and fixed P becomes solubilized; however, plant P uptake and biomass production are negatively affected by phosphorus fixation in the microbial biomass [92]. A previous study [93] reported that the application of phosphate-solubilizing bacteria along with nematodes efficiently enhanced plant P uptake and available P. Phosphorus solubilization is also influenced by soil texture. Aluminum (Al) and iron (Fe) chemical reactions with P in acidic or low-pH soil result in P reduction. However, tricalcium phosphate (Ca3PO4)3 is formed in alkaline or high-pH soil, reducing plant-available P in soil [94]. Thus, soil alkalinity causes P unavailability—a process known as P fixation. Sorghum yield increased significantly after PSM inoculation [95]. To increase P availability, bacterial species, such as Bacillus spp., Pseudomonas spp., and Agrobacterium spp., are used as soil inoculants [96]. Phosphorus solubilization, which involves local acidification or alkalization, has been observed in some Pseudomonas, Cyanobacteria, and Bacillus species isolated from plant rhizospheres [97]. Organic phosphate is the most abundant source of soil phosphate, but its compounds are complex (nucleic acids, phospholipids, etc.) and must be transformed by microorganisms before they can be absorbed by plants [98].

4.5. Biosolid Application

In the 1990s, the term “biosolid” was first introduced for the selection of liquid, solid, and semi-solid materials produced from the treatment of domestic sewage sludge [99]. A satisfactory production process is needed for sludge to be applied to land [100]. For decades, biosolids have been recommended economically, are socially acceptable, and are part of traditional practices of land applications globally [101]. In addition, land application of biosolids is a viable technology for industrial-waste management, generally proposed by environmentalists. Biosolids contain large amounts of micro- and macroelements, such as copper (Cu), zinc (Zn), iron (Fe), manganese (Mn), potassium (K), nitrogen (N), calcium (Ca), sulphur (S), organic carbon (C), and phosphorus (P) [102,103]. These are essential elements for plant growth processes and faunal survival in soil. Usually, in biosolids, most P is in the form of aluminum phosphate, commonly adsorbed on the surfaces of calcium phosphate and iron phosphate [104]. The total inorganic P present in biosolids ranges from 70% to 90% [105]. Furthermore, biosolids contain smaller amounts of water-soluble P [80] as well as organic P in the form of phospholipids, orthophosphate monoesters, and orthophosphate diesters [106]. Wastewater-treatment-plant operations strongly affect the P concentrations in biosolids [107].
Phosphate fertilizer application affects the dynamics of P in biosolids; however, not all of the P in biosolids is available to plants [108]. Precipitation, dissolution, microbial decomposition, desorption, and sorption of P occurs when biosolids are land-applied [109]. The above-mentioned processes may be slow or fast, depending on the biological and physicochemical processes that occur in the applied soil. P availability in biosolid-treated soil increases with the rate of biosolid application [110]. Thus, elevated contents of inorganic P in biosolids may be linked to enhanced concentrations of P in the soils to which they are applied. However, in soils that have the highest capacities to retain P, or in P-concentrated soils, such variations were found to be less obvious [111]. The conversion of lower labile P to higher labile P species may also be linked to enhanced contents of bioavailable P in amended soils [112]. Another study revealed that calcium (Ca)-concentrated biosolids also contributed to enhanced levels of water-soluble P in amended soil [113]. Mineralization also increases with amendments of biosolids, which could unlock biosolid-borne organic P, thus contributing to enhanced contents of extractable P [114].
The relationship between plant-available P and the degradation of biosolids is more complicated. A previous study revealed that biosolid amendment not only changes soil physicochemical properties, such as pH, EC, dissolved organic matter, and biological properties, but also the adsorption capacity of amended soil [115]. The enzymes phosphodiesterase and phosphomonoesterase mainly hydrolyze organic phosphate esters into orthophosphate anions biochemically and secrete most of the assimilated P through soil microbes. Plant roots and soil microbes both passively and actively participate in the secretion of extracellular enzymes to make them available for plants through the mineralization of S, C, P, and N from complicated forms [116]. In the plant rhizosphere, phosphomonoesterase enzyme activity was identified as the major mechanism for the acquisition of P by plants, catalyzing a large number of anhydrides and orthophosphate minerals and thus releasing bound P [117]. In agricultural soils, enzyme phosphatase activity mainly contributes to agricultural activities, and, in forest soils, it responds to seasonal variations in moisture as well as temperature [118].
According to economic theory, in biosolid-applied soils, P is amended together with other nutrients, such as S, N, and S, thus stimulating the activity of phosphatase enzymes, and is utilized by soil microbes as an energy source, while, in soil amended with chemical fertilizers, phosphatase enzyme activity is suppressed [119], thereby revealing the clear difference between inorganic P amendment and fertilizer application [18]. Previously, in the agricultural sector, biosolid applications to soil enhanced acid phosphatase activity, nutrient concentrations, and microbial biomass [120]. In different soils, various persistence and production rates of enzyme activities have been studied. Soil pH-buffering capacity also varies with biosolid application, resulting in changes in phosphatase enzyme activities [121]. In biosolid-applied soil, the enzymes phosphomonoesterase and diesterase might be used as signals of P secretion from biosolids because, usually, sewage sludge includes different P forms [122]. The higher the microbial or plant origin of the enzyme, the greater the demand for mineral P [123]. Thus, competition or cooperation between plant roots and rhizosphere microbes is primarily determined by soil P status.

4.6. Carrier Application

China and India, as the largest consumers of P fertilizers [124], are facing the great challenge of gradually decreasing P resources [125]. Excessive and unbalanced P fertilization applications in most regions have been extensively reported [126]. To maintain high crop productivity, high rates of chemical P fertilizers (120 kg P2O5 ha−1) have been applied by farmers, resulting in dramatic increases in P accumulation in agricultural soil [127], as well as P loss via runoff and leaching to the aquatic environment. Therefore, to achieve environmental, ecological, and economic goals, it is necessary to minimize the input of P fertilizers and improve the P status of agricultural soils through the feasible application of new materials in the modern agricultural sector. The application of biochar (a carbon-rich material) is an environmentally friendly and cost-effective approach to improve nutrient-deficient agricultural soil [128]. Biochar is produced from waste residues and is frequently recommended for the fertility of agricultural soil and carbon sequestration [129]. Using biochar as a carrier material for plant growth-promoting bacteria (PGPB) offers unique opportunities and benefits in the agricultural sector. Plant growth-promoting bacteria inoculation with biochar increases the value of biochar and enhances its commercialization as a biofertilizer [130]. Applications of biochar as a carrier have many benefits, as they ensure the survival of introduced PGPB in the treated soil and provide hot spots for microbial movements. Furthermore, biochar carrier amendment of soils alters many physicochemical properties, which enhances the survival efficiency of the introduced PGPB in treated soils. The positive results of biochar amendment of agricultural soil include increased soil pH, bulk density, fertility, water-holding capacity, nutrient retention, and aeration capacity [131].
In agricultural soils, the total concentration of P (Pt) ranges from 400 to 1200 mg kg−1. However, in available forms, such as the orthophosphate ions H2PO4− and HPO4−2, only 1 mg kg−1 of Pt is present [132]. The non-soluble form of P is present in inorganic (Pi) and organic forms (Po). In soil, non-soluble Pi ranges from 20 to 50% in the form of PO4− ions [133]. These ions are adsorbed to various compounds of Ca, Fe, and Al—Ca-P, Fe-P, and Al-P—producing stable complexes. Due to the short and poor survival of PGPR in soil, post-soil inoculation is usually not recommended [134]. Furthermore, direct inoculation of liquid PGPR in soil becomes complex due to the adhesion of soil particles, which reduces their ability to colonize host root surfaces, as well as vertical transport [135]. Ordinary carriers, such as peat and vermiculate, have some drawbacks which limit their application at large scales [136]. However, compared to peat and vermiculate, biochar carriers seem to be environmentally friendly and cost-effective. Furthermore, biochar sterilization offers a reliable and premium-quality preparation for alternative carriers (PSMs loaded on biochar). Due to these benefits, biochar is considered an alternative, cost-effective carrier. The attachment of PSMs on biochar surfaces might provide defensive colonization as well as a safe zone [137]. One study [138] reported that when loaded on a biochar surface, Azospirillum had a 6-month long shelf life at room temperature. However, it is not clear whether PSMs loaded on biochar surfaces ensure survival; the matter needs further investigation. We applied different biochar carriers (PSMs loaded on biochar), such as rice-straw biochar (RSB), soybean-straw biochar (SSB), rice-husk biochar (RHB), peanut-shell biochar (PNB), wood biochar (WB), and corn-cob biochar (CCB), to agricultural soil collected from an agricultural field in Hailun City, Heilongjiang Province, China (Figure 3). The tested soil had a pH of 6.52 units and a total P concentration of 5.59 mg kg−1 [139] The incubation experiment was conducted at lab scale in a complete randomized block design (CRBD) in four replicates. Each carrier was amended separately at a rate of 3% to the tested soil. After one month of incubation experiment, the RSB and SSB amended-soil showed significantly higher concentrations of NaHCO3 extractable Pi and Po, NaOH extractable Pi and Po, HCl Pi, residual P, and total P in the treated soils than RHB, PNB, WB, CCB, and CK-amended soil (Table 3). This increase in total P and P fractions in carrier-amended soils may have been due to the increased solubilization and mineralization of mineral-bound P.

5. Conclusions

The current review has brief understanding of phosphorus mobilization and P dynamics between Pi and Po pools in agricultural soil. It has been discussed how, in P-deficient conditions, plants maintain P concentrations and utilize internal tissue-stored P. Progress in the development of the diffusive gradients in thin films technique to study P bioavailability was systematically reviewed. In addition, different inspired strategies for the improvement of plant-available P in soil were also reviewed. Finally, an update about the application of novel carriers was provided.

Author Contributions

Conceptualization, M.I. (Muhammad Ibrahim) and M.I. (Muhammad Iqbal); Methodology, S.K.; Data collection and analysis, G.L.; Writing—original draft preparation: M.I. (Muhammad Ibrahim); Data presentation, reviewing and editing, G.L., Y.-T.T. and D.-X.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Ningbo Bureau of Science and Technology (2022Z169, 2021Z101) and the National Natural Science Foundation of China (42177194).

Institutional Review Broad Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could appear to have influenced the work reported in this review.
