Advantage of Multiple Pods and Compound Leaf in Kabuli Chickpea under Heat Stress Conditions

Abstract

Heat-related traits in chickpea (Cicer arietinum L.) play a crucial role in reducing the harmful effect of heat stress, as the increase in heat stress is predicted to occur in the coming years due to global warming as a result of climate change. The advantage of multiple pods per peduncle and compound (imparipinnate) leaf traits in kabuli chickpea has not been properly revealed under heat stress conditions. We, therefore, want (i) to provide insight into the advantage of multiple pods and compound leaf traits over single pod per node and simple (unifoliolate) leaf traits, and (ii) to determine the highest direct and indirect effects of agro-morphological traits on seed yield in chickpeas under rainfed conditions with prevailing heat stress. With a delayed sowing time, the plants were subjected to heat stress of more than 43 °C in flowering and pod setting stages under field conditions. According to the number of pods per node and leaf shape, plants were evaluated for yield and yield components, and were divided into six groups, namely (i) single-pod and compound leaf, (ii) single-pod and simple leaf, (iii) double-pods and compound leaf, (iv) double-pods and simple leaf, (v) multi-pods and compound leaf, and (vi) multi-pods and simple leaf. Plants with multi-pods and compound leaf traits had the highest seed yield, followed by plants with double-pods and compound leaf, while plants with single-pod and simple leaf had the lowest yield. The number of seeds and pods per plant, 100-seed weight, and leaf shape were the highest determinants of seed yield under heat stress conditions. It was concluded that multi-pods per peduncle and compound leaf traits had an obviously incontrovertible advantage in kabuli chickpeas under heat stress conditions. The plant shapes that nature has evolved for millions of years, which are mostly found in wild plants, have been proven by the current study to have a better fitness ability than plants shaped by human hands.

1. Introduction

Cultivated chickpea (Cicer arietinum L.) is divided into two different varietal groups, namely “desi” and “kabuli”, and “desi” chickpeas are portrayed with small seeds, different seeds in colors including brown, black, and green, with pinkish-purple flowers and pigmented plants, while “kabuli” chickpeas have large seeds, are cream in color, with white flowers and non-pigmented plants [1]. Both chickpeas are predominantly grown in arid and semi-arid areas of the world under rainfed conditions [2,3]. As they are dependent on these growing conditions, the majority of the crop is exposed to continuous limiting soil moisture and high temperature during flowering and pod setting stages, despite the fact that the crop is adapted to temperate regions as an important cool season food legume [3,4]. According to the Food and Agriculture Organization Statistical Database (FAOSTAT) in 2020, the cultivation area and production quantity of chickpeas in the world have been reported to be 14.8 million ha and 15.1 million t, respectively. The average seed yield of chickpeas is reported to be as low as 1016 kg per ha [5], despite the fact that the seed yield potential of chickpeas is on par with the other food legumes [6]. The main reason for the low seed yield of chickpeas is based on the adverse effect of a/biotic stresses, because chickpeas are grown in marginal areas without using input or with minimum input under rainfed conditions, although they are endowed with some agro-morphological and physiological characteristics that make it possible to settle them into marginal areas where there are prevailing a/biotic stresses [6,7].

The optimum temperatures for chickpeas range from 18 to 29 °C for growth and development [1], despite the fact that most of the cultivated areas of chickpeas have suffered from excessive temperatures that accelerated drought [2,8,9]. Temperatures above 32 °C in the daytime are detrimental, resulting in lower pod sets and seed yields in chickpeas [7]. The predicted changes in temperature in the world are expected to be in the range of 2–3 °C in the near future [10,11]. Due to heat stress, yield losses in chickpeas have been reported to range from 10 to 78% of the potential yield for every increase of one degree in temperature [12,13]. Under these circumstances, heat stress caused by heatwaves and extreme temperatures occurring during the period from the end of spring to summer has a dramatic impact on the productivity of cultivated chickpeas. However, in a number of research carried out on heat tolerance in cultivated chickpeas [8,13,14,15,16,17] and its wild relatives [18], resistance sources for heat tolerance have been found to be insufficient. Heat tolerance in recombinant inbred lines generated from intraspecific crosses in chickpeas has been studied [17].

The relationship between some morpho-physiological traits of chickpeas and drought stress accompanying high temperature stress has been studied [8,13,19,20,21,22]. One of the most striking morphological traits of chickpeas is undoubtedly their leaf shape. Three different leaf shapes in cultivated chickpeas, namely compound or fern-like (imparipinnate), simple (unifoliolate), and multipinnate (bipinnate) leaves [23,24], have been reported, and the inheritance of the traits was studied [25,26,27], and it was concluded that these traits were not affected by the environment due to their qualitative nature. Like wild Cicer species [1,28], the compound leaf shape is common in most cultivated chickpeas commercially grown in the world. Cultivars with simple leaf shapes have been improved by Muehlbauer et al. [29,30], for resistance to ascochyta blight caused by Ascochyta rabiei (Pass.) Labr. Despite advantages of multipinnate leaf shape in cultivated chickpeas, such as resistance to leafminer (Liriomyza cicerina Rond.) and reducing water loss by transpiration [31,32,33], they have not been taken into account much in chickpea production. Under heat stress conditions, the effect of leaf shape on yield in cultivated “kabuli” chickpeas deserves attention, as no information is available on this issue.

Another important trait of chickpeas is the number of flowers or pods per peduncle (node or axil), and most cultivated chickpea cultivars usually carry a single flower, and a single flower forms a single pod per peduncle [23,24]. On the other hand, some cultivated chickpeas form double flowers and double pods (see details in Kivrak et al. [34]) as wild chickpeas [1,28]. Double-podded chickpeas, reported in cultivated chickpeas, provide more seed yields in favorable conditions [34,35,36] and yield stability [37,38]. However, the seed yield of multi-podded chickpeas has not been compared with double-podded chickpeas nor single-podded chickpeas under heat stress conditions. Insight into heat-related architectural shapes in chickpeas plays a crucial role in reducing the detrimental effect of heat stress, as an increase in heat stress is forecasted in the near future due to global warming. The current study is therefore aimed at: (i) gaining insight into the advantages of multiple pods and compound leaf traits over single pod per node and simple (unifoliolate) leaf traits, and (ii) finding out the highest direct and indirect effects of agro-morphological traits on seed yield in “kabuli” chickpeas under rainfed conditions with prevailing heat stress.

2. Materials and Methods

2.1. Plants

Plants from F₃ and F₄ populations were advanced from intraspecific crosses between PI 631078 simple-leafed (unifoliolate) and single-podded [39], and PI 632396 compound-leafed (imparipinnate) and double-podded [40]. According to the mentioned intraspecific crosses, six different architectural groups have been recognized [34,41], namely (i) single-pod and compound leaf, (ii) single-pod and simple leaf, (iii) double-pods and compound leaf, (iv) double-pods and simple leaf, (v) multi-pods and compound leaf, and (vi) multi-pods and simple leaf. Detailed information about parents and checks, including ILC 3279, ILC 1929, ICC 12004, ILC 482, and ILC 72, is provided in

Table 1. Agro-morphological traits and reaction to ascochyta blight of checks and parents.

Parents and Checks	Kabuli/Desi	Flower Color	Pods per Peduncle	Leaf Shape	100-Seed Weight (g)	Resistance to Ascochyta Blight
PI 631078 (Sierra)	Kabuli	White	1	Simple	46.9	Resistant
PI 632396 (CA 2969)	Kabuli	White	2	Compound	28.9	Resistant
ILC 72	Kabuli	White	1	Compound	23.2	Resistant
ILC 482	Kabuli	White	1	Compound	23.5	Tolerant
ILC 1929	Kabuli	White	1	Compound	25.5	Susceptible
ILC 3279	Kabuli	White	1	Compound	24.3	Resistant
ICC 12004	Desi	Purple	1	Compound	9.1	Resistant

. Figure 1 shows leaf shape and number of flowers per peduncle in cultivated “kabuli” chickpeas.

2.2. Sowing and Growing Procedures

Seeds of chickpeas were sown on 4 April 2019 and 4 March 2020 at the campus of Akdeniz University, Antalya, Turkey (30°38′ E, 36°53′ N, 51 m above sea level), for two years. Late sowings were preferred to coincide with heat stress and the flowering time of the chickpeas. Plants including parents and checks were grown in rows of 2 m in length. Inter row spacing of 50 cm and intra row spacing of 10 cm were adopted. In F₃ and F₄, 1214 and 485 plants were grown, respectively, and each plant was harvested as a single plant. PI 631078 and PI 632396 were used as parents and the earlier mentioned checks were replicated four times. Plants were irrigated using a drip irrigation system with a drip lateral line, which had emitters with 2 L per hour and 20 cm emitter spacing to each plant row, and they were well-watered at three-day intervals as the plants were only subjected to heat stress. During seedling and before the flowering stages, the weeds were pull out by hand. Fertilization was not applied as fertilization was not used in spring-sown crops due to a negative effect.

2.3. Phenological Traits

Phenology plays a critical role in resistance to drought and heat stresses [6,42,43], and two important phenological traits, namely days to first flowering (FF) and days to 50% flowering (DF), were recorded as the number of days from germination to first flowering and 50% flowering, respectively.

To assess the temperature intensity, the averages of the maximum temperatures (°C) from germination to flowering (T_maxF) and from flowering to harvest (T_maxFH) were calculated for each chickpea. Similarly, cumulative growing degree-days (GDD) for each chickpea were calculated from germination to flowering and from flowering to harvest, and were denoted as GDD_F and GDD_FH, respectively. The following formula was used to calculate the GDD values [44]:

$$\mathrm{GDD}={\displaystyle \sum }\left(\frac{T_{max}+T_{min}}{2}-T_b\right)$$

where T_max, T_min, and T_b are the maximum, minimum, and base temperatures, respectively. The base temperature is the minimum threshold temperature below which plant development stops. The base temperature in chickpeas is considered 0 °C [45].

2.4. Agro-Morphological Traits

For agro-morphological traits, plant height (PH) was recorded as cm from the ground to top of the plant, while the number of pods (PP) and seeds (SP) were counted as the total number of pods and seeds per plant, respectively. Seed yield (SY) was weighted as the total weight of a single plant after harvest, whereas seed size (SW) was determined using the following formula [34,41]:

$$100-seed weight \left(\mathrm{g}\right)=\frac{Total seed weight per plant \left(\mathrm{g}\right)}{Total number of seeds per plant}\times 100$$

2.5. Qualitative Traits

The number of pods per peduncle (node or axil) as single, double, and multiple pods and leaf shape as compound-leafed or fern-like and simple-leafed or unifoliolate leaves were evaluated for each plant.

2.6. Climatic Data

Climatic data for the growing seasons were provided by the fourth Regional Directorate of Meteorology of the Turkish State Meteorological Service (TSMS) at the campus of Akdeniz University. Cumulative degree-days for optimum growth (DDO) were calculated using the formula below and the optimum temperature was considered to be up to 29 °C, while the cumulative degree-days for heat stress (DDH) were calculated following the formula considering for the heat threshold as 29 °C in chickpeas. Formulas were modified from the equation of Krese et al. [46]:

$$\mathrm{For} T_{\mathit{max}}<T_b, \mathrm{DDO}={{\displaystyle \sum }}_{i=1}^n\left(T_b-T_{max}\right)$$

$$\mathrm{For} T_{\mathit{max}}>T_b, \mathrm{DDH}={{\displaystyle \sum }}_{i=1}^n\left(T_{max}-T_b\right)$$

where DDO and DDH are the cumulative sums of optimum growth degree-days and heat stressed degree-days for n days, and n is the total days in the period. T_b is the base temperature for heat stress in chickpeas, and T_max is the maximum temperature. The base temperature is considered to be 29 °C.

2.7. Statistical Analyses

All agro-morphological data were analyzed for descriptive statistics using IBM SPSS statistics (2014). Moreover, plants were divided into six classes to compare (i) single-pod and compound leaf, (ii) single-pod and simple leaf, (iii) double-pods and compound leaf, (iv) double-pods and simple leaf, (v) multi-pods and compound leaf, and (vi) multi-pods and simple leaf. Data on phenological and agro-morphological traits of parents and checks were statistically analyzed through analysis of variance (ANOVA) using SPSS 22.0. The comparison of the averages of the analyzed agro-morphological traits was performed using Tukey’s Multiple Comparison Test at p ≤ 0.05. Furthermore, direct and indirect relationships of agro-morphological traits on seed yield of the single-podded plants, double-podded plants, and multi-podded plants in F₄ were studied via path coefficients according to Dewey and Lu [47] using SPSS 22.0. Path coefficients are used by breeders/researchers for determining the direct contribution of agro-morphological traits and the indirect contribution over other traits on seed yield [48]. Principal component analysis (PCA) was carried out using JMP Pro 16.0.0 (SAS Institute Inc., Cary, NC, USA). A hierarchical cluster analysis (HCA) was performed on seed yield values using JMP Pro 16.0.0 according to Ward’s method to analyze the studied chickpeas, parents, and checks under heat stress conditions.

3. Results

3.1. Heat Stress

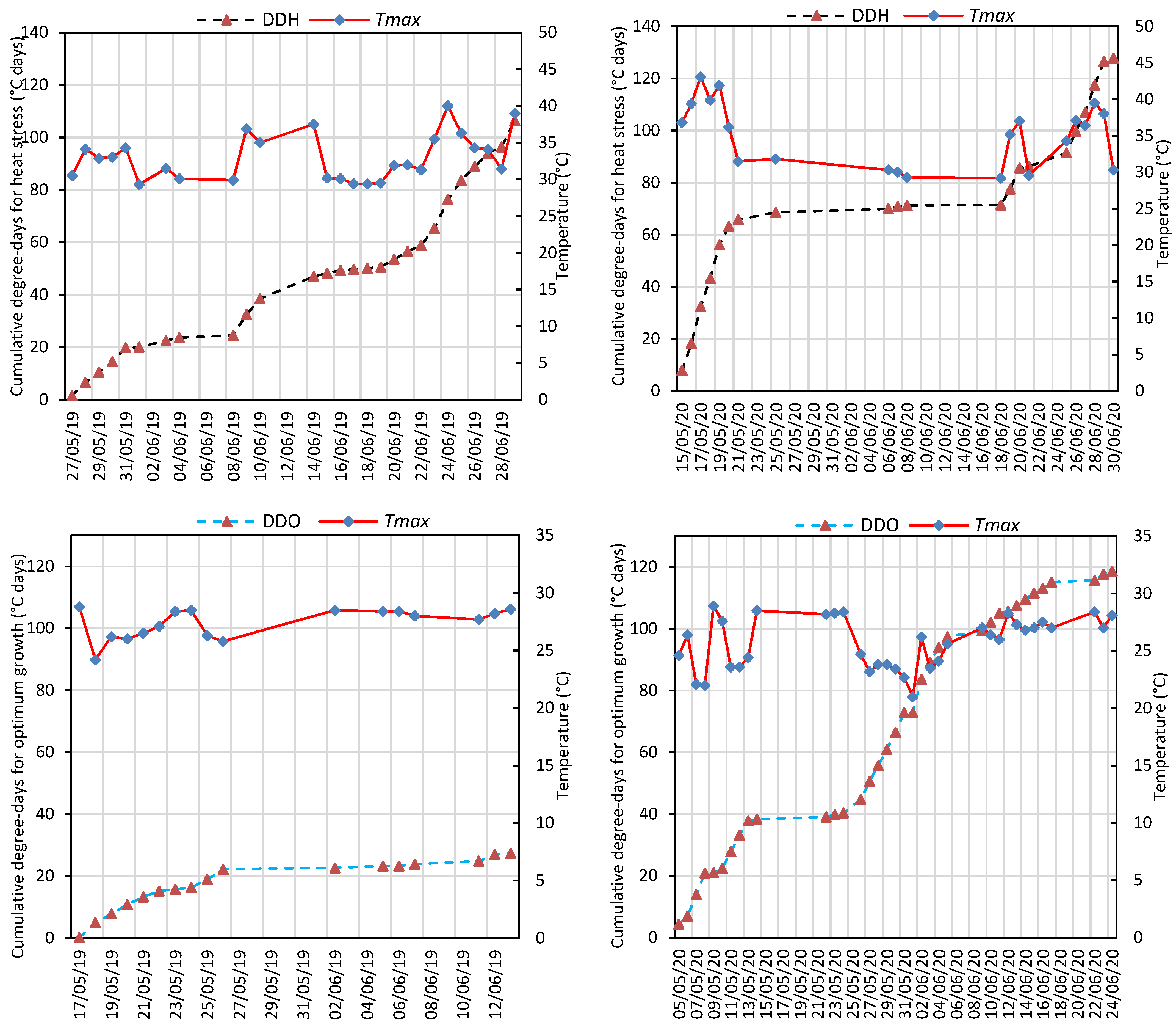

Chickpeas were exposed to significant heat stress, especially during flowering and pod setting periods, for both years (Figure 2 and Figure S1). During the flowering and pod setting periods, the average maximum temperature was recorded to be 30.8 ± 0.56 °C and 29.2 ± 0.74 °C in 2019 and 2020, respectively. During the same periods, high temperatures above 29 °C were observed for 27 days and the highest temperature during this period was recorded as 40 °C in 2019. In May and June 2020, high temperatures above 29 °C were recorded for 21 days and there was a period of consecutive extreme temperatures between May 15 and May 20, while the highest temperature was recorded as 43.1 °C in flowering (Figure S1). Cumulative degree-days for heat stress (DDH) and optimum growth (DDO) were 106.4 and 27.4 °C days in 2019, while they were 127.8 and 118.6 °C days in 2020, respectively (Figure 2).

Values for growing degree-days from germination to flowering (GDD_F) were higher in compound-leafed chickpeas than that of simple-leafed chickpeas in both years (Table S1). In contrast, growing degree-days from flowering to harvest (GDD_FH) had higher values in simple-leafed chickpeas than that of compound-leafed chickpeas in both years (Table S1).

As seen in

Table 2. Correlation coefficients (r) between seed yield and maximum temperatures from germination to flowering (T_maxF) and from flowering to harvest (T_maxFH), and growing degree-days from germination to flowering (GDD_F) and from flowering to harvest (GDD_FH).

Year	Leaf Shape	Pods per Axil	TmaxF	TmaxFH	GDDF	GDDFH
			SY	SY	SY	SY
2019	Compound	Single	−0.012	−0.197 **	−0.294 **	0.294 **
		Double	0.020	−0.192 **	−0.328 **	0.328 **
		Multi	0.109	−0.134	−0.311 *	0.325 *
		All	0.018	−0.184 **	−0.308 **	0.307 **
	Simple	Single	−0.086	−0.259 **	−0.308 **	0.310 **
		Double	−0.080	−0.284 **	−0.379 **	0.379 **
		Multi	0.088	−0.120	−0.200	0.200
		All	−0.067	−0.255 **	−0.328 **	0.328 **
2020	Compound	Single	0.068	0.248 *	−0.421 **	0.408 **
		Double	0.209 **	0.174 *	−0.213 **	0.206 **
		Multi	0.142	0.261	0.185	−0.173
		All	0.158 **	0.199 **	−0.272 **	0.264 **
	Simple	Single	0.003	0.071	−0.432 **	0.436 **
		Double	0.128	−0.018	−0.249 *	0.243 *
		Multi	−0.406 *	−0.524 **	−0.440 **	0.408 **
		All	−0.011	−0.067	−0.354 **	0.347 **

* Significant at p < 0.05, ** Significant at p < 0.01.

, seed yield in general was significantly correlated with T_maxFH, GDD_F, and GDD_FH. The closest relationships between seed yield and T_maxFH, GDD_F, and GDD_FH are given in Table 2. A significant negative correlation between seed yield and T_maxF (r = −0.406 *) was observed in simple-leafed and multi-podded chickpeas. Similarly, a significant negative correlation between seed yield and T_maxFH (r = −0.524 **) was found in simple-leafed and multi-podded chickpeas. There was a significant negative relationship between seed yield and GDD_F. On the other hand, the closest association between seed yield and GDD_FH (r = 0.436 **) was detected in simple-leafed and single podded chickpeas.

3.2. Nutrient Elements and Soil Properties

Phosphorus (with 9.4 ppm), potassium (with 0.6 meq per 100 g), calcium (with 37.7 meq per 100 g), magnesium (with 7.1 meq per 100 g), mangan (with 2.3 ppm), and copper (with 1.4 ppm) were found to be at a sufficient level, while organic matter (with 1.9 ppm) and total nitrogen (with 0.1%), iron (with 3.6 ppm), and zinc (with 0.8 ppm) were determined to be at a low level owing to high pH (8.0). Soil texture was loam with CaCO₃ of 26.5%, while electrical conductivity was 0.9 mS per cm.

3.3. Phenological Traits

According to the ANOVA results, the effect of chickpeas was found to be significant, while the G by Y interaction was significant for days to first flowering, days to 50% flowering, plant height, seed yield, and 100-seed weight, while it was not significant for pods and seeds per plant (p ≤ 0.05) (data not shown).

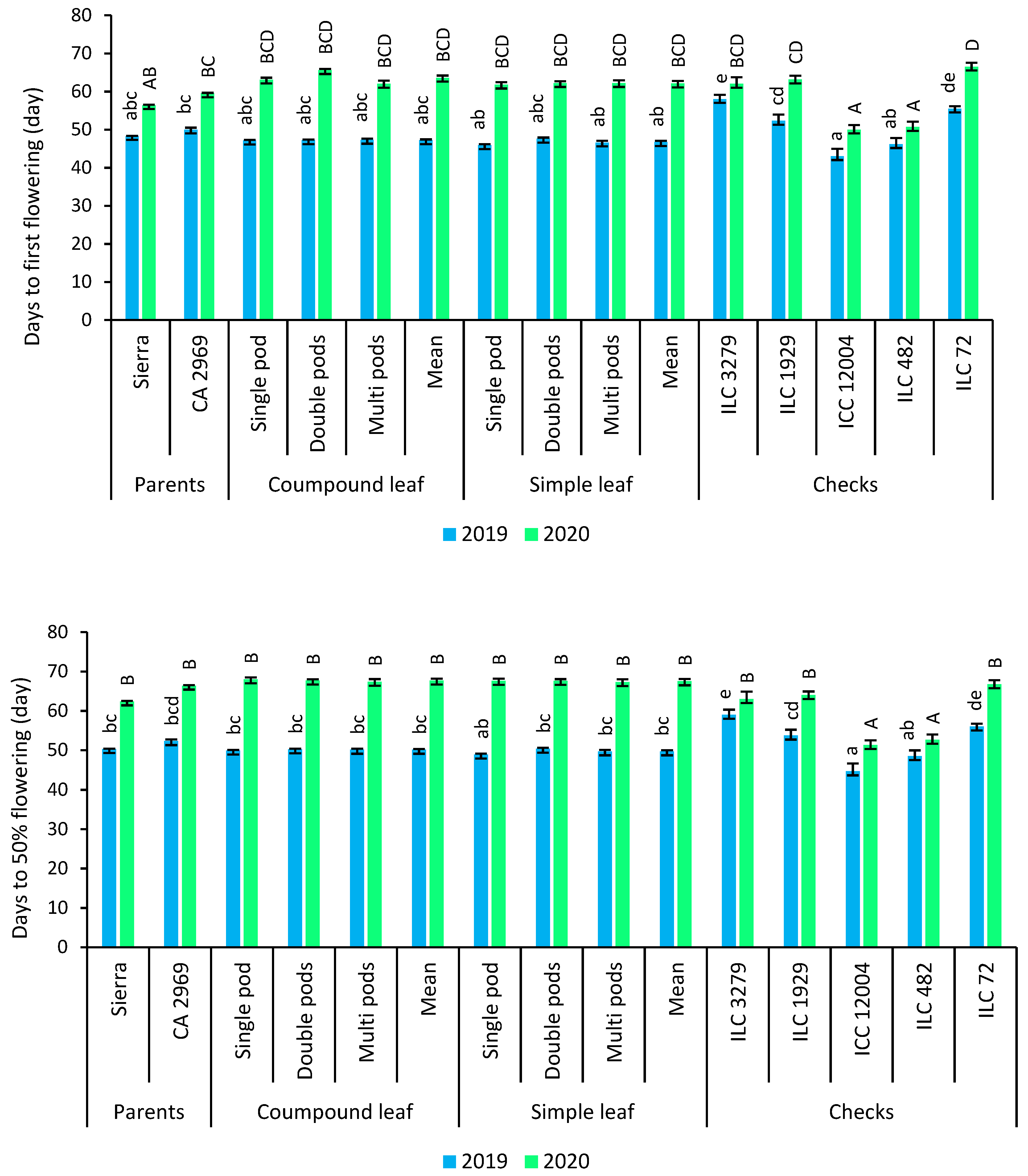

Phenological traits such as days to first flowering and days to 50% flowering in 2019 were found earlier than that of 2020. ICC 12004 had the earliest days to first flowering and days to 50% flowering. According to leaf shape and pods per axil, there was no difference for phenological traits (Figure 3).

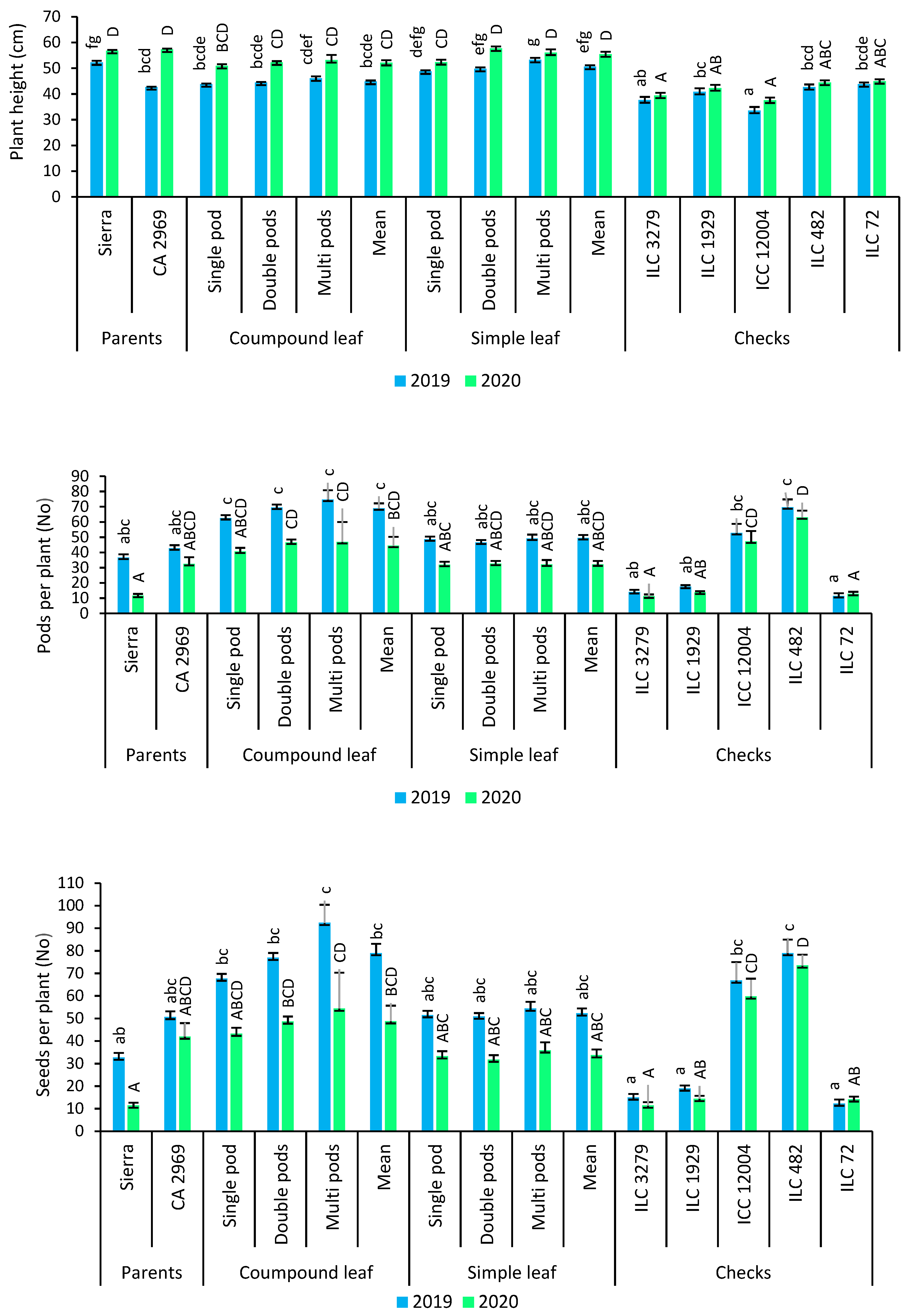

3.4. Plant Height

In 2019, plant height was 44.8 for compound-leafed chickpeas, whereas it was 50.6 cm for simple-leafed chickpeas. In 2020, plant height was 52.1 cm for compound-leafed chickpeas, while it was 55.4 cm for simple-leafed chickpeas (Figure 4). Multi-podded chickpeas had a higher plant height than that of single- (6.5%) and double-podded (2.2%) chickpeas based on both years (Figure 4).

3.5. Pods per Plant

The number of pods per plant was found to be 68.9 for compound-leafed chickpeas, while it was 49.5 for simple-leafed chickpeas in 2019. The number of pods per plant was 44.4 for compound-leafed chickpeas, whereas it was 32.2 for simple-leafed chickpeas in 2020 (Figure 4). For number of pods per plant, a significant difference between compound- and simple-leafed chickpeas was detected. Compound-leafed chickpeas had more pods per plant (57.7%) compared to simple-leafed chickpeas. In both compound- and simple-leafed chickpeas, multi-podded chickpeas had the highest pods per plant for both years (Figure 1D), while compound-leafed and multi-podded chickpeas had the highest pods per plant (Figure 4).

3.6. Seeds per Plant

The number of seeds per plant was determined as 79 for compound-leafed chickpeas, whereas it was 52.3 for simple-leafed chickpeas in 2019. The number of seeds per plant was found to be 48.8 for compound-leafed chickpeas, while it was 33.7 for simple-leafed chickpeas in 2020 (Figure 4). Compound-leafed chickpeas had 48.6% more seeds than simple-leafed chickpeas for both years. Multi-podded chickpeas had 13.8% and 21% more seeds per plant than that of double-podded and single-podded chickpeas, respectively. Multi-podded chickpeas had the highest seeds per plant in both compounds- and simple-leafed chickpeas for both years, whereas compound-leafed and multi-podded chickpeas had the highest seeds per plant (Figure 4).

3.7. Seed Yield

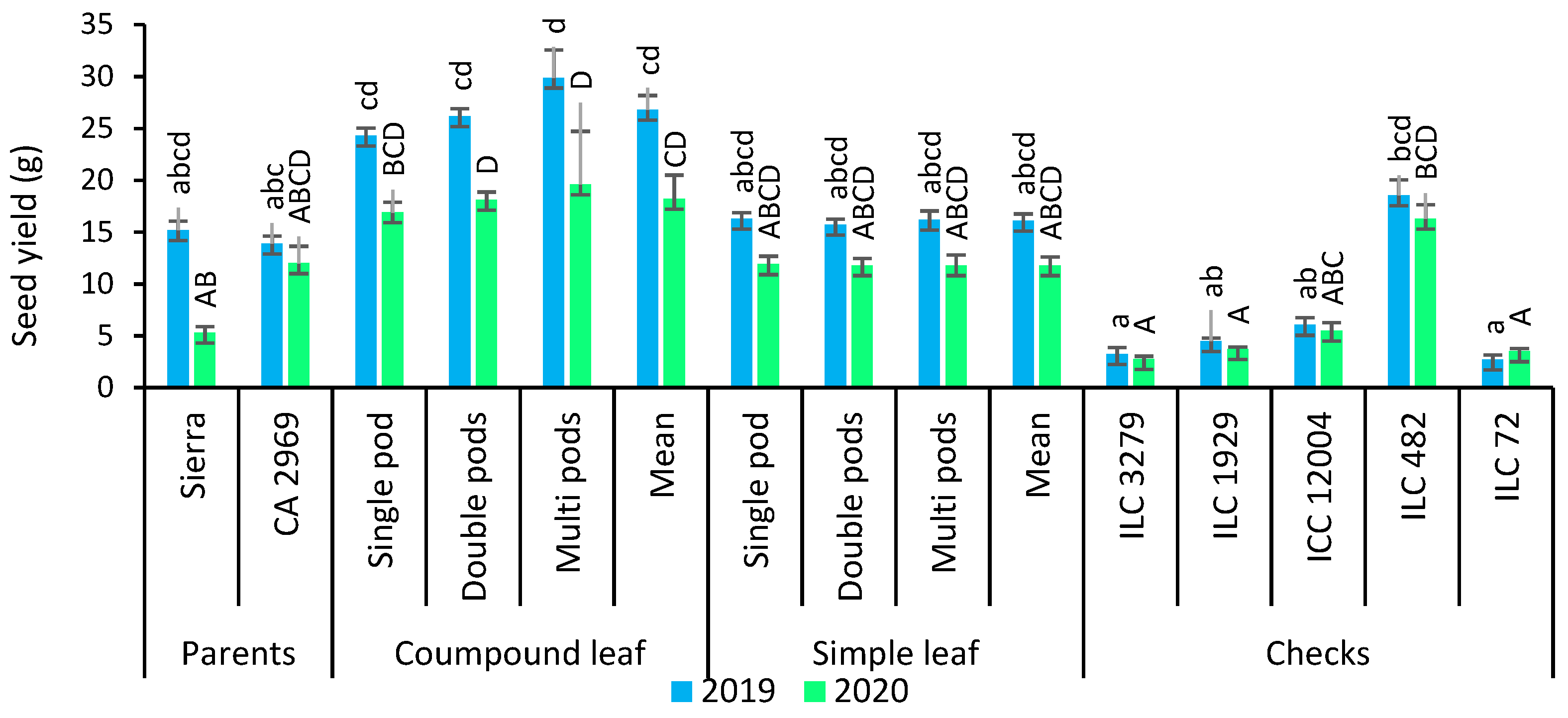

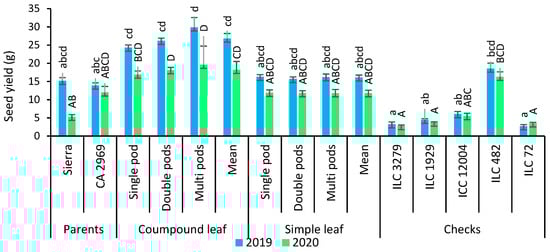

In 2019, compound-leafed chickpeas had a seed yield of 26.8 g, whereas simple-leafed chickpeas had a seed yield of 16.1 g. In 2020, seed yield for compound-leafed chickpeas was 18.2 g, while seed yield for simple-leafed chickpeas was 11.8 g (Figure 5). Seed yield had a significant difference between compound-leafed chickpeas and simple-leafed chickpeas. Compound-leafed chickpeas had a higher seed yield (60.7%) than simple-leafed chickpeas in both years. Multi-podded chickpeas had 7.8% and 20.5% more seed yield than that of double-podded and single-podded chickpeas in both years, respectively. Multi-podded and compound-leafed chickpeas had the highest seed yield (Figure 5).

3.8. 100-Seed Weight

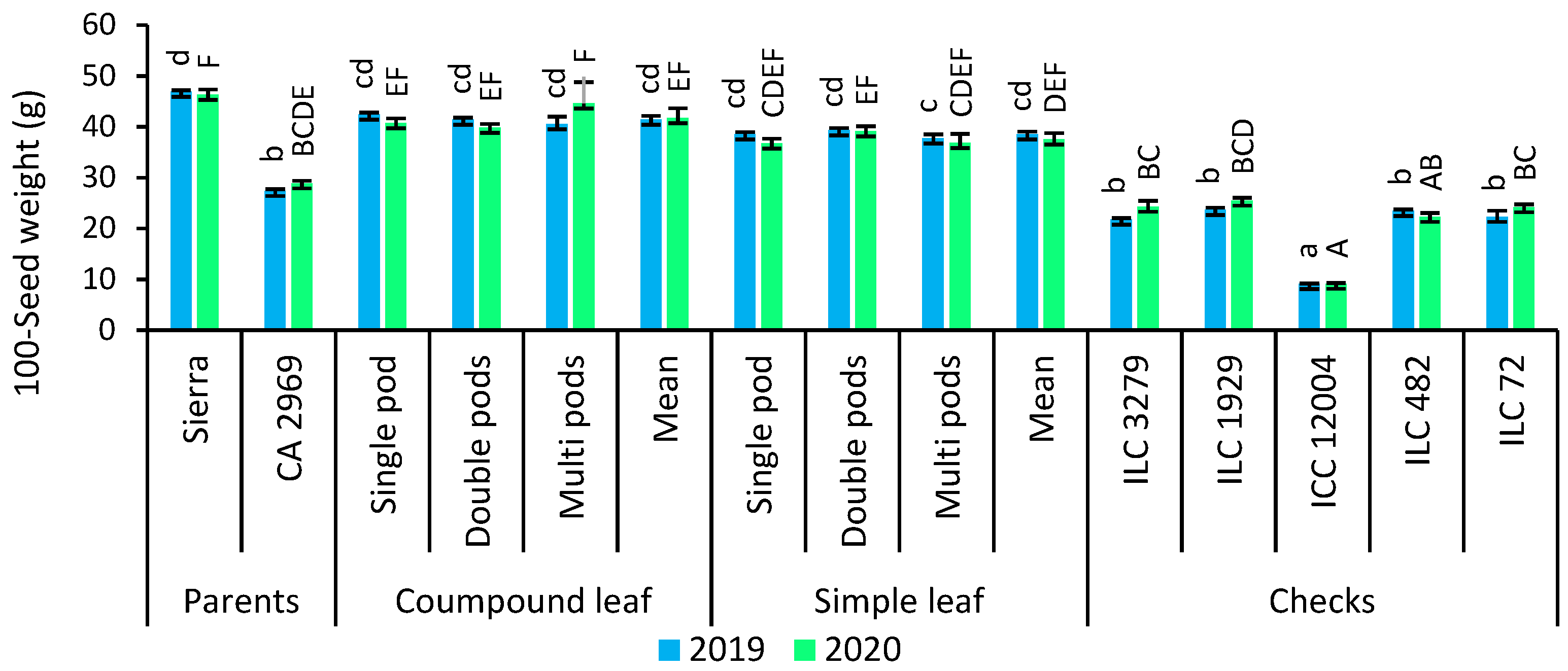

As shown in Figure 5, 100-seed weight was counted as 41.4 g for compound-leafed chickpeas, while it was recorded as 38.5 g for simple-leafed chickpeas in 2019. In 2020, 100-seed weight was detected as 41.7 g for compound-leafed chickpeas, whereas it was found as 37.5 g in 2019. Compound-leafed and single-podded chickpeas (42.4 g) had superior 100-seed weight, followed by compound-leafed and double-podded, and compound-leafed and multi-podded in 2019. However, the highest 100-seed weight was obtained in compound-leafed and multi-podded chickpeas (44.6 g) in 2020 (Figure 5).

3.9. Direct and Indirect Relationships of Multi-Podded and Double-Podded Traits on Seed Yield

Path analyses were carried out to show the direct and indirect relationships of agro-morphological traits on seed yield (

Table 3. Direct and indirect relationships among agro-morphological traits on seed yield over pods per axil.

Traits	Indirect Relationship
	Pods per Axil	LS	FF	DF	PH	PP	SP	SW
Leaf shape (LS)	Single	−0.038 *	−0.636 *	0.493 *	0.162 *	0.659 *	−0.968 *	−0.340 *
	Double	−0.42 *	−0.41	0.069	0.338 *	0.593 *	−0.900 *	−0.304 *
	Multi	−0.36 *	−0.268	0.270	0.186	0.788	−1.453 *	−0.721 *
Days to first flowering (FF)	Single	−0.77 *	0.007	0.960 *	0.008	−0.22	0.015	0.005
	Double	−0.07	−0.49	0.939 *	0.006	0.021	0.038	−0.15
	Multi	−0.19	0.143	0.944 *	0.013	0.372 *	−0.444 *	−0.90 *
Days to 50% flowering (DF)	Single	0.057 *	0.922 *	0.025	−0.26	0.064	−0.74	−0.37
	Double	0.011	0.925 *	0.067 *	−0.43	0.053	−0.131	−0.14
	Multi	0.020	0.981 *	−0.73	−0.40	−0.296 *	0.353 *	0.085
Plant height (PH)	Single	0.113 *	0.048	−0.159	−0.09	−0.97	0.339	0.216 *
	Double	0.251 *	0.026	−0.194	−0.09	−0.290	0.439 *	0.225 *
	Multi	0.152	0.148	−0.437	−0.12	−0.349	0.386	0.272
Pods per plant (PP)	Single	0.033 *	−0.09	0.028	−0.07	0.533 *	0.975 *	0.098 *
	Double	0.036 *	0.008	0.020	−0.24	0.201 *	0.991 *	0.090 *
	Multi	0.055	0.362 *	−0.277 *	−0.30	0.330 *	1.074 *	0.154 *
Seeds per plant (SP)	Single	−0.48 *	0.006	−0.32	0.024	0.963 *	0.420 *	−0.101 *
	Double	−0.52 *	0.013	−0.47	0.035 *	0.945 *	0.796 *	−0.99 *
	Multi	−0.81 *	−0.342 *	0.262 *	0.026	0.849 *	0.733 *	−0.178 *
Seed weight (SW)	Single	−0.325 *	0.037	−0.309	0.295 *	1.845 *	−1.943 *	0.194 *
	Double	−0.310 *	−0.93	−0.90	0.308 *	1.490 *	−1.729 *	0.266 *
	Multi	−0.464 *	−0.809 *	0.728	0.214	1.411 *	−2.064 *	0.201 *

Bold data show direct relationships. * Significant at p < 0.05.

and

Table 4. Direct and indirect relationships among agro-morphological traits on seed yield over leaf shapes.

Traits	Indirect Relationship
	Leaf Shape	PA	FF	DF	PH	PP	SP	SW
Pods per axil (PA)	Compound	−0.41 *	−0.228	0.244	0.071	0.199	−0.74	−0.56
	Simple	−0.45 *	0.376 *	−0.245	0.213 *	−0.531 *	0.443	0.008
Days to first flowering (FF)	Compound	−0.20	−0.58 *	0.956 *	−0.18	0.074	−0.12	−0.03
	Simple	0.042 *	−0.11	0.930 *	0.043	0.018	−0.41	−0.40
Days to 50% flowering (DF)	Compound	0.021	0.932 *	0.065 *	−0.16	−0.19	−0.56	−0.13
	Simple	−0.27	0.919 *	0.066	−0.62 *	0.068	−0.83	−0.15
Plant height (PH)	Compound	0.039	−0.113	−0.101	−0.16	−0.100	0.288	0.225 *
	Simple	0.109 *	0.194	−0.287 *	0.030	−0.130	0.275	0.252 *
Pods per plant (PP)	Compound	0.008	0.034	−0.09	−0.07	0.346 *	0.985 *	0.093 *
	Simple	−0.36 *	0.011	0.042	−0.17	0.271 *	0.977 *	0.119 *
Seeds per plant (SP)	Compound	−0.03	−0.05	−0.25	0.020	0.952 *	0.655 *	−0.100 *
	Simple	0.029	−0.24	−0.48	0.035	0.923 *	0.745 *	−0.148 *
Seed weight (SW)	Compound	−0.40	−0.28	−0.106	0.290 *	1.657 *	−1.856 *	0.246 *
	Simple	0.005	−0.226	−0.85	0.308 *	1.085 *	−1.437 *	0.260 *

Bold data show direct relationships. * Significant at p < 0.05.

). In multi-podded chickpeas, the highest direct relationships were lined up for seeds per plant (p = 0.733 *) and pods per plant (p = 0.330 *), followed by seed weight (p = 0.201 *) and leaf shape (p = −0.036 *). The highest indirect relationships on seed yield over seeds per plant were attained as seed weight (p = −2.064 *) and leaf shape (p = −1.453 *) in multi-podded chickpeas (Table 3).

3.10. Direct and Indirect Relationships of Compound-Leafed Trait on Seed Yield

The highest direct relationships on seed yield in compound-leafed chickpeas were determined as seeds per plant with p = 0.655 * and pods per plant with p = 0.346 *, followed by seed weight (p = 0.246 *) (Table 4). Seed weight had the highest indirect effect on seed yield over seeds per plant (p = −1.856 *) and pods per plant (p = 1.657 *). Seeds per plant (p = 0.745 *) and pods per plant (p = 0.271 *) had the highest direct effect on seed yield in simple-leafed chickpeas, while the highest indirect effect on seed yield was seed weight over seeds per plant (p = −1.437 *) and pods per plant (p = 1.085 *) (Table 4).

3.11. Principal Component Analysis (PCA) and Hierarchical Cluster Analysis (HCA) Based on Seed Yield

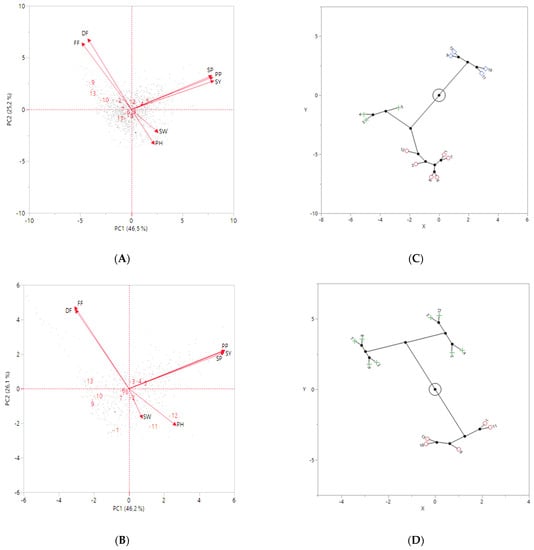

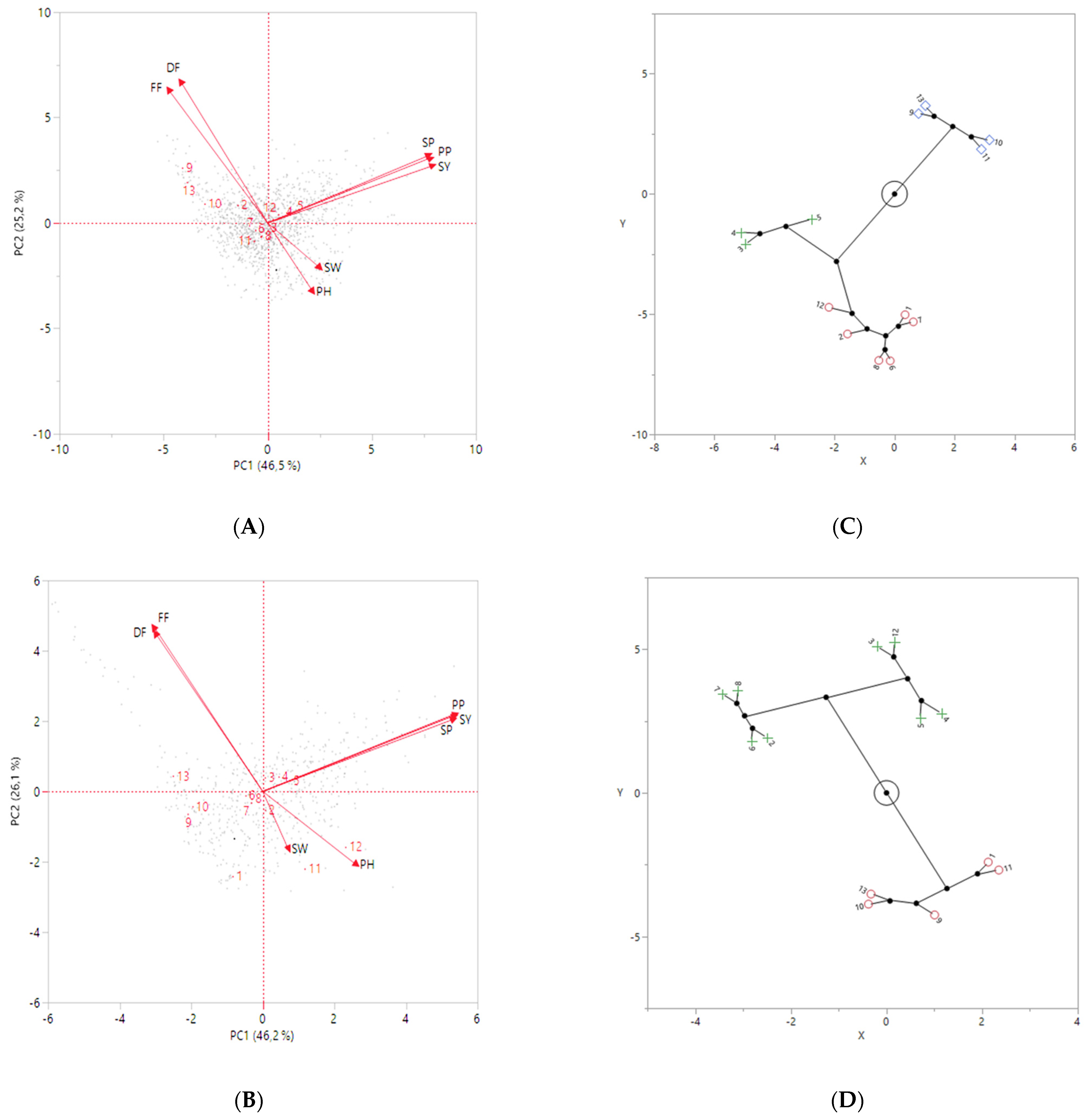

According to the principal component analysis (PCA), three principal components with Eigenvalues > 1 were found in chickpeas in both years, but the first two components explaining 71.7% (46.5% for the PC1 and 25.2% for the PC2 in 2019) and 72.3% (46.2% for the PC1 and 26.1% for the PC2 in 2020) of the total phenotypic variance are presented in Figure 6. The first axis was positively correlated with seeds per plant (SP), pods per plant (PP), and seed yield (SY), while negatively correlated with days to first flowering (FF) and days to 50% flowering (DF) in both years (Figure 6A,B). The second axis was positively correlated with FF and DF, but it was negatively correlated with 100-seed weight (SW) and plant height (PH) in both years. It was determined that the compound-leafed chickpeas (3, 4, and 5) were better than the other chickpeas in terms of SP, PP, and SY in both years (Figure 6A,B). However, compound-leafed and multi-podded chickpeas (5) were the best in terms of these traits in both years.

According to the hierarchical cluster analysis (HCA), compound- and simple-leafed chickpeas, parents, and checks were placed in three groups in 2019 and two groups in 2020 for seed yield (Figure 6C,D). Compound-leafed chickpeas were grouped distinctly from other groups, while simple-leafed chickpeas were gathered in a different group together with Sierra, CA 2969, and ILC 482 in 2019 (Figure 6C). In addition, ILC 3279, ILC 72, ILC 1929, and ICC 12004 had a lower seed yield than these two groups, forming a separate group in 2019 (Figure 6C). Compound-leafed chickpeas, simple-leafed chickpeas, Sierra, and ILC 482 were gathered in a group, while the remaining chickpeas formed in the other group in 2020. However, compound-leafed and simple-leafed chickpeas were grouped in different groups (Figure 6D).

4. Discussion

High temperature stress may be one of the most important factors affecting yield in cool season food legumes in the future [49] due to climate change. Among cool season food legumes, chickpeas are also significantly affected by heat stress in the reproductive stage [21,50,51,52]. A maximum daily temperature above 25 °C is considered the upper threshold for heat stress in cool season crops [53], and the temperature range for optimum growth and development in chickpeas is 18–29 °C [1], whereas the chickpeas used in the current study were subjected to extremely high temperature in flowering and pod setting stages of as high as 43.1 °C (Figure 2 and Figure S1). In general, the seed yield was found to be significantly correlated with T_maxFH, GDD_F, and GDD_FH (Table 2). Growing degree-days from flowering to harvest (GDD_FH) had lower values in compound-leafed chickpeas than that of simple-leafed chickpeas in both years (Table S1). Phenology plays a critical role in resilience to drought and heat stresses, with early flowering providing an advantage by avoiding terminal heat and drought stress by making the reproductive periods early [6,42,43]. In the current study, sowing, which was carried out one month earlier in 2020 compared to 2019, extended the vegetative period (about 16 days), but led to the reproductive period being earlier (about 12 days) than the previous year based on the month. However, the sudden extreme temperature conditions (leading to defoliation, leaf drying especially in simple-leafed chickpeas, and flower abortion) occurring at the beginning of the flowering and pod setting periods (Figure 2 and Figure S1) caused a relatively low yield and yield components compared to the previous year (Figure 3, Figure 4 and Figure 5).

Modifying plant architecture is one of the methods used in plant breeding to increase crop yield, as well as to cope with a/biotic stresses. Morphological and anatomical characteristics of plant leaves are generally related to metabolic type, amount of sun exposure, or water stress [54], and during evolution, nature allows for the formation of the most suitable form in the natural habitat, together with the formation of different leaf forms within the species. Similarly, there are three leaf forms for cultivated chickpeas, including compound, simple, and multipinnate (Figure 1), and the most commonly used varieties in agricultural production have a compound leaf form. With the introduction of simple-leafed chickpea varieties at the end of the 1990s [29,30], many studies were conducted on the agricultural importance of leaf shape in chickpeas [19,20,34,41]. Compound-leafed chickpeas were more advantageous in terms of seed yield than that of simple-leafed chickpeas under high temperature stress. In the current study, compound-leafed chickpeas had a 60.7% higher seed yield than that of simple-leafed chickpeas under heat stress conditions (Figure 5). One of the reasons for the difference in yield may be that the area of a single compound leaf is approximately 2–3 times larger than a single simple leaf, and the compound leaf types have more photosynthetic leaf area, as reported by Abbo et al. [19]. Another reason can because plants can respond to the amount of sunlight and stress in a particular habitat by improving their leaf structural characteristics in accordance with their leaf orientation abilities [54,55], and when compound-leafed chickpeas are exposed to high sunlight, the leaf surface area is reduced by the closing movement of opposite leaflets towards each other (Figure 1). However, simple-leafed chickpeas do not have the ability to narrow the angle of sunlight intake (Figure 1).

The current study demonstrated that multi-podded chickpeas had more advantages than that of single- and double-podded chickpeas in terms of seed yield and its components under high temperature stress (Figure 3, Figure 4 and Figure 5). The multi-podded chickpeas had the advantage of 7.8% and 20.5% higher seed yield than the double-podded and single-podded chickpeas, respectively. In previous studies, the effects of pods per axil in chickpea on yield were investigated [34,35,36,38,56,57,58]. Sheldrake et al. [57] studied the effects of converting double-podded plants to single-podded ones by cutting off one of the flowers at every double-podded node, and concluded that the double-podded character may increase seed yield by 6–11%. Kumar et al. [35] reported that the double podding trait had a yield advantage of 18% in the F₂ and 7% in recombinant inbred lines. On the other hand, the double podding trait does not provide an advantage on seed yield [38,59]. Furthermore, the double podding trait increases seed yield and therefore can play an important role in stabilizing the chickpea yield [58], and the double-pod gene has a positive effect on the yield stability of chickpeas [38]. It has been suggested that the double podding trait in chickpeas increases the demand for assimilation in the sink during the pod filling period, which in turn accelerates maturity, especially in regions with a short growing season [56]. It is known that heat stress affects the reproductive stage more negatively than the vegetative stage in chickpeas [49]. Heat stress during reproduction reduces the number of flowers, increases flower abortion, causes pollen sterility, and reduces fertilization and the remobilization of assimilates to seeds, as well as a decline in seed number, seed weight, and seed yield [21,60,61,62].

In addition to double-podded chickpeas, multi-podded chickpeas containing more than two pods in an axil were induced by spontaneous mutations [34,63,64]. However, no study has been conducted on the response to high temperature stress in multi-podded chickpeas. In the current study, the effects of both pods per axil and leaf shape on the yield and yield components were investigated under heat stress conditions. Compound-leafed chickpeas had a considerable yield advantage over the simple-leafed chickpeas, the number of pods per axil also affected seed yield (Figure 5). The number of pods per axil had not had a significant effect on seed yield in simple-leafed chickpeas, while the increase in the number of pods per axil in compound-leafed chickpeas showed a positive and significant effect (Figure 5).

The path analysis provides the separating of the direct and indirect relationships among traits on the seed yield in chickpea [14], and the main purpose of the path analysis in the current study was to determine the direct or indirect relationship between seed yield and yield components based on leaf shape and pods per axil. The number of seeds and pods per plant, 100-seed weight, and pods per axil had the highest direct effect on seed yield in both compound-leafed and simple-leafed chickpeas (Table 4). In addition, for seeds and pods per plant, 100-seed weight had the highest direct effect on seed yield in multi-podded chickpeas, and therefore, these traits should be considered as the selection criteria to select superior chickpeas (Table 3). Moreover, 100-seed weight indirectly affected the seed yield over the number of seeds per plant in multi-podded chickpeas (Table 3).

Principal component analysis (PCA) was performed to examine how chickpeas were classified according to leaf shape and pods per axil, parents, and checks. PCA results showed that the maximum variation was contributed by yield parameters such as seeds per plant (SP), pods per plant (PP), and seed yield (SY) for PC1, and phenological traits such as days to flowering (DF) and days to 50% flowering (FF) for PC2 (Figure 6A,B).

Hierarchical cluster analysis (HCA) was carried out to show chickpea groups and agro-morphological traits under heat stress conditions, and three groups were formed in 2019 (Figure 6C). Compound-leafed and simple-leafed chickpeas were formed in two separate groups in terms of yield in 2020 (Figure 6D). Chickpeas with multi-pods with the highest yield were differentiated from the single-pod and double-pods (Figure 6C,D).

In conclusion, plants with multi-pods and compound leaf traits had the highest seed yield, followed by plants with double-pods and compound leaves. On the other hand, plants with single-pod and simple leaves had the lowest yield, but they had large seeds than their counterparts. The number of seeds and pods per plant and 100-seed weight had the highest determinant of seed yield under heat stress conditions. Multi-pods per peduncle and compound leaf traits had an obviously enormous advantage in “kabuli” chickpeas under heat stress conditions. The plant shapes that nature has evolved for millions of years, which are mostly found in wild plants, have been proven by the current study to have a better fitness ability than plants shaped by human hands.
