Article

Biomass and Methane Production in Double Cereal Cropping Systems with Different Winter Cereal and Maize Plant Densities

by
Massimo Blandino
*,
Mattia Scapino
,
Luca Rollè
,
Elio Dinuccio
and
Amedeo Reyneri
Dipartimento di Scienze Agrarie, Forestali e Alimentari, Università di Torino, Largo Paolo Braccini 2, 10095 Grugliasco, Italy
*
Author to whom correspondence should be addressed.
Agronomy 2023, 13(2), 536; https://doi.org/10.3390/agronomy13020536
Submission received: 19 January 2023 / Revised: 9 February 2023 / Accepted: 10 February 2023 / Published: 13 February 2023
(This article belongs to the Special Issue Crop Productivity and Energy Balance in Large-Scale Fields)
Browse Figure
Review Reports Versions Notes

Abstract

:
The biogas supply chain requires a correct combination of crops to maximize the methane yield per hectare. Field trials were carried out in North Italy over three growing seasons, according to a factorial combination of four cropping systems (maize as a sole-crop or after hybrid barley, triticale and wheat) and two maize plant densities (standard, 7.5 plants m−2 and high, 10 plants m−2) with the plants harvested as whole-crop silage. The specific methane production per ton was measured through the biochemical methane potential (BMP) method, while the methane yield per hectare was calculated on the basis of the BMP results and considering the biomass yield. The average methane yield of wheat resulted to be equal to 4550 Nm3 ha−1, and +17% and +28% higher than triticale and barley, respectively, according to the biomass yield. A delay in maize sowing reduced the yield potential of this crop; the biomass of maize grown after barley, triticale and wheat was 20%, 33% and 47% lower, respectively, than maize cultivated as a single crop. The high plant population increased the biomass yield in the sole-crop maize (+23%) and in the maize grown after barley (+20%), compared to the standard density. The highest biomass (32 t ha−1 DM) and methane yield (9971 Nm3 ha−1) within the cropping systems were obtained for barley followed by maize at a high plant density. This cropping system increased the methane yield by 46% and 18%, respectively, compared to the sole-crop maize or maize after triticale at a standard density. The smaller amount of available solar radiation, resulting from the later sowing of maize, reduced the advantage related to the application of a high plant density.

1. Introduction

Anaerobic digestion is a well-established technology used for the production of renewable energy from agricultural biomasses. European countries are leaders in the world’s agricultural biogas production, with a combined biogas and biomethane production in 2021 that amounted to 196 TWh of energy, from 14.90 billion cubic meters (bcm) of biogas and 3.50 bcm of biomethane [1]. Interest in anaerobic digestion applications has grown over the past few years, especially concerning the utilization of manure and agroindustry waste as primary biomass sources for biogas production [2,3,4]. Nonetheless, most plants still rely on dedicated energy crops as their main or secondary biomass source [5,6,7]. This is due to the role energy crops play in achieving higher methane yields and in stabilizing biogas production [8]. Furthermore, the use of energy crops to feed biogas plants results in competition in the exploitation of land for food, feed and energy purposes [8]. This competition has led to the need to find new cropping systems that are more efficient and competitive per area unit, to enhance the methane yield per hectare and reduce the use of soil for energy purposes. Several optimization approaches that have focused on different agronomical management strategies, such as double cropping, the recovery of crop residues and the introduction of alternative-innovative crops, have been proposed [9,10,11]. It is well known that double cropping increases annual productivity, due to its more complete use of resources than single crops [12]. In temperate conditions, the crops most commonly used for anaerobic digestion are maize (Zea mays L.), winter cereals and grasses, harvested as green whole-crops for silage forage [13]. Maize biomass is one of the main components used for anaerobic digestion, since it has the highest yield potential of all the crops cultivated in Central and South Europe [14], and it offers a particularly suitable substrate for anaerobic fermentation [15], due to its high starch content and highly digestible fiber [16]. However, the introduction of alternative crops to maize in irrigated temperate growing areas characterized by high yield potential, is not sufficient to provide the same benefits, in terms of overall biogas yield per hectare [17,18]. In these growing areas, the conventional cropping system generally adopted by farmers to feed biogas plants involves the insertion of maize, chopped at the dough stage, into a double cropping system in combination with a winter cereal, such as triticale (× Triticosecale Wittmack) harvested at the early dough stage [19]. In these production situations, triticale allows a satisfactory biomass to be obtained, in terms of quantity and quality, thus providing a good response to fertilization with organic N and catching nitrogen leaching from the soil during autumn and winter [9,20,21]. Garuti et al. [22] reported that the cellulose content and degradability mainly affect the methane production of different triticale cultivars. Furthermore, to increase both the sustainability and profitability of intensive cereal cropping systems for methane production, it is important to introduce genetic and agronomic innovations that are able to enhance their productivity and efficiency, without any significant increase in the cultivation costs. Optimizing the planting density of maize is considered an efficient way of improving the interception of active radiation [23], and therefore, of achieving higher yields with similar inputs. Testa et al. [24] observed a significant grain yield enhancement for a full-season maize hybrid cultivated in North Italy, when the plant density was increased to 10 plants m−2; this was achieved by reducing the inter-row spacing from the conventional 0.75 m to a narrower 0.5 m, which led to a better optimization of the plant distribution in the field and an overall higher light interception. Similar benefits could also be expected for the biomass yield of silage maize, especially since there are no potential limitations associated with the dry down process. F1 hybrid barley (Hordeum vulgare L.) varieties, which are characterized by a higher stay-green and biomass yields than conventional (no hybrid) barley cultivars, represent a recent introduction of a winter crop used for biomass purposes, because of the exploitation of heterosis associated with the hybridization process [25,26,27]. As a result of its more rapid crop development, hybrid barley can be harvested earlier than triticale and this would allow an earlier sowing of maize in rotation to be introduced, thus favoring its development because of potential higher solar radiation availability. Another winter cereal that can be used, albeit through a different approach, to feed biogas plants is that of common wheat (Triticum aestivum spp. aestivum L.), a crop that can easily be inserted in rotation with summer cereals and which is able to ensure a higher yield, in terms of starch and protein, than triticale, in addition to high dry matter (DM) digestibility [28,29]. Regarding silage, winter wheat is interesting because of its potential quality–quantity characteristics when it is used as a fermented whole-crop harvested at an early dough stage, which leads to a higher DM intake and improved rumen fermentation in cows [29,30]. Recent experimental studies have underlined the energetic advantages of the use of recent wheat cultivars specifically developed for the production of biomass and featuring a high size of the plant and high stay green [31]. By comparing the methane yield of a wide range of crops, Hermann et al. [32] reported that winter barley, triticale and wheat showed similar methane potential, although as far as the chemical composition of silage is concerned, the protein content of barley and the starch content of wheat were slightly higher than triticale.
In order to maximize the biomass yield in methane per hectare, the aim of this study has been to compare maize cropping systems that adopt conventional or high-density sowing strategies, and to consider their combination with different cereal crops, such as F1 hybrid barley, wheat and triticale, which are characterized by different precocities.

2. Materials and Methods

2.1. Experimental Site and Treatments

Large-scale field trials were carried out over 3 growing seasons, from 2013 to 2016, in Northwest Italy. The experiments were carried out in Candiolo (44°57′36″72 N, 07°36′10″08 E) over the 2013–14 season, and in Carignano (44°50′52″80 N, 07°43′8″76 E) over the 2014–15 and 2015–16 growing seasons. The treatments compared in each trial were factorial combinations, in the same field, of:
  • Four cropping systems based on single or double crops harvested as whole-crop silage:
    ○
    M, sole-crop maize planted in spring,
    ○
    BM, double cropping system with hybrid barley followed by maize as an intercrop,
    ○
    TM, double cropping system with triticale followed by maize as an intercrop,
    ○
    WM, double cropping system with common wheat followed by maize as an intercrop.
  • Two plant densities for the maize crop:
    ○
    StD, a standard planting density (7.5 plants m−2) with plants sown at a 0.75 m wide inter-row spacing, and an average distance of 0.18 m between two contiguous plants,
    ○
    HiD, a high planting density (10 plants m−2) with plants sown at a narrow inter-row spacing of 0.5 m, and a distance between plants of 0.2 m in the same row.
The treatments were assigned to experimental units using a split-plot design, with the cropping system as the main-plot treatment and the maize plant density as the sub-plot treatment. The experimental unit was replicated 3 times on a surface that was able to allow the crop to be harvested with a conventional chopping machine. The 150 m long sub-plot consisted of 8 rows and 12 rows for the StD and HiD planting systems, respectively. All the compared winter cereals were sown at the same time, between the end of October and the beginning of November, while the harvest was performed at an early dough stage of the grain (growth stage GS 81–83, [33]) with approximately 7 days of interval between the crops, according to their precocity (barley > triticale > wheat). The maize in the single cropping system was sown at the beginning of April and harvested at the end of August, after a visual assessment of the kernel milk-line position at the dough stage (GS85; [34]). The maize in the double cropping systems was instead sown a few days after the harvest of the previous winter cereals (with an interval of approximately 5–7 days) and harvested at the end of September or the beginning of October, when the right growth stage for silage production had been reached. The main physical and chemical parameters of each experiment are reported in Table 1. The sowing and harvesting dates of each crop are reported in Table 2 for all the considered growing seasons.
The compared winter cereals were the Volume (Syngenta Italia S.p.A., Milano, Italy), Tarzan (Società Italiana Sementi S.p.A, San Lazzaro di Savena, Bologna, Italy), and Illico (Syngenta Italia S.p.A., Milano, Italy) cultivars for F1 crossbreed hybrid barley, conventional triticale and conventional common wheat, respectively. All the considered genotypes have a dual-purpose (grain and biomass) aptitude. The triticale and wheat cultivars used in the study were pure lines (no F1 hybrid). Studies were carried out on a commercial SY Hydro dent maize hybrid (FAO maturity class 600, 135 days relative to maturity; Syngenta Italia S.p.A., Milano, Italy) in Candiolo in the 2013–14 period and on the SY Sincero hybrid (FAO maturity class 500, 127 days relative to maturity; Syngenta Italia S.p.A., Milano, Italy) in Carignano in the 2014–15 and 2015–16 growing seasons. The previous crop in all the experimental fields was maize for silage, which was cultivated as a sole-crop system. Planting was carried out for all the compared winter cereals and for the single maize cropping system after an autumn 0.3 m deep ploughing, followed by disk harrowing, to prepare a suitable seedbed. The maize that followed the winter cereals was instead sown after a minimum tillage, through a double disk and rotary harrowing, in order to facilitate a rapid sowing after the previous crop harvest.
The maize in all the sites was irrigated using the border flooding surface method to maintain the water-holding capacity at between 33 and 200 kPa. The single maize cropping system received approximately 300, 150 and 200 kg ha−1 of N, P2O5 and K2O, respectively, in each growing season through the distribution of the digestate before spring harrowing and urea distribution at the 8th leaf stage (GS28). The double-cropping system overall received 450, 225 and 300 kg ha−1 of N, P2O5 and K2O, respectively, through the distribution of the digestate, which was split into an autumn ploughing, before winter cereal sowing, and a summer harrowing, before maize sowing. The fertilizer rate was the same for all the compared winter cereals and for both maize density treatments. The other agronomical practices (weed and pest control) were conducted according to the ordinary agronomic techniques adopted in the cultivation area and were the same for all the compared winter cereals and for both maize density treatments.

2.2. Biomass and Methane Yield and Qualitative Measurements

The biomass yield was obtained after chopper harvesting of the whole plots at an appropriate maturity stage for the silage of each crop and by weighing the biomass harvested from the entire plot surface. The harvest was carried out using a self-propelled forage harvester (Class Jaguar 960, Harsewinkel, Westphalia, Germany), equipped with 2 counter-rotating rolls and set at a 19-mm theoretical chop length. About 1 kg of chopped fresh sample from each plot was weighed before and after being dried at 120 °C until constant weight to assess the DM content. Another 2 kg subsample was collected, dried at 65 °C for 48 h and milled to 0.500 mm to establish the chemical composition. The crude protein, starch, neutral detergent fiber (NDF), acid detergent fiber (ADF) and acid detergent lignin (ADL) contents were analyzed using a near infrared instrument (NIR system 5000 FOSS®) [35]. Moreover, 4 kg representative samples of fresh chopped whole plants were taken at harvest and stored in a refrigerator at a constant temperature (4 °C) under vacuum for a maximum of 2 weeks before biochemical methane potential (BMP) analysis. The BMP tests were performed according to VDI 4630 [36] and following the experimental procedure described by Dinuccio et al. [37]. Two-liter capacity batch reactors were filled with a mixture of feedstock, inoculum and deionized water to obtain a final feedstock-to-inoculum ratio of 1:2, on the basis of the content of the volatile solids (VS). The used inoculum consisted of the separate liquid fraction of digested slurry produced in an anaerobic digester plant fed with a mixture of pig slurry (70%), farmyard manure (4%), maize silage (14%) and sorghum silage (12%). Blank batch trials were also carried out with only inoculum; the biogas residual potential was measured and subtracted from the biogas obtained from the samples. Trials were performed in a temperature-controlled incubator under mesophilic conditions (40 ± 2 °C) for a period of 60 days. Each biomass was digested in triplicate. The produced biogas was collected in Tedlar® bags, and its volume and composition were monitored every 3 days for the first 2 weeks, and then weekly until the end of the test. The biogas volume was measured by means of a Ritter Drum-type Gas volume meter (TG05/5, Ritter Apparatebau GmbH & Co. KG, Bochum, Germany). The methane concentration in the biogas was determined using a gas analyzer equipped with infrared sensors (model XAM 7000, Drägerwerk AG & Co. KgaA, Lübeck, Germany). The recorded data were normalized to the standard temperature and pressure (0 °C and 1013 hPa), according to VDI 4630 [36]. The results were expressed as potential methane production per hectare.

2.3. Statistical Analysis

The normal distribution and homogeneity of variance were verified by performing the Kolmogorov–Smirnov normality and Levene test. An analysis of variance (ANOVA) was run separately for each growing season, to analyze the effect of the single crops and their combination in different cropping system on the biomass yield and composition, biochemical methane potential (BMP) and methane yield per hectare. When necessary, post hoc multiple comparison tests were performed, by means of the Ryan–Einot–Gabriel–Welsh Q (REGW-Q) test. SPSS Version 24 for Windows statistical package (SPSS Inc., Chicago, IL, USA) was used for the statistical analysis.

3. Results

3.1. Meteorological Trends

The three growing seasons were subject to different meteorological trends, as far as both rainfall and temperature are concerned (Table 3).
The highest level of precipitation was recorded during the 2014–15 season, and it was mainly concentrated during the winter and spring months. The rainfall was lower in summer (June–August) in both the 2014–15 and 2015–16 growing seasons, while the precipitation was better distributed over the 2013–14 period. The Growing Degree Days (GDD) for winter cereal development from November to May were similar for all the considered growing seasons. However, 2014 had fewer GDDs for maize from June to October than in 2015 and 2016.

3.2. Winter Cereal Biomass and Methane Yield

The barley harvested at the early dough stage was on average anticipated by −7 days and −17 days, compared to triticale and wheat, respectively (Table 1). The differences between the winter cereal crops were significant for the biomass yield in all the growing seasons (Table 4). Wheat resulted in the highest biomass production of the winter cereals: on average this crop had 30.6% and 22.1% higher yield values than barley and triticale, respectively. The difference in the hybrid barley and triticale biomass was not significant in the 2013–14 and 2014–15 growing seasons, while only in 2015–16 did triticale have a 12.6% greater biomass yield than barley.
The DM content was significantly lower for hybrid barley than for triticale and wheat in all the growing seasons. No significant differences were observed for the volatile solid concentration between the winter cereals, while the chemical composition of the whole plant at harvest varied between the crops across the considered growing seasons (Table 5). In the 2013–14 and 2014–15 growing seasons, triticale resulted in a lower starch and higher NDF content than barley and wheat, while the compared winter cereals showed similar fiber and starch concentrations in the 2015–16 period. Wheat resulted in higher ADL values than barley and triticale in the 2013–14 and 2014–15 growing seasons. As far as the protein content is concerned, no differences were reported for 2013–14, while the concentration of crude protein was higher in the hybrid barley and wheat in the 2014–15 and 2015–16 growing seasons. Despite the previous variability in biomass composition, no significant differences were reported for BMP for the compared crops (Table 6).
As for the methane yield per hectare, wheat always resulted in the highest value: on average this crop had a 28% and 17% higher value than barley and triticale, respectively. No significant differences between hybrid barley and triticale were observed for any of the growing seasons.

3.3. Maize Biomass and Methane Yield

ANOVA showed a significant effect of the combination of the maize sole crop/intercrop and plant density on the biomass yield for all the growing seasons (Table 6). As expected, the delay in maize sowing reduced the biomass production: compared to the maize cultivated as a sole-crop, the yield was on average −20%, −33% and −47% for maize after barley, triticale and wheat, respectively. In the cropping system with sole-crop maize, the HiD significantly increased the biomass yield by 33%, 20% and 16%, compared to StD, in the 2013–14, 2014–15 and 2015–16 growing season, respectively. A significant advantage of applying the HiD system was also observed for maize after barley (+32%) and triticale (+26%) in the growing season with the best distributed rainfall during the summer (2013–14), while, in 2015–16, only the HiD maize that followed barley resulted in a biomass yield advantage (+14%) over the StD one. In the driest growing season during summer (2014–15), HiD maize did not lead to a significant increase in the biomass yield, compared to StD, for any of the sowing times after a winter cereal crop. The increase in the plant population (HiD) in maize sown after wheat did not lead to any significant increase in the biomass yield for any of the considered growing seasons. Overall, the HiD maize sown in early spring (single crop) resulted in a significantly higher biomass yield than the other maize cropping systems in all the growing seasons. In each growing seasons, the DM content resulted higher for the early-planted maize. The VS content was only affected to a great extent by the maize cropping systems in the 2013–14 growing season, and showed greater values for the single-crop maize. The fiber fraction, starch and protein contents generally resulted to be steady for the maize over the different cropping systems (Table 7).
Table
Table 6. Biomass yield, biochemical methane potential (BMP), and methane yield per hectare of the maize crops for different sowing times 1 and plant densities 2.
Table 6. Biomass yield, biochemical methane potential (BMP), and methane yield per hectare of the maize crops for different sowing times 1 and plant densities 2.
GrowingMaizePlantBiomassDMVSBMP Methane
Season DensityYield Yield
(t ha−1 DM)(%)(% DM)(Nm3CH4 t VS−1)(Nm3 ha−1)
2013–14single cropStD23.0 c30.8 ab91.3 a326 a6838 bc
after barleyStD19.6 de32.0 a88.1 ab309 a5357 d
after triticaleStD16.3 f27.8 abc83.3 cd346 a4698 d
after wheatStD17.6 ef23.7 bc88.0 abc316 a4905 d
single cropHiD30.6 a28.1 abc90.7 a332 a9192 a
after barleyHiD25.9 b32.7 a85.0 bcd336 a7405 b
after triticaleHiD20.5 de29.2 abc80.2 d385 a6323 c
after wheatHiD17.7 ef22.2 c88.2 ab326 a5073 d
P (F) *********ns***
2014–15single cropStD21.0 b28.5 cd95.7 a402 a8102 a
after barleyStD16.1 cd34.5 ab95.1 a306 a4701 bc
after triticaleStD13.3 ef34.5 ab96.0 a317 a4038 bc
after wheatStD10.1 f29.1 cd95.3 a339 a3266 c
single cropHiD25.2 a25.9 d95.2 a394 a9440 a
after barleyHiD18.4 c37.9 a96.1 a316 a5587 b
after triticaleHiD14.7 de32.0 bc95.1 a331 a4597 bc
after wheatHiD9.9 f32.0 bc95.8 a327 a3113 c
P (F) ******nsns***
2015–16single cropStD19.8 b33.6 a95.4 a334 a6311 b
after barleyStD15.9 c32.7 ab96.2 a352 a5390 c
after triticaleStD15.1 c29.8 bc95.6 a349 a5030 c
after wheatStD10.4 de27.9 c95.3 a338 a3342 d
single cropHiD23.1 a30.1 bc95.1 a338 a7414 a
after barleyHiD18.2 b29.3 c96.3 a355 a6223 b
after triticaleHiD15.8 c31.3 abc94.8 a320 a4793 c
after wheatHiD10.8 de28.0 c95.6 a344 a3558 d
P (F) ******nsns***
1 see Table 2 for details of the sowing and harvesting times. 2 StD, a standard planting density (7.5 plants per m−2) sown at a wide inter-row spacing of 0.75 m; HiD, a high planting density (10 plants per m−2) with a narrow inter-row spacing of 0.5 m. DM, dry matter; VS, volatile solids; BMP, Biochemical Methane Potential expressed per t of VS of maize. Means followed by different letters are significantly different, according to the REGW-Q test. Level of significance: *** p ≤ 0.001, ns: not significant.
Significant differences for all these composition parameters were only detected in the 2013–14 growing seasons, with lower starch and high NDF, ADF and ADL contents in the late-planted maize (after triticale and wheat) than in the earlier one (maize as a sole-crop or as an intercrop after barley). As far as the BMP is concerned, no significant difference between the maize crops was observed for the compared cropping systems (Table 6). Thus, on the basis of the biomass, the methane yield per hectare of maize decreased according to the time of sowing. No significant difference between HiD and StD was detected for the plant density effect in the 2014–15 growing season. The HiD maize instead resulted in a significantly higher methane yield than StD (+17% and +15%) in the 2015–16 period for maize cultivated as a sole-crop or as an intercrop after barley, respectively. In the 2013–14 growing seasons, the methane yield was significantly increased by the HiD system, by 34%, 38% and 35% for maize cultivated as a sole-crop or an intercrop after barley and triticale, respectively.

3.4. Biomass and Methane Yield of the Cropping Systems

The effect of the whole cropping system, and of the combination of winter cereal and maize, on the biomass and methane yield per hectare is reported in Figure 1. The double cropping systems in the StD maize cultivation conditions always resulted in a significant increase in the biomass yield, compared to the system with maize as a sole-crop.
The barley–HiD maize double cropping system resulted in the highest biomass and methane yield for all the growing seasons. This treatment showed an increase in methane per hectare of 46% and 18%, compared to StD maize alone and triticale + StD maize, respectively. The 2014–15 growing season reported the lower benefit in term of methane yield of the double cropping system compared to the sole-crop maize: a significant difference for the methane yield was reported between maize cultivated as a sole-crop and barley + maize double cropping system (with both maize plant density) and between maize cultivated as a sole-crop and triticale + maize double cropping system (HiD plant density).
As far as the maize cultivated as a single crop is concerned, HiD always led to a significant increase in the biomass (+23%) and methane yields (+22%), compared to StD. The cropping system with HiD sole-crop maize resulted in a similar biomass and methane yield to that of the triticale–StD maize and the wheat–StD maize systems in the 2013–14 and 2014–15 growing seasons. Moreover, the application of a high plant density cultivation of maize did not lead to any significant increase in the methane yield, compared to the standard density in the triticale + maize and wheat + maize double cropping systems.

4. Discussion

This study further confirms that energy yields in cereal cropping systems can be implemented through a rational combination of double crops, to maximize their overall biomass production, as previously highlighted in different growing areas and environments [9,38].
Among the tested winter cereals, wheat has produced more methane per unit area than both barley and triticale. The recorded biomass advantages, as well as the differences in the harvesting date between wheat and triticale are in agreement with the findings of Mühleisen et al. [26] and Nadeau [39]. The higher biomass production of wheat is linked to a higher plant development and a longer growth period, with a harvesting date that is ~7 and ~17 days later than triticale and barley, respectively. Moreover, although the BMP of the wheat in the present experiment did not differ from those of the other winter cereals, this crop guarantees a higher starch and protein content in the biomass than triticale, and this results in potential benefits for anaerobic digestion feeding and methane production [40]. Furthermore, the whole-crop wheat harvested at an early dough stage showed a higher ADL content than barley and triticale, with the exception of 2014–15 growing season. According to Weinberg et al. [41], ADL is the parameter that has the most impact on NDF digestibility and, in the present study, it probably reduced the advantages of the higher starch content in terms of BMP. Rincon et al. [42] also reported that the BMP of whole-crop wheat was slightly lower at the early dough stage than at the milk stage (346 vs 360 Nm3CH4 t VS−1). Since ADL increased with the ripening stages [31,43], the choice of the correct harvesting time for each genotype and environment is fundamental to maximize the production of high-quality forage from whole-crop wheat and, at the same time, to increase the grain-to-biomass ratio. In this context, the selection of genotypes with a high NDF digestibility and stay green, which are also related to the tolerance to foliar diseases, could make it possible to reach the later ripening stages without compromising the digestibility of the fiber [44]. The F1 wheat hybrid cultivar, which has a greater vegetative vigor and high biomass production, may be able to provide genetic materials that could be suitable for such energetic uses in the near future [45]. Moreover, since Ronga et al. [31] reported that the nutritive value of whole-crop wheat is no different when harvested at heading or at the milk stage, due to the better NDF digestibility, an alternative approach could be to anticipate the wheat harvest, while maintaining a biomass advantage over triticale, to favor a higher productivity of the intercropping maize.
The F1 hybrid barley resulted in the same DM biomass yield as triticale, except for in the 2015–16 growing season, while, since the BMP values were similar, the methane yield per area unit was never statistically different between these crops. Moreover, the whole barley crop resulted in a higher starch content than triticale, thus confirming the findings of Nadeau [39], who highlighted an overall higher organic matter digestibility for conventional barley cultivars harvested at the early dough stage. The chemical composition and in-vitro DM digestibility of the barley and wheat silages were similar, while the in-vivo DM digestibility has been reported to be higher in barley-fed cows [46]. Moreover, barley had a comparable methane yield per kg of DM to that of maize [25], thus confirming the potential advantage of using this crop as forage, above all, if the biomass yield of this crop can be increased. The use of F1 hybrids instead of conventional cultivars led to higher whole-crop biomass yields of the winter barley for bioenergy production, as reported in the multi-location field experiment of Bernhard et al. [25], who stated that hybrids resulted in a higher plant height and ear dimension than pure lines. Preiti et al. [47] reported a higher biomass yield (+18%) of hybrids than conventional barley cultivars in Mediterranean environments because of a higher number of tillers and larger culms. In addition to the higher biomass yield, the barley hybrid also resulted in a higher stay green and DM digestibility than conventional cultivars [48], and these in turn led to a better methane yield per DM unit, but also reduced the risk of the deterioration of the silages and the storage nutrient losses that are typical of whole-crop barley silage, which may occur as a consequence of a low biomass compaction [49]. Furthermore, a better yield stability has been reported for F1 hybrids [27,50], which is of particular interest for marginal and drought-prone environments.
The present experiment underlines that hybrid barley can guarantee a methane yield that is comparable to that of triticale. Furthermore, the great advantage of using barley as a whole crop, instead of other small cereals, is connected to the potential of minimizing the yield penalty related to the late planting of the intercrop maize, since it is harvested 1–2 weeks before triticale or wheat. Several researchers [9,15,51,52,53] have stated that there is a potentially higher role for the energy yield of C4 intercrop maize than that of C3 winter cereal in intensified double-cropping systems in temperate areas. Thus, all the crop practices that are able to maximize the methane yield capacity of maize play fundamental roles in improving the energy efficiency of the overall system. The data collected in this trial established that the BMP of whole-crop maize (on average 339 Nm3CH4 t VS−1) did not change when maize was cultivated as a sole-crop or an intercrop, even when considering different sowing timings, thereby confirming the findings of Strauß et al. [52] and Wannasek et al. [53]. Thus, maximization of the methane yield per unit area could be achieved by focusing on strategies that are able to optimize the biomass yield of maize. In the present study, the two main agronomic techniques adopted to optimize radiation interception in maize were considered, i.e., the positioning of the crop cycle, as a consequence of the sowing time, and the crop density.
It has been reported that when maize sowing is delayed in temperate growing areas, grain filling takes place in a period in which there is a progressive deterioration of the photo-thermal conditions for crop growth [54]. In addition to the optimized position of the crop cycle within the growing season, the results of the present study have also shown the advantage of applying a high plant density (HiD) for maize, compared to the standard one (StD), to obtain a high methane yield, which had previously been reported for both maize grain [24] and biomass [55]. The enhanced plant density increased the lead area index [56], thus leading to a positive result on the cumulative amount of intercepted incident photosynthetically active radiation and, consequently, on maize biomass production [57]. Moreover, the increase in plant density did not change the BMP of whole-crop maize, thus confirming previous finding [16,55].
The most interesting result of the present study is the interaction that was observed between the benefits, in terms of methane yield obtained through a higher plant density, and the timing of the sowing. In fact, a higher biomass yield, due to the adoption of a high plant density, was only observed for the maize sole-crop or when it was sown after barley as opposed to triticale and wheat. We speculate that the absence of a positive effect of HiD for the late maize planting (after triticale or wheat) is related to the lower availability of radiation for maize during crop development. Irmak and Djaman [58] found that the increase in the maize grain yield as a result of a higher plant density varied to a great extent, according to the planting date and years. Djaman et al. [59], who compared different planting densities and sowing times, reported that when the optimum density for each genotype is reached, increasing the density is associated with a decrease in the maize grain yield, since the radiation use efficiency decreases while the competition among plants for water and nutrient increases. Bonelli et al. [54], who explored a broad range of sowing dates in a temperate maize region, reported that the progressive reduction in radiation and temperature during the reproductive period when the sowing date was delayed made the source (supply of assimilates to grain) more limiting than the sink (demand for assimilates by grains) for maize growth. Thus, the authors stated that grain yield responses to increases in plant density cannot be expected to occur when the source capacity is the limiting factor (e.g., late sowing dates).
As far as the input requirement of the cropping systems is concerned, the higher maize plant density could lead to a higher use of nutrients and water, thus this agronomic solution is less suitable for fields characterized by lower soil fertility, or when the supply of nutrients through the fertilization is not adequate and in no irrigated or in less water availability conditions [24]. Notwithstanding the greater biomass and methane yield, this greater use of agronomic inputs, also necessary to support the double crop system, could partially limit the environmental performance and the energy balance of the innovative cropping system [38]. Further studies focusing on the comparison of energy efficiency environmental and economic parameters are required to fully evaluate the beneficial of the proposed innovative cropping system.

5. Conclusions

The analysis of the different cropping systems has highlighted the importance of correctly choosing the double crop combination to maximize the biomass and methane yields, and of exploiting all the available yield-increasing strategies (double-cropping system and the high density sowing of maize). Choosing a winter crop, such as F1 hybrid barley, which is able to combine a good biomass yield with an earlier harvest time, has proved to be a key factor in achieving this goal, since HiD led to significant yield increases over StD, albeit only when maize was sown early in the season as an intercrop. In short, this study has shown that an intensive high-population maize, with up to 10 plants per m−2, can lead to a real yield enhancement of both the biomass and methane yield in a single crop or in double cropping systems when the most appropriate early sowing time is chosen. The combination of the F1 barley hybrid with high-density maize as an intercrop resulted in the highest energy potential in the irrigated temperate growing areas. Instead, with the later sowing of maize, after the cultivation of triticale or wheat harvested as a whole crop for biomass, the lower amount of solar radiation available during the crop cycle reduced the advantage related to the application of a high maize plant density. In order to maximize the methane yield per hectare, the optimal management of the cereal cropping systems needs to be continuously investigated, taking into account the expected development of new hybrid genotypes for winter cereals and maize genotypes able to tolerate higher plant density.

Author Contributions

Conceptualization, M.B.; methodology, M.B. and E.D.; validation, M.B. and E.D.; formal analysis, M.B., M.S. and L.R.; investigation, M.B.; data curation, M.B.; writing—original draft preparation, M.B.; writing—review and editing, M.S., L.R. and A.R.; supervision, M.B., A.R. and E.D.; project administration, M.B., funding acquisition, M.B. and A.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Syngenta Italia spa, Milan, Italy.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would like to thank all the field and lab technicians who made a valuable contribution to the study and Marguerite Jones for the English editing. Thanks are also due to the farmers who hosted the experimental studies in their fields and collaborated closely with the present research team throughout the study.

Conflicts of Interest

The authors declare no conflict of interest. The funder played no role in the design of the study, in the collection, analyses or interpretation of the data, in the writing of the manuscript or in the decision to publish the results.

References

  1. European Biogas Association; Statistical Report 2022. Available online: https://www.europeanbiogas.eu/SR-2022/EBA/ (accessed on 10 January 2023).
  2. Burg, V.; Bowman, G.; Haubensak, M.; Baier, U.; Thees, O. Valorization of an untapped resource: Energy and greenhouse gas emissions benefits of converting manure to biogas through anaerobic digestion. Resour. Conserv. Recy. 2018, 136, 53–62. [Google Scholar] [CrossRef]
  3. Di Maria, F.; Sisani, F.; Lasagni, M.; Borges, M.S.; Gonzales, T.H. Replacement of energy crops with bio-waste in existing anaerobic digestion plants: An energetic and environmental analysis. Energy 2018, 152, 202–213. [Google Scholar] [CrossRef]
  4. Esteves, E.M.M.; Herrera, A.M.N.; Esteves, V.P.P.; Morgado, C. do R.V. Life cycle assessment of manure biogas production: A review. J. Clean Prod. 2019, 219, 411–423. [Google Scholar] [CrossRef]
  5. Bauer, A.; Leonhartsberger, C.; Bösch, P.; Amon, B.; Friedl, A.; Amon, T. Analysis of methane yields from energy crops and agricultural by-products and estimation of energy potential from sustainable crop rotation systems in EU-27. Clean Technol. Envir. 2010, 12, 153–161. [Google Scholar] [CrossRef]
  6. D’Imporzano, G.; Pilu, R.; Corno, L.; Adani, F. Arundo donax L. can substitute traditional energy crops for more efficient, environmentally-friendly production of biogas: A Life Cycle Assessment approach. Bioresour. Technol. 2018, 267, 249–256. [Google Scholar] [CrossRef]
  7. Schievano, A.; D’Imporzano, G.; Orzi, V.; Colombo, G.; Maggiore, T.; Adani, F. Biogas from dedicated energy crops in Northern Italy: Electric energy generation costs. GCB Bioenergy 2015, 7, 899–908. [Google Scholar] [CrossRef]
  8. Hamelin, L.; Naroznova, I.; Wenzel, H. Environmental consequences of different carbon alternatives for increased manure-based biogas. Appl. Energ. 2014, 114, 774–782. [Google Scholar] [CrossRef]
  9. Graß, R.; Heuser, F.; Stülpnagel, R.; Piepho, H.-P.; Wachendorf, M. Energy crop production in double-cropping systems: Results from an experiment at seven sites. Eur. J. Agron. 2013, 51, 120–129. [Google Scholar] [CrossRef]
  10. Valli, L.; Rossi, L.; Fabbri, C.; Sibilla, F.; Gattoni, P.; Dale, B.E.; Kim, S.; Ong, R.G.; Bozzetto, S. Greenhouse gas emissions of electricity and biomethane produced using the BiogasdonerightTM system: Four case studies from Italy. Biofuel Bioprod. Bior. 2017, 11, 847–860. [Google Scholar] [CrossRef]
  11. Zegada-Lizarazu, W.; Elbersen, H.W.; Cosentino, S.L.; Zatta, A.; Alexopoulou, E.; Monti, A. Agronomic aspects of future energy crops in Europe. Biofuel. Bioprod. Bior 2010, 4, 674–691. [Google Scholar] [CrossRef]
  12. Berti, M.; Gesch, R.; Johnson, B.; Ji, Y.; Seames, W.; Aponte, A. Double- and relay-cropping of energy crops in the northern Great Plains, USA. Ind. Crop Prod. 2015, 75, 26–34. [Google Scholar] [CrossRef]
  13. Moset, V.; Fontaine, D.; Møller, H.B. Co-digestion of cattle manure and grass harvested with different technologies. Effect on methane yield, digestate composition and energy balance. Energy 2017, 141, 451–460. [Google Scholar] [CrossRef]
  14. Amon, T.; Amon, B.; Kryvoruchko, V.; Machmüller, A.; Hopfner-Sixt, K.; Bodiroza, V.; Hrbek, R.; Friedel, J.; Pötsch, E.; Wagentristl, H.; et al. Methane production through anaerobic digestion of various energy crops grown in sustainable crop rotations. Bioresour. Technol. 2007, 98, 3204–3212. [Google Scholar] [CrossRef]
  15. Negri, M.; Bacenetti, J.; Manfredini, A.; Lovarelli, D.; Fiala, M.; Maggiore, T.M.; Bocchi, S. Evaluation of methane production from maize silage by harvest of different plant portions. Biomass Bioenerg. 2014, 67, 339–346. [Google Scholar] [CrossRef]
  16. Fuksa, P.; Hakl, J.; Michal, P.; Hrevusova, Z.; Santrucek, J.; Tlutos, P. Effect of silage maize plant density and plant parts on biogas production and composition. Biomass Bioenerg. 2020, 142, 105770. [Google Scholar] [CrossRef]
  17. Samarappuli, D.; Berti, M.T. Intercropping forage sorghum with maize is a promising alternative to maize silage for biogas production. J. Clean Prod. 2018, 194, 515–524. [Google Scholar] [CrossRef]
  18. Schorling, M.; Enders, C.; Voigt, C.A. Assessing the cultivation potential of the energy crop Miscanthus × giganteus for Germany. GCB Bioenergy 2015, 7, 763–773. [Google Scholar] [CrossRef]
  19. Bocchi, S.; Lazzaroni, G.; Berardo, N.; Maggiore, T. Evaluation of triticale as a forage plant through the analysis of the kinetics of some qualitative parameters from stem elongation to maturity. In Triticale: Today and Tomorrow; Guedes-Pinto, H., Darvey, N., Carnide, V.P., Eds.; Kluwer Academic: Dordrecht, The Netherlands, 1996; pp. 827–834. [Google Scholar]
  20. Ovejero, J.; Ortiz, C.; Boixadera, J.; Serra, X.; Ponsá, S.; Lloveras, J.; Casas, C. Pig slurry fertilization in a double-annual cropping forage system under sub-humid Mediterranean conditions. Eur. J. Agron. 2016, 81, 138–149. [Google Scholar] [CrossRef]
  21. Giuliano, S.; Ryan, M.R.; Véricel, G.; Rametti, G.; Perdrieux, F.; Justes, E.; Alletto, L. Low-input cropping systems to reduce input dependency and environmental impacts in maize production: A multi-criteria assessment. Eur. J. Agron. 2016, 76, 160–175. [Google Scholar] [CrossRef]
  22. Garuti, M.; Soldano, M.; Mazzola, L.; Fermoso, F.G.; Rodriguez, A.J.; Immovilli, A.; Dal Prà, A. Evaluation of triticale anaerobic digestion in a double cropping system: Relation between biomass yield, chemical composition, and biomethane production. Biofuels Bioprod. Bioref. 2022, 16, 1599–1612. [Google Scholar] [CrossRef]
  23. Duvick, D.N. Genetic progress in yield of United States maize (Zea mays L.). Maydica 2005, 50, 193–202. [Google Scholar]
  24. Testa, G.; Reyneri, A.; Blandino, M. Maize grain yield enhancement through high plant density cultivation with different inter-row and intra-row spacings. Eur. J. Agron. 2016, 72, 28–37. [Google Scholar] [CrossRef]
  25. Bernhard, T.; Friedt, W.; Voss-Fels, K.P.; Frisch, M.; Snowdon, R.J.; Wittkop, B. Heterosis for biomass and grain yield facilitates breeding of productive dual-purpose winter barley hybrids. Crop Sci. 2017, 57, 2405–2418. [Google Scholar] [CrossRef]
  26. Mühleisen, J.; Piepho, H.-P.; Maurer, H.P.; Longin, C.F.H.; Reif, J.C. Yield stability of hybrids versus lines in wheat, barley, and triticale. Theor. Appl. Genet. 2014, 127, 309–316. [Google Scholar] [CrossRef] [PubMed]
  27. Philipp, N.; Liu, G.; Zhao, Y.; He, S.; Spiller, M.; Stiewe, G.; Pillen, K.; Reif, J.C.; Li, Z. Genomic Prediction of Barley Hybrid Performance. Plant Genome 2016, 9, 1–8. [Google Scholar] [CrossRef]
  28. Panasiewicz, K.; Faligowska, A.; Szymańska, G.; Szukała, J.; Ratajczak, K.; Sulewska, H. The Effect of Various Tillage Systems on Productivity of Narrow-Leaved Lupin-Winter Wheat-Winter Triticale-Winter Barley Rotation. Agronomy 2020, 10, 304. [Google Scholar] [CrossRef]
  29. Owens, D.; McGee, M.; Boland, T.; O’Kiely, P. Rumen fermentation, microbial protein synthesis, and nutrient flow to the omasum in cattle offered corn silage, grass silage, or whole-crop wheat. J. Anim. Sci. 2009, 87, 658–668. [Google Scholar] [CrossRef]
  30. Keady, T.W.J.; Lively, F.O.; Kilpatrick, D.J.; Moss, B.W. Effects of replacing grass silage with either maize or whole-crop wheat silages on the performance and meat quality of beef cattle offered two levels of concentrates. Animal 2007, 1, 613. [Google Scholar] [CrossRef]
  31. Ronga, D.; Dal Prà, A.; Immovilli, A.; Ruozzi, F.; Davolio, R.; Pacchioli, M.T. Effects of Harvest Time on the Yield and Quality of Winter Wheat Hay Produced in Northern Italy. Agronomy 2020, 10, 917. [Google Scholar] [CrossRef]
  32. Herrmann, C.; Idler, C.; Heiermann, M. Biogas crops grown in energy crop rotations: Linking chemical composition and methane production characteristics. Bioresour. Technol. 2016, 206, 23–35. [Google Scholar] [CrossRef]
  33. Zadoks, J.C.; Chang, T.T.; Konzak, C.F. A decimal code for the growth stages of cereals. Weed Res. 1974, 14, 415–421. [Google Scholar] [CrossRef]
  34. Lancashire, P.D.; Bleiholder, H.; Van Den Boom, T.; Langeluddeke, P.; Stauss, R.; Weber, E.; Witzenberger, A. A uniform decimal code for growth stages of crops and weeds. Ann. Appl. Biol. 1991, 119, 561–601. [Google Scholar] [CrossRef]
  35. Cozzolino, D.; Fassio, A.; Fernández, E.; Restaino, E.; La Manna, A. Measurement of chemical composition in wet whole maize silage by visible and near infrared reflectance spectroscopy. Anim. Feed. Sci. Technol. 2006, 129, 329–336. [Google Scholar] [CrossRef]
  36. Verein Deutscher Ingenieure, Fermentation of Organic Materials Characterisation of the Substrate, Sampling, Collection of Material Data, fermentation tests, 2006.
  37. Dinuccio, E.; Balsari, P.; Gioelli, F.; Menardo, S. Evaluation of the biogas productivity potential of some Italian agro-industrial biomasses. Bioresour. Technol. 2010, 101, 3780–3783. [Google Scholar] [CrossRef]
  38. Bacenetti, J.; Fusi, A.; Negri, M.; Guidetti, R.; Fiala, M. Environmental assessment of two different crop systems in terms of biomethane potential production. Sci. Total Environ. 2014, 466–467, 1066–1077. [Google Scholar] [CrossRef]
  39. Nadeau, E. Effects of plant species, stage of maturity and additive on the feeding value of whole-crop cereal silage. J. Sci. Food Agr. 2007, 87, 789–801. [Google Scholar] [CrossRef]
  40. Vitez, T.; Dokulilova, T.; Vitezova, M.; Elbl, J.; Kintl, A.; Kynicky, J.; Hladky, J.; Brtnicky, M. The Digestion of Waste from Vegetables and Maize Processing. Waste Biomass Valor 2020, 11, 2467–2473. [Google Scholar] [CrossRef]
  41. Weinberg, Z.G.; Chen, Y.; Solomon, R. The quality of commercial wheat silages in Israel. J. Dairy Sci. 2009, 92, 638–644. [Google Scholar] [CrossRef]
  42. Rincón, B.; Banks, C.J.; Heaven, S. Biochemical methane potential of winter wheat (Triticum aestivum L.): Influence of growth stage and storage practice. Bioresour. Technol. 2010, 101, 8179–8184. [Google Scholar] [CrossRef]
  43. Randby, Å.T.; Nadeau, E.; Karlsson, L.; Johansen, A. Effect of maturity stage at harvest and kernel processing of whole crop wheat silage on digestibility by dairy cows. Anim. Feed Sci. Technol. 2019, 253, 141–152. [Google Scholar] [CrossRef]
  44. Ashbell, G.; Weinberg, Z.G.; Bruckental, I.; Tabori, K.; Sharet, N. Wheat silage: Effect of cultivar and stage of maturity on yield and degradability in situ. J. Agric. Food Chem. 1997, 45, 709–712. [Google Scholar] [CrossRef]
  45. Gupta, P.K.; Balyan, H.S.; Gahlaut, V.; Saripalli, G.; Pal, B.; Basnet, B.R.; Joshi, A.K. Hybrid wheat: Past, present and future. Theor. Appl. Genet. 2019, 132, 2463–2483. [Google Scholar] [CrossRef] [PubMed]
  46. Bikel, D.; Ben-Meir, Y.A.; Shaani, Y.; Solomon, R.; Richker, I.; Portnik, Y.; Jacoby, S.; Miron, J.; Ben-David, R. Nutritive value for high-yielding lactating cows of barley silage and hay as a substitute for wheat silage and hay in low-roughage diets. Anim. Feed. Sci. Technol. 2020, 265, 114498. [Google Scholar] [CrossRef]
  47. Preiti, G.; Calvi, A.; Romeo, M.; Badagliacca, G.; Bacchi, M. Seeding Density and Nitrogen Fertilization Effects on Agronomic Responses of Some Hybrid Barley Lines in a Mediterranean Environment. Agronomy 2021, 11, 1942. [Google Scholar] [CrossRef]
  48. Blandino, M.; Marinaccio, F.; Reyneri, A. La tecnica agronomica per gli orzi ibridi. L’Informatore Agrar. 2015, 35, 43–46. [Google Scholar]
  49. Hargreaves, A.; Hill, J.; Leaver, J.D. Effect of stage of growth on the chemical composition, nutritive value and ensilability of whole-crop barley. Anim. Feed Sci. Technol. 2009, 152, 50–61. [Google Scholar] [CrossRef]
  50. Mühleisen, J.; Piepho, H.-P.; Maurer, H.P.; Zhao, Y.; Reif, J.C. Exploitation of yield stability in barley. Theor. Appl. Genet. 2014, 127, 1949–1962. [Google Scholar] [CrossRef]
  51. Caviglia, O.P.; Rizzalli, R.H.; Monzon, J.P.; García, F.O.; Melchiori, R.J.M.; Martinez, J.J.; Cerrudo, A.; Irigoyen, A.; Barbieri, P.A.; Van Opstal, N.V.; et al. Improving resource productivity at a crop sequence level. Field Crops Res. 2019, 235, 129–141. [Google Scholar] [CrossRef]
  52. Strauß, C.; Herrmann, C.; Weiser, C.; Peter Kornatz, P.; Heiermann, M.; Aurbacher, J.; Müller, J.; Vetter, A. Can Energy Cropping for Biogas Production Diversify Crop Rotations? Findings from a Multi-Site Experiment in Germany. Bioenerg. Res. 2019, 12, 123–136. [Google Scholar] [CrossRef]
  53. Wannasek, L.; Ortner, M.; Kaul, H.P.; Amon, B.; Amon, T. Double-cropping systems based on rye, maize and sorghum: Impact of variety and harvesting time on biomass and biogas yield. Eur. J. Agron. 2019, 110, 125934. [Google Scholar] [CrossRef]
  54. Bonelli, L.E.; Monzon, J.P.; Cerrudo, A.; Rizzalli, R.H.; Andrade, F.H. Maize grain yield components and source-sink relationship as affected by the delay in sowing date. Field Crops Res. 2016, 198, 215–225. [Google Scholar] [CrossRef]
  55. Testa, G.; Reyneri, A.; Blandino, M. Effect of high planting density and foliar fungicide application on the grain maize and silage and methane yield. Ital. J. Agron. 2018, 13, 290–296. [Google Scholar] [CrossRef]
  56. Li, Y.-C.; Dai, H.-Y.; Chen, H. Effects of plant density on the aboveground dry matter and radiation-use efficiency of field corn. PLoS ONE 2022, 17, e0277547. [Google Scholar] [CrossRef]
  57. Curin, F.; Severini, A.D.; González, F.G.; Otegui, M.E. Water and radiation use efficiencies in maize: Breeding effects on single-cross Argentine hybrids released between 1980 and 2012. Field Crops Res. 2020, 246, 107683. [Google Scholar] [CrossRef]
  58. Irmak, S.; Djaman, K. Effects of planting date and density on plant growth, yield, evapotranspiration, and irrigation- and evapotranspiration-yield production functions of maize (Zea mays L.) under subsurface drip irrigation and rainfed conditions. Trans. ASABE 2016, 59, 1235–1256. [Google Scholar] [CrossRef]
  59. Djaman, K.; Allen, S.; Djaman, D.S.; Koudahe, K.; Irmak, S.; Puppala, N.; Darapuneni, M.K.; Angadi, S.V. Planting date and plant density effects on maize growth, yield and water use efficiency. Environ. Chall. 2022, 6, 100417. [Google Scholar] [CrossRef]
Agronomy 13 00536 g001 550

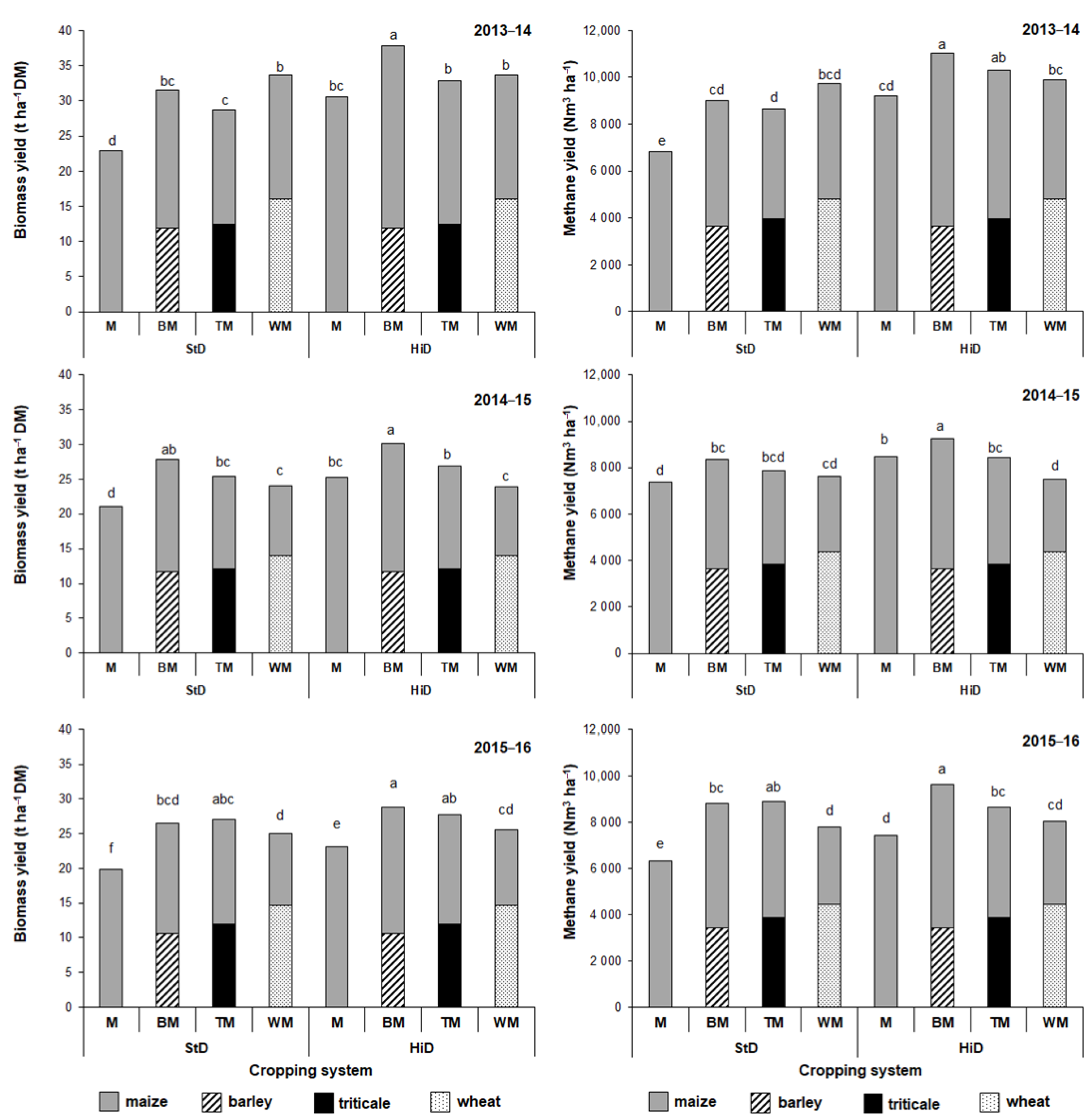

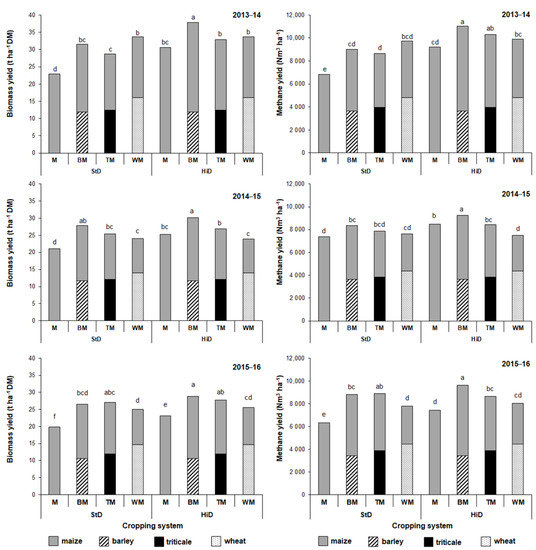

Figure 1. Effect of the cropping systems according to the different winter cereal-maize combinations and maize plant densities on the biomass and methane yields per hectare. M, single maize crop planted in spring; BM, double crop with hybrid barley followed by maize; TM, double crop with triticale followed by maize; WM, double crop with common wheat followed by maize. Maize plant densities: StD, a standard planting density (7.5 plants per m−2) with plants sown at a wide inter-row spacing of 0.75 m; HiD, a high planting density (10 plants per m−2) with plants sown at a narrow inter-row spacing of 0.5 m. Different letters on the bars indicate significant differences (p < 0.01), according to the REGW-Q test.
Figure 1. Effect of the cropping systems according to the different winter cereal-maize combinations and maize plant densities on the biomass and methane yields per hectare. M, single maize crop planted in spring; BM, double crop with hybrid barley followed by maize; TM, double crop with triticale followed by maize; WM, double crop with common wheat followed by maize. Maize plant densities: StD, a standard planting density (7.5 plants per m−2) with plants sown at a wide inter-row spacing of 0.75 m; HiD, a high planting density (10 plants per m−2) with plants sown at a narrow inter-row spacing of 0.5 m. Different letters on the bars indicate significant differences (p < 0.01), according to the REGW-Q test.
Agronomy 13 00536 g001
Table
Table 1. Main physical and chemical characteristics of the experimental site.
Table 1. Main physical and chemical characteristics of the experimental site.
ParametersMeasurement UnitsCandioloCarignano
Sand (2–0.05 mm)%54.735.5
Silt (0.05–0.002 mm)%5.557.9
Clay (<0.002 mm)%1.96.6
pH 8.08.1
Organic matter%1.92.3
C/N 10.18.9
Cation Exchange Capacity (C.E.C.)meq 100 g−19.212.0
N%0.130.15
Available P2O5mg kg−12221
Exchangeable Kmg kg−1201174.0
Table
Table 2. Sowing and harvesting dates of the cropping systems in the three growing seasons.
Table 2. Sowing and harvesting dates of the cropping systems in the three growing seasons.
Growing SeasonCropSowing DateHarvesting Date
2013–14Barley30 October 201326 May 2014
Triticale30 October 20134 June 2014
Wheat30 October 201313 June 2014
Maize1 April 201421 August 2014
Maize after barley5 June 20147 October 2014
Maize after triticale11 June 20147 October 2014
Maize after wheat23 June 20147 October 2014
2014–15Barley3 November 201427 May 2015
Triticale3 November 20148 June 2015
Wheat3 November 201417 June 2015
Maize1 April 20155 August 2015
Maize after barley3 June 201529 September 2015
Maize after triticale10 June 201513 October 2015
Maize after wheat19 June 201513 October 2015
2015–16Barley27 October 201530 May 2016
Triticale27 October 201511 June 2016
Wheat27 October 201517 June 2016
Maize1 April 201619 August 2016
Maize after barley31 May 201612 September 2016
Maize after triticale14 June 201612 September 2016
Maize after wheat24 June 20165 October 2016
Table
Table 3. Total rainfall, rainy days and growing degree days (GDDs) 1 in the three growing seasons.
Table 3. Total rainfall, rainy days and growing degree days (GDDs) 1 in the three growing seasons.
GrowingMonthRainfallRainy DaysGDDs CerealGDDs Maize
Season (mm)(n°)(Σ °C-Day)(Σ °C-Day)
2013–14November96.816264
December65.815168
January66.015157
February86.618177
March88.811318
April60.210436169
May97.414524242
June67.414 339
July89.618 364
August73.612 370
September50.011 286
October22.413 136
November–May562992044
May–October30368 1496
2014–15November271.015289
December92.29185
January35.610139
February205.611143
March188.49300
April66.67416171
May86.011581273
June55.07 359
July9.23 446
August71.88 379
September52.45 260
October147.613 137
November–May945722054
May–October33636 1580
2015–16November3.21284
December2.01182
January4.44159
February127.610190
March70.66286
April79.89428163
May112.018517222
June36.613 336
July17.87 412
August5.43 396
September24.68 309
October59.67 122
November–May400492047
May–October14438 1575
Source: Rete Agrometeorologica del Piemonte-Regione Piemonte-Assessorato Agricoltura-Settore Fitosanitario, sezione di Agrometeorologia. 1 Accumulated growing degree days for each experiment using a 0 °C base value for winter cereals and 10 °C base for maize.
Table
Table 4. Biomass yield, biochemical methane potential (BMP) and methane yield per hectare of the considered winter cereals 1.
Table 4. Biomass yield, biochemical methane potential (BMP) and methane yield per hectare of the considered winter cereals 1.
GrowingWinterBiomassDMVSBMPMethane
SeasonCerealYield Yield
(t ha−1 DM)(%)(% DM)(Nm3CH4 t VS−1)(Nm3 ha−1)
2013–14barley12.0 b21.4 c90.6 a335 a3634 b
triticale12.5 b27.3 b91.8 a346 a3968 b
wheat16.0 a35.5 a90.9 a331 a4811 a
P (F)***nsns***
2014–15barley11.7 b27.9 c89.6 a342 a3650 b
triticale12.1 b38.9 b90.3 a348 a3828 b
wheat14.0 a49.0 a90.7 a339 a4368 a
P (F)*****nsns**
2015–16barley10.6 c26.8 b90.2 a355 a3412 b
triticale12.0 b34.9 a92.3 a350 a3871 b
wheat14.7 a34.3 a89.2 a341 a4470 a
P (F)*****nsns*
1 see Table 2 for details of the harvesting times; DM, dry matter; VS, volatile solids; BMP, Biochemical Methane Potential expressed per t of VS of maize. Means followed by different letters are significantly different, according to the REGW-Q test. Level of significance: * p ≤ 0.05; ** p ≤ 0.01; *** p ≤ 0.001, ns: not significant.
Table
Table 5. Biomass composition of the three winter cereals 1.
Table 5. Biomass composition of the three winter cereals 1.
GrowingWinterNDFADFADLStarchCrude
SeasonCereal Protein
(% DM)(% DM)(% DM)(% DM)(% DM)
2013–14barley55.3 b36.3 b4.4 b12.7 a8.8 a
triticale58.5 a40.6 a4.6 b5.8 b7.1 a
wheat56.1 b39.9 a5.2 a18.2 a7.6 a
P (F)*****ns
2014–15barley54.6 a38.0 b5.3 a16.2 a8.8 a
triticale56.9 a48.4 a6.2 a8.7 b5.9 c
wheat55.8 a37.3 b5.9 a19.0 a7.4 b
P (F)ns*ns**
2015–16barley53.5 a36.3 ab5.4 ab10.4 a8.5 b
triticale51.8 a34.1 b5.0 b14.2 a9.3 ab
wheat53.7 a38.0 a5.9 a15.0 a10.0 a
P (F)ns**ns*
1 see Table 2 for details of the harvesting times. DM, dry matter; NDF, neutral detergent fiber; ADF, acid detergent fiber; ADL, acid detergent lignin. Means followed by different letters are significantly different, according to the REGW-Q test. Level of significance: * p ≤ 0.05; ** p ≤ 0.01; ns: not significant.
Table
Table 7. Biomass composition of the maize crop with different sowing times 1 and plant densities 2.
Table 7. Biomass composition of the maize crop with different sowing times 1 and plant densities 2.
GrowingMaizePlantNDFADFADLStarchCrude
Season Density Protein
(% DM)(% DM)(% DM)(% DM)(% DM)
2013–14single cropStD40.5 cd25.2 bc3.030.47.3 bc
after barleyStD45.9 bcd27.8 ab3.031.86.0 e
after triticaleStD51.0 ab31.7 ab3.625.16.8 bcd
after wheatStD48.8 abc30.0 ab3.425.17.4 b
single cropHiD41.9 cd25.5 bc2.830.87.2 bc
after barleyHiD38.9 d22.9 c2.737.36.6 cde
after triticaleHiD49.2 abc30.8 ab3.526.96.3 de
after wheatHiD54.6 a35.1 a4.320.08.5 a
P (F) ***********
2014–15single cropStD36.5 a22.6 a3.431.38.3 abc
after barleyStD39.4 a22.1 a3.432.58.7 a
after triticaleStD37.4 a21.1 a2.934.37.0 c
after wheatStD41.5 a24.1 a3.228.67.7 abc
single cropHiD37.8 a22.8 a3.331.68.5 ab
after barleyHiD39.1 a21.8 a3.231.28.2 abc
after triticaleHiD36.9 a21.2 a3.034.87.1 bc
after wheatHiD39.0 a22.8 a3.329.28.0 abc
P (F) nsnsnsns*
2015–16single cropStD35.1 a22.7 a3.134.08.2 a
after barleyStD40.8 a26.3 a3.129.67.3 a
after triticaleStD42.4 a27.8 a3.526.56.9 a
after wheatStD41.5 a24.0 a3.228.67.7 a
single cropHiD37.7 a25.13.333.07.9 a
after barleyHiD44.1 a28.63.425.47.4 a
after triticaleHiD41.9 a26.23.527.87.1 a
after wheatHiD39.0 a22.83.229.28.0 a
P (F) nsnsnsnsns
1 see Table 2 for details of the sowing and harvesting times. 2 StD, a standard planting density (7.5 plants per m−2) sown at a wide inter-row spacing of 0.75 m; HiD, a high planting density (10 plants per m−2) with a narrow inter-row spacing of 0.5 m. DM, dry matter; NDF, neutral detergent fiber; ADF, acid detergent fiber; ADL, acid detergent lignin. Means followed by different letters are significantly different, according to the REGW-Q test. Level of significance: * p ≤ 0.05; ** p ≤ 0.01; *** p ≤ 0.001, ns: not significant.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Blandino, M.; Scapino, M.; Rollè, L.; Dinuccio, E.; Reyneri, A. Biomass and Methane Production in Double Cereal Cropping Systems with Different Winter Cereal and Maize Plant Densities. Agronomy 2023, 13, 536. https://doi.org/10.3390/agronomy13020536

AMA Style

Blandino M, Scapino M, Rollè L, Dinuccio E, Reyneri A. Biomass and Methane Production in Double Cereal Cropping Systems with Different Winter Cereal and Maize Plant Densities. Agronomy. 2023; 13(2):536. https://doi.org/10.3390/agronomy13020536

Chicago/Turabian Style

Blandino, Massimo, Mattia Scapino, Luca Rollè, Elio Dinuccio, and Amedeo Reyneri. 2023. "Biomass and Methane Production in Double Cereal Cropping Systems with Different Winter Cereal and Maize Plant Densities" Agronomy 13, no. 2: 536. https://doi.org/10.3390/agronomy13020536

APA Style

Blandino, M., Scapino, M., Rollè, L., Dinuccio, E., & Reyneri, A. (2023). Biomass and Methane Production in Double Cereal Cropping Systems with Different Winter Cereal and Maize Plant Densities. Agronomy, 13(2), 536. https://doi.org/10.3390/agronomy13020536

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
