Article

A Novel Isolate of Bean Common Mosaic Virus Isolated from Crownvetch (Securigera varia L. Lassen)

1
Department of Biotechnology, Faculty of Natural Sciences, University of Ss. Cyril and Methodius, Nám. J. Herdu 2, 917 01 Trnava, Slovakia
2
Department of Applied Biology and Genetics, Research Institute of Plant Production, National Agricultural and Food Centre, Bratislavská Cesta 122, 921 68 Piešťany, Slovakia
3
Department of Mathematics, Informatics and Cybernetics, Faculty of Chemical Engineering, University of Chemistry and Technology, Technická 5, Dejvice, 166 28 Prague, Czech Republic
*
Author to whom correspondence should be addressed.
Agronomy 2023, 13(7), 1677; https://doi.org/10.3390/agronomy13071677
Submission received: 25 May 2023 / Revised: 17 June 2023 / Accepted: 18 June 2023 / Published: 22 June 2023
(This article belongs to the Special Issue Molecular Evolution of Plant RNA Viruses)

Abstract

:
Bean common mosaic virus from the genus Potyvirus has a wide range of hosts and a very negative impact on cultivated crops from the genus Phaseolus. The risk of viral infection of economically important crops increases even if the carriers of the virus are related plant species growing on agroecological interfaces. Such plant species have emerged as new hosts for BCMV, usually harboring novel genetic variants of the virus. A novel genetic variant of BCMV was isolated from a symptomatic crownvetch plant, where the presence of this virus was confirmed via Western blot analysis and via amino acid identities in peptide fragments of CI, HC-pro, and CP proteins using the nanoLC-ESI-Q-TOF. The novel BCMV SVK isolate differed from the most genetically similar one in 0.91% of nucleotides and 1.55% of amino acids. The highest number of amino acid substitutions (8.8% of amino acids) was in the P1 protein, followed by CP (2.44% of amino acids). Minor substitutions were in Hc-pro, CI, and Nib proteins. The symptomatic crownvetch plant was confirmed as a new host and carrier of the novel BCMV isolate.

1. Introduction

Globally, the estimated area of harvested beans in 2021 was 35.92 mil. hectares, with another 2.72 mil. hectares dedicated to broad (horse) bean cultivation. Total production of beans was 33.68 mil. tons [1]. The genus Phaseolus includes approximately 80 cultivated and wild species, among which the most widespread and important species is Phaseolus vulgaris L. [2]. The common bean is susceptible to many diseases and pests, depending on its geographic location, growing conditions, nutrition, and protection. Diseases and pests may cause significant yield losses, a reduction in germination, and a reduction in bean quality. The most important pathogens of common beans also include viruses, among them the bean common mosaic virus (BCMV) and bean common mosaic necrotic virus (BCMNV) [3], both from the genus Potyvirus. These viruses belong to the three groups of viruses that cause devastating diseases and the highest losses in the yield and quality of a broad range of cultivated crops [4]. BCMV is transmitted to host plants within the legume family through seeds and pollen, aphid species, and mechanical friction. It has a wide host range, including over 100 plants in 44 genera, and is one of the most widespread plant viruses infecting legumes under natural conditions [5].
According to symptoms in beans, isolates of BCMV have been classified into seven [6], and later eight [7], pathotype groups. Meanwhile, based on their serological reactivity, BCMVs were divided into two serogroups, A and B [8]. Later, based on peptide profile and nucleotide sequence analyses of coat protein (CP) and the 3’-end noncoding region (3’-UTR), the Potyviridae Study Group of the Plant Virus Subcommittee of ICTV [9] accepted that the common bean mosaic necrosis virus (BCMNV) and BCMV were differentiated from serogroups A and B, respectively. The serological relationships among BCMV strains and other potyviruses tend to be ambiguous and complex. Rapid evolution in adapting to the environment, different hosts, and overcoming multiple resistance genes in host plants is typical for viruses, including BCMV. Another source of emerging genetic variation are recombinations, which benefit viruses in overcoming host resistance and successful infection [10,11]. Many new strains or pathotypes do not behave like traditional BCMV strains and cannot be distinguished, even using the partial sequence of the CP and 3’-UTR of the virus genome [12,13]. Therefore, molecular characterization using whole-genome sequence analysis is currently used as a precise and reliable criterion for the differentiation of BCMV isolates and strains [14]. Such detailed characterization allows the discovery of new BCMV pathotypes, their comparison with previously known ones, and the detection of mutations throughout the entire genome of the virus. In addition to the discovery of new virus pathotypes, new virus hosts are also being discovered. Reports about the first occurrences of BCMV appear continuously, either describing the virus occurrence in a specific country and region, or the discovery of infections caused by the virus in a previously undescribed host species. BCMV is also hosted by wild legumes [15,16,17], growing in agroecological interfaces, which represent a potential reservoir of viral infection for cultivated crops in adjacent fields.
The objectives of this study were to (i) isolate and identify the virus from a crownvetch plant with symptoms of its presence, (ii) confirm the presence of BCMV and perform genomic and proteomic analyses on the isolate, and (iii) confirm a new, previously unreported BCMV host, the crownvetch.

2. Materials and Methods

2.1. Plant Material

Plants of crownvetch (Securigera varia L. Lassen, synonym Coronilla varia L.) were searched and collected during a collecting expedition in western Slovakia (Čachtice and Plavecký Štvrtok) and BCMV was isolated from crownvetch plants manifesting symptoms of the disease caused by the virus. Symptoms included light–dark green leaf mottling, deformation and yellowing of leaf blades, downward curling of leaf tips and rolling, and necrotic lesions on leave ends (Figure 1). Leaves from symptomatic plants were collected and stored at −80 °C. Seeds of tobacco (Nicotiana benthamiana Domin) were obtained from the collections of genetic resources of the Slovak Genbank (Research Institute of Plant Production, Piešt’any, Slovakia).

2.2. Artificial Infection of Plants

Tobacco plants were inoculated at the stage of two true leaves using homogenized leaf tissue from a crownvetch plant that tested positive for the presence of BCMV. The inoculum was resuspended in Norit-buffer (0.05 M sodium/potassium phosphate buffer, pH 7.0, 1 mM EDTA, 5 mM diethyldithiocarbamic acid, and 5 mM thioglycolic acid, Merck KGaA, Darmstadt, Germany). Plants were inoculated via mechanical wounding using sterile silicon carbide powder (Merck KGaA, Darmstadt, Germany) and cultivated in growing chambers at 24–25 °C with a photoperiod of 16 h of light and 8 h of darkness at 152 µmol m−2 s−1 intensity. Uninfected control plants were grown in isolation under the same conditions. Symptoms of viral disease such as leaf discoloration, deformation, wrinkling, and curling down have occurred in infected tobacco plants.

2.3. Immunochemical Detection

Proteins were extracted from plants using the Pierce Plant Total Protein Extraction Kit (Thermo Fisher Scientific, Waltham, MA, USA). Equivalent volumes of protein extract (50 μg per lane) were loaded into polyacrylamide gels containing the denaturing agent, sodium dodecyl sulfate. The presence of BCMV in samples was detected using polyclonal antibodies against Bean common mosaic virus (BCMV) (Leibniz Institute, DSMZ-German Collection of Microorganisms and Cell Cultures GmbH, Braunschweig, Germany) diluted in a ratio of 1:500. The secondary antibody used was the anti-Rabbit IgG, peroxidase-linked species-specific whole antibody (from donkey) (Thermo Fisher Scientific, Waltham, MA, USA), diluted in a ratio of 1:4000. Positive control used in immunochemical detection was the BCMV isolate PV 0915 (Leibniz Institute, DSMZ-German Collection of Microorganisms and Cell Cultures GmbH, Braunschweig, Germany), isolated from common bean, and its geographic origin is in Türkiye. The size of detected proteins was determined using the molecular weight markers (PageRulerTM Prestained Protein Ladder 10 to 180 kDa and PageRulerTM Plus Prestained Protein Ladder 10 to 250 kDa, Thermo Fisher Scientific, Waltham, MA, USA). Immunocomplexes were visualized using 1-StepTM Ultra TMB-Blotting Substrate Solution (Thermo Fisher Scientific, Waltham, MA, USA) and recorded using the photo documentation system Azure 400 (Azure Biosystems Inc., Dublin, CA, USA).

2.4. LC-MS/MS Analysis

Tobacco plants (Nicotiana benthamiana Domin) were inoculated with a tested BCMV isolate and cultivated in growing chambers. Two young leaves were cut from each plant for the extraction of proteins. This procedure was repeated twice for each plant, producing two protein samples per plant. In all samples, BCMV viral proteins were detected using a medium-resolution nano-Liquid Chromatography-Electrospray Ionization-Quadrupole-Time of Flight (nanoLC-ESI-Q-TOF), as described before [18], confirming the pathogenicity of the isolate. Proteins were extracted from young leaves using the double crushing step extraction protocol [18] including the RuBisCO depletion step using phytate and Ca2+ ions. Mass spectrometry measurements were carried out using the UHPLC Dionex Ultimate 3000 RSLCnano (Dionex, Sunnyvale, CA, USA) connected to the mass spectrometer ESI-Q-TOF Maxis Impact (Bruker, Billerica, MA, USA), and the spectra were acquired as before [18]. The peptides in raw spectra were identified and quantified using MaxQuant 1.6.17.0 [19] for Windows using the same parameters as before [18]. The spectra were searched against all known Nicotiana proteins downloaded from the UniProt protein knowledgebase [20] together with all known BCMV protein sequences, all known BCMV protein sequences downloaded from the NCBI Protein database [21], and BCMV SVK isolate protein sequence. The same scripts as previously [18] were used for detailed sequence coverage.

2.5. Sequencing Analyses

RNA was isolated using the NucleoSpin RNA Plant, Mini Kit for RNA from Plant (Macherey-Nagel, Düren, Germany) and TRIzolTM Reagent (Thermo Fisher Scientific, Waltham, MA, USA). The concentration of isolated RNA was determined spectrophotometrically (NanoDrop 1000 Spectrophotometer, Thermo Fisher Scientific, Waltham, MA, USA), and its quality has been verified via electrophoresis in 1.5% agarose-formaldehyde gel stained with ethidium bromide. The RevertAid First Strand cDNA Synthesis Kit (Fermentas GmbH, St. Leon-Rot, Germany) was used for the first-strand cDNA synthesis.
Based on the assumption of homology between our isolate of BCMV (BCMV_SVK) and other previously sequenced pathotypes, the primers (Table 1) were designed using the Primer3 software [22] using the complete sequence of BCMV isolate Viva2 (GenBank accession MH024839, [23]) using the SnapGene software (GSL Biotech LLC, San Diego, CA, USA) so that PCR products cover the entire genome and neighboring fragments would partially overlap to get full length genome information during sequencing.
PCR fragments (2, 4, 8, 9, 10, 11, 12, 13, 14, 15, 16, and 17) (Table 1) were amplified under the same reaction conditions in a 25 µL reaction mixture containing 1×PCR buffer, 1.5 mM MgCl2, 10 pM of both primers, 0.2 mM each of dNTPs, 0.5 U PlatinumTM Taq DNA polymerase (Invitrogen Corp., Carlsbad, CA, USA), and 100 ng of reverse transcript template from a BCMV-positive plant. PCR reactions were performed in the Mastercycler® ep (Eppendorf, Hamburg, Germany) thermal cycler using the following parameters: 94 °C for 3 min, followed by 30 cycles, each consisting of 94 °C for 1 min, 56 °C for 60 s, 72 °C for 1 min, and the final extension at 72 °C for 10 min. Fragments (1, 3, 5, 6, and 7) (Table 1) were obtained under the same reaction conditions, but with the addition of Q-solution reagent and the annealing temperature reduced to 54 °C. PCR products were verified by means of electrophoresis in 1.0% agarose–formaldehyde gel stained with ethidium bromide.
After electrophoretic separation in 1.0% (w/v) agarose gels pre-stained with ethidium bromide, amplicons were extracted from the agarose gel using the Agarose Gel DNA Extraction Kit (Roche Diagnostics GmbH, Mannheim, Germany). Concentrations of isolated DNA fragments were determined spectrophotometrically (Nanodrop 1000 Spectrophotometer, Thermo Fisher Scientific, Waltham, MA, USA). Sanger sequencing of both DNA strands was performed with a sequencing service (Eurofins Genomics Sequencing GmbH, Ebersberg/Köln, Germany).
Nucleotide and amino acid sequences were analyzed using the software CLC Bio Main Workbench (Qiagen N.V., Venlo, The Netherlands) and SnapGene (GSL Biotech LLC, Boston, MA, USA). The maximum likelihood phylogenetic tree of selected BCMV isolates was constructed via the bootstrapping method with 1000 replications using the software MEGA11 (Molecular Evolutionary Genetics Analysis Version 11, Mega Limited, Auckland, New Zealand) [24] with BCMNV as an outgroup. The comparison of nucleotide sequences between BCMVs was performed using the Basic Local Alignment Search Tool (BLAST) [25].
Recombinant analysis was carried out on full genome sequences using the Recombination Detection Program RDP5 [26].

3. Results

3.1. BCMV in Crownvetch

The crownvetch (Securigera varia L. Lassen, synonym Coronilla varia L.) plant collected in the locality of Čachtice (Slovakia) manifested symptoms of disease caused by the virus. The plant was immunochemically analyzed, and Western blot analysis confirmed the presence of a specific BCMV-related protein from a positive BCMV control sample (Figure 2).
The manufacturer of the polyclonal antibody does not declare the method of obtaining it. The capsid protein or oligopeptide sequences with antigenic potential derived from the capsid protein could have been used for immunization of animals. The expected size of the BCMV capsid protein was calculated to be 32.12 kDa, corresponding to the size of the protein fragment in the gel. However, more important is the fact that the protein fragment from the BCMV positive control isolate BCMV PV 0915 was identical to the fragment present in the symptomatic crownvetch plant. The BCMV isolate from crownvetch was designated using the code BCMV SVK.

3.2. LC-MS/MS Detection of Viral Proteins

Proteins were extracted from young leaves of tobacco plants artificially infected with BCMV SVK, and the viral proteins were detected via medium-resolution nano-Liquid Chromatography-Electrospray Ionization-Quadrupole-Time of Flight (nanoLC-ESI-Q-TOF). The total covered sequences were 251 and 199 amino acids (17 and 13 peptides), respectively. Peptides detected were from 3 out of 10 viral proteins: HC-Pro (up to 14.2% coverage, i.e., 65 out of 457 amino acids), CI (up to 16.9% coverage, i.e., 107 out of 634 amino acids), and CP (up to 27.5% coverage, i.e., 79 out of 287 amino acids). LC-MS/MS analysis of the compared peptide fragments from the viral CP protein confirmed the identity between BCMV SVK and BCMV PV 0915 as well as differences in two amino acids (Figure 3). This directly confirmed the results from the in silico amino acid analysis, which are shown in Table 2.

3.3. Genomic Analysis

PCR products amplified by designed primer pairs covered the full length of the BCMV genome. Adjacent fragments partially overlapped to completely cover the entire genome (Figure 4). The whole genome sequence of the BCMV SVK isolate has been deposited in the GenBank DNA sequence database (https://www.ncbi.nlm.nih.gov/genbank/ (accessed on 14 April 2023)) under the accession code OQ448156. Its genome has 10,050 nucleotides and encodes a single polyprotein of 3222 amino acids.
An isolate of the BCMV SVK obtained from the symptomatic crownvetch plant was compared in the full length of the genome sequence with twelve BCMVs selected from the GenBank database to access their genetic patterns using the BLAST tool. Widespread nucleotide differences compared to selected BCMVs were detected throughout the genome of BCMV SVK. Identity in nucleotide sequences between them varied in range 99.09–82.92% (Figure 5). The most similar genome was the BCMV isolate PV 0915 (GenBank accession HG792064) isolated from common bean. Thus, it differed from BCMV SVK in 0.91% of nucleotides.

3.4. Amino Acid Analysis

Comparative analysis of the amino acids revealed a difference of 1.55% in the amino acids between the polyproteins of BCMV PV 0915 and BCMV SVK. The highest number of differences was in the P1 protein (39 different amino acids), followed by coat protein (CP) with 7 different amino acids. Two substitutions were in the Hc-pro protein, and one substitution each in the cylindrical inclusion protein CI and the nuclear inclusion b protein Nib, respectively (Table 2).
Substitutions in the most variable P1 protein, which contains 443 amino acids, were in two regions. One was between amino acids 233 and 277 and contained differences in 16 amino acids. The second region was between amino acids 342 and 390 and contained differences in 23 amino acids (Figure 6). BCMV SVK and BCMV PV 0915 differed in 2.44% of amino acids. The amino acid composition of the complete P1 protein of the BCMV SVK isolate differed by 8.8% amino acids from BMCV PV 0915.
Within the CP protein, there were two substitutions at amino acids 22 and 285 and five amino acid substitutions in the region between the 68th and 85th amino acids (Figure 7).
The conserved motifs in BCMV SVK proteins were compared with the conservative motifs of 62 BCMVs [27]. Complete identity was found in four conserved motifs of the P1 protein. Another conserved motif, common for the P1 protein of BCMVs (HX10DX29SGX21RG), is in the C-terminal region of this protein. Its composition was HX75DX29SGX21RG. However, this motif in the BCMV SVK isolate was significantly different from all others in BCMV. The match was at the end of the motif (toward the C-terminus). The difference is at the beginning of the motif (in the opposite direction). Within the HC-Pro (many activities and functions including viral plant-to-plant transmission, polyprotein maturation, RNA silencing suppression, and others), P3 (possible protease activity), CI (potential helicase activity), NIa-Pro (with the proteolytic activity), NIb (RNA-dependent polymerase activity), and CP (coat) protein regions, all conserved motifs published in BCMV [27] were present in BCMV SVK.

3.5. Phylogenetic Comparison of BCMV SVK

The nucleotide sequence of isolate BCMV SVK was compared with 13 complete BCMV genomes representing non-recombinant isolates from the three main phylogroups (S, P, and C) and recombinant isolates from the phylogroups R1, R2, and R3. This phylogenetic classification relates to the tendency to sort isolates according to their original host plant [28]. The isolate BCMV SVK was classified via phylogenetic analysis to the R1 recombinant phylogroup (Figure 8).
The analysis revealed a clear differentiation of isolates into the six phylogroups mentioned above. Phylogroup S (soybean) consisted of isolates that originated in China and India and were isolated from soybean. Phylogroup P (peanut) consisted of only one isolate from South Korea obtained from soybean. One isolate, originating from the USA and isolated from common bean, formed a separate branch representing phylogroup C (common bean). Others have created three separate phylogroups of isolates from recombinant isolates R1, R2, and R3 from Australia, India, the USA, China, and Colombia.

3.6. Recombination Analysis

Recombination analysis using the software RDP5 was performed for all 13 BCMV isolates. A high genetic similarity between BCMC SVK and BCMV PV 0915 isolates, the recombinant status of their genomes, and several differences between them were shown (Figure 9). A total of six recombination sites were suggested by seven different algorithms implemented in the software. Three of the recombination events were supported by all seven algorithms and all of them were found in PV 0915 isolate as well.
The first was found from 987 nt (99% C.I. 929–993 nt) to 1690 nt (99% C.I. 1679–1718 nt) in PV 0915 isolate, but the beginning breakpoint in BCMV SVK was outside of this interval, at 849 nt. The ending breakpoints were identical. The second of shared recombination sites ranged from 2589 nt (99% C.I. 2570–2601 nt) to 3425 nt (99% C.I. 3400–3438 nt), and the third recombination event ranged from 4962 nt (95% C.I. 4931–5011 nt) to 5802 nt (95% C.I. 5772–5859 nt).
Three other recombination events were suggested during the analysis and were found only in the BCMV_SVK isolate. The first ranged from 848 nt (99 C.I. 811–852 nt) with an undetermined breakpoint. This was supported by five out of seven algorithms. It would seem that both isolates had similar but separate recombination events in their evolutionary history, as both have the same major and minor parents. Another possibility is that mutation took place after a shared recombination event and BCMV_SVK genome changes caused by mutation at similar site are interfering with recombination analysis, as this area is one of few nucleotide variability areas throughout the entire genomes of BCMV_SVK and DSMZ isolates.
The second recombination event ranged from 1300 nt to 1325 nt (99% C.I. undetermined) and was suggested by two out of seven algorithms. It is located at a nucleotide variability hotspot between isolates BCMV_SVK and PV 0915, which was suggested as a potential major parent, but because of lack of support for this, the parenting sequencing was unknown. We argue that this change in sequence can be attributed to different evolutionary forces, such as mutation.
The last recombination event ranged from 9116 nt (99% C.I. 8991–9171 nt) to 9244 nt (99% C.I. 9210–9802 nt), was also suggested only by two algorithms, and is also located on the genome variability hotspot between both isolates.
The recombination analysis confirmed the results of the phylogenetic analysis, in which the BCMV SVK isolate isolated from crownvetch was included among the recombinant isolates.

4. Discussion

BCMV occurs in natural conditions mainly in Phaseolus species, especially in Phaseolus vulgaris (order Fabales, family Fabaceae). BCMV naturally infects wild and cultivated legumes, but the experimental host range is much wider [29,30,31]. The plant from which the BCMV SVK isolate was obtained and characterized in this work was crownvetch growing wild on the edge of vegetable gardens. This species from the family Fabaceae is usually assigned to the group of non-crop plants but is commonly found at the agroecological interface where virus interactions between cultivated and wild species take place. Somewhere, crownvetch is cultivated, harvested, and used as fresh feed or hay for ruminants or as a substrate to produce biomethane and renewable energy [32]. Its breeding programs are also being considered [33]. The crownvetch did not appear in a broad list of cultivated and wild BCMV hosts from six susceptible plant families [34]. To date, there has been no published report on the occurrence of BCMV in crownvetch (Securigera varia L. Lassen, synonym Coronilla varia L.).
The complexity of the population genetic structure of BCMV is based on differences between isolates originating from different locations and different hosts. Thus, adaptation of BCMV populations is driven to a large extent by both the host species and geographic location. Virus populations have a high potential for genetic variation through mutations and recombinations. On the other side, a factor that limits this variation is natural selection, an important evolutionary force acting on the proteins responsible for different virus functions [35]. Combinations of host and virus are different. Selection contributes to the emergence of new hosts or novel strains or isolates of viruses [36].
Nucleotide and amino acid substitutions across the potyviral genome are not randomly distributed [37]. Substitutions preferentially accumulate in hypervariable areas at a higher frequency than in the rest of the genome. A comparison of the complete genomic or polyprotein sequences for 95 potyviruses showed that amino acid substitutions occurred mainly in the N-terminal part of P1, the N- and C-terminal parts of HC-Pro, the C-terminal part of P3, VPg, the C-terminal part of NIb, and the N-terminal part of CP [37]. This is true for potyviruses in general, but it may be different for individual potyviruses. The BCMVs have the most substitutions within the P1 protein. Nucleotide and amino acid substitutions are widespread throughout the P1 protein, although there is a tendency towards their higher frequency in the N-terminal part of the protein [37]. This characteristic was not fully confirmed for the P1 protein of the BMCV SVK isolated from crownvetch because substitutions were concentrated closer to the C-terminal parts of the protein. Four of the five conserved amino acid motifs in the P1 protein of the BCMV SVK isolate were identical to those of BCMVs. Although there was a difference in the fifth (HX75DX29SGX21RG) of the conserved motifs in the BCMV SVK isolate, the effect of this change on its self-hydrolytic ability was not evident. The P1 protein of potyviruses is associated with their pathogenicity and host specificity [38,39,40]. Variations at many codons of the P1 protein should be responsible for the molecular adaptation of certain genotypes to increase the diversification of the virus population [28]. These differences could be largely responsible for the ability of BCMV to infect a new host, the crownvetch plants. If the P1 protein were not functional, it would not sufficiently separate P1 and HC-Pro, and other important functions of the virus would likely be impaired. Despite the change, or perhaps because of the change in one conserved motif in P1 protein, the proteolytic competence of the P1 protein was also maintained in the crownvetch host, and the P1 protein was functional.
Ecological changes as well as agronomical practices that bring cultivated crops with plant species closer together enable the emergence of new plant viruses and new variants of classical viruses, but with new virulence factors and changed epidemiology. This process includes transmission of preexisting viruses into new hosts and adaptation to them. The evolutionary process, ecological factors, and viral plasticity expand the host range of viruses [41]. The promiscuity of many viruses as well as virus transmissions between plant species at the agroecological interfaces have a special position in this [42,43]. Subsequently, there is a transfer of viruses from economically insignificant plant species to the main crops and the emergence of epidemics on a wide scale [42,44]. The presented work reveals the potential of crownvetch to be a host of BCMV and to participate in the emergence of novel genetic variants of the virus. This could have negative impacts on the cultivation of economically important legumes, especially in areas with agroecological interfaces where common beans and related BCMV host species, including crownvetch, are in contact.

5. Conclusions

Crownvetch (Securigera varia L. Lassen) was confirmed as a new host species for BCMV. At the same time, a novel virus isolate was isolated from it, whose genome has 10,050 nucleotides and encodes one polyprotein with 3222 amino acids. Amino acid comparison revealed substitutions in 50 amino acids compared to the most similar BCMV isolate PV 0915. BCMV isolates with complete genomic sequences were obtained mainly from beans, soybeans, cowpeas, and peanuts. The BCMV SVK isolate from crownvetch joined the group of only four BCMV isolates obtained from other plant species with completely sequenced genomes (Nandina domestica Thunb., Sesamum indicum L., Cudrania tricuspidata (Carr.) Bur., and Macroptilium atropurpureum (DC.) Urb.). Therefore, crownvetch has been included among the risky hosts and sources of BCMV spread, especially in agroecological interfaces where Phaseolus spp. are cultivated on the other side.

Author Contributions

Conceptualization, D.M.; methodology, D.M.; software, R.H. and J.K.; validation, D.M. and J.K.; formal analysis, D.M., S.G., R.H., P.C. and M.H.; investigation, D.M., S.G., R.H., P.C. and M.H.; resources, D.M.; data curation, D.M., R.H., P.C. and J.K.; writing—original draft preparation, J.K.; writing—review and editing, J.K.; visualization, R.H., P.C. and J.K.; supervision, D.M.; project administration, D.M.; funding acquisition, D.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Slovak Research and Development Agency, project numbers APVV-20-0015 and APVV-21-0289, and by the Operational Programme Integrated Infrastructure funded by the European Regional Development Fund, project numbers ITMS: 313011AVA9 (“PandemicFood”) and ITMS: 313011ASN4 (“Addressing the societal threats posed by the COVID-19 pandemic”).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. FAOSTAT. Available online: https://www.fao.org/faostat/en/#home (accessed on 7 March 2023).
  2. OECD. Common bean (Phaseolus vulgaris). In Safety Assessment of Transgenic Organisms in the Environment; Volume 6: OECD Consensus Documents; OECD Publishing: Paris, France, 2016. [Google Scholar] [CrossRef]
  3. Meziadi, C.; Blanchet, S.; Geffroy, V.; Pflieger, S. Genetic resistance against viruses in Phaseolus vulgaris L.: State of the art and future prospects. Plant Sci. 2017, 265, 39–50. [Google Scholar] [CrossRef] [PubMed]
  4. Jones, R.A.; Naidu, R.A. Global Dimensions of plant virus diseases: Current status and future perspectives. Annu. Rev. Virol. 2019, 6, 387–409. [Google Scholar] [CrossRef] [PubMed]
  5. Tang, M.; Feng, X. Bean common mosaic disease: Etiology, resistance resource, and future prospects. Agronomy 2023, 13, 58. [Google Scholar] [CrossRef]
  6. Drijfhout, E.; Silbernagel, M.J.; Burke, D.W. Differentiation of strains of bean common mosaic virus. Neth. J. Plant Pathol. 1978, 84, 13–26. [Google Scholar] [CrossRef]
  7. Feng, X.; Myers, J.R.; Karasev, A.V. Bean common mosaic virus Isolate Exhibits a Novel Pathogenicity Profile in Common Bean, Overcoming the bc-3 Resistance Allele Coding for the Mutated eIF4E Translation Initiation Factor. Phytopathology 2015, 105, 1487–1495. [Google Scholar] [CrossRef] [Green Version]
  8. Vetten, H.J.; Lesemann, D.-E.; Maiss, E. Serotype A and B strains of bean common mosaic virus are two distinct potyviruses. In Potyvirus Taxonomy, Archives of Virology; Barnett, O.W., Ed.; Springer: Vienna, Austria, 1992; Volume 5, pp. 415–431. [Google Scholar] [CrossRef]
  9. Mink, G.I.; Vetten, H.J.; Ward, C.W.; Berger, P.H.; Morales, F.J.; Myers, J.M.; Silbernagel, M.J.; Barnett, O.W. Taxonomy and classification of legume-infecting potyviruses. A proposal from the Potyviridae Study Group of the Plant Virus Subcommittee of ICTV. Arch. Virol. 1994, 139, 231–235. [Google Scholar] [CrossRef]
  10. Revers, F.; Le Gall, O.; Candresse, T.; Le Romancer, M.; Dunez, J. Frequent occurrence of recombinant potyvirus isolates. J. Gen. Virol. 2016, 77, 1953–1965. [Google Scholar] [CrossRef]
  11. Feng, X.; Poplawsky, A.R.; Nikolaeva, O.V.; Myers, J.R.; Karasev, A.V. Recombinants of Bean common mosaic virus (BCMV) and Genetic Determinants of BCMV Involved in Overcoming Resistance in Common Bean. Phytopathology 2014, 104, 786–793. [Google Scholar] [CrossRef] [Green Version]
  12. Sharma, P.; Kapil, R.; Sharma, S.K.; Sharma, O.P. Analysis of 3′-Terminal Region of Bean common mosaic virus Strains Infecting Common Bean in India. Indian J. Virol. 2011, 22, 37–43. [Google Scholar] [CrossRef] [Green Version]
  13. Johary, T.; Dizadji, A.; Naderpour, M. Biological and molecular characteristics of Bean common mosaic virus isolates circulating in common bean in Iran. J. Plant Pathol. 2016, 98, 301–310. [Google Scholar] [CrossRef]
  14. Abadkhah, M.; Hajizadeh, M.; Koolivand, D. Global population genetic structure of Bean common mosaic virus. Arch. Phytopathol. Plant Prot. 2020, 53, 266–281. [Google Scholar] [CrossRef]
  15. Spence, N.J.; Walkey, D.G.A. Variation for pathogenicity among isolates of bean common mosaic virus in Africa and a reinterpretation of the genetic relationship between cultivars of Phaseolus vulgaris and pathotypes of BCMV. Plant Pathol. 1995, 44, 527–546. [Google Scholar] [CrossRef]
  16. Sengooba, T.N.; Spence, N.J.; Walkey, D.G.A.; Allen, D.J.; Lana, A.F. The occurrence of bean common mosaic necrosis virus in wild and forage legumes in Uganda. Plant Pathol. 1997, 46, 95–103. [Google Scholar] [CrossRef]
  17. Coutts, B.A.; Kehoe, M.A.; Webster, C.G.; Wylie, S.J.; Jones, R.A.C. Indigenous and introduced potyviruses of legumes and Passiflora spp. from Australia: Biological properties and comparison of coat protein nucleotide sequences. Arch. Virol. 2011, 156, 1757–1774. [Google Scholar] [CrossRef]
  18. Cejnar, P.; Kučková, Š.; Šantrůček, J.; Glasa, M.; Komínek, P.; Mihálik, D.; Slavíková, L.; Leišová-Svobodová, L.; Smirnova, T.; Hynek, R.; et al. Efficient Confirmation of Plant Viral Proteins and Identification of Specific Viral Strains by nanoLC-ESI-Q-TOF Using Single-Leaf-Tissue Samples. Pathogens 2020, 9, 966. [Google Scholar] [CrossRef] [PubMed]
  19. Tyanova, S.; Temu, T.; Cox, J. The MaxQuant computational platform for mass spectrometry-based shotgun proteomics. Nat. Protoc. 2016, 11, 2301–2319. [Google Scholar] [CrossRef]
  20. The UniProt Consortium; Bateman, A.; Martin, M.-J.; Orchard, S.; Magrane, M.; Ahmad, S.; Alpi, E.; Bowler-Barnett, E.H.; Britto, R.; Bye-A-Jee, H.; et al. UniProt: The Universal Protein Knowledgebase in 2023. Nucleic Acids Res. 2022, 51, D523–D531. Available online: https://www.uniprot.org/ (accessed on 14 April 2023). [CrossRef]
  21. NCBI Protein Database. Available online: https://www.ncbi.nlm.nih.gov/protein/ (accessed on 14 April 2023).
  22. Untergasser, A.; Cutcutache, I.; Koressaar, T.; Ye, J.; Faircloth, B.C.; Remm, M.; Rozen, S.G. Primer3—New capabilities and interfaces. Nucleic Acids Res. 2012, 40, e115. Available online: http://primer3plus.com/cgi-bin/dev/primer3plus.cgi (accessed on 10 March 2023). [CrossRef] [Green Version]
  23. Feng, X.; Orellana, G.E.; Myers, J.R.; Karasev, A.V. Recessive Resistance to Bean common mosaic virus Conferred by the bc-1 and bc-2 Genes in Common Bean (Phaseolus vulgaris) Affects Long-Distance Movement of the Virus. Phytopathology 2018, 108, 1011–1018. [Google Scholar] [CrossRef] [Green Version]
  24. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular Evolutionary Genetics Analysis Version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef]
  25. BLAST (The Basic Local Alignment Search Tool). Available online: https://blast.ncbi.nlm.nih.gov/Blast.cgi?PROGRAM=blastn&PAGE_TYPE=BlastSearch&LINK_LOC=blasthome (accessed on 10 March 2023).
  26. Martin, D.P.; Varsani, A.; Roumagnac, P.; Botha, G.; Maslamoney, S.; Schwab, T.; Kelz, Z.; Kumar, V.; Ben Murrell, B. RDP5: A computer program for analyzing recombination in, and removing signals of recombination from, nucleotide sequence datasets. Virus Evol. 2021, 7, veaa087. [Google Scholar] [CrossRef] [PubMed]
  27. Worrall, E.A.; Hayward, A.C.; Fletcher, S.J.; Mitter, N. Molecular characterization and analysis of conserved potyviral motifs in bean common mosaic virus (BCMV) for RNAi-mediated protection. Arch. Virol. 2018, 164, 181–194. [Google Scholar] [CrossRef] [PubMed]
  28. Moradi, Z.; Mehrvar, M. Genetic variability and molecular evolution of Bean common mosaic virus populations in Iran: Comparison with the populations in the world. Eur. J. Plant Pathol. 2019, 154, 673–690. [Google Scholar] [CrossRef]
  29. Sangeeta, S.B.; Ramappa, H.K.; Aishwarya, P. Biological and serological confirmation of host range of bean common mosaic virus (BCMV) infecting field bean. Pharma Innov. 2022, 11, 2046–2049. [Google Scholar]
  30. DPV. Available online: https://www.dpvweb.net/dpv/showdpv/?dpvno=337 (accessed on 14 March 2023).
  31. PVD. Available online: http://47.90.94.155/PlantVirusBase/#/search?val=Bean%20common%20mosaic%20virus (accessed on 14 March 2023).
  32. Ţîţei, V. The prospect of cultivation and utilization of Coronilla varia L. in Moldova. Oltenia-Stud. Nat. Sci. 2021, 37, 46–52. [Google Scholar]
  33. Shanjani, P.S.; Rasoulzadeh, L.; Javadi, H. Evaluation of morphological traits in the populations of Coronilla varia L. J. Rangel. Sci. 2023, 13, 52–71. [Google Scholar] [CrossRef]
  34. Worrall, E.A.; Wamonje, F.O.; Mukeshimana, G.; Harvey, J.J.W.; Carr, J.P.; Mitter, N. Bean common mosaic virus and Bean common mosaic necrosis virus: Relationships, biology, and prospects for control. Adv. Virus Res. 2015, 93, 1–46. [Google Scholar] [CrossRef]
  35. García-Arenal, F.; Fraile, A.; Malpica, J.M. Variability and genetic structure of plant virus populations. Annu. Rev. Phytopathol. 2001, 39, 157–186. [Google Scholar] [CrossRef]
  36. Roossinck, M.J. Plant RNA virus evolution. Curr. Opin. Microbiol. 2003, 6, 406–409. [Google Scholar] [CrossRef]
  37. Nigam, D.; LaTourrette, K.; de Souza, P.F.N.; Garcia-Ruiz, H. Genome-Wide Variation in Potyviruses. Front. Plant Sci. 2019, 10, 1439. [Google Scholar] [CrossRef] [Green Version]
  38. Larsen, R.C.; Miklas, P.N.; Druffel, K.L.; Wyatt, S.D. NL-3 K Strain Is a Stable and Naturally Occurring Interspecific Recombinant Derived from Bean common mosaic necrosis virus and Bean common mosaic virus. Phytopathology 2005, 95, 1037–1042. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Maliogka, V.I.; Salvador, B.; Carbonell, A.; Sáenz, P.; León, D.S.; Oliveros, J.C.; Delgadillo, M.O.; García, J.A.; Simón-Mateo, C. Virus variants with differences in the P1 protein coexist in a Plum pox virus population and display particular host-dependent pathogenicity features. Mol. Plant Pathol. 2012, 13, 877–886. [Google Scholar] [CrossRef] [PubMed]
  40. Mao, C.; Shan, S.; Huang, Y.; Jiang, C.; Zhang, H.; Li, Y.; Chen, J.; Wei, Z.; Sun, Z. The hypervariable N-terminal of soybean mosaic virus P1 protein influences its pathogenicity and host defense responses. Phytopathol. Res. 2022, 4, 10. [Google Scholar] [CrossRef]
  41. Elena, S.F.; Bedhomme, S.; Carrasco, P.; Cuevas, J.M.; de la Iglesia, F.; Lafforgue, G.; Lalić, J.; Pròsper, À.; Thomas, N.; Zwart, M.P. The evolutionary genetics of emerging plant RNA viruses. Mol. Plant-Microbe Interact. 2011, 24, 287–293. [Google Scholar] [CrossRef] [Green Version]
  42. Fiallo-Olivé, E.; Navas-Castillo, J. Tomato chlorosis virus, a promiscuous virus with multiple host plants and whitefly vectors. Ann. Appl. Biol. 2022, 182, 29–36. [Google Scholar] [CrossRef]
  43. Hančinský, R.; Mihálik, D.; Mrkvová, M.; Candresse, T.; Glasa, M. Plant Viruses Infecting Solanaceae Family Members in the Cultivated and Wild Environments: A Review. Plants 2020, 9, 667. [Google Scholar] [CrossRef] [PubMed]
  44. Bera, S.; Fraile, A.; García-Arenal, F. Analysis of fitness trade-offs in the host range expansion of an RNA virus, tobacco mild green mosaic virus. J. Virol. 2018, 92, e01268-18. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Crownvetch plant with symptoms of BCMV infection.
Figure 1. Crownvetch plant with symptoms of BCMV infection.
Agronomy 13 01677 g001

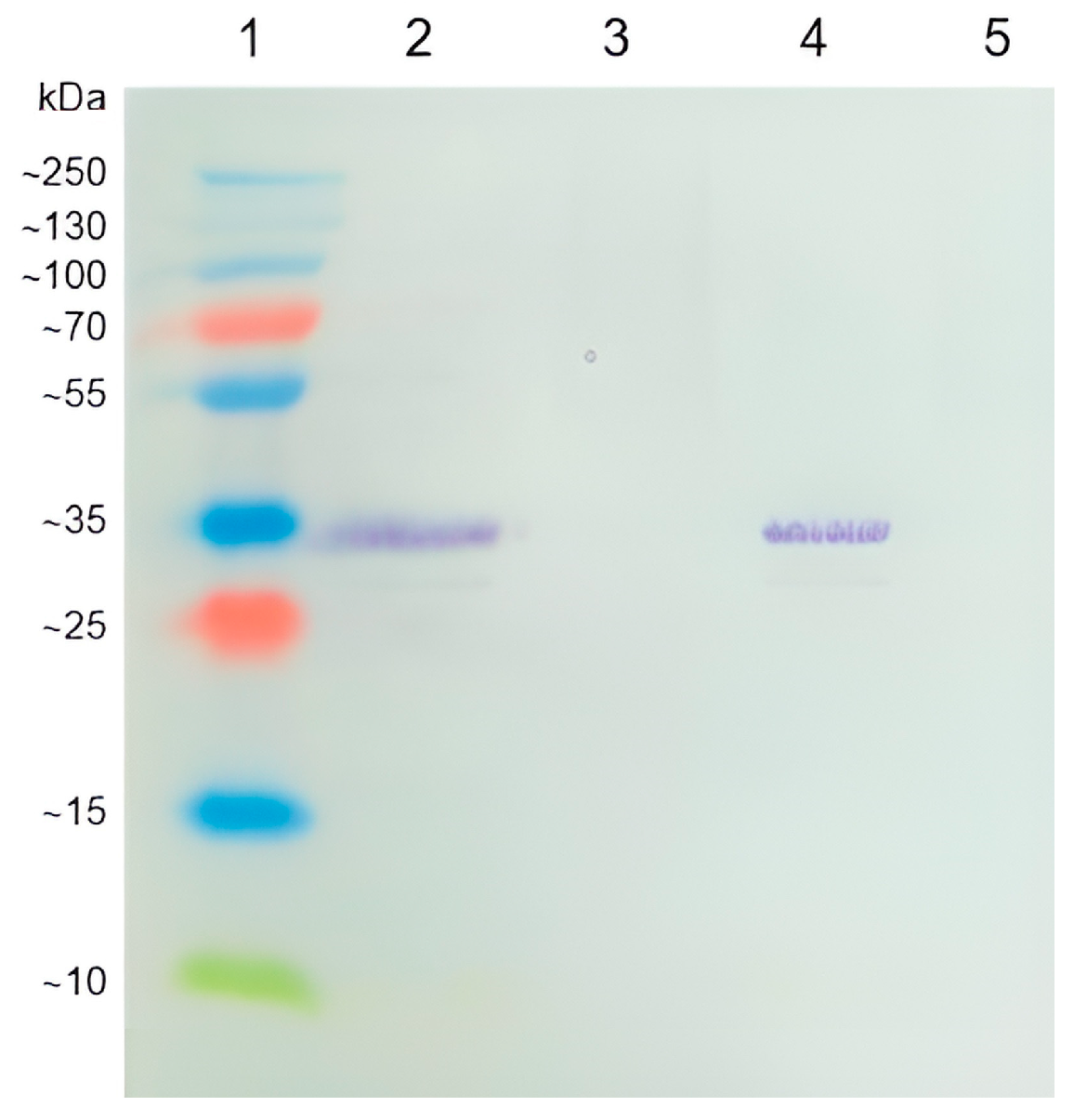

Figure 2. Western blot analysis of BCMV. Lanes: 1—protein ladder, 2—positive control (BCMV isolate PV 0915), 3—negative control, 4—symptomatic crownvetch plant (from the locality Čachtice), 5—non-symptomatic crownvetch plant (locality Plavecký Štvrtok).
Figure 2. Western blot analysis of BCMV. Lanes: 1—protein ladder, 2—positive control (BCMV isolate PV 0915), 3—negative control, 4—symptomatic crownvetch plant (from the locality Čachtice), 5—non-symptomatic crownvetch plant (locality Plavecký Štvrtok).
Agronomy 13 01677 g002

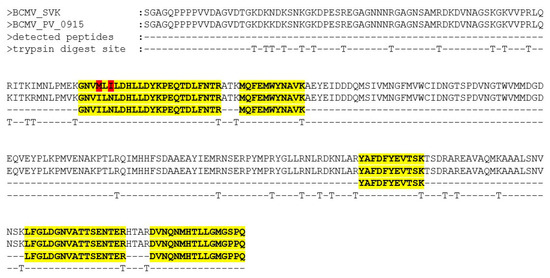

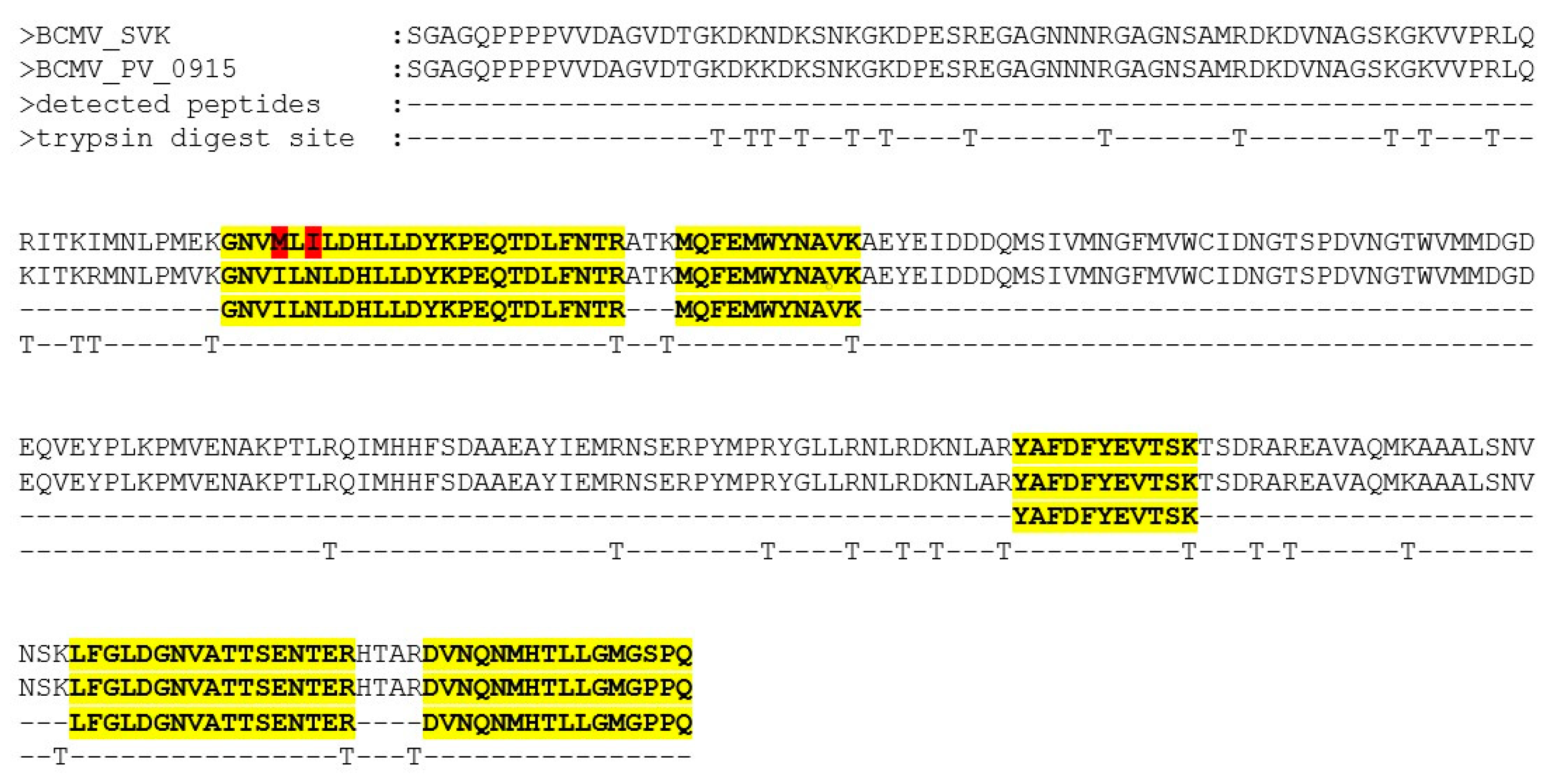

Figure 3. Comparison of peptide fragments from the coat protein (areas with a yellow background) between BCMV SVK and BCMV PV 0915. The red positions indicate amino acid changes between both BCMV isolates.
Figure 3. Comparison of peptide fragments from the coat protein (areas with a yellow background) between BCMV SVK and BCMV PV 0915. The red positions indicate amino acid changes between both BCMV isolates.
Agronomy 13 01677 g003

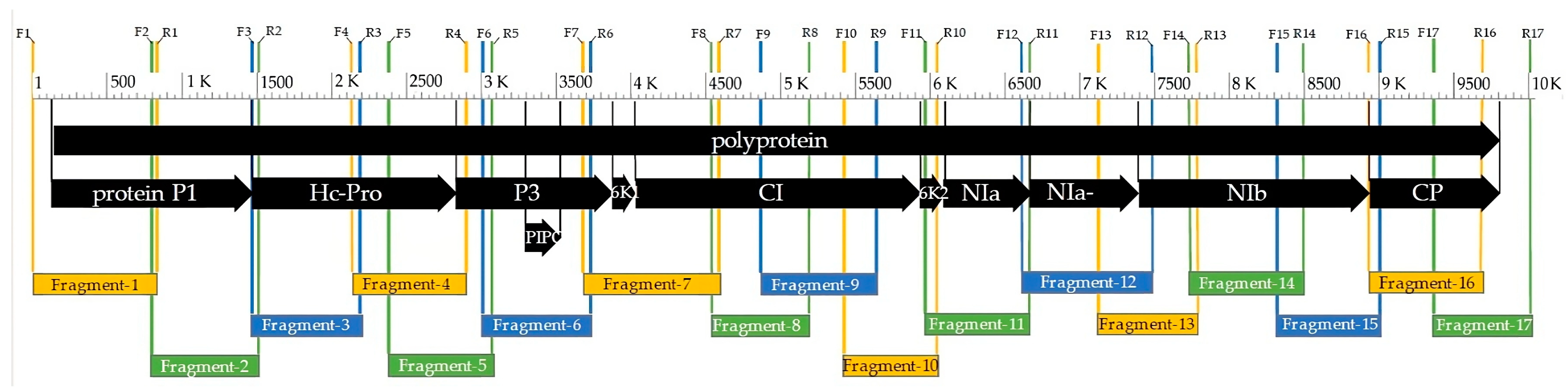

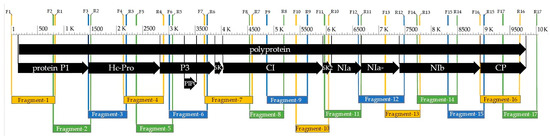

Figure 4. Overlapping amplicons (amplified with primer pairs given in Table 1) completely covering the BCMV genome.
Figure 4. Overlapping amplicons (amplified with primer pairs given in Table 1) completely covering the BCMV genome.
Agronomy 13 01677 g004

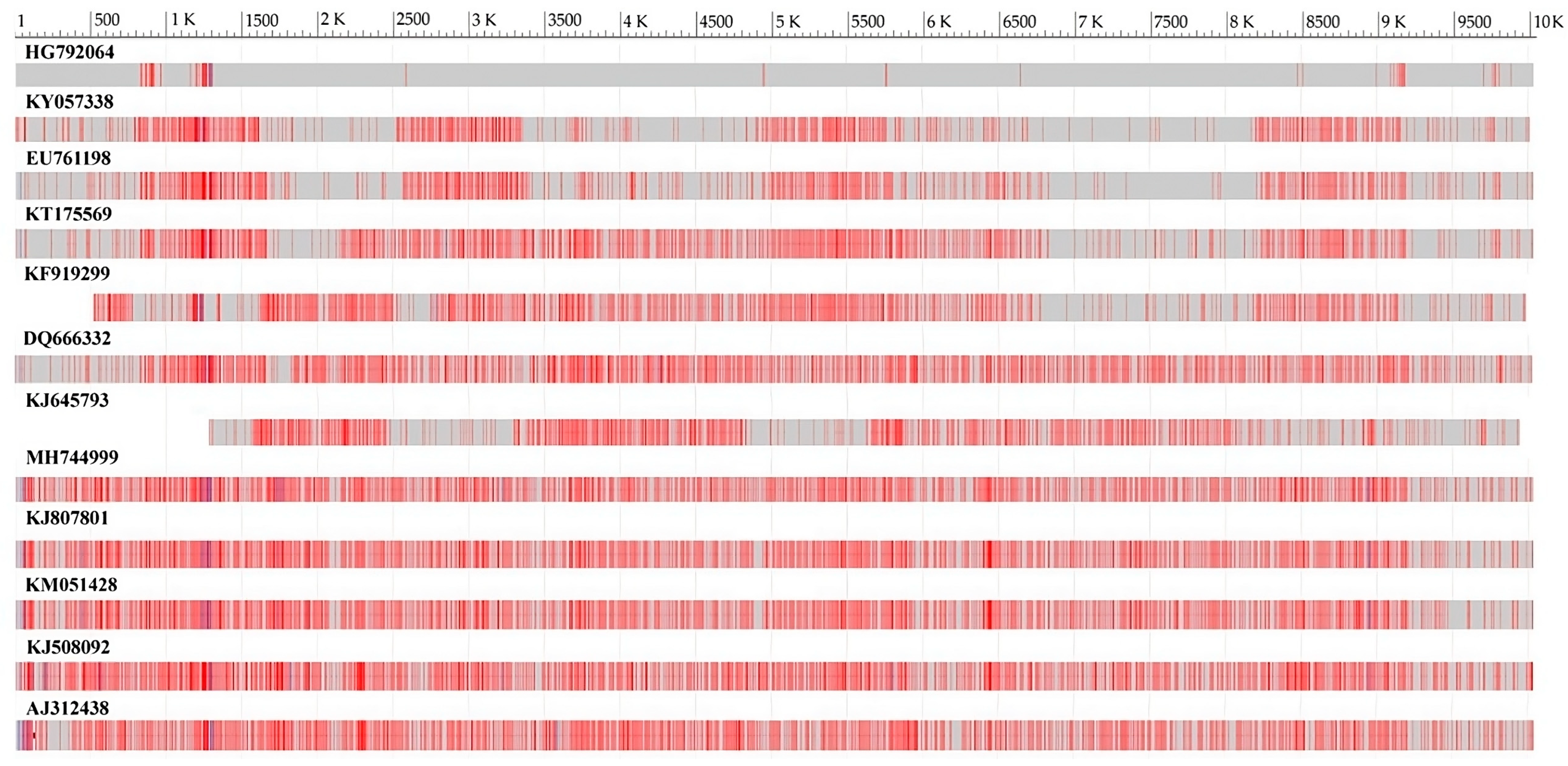

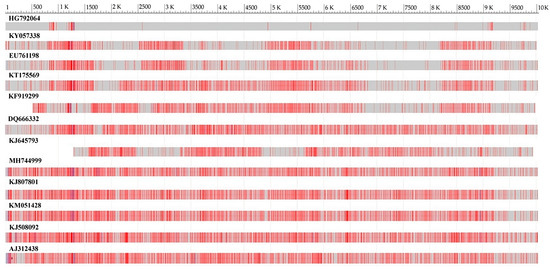

Figure 5. Differences in the nucleotide sequences of BCMV SVK and selected BCMVs. The codes for the individual isolates are the accession codes from the GenBank database. The gray color represents identical nucleotide sequences; the red parts are different nucleotides compared to BCMV SVK.
Figure 5. Differences in the nucleotide sequences of BCMV SVK and selected BCMVs. The codes for the individual isolates are the accession codes from the GenBank database. The gray color represents identical nucleotide sequences; the red parts are different nucleotides compared to BCMV SVK.
Agronomy 13 01677 g005

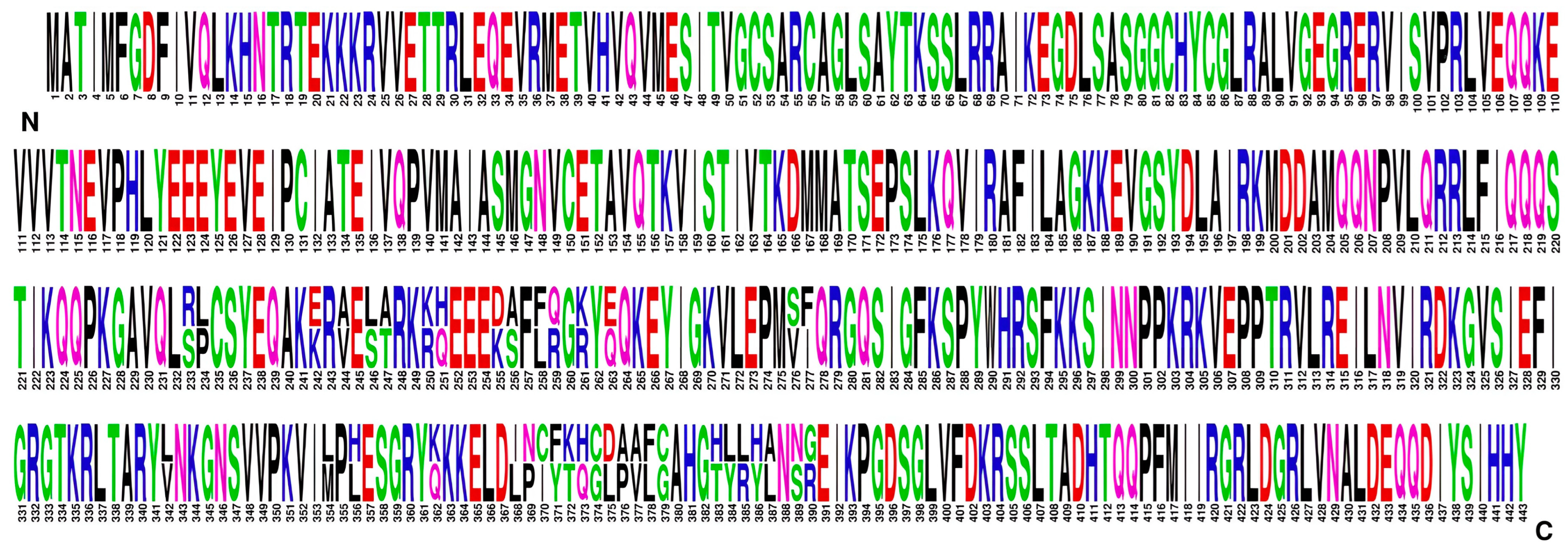

Figure 6. Comparison of the amino acid composition of the P1 protein between BCMV SVK and BCMV PV 0915 isolates.
Figure 6. Comparison of the amino acid composition of the P1 protein between BCMV SVK and BCMV PV 0915 isolates.
Agronomy 13 01677 g006

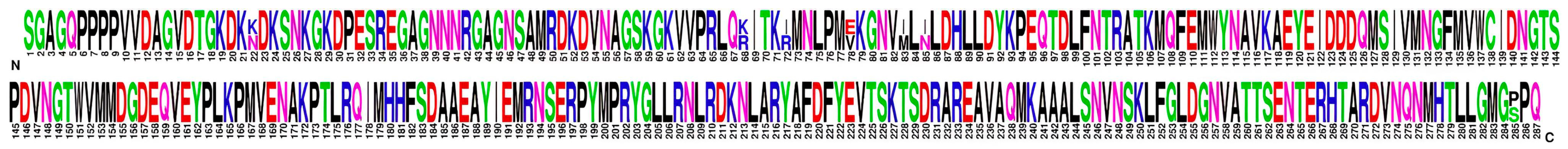

Figure 7. Comparison of the amino acid compositions of the CP protein between BCMV SVK and BCMV PV 0915 isolates.
Figure 7. Comparison of the amino acid compositions of the CP protein between BCMV SVK and BCMV PV 0915 isolates.
Agronomy 13 01677 g007

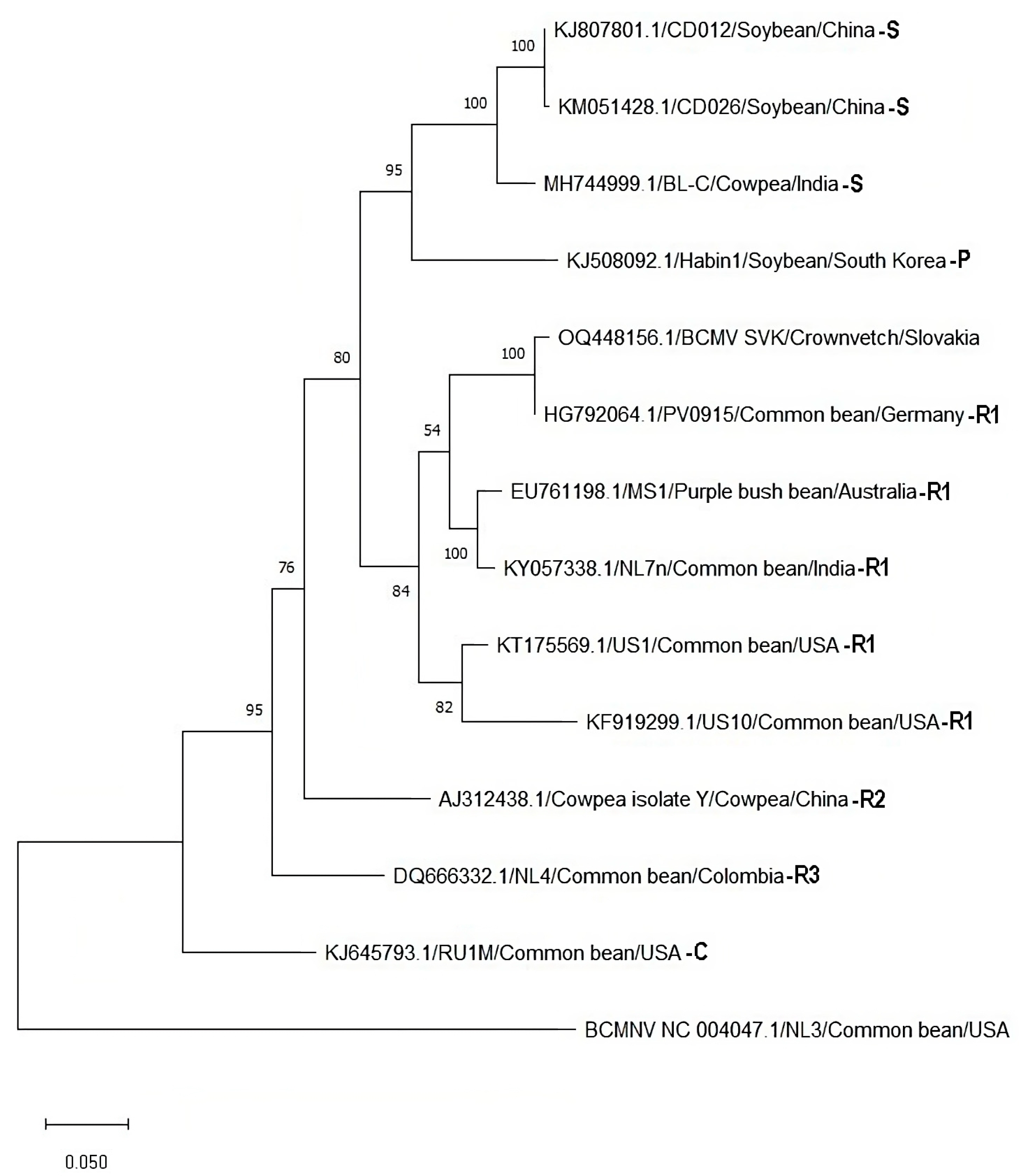

Figure 8. Phylogenetic classification of BCMV SVK based on maximum likelihood phylogenetic tree of selected BCMV isolates, constructed using bootstrapping method with 1000 replications, with BCMNV used as an outgroup. Bootstrapping values are shown next to the corresponding nodes. S, P, C, R1, R2, R3 are different phylogroups.
Figure 8. Phylogenetic classification of BCMV SVK based on maximum likelihood phylogenetic tree of selected BCMV isolates, constructed using bootstrapping method with 1000 replications, with BCMNV used as an outgroup. Bootstrapping values are shown next to the corresponding nodes. S, P, C, R1, R2, R3 are different phylogroups.
Agronomy 13 01677 g008

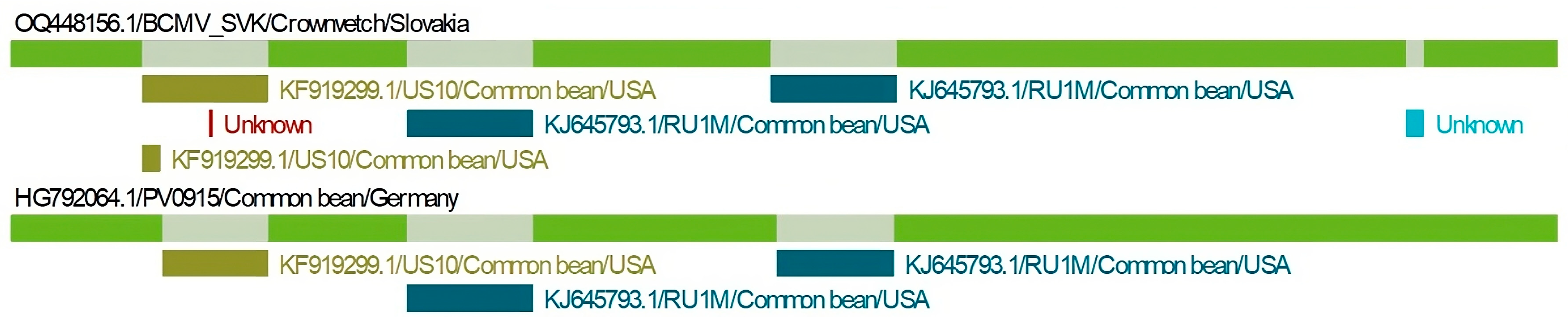

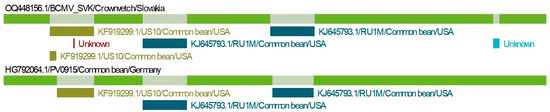

Figure 9. Differences in recombination events between BCMV SVK and BCMV PV 0915 detected via RDP5.
Figure 9. Differences in recombination events between BCMV SVK and BCMV PV 0915 detected via RDP5.
Agronomy 13 01677 g009
Table 1. Primer sequences, positions, and expected size of PCR products.
Table 1. Primer sequences, positions, and expected size of PCR products.
FragmentPrimerSequence of Primer (5’→3’)Locations of Primers
(Nucleotides)
Product Size (bp)
1.F1AAAATAAAACAACTCATAAA1–20826
R1ACTGAACAGCCCCCTTAGGT806–826
2.F2TACCATCAAACAGCAACCTA792–811718
R2TGAACTTATCACGCCATCCA1491–1510
3.F3ATTCTCAGAGCCCTGAATTG1460–1479727
R3ATTGGGGTTTTTCCTGATCC2168–2187
4.F4CATTCCTTCAGAGGGTTACA2139–2158759
R4TCTTTTGGGCTTGAAGATGC2879–2898
5.F5CTCAAGAGCCCGACTAAGAG2378–2396691
R5CTTGATGAGCTGTTCCAGCA3050–3069
6.F6TGGATCCAAAGGGATCAAAG3010–3029726
R6TGGGCATAACTGGCTTTTCT3717–3736
7.F7CAAAGCTTTTGTGAAGCGAG3681–3700906
R7GAATGCAATTGCCGAAGAAT4568–4587
8.F8TCATCATTTTTGATGAGTGC4538–4557651
R8AACGCTGCCTCTGTTGCTAT5170–5189
9.F9GATGGGAGAACGATGCAGAT4864–4883778
R9GGATCAGTGCTGAGCGTGTA5623–5642
10.F10CACCAATACACCAGCCAATG5419–5438622
R10ATCCAGCCACCACCAAGTAG6022–6041
11.F11GGGTCTCAAAGGAAAGTGGG5958–5977703
R11TCTCAACGGCCACCTCCTCA6642–6661
12.F12GCGTATCAAGAGAAGTGAGG6609–6628829
R12GCTTTGTCACCAACGCACTA7452–7471
13.F13GGGCTCCCATTAGTTTCAGT7114–7133653
R13TGCTGCTTTCAGGTTCAATG7748–7767
14.F14TATGTCACGGATCCAGAAGA7717–7736762
R14CCCACAAGTCCACTTCCTGT8460–8479
15.F15ACAACAGTGGGCAACCTTCC8309–8328541
R15TCTTGTCCTTCCCAGTGTCC8982–9001
16.F16ATCTGTGCACCTACAATCAG8922–8941763
R16TGCTGTTAACGTTGCTGAGG9666–9685
17.F17CAATGGCACTTCACCAGATG9357–9376693
R17AAACAAACATTGCCGTAGCT10,031–10,050
Table 2. Amino acid differences between BCMV SVK and BCMV PV 0915 isolates.
Table 2. Amino acid differences between BCMV SVK and BCMV PV 0915 isolates.
Nucleotide PositionAmino Acid in
BCMV SVK
Amino Acid in
BCMV PV 0915
Protein of BCMV
829–831SRP1
832–834LP
856–858EK
862–864VA
868–870LS
871–873TA
880–882KR
883–885HQ
895–897KD
898–900AS
904–906LF
907–909QR
913–915KR
919–921EQ
958–960VS
961–963IF
1156–1158LV
1192–1194ML
1198–1200LH
1216–1218QK
1234–1236LI
1237–1239PN
1240–1242CI
1243–1245FY
1246–1248TK
1249–1251HQ
1252–1254GC
1255–1257DL
1258–1260PA
1261–1263VA
1264–1266FL
1267–1269GC
1279–1281HT
1282–1284LY
1285–1287LR
1288–1290YH
1291–1293AL
1297–1299SN
1300–1302RG
2581–2583VMHc-pro
2584–2586PL
5755–5757LFCI
8515–8517VGNib
9001–9003NKCP
9139–9141RK
9151–9153IR
9169–9171EV
9184–9186MI
9190–9192IN
9790–9792SP
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mihálik, D.; Grešíková, S.; Hančinský, R.; Cejnar, P.; Havrlentová, M.; Kraic, J. A Novel Isolate of Bean Common Mosaic Virus Isolated from Crownvetch (Securigera varia L. Lassen). Agronomy 2023, 13, 1677. https://doi.org/10.3390/agronomy13071677

AMA Style

Mihálik D, Grešíková S, Hančinský R, Cejnar P, Havrlentová M, Kraic J. A Novel Isolate of Bean Common Mosaic Virus Isolated from Crownvetch (Securigera varia L. Lassen). Agronomy. 2023; 13(7):1677. https://doi.org/10.3390/agronomy13071677

Chicago/Turabian Style

Mihálik, Daniel, Simona Grešíková, Richard Hančinský, Pavel Cejnar, Michaela Havrlentová, and Ján Kraic. 2023. "A Novel Isolate of Bean Common Mosaic Virus Isolated from Crownvetch (Securigera varia L. Lassen)" Agronomy 13, no. 7: 1677. https://doi.org/10.3390/agronomy13071677

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
