Assessing the Impact of Genotype-by-Environment Interactions on Agronomic Traits in Elite Cowpea Lines across Agro-Ecologies in Nigeria

Abstract

The yield of cowpea varieties is affected by environmental variability. Hence, candidate varieties must be tested for yield stability before release. This study assessed the impacts of genotypes, environments, and their interaction on the performance of elite cowpea lines for key adaptive, grain yield, and associated traits across different locations. A total of 42 elite genotypes were evaluated in five Nigerian environments, representing various savanna ecologies, during the 2021 growing season. The experimental design employed was an alpha lattice arrangement, with each genotype replicated three times. The results revealed significant differences among genotypes, environments, and genotype-by-environment interaction (G × E) for most traits, including days to maturity, 100-seed weight, and grain yield. The genotype and genotype-by-environment interaction (GGE) biplot showed G21 (IT14K-2111-2) and G25 (IT15K-2386-1) as the most stable genotypes across the five environments, G41 (IT11K-61-82) was best adapted to Ibadan and Shika, G5 (245-1) was best adapted to Bagauda and Gumel, and G30 (IT16K-2365-1) was best adapted to Bauchi. G21 (IT14K-2111-2) and G25 (IT15K-2386-1) could be recommended across the five test environments, whereas G41 (IT11K-61-82), G30 (IT16K-2365-1), and G5 (245-1) were specific to the adapted environments.

1. Introduction

Cowpea, Vigna unguiculata (L. Walp), is an important grain legume grown in the tropics, where it constitutes a valuable source of protein in the diets of millions of people [1]. The crop has become an essential nutritional component in the human diet due to its high protein content, carbohydrate composition that complements cereal grains, and relatively low fat content [2]. Improved cowpea varieties contain between 20 and 25 percent protein on a dry weight basis [3,4]. Smallholder farmers are the main cowpea producers in sub-Saharan Africa (SSA), where the crop is grown for various purposes, including tender leaves, green pods, grains, and fodder, which serve as both human food and livestock feed. Additionally, cowpea residues are utilized to replenish the soil, contributing to enhanced soil fertility in the region [5].

Cowpea also plays an important role in human nutrition, food security, and income generation for farmers and food vendors in SSA. Fresh leaves are used as pot herbs, especially in East Africa. In an earlier study, Duke (1990) [6] found that cowpea fodder could contain up to 18.6 g of protein per 100 g dry weight and that it plays a crucial role as a valuable and nourishing feed resource within crop–livestock systems. Additionally, it serves as a significant income source for various stakeholders in the value chain. Reports indicate that the price of cowpea fodder can range from 50% to 80% of the grain price [7], and in Nigeria, farmers who harvest and store cowpea fodder for sale at the peak of the dry season increased their annual income by 25% [8]. Depending on the region, seed coat color and texture could be very important to consumers. For example, in northern parts of Nigeria, where cowpea is generally produced because of favorable climatic conditions, white-colored grains are preferred by consumers, whereas in the southern parts of the country, brown-seeded types are preferred [1].

In Africa, particularly in West and Central Africa, Nigeria produces the highest quantity of cowpea grains annually at approximately 3.6 million metric tons; other major producers are Niger Republic and Burkina Faso, with an average of 2.6 and 0.660 million metric tons, respectively [9]. The crop is known to be relatively drought tolerant compared to other legumes and adapted to marginal soil due to its nitrogen-fixing ability, which makes it a useful staple crop for farmers in harsh environments under moisture stress and high temperatures [10,11]. It is widely cultivated and consumed, especially in the arid and semi-arid tropics and sub-Saharan Africa [12]. In recent times, the amount of rainfall received in the main producing areas has been declining and the distribution of the rains is irregular, especially during the early and late stages of the cropping seasons [1,13].

Although cowpea is a versatile grain legume, its productivity is hindered by various factors, both biotic and abiotic. Biotic factors such as weeds, insects, and diseases, as well as abiotic factors like soil type, altitude, and rainfall patterns, contribute to the low and unstable yields of cowpea across different environments and years [14,15,16]. In addition, the low yield by smallholder farmers has been partly attributed to the use of local varieties and poor agronomic practices, such as low plant density per hectare [17]. Likewise, the scarcity of widely adaptable and early-maturing varieties further exacerbates the problem. The productivity of the crop is highly influenced by the variability in environmental conditions, including location effects, seasonal fluctuations, and the interaction between these factors. These environmental variables play a crucial role in determining the actual yield potential of cowpea [18,19]. Studies on the crop have shown that genotype by environment (G × E) has a significant effect on trait performance [20,21,22,23]. It has been found that some cowpea genotypes are more stable in terms of agronomic trait performance across environments than others [20,24]. The variability in genotype performance is partially unpredictable, just as the response of genotypes to environmental change is not the same [24]. This agrees with [25,26] for cowpea.

The genotype-by-environment interaction (GEI) poses a significant challenge for plant breeders, as it complicates the process of recommending the best performing varieties. The inconsistency of genotypes that yield the highest results across different cropping environments and seasons adds to this challenge. Hence, the analysis of GEI is a fundamental requirement prior to recommending varieties for widespread cultivation since it serves as a crucial step in understanding the superiority and consistency of genotype performance across diverse geographic locations. This is essential because a genotype’s performance can be significantly influenced by its genetic worth, environmental conditions, or the interaction of both [20,21,23]. Often, the environment can mask the genetic potential of a genotype, leading to poor genetic gain from artificial selection, especially for quantitative traits such as grain yield [21]. Thus, GEI analysis is highly valuable during the final stages of selecting elite breeding materials, as it assists breeders in recommending candidate varieties as suitable for either location-specific adoption or wider geographic use [21,23]. Several techniques have been widely adapted to analyze and interpret G × E data for cowpea, including the main genotype effect plus genotype-by-environment interaction biplot (GGE biplot) analysis and the additive main effect and multiplicative interaction (AMMI) [21,22,27]. To mitigate the impact of GEI, researchers commonly repeat experiments in multiple sites within the same year or over multiple crop seasons in a single site, or sometimes both approaches are combined [28,29].

Therefore, evaluating the performance of improved cowpea in contrasting environments is imperative for the recommendation of the right genotype for a specific environment or wider use across different regions. In view of this, the objectives of the present study were to estimate the effects of genotype, environment, and genotype × environment interaction on key agronomic, grain yield, and yield-related traits of some elite cowpea lines and to assess the stability of improved lines for yield across different environments.

2. Materials and Methods

2.1. Genetic Materials

The genetic materials for this study were 40 test entries and 2 standard checks, which are presented in

Table 1. List and source of the genotypes.

Genotype Code	Genotype	Entry Type	Source
G1	23-109	T	IITA
G2	235-7	T	IITA
G3	244-2	T	IITA
G4	244-3	T	IITA
G5	245-1	T	IITA
G6	245-8	T	IITA
G7	IT07K-210-1-1	T	IITA
G8	IT07K-230-2-9	T	IITA
G9	IT07K-297-13	C	IITA
G10	IT07K-303-1	T	IITA
G11	IT08K-150-12	C	IITA
G12	IT10K-863-11	T	IITA
G13	IT13K-1071-4	T	IITA
G14	IT13K-1144-9	T	IITA
G15	IT13K-1201-5	T	IITA
G16	IT14K-1683-2	T	IITA
G17	IT14K-1813-1	T	IITA
G18	IT14K-1813-2	T	IITA
G19	IT14K-1913	T	IITA
G20	IT14K-2026	T	IITA
G21	IT14K-2111-2	T	IITA
G22	IT14K-2179-1	T	IITA
G23	IT15K-2244-1	T	IITA
G24	IT15K-2369	T	IITA
G25	IT15K-2386-1	T	IITA
G26	IT15K-2510-2	T	IITA
G27	IT16K-1968-3	T	IITA
G28	IT16K-1984-2	T	IITA
G29	IT16K-2214-3	T	IITA
G30	IT16K-2365-1	T	IITA
G31	IT16K-2575-2	T	IITA
G32	IT16K-2597-2	T	IITA
G33	IT17K-1146-4-2	T	IITA
G34	IT17K-1165-5-2	T	IITA
G35	IT17K-1348-1-1	T	IITA
G36	IT17K-1489-2-3	T	IITA
G37	IT17K-1555-5-1	T	IITA
G38	IT17K-1589-2-1	T	IITA
G39	IT17K-1921-8	T	IITA
G40	IT17K-2515-3	T	IITA
G41	IT11K-61-82	T	IITA
G42	StrigaMABC-42	T	IITA

T—test entries, C—check.

. The lines were recently developed by the cowpea breeding program at the International Institute of Tropical Agriculture (IITA), Ibadan, Kano, Kano State in Nigeria, and their response to various environments has not been documented in a published literature.

2.2. Description of the Study Environments

The experiment was conducted in five locations in Nigeria in 2021 (

Table 2. Description of the study environments.

Location	State	Latitude	Longitude	Elevation	Agroecology	* Annual Rainfall (Min–Max) mm	Rainfall Duration (Months)	Temperature °C Min–Max	Soil Type †
Bagauda	Kano	11.945	8.6736	499 m	Semi-arid/Sudan savanna	552–1093 mm	June–November	19–33 °C	Regosol
Gubi (ATBU)	Bauchi	10.439722	9.8131	602 m	Northern Guinea savanna	779–1192 mm	June–November	19–32 °C	Lixisol
Gumel	Jigawa	12.622611	9.384	371 m	Semi-arid/Sudan savanna	293–662 mm	June–November	20–35 °C	Cambisol
Shika	Kaduna	11.1825	7.6044	692 m	Northern Guinea savanna	818–1242 mm	May–November	18–32 °C	Lixisol
IITA-Ibadan	Oyo	7.501424	3.90992	235 m	Derived savanna	939–1681 mm	March–November	21–31 °C	Lixisol

Source: † [30,31]; * [30].

). The locations were Bagauda in Kano state, situated on 499 m elevation and constituting a semi-arid/Sudan savanna with annual rainfall ranging from 552 to 1093 mm from June to November. The temperature ranges from 19 to 33 °C and the soil type is regosol. The second location was Ibadan in Oyo state, situated on 235 m elevation in derived savanna with an annual rainfall ranging from 939 to 1681mm from March to November. The temperature in this location ranges from 21 to 31 °C and the soil type is lixisol. Details of the environmental condition for the other locations, namely, Abubakar Tafawa Balewa University (ATBU), Gubi in Bauchi state, Gumel in Jigawa state, and Shika in Kaduna state, all in Nigeria, are presented in Table 2.

The testing sites cut across three different agroecologies in Nigeria, which are also the key cowpea growing zones (Figure 1). These agroecological zones include derived Savanna, Northern Guinea savanna, and semi-arid/Sudan savanna.

2.3. Experimental Layout and Data Collection

The experiment was laid out in a 7 × 6 alpha lattice design with three replications. Cowpea lines were established in four rows, each four meters long. Three to four seeds were planted per hill and later thinned down to two plants per hill. The intra- and inter-planting space was 20 cm and 75 cm, respectively. To control weeds, pre- and post-emergence herbicides—Lifeline [Cropserve (Pty) Ltd., Aston Manor, South Africa] with glufosinate ammonium (24.5%) as the active substance applied at a rate of 3 L/hectare and Raptor [BASF Agri-Production S.A.S, Gravelines, France] with an active substance of ammonium salt (40 g/L Imazamox), applied at a rate of 1.5 L per hectare, respectively—were applied. Fertilizer was applied at a rate of 100 kg NPK 15:15:15 (two bags), which supplied 15 kg each of nitrogen, phosphorus, and potassium, and 200 kg (4 bags) of single super phosphate, which supplied 30 kg P (P₂O₅) per hectare. All agronomic practices were carried out in accordance with recommendations for cowpea production [8].

The measured parameters included the number of plant hills, plant stands at harvest, days to first flowering, days to 50% flowering, days to first pod maturity, days to 95% pod maturity, bacteria blight score, grain yield (kg/ha), dried fodder yield (kg/ha) (weight of above-ground biomass taken from the two middle rows after removing all pods), and 100-seed weight (g). To minimize border effects, data were recorded from the net plot, consisting of the two middle rows.

3. Data Analysis

The analysis of variance was conducted using R software (version 4.2.3) [32]. Means were separated using the least significant difference (LSD), with significant differences found at a probability level of 5%. The following statistical measures were calculated in the analysis: phenotypic coefficient of variation (PCV), genotypic coefficient of variation (GCV), predicted genetic advance (GA), and genetic advance as percentage of mean (GAM), as per the formula listed below. Principal component analysis (PCA) was computed for yield and was completed using ViTSel [33] to further understand the genotypes’ stability across test locations. Additionally, stability parameters such as Wricke’s ecovalence [34], the cultivar superiority by Lin and Binns [35], the Shukla stability [36], and GGE biplot (displays the GGE of a genotype by two-way environmental data) were used. The GGE biplot methodology originates from graphical analysis of multi-environment variety trials, and Pearson correlations were computed among the traits measured using R [37].

The PCV, GCV, GA, and GAM were computed as follows;

Phenotypic coefficient of variation (PCV) was computed according to [38]:

$$\mathrm{PCV}=\frac{\sqrt{{\mathsf{\sigma }}_{\mathrm{p}}^2}}{\overline{\mathrm{x}}}\times 100$$

$$\overline{\mathrm{X}}=\mathrm{the}\mathrm{mean}.$$

The broad sense heritability (H²) was estimated as the ratio of genotypic variance to phenotypic variance and was expressed as a percentage [39,40,41].

$${\mathrm{H}}^2=\frac{{\mathsf{\sigma }}_{\mathrm{g}}^2}{{\mathsf{\sigma }}_{\mathrm{p}}^2}\times 100$$

$${\mathsf{\sigma }}_{\mathrm{g}}^2=\frac{\mathrm{genotype}\mathrm{mean}\mathrm{square}-\left(\mathrm{G}\times \mathrm{E}\mathrm{mean}\mathrm{square}+\mathrm{error}\mathrm{mean}\mathrm{square}\right)}{\mathrm{number}\mathrm{of}\mathrm{replication}\times \mathrm{number}\mathrm{of}\mathrm{location}}$$

$${\mathsf{\sigma }}_{\mathrm{p}}^2=\frac{\mathrm{genotype}\mathrm{mean}\mathrm{square}+\mathrm{error}\mathrm{mean}\mathrm{square}}{\mathrm{number}\mathrm{of}\mathrm{replication}\times \mathrm{number}\mathrm{of}\mathrm{location}}$$

where ${\mathsf{\sigma }}_{\mathrm{g}}^2$ is the phenotypic variance and ${\mathsf{\sigma }}_{\mathrm{p}}^2$ is the genotypic variance.

The genetic advance to be expected by selecting 5% of the superior progenies was calculated using the following formula, given by [42]:

$$\mathrm{Genetic}\mathrm{advance}\left(\mathrm{GA}\right), GA=i\ast \sigma p\ast H$$

i = standard selection differential for 5% selection intensity (=2.06), according to [43]. $\sigma p \mathrm{is}\mathrm{the}\mathrm{phenotypic}\mathrm{standard}\mathrm{deviation}$ and H is the heritability.

Genetic advance as percentage of mean (GAM):

$$GAM=\raisebox{1ex}{$GA$}\!\left/ \!\raisebox{-1ex}{$\overline{X }$}\right.\times 100$$

where GA is the genetic advance, and $\overline{X}$is the general mean. GAM was categorized as low (0–10%), moderate (10–20%), and high (>20%) following the recommendations in [44].

3.1. Stability Measures

• Wricke’s ecovalence (Wi) [34] is a quantitative assessment of the consistency of a specific genotype’s performance across test environments, where a low ecovalence value indicates greater stability, meaning that environmental variations influence the genotype’s performance less and consistently perform well under diverse conditions.

  $$W_i={\left(Y_{ij}-Y_{i.}-Y_{.j}+Y_{..}\right)}^2$$

  where W_i = ecovalence of the i-th cultivar;
  • Y_ij = the observed phenotypic value of the i-th cultivar in the j-th environment;
  • Y_i. = mean of i-th cultivar across the entire environment;
  • Y_.j = mean of j-th environment;
  • Y.. = grand mean.
• The cultivar superiority (Pi) by Lin and Binns [35] is defined as the mean square distance between the cultivar’s response and the maximum response averaged over all locations.

  $$\mathrm{P}i={{\displaystyle \sum }}_{j=i}^n\left(\frac{{\left(X_{ij-} M_j\right)}^2}{2n}\right)$$

  where Pi = superiority index of the i-th cultivar;
  • Xij = yield of the i-th cultivar in the j-th environment;
  • Mj = maximum response obtained among all the cultivars in the j-th environment;
  • n = number of environments.
• Shukla’s stability (1972) [36] measure was calculated as the difference between the genotype’s observed performance and its expected performance across all environments divided by the overall mean performance across all genotypes and environments. The formula for Shukla’s stability measure is as follows:

  $$Si=1-\frac{\left(Y_{i.}-\overline{Y}\right)}{ (Y_{ij}-\overline{Y})}$$

  where S$i$ is the stability measure for genotype I;
  • Y_i. = the average performance of genotype i across all environments;
  • $\overline{Y}$ = the overall mean performance across all genotypes and environments;
  • Y_ij = the performance of genotype I in environment j.

3.2. Genotype Main Effect plus Genotype-by-Environment Interaction (GGE) Biplot Analysis

A GGE biplot generated from multivariate analysis was used to depict the associations between the genotypes and the specific testing environments [27].

4. Results

The results of the analysis of variance revealed significant differences for all the traits measured (

Table 3. Statistics summary, heritability estimates, and variation metrics for elite cowpea lines evaluated for key agronomic traits across various agroecologies.

Traits	Mean ± SE	LSD	CV	Env (p) a	Gen (p) b	Gen Env (p) c	H2	GCV	PCV	GA	GAM
DFDWTKGH	585.72 ± 41.50	31.25	210.31	<0.001	<0.001	<0.001	0.70	265.11	756.26	252.80	43.16
DAYSFL	42.07 ± 0.35	4.13	1.04	<0.001	<0.001	<0.001	0.85	23.68	26.82	2.99	7.09
FLWT50F	45.24 ± 0.49	4.04	1.67	<0.001	<0.001	<0.001	0.83	22.99	27.22	3.05	6.75
DAYSMAT	60.52 ± 0.48	3.51	1.48	<0.001	<0.001	<0.001	0.82	21.95	27.32	3.47	5.74
MATT95	70.33 ± 0.53	4.05	1.62	<0.001	<0.001	<0.001	0.83	23.56	27.82	3.87	5.50
SEEDKGHA	809.85 ± 45.1	15.44	176.65	<0.001	<0.001	<0.001	0.49	218.33	439.55	117.48	14.51
HSW	15.85 ± 0.31	15.83	0.93	<0.001	<0.001	<0.001	0.97	59.89	63.02	4.97	31.35

^ap = value for environment factor; ^b p = value for genotype factor, ^c p = value for genotype-by-environment interaction factor; LSD = least significant difference, CV = coefficient of variation, H² = broad-sense heritability, GCV = genotypic coefficient of variation, PCV = phenotypic coefficient of variation, GA = genetic advance, GAM = genetic advance as percentage of the mean, DFDWTKGH = dried-fodder yield weight (kg/ha), DAYSFL = days to first flowering, FLWT50F = days to 50% flowering, DAYSMAT = days to first pod maturity, MATT95 = days to 95% maturity, SEEDKGHA = grain yield kg/ha, HSW = 100-seed weight.

). Significant differences were observed among the environments, genotypes, and genotype-by-environment interaction. The phenotypic coefficient of variation (PCV) consistently exhibited higher values compared to the genotypic coefficient of variation (GCV) for all the assessed traits. The heritability estimates ranged from 0.49 for grain yield to a maximum of 0.97 for 100-seed weight. Specifically, the GCV, which represents genotypic variability, ranged from 21.95 for days to maturity to 265.11 for dried-fodder weight. Conversely, the PCV, representing phenotypic variability, spanned from 26.82 for days to first flowering to 756.26 for dried fodder. Moreover, the expected genetic advance (GA) varied across traits, with the lowest value of 2.99 for days to first flowering and the highest value of 252.80 in dried-fodder weight. Additionally, the expected genetic advance as a percentage of the mean (GAM) was also found to differ across traits assessed, with values ranging from a minimum of 5.50 for days to 95% maturity to 43.16 for dried-fodder yield. These results provide valuable evidence of the diversity and heritability of the examined traits, which further indicates variation within the genotypes and environmental conditions.

Three stability measures were used to identify the most stable genotypes (

Table 4. Estimates of stability measures for cowpea genotypes using Wricke’s ecovalence, cultivar superiority, and Shukla stability variance.

Codes	Genotype	Mean Yield Kg/ha	Wricke’s	Rank	Superiority	Rank	Shukla	Rank
G1	23-109	779	14,640.4	35	13,889.9	17	130,529.5	27
G2	235-7	838	5720.6	16	5812.2	30	152,917.5	11
G3	244-2	832	8974.7	27	6415.5	28	141,084.7	19
G4	244-3	774	10,655.6	31	15045	16	130,905.7	26
G5	245-1	883	1630.3	3	1990.7	41	135,443.2	20
G6	245-8	854	5016.8	13	4445.9	34	155,050.1	8
G7	IT07K-210-1-1	786	5792.8	17	12,472.4	19	134,847.8	21
G8	IT07K-230-2-9	746	810.9	1	18,924.6	11	130,938.1	25
G9	IT07K-297-13	798	6274.1	19	11,215.3	21	148,205	15
G10	IT07K-303-1	854	7959.8	25	4338	35	125,047.1	36
G11	IT08K-150-12	882	14,682.1	36	2713.5	40	128,136.7	31
G12	IT10K-863-11	723	3666.6	8	23865	7	125,369.7	35
G13	IT13K-1071-4	774	13,294.6	34	15,595.6	15	129,386.8	30
G14	IT13K-1144-9	736	11,084.8	32	22,167.2	8	13,0487.1	28
G15	IT13K-1201-5	751	4839.2	11	18,230.7	12	157,702.8	6
G16	IT14K-1683-2	737	1231.3	2	20,746.7	10	149,091.2	14
G17	IT14K-1813-1	704	17,762.5	38	29,515.3	2	124,258.8	38
G18	IT14K-1813-2	835	4919.7	12	6191.8	29	152,944.5	10
G19	IT14K-1913	738	3218.2	7	20,836.7	9	155,423.6	7
G20	IT14K-2026	714	2574.7	6	25,994.5	6	143,071.1	18
G21	IT14K-2111-2	830	6686	21	6893.7	26	166,058.1	5
G22	IT14K-2179-1	778	7463.9	24	13,727.8	18	111,934.1	42
G23	IT15K-2244-1	859	10,185.8	30	4577.1	33	168,061.9	3
G24	IT15K-2369	789	7427.7	23	12,210.1	20	152,805.2	12
G25	IT15K-2386-1	696	2385.6	5	30,111.9	1	150,840.3	13
G26	IT15K-2510-2	812	1963.8	4	8352.7	24	130,070.9	29
G27	IT16K-1968-3	828	23,184.4	40	8551.3	23	184,234.9	1
G28	IT16K-1984-2	840	23,148	39	6864.7	27	172,334.4	2
G29	IT16K-2214-3	904	6143.1	18	1174.3	42	143,311	17
G30	IT16K-2365-1	769	36,503.9	42	18,190.1	13	112,864.2	41
G31	IT16K-2575-2	888	9776	29	2902.4	39	132,825.8	22
G32	IT16K-2597-2	714	9702.7	28	26,524.5	5	115,398	40
G33	IT17K-1146-4-2	762	6348.8	20	16242.4	14	130,955.9	24
G34	IT17K-1165-5-2	845	11,552.3	33	5082.2	31	126,792.1	32
G35	IT17K-1348-1-1	860	15,014.4	37	5042.1	32	116,379.4	39
G36	IT17K-1489-2-3	862	4514	10	3523.5	37	124,381.2	37
G37	IT17K-1555-5-1	873	8859.7	26	3206.3	38	166,962.5	4
G38	IT17K-1589-2-1	805	3767.8	9	9092.7	22	126,547.8	33
G39	IT17K-1921-8	839	24,239.1	41	7604.6	25	145,405.1	16
G40	IT17K-2515-3	703	5698.8	15	28,214.5	4	131,408.5	23
G41	IT11K-61-82	860	7302.6	22	4219.2	36	153,340.1	9
G42	StrigaMABC-42	704	5286.3	14	28,253.9	3	126,285.6	34

). Genotypes G8 (IT07K-230-2-9), G16 (IT14K-1683-2), G5 (245-1), G26 (IT15K-2510-2), G25 (IT15K-2386-1), G20 (IT14K-2026), G19 (IT14K-1913), G12 (IT10K-863-11), G38 (IT17K-1589-2-1), and G36 (IT17K-1489-2-3) were the top 10 most stable based on Wricke’s ecovalence method. On the other hand, based on cultivar superiority, the top 10 most superior genotypes were G25 (IT15K-2386-1), G17 (IT14K-1813-1), G42 (StrigaMABC-42), G40 (IT17K-2515-3), G32 (IT16K-2597-2), G20 (IT14K-2026), G12 (IT10K-863-11), G14 (IT13K-1144-9), G19 (IT14K-1913), and G16 (IT14K-1683-2), whereas genotypes G27 (IT16K-1968-3), G28 (IT16K-1984-2), G23 (IT15K-2244-1), G37 (IT17K-1555-5-1), G21 (IT14K-2111-2), G5 (245-1), G19 (IT14K-1913), G6 (245-8), G41 (IT11K-61-82), and G18 (IT14K-1813-2) were detected via Shukla stability variance to be the most stable. Genotype G19 (IT14K-1913) was ranked in a top 10 position with all three stability measures, and G12 (IT10K-863-11), and G16 (IT14K-1683-2) were ranked among the top 10 genotypes with both Wricke’s and the cultivar superiority stability estimates.

4.1. Principal Components

Principal component 1 (PC1) and principal component 2 (PC2) together accounted for 79.5% of the total variation among the genotypes studied across the five environments (Figure 2).

PC1*PC2 indicated that the Ibadan and Shika environments were closely related to genotypes G41 (IT11K-61-82), G10 (IT07K-303-1), and G28 (IT16K-1984-2) (Table 1), suggesting that they are the most suitable for these environments. Gumel and Bagauda were also closely related, with genotypes G37 (IT17K-1555-5-1), G5 (245-1), and G6 (245-8) being the most adapted to these sites.

4.2. Main Genotype Effect plus Genotype by Environment Interaction (GGE) Biplot Analysis

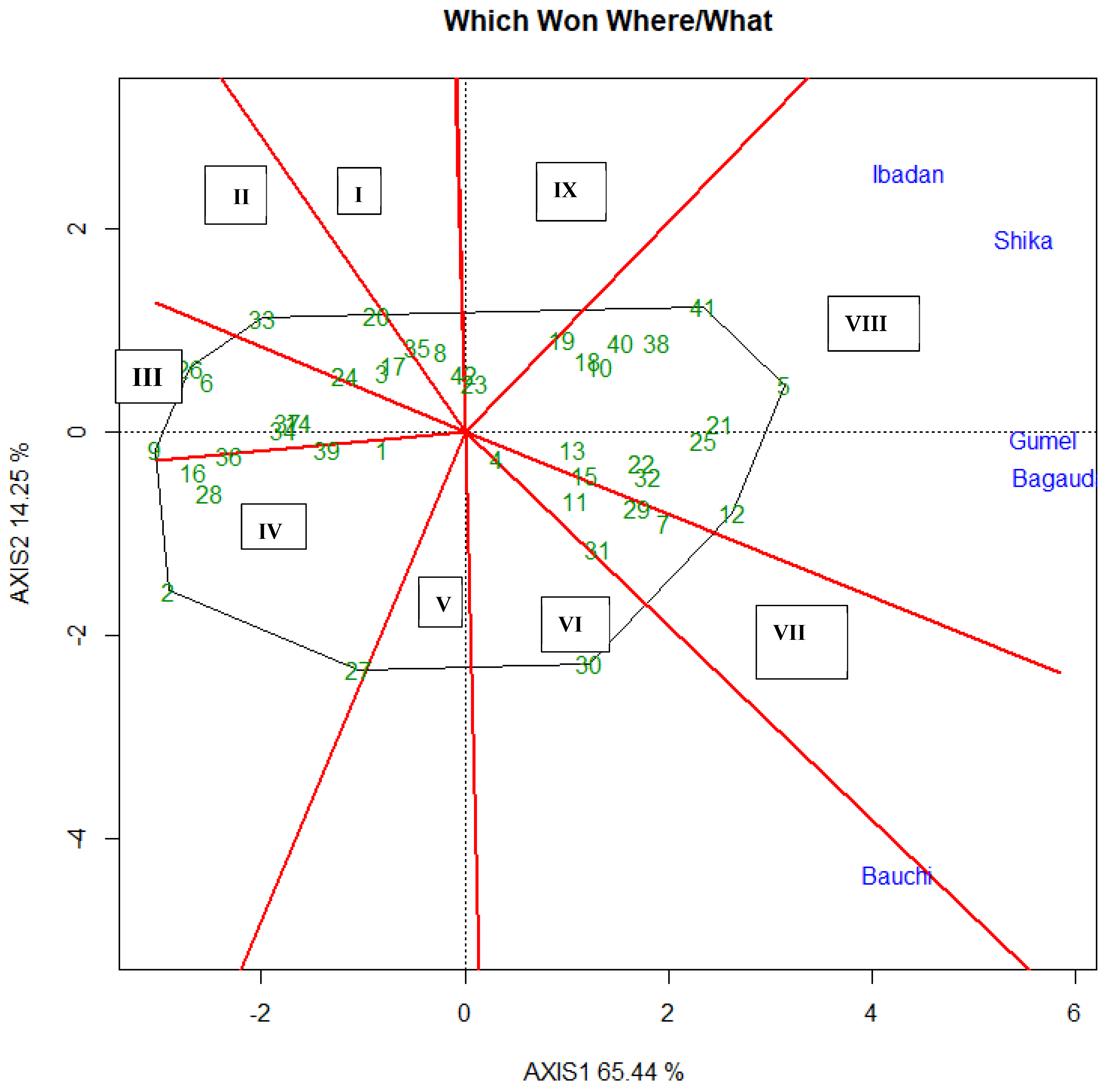

The specific adaptation of the genotypes was assessed using the Which Won Where model of the GGE biplot (Figure 3). In this analysis, principal components 1 and 2 explained 79.69% of the total variation. Nine mega environments (sectors) were identified by the Which Won Where’ biplot, with Ibadan, Shika, Gumel, and Bagauda all falling within the same mega environment. Genotype G41 (IT11K-61-82), appeared to be the best for Ibadan and Shika, as it was located closer to these two environments on the biplot. On the other hand, genotype G5 (245-1) was the best for Gumel and Bagauda. Bauchi fell within another mega environment, and G30 (IT16K-2365-1) was the best genotype for that environment. These inferences are based on the proximity of each genotype to the respective environments in the biplot.

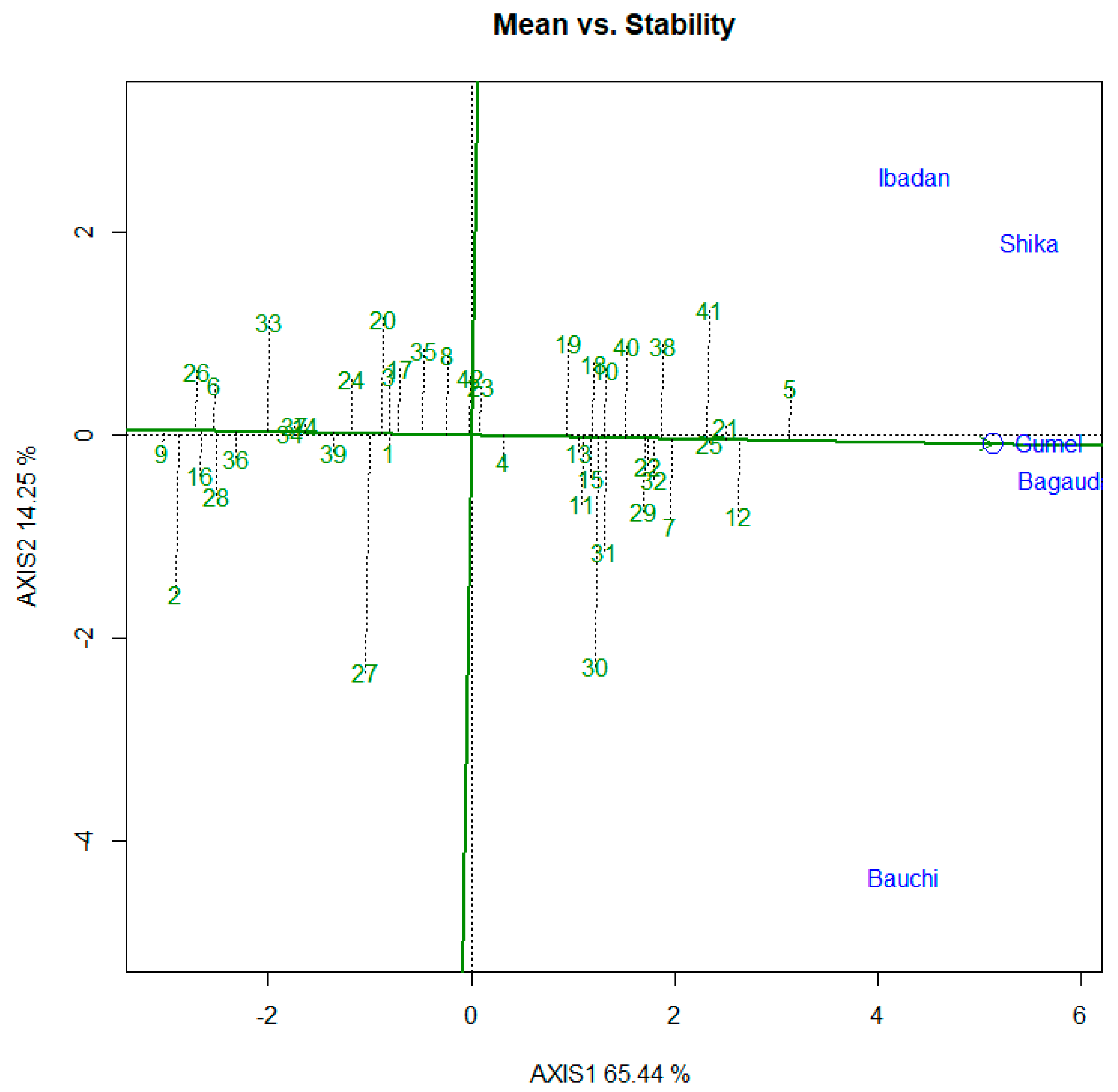

Figure 4 displays the results for the GGE biplot of mean versus stability. In this analysis, principal components 1 and 2 explained 79.69% of the total variation. The figure presents the mean yield and stability across the five test locations. G5 (245-1) had the highest mean yield, whereas G21 (IT14K-2111-2) and G25 (IT15K-2386-1) were the most stable, with the shortest perpendicular mark on the axis. G12 (IT10K-863-11) and G41 (IT11K-61-82) also had high mean yield values but were less stable, as indicated by the longer perpendicular marks on the axis.

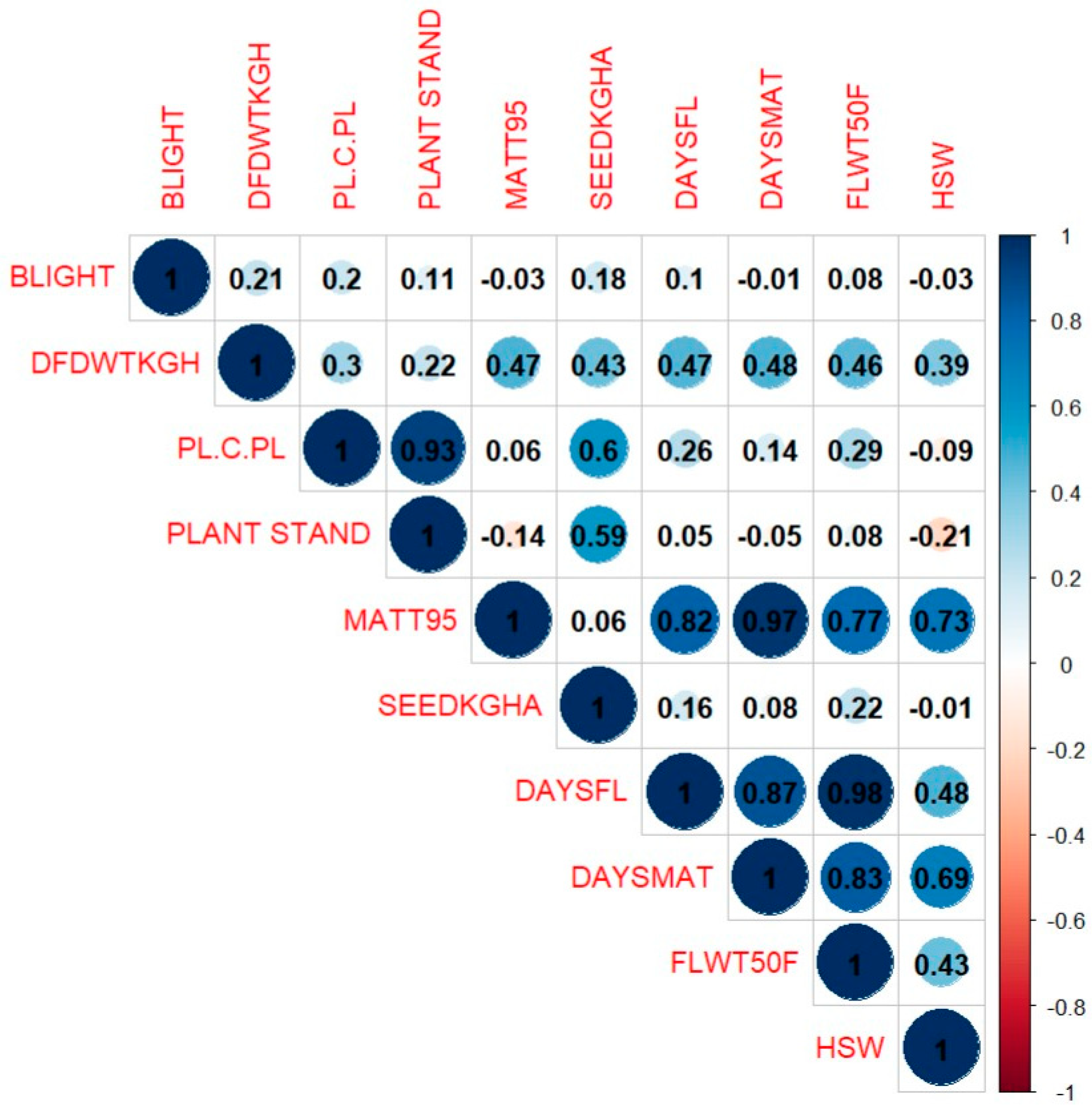

4.3. Correlations among Traits

There was a positive and significant correlation between the weight of dried fodder and several traits, including the number of plant hills, plant stands at harvest, days to 95% maturity, and grain yield in kg/ha (Figure 5). Of particular interest, significant positive correlations were detected among all maturity-related traits, days to first flower, days to 50% flowering and days to 95% pod maturity. In addition, days to 95% maturity was significantly correlated (r = 0.73) with 100-seed weight. However, grain yield had positive but weak correlation with maturity-related traits. These traits are expected to play a significant role in the selection process for dried-fodder weight, days to first flowering, days to 50% flowering, and 100-seed weight. Likewise, the 100-seed weight showed a weak negative relationship with bacterial blight, the number of plant hills, and the number of plant stands at harvest. Grain yield (kg/ha) also had a positive and significant correlation with dried-fodder weight, number of plants per hill, and number of plant stands at harvest.

5. Discussion

The phenotypic coefficient of variation (PCV) was generally higher than the genotypic coefficient of variation (GCV) in all traits, suggesting that the environment played a major role in the performance of the genotypes across different locations. This means that the expression of the trait was more influenced by environmental conditions, such as temperature, humidity, nutrient availability, or other external factors, rather than solely by genetic differences, which agrees with the findings in [24]. High values of PCV and GCV observed in the present study suggest the reliability of effective selection for these traits. Furthermore, it also indicates the existence of substantial phenotypic variability among the tested cowpea genotypes. Similar reports of high PCV and GCV for agronomic traits, such as 100-seed weight and yield, were reported by [45,46,47,48,49].

Higher broad-sense heritability indicates that a large portion of variation may be heritable, especially if the additive component of the broad-sense heritability is very high. In this study, the highest broad-sense heritability was recorded in 100-seed weight, maturity related traits and dried-fodder weight.

The present study dissected the stability of advanced cowpea lines based on three stability measures. Wricke’s ecovalence stability measure [34] calculated the average deviation of a genotype’s performance from the average performance of all genotypes in each environment and then compared this deviation to a measure of the overall variation in performance across environments. A genotype is considered stable if its deviation is relatively small compared to the overall variation. In the present study, genotypes G8 (IT07K-230-2-9), G16 (IT14K-1683-2), G5 (245-1), G26 (IT15K-2510-2), and G25 (IT15K-2386-1) were the top five lines with very small mean yield deviation across the five environments and were considered to be stable across these environments. In agreement with this, [50,51] reported the highest yielding genotypes for cowpea and common bean, respectively, to have relatively low ecovalence values. In the present study, based on the ecovalence method, the most unstable genotypes were G30 (IT16K-2365-1), G38 (IT17K-1589-2-1), G27 (IT16K-1968-3), G28 (IT16K-1984-2), and G17 (IT14K-1813-1), which showed relatively higher ecovalence values for grain yield. According to [52], genotypes with a high ecovalence mean and large estimated values are suitable for high-input environments. Similarly, Abou-Khater et al., 2022 Ref. [53] also reported Wricke’s stability measures as an effective parameter in identifying stable and high-yielding genotypes in faba bean, which agrees with our findings.

Cultivar superiority (Pi) by Lin and Binns measures the most stable genotype as being the one with the least deviation from the maximum yield of each environment—that is, the one with the lowest (Pi) value. In the current investigation, the most stable genotype ranking first for Pi and for mean grain yield was G25 (IT15K-2386-1) followed by G17 (IT14K-1813-1), G42 (StrigaMABC-42), G40 (IT17K-2515-3), and G32 (IT16K-2597-2). These stable genotypes made the least contribution to the total variation due to the GEI. In contrast, G29 (IT16K-2214-3), G5 (245-1), G11 (IT08K-150-12), G31 (IT16K-2575-2), and G37 (IT17K-1555-5-1) were the most unstable genotypes, and they contributed a large portion of the total variation due to GEI; these results agree with the work in [51], which reported that the most stable cowpea genotypes had the lowest Pi value and highest mean grain yield.

Our study revealed significant G × E among cowpea genotypes for several agronomic traits, such as 100-seed weight, grain yield, days to flowering, and days to maturity, which was also reported by [45,54,55,56].

Overall, the GGE biplot provides a powerful visual representation of complex genotype-by-environment interactions and can help researchers to identify the genotypes that are most suited for specific environments, as well as the environments that are most similar to each other in terms of performance [57,58]. Hall et al. (1997) [59] reported that high heritability for the stay green trait and substantially low GEI for this trait in cowpea would enable the successful incorporation of this trait into improved varieties. The findings in [51] indicated that the yield performance of speckled bean genotypes was highly influenced by GE interaction effects; the magnitude of the environmental effect was about 2.88 times that of the genotypic effect. In agreement with our findings [60], in cowpea, it was also reported that the analysis of variance for each location and combined over five locations showed significant differences among the genotypes and environments for grain yield and most yield-related traits. The significant genotype × environment interaction effects indicates the inconsistent performance of genotypes across the tested environments and the differential discriminating ability of the tested environments. The significant effects of GEI on traits suggests the need to assess the stability of genotypes over different environments [50,61,62,63,64].

Grain (kg/ha) showed a positive significant correlation to days to 50% flowering, indicating that the longer it takes to attain 50% flowering, the higher the yield; this agreed with the findings in [65] for soybean that there was a positive significant correlation with grain yield and days to 50% flowering and days to maturity. However, our findings showed a negative, non-significant correlation between grain yield and 100-seed weight, which disagrees with the findings in [65]. The 100-seed weight showed a positive significant correlation with days to 50% flowering and days to 95% maturity. This was expected, as the longer grain-filling period resulted in larger seed size, which corroborates the findings in [66,67].

6. Conclusions

Our study reveals that the influence of genotypes, environments, and their interaction were highly significant for the grain yield of cowpea genotypes evaluated across five locations during the 2021 growing season in Nigeria. We employed various stability models to assess genotype stability, including Wricke’s ecovalence, cultivar superiority, Shukla stability variance, and a GGE biplot, and it was shown that the Wricke’s ecovalence and cultivar superiority methods were more dependable measures of stability than the Shukla method. This conclusion was drawn from the fact that the same five genotypes were consistently ranked as the most stable among the top 10 genotypes for both the Wricke’s ecovalence and cultivar superiority stability measures. Specifically, genotypes G16 (IT14K-1683-2), G25 (IT15K-2386-1), G20 (IT14K-2026), G12 (IT10K-863-11), and G19 (IT14K-1913) consistently ranked among the top 10 most stable genotypes based on both the Wricke’s ecovalence and the cultivar superiority measure. Furthermore, G19 (IT14K-1913) was the only genotype that appeared among the top 10 most stable genotypes in all three stability measures used in this study. The GGE biplot analysis revealed nine possible mega-environments, with four locations (Ibadan, Shika, Bagauda, and Gumel) falling within the same mega-environment (Sector VIII), whereas Bauchi constituted a distinct mega-environment. Based on the GGE biplot analysis, G21 (IT14K-2111-2) and G25 (IT15K-2386-1) emerged as the most stable genotypes across all five test locations, as indicated by the shortest perpendicular marks on the axis. As a result, we recommend these two genotypes for cultivation across the test locations.
