Article

Genetic Diversity of HMW-GS and the Correlation of Grain Quality Traits in Bread Wheat (Triticum aestivum L.) in Hubei Province, China

1
Institute of Crop and Nuclear Technology Utilization, Zhejiang Academy of Agricultural Sciences, Hangzhou 310005, China
2
Hubei Hongshan Laboratory, College of Plant Science and Technology, Huazhong Agricultural University, Wuhan 430000, China
3
Xiangyang Academy of Agricultural Sciences, Xiangyang 441100, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Agronomy 2024, 14(6), 1158; https://doi.org/10.3390/agronomy14061158
Submission received: 19 April 2024 / Revised: 20 May 2024 / Accepted: 24 May 2024 / Published: 29 May 2024
(This article belongs to the Section Crop Breeding and Genetics)

Abstract

:
High-molecular-weight glutenin subunits (HMW-GS) are an important component of total cereal proteins in wheat. It is closely related to the processing quality of flour. Here, we analyzed allelic variations at the Glu-1 locus in 163 wheat accessions from Hubei Province, China with SDS-PAGE. Among the 15 alleles detected, alleles 1, 7+8, and 2+12 were the major alleles, and 7, 6+8, and 2+10 were rare alleles. The breeding lines had higher genetic diversity than the commercial varieties. Alleles 7 and 6+8 significantly reduced the grain protein content and wet gluten content of wheat. The “1, 7+9, 5+10” and “1, 14+15, and 2+12” allelic combinations significantly increased the grain protein content, hardness index, test weight, and wet gluten content of wheat. Alleles 7+9, 14+15, and 5+10 were identified as alleles related to high wheat quality. The “1, 7, 5+10”, “1, 6+8, 5+10”, “null, 7+9, 2+12”, “1, 14+15, 2+12”, and “1, 7+9, 5+10” allelic combinations had greater effects on wheat grain quality traits. These results demonstrate the effects of HMW-GS on wheat grain quality traits and provide a reference for the genetic improvement of wheat quality.

1. Introduction

Wheat (Triticum aestivum L.) is one of the most important food crops in the world. Wheat flour is used to produce a variety of products, such as bread, buns, noodles, cakes biscuits, etc. [1]. Based on their functions, proteins in wheat kernels can be classified into metabolic proteins related to the nutritional quality and storage proteins associated with the processing quality [2]. The processing quality of wheat flour is largely determined by the properties of seed storage proteins (SSP) [3,4], which mainly consist of polymeric glutenins and monomeric gliadins. The former is important for dough extensibility, while the latter is critical for dough strength and elasticity [5,6]. Furthermore, based on their molecular weights, wheat glutenins can be divided into low-molecular-weight glutenin subunits (LMW-GS) and high-molecular-weight glutenin subunits (HMW-GS) [7].
Previous studies have demonstrated that HMW-GS, which accounts for about 10% of the total glutenin content in wheat, is an important factor for the processing quality of wheat and can determine about 40–75% of the baking quality of bread [6,7,8]. HMW-GS is coded by the Glu1 locus on the long arm of homoeologous group I chromosomes, where the three allelic variants are designated Glu-A1, Glu-B1, and Glu-D1 [9,10]. Each locus encodes one X- and one Y-type subunit, including Glu-1Ax, Glu-1Ay (usually silent), Glu-1Bx, Glu-1By, Glu-1Dx, and Glu-1Dy, respectively [5,11]. It has been demonstrated that alleles 1 and 2* at the Glu-A1 locus have a greater contribution to wheat bread-making quality than the null allele [12]. At the Glu-B1 locus, allele 14+15 has a positive effect on dough elasticity [13], and allele 17+18 is positively correlated with dough extensibility [14]. Ragupathy et al. [15] found that allele Bx7 OE significantly improves dough strength and thereby promotes bread-making quality. At the Glu-D1 locus, the allele 5+10 has a positive effect on flour quality [16].
Wheat grain quality consists of complex quantitative traits controlled by multiple genes. Grain starch, grain protein content, hardness index, test weight, wet gluten content, and SDS sedimentation value are important indicators of wheat processing quality [17]. Starch is the main component of wheat endosperm, accounting for 65–80% of the final dry weight of wheat kernels, and grain yield can be improved by increasing starch accumulation [18]. Wheat protein content is an important determinant of bread baking quality [19,20].
As an important component of wheat grain proteins, HMW-GS is closely related to flour processing quality. However, there has been no systematic research concerning the effects of HMW-GS on wheat grain quality traits in the wheat-growing region of Hubei Province, China. In this study, we analyzed the genetic diversity of HMW-GS alleles and allelic combinations in 90 commercial varieties and 73 breeding lines in Hubei Province and comprehensively investigated the relationship between wheat grain quality traits. The findings provide a reliable basis for the selection of high-quality germplasm resources and genetic improvement of specialized high-quality wheat.

2. Materials and Methods

2.1. Plant Materials

A total of 90 commercial common bread wheat varieties from Hubei Province, China, and 73 breeding lines selected by Huazhong Agricultural University were used in this study (Supplementary data Table S1). Commercial varieties were derived from germplasm resources with validated high yield and quality in Hubei Province, and the breeding lines were bred lines with rich genetic backgrounds and quality improvement potential that were selected over the past years. These wheat accessions were planted at a Huazhong Agricultural University Experimental farm (48′ N 30 °C, 36′ E 114 °C) and Ezhou Experimental farm (36′ N 30 °C, 71′ E 114 °C) in 2021–2022. A completely randomized block design with three replications of three rows each (3 m long and 20 cm apart) was used to identify wheat HMW-GS and grain quality traits. Chinese Spring and Zhongyou 9507 were used as the standard cultivars for the identification of HMW-GS alleles.

2.2. SDS-PAGE Analysis

The SDS-PAGE method reported by Wang et al. [21] was used to identify the HMW-GS compositions. First, 40 mg of flour was added with 600 μL of SDS-PAGE buffer [62.5 mM Tris-HCl, pH 6.8, 2% (w/v) SDS, 10% (v/v) glycerol, 5% (v/v) 2-mercaptoethanol, 0.002% (w/v) bromophenol blue], and well shaken for 30 min. The sample was then immediately placed in a 90 °C boiling water bath for 5 min, centrifuged at 13,000 rpm for 5 min, and the supernatant was aspirated for SDS-PAGE analysis. SDS-PAGE was conducted with 12% (w/v) running gels and 4% (w/v) stacking gels. The gels were run at 25 mA for 5 h (Liuyi-Beijing mini-cell apparatus). After electrophoresis, the gel was stained in Coomassie Brilliant Blue solution (R-250) for 8–10 h, and then 40% (v/v) methanol and 7% (v, v) glacial acetic acid were used for decontamination. The HMW-GS composition was identified using the classification method of Payne and Lawrence [22].

2.3. Quality Tests

Near-infrared spectroscopy (NIRS DS2500, FOSS Corporation, Denmark) was used to determine the grain starch (GS), grain protein content (GPC), falling number (FN), hardness index (HI), weakness index (WI), test weight (TW), wet gluten content (WGC), and SDS sedimentation value (SDSS) of wheat kernels [23,24].

2.4. Statistical Methods

Genetic diversity indicators, including the genetic diversity index (H), number of alleles (Alleles), average number of alleles (A), and effective number of alleles (Ae), were calculated according to a previously reported method [25]. Correlation analysis and analysis of variance (ANOVA) were performed on the data using SPSS software (v.25.0). Graphics were drawn using the Origin v.2021(9.7) software.

3. Results

3.1. Allelic Variations at the Glu-1 Locus

Fifteen HMW-GS alleles were detected at locus Glu-1, with three for Glu-A1, eight for Glu-B1, and four for Glu-D1 in 163 wheat accessions from Hubei (Table 1). At the Glu-A1 locus, Glu-A1a (allele 1), Glu-A1b (allele 2*), and Glu-A1c (allele Null) were detected. Allele 1 had the highest frequency (58.90%) in the breeding lines; the null allele had the highest frequency (53.33%) in commercial varieties; and allele 2* had the lowest frequency in both commercial varieties (2.22%) and breeding lines (2.74%). At the Glu-B1 locus, allele 7 was not detected in commercial varieties, but it was observed in 8.22% of the breeding lines. Allele 7+8 was present at frequencies of 51.11% and 46.58%, and allele 7+9 was detected at frequencies of 36.67% and 24.66% in commercial varieties and breeding lines, respectively. Allele 6+8 was less frequently detected in both classes of wheat accessions. Alleles 13+16 and 13+19 were only detected in a few commercial varieties (1.11%). Allele 14+15 was detected at frequencies of 6.67% and 13.70%, and allele 17+18 was detected at frequencies of 2.22% and 1.37% in commercial varieties and breeding lines, respectively. At the Glu-D1 locus, four alleles 2+10, 2+12, 5+10, and 5+12 were observed in commercial varieties and breeding lines. Allele 2+12 was detected at the highest frequency in both commercial varieties and breeding lines (58.89% and 53.42%, respectively); while allele 2+10 was detected in breeding lines at a frequency of 1.37%; and allele 5+12 was detected in both commercial varieties (1.11%) and breeding lines (4.11%) (Table 1).

3.2. Frequencies of HMW-GS Compositions at the Glu-1 Loci

A total of 25 allelic combinations were detected at the Glu-1 locus (Table 2). The “null, 7+8, 2+12” allelic combination was the most frequently detected in commercial varieties (26.67%), followed by the “null, 7+9, 2+12” and “1, 7+8, 5+10” allelic combinations (12.22% and 10.00%, respectively). Six allelic combinations had frequencies lower than 5%, among which “1, 6+8, 5+10”, “1, 13+16, 2+12”, “1, 13+19, 5+10” and “null, 7+9, 5+12” had the lowest frequency (1.11%). The “1, 17+18, 5+10” and “2*, 7+9, 5+10” allelic combinations were detected at a frequency of 2.22%. The “null, 7+8, 2+12” allelic combination appeared the most frequently in breeding lines (15.07%), followed by “1, 7+8, 2+12”, “1, 7+8, 5+10”, and “1, and 7+9, 2+12” with frequencies of 12.33%, 10.96%, and 10.96%, respectively. Fourteen allelic combinations were detected at frequencies lower than 5%, among which “1, 7, 2+12”, “1, 7+9, 2+10”, “1, 17+18, 5+10”, “2*, 7+8, 5+10”, “2*, 7+9, 5+10”, “null, 7, 2+12”, “null, 7, 5+10”, “null, 14+15, 5+10” had the lowest frequency (1.37%). The “1, 7, 2+12”, “1, 7, 5+10”, and “1, 7+8, 5+12” allelic combinations were only detected in breeding lines, while “1, 7+9, 5+10”, “1, 13+16, 2+12”, and “1, 13+19, 5+10” were specific to commercial varieties.

3.3. Genetic Diversity of HMW-GS at the Glu-1 Locus

Table 3 shows the statistical analysis of the genetic diversity index of commercial varieties and breeding lines. Commercial varieties (0.518 and 0.599) had a higher and lower genetic diversity index than breeding lines (0.505 and 0.694) at Glu-A1 and Glu-B1, respectively. Moreover, at the Glu-D1 locus, commercial varieties (0.493) had a lower genetic diversity index than breeding lines (0.544). These results indicated that the Glu-B1 locus had more abundant allelic variations than Glu-A1 and Glu-D1. The genetic diversity (Hb) of commercial varieties and breeding lines was 0.537 and 0.581, respectively. The number and average (A) of alleles were the same for commercial and breeding lines, which were 13 and 4.333, respectively. Therefore, the number of effective alleles was 2.180 and 2.492 for commercial varieties and breeding lines, respectively. Breeding lines had higher genetic diversity and a larger number of effective alleles than commercial varieties.

3.4. Analysis of Wheat Grain Quality Traits

The grain quality traits of commercial varieties and breeding lines were determined (Figure 1). Among the eight indicators of wheat grain quality, commercial varieties had significantly higher values of five indicators: grain protein content (GPC), falling number (FN), hardness index (HI), wet gluten content (WGC), and SDS sedimentation (SDSS) while significantly lower values of two indicators: grain starch (GS) and weakness index (WI) than breeding lines (p < 0.01). In terms of test weight (TW), there was no significant difference between the two classes of wheat accessions.
Correlation analyses were performed for wheat quality traits of commercial varieties and breeding lines (Figure 2). WI had a positive correlation with GS (r = 0.65, p < 0.01), but was negatively correlated with HI, WGC, GPC, SDSS, and FN (−0.74~−0.51, p < 0.01). GS had a negative correlation with GPC, FN, HI, WGC, and SDSS (r = −0.83~−0.48, p < 0.01). HI displayed a positive correlation with WGC (0.74), GPC (0.71), SDSS (0.36), and FN (r = 0.34~0.74, p < 0.05 or 0.01). WGC showed a positive correlation with GPC (0.99), SDSS (0.74), and FN (r = 0.57~0.99, p < 0.01), and GPC had a positive correlation with SDSS (0.73, p < 0.01) and FN (0.55, p < 0.01).
In order to determine the effect of alleles in the Glu-1 locus on wheat grain quality traits, the main types of alleles at the Glu-A1, Glu-B1, and Glu-D1 loci were analyzed separately in relation to grain quality traits (Figure 3). Because the genotypes Glu-B1d, Glu-B1i, and Glu-D1h have a small sample size, while genotypes 13+16 and 13+19 in Glu-B1 and 2+10 have only one sample each, which is insufficient for calculating statistical parameters. At the Glu-A1 locus, allele 1 had significantly higher TW than alleles null and 2* (p < 0.05) (Figure 3A). At the Glu-B1 locus, allele 6+8 had a significantly higher value of GS than the alleles 7+8, 7+9, and 14+15, allele 7+8 had a significantly higher value of GS than allele 7+9. Alleles 7 and 6+8 had significantly lower GPC than alleles 7+8, 7+9, and 14+15 (p < 0.05) (Figure 3B). Moreover, allele 7+8 had significantly higher TW than allele 7+9, and alleles 7 and 6+8 had significantly lower WGC than alleles 7+8 and 7+9 (p < 0.05). At the Glu-D1 locus, SDSS significantly differed between alleles 2+12 and 5+10 (p < 0.05) (Figure 3C). Compared to allele 2+12, allele 5+10 showed significantly lower SDSS (p < 0.05). Alleles 7+9, 14+15, and 5+10 were identified as alleles related to high wheat quality.
Correlations between different allelic combinations and wheat grain quality traits were analyzed (Figure 4). There were no significant differences in GS among different allelic combinations. The “null, 7+9, 2+12” allelic combination had significantly higher GPC than the “1, 7, 5+10”, “1, 7+8, 5+10”, “1, 7+8, 5+12”, “1, 6+8, 5+10”, “1, 17+18, 5+10”, “N, 7+9, 5+10” and “null, 14+15, 2+12” allelic combinations. The “1, 6+8, 5+10” allelic combination had significantly lower FN than the “1, 7+8, 2+12”, “1, 7+9, 2+12” and “1, 14+15, 2+12” allelic combinations. The “1, 7+9, 5+10” allelic combination had significantly higher HI than the “1, 6+8, 5+10”, “1, 7, 5+10”, “1, 7+8, 2+12”, “1, 7+8, 5+10”, “1, 7+8, 5+12”, “null, 7+9, 5+10” and “null, 14+15, 2+12” allelic combinations. The “1, 7+9, 2+12” allelic combination showed significantly higher TW than the “1, 6+8, 5+10”, “1, 17+18, 5+10”, “null, 7+9, 2+12” and “null, 7+9, 5+10” allelic combinations. The “1, 7, 5+10” combination had significantly higher WI than the “null, 7+8, 2+12” and “null, 7+9, 2+12” allelic combinations. The “null, 7+9, 2+12” allelic combination had significantly higher WGC than the “1, 7, 5+10”, “1, 7+8, 2+12”, “1, 7+8, 5+10”, “1, 7+8, 5+12”, “1, 7+9, 2+12”, “1, 6+8, 5+10”, “1, 17+18, 5+10”, “null, 7+8, 5+10”, “null, 7+9, 5+10” and “null, 14+15, 2+12” allelic combinations. The SDSS was significantly lower for the “1, 6+8, 5+10” and “1, 17+18, 5+10” allele combinations than for the “1, 7+9, 5+10”, “1, 14+15, 2+12”, “2*, 7+9, 5+10”, “N, 7+8, 2+12” and “N, 7+9, 2+12” allele combinations. In summary, the “1, 7, 5+10”, “1, 7+9, 5+10”, “null, 7+9, 2+12”, “1, 14+15, 2+12”, and “1, 6+8, 5+10” allelic combinations had greater effects on wheat grain quality traits.

4. Discussion

Rare allelic variants on the Glu-1 locus of HMW-GS are critical for wheat quality [4]. In the present study, HMW-GS alleles were identified in 163 wheat lines from Hubei Province, and 15 alleles were detected. In the present study, HMW-GS alleles were identified in 163 wheat lines from Hubei Province, and 15 alleles were detected. Zheng et al. [26] identified 22 alleles in wheat landraces from the Yangtze River Basin. In the study of Dai et al. [27], 26 alleles were detected in 343 Xinjiang wheat landraces and historical varieties. Moreover, 15 alleles were found at the Glu-1 locus in commercial cultivars from China by Gao et al. [28]. Wang et al. [21] reported 14 alleles in 131 commercial varieties of wheat in the middle and lower Yangtze River region. In the study of Farahani et al. [29], 12 alleles were identified in Iranian commercial bread wheat cultivars. At the Glu-A1 locus, alleles 1, 2*, and Null were detected, with the null allele having the highest frequency (53.33%) in commercial varieties. Consistently, previous studies have demonstrated that the null allele is the most frequent at the Glu-A1 locus for cultivars from the middle and lower Yangtze River region [21,26,28]. In breeding lines, the frequencies of alleles 1, 2*, and Null at the Glu-A1 locus were 58.90%, 2.74%, and 38.36%, respectively. Allele 1 was the most frequently detected at the Glu-A1 locus. Similar results were reported by Wang et al. [21] for spring wheat in the northwestern wheat region of China. The frequency of allele 1 is higher in wheat varieties from Spain, Kazakhstan, Russia, Canada, and Europe [30,31,32].Yasmeen et al. [33] showed that the 2* and null alleles were the most frequent in Pakistan wheat varieties. A comparison of the frequency of null subunits in wheat commercial varieties from all over the world revealed that the frequency of null subunits in Chinese commercial varieties was higher, which may be related to the fact that Chinese breeding mainly focuses on yield but not quality improvement. It has been demonstrated that alleles 1 and 2* at the Glu-A1 locus have a strong positive effect on wheat flour processing quality [6,13]. In the future, we will perform the wheat flour processing quality analysis on this.
For the Glu-B1 locus, the frequency of alleles 7+8 and 7+9 was higher in both commercial varieties and breeding lines. Liu et al. [25] found that allele 7+8 was detected at the highest frequency (78.17%) in the landraces from Hubei Province, China. Glu-B1b (7+8) and Glu-B1c (7+9) appeared to be the most frequent in 131 commercial varieties in the middle and lower Yangtze River region [21]. Similarly, previous studies have found that Glu-B1b (7+8) and Glu-B1c (7+9) are major alleles in Chinese commercial cultivars [13,28,34]. Farahani et al. [29] observed the highest frequency of alleles 7+8 (36%) and 7+9 (25%) in Iranian commercial bread wheat cultivars. Alleles of Glu-B1b and Glu-B1c are predominant in Argentine and Pakistani wheat cultivars [35,36]. Allele 13+16 is the most frequent type in Spanish varieties [30]. Wang et al. [21] identified that Glu-B1g (13+19) occurs at lower frequencies in the landraces. Allele 7 was identified at low frequencies in breeding lines, landraces, and commercial cultivars from China [21,28].
At the Glu-D1 locus, alleles 2+12 and 5+10 were detected at higher frequencies in commercial varieties and breeding lines. It has been demonstrated that allele 2 + 12 is common in Chinese wheat varieties [21,25,26,27]. We determined that the frequency of allele 5+10 was higher in breeding lines than in commercial varieties from Hubei province. Allele 5+10 was shown to be the most frequent in commercial wheat varieties from Pakistan and Iran [29,33]. The rare allele 5+12 occurred at lower frequencies in commercial varieties and breeding lines in this study. Allele 2+10 occurs uniquely in commercial varieties and less frequently in Chinese landraces [37]. The “1, 7+8, 2+12”, “1, 7+8, 5+10”, and “null, 7+8, 2+12” allelic combinations were the most frequently occurred type for commercial varieties and breeding lines, which is consistent with the results of other studies [21,25,28]. Moreover, “null, 14+15, 2+12” and “null, 14+15, 5+10” were detected in breeding lines. Allele 14+15 was found to be specific to Chinese wheat cultivars and was able to improve dough quality parameters and processing quality [25,38].
The genetic diversity index (Hb) of HMW-GS in commercial varieties and breeding lines was 0.537 and 0.581, respectively, which is close to that reported for other Chinese wheat commercial varieties [21,28,39]. The genetic diversity index of wheat landraces is lower than that of commercial wheat varieties in China [25,39]. The genetic diversity index of Chinese wheat varieties was higher than that of Canadian, British, and Argentinean wheat varieties, but lower than that of French, Italian, and Australian wheat varieties [34,35]. The effective allele number (Ae) of commercial varieties and breeding lines was 2.180 and 2.492, respectively, which is similar to the results of Chinese wheat reported by Wang et al. [21]. The Hb and Ae of breeding lines were higher than those of commercial varieties, indicating that breeding lines have a broader genetic background.
The Glu-A1 locus showed less significant effects on wheat grain quality traits than loci Glu-B1 and Glu-D1. At the Glu-B1 locus, alleles 7+8, 7+9, and 14+15 had greater effects on HI, GPC, WGC, and SDSS. Peng et al. [40] elucidated the effects of alleles 7+8 and 7+9 at the Glu-B1 locus on dough processing quality. At the Glu-D1 locus, allele 5+10 had a greater effect on SDSS. Allele 5+10 is superior to other alleles in enhancing wheat bread quality [41,42,43,44]. The “1, 7+9, 5+10” and “1, 14+15, 2+12” allelic combinations had higher GPC, HI, and WGC than other combinations in the current panel of wheat accessions, which is consistent with the results of a previous study [45]. These results demonstrated the correlation between HMW-GS and wheat grain quality traits for wheat grain quality improvement.

5. Conclusions

In conclusion, we analyzed the relationship among HMW-GS and grain quality traits, The strongest effect on wheat quality was observed at the Glu-B1 locus. Alleles 7+9, 14+15, and 5+10 were identified as the alleles related to high wheat quality. The “1, 7, 5+10”, “1, 7+9, 5+10”, “null, 7+9, 2+12”, “1, 14+15, 2+12” and “1, 6+8, 5+10” allelic combinations had greater effects on wheat grain quality traits. These alleles and allelic combinations related to high wheat quality can be used in the breeding of high-quality wheat varieties in Hubei province and other parts of China.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agronomy14061158/s1, Table S1. HMW-GS composition and grain quality traits of 163 wheat cultivars in Hubei province. Table S2. Grain quality traits of commercial varieties in Huazhong Agricultural University Experimental farm. Table S3. Grain quality traits of breeding lines in Huazhong Agricultural University Experimental farm. Table S4. Grain quality traits of commercial varietie in Ezhou Experimental farm. Table S5. Grain quality traits of breeding lines in Ezhou Experimental farm.

Author Contributions

Conceptualization, J.Z. and X.R.; methodology, J.C. and Y.A.; software, X.W.; validation, M.W., C.W. and Q.W.; formal analysis, S.G. and W.H.; investigation, D.Z.; resources, D.L. and W.H.; data curation, Y.A.; writing—original draft preparation, X.W.; writing—review and editing, X.R.; visualization, Y.A.; supervision, J.Z.; project administration, J.Z. and X.R.; funding acquisition, J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Accurate Identification of the Wheat Germplasm Resources in the Mid-lower Reaches of Yangtze River (19230603), Hubei Hongshan Laboratory (2021hskf009), Zhejiang Science and Technology Major Program on Agricultural New Variety Breeding (2021C02064-3).

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Gao, Y.J.; An, K.X.; Guo, W.W.; Chen, Y.M.; Zhang, R.J.; Zhang, X.; Chang, S.Y.; Rossi, V.; Jin, F.M.; Cao, X.Y.; et al. The endosperm-specific transcription factor tanac019 regulates glutenin and starch accumulation and its elite allele improves wheat grain quality. Plant Cell 2021, 33, 603–622. [Google Scholar] [CrossRef]
  2. Zang, P.; Gao, Y.; Chen, P.; Lv, C.Y.; Zhao, G.H. Recent advances in the study of wheat protein and other food components affecting the gluten network and the properties of noodles. Foods 2022, 11, 3824. [Google Scholar] [CrossRef]
  3. Rathan, N.D.; Singh, A.M.; Govindan, V.; Ibba, M.I. Impact of high and low-molecular-weight glutenins on the processing quality of a set of biofortified common wheat (Triticum aestivum L.) lines. Front. Sustain. Food Sci. 2020, 4, 583367. [Google Scholar] [CrossRef]
  4. Roy, N.; Islam, S.; Al-Habbar, Z.; Yu, Z.; Liu, H.; Lafiandra, D.; Masci, S.; Lu, M.; Sultana, N.; Ma, W.J. Contribution to breadmaking performance of two different HMW glutenin 1Ay alleles expressed in hexaploid wheat. J. Agric. Food Chem. 2021, 69, 36–44. [Google Scholar] [CrossRef]
  5. Rasheed, A.; Xia, X.; Yan, Y.; Appels, R.; Mahmood, T.; He, Z. Wheat seed storage proteins: Advances in molecular genetics, diversity and breeding applications. J. Cereal Sci. 2014, 60, 11–24. [Google Scholar] [CrossRef]
  6. Ma, W.J.; Yu, Z.T.; She, M.Y.; Zhao, Y.; Islam, S. Wheat gluten protein and its impacts on wheat processing quality. Front. Agric. Sci. Eng. 2019, 6, 279–287. [Google Scholar] [CrossRef]
  7. Payne, P.I. Genetics of wheat storage proteins and the effect of allelic variation on bread-making quality. Annu. Rev. Plant Physiol. 1987, 38, 141–153. [Google Scholar] [CrossRef]
  8. Don, C.; Mann, G.; Bekes, F.; Hamer, R.J. HMW-GS affect the properties of glutenin particles in GMP and thus flour quality. J. Cereal Sci. 2006, 44, 127–136. [Google Scholar] [CrossRef]
  9. Goel, S.; Yadav, M.; Singh, K.; Jaat, R.S.; Singh, N.K. Exploring diverse wheat germplasm for novel alleles in HMW-GS for bread quality improvement. J. Food Sci. Technol. 2018, 55, 3257–3262. [Google Scholar] [CrossRef]
  10. Li, Y.; Fu, J.; Shen, Q.; Yang, D. High-molecular-weight glutenin subunits: Genetics, structures, and relation to end use qualities. Int. J. Mol. Sci. 2021, 22, 184. [Google Scholar] [CrossRef]
  11. Roy, N.; Islam, S.; Yu, Z.; Lu, M.; Lafiandra, D.; Zhao, Y.; Anwar, M.; Mayer, J.E.; Ma, W. Introgression of an expressed HMW 1Ay glutenin subunit allele into bread wheat cv. Lincoln increases grain protein content and breadmaking quality without yield penalty. Theor. Appl. Genet. 2020, 133, 517–528. [Google Scholar] [CrossRef] [PubMed]
  12. Payne, P.I.; Nightingale, M.A.; Krattiger, A.F.; Holt, L.M. The relationship between HMW glutenin subunit composition and the bread-making quality of British-grown wheat varieties. J. Sci. Food Agric. 1987, 40, 51–65. [Google Scholar] [CrossRef]
  13. Liu, L.; He, Z.H.; Yan, J.; Zhang, Y.; Xia, X.C.; Pena, R.J. Allelic variation at the Glu-1 and Glu-3 loci, presence of the 1B.1R translocation, and their effects on mixographic properties in Chinese bread wheats. Euphytica 2005, 142, 197–204. [Google Scholar] [CrossRef]
  14. Ma, W.J.; Appels, R.; Bekes, F.; Larroque, O.; Morell, M.K.; Gale, K.R. Genetic characterisation of dough rheological proper-ties in a wheat doubled haploid population: Additive genetic effects and epistatic interactions. Theor. Appl. Genet. 2005, 111, 410–422. [Google Scholar] [CrossRef]
  15. Ragupathy, R.; Naeem, H.A.; Reimer, E.; Lukow, O.M.; Sapirstein, H.D.; Cloutier, S. Evolutionary origin of the segmental duplication encompassing the wheat Glu-B1 locus encoding the overexpressed Bx7 (Bx7OE) high molecular weight glutenin subunit. Theor. Appl. Genet. 2008, 116, 283–296. [Google Scholar] [CrossRef]
  16. Wang, X.L.; Zhang, Y.Q.; Zhang, B.; Florides, C.G.; Gao, Z.; Wang, Z.H.; Zhang, X.K.; Wei, Y.M. Comparison of quality properties between high-molecular-weight glutenin subunits 5 + 10 and 2 + 12 near-isogenic lines under three common wheat genetic backgrounds. Cereal Chem. 2018, 95, 575–583. [Google Scholar] [CrossRef]
  17. Mastrangelo, A.M.; Cattivelli, L.G. What makes bread and durum wheat different. Trends Plant Sci. 2021, 26, 677–684. [Google Scholar] [CrossRef]
  18. Yang, D.Q.; Luo, Y.L.; Ni, Y.L.; Yin, Y.P.; Yang, W.B.; Peng, D.L.; Cui, Z.Y.; Wang, Z.L. Effects of exogenous ABA application on post-anthesis dry matter redistribution and grain starch accumulation of winter wheat with different stay green characteristics. Crop J. 2014, 2, 144–153. [Google Scholar] [CrossRef]
  19. Zhao, L.; Zhang, K.P.; Liu, B.; Deng, Z.Y.; Qu, H.L.; Tian, J.C. A comparison of grain protein content QTLs and flour protein content QTLs across environments in cultivated wheat. Euphytica 2010, 174, 325–335. [Google Scholar] [CrossRef]
  20. Daba, S.D.; Simsek, S.; Green, A.J. Predictive ability of four small-scale quality tests for dough rheological properties and baking quality in hard red spring wheat. Cereal Chem. 2021, 98, 660–672. [Google Scholar] [CrossRef]
  21. Wang, X.F.; Song, R.L.; An, Y.; Pei, H.Y.; Gao, S.; Sun, D.K.; Ren, X.F. Allelic variation and genetic diversity of HMW glutenin subunits in Chinese wheat (Triticum aestivum L.) landraces and commercial cultivars. Breed. Sci. 2022, 72, 169–180. [Google Scholar] [CrossRef] [PubMed]
  22. Payne, P.I.; Lawrence, G.J. Catalogue of alleles for the complex loci, Glu-A1, Glu- B1 and Glu-D1, which code for high molecular-weight subunits of glutenin in hexaploid wheat. Cereal Res. Commun. 1983, 11, 29–35. [Google Scholar]
  23. Ma, F.Y.; Kim, J.; Baik, B.K. Influences of high-molecular-weight glutenin subunits and rye translocations on dough-mixing properties and sugar-snap cookie-baking quality of soft winter wheat. J. Sci. Food Agric. 2020, 100, 3850–3856. [Google Scholar] [CrossRef] [PubMed]
  24. Amiri, R.; Sasani, S.; Jalali-Honarmand, S.; Rasaei, A.; Seifolahpour, B.; Bahraminejad, S. Genetic diversity of bread wheat genotypes in Iran for some nutritional value and baking quality traits. Physiol. Mol. Biol. Plants 2018, 24, 147–157. [Google Scholar] [CrossRef] [PubMed]
  25. Liu, Y.; Xiong, Z.Y.; He, Y.G.; Shewry, P.R.; He, G.Y. Genetic diversity of HMW glutenin subunit in Chinese common wheat (Triticum aestivum L.) landraces from Hubei province. Genet. Resour. Crop Evol. 2007, 54, 865–874. [Google Scholar] [CrossRef]
  26. Zheng, W.; Peng, Y.C.; Ma, J.H.; Appels, R.; Sun, D.F.; Ma, W.J. High frequency of abnormal high molecular weight glutenin alleles in Chinese wheat landraces of the Yangtze-River region. J. Cereal Sci. 2011, 54, 401–408. [Google Scholar] [CrossRef]
  27. Dai, S.F.; Xu, D.Y.; Yan, Y.L.; Wen, Z.J.; Zhang, J.B.; Chen, H.X.; Lu, Z.F.; Li, H.Y.; Cong, H.; Wei, Y.M.; et al. Characterization of high- and low-molecular-weight glutenin subunits from Chinese Xinjiang wheat landraces and historical varieties. J. Food Sci. Technol. 2020, 57, 3823–3835. [Google Scholar] [CrossRef] [PubMed]
  28. Gao, S.; Sun, G.L.; Liu, W.H.; Sun, D.K.; Peng, Y.C.; Ren, X.F. High-molecular-weight glutenin subunit compositions in current Chinese commercial wheat cultivars and the implication on Chinese wheat breeding for quality. Cereal Chem. 2020, 97, 762–771. [Google Scholar] [CrossRef]
  29. Farahani, H.; Moghaddam, M.E.; Mohammadi, A.; Nezhad, K.Z.; Naghipour, F. Effect of high molecular weight glutenin subunits on wheat quality properties, across a wide range of climates and environments in Iran. Physiol. Mol. Biol. Plants 2023, 29, 889–902. [Google Scholar] [CrossRef]
  30. Caballero, L.; Martin, L.M.; Alvarez, J.B. Intra- and interpopulation diversity for HMW glutenin subunits in spanish spelt wheat. Genet. Resour. Crop Evol. 2004, 51, 175–181. [Google Scholar] [CrossRef]
  31. An, X.; Li, Q.; Yan, Y.; Xiao, Y.; Hsam, S.; Zeller, F.J. Genetic diversity of European spelt wheat (Triticum aestivum ssp. spelta L. em. Thell.) revealed by glutenin subunit variations at the Glu-1 and Glu-3 loci. Euphytica 2005, 146, 193–201. [Google Scholar] [CrossRef]
  32. Zaitseva, O.I.; Burakova, A.A.; Babkenov, A.T.; Babkenova, S.A.; Utebayev, M.U.; Lemesh, V.A. Allelic variation of high-molecular-weight glutenin genes in bread wheat. Cytol. Genet. 2017, 51, 432–440. [Google Scholar] [CrossRef]
  33. Yasmeen, F.; Khurshid, H.; Ghafoor, A. Genetic divergence for high-molecular weight glutenin subunits (HMW-GS) in indigenous landraces and commercial cultivars of bread wheat of Pakistan. Genet. Mol. Res. 2015, 14, 4829–4839. [Google Scholar] [CrossRef] [PubMed]
  34. Novoselskaya-Dragovich, A.Y.; Fisenko, A.V.; Yankovsky, N.K.; Kudryavtsev, A.M.; Yang, Q.J.; Lu, Z.H.; Wang, D.W. Genetic diversity of storage protein genes in common wheat (Triticum aestivum L.) cultivars from China and its comparison with genetic diversity of cultivars from other countries. Genet. Resour. Crop Evol. 2011, 58, 433–454. [Google Scholar] [CrossRef]
  35. Lerner, S.E.; Kolman, M.A.; Rogers, W.J. Quality and storage protein variation in Argentinean grown bread wheat. I. Allelic diversity and discrimination between cultivars. J. Cereal Sci. 2009, 49, 337–345. [Google Scholar] [CrossRef]
  36. Tabasum, A.; Iqbal, N.; Hameed, A.; Arshad, R. Evaluation of Pakistani wheat germplasm for bread quality based on allelic variation in HMW glutenin subunits. Pak. J. Bot. 2011, 43, 1735–1740. [Google Scholar] [CrossRef]
  37. Jondiko, T.O.; Alviola, N.J.; Hays, D.B.; Ibrahim, A.; Tilley, M.; Awika, J.M. Effect of HMW-GS allelic composition on wheat flour tortilla quality. Cereal Chem. 2012, 89, 155–161. [Google Scholar] [CrossRef]
  38. Brites, C.; Carrillo, J.M. Influence of high molecular weight (HMW) and low molecular weight (LMW) glutenin subunits controlled by Glu-1 and Glu-3 loci on durum wheat quality. Cereal Chem. 2001, 78, 59–63. [Google Scholar] [CrossRef]
  39. Zhang, X.Y.; Pang, B.S.; You, G.X.; Wang, L.F.; Jia, J.Z.; Dong, Y.C. Allelic variation and genetic diversity at Glu-1 loci in Chinese wheat (Triticum aestivum L.) germplasms. Sci. Agric. Sin. 2002, 1, 1074–1082. [Google Scholar] [CrossRef]
  40. Peng, P.; Wang, X.L.; Liao, M.; Zou, X.Y.; Ma, Q.Y.; Zhang, X.K.; Hu, X.Z. Effects of HMW-GSs at Glu-B1 locus on starch-protein interaction and starch digestibility during thermomechanical processing of wheat dough. J. Sci. Food Agric. 2022, 103, 2134–2145. [Google Scholar] [CrossRef]
  41. Redaelli, R.; Pogna, N.E.; Ng, P.K.W. Effects of prolamins encoded by chromosomes 1B and 1D on the rheological properties of dough in near-isogenic lines of bread wheat. Cereal Chem. 1997, 74, 102–107. [Google Scholar] [CrossRef]
  42. Costa, M.S.; Scholz, M.B.D.S.; Franco, C.M.L. Effect of high and low molecular weight glutenin subunits and subunits of gliadin on physicochemical parameters of different wheat genotypes. Food Sci Technol. 2013, 33, 163–170. [Google Scholar] [CrossRef]
  43. Barakat, M.N.; Al-Doss, A.A.; Ghazy, A.I.; Moustafa, K.A.; Elshafei, A.A.; Ahmed, E.I. Doubled haploid wheat lines with high molecular weight glutenin alleles derived from microspore cultures. N. Z. J. Crop Hortic. Sci. 2018, 46, 198–211. [Google Scholar] [CrossRef]
  44. Karaduman, Y.; Yeşildağ, Z.S.; Akın, A. Evaluating selection efficacy of high molecular weight glutenin subunits (HMWGs) by relating gluten quality parameters. Lwt-Food Sci Technol. 2022, 155, 112949. [Google Scholar] [CrossRef]
  45. Fang, J.Y.; Liu, Y.; Luo, J.; Shewry, P.R.; He, G.Y. Allelic variation and genetic diversity of high molecular weight glutenin subunit in Chinese endemic wheats (Triticum aestivum L.). Euphytica 2009, 166, 177–182. [Google Scholar] [CrossRef]

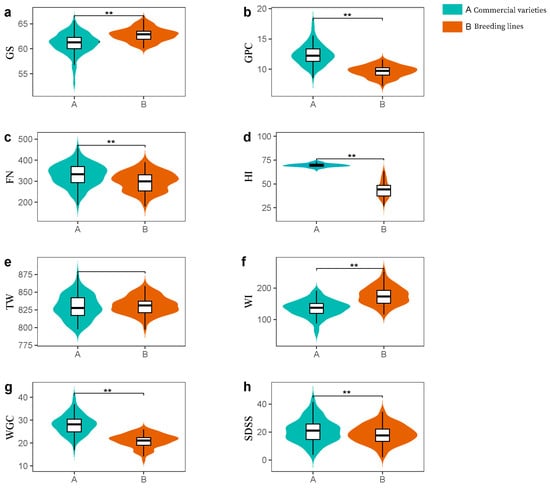

Figure 1. Differences in grain quality traits between commercial varieties and breeding lines. (a): grain starch (GS); (b): grain protein content (GPC); (c): falling number (FN); (d): hardness index (HI); (e): test weight (TW); (f): weakness index (WI); (g): wet gluten content (WGC); (h): SDS sedimentation (SDSS). **: Significant at p < 0.05 and 0.01, respectively.
Figure 1. Differences in grain quality traits between commercial varieties and breeding lines. (a): grain starch (GS); (b): grain protein content (GPC); (c): falling number (FN); (d): hardness index (HI); (e): test weight (TW); (f): weakness index (WI); (g): wet gluten content (WGC); (h): SDS sedimentation (SDSS). **: Significant at p < 0.05 and 0.01, respectively.
Agronomy 14 01158 g001

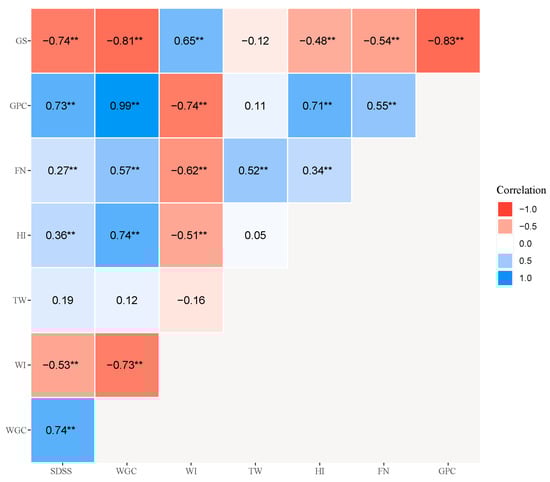

Figure 2. Correlations of wheat grain quality traits. GS, grain starch; GPC, grain protein content; FN, falling number; HI, hardness index; WI, weakness index; TW, test weight; WGC, wet gluten content; and SDSS, SDS sedimentation. **, significant at p < 0.05 and 0.01, blue indicates positive correlation, while red indicates negative correlation. respectively.
Figure 2. Correlations of wheat grain quality traits. GS, grain starch; GPC, grain protein content; FN, falling number; HI, hardness index; WI, weakness index; TW, test weight; WGC, wet gluten content; and SDSS, SDS sedimentation. **, significant at p < 0.05 and 0.01, blue indicates positive correlation, while red indicates negative correlation. respectively.
Agronomy 14 01158 g002

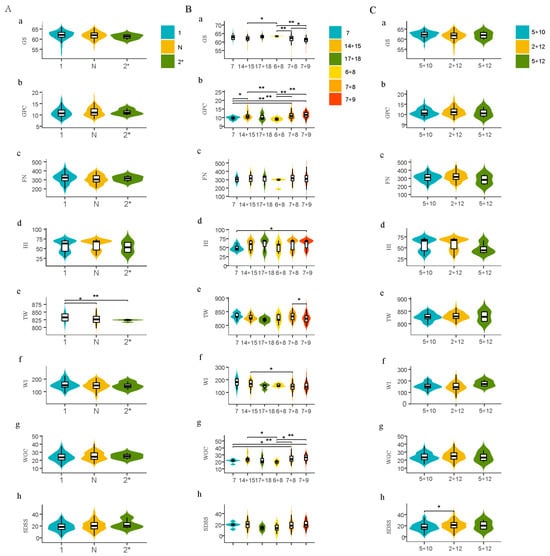

Figure 3. Comparison of alleles at Glu-A1 (A), Glu-B1 (B), and Glu-D1 (C). (a): grain starch (GS); (b): grain protein content (GPC); (c): falling number (FN); (d): hardness index (HI); (e): test weight (TW); (f): weakness index (WI); (g): wet gluten content (WGC); and (h): SDS sedimentation (SDSS). * and **, significant at p < 0.05 and 0.01, respectively.
Figure 3. Comparison of alleles at Glu-A1 (A), Glu-B1 (B), and Glu-D1 (C). (a): grain starch (GS); (b): grain protein content (GPC); (c): falling number (FN); (d): hardness index (HI); (e): test weight (TW); (f): weakness index (WI); (g): wet gluten content (WGC); and (h): SDS sedimentation (SDSS). * and **, significant at p < 0.05 and 0.01, respectively.
Agronomy 14 01158 g003

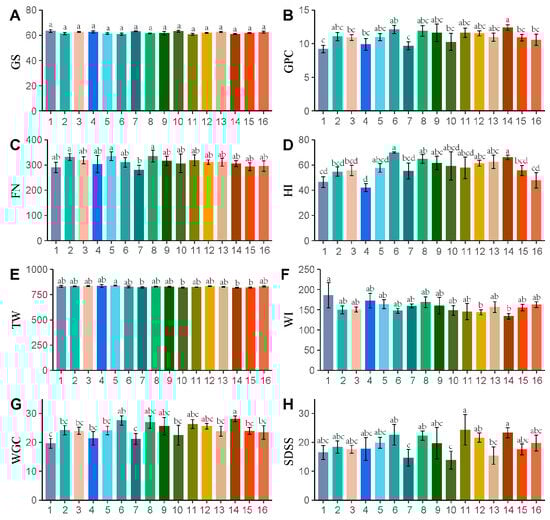

Figure 4. Performances of grain quality traits for different HMW-GS combinations. (A): grain starch (GS); (B): grain protein content (GPC); (C): falling number (FN); (D): hardness index (HI); (E): test weight (TW); (F): weakness index (WI); (G): wet gluten content (WGC) and (H): SDS sedimentation (SDSS). Horizontal axis 1: “1, 7, 5+10” (n = 3); 2: “1, 7+8, 2+12” (n = 17); 3: “1, 7+8, 5+10” (n = 17); 4: “1, 7+8, 5+12” (n = 3); 5: “1, 7+9, 2+12” (n = 14); 6: “1, 7+9, 5+10” (n = 6); 7: “1, 6+8, 5+10” (n = 5); 8: “1, 14+15, 2+12” (n = 6); 9: “1, 14+15, 5+10” (n = 5); 10: “1, 17+18, 5+10” (n = 3); 11: “2*, 7+9, 5+10” (n = 3); 12: “N, 7+8, 2+12” (n = 35); 13: “N, 7+8, 5+10” (n = 7); 14: “N, 7+9, 2+12” (n = 13); 15: “N, 7+9, 5+10” (n = 13); 16: “N, 14+15, 2+12” (n = 4). The same letters above the bars indicate insignificant differences at p < 0.05.
Figure 4. Performances of grain quality traits for different HMW-GS combinations. (A): grain starch (GS); (B): grain protein content (GPC); (C): falling number (FN); (D): hardness index (HI); (E): test weight (TW); (F): weakness index (WI); (G): wet gluten content (WGC) and (H): SDS sedimentation (SDSS). Horizontal axis 1: “1, 7, 5+10” (n = 3); 2: “1, 7+8, 2+12” (n = 17); 3: “1, 7+8, 5+10” (n = 17); 4: “1, 7+8, 5+12” (n = 3); 5: “1, 7+9, 2+12” (n = 14); 6: “1, 7+9, 5+10” (n = 6); 7: “1, 6+8, 5+10” (n = 5); 8: “1, 14+15, 2+12” (n = 6); 9: “1, 14+15, 5+10” (n = 5); 10: “1, 17+18, 5+10” (n = 3); 11: “2*, 7+9, 5+10” (n = 3); 12: “N, 7+8, 2+12” (n = 35); 13: “N, 7+8, 5+10” (n = 7); 14: “N, 7+9, 2+12” (n = 13); 15: “N, 7+9, 5+10” (n = 13); 16: “N, 14+15, 2+12” (n = 4). The same letters above the bars indicate insignificant differences at p < 0.05.
Agronomy 14 01158 g004
Table 1. Detection frequencies of the alleles and HMW-GS at Glu-1 locus in wheat. — representation as none.
Table 1. Detection frequencies of the alleles and HMW-GS at Glu-1 locus in wheat. — representation as none.
Locus SubunitAlleleNo. of VarietiesCommercial VarietiesBreeding Lines
No. of VarietiesFrequency (%)No. of LinesFrequency (%)
Glu-A11Glu-A1a834044.444358.90
2*Glu-A1b422.2222.74
NullGlu-A1c764853.332838.36
Glu-B17Glu-B1a6068.22
7+8Glu-B1b804651.113446.58
7+9Glu-B1c513336.671824.66
6+8Glu-B1d511.1145.48
13+16Glu-B1f111.110
13+19Glu-B1g111.110
14+15Glu-B1h1666.671013.70
17+18Glu-B1i322.2211.37
Glu-D12+12Glu-D1a925358.893953.42
5+10Glu-D1d663640.003041.10
2+10Glu-D1e1011.37
5+12Glu-D1h411.1134.11
Table 2. Combination type and score of wheat HMW-GS. ? symbol indicates that previous research did not define a score value.
Table 2. Combination type and score of wheat HMW-GS. ? symbol indicates that previous research did not define a score value.
NumberHMW-GS CompositionsAllelesNumber of VarietiesCommercial VarietiesBreeding LinesScore
NumberFrequency (%)NumberFrequency (%)
11/7/2+12aaa1011.376
21/7/5+10aad3034.118
31/7+8/2+12aba1788.89912.338
41/7+8/5+10abd17910.00810.9610
51/7+8/5+12abh3034.11?
61/7+9/2+12aca1466.67810.967
71/7+9/5+10acd666.6709
81/7+9/2+10ace1011.37?
91/6+8/5+10add511.1145.488
101/13+16/2+12afa111.1108
111/13+19/5+10agd111.110?
121/14+15/2+12aha633.3334.118
131/14+15/5+10ahd533.3322.7410
141/17+18/5+10aid322.2211.3710
152*/7+8/5+10bbd1011.3710
162*/7+9/5+10bcd322.2211.379
17N/7/2+12caa1011.374
18N/7/5+10cad1011.376
19N/7+8/2+12cba352426.671115.076
20N/7+8/5+10cbd755.5622.748
21N/7+9/2+12cca131112.2222.745
22N/7+9/5+10ccd1377.7868.227
23N/7+9/5+12cch111.1107
24N/14+15/2+12cha4045.486
25N/14+15/5+10chd1011.378
Table 3. Genetic diversity index of HMW-GS at the Glu-1 locus.
Table 3. Genetic diversity index of HMW-GS at the Glu-1 locus.
Indicator TypeCommercial VarietyBreeding Line
Ha10.5180.505
Ha20.5990.694
Ha30.4930.544
Hb0.5370.581
Alleles1313
A4.3334.333
Ae2.1802.492
H: Genetic diversity index; Ha1: H value of Glu-A1; Ha2: H value of Glu-B1; Ha3: H value of Glu-D1. Hb: The average value of H at the three loci of Glu-1. Alleles: number of alleles. A: Average number of alleles. Ae: Effective number of alleles.
