Complex/cryptic EWSR1::FLI1/ERG Gene Fusions and 1q Jumping Translocation in Pediatric Ewing Sarcomas

by
Ying S. Zou
1,2,3,*,
Laura Morsberger
1,2,3,
Melanie Hardy
1,2,3,
Jen Ghabrial
1,2,3,
Victoria Stinnett
1,2,3,
Jaclyn B. Murry
1,2,3,
Patty Long
1,2,3,
Andrew Kim
4,
Christine A. Pratilas
5,
Nicolas J. Llosa
5,
Brian H. Ladle
5,
Kathryn M. Lemberg
5,
Adam S. Levin
6,
Carol D. Morris
7,
Lisa Haley
1,2,
Christopher D. Gocke
1,2 and
John M. Gross
2
1
Johns Hopkins Genomics, Baltimore, MD 21205, USA
2
Department of Pathology, Johns Hopkins University School of Medicine, Baltimore, MD 21205, USA
3
Cytogenetics Laboratory, Johns Hopkins Medicine, Baltimore, MD 21205, USA
4
Biotechnology, Johns Hopkins University, Baltimore, MD 21205, USA
5
Division of Pediatric Oncology, Sidney Kimmel Comprehensive Cancer Center, Johns Hopkins University, Baltimore, MD 21205, USA
6
Department of Orthopaedic Surgery, Johns Hopkins University School of Medicine, Baltimore, MD 21205, USA
7
Orthopaedic Surgery Service, Memorial Sloan Kettering Cancer Center, New York, NY 10065, USA
*
Author to whom correspondence should be addressed.
Genes 2023, 14(6), 1139; https://doi.org/10.3390/genes14061139
Submission received: 4 April 2023 / Accepted: 17 May 2023 / Published: 24 May 2023
(This article belongs to the Special Issue Advances in Clinical Cytogenetics)
Browse Figures
Versions Notes

Abstract

:
Ewing sarcomas (ES) are rare small round cell sarcomas often affecting children and characterized by gene fusions involving one member of the FET family of genes (usually EWSR1) and a member of the ETS family of transcription factors (usually FLI1 or ERG). The detection of EWSR1 rearrangements has important diagnostic value. Here, we conducted a retrospective review of 218 consecutive pediatric ES at diagnosis and found eight patients having data from chromosome analysis, FISH/microarray, and gene-fusion assay. Three of these eight ES had novel complex/cryptic EWSR1 rearrangements/fusions by chromosome analysis. One case had a t(9;11;22)(q22;q24;q12) three-way translocation involving EWSR1::FLI1 fusion and 1q jumping translocation. Two cases had cryptic EWSR1 rearrangements/fusions, including one case with a cryptic t(4;11;22)(q35;q24;q12) three-way translocation involving EWSR1::FLI1 fusion, and the other had a cryptic EWSR1::ERG rearrangement/fusion on an abnormal chromosome 22. All patients in this study had various aneuploidies with a gain of chromosome 8 (75%), the most common, followed by a gain of chromosomes 20 (50%) and 4 (37.5%), respectively. Recognition of complex and/or cryptic EWSR1 gene rearrangements/fusions and other chromosome abnormalities (such as jumping translocation and aneuploidies) using a combination of various genetic methods is important for accurate diagnosis, prognosis, and treatment outcomes of pediatric ES.

1. Introduction

Ewing sarcomas (ES) are rare small round cell sarcomas, most often arising in the long bones of pediatric patients, but may occasionally also arise within soft tissues and affect adults [1]. They behave aggressively clinically, with a survival rate of 30% for those with metastatic disease. ES is genetically characterized by balanced reciprocal chromosomal translocations in which a member of the FET gene family is fused with an ETS transcription factor. The t(11;22) reciprocal translocation is the most common translocation [2,3], which fuses the N-terminal transactivation domain of the Ewing sarcoma breakpoint region 1 protein (EWSR1) with the C-terminal DNA binding domain of the Friend leukemia integration 1 transcription factor (FLI1) [4]. The EWSR1::FLI1 gene fusion occurs in approximately 85% of ESs, followed by EWSR1::ERG gene fusion occurring in approximately 5% of ESs, and other EWSR1 fusions/rearrangements at a much lower frequency, all of which are cancer-specific chimeric transcription factors that enormously restore the transcriptome leading to tumorigenesis of ES [4,5,6,7]. Therefore, the detection of EWSR1 gene fusions/rearrangements in ES is of great diagnostic value.
Routine genetic techniques used for detecting EWSR1 translocations/rearrangements in ES include conventional chromosome analysis [2,8], fluorescence in situ hybridization (FISH) [9,10], reverse transcriptase-PCR (RT-PCR) [10], and advanced molecular techniques such as NanoString nCounter TagSet chemistry [11], or RNA-sequencing-based methods [12]. These molecular methods are often needed to help support or exclude a diagnosis of ES. Conventional chromosome analysis can provide structural and numerical chromosome abnormalities at a single cell level with a 5–10 Mb resolution. EWSR1 break-apart FISH is a widely used technique for detecting EWSR1 gene rearrangements without prior knowledge of the gene fusion partners. While dual-color dual-fusion EWSR1::FLI1 FISH is specifically designed to detect the EWSR1::FLI1 gene fusion, the NanoString nCounter assay/RNA-based method is a high-throughput hybridization technique that can be customized to test for many fusion transcripts in a single assay using RNA from formalin-fixed, paraffin-embedded material [11,12].
Complex and cryptic EWSR1 gene rearrangements/fusions in ES have been reported mainly as individual case reports, and their frequencies in newly diagnosed ES patients at a routine cytogenetic laboratory are not well-recognized. Here, we performed a retrospective review of consecutive ES pediatric patients at initial diagnosis who had available data from conventional chromosome analysis, FISH/SNP microarray, and gene fusion assay. We found eight ES pediatric patients, and all patients in this study had complex karyotypes with various aneuploidies, structural chromosome abnormalities, and positive EWSR1 FISH and gene fusion assay. Three of eight patients in this study cohort had novel complex and cryptic EWSR1 rearrangements/fusions by conventional chromosome analysis. Two patients had cryptic EWSR1 rearrangements/fusions, and one had a complex three-way translocation. With the emerging family of non-Ewing undifferentiated small round cell sarcomas of bone and soft tissue, including sarcomas with CIC-rearrangements, BCOR-alterations, and EWSR1-non ETS fusions, recognition of these complex and cryptic EWSR1 fusions/rearrangements in ES is both diagnostically and prognostically valuable and often requires a multimodal molecular approach [13,14].

2. Materials and Methods

We performed a retrospective review of consecutive ES pediatric patients with new diagnoses who had available data from conventional chromosome analysis, FISH/SNP microarray, and gene fusion assay. From 1 January 1998 to 31 March 2023, 218 patients were referred to our hospital due to ES and had routine diagnostic procedures, such as morphologic evaluation, immunohistochemistry, conventional chromosome analysis, FISH/SNP microarray, and/or gene fusion assay. Only newly diagnosed pediatric ES patients concurrently having complete data from conventional chromosome analysis, FISH/SNP microarray, and gene fusion assay were selected for this study. Classification by standard ES practice and delineated by the World Health Organization was based on clinical, morphologic, immunophenotypic, and cytogenetic/molecular genetic features.
Conventional chromosome analysis/karyotyping (G-banded chromosome studies) was performed using standard techniques. A minimum of 20 metaphase cells were analyzed from tumor cultures. The abnormal karyotypes were described using the International System for Human Cytogenetic Nomenclature (ISCN 2020). Chromosome diagrams were drawn using the CyDAS package (http://www.cydas.org/, accessed on 1 April 2023).
Fluorescence in situ hybridization (FISH) was performed on interphase nuclei and metaphase cells using break-apart probes of EWSR1 (Abbott Molecular, Inc., Des Plaines, Cook, IL, USA), dual-color, double-fusion probes of EWSR1::FLI1 (Empire Genomics, Inc., Williamsville, New York, NY, USA), and sub-telomere probes for 4qter, 11qter, and 22qter (Oxford Gene Technology, Inc., Begbroke Science Park, Kidlington, UK) according to the manufacturer’s protocol as previously described [11,15]. A total of 200 interphase nuclei and 20 metaphase cells per probe were visually evaluated with fluorescence microscopy by two technologists scoring blinded from each other using a Zeiss Axioscope system (Carl Zeiss Microscopy, LLC, Oberkochen, 73447, Germany).
For a NanoString gene fusion panel, 300 ng RNAs from the formalin-fixed paraffin-embedded (FFPE) tumor specimens were used for the NanoString gene fusion assay in the present study following the manufacturer’s protocol as previously described [11].
Whole-genome SNP microarray was performed with DNA extracted from remnant fixed cell pellet using the Qiagen Puregene protocol or tumor specimens as previously described [11,15]. B-allele frequency and LogR signal intensities were used to examine and identify potentially pathogenic genomic imbalance regions.
Immunohistochemistry was performed on the FFPE tumor specimens using the antibodies of CD99, desmin, myogenin, and NKX2.2 according to the manufacturer’s protocol.

3. Results

3.1. Summary of the Patient Cohort in This Study

From a retrospective review of two-hundred eighteen consecutive ES pediatric patients at new diagnosis, we found fifteen ES pediatric patients who had available data from conventional chromosome analysis and FISH. Among these specimens, nine consecutive specimens from eight newly diagnosed pediatric ES patients simultaneously had complete data from conventional chromosome analysis, FISH/SNP microarray, and gene fusion assay (see Table 1).
All patients in this study had abnormal karyotypes with various aneuploidies, structural chromosome abnormalities, and positive EWSR1 FISH and gene fusion assay. Seven patients had EWSR1::FLI1 gene fusions, and one had EWSR1::ERG gene fusion. Over one-third (patient IDs 3, 4, and 8 in Table 1) in our cohort had novel complex and cryptic EWSR1 rearrangements/fusions by conventional chromosome analysis. One case had a complex three-way translocation and 1q jumping translocation (patient ID 3 in Table 1). Two cases had cryptic EWSR1 rearrangements, including one with a cryptic three-way translocation leading to an EWSR1::FLI1 fusion (patient ID 4 in Table 1), and the other had a cryptic EWSR1::ERG fusion on an abnormal chromosome 22 (patient ID 8 in Table 1). All eight patients in this study had various aneuploidies, with a gain of chromosome 8 (75%) being the most common and followed by gains of chromosome 20 (50%), chromosome 4 (37.5%), chromosome 2 (25%), chromosome 5 (25%), and chromosome 16 (25%), respectively.

3.2. Patient 3

A male pediatric patient presented with right arm pain, swelling, and neurovascular compromise leading to numbness, weakness, paresthesia, shoulder pain with movement, and decreased appetite, concerning for oncological process. Magnetic resonance imaging (MRI) of the right arm extremity demonstrated a right humeral mass, and computed tomography (CT) of the chest demonstrated innumerable bilateral solid pulmonary nodules consistent with pulmonary metastases. He underwent a biopsy of the right humerus lesion, which revealed a monotonous round blue cell sarcoma with fine chromatin (Figure 1) that strongly expressed NKX2.2 and CD99, whereas desmin and myogenin were negative, supporting the diagnosis of ES.
By chromosome analysis, the right humerus ES tumor had an abnormal karyotype 48,XY,del(9)(q34),t(9;11;22)(q22;q24;q12),add(12)(q24.1),+16,+18,der(18)t(1;18)(q12;p11.3)x2,der(21)t(1;21)(q12;p11.2)[3]/49,sl,+13[6]/50,sdl,+20[11], which included a complex three-way translocation t(9;11;22)(q22;q24;q12), a 1q jumping translocation, various trisomies, and structural chromosomal abnormalities (Figure 2a). Using an EWSR1 break-apart probe set, FISH revealed EWSR1 rearrangements with 3′ EWSR1 on the derivative chromosome 9 involved in the three-way translocation (Figure 2b,c).
An EWSR1::FLI1 fusion was present on the derivative chromosome 22 (der(22)) using a dual-color dual-fusion EWSR1::FLI1 probe-set (Figure 3).
NanoString gene fusion panel revealed an EWSR1::FLI1 fusion involving exon 7 of EWSR1 and exon 6 of FLI1 (Figure 4).
SNP microarray revealed a high-level gain of chromosome 1q (Figure 5a) and a gain of chromosomes 13, 16, 18, and 20 (Figure 5b).
He was treated with standard multi-agent chemotherapy, which was tolerated without significant complications, and radiation to the humerus and lungs as definitive local control. Recurrent pulmonary metastatic disease was detected at 4 months after completion of treatment, and he was deceased 15 months after diagnosis due to respiratory failure as a result of widespread progressive pulmonary metastatic ES.

3.3. Patient 4

A male pediatric patient presented with right knee pain and swelling. An MRI showed a right femoral diaphysis lesion, with subsequent biopsy showing a monotonous small round blue cell sarcoma with fine chromatin and scant amphophilic cytoplasm. The tumor was strongly and diffusely positive for NKX2.2 (nuclear) and CD99 (membranous) by immunohistochemistry, and a diagnosis of ES was rendered. A concurrent bone marrow biopsy did not reveal evidence of metastatic disease. A positron emission tomography (PET)/CT did not reveal evidence of distant disease.
By chromosome analysis, the right femoral ES had an abnormal karyotype of 46,XY,t(4;22)(q35;q12),+8,-10,+12,-16[3]/50,sl,+4,+8,+10,+16[6]/46,XY [11], which included a t(4;22)(q35;q12) reciprocal translocation (Figure 6a), tetrasomy 8, and other aneuploidies. FISH using an EWSR1 break-apart probe set identified EWSR1 rearrangement in 96% of interphase nuclei (Figure 6b), with the 3′ EWSR1 locus on the derivative chromosome 4 involved in the 4;22 translocation (Figure 6c,d).
An EWSR1::FLI1 fusion was present on the derivative chromosome 22 by a dual-color dual-fusion EWSR1::FLI1 probe-set (Figure 7a,b). FLI1 FISH signals were present on both chromosomes 11 (Figure 7a,b), and SNP microarray revealed normal copy numbers for chromosomes 11 and 22, including the EWSR1 and FLI1 genes (Figure 7c), suggesting the presence of a cryptic t(4;11;22)(q35;q24;q12) three-way translocation.
Sub-telomere FISH for chromosomes 4qter, 11qter, and 22qter was performed, and the FISH signal patterns further supported the presence of a cryptic t(4;11;22)(q35;q24;q12) three-way translocation (Figure 8).
  • NanoString gene fusion panel revealed an EWSR1::FLI1 fusion involving exon 10 of EWSR1 and exon 5 of FLI1 (Figure 9).
SNP microarray revealed copy number variants involving chromosomes 4, 8, 10, 12, and 16 (Figure 7c), consistent with the chromosome findings.
He was treated with standard multi-agent chemotherapy, and a significant decrease in the tumor size was seen after six neoadjuvant cycles of chemotherapy, which was well-tolerated. The patient underwent wide excision of the femur ES which, on pathologic review, demonstrated a significant treatment response with tumor necrosis of 99% and negative surgical margins. He completed adjuvant chemotherapy and is doing well, without evidence of recurrent disease.

3.4. Patient 8

A male pediatric patient initially presented with left-sided back and flank pain that started as dull and acutely worsened. He also developed a cough and lost several pounds. A chest CT showed a mass arising from the left posterior sixth rib with a questionable periosteal reaction of the seventh rib. He subsequently underwent a core needle biopsy of the lesion that showed a monotonous small round blue cell sarcoma with fine chromatin and scant amphophilic cytoplasm. The tumor was strongly positive for NKX2.2 (nuclear) and CD99 (membranous) by immunohistochemistry, and a diagnosis of ES was rendered. A concurrent bone marrow biopsy and full body PET/CT did not reveal evidence of metastatic disease.
By chromosome analysis, the left sixth rib ES had an abnormal karyotype of 47,XY,+8,der(22)add(22)(p11.2)del(22)(q12)[3]/46,XY[7], which included trisomy 8 and an abnormal chromosome 22 with additional material of unknown origin on the short arm of chromosome 22 and a terminal deletion of the long arm of chromosome 22 involving 22q12 band based on a suboptimal conventional chromosome analysis (Figure 10a).
By FISH, the left sixth rib ES had EWSR1 rearrangements in 64% of interphase nuclei analyzed using an EWSR1 break-apart probe set (Figure 10b). A subsequent FISH using a dual-color dual-fusion EWSR1::FLI1 probe-set was negative for an EWSR1::FLI1 fusion, both EWSR1 genes were present on chromosomes 22 (a normal chromosome 22 and an abnormal derivative chromosome 22), and both FLI1 FISH signals were present on both chromosomes 11 by metaphase FISH analysis (Figure 10c). NanoString gene fusion panel revealed an EWSR1::ERG fusion involving exon 7 of EWSR1 and exon 9 of ERG.
He was treated with standard neoadjuvant multi-agent chemotherapy and then underwent resection of the tumor with a portion of the sixth rib where ES arose the seventh rib, and a small portion of the fifth rib. Tumor necrosis was approximately 50% on examination of the resection specimen. He completed adjuvant chemotherapy and is doing well without evidence of recurrence.

4. Discussion

As a pediatric bone tumor, ES often has EWSR1 rearrangements/fusions, mainly EWSR1::FLI1 fusions, frequently caused by reciprocal translocations between chromosomes 11 and 22. However, rare cases of complex three-way or four-way translocations and cryptic rearrangements/fusions leading to unusual EWSR1::FLI1 and EWSR1::ERG gene fusions in ES have been reported [2,8,16,17,18,19]. Here, we performed a retrospective review of newly diagnosed ES patients. In this study, we found three out of eight patients (37.5%) harbor novel complex and cryptic EWSR1 rearrangements/fusions in pediatric ES patients.
For complex translocations involving chromosomes 9, 11, and 22, two ES cases have been described previously [16,17]. One had a three-way translocation with t(9;?11;22) (p?24;?q24;q12) [16], and the other had a four-way translocation with t(9;11;22;13) (p22;q24;q12;q22) [17]. Both ES cases had breakpoints involving the short arm of chromosome 9 at either the 9p22 band or a possible 9p24 band. Our 9;11;22 three-way translocation had a breakpoint involving the long arm of chromosome 9 at the 9q22 band, which is different from previously reported 9;11;22 translocation cases.
Relevant to the second case highlighted, a t(4;22)(q35;q12) reciprocal translocation, it has previously been reported, by conventional chromosome analysis, in an extra-skeletal soft tissue (the distal aspect of right thigh) ES in a patient who presented with pulmonary metastases and paraplegia due to involvement of the spine [20]. However, FISH or other molecular diagnostic methods for an EWSR1::FLI1 fusion was not performed [20]. Interestingly, a t(4;22)(q35;q12) translocation has also been reported in a case of embryonal rhabdomyosarcoma and results in the fusion of the EWSR1 gene with the DUX4 gene [21]. In our case, the t(4;22)(q35;q12) reciprocal translocation involved an EWSR1 rearrangement and EWSR1::FLI1 fusion on the derivative chromosome 22. The EWSR1::FLI1 metaphase FISH signal pattern, normal copy number for EWSR1 and FLI1 genes by SNP microarray, and sub-telomere FISH signal patterns support the presence of a possible cryptic t(4;11;22) three-way translocation instead of a potential FLI1 insertion into the derivative chromosome 22. For a t(4;11;22) three-way translocation, at least two ES cases have been described previously [18,19]. Both cases had breakpoints involving the long proximal arm of chromosome 4 at either the 4q21 band or the 4q25 band [18,19]. The t(4;22)(q35;q12) reciprocal translocation in our case involved the distal (near sub-telomere) region of the long arm of chromosome 4 at the 4q35 band, resulting in a cryptic t(4;11;22)(q35;q24;q12) three-way translocation by conventional chromosome analysis. The previously reported ES case with a t(4;22)(q35;q12) reciprocal translocation by conventional chromosome analysis [20] may also have a cryptic t(4;11;22)(q35;q24;q12) three-way translocation leading to an EWSR1::FLI1 fusion. Therefore, performing FISH or gene fusion-based assays for an EWSR1::FLI1 fusion in these ES cases is vital to rule out a cryptic three-way translocation or other complex rearrangements.
Cryptic and complex rearrangements resulting in EWSR1::ERG fusions have been reported previously [22,23,24]. Most of these have abnormalities on chromosome 22, such as a derivative chromosome 22 with a breakpoint on 22q12 and a suggestion of EWSR1 gene rearrangements, but do not have obvious t(21;22)(q22;q12) reciprocal translocation leading to EWSR1::ERG fusions. These cryptic EWSR1::ERG fusions are commonly present on derivative chromosome 22 via an inversion-insertion mechanism (by either the 5′ fraction of the EWSR1 gene or the 3′ fraction of the EGR gene inverted and inserted to develop the fusion) [22]. Cryptic EWSR1::ERG fusions inserted into chromosome 21 have been reported in at least two cases [23,24]. One case has a cryptic EWSR1::ERG fusion inserted into a complex three-way translocation t(1;21;7)(q25;q22.3;q22) involving the long arms of chromosomes 1, 7, and 21 [23]. Both cases have a cryptic EWSR1::ERG fusion inserted into the long arm of a derivative chromosome 21. Patient 8 in this study likely has an EWSR1::ERG fusion inserted into the long arm of a derivative chromosome 22. Since gene fusions can insert into different arms of various chromosomes when the classic t(11;22) or t(21;22) reciprocal translocation is not apparent in a karyotype, alternative methods such as FISH or a gene fusion assay could be performed to look for a variant or cryptic gene fusion in ES.
Most of the patients in our study contained complex karyotypes with various aneuploidies and structural chromosomal abnormalities. Although the gain of chromosome 8 is common and seems to be recurrent in ES, structural chromosomal abnormalities seem to be random, except gain of 1q. Two patients (patient IDs 3 and 6, 25% in this study) had a gain of 1q. Patient 3 had jumping translocations, and patient 6 had whole-arm translocations. Jumping translocations have been defined as nonreciprocal translocations involving a donor chromosome arm or chromosome segment fused to several different recipient chromosomes [25]. Jumping translocations involving 1q12–21 as the donor chromosome segment are referred to as 1q jumping translocations. 1q jumping translocations have been infrequently reported in patients with multiple myeloma, malignant lymphoproliferative disorders, and myeloid malignancies [26,27,28]. They result in 1q gain and possible loss of segments of the recipient chromosomes. In terms of recipient chromosomes, approximately 43% of reported 1q jumping translocations in myeloid malignancies occurred in the short arms of the five acrocentric chromosomes, and over one-third occurred in telomeric regions of chromosome arms [27]. The 1q jumping translocation, in our case, involved the short arm of an acrocentric chromosome 21 and the telomeric region of chromosome 18p. 1q gain has been identified as a secondary genetic alteration with a significant prevalence in ES, which was also markedly associated with relapse and poor overall and disease-free survival [29,30]. Although the large heterochromatic regions at 1q12 might be responsible for the frequent translocation breakpoint leading to the gain of the long arm of chromosome 1 [31,32], to the best of our knowledge, 1q jumping translocations have not been previously described in pediatric ES along with a complex three-way translocation.

5. Conclusions

In summary, we identified three novel complex and cryptic rearrangements leading to EWSR1::FLI1 and EWSR1::ERG gene fusions with various breakpoints in our cohort of newly diagnosed pediatric ES patients. Two patients had either a cryptic three-way translocation or a cryptic insertion/complex rearrangement, which were not recognizable by conventional chromosome analysis. A high proportion of novel complex and cryptic rearrangements/fusions in ES patients add challenges to identifying these variants EWSR1::FLI1 and EWSR1::ERG fusions within a routine clinical cytogenetic laboratory. We advocate an essential cytogenetic/molecular genetic approach, including the integration of conventional chromosome analysis, FISH, and gene fusion assays to increase the detection of variant rearrangements/fusions in ES patients. Furthermore, most ES patients in this study had a complex karyotype with both recurrent numerical and structural chromosomal abnormalities. Recognizing complex (three-way translocations) and cryptic (translocations/insertions/inversions) EWSR1::FLI1 and EWSR1::ERG gene fusions along with other chromosome abnormalities (such as 1q jumping translocations, tetrasomy, aneuploidies, and structural chromosomal abnormalities) using a combination of various diagnostic methods is important for accurate diagnosis, prognosis, and treatment outcomes of pediatric Ewing sarcomas.

Author Contributions

Methodology and analysis: L.M., J.G., M.H., V.S., P.L., A.K. and L.H.; writing and editing: Y.S.Z., J.M.G., C.A.P., B.H.L., K.M.L., A.S.L., C.D.M., N.J.L., J.B.M., C.D.G. and L.H. All authors have read and agreed to the published version of the manuscript.

Funding

The Johns Hopkins Cytogenomics Laboratory is an academic laboratory supported by the Johns Hopkins School of Medicine Department of Pathology.

Institutional Review Board Statement

The institutional review board of Johns Hopkins Medicine approved this study (JHIRB00385848).

Informed Consent Statement

A retrospective study and the informed consent was waived.

Data Availability Statement

The dataset for the current study is available from the corresponding author upon reasonable request.

Acknowledgments

The authors would like to acknowledge the efforts of the cytogenetics technologists and laboratory technicians of the Johns Hopkins Cytogenomics Laboratory.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. The WHO Classification of Tumours Editorial Board. WHO Classification of Tumours Soft Tissue and Bone Tumours, 5th ed.; IARC Press: Lyon, France, 2020. [Google Scholar]
  2. Sandberg, A.A.; Bridge, J.A. The Cytogenetics of Bone and Soft Tissue Tumors; R.G.: Austin, TX, USA; Landes, France, 1994; p. 469. [Google Scholar]
  3. Turc-Carel, C.; Aurias, A.; Mugneret, F.; Lizard, S.; Sidaner, I.; Volk, C.; Thiery, J.P.; Olschwang, S.; Philip, I.; Berger, M.P.; et al. Chromosomes in Ewing’s sarcoma. I. An evaluation of 85 cases of remarkable consistency of t(11;22)(q24;q12). Cancer Genet. Cytogenet. 1988, 32, 229–238. [Google Scholar] [CrossRef] [PubMed]
  4. Delattre, O.; Zucman, J.; Melot, T.; Garau, X.S.; Zucker, J.-M.; Lenoir, G.M.; Ambros, P.F.; Sheer, D.; Turc-Carel, C.; Triche, T.J.; et al. The Ewing Family of Tumors—A Subgroup of Small-Round-Cell Tumors Defined by Specific Chimeric Transcripts. N. Engl. J. Med. 1994, 331, 294–299. [Google Scholar] [CrossRef] [PubMed]
  5. Ohno, T.; Rao, V.N.; Reddy, E.S. EWS/Fli-1 chimeric protein is a transcriptional activator. Cancer Res. 1993, 53, 5859–5863. [Google Scholar] [PubMed]
  6. May, W.A.; Lessnick, S.L.; Braun, B.S.; Klemsz, M.; Lewis, B.C.; Lunsford, L.B.; Hromas, R.; Denny, C.T. The Ewing’s sarcoma EWS/FLI-1 fusion gene encodes a more potent transcriptional activator and is a more powerful transforming gene than FLI-1. Mol. Cell. Biol. 1993, 13, 7393–7398. [Google Scholar] [PubMed]
  7. Miller, H.E.; Gorthi, A.; Bassani, N.; Lawrence, L.A.; Iskra, B.S.; Bishop, A.J.R. Reconstruction of Ewing Sarcoma Developmental Context from Mass-Scale Transcriptomics Reveals Characteristics of EWSR1-FLI1 Permissibility. Cancers 2020, 12, 948. [Google Scholar] [CrossRef]
  8. Sandberg, A.A.; Bridge, J.A. Updates on cytogenetics and molecular genetics of bone and soft tissue tumors: Ewing sarcoma and peripheral primitive neuroectodermal tumors. Cancer Genet. Cytogenet. 2000, 123, 1–26. [Google Scholar] [CrossRef]
  9. Newby, R.; Rowe, D.; Paterson, L.; Farquharson, M.A.; MacDuff, E.; Coupe, A.; Hale, J.; Dildey, P.; Bown, N. Cryptic EWSR1-FLI1 fusions in Ewing sarcoma: Potential pitfalls in the diagnostic use of fluorescence in situ hybridization probes. Cancer Genet. Cytogenet. 2010, 200, 60–64. [Google Scholar] [CrossRef]
  10. Rekhi, B.; Vogel, U.; Basak, R.; Desai, S.B.; Jambhekar, N.A. Clinicopathological and Molecular Spectrum of Ewing Sarcomas/PNETs, Including Validation of EWSR1 Rearrangement by Conventional and Array FISH Technique in Certain Cases. Pathol. Oncol. Res. 2013, 20, 503–516. [Google Scholar] [CrossRef]
  11. Haley, L.; Parimi, V.; Jiang, L.; Pallavajjala, A.; Hardy, M.; Yonescu, R.; Morsberger, L.; Stinnett, V.; Long, P.; Zou, Y.S.; et al. Diagnostic Utility of Gene Fusion Panel to Detect Gene Fusions in Fresh and Formalin-Fixed, Paraffin-Embedded Cancer Specimens. J. Mol. Diagn. 2021, 23, 1343–1358. [Google Scholar] [CrossRef]
  12. Rivera, C.M.; Faquin, W.C.; Thierauf, J.; Afrogheh, A.H.; Jaquinet, A.; Iafrate, A.J.; Rivera, M.N.; Troulis, M.J. Detection of EWSR1 fusions in CCOC by targeted RNA-seq. Oral Surg. Oral Med. Oral Pathol. Oral Radiol. 2021, 134, 240–244. [Google Scholar] [CrossRef]
  13. Kallen, M.E.; Hornick, J.L. From the ashes of “Ewing-like” sarcoma: A contemporary update of the classification, immunohistochemistry, and molecular genetics of round cell sarcomas. Semin. Diagn. Pathol. 2022, 39, 29–37. [Google Scholar] [CrossRef]
  14. Kallen, M.E.; Hornick, J.L. The 2020 WHO Classification: What’s New in Soft Tissue Tumor Pathology? Am. J. Surg. Pathol. 2021, 45, e1–e23. [Google Scholar] [CrossRef]
  15. Jiang, L.; Pallavajjala, A.; Huang, J.; Haley, L.; Morsberger, L.; Stinnett, V.; Hardy, M.; Park, R.; Ament, C.; Finch, A.; et al. Clinical Utility of Targeted Next-Generation Sequencing Assay to Detect Copy Number Variants Associated with Myelodysplastic Syndrome in Myeloid Malignancies. J. Mol. Diagn. 2021, 23, 467–483. [Google Scholar] [CrossRef]
  16. Roberts, P.; Burchill, S.A.; Brownhill, S.; Cullinane, C.J.; Johnston, C.; Griffiths, M.J.; McMullan, D.J.; Bown, N.P.; Morris, S.P.; Lewis, I.J. Ploidy and karyotype complexity are powerful prognostic indicators in the Ewing’s sarcoma family of tumors: A study by the United Kingdom Cancer Cytogenetics and the Children’s Cancer and Leukaemia Group. Genes Chromosom. Cancer 2007, 47, 207–220. [Google Scholar] [CrossRef]
  17. Llombart-Bosch, A.; Carda, C.; Peydro-Olaya, A.; Noguera, R.; Perez-Bacete, M.; Pellin, A.; Boix, J. Soft tissue Ewing’s sarcoma. Characterization in established cultures and xenografts with evidence of a neuroectodermic phenotype. Cancer 1990, 66, 2589–2601. [Google Scholar] [CrossRef]
  18. Abdelmoula, N.B.; Landman-Parker, J.; Tourniaire, B.; Josset, P.; Boccon-Gibod, L.; Peter, M.; Delattre, O. An aggressive Ewing sarcoma associated with a new variant translocation, t(4;11;22)(q25;q24;q12), hyperdiploid karyotype, and tetrasomy 8. Cancer Genet. Cytogenet. 2005, 163, 186–188. [Google Scholar] [CrossRef]
  19. Squire, J.; Zielenska, M.; Thorner, P.; Tennyson, S.; Weitzman, S.; Pai, K.M.; Yeger, H.; Ng, Y.-K.; Weksberg, R. Variant translocations of chromosome 22 in Ewing’s sarcoma. Genes Chromosom. Cancer 1993, 8, 190–194. [Google Scholar] [CrossRef]
  20. Nagaraj, P.; Srinivas, C.H.; Rao, R.; Manohar, S. Extra skeletal Soft Tissue Ewing’s Sarcoma with Variant Translocation of Chromosome t (4; 22) (q35; q12)-A Case Report. J. Orthop. Case Rep. 2013, 3, 12–15. [Google Scholar]
  21. Sirvent, N.; Trassard, M.; Ebran, N.; Attias, R.; Pedeutour, F. Fusion of EWSR1 with the DUX4 facioscapulohumeral muscular dystrophy region resulting from t(4;22)(q35;q12) in a case of embryonal rhabdomyosarcoma. Cancer Genet. Cytogenet. 2009, 195, 12–18. [Google Scholar] [CrossRef]
  22. Maire, G.; Brown, C.W.; Bayani, J.; Pereira, C.; Gravel, D.H.; Bell, J.C.; Zielenska, M.; Squire, J.A. Complex rearrangement of chromosomes 19, 21, and 22 in Ewing sarcoma involving a novel reciprocal inversion-insertion mechanism of EWS-ERG fusion gene formation: A case analysis and literature review. Cancer Genet. Cytogenet. 2008, 181, 81–92. [Google Scholar] [CrossRef]
  23. Kaneko, Y.; Kobayashi, H.; Handa, M.; Satake, N.; Maseki, N. EWS-ERG fusion transcript produced by chromosomal insertion in a Ewing sarcoma. Genes Chromosom. Cancer 1997, 18, 228–231. [Google Scholar] [CrossRef]
  24. Jinawath, N.; Morsberger, L.; Norris-Kirby, A.; Williams, L.M.; Yonescu, R.; Argani, P.; Griffin, C.A.; Murphy, K.M. Complex rearrangement of chromosomes 1, 7, 21, 22 in Ewing sarcoma. Cancer Genet. Cytogenet. 2010, 201, 42–47. [Google Scholar] [CrossRef] [PubMed]
  25. Berger, R.; Bernard, O.A. Jumping translocations. Genes Chromosom. Cancer 2007, 46, 717–723. [Google Scholar] [CrossRef] [PubMed]
  26. Sawyer, J.R.; Tian, E.; Walker, B.A.; Wardell, C.; Lukacs, J.L.; Sammartino, G.; Bailey, C.; Schinke, C.D.; Thanendrarajan, S.; Davies, F.E.; et al. An acquired high-risk chromosome instability phenotype in multiple myeloma: Jumping 1q Syndrome. Blood Cancer J. 2019, 9, 62. [Google Scholar] [CrossRef]
  27. Lee, I.; Gudipati, M.A.; Waters, E.; Duong, V.H.; Baer, M.R.; Zou, Y. Jumping translocations of chromosome 1q occurring by a multi-stage process in an acute myeloid leukemia progressed from myelodysplastic syndrome with a TET2 mutation. Mol. Cytogenet. 2019, 12, 47. [Google Scholar] [CrossRef]
  28. Najfeld, V.; Hauschildt, B.; Scalise, A.; Gattani, A.; Patel, R.; Ambinder, E.P.; Silverman, L.R. Jumping translocations in leukemia. Leukemia 1995, 9, 634–639. [Google Scholar]
  29. Hattinger, C.M.; Pötschger, U.; Tarkkanen, M.; Squire, J.; Zielenska, M.; Kiuru-Kuhlefelt, S.; Kager, L.; Thorner, P.; Knuutila, S.; Niggli, F.K.; et al. Prognostic impact of chromosomal aberrations in Ewing tumours. Br. J. Cancer 2002, 86, 1763–1769. [Google Scholar] [CrossRef]
  30. Mackintosh, C.; Ordonez, J.L.; Garcia-Dominguez, D.J.; Sevillano, V.; Llombart-Bosch, A.; Szuhai, K.; Scotlandi, K.; Alberghini, M.; Sciot, R.; Sinnaeve, F.; et al. 1q gain and CDT2 overexpression underlie an aggressive and highly proliferative form of Ewing sarcoma. Oncogene 2012, 31, 1287–1298. [Google Scholar] [CrossRef]
  31. Sawyer, J.R.; Tian, E.; Thomas, E.; Koller, M.; Stangeby, C.; Sammartino, G.; Goosen, L.; Swanson, C.; Binz, R.L.; Barlogie, B.; et al. Evidence for a novel mechanism for gene amplification in multiple myeloma: 1q12 pericentromeric heterochromatin mediates breakage-fusion-bridge cycles of a 1q12 approximately 23 amplicon. Br. J. Haematol. 2009, 147, 484–494. [Google Scholar] [CrossRef]
  32. Barki-Celli, L.; Lefebvre, C.; Le Baccon, P.; Nadeau, G.; Bonnefoix, T.; Usson, Y.; Vourc, C.; Khochbin, S.; Leroux, D.; Callanan, M. Differences in nuclear positioning of 1q12 pericentric heterochromatin in normal and tumor B lymphocytes with 1q rearrangements. Genes Chromosom. Cancer 2005, 43, 339–349. [Google Scholar] [CrossRef]
Genes 14 01139 g001 550
Figure 1. Histology of a humerus lesion in patient 3. The histologic evaluation shows monotonous small round blue cells with fine chromatin and scant amphophilic cytoplasm.
Figure 1. Histology of a humerus lesion in patient 3. The histologic evaluation shows monotonous small round blue cells with fine chromatin and scant amphophilic cytoplasm.
Genes 14 01139 g001
Genes 14 01139 g002 550
Figure 2. Cytogenetic analysis of patient 3 (a) A karyogram of 48,XY, del(9)(q34), t(9;11;22) (q22;q24;q12),add(12)(q24.1),+16,+18,der(18)t(1;18)(q12;p11.3)x2,der(21)t(1;21)(q12;p11.2). Red arrows point to the t(9;11;22) three-way translocation, and other arrows point to other abnormalities (b) Post-G-banded metaphase FISH using EWSR1 break-apart probe shows EWSR1 rearrangements. Green signals correspond to the 3′ portion of the EWSR1 gene on the derivative chromosome 9, and red signals correspond to the 5′ portion of EWSR1 remaining on the derivative 22. (c) EWSR1 FISH signals in the G-banded metaphase cell.
Figure 2. Cytogenetic analysis of patient 3 (a) A karyogram of 48,XY, del(9)(q34), t(9;11;22) (q22;q24;q12),add(12)(q24.1),+16,+18,der(18)t(1;18)(q12;p11.3)x2,der(21)t(1;21)(q12;p11.2). Red arrows point to the t(9;11;22) three-way translocation, and other arrows point to other abnormalities (b) Post-G-banded metaphase FISH using EWSR1 break-apart probe shows EWSR1 rearrangements. Green signals correspond to the 3′ portion of the EWSR1 gene on the derivative chromosome 9, and red signals correspond to the 5′ portion of EWSR1 remaining on the derivative 22. (c) EWSR1 FISH signals in the G-banded metaphase cell.
Genes 14 01139 g002
Genes 14 01139 g003 550

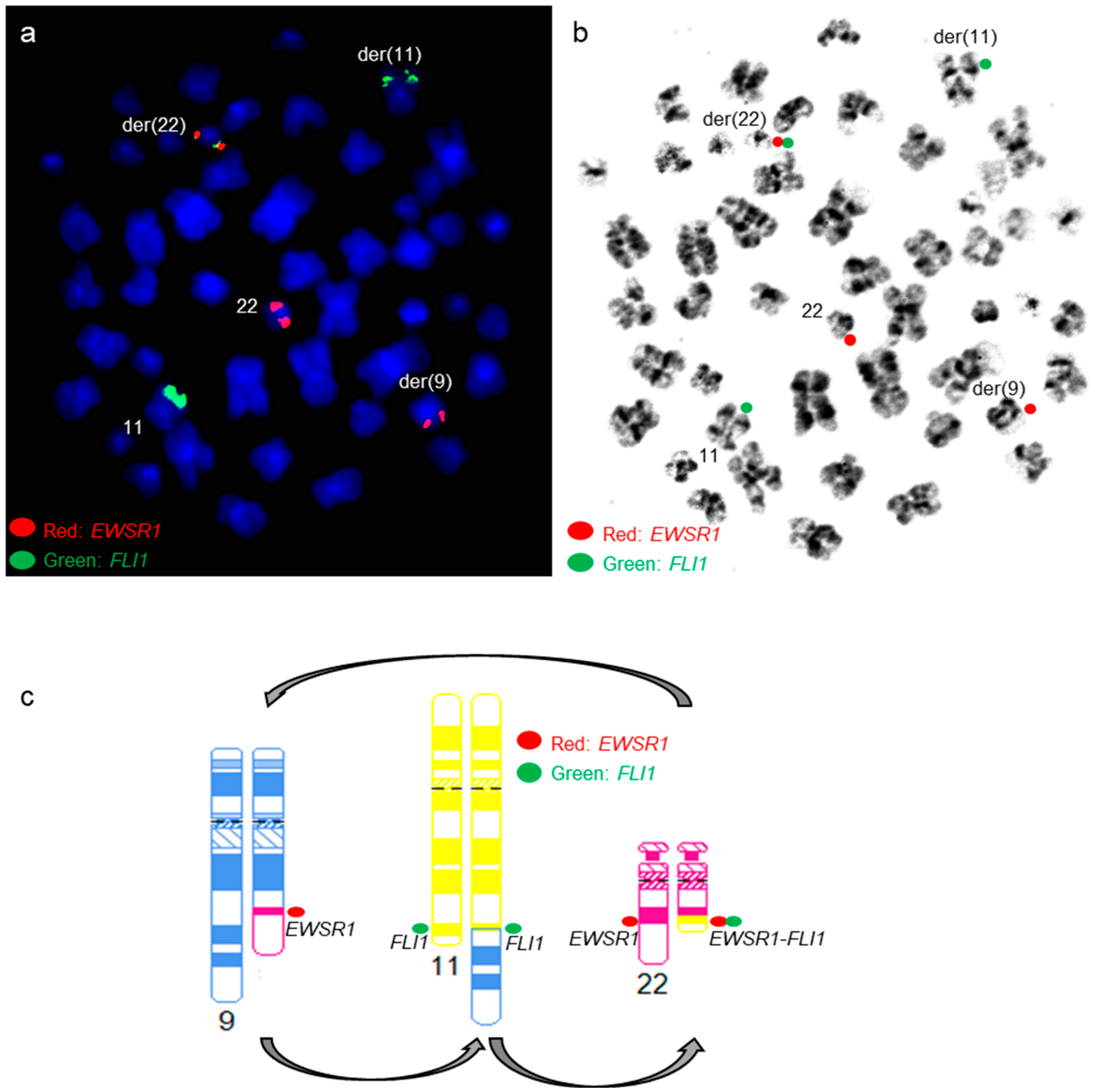

Figure 3. EWSR1::FLI1 FISH analysis in patient 3 (a,b) Metaphase FISH using dual-color dual-fusion EWSR1-FLI1 probe set shows EWSR1::FLI1 fusion on the derivative chromosome 22 involved in the t(9;11;22)(q22;q24;q12) three-way translocation. Green signals are for the FLI1 gene, and red signals are for the EWSR1 gene. (b) FISH signals in the G-banded metaphase cell. (c) Diagrammatic representation of the complex three-way chromosomal rearrangement.
Figure 3. EWSR1::FLI1 FISH analysis in patient 3 (a,b) Metaphase FISH using dual-color dual-fusion EWSR1-FLI1 probe set shows EWSR1::FLI1 fusion on the derivative chromosome 22 involved in the t(9;11;22)(q22;q24;q12) three-way translocation. Green signals are for the FLI1 gene, and red signals are for the EWSR1 gene. (b) FISH signals in the G-banded metaphase cell. (c) Diagrammatic representation of the complex three-way chromosomal rearrangement.
Genes 14 01139 g003
Genes 14 01139 g004 550

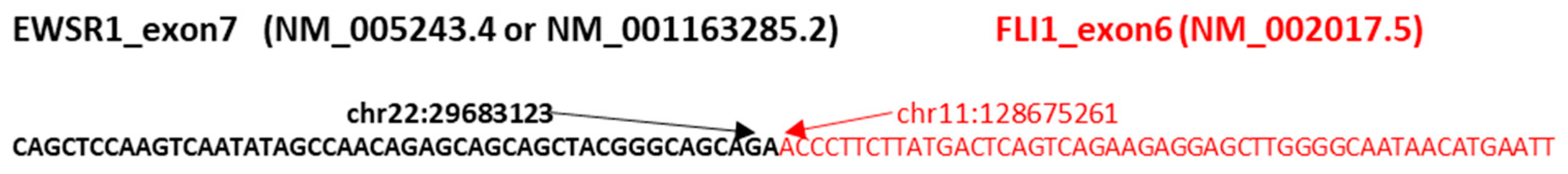

Figure 4. Visualization of the EWSR1::FLI1 fusion identified by the NanoString gene fusion assay in patient 1. The genomic translocation breakpoints were mapped to chr22:29,683, 123 (exon 7) for EWSR1 and chr11:128,675,261 (exon 6) for FLI1.
Figure 4. Visualization of the EWSR1::FLI1 fusion identified by the NanoString gene fusion assay in patient 1. The genomic translocation breakpoints were mapped to chr22:29,683, 123 (exon 7) for EWSR1 and chr11:128,675,261 (exon 6) for FLI1.
Genes 14 01139 g004
Genes 14 01139 g005 550

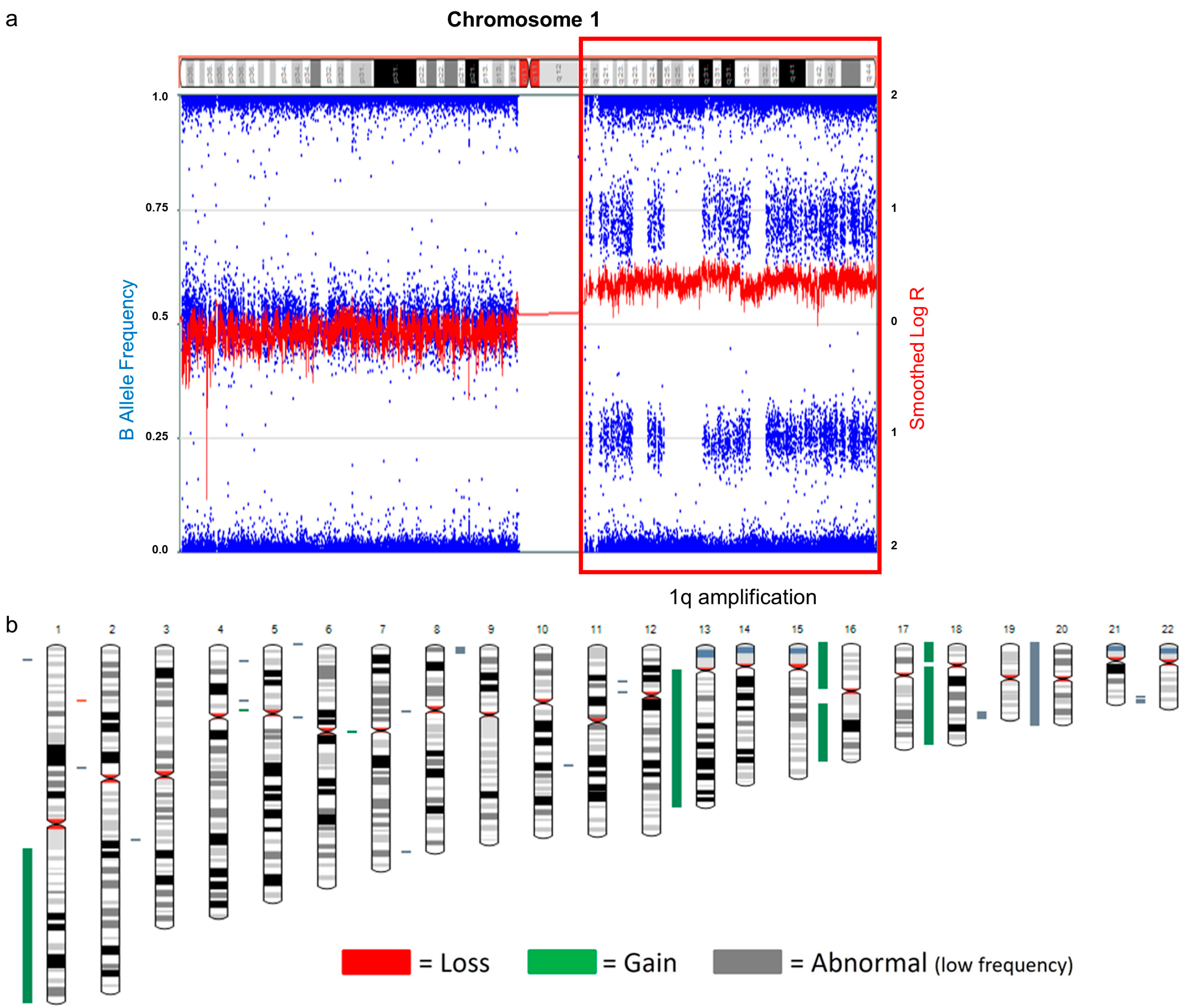

Figure 5. SNP microarray of patient 3. (a) Gain of 1q (arr[GRCh37] 1q12q44(142,632,577-249,218,992x1, shown in red box) by copy number plot based on LogR signal intensities (red line) and B-allele frequency plots (blue dots). (b) Whole-genome view of SNP microarray data.
Figure 5. SNP microarray of patient 3. (a) Gain of 1q (arr[GRCh37] 1q12q44(142,632,577-249,218,992x1, shown in red box) by copy number plot based on LogR signal intensities (red line) and B-allele frequency plots (blue dots). (b) Whole-genome view of SNP microarray data.
Genes 14 01139 g005
Genes 14 01139 g006 550
Figure 6. Cytogenetic analysis of patient 4 (a) Partial karyogram shows chromosomes 4, 11, and 22. Arrows point to the t(4;22)(q35;q12) reciprocal translocation by chromosome analysis. (b) FISH using EWSR1 break-apart probe shows EWSR1 rearrangements in interphase cells. (c,d) FISH using EWSR1 break-apart probe shows EWSR1 rearrangements in the G-banded metaphase cell. Green signals correspond to the 3′ portion of the EWSR1 gene on the derivative chromosome 4, and red signals correspond to the 5′ portion of EWSR1 remaining on the derivative chromosome 22. (d) EWSR1 FISH signals in the G-banded metaphase cell.
Figure 6. Cytogenetic analysis of patient 4 (a) Partial karyogram shows chromosomes 4, 11, and 22. Arrows point to the t(4;22)(q35;q12) reciprocal translocation by chromosome analysis. (b) FISH using EWSR1 break-apart probe shows EWSR1 rearrangements in interphase cells. (c,d) FISH using EWSR1 break-apart probe shows EWSR1 rearrangements in the G-banded metaphase cell. Green signals correspond to the 3′ portion of the EWSR1 gene on the derivative chromosome 4, and red signals correspond to the 5′ portion of EWSR1 remaining on the derivative chromosome 22. (d) EWSR1 FISH signals in the G-banded metaphase cell.
Genes 14 01139 g006
Genes 14 01139 g007 550
Figure 7. EWSR1::FLI1 FISH and SNP microarray analysis in patient 4 (a,b) Metaphase FISH using dual-color dual-fusion EWSR1-FLI1 probe set shows EWSR1::FLI1 fusion on the derivative chromosome 22 involved in a cryptic t(4;11;22) three-way translocation. Green signals are for the FLI1 gene, and red signals are for the EWSR1 gene. (b) FISH signals in the G-banded metaphase cell. (c) Whole-genome view of SNP microarray data.
Figure 7. EWSR1::FLI1 FISH and SNP microarray analysis in patient 4 (a,b) Metaphase FISH using dual-color dual-fusion EWSR1-FLI1 probe set shows EWSR1::FLI1 fusion on the derivative chromosome 22 involved in a cryptic t(4;11;22) three-way translocation. Green signals are for the FLI1 gene, and red signals are for the EWSR1 gene. (b) FISH signals in the G-banded metaphase cell. (c) Whole-genome view of SNP microarray data.
Genes 14 01139 g007
Genes 14 01139 g008 550

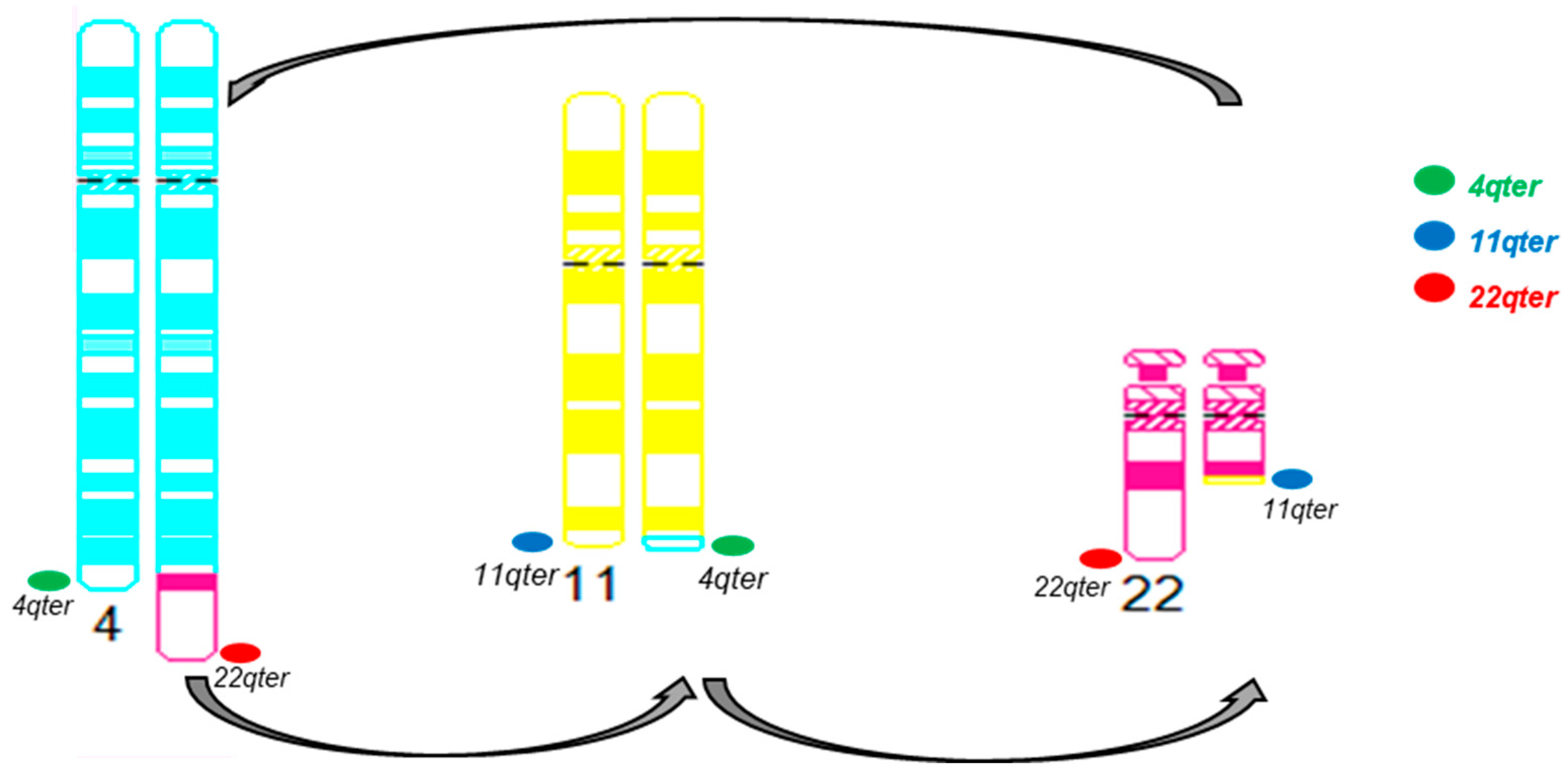

Figure 8. Diagrammatic representation of the cryptic three-way translocation by sub-telomere FISH for chromosomes 4qter, 11qter, and 22qter.
Figure 8. Diagrammatic representation of the cryptic three-way translocation by sub-telomere FISH for chromosomes 4qter, 11qter, and 22qter.
Genes 14 01139 g008
Genes 14 01139 g009 550

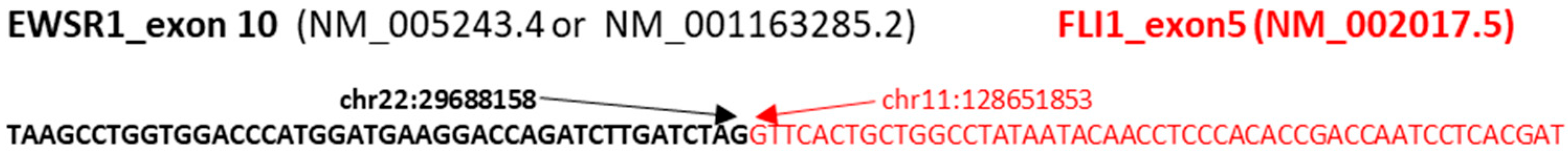

Figure 9. Visualization of the EWSR1::FLI1 fusion identified by the NanoString gene fusion assay. The genomic translocation breakpoints were mapped to chr22:29,688,158 (exon 10) for EWSR1 and chr11:128,651,853 (exon 5) for FLI1.
Figure 9. Visualization of the EWSR1::FLI1 fusion identified by the NanoString gene fusion assay. The genomic translocation breakpoints were mapped to chr22:29,688,158 (exon 10) for EWSR1 and chr11:128,651,853 (exon 5) for FLI1.
Genes 14 01139 g009
Genes 14 01139 g010a 550Genes 14 01139 g010b 550

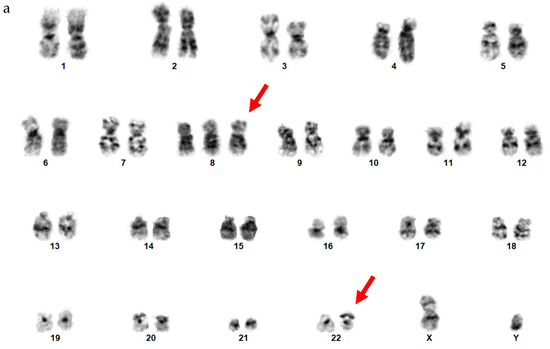

Figure 10. Cytogenetic analysis of patient 8 (a) A karyogram of 47,XY,+8,der(22)add(22) (p11.2)del(22)(q12). Red arrows point to trisomy 8 and the derivative chromosome 22. (b) Interphase FISH using EWSR1 break-apart probe shows EWSR1 rearrangements. Red arrows point to the cells with EWSR1 gene rearrangements. (c) FISH using an EWSR1/FLI1 probe-set shows EWSR1 and FLI1 FISH signals in an inverted 4′,6-diamidino-2-phenylindole (DAPI)-banded metaphase cell.
Figure 10. Cytogenetic analysis of patient 8 (a) A karyogram of 47,XY,+8,der(22)add(22) (p11.2)del(22)(q12). Red arrows point to trisomy 8 and the derivative chromosome 22. (b) Interphase FISH using EWSR1 break-apart probe shows EWSR1 rearrangements. Red arrows point to the cells with EWSR1 gene rearrangements. (c) FISH using an EWSR1/FLI1 probe-set shows EWSR1 and FLI1 FISH signals in an inverted 4′,6-diamidino-2-phenylindole (DAPI)-banded metaphase cell.
Genes 14 01139 g010aGenes 14 01139 g010b
Table
Table 1. Summary of the study cohort.
Table 1. Summary of the study cohort.
IDEwing
Sarcoma
(Location)		Conventional Chromosome Analysis
(Karyotype of Abnormal Clones)		FISH
(Positive for) 		Gene Fusion
1L. chest wall 49,XX,+4,+8,t(11;22)(q24;q12),+20/96-99,slx2EWSR1EWSR1::FLI
2R. iliac crest49,XX,+5,+8,+8,t(11;22)(q24;q12)EWSR1EWSR1::FLI
3R. humerus & metastatic lung48,XY,del(9)(q34),t(9;11;22)(q22;q24;q12),add(12)(q24.1),+16, +18,der(18)t(1;18)(q11;p11.3)x2,der(21)t(1;21)(q11;p11.2)/ 49,sl,+13/50,sdl,+20EWSR1 & EWSR1::FLI1EWSR1::FLI
4R. femur46,XY,t(4;22)(q35;q12),+8,-10,+12,-16/50,sl,+4,+8,+10,+16EWSR1 & EWSR1::FLI1EWSR1::FLI
5L. pubic bone96-104,XXXX,add(1)(p12),i(1)(q10),+2,+2,+4,+4,+8,+8,+8,+8,+9, t(11;22)(q24;q12)x2,der(16)t(12;16)(q13;q24)x2,+20,+20EWSR1EWSR1::FLI
6R. lung & metastatic lymph node47,XX,+1,+1,der(1;15)(q10;q10)x2,add(2)(q35),del(5)(q31),t(11;22)(q24;q12), +15EWSR1EWSR1::FLI
7L. femur51,XX,+2,+5,+7,+8,t(11;22)(q24;q12),+20 at diagnosisEWSR1EWSR1::FLI
51,XX,+2,+5,+7,+8,del(10)(q24q25),t(11;22)(q24;q12),+20 at follow-upEWSR1EWSR1::FLI
8L. chest wall47,XY,+8,der(22)add(22)(p11.2)del(22)(q12)EWSR1 *EWSR1::ERG
L.: left; R.: right; *: This case is negative for EWSR1::FLI1 by FISH.
