Transcriptomic Analysis of the Developing Testis and Spermatogenesis in Qianbei Ma Goats

by
Yue Zou
1,2,3,
Xiang Chen
1,2,3,*,
Xingzhou Tian
1,2,3,
Wei Guo
1,2,3,
Yong Ruan
1,2,3,
Wen Tang
1,2,3,
Kaibin Fu
1,2,3 and
Taotao Ji
1,2,3
1
Key Laboratory of Animal Genetics, Breeding and Reproduction in the Plateau Mountainous Region, Ministry of Education, Guizhou University, Guiyang 550025, China
2
Key Laboratory of Animal Genetics, Breeding and Reproduction, Guiyang 550025, China
3
College of Animal Science, Guizhou University, Guiyang 550025, China
*
Author to whom correspondence should be addressed.
Genes 2023, 14(7), 1334; https://doi.org/10.3390/genes14071334
Submission received: 15 May 2023 / Revised: 22 June 2023 / Accepted: 23 June 2023 / Published: 25 June 2023
(This article belongs to the Special Issue Genetic Regulation of Animal Reproduction)
Browse Figures
Versions Notes

Abstract

:
Reproductive competence in male mammals depends on testicular function. Testicular development and spermatogenesis in goats involve highly complex physiological processes. In this study, six testes were, respectively, obtained from each age group, immature (1 month), sexually mature (6 months) and physically mature (12 months old) Qianbei Ma goats. RNA-Seq was performed to assess testicular mRNA expression in Qianbei Ma goats at different developmental stages. Totally, 18 libraries were constructed to screen genes and pathways involved in testis development and spermatogenesis. Totally, 9724 upregulated and 4153 downregulated DEGs were found between immature (I) and sexually mature (S) samples; 7 upregulated and 3 downregulated DEGs were found between sexually mature (S) and physically mature (P) samples, and about 4% of the DEGs underwent alternative splicing events between I and S. Select genes were assessed by qRT-PCR, corroborating RNA-Seq findings. The detected genes have key roles in multiple developmental stages of goat testicular development and spermatogenesis. Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) analyses were performed to determine differentially expressed genes (DEGs). GO analysis revealed DEGs between S and P contributed to “reproduction process”, “channel activity” and “cell periphery part” between I and S, and in “ion transport process”, “channel activity” and “transporter complex part”. KEGG analysis suggested the involvement of “glycerolipid metabolism”, “steroid hormone biosynthesis” and “MAPK signaling pathway” in testis development and spermatogenesis. Genes including IGF1, TGFB1, TGFBR1 and EGFR may control the development of the testis from immature to sexually mature, which might be important candidate genes for the development of goat testis. The current study provides novel insights into goat testicular development and spermatogenesis.

1. Introduction

The Qianbei Ma goat is a unique goat breed in the mountainous area of Guizhou Plateau. It is large in size, strong in constitution and delicious in taste. It is a goat breed whose skin and meat are both valuable, and has many advantages such as strong adaptability, high fertility, stable genetic inheritance and strong disease resistance. However, the research on its reproductive performance mainly focuses on lambing and estrus in she-goat and the molecular biology understanding of testicular development or spermatogenesis in Qianbei Ma goat is very limited, deserving further investigation. The breeding performance of male animals is also important to the total fertility of the population. Additionally, the most important guarantee for the reproductive performance of rams is the normal development of testis and spermatogenesis. Testicular development and spermatogenesis are very complex and precise processes which are regulated by multiple genes.
The testis represents a critical organ of the male reproductive system in mammals, producing spermatozoids and androgens. Spermatogenesis constitutes a developmental event, which produces haploid spermatozoa from diploid spermatogonial stem cells during meiosis in the testis [1]. Spermatogenesis comprises three steps, including spermatogonial proliferation and differentiation, meiotic division of spermatocytes and spermatozoid maturation [2]. Aside from spermatogenic cells, spermatogenic mechanisms involve many somatic cells in the testicle, including Sertoli and Leydig cells. In the testis of mammals, spermatogenesis occurs in seminiferous tubules, where germ cells are associated with Sertoli cells. Genes associated with the latter cells also have critical functions in precise steps of spermatogenesis [3]. The proper development of the testicles ensures the spermatogenesis process.
RNA sequencing (RNA-Seq) allows an expression profiling of genes and might help map and quantify the transcriptome [4,5]. This approach offers many advantages compared to other transcriptomic tools, including high resolution/sensitivity, a broad dynamic range of gene expression, and the identification of new transcript sequences and splice isoforms of previously reported genes [6]. Ramsköld [7] evaluated multiple tissues from mammals by RNA-Seq and reported that most genes were specifically expressed in testicular samples. Additionally, considering RNA-Seq-based expression patterns, Djureinovic [8] categorized 20,050 putative human genes, which showed specific expression in the human testicle. Their evaluation revealed the testicular tissue had by far the largest quantity of tissue-specific genes. Using microarray analysis, Anand detected differentially expressed genes (DEGs) in testicular samples compared to other tissues, identifying 2868 upregulated transcripts and 2011 downregulated mRNAs [9]. The testicle appears to have a higher degree of metabolic activity relative to other normal tissues. Most current reports assessing the association of testicular development with spermatogenesis have been performed in the human or mouse species, and the goat is scarcely examined.
The present work aimed to perform transcriptome profiling of immature and mature Qianbei Ma goat testis specimens by RNA-Seq and bioinformatic analysis. The findings provide novel insights into the mechanisms regulating goat testicular development and spermatogenesis.

2. Materials and Methods

2.1. Ethics Statement

This study had approval from the Animal Ethics Committee of Guizhou University (Guiyang, China) (No. EAE-GZU-2021-P024, Guiyang, China; 30 March 2021).

2.2. Animal Handling and Sample Collection

Permission was granted to castrate eighteen healthy Qianbei Ma goats in Fuxing Husbandry Co., Ltd., Zunyi, Guizhou, China. Goat ages were obtained from goat farming records. There were six immature goats (1 month old, before sexual maturation, i.e., samples I1, I2, I3, I4, I5 and I6), six sexually mature goats (6 months old, after sexual maturation but before physical maturation, i.e., samples S1, S2, S3, S4, S5 and S6) and six physically mature goats (12 months old, after physical maturation, i.e., samples P1, P2, P3, P4, P5 and P6). We surgically collected the right testes from the eighteen goats by castration after anesthesia, followed by storage in RNA/DNA sample protector (Servicebio, Wuhan, China). The testis from each goat was cut longitudinally, and a small amount (3–5 g) of the parenchyma, including seminiferous tubules and Leydig cells, underwent snap freezing in liquid nitrogen and was transported to the lab for further studies. All castrated goats remained in Fuxing Husbandry Co., Ltd. (Guizhou, China) after our study, for fatten feeding.

2.3. RNA Quantitation and Quality

Total RNA extraction was carried out from the testicular tissue in groups I, S and P using TRIzol reagent (Servicebio, Wuhan, China) and RNeasy RNA purification kit (Servicebio, Wuhan, China) with DNase as directed by the manufacturer. A NanoDrop™ One spectrophotometer (Thermo Fisher Scientific, Waltham, Ma, USA) was utilized to assess RNA purity and amounts. RNA quality assessment utilized 1% agarose gel electrophoresis. High-quality RNA samples (OD 260/280 of 1.8–2.0, integrity > 7.0 and 28S:18S above 1.0) were sequenced on an Illumina NovaSeq 6000 system, generating 150-bp paired end reads.

2.4. Transcriptome Sequencing

Approximately 5 μg RNA/sample constituted the input material for RNA sample preparation. Index-coded samples were clustered with NEBNext® Ultra™ Directional RNA Library Prep Kit for Illumina® according to a protocol provided by the manufacturer. Upon clustering, the prepared libraries underwent sequencing on an Illumina NovaSeq 6000 (Illumina, San Francisco, CA, USA). The image data of the sequences yielded by the high-throughput sequencer were converted into sequence data (reads) by CASA V A base recognition to obtain FASTQ files. Raw RNA-Seq FASTQ data next underwent filtration with Fastp v [10], a quality control software that can quickly filter and correct FASTQ data to exclude adapter-containing, N-containing and low-quality (quality score below 20) reads, resulting in clean reads, and were mapped to the goat (C. hircus) (ARS1.2) reference genome [4] using HISAT2, a software uses a graph Ferragina Manzini index to align DNA and RNA sequences [11].

2.5. Quantification of Gene Expression

Reads mapped to a given gene were counted with featurerts for estimating the expression of various gene transcripts. Gene expression was determined from million mapped reads per kilobase (FPKM) values [12], the current commonest approach to estimate gene expression [13].

2.6. Differential Expression Analysis

The DESeq2 software (1.20.0) was used to analyze differential expression between the treatment and control groups. The Benjamini–Hochberg algorithm was utilized to adjust p values (p-adj) to control for false discovery rate. |log2 (FoldChange)| ≥ 1 and padj < 0.05 was set as the significance threshold for differential expression [14].

2.7. GO and KEGG Enrichment Analyses of DEGs

GO and KEGG analyses of DEGs were implemented with ClusterProfiler, correcting for gene length bias. KEGG is an information database based on molecular findings, particularly via genome sequencing and additional high-throughput techniques to produce large-scale molecular data sets, allowing a deep understanding of biological systems (http://www.genome.jp/kegg/, accessed on 21 July 2022) [15]. GO and KEGG terms with |log2 (FoldChange)| ≥1 and padj < 0.05 were deemed to be DEGs with significant enrichment [10].

2.8. Prediction of New Transcripts and Alternative Splicing Analysis

StringTie was utilized to build and identify previously reported and new transcripts from HISAT2 alignment data. StringTie utilizes a network-flow algorithm with optional de novo assembly to splice transcripts. Compared with cufflinks, StringTie has the following classifying AS events, which were assessed in various samples separately.
Advantages: (1) it yields more complete transcripts; (2) assembles more accurate transcripts; (3) better estimates the transcript’s expression level and (4) has greater splicing speed [16,17]. rMATS (http://rnaseqmats.sourceforge.net/index.html, accessed on 22 July 2022) was utilized to classify events.

2.9. qRT-PCR for RNA-Seq Data Validation

By analyzing the results of RNA sequencing and combining with the results of other earlier studies [18,19,20,21,22,23], we screened TGFBR1, TGFB1, EGFR, IGF1, MAPK3 and SMAD4 associated with testicular development or spermatogenesis. These DEGs were significantly up-regulated or down-regulated in our RNA sequencing results. The six selected DEGs were examined by qRT-PCR to validate the correctness of our RNA-Seq findings. Total RNA (1000 ng) was utilized to produce complementary DNA (cDNA) with 2×SYBR Green qPCR Master Mix None ROX (Servicebio, Wuhan, China) at 25 °C (5 min), 42 °C (30 min) and 85 °C (5 s). The primers used for qRT-PCR are shown in Table 1. A CFX96 Real-Time PCR system (Bio-Rad, Hercules, CA, USA) was utilized for amplification in 15-µL reactions containing 2×qPCR Mix (7.5 µL), forward and reverse primers (10 pmol/µL, 0.75 µL each), cDNA (1000 ng/µL, 2 µL) and nuclease-free water (4 µL). The reaction conditions were: 1 cycle at 95 °C (30 s), followed by 40 cycles at 95 °C (15 s) and 60 °C (30 s), with fluorescence signals collected every 0.5 °C increase from 65 °C to 95 °C. Melting curves were utilized to assess primer specificity. Assays were carried out in triplicate and GAPDH was utilized for normalization in data analysis by the 2−∆∆Ct method.

3. Results

3.1. Gene Expression Profiling during Testicular Development in Qianbei Ma Goats

To determine the genes associated with testicular development and sperm formation, 18 libraries, including 6 each from immature, sexually mature and physically mature testes were sequenced. Table 2 shows an overview of the information pertaining to raw and clean reads for all libraries. Error rates and GC contents for various libraries were determined for their quality control. All 18 libraries were of high quality.
Paired-end clean reads underwent alignment to the goat reference genome ARS1.2 that is commonly utilized for C. hircus (goats) [4] with HISAT2, and the expected number of fragments per kilobase of transcript sequence per million base pairs sequenced (FPKM) of each gene was calculated. Table 3 shows an overview of the information about uniquely mapped clean reads.
Additionally, an overview of the percentages of clean reads mapped to exon borders (junction reads) is shown in Table 4.
All RNA-Seq data in our study had been submitted to NCBI (accession number BioProject: PRJNA879963).

3.2. Alternative Splicing Data

In this work, AS events were categorized into five types with rMATS (http://rnaseq-mats.sourceforge.net/index.html, accessed on 21 July 2022). By determining the types and amounts of AS events, and analyzing each AS type, a large number of AS events were found in testicular development and sperm formation. Of all the DEGs detected between immature (I) and sexually mature (S) testes in our present work, 544 genes underwent AS events between sexually mature (S) and physically mature (P) testes, with no detected AS events (padj ≤ 0.05). Therefore, approximately 4% of genes showed AS between I and S, and no gene had AS between S and P in this study. The above findings indicated AS was very important in the complexity of gene expression during testis development, especially in the period from immaturity to sexual maturity.
To determine AS types associated with testicular genes, AS events were compared between the S group and the I group. The five known types of AS events include retained intron (RI), mutually exclusive exon (MXE), alternative 3′ splice site (A3SS), alternative 5′ splice site (A5SS) and skipped exon (SE). All five types of AS were found in the S vs. I group comparison. RI, MXE, A3SS and SE were found in the P vs. S group comparison. These findings showed SE as the most common AS event amounting to 368 in S vs. I. Other identified AS events were RI (48), MXE (110), A3SS (66) and A5SS (54) (Figure 1).

3.3. Analysis of DEGs

In order to clarify the difference in gene expression in testis of Qianbei Ma goat at different developmental stages, we compared and analyzed the differentially expressed genes in three different developmental stages. DEGs were determined with |log2 (fold−change)| ≥ 1 and padj < 0.05. As a result, a total of 9,724 upregulated and 4,153 downregulated DEGs were detected between the I and S groups; 7 upregulated and 3 downregulated genes were detected between the S and P groups (Figure 2A1, Figure 2A2). Among all DEGs detected, 1112 genes were only expressed in the immature group, 379 genes were only expressed in the sexual mature group, 336 genes were only expressed in the physical mature group, and 13,299 genes were expressed in all three groups (Figure 2B). Figure 2C depicts hierarchical clustering, with DEGs for the eighteen libraries grouped into three clusters, the result suggested the I, S and P groups had differential expression patterns overall, but S and P had similar repetitive expression commonalities.

3.4. GO Analysis of DEGs

GO analysis was carried out to examine the functions of DEGs in testicular development. Totally, 106 GO terms associated with “biological processes”, “molecular functions” and “cellular components” were markedly enriched between immature (I) and sexually mature (S) testes. We found 43 GO terms belonged to “biological process”, 56 GO terms belonged to “molecular functions”, and 7 GO terms belonged to “cellular components”. Totally, 36 GO terms associated with “biological processes”, “molecular functions” and “cellular components” had significant enrichment in the sexually mature (S) vs. physically mature (P) testes. We found 5 GO terms belonged to “biological processes”, 21 GO terms belonged to “molecular functions”, and 10 GO terms belonged to “cellular components” (Table 5, Figure 3A,B).

3.5. KEGG Pathway Analysis of DEGs

KEGG pathway analysis of DEGs (|log2 (fold−change)| ≥ 1 and padj < 0.05) was carried out. For I vs. S, 8 KEGG pathways were upregulated, including “glycerolipid metabolism”, “protein digestion and absorption” and “steroid hormone biosynthesis”. Totally, 90 pathways were downregulated, including +“lysosome”, “MAPK signaling pathway” and “chemokine signaling pathway” (Figure 4A). For S vs. P, 7 KEGG pathways were upregulated, including “oxidative phosphorylation”, “thermogenesis” and “steroid biosynthesis”. However, no pathways were significantly downregulated (Figure 4B).

3.6. qRT-PCR Validation of DEGs

To verify the DEGs in immature (I), sexually mature (S) and physically mature (P) testes, we selected 6 DEGs, including TGFBR1, TGFB1, EGFR, IGF1, MAPK3 and SMAD4, to validate RNA-Seq data by qRT-PCR. qRT-PCR data corroborated RNA-Seq findings, suggesting the reliability of RNA-Seq data (Figure 5).

4. Discussion

With the current development of detection technology, more and more mRNAs on testis related to testis development and spermatogenesis have been reported. RNA-Seq has emerged as a tool for efficiently and inexpensively detecting new transcripts and genes. RNA-Seq methods have been broadly utilized to determine DEGs or gene expression patterns, new transcripts, AS events and SNPS, and have empowered studies examining porcine [24,25], cattle [26,27] and mouse [28,29] testicular development. In goats, the profiles of ovarian [30,31], uterine [32,33] and testicular [34,35] tissues under different conditions were recently compared by RNA-Seq. However, limited data on testicular development in goats were available. Breed and age represent major factors affecting testicular development. Here, RNA-Seq was performed to build a complete dataset that explains the spatiotemporal transcriptome of the testicular tissue in Qianbei Ma goats. Testicular growth and development constitute the key factors affecting goat reproduction. Therefore, identifying genes regulating testicular growth and development is critical. In this study, 13,887 genes were assessed by RNA-Seq in six immature, six sexually mature and six physically mature testes. Totally, 9724 genes were upregulated and 4153 were downregulated between immature and sexually mature testes; seven genes were upregulated and three were downregulated between sexually mature and physically mature testes which was similar to the hierarchical clustering analysis result in our study. The reason for this result is related to the development process of the testis of Qianbei Ma goat. We speculate that the testis develops from immature to sexual mature with various reproductive functions and also starts to produce sperm, which is a very complex process that requires the co-regulation of a large number of different genes. When the goats continue to develop from sexual maturity to physical maturity, the testes already had all the functions related to reproduction, so the differences in development were relatively small, the number of related DEGs was significantly reduced, which was similar to the results of Gong studies on testis of mice at three different developmental stages [36]. Using next-generation platforms, we determined most upregulated genes were associated with protein coding and might have functions in testicular development and sperm formation.
Alternative splicing (AS) represents a commonly encountered phenomenon in eukaryotes, which could lead to the production of various protein forms at different times under different circumstances, increasing species/body fitness. Although AS research is a known subfield of molecular biology, only in recent years has this subfield attracted sufficient attention. AS is critical for the complex proteomes and functions found in higher organisms. AS is an important mechanism in the regulation of gene expression and promotes proteome diversity [37]. It is estimated that about 95% of human multiple-exon gene expression is associated with AS events [38]. In metazoans, AS is critical for the production of various protein forms with functions in different cell events such as cell growth, differentiation and death [39]. Here, five AS events were observed, mostly involving ES. The effects of AS events on the functions of related genes can be predicted by a comprehensive analysis of AS events, and GO and KEGG analysis data [40,41]. In the current study, Sec insertion sequence binding protein 2 (SECISBP2) was the gene with the highest number of SE events, i.e., a total of ten SE events. SECISBP2 underwent the most AS events during the development, indicating that SECISBP2 protein synthesis is complex and important to Qianbei Ma goats’ testis development. Mutation of the gene altered thyroid hormone metabolism [42,43]. Thyroid hormones can modulate semen quality under physiological conditions by regulating testosterone and changing some semen indexes [44,45,46]. Thyroid hormone levels in the early stages of testicular development can also influence testicular development and spermatogenesis by regulating the length of time during which supporting cells proliferate [47]. Based on previous studies, we hypothesized that there is active synthesis of SECISBP2 during testicular development in Qianbei Ma goat, which is essential for testicular size and spermatogenesis.
Combining previous relevant reports, and KEGG and GO data in the current study, the genes involved in the regulation of testis development and sperm formation through protein phosphorylation were mainly TGFB1, EGFR and IGF1, which have critical functions in testis growth, hormone secretion, spermatogenesis and Leydig cell differentiation.
Transforming growth factor β-1 (TGFB1) plays multiple biological roles, including the control of proliferative and differentiation potentials of cells in rams [48]. In male lambs, TGFB1 regulates tight junctions in Sertoli cells and controls spermatogenesis. It modifies the blood-testicular barrier (BTB) by downregulating tight junction proteins [49]. TGFB1 might play an important role in testicular development because of its high expression in the immature testis and markedly reduced expression in sexual maturity, as spermatogenesis begins. A comparable expression pattern was found for TGFB receptor type 1 (TGFBR1) [50]. In addition, loss of TGFB1 resulted in lower testosterone levels in the testis and serum, and decreased the ability to mate with females [51]. Based on previous studies, we speculated that TGFB1 may not only directly regulate goat testicular development and sperm formation, but also ensure the normal development of male external genitalia and affect fertility.
Epidermal growth factor receptor (EGFR) represents a receptor gene for EGF and controls testicular function in the human, mouse, rat and livestock species as well as in alpacas [20]. In yak and bovine, EGF and EGFR were critical paracrine and/or autocrine modulators of testicular development and sperm formation and regulate testosterone production by testicular interstitial cells [52,53]. We speculate that EGF and EGFR may also be expressed in various goat testicular cells, stimulate testosterone secretion, and regulate testis development and spermatogenesis.
Insulin-like growth factor I (IGF1) contributes to the regulation of testicular function [54]. Pitetti et al. indicated growth factors of the insulin family play essential roles by controlling SC number, testis size and daily sperm production [55,56]. Both IGF1 and its receptor IGF1R were expressed in testicles, and their hormones act directly on male gonads [57,58]. In immature testes, IGF1 promotes the development of sustentacular cells, Leydig cells and gonocytes. In mature testis, the IGF1 gene induces spermatogenesis and regulates Leydig cell function [59,60]. IGF1 may act as an autocrine/paracrine or endocrine signal to regulate testicular steroid production as well as germ cell and Sertoli cell functions [61]. IGF1 plays different roles in testicular function at different stages of testicular development [54,62]. We speculate that high IGF1 and IGF1R protein amounts in the immature testis may suggest they highly promote the development and differentiation of sustentacular cells, Leydig cells and gonocytes in goat testis during sexual maturity.
Transcriptome data revealed the MAPK pathway is implicated in goat testicular development, while TGFBR1, TGFB1, EGFR and IGF1 were enriched in this pathway and downregulated during sexual maturation, as key genes that regulate testis development and spermatogenesis [63,64]. Multiple reports suggest MAPK signaling is a critical regulator of testis growth and development, testis cell proliferation, differentiation and apoptosis and testosterone secretion, thus affecting male fertility [65,66,67]. One of the key downstream target genes of MAPK signaling is IGF1, which together with other genes in the pathway controls testis cell proliferation, testis volume development, hormone secretion and spermatogenesis, and is often reported to be associated with male fertility [55,68,69]. We speculate that MAPK signaling is a critical regulatory pathway in goat testis development and spermatogenesis. As an essential male fecundity-related gene in the MAPK signaling pathway, IGF1 modulates goat testis growth and development and can affect the functions of various cells of goat testis by regulating other downstream genes in the signaling pathway. During male goat sexual maturation, IGF1 regulates the development of the testis, spermatogenesis and hormone synthesis through the MAPK signaling pathway and other cooperative genes.

5. Conclusions

This study first used RNA-Seq to profile the expression of genes during testicular development in Qianbei Ma goats. We identified 544 genes with AS events between I and S, which suggests that AS of differential genes might be critical in the regulation of testicular development in goats. Totally, eight KEGG pathways were upregulated and 90 were downregulated between I and S. Totally, seven KEGG pathways were upregulated between S and P. Among the six screened DEGs (TGFBR1, TGFB1, EGFR, IGF1, MAPK3 and SMAD4) TGFBR1, TGFB1, EGFR, IGF1 and MAPK3 belonged to the “MAPK signaling pathway”, corresponding to the GO term “protein phosphorylation”. However, the specific function and pathway mechanism of the selected genes still need to be further studied at the cellular level. The findings should further our understanding of gene regulation during testicular development and sperm formation. Our study also suggests that RNA-seq has great potential in the study of the transcriptome during the development of goat testis.

Author Contributions

Methodology, Y.Z. and X.C.; software, W.T.; investigation, Y.R. and T.J.; resources, X.C.; validation, data curation, X.C.; writing—manuscript drafting, Y.Z.; writing—manuscript revision, X.T., W.G. and K.F. All authors have read and agreed to the published version of the manuscript.

Funding

The current study was supported by the National Natural Science Foundation of China (No. 32260835), the Science and Technology Project of Guizhou Province (Qian Kehe Foundation-ZK [(2021)] General 151), and the Guizhou High Level Innovative Talents Project (Qian Kehe Platform Talents [(2022)] 021-1).

Institutional Review Board Statement

The animals used in our study were consented by their owners. All procedures involving animals were approved and authorized by Guizhou University. The laboratory animal castration protocol for this study was approved by the Laboratory Animal Ethics of Guizhou University (No. EAE-GZU-2021-P024, Guiyang, China; 30 March 2021).

Informed Consent Statement

Not applicable.

Data Availability Statement

The raw data from sequencing are available at NCBI under BioProject ID: PRJNA879963.

Acknowledgments

The authors are thankful to Fuxing Husbandry Co., Ltd. (Guizhou, China) for providing the experimental Qianbei Ma goats.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hecht, N.B. Molecular mechanisms of male germ cell differentiation. BioEssays 1998, 20, 555–561. [Google Scholar] [CrossRef]
  2. Eddy, E.M.; O’Brien, D.A. Gene expression during mammalian meiosis. Curr. Top. Dev. Biol. 1998, 37, 141–200. [Google Scholar] [PubMed]
  3. Hess, R.A.; De Franca, L.R. Spermatogenesis and cycle of the seminiferous epithelium. Adv. Exp. Med. Biol. 2008, 636, 1–15. [Google Scholar] [PubMed]
  4. Mortazavi, A.; Williams, B.A.; McCue, K.; Schaeffer, L.; Wold, B. Mapping and quantifying mammalian transcriptomes by RNA-Seq. Nat. Methods 2008, 5, 621–628. [Google Scholar] [CrossRef]
  5. Marioni, J.C.; Mason, C.E.; Mane, S.M.; Stephens, M.; Gilad, Y. RNA-seq: An assessment of technical reproducibility and comparison with gene expression arrays. Genome Res. 2008, 18, 1509–1517. [Google Scholar] [CrossRef] [Green Version]
  6. Wang, Z.; Gerstein, M.; Snyder, M. RNA-Seq: A revolutionary tool for transcriptomics. Nat. Reviews. Genet. 2010, 10, 57–63. [Google Scholar] [CrossRef]
  7. Ramsköld, D.; Wang, E.T.; Burge, C.B.; Sandberg, R. An abundance of ubiquitously expressed genes revealed by tissue transcriptome sequence data. PLoS Comput. Biol. 2009, 5, e1000598. [Google Scholar] [CrossRef]
  8. Djureinovic, D.; Fagerberg, L.; Hallstrom, B.; Danielsson, A.; Lindskog, C.; Uhlen, M.; Ponten, F. The human testis-specific proteome defined by transcriptomics and antibody-based profiling. Mol. Hum. Reprod. 2014, 20, 476–488. [Google Scholar] [CrossRef] [Green Version]
  9. Anand, M.; Prasad, B.V. The computational analysis of human testis transcriptome reveals closer ties to pluripotency. J. Hum. Reprod. Sci. 2012, 5, 266–273. [Google Scholar]
  10. Fu, K.; Chen, X.; Guo, W.; Zhou, Z.; Zhang, Y.; Ji, T.; Yang, P.; Tian, X.; Wang, W.; Zou, Y. Effects of N Acetylcysteine on the Expression of Genes Associated with Reproductive Performance in the Goat Uterus during Early Gestation. Animals 2022, 12, 2431. [Google Scholar] [CrossRef]
  11. Kim, D.; Paggi, J.M.; Park, C.; Bennett, C.; Salzberg, S.L. Graph-based Genome Alignment and Genotyping with HISAT2 and HISAT-genotype. Nat. Biotechnol. 2019, 37, 907–915. [Google Scholar] [CrossRef] [PubMed]
  12. Bray, N.L.; Pimentel, H.; Melsted, P.; Pachter, L. Erratum: Near-optimal probabilistic RNA-seq quantification. Nat. Biotechnol. 2016, 34, 888. [Google Scholar] [CrossRef] [Green Version]
  13. Trapnell, C.; Williams, B.A.; Pertea, G.; Mortazavi, A.; Kwan, G.; van Baren, M.J.; Salzberg, S.L.; Wold, B.J.; Pachter, L. Transcript assembly and quantification by RNA-Seq reveals unannotated transcripts and isoform switching during cell differentiation. Nat. Biotechnol. 2010, 28, 511–515. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Anders, S.; Huber, W. Differential expression analysis for sequence count data. Genome Biol. 2010, 11, R106. [Google Scholar] [CrossRef] [Green Version]
  15. Kanehisa, M.; Araki, M.; Goto, S.; Hattori, M.; Hirakawa, M.; Itoh, M.; Katayama, T.; Kawashima, S.; Okuda, S.; Tokimatsu, T.; et al. KEGG for linking genomes to life and the environment. Nucleic Acids Res. 2008, 36, D480–D484. [Google Scholar] [CrossRef]
  16. Shumate, A.; Wong, B.; Pertea, G.; Pertea, M. Improved Transcriptome Assembly Using a Hybrid of Long and Short Reads with StringTie. PLoS Comput. Biol. 2022, 18, e1009730. [Google Scholar] [CrossRef] [PubMed]
  17. Pertea, M. StringTie Enables Improved Reconstruction of a Transcriptome from RNA-seq Reads. Nat. Biotechnol. 2015, 33, 290–296. [Google Scholar] [CrossRef] [Green Version]
  18. Moraveji, S.F.; Esfandiari, F.; Taleahmad, S.; Nikeghbalian, S.; Sayahpour, F.A.; Masoudi, N.S.; Shahverdi, A.; Baharvand, H. Suppression of transforming growth factor-beta signaling enhances spermatogonial proliferation and spermatogenesis recovery following chemotherapy. Hum. Reprod. 2019, 34, 2430–2442. [Google Scholar] [CrossRef]
  19. Memon, M.A.; Anway, M.D.; Covert, T.R.; Uzumcu, M.; Skinner, M.K. Transforming growth factor beta (TGF beta 1, TGF beta 2 and TGF beta 3) null-mutant phenotypes in embryonic gonadal development. Mol. Cell. Endocrinol. 2008, 294, 70–80. [Google Scholar] [CrossRef] [Green Version]
  20. He, J.; Dong, C.; You, R.; Zhu, Z.; Lv, L.; Smith, G.W. Localization of epidermal growth factor (EGF) and its receptor (EGFR) during postnatal testis development in the alpaca (Lama pacos). Anim. Reprod. Sci. 2009, 116, 155–161. [Google Scholar] [CrossRef]
  21. Baker, J.; Hardy, M.P. Effects of an Igf1 gene null mutation on mouse reproduction. Mol. Endocrinol. 1996, 10, 903–918. [Google Scholar]
  22. Manesh, K.P.S.; Saradha, B.; Suresh, C.S. Telomere Signaling and Maintenance Pathways in Spermatozoa of Infertile Men Treated with Antioxidants: An in silico Approach Using Bioinformatic Analysis. Front. Cell Dev. Biol. 2021, 9, 768510. [Google Scholar]
  23. He, J.; Zhang, X.; Wen, X.; Zhao, L. Expression and localization of Smad2 and Smad4 in domestic cat testis during testicular development and spermatogenesis. Acta Anat. Sin. 2010, 41, 598–602. [Google Scholar]
  24. Zhou, C.; Zhang, L.; Xu, D.; Ding, H.; Zheng, S.; Liu, M. MeDIP-seq and RNA-seq Analysis during Porcine Testis Development Reveals Functional DMR at the Promoter of LDHC. Genomics 2022, 114, 110467. [Google Scholar] [CrossRef]
  25. Zhang, L.; Li, F.; Lei, P.; Guo, M.; Liu, R.; Wang, L.; Yu, T.; Lv, Y.; Zhang, T.; Zeng, W.; et al. Single-cell RNA-sequencing Reveals the Dynamic Process and Novel Markers in Porcine Spermatogenesis. J. Anim. Sci. Biotechnol. 2021, 12, 122. [Google Scholar] [CrossRef] [PubMed]
  26. Chang, T.; Yang, Y.; Retzel, E.F.; Liu, W. Male-specific Region of the Bovine Y Chromosome Is Gene Rich with a High Transcriptomic Activity in Testis Development. Proc. Natl. Acad. Sci. USA 2013, 110, 12373–12378. [Google Scholar] [CrossRef] [Green Version]
  27. Gao, Y.; Wu, M.; Fan, Y.; Li, S.; Lai, Z.; Huang, Y.; Lan, X.; Lei, C.; Chen, H.; Dang, R. Identification and Characterization of Circular RNAs in Qinchuan Cattle Testis. R. Soc. Open Sci. 2018, 5, 180413. [Google Scholar] [CrossRef] [Green Version]
  28. Fu, Y.; Wu, P.; Beane, T.; Zamore, P.D.; Weng, Z. Elimination of PCR Duplicates in RNA-seq and Small RNA-seq Using Unique Molecular Identifiers. BMC Genom. 2018, 19, 531. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Green, C.D.; Ma, Q.; Manske, G.L.; Shami, A.N.; Zheng, X.; Marini, S.; Moritz, L.; Sultan, C.; Gurczynski, S.J.; Moore, B.B.; et al. A Comprehensive Roadmap of Murine Spermatogenesis Defined by Single-Cell RNA-Seq. Dev. Cell 2018, 46, 651–667. [Google Scholar] [CrossRef] [Green Version]
  30. Zou, X.; Lu, T.; Zhao, Z.; Liu, G.; Lian, Z.; Guo, Y.; Sun, B.; Liu, D.; Li, Y. Comprehensive Analysis of MRNAs and MiRNAs in the Ovarian Follicles of Uniparous and Multiple Goats at Estrus Phase. BMC Genom. 2020, 21, 267. [Google Scholar] [CrossRef]
  31. Zi, X.; Lu, J.; Zhou, H.; Ma, L.; Xia, W.; Xiong, X.; Lan, D.; Wu, X. Comparative Analysis of Ovarian Transcriptomes between Prolific and Non-prolific Goat Breeds via High-throughput Sequencing. Reprod. Domest. Anim. 2018, 53, 344–351. [Google Scholar] [CrossRef] [PubMed]
  32. Hong, L.; Hu, Q.; Zang, X.; Xie, Y.; Zhou, C.; Zou, X.; Li, Y.; Deng, M.; Guo, Y.; Liu, G.; et al. Analysis and Screening of Reproductive Long Non-coding RNAs Through Genome-Wide Analyses of Goat Endometrium During the Pre-attachment Phase. Front. Genet. 2020, 11, 568017. [Google Scholar] [CrossRef]
  33. Liu, H.; Wang, C.; Li, Z.; Shang, C.; Zhang, X.; Zhang, R.; Wang, A.; Jin, Y.; Lin, P. Transcriptomic Analysis of STAT1/3 in the Goat Endometrium During Embryo Implantation. Front. Vet. Sci. 2021, 8, 757759. [Google Scholar] [CrossRef]
  34. Bo, D.; Jiang, X.; Liu, G.; Hu, R.; Chong, Y. RNA-Seq Implies Divergent Regulation Patterns of LincRNA on Spermatogenesis and Testis Growth in Goats. Animals 2021, 11, 625. [Google Scholar] [CrossRef] [PubMed]
  35. Zhao, J.; Yang, P.; Yang, H.; Wang, Z.; El-Samahy, M.A.; Wang, F.; Zhang, Y. Dietary Supplementation with Metformin Improves Testis Function and Semen Quality and Increases Antioxidants and Autophagy Capacity in Goats. Theriogenology 2022, 188, 79–89. [Google Scholar] [CrossRef]
  36. Gong, W.; Pan, L.; Lin, Q.; Zhou, Y.; Xin, C.; Yu, X.; Cui, P.; Hu, S.; Yu, J. Transcriptome Profiling of the Developing Postnatal Mouse Testis Using Next-generation Sequencing. Sci. China 2013, 56, 1–12. [Google Scholar] [CrossRef] [Green Version]
  37. Shen, F.; Geng, Y.; Zhang, L.; Luo, L.; Yan, G.; Hou, R.; Yue, B.; Zhang, X. Transcriptome Analysis Reveals the Alternative Splicing Changes in the Immune-Related Genes of the Giant Panda (Ailuropoda melanoleuca), in Response to the Canine Distemper Vaccine. Zool. Sci. 2022, 39, 275. [Google Scholar] [CrossRef]
  38. Pan, Q.; Shai, O.; Lee, L.J.; Frey, B.J.; Blencowe, B.J. Deep surveying of alternative splicing complexity in the human transcriptome by high-throughput sequencing. Nat. Genet. 2008, 40, 1413–1415. [Google Scholar] [CrossRef] [PubMed]
  39. Hagiwara, M.; Kuroyanagi, H. 2SE01 Regulatory Mechanisms of Alternative Splicing in Metazoans. Seibutsu Butsuri 2005, 45, S23. [Google Scholar] [CrossRef] [Green Version]
  40. Liu, X.; He, P.; Zhang, Z.; Gong, P.; Niu, Y.; Bao, Z.; Yang, Y.; Gan, L.; Muhuyati. Candidate Genes and Their Alternative Splicing May Be Potential Biomarkers of Acute Myocardial Infarction: A Study of Mouse Model. BMC Cardiovasc. Disord. 2022, 22, 505. [Google Scholar] [CrossRef]
  41. Zhu, Z.; Ni, S.; Zhang, J.; Yuan, Y.; Bai, Y.; Yin, X.; Zhu, Z. Genome-wide Analysis of Dysregulated RNA-binding Proteins and Alternative Splicing Genes in Keloid. Front. Genet. 2023, 14, 1118999. [Google Scholar] [CrossRef]
  42. Schomburg, L.; Liao, X.; Majed, F.A.; Abdullah, M.S.Y.; Refetoff, S.; Boran, G.; Dumitrescu, A.M.; Lado-Abeal, J.; Moeller, L.C.; Weiss, R.E. Mutations in SECISBP2 Result in Abnormal Thyroid Hormone Metabolism. Nat. Genet. 2005, 37, 1247–1252. [Google Scholar]
  43. Schoenmakers, E.; Chatterjee, K. Identification of Genetic Disorders Causing Disruption of Selenoprotein Biosynthesis. Methods Mol. Biol. 2018, 1661, 325–335. [Google Scholar]
  44. Mohammadabadi, T.; Tabatbaei, S.; Ghezi, Z.; Swelum, A.A. Effect of Dietary Palm Kernel on Semen Quality, Reproductive and Thyroid Hormones and Blood Chemistry Parameters of Arabi Rams. Anim. Nutr. Feed Technol. 2020, 20, 93. [Google Scholar] [CrossRef]
  45. Mogheiseh, A.; Vara, N.; Ayaseh, M.; Jalali, P. Effects of Cabergoline on Thyroid Hormones and Semen Quality of Dog. Top. Companion Anim. Med. 2017, 32, 13–15. [Google Scholar] [CrossRef]
  46. Quartuccio, M.; Fazio, E.; Medica, P.; Cristarella, S.; Emmanuele, G.; Sinagra, L.; Liotta, L. Correlation between Sperm Parameters and Circulating Thyroid Hormones and Testosterone Concentrations in Labrador Retriever Dog. Ital. J. Anim. Sci. 2021, 20, 947–954. [Google Scholar] [CrossRef]
  47. Majdic, G.; Snoj, T.; Horvat, A.; Mrkun, J.; Kosec, M.; Cestnik, V. Higher Thyroid Hormone Levels in Neonatal Life Result in Reduced Testis Volume in Postpubertal Bulls. Int. J. Androl. 1998, 21, 352–357. [Google Scholar] [CrossRef] [PubMed]
  48. Ghasemzadeh-Hasankolaei, M.; Sedighi-Gilani, M.A.; Eslaminejad, M.B. Induction of Ram Bone Marrow Mesenchymal Stem Cells into Germ Cell Lineage Using Transforming Growth Factor-β Superfamily Growth Factors. Reprod. Domest. Anim. 2014, 49, 588–598. [Google Scholar] [CrossRef] [PubMed]
  49. Rojas-García, P.P.; Recabarren, M.P.; Sir-Petermann, T.; Rey, R.; Palma, S.; Carrasco, A.; Perez-Marin, C.C.; Padmanabhan, V.; Recabarren, S.E. Altered Testicular Development as a Consequence of Increase Number of Sertoli Cell in Male Lambs Exposed Prenatally to Excess Testosterone. Endocrine 2013, 43, 705–713. [Google Scholar] [CrossRef]
  50. Ingman, W.V.; Robertson, S.A. The Essential Roles of TGFB1 in Reproduction. Cytokine Growth Factor Rev. 2009, 20, 233–239. [Google Scholar] [CrossRef]
  51. McGrath, L.J.; Ingman, W.V.; Robker, R.L.; Robertson, S.A. Exogenous Transforming Growth Factor Beta1 Replacement and Fertility in Male Tgfb1 Null Mutant Mice. Reprod. Fertil. Dev. 2009, 21, 561–570. [Google Scholar] [CrossRef] [PubMed]
  52. Pan, Y.; Cui, Y.; Yu, S.; Zhang, Q.; Fan, J.; Abdul, R.B.; Yang, K. The Expression of Epidermal Growth Factor (EGF) and Its Receptor (EGFR) During Post-Natal Testes Development in the Yak. Reprod. Domest. Anim. 2014, 49, 970–977. [Google Scholar] [CrossRef] [PubMed]
  53. Kassab, M.; Abd-Elmaksoud, A.; Ali, M.A. Localization of the Epidermal Growth Factor (EGF) and Epidermal Growth Factor Receptor (EGFR) in the Bovine Testis. J. Mol. Histol. 2007, 38, 207–214. [Google Scholar] [CrossRef]
  54. Cannarella, R.; Condorelli, R.A.; La Vignera, S.; Calogero, A.E. Effects of the Insulin-like Growth Factor System on Testicular Differentiation and Function: A Review of the Literature. Andrology 2018, 6, 3–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Pitetti, J.; Calvel, P.; Zimmermann, C.; Conne, B.; Papaioannou, M.D.; Aubry, F.; Cederroth, C.R.; Urner, F.; Fumel, B.; Crausaz, M.; et al. An Essential Role for Insulin and IGF1 Receptors in Regulating Sertoli Cell Proliferation, Testis Size, and FSH Action in Mice. Mol. Endocrinol. 2013, 27, 814–827. [Google Scholar] [CrossRef]
  56. Cannarella, R.; La Vignera, S.; Condorelli, R.A.; Calogero, A.E. The IGF1/FSH Ratio Correlates with Sperm Count and Testicular Volume. Endocrines 2022, 3, 624–632. [Google Scholar] [CrossRef]
  57. Müller, L.; Kowalewski, M.P.; Reichler, I.M.; Kollár, E.; Balogh, O. Different Expression of Leptin and IGF1 in the Adult and Prepubertal Testis in Dogs. Reprod. Domest. Anim. 2017, 52, 187–192. [Google Scholar] [CrossRef] [Green Version]
  58. Radovic, S.M.; Starovlah, I.M.; Capo, I.; Miljkovic, D.; Nef, S.; Kostic, T.S.; Andric, S.A. Insulin/IGF1 Signaling Regulates the Mitochondrial Biogenesis Markers in Steroidogenic Cells of Prepubertal Testis, but Not Ovary. Biol. Reprod. 2019, 100, 253–267. [Google Scholar] [CrossRef] [PubMed]
  59. Neirijnck, Y.; Calvel, P.; Kilcoyne, K.R.; Kühne, F.; Stévant, I.; Griffeth, R.J.; Pitetti, J.; Andric, S.A.; Hu, M.; Pralong, F.; et al. Insulin and IGF1 Receptors Are Essential for the Development and Steroidogenic Function of Adult Leydig Cells. FASEB J. 2018, 32, 3321–3335. [Google Scholar] [CrossRef] [Green Version]
  60. Rojas, M.; Conei, D.; Bustos-Obregon, E. Epithelial-Mesenchymal Transitions in the Development of Testis/Interacciones Epitelio-Mesenquimaticas En El Desarrollo Testicular. Int. J. Morphol. 2017, 35, 1444. [Google Scholar] [CrossRef] [Green Version]
  61. Stratikopoulos, E.; Szabolcs, M.; Dragatsis, I.; Klinakis, A.; Efstratiadis, A. Hormonal Action of IGF1 in Postnatal Mouse Growth. Proc. Natl. Acad. Sci. USA 2008, 105, 19378–19383. [Google Scholar] [CrossRef] [Green Version]
  62. Pitetti, J.; Calvel, P.; Romero, Y.; Conne, B.; Vy, T.; Papaioannou, M.D.; Schaad, O.; Docquier, M.; Herrera, P.L.; Wilhelm, D.; et al. Insulin and IGF1 Receptors Are Essential for XX and XY Gonadal Differentiation and Adrenal Development in Mice. PLoS Genet. 2013, 9, E1003160. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Warr, N.; Carre, G.; Siggers, P.; Faleato, J.V.; Brixey, R.; Pope, M.; Bogani, D.; Childers, M.; Wells, S.; Scudamore, C.L.; et al. Gadd45γ and Map3k4 Interactions Regulate Mouse Testis Determination via P38 MAPK-Mediated Control of Sry Expression. Dev. Cell 2012, 23, 1020–1031. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Liu, J.; Ren, L.; Wei, J.; Zhang, J.; Zhu, Y.; Li, X.; Jing, L.; Duan, J.; Zhou, X.; Sun, Z. Fine Particle Matter Disrupts the Blood–testis Barrier by Activating TGF-β3/p38 MAPK Pathway and Decreasing Testosterone Secretion in Rat. Environ. Toxicol. 2018, 33, 711–719. [Google Scholar] [CrossRef]
  65. Shen, L.; Tang, X.; Wei, Y.; Long, C.; Tan, B.; Wu, S.; Sun, M.; Zhou, Y.; Cao, X.; Wei, G. Vitamin E and Vitamin C Attenuate Di-(2-ethylhexyl) Phthalate-induced Blood-testis Barrier Disruption by P38 MAPK in Immature SD Rats. Reprod. Toxicol. 2018, 81, 17–27. [Google Scholar] [CrossRef]
  66. Luo, D.; He, Z.; Yu, C.; Guan, Q. Role of P38 MAPK Signalling in Testis Development and Male Fertility. Oxidative Med. Cell. Longev. 2022, 2022, 6891897. [Google Scholar] [CrossRef]
  67. Wang, X.; Zhang, X.; Sun, K.; Wang, S.; Gong, D. Polystyrene Microplastics Induce Apoptosis and Necroptosis in Swine Testis Cells via ROS/MAPK/HIF1α Pathway. Environ. Toxicol. 2022, 37, 2483–2492. [Google Scholar] [CrossRef] [PubMed]
  68. Gonzalez, C.R.; Dorfman, V.B.; Vitullo, A.D. IGF1 Regulation of BOULE and CDC25A Transcripts via a Testosterone-independent Pathway in Spermatogenesis of Adult Mice. Reprod. Biol. 2015, 15, 48–55. [Google Scholar] [CrossRef] [PubMed]
  69. Wang, H.; Shan, B.; Duan, Y.; Zhu, J.; Jiang, L.; Liu, Y.; Zhang, Y.; Qi, F.; Niu, S. Effects of Heshouwuyin on Gene Expression of the Insulin/IGF Signalling Pathway in Rat Testis and Spermatogenic Cells. Pharm. Biol. 2020, 58, 1208–1219. [Google Scholar] [CrossRef]
Genes 14 01334 g001 550

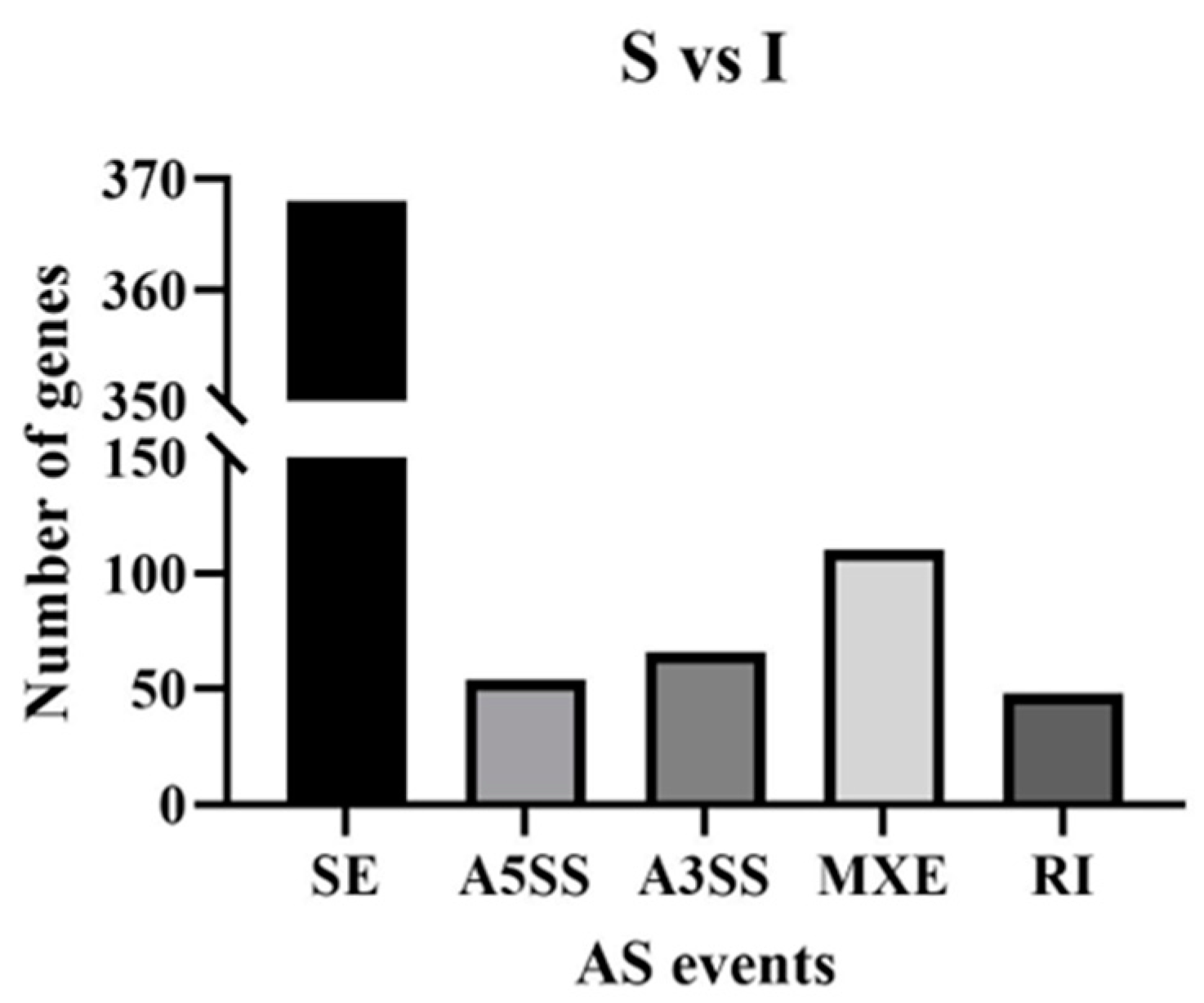

Figure 1. AS events among genes for immature and sexually mature group comparisons. X axis represents five known types of AS events, respectively, skipped exon (SE), alternative 5′ splice site (A5SS), alternative 3′ splice site (A3SS), mutually exclusive exon (MXE) and retained intron (RI).
Figure 1. AS events among genes for immature and sexually mature group comparisons. X axis represents five known types of AS events, respectively, skipped exon (SE), alternative 5′ splice site (A5SS), alternative 3′ splice site (A3SS), mutually exclusive exon (MXE) and retained intron (RI).
Genes 14 01334 g001
Genes 14 01334 g002 550

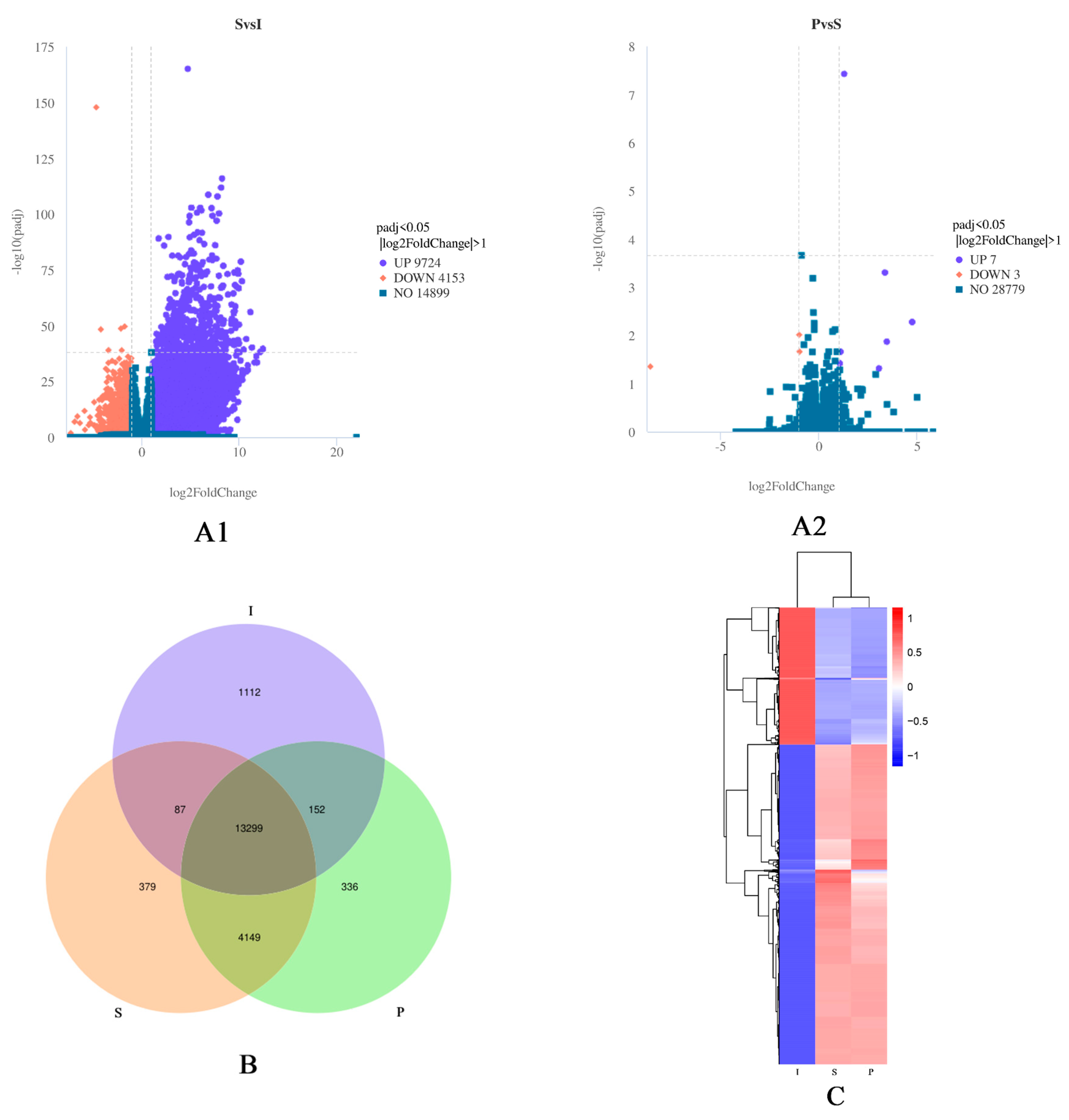

Figure 2. (A1): Volcanic plot of differentially expressed genes (DEGs) between the immature and sexually mature groups. (A2): Volcanic plot of DEGs between the sexually mature and physically mature groups. Highly significant differences in the expression of up− (purple) and down− (red) regulated genes were observed between immature (I) and sexually mature (S) testes, and between sexually mature (S) and physically mature (P) testes. Blue indicates no differential expression. (B): Venn diagram depicting gene expression patterns. The numbers of uniquely and commonly (FPKM > 1) expressed genes were shown. (C): Clustering of differentially expressed genes. The overall FPKM hierarchical clustering map was obtained with log10 (FPKM + 1) for normalization. Different columns represent groups, different rows represent genes, different colors represent expression levels (red: high, blue: low).
Figure 2. (A1): Volcanic plot of differentially expressed genes (DEGs) between the immature and sexually mature groups. (A2): Volcanic plot of DEGs between the sexually mature and physically mature groups. Highly significant differences in the expression of up− (purple) and down− (red) regulated genes were observed between immature (I) and sexually mature (S) testes, and between sexually mature (S) and physically mature (P) testes. Blue indicates no differential expression. (B): Venn diagram depicting gene expression patterns. The numbers of uniquely and commonly (FPKM > 1) expressed genes were shown. (C): Clustering of differentially expressed genes. The overall FPKM hierarchical clustering map was obtained with log10 (FPKM + 1) for normalization. Different columns represent groups, different rows represent genes, different colors represent expression levels (red: high, blue: low).
Genes 14 01334 g002
Genes 14 01334 g003 550

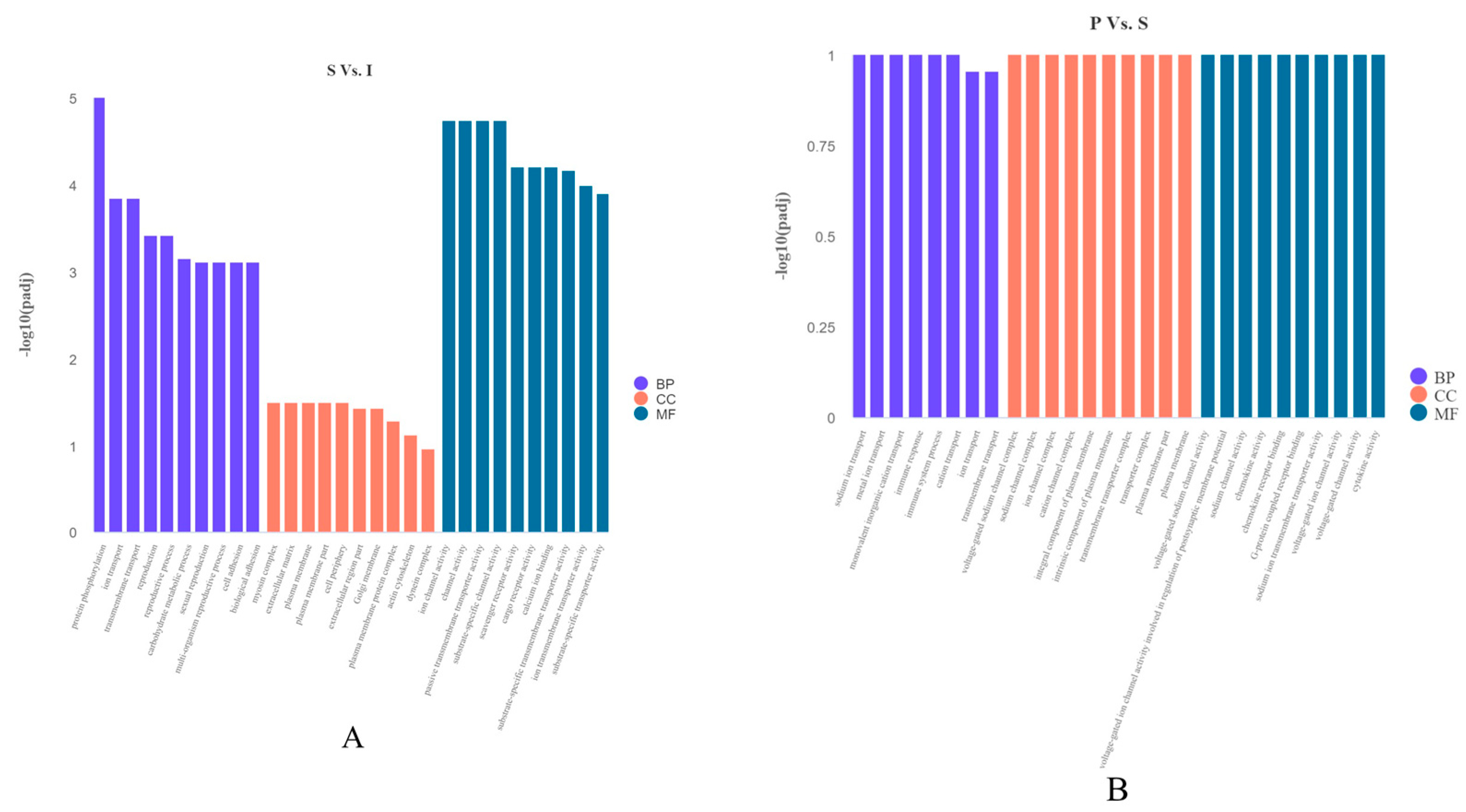

Figure 3. (A): Most enriched GO terms between immature (I) and sexually mature (S) testes. (B): Most enriched GO terms between sexually mature (S) and physically mature (P) testes. Abscissas and ordinates represent enriched GO terms and significance levels of GO enrichment, respectively. Purple, “biological processes”; red, “cellular components”; blue, “molecular functions”.
Figure 3. (A): Most enriched GO terms between immature (I) and sexually mature (S) testes. (B): Most enriched GO terms between sexually mature (S) and physically mature (P) testes. Abscissas and ordinates represent enriched GO terms and significance levels of GO enrichment, respectively. Purple, “biological processes”; red, “cellular components”; blue, “molecular functions”.
Genes 14 01334 g003
Genes 14 01334 g004 550

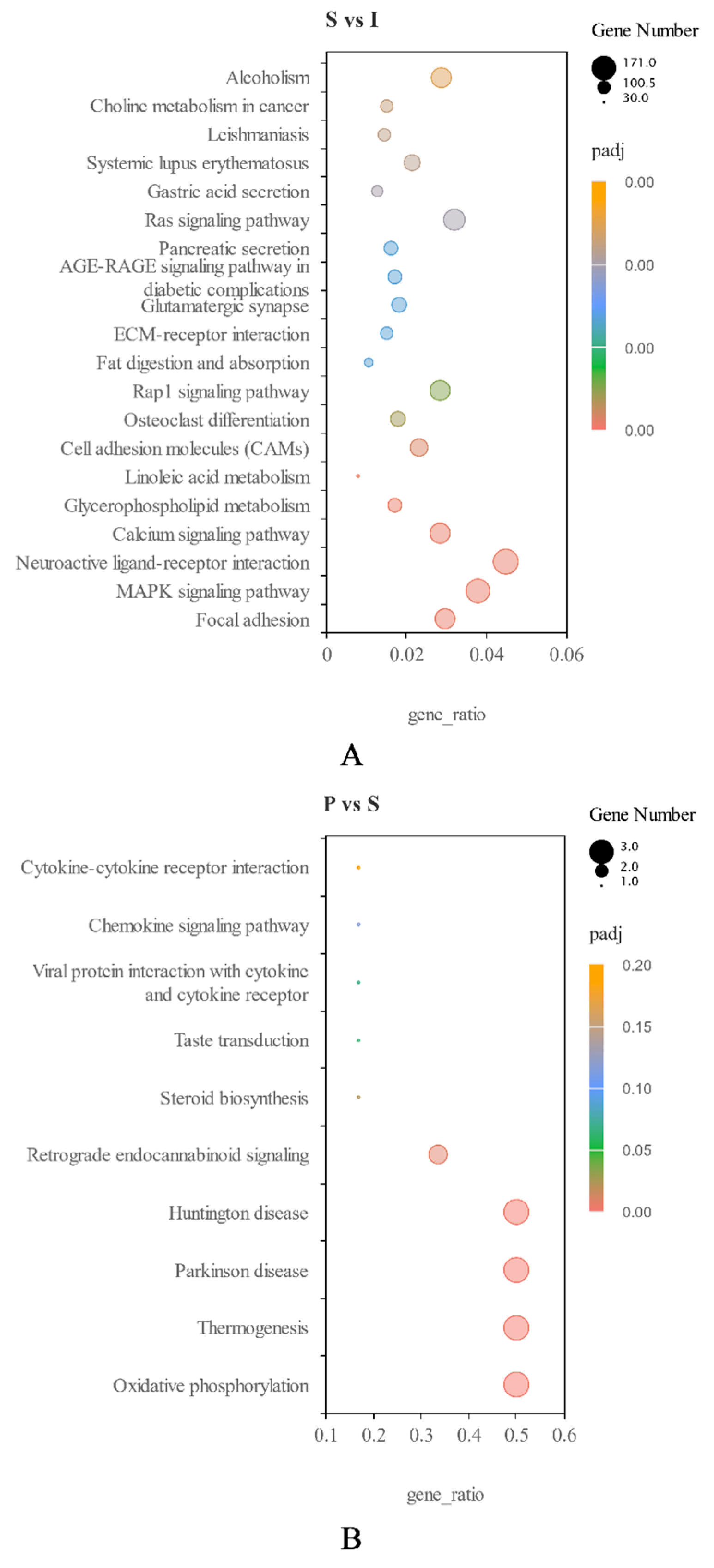

Figure 4. (A): Scatter plot of differentially expressed KEGG genes in immature (I) and sexually mature (S) testes. (B): Scatter plot of differentially expressed KEGG genes in sexually mature (S) and physically mature (P) testes. Ordinates and abscissas represent the names of KEGG pathways and gene ratios, respectively. Point sizes and colors represent the numbers of DEGs and the ranges of Q values, respectively.
Figure 4. (A): Scatter plot of differentially expressed KEGG genes in immature (I) and sexually mature (S) testes. (B): Scatter plot of differentially expressed KEGG genes in sexually mature (S) and physically mature (P) testes. Ordinates and abscissas represent the names of KEGG pathways and gene ratios, respectively. Point sizes and colors represent the numbers of DEGs and the ranges of Q values, respectively.
Genes 14 01334 g004
Genes 14 01334 g005 550
Figure 5. Relative expression of different genes in sexually mature (S) and physically mature (P) testes compared to immature (I) testes, respectively, using group I as a reference. (A): qPCR relative expression of S vs. I and P vs. I. (B): RNA−Seq data for S vs. I and P vs. I.
Figure 5. Relative expression of different genes in sexually mature (S) and physically mature (P) testes compared to immature (I) testes, respectively, using group I as a reference. (A): qPCR relative expression of S vs. I and P vs. I. (B): RNA−Seq data for S vs. I and P vs. I.
Genes 14 01334 g005
Table
Table 1. Primers utilized in qRT-PCR.
Table 1. Primers utilized in qRT-PCR.
Primer NameGene IDPrimer SequenceFragment LengthAnnealing Temperature
GAPDH-F
GAPDH-R		XM_005680968.3ATGTTTGTGATGGGCGTGAA
GGCGTGGACAGTGGTCATAAGT		153 bp60 °C
TGFBR1-F
TGFBR1-R		XM_018052233.1TTCAAACGTGCTGACATCTATGC
ACTGATGGATCGGAAGGTACAAG		128 bp60 °C
SMAD4-F
SMAD4-R		XM_018039535.1CATAACAGCACTACCACCTGGACT
GGATGATTAGAAATAGGAGGCTGG		173 bp60 °C
TGFB1-F
TGFB1-R		NM_001314142.1CAACAATTCCTGGCGCTACCT
ATGTCCACTTGAAGCGTGTTATCC		183 bp60 °C
EGFR-F
EGFR-R		XM_018067044.1CCGTGCGATTCAGTAACAACC
GGTCAATTTCTGGCAGTTCTCCTC		194 bp60 °C
IGF1-F
IGF1-R		NM_001285697.1AATCAGCAGTCTTCCAACCCAA
AGCAAGCACAGGGCCAGATA		114 bp60 °C
MAPK3-F
MAPK3-R		XM_018040780.1CTGGACCGGATGTTGACCTTTA
CTCCTTCAGTCGTTCCTTGGG		138 bp60 °C
Table
Table 2. Statistics of RNA-Seq data quality.
Table 2. Statistics of RNA-Seq data quality.
Sample NameLibrary NumberRaw Reads (n)Clean Reads (n)Error RateQ20Q30GC pct
I1140,405,58239,128,9160.0397.3693.0950.99
I2243,841,64642,366,5020.0397.4193.251.16
I3339,433,20838,237,5180.0397.4293.2551.42
I4442,396,47440,926,9520.0397.4393.2351.26
I5545,463,98843,854,8980.0397.4193.1951.1
I6639,351,21238,000,3640.0397.4893.3650.91
S1744,934,64243,739,6600.0397.5193.4152.09
S2843,025,14241,894,9940.0397.3993.1752.36
S3945,845,89844,647,4220.0397.5993.5552.15
S41041,237,33640,020,0620.0397.3793.1152.29
S51141,130,94639,901,2520.0397.3693.0951.09
S61241,242,24040,019,4900.0397.5193.451.9
P11345,377,17844,131,5160.0397.4893.3452.27
P21444,664,91843,577,0780.0397.4993.3652.06
P31543,792,50242,601,1980.0397.4793.3251.98
P41643,921,13842,702,2500.0397.593.3952.17
P51743,223,45242,134,1860.0397.4493.2752.14
P61845,571,90644,622,6180.0397.392.9150.37
Error rate: overall sequencing error rate for the data; Q20 and Q30: percentages of total bases with Phred values above 20 and 30, respectively; GC pct: percentage of C and G among the 4 bases in clean reads.
Table
Table 3. Statistics of reads aligned with the reference genome.
Table 3. Statistics of reads aligned with the reference genome.
SampleTotal ReadsTotal MapUnique MapMulti MapPositive MapNegative Map
I139,128,91637,563,635 (96.00%)35,626,251 (91.05%)1,937,384 (4.95%)17,793,049 (45.47%)17,833,202 (45.58%)
I242,366,50240,625,554 (95.89%)38,612,044 (91.14%)2,013,510 (4.75%)19,294,015 (45.54%)19,318,029 (45.60%)
I338,237,51836,735,876 (96.07%)34,685,761 (90.71%)2,050,115 (5.36%)17,323,488 (45.30%)17,362,273 (45.41%)
I440,926,95239,282,398 (95.98%)37,389,786 (91.36%)1,892,612 (4.62%)18,672,350 (45.62%)18,717,436 (45.73%)
I543,854,89842,092,675 (95.98%)40,255,938 (91.79%)1,836,737 (4.19%)20,105,549 (45.85%)20,150,389 (45.95%)
I638,000,36436,500,392 (96.05%)34,501,227 (90.79%)1,999,165 (5.26%)17,230,278 (45.34%)17,270,949 (45.45%)
S143,739,66042,076,928 (96.20%)40,551,689 (92.71%)1,525,239 (3.49%)20,259,699 (46.32%)20,291,990 (46.39%)
S241,894,99440,318,684 (96.24%)39,006,285 (93.10%)1,312,399 (3.13%)19,484,346 (46.51%)19,521,939 (46.60%)
S344,647,42243,061,457 (96.45%)41,514,183 (92.98%)1,547,274 (3.47%)20,739,259 (46.45%)20,774,924 (46.53%)
S440,020,06238,465,949 (96.12%)36,829,538 (92.03%)1,636,411 (4.09%)18,396,451 (45.97%)18,433,087 (46.06%)
S539,901,25238,334,062 (96.07%)36,942,595 (92.59%)1,391,467 (3.49%)18,452,256 (46.24%)18,490,339 (46.34%)
S640,019,49038,522,907 (96.26%)36,912,252 (92.24%)1,610,655 (4.02%)18,439,977 (46.08%)18,472,275 (46.16%)
P144,131,51642,514,601 (96.34%)41,073,585 (93.07%)1,441,016 (3.27%)20,518,750 (46.49%)20,554,835 (46.58%)
P243,577,07841,944,011 (96.25%)40,303,516 (92.49%)1,640,495 (3.76%)20,133,389 (46.20%)20,170,127 (46.29%)
P342,601,19841,016,519 (96.28%)39,440,892 (92.58%)1,575,627 (3.70%)19,701,050 (46.25%)19,739,842 (46.34%)
P442,702,25041,098,071 (96.24%)39,528,322 (92.57%)1,569,749 (3.68%)19,745,068 (46.24%)19,783,254 (46.33%)
P542,134,18640,510,371 (96.15%)38,849,502 (92.20%)1,660,869 (3.94%)19,405,731 (46.06%)19,443,771 (46.15%)
P644,622,61838,550,615 (86.39%)37,036,723 (83.00%)1,513,892 (3.39%)18,501,103 (41.46%)18,535,620 (41.54%)
Sample: sample name; total reads: number of clean reads upon quality control; total map: number (percentage) of reads aligned to the reference genome; unique map: number (percentage) of reads aligned to a unique region of ARS1.2 (subsequently analyzed for quantitation); multi map: number (percentage) of reads with alignment to many locations of ARS1.2; positive and negative maps: numbers (percentages) of reads with alignment to the positive and negative strands of the reference genome, respectively.
Table
Table 4. Statistics of reads aligned to genomic regions.
Table 4. Statistics of reads aligned to genomic regions.
Sample NameExonic RegionIntronic RegionIntergenic Region
I14,466,151,533 (79.48%)611,822,545 (10.89%)541,085,383 (9.63%)
I24,779,622,398 (78.65%)761,383,464 (12.53%)535,946,498 (8.82%)
I34,432,093,997 (80.66%)570,346,947 (10.38%)492,580,965 (8.96%)
I44,614,052,978 (78.53%)738,532,433 (12.57%)523,236,881 (8.90%)
I55,160,159,063 (81.96%)605,739,527 (9.62%)530,252,297 (8.42%)
I64,298,336,210 (78.73%)599,791,632 (10.99%)561,800,986 (10.29%)
S15,004,805,293 (79.49%)606,545,683 (9.63%)684,973,145 (10.88%)
S24,891,821,345 (81.09%)533,206,687 (8.84%)607,543,338 (10.07%)
S35,173,907,638 (80.30%)600,212,860 (9.32%)668,983,341 (10.38%)
S44,579,030,919 (79.56%)552,189,052 (9.59%)623,968,138 (10.84%)
S54,488,498,885 (78.27%)613,561,446 (10.70%)632,649,316 (11.03%)
S64,595,667,229 (79.73%)543,550,434 (9.43%)624,459,696 (10.83%)
P15,058,268,703 (79.52%)636,322,977 (10.00%)666,220,762 (10.47%)
P24,921,081,484 (78.42%)644,761,157 (10.27%)709,616,381 (11.31%)
P34,871,901,450 (79.39%)593,069,117 (9.66%)671,905,236 (10.95%)
P44,918,914,052 (80.00%)601,562,419 (9.78%)628,332,353 (10.22%)
P54,886,718,972 (80.63%)554,456,620 (9.15%)619,529,425 (10.22%)
P64,658,554,613 (80.75%)537,138,992 (9.31%)573,327,628 (9.94%)
Exonic, intronic and intergenic regions: numbers (percentages) of reads with alignment to the exonic, intronic and intergenic regions, respectively.
Table
Table 5. Genes functions enriched through GO enrichment.
Table 5. Genes functions enriched through GO enrichment.
S vs. IP vs. S
BPprotein phosphorylationsodium ion transport
ion transportmetal ion transport
transmembrane transportmonovalent inorganic cation transport
reproductionimmune response
reproductive processimmune system process
MFion channel activityvoltage-gated sodium channel activity
channel activityvoltage-gated ion channel activity involved in regulation of postsynaptic membrane potential
passive transmembrane transporter activitysodium channel activity
substrate-specific channel activitychemokine activity
scavenger receptor activitychemokine receptor activity
CCmyosin complexvoltage-gated sodium channel complex
extracellular matrixsodium channel complex
plasma membraneion channel complex
plasma membrane partcation channel complex
cell peripheryintegral component of plasma membrane
BP: biological processes; MF: molecular functions; CC: cellular components.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zou, Y.; Chen, X.; Tian, X.; Guo, W.; Ruan, Y.; Tang, W.; Fu, K.; Ji, T. Transcriptomic Analysis of the Developing Testis and Spermatogenesis in Qianbei Ma Goats. Genes 2023, 14, 1334. https://doi.org/10.3390/genes14071334

AMA Style

Zou Y, Chen X, Tian X, Guo W, Ruan Y, Tang W, Fu K, Ji T. Transcriptomic Analysis of the Developing Testis and Spermatogenesis in Qianbei Ma Goats. Genes. 2023; 14(7):1334. https://doi.org/10.3390/genes14071334

Chicago/Turabian Style

Zou, Yue, Xiang Chen, Xingzhou Tian, Wei Guo, Yong Ruan, Wen Tang, Kaibin Fu, and Taotao Ji. 2023. "Transcriptomic Analysis of the Developing Testis and Spermatogenesis in Qianbei Ma Goats" Genes 14, no. 7: 1334. https://doi.org/10.3390/genes14071334

APA Style

Zou, Y., Chen, X., Tian, X., Guo, W., Ruan, Y., Tang, W., Fu, K., & Ji, T. (2023). Transcriptomic Analysis of the Developing Testis and Spermatogenesis in Qianbei Ma Goats. Genes, 14(7), 1334. https://doi.org/10.3390/genes14071334

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
