Progressive Cone-Rod Dystrophy and RPE Dysfunction in Mitfmi/+ Mice

by
Andrea García-Llorca
1,*,
Knútur Haukstein Ólafsson
1,
Arnór Thorri Sigurdsson
1 and
Thor Eysteinsson
1,2
1
Department of Physiology, Faculty of Medicine, University of Iceland, 101 Reykjavík, Iceland
2
Department of Ophthalmology, Landspitali—National University Hospital, 101 Reykjavík, Iceland
*
Author to whom correspondence should be addressed.
Genes 2023, 14(7), 1458; https://doi.org/10.3390/genes14071458
Submission received: 16 June 2023 / Revised: 11 July 2023 / Accepted: 15 July 2023 / Published: 17 July 2023
(This article belongs to the Special Issue Genetics in Retinal Diseases)
Browse Figures
Versions Notes

Abstract

:
Mutations in the mouse microphthalmia-associated transcription factor (Mitf) gene affect retinal pigment epithelium (RPE) differentiation and development and can lead to hypopigmentation, microphthalmia, deafness, and blindness. For instance, an association has been established between loss-of-function mutations in the mouse Mitf gene and a variety of human retinal diseases, including Waardenburg type 2 and Tietz syndromes. Although there is evidence showing that mice with the homozygous Mitfmi mutation manifest microphthalmia and osteopetrosis, there are limited or no data on the effects of the heterozygous condition in the eye. Mitf mice can therefore be regarded as an important model system for the study of human disease. Thus, we characterized Mitfmi/+ mice at 1, 3, 12, and 18 months old in comparison with age-matched wild-type mice. The light- and dark-adapted electroretinogram (ERG) recordings showed progressive cone-rod dystrophy in Mitfmi/+ mice. The RPE response was reduced in the mutant in all age groups studied. Progressive loss of pigmentation was found in Mitfmi/+ mice. Histological retinal sections revealed evidence of retinal degeneration in Mitfmi/+ mice at older ages. For the first time, we report a mouse model of progressive cone-rod dystrophy and RPE dysfunction with a mutation in the Mitf gene.

1. Introduction

Inherited retinal disorders (IRDs) represent a group of heterogenous genetical and clinical disorders that result in vision loss from birth or over time (most commonly in children or early in adult life) around the world [1,2]. IRDs are considered rare diseases. In Europe, a condition is rare if it affects less than 1 in 2000 citizens. In the U.S., a condition is rare if it affects less than 1 in 200,000 Americans [1,3]. Rod-cone dystrophies (RCDs) and cone-rod dystrophies (CRDs) are the two main groups of IRDS. They are characterized by the loss of one specific type of photoreceptor cells—rods or cones—followed by a subsequent loss of the other cell type [4,5,6]. Globally, the estimated prevalence of CRDs is 1/30,000–40,000 [7]. The main symptoms of CRDs are photo aversion, reduction in visual acuity, reduced central visual field sensitivity, and color-vision defects. CRDs typically have a more clinical course and faster clinical course than RCDs, resulting in vision loss and impairment [8]. The irreversible progression of vision loss and the lack of efficient treatments emphasize the need for new therapeutic approaches [9]. The majority of CRDs are non-syndromic [8], but in some cases, they are included in several syndromes, such as Bardet–Biedl syndrome [10] and spinocerebellar ataxia type 7 (SCA7) [11]. To date, 22 genes are reported to cause progressive CRD. Among those are aryl-hydrocarbon interacting protein like-1 (ALPL1), cone-rod homeobox containing gene (CRX), guanylate cyclase 2D (GUCY2D), peripherin 2 (PRPH2), retinitis pigmentosa GTPase regulator protein 1 (RPGRIP1), and voltage-dependent calcium channel alpha-1F (CACNA1F) [12]. However, there is a significant overlap with the bulk of genes that are linked to the involvement of rods over time [12]. Although IRDs predominantly damage the survival of photoreceptors (POS), it is crucial to remember that POS does not always display the mutated genes that cause these disorders. Mutations in genes related to retinal pigment epithelium (RPE) can lead to secondary POS disorders [6,13,14]. Some of the genes expressed in the RPE that are associated with IRDs are mentioned below, such as ABCA4, RPE65, and LRAT.
ABCA4 encodes a flippase, and it is a member of the ATP-binding cassette (ABC) superfamily, located in the disc membranes in the outer segments of photoreceptors. In the RPE, ABCA4 functions as a retinoid transporter [15]. It has been demonstrated that ABCA4 dysfunction is associated with Stargardt’s disease [16]. RPE65 function is important in the visual cycle, in which its protein product RPE65 transforms all-trans retinyl esters into 11-cis retinol [17]. RPE65 is one of the first RPE-specific proteins to be linked to human IRDs, and examples of these disorders are Leber congenital amaurosis (LCA) and retinitis pigmentosa (RP), which are disorders that can be broadly characterized as blindness from birth or early childhood [18]. LRAT is involved in regulating the amount of retinoic acid in the RPE. It has been reported that LRAT human mutations are associated with retinal dystrophies that are severe, including rod cone dystrophy, and they have been related to RPE65 mutant-like phenotypes [19]. In addition to the autosomal recessive RP, CRDs, and macular dystrophies, which account for up to 4% of all recessive LCA cases, the accumulation of aldehydes in POS is intimately associated with RDH12 mutations [20].
The microphthalmia-associated transcription factor (Mitf) gene encodes MITF, a basic-helix-loop-helix-leucine zipper transcription factor, that in turn forms homodimers that can bind to specific DNA sequences in the regulatory regions of a large group of target genes [21,22]. In the eye, expression of the Mitf gene is limited to the RPE [21,23,24,25] and is a crucial transcription factor that plays an important role in RPE development and several cellular functions [26]. This gene is expressed in nearly all cell types, and it serves as a regulator for melanocytes and for RPE cells in several ways [27]. In addition, the Mitf gene influences the development and function of mast-cells, and it furthermore regulates bone remodeling in osteoclasts [21]. In humans, MITF mutations are reported to be associated with Waardenburg syndrome [28]; Tietz albinism deafness syndrome (TADS) [29,30]; coloboma, osteopetrosis, microphthalmia, macrocephaly, albinism, and deafness (COMMAD) [31]; non-syndromic hearing loss [32]; and melanoma and renal carcinoma [33]. Mitf-deficient mice show pathological features of albinism, microphthalmia, deafness, hypopigmentation, and retinal degeneration [21,23,25,34]. Recently, it was demonstrated that Mitf mutant and control mice have considerably different retinal vessel diameters and differences in the number of retinal vessels [35]. Loss of pigmentation, smaller eyes, failure of secondary bone resorption, fewer mast cells, and early-onset hearing loss are all or part of the abnormalities present in mice with mutations at the microphthalmia (mi) locus [34,36,37,38]. There is already a lot of information available on the homozygous Mitfmi mutant condition in mice, and the evidence increasingly indicates various physiological defects [21,25,37,39]. Nevertheless, the retinal structure and function in Mitfmi/+ mice have never been examined to a great extent before. Here, for the first time, we characterized retinal function in Mitfmi/+ mice at different ages.

2. Materials and Methods

2.1. Animals

C5BL/6J-Mitfmi/+ mice (Table 1) at 1, 3, 12, and 18 months old were compared with control age-matched C5BL/6J. The mice used were bred and raised in the animal facilities of the University of Iceland. The C5BL/6J mice were raised at the Jackson Laboratory (stock #000664). The animals were maintained in transparent polypropylene cages with standard wire tops and bedding material on the bottom, with environmental enrichment material like tubes included. The animals had free access to water and standard rodent food (Altromin International, Lage, Germany). A cycle of 12/12-hour light/dark was maintained in their environment. In addition, the animals were all treated in line with the Association for Research in Vision and Ophthalmology (ARVO) Statement for Use of Animals in Ophthalmic and Vision Research.

2.2. Mitf Mutation

The Mitf mutation studied here has been described previously and is listed in Table 1. The mi is one of the most fascinating mutations in mice. There are many mi alleles, and some of them exhibit intricate interallelic interactions. The original mi allele is a semidominant and was discovered in the descendants of an irradiated male mouse. The mi mutation is located in the basic region and is a 3 bp deletion that deletes one of three arginines at the C-terminal of the DNA-binding domain. Consequently, the protein encoded by the mi mutation removes the basic domain. Thus, the displacement in mi of such important amino acids results in a DNA-binding loss [34,40]. The heterozygous mouse Mitf mi/+ mutation has been found to either lack any coat phenotype that is distinguishable [41] or on rare occasions have small white spots on the head, belly, and/or tail [42]. However, the homozygous Mitfmi mutation shows a dramatic phenotype: lack of pigmentation in their coat and red eyes that are small. There is a deficiency of natural killer cells, basophils, and mast cells in these mice. Their adrenal medulla, spinal ganglia, and dermis are reduced in comparison with control animals, and the development of their incisors often fails [25,34,43,44]. These mutants tend to develop osteopetrosis and inner ear defects (Table 1). This mutation, in heterozygous mice, was selected for study, as it has apparently normal eye development.

2.3. Electroretinogram (ERG)

Corneal ERGs were recorded from wild-type and Mitf mutant mice with a Celeris D430 rodent recording system (Diagnosys LLC, Lowell, MA, USA) equipped with “bright standard” stimulators and light guide electrodes. Data acquisition and control of light stimuli were achieved with the Espion V6 software (Diagnosys LLC, Lowell, MA, USA), which allows for programming of protocols to that end. The dark-adapted ERG was recorded with two light guide electrodes, embedded in fiber optic cables used for light stimulation, and placed on each cornea of the animal. The fiber optic with the light guide electrode on each eye was used to present 4 ms full-field light flashes and record ERG responses. The reference electrode was a platinum wire placed subcutaneously in the chin of the mouse, while a second platinum wire served as the ground and was inserted into the tail. The light-adapted ERG was recorded by stimulating one eye at a time with light stimuli delivered through the light guide electrode, while the light guide electrode over the contralateral eye served as a reference. Anesthesia was induced prior to ERG recording by an injection of a mixture of ketamine (40 mg/kg) and xylazine (4 mg/kg) intraperitoneally. Drops of Mydriacyl (1% tropicamide, Alcon Laboratories, Geneva, Switzerland) and phenylephrine (10% w/v, Bausch & Lomb, Vaughan, ON, Canada) were applied to the eyes for pupil dilation as well as Alcaine (proxymetacaine, Alcon Laboratories) drops for local corneal anesthesia. In addition, to maintain the moistness of the cornea, Methocel (2% methylcellulose, OmniVision, Santa Clara, CA, USA) gel was applied to it as needed. This was done to avoid dehydration, cataract formation, and to maintain a sufficient electrical conduction to the corneal electrode. A protective shield was placed on the eyes as well during both dark and light adaptations before placing the cornea electrodes to prevent any cataract formation [45]. The body temperature of the mouse was kept stable at 37 °C by a built-in heating pad in the Celeris recording system. The mouse was placed on the heating platform in a straight line so that its head was raised a bit to ensure normal breathing. When recording dark-adapted ERGs, the animal was dark-adapted overnight before administration of anesthesia.
When dark-adapted ERG recordings were obtained, 11 light intensities in an increasing order of luminance were used for the experiment: 0.001, 0.003, 0.01, 0.05, 0.1, 0.2, 0.5, 1, 5, 10, and 20 cd⋅s/m2. Each recording was obtained with stimulus intensity up to 10 cd⋅s/m2 and was the average of 5 stimulus presentations, and above that intensity, the responses were the average of 3 stimulus presentations. Intersweep delays of 5–10 s was applied between the light stimuli as well to prevent light adaptation of photoreceptors. For the c-wave recording, 3 light stimuli were presented, respectively, at a luminance of 10, 20, and 30 cd⋅s/m2, with each recording an average of 3 stimulus presentations with an intersweep delay of 30 s between stimuli. Following the dark-adapted protocol, the mouse was light-adapted for 10 min, with a light-adapting background of 9 cd/m2. The light-adapting background was kept on during the recording of light-adapted ERG responses. In a similar manner as during the dark-adapted ERG recording, the light-adapted ERG recordings were obtained in response to 6 different increasing light stimuli, respectively, at 1, 3, 5, 7, 10, and 20 cd⋅s/m2, and each recording was the average of 6 stimulus presentations. High-pass and low-pass electronic filters were set within the recording software at 0.125 and 300 Hz, respectively, in all protocols.

2.4. ERG Data Analysis

The components of the ERG recordings from control and Mitfmi/+ mice that were analyzed were as follows: dark-adapted a-, b-, and c-waves and light-adapted a- and b-waves. The a-wave amplitudes were calculated from the baseline to the trough of the first negative deflection after the stimulus onset. The b-wave amplitudes were measured from either the baseline or the lowest value in the a-wave to its peak value [46]. The c-wave amplitude was calculated as the difference between the voltage value of the tail of the PIII component in the dark-adapted ERG and the voltage at the 800 milliseconds post stimulus apex [47].

2.5. Fundus Photography

Fundus photographs were obtained from the same anesthetized mice that were used to record the ERG, with a Micron IV rodent fundus imaging system (Phoenix Research Labs Inc., Pleasanton, CA, USA). Fundus images were photographed with the optic nerve located in the center of the image field, as previously described [23].

2.6. Histology and Measurement of Retinal Layers

Hematoxylin and eosin (H&E) sections were performed by the Institute for Experimental Pathology, University of Iceland. After collecting live fundus images, mice were euthanized by cervical dislocation. Whole eyes were enucleated and fixed in 4% paraformaldehyde over night at 4 °C. Following that, the eyes were then embedded in paraffin and sectioned at 2 µm onto super-frost slides and dried at 60 °C for at least 40 min. The paraffin-embedded retinal sections were then deparaffinized in xylene, rehydrated through a series of ethanol concentrations, and then stained with H&E, mounted, and sealed. Images were taken using the EVOS M7000 Imaging System (Thermo Fisher Scientific, Inc., Waltham, MA, USA). The total retinal thickness (TR) was measured from the images as the distance from the retinal surface to the tips of the photoreceptor outer segments (POS). The thickness of the outer nuclear layer (ONL), inner nuclear layer (INL), and POS were measured. The thickness of each layer was calculated using the distance_between_polylines.java plug-in [48] and using the Image J software (National Institutes of Health, Bethesda, MD, USA). Four sections were measured from one of the eyes of each mouse. The measurements were in all cases obtained three times per section and then averaged. Only retinal sections that had optic nerve stumps included were used for the sake of consistency.

2.7. Statistical Analysis

All ERG recordings were obtained with the Espion v6 software (Diagnosys LLC, Lowell, MA, USA). All data are expressed here as mean ± SEM. Two-way repeated measurements ANOVA followed by Šidák post hoc multiple comparisons test was performed in all statistical analysis [49]. Values of p < 0.05 were considered significant (indicated with *) unless otherwise indicated. Statistical analysis and graphs were plotted with the use of GraphPad Prism v.9.0 (GraphPad Software, San Diego, CA, USA).

3. Results

3.1. Phenotypic Hallmarks of Progressive CRD in Mitfmi/+

The ERG is a method for invasively recording the retinal activity in response to light. In order to assess the phenotypic hallmarks of progressive CRD in Mitfmi/+ mice, we started to record the representative light-adapted ERG from wild-type and Mitfmi/+ mice at all groups of age studied at the highest light intensity of 20 cd*sec/m2 (Figure 1A–D). Interestingly, Mitfmi/+ displayed normal light-adapted ERG at 1 month of age; however, the response was progressively reduced at 3, 12, and 18 months compared with age-matched wild-type mice (Figure 1A–D). Analysis of the a- and b-waves after light adaptation in control and Mitfmi/+ mice is shown in Figure 2A–D and 2F–I, respectively. No statistically significant difference in the a- and b-waves analysis in Mitfmi/+ at 1 month old compared with the wild type was found (Figure 2A and 2F, respectively). A statistically significant effect of genotype was observed in the light a-wave analysis at 3 (n = 7, ** p = 0.0022), 12 (n = 7, ** p = 0.0038), and 18 months of age (n = 7, ** p = 0.0046). In addition, a statistically significant effect of genotype was also observed in the light b-wave analysis in all groups of age studied (n = 7, **** p < 0.0001). Moreover, there was an interaction effect between genotype and age in the light b-wave mean amplitude (n = 7, * p = 0.0125), indicating that the difference between the light b-wave mean amplitude of both genotypes diminishes dramatically over time (Figure 2J). The mean amplitudes of the cone a- and b-waves were significantly reduced in Mitfmi/+ compared with control animals at all of the stimulus luminance levels tested at 3, 12, and 18 months old (Figure 2). The mean of the a-wave amplitude in response to the 20 cd*sec/m2 flash stimulus was significantly reduced in Mitfmi/+ compared with control animals at 3 (14.5 ± 1.9 µV, ** p = 0.0022; 17.5 ± 1.1 µV, respectively), 12 (12.3 ± 1.9 µV, ** p = 0.0038; 18.7 ± 1.9 µV, respectively), and 18 months old (9.5 ± 0.9 µV, ** p = 0.0046; 15.8 ± 1.9 µV, respectively). Furthermore, the mean of the b-wave amplitude in response to the 20 cd*sec/m2 flash stimulus was significantly reduced in Mitfmi/+ compared with wild-type mice at 3 (90.5 ± 10.5, **** p < 0.0001; 136.1 ± 14.1, respectively), 12 (47.3 ± 9.2, **** p < 0.0001; 124.8 ± 12.1, respectively), and 18 months old (22.1 ± 3.5, **** p < 0.0001; 116.5 ± 9.7, respectively) (Figure 2). These results indicate that Mitfmi/+ show cone dystrophy at 3 months of age, and it progresses during aging.
Next, we recorded the representative dark-adapted ERG from control and Mitfmi/+ mice at all groups of age studied at the highest light intensity of 20 cd*sec/m2. The dark-adapted representative traces are presented in Figure 3A–D. Surprisingly, Mitfmi/+ showed reduced dark-adapted ERG at older ages compared with age-matched control mice (Figure 3A–D). Analysis of the a- and b-waves after dark-adaptation in control and Mitfmi/+ mice is shown in Figure 4A–D and 4F–I, respectively. We did not find any statistically significant difference in the analysis of a- and b-waves in Mitfmi/+ at 1 and 3 months old compared with the wild type (Figure 4A,B,F,G). A statistical effect of genotype was observed in the analysis of the dark-adapted a-wave at 12 (n = 7, **** p < 0.0001) and 18 months old (n = 7, **** p < 0.0001). In addition, a statistical effect of genotype was also observed in the analysis of the dark-adapted b-wave at 12 (n = 7, **** p < 0.0001) and 18 months of age (n = 7, ** p = 0.0001). There was an interaction effect between genotype and age in both dark-adapted a- and b-wave mean amplitudes (n = 7, ** p = 0.0052 and * p = 0.0286 respectively), indicating that the difference between the dark-adapted a- and b-wave mean amplitudes of both genotypes reduces over time (Figure 4E and I, respectively). The mean amplitudes of the rod responses were severely reduced in Mitfmi/+ compared with wild-type mice. The mean amplitude of the a-wave at the highest light intensity of 20 cd*sec/m2 was significantly reduced in Mitfmi/+ compared with wild-type mice at 12 (54.1 ± 10.4 µV, **** p < 0.0001; 299.2 ± 32.5 µV, respectively) and 18 months old (44.3 ± 7.3 µV, **** p < 0.0001; 264.7 ± 25.4 µV, respectively). In addition, the mean of the b-wave amplitude at the highest light intensity of 20 cd*sec/m2 was significantly reduced in Mitfmi/+ compared with wild-type mice at 12 (225.6 ± 41.1 µV, **** p < 0.0001; 585.4 ± 77.3 µV, respectively) and 18 months old (162.1 ± 32.6 µV, **** p < 0.0001; 484.2 ± 48.5 µV, respectively). Our ERG studies indicate that our mouse model shows progressive cone-rod dystrophy.

3.2. RPE Response Decreases over Time in Mitfmi/+

The c-wave indicates RPE function, and it is caused by a reduction in K+ concentration in the subretinal space that light stimuli induce. The representative ERG c-wave amplitudes found in this study from control and Mitfmi/+ mice at 10 cd*sec/m2 are shown in Figure 5A–D, and the average c-wave amplitudes are presented in Figure 5E. There was an interaction effect between genotype and age (n = 7, *** p = 0.0003), indicating that the difference between the c-wave mean amplitude of both genotypes diminishes dramatically over time (Figure 5E). The mutant showed a reduced ERG c-wave at 1 and 3 months old compared with control mice, while the ERG c-wave was strikingly reduced in the mutant at older ages in comparison with control mice (Figure 5A–D). The averaged c-wave amplitude was significantly reduced in Mitfmi/+ compared with control mice (Figure 5E). The averaged c-wave amplitude was significantly reduced in Mitfmi/+ compared with wild-type mice at 1 (143.2 ± 11.6 µV, * p = 0.0326; 225.0 ± 20.8 µV, respectively), 3 (110.9 ± 3.6 µV, **** p < 0.0001; 256.4 ± 27.7 µV, respectively), 12 (16.8 ± 1.7 µV, **** p < 0.0001; 273.6 ± 30.1 µV, respectively), and 18 months old (16.6 ± 4.0 µV, **** p < 0.0001; 273.8 ± 40.8 µV, respectively) (Figure 5E). These results suggest that the light dependent RPE function is severely reduced in our Mitfmi/+ mouse model and worsens with age.

3.3. Progressive Loss of Pigmentation in Mitfmi/+ Mice

Fundus images from 1-, 3-, 12-, and 18-month-old wild-type and Mitfmi/+ mice (n = 7 per genotype) were captured with a rodent fundus camera (Figure 6). The bright field fundus images from the mutant show large, non-pigmented lesions in the superior half of the fundus, whereas the hyper-pigmented lesions were found in the inferior half of the fundus. Hyperpigmentation is evident in the mutant in all age groups studied (Figure 6). However, it appears to lessen with age. These results indicate a progressive, age-related hypopigmentation in Mitfmi/+ mice.

3.4. Histological Features in Mitfmi/+ Mice

To assess the morphological alterations of the retinas, the retinas of 12- and 18-month-old wild-type and Mitfmi/+ mice were stained with hematoxylin and eosin (H&E) (Figure 7A). A statistically significant effect of genotype was observed at 12 (n = 7, **** p < 0.0001) and 18 months old (n = 7, **** p < 0.0001). All retinal layers are present in Mitfmi/+ mice (Figure 7A). The total retina (TR) was significantly thinner in Mitfmi/+ than in wild-type mice at 12 (228.7 ± 2.7 µm, **** p < 0.0001; 248.3 ± 3.4 µm, respectively) and 18 months old (221.1 ± 4.6 µm, **** p < 0.0001; 246.6 ± 1.8 µm, respectively) (Figure 7B,C). Moreover, the inner nuclear layer (INL) and outer nuclear layer (ONL) were significantly thinner in the mutant compared with the wild type in all age groups studied (Figure 7B,C). In addition, the POS layer was significantly thinner in Mitfmi/+ than in control mice at 12 (29.9 ± 3.9 µm, ** p = 0.0061; 40.9 ± 0.4 µm, respectively) and 18 months old (28.1 ± 3.0 µm, ** p = 0.0098; 41.1 ± 1.2 µm, respectively). These results indicate that Mitfmi/+ mice show a clear evidence of retinal degeneration.

4. Discussion

Mutations at the mi locus affect the development of pigmented cells, including the RPE, and can cause reduced eye size, loss of pigmentation, decreased numbers of mast cells, a failure of secondary bone resorption, and hearing loss in mice [37,39,40]. Mutations in the human mi gene have been linked with Waardenburg syndrome type 2, which is characterized by loss of hearing and pigmentary disturbances in the hair, skin, and eyes [25]. We previously showed that RPE function and morphology is affected in mice with mutations in the microphthalmia gene [23]. In this study, for the first time, we thoroughly characterized the retinal function in heterozygous Mitfmi mice at different ages. Homozygous Mitfmi lack melanocytes, their coats are white, and they are deaf and have severe microphthalmia. Heterozygous mice often show white spotting on the tail, belly, and head and less pigment in the iris than normal (Table 1). The Mitfmi mutation is semidominant and results in a 3 bp deletion of one of four arginines in the DNA-binding basic domain of the gene. Hence, the displacement of such important amino acids results in a failure to bind DNA but the capability of forming dimers [34]. However, the fact that mutant Mitfmi protein cannot be detected in vivo neural-crest-derived cells [50] and that it localizes primarily in the cytoplasm after transfection [51] raises the possibility that this mutant may in fact represent a loss-of-function phenotype in vivo rather than a dominant negative. Accordingly, the phenotypic effects of this mutation when homozygous are very dramatic, showing osteopetrosis and microphthalmia. Our findings suggest that the underlying nature of the mutation may explain the phenotypic effects seen in heterozygous Mitfmi mice.
Normally functioning RPE is crucial for the photoreceptors and vice versa [17]. Accordingly, degeneration of the RPE may elevate the likelihood of POS dysfunction, and dystrophy or other abnormalities in photoreceptors may have an impact on RPE function. Because the absorption of light by POS causes a reduction in the extracellular concentration of K+ ions, the ERG c-wave can be used to evaluate the functional integrity of POS, RPE cells, and the very important interaction that occurs between them [52]. The ERG c-wave is primarily produced by a light-induced decrease in subretinal K+ ion concentration and the hyperpolarization of the RPE’s apical side that follows [53,54]. It has been suggested that c-wave recordings can be used to examine pathological alterations in the RPE [55]. The Kir7.1 channel is one of the best-characterized members of the Kir channel super-family and is expressed in most cell types, including the RPE [56,57], which is expressed on its apical side [58,59]. It has been shown that mutant RPE Kir7.1 channels make a direct contribution to the abnormal ERG associated with loss of vision via alterations in the homeostasis of sub-retinal space K+ [60,61]. Mitf gene is solely expressed in the RPE, and the contribution of RPE Kir7.1 to the ERG may explain why Mitfmi/+ mice show reduced RPE response already at 1 month, and therefore, RPE function is also affected (Figure 5). In our analysis, the c-wave amplitude tended to decrease and degenerate dramatically over time in Mitfmi/+ mice, raising the interesting point that progressive cone-rod dystrophy in this mouse model may result partly from the absence and/or reduction of Kir7.1 in the RPE. Additional studies are required to validate this statement.
Mitf mutations affect both choroidal melanocytes and the RPE [23,25]. Likewise, fundus images from Mitfmi/+ mice consistently and reliably showed signs of progressive hypopigmentation, which appears to worsen with age (Figure 6). MITF can promote differentiation-associated functions, including regulation of genes that are implicated in pigmentation, such as TYR, TYRP1, DCT, MLANA, SILV, and SLC24A5 [62]. It has been shown that loss of pigmentation correlates with loss of expression of the melanocyte-specific TRP-1 and tyrosinase genes [63]; therefore, we could speculate that the expression of these genes might be downregulated over time in the eyes of Mitfmi/+ mice.
Predominantly, mouse models of retinal disease mimic human disease but with limitations resulting from differences between the two species, such as their life span and the absence of the macula in mice. These mammals are easy to handle, and multiple mutant mice of retinal disease have already been identified or can be generated for research [6]. The structure of the RPE serves as a part of the blood–retina barrier, and on the apical side, it is in contact with the outer segments of POS and with the Bruch’s membrane basolaterally [17]. Mutations in the RPE, which play an important role in photoreceptor survival, can cause retinal degenerative disease [17,23,25,26]. Mutations in the RPE65 and LRAT genes have been associated with Leber congenital amaurosis (LCA) [13]. The Rpe65- R91W-knock-in mice show rod responses that are already degenerating at 4 weeks of age; however, the cones are better preserved and seem to be functional in young animals and represent a milder early-onset mouse model of LCA [64]. In contrast, our findings suggest that the RPE is primarily affected already at 1 month of age, which may cause secondary progressive cone-rod dystrophy (Figure 1, Figure 2, Figure 3 and Figure 4).
The ABCA4 gene encodes an ATP-binding cassette transporter in the rims of the outer segment discs, and mutations in this gene cause recessive cone-rod dystrophy and recessive Stargardt macular degeneration [65]. Accumulation of autofluorescent lipofuscin granules in the RPE is a symptom of ABCA4-mediated retinal and macular dystrophies [66,67]. Abca4−/− mice show dark adaptation that is delayed, increased all-trans-retinal after light exposure, increased phosphatidylethanolamine in the rod’s outer segment, and a dramatic increase in lipofuscin fluorophore in RPE [68]. In the same study, it was proposed that the ABCA4-mediated retinal degeneration may result from the severe lipofuscin accumulation that occurs in the RPE and that there is secondary photoreceptor degeneration due to loss of the RPE support role [68]. Similarly, we found in the current study that RPE functionality is first compromised due to a mutation in a gene expressed in the RPE with secondary photoreceptor degeneration in Mitfmi/+ mice (Figure 1, Figure 2, Figure 3 and Figure 4). RAB28, which is a distal member of the Rab family and present in both photoreceptors and RPE, has been associated with nonsense mutations in RAB28, causing cone-rod dystrophy 18, with foveal atrophy and hyperpigmentation and diminished cone and rod responses in humans [69,70]. In addition, RAB28 is required to facilitate the shedding and phagocytosis of the cone’s outer segments discs by the murine RPE [71]. The Rab28−/− mouse model shows cone responses diminished at 1 month old and nearly absent at 12 months of age, which is consistent with human cone-rod dystrophy [71]. Likewise, Mitfmi/+ mice show severely decreased and degenerated cone responses over time and subsequent diminished rod responses at older ages (Figure 1, Figure 2, Figure 3 and Figure 4).

5. Conclusions

In summary, we report a mouse model of progressive cone-rod dystrophy and dysfunctional RPE with a mutation in the Mitf gene, which is solely expressed in the RPE. Progressive loss of pigmentation over time was seen in Mitfmi/+ mice compared with age-matched control animals. In addition, retinal degeneration was found in the late life stage of this mouse model of Mitf. Importantly, these findings shed further light on the role of the microphthalmia gene in eye function. Further work on the functional aspects of this mutation promises to elucidate the multiple functions of MITF in the eye and hopefully provide insights that will assist with gene therapy. Identifying novel genes and mutations expressed in the RPE and associated with retinal dystrophies will enhance our understanding of the disease at molecular level, leading to better treatments, therapeutical agents, and possibly prevention of the disease.

Author Contributions

Conceptualization, A.G.-L.; methodology, A.G.-L., K.H.Ó. and A.T.S.; software, A.G.-L.; validation, A.G.-L., K.H.Ó., A.T.S. and T.E.; formal analysis, A.G.-L., K.H.Ó. and A.T.S.; investigation, A.G.-L.; resources, A.G.-L. and T.E.; writing—original draft preparation, A.G.-L.; writing—review and editing, A.G.-L. and T.E.; visualization, A.G.-L. and T.E.; supervision, A.G.-L. and T.E.; project administration, A.G.-L.; funding acquisition, A.G.-L. and T.E. All authors have read and agreed to the published version of the manuscript.

Funding

A.G.-L. acknowledges financial support provided by a Postdoctoral Fellowship Grant from the Icelandic Research Fund (217796-052). T.E. acknowledges financial support from the Landspitali National Hospital Research Fund (986862).

Institutional Review Board Statement

The animal experiments were carried out according to the guidelines of the Association for Research in Vision and Ophthalmology Statement for the use of Animals in Ophthalmic and Visual Research and were approved by the Icelandic Food and Veterinary Authority (MAST, license number 2108002).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request to the corresponding author.

Acknowledgments

The authors thank Guðbjörg Jónsdóttir and Hanna Kristún Jónsdóttir for performing the H&E sections at the Institute Experimental Pathology, University of Iceland, and Eiríkur Steingrímsson for providing the Mitfmi/+ mice.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Galvin, O.; Chi, G.; Brady, L.; Hippert, C.; Del Valle Rubido, M.; Daly, A.; Michaelides, M. The Impact of Inherited Retinal Diseases in the Republic of Ireland (ROI) and the United Kingdom (UK) from a Cost-of-Illness Perspective. Clin. Ophthalmol. 2020, 14, 707–719. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Sergouniotis, P.I. Inherited Retinal Disorders: Using Evidence as a Driver for Implementation. Ophthalmologica 2019, 242, 187–194. [Google Scholar] [CrossRef] [PubMed]
  3. Richter, T.; Nestler-Parr, S.; Babela, R.; Khan, Z.M.; Tesoro, T.; Molsen, E.; Hughes, D.A. Rare Disease Terminology and Definitions-A Systematic Global Review: Report of the ISPOR Rare Disease Special Interest Group. Value Health 2015, 18, 906–914. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. den Hollander, A.I.; Roepman, R.; Koenekoop, R.K.; Cremers, F.P. Leber congenital amaurosis: Genes, proteins and disease mechanisms. Prog. Retin. Eye Res. 2008, 27, 391–419. [Google Scholar] [CrossRef]
  5. Hunt, D.M.; Wilkie, S.E.; Newbold, R.; Deery, E.; Warren, M.J.; Bhattacharya, S.S.; Zhang, K. Dominant cone and cone-rod dystrophies: Functional analysis of mutations in retGC1 and GCAP1. Novartis Found. Symp. 2004, 255, 37–49; discussion 49–50, 177–178. [Google Scholar] [CrossRef]
  6. Veleri, S.; Lazar, C.H.; Chang, B.; Sieving, P.A.; Banin, E.; Swaroop, A. Biology and therapy of inherited retinal degenerative disease: Insights from mouse models. Dis. Model. Mech. 2015, 8, 109–129. [Google Scholar] [CrossRef] [Green Version]
  7. Tsang, S.H.; Sharma, T. Progressive Cone Dystrophy and Cone-Rod Dystrophy (XL, AD, and AR). Adv. Exp. Med. Biol. 2018, 1085, 53–60. [Google Scholar] [CrossRef]
  8. Hamel, C.P. Cone rod dystrophies. Orphanet J. Rare Dis. 2007, 2, 7. [Google Scholar] [CrossRef] [Green Version]
  9. Chiu, W.; Lin, T.Y.; Chang, Y.C.; Isahwan-Ahmad Mulyadi Lai, H.; Lin, S.C.; Ma, C.; Yarmishyn, A.A.; Lin, S.C.; Chang, K.J.; Chou, Y.B.; et al. An Update on Gene Therapy for Inherited Retinal Dystrophy: Experience in Leber Congenital Amaurosis Clinical Trials. Int. J. Mol. Sci. 2021, 22, 4534. [Google Scholar] [CrossRef]
  10. Beales, P.L.; Elcioglu, N.; Woolf, A.S.; Parker, D.; Flinter, F.A. New criteria for improved diagnosis of Bardet-Biedl syndrome: Results of a population survey. J. Med. Genet. 1999, 36, 437–446. [Google Scholar] [CrossRef]
  11. Aleman, T.S.; Cideciyan, A.V.; Volpe, N.J.; Stevanin, G.; Brice, A.; Jacobson, S.G. Spinocerebellar ataxia type 7 (SCA7) shows a cone-rod dystrophy phenotype. Exp. Eye Res. 2002, 74, 737–745. [Google Scholar] [CrossRef]
  12. Gill, J.S.; Georgiou, M.; Kalitzeos, A.; Moore, A.T.; Michaelides, M. Progressive cone and cone-rod dystrophies: Clinical features, molecular genetics and prospects for therapy. Br. J. Ophthalmol. 2019, 103, 711–720. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Manley, A.; Meshkat, B.I.; Jablonski, M.M.; Hollingsworth, T.J. Cellular and Molecular Mechanisms of Pathogenesis Underlying Inherited Retinal Dystrophies. Biomolecules 2023, 13, 271. [Google Scholar] [CrossRef] [PubMed]
  14. Travis, G.H.; Golczak, M.; Moise, A.R.; Palczewski, K. Diseases caused by defects in the visual cycle: Retinoids as potential therapeutic agents. Annu. Rev. Pharmacol. Toxicol. 2007, 47, 469–512. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Allikmets, R.; Singh, N.; Sun, H.; Shroyer, N.F.; Hutchinson, A.; Chidambaram, A.; Gerrard, B.; Baird, L.; Stauffer, D.; Peiffer, A.; et al. A photoreceptor cell-specific ATP-binding transporter gene (ABCR) is mutated in recessive Stargardt macular dystrophy. Nat. Genet. 1997, 15, 236–246. [Google Scholar] [CrossRef]
  16. Khan, M.; Cremers, F.P.M. ABCA4-Associated Stargardt Disease. Klin. Monbl Augenheilkd. 2020, 237, 267–274. [Google Scholar] [CrossRef]
  17. Strauss, O. The retinal pigment epithelium in visual function. Physiol. Rev. 2005, 85, 845–881. [Google Scholar] [CrossRef] [Green Version]
  18. Fan, J.; Rohrer, B.; Frederick, J.M.; Baehr, W.; Crouch, R.K. Rpe65−/− and Lrat−/− mice: Comparable models of leber congenital amaurosis. Investig. Ophthalmol. Vis. Sci. 2008, 49, 2384–2389. [Google Scholar] [CrossRef] [Green Version]
  19. Bereta, G.; Kiser, P.D.; Golczak, M.; Sun, W.; Heon, E.; Saperstein, D.A.; Palczewski, K. Impact of retinal disease-associated RPE65 mutations on retinoid isomerization. Biochemistry 2008, 47, 9856–9865. [Google Scholar] [CrossRef] [Green Version]
  20. Wang, J.; Wang, Y.; Li, S.; Xiao, X.; Yi, Z.; Jiang, Y.; Li, X.; Jia, X.; Wang, P.; Jin, C.; et al. Clinical and Genetic Analysis of RDH12-Associated Retinopathy in 27 Chinese Families: A Hypomorphic Allele Leads to Cone-Rod Dystrophy. Investig. Ophthalmol. Vis. Sci. 2022, 63, 24. [Google Scholar] [CrossRef]
  21. Arnheiter, H. The discovery of the microphthalmia locus and its gene, Mitf. Pigment. Cell Melanoma Res. 2010, 23, 729–735. [Google Scholar] [CrossRef] [Green Version]
  22. Steingrímsson, E.; Tessarollo, L.; Pathak, B.; Hou, L.; Arnheiter, H.; Copeland, N.G.; Jenkins, N.A. Mitf and Tfe3, two members of the Mitf-Tfe family of bHLH-Zip transcription factors, have important but functionally redundant roles in osteoclast development. Proc. Natl. Acad. Sci. USA 2002, 99, 4477–4482. [Google Scholar] [CrossRef] [PubMed]
  23. Garcia-Llorca, A.; Aspelund, S.G.; Ogmundsdottir, M.H.; Steingrimsson, E.; Eysteinsson, T. The microphthalmia-associated transcription factor (Mitf) gene and its role in regulating eye function. Sci. Rep. 2019, 9, 15386. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Nguyen, M.-T.T.; Arnheiter, H. Signaling and transcriptional regulation in early mammalian eye development: A link between FGF and MITF. Development 2000, 127, 3581–3591. [Google Scholar] [CrossRef] [PubMed]
  25. Steingrimsson, E.; Copeland, N.G.; Jenkins, N.A. Melanocytes and the microphthalmia transcription factor network. Annu. Rev. Genet. 2004, 38, 365–411. [Google Scholar] [CrossRef] [PubMed]
  26. Ma, X.; Li, H.; Chen, Y.; Yang, J.; Chen, H.; Arnheiter, H.; Hou, L. The transcription factor MITF in RPE function and dysfunction. Prog. Retin. Eye Res. 2019, 73, 100766. [Google Scholar] [CrossRef]
  27. Planque, N.; Raposo, G.; Leconte, L.; Anezo, O.; Martin, P.; Saule, S. Microphthalmia transcription factor induces both retinal pigmented epithelium and neural crest melanocytes from neuroretina cells. J. Biol. Chem. 2004, 279, 41911–41917. [Google Scholar] [CrossRef] [Green Version]
  28. Read, A.P.; Newton, V.E. Waardenburg syndrome. J. Med. Genet. 1997, 34, 656–665. [Google Scholar] [CrossRef] [Green Version]
  29. Amiel, J.; Watkin, P.M.; Tassabehji, M.; Read, A.P.; Winter, R.M. Mutation of the MITF gene in albinism-deafness syndrome (Tietz syndrome). Clin. Dysmorphol. 1998, 7, 17–20. [Google Scholar] [CrossRef]
  30. Smith, S.D.; Kelley, P.M.; Kenyon, J.B.; Hoover, D. Tietz syndrome (hypopigmentation/deafness) caused by mutation of MITF. J. Med. Genet. 2000, 37, 446–448. [Google Scholar] [CrossRef] [Green Version]
  31. George, A.; Zand, D.J.; Hufnagel, R.B.; Sharma, R.; Sergeev, Y.V.; Legare, J.M.; Rice, G.M.; Scott Schwoerer, J.A.; Rius, M.; Tetri, L.; et al. Biallelic Mutations in MITF Cause Coloboma, Osteopetrosis, Microphthalmia, Macrocephaly, Albinism, and Deafness. Am. J. Hum. Genet. 2016, 99, 1388–1394. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Morton, C.C.; Nance, W.E. Newborn hearing screening—A silent revolution. N. Engl. J. Med. 2006, 354, 2151–2164. [Google Scholar] [CrossRef] [PubMed]
  33. Kuiper, R.P.; Schepens, M.; Thijssen, J.; van Asseldonk, M.; van den Berg, E.; Bridge, J.; Schuuring, E.; Schoenmakers, E.F.P.M.; van Kessel, A.G. Upregulation of the transcription factor TFEB in t(6;11)(p21;q13)-positive renal cell carcinomas due to promoter substitution. Human. Mol. Genet. 2003, 12, 1661–1669. [Google Scholar] [CrossRef]
  34. Hodgkinson, C.A.; Moore, K.J.; Nakayama, A.; Steingrímsson, E.; Copeland, N.G.; Jenkins, N.A.; Arnheiter, H. Mutations at the mouse microphthalmia locus are associated with defects in a gene encoding a novel basic-helix-loop-helix-zipper protein. Cell 1993, 74, 395–404. [Google Scholar] [CrossRef]
  35. Danielsson, S.B.; Garcia-Llorca, A.; Reynisson, H.; Eysteinsson, T. Mouse microphthalmia-associated transcription factor (Mitf) mutations affect the structure of the retinal vasculature. Acta Ophthalmol. 2022, 100, 911–918. [Google Scholar] [CrossRef] [PubMed]
  36. Hallsson, J.H.; Favor, J.; Hodgkinson, C.; Glaser, T.; Lamoreux, M.L.; Magnusdottir, R.; Gunnarsson, G.J.; Sweet, H.O.; Copeland, N.G.; Jenkins, N.A.; et al. Genomic, transcriptional and mutational analysis of the mouse microphthalmia locus. Genetics 2000, 155, 291–300. [Google Scholar] [CrossRef] [PubMed]
  37. Steingrimsson, E.; Moore, K.J.; Lamoreux, M.L.; Ferre-D’Amare, A.R.; Burley, S.K.; Zimring, D.C.; Skow, L.C.; Hodgkinson, C.A.; Arnheiter, H.; Copeland, N.G.; et al. Molecular basis of mouse microphthalmia (mi) mutations helps explain their developmental and phenotypic consequences. Nat. Genet. 1994, 8, 256–263. [Google Scholar] [CrossRef]
  38. Zimring, D.C.; Lamoreux, M.L.; Millichamp, N.J.; Skow, L.C. Microphthalmia cloudy-eye (mi(ce)): A new murine allele. J. Hered. 1996, 87, 334–338. [Google Scholar] [CrossRef] [Green Version]
  39. Hemesath, T.J.; Steingrímsson, E.; McGill, G.; Hansen, M.J.; Vaught, J.; Hodgkinson, C.A.; Arnheiter, H.; Copeland, N.G.; Jenkins, N.A.; Fisher, D.E. microphthalmia, A critical factor in melanocyte development, defines a discrete transcription factor family. Genes Dev. 1994, 8, 2770–2780. [Google Scholar] [CrossRef] [Green Version]
  40. Moore, K.J. Insight into the microphthalmia gene. Trends Genet. 1995, 11, 442–448. [Google Scholar] [CrossRef]
  41. Hertwig, P. Neue mutationen und koppelungsgruppen bei der hausmaus. Z. Für Indukt. Abstamm.-Und Vererbungslehre 1942, 80, 220–246. [Google Scholar] [CrossRef]
  42. Grüneberg, H. The relations of microphthalmia and white in the mouse. J. Genet. 1953, 51, 359–362. [Google Scholar] [CrossRef]
  43. Deol, M.S. The relationship between abnormalities of pigmentation and of the inner ear. Proc. R. Soc. Lond. B Biol. Sci. 1970, 175, 201–217. [Google Scholar] [CrossRef] [PubMed]
  44. Stechschulte, D.J.; Sharma, R.; Dileepan, K.N.; Simpson, K.M.; Aggarwal, N.; Clancy, J., Jr.; Jilka, R.L. Effect of the mi allele on mast cells, basophils, natural killer cells, and osteoclasts in C57Bl/6J mice. J. Cell Physiol. 1987, 132, 565–570. [Google Scholar] [CrossRef]
  45. Bell, B.A.; Kaul, C.; Hollyfield, J.G. A protective eye shield for prevention of media opacities during small animal ocular imaging. Exp. Eye Res. 2014, 127, 280–287. [Google Scholar] [CrossRef] [Green Version]
  46. Peachey, N.S.; Ball, S.L. Electrophysiological analysis of visual function in mutant mice. Doc. Ophthalmol. 2003, 107, 13–36. [Google Scholar] [CrossRef]
  47. Leinonen, H.; Keksa-Goldsteine, V.; Ragauskas, S.; Kohlmann, P.; Singh, Y.; Savchenko, E.; Puranen, J.; Malm, T.; Kalesnykas, G.; Koistinaho, J.; et al. Retinal Degeneration In A Mouse Model Of CLN5 Disease Is Associated with Compromised Autophagy. Sci. Rep. 2017, 7, 1597. [Google Scholar] [CrossRef] [Green Version]
  48. Olaisen, B. Distance between lines, a plugin for ImageJ. NIH ImageJ Arch. 2006. [Google Scholar]
  49. Armstrong, R.A. When to use the Bonferroni correction. Ophthalmic Physiol. Opt. 2014, 34, 502–508. [Google Scholar] [CrossRef]
  50. Nakayama, A.; Nguyen, M.T.; Chen, C.C.; Opdecamp, K.; Hodgkinson, C.A.; Arnheiter, H. Mutations in microphthalmia, the mouse homolog of the human deafness gene MITF, affect neuroepithelial and neural crest-derived melanocytes differently. Mech. Dev. 1998, 70, 155–166. [Google Scholar] [CrossRef]
  51. Takebayashi, K.; Chida, K.; Tsukamoto, I.; Morii, E.; Munakata, H.; Arnheiter, H.; Kuroki, T.; Kitamura, Y.; Nomura, S. The recessive phenotype displayed by a dominant negative microphthalmia-associated transcription factor mutant is a result of impaired nucleation potential. Mol. Cell Biol. 1996, 16, 1203–1211. [Google Scholar] [CrossRef] [Green Version]
  52. Perlman, I. The Electroretinogram: ERG. In Webvision: The Organization of the Retina and Visual System; Kolb, H., Fernandez, E., Nelson, R., Eds.; University of Utah Health Sciences Center: Salt Lake City, UT, USA, 1995. [Google Scholar]
  53. Steinberg, R.H.; Linsenmeier, R.A.; Griff, E.R. Three light-evoked responses of the retinal pigment epithelium. Vis. Res. 1983, 23, 1315–1323. [Google Scholar] [CrossRef] [PubMed]
  54. Steinberg, R.H.; Schmidt, R.; Brown, K.T. Intracellular responses to light from cat pigment epithelium: Origin of the electroretinogram c-wave. Nature 1970, 227, 728–730. [Google Scholar] [CrossRef] [PubMed]
  55. Wu, J.; Peachey, N.S.; Marmorstein, A.D. Light-evoked responses of the mouse retinal pigment epithelium. J. Neurophysiol. 2004, 91, 1134–1142. [Google Scholar] [CrossRef]
  56. Doring, F.; Derst, C.; Wischmeyer, E.; Karschin, C.; Schneggenburger, R.; Daut, J.; Karschin, A. The epithelial inward rectifier channel Kir7.1 displays unusual K+ permeation properties. J. Neurosci. 1998, 18, 8625–8636. [Google Scholar] [CrossRef] [Green Version]
  57. Krapivinsky, G.; Medina, I.; Eng, L.; Krapivinsky, L.; Yang, Y.; Clapham, D.E. A novel inward rectifier K+ channel with unique pore properties. Neuron 1998, 20, 995–1005. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Pattnaik, B.R.; Tokarz, S.; Asuma, M.P.; Schroeder, T.; Sharma, A.; Mitchell, J.C.; Edwards, A.O.; Pillers, D.A. Snowflake vitreoretinal degeneration (SVD) mutation R162W provides new insights into Kir7.1 ion channel structure and function. PLoS ONE 2013, 8, e71744. [Google Scholar] [CrossRef] [Green Version]
  59. Yang, D.; Pan, A.; Swaminathan, A.; Kumar, G.; Hughes, B.A. Expression and localization of the inwardly rectifying potassium channel Kir7.1 in native bovine retinal pigment epithelium. Investig. Ophthalmol. Vis. Sci. 2003, 44, 3178–3185. [Google Scholar] [CrossRef] [Green Version]
  60. Shahi, P.K.; Liu, X.; Aul, B.; Moyer, A.; Pattnaik, A.; Denton, J.; Pillers, D.M.; Pattnaik, B.R. Abnormal Electroretinogram after Kir7.1 Channel Suppression Suggests Role in Retinal Electrophysiology. Sci. Rep. 2017, 7, 10651. [Google Scholar] [CrossRef] [Green Version]
  61. Wu, J.; Marmorstein, A.D.; Kofuji, P.; Peachey, N.S. Contribution of Kir4.1 to the mouse electroretinogram. Mol. Vis. 2004, 10, 650–654. [Google Scholar]
  62. Cheli, Y.; Ohanna, M.; Ballotti, R.; Bertolotto, C. Fifteen-year quest for microphthalmia-associated transcription factor target genes. Pigment. Cell Melanoma Res. 2010, 23, 27–40. [Google Scholar] [CrossRef] [PubMed]
  63. Yavuzer, U.; Keenan, E.; Lowings, P.; Vachtenheim, J.; Currie, G.; Goding, C.R. The Microphthalmia gene product interacts with the retinoblastoma protein in vitro and is a target for deregulation of melanocyte-specific transcription. Oncogene 1995, 10, 123–134. [Google Scholar] [PubMed]
  64. Samardzija, M.; von Lintig, J.; Tanimoto, N.; Oberhauser, V.; Thiersch, M.; Reme, C.E.; Seeliger, M.; Grimm, C.; Wenzel, A. R91W mutation in Rpe65 leads to milder early-onset retinal dystrophy due to the generation of low levels of 11-cis-retinal. Hum. Mol. Genet. 2008, 17, 281–292. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Sun, H.; Nathans, J. Stargardt’s ABCR is localized to the disc membrane of retinal rod outer segments. Nat. Genet. 1997, 17, 15–16. [Google Scholar] [CrossRef] [PubMed]
  66. Birnbach, C.D.; Jarvelainen, M.; Possin, D.E.; Milam, A.H. Histopathology and immunocytochemistry of the neurosensory retina in fundus flavimaculatus. Ophthalmology 1994, 101, 1211–1219. [Google Scholar] [CrossRef] [PubMed]
  67. Eagle, R.C., Jr.; Lucier, A.C.; Bernardino, V.B., Jr.; Yanoff, M. Retinal pigment epithelial abnormalities in fundus flavimaculatus: A light and electron microscopic study. Ophthalmology 1980, 87, 1189–1200. [Google Scholar] [CrossRef]
  68. Weng, J.; Mata, N.L.; Azarian, S.M.; Tzekov, R.T.; Birch, D.G.; Travis, G.H. Insights into the function of Rim protein in photoreceptors and etiology of Stargardt’s disease from the phenotype in abcr knockout mice. Cell 1999, 98, 13–23. [Google Scholar] [CrossRef] [Green Version]
  69. Brauers, A.; Schurmann, A.; Massmann, S.; Muhl-Zurbes, P.; Becker, W.; Kainulainen, H.; Lie, C.; Joost, H.G. Alternative mRNA splicing of the novel GTPase Rab28 generates isoforms with different C-termini. Eur. J. Biochem. 1996, 237, 833–840. [Google Scholar] [CrossRef]
  70. Lee, S.H.; Baek, K.; Dominguez, R. Large nucleotide-dependent conformational change in Rab28. FEBS Lett. 2008, 582, 4107–4111. [Google Scholar] [CrossRef] [Green Version]
  71. Ying, G.; Boldt, K.; Ueffing, M.; Gerstner, C.D.; Frederick, J.M.; Baehr, W. The small GTPase RAB28 is required for phagocytosis of cone outer segments by the murine retinal pigmented epithelium. J. Biol. Chem. 2018, 293, 17546–17558. [Google Scholar] [CrossRef] [Green Version]
Genes 14 01458 g001 550

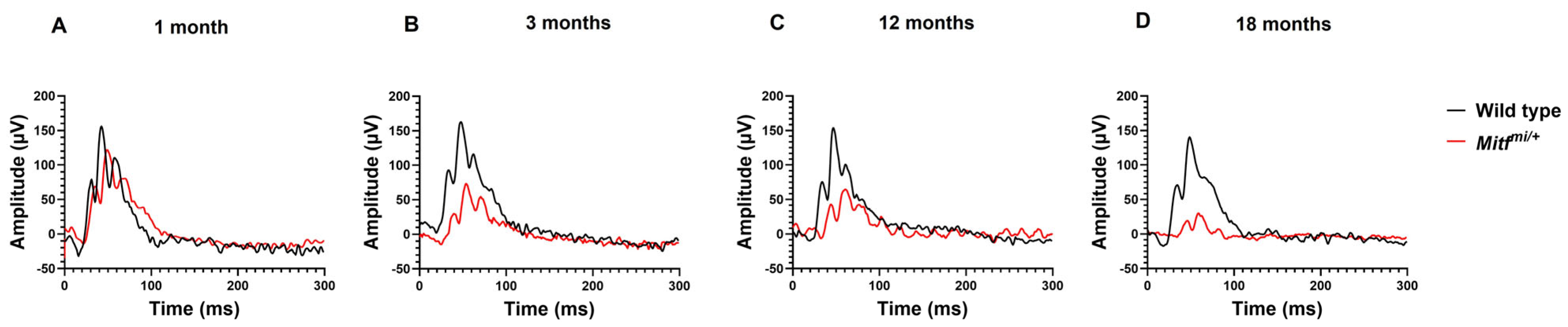

Figure 1. Representative light-adapted ERGs from wild-type and Mitfmi/+ mice at different ages (A–D) at a flash intensity of 20 cd*sec/m2. n = 7 per genotype.
Figure 1. Representative light-adapted ERGs from wild-type and Mitfmi/+ mice at different ages (A–D) at a flash intensity of 20 cd*sec/m2. n = 7 per genotype.
Genes 14 01458 g001
Genes 14 01458 g002 550

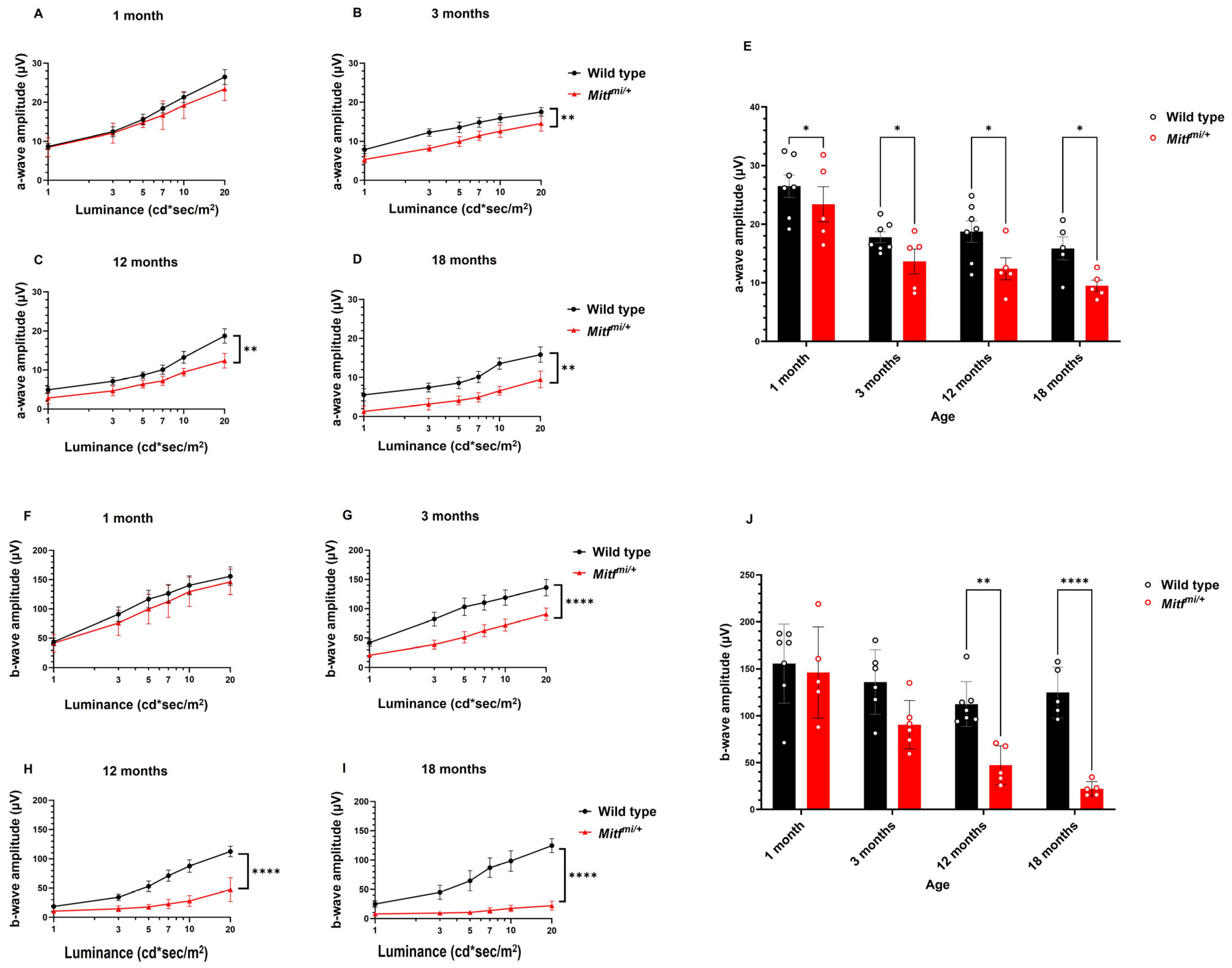

Figure 2. Light-adapted a- and b-waves amplitude analysis: (A–D) a-wave amplitude analysis from wild type and Mitfmi/+ at different ages; (E) averaged a-wave amplitude at a flash intensity of 20 cd*sec/m2; (F–I) b-wave amplitude analysis from wild-type and Mitfmi/+ at different ages; (J) averaged b-wave amplitude at a flash intensity of 20 cd*sec/m2. Data presented as mean ± SEM. * p < 0.05, ** p < 0.01, and **** p < 0.0001; n = 7 per genotype.
Figure 2. Light-adapted a- and b-waves amplitude analysis: (A–D) a-wave amplitude analysis from wild type and Mitfmi/+ at different ages; (E) averaged a-wave amplitude at a flash intensity of 20 cd*sec/m2; (F–I) b-wave amplitude analysis from wild-type and Mitfmi/+ at different ages; (J) averaged b-wave amplitude at a flash intensity of 20 cd*sec/m2. Data presented as mean ± SEM. * p < 0.05, ** p < 0.01, and **** p < 0.0001; n = 7 per genotype.
Genes 14 01458 g002
Genes 14 01458 g003 550
Figure 3. Representative dark-adapted ERGs from wild-type and Mitfmi/+ mice at different ages (A–D) at a flash intensity of 20 cd*sec/m2. n = 7 per genotype.
Figure 3. Representative dark-adapted ERGs from wild-type and Mitfmi/+ mice at different ages (A–D) at a flash intensity of 20 cd*sec/m2. n = 7 per genotype.
Genes 14 01458 g003
Genes 14 01458 g004 550

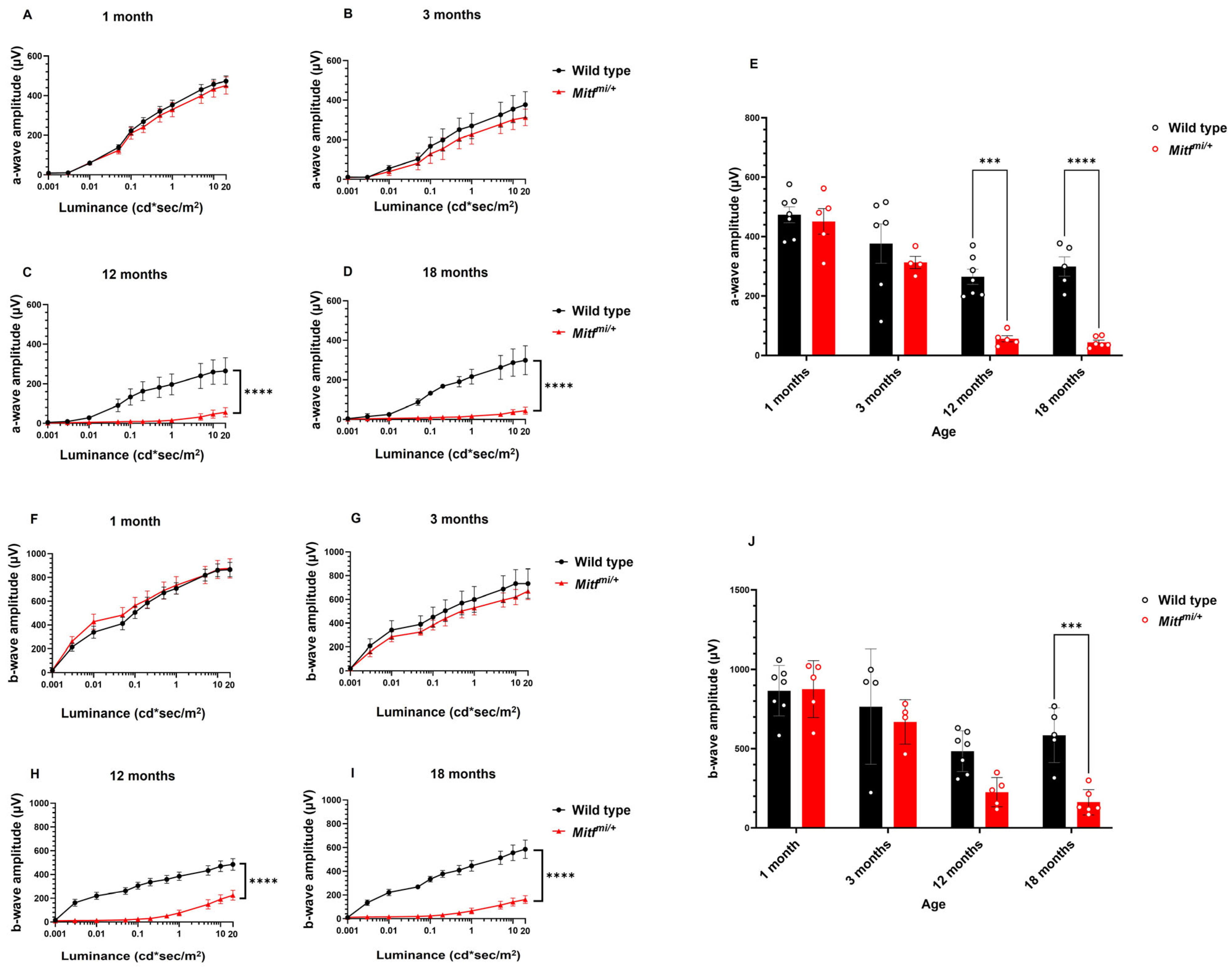

Figure 4. Dark-adapted a- and b-waves amplitude analysis: (A–D) a-wave amplitude analysis from wild type and Mitfmi/+ at different ages; (E) averaged a-wave amplitude at a flash intensity of 20 cd*sec/m2; (F–I) b-wave amplitude analysis from wild-type and Mitfmi/+ at different ages; (J) averaged b-wave amplitude at a flash intensity of 20 cd*sec/m2. Data presented as mean ± SEM. *** p < 0.001, **** p < 0.0001; n = 7 per genotype.
Figure 4. Dark-adapted a- and b-waves amplitude analysis: (A–D) a-wave amplitude analysis from wild type and Mitfmi/+ at different ages; (E) averaged a-wave amplitude at a flash intensity of 20 cd*sec/m2; (F–I) b-wave amplitude analysis from wild-type and Mitfmi/+ at different ages; (J) averaged b-wave amplitude at a flash intensity of 20 cd*sec/m2. Data presented as mean ± SEM. *** p < 0.001, **** p < 0.0001; n = 7 per genotype.
Genes 14 01458 g004
Genes 14 01458 g005 550

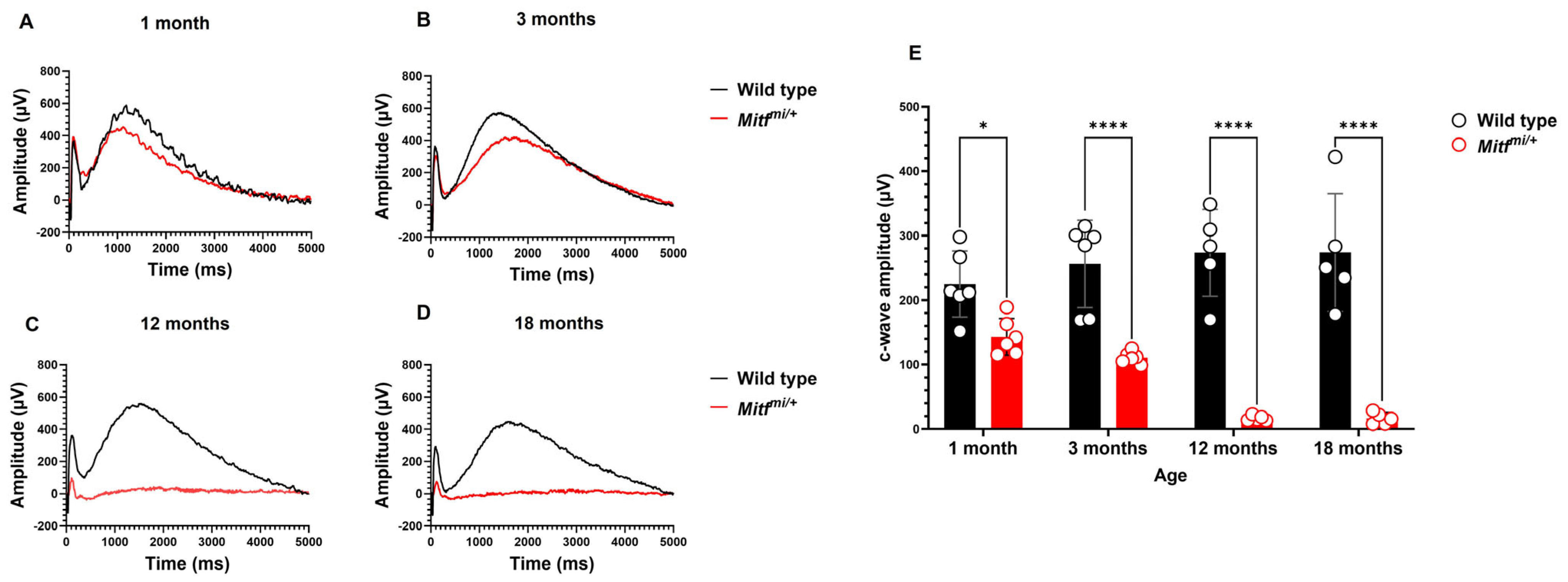

Figure 5. RPE response decreases during aging in Mitfmi/+ mice. (A–D) Representative ERG traces from control and Mitfmi/+ mice at different ages at a flash intensity of 10 cd*sec/m2. (E) Averaged c-wave amplitudes in control and mutant mice at 1, 3, 12, and 18 months old. Data presented as mean ± SEM. * p < 0.05, **** p < 0.0001; n = 7 per genotype.
Figure 5. RPE response decreases during aging in Mitfmi/+ mice. (A–D) Representative ERG traces from control and Mitfmi/+ mice at different ages at a flash intensity of 10 cd*sec/m2. (E) Averaged c-wave amplitudes in control and mutant mice at 1, 3, 12, and 18 months old. Data presented as mean ± SEM. * p < 0.05, **** p < 0.0001; n = 7 per genotype.
Genes 14 01458 g005
Genes 14 01458 g006 550
Figure 6. Representative fundus images from Mitfmi/+ compared with age-matched wild-type mice. White asterisk: non-pigmented area; black asterisk: hyper-pigmented area. n = 7 per genotype.
Figure 6. Representative fundus images from Mitfmi/+ compared with age-matched wild-type mice. White asterisk: non-pigmented area; black asterisk: hyper-pigmented area. n = 7 per genotype.
Genes 14 01458 g006
Genes 14 01458 g007 550
Figure 7. Histology and measurement of the retinal layers in eyes from wild-type and mutant mice. Representative retinal sections of 12- and 18-month-old mice are shown. (A) Central retina from wild-type and Mitfmi/+ mice. The images were taken approximately 700 µm from the optic disc. (B) Analysis of the retinal layers at 12 months old. (C) Analysis of the retinal layers at 18 months old. Total retina (TR) thickness from the GCL to POS, INL, ONL, and POS thickness were measured. Scale bar: 50 µm. Ch, choroid; RPE, retinal pigment epithelium; POS, photoreceptor outer segments; ONL, outer nuclear layer; INL, inner nuclear layer; GCL, ganglion cell layer. Data presented as mean ± SEM. ** p < 0.01, *** p < 0.001, **** p < 0.0001; n = 7 per genotype.
Figure 7. Histology and measurement of the retinal layers in eyes from wild-type and mutant mice. Representative retinal sections of 12- and 18-month-old mice are shown. (A) Central retina from wild-type and Mitfmi/+ mice. The images were taken approximately 700 µm from the optic disc. (B) Analysis of the retinal layers at 12 months old. (C) Analysis of the retinal layers at 18 months old. Total retina (TR) thickness from the GCL to POS, INL, ONL, and POS thickness were measured. Scale bar: 50 µm. Ch, choroid; RPE, retinal pigment epithelium; POS, photoreceptor outer segments; ONL, outer nuclear layer; INL, inner nuclear layer; GCL, ganglion cell layer. Data presented as mean ± SEM. ** p < 0.01, *** p < 0.001, **** p < 0.0001; n = 7 per genotype.
Genes 14 01458 g007
Table
Table 1. Mitf mutation examined in this study and its characteristics. Adapted with permission from [23].
Table 1. Mitf mutation examined in this study and its characteristics. Adapted with permission from [23].
SymbolMode of InductionPhenotypeDNA LesionEffects on the Protein Level
HeterozygoteHomozygote
MitfmiX-irradiationLess iris pigment than wild type; spots on belly, head, and tailWhite coat, eyes small and red; deficiency of mast cells, basophils, and natural killer cells; spinal ganglia, adrenal medulla, and dermis smaller than in normal; incisors fail to erupt, osteopetrosis; inner ear defects3 bp deletion in basic domainUnknown
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

García-Llorca, A.; Ólafsson, K.H.; Sigurdsson, A.T.; Eysteinsson, T. Progressive Cone-Rod Dystrophy and RPE Dysfunction in Mitfmi/+ Mice. Genes 2023, 14, 1458. https://doi.org/10.3390/genes14071458

AMA Style

García-Llorca A, Ólafsson KH, Sigurdsson AT, Eysteinsson T. Progressive Cone-Rod Dystrophy and RPE Dysfunction in Mitfmi/+ Mice. Genes. 2023; 14(7):1458. https://doi.org/10.3390/genes14071458

Chicago/Turabian Style

García-Llorca, Andrea, Knútur Haukstein Ólafsson, Arnór Thorri Sigurdsson, and Thor Eysteinsson. 2023. "Progressive Cone-Rod Dystrophy and RPE Dysfunction in Mitfmi/+ Mice" Genes 14, no. 7: 1458. https://doi.org/10.3390/genes14071458

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
