Mechanisms of Convection Initiation in the Southwestern Xinjiang, Northwest China: A Case Study

Abstract

The mechanism of convection initiation (CI) occurring in the Southwest Xinjiang, Northwest China is investigated using quantitative budget analysis of vertical momentum for the first time. The Weather Research and Forecasting (WRF) model is used to reproduce and analyze the CI events. The observations showed that many CIs occurred continuously, with an intense mesoscale convective system eventually forming. The overall features of the CIs were well captured by the simulation. Lagrangian vertical momentum budgets, in which the vertical acceleration was decomposed into dynamic and buoyant components, were performed along the backward trajectories of air parcels within two convective cells. The results showed that the buoyant acceleration is the major contributor in both the slow and rapid lifting period of the CI, while the dynamic acceleration also showed a considerably positive effect only during the rapid lifting period. The buoyant acceleration during the slow lifting period was due to the warm advection generated by the radiative heating near the mountainous area on the south side of Tarim Basin in the afternoon. The buoyant acceleration during the rapid lifting period was from the latent heat release within the convective cell. Further decomposition of the dynamic acceleration showed that the vertical twisting related to the vertical shear of horizontal wind almost completely dominated the dynamic acceleration, while the horizontal curvature and extension showed very weak contribution. These findings provide some new insights into the roles of buoyant and dynamic forcing in the mechanism of CI in Southwest Xinjiang.

1. Introduction

Convection initiation (CI) is defined as the process by which air parcels reach a level of free convection (LFC), then achieve and maintain positive buoyancy over a significant upward vertical motion, and eventually lead to the development of a deep convective cloud [1]. CI has long been one of the primary foci of studies on deep moist convection because it is essential in the organization and development of mesoscale convective storms [2,3,4,5,6,7,8,9]. The accurate prediction of CI remains one of the biggest challenges in weather forecasting [5,10,11,12,13,14].

The CI has been studied extensively around the world [2,3,4,5,6,7,8,12,15,16,17]. Lock and Houston [5] studied over 55,000 CI cases over the central United States from 2005 to 2007, and found that there are four primary parameters governing the behavior of CI—i.e., buoyancy, inhibition, dilution and vertical lifting. They pointed out that there is no threshold of any single factor that is able to discriminate between initiation and non-initiation. However, they stated that vertical lifting could be seen as the most frequent factor that helps distinguish the CI environment. As such, Markowski [1] stated that vertical lifting plays a decisive role in CI, including that caused by convergent boundary zones (e.g., fronts, cold pool outflow boundaries, sea/land breezes, and dry lines), forced lifting by gravity waves, ascending airflow over orography, and circulations driven by differential heating (e.g., cloud-clear air boundaries, horizontal sensible heat flux variations and heating of sloped terrain). Banta and Schaaf [18] pointed out some topographic features with a high likelihood of CI. They discussed several CI mechanisms over the mountains, such as leeside convergence, orographic lifting, channeling, and wake effects. Similarly, Weckwerth et al. [19] identified CI-prone zones that were active under certain wind circumstances, according to a 9-y CI dataset over a complex topography in Europe, and they also found that CI preferentially occurred over the local higher terrains such as mountain slopes or peaks. Jeong et al. [20] investigated a mesoscale convective system (MCS) in the southeast of South Korea and found that many CIs occurred repeatedly near the leading edge of a cold pool gust front. They concluded that the cold pool played a crucial role in the stationarity of the MCS, causing extreme rainfall over the Busan metropolitan area. Wang et al. [21] studied two cases of CI forced by the lake-breeze convergence over the Southern Ontario, ON, Canada. They found that the collision of two lake-breeze fronts (originated from Lake Ontario and Lake Erie, respectively) over the Niagara Peninsula and the resulting enhancement of sub-cloud ascent caused the formation and/or intensification of convection.

The analysis method of the Lagrangian vertical momentum budget has been used in studies of MCSs in many places, such as in the United States, which highlighted the vital role of either flow shear on the horizontal plane (in terms of vertical vorticity [22,23]) or flow extension ([24,25]). These studies focused on different dynamical processes which result in dynamic acceleration (i.e., genesis of tornados [22]; genesis of meso-vortex within isolated supercell or MCS [23]; rear-inflow jet [24]; internal outflow surge which triggers tornado [25]).

Previous studies about CI in China mainly focused on the relatively developed areas in the central, eastern, northern and southern parts [8,9,26,27,28,29,30,31,32,33,34,35,36,37]. They found that many convective cells were repeatedly initiated due to the dynamic effect of mesoscale systems, such as Meiyu front, cold pool outflows (gust fronts), dry line, low-level jet (LLJ), prevailing low-level monsoonal wind and land/sea breeze. However, to our knowledge, there has been no in-depth quantitative diagnostic study on the CI mechanisms in the southwestern Xinjiang province in Northwest China in the literature. As the center of Eurasia, this area is among the most arid region where the ecological environment is fragile. Consequently, the overall characteristics of weather systems and the associated natural disasters in this area significantly differ from those in other parts in China, which represent humid monsoon climate. Therefore, the present study aims to investigate a CI event which produced heavy rainfall, high wind and hail in this area by exploiting observations in conjunction with the Lagrangian vertical momentum budget analyzes based on a numerical simulation.

The rest of this paper is organized as follows. Section 2 gives a brief overview of the severe convective event. Section 3 presents the numerical simulation setup and model verification. The mechanism of CI is documented in Section 4, according to the analysis of vertical momentum budget. Finally, a summary and discussion are presented in Section 5.

2. Case Overview

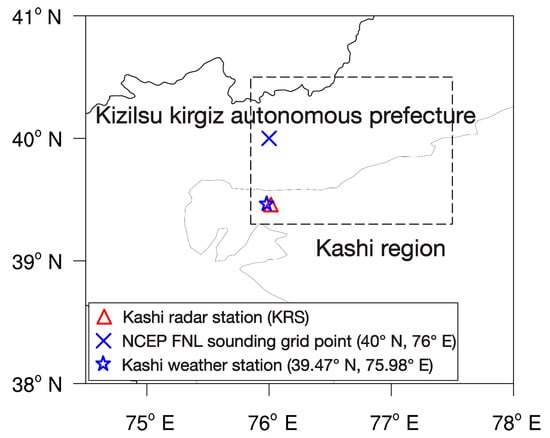

A severe convective storm occurred in southwestern Xinjiang, Northwest China (Figure 1) from 0900 to 1800 UTC on 23 June 2015. The convective weather produced short-term high winds, heavy rainfall (up to 20.8 mm in 30 min, which is considered extreme rainfall in arid regions) and hail with a diameter of 20 mm. Besides, more than 1239 hectares of crops, including corn, cotton, watermelon and wheat, were damaged.

2.1. Environmental Conditions

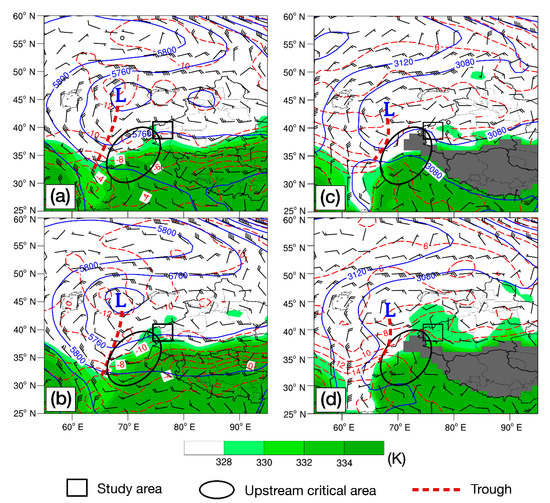

In order to investigate the environmental conditions of this severe convective weather, the six-hourly National Centers for Environmental Prediction (NCEP) Final (FNL) analysis dataset with a resolution of 1° × 1° was analyzed. As shown in Figure 2a, a moderately intense cold low (indicated by bold blue letter “L”) was located over the area between Aral Sea and Balkhash Lake at 500 hPa at 0000 UTC on 23 June 2015. It showed a “cut-off low” feature with a closed isoheight and two closed isotherms; however, the cold center was not collocated with the low center. A trough showing a distribution along the north–south direction can be identified according to the wind field. The severe convective weather occurred in the study area ahead of the trough. Westerlies dominated in an area to the south–west of the study area which is believed to be critical for the moisture advection (labelled as “upstream critical area” in Figure 2).

By 0600 UTC (Figure 2b), the dominant winds in the upstream critical area changed to southwesterlies, with the trough nearby moving slightly eastward. These southwesterlies brought warm and moist air (i.e., high equivalent potential temperature, ${\theta }_e$) to the study area. At 700 hPa (Figure 2c), the cold center was located slightly south of the mid-level (500 hPa) cold center, with the trough seeming to become smaller in size. Winds in the upstream critical area were rather weak (about 2–4 m·s⁻¹), and most of them were easterlies. Besides, some southwesterlies (about 6–8 m·s⁻¹) can also be found in the further southwestern part of the upstream critical area. By 0600 UTC (Figure 2d), the winds in the center area changed to southerlies, and winds at the southwestern part increased somewhat (up to ~10 m·s⁻¹) and came from the west–southwest direction. These southwesterlies came from a warm and moist region with high equivalent potential temperature (${\theta }_e$), which was conducive to the water vapor transport.

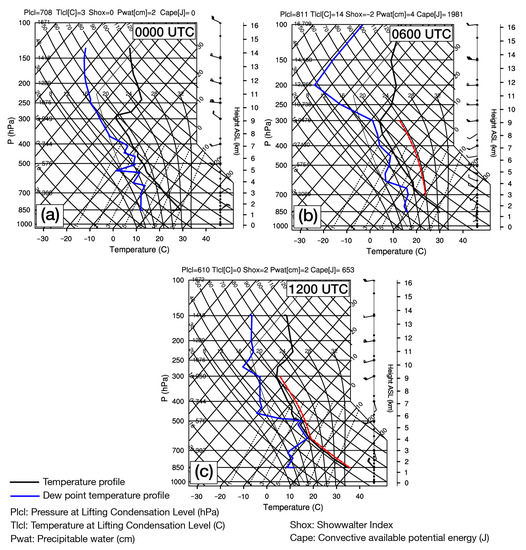

There was no convective available potential energy (CAPE) in an observed sounding analysis at 0000 UTC on 23 June (Figure 3a). The atmosphere was rather dry near the surface, showing a large dewpoint depression (T − Td) of ~17 K. However, the relative humidity increased quickly with height and reached a dewpoint depression of ~6 K at about 650 hPa. The dewpoint temperature profile showed a jagged pattern in the upper level between 650 and 400 hPa, presenting a stratification alternatively with relatively dry and moist levels. The upper level between 500 and 400 hPa was relatively moist, showing an almost saturated condition (i.e., dewpoint depression decreased to ~1 K) at about 460 hPa, while the humidity decreased significantly above 300 hPa. There was a warm advection indicated by the veering vertical shear of horizontal wind (from westerlies to northwesterlies) in this relatively moist layer between 500 and 300 hPa.

Since the sounding observations in China are twice daily at 0000 UTC and 1200 UTC, a representative sounding derived from the NCEP FNL analysis data was analyzed at 0600 UTC in order to examine the environmental conditions more close to the occurrence of the severe storm (Figure 3b). This exhibited a relatively high CAPE of 1981 J·kg⁻¹, with a similar dry condition near the surface, showing a dewpoint depression of ~14 K. The humidity increased with height and reached a dewpoint depression of ~3 K at about 670 hPa, while the humidity at about 600 hPa showed a relatively dry condition with a dewpoint depression of ~12 K. However, the level from 500 to 300 hPa was rather moist (the dewpoint depression decreased to 2–4 K) and was dominated by the westerlies and southwesterlies in the layer from 450 to 300 hPa. By 1200 UTC (Figure 3c), the CAPE decreased significantly to 653 J·kg⁻¹, with the surface becoming rather dry (the dewpoint depression reached ~25 K). However, the level between ~600 and 500 hPa showed an almost saturated condition (i.e., the dewpoint depression decreased to ~1 K), while the upper level above 500 hPa became relatively dry. Furthermore, there was a warm advection indicated by the veering of the horizontal wind with height (from southerlies to west–southwesterlies) in the layer from 700 to 500 hPa.

2.2. System Evolution

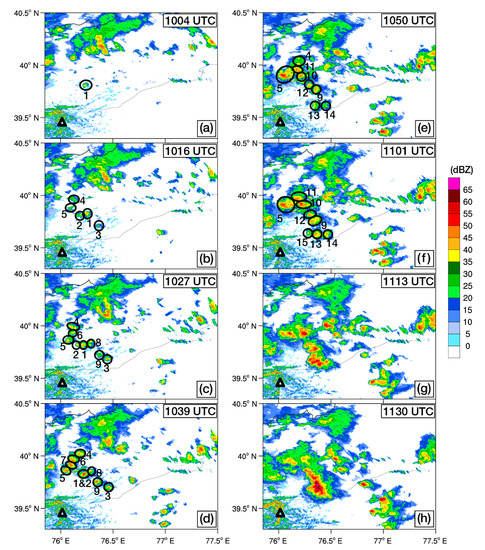

The CI is often defined as the first occurrence of radar reflectivity over 35 dBZ within a convective cell (e.g., [3,30,31,38,39]). The evolution of the CI features and the associated severe convective system were observed by the Kashi Doppler weather radar. (All the observation data were provided by the National Meteorological Center of the China Meteorological Administration (CMA)). At 1004 UTC (Figure 4a), a convective cell initiated about 50 km to the northeast of the Kashi radar station (KRS). Several other convective cells appeared nearby at 1016 UTC (Figure 4b), they extend to a height of about 2.5–8 km AGL (figure not shown). In the following ~1 h (Figure 4c–g), there were more than 10 convective cells, and some of them merged together and developed significantly in both size and intensity. By 1130 UTC (Figure 4h), a relatively intense MCS developed with an orientation in the northwest–southeast direction.

In general, more than half of the convective cells underwent rapid development, and eventually formed an intense MCS. This may account for the major severe convective storm in this area. In the following section, numerical simulations are conducted to study the mechanisms of the CIs.

3. Numerical Simulation

3.1. Simulation Setup

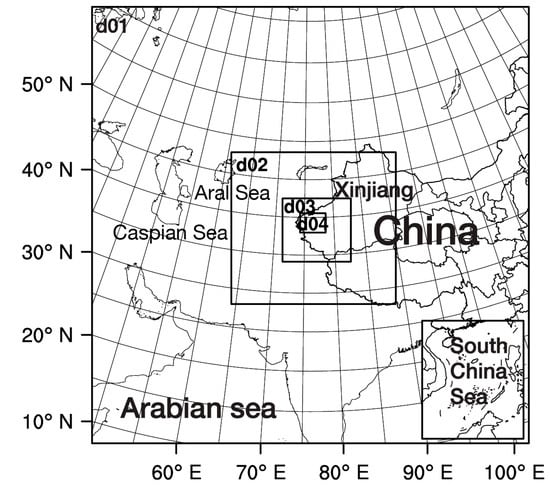

The simulation was conducted by using the Weather Research and Forecasting (WRF) model (V3.7, [40]), with two-way nested quadruple-level domains and horizontal grid spacings of 45 km, 9 km, 3 km and 1 km, respectively (Figure 5). The innermost domain (d04) fully covers the area where the convective weather of interest occurred (Figure 1). In order to successfully simulate the CIs and the associated convective system, it is important to properly represent the large-scale circulation, which requires a large model domain. Hence, the outermost domain (d01) covers almost the whole central and western Asia (see Figure 5). Due to the limitation of the computational cost, the resolution of domain d01 is set to 45 km which is five times that of the d02. However, in order to reduce the calculation error as much as possible, the grid ratio is set to 3 in the inner domains. (A similar grid ratio was adopted in previous studies (e.g., [31,41])). There are 55 vertical levels (terrain-following) from the surface to the model top at 50 hPa. For all the four domains, the model physics adopts the WRF Single Moment 6-class (WSM6) microphysics scheme [42], Asymmetric Convective Model 2 (ACM2) planetary boundary layer (PBL) scheme [43], Rapid Radiative Transfer Model (RRTM) longwave and shortwave radiation schemes [44], Unified Noah land surface model scheme [45] and Revised MM5 (Fifth-Generation Penn State/National Center for Atmospheric Research Mesoscale Model) Monin-Obukhov scheme [46]. The Kain–Fritsch scheme [47] was used for cumulus parameterization in domains d01 and d02, while it was turned off in domains d03 and d04. (Above physical parameterization schemes were selected as the most appropriate combination based on the results of a dozen experiments.) The initial and boundary conditions were created by using the 6-hourly NCEP FNL analysis data with a resolution of 1° × 1°. All domains were initialized at 0000 UTC on 23 June 2015 and integrated for 18 h. The time intervals of the output data of d01, d02 and d03 are 60 min, 20 min and 3 min, respectively.

3.2. Verification of Simulation

In order to establish the credibility of numerical simulation, we firstly compare the simulated composite reflectivity and 8-h accumulated precipitation with observations in the following.

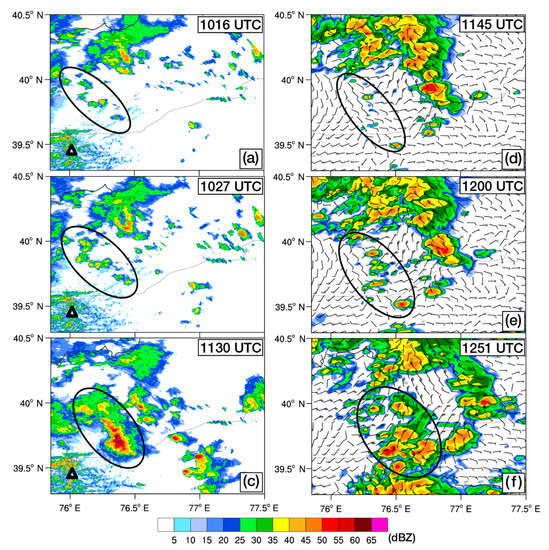

The model results showed that several CIs (indicated by ellipse) occurred continuously in an area about 40–50 km northeast of the KRS, although they developed about 1.5 h later than their observational counterparts and were displaced by ~10 km to the southeast (Figure 6d). Over time, several other CIs occurred continuously nearby (Figure 6e), showing a distribution along the northwest–southeast direction, which were in agreement with the observations. More than half of these convective cells underwent rapid development in both size and intensity and eventually formed a loosely organized MCS (indicated by ellipse in Figure 6f), but with lower estimated intensity (less than ~60 dBZ).

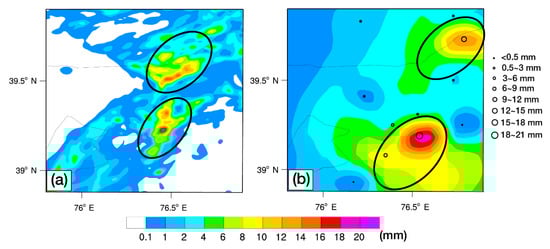

Figure 7 compares the observations of simulated 8-h accumulated precipitation. Due to the relatively sparse population, lagged economic development and harsh environment such as desert and gobi, there are only several conventional meteorological stations and 11 surface automatic stations which have valid precipitation records in the plotted area. The accumulated precipitation also showed some biases in time (~1 h), location and distribution pattern due to the biases of time, location and the intensity of the simulated MCS. However, two areas of high accumulated precipitation (indicated by black ellipses) can be identified in the simulation, consistent with the observations. (The Cressman interpolation was used in the observation, as it performs the best among the four methods (i.e., Cressman, natural neighbor, inverse distance weighted and tension splines) tried in this case.)

The overall pattern of the CIs and related features (e.g., preciptiation) were well captured by the WRF simulation despite some timing and positioning biases. Therefore, the model results are considered to be reliable for the analysis of the CI mechanisms in the next section.

4. Convection Initiation

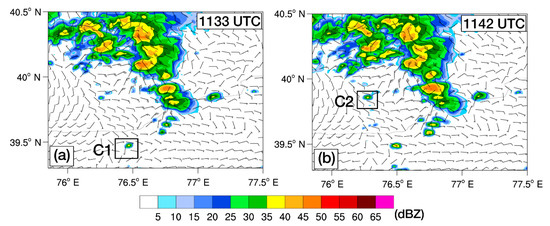

In order to investigate the mechanisms of CIs, the Lagrangian vertical momentum budgets were conducted along the backward trajectories of air parcels within two typical convective cells initiated (i.e., the maximum reflectivity of the cells reached 35 dBZ for the first time) at 1133 and 1142 UTC, respectively (labeled as C1 and C2, indicated by black boxes in Figure 8). The backward trajectories of air parcels were computed using the fourth-order Runge-Kutta scheme, which was also used by Xu et al. [32] and Abulikemu et al. [30,31]. The air parcels within the two convective cells were released at their individual CI times and traced backwards for 2 h. In order to concentrate on the parcels, which were mainly responsible for the CI (ascended significantly during the CI), the air parcels with vertical velocities in the top 25% quantile at the CI time were selected for further investigation.

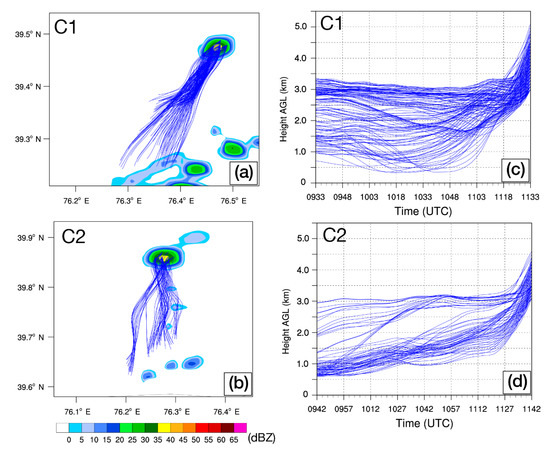

The ground-relative backward trajectories of air parcels selected within two convective cells showed that (Figure 9a,b), the air parcels selected within C1 came from southwest direction. For C2, the backward trajectories could be divided into two groups, and they roughly showed that some air parcels came from a southwestern direction while the others were from the south. The height variation of the air parcels during the 2-h period prior to CI showed that (Figure 9c,d) most of the air parcels within C1 moved almost horizontally, while a few of them descended, to some extent, during the first one hour. However, the most significant ascending can be found in the second 1-h period. Most of the parcels released from C2 ascended slightly in the first 1-h period, while significant lifting can be found in the latter 1 h. Therefore, only the features of air parcels in the 1-h period prior to the CI will be investigated in the following sections.

In order to explore the CI mechanism, Lagrangian vertical momentum budgets were analyzed along the backward trajectories of air parcels within the two cells. According to Jeevanjee and Romps [48], the vertical acceleration can be decomposed into two parts, namely, buoyant acceleration ($a_b$) and dynamic acceleration ($a_d$)—i.e.,

$$\frac{dw}{dt}=a_b+a_d$$

(1)

where $a_b$ and $a_d$ can be obtained from the following Poisson equations:

$${\nabla }^2(\overline{\rho }{a}_b)=-g{\nabla }_h^2\rho$$

(2)

$${\nabla }^2(\overline{\rho }{a}_d)=\frac{\partial }{\partial z}\nabla \cdot \left[\overline{\rho }(\stackrel{\rightharpoonup }{V}\cdot \nabla )\stackrel{\rightharpoonup }{V}\right]$$

(3)

where $\stackrel{\rightharpoonup }{V}$ is the three-dimensional (3D) wind, g is the acceleration of gravity, $\rho$ is the total density including hydrometeors, ${\nabla }^2$ and ${\nabla }^2{}_h$ are the 3D and horizontal Laplacian operators, respectively. According to Jeevanjee and Romps [48], $a_b$ is defined as the Lagrangian vertical acceleration due to the horizontal variation of density, including both the Archimedean buoyancy ($B$) and the response of the environment to the acceleration due to the $B$ ($B=g{\rho }^{\prime }/\overline{\rho }$, $\overline{\rho }$ represents the base-state air density which is a function of height (anelastic approximation). ${\rho }^{\prime }$ is the density perturbation relative to $\overline{\rho }$.) By this definition, ambiguities in the arbitrary definition of the base state density can be avoided, as mentioned in many previous studies (e.g., [41,49,50,51]). $a_d$ is defined as the Lagrangian vertical acceleration, resulting from the instantaneously zeroing out of all anomalies of horizontal density. The multigrid software for elliptic partial differential equations (abbreviated as MUDPACK [52]) was used to solve the above two Poisson equations (as suggested by Schenkman et al. [25] and Dawson et al. [53]). The Direchlet boundary conditions ($a_b$ = 0 and $a_d$ = 0), which were considered to be the most appropriate and unambiguous boundary conditions [48], were adopted on both the bottom and top boundaries.

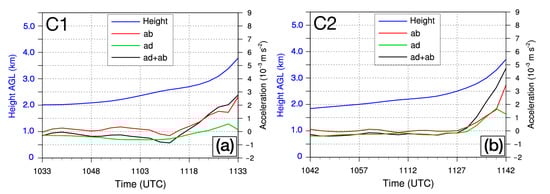

Figure 10a,b show the time evolutions of the averaged height, vertical momentum tendencies induced by buoyancy ($a_b$), dynamical force ($a_d$) and sum of them ($a_b$ + $a_d$) along all the air parcels selected within the two convective cells in the 1-h period prior to the CI. The averaged height of the air parcels for both convective cells exhibited a slow lifting in the early ~45 min, while it increased significantly in the last ~15 min. The averaged $a_b$ along the all air parcels within the C1 was obviously greater than $a_d$ in the whole 1-h period prior to the CI, and become more intense in the last 15 min. The $a_d$ showed a slight positive value in the last ~10 min, while it was negative in the earlier ~50 min. For C2, $a_b$ was slightly greater than $a_d$ in almost the whole 1-h period prior to the CI, and also increased significantly in the last 15 min. The $a_d$ exhibited very weak negative value in the early ~45 min, while increased significantly during the last ~12 min, and showed almost the same value with $a_b$ at ~3 min prior to the CI. For both convective cells, the $a_b$ was significantly greater than $a_d$ in the last 3 min. In general, from an overall perspective of the average trajectory of the air parcels, $a_b$ is the major contributor to CI for all two convective cells, with $a_d$ also showing some positive effect on the CI.

In order to investigate the intuitional physical meanings of $a_d$, the forcing term on the right hand side of Equation (3) was decomposed into the following components under the assumption of anelastic approximation [22]—i.e.,

$$\nabla \cdot \left[{\overline{\rho }}_{(z)}(\stackrel{\rightharpoonup }{V}\cdot \nabla )\stackrel{\rightharpoonup }{V}\right]=$$

$${\overline{\rho }}_{(z)}\left[{(\frac{\partial u}{\partial x})}^2+{(\frac{\partial v}{\partial y})}^2+{(\frac{\partial w}{\partial z})}^2-w^2\frac{d^2\ln ({\overline{\rho }}_{(z)})}{d{z}^2}\right]$$

(4a)

$$+2{\overline{\rho }}_{(z)}\left(\frac{\partial v}{\partial x}\frac{\partial u}{\partial y}\right)$$

(4b)

$$+2{\overline{\rho }}_{(z)}\left(\frac{\partial w}{\partial x}\frac{\partial u}{\partial z}+\frac{\partial w}{\partial y}\frac{\partial v}{\partial z}\right)$$

(4c)

where terms (4a) indicate the fluid extensions, terms (4b) and (4c) denote the horizontal curvature and vertical twisting. The term (4b) is proportional to the vertical vorticity for a pure rotational flow [22], while term (4c) can be considered to be related to the horizontal vorticity (i.e., rotation in the vertical plane). Contributions of the three terms to the total dynamic forcing can be calculated via substituting each of them into the right-hand side of Equation (3) and solving the relevant Poisson equations.

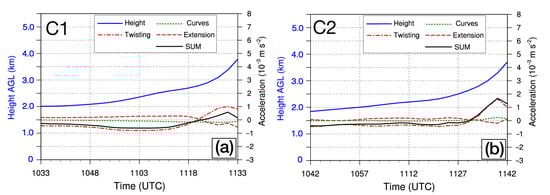

Evolutions of the averaged three components of $a_d$ along the backward trajectories of air parcels within two convective cells are shown in Figure 11a,b. The extension term revealed relatively small positive contributions to the total $a_d$ in the early ~48 min, while its contributions clearly decreased to a negative value in the last ~10 min prior to the CI. The horizontal curvature term showed a very small effect on $a_d$ during almost the whole period. For both convective cells, the vertical twisting term had a negative effect during the early ~48 min, while it showed a significant increasing trend and dominated the whole $a_d$ during the last 10–12 min prior to the CI. Especially in the last ~10 min, the vertical twisting term was remarkably greater than all the other terms. In general, the overall evolution of $a_d$ was consistent with that of the vertical twisting term in the rapid lifting period of the last ~12 min prior to the CI. Therefore, it can be concluded that $a_d$ was mainly caused by the vertical twisting.

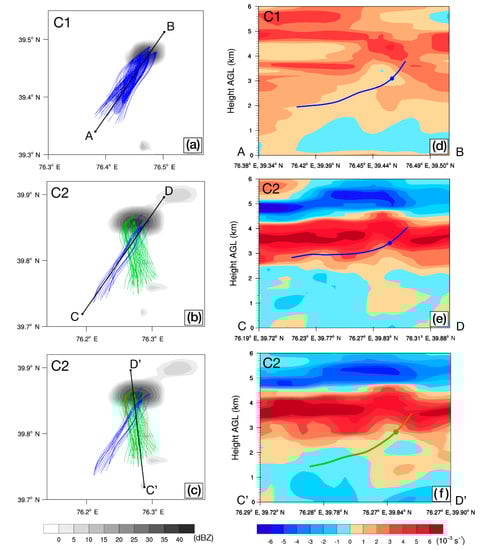

In order to obtain an intuitional understanding of the vertical twisting, the vertical cross section of the vertical shear of the horizontal wind along a line segment which almost runs parallel through the central region of the ground-relative backward trajectories of air parcels are analyzed (Figure 12). The vertical cross sections of vertical shear of the horizontal wind and averaged height of the backward trajectories and parcels at 6 min prior to the CI along the three line segment (i.e., AB, CD and C’D’) showed that (Figure 12d–f), as the air parcels lifted significantly between ~2.5–4 km AGL, they entered an area with high vertical shear of the horizontal wind. Consequently, it indicates that the air parcels encountered an environment with high vertical shear of the horizontal wind where the air parcels exhibited relatively large vertical twisting (analyzed above) due to the vertical wind shear prior to the CI. (The vertical shear of the horizontal wind was strengthened in a period about 1.5 h before the CI (figure not shown).)

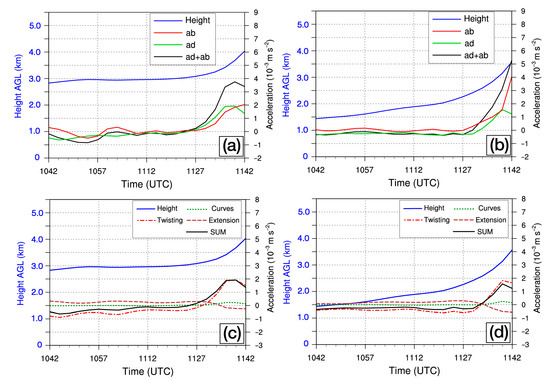

The vertical momentum components (i.e., $a_b$ and $a_d$) along the two portions of air parcels from different directions within the C2 will be analyzed to verify the robustness of the conclusions (about the source of CI) drawn above. For the air parcels from southwest within the C2 (Figure 13a), the averaged $a_b$ along the air parcels was slightly greater than $a_d$ most of the time during the early ~45 min, and increased significantly during the last ~15 min. The $a_d$ also increased significantly and become slightly greater than $a_b$ during the last ~15 min. For the air parcels from south (Figure 13b), the averaged $a_b$ was greater than $a_d$ almost during the whole 1-h period, and showed a significant increasing trend in the last ~15 min. The $a_d$ also clearly increased during the last ~15 min, and showed almost the same value with $a_b$ at ~3 min prior to CI. The intensity of $a_d$ during the rapid lifting period (last ~12 min) for the air parcels from the southwest was greater than that of the air parcels from the south. This is probably due to that the height of the parcels from southwest was higher than that of the parcels from south, and was affected by higher vertical shear of horizontal wind, because the vertical shear of horizontal wind between 2.5–3.5 km was increased with height (see Figure 12e,f). Figure 13c,d show the evaluation of the averaged three components of $a_d$ along the air parcels from the southwest and south, respectively. It can be found that their overall features are almost the same, as shown in Figure 11a,b—i.e., $a_d$ was dominated by the vertical twisting term in the rapid lifting period.

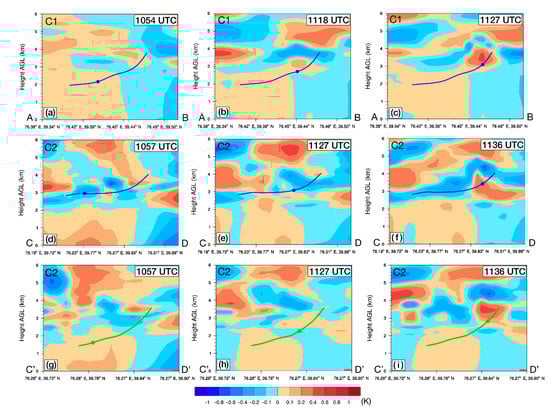

An important issue related to the mechanisms of CIs in this case that remains unclear is the reason for $a_b$. In order to investigate the possible source of $a_b$, the vertical cross section of potential temperature anomaly along the three line segments (i.e., AB, CD and C’D’) are analyzed in the following section (Figure 14). For C1, there was a positive potential temperature anomaly in the surrounding environment of the averaged height of the air parcels during the early slow lifting period (Figure 14a). Similarly, the environment near the average height of the air parcels exhibited a positive potential temperature anomaly for the air parcels from the south within C2 during the early slow lifting period (Figure 14g). Therefore, this implies that the warming in the level below ~2.5 km AGL was the reason of the $a_b$ which caused the slow lifting of the air parcels elevated from lower altitude for both C1 and C2 during the early ~45 min. During the last ~15 min for C1 (Figure 14b,c), the average height of the air parcels reached a level above ~2.7 km AGL, and its upper environment obviously warmed with time, showing a significant warm core several minutes prior to CI. A similar phenomenon can roughly be found near the average height of the air parcels within C2 (Figure 14f,i). Consequently, this implies that this kind of warming during the last ~15 min is the contributor to the $a_b$ for both convective cells.

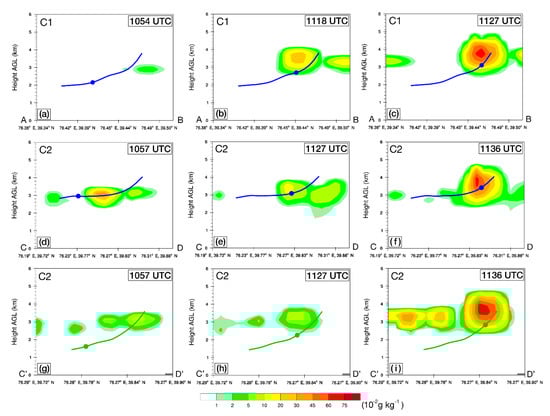

The vertical cross sections of total hydrometeors (including cloud, graupel, rain, ice and snow) along the three line segments can explain the reason for warming during the last ~15 min prior to CI. It is clearly shown in Figure 15 that there were a considerable number of hydrometeors that began to occur due to the condensation of water vapor when air parcels reached the level of condensation level (LCL) (i.e., ~2.7 km AGL), along with release of latent heat. (Among the five hydrometeors (i.e., cloud, graupel, rain, ice and snow), the cloud water mixing ratio is the largest contributor, the graupel and snow mixing ratio show relatively weak intensity, and considered as the second and third contributor, respectively. However, the ice and rainwater mixing ratio are too small and are almost negligible (figure not shown).) Therefore, it can be concluded that the release of the latent heat is the reason for the rapid increase in the $a_b$ during the last ~15 min prior to the CI for both convective cells.

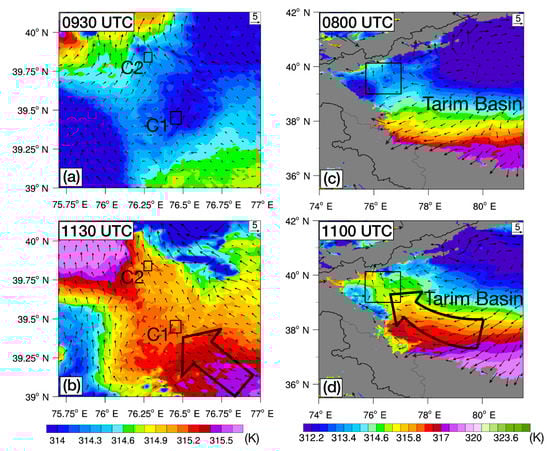

The reason for warming during the rapid lifting period during the last ~15 min prior to the CI was analyzed above. However, one more issue about the reason for warming in the low level (below 2.5 km AGL) is still unclear. In order to figure out the reason, the plane figures of potential temperature and wind field were analyzed. It was found that there was a significant warm advection from the southeast at 3000 m above sea level (ASL) during the time 1~2 h prior to the CI (Figure 16a,b) (The altitude of the area where the two convective cell occurred is ~1400 m ASL.) It can be seen from the bigger scope of the area that (Figure 16c,d), there was significant radiative heating from 0800 UTC (i.e., 1400 local time) to 1100 UTC (i.e., 1700 local time) near the mountainous area on the south side of the Tarim Basin. Besides, the southeasterlies strengthened with time and generated a significant warm advection from the southeast to the study area, thus causing warming in the low-level 1~2 h prior to the CI. (The potential temperature and wind field at 3500 m ASL showed almost the same feature (figure not shown)).

5. Summary and Discussion

This work investigated the mechanisms of convection initiation (CI) occurring in the southwestern Xinjiang province in Northwest China, on 23 June 2015, as the first in-depth study into CI in this region. Doppler weather radar observations showed that many CIs took place repeatedly, and more than half of them underwent rapid development in both size and intensity, and eventually formed an intense mesoscale convective system (MCS), producing severe convective weather, such as short-term high winds, heavy rainfall and hail. This case was numerically simulated via the Weather Research and Forecasting (WRF) model (V3.7) with a horizontal resolution of 1 km. The WRF simulation accurately reproduced the overall pattern and features of the CIs and the associated MCS despite some biases in location, time and intensity.

In order to understand the mechanisms of CI in this case, fine-scale quantitative Lagrangian vertical momentum budget analysis was conducted along the backward trajectories of air parcels within two typical convective cells (C1 and C2). The vertical acceleration was decomposed into contributions from buoyant acceleration ($a_b$) and dynamic acceleration ($a_d$), respectively. It was found that, from the perspective of averaged trajectory of air parcels, the slow lifting in the early ~45 min was contributed to by $a_b$ for both convective cells. The rapid lifting of the air parcels within the C1 was mainly induced by $a_b$, while $a_d$ also showed a relatively weak positive contribution. For C2, $a_b$ also made a significant contribution to the rapid lifting of air parcels, while $a_d$ also exhibited a remarkable positive effect on the CI.

Furthermore, $a_d$ was decomposed into three terms—i.e., extension, horizontal curvature and vertical twisting. During the rapid lifting period of CI in both C1 and C2, the vertical twisting term was remarkably greater than the other two terms and thus dominated the $a_d$. However, the extension and horizontal curvature term showed very weak value. Therefore, it can be concluded that $a_d$ was mainly caused by the vertical twisting.

The vertical cross section of vertical shear of horizontal wind revealed that the air parcels encountered an environment with high vertical shear of horizontal wind in lower-to-middle level (~2.5–4 km AGL) where the air parcels exhibited relatively large vertical twisting due to the vertical shear. Our previous study focusing on the CI mechanisms in the Bohai Bay region, North China [31] also found that the vertical twisting related to the horizontal vorticity caused by the vertical shear has the greatest contribution to the CI, which is consistent with the result related to the cause of the $a_d$ in our present study. This differs from the RKW theory [54] which focused on the low-level vertical shear and the cold-pool depth.

Further analysis of potential temperature anomaly and hydrometeors showed that the warming in the level below ~2.5 km AGL was the reason of the slow lifting of the air parcels elevated from lower altitude for both C1 and C2 during the early ~45 min. Besides, the release of latent heat when the air parcels reached the level of condensation level (LCL) (i.e., ~2.7 km AGL) is the reason for the rapid increase in $a_b$ during the last ~15 min prior to the CI for both convective cells. In addition, it was found that there was a significant radiative heating near the mountainous area on the south side of the Tarim Basin in the afternoon. The southeasterlies generated a significant warm advection from the southeast to the study area, which caused warming in the low-level 1~2 h prior to the CI. The special arid and semiarid geographical features of the south Xinjiang played an important role for the warming during the slow lifting period of air parcels in the CI mechanism in this study. The Tarim Basin is mainly covered by Taklimakan desert and is surrounded by mountains. The land surface mainly covered by desert, and gobi in this area can provide quite strong long wave radiation and thus significantly heat the planetary boundary layer, and further contribute to the buoyant acceleration of the CI during the afternoon. To our knowledge, detailed quantitative diagnostic study on the CI in southwestern Xinjiang, Northwest China, has not been previously addressed in the literature, although numerous CI mechanisms around the world have been proposed through considering a great variety of weather systems. However, most of them are associated with dynamic lifting. However, the CI mechanism in the present study, in which the buoyant forcing played a major role, is significantly different from the mechanisms in many studies conducted in other places. For instance, Wilson and Roberts [4] summarized the CI related processes during the International H₂O Project (IHOP_2002) experiment in the southern Great Plains in the Unites States. They pointed out that numerous boundary types, including drylines, cold pool outflow boundaries, cold fronts, horizontal convective rolls, topographically induced boundaries and bores, have played a crucial role in the CI. The present study provides some new insights into the roles of buoyant and dynamic forcings and hence helps improve the understanding of CI mechanisms. With a better understanding of the behavior of CI, these results can contribute to the improvement of quantitative precipitation forecasts, hazard prevention and reduction.
