Integrated Modelling for Groundwater Contamination from Polluted Streams Using New Protection Process Techniques
Abstract

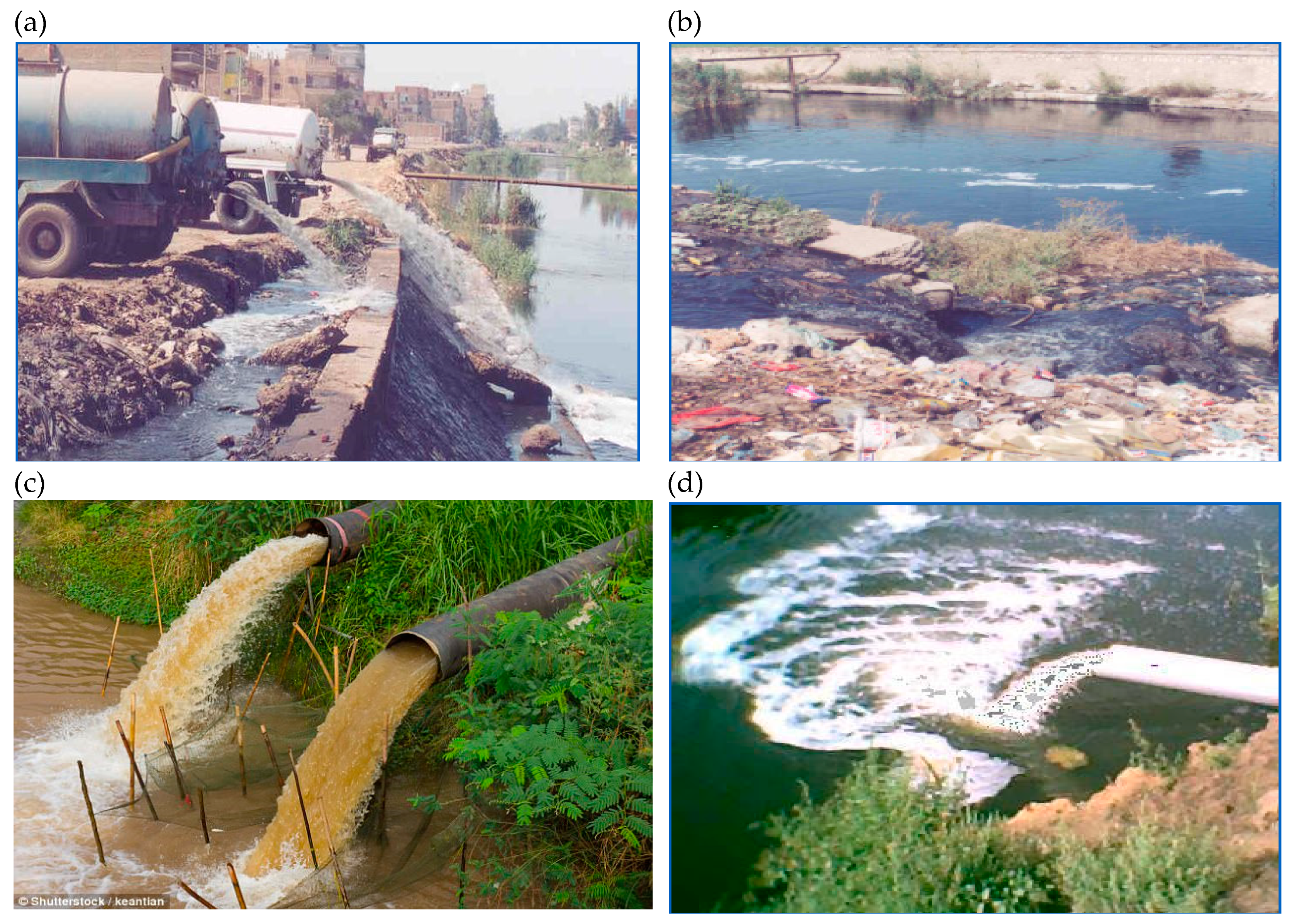

:1. Introduction
2. Materials and Methods
2.1. Description of Coupled Groundwater Flow and Solute Transport Model

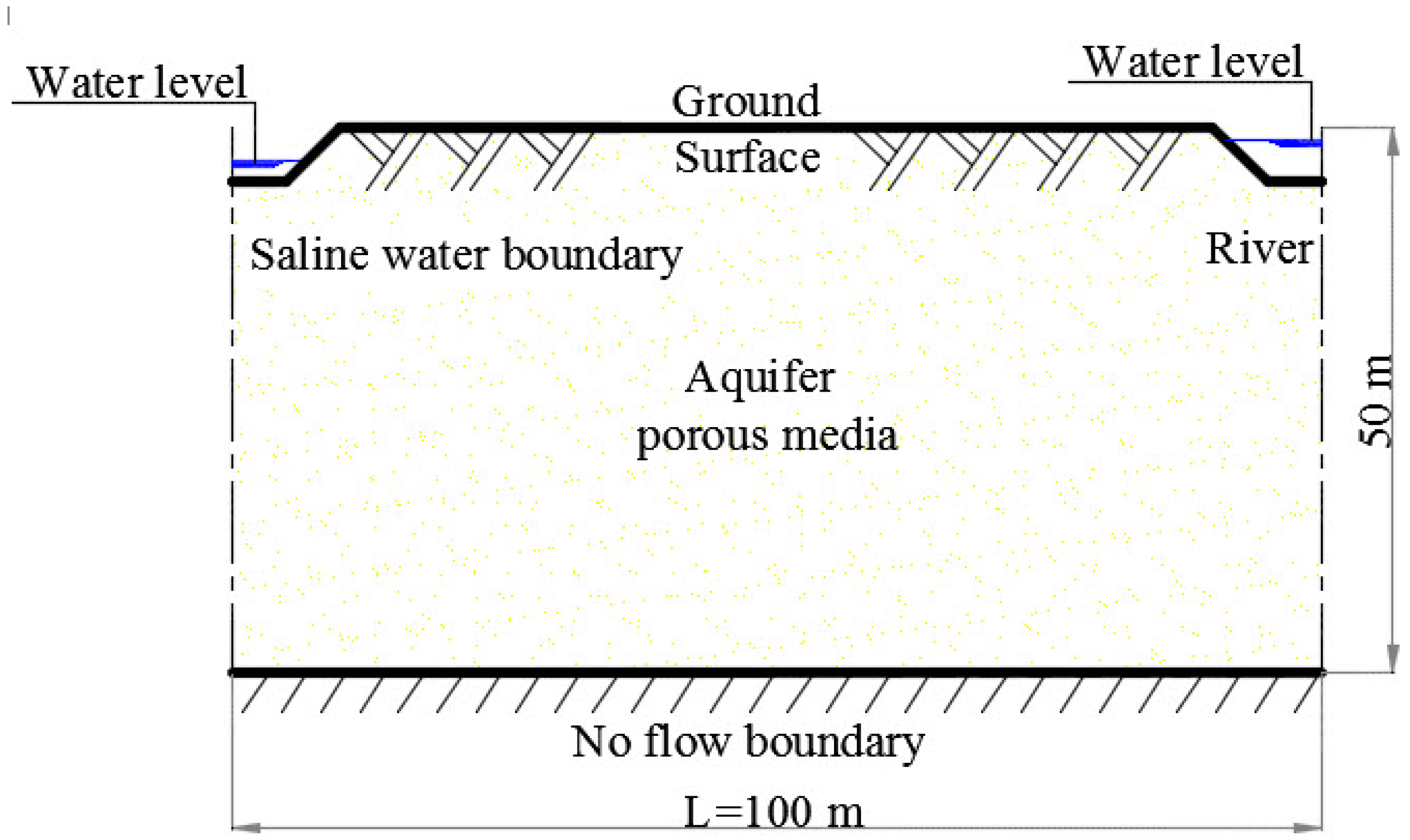

2.2. Hypothetical Case Study

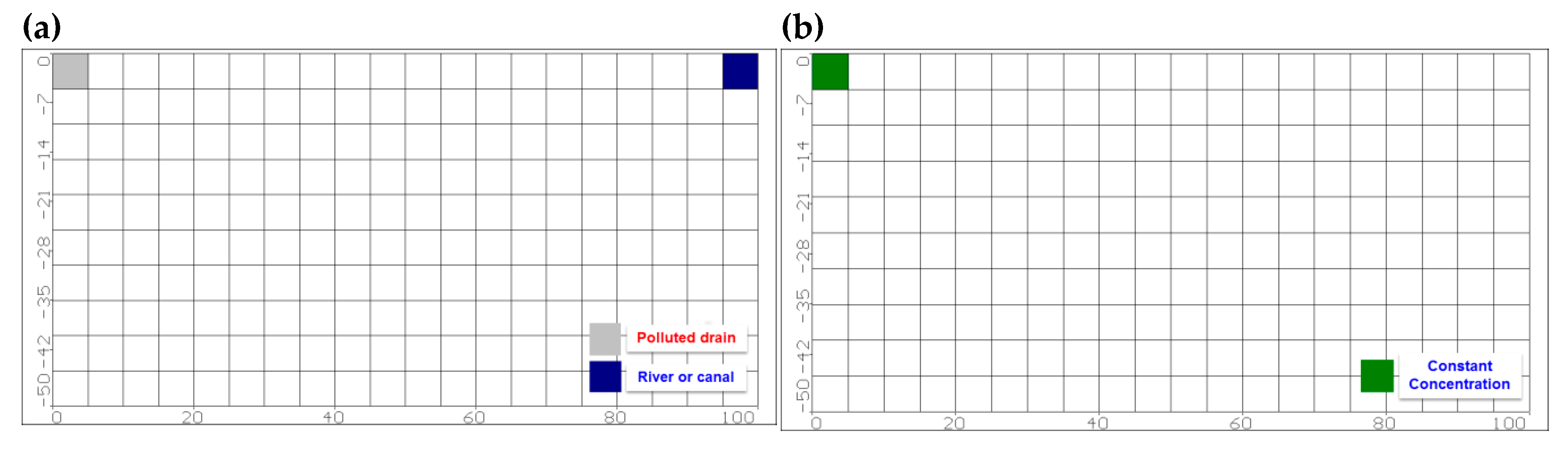

2.2.1. Boundary Condition and Data Set

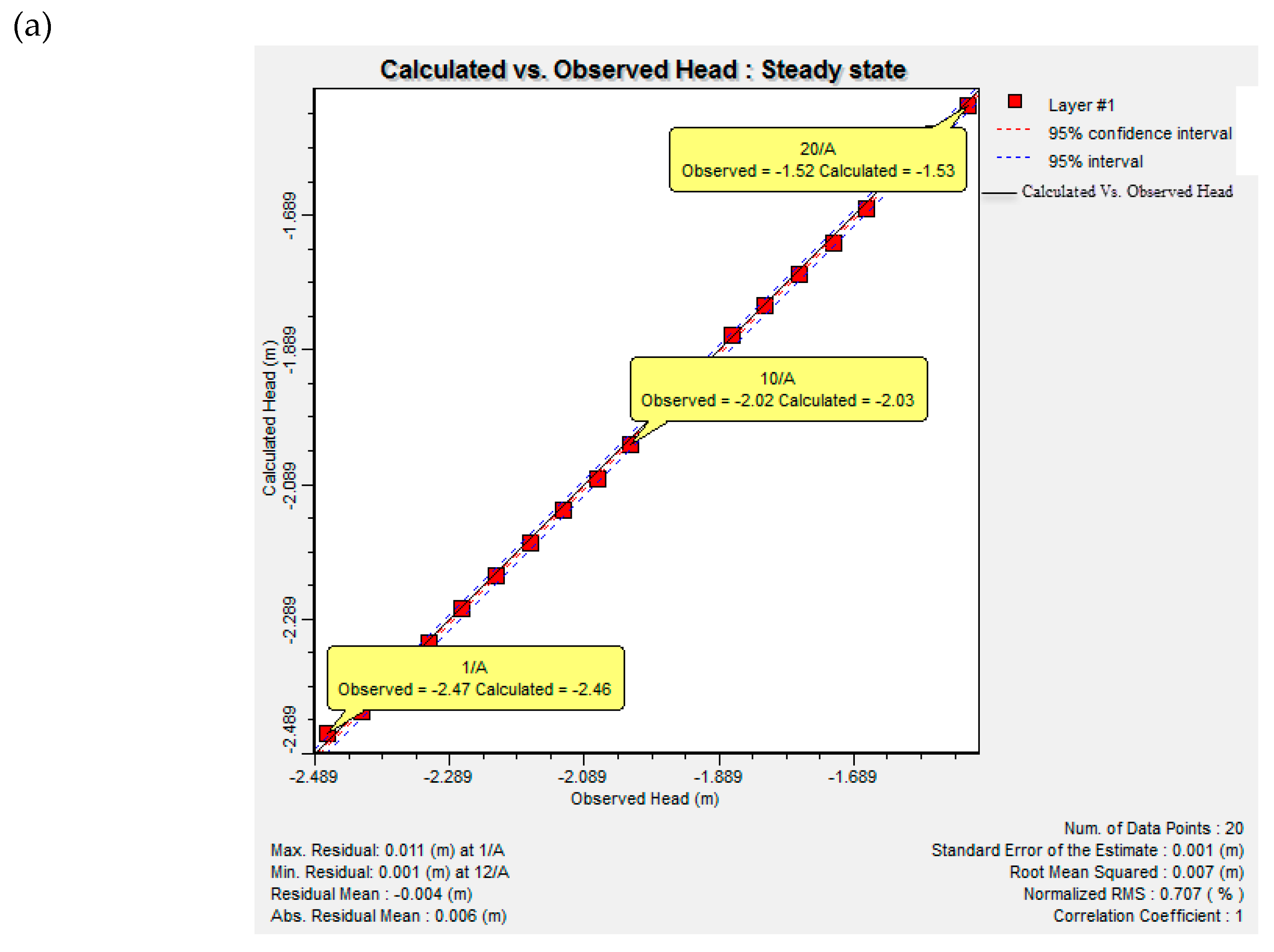

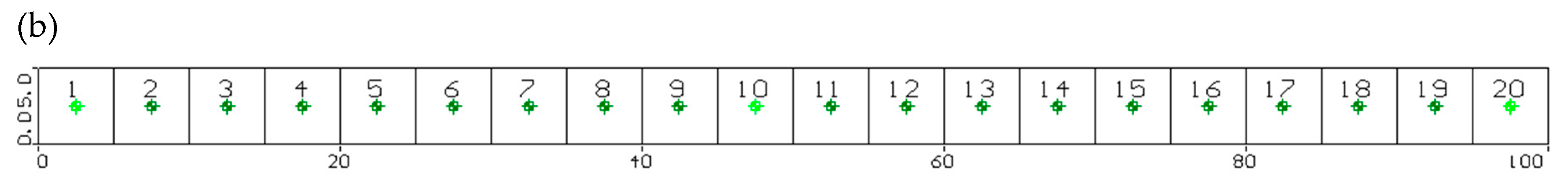

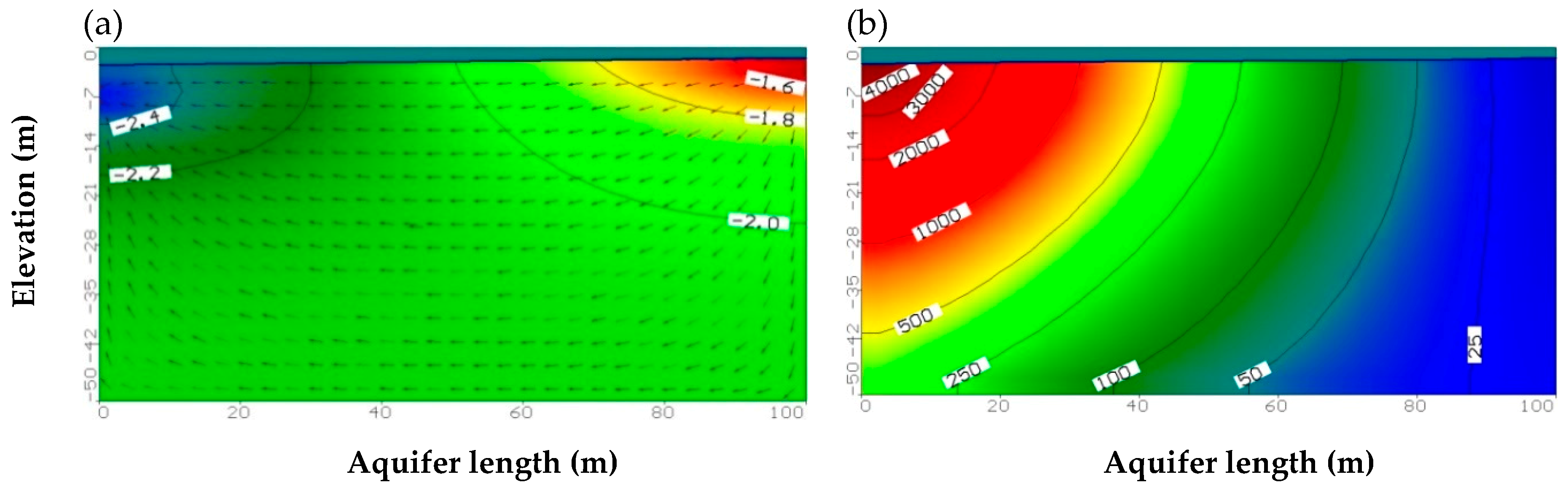

2.2.2. Calibration of Hypothetical Model

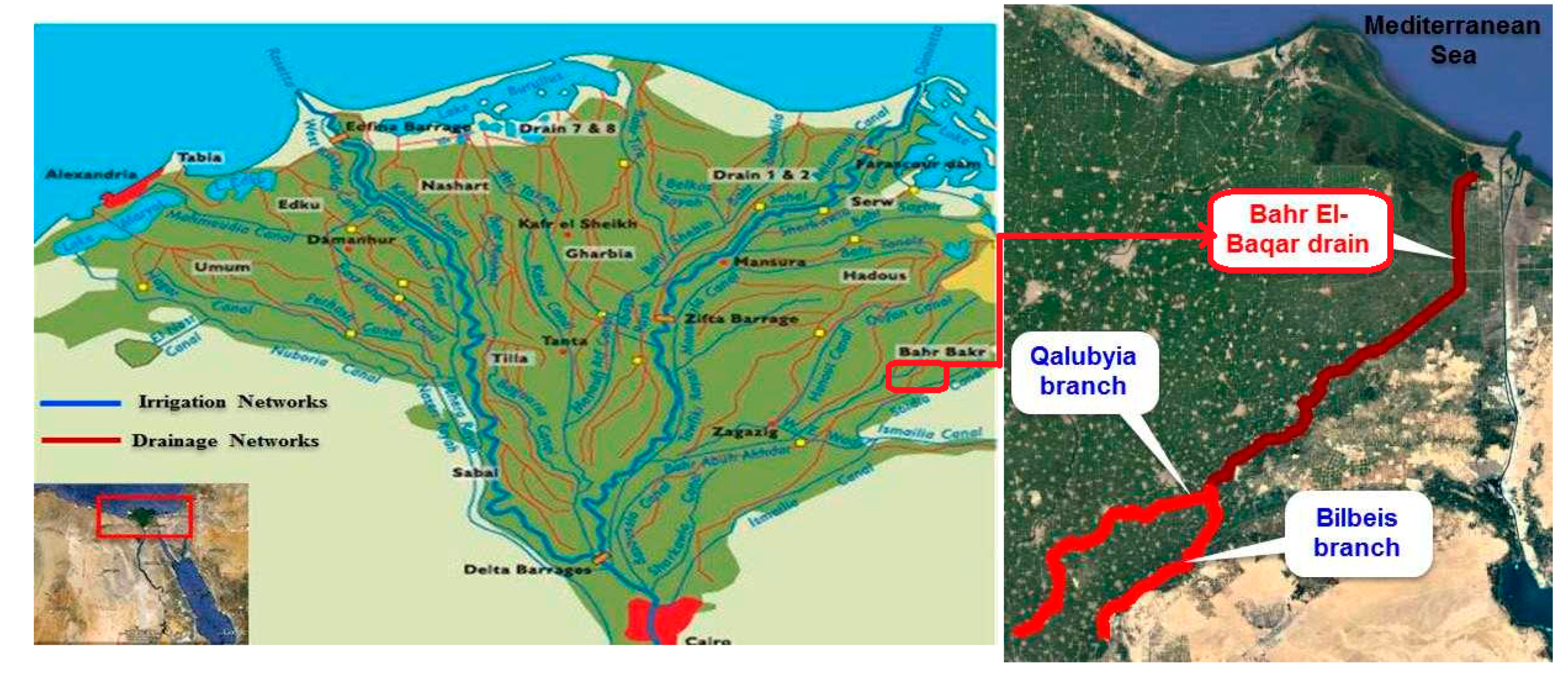

2.3. Nile Delta Aquifer Case Study
2.3.1. Numerical Modelling Set-up of Nile Delta
2.3.2. Hydrological and Hydraulic Parameters of Nile Delta

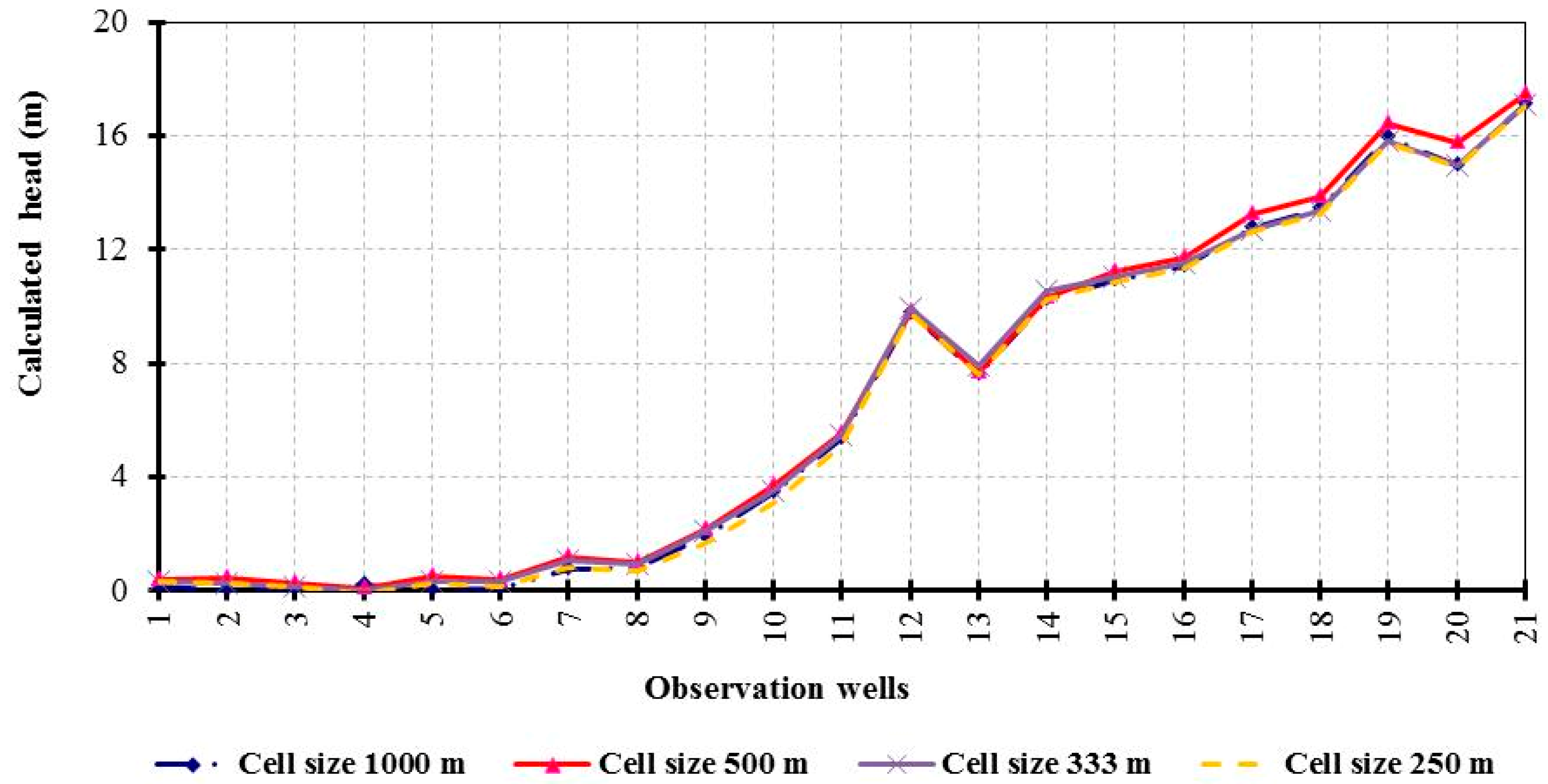

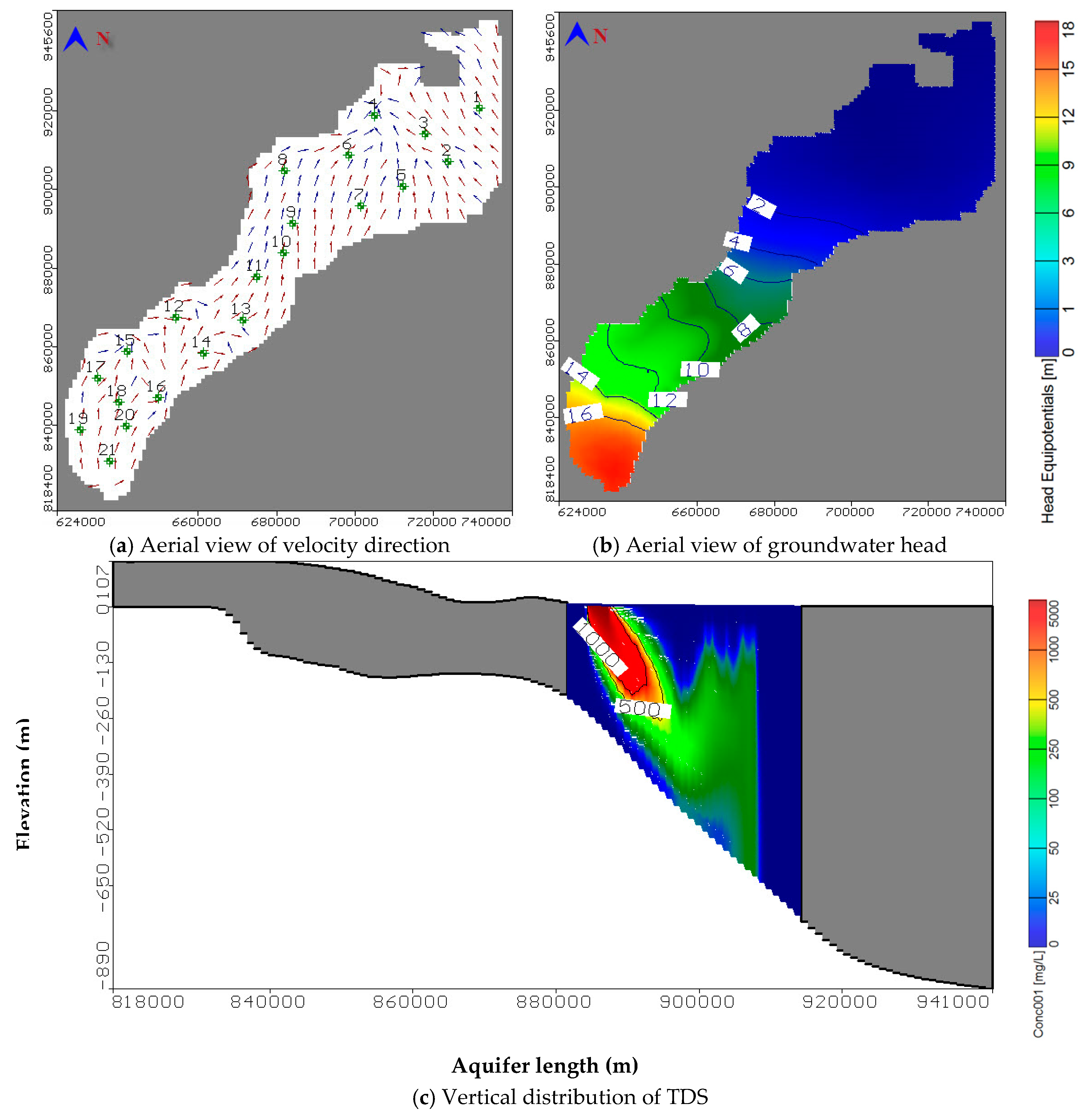

2.3.3. Calibration Model of Nile Delta Model
3. Results and Discussions

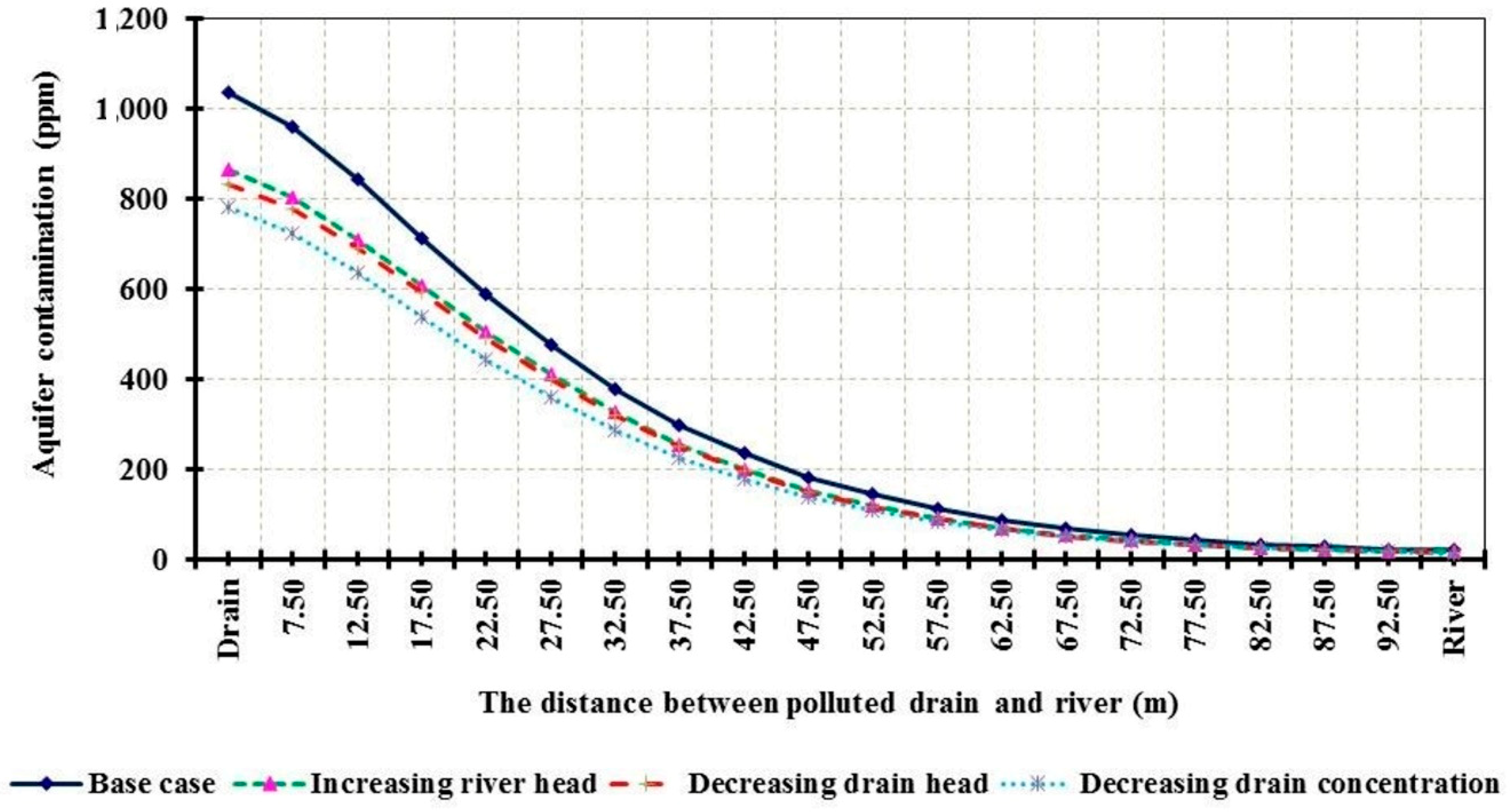

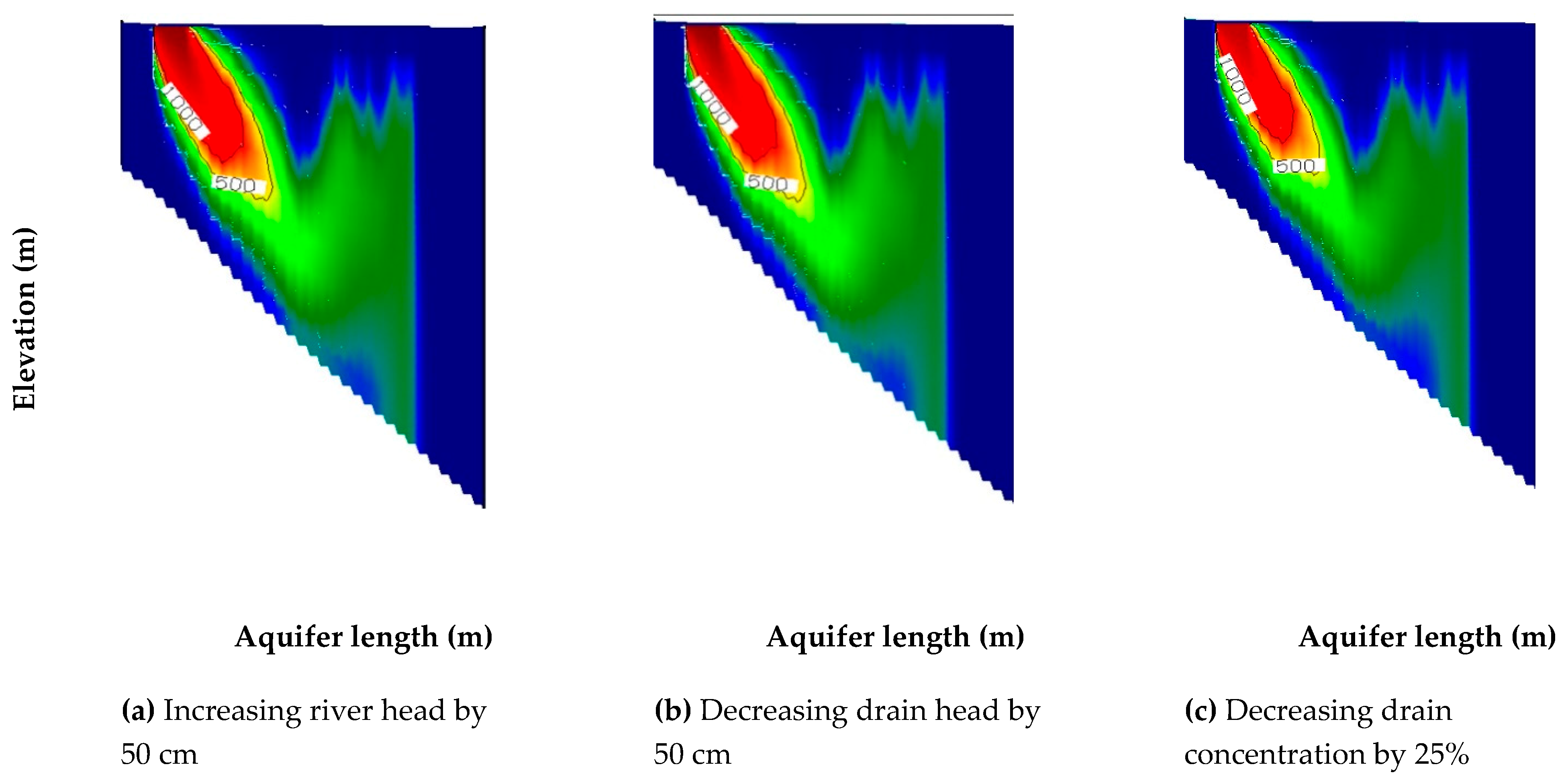

3.1. Impact of River and Drain Boundary Condition on Groundwater Quality

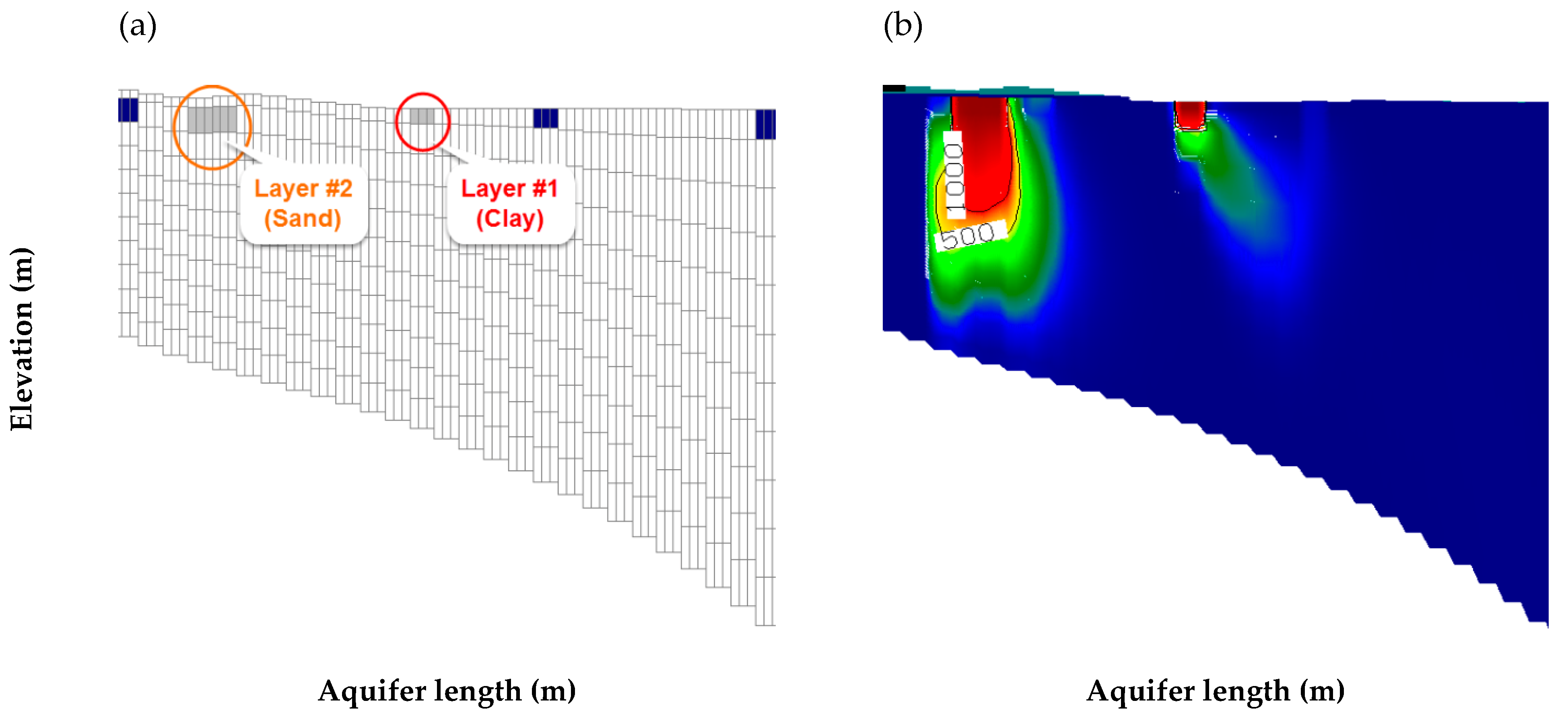

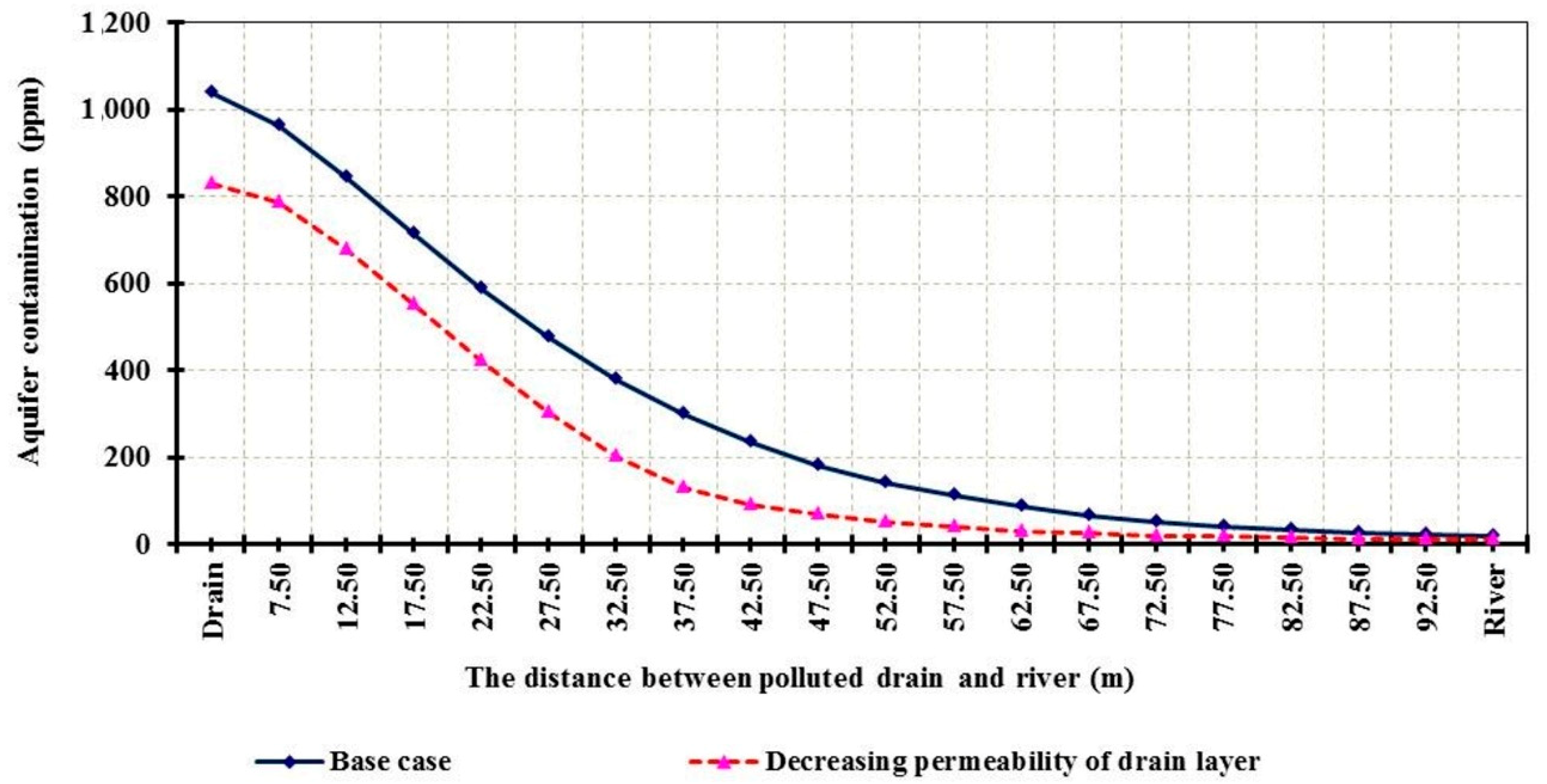

3.2. Impact on Groundwater Quality of Installing Polluted Drain in Low Permeability Layers

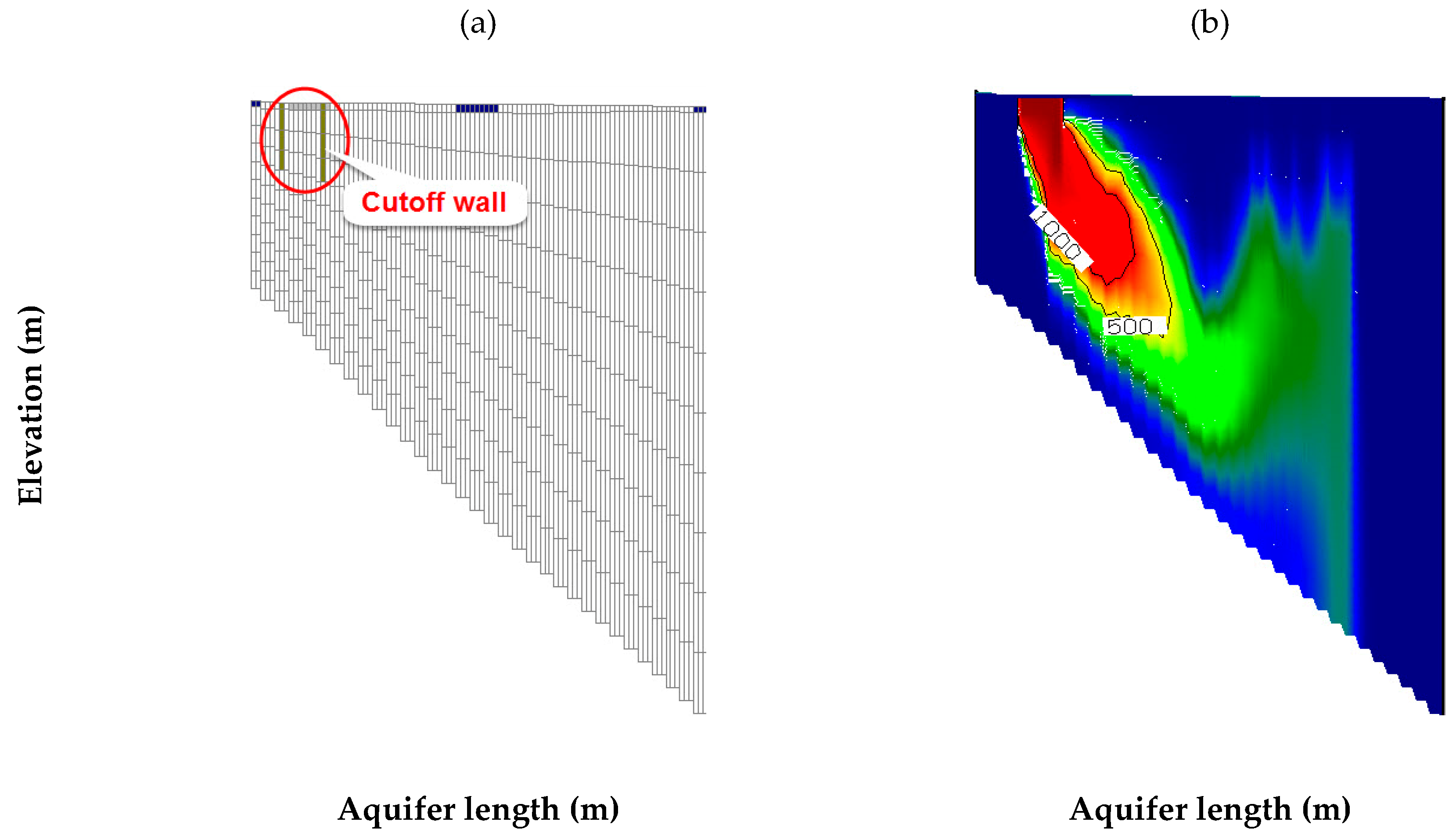

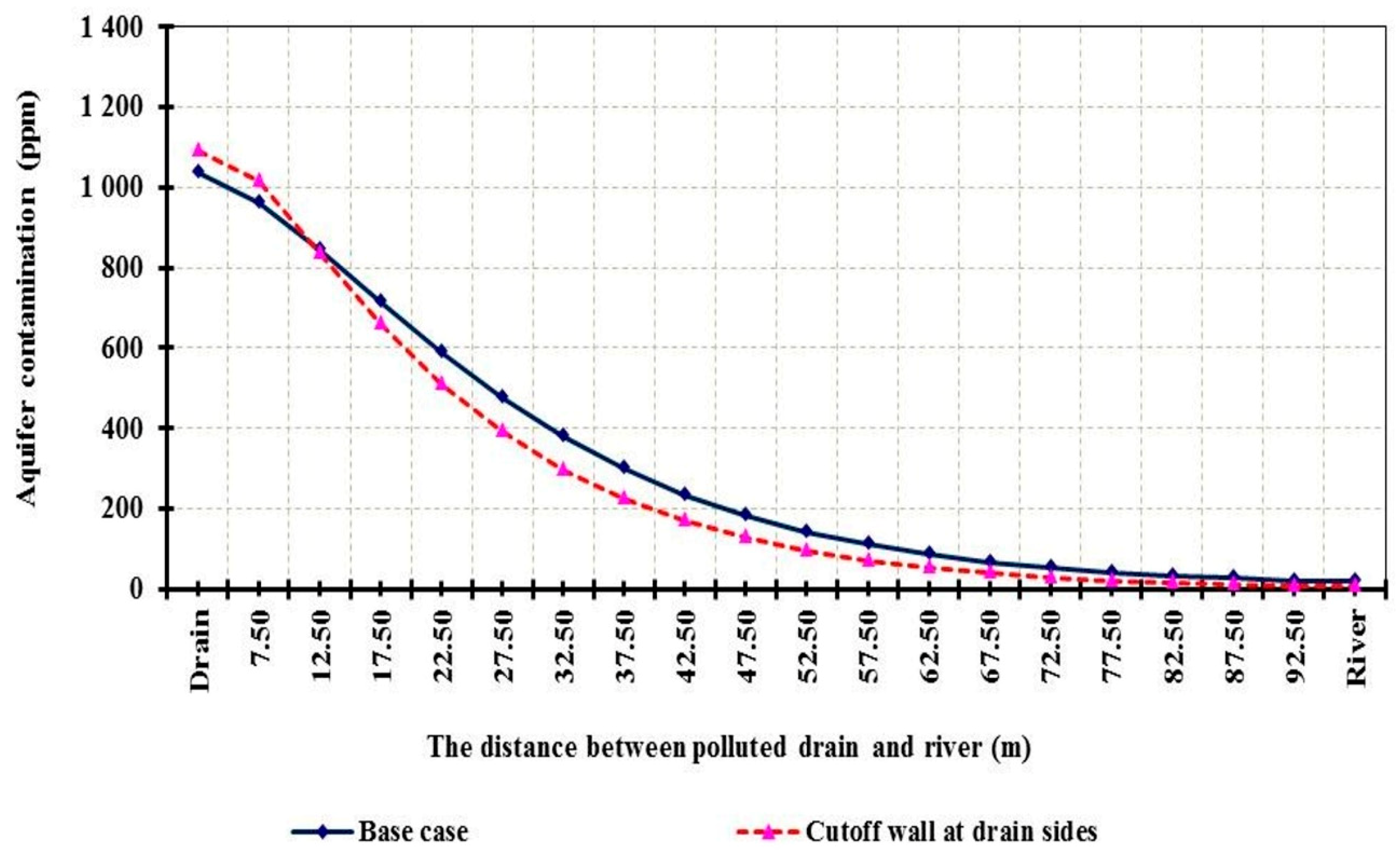

3.3. Impact on Groundwater Quality of Installing Cutoff Wall on Polluted Drain Sides

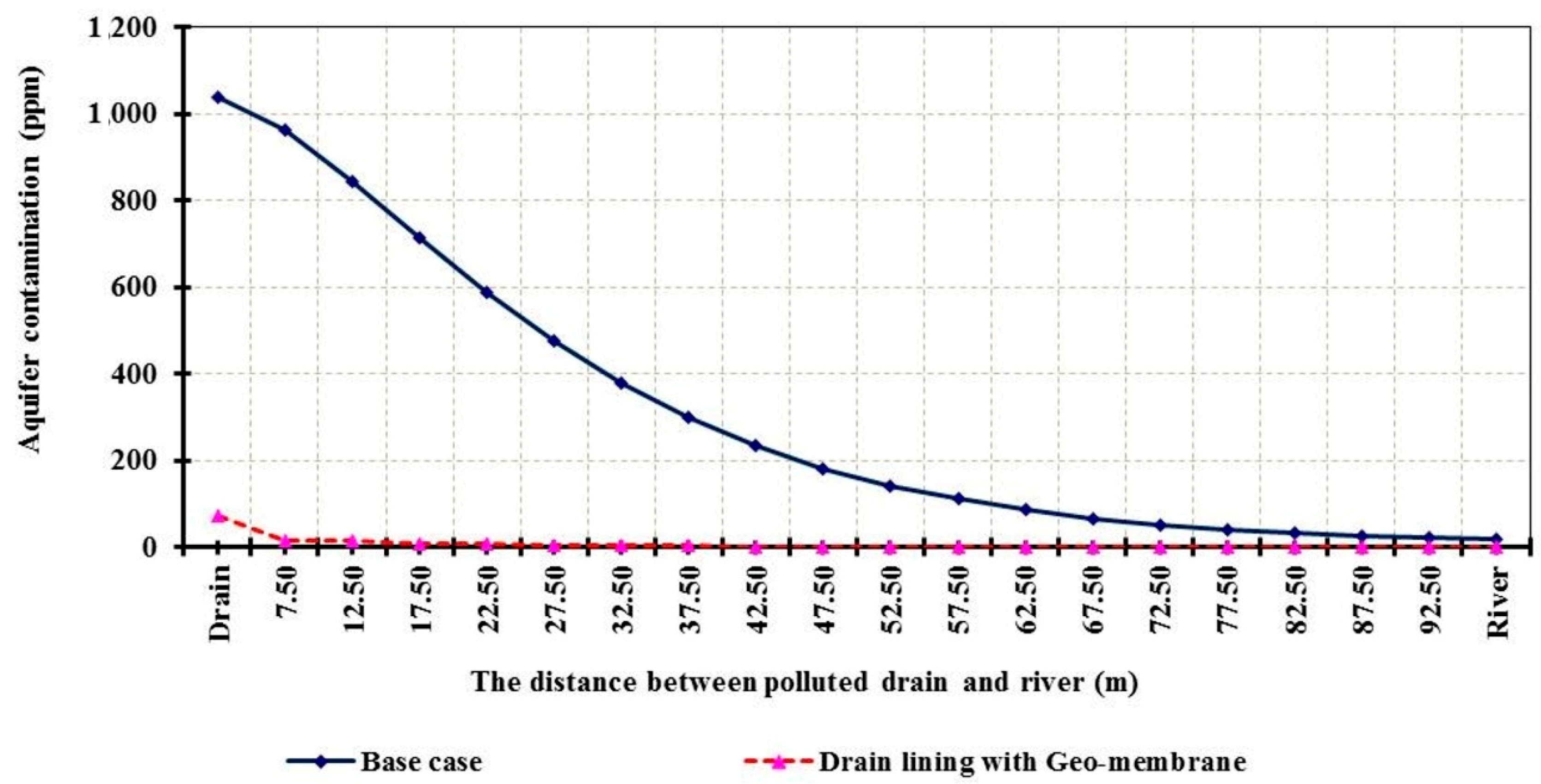

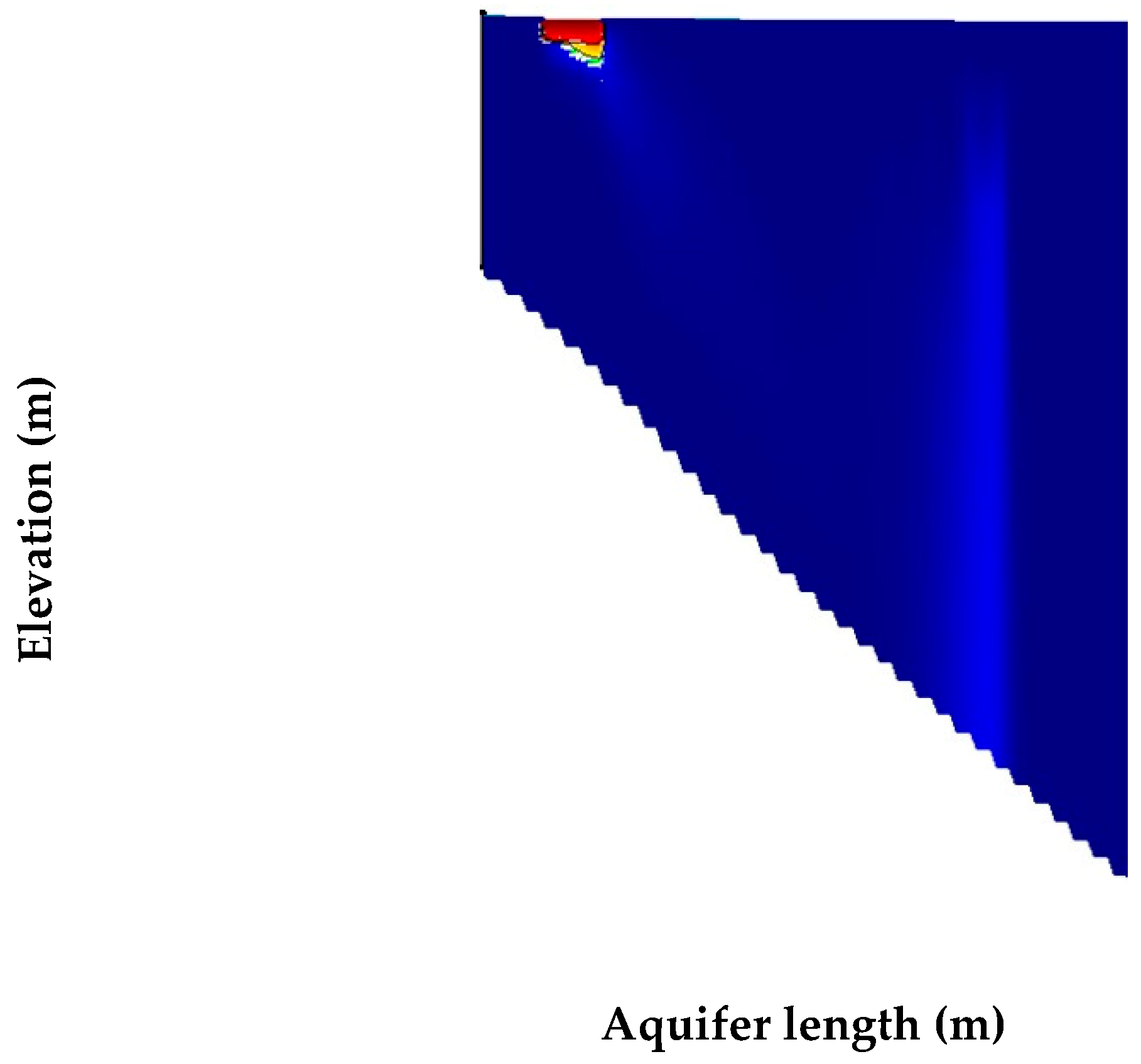

3.4. Impact on Groundwater Quality of Using Lining Materials for Polluted Streams
3.5. Comparison between the Different Scenarios for Management of Polluted Drains and Its Effect on Groundwater Quality
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Zelenakova, M.; Purcz, P.; Pintilii, R.D.; Blistan, P.; Hlustik, P.; Oravcova, A.; Abu-Hashim, M. Spatio-temporal Variations in Water Quality Parameter Trends in River Waters. Rev. Chim. 2018, 69, 2940–2974. [Google Scholar]
- MWRI. Integrated Water Resources Management Plan; Ministry of Water Resources and Irrigation: Giza, Egypt, 2005. [Google Scholar]
- Kalhor, K.; Ghasemizadeh, R.; Rajic, L.; Alshawabkeh, A. Assessment of groundwater quality and remediation in karst aquifers: A review. Groundw. Sustain. Dev. 2019, 8, 104–121. [Google Scholar] [CrossRef] [PubMed]
- Huang, L.; Wang, L.; Zhang, Y.; Xing, L.; Hao, Q.; Xiao, Y.; Yang, L.; Zhu, H. Identification of Groundwater Pollution Sources by a SCE-UA Algorithm-Based Simulation/Optimization Model. Water 2018, 10, 193. [Google Scholar] [CrossRef]
- Bear, J. Hydraulics of Groundwater; McGraw-Hill: New York, NY, USA, 1979. [Google Scholar]
- Vlahinic, M. Socio-economic and health aspects of drainage in relation to environment and sustainable agriculture. In Proceedings of the 6th drainage workshop, drainage and the environment, Ljubljana, Slovenian, 21–29 April 1996. [Google Scholar]
- El-Atfy, H. Integrated National Water Resources Plan in Egypt. Minist. Water Resour. Irrig. Alex. Gov. Egypt 2007. ppt. Available online: http://switch.cedare.int/cedare.int/files28%5CFile2182.pdf (accessed on 22 January 2019).
- Belcher, H.W.; Fogiel, A. Research Literature Review of Water Table Management Impacts on Water Quality; Agricultural Engineering Department, Michigan State University: East Lansing, MI, USA, 1991. [Google Scholar]
- Veilleux, J.C. The Human Security Dimensions of Dam Development: The Grand Ethiopian Renaissance Dam. Glob. Dialogue 2013, 15, 1–15. [Google Scholar]
- Samaan, M.M. The Win-Win-Win Scenario in the Blue Nile’s Hydropolitical Game: Application on the Grand Ethiopian Renaissance Dam; Forschungsberichte aus dem Institut für Sozialwissenschaften; TU-Braunschweig: Braunschweig, Germany, 2014. [Google Scholar]
- Tesfa, B.C. Benefit of Grand Ethiopian Renaissance Dam Project (GERDP) for Sudan and Egypt. J. Energy Water Environ. Econ. 2013, 1, 1–12. [Google Scholar]
- Mulat, A.G.; Moges, S.A. Assessment of the Impact of the Grand Ethiopian Renaissance Dam on the Performance of the High Aswan Dam. J. Water Resour. Prot. 2014, 6, 583–598. [Google Scholar] [CrossRef] [Green Version]
- Abd-Elhamid, H.; Abd-Elaty, I.; Sherif, M. Evaluation of potential impact of Grand Ethiopian Renaissance Dam on Seawater Intrusion in the Nile Delta Aquifer. Int. J. Environ. Sci. Technol. 2019, 16, 2321–2332. [Google Scholar] [CrossRef]
- Abu-hashim, M.; Mohamed, E.; Belal, A. Identification of Potential Soil Water Retention Using Hydric Numerical Model at Arid Regions by Land-use Changes. Int. Soil Water Conserv. Res. 2015, 3, 305–315. [Google Scholar] [CrossRef]
- MWRI. Adaptation to Climate Change in the Nile Delta through Integrated Coastal Zone Management; Ministry of Water Resources and Irrigation: Giza, Egypt, 2013. [Google Scholar]
- Abdel-Shafy, H.I.; Aly, R.O. Water Issues in Egypt Resources, Pollution and Protection Endeavors. Cent. Eur. J. Occup. Environ. Med. 2002, 81, 3–21. [Google Scholar]
- Taha, A.A.; El-Mahmoudi, A.S.; El-Haddad, I.M. Pollution sources and related environmental impacts in the new communities southeast Nile delta, Egypt. Emir. J. Eng. Res. 2004, 9, 35–49. [Google Scholar]
- Omran, E.S.; El Razek, A. Mapping and screening risk assessment of heavy metals concentrations in soils of the Bahr El-Baker Region, Egypt. J. Soil Sci. Environ. Manag. 2012, 6, 182–195. [Google Scholar]
- Saad, A.K. Environmental Hydrogeologic Impacts of Groundwater Withdrawal in the Eastern Nile Delta Region with Emphasis on Groundwater Pollution Potential. Ph.D. Thesis, Institute of Environmental Studies, Ain Shams University, Cairo, Egypt, 1997. [Google Scholar]
- El-Badry, A.E.A. Distribution of Heavy Metals in Contaminated Water and Bottom Deposits of Manzala Lake, Egypt. J. Environ. Anal. Toxicol. 2016, 6, 344. [Google Scholar]
- Kumar, P.; Singh, A. Groundwater Contaminant Transport Modelling for Unsaturated Media using Numerical Methods (FEM, FDM). Int. J. Recent Technol. Eng. (IJRTE) 2019, 8, 2277–3878. [Google Scholar]
- Baba, A.; Tayfur, G. Groundwater contamination and its effect on health in Turkey. Environ. Monit. Assess. 2011, 183, 77–94. [Google Scholar] [CrossRef] [Green Version]
- Chen, C.S.; Tu, C.H.; Chen, S.J.; Chen, C.C. Simulation of Groundwater Contaminant Transport at a Decommissioned Landfill Site-A Case Study, Tainan City, Taiwan. Int. J. Environ. Res. Public Health 2016, 13, 467. [Google Scholar] [CrossRef]
- Wang, H.; Nie, L.; Xu, Y.; Du, C.; Zhang, T.; Wang, Y. Effects of Highway-Related Pollutant on the Groundwater Quality of Turfy Swamps in the Changbai Mountain Area. Int. J. Environ. Res. Public Health 2018, 15, 1652. [Google Scholar] [CrossRef]
- Paradis, D.; Vigneault, H.; Lefebvre, R.; Savard, M.M.; Ballard, J.M.; Qian, B. Groundwater nitrate concentration evolution under climate change and agricultural adaptation scenarios: Prince Edward Island, Canada. Earth Syst. Dyn. 2016, 7, 183–202. [Google Scholar] [CrossRef] [Green Version]
- Chintalapudi, P.; Pujari, P.; Khadse, G.; Sanam, R.; and Labhasetwar, P. Groundwater quality assessment in emerging industrial cluster of alluvial aquifer near Jaipur, India. Environ. Earth Sci. 2017, 76, 8. [Google Scholar] [CrossRef]
- Sherif, M.; Al-Rashed, M. Vertical and Horizontal Simulation of Seawater Intrusion in the Nile Delta Aquifer. In Proceedings of the First International Conference on Saltwater Intrusion and Coastal Aquifers, Monitoring, Modeling, and Management, Essaouira, Morocco, 23–25 April 2001. [Google Scholar]
- El Monayeri, D.; Elgohary, E.H. Enhancement of Self—Purification Process of Open Drains in Egypt; Faculty of Engineering, Zagazig University Workshop: Zagazig, Egypt, 2017. [Google Scholar]
- El-Arabi, M. Environmental Impact of New Settlements in Groundwater in a Region in the Nile Delta. Master’s Thesis, Faculty of Engineering, Zagazig University, Zagazig, Egypt, 2007. [Google Scholar]
- Morsy, W.S. Environmental Management to Groundwater Resources for Nile Delta Region. Ph.D. Thesis, Faculty of Engineering, Cairo University, Cairo, Egypt, 2009. [Google Scholar]
- Hendy, M. Study Groundwater Management at the North of Sharkia Directorate’s. Master’s Thesis, Faculty of Engineering, Zagazig University, Zagazig, Egypt, 2012. [Google Scholar]
- Mabrouk, M.B.; Jonoski, A.; Solomatine, D.; Uhlenbrook, S. A review of Seawater Intrusion in the Nile Delta Groundwater System—The basis for Assessing Impacts due to Climate Changes and Water Resources development. J. Hydrol. Earth Syst. Sci. 2013, 10, 10873–10911. [Google Scholar] [CrossRef]
- Sherif, M.M.; Sefelnasr, A.; Javadi, A. Incorporating the Concept of Equivalent Freshwater Head in Successive Horizontal Simulations of Seawater Intrusion in the Nile Delta Aquifer, Egypt. J. Hydrol. 2012, 464–465, 186–198. [Google Scholar] [CrossRef]
- Abd-Elhamid, H.F.; Abdelaal, G.M.; Abd-Elaty, I.; Said, A.M. Evaluation of groundwater vulnerability to seepage from open drains considering different pumping schemes in unconfined aquifers. In Proceedings of the Twenty-First International Water Technology Conference, IWTC21, Ismailia, Egypt, 28–30 June 2018. [Google Scholar]
- Abd-Elaty, I.M.; Abd-Elhamid, H.F.; Fahmy, M.R.; Abdelaal, G.M. Study of Impact Climate Change and Other on Groundwater System in Nile Delta Aquifer. Egypt. J. Eng. Sci. Technol. 2014, 17, 2061–2079. [Google Scholar]
- Abd-Elaty, I.; Sallam, G.; Strafacec, S.; Scozzari, A. Effects of climate change on the design of subsurface drainage systems in coastal aquifers in arid/semi-arid regions: Case study of the Nile delta. Sci. Total Environ. 2019, 672, 283–295. [Google Scholar] [CrossRef] [PubMed]
- Abd-Elaty, I.; Eldeeb, H.; Vranayova, Z.; Zelenakova, M. Stability of Irrigation Canal Slopes Considering the Sea Level Rise and Dynamic Changes: Case Study El-Salam Canal, Egypt. Water 2019, 11, 1046. [Google Scholar] [CrossRef]
- Hussein, E.E.; Fouad, M.; Gad, M.I. Prediction of the pollutants movements from the polluted industrial zone in 10th of Ramadan city to the Quaternary aquifer. Appl. Water Sci. 2019, 9, 20. [Google Scholar] [CrossRef] [Green Version]
- Michalopoulos, D.; Dimitriou, E. Assessment of Pollution Risk Mapping Methods in an Eastern Mediterranean Catchment. J. Ecol. Eng. 2018, 19, 55–68. [Google Scholar] [CrossRef]
- Stefania, G.A.; Rotiroti, M.; Fumagalli, L.; Zanotti, C.; Bonomi, T. Numerical Modeling of Remediation Scenarios of a Groundwater Cr(VI) Plume in an Alpine Valley Aquifer. Geosciences 2018, 8, 209. [Google Scholar] [CrossRef]
- Talabi, A.O.; Kayode, T.J. Groundwater Pollution and Remediation. J. Water Resour. Prot. 2019, 11, 89885. [Google Scholar] [CrossRef]
- Harbaugh, A.W.; Banta, E.R.; Hill, M.C.; McDonald, M.G. MODFLOW-2000, the U.S. Geological Survey Modular Ground-Water Model—User Guide to Modularization Concepts and the Ground-Water Flow Process; USGS Open-File Report 00-92; U.S. Geological Survey: Reston, VA, USA, 2000.
- McDonald, M.G.; Harbaug, A.W. A Modular Three-Dimensional Finite-Difference Ground-Water Flow Model; USGS TWRI Chapter 6-A1; United States Government Printing Office: Reston, VA, USA, 1988; 586p. Available online: http://pubs.usgs.gov/twri/twri6a1/ (accessed on 24 January 2019).
- Javandel., I.; Doughty, C.; Tsang, C.F. Groundwater Transport: Handbook of Mathematical Models; American Geophysical Union Water Resources Monogram: Washington, WA, USA, 1984. [Google Scholar]
- Bear, J. Dynamics of Fluids in Porous Media; Dover Publications, Inc.: New York, NY, USA, 1972. [Google Scholar]
- RIGW. Hydrogeological Map of Nile Delta. Scale 1: 500,000, 1st ed.; RIGW: Nile Delta, Egypt, 1992. [Google Scholar]
- SNC. Egypt’s Second National Communication, Egyptian Environmental Affairs Agency (EEAA-May 2010). In Under the United Nations Framework Convention on Climate Change on Climate Changem; EEAA: Cairo, Egypt, 2010. [Google Scholar]
- WMRI-NWRC. Unpublished Report under the Matching Supply and Demand Project; Water Management Research Institute, National Water Research Center, Ministry of Water Resources and Irrigation: Kanater El-Khairia, Egypt, 2002. [Google Scholar]
- Sallouma, M.K.M. Hydrogeological and Hydrochemical Studies East of Nile Delta, Egypt. Ph.D. Thesis, Faculty of Science Ain Shams University, Cairo, Egypt, 1983; 166p. [Google Scholar]
- RIGW. Projected of the Safe Yield Study for Groundwater Aquifer in the Nile Delta and Upper Egypt; Part 1; Ministry of Irrigation, Academy of Scientific Research and Technology, and Organization of atomic Energy: Kanater El-Khairia, Egypt, 1980. (In Arabic) [Google Scholar]
- Zheng, C.; Wang, P.P. MT3DMS—A Modular Three-Dimensional Multispecies Transport Model for Simulation of Advection, Dispersion and Chemical Reactions of Contaminants in Ground-Water Systems. In Documentation and User’s Guide: Contract Report SERDP-99-1; U.S. Army Engineer Research and Development Center: Vicksburg, MS, USA, 1999. [Google Scholar]
- AEE. Institute for Sustainable Technology, Sustainable Concept towards a Zero Outflow Municipality; Contract Nr ME8/AIDCO/2001/0515/59768, Final report SEKEM Pilot System; AEE: Gleisdorf, Austria, 2008. [Google Scholar]
- Abdel-Shafy, H.; El-Khateeb, M. Integration of septic tank and constructed wetland for the treatment of wastewater in Egypt. Desealinitaion Water Treat. 2013, 51, 3539–3546. [Google Scholar] [CrossRef]
- TVA. Tennessee Valley Authority, Lake Manzala Wetland Project Mission Report; Project No. EGY/93/G31; Prepared for Operational Unit for Development Assistance: Cairo, Egypt, 1999. [Google Scholar]
- Abd-Elhamid, H.F.; El-Kilany, M.E.; Javadi, A.A. A cost-effective method to protect the coastal regions from sea level rise A case study: Northern coasts of Egypt. J. Water Clim. Chang. 2015, 7, 114–127. [Google Scholar] [CrossRef]
- Abd-Elhamid, H.F.; Abd-Elaty, I.; Negm, A.M. Control of Saltwater Intrusion in Coastal Aquifers Groundwater in the Nile Delta. In The Handbook of Environmental Chemistry; Springer International Publishing AG: Cham, Switzerland, 2018. [Google Scholar] [CrossRef]
- Abd-Elaty, I.; Abd-Elhamid, H.F.; Javadi, A. Numerical analysis of the effects of changing hydraulic parameters on saltwater intrusion in coastal aquifers. Eng. Comput. 2016, 33, 2546–2564. [Google Scholar] [CrossRef]
Item | Boundary Conditions and Hydraulic Parameters | Value | Dimension | |
---|---|---|---|---|
Aquifer | Holocene | Horizontal hydraulic conductivity (Kh) | 0.10–0.25 | m.day−1 |
Vertical hydraulic conductivity (KV) | 0.01–0.025 | m.day−1 | ||
Effective porosity (neff) | 50 | % | ||
Total porosity (nT) | 60 | % | ||
Specific yield (Sy) | 0.10 | - | ||
Specific storage (Ss) | 1 × 10−7 | m−1 | ||
Quaternary | Horizontal hydraulic conductivity (Kh) | 5–100 | m.day−1 | |
Vertical hydraulic conductivity (KV) | 0.50–10 | m.day−1 | ||
Effective porosity (n) | 20 | % | ||
Total porosity (n) | 30 | % | ||
Specific yield (Sy) | 0.15 | - | ||
Specific storage (Ss) | 0.005 | m−1 | ||
Longitudinal dispersivity (αL) | 10 | m | ||
Transverse dispersivity (αT) | 1 | m | ||
Molecular diffusion coefficient(D*) | 1 × 10−4 | m2 day−1 | ||
Model Solution Method | Implicit finite-difference solver with the upstream-weighting | (GCG) | - | |
Number of column (Δx = 333 m) | 350 | - | ||
Number of raw (Δy = 333 m) | 380 | - | ||
Initial time step | 0.01 | day |
Case | Salt Volume (kg) | Salt Repulsion (%)(C0 − C)/C0 | |||
---|---|---|---|---|---|
Hypothetical Case | Nile Delta Aquifer | Hypothetical Case | Nile Delta Aquifer | ||
Base case | 4.091 × 103 | 5.81134 × 1010 | - | - | |
Boundary conditions | Increasing river head | 3.6547 × 103 | 5.44554 × 1010 | +10.66 | +6.29 |
Decreasing drain head | 3.5636 × 103 | 5.30492 × 1010 | +12.89 | +8.71 | |
Decreasing drain contamination | 3.0683 × 103 | 4.35852 × 1010 | +24.99 | +25 | |
Installing polluted drain in low permeability layer | 3.3135 × 103 | 5.83873 × 1010 | +19.01 | - | |
Installing cut-off wall on polluted drain sides | 2.9272 × 103 | 5.79137 × 1010 | +28.49 | +0.34 | |
Using lining materials for polluted drains | 0.36758 × 103 | 1.73598 × 1010 | +91.02 | +70.13 |
