Constructed Wetlands as Sustainable Technology for the Treatment and Reuse of the First-Flush Stormwater in Agriculture—A Case Study in Sicily (Italy)

Abstract

This paper describes a case study that was carried out on a Sicilian company (Italy) dealing with separate waste collection and recycling of glass. The aims of this study were to evaluate the overall efficiency of a vertical subsurface flow system (VSSFs) constructed wetland (CW) operating for the treatment of first-flush stormwater and the effects of treated wastewater on the morphological and aesthetic characteristics of ornamental pepper and rosemary plants. The system had a total surface area of 46.80 m² and was planted with common reed and giant reed. Wastewater samples were taken from October 2018 to July 2019 at the CW inlet and outlet for chemical-physical and microbiological characterization of the wastewater. Two separate experimental fields of rosemary and ornamental pepper were set up in another Sicilian location. Three sources of irrigation water, two accessions of rosemary and two varieties of ornamental pepper were tested in a split-plot design for a two-factor experiment. The results showed very high organic pollutant removal (BOD₅ 75–83%, COD 65–69%) and a good efficiency of nutrients (TN 60–66%) and trace metals (especially for Cu and Zn) removal. Escherichia coli concentration levels were always lower than 100 CFU 100 mL⁻¹ during the test period. Irrigation water and plant habitus had significant effects on all the morphological and aesthetic characteristics of the plants. For both the crops, plants irrigated with freshwater and treated wastewater had greater growth and showed a better general appearance in comparison with plants irrigated with wastewater. The higher trace metal levels in the wastewater produced adverse effects on plant growth and reduced the visual quality of the plants. Our results suggest the suitability of a VSSFs constructed wetland for the treatment of first-flush stormwater and the reuse of treated wastewater for irrigation purposes, in accordance with legislation requirements concerning wastewater quality.

1. Introduction

In urban areas, stormwater runoff has been recognized as a substantial contributor to water quality degradation due to high pollutants concentrations [1,2,3]. The qualitative characteristics of stormwater have been previously investigated and are greatly dependent on the type of surfaces the stormwater encounters, such as pavements, highways, roofs, parking lots and drains [3].

However, the concentration peak tends to vary for various pollutants during the same storm event and it has been demonstrated that pollutants concentrations are generally higher at an early stage of the rainfall event than in later stages [4,5,6,7]. This phenomenon has been named first-flush event and determined as a relatively high proportion of the total pollutants load of stormwater [8]. A number of studies have found, in fact, that the initial portion of a rainfall–runoff event is more polluted than the later portions in terms of nitrogen, phosphorus, trace metals, organic and particulate matter and polycyclic aromatic hydrocarbons, in particular [3,7,8,9,10,11].

First-flush stormwater (FFSW) has been investigated all over the world and its effects have been assessed both in temperate and tropical climates, using various methodologies [12,13,14,15]. As stated by various authors [5,10,16,17,18], pollutants in a first-flush event tend to vary in qualitative and quantitative terms due to the fact that this phenomenon is greatly affected by various factors such as rainfall intensity and duration, watershed area, impervious area and previous dry weather conditions.

However, considering the ecological aspects, it is possible to sustain that FFSW can represent a dangerous source of contaminants for the environment and an excess of nutrients and trace metals in this source of water, for example, can result in eutrophication of downstream water bodies and pollution of aquatic ecosystems and soil [19,20,21]. In urban areas in particular, industrial activities produce a large amount of nutrients, salts and heavy metals which can accumulate on the rough earth surface, pavements and roofs during non-rainy days. When intense rainfall events occur, FFSW is generated, and subsequently, polluted water is discharged into the surrounding environment producing negative consequences. The effects on natural waterbodies can be most severe and the pollution degree of these ecosystems can be variable, depending on various factors such as land use type, traffic intensity and industrial density in the study area [22].

To control the quality of this source of water and reduce pollutant mass loading prior to discharge into receiving water bodies and soil, constructed wetland systems (CWs) can represent one of the best management practices for urban and industrial areas due to their intrinsic characteristics. They are green infrastructure technologies which provide many attributes able to remediate contaminants of various types of wastewaters, such as agricultural, domestic, industrial and municipal wastewaters, due to a plurality of treatments including biological, chemical and physical processes [3,23,24]. In particular, CWs areas offer the advantages of water storage and peak flow attenuation, nutrient cycling and uptake, heavy metals sequestration and removal of organic compounds together with other benefits, such as recreational facilities, in addition to functioning as a wildlife habitat [3,25,26,27,28]. In recent years, CWs have been also used for the treatment of stormwater runoff and a number of studies have described the CWs performance in terms of pollutants removal efficiency [3,29,30,31,32]. Various authors highlight, for example, that CW performance in treating stormwater is generally a function of the hydraulic characteristics of the system, which, in turn, are a function of storm intensity, runoff volume and CW size [3,33].

However, few studies [8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33] have investigated the reuse of treated stormwater for various applications, including irrigation. In semi-arid climate conditions, such as in southern Mediterranean countries, the reuse of unconventional water resources is a strategic topic for sustainable agriculture due to the fact that it represents an alternative to freshwater (FW), traditionally used in crop irrigation. As reported in various studies carried out in this area [34,35,36,37,38,39,40], the reuse of various types of treated wastewater (TWW) from CWs allows us to satisfy the water demand in irrigated agriculture whilst leading to significant savings in FW. Most of these studies have considered both horticultural and open-field crops and have focused on the effects of TWW on the morphological and yield parameters of these plants. However, few studies have been carried out on ornamental crops, which could be irrigated with TWW and used in urban green areas due to their high aesthetic and functional features.

In Italy, the reuse of TWW is regulated by Legislative Decree no. 152/2006 but it does not report specific guidelines on the treatment and reuse of stormwater runoff, assigning the regions the task of regulating control themselves. More specifically, Sicily (Italy) does not have a consistent regulation unlike many Italian regions.

The aims of this study were: (i) to evaluate the pollutants removal efficiency of a vertical subsurface flow system constructed wetland (VSSFs CW) used to treat FFSW which was built in an industrial plant for separate waste collection and recycling of glass in Sicily (Italy); (ii) to assess the effects of irrigation using treated first-flush stormwater (TFFSW) comparing irrigation with FFSW and FW on the morphological and aesthetic characteristics of rosemary (Rosmarinus officinalis L.) and ornamental pepper (Capsicum annuum L.) plants.

2. Materials and Methods

2.1. Experimental Sites

The study was initially carried out from 2018 to 2019 on a VSSFs CW (ExpA_1 code) that was built within the industrial area of a Sicilian company dealing with separate waste collection and glass recycling, in the west of Sicily (Marsala, 20 m a.s.l., 37°49′20″28 N, 12°29′25″80 E). The company is also the leader in the treatment of various type of wastes, such as metals, plastic and wood, and in management of hazardous wastes. According to the Köppen–Geiger climate classification [41], the location is characterized by a warm temperate Mediterranean climate with dry and hot summers. Annual average rainfall is approximately 450 mm, mainly distributed between October and April. With reference to time series 1982–2012, the annual average temperature was 17.70 °C, average maximum temperature was 21.60 °C and average minimum temperature was 13.80 °C.

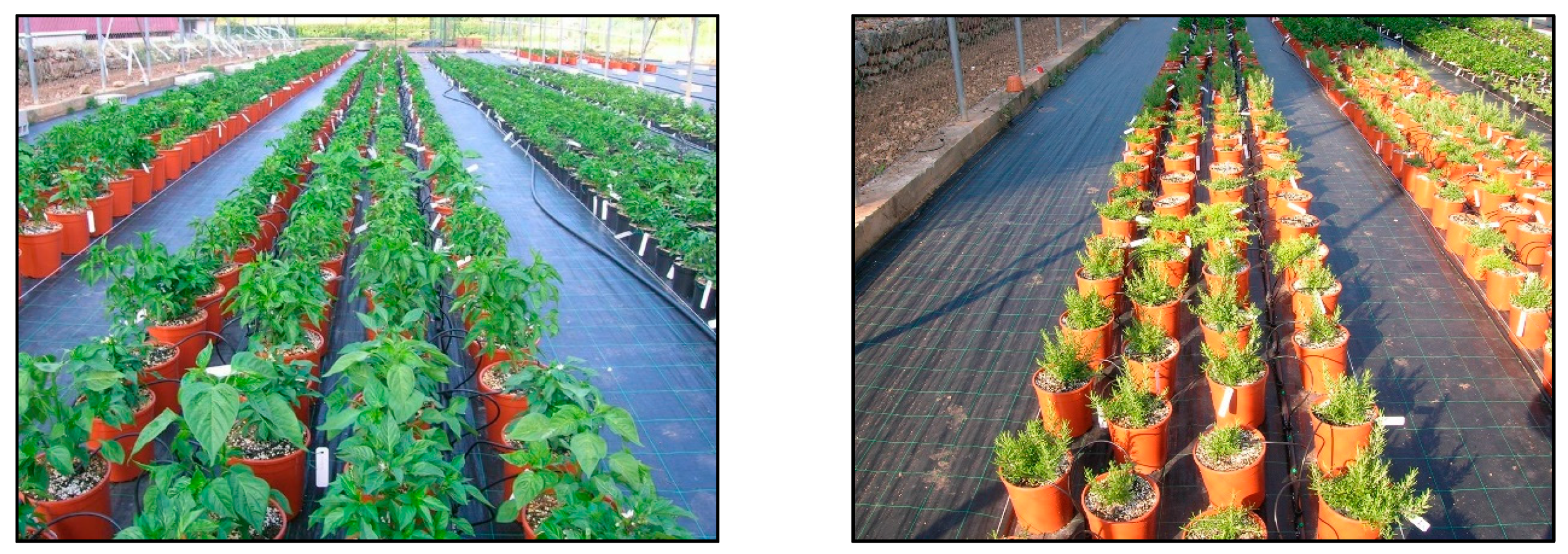

In 2019, two separate experimental fields of rosemary and ornamental pepper were set up at the “Orleans” experimental farm (ExpA_2 code) (Palermo, 31 m a.s.l., 38°06′26.2″ N, 13°20′56.0″ E) at the University of Palermo, northwest Sicily. The climate of the area is Mediterranean with mild, humid winters and hot, dry summers [41]. With reference to time series 1982–2012, the average annual temperature was 18.40 °C, with average minimum and maximum temperatures of 14.80 and 21.70 °C, respectively. Annual average rainfall was approximately 600 mm.

2.2. VSSFs CW Test Site

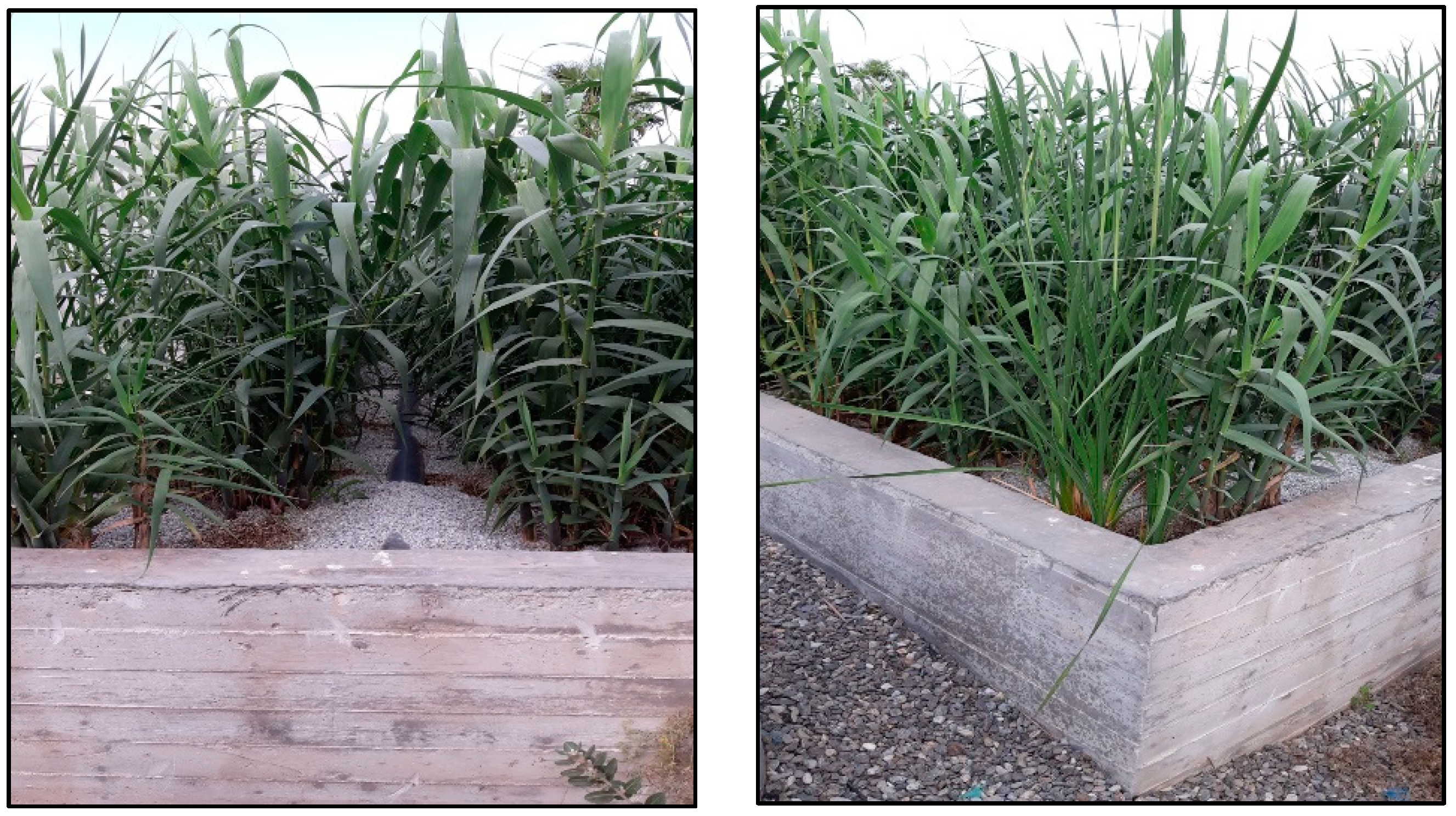

The VSSFs CW (Figure 1) was built in 2018 and located downhill from the existing wastewater pretreatment plant within the industrial area.

The system included 1 unit, 26.0 m long and 1.80 m wide, providing a total surface filter bed area of 46.80 m². The floor and walls of the unit were made of concrete and evenly lined with sheets of high-density polyethylene geomembrane which were covered with a layer of nonwoven fabric. Filter bed depth was 0.90 m to allow for greater root development and to create a larger rhizosphere. The slope was 1%, needed to obtain regular flow. The unit was filled with three different layers of washed substrate of silica quartz river gravel (Si 30.28%; Al 5.33%; Fe 7.10%; Ca 3.03%; Mg 1.10%), of which the top layer was 3–8 mm, the intermediate layer was of 8–16 mm and the bottom layer was 16–30 mm in size. In 2018, common reed [Phragmites australis (Cav.) Trin. ex Steudel] and giant reed (Arundo donax L.) plants were collected from natural wetland areas near the plant site and the rhizomes were used for propagation in a small nursery at a constant moisture level. The rooted rhizomes were planted in the CW unit in March 2018 at a density of 4 rhizomes m⁻² for each species; a polyculture system was then established in the CW.

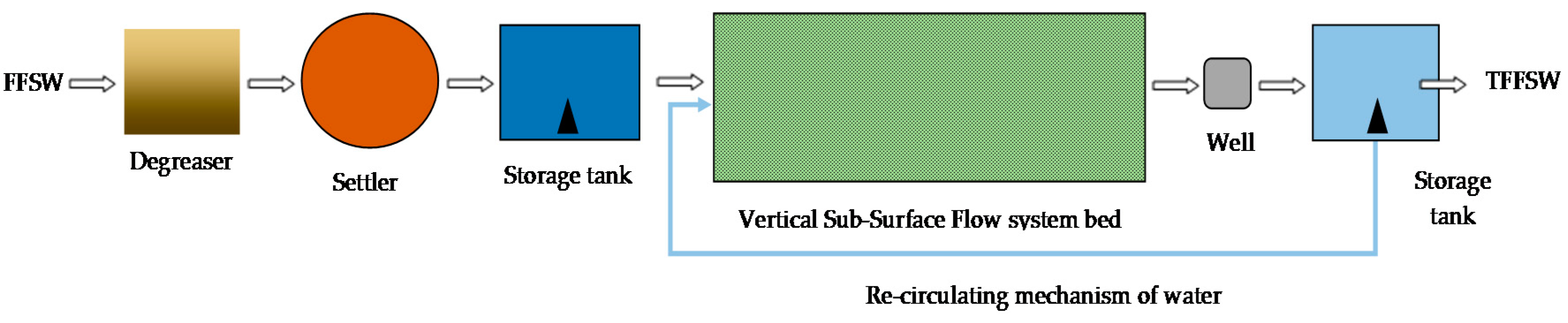

The layout of the system for the treatment of FFSW is shown in Figure 2.

In particular, both flotation and settling processes were carried out inside a degreaser. The FFSW was subsequently fed into a sedimentation tank to remove suspended solids and was then collected in a 30 m³ initial storage tank equipped with a submerged electric pump. The pretreated FFSW was pumped into the VSSFs CW unit and distributed vertically from the top of the unit. Two parallel polyvinyl-chloride perforated distribution pipes with an internal diameter of 120 mm were used to ensure even distribution of the wastewater throughout the filter bed section; these pipes were placed at 0.90 m distance. The homogeneous distribution of the effluent was ensured through a timer-controlled pumping system. In the VSSFs CW, FFSW was fed intermittently and, as a result, the system operated by cyclic flooding and draining. TFFSW was collected using a perforated drainage pipe system, placed at the bottom of the filter bed and then conducted downhill into a 15 m³ final storage tank. It was also equipped with a submerged electric pump to provide a re-circulating mechanism of water from the bottom to the top of the VSSFs CW during summer and to avoid the death of the plants due to a possible lack of rainfall. The CW unit operated under a hydraulic loading rate (HLR) of 13 cm day⁻¹ and a hydraulic retention time (HRT) of 7 day.

Concerning TFFSW management, it was generally dispersed into the surrounding soil using a subsurface irrigation system connected to the final storage tank. However, during 2019, FFSW and TFFSW were partly used to irrigate ornamental pepper and rosemary plants.

2.3. FFSW Analysis

Wastewater samples were taken from October 2018 to July 2019. Sampling campaigns were divided into two periods: the first period (I) ranged from October 2018 to February 2019, while the second period (II) ranged from March to July 2019. For an accurate assessment of the VSSFs CW, during the two periods, a total of 11 sampling days were selected where rainfall intensity was higher than 10 mm d⁻¹. Samples were taken at the early part of an intense storm event. Total samples amounted to 22. The samples were collected at the inflow (0 m) and outflow (26 m) of the CW unit. An amount of 1 L of wastewater was collected from each of the two points at each sampling. The influent sample was collected at the mouth of the initial storage tank, while the effluent sample was taken from a TFFSW monitoring well. The influent and effluent samples were instantaneous samples.

The pH, dissolved oxygen (DO), electrical conductivity (EC) and temperature (T) were determined at the time of sample collection, directly on site, using a portable Universal meter (Multiline WTW P4). Using Italian water analytical methods [42], total suspended solids (TSS), biochemical oxygen demand (BOD₅), chemical oxygen demand (COD), total nitrogen (TN), ammonium nitrogen (NH₄-N), nitrate nitrogen (NO₃-N), total phosphorus (TP), trace metals (Al, total Cr, Cu, Fe, Ni, Pb and Zn) and polycyclic aromatic hydrocarbons (PAHs) were determined. Escherichia coli concentrations were assessed by membrane filter methods, based on standard methods for water testing [43]. Removal efficiency (RE) of the VSSFs CW was based on pollutant concentrations and calculated according to International Water Association guidelines [44]:

$$\mathrm{RE}=\frac{\left({\mathsf{C}}_{\mathsf{i}}-{\mathsf{C}}_0\right)}{{\mathsf{C}}_{\mathsf{i}}}$$

where C_i and C₀ are the mean concentrations of the pollutants in the influent and effluent.

2.4. Rosemary Experimental Field

Two rosemary accessions (RSM code) were selected from 10-year-old mother plants of Rosmarinus officinalis L. located in a collection field. The selection was made on the basis of the different growth habitus of the accessions, which was erect for RSM_1 and prostrate for RSM_2. On 14 January 2019, each accession was propagated through stem cuttings which were obtained from apical plant parts 6 cm long. Cuttings were treated with naphthalenacetic acid (0.50%) and then rooted in an uncovered cold greenhouse. On 22 March 2019, plantlings were transplanted into 16 cm diameter pots using a mixed substrate made with universal potting soil (67%) and perlite (33%). The pots were placed on mulched soil with black polypropylene sheets. An amount of 3 kg m⁻³ of nitrogen (N), phosphorus (P) and potassium (K) slow-release fertilizer with magnesium (Mg) and sulfur (S) 15-9-15(+2+16) was distributed before transplanting. Subsequently, a number of fertigations, during the growth stages of rosemary plants, were carried out using 1‰ water-soluble fertilizer N-P-K(Mg) 15-10-15(+2)+(trace elements). The experimental field of rosemary (Figure 3) was equipped with three drip irrigation systems, one for each source of irrigation water used in the study (FW, TFFSW and FFSW). During the growing season of rosemary plants, moisture levels in the pot substrate were evaluated by measuring the substrate water content percentage, in accordance with Yadav et al. [45]. The water percentage in the substrate was determined at 48 h after the pots were watered to the field capacity of the substrate. Three substrate samples of 50 g each were collected, randomly, from pots for each irrigation water treatment, oven dried at 100 °C until constant weight and reweighed. The substrate water content percentage was calculated using the formula [45]:

$$\mathrm{substrate} \mathrm{water} \mathrm{content} = \frac{\left(\mathrm{watered} \mathrm{substrate} \mathrm{weight} - \mathrm{dried} \mathrm{substrate} \mathrm{weight}\right)}{\mathrm{watered} \mathrm{substrate} \mathrm{weight}} \times 100.$$

Nutrients and water leaching from pots were collected in a dish placed under each pot and the leachate was returned to the substrate before the irrigation water was applied.

2.5. Ornamental Pepper Experimental Field

Two ornamental pepper varieties (PPR code) were selected from a native germplasm collection of Capsicum annuum L. at the “Orleans” experimental farm. PPR_1 had an erect habit, while PPR_2 showed a pendant habit. The date of sowing was 6 March 2019. Expanded polystyrene seeding trays were used and seeds were covered by vermiculite as the substrate. An amount of 3 kg m⁻³ of N-P-K 15-9-15(+2+16) was distributed before transplanting. A number of fertigations, using water-soluble fertilizer N-P-K 20-20-20(+chelated minerals) were carried out starting from the development of the first true leaf. On 15 May 2019, plantlings were transplanted into 16 cm diameter pots using a mixed substrate made with universal potting soil (67%) and perlite (33%). The pots were placed on mulched soil with black polypropylene sheets in an uncovered cold greenhouse. The amount and types of fertilizers and the timing and frequency of fertilizers application were identical to those used for rosemary cultivation. The experimental field of ornamental pepper (Figure 4) was also equipped with three drip irrigation systems, one for each source of irrigation water used in the study (FW, TFFSW and FFSW). Irrigation was carried out using the same procedure as [45], previously described for rosemary plants.

2.6. Morphological and Aesthetic Characteristics of the Plants

The morphological and aesthetic characteristics determined for rosemary were: plant height, plant diameter, number (no.) of primary and secondary branches per plant, number of leaves per cm branch⁻¹ and general appearance of the plants.

For ornamental pepper, the main parameters in the study were: plant height, plant diameter, number of fruits per plant and general appearance of the plants. In particular, for both of the species, general appearance of the plants was based on a 1 (=poorest or dead) to 9 (=outstanding or ideal) visual rating scale. Furthermore, the main growth stages of pepper plants were also recorded according to the extended BBCH-scale [46]: flowering (first flower open), development of fruit (first fruit has reached typical size and form) and senescence (harvested product or plant death).

2.7. Climatic Data

Data on rainfall and temperature were collected from two meteorological stations, belonging to the Sicilian Agro-Meteorological Information Service [47]: station_1 was situated close to the pilot VSSFs CW and station_2 was located close to the two experimental fields. Both stations were equipped with an MTX datalogger (model WST1800, Padova, Italy) and various climate sensors. More specifically, a temperature sensor MTX (model TAM platinum PT100 thermo-resistance with anti-radiation screen, Padova, Italy) and a rainfall sensor MTX (model PPR with a tipping bucket rain gauge, Padova, Italy) provided data on average daily air temperature (°C), total daily rainfall frequency (d mm > 1) (%) and rainy days per year (d mm > 1) (%).

2.8. Experimental Design and Statistical Analysis

A split-plot design for a two-factor experiment was used with three replications. The main plot factor was irrigation water (IW) with three treatment levels: IW₁ (FW); IW₂ (TFFSW); and IW₃ (FFSW). The subplot factor was plant habitus (PH) with two treatments levels. For rosemary, the levels were: S₁ (erect habit) and S₂ (prostrate habit). For ornamental pepper, the treatment levels were: S₁ (erect habit) and S₂ (pendant habit). Statistical analysis was performed using the package MINITAB 17 for Windows. Data were compared using analysis of variance. The difference between means was carried out using the Tukey test. For FW, FFSW and TFFSW, all the representative values were presented using mean ± standard deviation calculations.

3. Results and Discussion

3.1. Rainfall and Temperature Trends in the Experimental Site of the VSSFs CW

Trends on air temperature and total rainfall are shown in Figure 5.

In ExpA_1, average air temperature and rainfall trends were consistent with eleven-year averages, shown in Supplementary Table S1.

In both the years, maximum and minimum air temperatures increased from the beginning of March to the third 10-day period of August and decreased up to the end of December. The highest maximum air temperature (34.13 °C) was recorded in the first 10-day period of August 2019 and the lowest minimum air temperature (4.47 °C) was determined on the first 10-day period of January 2019. Total rainfall was 628 mm (2018) and 509 mm (2019). The highest rainfall levels (118 mm) occurred during the first 10-day period of November 2018. Rainy days were highly concentrated in the winter season. In the summer period, average monthly rainfall was 21 mm (2018) and 14 mm (2019). The highest treatment performance of the VSSFs CW was found from June to September when air temperatures, in particular, positively influenced plant growth and microbiological activities in the CW unit. Furthermore, during the autumn months, we observed a non-significant decrease in plant activity due to mild air temperatures. The favorable climate conditions allowed the plants to extend their vegetative cycle until the end of autumn, delaying the dormancy period and, consequently, their ability to remove pollutants from wastewater.

3.2. Removal Efficiency of Pollutants in the VSSFs CW

Data showing chemical-physical variations relating to FFSW are shown in

Table 1. Variation (VA) of pH, temperature (T), electrical conductivity (EC) and dissolved oxygen (DO) in the VSSFs CW from October 2018 to July 2019. Average values (±standard deviation) are shown (n = 18).

Parameter	I Period			II Period
	Inlet	Outlet	VA (%)	Inlet	Outlet	VA (%)
pH	7.67 ± 0.15	7.49 ± 0.12	2.33	7.74 ± 0.07	7.19 ± 0.22	6.98
T (°C)	21.86 ± 0.84	21.00 ± 1.06	3.95	23.73 ± 0.59	22.98 ± 1.20	3.23
EC (μS cm−1)	1299.56 ± 133.2	1161.56 ± 176.2	11.02	1319.54 ± 75.7	1123.45 ± 75.2	14.88
DO (mg L−1)	1.31 ± 0.18	1.49 ± 0.22	−13.66	1.35 ± 0.16	2.35 ± 0.61	−73.68

.

The pH value at the inlet of the VSSFs CW was moderately alkaline; however, at the outlet it was less alkaline, in accordance with other studies [34,48]. The decrease in the pH value has been previously explained [49] by the production of CO₂ caused by the decomposition of plant residues in the substrate, by the removal of various wastewater components retained in the root area and by the nitrification of ammonia nitrogen. In our study, the FFSW average temperature at the inflow was 21.86 °C but it decreased through the system. The decrease in temperature at the outlet of the VSSFs CW was probably due to the fact that the system operated for most of the day under shady conditions. The EC variation was different in the two monitoring periods and it was higher (14.25%) in period II due to the better climate conditions for plant growth. As reported by Kadlec et al. [44], despite the fact that the evapotranspiration process increased the solute concentration, the decrease in the EC value could be due to various factors, such as nutrients uptake by plants and microorganisms, and the adsorption by the roots, substrate and undecomposed plant residues. An increase in the DO value was found at the outlet of the system for both periods; the greater atmospheric aeration of the VSSFs determined a higher oxygen content in the CW that was exploited by aerobic bacteria to remove the organic and mineral pollutants of the FFSW.

With regard to pollutant removal levels, the main results are reported in

Table 2. Main chemical and physical composition of the FFSW from the inflow and outflow of the VSSFs CW. Removal efficiency from October 2018 to July 2019. Average values (±standard deviation) are shown (n = 22).

Parameter	I Period			II Period
	Inlet	Outlet	RE (%)	Inlet	Outlet	RE (%)
TSS (mg L−1)	17.60 ± 4.56	8.18 ± 2.10	50.84	28.60 ± 0.98	9.23 ± 0.77	67.58
BOD5 (mg L−1)	86.90 ± 29.33	20.18 ± 2.35	75.17	104.87 ± 10.07	16.84 ± 2.45	83.48
COD (mg L−1)	189.40 ± 38.56	70.80 ± 13.70	62.52	192.40 ± 10.23	59.80 ± 2.38	68.88
TN (mg L−1)	15.49 ± 7.12	6.32 ± 2.81	58.96	13.27 ± 0.27	4.43 ± 0.29	66.50
NH4-N (mg L−1)	6.39 ± 7.24	2.23 ± 2.64	65.82	5.58 ± 1.13	1.54 ± 0.41	72.30
NO3-N (mg L−1)	8.73 ± 3.56	9.51 ± 3.78	−9.19	7.48 ± 1.10	8.59 ± 1.35	−14.67
TP (mg L−1)	2.36 ± 0.89	1.86 ± 0.71	20.95	2.81 ± 0.14	1.89 ± 0.16	32.66
Al (mg L−1)	0.14 ± 0.05	0.12 ± 0.04	15.78	0.17 ± 0.02	0.13 ± 0.01	26.07
Tot Cr (mg L−1)	1.46 ± 0.37	1.14 ± 0.27	21.26	0.79 ± 0.05	0.38 ± 0.06	50.62
Cu (mg L−1)	0.36 ± 0.16	0.27 ± 0.12	24.56	0.32 ± 0.01	0.11 ± 0.02	65.92
Fe (mg L−1)	1.57 ± 0.06	1.35 ± 0.05	14.03	1.61 ± 0.08	1.00 ± 0.04	35.33
Ni (mg L−1)	0.27 ± 0.15	0.20 ± 0.10	24.01	0.24 ± 0.05	0.13 ± 0.05	45.82
Pb (mg L−1)	0.04 ± 0.08	0.04 ± 0.03	13.17	0.02 ± 0.01	0.01 ± 0.01	46.27
Zn (mg L−1)	0.11 ± 0.06	0.07 ± 0.04	37.73	0.08 ± 0.02	0.03 ± 0.01	62.66
PAHs (mg L−1)	<0.001 ± 0.01	<0.001 ± 0.00	41.02	<0.001 ± 0.02	<0.001 ± 0.01	47.13

and

Table 3. Escherichia coli concentration levels of the FFSW from the inflow and outflow of the VSSFs CW. Removal efficiency from October 2018 to July 2019. Average values (±standard deviation) are shown (n = 18).

Parameter	I Period			II Period
	Inlet	Outlet	RE (%)	Inlet	Outlet	RE (%)
Escherichia coli (CFU 100 mL−1)	578 ± 0.27	67 ± 0.12	88.44	417 ± 0.56	37 ± 0.11	91.12

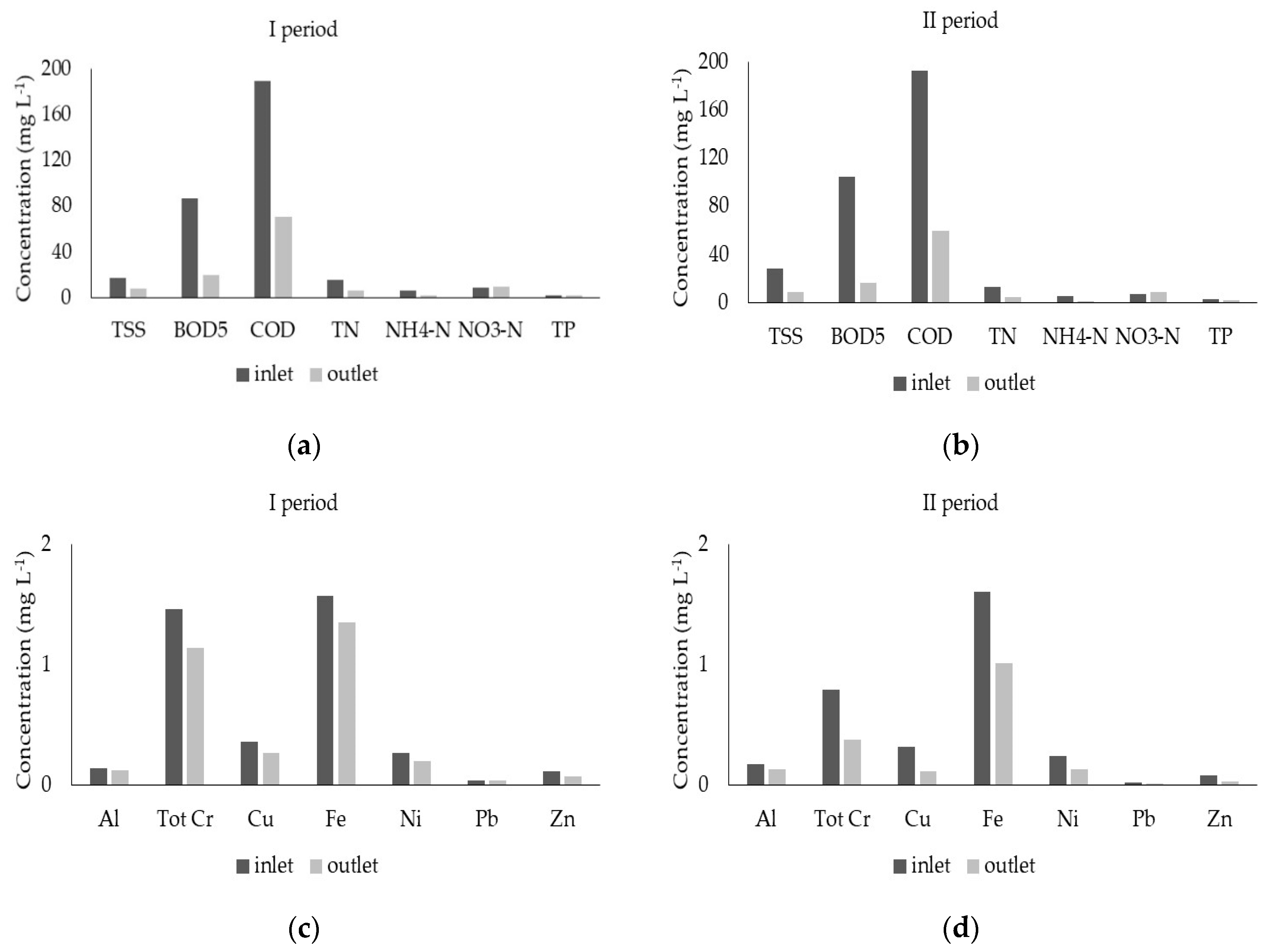

and Figure 6.

At the inlet of the CW unit, pretreated FFSW pollutant concentrations were lower than prior to pretreatment. Intensive pretreatment (degreasing and settling), in fact, provided efficient treatment of the FFSW through physical, chemical and biological processes.

Average TSS RE was consistent with values found in the literature for VSSFs [8,50,51] and can be described mainly by physical processes such as filtration and sedimentation in the substrate and plant roots, followed by aerobic and anaerobic microbial degradation inside the substrate [51,52]. Comparing the two periods of study, average TSS RE was different in period I compared to II and can be explained by plant growth during the year. As the CW unit was planted with two warm-season species, these species showed maximum growth during the spring and summer when air temperatures increased, and above- and belowground biomass values reached peak growth. In period II, from March to July, the matrix formed by the roots of the two species with the substrate trapped TSS and lowered the velocity of water more efficiently than during period I (in which vegetative activity decreased greatly due to lower air temperatures). This concept was well explained by Zurita et al. [51], who stated also that the presence of more species in a CW unit can increase TSS removal.

In our study, average BOD₅ and COD concentrations in both periods were much lower at the outlet than at the inlet. However, similar to TSS results, average BOD₅ and COD RE was higher during period II. In general, BOD₅ and COD RE stayed within a range consistent with previous CW VSSFs studies using various types of wastewater [8,50,51] and was probably influenced by the root growth of the two macrophytes. In accordance with other authors [51,53], the presence of two species provided a more efficient distribution of roots that favored the development of a microbial community around the root system and the substrate particles. Various bacteria, in fact, due to alternate aerobic and anaerobic conditions in the VSSFs, promoted degradation activities and determined a greater reduction in BOD₅ and COD concentrations [54]. Furthermore, the higher root density increased the retention time of organic dissolved compounds and, consequently, improved BOD₅ and COD RE in the system.

As regards nitrogen, TN RE was higher in period II (66.50%) compared to period I and fell within the removal percentage rates reported for the VSSFs CW in other studies [23,25,51,55]. Initial NH₄-N concentration was relatively low and ranged between 0.06 and 18.01 mg L⁻¹ (period I) and 4.15 and 6.81 mg L⁻¹ (period II). However, it decreased greatly after treatment in both periods and NH₄-N RE was 65.82% in period I and 72.30% in period II. The high NH₄-N RE in the CW unit was the result of the higher rate of ammonium nitrification due to good aerobic conditions in the system. As stated by various authors [44], in a VSSFs, the major processes responsible for nitrogen removal are, in fact, nitrification/denitrification followed by plant uptake. During the nitrification process, in particular, ammonium N is oxidated to nitrate which is subsequently absorbed by plants or reduced to N gas during the denitrification process [48]. In our study, these processes occurred in the CW unit and contributed to NH₄-N RE, although plant uptake and the denitrification process led to different nitrate removal rates. When observing, instead, the average NO₃-N concentration in the influent, it was lower than 10 mg L⁻¹ in both the study periods. However, unlike that found for NH₄-N RE, the NO₃-N concentration slightly increased in the effluent, thus producing negative RE. Our results were in accordance with those of other authors [50,51] who found that the VSSFs CW successfully removed ammonium N but limited denitrification occurred. This fact can be explained considering the unfavorable conditions for NO₃-N removal due to high aerobic conditions in the VSSFs CW. As clearly explained by Abdelhakeem et al. [50], in a constructed wetland, as nitrate is mainly removed throughout the denitrification processes, anaerobic conditions (required for the onset of NO₃ removal) are not fulfilled under the VSSFs CW. Consequently, as confirmed by Vymazal [25], the VSSFs offers good oxygen conditions for ammonium nitrification but unfavorable conditions for nitrate denitrification.

The data in Table 2 show low values for initial TP concentration and removal percentages in both the study periods. In particular, RE values ranged between 20.95% (period I) and 32.66% (period II) and were consistent with those found in the literature for many VSSFs [33,50,56]. However, the values of this study were much lower than those found by other authors [51,57] who used substrates with different characteristics. In our research, the lower TP RE was mainly due to the physical characteristics of the gravel which was used as a medium. The literature highlights that the removal of phosphorus is highly dependent upon the type of substrate used [24] and the high Ca, Al and Fe content in the substrate positively influences the TP RE. A number of studies were carried out in various countries in order to assess the effect of the substrate on TP removal in a VSSFs. In a study on the performance of a VSSFs CW under different operational conditions, the authors of [50] found that vermiculite media (25%) removed significantly higher amounts of TP compared to gravel (14%) due to marked adsorption of P by vermiculite particles. In another study [57], it was found that a mixture of a river sand and dolomitic limestone led to a TP RE of 45% in a VSSFs. The type of medium and its physical characteristics such as size and adsorption capacity are, thus, fundamental in order to lower TP concentrations in the effluent, independent of the phosphorus uptake by the plant roots.

Trace metals represent a substantial component of FFSW composition. As reported by Kadlec et al. [44], although some metals, such as chromium, copper, iron and zinc, are required for plant growth in trace quantities, these same metals can be toxic at higher concentrations. Moreover, other metals, such as cadmium and lead, can be toxic at even low concentrations. In our study, the removal efficiencies of trace metals mostly increased during period II but were found to be lower than the RE of other chemical parameters in the study. In general, in both periods, higher concentrations in the influent (>1 mg L⁻¹) were recorded only for Fe, while Zn and Cu showed higher RE values. It is interesting to note that during period II, the Pb RE value (46.27%) was appreciable, despite this element being present at a lower concentration. Our findings were compared with results from other studies and considerable differences were found. In a study carried out on a wetland constructed in the Sydney catchment, the authors of [58] found highly variable REs of trace metals from urban stormwater and reported RE values for Cr (67–84%), Cu (56–86%), Pb (44–89%), Zn (33–87%) and Ni (72–76%). In another study, conducted in experimental, temporarily flooded vertical-flow wetland filters treating urban wastewater runoff, a significant reduction in Cu (>95%) was recorded, while the Ni RE by the filter planted with common reed was found to be lower than that of the unplanted filter [59]. One study [44] highlighted the fact that the processes involved in trace metal removal in CWs are various and mainly depend on the vegetation, substrate and water. In particular, vegetation provides several actions, such as metal uptake and translocation, adsorption, organic decomposition and filtration. In our study, the effects of vegetation on trace metal removal were not investigated, however, it is reasonable to sustain that a polyculture system, similar to this study, may result in a higher metal RE than a monoculture system due to the different nutrients uptake potential of the various macrophytes and translocation in plant tissues.

PAHs examined in both periods were in very low concentrations (<0.001 mg L⁻¹) and RE values were found to be similar in both the periods. The present study did not determine the PAHs concentration in plant tissues, but in the CW unit, the two macrophytes contributed greatly to PAH removal. This statement was confirmed by Ventura et al. [31], who affirmed that the interaction between plants and microorganisms positively influenced hydrocarbon degradation and improved the quality of wastewater in the effluent. However, although a number of studies [31,60,61] highlighted that filtration and sedimentation represent the most relevant physical processes for PAH removal in a CW, the role of the macrophytes in removing PAHs is also fundamental, as demonstrated in a recent study [62] by the high concentrations of hydrocarbons found in above- and belowground biomass of Phragmites and Vetiver plants.

At a microbiological level (Table 3), Escherichia coli was selected as the main bacterial indicator in FFSW and was used to determine the disinfection efficiency of the VSSFs.

The VSSFs was particularly effective at reducing E. coli during the tests. Concentrations of E. coli in the effluent were always lower than 100 CFU 100 mL⁻¹ in both periods. Our results agreed with those reported by Ávila et al. [8], who found a higher reduction in E. coli in a VSSFs treating sewer wastewater and stormwater. The relevant removal efficiency of E. coli can be explained by a combination of physical, chemical and biological processes carried out by the plants, nematodes, virus and bacteria, also illustrated by Brix [63]. Furthermore, taking into consideration the physical and functional characteristics of the VSSFs, it is important to observe that the higher oxygen concentration in the VSSFs determined unfavorable conditions for E. coli survival, facilitated the production of a greater bacteria biofilm and promoted its removal [64].

In our research, the average values of the chemical and microbiological parameters of TFFSW at the outflow of the VSSFs CW were not all within the threshold values for Italian Legislative Decree 152/2006 regarding the reuse of TWW for irrigation and the discharge of TWW into soil (

Table 4. Threshold values for Italian Legislative Decree no. 152/2006 concerning the chemical (mg L⁻¹) and microbiological (CFU 100 mL⁻¹) parameters of treated wastewater (TWW) for reuse in agricultural irrigation and discharge into soil.

	Chemical Parameters
	TSS	BOD5	COD	TN	TP	Al	Tot Cr	Cu	Fe	Ni	Pb	Zn
TWW Reuse for Irrigation	10	20	100	15	2	1	0.1	1	2	0.2	0.1	0.5
TWW Discharge into the Soil	25	20	100	15	2	1	1	0.1	2	0.2	0.1	0.5
	Microbiological Parameters
	Escherichia coli
TWW Reuse for Irrigation	10 (80% samples) and 100 (maximum value point)
TWW Discharge into Soil	≤5000

).

In particular, in both periods, average concentrations of total Cr in the TFFSW were higher than the Italian standard limits for irrigation reuse. Furthermore, average concentrations of E. coli were not always acceptable in legal terms, despite the high removal efficiency by the VSSFs. One study [44] highlighted that microbially mediated processes of oxidation followed by subsequent precipitation of trace metals are considered the most effective metal removal mechanism in a CW. Furthermore, the use of different retention times in the system can positively affect the removal rate of bacteria due to changes in aerobic/anaerobic conditions in the substrate. The need to adopt these solutions and to improve biological and physical processes is evident in order to increase the removal efficiency in a VSSFs CW.

3.3. Irrigation Water Characteristics

The chemical and microbiological characteristics of FW, TFFSW and FFSW used in the irrigation of rosemary and ornamental pepper plants are shown in

Table 5. Chemical and microbiological composition of freshwater (FW), treated FFSW (TFFSW) and FFSW that were applied in the irrigation of ornamental pepper and rosemary plants.

Parameter	FW	TFFSW	FFSW
pH	7.01 ± 0.07	7.25 ± 1.01	7.97 ± 1.21
DO (mg L−1)	Not available	2.44 ± 0.63	1.42 ± 0.14
EC (μS cm−1)	255 ± 1.24	1112 ± 55.12	1813 ± 42.11
BOD5 (mg L−1)	1.35 ± 0.04	17.04 ± 2.12	141.11 ± 11.21
COD (mg L−1)	1.99 ± 0.02	60.21 ± 1.99	272.41 ± 9.23
TSS (mg L−1)	Not detected	9.46 ± 0.61	61.21 ± 1.10
TN (mg L−1)	Not detected	4.12 ± 0.21	34.11 ± 0.12
NH4-N (mg L−1)	Not detected	1.42 ± 0.12	8.12 ± 1.16
NO3-N (mg L−1)	0.42 ± 0.11	8.86 ± 1.21	23.12 ± 1.54
TP (mg L−1)	0.61 ± 0.21	1.79 ± 0.08	5.12 ± 0.23
K (mg L−1)	3.01 ± 0.12	Not available	Not available
SAR (meq L−1)	1.01 ± 0.23	Not available	Not available
Al (mg L−1)	Not available	0.15 ± 0.01	0.25 ± 0.04
Tot Cr (mg L−1)	Not available	0.32 ± 0.04	0.78 ± 0.09
Cu (mg L−1)	Not available	0.13 ± 0.01	0.51 ± 0.01
Fe (mg L−1)	Not available	1.09± 0.04	1.95 ± 0.11
Ni (mg L−1)	Not available	0.17 ± 0.03	0.44 ± 0.02
Pb (mg L−1)	Not available	0.01 ± 0.01	0.13 ± 0.01
Zn (mg L−1)	Not available	0.03 ± 0.05	0.14 ± 0.03
PAHs (mg L−1)	Not available	<0.001 ± 0.01	<0.001 ± 0.02
E. coli (CFU 100 mL−1)	Not detected	31 ± 0.06	816 ± 0.62

. The composition of the three sources of irrigation water varied greatly over the test period. In general, FFSW had, on average, higher BOD₅, COD, TSS, N, P, K and trace metal levels than FW and TFFSW. When comparing the three sources of irrigation water from March to July, the lowest variations in nutrient concentration were found during the summer months. In this period, the growth of above- and belowground biomass of common reed and giant reed increased much more than in other seasons and significantly influenced the pollutant RE in the VSSFs CW; this contributed to reducing pollutant concentrations at the outflow. For example, when comparing the effluent TN concentration of the effluent between March and July, large decreases in nitrogen in TFFSW were observed, mainly due to the nitrification process and plant uptake.

In arid and semi-arid regions, irrigation of plants with a treated effluent represents a sustainable practice and can be a means of managing FW shortages. In this scenario, the quality of the treated effluent is an important issue to assess when using a treated effluent in the irrigation of ornamental plants. The relative richness in nutrients, such as nitrogen, phosphorus, potassium and organic matter, increases the qualitative characteristics of the effluent, these nutrients being essential for plant growth and physiological processes within the plants. For ornamental pepper and rosemary in particular, some authors [65,66] reported that the TWW application increased plant height and plant biomass compared with the FW application. Others have focused on the importance of TWW quality in the irrigation of horticultural and open-field crops and the majority of studies agree with the fact that a high nutrients content in TWW is fundamental in order to increase plant growth and yield.

3.4. Temperature Trend in the Experimental Site of Ornamental Crops

Trends in air temperatures are shown in Figure 7.

In ExpA_2, the average air temperature trend was consistent with eleven-year averages (Supplementary Table S2).

When considering the growth stages of ornamental pepper and rosemary plants, from January to December, the air temperature was 19.5 °C on average. Temperatures increased from March to the second 10-day period in July. The highest minimum and maximum air temperatures were 23.73 and 33.36 °C, respectively, and the lowest minimum and maximum air temperatures were 5.64 and 12.59 °C. In particular, the average air temperature, during the summer, positively influenced the phenological stages of the plants.

3.5. Effects of Source of Irrigation Water and Type of Plant Habit on Rosemary Plants

Data regarding the morphological and aesthetic characteristics of rosemary plants, under the influence of source of irrigation water and type of plant habitus, over the 2019 growing season, are shown in

Table 6. Morphological and aesthetic characteristics of erect and prostrate rosemary plants irrigated with FW, TFFSW and FFSW.

Treatment	Plant Height (cm)	Plant Diameter (cm)	Plant Height/Diameter	No. Primary Branches (per Plant)	No. Secondary Branches (per Plant)	No. Leaves (per cm Branch−1)	General Appearance (1–9)
Irrigation Water (IW)
IW1	15.97 a	23.38 a	0.67 a	14.73 a	43.99 a	12.18 a	4.26 a
IW2	15.73 a	24.15 a	0.64 a	13.93 a	43.59 a	12.61 a	4.68 a
IW3	12.61 b	19.46 b	0.62 a	10.87 b	36.95 b	9.55 b	3.08 b
Plant Habitus (PH)
PH1	19.27 a	26.82 a	0.72 a	16.18 a	65.36 a	8.95 b	5.17 a
PH2	10.26 b	17.84 b	0.57 b	10.17 b	17.65 b	13.94 a	2.84 b
Irrigation Water × Plant Habitus
IW1 × PH1	20.77 a	27.36 a	0.76 a	17.16 a	68.56 a	9.83 c	5.50 a
IW1 × PH2	11.16 c	19.40 c	0.57 cd	12.30 bc	19.42 c	14.53 a	3.03 bc
IW2 × PH1	19.80 a	29.63 a	0.67 abc	17.33 a	68.76 a	9.90 c	6.16 a
IW2 × PH2	11.66 c	18.66 c	0.62 bcd	10.53 c	18.41 c	15.33 a	3.20 bc
IW3 × PH1	17.26 b	23.46 b	0.74 ab	14.06 b	58.76 b	7.13 d	3.87 b
IW3 × PH2	7.96 d	15.46 d	0.51 d	7.67 d	15.13 c	11.97 b	2.30 c

Means followed by the same letter are not significantly different for p ≤ 0.05 according to the test of Tukey.

.

Irrigation water and plant habitus had significant effects on all the parameters in the study. Results revealed also that the interactions between the main factors were significant for all the parameters.

In general, the growth cycle length of the rosemary accessions was found to be close to 120 days on average (data not shown).

When considering the morphological parameters, plant growth was greater in FW- and TFFSW-irrigated plants than in FFSW-irrigated plants. Differences in plant height with respect to the source of irrigation water were significant during the test period. In particular, FW- and TFFSW-irrigated plants were taller than FFSW-irrigated plants, on average (Figure 8).

When comparing the types of habitus of rosemary plants, it was found that erect plants were significantly taller than prostate plants. All interactions between the two main factors had significant effects on plant height. The highest average values of plant height were obtained at FW-by-erect plant and TFFSW-by-erect plant interactions. On the contrary, the lowest average value of plant height was recorded at the FFSW-by-prostrate plant interaction.

Significant differences in plant diameter were found with respect to both main factors. Plant diameter reached the highest average values in FW- and TFFSW-irrigated plants and in rosemary plants with an erect habit (Figure 8). Similar to the plant height result, the highest values of plant diameter were recorded at FW-by-erect plant and TFFSW-by-erect plant interactions. The ratio between plant height and diameter was not significantly influenced by the source of irrigation water. In contrast, the two rosemary accessions showed significant differences for this parameter with values which ranged from 0.57 (RSM_2) to 0.72 (RSM_1). The lowest average value of this ratio was observed at the FFSW-by-prostate plant interaction.

Differences in the number of primary and secondary branches per plant were found to be significant with respect to source of irrigation water and plant habitus. In particular, the highest average values for both these morphological parameters were recorded in FW- and TFFSW-irrigated plants compared to FFSW-irrigated plants. Similar to the previous results, the irrigation water-by-plant habitus interaction effect highlights the fact that, at IW₁ and IW₂, PH₁ obtained the highest average values of number of primary and secondary branches per plant compared to other combinations.

The number of leaves per plant was significantly affected by irrigation water and plant habitus and was found to be 11.44, on average, for the two accessions. The maximum number of leaves per plant was recorded for FW- and TFFSW-irrigated plants. However, in contrast with the results of other morphological parameters, rosemary plants with a prostate habit produced the maximum values (13.94), on average, for number of leaves per plant. Furthermore, prostate plants showed the higher values when interacting with the three sources of irrigation water compared to erect plants.

With regard to aesthetic parameters in the study, the two main factors significantly affected the general appearance of the rosemary plants in terms of visual quality. More specifically, FW- and TFFSW-irrigated plants showed higher average scores for visual quality with respect to FFSW-irrigated plants (Figure 8). Greater variability was observed, instead, between the two rosemary accessions. The plants with an erect habit had, on average, the best visual quality performance (5.17) during the test period. Finally, erect plants exhibited the highest visual quality scores when combined with the three sources of irrigation water.

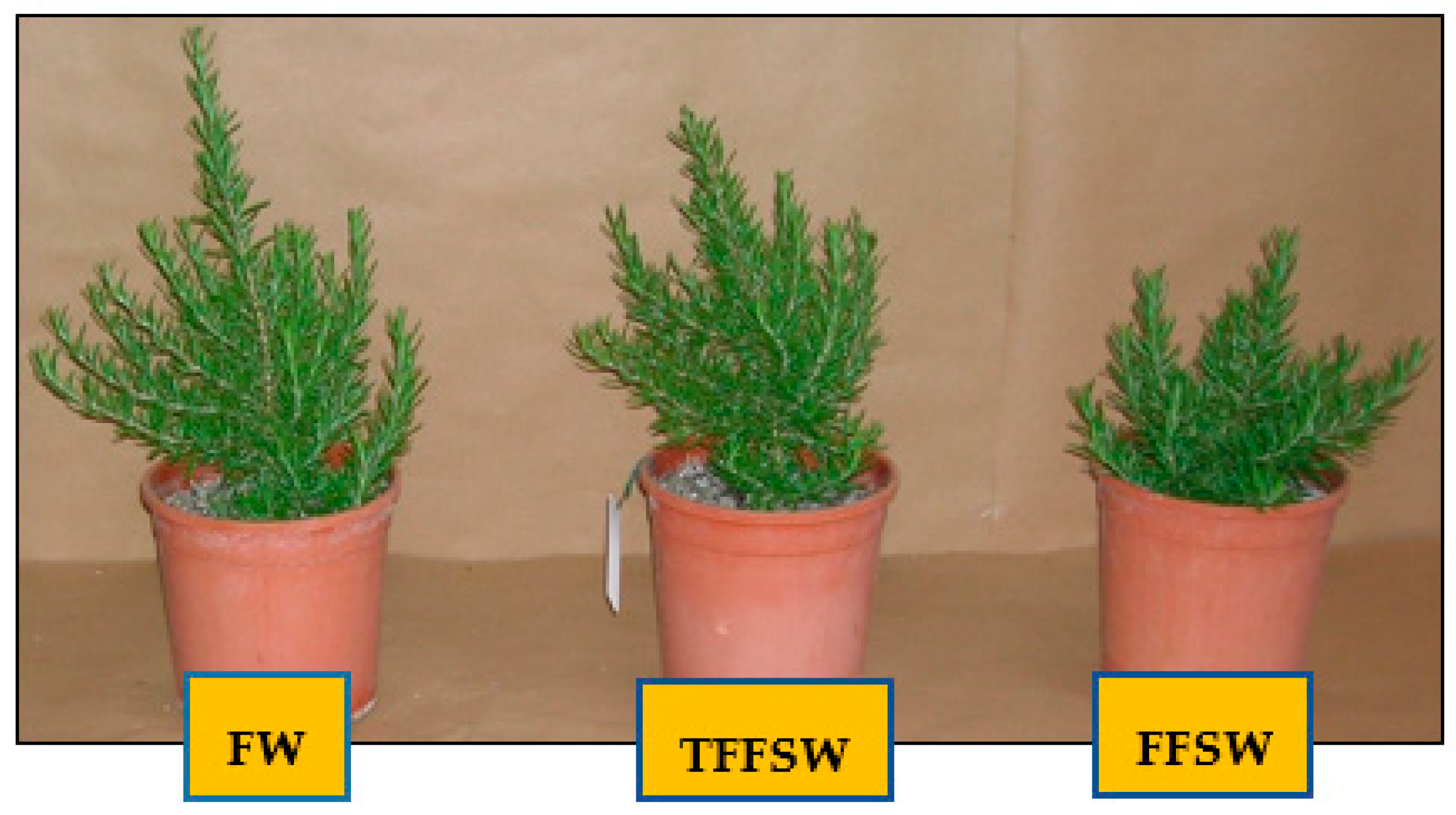

Our results highlight the fact that FW- and TFFSW-irrigated plants showed greater growth and better general appearance in comparison with FFSW-irrigated plants. This fact could be mainly explained by the different trace metals levels in the three sources of irrigation water in this study. In fact, the higher trace metals levels in FFSW with respect to FW and TFFSW probably produced adverse effects on plant growth and reduced the visual quality of the rosemary plants.

The authors of [67] reported that trace elements are highly persistent and can interact with roots by adsorption or release from soil particles, increasing the risk of toxic effects on plants. It was demonstrated that heavy metal accumulation in plant tissues can produce significant physiological and biochemical responses in plants and can interfere with metabolic processes, resulting in weak plant growth, chlorosis and biomass yield depression [68].

In a study on the effects of heavy metals on the morphological characteristics of Taraxacum officinale Web, the authors [69] found that the accumulation of high amounts of different metals, such as Cd, Cr, Cu, Fe, Pb and Zn, in both shoots and roots determined significant reductions in leaf thickness and changes in cell structural organization in comparison to plants grown on unpolluted soil. On the contrary, in another study [70], it was reported that some crops, such as mint, basil, sage, lavender and rosemary, can act as hyper accumulators of heavy metals, bio-monitors and facultative metallophytes. It has been observed that heavy metal stress can enhance their essential oil percentage as well as genetic and environmental factors being able to positively influence secondary metabolite biosynthesis in several aromatic and medicinal plants [71,72,73,74,75].

In particular, Parra et al. [76] stated that rosemary plants can exhibit good tolerance when cultivated in heavy metal-contaminated soil and are able to translocate high heavy metal rates from roots to shoots. However, they found that high trace element concentrations in the soil and tissues of rosemary plants were related to decreases in biomass yields and inhibition of root development. These findings were also confirmed by other authors [77,78] who provided a negative correlation between trace element concentrations and plant biomass and root development, highlighting that high trace elements concentration levels could determine a significant reduction in plant growth.

In our study, although irrigation with FFSW produced negative effects on plant growth and general appearance, it is worth noting that TFFSW-irrigated plants were not significantly different from FW-irrigated plants in terms of morphological and aesthetic parameters. This underlines and confirms that the reuse of TWW represents an alternative water source also when irrigating ornamental plants in various sites such as nurseries, parks, open fields and other green areas in urban environments.

A number of studies [65,79,80,81] have investigated the reuse of TWW on various medicinal and aromatic plants, such as basil, chamomile, mint, oregano and rosemary, in arid and semi-arid regions, focusing generally on the effects of TWW on the essential oil content and anti-oxidant properties of the plants. In particular, in a study on rosemary [81], it was found that rosemary plants continued to grow well when irrigated with urban TWW over two years and plant canopy diameter increased significantly during the test period. However, when observing the composition of the source of irrigation water used in these studies, it is possible to note an appreciable amount of macro- and micronutrients and a low heavy metal content. It is evident, therefore, that low levels of trace elements in TWW represent a fundamental condition for TWW to be able to produce positive effects on plant growth for rosemary in particular.

3.6. Effects of Source of Irrigation Water and Type of Plant Habit on Ornamental Pepper Plants

Data regarding the morphological, aesthetic and phenological parameters of ornamental pepper plants, under the influence of source of irrigation water and type of plant habitus, over the 2019 growing season, are shown in

Table 7. Morphological, aesthetic and phenological characteristics of erect and pendant plants of ornamental pepper irrigated with FW, TFFSW and FFSW.

Treatment	Plant Height (cm)	Plant Diameter (cm)	Plant Height/Diameter	No. Fruits (per Plant)	General Appearance (1–9)	Transplanting-Beginning Flowering (days)	Transplanting-Beginning Development of Fruit (days)	Transplanting-Senescence (days)
Irrigation Water (IW)
IW1	24.22 a	27.54 a	0.84 b	428.4 a	5.35 a	36.12 a	43.50 a	81.25 a
IW2	24.15 a	27.03 a	0.86 b	465.5 a	5.18 a	36.57 a	42.88 a	81.76 a
IW3	22.03 b	21.82 b	1.01 a	327.5 b	3.67 b	30.00 b	37.50 b	74.02 b
Plant Habitus (PH)
PH1	32.50 a	33.30 a	0.97 a	662.1 a	5.80 a	32.01 b	38.33 b	75.33 b
PH2	14.48 b	17.66 b	0.84 b	152.1 b	3.67 b	36.02 a	44.67 a	82.11 a
Irrigation Water × Plant Habitus
IW1 × PH1	34.67 a	35.50 a	0.97 a	691.4a	6.47 a	32.84 c	40.56 b	78.00 b
IW1 × PH2	13.67 c	19.48 c	0.70 b	165.4 c	4.23 b	38.65 a	47.01 a	84.27 a
IW2 × PH1	34.20 a	35.76 a	0.95 a	750.5 a	6.43 a	34.14 b	40.02 b	77.54 b
IW2 × PH2	14.23 c	18.40 c	0.77 b	180.5 c	3.93 b	38.21 a	47.54 a	84.88 a
IW3 × PH1	28.63 b	28.53 b	1.00 a	544.4 b	4.50 b	28.00 d	35.02 c	70.00 c
IW3 × PH2	15.43 c	15.10 d	1.02 a	110.5 c	2.83 b	32.00 c	39.81 b	77.21 b

Means followed by the same letter are not significantly different for p ≤ 0.05 according to the test of Tukey.

.

All the characteristics tested were significantly affected by irrigation water and plant habitus. Furthermore, the irrigation water-by-plant habitus interaction was significant for each parameter in the study. In particular, FW- and TFFSW-irrigated plants exhibited higher growth than FFSW-irrigated plants during the test period.

Plant height ranged from 32.50 (erect plants) to 14.48 cm (pendant plants), on average. When considering the source of irrigation water, it was found that FW- and TFFSW-irrigated plants were significantly taller than FFSW-irrigated plants (Figure 9).

Furthermore, regarding the interaction effects between the main factors, the highest average values for plant height were observed in FW-by-erect plant and TFFSW-by-erect plant interactions. On the contrary, the lowest average value of plant height was recorded when the pendant habit factor interacted with each of the three sources of irrigation water.

Plant diameter showed significant differences with respect to the main factors. The highest average values of plant diameter were found in FW- and TFFSW-irrigated plants and in erect plants (Figure 9). When considering, instead, all the interactions, the FW-by-erect plant and TFFSW-by-erect plant interactions had the highest values of plant diameter.

The ratio between plant height and diameter was significantly affected by the two main factors. More specifically, no significant differences were found between FW- and TFFSW-irrigated plants; in contrast, FFSW-irrigated plants and erects plants exhibited the highest average values. When considering the interaction effects, no significant differences were found for this parameter except for IW1-by-PH2 and IW2-by-PH2 interactions.

The number of fruits per plant was significantly affected by irrigation water and plant habitus and was found to be 407.12, on average, for the two pepper varieties. However, the number of fruits ranged from 662.10 (erect plants) to 152.15 (pendant plants), on average. Similar to the previous results, FW- and TFFSW-irrigated plants obtained maximum values for number of fruits per plant. Furthermore, the erect plants showed higher values when interacting with the three sources of irrigation water compared to pendant plants.

With regard to the general appearance of the ornamental pepper plants, FW- and TFFSW-irrigated plants showed higher average values for visual quality compared to FFSW-irrigated plants. Erect plants had, on average, the best visual quality performance (5.80), while the pendant plants obtained the lowest value (3.67). Erect plants exhibited the highest visual quality scores when combined with FW and TFFSW only.

Finally, irrigation water and plant habitus had a significant effect on ornamental pepper plant phenology. In particular, the number of days between transplanting and beginning of flowering was higher in FW- and TFFSW-irrigated plants (36 days, on average) than in FFSW-irrigated plants. Beginning of fruit development occurred six days later in FW- and TFFSW-irrigated plants than in FFSW-irrigated plants. On the contrary, senescence occurred seven days earlier in FFSW-irrigated plants. In general, FW- and TFFSW-irrigated plants completed their growth cycle within 81 days, whilst the growth cycle length of FFSW-irrigated plants was found to be close to 74 days, on average. It is worth noting that the main phenological stages in the study occurred earlier in erect plants with respect to pendant plants. The significance found for the irrigation water-by-plant habitus interaction instead highlights the fact that, for each source of irrigation water, the differences in the growth stages were consistent with the effects of the main two factors.

Our findings demonstrate that FW- and TFFSW-irrigated plants exhibited higher growth and showed a better general appearance in comparison with FFSW-irrigated plants. Similar to the results of rosemary plants, the different trace metal concentrations in the three sources of irrigation water significantly affected the behavior of ornamental pepper plants during the tests. Hence, the lower trace metal concentrations in FW and TFFSW favored plant growth and improved, in general, the aesthetic characteristics of ornamental pepper plants.

The effects of trace metals, contained in irrigation water, on the morphological and aesthetic characteristics of ornamental pepper have been not investigated in the literature. Due to this fact, it was not possible to compare our findings with those of other studies. Additionally, few studies are available which focus on the use of TWW in ornamental pepper cultivation as affecting growth and fruit quality. In a study carried out in Crete [66], it was found that TWW application increased plant height and plant biomass compared with FW-irrigated plants of pepper, while the addition of fertigation increased fruit number in both FW- and TWW-irrigated plants, but with a decreasing average fruit weight for TWW application. This was in agreement with previous studies on cucumber and tomato crops when irrigating with FW and TWW [34,82]. In another study on the effect of different irrigation levels with different qualities of water on the cultivation of pepper [83], it was reported that TWW provided nutrients for the plants and determined an increase in plant growth.

In our study, although the chemical and microbiological composition of TFFSW differed greatly from that of FW (Table 5), TFFSW-irrigated plants were not significantly different from FW-irrigated plants in terms of morphological, aesthetic and phenological parameters. This fact could be explained by considering the agronomic management of pepper plants during the tests. In the FW-irrigated pots, we managed the pepper plants using fertigation during the crop cycle; in the TFFSW-irrigated pots, we exploited the nutrient content in this source of irrigation water to integrate the N, P and K requirements for ornamental pepper. At the outflow of the VSSFs CW unit, the N, P and K average concentrations were found to meet the plant’s requirements. TFFSW was a source of nutrients and, in particular, of N, P and K, therefore its use highlights the fact that TWW irrigation also provides combined fertilization for ornamental pepper plants. It is worth noting that the trace metals and PAH content in the TFFSW was within the threshold values for Italian Legislative Decree 152/2006 regarding the reuse of TWW for irrigation purposes, as well as other chemical and microbiological parameters. These results confirm that TWW irrigation, such as TFFSW, can decrease or even remove the need for mineral fertilization whilst maintaining a high quantitative and qualitative performance of plants. This concept was previously confirmed also for other horticultural crops [34,66,82,84] and currently should be used by farmers due to the evident economic and environmental benefits with respect to the common management of these crops. In fact, as TWW is an alternative source of water to FW for crop irrigation, it is possible to suppose that the use of TWW of different origin represents a sustainable way to manage the irrigation and fertilization of a number of crops, such as rosemary or ornamental pepper, in areas with prolonged periods of water shortages.

4. Conclusions

The results of this case study carried out on a VSSFs CW are promising and highlight good efficiency of this system in view of treating first-flush stormwater and reusing treated stormwater for irrigation purposes in Sicilian semi-arid environments. Furthermore, the application of a VSSFs CW in urban and industrial areas could led to evident ecological benefits due to the fact that a VSSFs significantly improves the quality of this type of wastewater and reduces pollutant mass loads, preventing the pollution of receiving water bodies and soil. Furthermore, the use of treated wastewater in irrigated agriculture could determine certain agronomical advantages, mainly consisting of large freshwater and fertilizer savings in the management of crops. In this study, the removal efficiency of organic matter, nutrients, trace metals and PAHs was satisfactory, although pollutant concentrations at the inlet of the VSSFs were reasonably low during the two testing periods. This probably depended on the performance of the pretreatment system used and the wastewater volumes. In the VSSFs CW, the role of the two macrophytes was essential for the treatment of first-flush stormwater. The polyculture system, in the CW unit, consisting of a mixture of common reed and giant reed, contributed, in fact, to the overall performance of the VSSFs and to the removal of dissolved organic compounds and nutrients in particular. For both ornamental pepper and rosemary, TFFSW-irrigated plants were not significantly different from FW-irrigated plants in terms of morphological and aesthetic parameters. This means that TFFSW could be used in the irrigation of ornamental plants in place of FW. However, this is possible only when the chemical and microbiological composition of TFFSW fully respects national legislation requirements. In fact, an average trace metal concentration which is higher than required could produce adverse effects on plant growth and reduce the visual quality of the plants, for example.

Finally, further research is required to evaluate VSSFs performance over a longer period of time and to improve the removal efficiency of specific contaminants. The use of hybrid CWs, for example, may increase the removal efficiency of trace metals, PAHs and pathogens and allow treated stormwater to be more easily discharged into soils and water bodies. For ornamental pepper and rosemary, the effects of TFFSW on biomass yield and qualitative characteristics in the long term require evaluation.
