Variation in Vegetation and Its Driving Force in the Middle Reaches of the Yangtze River in China

Abstract

The temporal and spatial characteristics of vegetation in the middle reaches of the Yangtze River (MRYR) were analyzed from 1999 to 2015 by trend analysis, co-integration analysis, partial correlation analysis, and spatial analysis using MODIS-NDVI time series remote sensing data. The average NDVI of the MRYR increased from 0.72 to 0.80, and nearly two-thirds of the vegetation showed a significant trend of improvement. At the inter-annual scale, the relationship between NDVI and meteorological factors was not significant in most areas. At the inter-monthly scale, NDVI was almost significantly correlated with precipitation, relative humidity, and sunshine hours, and the effect of precipitation and sunshine hours on NDVI showed a pronounced lag. When the altitude was less than 2500 m, NDVI increased with elevation. NDVI increased gradually as the slope increased and decreased gradually as the slope aspect changed from north to south. NDVI decreased as the population density and per capita GDP increased and was significantly positively correlated with afforestation policy. These findings provide new insights into the effects of climate change and human activities on vegetation growth.

1. Introduction

Natural ecosystems globally have become seriously threatened as climate change continues to intensify and the human population grows [1]. Vegetation, which generally refers to all of the plant communities covering the land surface, is one of the most important components of terrestrial ecosystems, as vegetation connects the atmosphere, soil, hydrology, and other ecological elements. The growth of vegetation is affected by both natural and human factors and is highly sensitive to environmental change [2,3]. Vegetation has long undergone dynamic changes; it thus plays an important role in the material cycle, energy flow, and ecosystem stability. Climate change and human activities have substantial effects on vegetation. Thus, study of the factors affecting changes in vegetation dynamics has implications for the maintenance of regional ecological balance [4,5]. The normalized difference vegetation index (NDVI) is an important indicator that reflects the growth status and dynamic changes in vegetation. It is highly sensitive to dynamic changes in surface vegetation (including vegetation coverage, biomass, and leaf area index) and has been widely used in vegetation monitoring; it has thus become a major focus of global change research [6,7,8].

The factors affecting vegetation cover change can be divided into natural factors and human factors. Previous studies have shown that climate factors may play a leading role at the regional scale, whereas human factors may play a leading role at the watershed scale [9]. In the Yangtze River Basin of China, precipitation and temperature are the most important factors affecting vegetation change [10]. Human activities can affect vegetation cover by modifying land use and land cover, which often forms a complex coupled human–environment system. In some traditional agricultural areas, the effect of human factors on vegetation cover requires consideration [11,12]. Vegetation cover change in the Yangtze River Basin is the result of the combined action of climate factors and human factors; however, human factors appear to be more important, and this is reflected in patterns of land use, related policies, and economic development [13].

Temporal and spatial patterns of vegetation change have been examined by various studies including changes in NDVI and the responses of NDVI to various factors [14,15,16]. For example, Coban determined that population, GDP, and topography have the greatest effect on vegetation change in the Western Black Sea region [17]. John and Ichii analyzed the relationship between NDVI and climate variables on a global scale and found that NDVI was significantly positively correlated with temperature in the middle and high latitudes of the northern region, but significantly negatively correlated with precipitation in the northern and southern semi-arid regions [15]. Tong et al. analyzed changes in vegetation cover from 2001 to 2013 and found that China’s national and local governments implemented a series of ecological restoration projects to restore vegetation cover [18]. Zheng et al. noted that the ecological environment of the Yangtze River Delta urban agglomeration has improved over the past 20 years, but there are still significant differences between regions [19]. Yuan et al. and Tao et al. analyzed vegetation change in the Yangtze River Basin and found that NDVI may fluctuate in more than half of the study area in the future; they also found that altitude and annual average temperature were the main factors affecting changes in NDVI [20,21]. The responses of NDVI to different factors vary at different regional scales. Although several previous studies have conducted correlation analyses of vegetation change in the Yangtze River Basin, the changes and responses of vegetation to different factors in the middle reaches of the Yangtze River (MRYR) have not been well studied.

2. Study Area

The middle reaches of the Yangtze River (MRYR) include Hubei Province, Hunan Province, and Jiangxi Province (24°25′ N–33°16′ N, 108°24′ E–118°23′ E), with a total area of 564,600 km² (Figure 1). This region features a subtropical monsoon climate, with annual precipitation of 1000–1600 mm·a⁻¹ and annual average temperature of 16–18 °C [22]. The terrain of the MRYR mainly consists of mountainous hills and plains. The highest altitude is located in the mountainous area of Western Hubei, and the lowest is located in the central plain area. The mountainous hills account for more than 50% of the area, and the average altitude is 1497 m [23]. In 2018, the total population of the region was 174.38 million, accounting for 12.7% of the total population of the country; furthermore, the GDP was 9.8 trillion CNY (Chinese yuan), the urbanization level reached more than 50%, human economic activities were common, and regional disturbance was large [24]. The MRYR is rich in forest resources. In 2015, the forest coverage rates of Hubei Province, Hunan Province, and Jiangxi Province were 38.40%, 47.77%, and 60.01%, respectively [25,26,27].

3. Materials and Methods

3.1. Data Sources and Preprocessing

MODIS NDVI data from 1999 to 2015 derived from NASA’s EOS/MODIS vegetation index product data MOD13A2 (https://wist.echo.nasa.gov/ap, accessed on 17 April 2021) were used in this study. The spatial resolution of the data was 1 km × 1 km, and the temporal resolution was 16 d. ENVI5.3 was used to preprocess the original data, and the maximum NDVI of each year was obtained by the synthesis method. The meteorological data were derived from the National Meteorological Data Center (http://www.cma.gov.cn/2011qxfw/2011qsjgx/, accessed on 25 July 2021). Monthly data (monthly average temperature, monthly precipitation, and monthly radiation) of 57 benchmark meteorological stations near the study area were from 1999 to 2015. In order to study the relationship between NDVI and terrain and socioeconomic factors, GDP and population, which are commonly used to represent socioeconomic factors as well as factors such as altitude, slope, and aspect used to represent terrain, were selected to analyze the relationship between NDVI and driving factors [28,29,30]. Terrain data (DEM data) and social data (population and GDP in 2015) were derived from the Resources and Environment Science and Data Center (http://www.resdc.cn, accessed on 25 July 2021), which had a spatial resolution of 1 km × 1 km. Data for the artificial afforestation area were from the China Forestry Statistical Yearbook [31].

3.2. Research Methods

3.2.1. Theil-Sen Median Trend Analysis and Mann–Kendall Test

Theil–Sen median trend analysis was used to calculate the median slope between all n × (n − 1)/2 paired combinations of the time series data. The formula is as follows [32,33]:

$$C\beta =Median\left(\frac{{\mathrm{NDVI}}_j-{\mathrm{NDVI}}_i}{j-i}\right), 1999\le i<j\le 2015$$

(1)

In Equation (1), β is the trend in vegetation change; NDVI_j is the NDVI of the jth year; and NDVI_i is the NDVI of the ith year. If β > 0, NDVI is increasing, indicating vegetation improvement or recovery. If β < 0, the NDVI is decreasing, indicating vegetation degradation.

The Mann–Kendall test can be used to assess the significance of the trend; this test has no specific requirements regarding the distribution of the samples, and the results are more accurate and not affected by outliers [34]. The formula is as follows:

Set NDVI_i, where i = 1999, 2000, …, 2015. The Z statistic can be defined as:

$$Z=\{\begin{array}{c}\frac{S-1}{\sqrt{s\left(S\right)}},\hspace{1em}S>0\\ 0,\hspace{1em}S=0\\ \frac{S+1}{\sqrt{s\left(S\right)}},\hspace{1em}S<0\end{array}$$

(2)

$$S={\displaystyle \sum }_{j=1}^{n-1}{\displaystyle \sum }_{i=j+1}^{n}sgn\left({\mathrm{NDVI}}_j-{\mathrm{NDVI}}_i\right)$$

(3)

$$s\left(S\right)=\frac{n\left(n-1\right)\left(2n+5\right)}{18}$$

(4)

$$\mathrm{s}gn\left({\mathrm{NDVI}}_j-{\mathrm{NDVI}}_i\right)=\{\begin{array}{c}1,\hspace{1em}{\mathrm{NDVI}}_j-{\mathrm{NDVI}}_i>0\\ 0,\hspace{1em}{\mathrm{NDVI}}_j-{\mathrm{NDVI}}_i=0\\ -1,\hspace{1em}{\mathrm{NDVI}}_j-{\mathrm{NDVI}}_i<0\end{array}$$

(5)

In Equations (1)–(5), NDVI_i and NDVI_j represent the NDVI of pixel i and j years, respectively; n is the length of the time series; and sgn is a sign function. The value of the Z statistic is in the range of (−∞, +∞). When |Z| is greater than Z_1−α/2 at a given significance level α, there is a significant change in the time series at the α level. In this study, α = 0.05 was used to assess the significance of the pattern in regional NDVI change from 1999 to 2015 when |Z| > 1.96 at the confidence level of 0.05.

3.2.2. Stationarity Analysis and Co-Integration Analysis

If the time series factor does not pass the stationarity analysis and co-integration analysis, the situation of false regression might occur [35]. Therefore, we conducted a stationarity analysis for annual and monthly NDVI, temperature, precipitation, relative humidity, and sunshine hours, respectively. If the data were non-stationarity and each sequence was a single integral of the same order, the data would be analyzed for co-integration.

Stationarity Analysis

To analysis whether the time series being analyzed is stationarity, that is, to analysis whether there is a unit root, the commonly used method is ADF (Augmented Dickey-Fuller) analysis [35]. For the time series $X=\left\{x_t\right\}$, the analysis equation is:

$$\Delta x_i=\alpha +\beta t+\delta x_i+{\displaystyle \sum }_{i=1}^m{\beta }_i\Delta x_{i-1}+{\epsilon }_t$$

(6)

where t is the time variable; $\alpha$ is the constant term; $\beta t$ and ${\beta }_i$ are the trend items; ${\epsilon }_t$ is the residual term; i is the lag order; and m is the maximum lag order. Assume that the null hypothesis H₀: $\delta$= 0, and the alternative hypothesis H₁:$\delta$ ≠ 0. The analysis was divided into three steps. In the first step, the analysis was carried out according to Equation (6). The second step was to delete the trend item for analysis. The third step was to delete the constant term and trend term for analysis. If H₀ is rejected in any step of the analysis, it means that there is no unit root in the time series X, that is, X is a stationarity time series, and the analysis can be stopped. Otherwise, the analysis should be continued until the end of the third step.

Co-Integration Analysis

The co-integration relation refers to the stationarity of the linear combination of two non-stationarity time series, so the co-integration analysis can be used to distinguish true regression from false regression [36]. The commonly used co-integration analysis method between two sequences is the E-G (Engle Granger) two-step method [37]. For the same order integral sequence $X=\left\{x_t\right\}$ and $Y=\left\{y_t\right\}$, the analysis steps are as follows: The first step is to establish two regression equations of time series X and Y, and obtain the residual sequence $\left\{{\epsilon }_t\right\}$ of the regression equation; and in step 2, the ADF analysis is performed on the residual sequence $\left\{{\epsilon }_t\right\}$. Assuming that the null hypothesis H₀: $\delta$ = 0 and the alternative hypothesis H₁: $\delta$≠ 0, if the result rejects H₀, it means that there is no unit root in the residual sequence $\left\{{\epsilon }_t\right\}$, that is, $\left\{{\epsilon }_t\right\}$ is a stationarity time series, then the sequence $X=\left\{x_t\right\}$ and $Y=\left\{y_t\right\}$ can be considered to have a co-integration relationship.

3.2.3. Correlation Analysis

Correlation analysis and partial correlation analysis were used to analyze the relationship between NDVI and meteorological factors. The earth system is a complex system composed of multiple elements. Change in any element in the system can cause changes in other elements. Partial correlation analysis can effectively solve the above problems. When the correlation between two elements is studied separately, the effect of other elements is regarded as a constant by partial correlation [38]. The calculation formula is as follows:

$$r_{xy}=\frac{{{\displaystyle \sum }}_{i=1}^n\left[\left(x_i-\overline{x}\right)\left(y_i-\overline{y}\right)\right]}{\sqrt{{{\displaystyle \sum }}_{i=1}^n{\left(x_i-\overline{x}\right)}^2{{\displaystyle \sum }}_{i=1}^n{\left(y_i-\overline{y}\right)}^2}}$$

(7)

In Equation (6), $r_{xy}$ is the correlation coefficient between variables x and y; i is the number of samples; and $\overline{x}$ and $\overline{y}$ are the multi-year mean value of NDVI and the mean value of meteorological factors, respectively.

$$r_{xy·z}=\frac{r_{xy}-r_{xz}{r}_{yz}}{\sqrt{\left(1-{r_{xz}}^2\right)\left(1-{r_{yz}}^2\right)}}$$

(8)

In Equation (7), $r_{xy}$, $r_{xz}$, and $r_{yz}$ are the correlation coefficients between elements x and y, x and z, and y and z, respectively. $r_{xy·z}$ is the partial correlation coefficient of factor X and y after factor Z is fixed. The t-test was used to test the significance of the partial correlation coefficients.

3.2.4. Relationship between NDVI and Driving Factors

The altitude gradient was divided into seven grades: <200 m, 200–500 m, 500–1000 m, 1000–1500 m, 1500–2000 m, 2000–2500 m, and >2500 m. The slope aspect was divided into eight grades: north (337.5–22.5°), northeast (22.5–67.5°), east (67.5–112.5°), southeast (112.5–157.5°), south (157.5–202.5°), southwest (202.5–247.5°), west (247.5–292.5°), and northwest (292.5–337.5°). The slope was divided into five grades: flat slope (<5°), gentle slope (5–15°), slope (15–25°), steep slope (25–35°), and dangerous slope (>35°).

4. Results

4.1. Temporal and Spatial Variation in NDVI

4.1.1. Temporal Variation in NDVI

In the time series of NDVI and meteorological factors, the first-order difference operator passed the stationarity analysis. There was a significant co-integration relationship between each variable and the change of time series. (

Table A1. Stationarity analysis of the annual mean of variables from 1999 to 2015.

	Variable	Test Type (C, T, K)	DW	ADF	1% Critical Value	5% Critical Value	Weather Stationarity
Interannual scale	$\mathrm{NDVI}$	(C, T, 1)	1.796	−2.361	−4.668	−3.733	No
	$\Delta \mathrm{NDVI}$	(C, T, 1)	2.107	−4.174	−4.728	−3.760	Yes
	$\mathrm{T}$	(C, T, 1)	1.951	−3.571	−4.668	−3.733	No
	$\Delta \mathrm{T}$	(C, T, 1)	2.284	−5.992	−4.728	−3.760	Yes
	$\mathrm{P}$	(0, 0, 1)	2.000	−6.89	−4.668	−3.733	No
	$\Delta \mathrm{P}$	(C, T, 1)	2.552	−4.035	−4.886	−3.829	Yes
	$\mathrm{H}$	(C, T, 1)	2.006	−1.748	−4.668	−3.733	No
	$\Delta \mathrm{H}$	(C, T, 1)	2.286	−6.178	−4.728	−3.760	Yes
	$\mathrm{S}$	(0, 0, 1)	1.833	−3.953	−4.728	−3.760	No
	$\Delta \mathrm{S}$	(C, T, 1)	2.299	−5.326	−4.800	−3.791	Yes
Intermonth scale	$\mathrm{NDVI}$	(C, T, 1)	1.723	−2.289	−4.632	−3.715	No
	$\Delta \mathrm{NDVI}$	(C, T, 1)	2.255	−4.195	−4.689	−3.725	Yes
	$\mathrm{T}$	(C, T, 1)	1.985	−3.584	−4.625	−3.726	No
	$\Delta \mathrm{T}$	(C, T, 1)	2.154	−5.851	−4.712	−3.795	Yes
	$\mathrm{P}$	(0, 0, 1)	2.121	−5.963	−4.635	−3.785	No
	$\Delta \mathrm{P}$	(C, T, 1)	2.622	−4.251	−4.721	−3.802	Yes
	H	(C, T, 1)	1.981	−1.685	−4.735	−3.703	No
	$\Delta \mathrm{H}$	(C, T, 1)	2.125	−5.962	−4.741	−3.753	Yes
	$\mathrm{S}$	(0, 0, 1)	1.781	−3.652	−4.712	−3.758	No
	$\Delta \mathrm{S}$	(C, T, 1)	2.354	−4.855	−4.785	−3.788	Yes

Note: T is temperature; P is precipitation; H is relative humidity; S is sunshine hours; Δ represents the first difference of the variables; (C, T, K) means that the analysis model contains intercept term, trend term, and lag order; Stationarity indicates that the variable passes the ADF stationarity analysis at a significance level of 5%.

,

Table 1. Co-integration analysis of the annual mean of variables from 1999 to 2015.

Variable	Test Type (C, T, K)	DW	ADF	1% Critical Value	5% Critical Value	Residual State
NDVI	(0, 0, 1)	/	−4.518	−2.728	−1.966	stationarity
T	(0, 0, 1)	/	−6.401	−2.728	−1.966	stationarity
P	(C, T, 1)	2	−6.89	−4.668	−3.733	stationarity
H	(0, 0, 1)	/	−3.917	−2.728	−1.966	stationarity
S	(0, 0, 1)	/	−5.262	−2.728	−1.964	stationarity

Note: T is temperature; P is precipitation; H is relative humidity; S is sunshine hours; (C, T, K) means that the analysis model contains intercept term, trend term, and lag order; Stationarity indicates that the variable passes the ADF stationarity analysis at a significance level of 5%.

, Figure A1 and Figure 2a). The annual average value of NDVI increased from 1999 to 2015. The lowest value (0.72) was observed in 2001 and the highest (0.80) in 2015; the average across the entire study period was 0.76. The development of vegetation cover in the study area can be roughly divided into three stages: the first stage was a slow period of decline (1999–2001); the second stage was a period of fluctuating increases (2002–2011); and the third stage was a period of steady increase (2011–2015). The growth rates of regional NDVI in 2000–2005, 2006–2010, and 2011–2015 were 4.86%, 2.23%, and 4.81%, respectively. In 2000–2005 and 2011–2015, the vegetation in the study area was significantly improved. The monthly average NDVI curve of the study area revealed that annual changes in vegetation were pronounced (Figure 2b).

4.1.2. Spatial Variation in NDVI

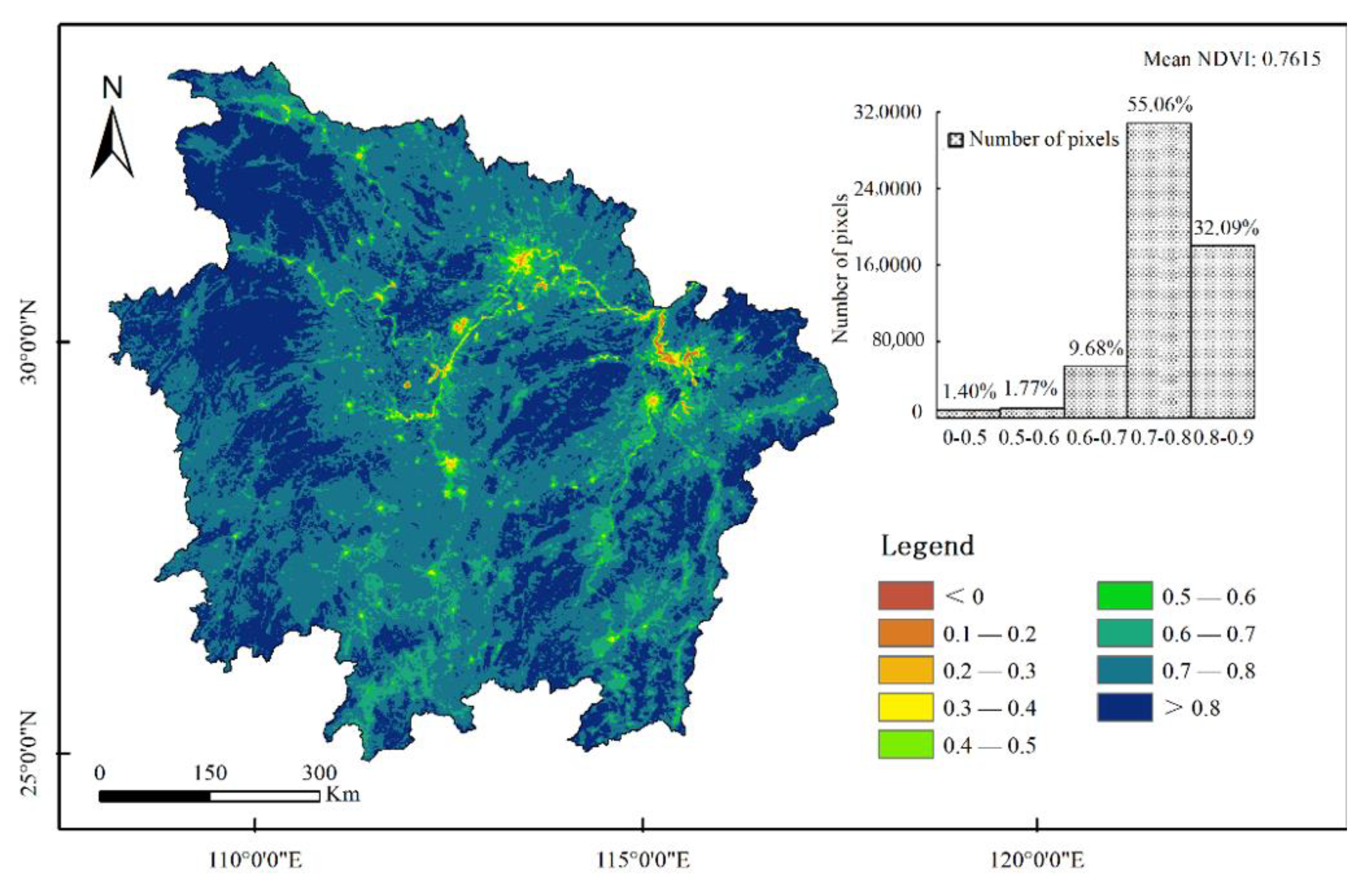

The spatial distribution of NDVI was based on the annual average NDVI data from 1999 to 2015 (Figure 3). The western region is a mountainous area high in altitude. Natural forests, shrubs, and grasslands are widespread. Vegetation grew well, and NDVI was high. The northern region mainly consists of plains, as this is an important commodity grain production region in China, and NDVI was also high. Areas with low NDVI were mainly distributed in the capital cities of the three provinces (Changsha, Hunan Province; Wuhan, Hubei Province; and Nanchang, Jiangxi Province) and their adjacent urban areas. Most of these areas have experienced rapid economic development and substantial artificial disturbance. In 17 years, NDVI from 0.1–0.5 accounted for 1.40% of the area; NDVI from 0.5–0.7 accounted for 11.45%; NDVI from 0.7–0.8 accounted for 55.06%; and NDVI greater than 0.8 accounted for 32.09%.

4.1.3. Patterns of NDVI Change from 1999 to 2015

Several landscape patterns of NDVI in the MRYR from 1999 to 2015 were noted. Areas with pronounced vegetation improvement accounted for the largest proportion (67.39%) of the total area and were mainly distributed in the western and southeastern regions of the study area. Areas with slight improvement accounted for one-quarter (25.79%) of the total area and were mainly distributed in Jianghan Plain, Dongting Lake Plain, and Poyang Lake Plain. Areas with degradation accounted for 6.82% of the area. Areas with no change were denoted by stars and were scattered in the central area of major cities and outwards in the central area; the severely degraded locations were located in Wuhan, Changsha, and Nanchang, the capitals of the three provinces, and radiated outward, indicating that the expansion of urbanization had a significant impact on NDVI (

Table 2. Trends of vegetation NDVI in the middle reaches of the Yangtze River (MRYR).

NDVI Trend Change	β Value	Z Value	Area Percentage %
Significant improvement	>0.0005	<1.96	67.39
Slight improvement	>0.0005	−1.96–1.96	22.59
No change	−0.0005–0.0005	−1.96–1.96	3.20
Slight degradation	<−0.0005	−1.96–1.96	5.27
Serious degradation	<−0.0005	<−1.96	1.55

and Figure 4).

4.2. Relationship between NDVI and Climate Change

In order to study the dynamic relationship between NDVI and meteorological factors, we needed to analyze the stationarity of NDVI, temperature, precipitation, relative humidity, and sunshine hours. All factors were stationarity after the first-order difference, so the cointegration could be measured (Table A1). Through the spatial analysis, there was a co integration relationship between the factors in some regions (

Table 3. Counts of co-integration analysis (%).

H0	Inter-Monthly Scale				Inter-Annual Scale
	NDVI-T	NDVI-P	NDVI-H	NDVI-S	NDVI-T	NDVI-P	NDVI-H	NDVI-S
Reject	89.02	88.78	85.12	89.12	55.96	52.45	40.23	53.52
Accept	10.98	10.22	14.88	10.88	44.04	47.55	59.77	46.48

Note: T is temperature; P is precipitation; H is relative humidity; S is sunshine hours.

). The rejection ratio in stationarity analysis at the inter-monthly scale was 33.06%, 36.33%, 44.89%, and 45.60% higher than that at the inter-annual scale, respectively, indicating that there were more pixels at stationarity based on NDVI and meteorological factors at the inter-monthly scale (Table 2). The rejection ratio of NDVI and temperature, NDVI and precipitation, NDVI and relative humidity, and NDVI and sunshine hours were higher than the acceptance ratio at the inter-monthly scale. The results indicated that there was a certain relationship between the NDVI and climate factors based on the vast majority of pixels in the MRYR at inter-monthly, and the correlation analysis could be conducted.

Interannual variation in the correlation and partial correlations between NDVI and meteorological factors in the MRYR from 1999 to 2015 was analyzed (

Table 4. Correlation coefficient between NDVI and climatic factors in the middle reaches of the Yangtze River (MRYR) from 1999 to 2015.

NDVI-T		NDVI-P		NDVI-H		NDVI-S
$R_{\mathrm{NDVI}-\mathrm{T}}$	$R_{\mathrm{NDVI}-\mathrm{T}/\mathrm{PHS}}$	$R_{\mathrm{NDVI}-\mathrm{P}}$	$R_{\mathrm{NDVI}-\mathrm{P}/\mathrm{THS}}$	$R_{\mathrm{NDVI}-\mathrm{H}}$	$R_{\mathrm{NDVI}-\mathrm{H}/\mathrm{TPS}}$	$R_{\mathrm{NDVI}-\mathrm{S}}$	$R_{\mathrm{NDVI}-\mathrm{S}/\mathrm{TPH}}$
0.286	0.488	0.070	0.277	−0.348	−0.646	−0.060	−0.532

Note: T is temperature; P is precipitation; H is relative humidity; S is sunshine hours; $R_{\mathrm{NDVI}-\mathrm{T}}$ and $R_{\mathrm{NDVI}-\mathrm{T}/\mathrm{PHS}}$ represents the correlation coefficient and partial correlation coefficient of NDVI and temperature, respectively, and so on.

, Figure A1). NDVI was positively correlated with temperature and precipitation, with partial correlation coefficients of 0.488 and 0.277, respectively, and negatively correlated with relative humidity and sunshine hours, with partial correlation coefficients of −0.646 and −0.532, respectively. The correlation between NDVI and temperature was greater than that between NDVI and precipitation. The correlation coefficient and partial correlation coefficient between NDVI and climate factors were not significant (p > 0.05). The response of NDVI to climate change in the MRYR was not particularly strong.

Analysis between NDVI and climate across each of the 12 months from 1999 to 2015 (

Table 5. Pearson correlation coefficients between NDVI in each month and climatic factors in the current and previous one, two, and three months.

Climate Factors	Coefficient of Correlation with NDVI
	Jan.	Feb.	Mar.	Apr.	May.	Jun.	Jul.	Aug.	Sep.	Oct.	Nov.	Dec.
T0	0.437	0.127	0.385	0.327	0.056	0.335	−0.060	0.561 *	−0.093	−0.062	−0.099	0.003
P0	−0.730 **	−0.111	0.391	−0.265	0.221	−0.375	0.140	−0.294	0.587 *	0.025	0.144	−0.140
H0	−0.447	0.212	−0.033	−0.344	0.023	−0.533 *	0.006	−0.757 **	0.653 **	−0.251	−0.032	−0.517 *
S0	0.717 **	−0.009	0.125	0.086	−0.286	0.406	−0.061	0.748 **	−0.474	0.451	−0.134	0.588 *
T1	0.254	0.419	−0.064	−0.226	−0.218	0.263	−0.494	−0.142	0.115	0.003	0.465	0.345
P1	−0.048	−0.638 **	−0.037	0.288	−0.045	0.181	0.483	0.182	0.114	0.567 *	−0.129	0.417
H1	−0.219	−0.438	0.306	0.312	−0.202	0.064	0.055	−0.130	−0.210	0.536 *	−0.268	0.396
S1	0.096	0.624 **	−0.133	−0.695 **	−0.142	0.004	−0.141	−0.035	0.143	−0.535 *	0.297	−0.387
T2	0.060	0.175	0.299	0.188	−0.039	0.255	0.103	−0.091	−0.217	0.080	−0.063	0.103
P2	0.182	0.357	−0.621 *	0.334	0.343	0.025	0.534 *	0.334	0.244	0.000	0.240	−0.100
H2	0.090	0.000	−0.431	−0.301	−0.041	−0.259	0.329	−0.074	0.079	−0.289	0.225	−0.200
S2	−0.234	0.055	0.548 *	0.085	−0.045	0.238	−0.335	−0.025	−0.060	0.355	−0.387	0.338
T3	0.397	−0.100	0.091	−0.003	0.184	0.048	0.178	0.034	−0.051	−0.341	0.310	0.070
P3	−0.360	−0.090	0.180	−0.532 *	0.001	−0.038	−0.036	0.327	−0.054	0.196	−0.101	0.378
H3	−0.519 *	−0.059	−0.285	−0.376	0.043	−0.063	0.046	−0.011	0.119	0.169	−0.331	0.344
S3	0.419	0.139	0.238	0.122	−0.137	−0.002	−0.040	−0.095	−0.220	0.106	0.375	−0.365

Note: In the column of climate factors, T, P, H, and S are temperature, precipitation, relative humidity, and sunshine hours respectively. Jan., Feb., Mar., Apr., May., Jun., Jul., Aug., Sep., Oct., Nov. and Dec. are January, February, March, April, May, June, July, August, September, October, November, December. 0, 1, 2, and 3 denote the current month, the first month, the first two months, and the first three months, * denotes p < 0.05 and ** denotes p < 0.01.

and Figure A2) indicated that the growth of NDVI from January to April was significantly affected by precipitation and sunshine hours, and an obvious lag was noted in the effects of these variables. There was a significant correlation between NDVI in June and relative humidity in June. NDVI in July was affected by precipitation in May. There was a significant correlation between NDVI in August with temperature, relative humidity, and sunshine hours in August, and NDVI was most affected by climate factors. September was affected by the precipitation and relative humidity in September. There was no significant correlation between NDVI in November and various meteorological factors. NDVI in December was affected by the relative humidity and sunshine hours in December. Precipitation, relative humidity, and sunshine hours were the main climatic factors affecting seasonal variation in NDVI in the MRYR.

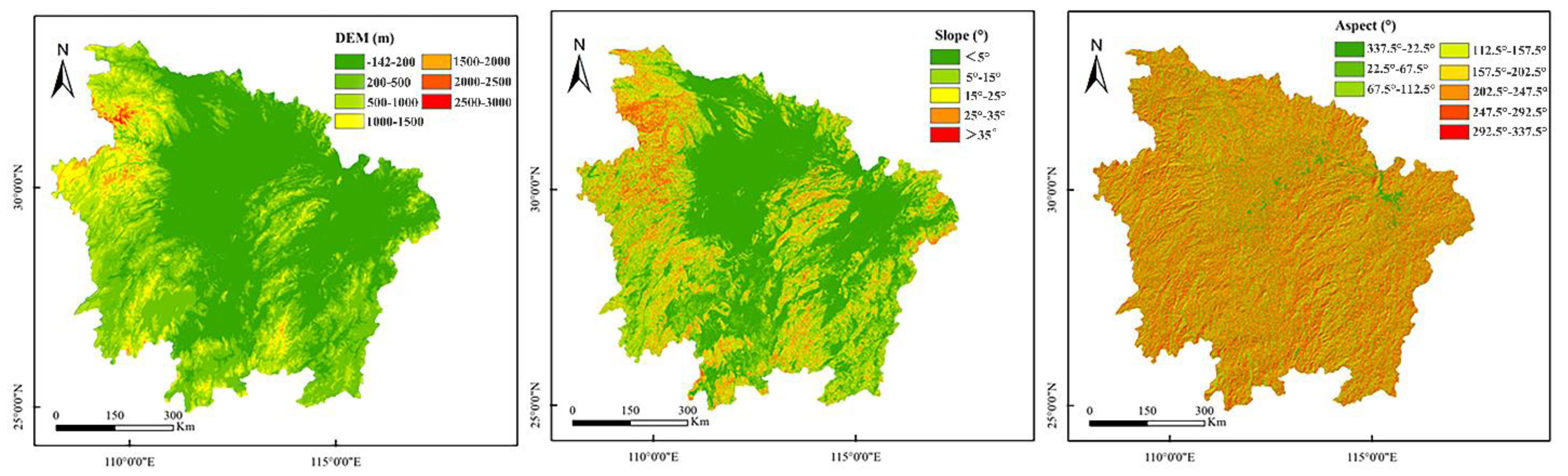

4.3. Relationship between NDVI and Topographic Factors

NDVI increased from 0.7274 to 0.8512 (by 12%) at elevations less than 2500 m. At elevations greater than 2500 m, NDVI slightly decreased by 1.20% (Figure 5 and

Table 6. Annual average NDVI changes at different altitudes in the middle reaches of the Yangtze River (MRYR).

Contents	Classification	Area (km2)	Proportion (%)	NDVI
Altitude	−142–200	264,591	47.51%	0.7274
	200–500	156,457	28.09%	0.7757
	500–1000	96,182	17.27%	0.8062
	1000–1500	30,906	5.55%	0.8218
	1500–2000	7644	1.37%	0.8375
	2000–2500	973	0.17%	0.8615
	2500–3090	137	0.02%	0.8512
Slope	0°–5°	243,230	43.68%	0.7236
	5°–15°	163,047	29.28%	0.7776
	15°–25°	99,538	17.87%	0.8012
	25°–35°	39,670	7.12%	0.8122
	35°–77.42°	11,405	2.05%	0.8196
Aspect	337.5°–22.5°	78,016	14.01%	0.7437
	22.5°–67.5°	62,929	11.30%	0.7641
	67.5°–112.5°	67,439	12.11%	0.7646
	112.5°–157.5°	74,568	13.39%	0.7670
	157.5°–202.5°	74,679	13.41%	0.7669
	202.5°–247.5°	65,100	11.69%	0.7635
	247.5°–292.5°	65,156	11.70%	0.7627
	292.5°–337.5°	68,999	12.39%	0.7644

). The proportion of areas with a slope less than 5° in the study area was the highest (43.68%). The annual NDVI increased as each grade increased, but the rate of increase decreased as the grade increased, indicating that NDVI exhibited more pronounced changes at smaller slopes and that NDVI fluctuations were smaller at larger slopes. The study area was located in the Northern Hemisphere, and the north slope features both positive and negative slopes; NDVI was low (0.7437). The change in NDVI between other slope directions was not pronounced and remained at 0.76.

4.4. Relationship between NDVI and the Socio-Economy

4.4.1. Relationship of NDVI with Population and Economic Factors

NDVI decreased as the population density increased. When the population density increased from less than 500 persons/km² to more than 5000 people/km², NDVI decreased from 0.8115 to 0.4071, a decrease of 49.83%. As the population density increased, the decrease in NDVI also increased gradually. When the population density reached 5000 persons/km², the decline in NDVI was 39.24%. The overall results indicated that the population density had a significant negative effect on the vegetation cover in the study area, and this effect strengthened as the population density increased (Figure 6).

NDVI of the study area decreased as per capita GDP increased. When the per capita GDP increased from less than 500 CNY to more than 5000 CNY, NDVI decreased from 0.8422 to 0.6281, a decrease of 25.42%. NDVI decreased the most when the per capita GDP increased to more than 5000 CNY, indicating that economic development of the city center had a strong negative effect on vegetation. Per capita GDP also has an inhibitory effect on vegetation cover in the study area (Figure 6 and

Table 7. Vegetation NDVI and population density distribution grades in the middle reaches of the Yangtze River (MRYR).

Contents	Classification	Area (km2)	Proportion (%)	NDVI	Decrease Range of NDVI Average (%)
Population density level (persons/km2)	≤500	505,409	90.26%	0.8115	—
	500–1000	43,377	7.75%	0.7449	8.21%
	1000–2000	4708	0.84%	0.6399	14.10%
	2000–5000	5206	0.93%	0.5399	15.62%
	≥5000	1256	0.22%	0.4071	39.24%
GDP (CNY)	≤500	231,593	41.36%	0.8422	—
	500–1000	145,014	25.90%	0.7946	5.65%
	1000–2000	112,975	20.18%	0.7782	2.06%
	2000–5000	56,544	10.10%	0.7531	3.23%
	≥5000	13,830	2.47%	0.6281	16.60%

).

4.4.2. Relationship between NDVI and Policy Factors

During the study period, NDVI gradually increased as the artificial afforestation area increased, and there was a significant correlation between the two (r = 0.6828, n = 17, p < 0.001). In 2002 and 2003, the afforestation area was increased, and the growth rate of NDVI was high. Between 2004 and 2006, the afforestation area in the study area declined due to policy-oriented factors, but in general, afforestation policy has improved the coverage rate of forestland and increased the coverage area of forestland. During this period, some early afforestation was not appropriate, and the low efficiency plantations formed also appeared to have the degradation and death phenomenon [39,40]. Therefore, NDVI presented a relatively stable state with little change. The decrease in NDVI in 2011 stemmed from the effect of drought in that year. Overall, ecological projects such as returning farmland to forest have facilitated gradual increases in NDVI in the MRYR, and the condition of the vegetation has greatly improved (Figure 7).

5. Discussion

5.1. Variation in NDVI and Its Relationship with Climatic Factors

From 1999 to 2015, NDVI in the MRYR increased, which was consistent with the results of previous research in Hubei Province [41,42], Hunan Province [43], Jiangxi Province [44], and the Yangtze River Basin [20]. Average annual NDVI of the Yangtze River Delta, Pearl River Delta, and other coastal urban agglomerations were mostly between 0.3 and 0.5. Compared with these regions, the average NDVI in the MRYR (0.76) is relatively high (Figure 2 and Figure 3). Approximately 67.39% of the regions showed a significant improvement in NDVI, and these regions were mainly distributed in non-urban areas. Stable and slightly improved areas accounted for one-quarter of the regional area (25.79%) and were mainly distributed in Jianghan Plain, Dongting Lake Plain, and Poyang Lake Plain. As these three plains are the main centers of commodity grain production in China (Table 1), the slight changes in NDVI observed are consistent with the slight changes observed in crops [45,46,47]. Degraded areas accounted for 6.82% of the total area, and Wuhan, Changsha, and Nanchang made up most of the degraded area; this indicates that the expansion of urbanization has a significant effect on vegetation coverage.

There was almost no significant relationship between NDVI and climate factors (Table 3 and Table 4). On the monthly and annual scale, there was a 2–3-month lag in the effect of precipitation on vegetation growth, a 2-month lag for sunshine hours, and a 3-month lag for relative humidity, which indicates that the change in NDVI is also affected by soil water and nutrient availability (Table 3 and Table 5). This is consistent with the results of global, regional, and other multi-scale studies; the effect of vegetation cover on climate change also shows a lag [36].

5.2. Relationship between Dynamic Change in NDVI and Terrain Factors

When the elevation was less than 2500 m, NDVI increased with elevation, but when the elevation was more than 2500 m, NDVI decreased (Table 6). The explanation for this pattern is the greater intensity of human activities at low elevation. As the elevation increases, the effect of human activities on vegetation weakens, and NDVI increases [48,49,50]. As the elevational gradient increases, the rate of NDVI growth decreases, which may stem from changes in natural environmental factors such as temperature, precipitation, and light [51,52,53]. Higher elevation corresponds to lower soil temperature, higher humidity, and greater vulnerability to leaching, which leads to soil acidification and inhibits the growth of vegetation [54]. As the terrain slope increased, the NDVI of different slope grades gradually increased. This result is consistent with Lu showing that NDVI increases as the slope increases in the Yangtze River Basin [55]. As the slope grade increased, the average annual NDVI of vegetation increased gradually, but the rate of increase reduced at higher slope grades, which indicated that the change in NDVI was more obvious when the slope was small and that the fluctuation in NDVI was smaller when the slope was large. NDVI was higher on sunny slopes than on shaded slopes.

5.3. Relationship between Dynamic Change in NDVI and Socio-Economic Factors

Dynamic changes in vegetation in the MRYR are not only affected by natural factors such as climate and topography, but also by human activities [56,57]. This region is the cradle of human civilization, as it consists of rivers and lakes and a fertile alluvial plain, making it a center of human agricultural production and social life [58]. During the study period, NDVI significantly decreased as the population density and per capita GDP increased, and changes in NDVI with population density were more pronounced. When the population density increased from less than 500 people/km² to more than 5000 people/km², NDVI decreased by 39.24%, and when the per capita GDP increased from less than 500 CNY to more than 5000 CNY, NDVI decreased by 16.60% (Table 7). With the rapid growth of the population and GDP, many people from rural and suburban regions have moved to cities. To accommodate a larger population, cities have further expanded and occupied several high-quality land types such as cultivated land, forest land, and unused land, which leads to a gradual reduction in regional vegetation coverage and has a substantial effect on the ecological environment. This is consistent with the results of other studies [59,60,61].

To cope with global climate change and problems associated with the ecological environment, a series of ecological construction projects have been implemented at the national level over the past 30 years such as the natural forest resources protection project, conversion of farmland to forest project, national desertification control, protection forest construction project in the middle and upper reaches of the Yangtze River, and nature reserve construction [62,63,64,65]. The MRYR plays an important ecological role, as it is China’s economic center and main grain production area [66,67]. At the regional and national levels, there is much focus on regional vegetation construction, and several ecological projects and national ecological policies have been implemented. These projects have played a major role in regional vegetation restoration. As the artificial afforestation area increased, NDVI gradually increased, and there was a significant correlation between NDVI and artificial afforestation area (r = 0.6828, n = 17, p < 0.001) (Figure 7). In 2002 and 2003, the afforestation area and the growth rate of NDVI were high. The construction of urban buildings, roads, and other structures that accompany economic development inevitably damages vegetation. However, this development is also accompanied by efforts to beautify the environment, as reflected by afforested areas, the conversion of farmland to forests, and the construction of green space, parks, and ecological vegetation in the city. Both of these reflect the effect of human activities on vegetation cover in the study area, and dynamic changes in vegetation are becoming increasingly affected by human production and life.

6. Conclusions

NDVI increased from 1999 to 2015, and nearly two-thirds of the vegetation showed a significant trend of improvement in the MRYR over this period. At the inter-annual scale, the relationship between NDVI and meteorological factors was not significant in most areas. At the inter-monthly scale, precipitation, relative humidity, and sunshine hours were the main factors affecting changes in NDVI, and the effect of precipitation and sunshine hours on NDVI showed a pronounced lag. NDVI increased with elevation when the altitude was less than 2500 m and decreased when the altitude was greater than 2500 m. As the slope increased, NDVI gradually increased. NDVI gradually decreased when the slope aspect changed from south to north. Per capita GDP and population density had a significant negative effect on NDVI. There was a significant correlation between ecological projects (afforestation area) and NDVI. The ecological afforestation project implemented by the state improved the regional vegetation. The dynamic changes in NDVI in the study area are thus jointly affected by climate change and human impacts.
