Effect of Different Water Treatments in Soil-Plant-Atmosphere Continuum Based on Intelligent Weighing Systems

Abstract

In order to meet the needs of dynamic continuous monitoring of soil-plant-atmosphere continuum (SPAC), a new soil, plant, atmosphere analysis system has been established based on an intelligent weighing system (IWS). Four types of irrigation treatments (90%, 80%, 70%, and 60% of field capacity (FC)) were conducted on lettuce (Lactuca sativa var. ramosa Hort.) for two-season planting experiments. Regarding the soil, the relative system weight of IWS showed a significant linear correlation with the soil volumetric moisture content (SWC) (R² = 0.64–0.94). When the SWC increased by 1.00%, the soil weight increased by 56–62 g. Regarding plants, the IWS also clearly reflected the changes in plant weight gain, transpiration rate, and stomatal conductance at different growth stages. After verification, the relative errors of the transpiration rate and stomatal conductance measured by the IWS were −9.60–22.30% and −7.20–22.20%, respectively. Regarding the atmospheric environment, the variation trend of the crop evapotranspiration (ET_c) based on the IWS and the reference crop evapotranspiration (ET₀) calculated with meteorological parameters were consistent. However, the numerical difference was in the uncertainty of the crop coefficient (K_c). The ET_c of lettuce under the 80% FC treatment was the highest. Accordingly, a daily online measurement method for K_c was established. The K_c values of lettuce at different growth stages were 0.88, 1.22, and 2.43, respectively. The growth, yield, and water use efficiency (WUE) of crops under 80% FC treatment compared with other treatments significantly increased by 11.07–21.05%, 0.91–9.89%, and 2.16–15.80%, respectively. Therefore, the 80% FC was adopted as the irrigation low limit of potted lettuce. The experimental results provide a theoretical basis for further guiding crop irrigation.

1. Introduction

In the SPAC water vapor dynamic circulation system, plants are the main link connecting soil and atmosphere [1,2,3,4,5]. Water reaches plant roots through soil, leaves through plant stems, then diffuses from leaf stomata to the static air layer, and finally participates in the atmospheric turbulent transformation to form a unified, dynamic, and mutual feedback continuous system [6,7]. Accordingly, the continuous monitoring of SPAC is of great significance for comprehensively exploring the law of crop water consumption.

Domestic and foreign scholars have conducted extensive research on SPAC. In the field of soil monitoring, Ekanayaka et al. [8] have developed low-cost capacitive soil moisture sensors for data collection, with the aim of automatically monitoring soil moisture. Shen et al. [9] used soil moisture sensors to measure the soil moisture content at different depths to determine the appropriate placement of soil moisture sensor. Stephan et al. [10] utilized soil moisture sensors to measure the soil moisture content at different locations and found that after rainfall, the soil moisture in the corridor was the lowest in the weathered surface crust. However, in practical application, the aforementioned methods can only obtain single-point parameters and cannot completely describe the state of the overall soil moisture loss in the root-zone during crop growth. In crop monitoring, a portable photosynthetic instrument is utilized to determine the transpiration rate, stomatal conductance and other indicators of cotton [11], hybrid winter wheat [12] and young apricot trees [13]. Current monitoring methods are mainly based on leaf-scale parameter information, and continuous online monitoring cannot be realized, thereby reducing the integrity of crop response research. Regarding atmospheric monitoring, Liu et al. [14] and Wang et al. [15] utilized a large-scale automatic weighing lysimeter to measure the actual crop evapotranspiration. Tyagi et al. [16] used a weighing lysimeter to measure the hourly evapotranspiration of rice and sunflowers. However, the equipment has high cost, complicated installation, and difficult soil borrowing process, thereby limiting its wide-scale application.

Based on this, we propose a low-cost potted plant evapotranspiration measurement system based on Lora wireless technology for horticultural facilities [17]. This system achieves the continuous weighing of potted plants in the whole growth cycle and real-time monitoring of the evapotranspiration of potted plants. As a kind of crop with large water demand and high sensitivity to water, vegetables are suitable for irrigation test based on our IWS. Lettuce (Lactuca sativa var. ramosa Hort.) as a representative of leafy vegetables, is rich in nutrition and has certain health and medicinal value. In recent years, the cultivation scale of lettuce has increased rapidly. The vegetable planting area in China is approximately 1.35 million hm² [18]. Based on the IWS, this study monitors and analyzes the SPAC of lettuce under different water treatments, so as to explore the water consumption characteristics of potted crops under different water treatments. This study provides theoretical guidance for improving precise crop irrigation and provides a new direction for the development of irrigated agriculture.

2. Materials and Methods

2.1. Test Materials

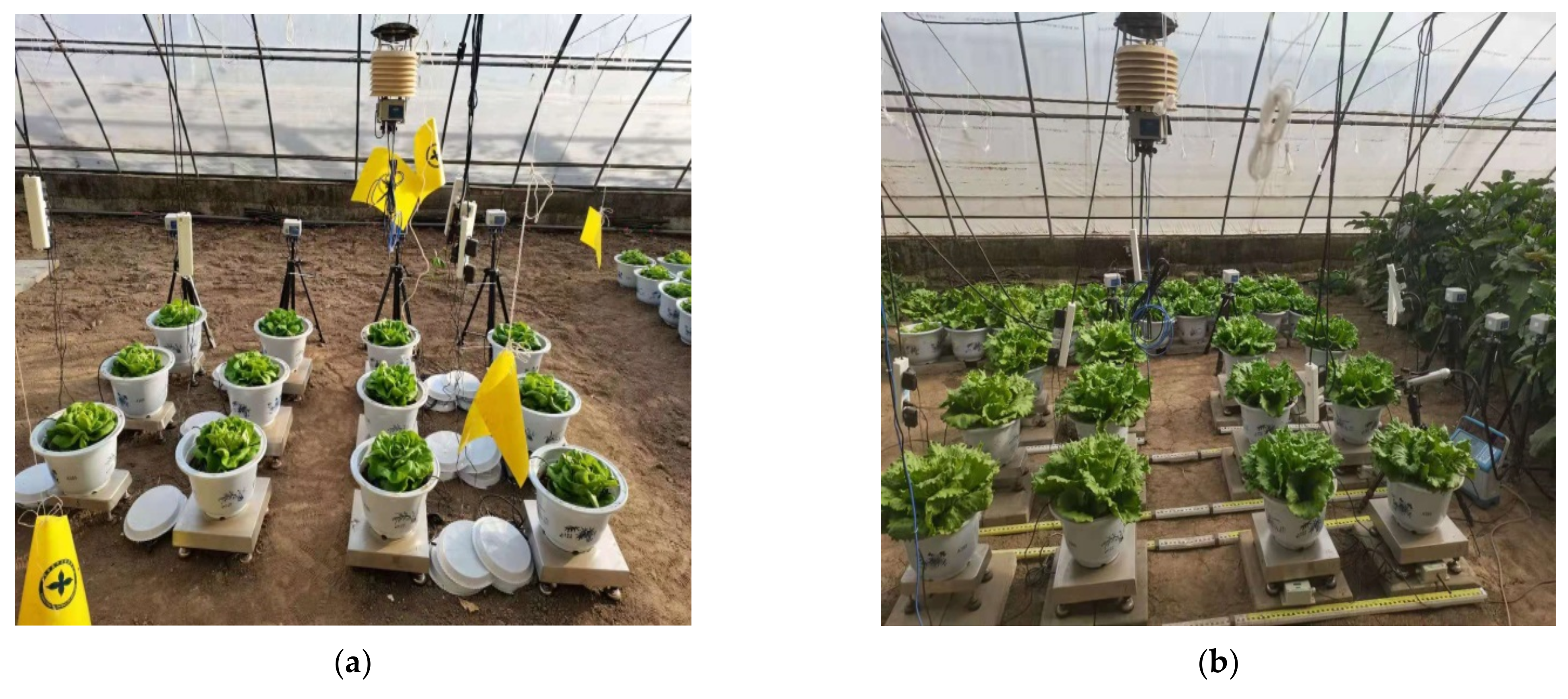

This study conducted two cropping experiments in a sunlight greenhouse (116°46′ E, 40°18′ N) of the National Precision Agriculture Demonstration Base in Changping District, Beijing, at an altitude of 50 m. Pot planting of lettuce (Lactuca sativa var. ramosa Hort.) was used in the experiments. Soil was obtained from 0–20 cm soil layer of the base farmland. After being naturally air dried it was crushed and passed through a 2-mm sieved soil. The soil type was sandy clay loam and the cultivated land quality grade is medium. The field water capacity was measured by the drying method, and the soil bulk density was measured by the Wilkes method [19]. The inner diameter of the pot used in the experiments was 29 cm, and the height was 23 cm. The pot was filled with 8 kg of air-dried soil. Before planting, 1.57 g of urea (containing 46% N), 1.53 g of diamine phosphate (containing 12% N, 42% P₂O₅), and 1.54 g of potassium sulphate (containing 52% K₂O) were applied as the base fertilizer and combined with the soil by mixing well.

There are two types of lettuce: leaf-expansion lettuce and heading lettuce. In the first season experiment, six-leaf and one-heart-stage lettuce was selected for colonization on 4 September 2020, with one plant per pot. The lettuce variety was leaf-expansion (Boston butter lettuce), the FC was 29.75% (volume percentage), and the soil bulk density was 1.21 g·cm⁻³. In the second season experiment, six-leaf and one-heart-stage lettuce was selected for colonization on 1 April 2021, with one plant per pot. The lettuce variety was heading lettuce (Italian Sagittarius 101 head lettuce), the FC was 31% (volume percentage), and the soil bulk density was 1.36 g·cm⁻³.

2.2. Experimental Design

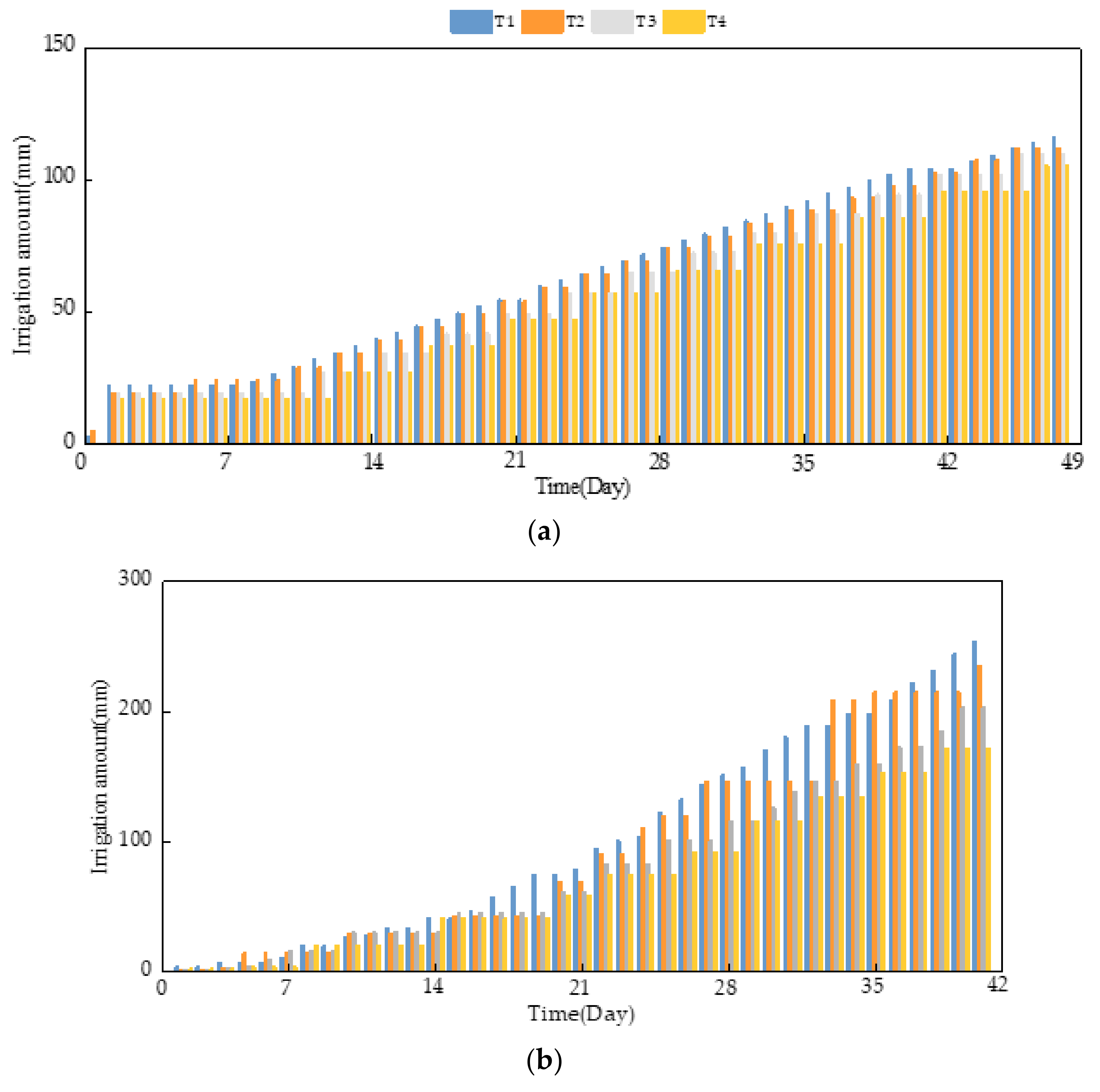

Four different water treatments were set up in the experiments as summarized in

Table 1. Irrigation treatment design.

Treatment	Planting Season	T1	T2	T3	T4
Irrigation maximums		100% FC
Irrigation minimums		90% FC	80% FC	70% FC	60% FC
Irrigation amount/mm	First season	116.21	112.04	109.35	105.16
	Second season	254.15	235.84	202.94	172.23

. The SWC was monitored by a soil moisture sensor. In this study, four different irrigation low limit treatments were carried out, with 100% as irrigation maximum and 90% (T1), 80% (T2), 70% (T3), and 60% (T4) as irrigation low limit respectively. When the SWC decreased to the irrigation low limit, irrigation was performed to ensure that the SWC reaches the irrigation maximum. The irrigation quota was calculated in accordance with the national micro-irrigation technical standard [20]. The irrigation time and the amount of irrigation during the first and second seasons are illustrated in Figure 1. In the experiment, 52 pots were set for each planting season, of which 12 pots were placed on the scale, and 3 replicates were set for each treatment. The test arrangement is illustrated in Figure 2.

2.3. Measurement Items and Methods

2.3.1. SWC

The first season experiment used the EC—5 soil moisture sensor produced by Decagon in the United States. The measurement accuracy is ±1–2% SWC. The second season experiment used the TEROS12 soil moisture sensor produced by the US METER company. The resolution is 0.001 m³/m³, and the accuracy is ±1–2% SWC. The sensor was inserted near the root of the lettuce, with the depth of the probe into the soil of 5.5 cm. The change of SWC was monitored in real time and was collected automatically once every hour.

2.3.2. Environmental Parameters

The experiments used the greenhouse cloud environment EP400 data collector developed by the National Engineering Research Center for Intelligent Equipment in Agriculture for environmental monitoring. The data collector can detect air temperature (range: –40 to 80 °C, accuracy: ±0.5 °C), relative air humidity (range: 0–100%, accuracy: ±3%), and light intensity (range: 0–100 klx, accuracy: ±10 klx). Meteorological data were automatically collected hourly. The maximum and minimum air temperatures at the test site were recorded daily.

2.3.3. Plant Parameters

The CIRAS-3 photosynthetic apparatus produced by PP Systems was used to test the data from 9:00 to 17:00 on a sunny day. The second fully expanded leaf from top to bottom was selected to measure the transpiration rate and stomatal conductance of the leaves.

2.3.4. ET₀

The FAO-56 Penman–Monteith equation, based on microclimatology and energy balance, is the most practical and reliable method for calculating crop evapotranspiration. Satisfactory results have been obtained in experimental research of crop evapotranspiration infield and greenhouse. This greenhouse experiment uses the revised Penman–Monteith formula [21]. The calculation formula is as follows:

$$E{T}_0=\frac{0.408\Delta \left(R_{\mathrm{n}}-G\right)+\gamma \frac{1713\left({\mathrm{e}}_s-e_a\right)}{T+273}}{\Delta +1.64\gamma }$$

(1)

where ET₀ represents the reference crop evapotranspiration (mm/d); R_n is net radiation of the crop canopy (MJ/(m² d)); G is the soil heat flux density (MJ/(m² d)); T is the daily average temperature at a height of 1.5–2.5 m above the ground (°C); e_s is the average saturated vapor pressure at 1.5–2.5 m above the ground (kPa); e_a is the average actual vapor pressure at a height of 1.5–2.5 m above the ground (kPa); ∆ is the slope of the saturated vapor pressure curve (kPa/°C), and γ is the wet and dry constants of values, 0.067 kPa/°C.

2.3.5. K_c

K_c refers to the ratio of the actual water consumption during the growth stage to the reference crop evapotranspiration. The calculation formula is as follows:

$$K_{\mathrm{c}}=\frac{E{T}_{\mathrm{c}}}{E{T}_0}$$

(2)

where K_c is the crop coefficient, ET₀ is the reference crop evapotranspiration during the growth period of the crop (mm/d), and ET_c is the water consumption at the crop stage during the growth period of the crop (mm/d).

2.3.6. Saturated Water Vapor Pressure Deficit (VPD)

VPD is the difference between the saturated water vapor pressure of the ambient air and the actual water vapor pressure, which affects the closure of the crop stomata. It is commonly used to evaluate atmospheric water demand. Its calculation formula is as follows:

$$VPD=0.611\times e^{\frac{12.27T_a}{237.3+T_a}}\times \left(1-\frac{RH}{100}\right)$$

(3)

where VPD is the saturated vapor pressure of the air (kPa), T_a is the atmospheric temperature (°C), and RH is the relative humidity of the air (%).

2.4. Pearson Correlation

Pearson correlation coefficient is often used to detect whether the independent and dependent variables are correlated. The value ranges from −1 to 1, and the formula is as follows:

$$P_{\mathrm{xy}}=\frac{{\displaystyle \sum (x-\overline{x})\left(y-\overline{y}\right)}}{\sqrt{{{\displaystyle \sum {\left(x-\overline{x}\right)}^2{\displaystyle \sum \left(y-\overline{y}\right)}}}^2}}$$

(4)

where, $\sum \left(x-\overline{x}\right)\left(y-\overline{y}\right)$ is the covariance between variable x and variable y, ${{\displaystyle \sum {\left(x-\overline{x}\right)}^2{\displaystyle \sum \left(y-\overline{y}\right)}}}^2$ is the standard deviation between variable x and variable y, $P_{xy}$ is the correlation coefficient. The greater the absolute value of the correlation coefficient, the stronger the correlation. The closer the correlation coefficient is to 1 or −1, the stronger the correlation is; the closer the correlation coefficient is to 0, the weaker the correlation is Ref. [22].

2.5. Parameter Calculation Module of IWS

The IWS can continuously monitor plants online in real time. According to the changes of weight (W_IWS), the IWS can analyze the daily evapotranspiration (ET), weight gain change (ΔPW_n), instantaneous whole plant transpiration rate (E), and stomatal conductance (g_sc) of plants [23,24].

$$E{T}_C=W_m-W_e$$

(5)

where ET_c is the difference between the readings of the IWS at 00:00 of the present day and that at 00:00 of the next day (g), W_m is the average weight of the two sampling moments before and after 00:00 of the day (g), W_e is the average weight of the two sampling moments before and after 00:00 the next day (g).

$$\Delta P{W}_n=W_n-W_{n-1}$$

(6)

where ΔPW_n can be calculated by the difference of the weight between the nth irrigation and the n − 1th irrigation (g), W_n is the average weight of the two sampling times before and after the nth irrigation (g), W_n−1 is the average weight of the two sampling times before and after the n − 1th irrigation (g).

$$E=-{\left(\frac{dW}{dt}\right)}_k\approx -\frac{W_k-W_{k-1}}{t_k-t_{k-1}}$$

(7)

where E is obtained by multiplying the first derivative of the measured time series by −1 (g h⁻¹), W_k is the IWS reading when time is t_k (g), W_k−1 is the IWS reading when the time is t_k−1(g). The weight gain of the plant in the short time interval, which is used to calculate the transpiration rate, is assumed to be negligible. Under the condition of soil water deficit, the WUE of the plant changes very little. Hence, it can be neglected.

$$g_{sc}=\frac{E\cdot P_{atm}}{LA\cdot VPD}$$

(8)

where g_sc is calculated as the ratio of the transpiration rate of the entire plant, the atmospheric pressure to the leaf surface area and the saturated vapor pressure deficit (mmol m⁻² s⁻¹), $P_{atm}$ is the atmospheric pressure (101.3 kPa), E is the transpiration rate (g h⁻¹), LA is the leaf surface area (m²), VPD is the saturated water vapor pressure deficit (KPa).

2.6. Data Analysis

Data analysis was performed by SPSS software, chart drawings were created by Origin software, data processing was conducted by Excel software, and significance analysis was conducted by performing one-way analysis of variance.

2.7. Technical Roadmap

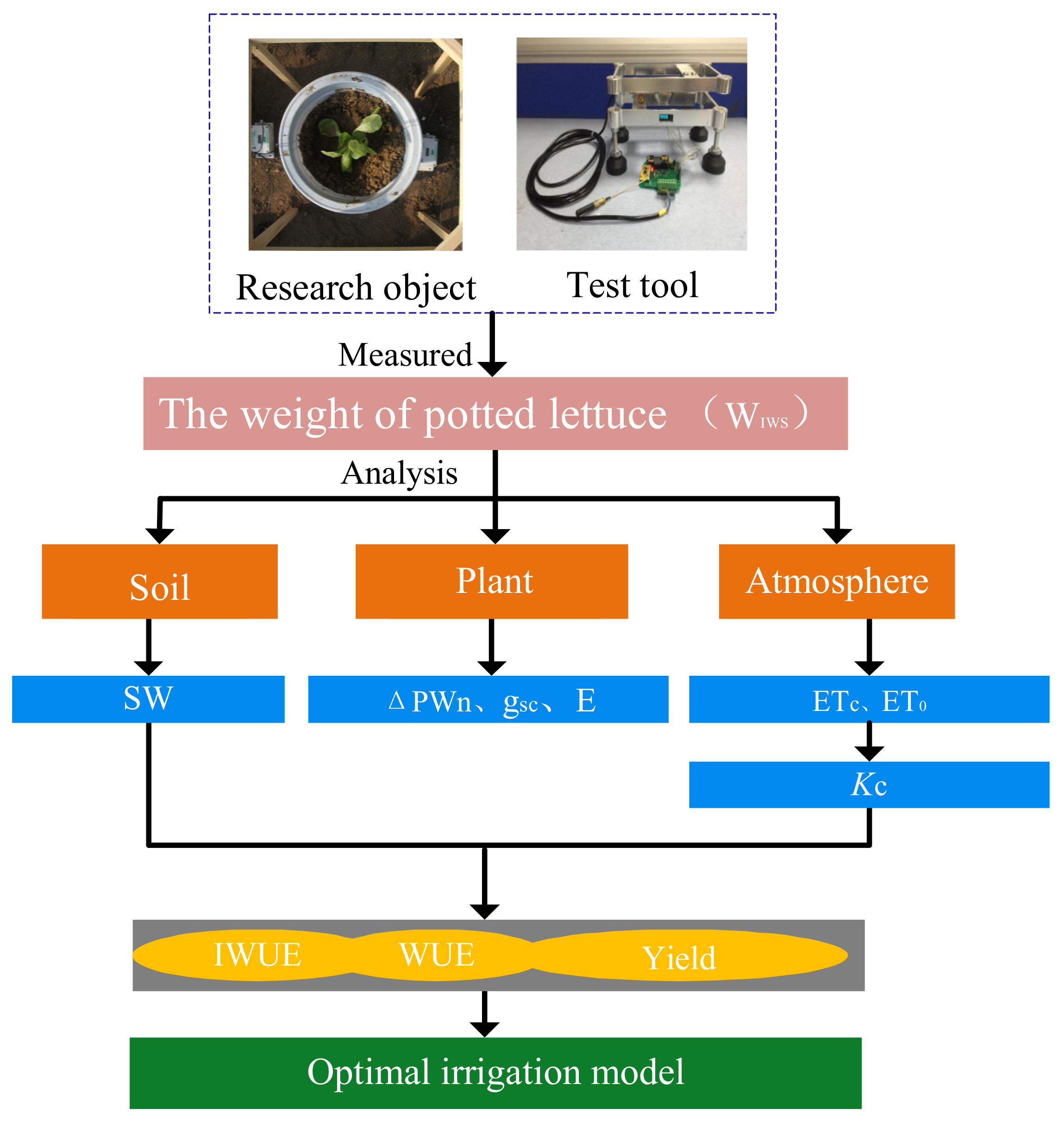

The experimental technical roadmap is illustrated in Figure 3, which includes the following steps: 1. With lettuce as the research object and IWS as the tool, the weight of potted lettuce (W_IWS) is measured according to the IWS; 2. According to W_IWS, the characteristic parameters of soil (soil moisture weight [SW]), plant ([ΔPW_n], [g_sc], [E]), and atmosphere (ET_c) are analyzed. K_c is calculated from ET_c and ET₀; 3. The optimal irrigation model is obtained by comparing irrigation water use efficiency (IWUE), WUE, and yield.

3. Results

3.1. Hardware Design Module of IWS

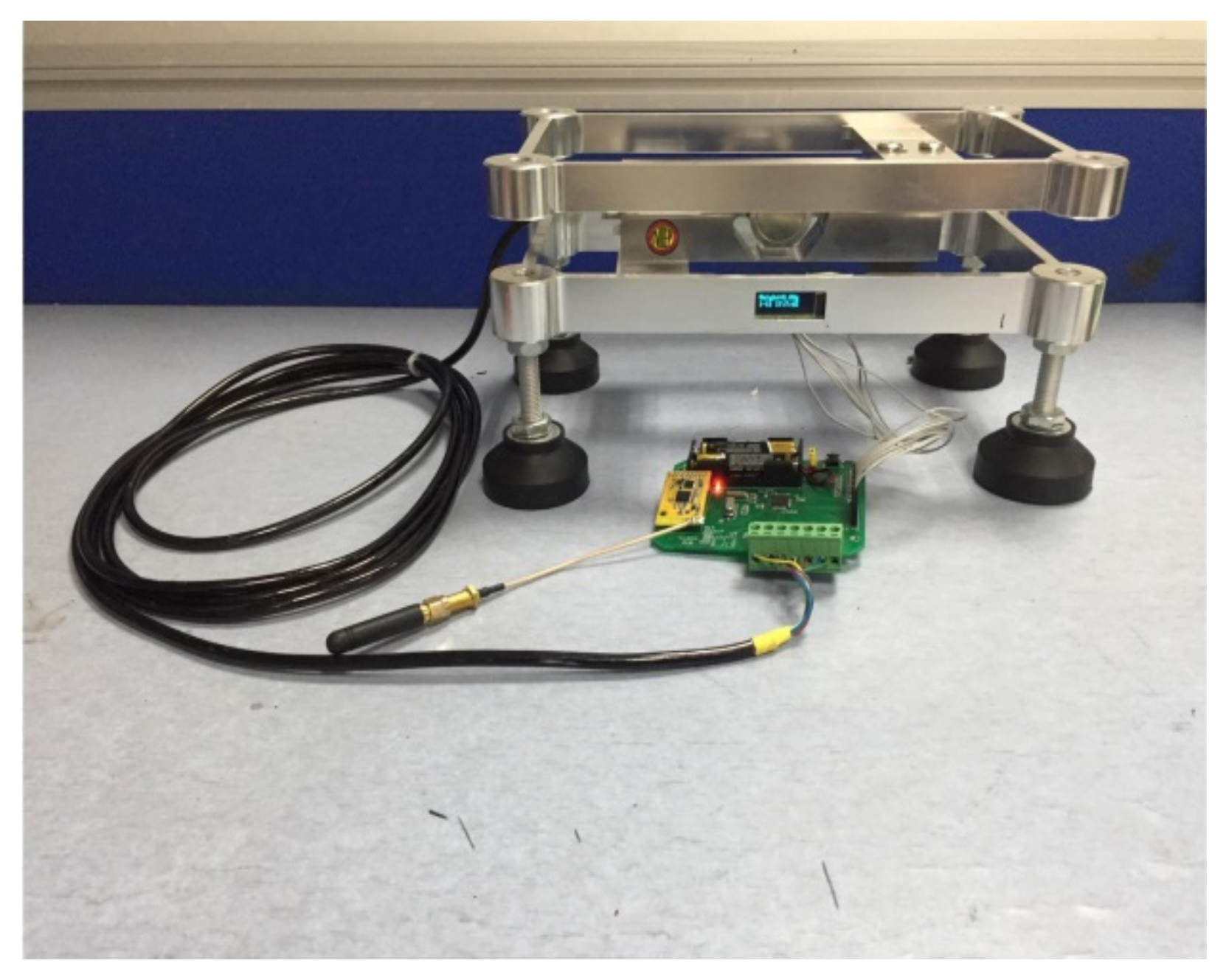

Figure 4 illustrates the hardware structure of the IWS developed by Beijing Research Center for Intelligent Equipment in Agriculture. It includes six parts: the main controller, power supply, data collection, data display, data storage, and communication module. The main controller uses STM32′s low-power series L431CCT6, which can coordinate the normal operation of various components. The power supply uses TI’s TPS61221 boost chip to convert the 3 V voltage provided by the dry battery to an operating voltage of 3.3 V required by the system. For data collection, the HX712 electronic scale-dedicated high-precision A/D conversion chip from Haixin Technology Co., Shenzhen, China is used to collect the weight information. The data display adopts a 0.91 inch OLED with an SSD1306 controller, which can display the real-time weight and time of the scale. Data storage uses NOR flash type W25Q64, which is used to store system parameters and backup the real-time weight and time of the collection scale. The communication module adopts low-power wide-area network technology for data transmission between nodes and industrial tablet computers [17].

3.2. Analysis of the Changes of Soil Moisture Content under Different Water Treatments Based on IWS

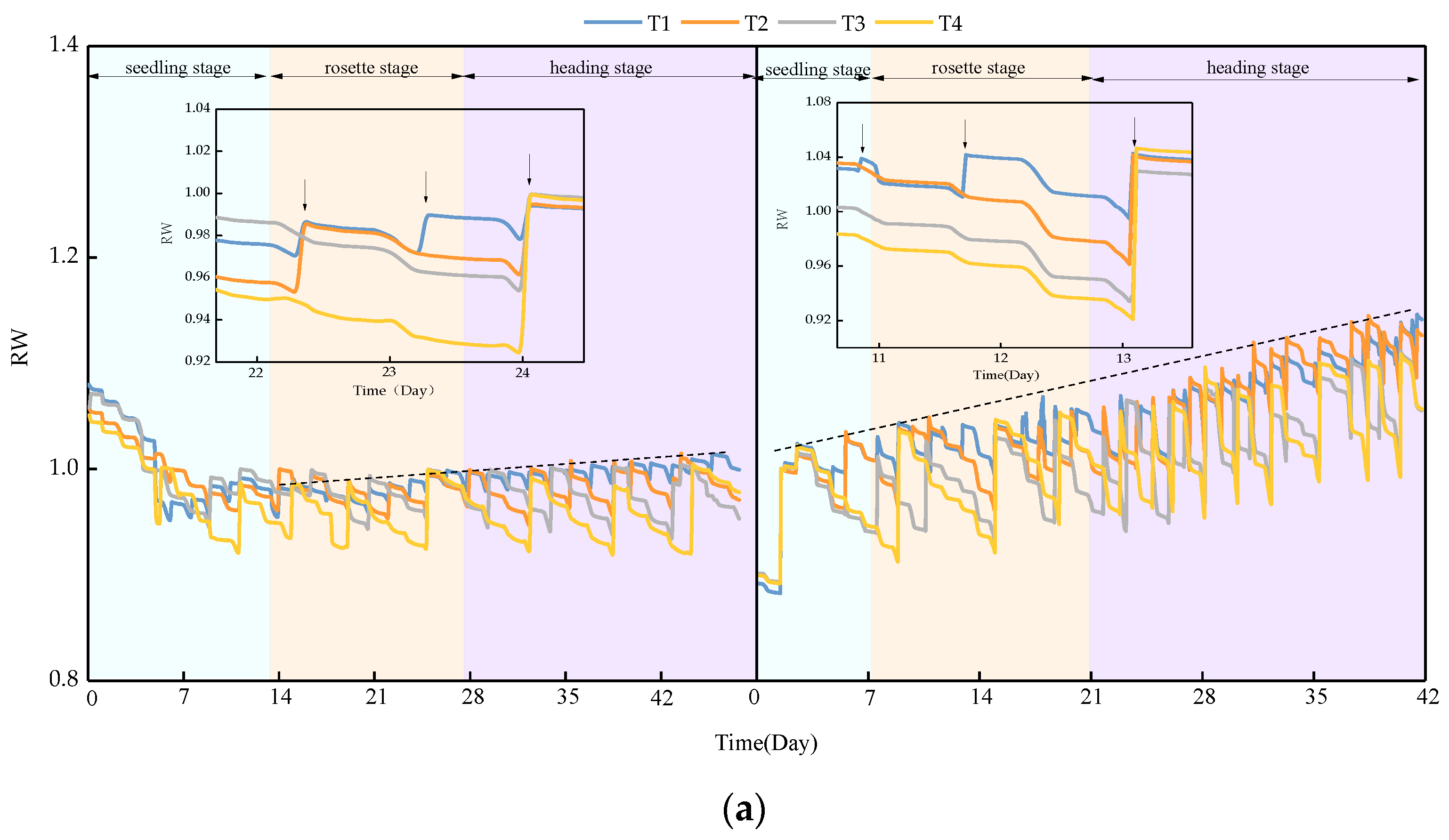

Figure 5a illustrates the change trend of the relative weight of the IWS during the entire growth period under different water treatments (RW is the ratio of the weight at different weighing times to the weight at the beginning). The IWS can accurately reflect the changes in the weight of potted plants at different times during different growth periods. The direction of the arrow indicates the time of irrigation, and the increase in the dotted line indicates an increase in plant weight. With the change of the irrigation amount, RW fluctuates. The fluctuation range of soil moisture under T1 treatment is significantly smaller than that of the other treatments. This is because the single irrigation amount of T1 treatment is small. As the growth period progresses, the frequency of irrigation gradually increases. In the early stage of seedlings, lettuce is not processed because of soil moisture irrigation. During the rosette stage, the leaf area of lettuce increases, the water consumption increases as well, and the peak moments are different under different water treatments. At the end of heading, the lettuce is close to maturity, the water demand decreases, and the frequency of changes in RW decreases as well. During the entire growth period, in the first season experiment, the RW intervals of T1, T2, T3, and T4 are 0.95–1.08, 0.94–1.06, 0.93–1.06, and 0.92–1.05, respectively. The RW ranges of T1, T2, T3, and T4 in the second season are 0.90–1.14, 0.89–1.14, 0.89–1.11, and 0.89–1.10, respectively.

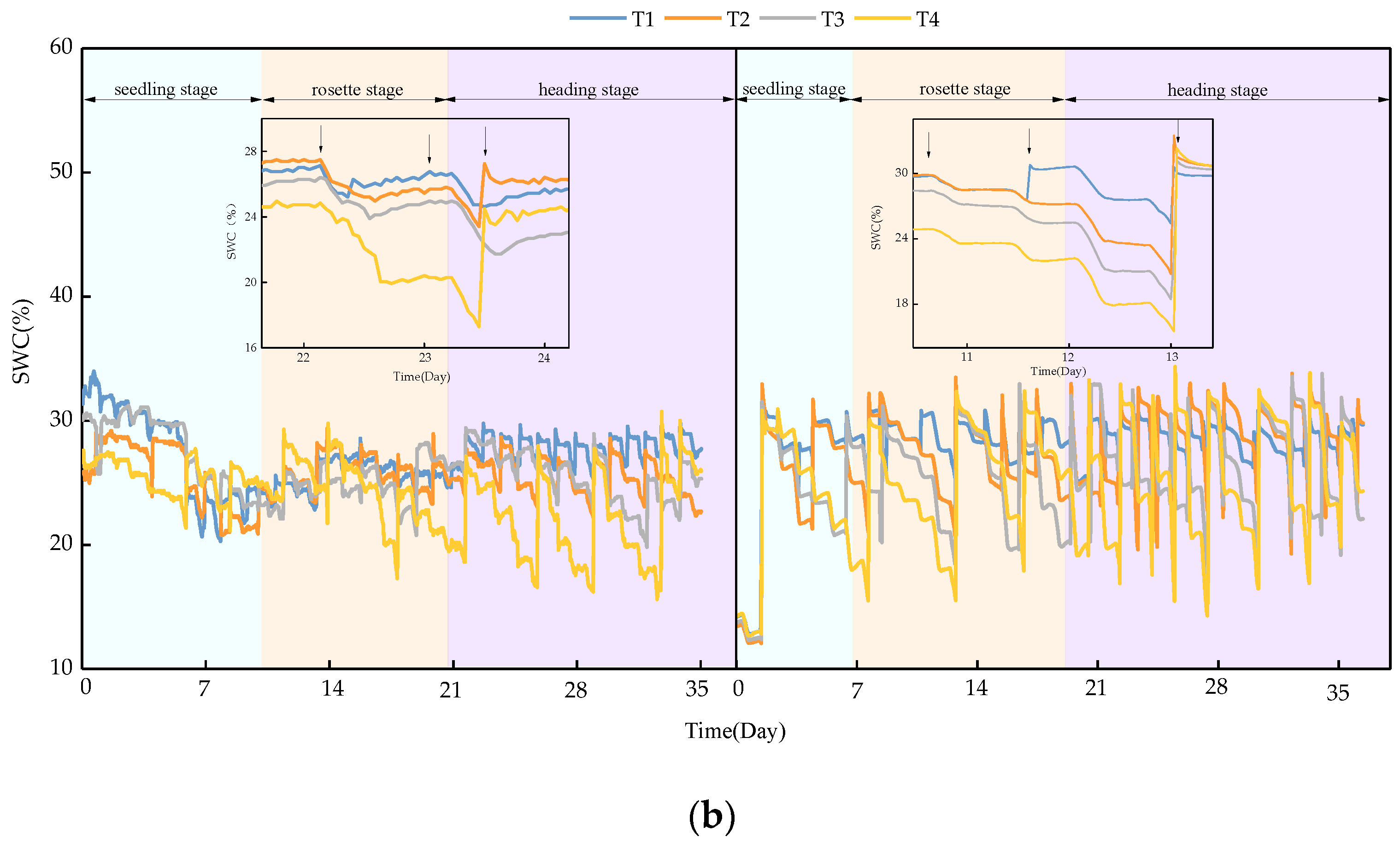

Figure 5b illustrates the change trend of SWC during the entire growth period under different water treatments. The SWC of lettuce fluctuates under different water treatments. In the first season, the upper limit of SWC for T1, T2, T3, and T4 is 29.75%, and the irrigation low limit is 26.77%, 23.80%, 20.82%, and 17.85%, respectively. In the second season, the upper limit of SWC for T1, T2, T3, and T4 is 31.00%, and the irrigation low limit is 27.90%, 24.80%, 21.70%, and 18.60%, respectively. When the SWC of T1, T2, T3, and T4 drops to the corresponding lower limit, the irrigation will be performed until the SWC reaches the irrigation maximum. The figure illustrates that the first season experiment belongs to the autumn stubble. As the temperature decreases, the water consumption of lettuce decreases, and the frequency of SWC fluctuations gradually decreases as well. The second season test is spring stubble. As the temperature increases, the water consumption of lettuce increases, and the frequency of SWC fluctuations gradually increases as well. The average soil moisture content is the lowest under T4 treatment and is in a long-term low-moisture state.

The IWS is more consistent with the change trend of the SWC. The maximum and minimum values of SWC correspond to the moments when the maximum and minimum values of W_IWS appear, which indicates that the IWS can sensitively describe the influence of soil moisture changes.

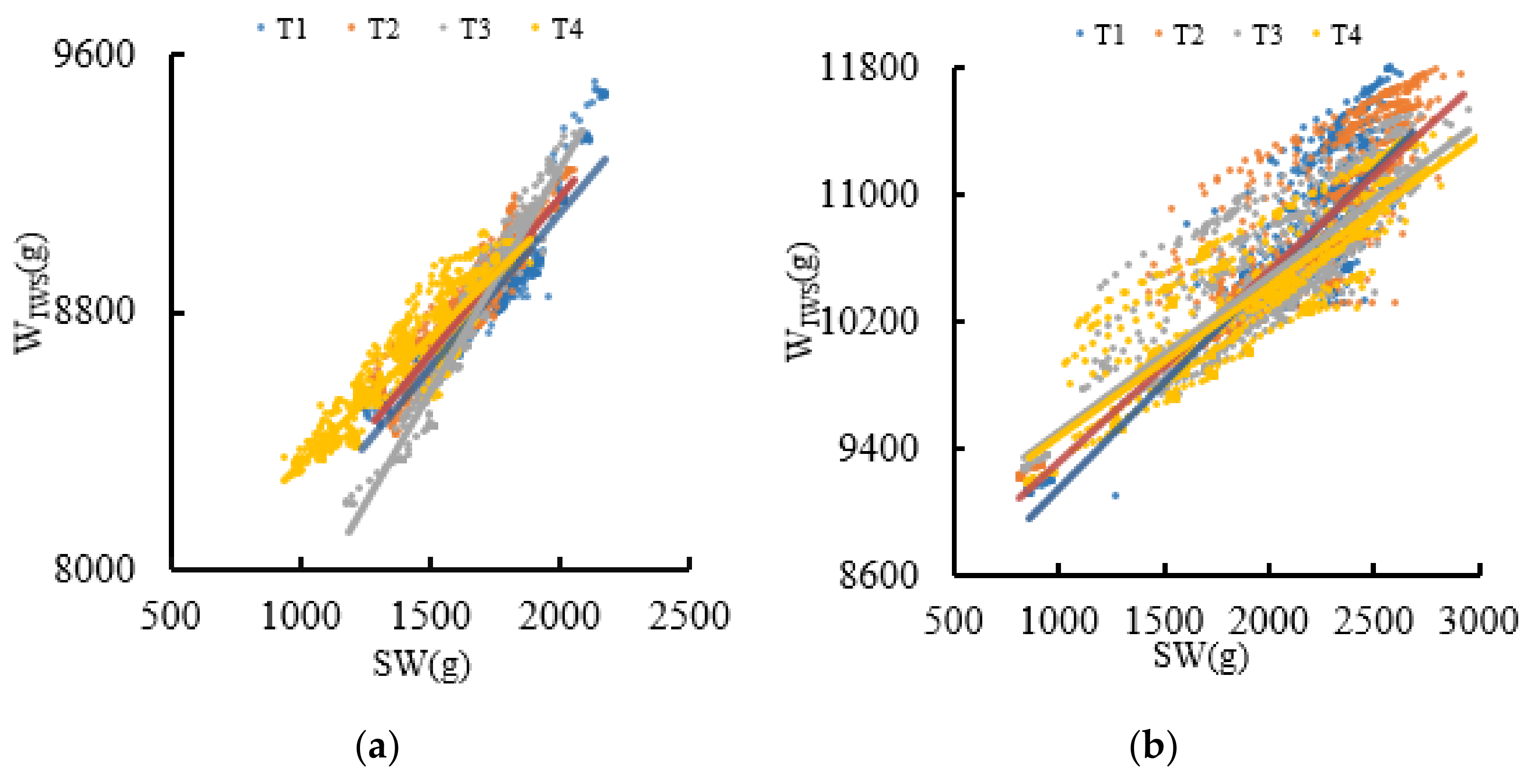

Linear regression analysis is used to fit the W_IWS and SW of four irrigation low limit treatments to further explore the accuracy of W_IWS response to SW under different water treatments. As illustrated in Figure 6, the fitting effect of W_IWS and its corresponding SW under the four gradients in the first and second seasons is quite good, reaching a significant level of 5%. The determination coefficients for the first and second seasons are 0.87, 0.87, 0.94, 0.85, and 0.64, 0.73, 0.70, 0.76, respectively (

Table 2. Regression analysis of SW and W_IWS under different water treatments.

Planting Season	Treatment	Fitted Equation	Determination Coefficient/R2	p
First season	T1	WIWS = 0.96 SW + 7186.5	0.87	**
	T2	WIWS = 0.96 SW + 7226.4	0.87	**
	T3	WIWS = 1.39 SW + 6472.0	0.94	**
	T4	WIWS = 0.79 SW + 7541.2	0.85	**
Second season	T1	WIWS = 1.33 SW + 7830.1	0.64	**
	T2	WIWS = 1.21 SW + 8094.3	0.73	**
	T3	WIWS = 0.97 SW + 8525.9	0.70	**
	T4	WIWS = 0.95 SW + 8534.4	0.76	**

Note: ** means the difference between the two variables is extremely significant.

). Overall, because the weight of the lettuce in the second season is more than three times of that in the first season, the weight symmetry of the lettuce has a higher influence. For a similar water weight in the soil, the weight of the scale varies widely. Therefore, the coefficient of determination in the second season is lower than that in the first season.

3.3. Growth Analysis under Different Water Treatments Based on IWS

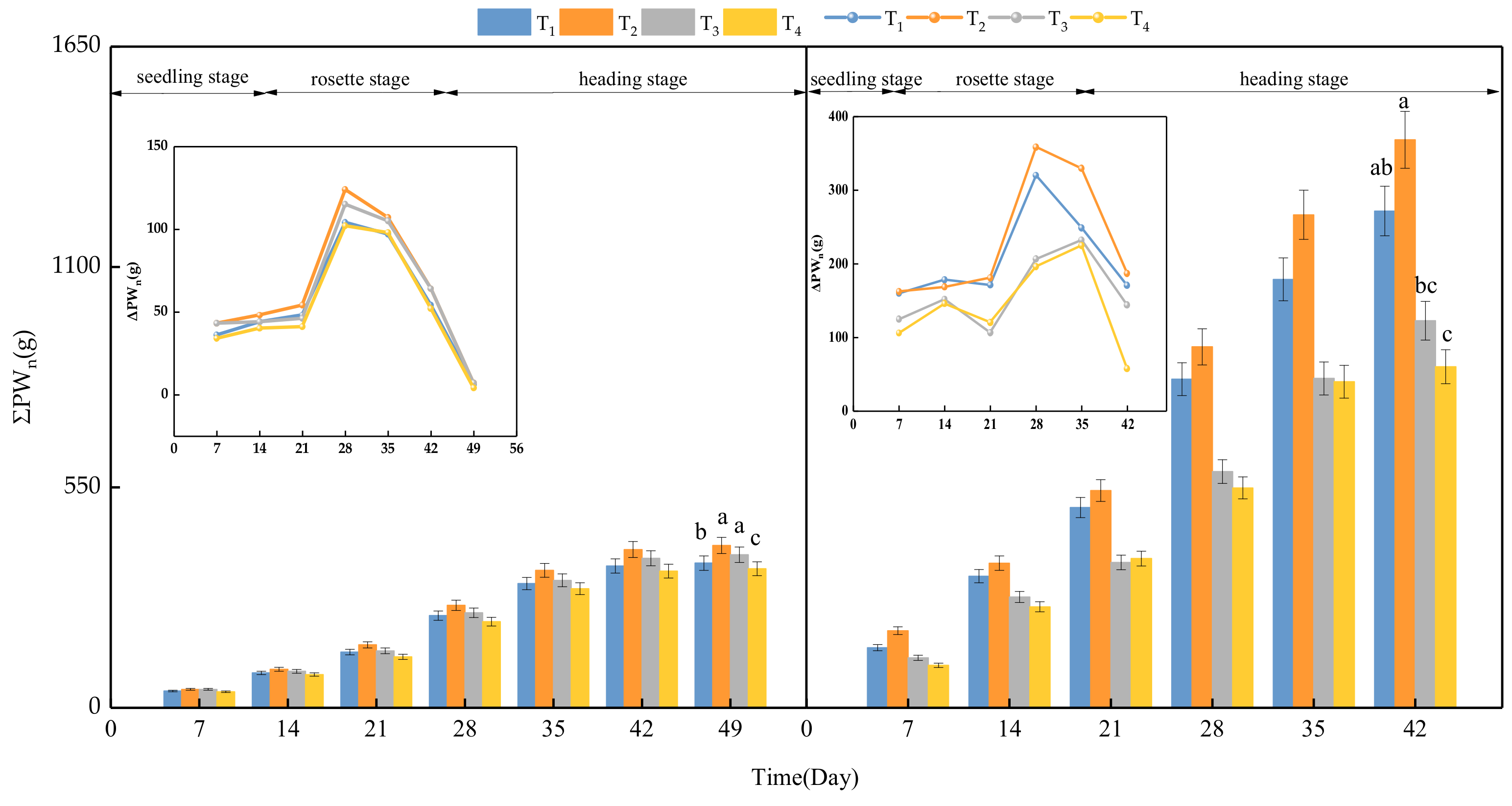

Figure 7 illustrates the change trend of lettuce weight gains under different water treatments. According to the IWS, ΔPW_n and cumulative weight gain (ΣPW_n) of lettuce are calculated, which can clearly reflect the growth of lettuce in different growth periods, and describe the weight change of lettuce throughout the growth cycle. The figure indicates that ΔPW_n generally increases first and then gradually decreases. Under different water treatments, the weight gain rates of T1, T2, T3, and T4 in the first season are 7.37 g/d, 8.27 g/d, 7.80 g/d and 7.08 g/d, respectively. The weight gain rates of T1, T2, T3, and T4 in the second season are 29.75 g/d, 33.03 g/d, 22.99 g/d, and 20.26 g/d, respectively. In the first season, the ΔPW_n of the lettuce under the T2 treatment is the highest in the seedling and rosette stages, and the ΔPW_n of the lettuce under the T3 treatment is the highest in the late heading stage. During each growth period of lettuce in the second season, ΔPW_n is the highest under T2 treatment. Overall, lettuce has the fastest weight gain rate under T2 treatment, and ΔPW_n is the highest. At the end of the growth period, the ΣPW_n of T1, T2, T3, and T4 in the first season is 361 g, 405 g, 382 g, and 347 g, respectively. The ΣPW_n of T1, T2, T3, and T4 in the second season is 1239.67 g, 1417.34 g, 965.87 g, and 851.167 g respectively. At the 5% significance level, the differences between the different treatments are significant.

Null hypothesis means that there is no significant difference in the mean values of the controlled variables observed at different levels, that is, there is no significant difference in the mean values of experimental results under four different water treatments. Partial results of one-way ANOVA are shown in

Table 3. Analysis of univariate variance for different water treatments.

Planting Season		Quadratic Sum	Degree of Freedom	Mean Square	F	Significant
First Season	Among groups	6500.92	3	2166.97	46.60	0.00
	Group communication	372.00	8	46.50
	Gross	6872.92	11
Second season	Among groups	556,997.08	3	185,665.69	6.574	0.02
	Group communication	225,944.99	8	28,243.12
	Gross	782,942.07	11

. The significance of lettuce weight gain in the first season is 0.00 and 0.02 in the second season. Both are less than 0.05. At the significance level of 0.05, the probability value p is lower than 0.05, so the null hypothesis is not valid. It is believed that if the overall mean values of the observed variables are different at different levels, then the different water treatments have significant effects on the weight gain of lettuce.

3.4. Physiological Analysis under Different Water Treatments Based on IWS

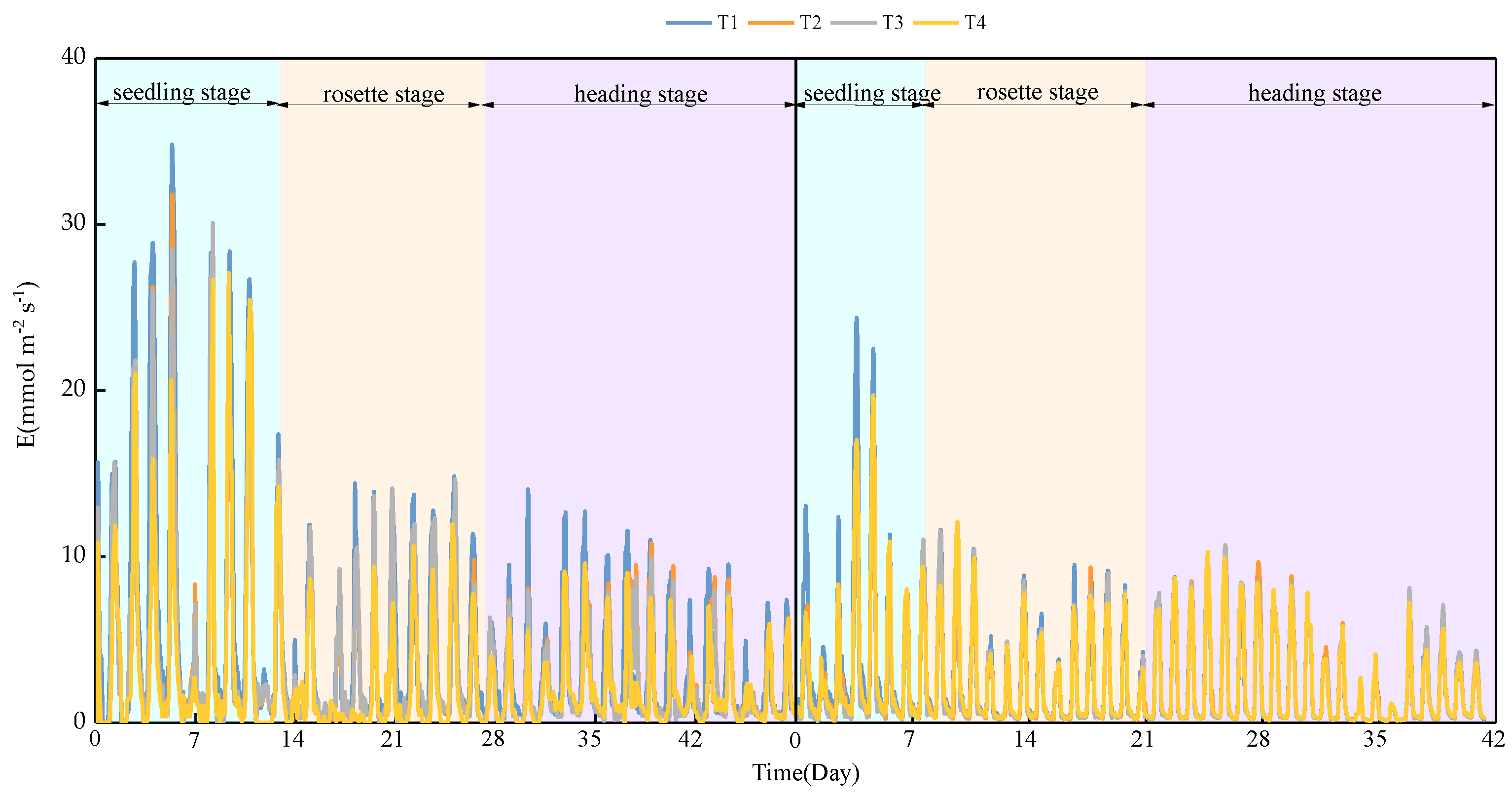

Figure 8 illustrates the E of the whole lettuce during the entire growth period under different water treatments. To eliminate the influence of lettuce size on E, we normalize it to the leaf surface area. The figure illustrates that during the entire growth period, E exhibits a significant fluctuating change. As the growth period progresses, lettuce E gradually decreases. Under different water treatments, the hourly average E during the entire growth period of T1, T2, T3, and T4 in the first season is 2.43 g·h⁻¹, 2.57 g·h⁻¹, 2.35 g·h⁻¹ and 2.02 g·h⁻¹. The average hourly E during the entire growth period of T1, T2, T3 and T4 in the second season is 2.23 g·h⁻¹, 2.29 g·h⁻¹, 2.22 g·h⁻¹, and 2.12 g·h⁻¹, respectively. The research results in the first and second seasons indicate that E is at its lowest value for a long time under T4 treatment. At the 5% significance level, the differences between the different water treatments are significant.

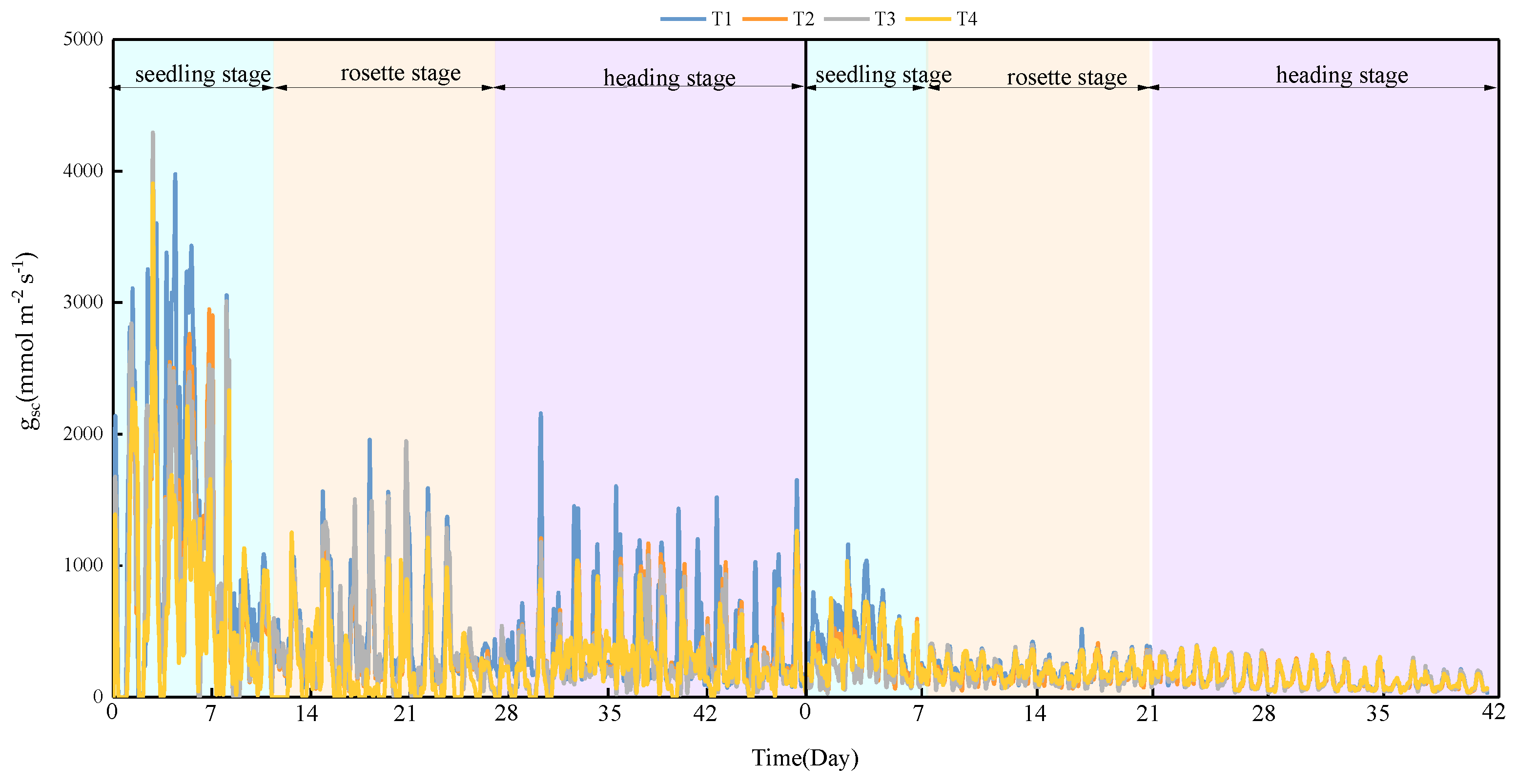

g_sc is the main channel for gas exchange between plant leaves and the outside world, and the degree of stomatal dispersion has a direct effect on transpiration. Figure 9 illustrates the change trend of the g_sc of lettuce under different water treatments. Generally, the g_sc of lettuce decreases gradually, and g_sc decreases significantly in the late seedling stage. Under different water treatments, the average hourly g_sc of T1, T2, T3, and T4 in the first season are 364.53 mmol m⁻² s⁻¹, 396.48 mmol m⁻² s⁻¹, 326.48 mmol m⁻² s⁻¹, and 300.60 mmol m⁻² s⁻¹, respectively. The average hourly g_sc of T1, T2, T3, and T4 in the second season are 180.32 mmol m⁻² s⁻¹, 186.85 mmol m⁻² s⁻¹, 172.07 mmol m⁻² s⁻¹, and 162.74 mmol m⁻² s⁻¹, respectively. When the plant is in the seedling stage, a major difference in g_sc exists under different water treatments. As time progresses, the difference gradually decreases. The g_sc values of the first and second seasons are considerably different. This is because although the ET_c of lettuce in the second season is higher than that in the first season, the g_sc normalized leaf area in the second season is more than three times that in the first season; hence, the g_sc in the second season is lower than that in the first season. At the 5% significance level, significant differences exist between the different water treatments.

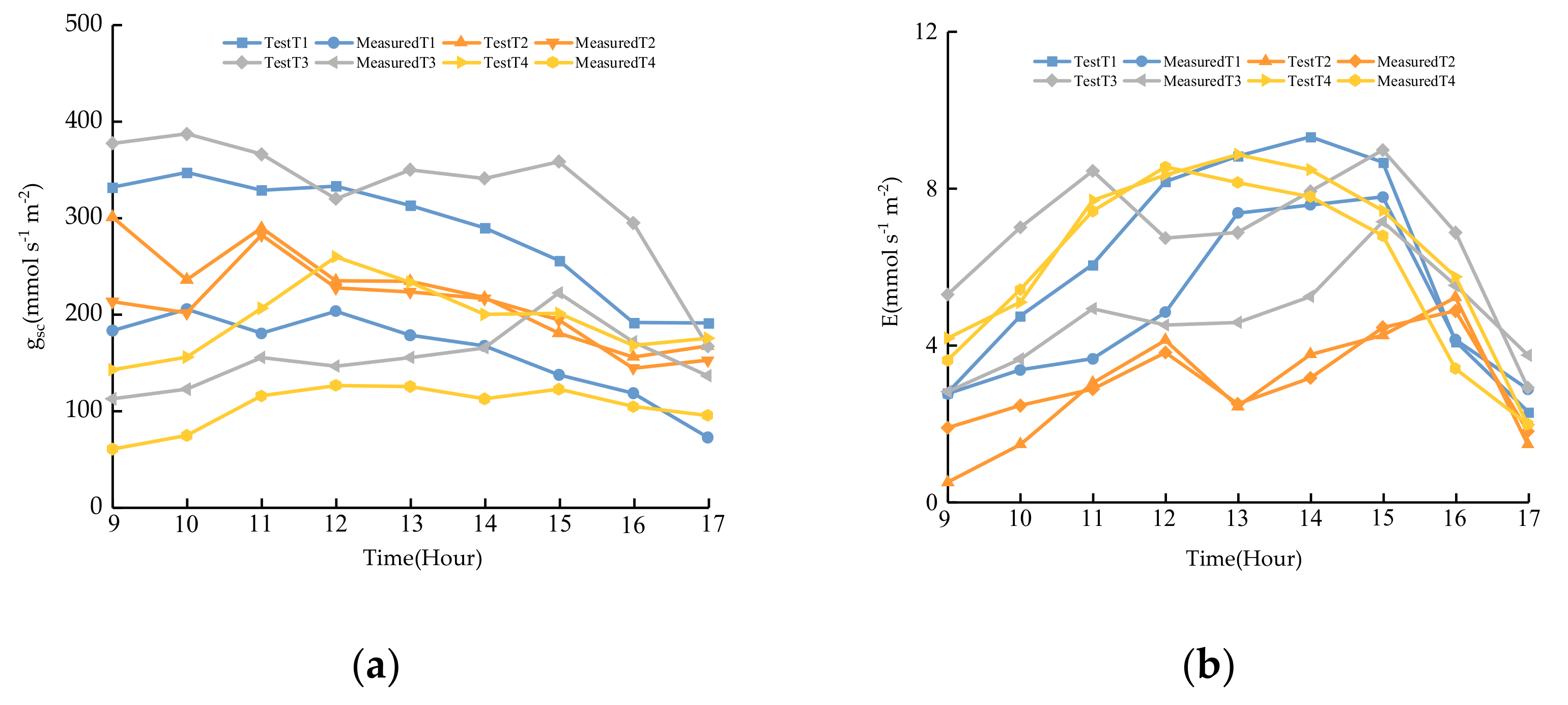

In addition, we simultaneously measured the E and g_sc of lettuce leaves under the four moisture gradients on the IWS using a photosynthesis meter. Figure 10 illustrates the actual measured value of lettuce by a photosynthetic instrument in the second season and the experimental value calculated according to the IWS. The accuracy of the measurements is hence verified.

3.5. Plant Evapotranspiration Analysis under Different Water Treatments Based on IWS

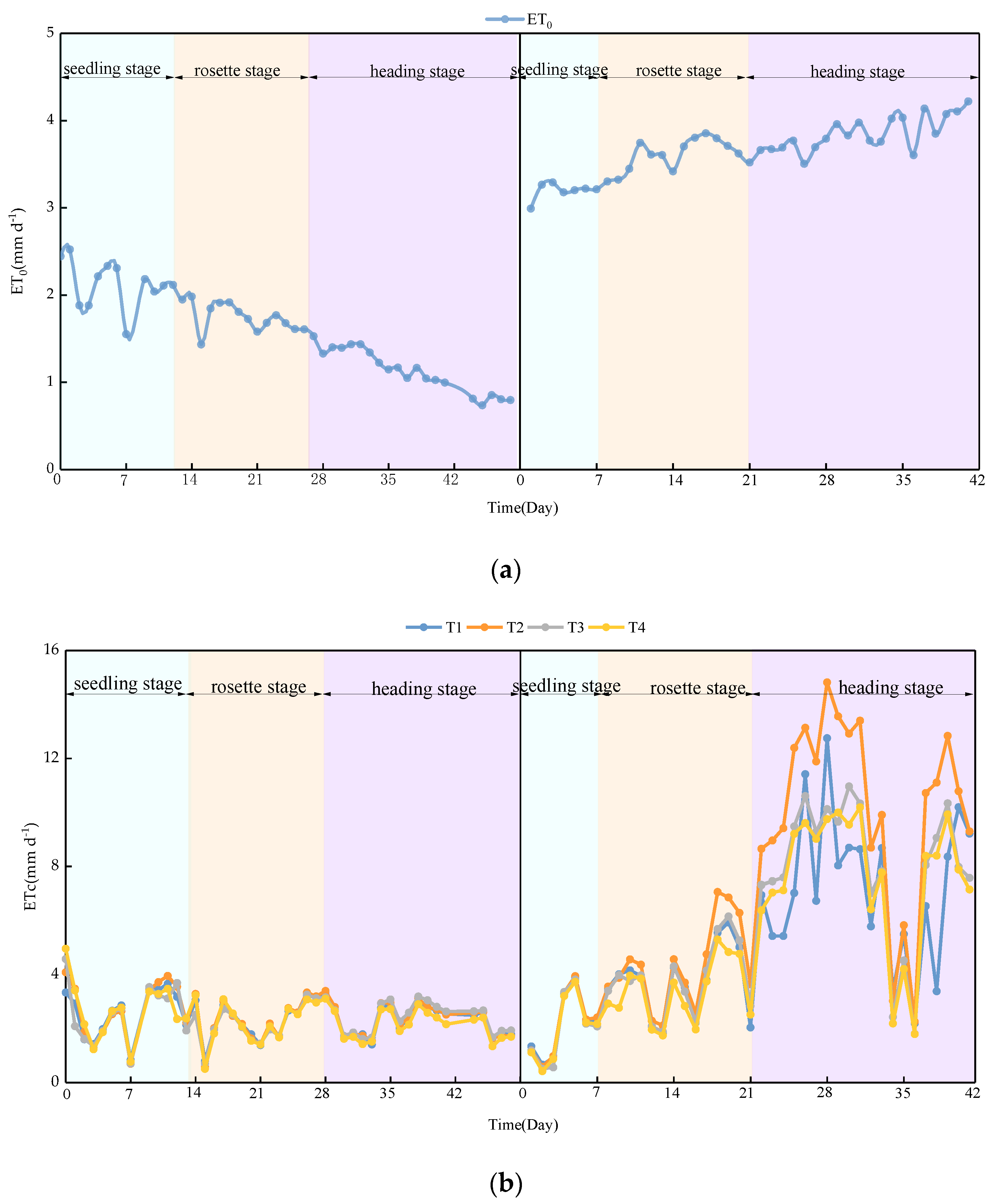

Based on the ET₀ calculated according to the weather monitoring data (Figure 11a), the ET₀ in the first season generally indicates a fluctuating downward trend owing to daily temperature changes during the entire growth period. ET₀ reaches the highest level in the seedling stage, which is 2.76 mm d⁻¹. ET₀ reaches the lowest value in the heading stage, which is 0.80 mm d⁻¹. The ET₀ of the second season generally indicates a volatile upward trend. ET₀ reaches its highest value during the heading stage, which is 4.22 mm d⁻¹. ET₀ reaches the lowest level in the seedling stage, which is 2.99 mm d⁻¹. Figure 11b illustrates that the ET_c of lettuce calculated according to the IWS can clearly show the water demand of lettuce at different growth periods, and describe the water consumption characteristics of plants throughout the growth cycle. During the entire growth period, the ET_c fluctuates up and down. The ET_c of lettuce is the highest under T2 treatment. The ET_c of lettuce in the first season is 112.52 mm d⁻¹, which is 2.70%, 2.35%, and 5.21% higher than that under other treatments. The ET_c of lettuce in the second season is 278.61 mm d⁻¹, which is 32.07%, 23.21%, and 31.05% higher than that under other treatments. The ET_c of lettuce in the second season is different from that in the first season. Although the temperature in the greenhouse in the second season is higher than that in the first season, the leaf area of lettuce in the second season is larger than that in the first season, and transpiration and photosynthesis are stronger, which leads to an increase in the water demand. Judging from the overall changes in the first and second seasons, the trends of ET_c and ET₀ are roughly similar.

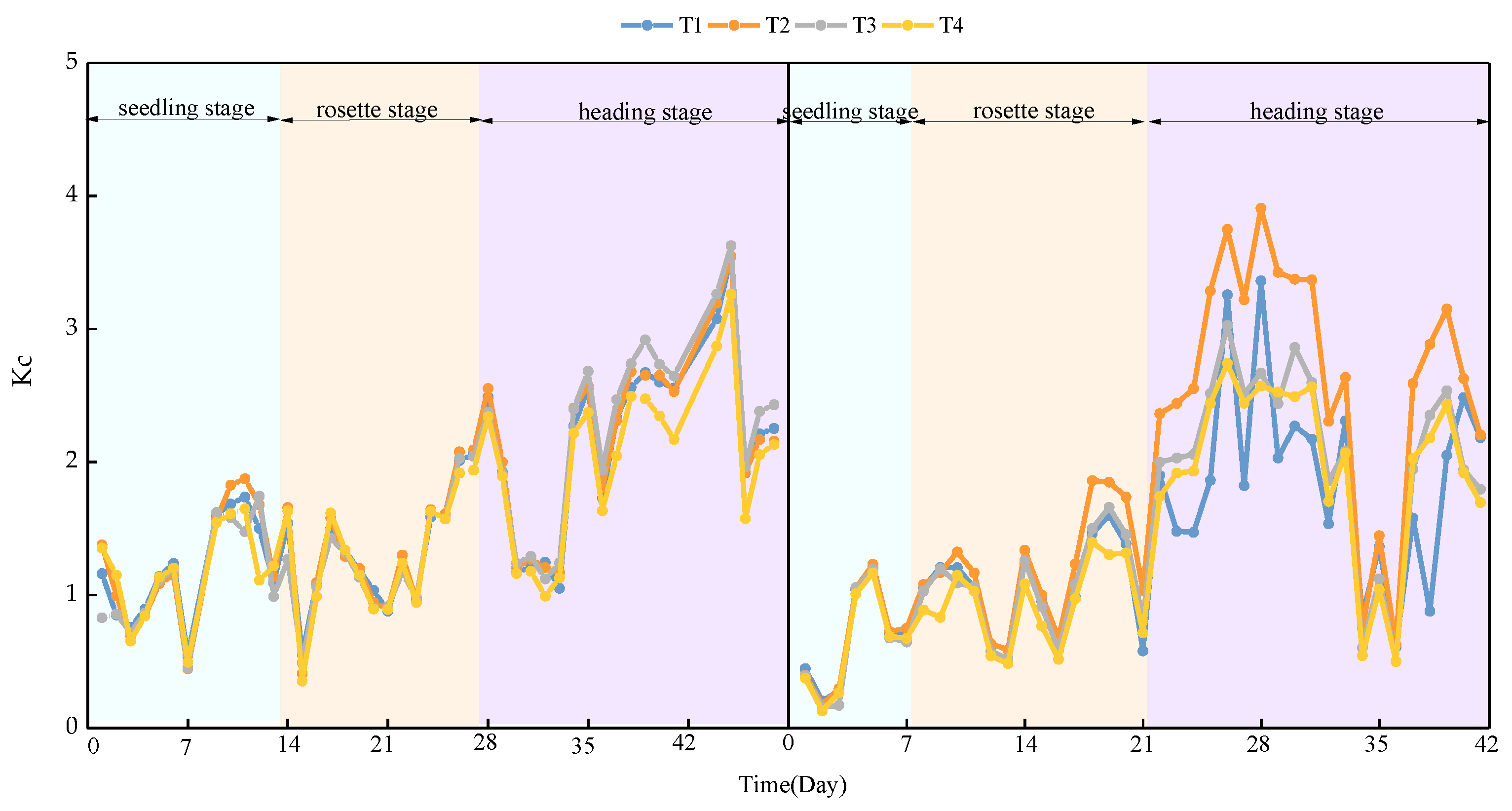

Based on the ET_c calculated by IWS, and ET₀ calculated by the modified Penman–Monteith formula, the daily K_c can be calculated as well. This reflects the K_c changes of crops at different stages in real time. Figure 12 illustrates that the lettuce K_c is different in different growth periods, and K_c indicates a gradual increasing trend. Under different water treatments, the daily average K_c of lettuce under T1, T2, T3, and T4 treatments in the first season are 1.64, 1.68, 1.67, and 1.57, respectively. The daily average K_c of lettuce under T1, T2, T3, and T4 treatments in the second season are 1.38, 1.81, 1.47, and 1.38, respectively. Combined with the results of the first and second seasons, it can be seen that as the growth period advances, the K_c of lettuce in the heading stage reaches the highest value, which is 2.26 and 2.56, respectively.

Table 4. K_c and water consumption of lettuce.

Index	Planting Season	Treatment	Growth Period
			Seedling Stage	Rosette Stage	Heading Stage
Crop coefficients	First season	T1	1.10 a	1.26 a	2.17 a
		T2	1.11 a	1.28 a	2.20 a
		T3	1.02 b	1.21 a	2.26 a
		T4	1.11 a	1.21 a	2.01 b
	Second season	T1	0.65 a	1.01 a	2.35 b
		T2	0.65 a	1.16 b	2.65 a
		T3	0.61 a	1.02 a	2.07 c
		T4	0.61 a	0.91 a	1.97 cd
Water consumption rate	First season	T1	2.36 a	2.31 a	2.40 a
		T2	2.39 a	2.37 a	2.45 a
		T3	2.19 b	2.21 a	2.50 a
		T4	2.39 a	2.23 a	2.24 b
	Second season	T1	1.17 a	4.52 a	8.96 a
		T2	2.37 b	4.39 b	8.22 b
		T3	0.75 c	3.86 c	8.14 b
		T4	0.70 c	3.68 c	7.37 c
Water consumption modulus/%	First season	T1	19.99 b	32.57 ab	47.45 b
		T2	19.85 b	32.76 ab	47.39 b
		T3	18.75 a	31.48 b	49.77 c
		T4	21.10 c	32.81 a	46.09 a
	Second season	T1	2.75 a	26.71 a	70.54 b
		T2	5.82 b	26.95 a	67.23 c
		T3	1.66 c	25.82 b	72.52 a
		T4	1.70 c	26.81 a	71.49 b

Note: The values with different letters indicate significant differences between different water treatments (p < 0.05).

indicates that the K_c of lettuce gradually increases during the entire growth period. The water consumption of lettuce varies significantly in different growth stages, and the water consumption modulus gradually increases as the growth period progresses. The test results of the first and second seasons indicate that the water consumption modulus during the heading stage is the highest. The first season accounts for approximately 48% of the total water consumption, and the second season accounts for approximately 70% of the total water consumption. It shows that the water consumption of lettuce increases during the heading stage. As the growth period progresses, the difference under different water treatments gradually increases. Overall, K_c under T4 treatment is the lowest. In the first season, K_c decreases by 7.96%, 8.64%, and 12.44% under T1, T2, and T3 treatments, respectively. In the second season, K_c decreases by 19.29%, 34.52%, and 5.08% under T1, T2, and T3 treatments, respectively.

4. Discussion

The IWS can sensitively reflect changes in crop weight during different growth periods at different times. The results indicate that W_IWS and SWC have similar changing trends, and a significant correlation exists between W_IWS and SW. The correlation in the second season is lower than that in the first season. This may be due to the different types of lettuce in the first and second seasons. The lettuce in the second season is three times as heavy as the lettuce in the first season. The daily weight gain of lettuce is ignored because it is small. However, under a similar SW, as the weight of the lettuce in the latter period increases, the variation range of W_IWS is affected by the weight of the lettuce, resulting in scattered data and reduced correlation.

“E” refers to the amount of water transpired per unit leaf area of crops over a certain period of time. Plant water transpiration is mainly performed by the stomata of leaves, which is an important channel for the exchange of gas and water between leaves and the external environment. The opening and closing of stomata play an important role in plant transpiration. The results of the experiments indicate that as the irrigation volume decreases, E and g_sc also decrease. Álvarez et al. [25] believe that deficit irrigation treatment reduces stomatal conductance, which reduces the relative growth rate of plants, as well as transpiration and photosynthesis. This is because when crops suffer from soil water deficit, they cannot obtain the water required to meet the photosynthesis of plants. The photosynthesis of plants is weakened, the g_sc of crops will decrease, and E will also decrease, so as to effectively reduce the water loss of crops during transpiration. The E and g_sc of lettuce under T2 treatment are higher than those under other water treatments when the lettuce enters into the rosette and heading stages. This is because the SWC under T1 treatment is too high, which inhibits lettuce respiration, thus affecting transpiration and photosynthesis. Under T4 treatment, the SWC is too low to meet the water required for photosynthesis in lettuce, and photosynthesis is weakened [26]. In addition, the leaf area of lettuce under T2 treatment is significantly higher than that of the other treatments, which increases the g_sc of lettuce. In the first season, the leaf area under T1, T2, T3, and T4 treatments were 464.67 cm², 481.64 cm², 473.30 cm², and 403.30 cm², respectively. In the second season, the leaf area under T1, T2, T3, and T4 treatments were: 2515.50 cm², 2609.63 cm², 2104.87 cm², and 1849.75 cm², respectively.

Based on the IWS, the weight of lettuce was monitored in real time and continuously, and the variation law of plant evapotranspiration during the growth period was analyzed. The change of ET_c is closely related to the change of environmental factors; hence, we further explore the relationship between ET_c and environment (

Table 5. Correlation analysis between ET_c and temperature.

Planting Season	ETc	ρ
First season	T1	0.854 **
	T2	0.916 **
	T3	0.798 **
	T4	0.882 **
Second season	T1	0.816 **
	T2	0.829 **
	T3	0.799 **
	T4	0.807 **

Note: ** means very significant (p < 0.01).

). There is a significant positive correlation between ET_c and T under different water treatments. With the increase of temperature, plant evapotranspiration also increases. The results of the first and second seasons indicate that the ET_c and water consumption of the T2 treatment are higher than those of other treatments in the rosette and heading stages. This is because with the passage of time, the leaf area of plants under T2 treatment gradually increases and photosynthesis is gradually enhanced, resulting in an increase in the ET_c of plants. This finding is similar to the results reported by Chang et al. [27].

Water regulation has an important effect on plant growth and output. K_c is an important parameter for calculating crop ET_c and reflects the influence of the biological characteristics of the crop itself, crop type, and yield level on crop water demand. Obtaining the K_c accurately is difficult. Currently, this process is mainly based on experience values [28,29,30]. This study analyzes the ET_c of lettuce based on the IWS and calculates the ET₀ through the environmental parameters obtained by the weather station to analyze the daily K_c of lettuce. Studies have indicated that under different water treatments, K_c decreases as the amount of irrigation decreases. This may be because the crops under T4 treatment have been in severe water deficit for a long time during the rosette and heading stages, which inhibits the growth of crops. In the rosette and heading stages, the K_c under T2 treatment is higher than that under the other treatments, because the leaf area gradually increases over time.

Table 6. Analysis of lettuce weight and water use efficiency under different water treatments.

Planting Season	Treatment	Yield/(kg)	IWUE/(kg/m3)	WUE/(g/kg)
First season	T1	0.381 b	48.67 ab	56.27 b
	T2	0.425 a	54.06 a	61.34 a
	T3	0.402 a	53.57 ab	59.42 a
	T4	0.367 c	50.02 b	55.88 b
Second season	T1	1.303 ab	65.42 a	83.26 b
	T2	1.428 a	79.19 bc	94.88 a
	T3	1.026 bc	72.06 c	74.21 c
	T4	0.885 c	69.79 a	69.74 c

Note: The values with different letters indicate significant differences between different water treatments (p < 0.05).

indicates that the yield under T2 treatment has significantly increased by 11.55%, 5.72%, and 15.80% compared with other treatments in the first season. In the second season, the yield under T2 treatment has significantly increased by 9.59%, 39.18%, and 61.36% compared with other treatments. From the perspective of IWUE, the T2 treatment significantly increases by 11.07%, 0.91%, and 2.16% compared with other treatments in the first season. In the second season, the T2 treatment significantly increases by 21.05%, 9.89%, and 13.47% compared with other treatments. From the perspective of WUE, lettuce in the second season has significantly higher water use efficiency than in the first season. This result may be because of the high temperature of the greenhouse in the second season, which increased transpiration of the lettuce, and increased the water demand, resulting in a reduction in water loss from irrigation. From the perspective of plant physiological monitoring by the IWS, the higher photosynthetic rate of T2 treatment in the first and second seasons promoted plant growth. Based on the results of the first and second seasons, it can be seen that the lower limit of soil water irrigation for lettuce planting is 80%. A very high or very low water level is not good for growth and development. Excessive water irrigation will cause the soil to be in a state of water saturation for a long time, resulting in soil waterlogging, and thereby forming hypoxia deficit in the root system, which affects the growth above ground. At a very low irrigation level, the water in the soil will not reach the environment required for the growth of lettuce, thus forming soil water deficit and affecting its growth rate. This finding is consistent with the results of previous studies [31,32].

The results of growth physiological parameters of leaf-expansion lettuce in the first season and heading lettuce in the second season showed that the E and g_sc of lettuce in the second season were lower than those in the first season. This was because the greenhouse temperature of lettuce in the heading stage in the second season was higher than that in the first season, which inhibited g_sc and E. The ΔPW_n of lettuce in the second season was faster than that in the first season, and the K_c and ET_c of lettuce in the second season were higher than that in the first season. This is due to the different varieties and types of lettuce in the first season and the second season. The heading lettuce in the second season was heavier than the leaf-expansion lettuce in the first season, and the greenhouse temperature in the second season was higher, so the lettuce in the second season needed more water. However, the ΔPW_n, E, g_sc, yield, WUE, and other growth physiological parameters of lettuce in both of the first and second seasons were the highest under T2 treatment among the four different water treatments. The results show that T2 treatment has higher irrigation efficiency for different types of lettuce. Under the condition of water resource shortage, it can be used as a method for farmers to improve water use efficiency of lettuce.

The advantages of our IWS are as follows: 1. It can realize continuous online monitoring of SPAC, and the K_c analytical method is established. 2. It is not affected by soil texture. Currently, dielectric method is commonly used to measure soil moisture content [33]. Due to the complexity of the soil dielectric properties of different soil types, the high-precision measurement of soil moisture at different scales is affected in the measurement process. However, the IWS measures the changes of the entire soil. So, it would not be affected by the soil moisture accuracy measurement. 3. It is applicable to a wide range of plants, such as ornamental potted plants, leafy vegetables, flowers, etc. However, the application of IWS is also limited by specific crops. For crops such as tomatoes and cucumbers, vine hangings are required during the growth process. The hanging vines split the load with symmetrical weight, resulting in inaccurate measurements. Therefore, IWS can be improved and optimized by adding a plant-hanging scale in future research.

5. Conclusions

(1) During this study, an intelligent weighing system was used to realize real-time monitoring and analysis of soil moisture weight, weight gain, transpiration rate, stomatal conductance, evapotranspiration, and crop coefficients of potted lettuce. According to the online monitoring data of the intelligent weighing system, the changes in the soil-plant-atmosphere continuum at different times were reflected in real time. Simultaneously, the accuracy and feasibility of the data acquired through the intelligent weighing system were verified.

(2) Different water treatments had a significant impact on the soil-plant-atmosphere continuum of lettuce. Regarding soil, the relative system weight of the intelligent weighing system and the soil volumetric moisture content showed a consistent trend of increase and decrease, with a significant linear correlation (R² = 0.639–0.941). Soil volumetric moisture content was higher under high moisture treatment, and the soil volumetric moisture content changed less. Regarding plants, the transpiration rate and stomata conductance of lettuce under the lowest water treatment in the first and second seasons were the lowest, which were 2.62 g·h⁻¹ and 2.12 g·h⁻¹, 364.60 mmol m⁻² s⁻¹ and 162.74 mmol m⁻² s⁻¹, respectively. In the atmospheric environment, with an increase in temperature, lettuce transpiration gradually increases. Under T2 treatment, the evapotranspiration of lettuce was 2.70%, 2.35%, 5.21% in the first season, and 32.07%, 23.21%, 31.05% in the second season, which was higher than that of the other treatments.

(3) An appropriate irrigation low limit could increase the yield of potted lettuce. Based on research results of the first and second seasons, the stomatal conductance, transpiration rate, weight gain, individual plant weight, and irrigation water use efficiency of lettuce all improved when the irrigation low limit was 80% field capacity. Moreover, the irrigation water use efficiency of lettuce under T2 treatment in the first and second seasons was significantly increased by 11.07%, 0.91%, 8.08%, and 21.05%, 9.89%, 13.47%, respectively, compared with the other treatments. The yields obtained were 0.425 kg and 1.428 kg, respectively.
