Intrusion Event Classification of a Drainage Tunnel Based on Principal Component Analysis and Neural Networking
Abstract
:1. Introduction
2. Methodology
2.1. Parameter Selection and Calculation Principles
- (1)

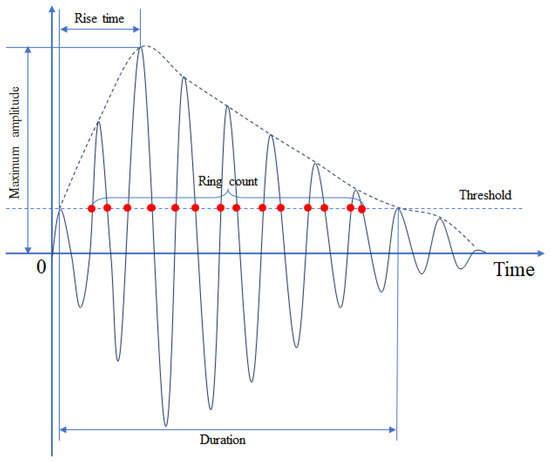

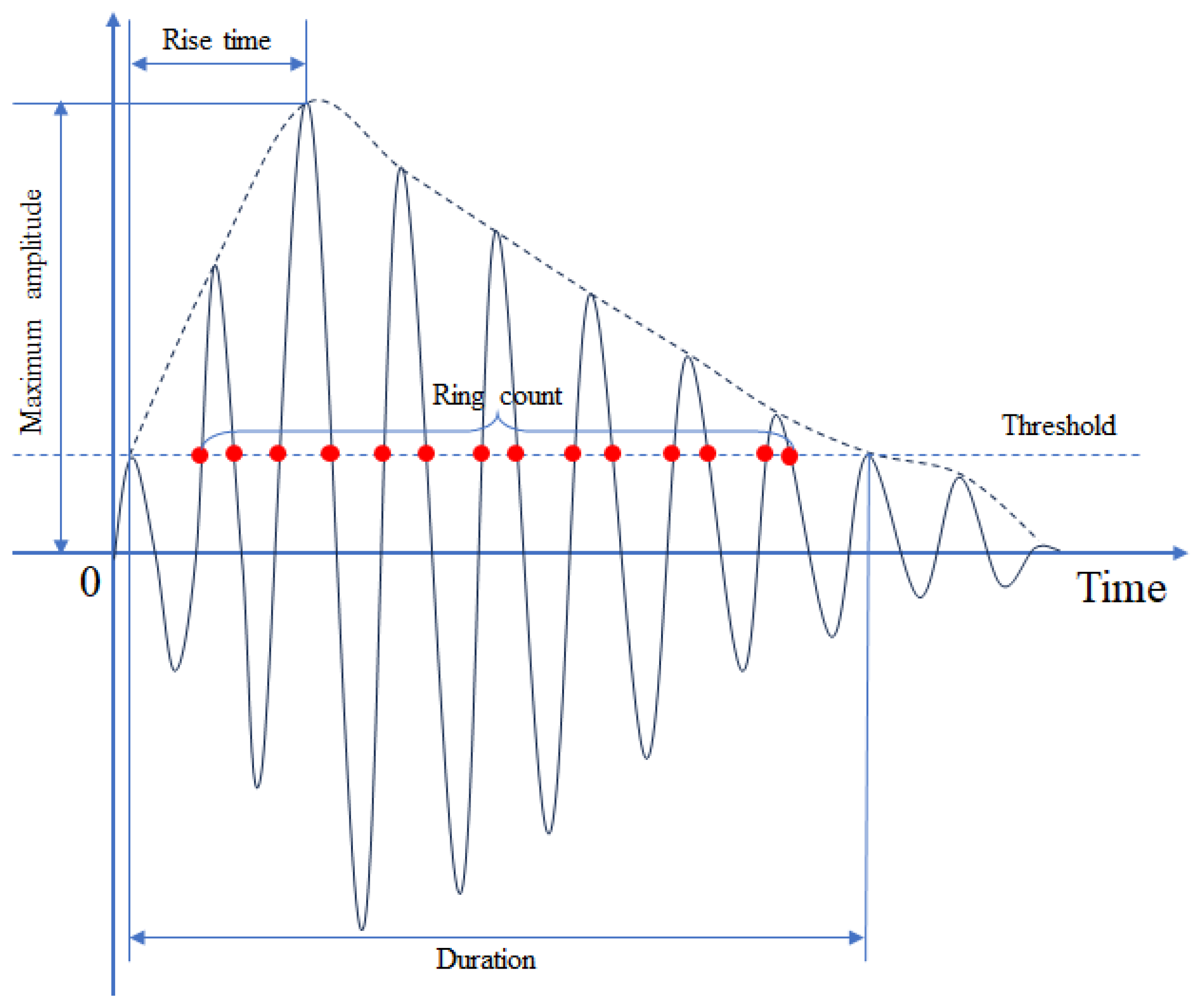

- Signal Entropy
- (2)
- Wavelet-Coefficient-Related Parameters
2.2. Principal Component Analysis
- ①
- Data normalization: Each feature is normalized to ensure feature comparability. Feature normalization is achieved by subtracting the mean of each feature and dividing by its standard deviation, as follows:
- ②
- Covariance matrix construction: Then, the covariance matrix of the normalized data is calculated. The covariance matrix elements are the covariances between features, reflecting their interrelationships. The formula for calculating the covariance matrix is as follows:
- ③
- Eigenvalue and eigenvector calculation: The covariance matrix is decomposed to find its eigenvalues and corresponding eigenvectors. This step reveals the data primary directions, where the magnitude of an eigenvalue indicates the variance (i.e., the amount of information) in that direction, and the eigenvectors define these directions. The formula for eigendecomposition is as follows:
- ④
- Selection of principal components and data transformation: The most significant eigenvectors are selected based on the magnitude of the eigenvalues (usually those associated with the largest values that account for 80% of the sum of the eigenvalues [22]). These eigenvectors form the basis of the new feature space. The original data are then projected onto this basis to create a new reduced dataset. The data transformation formula is as follows:

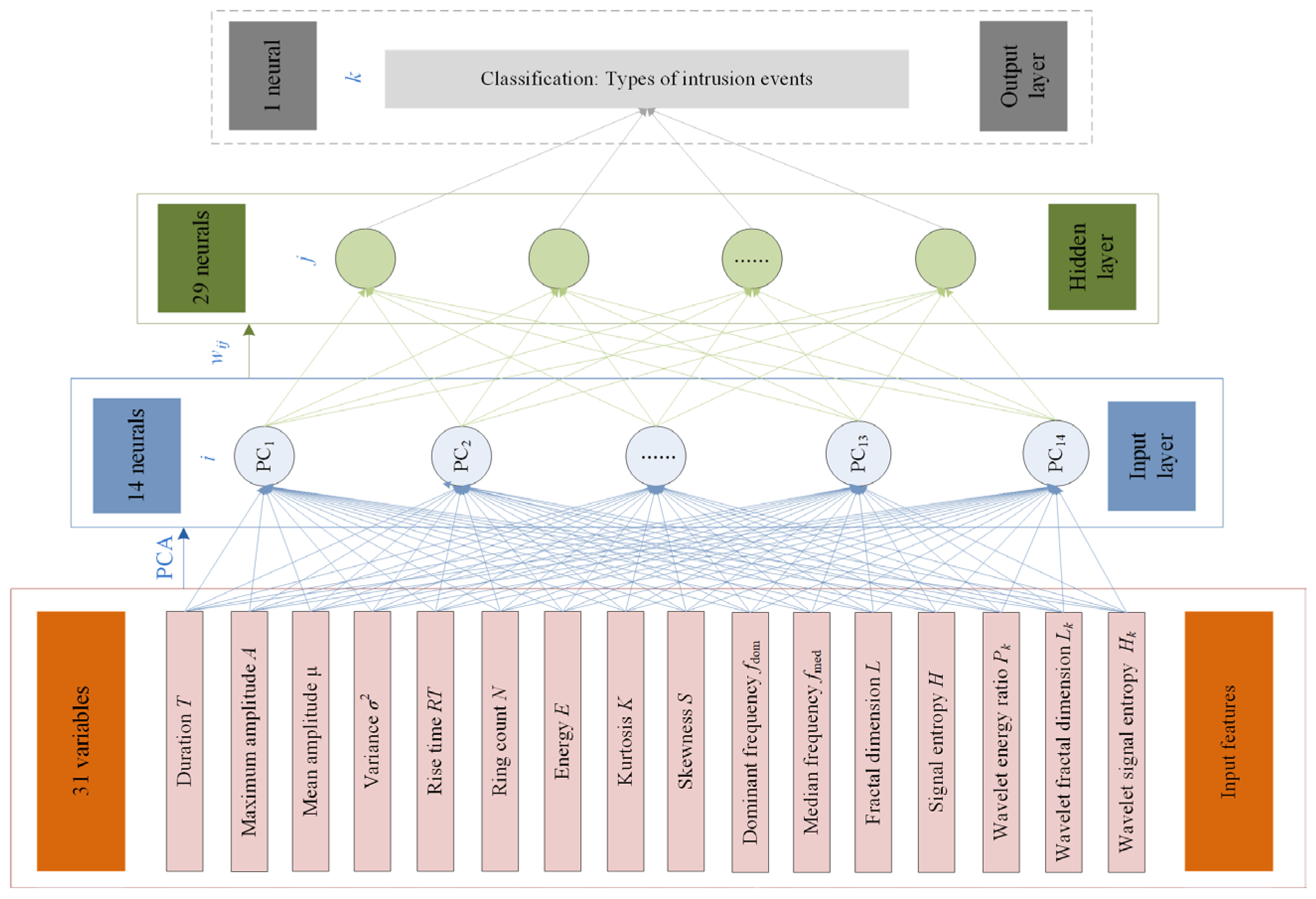

2.3. PCA-ANN Classification Model
3. Intrusion Event Simulation

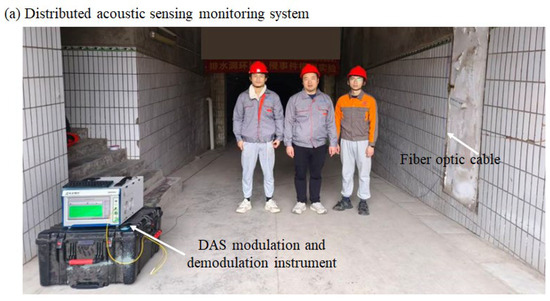

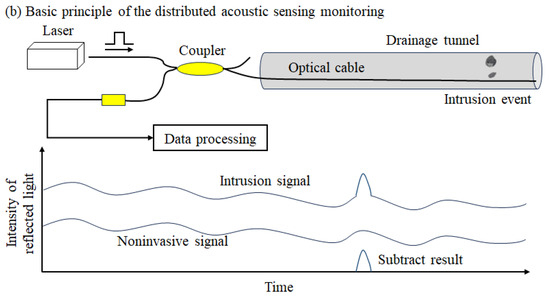

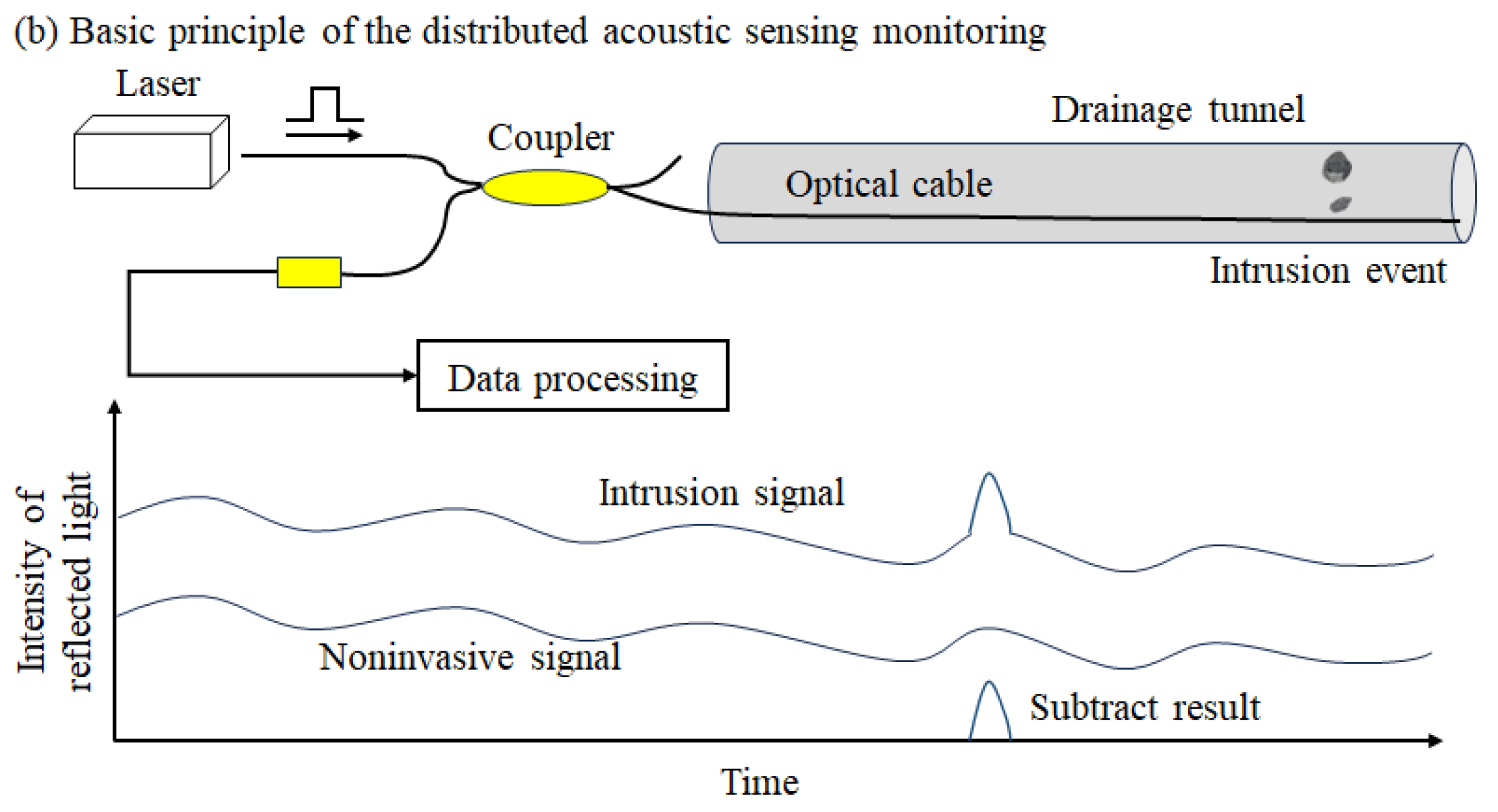

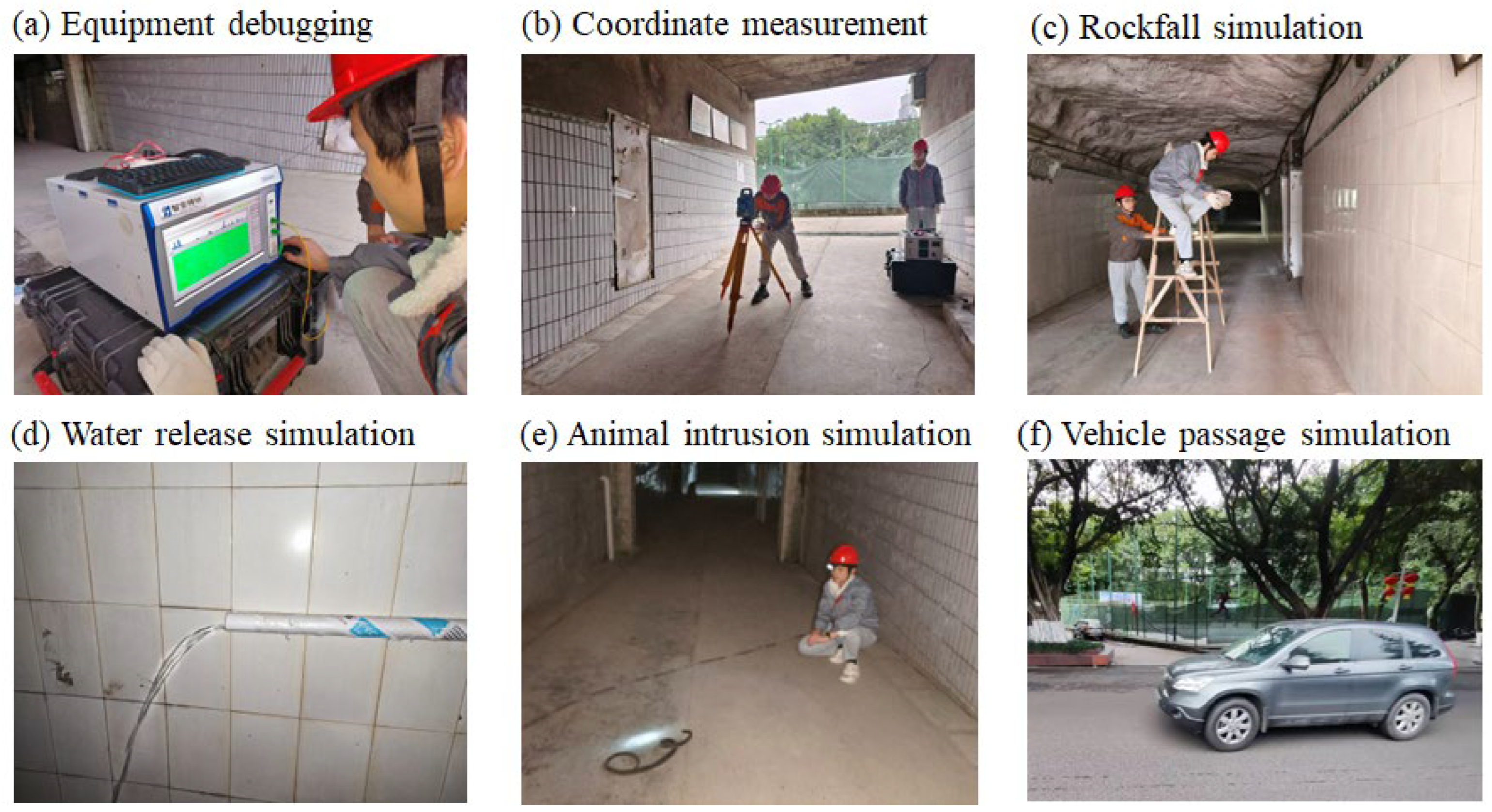

3.1. Experiment Setup

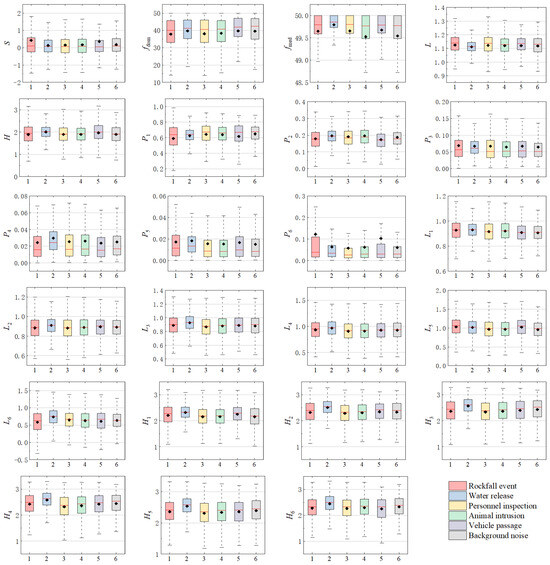

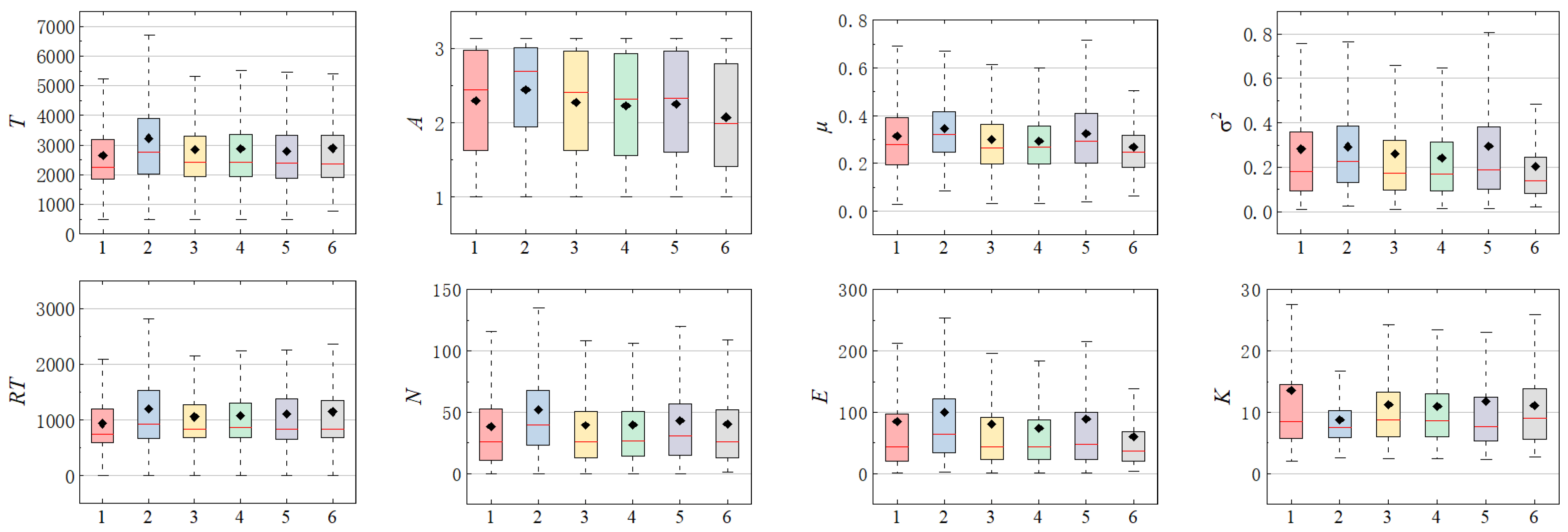

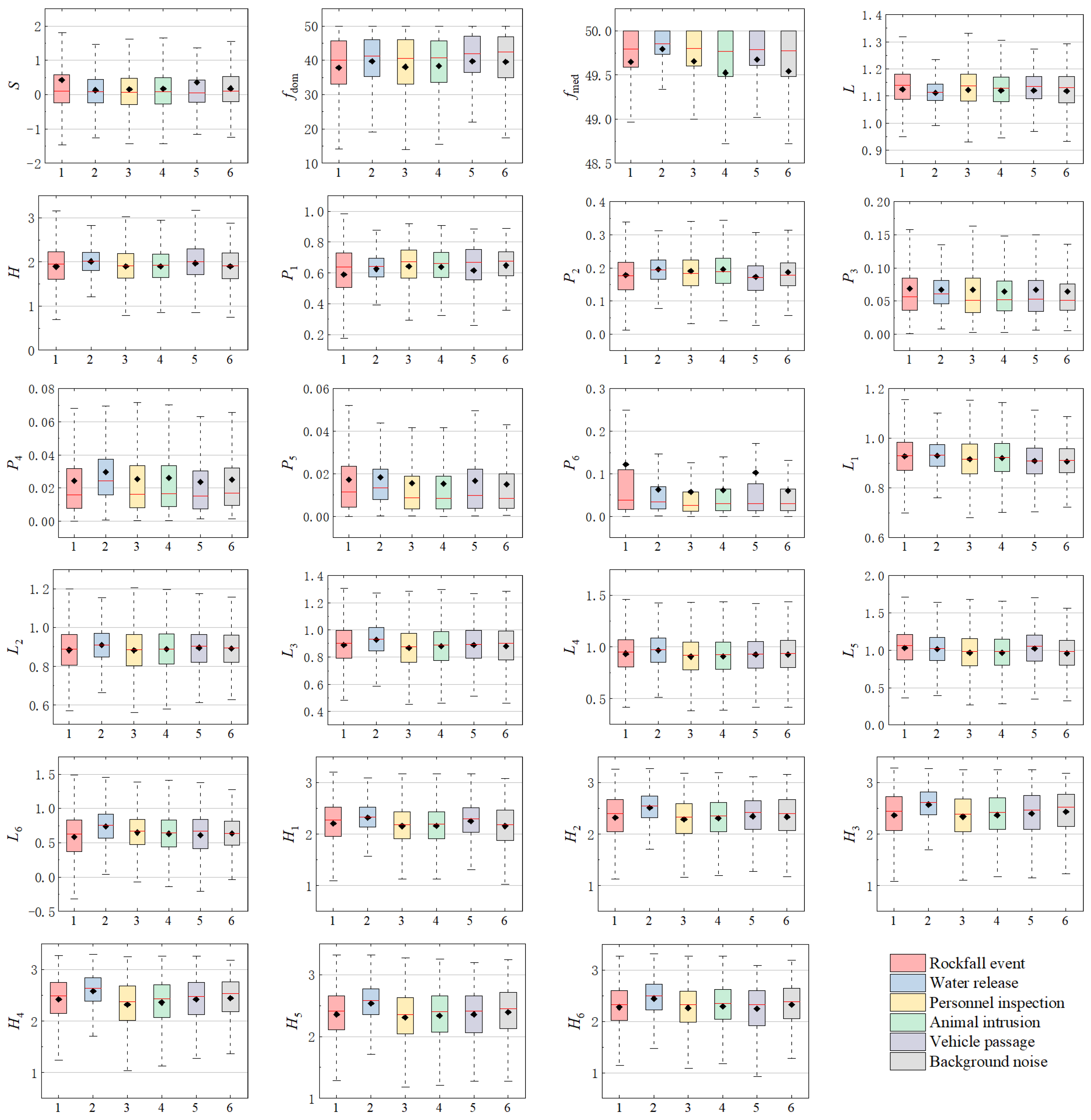

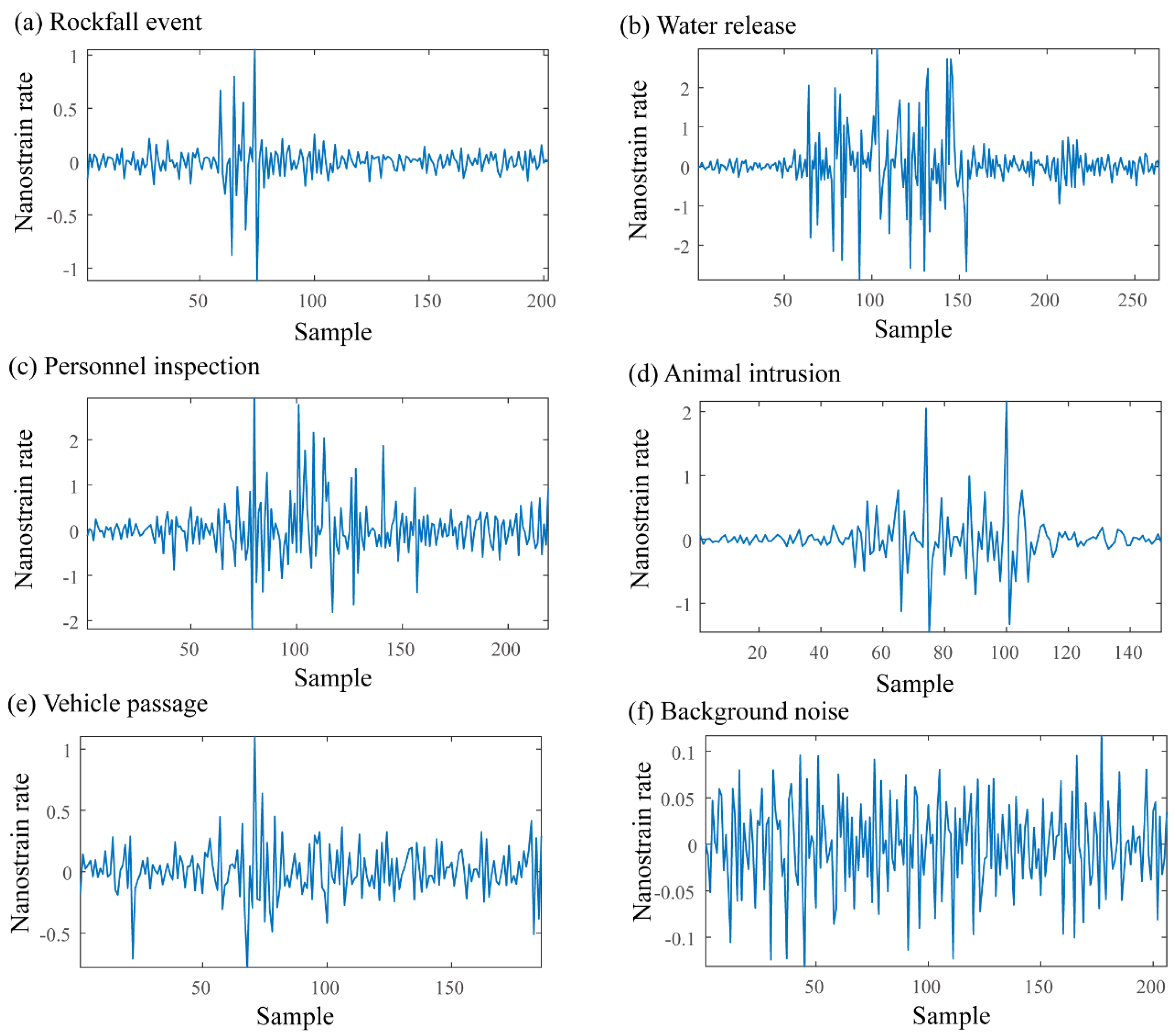

3.2. Character Analysis of Intrusion Event Signals
4. Result and Discussion

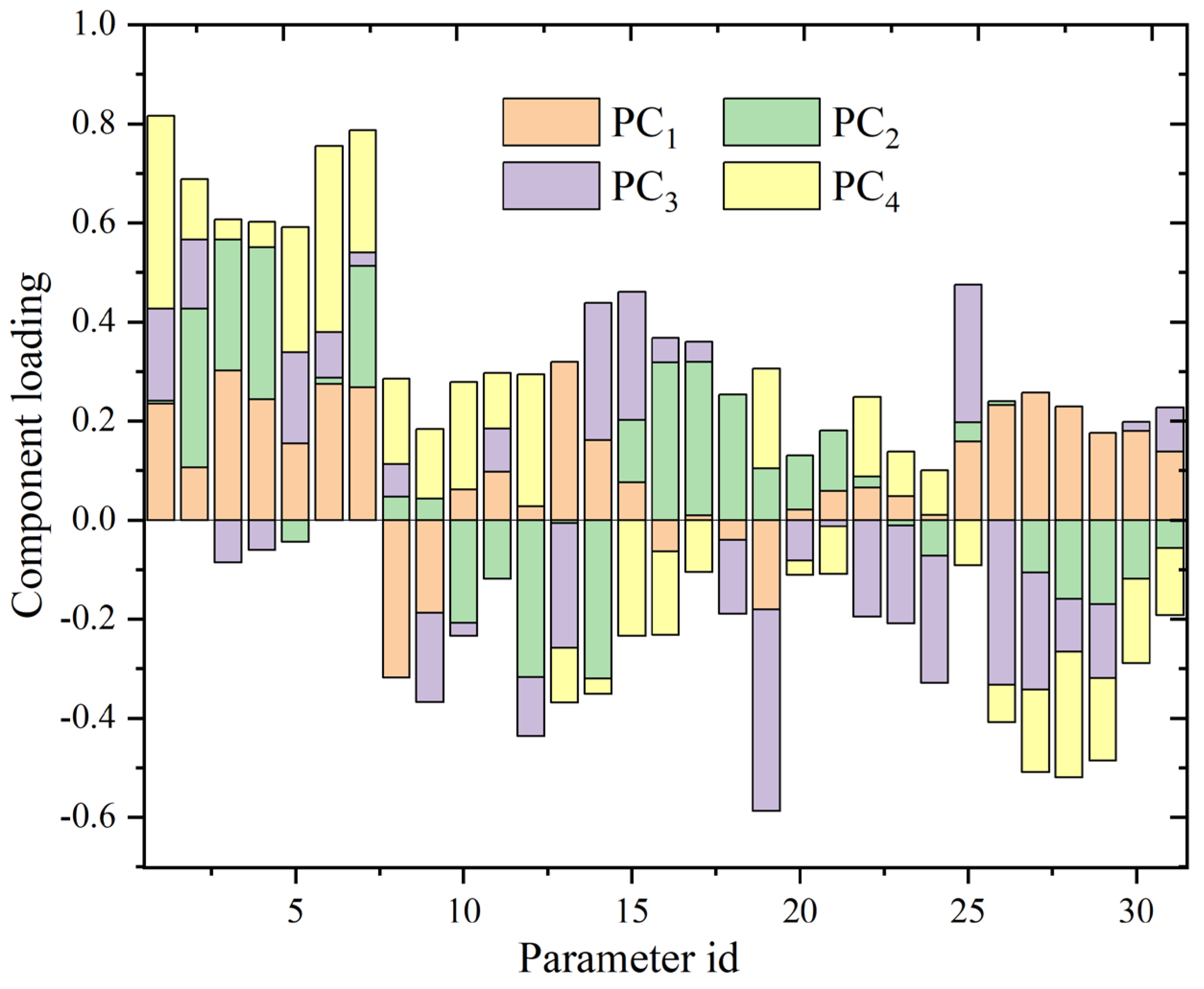

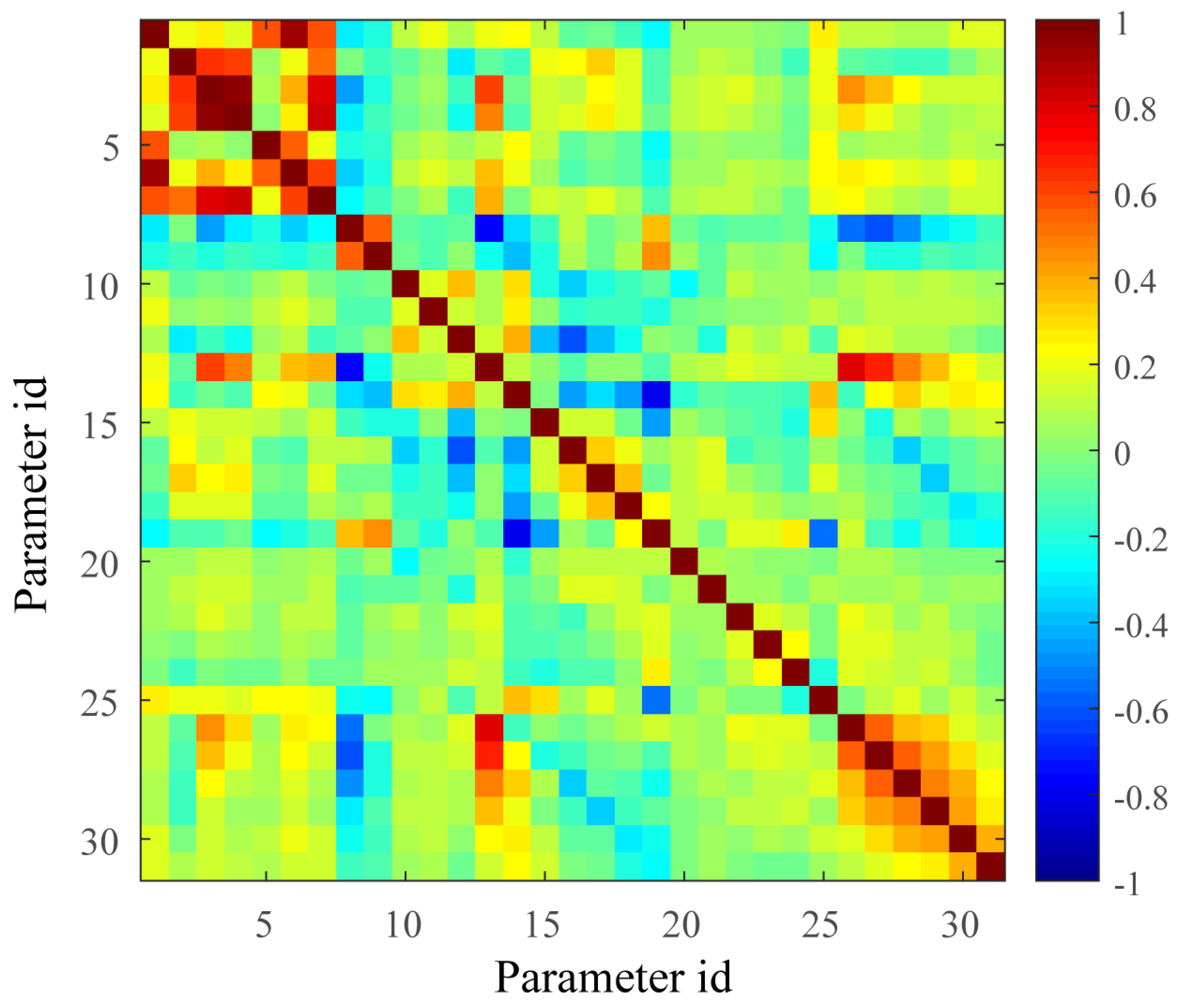

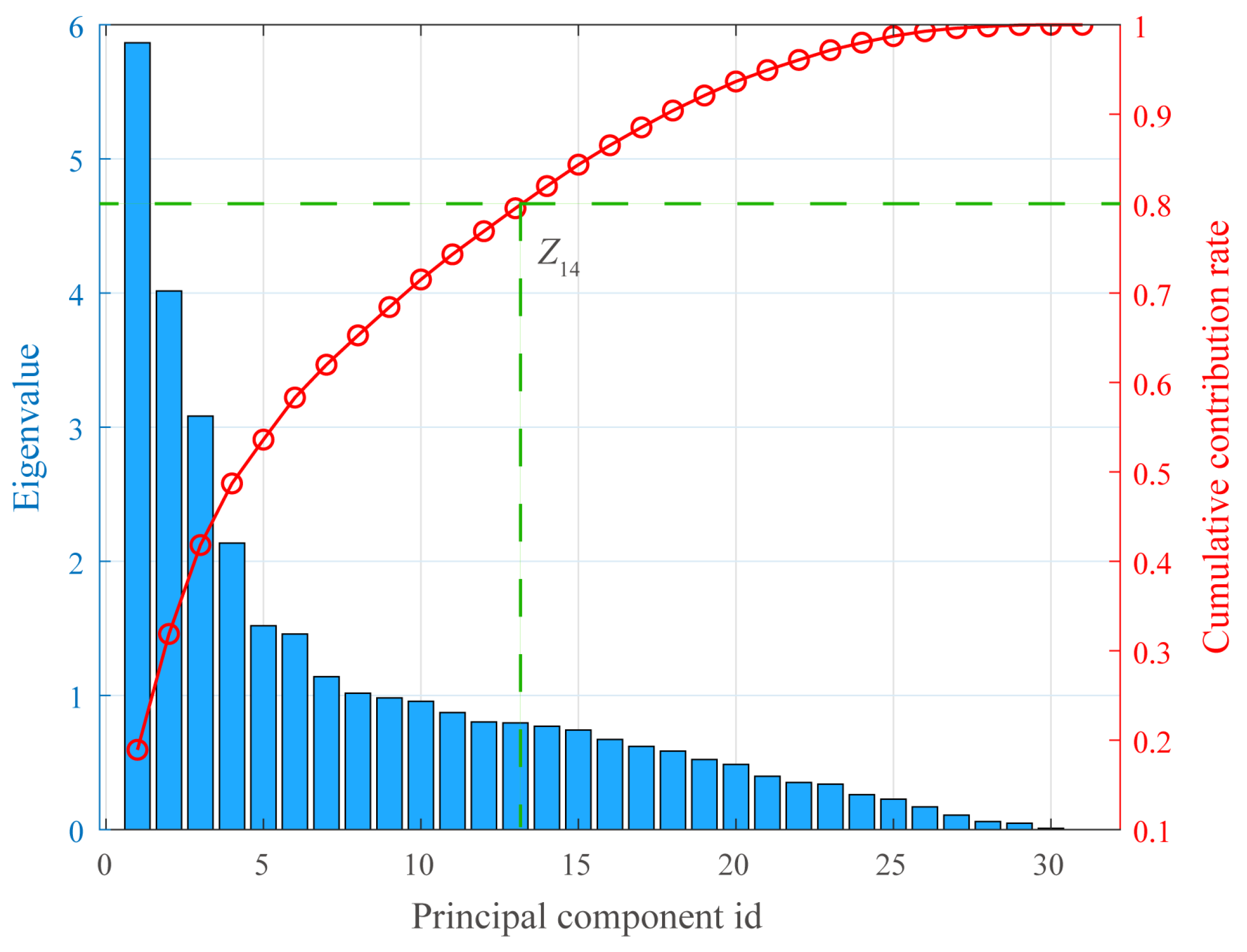

4.1. PCA Analysis

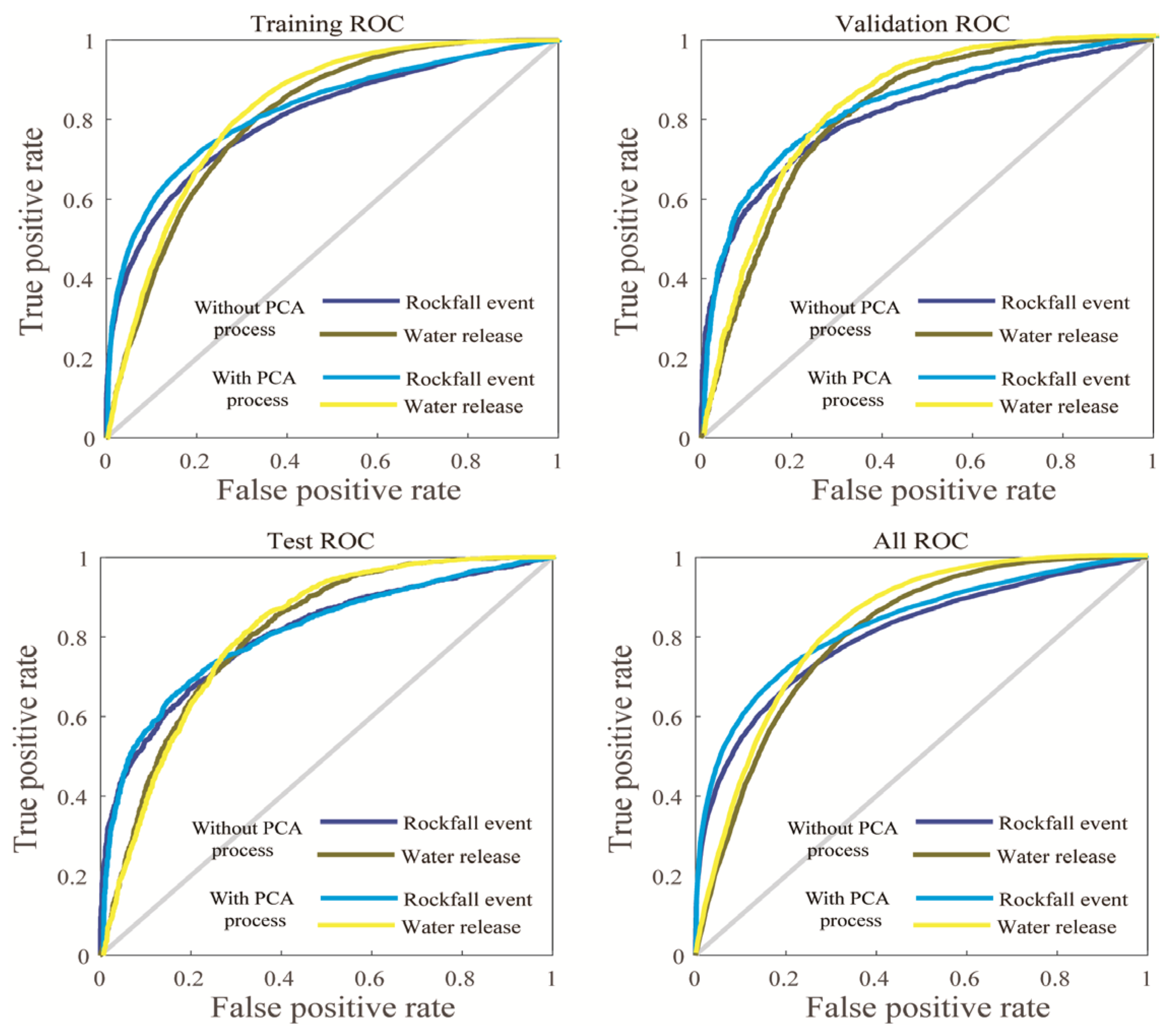

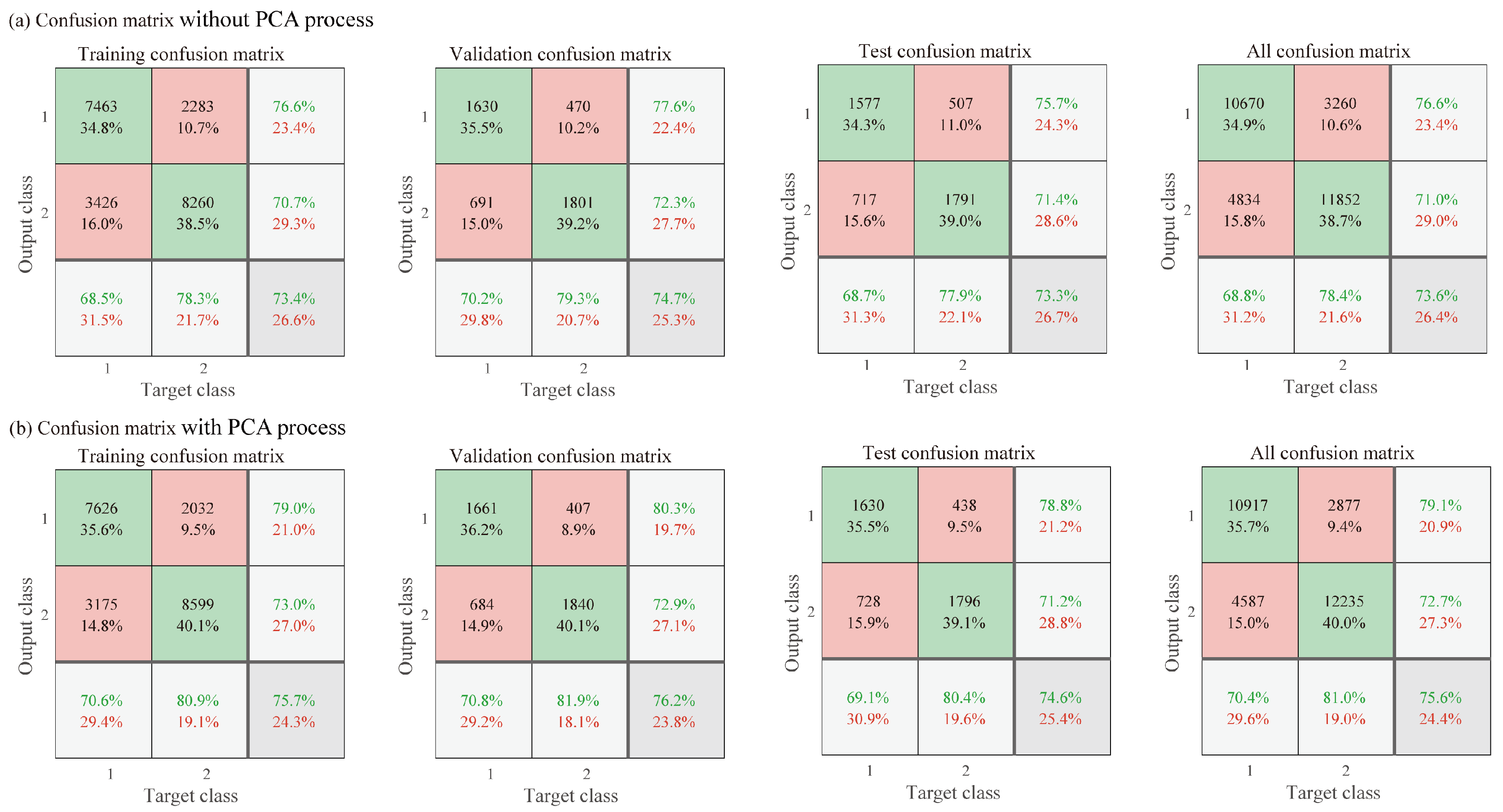

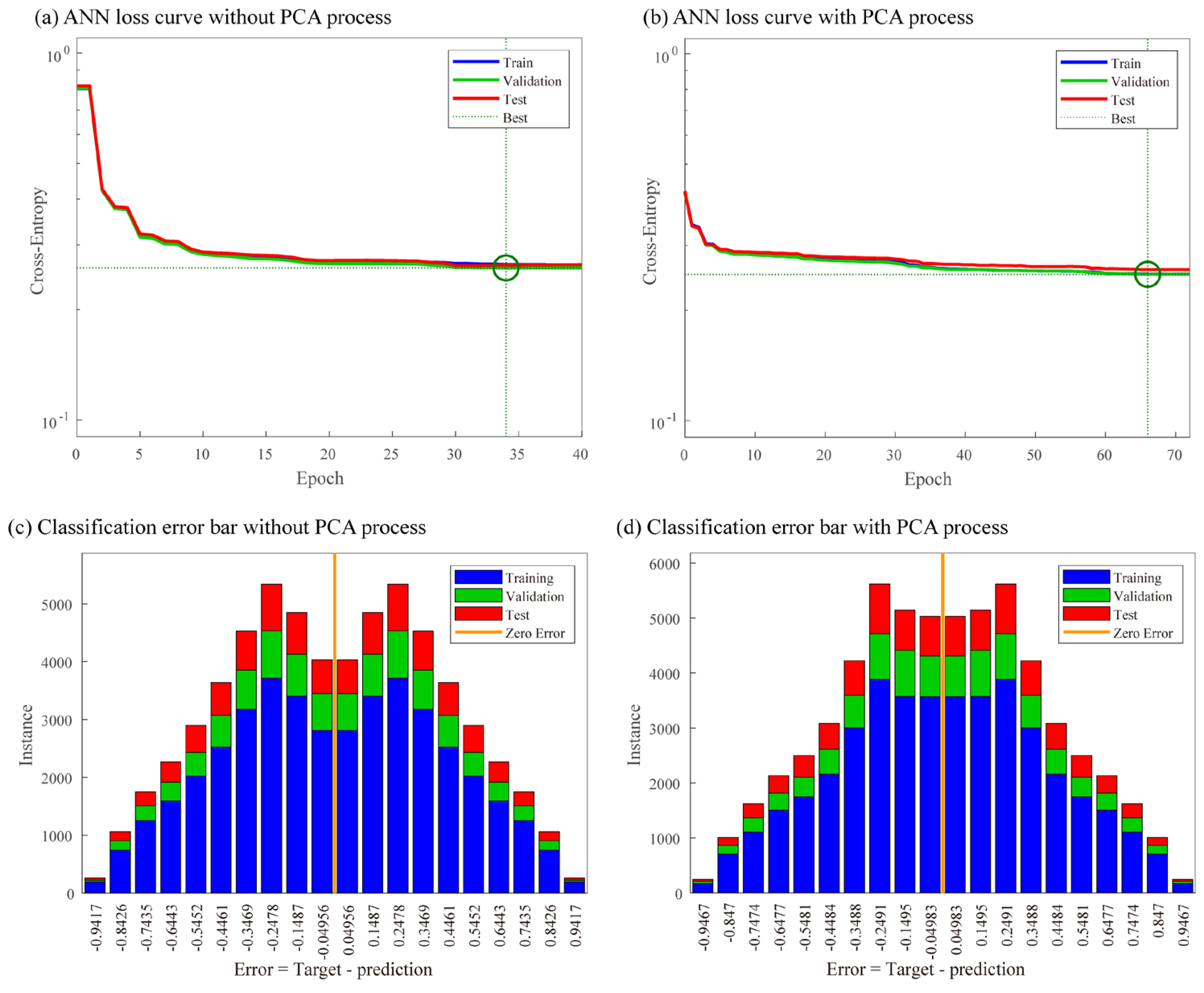

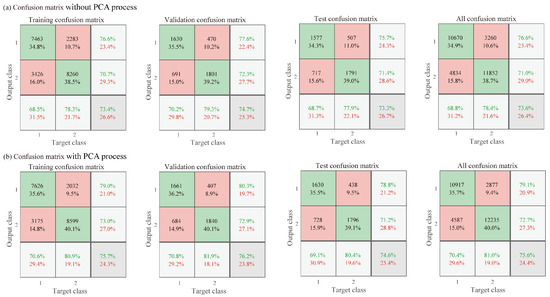

4.2. ANN Classification

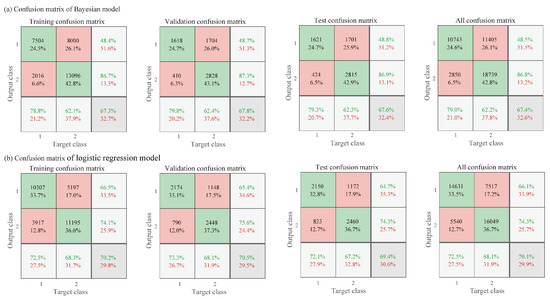

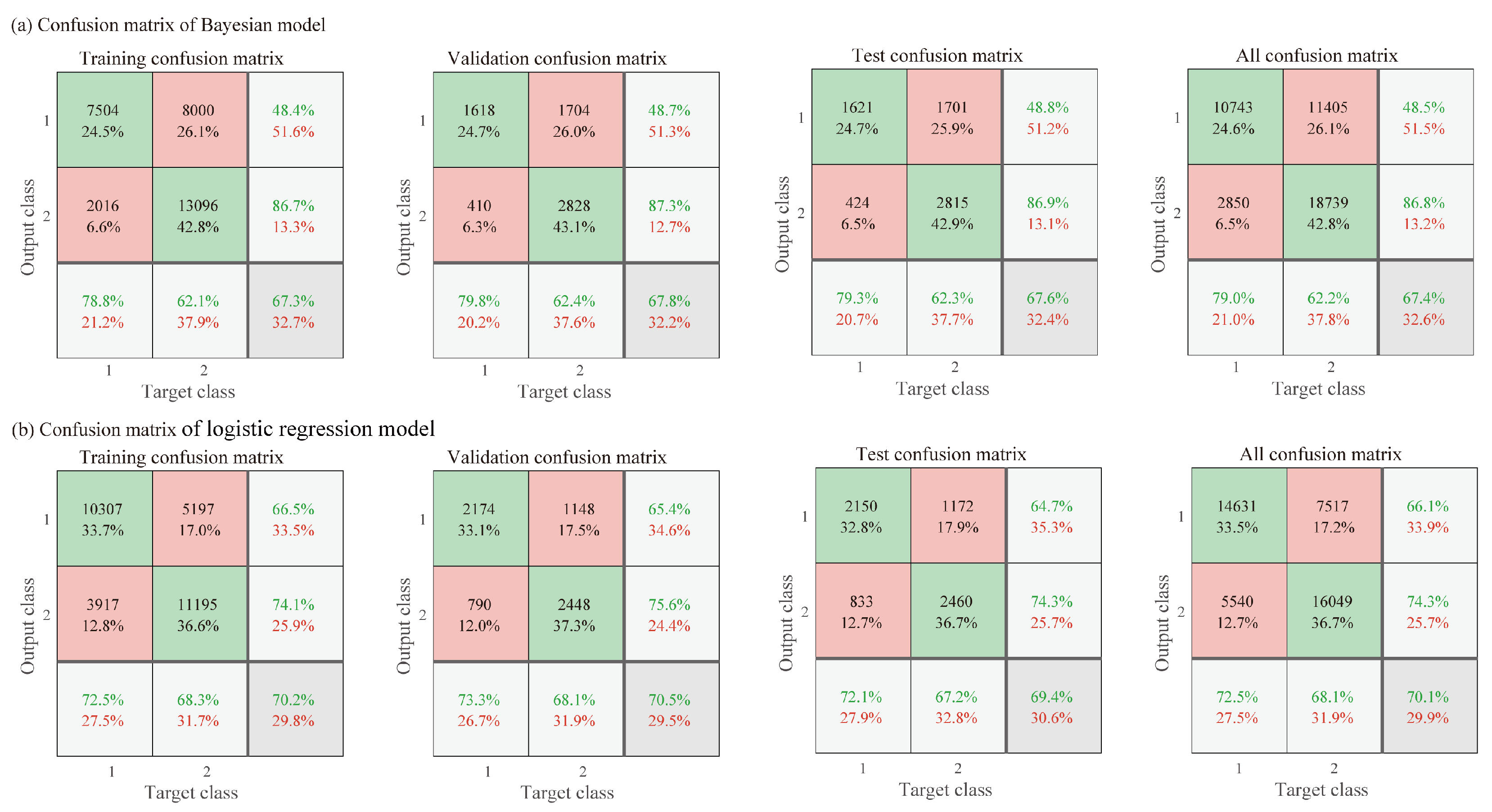

4.3. Comparison with Other Classification Models
4.4. How to Further Improve the Intrusion Event Classification Accuracy
5. Conclusions
- (1)
- A monitoring system based on DAS was established for intrusion event simulation in drainage tunnels. Typical characteristics of events such as rockfalls and water release were obtained. However, due to the complexity of the intrusion signals in the drainage tunnels, it is difficult to accurately classify intrusion events using only one or a few feature parameters.
- (2)
- Principal component analysis indicated relatively significant correlations among feature parameters, necessitating the use of PCA to mitigate these correlations. Features related to signal amplitude, such as maximum amplitude, mean, and energy, contributed substantially to the DAS signal classification, followed by signal entropy. The first four principal components account for 48.71% of the variance, and there is a 54.8% reduction in the dimensionality of the feature parameters.
- (3)
- The classification accuracy of intrusion events using PCA-processed data is higher than that without PCA processing, with overall recognition accuracies for rockfall events and water releases at 79.1% and 72.7%, respectively. Moreover, the performance of the artificial neural network model surpassed that of Bayesian and logistic regression models, demonstrating ANNs’ advantage in handling complex models such as intrusion event classification.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Yi, C.; Senent, S.; Jimenez, R. Effect of Advance Drainage on Tunnel Face Stability Using Limit Analysis and Numerical Simulations. Tunn. Undergr. Space Technol. 2019, 93, 103105. [Google Scholar] [CrossRef]
- Zou, Q.; Chen, Z.; Zhan, J.; Chen, C.; Gao, S.; Kong, F.; Xia, X. Morphological Evolution and Flow Conduction Characteristics of Fracture Channels in Fractured Sandstone under Cyclic Loading and Unloading. Int. J. Min. Sci. Technol. 2023, 33, 1527–1540. [Google Scholar] [CrossRef]
- Gu, H.; Lai, X.; Tao, M.; Momeni, A.; Zhang, Q. Dynamic Mechanical Mechanism and Optimization Approach of Roadway Surrounding Coal Water Infusion for Dynamic Disaster Prevention. Measurement 2023, 223, 113639. [Google Scholar] [CrossRef]
- Pipitone, C.; Maltese, A.; Dardanelli, G.; Lo Brutto, M.; La Loggia, G. Monitoring Water Surface and Level of a Reservoir Using Different Remote Sensing Approaches and Comparison with Dam Displacements Evaluated via GNSS. Remote Sens. 2018, 10, 71. [Google Scholar] [CrossRef]
- Wai-Lok Lai, W.; Dérobert, X.; Annan, P. A Review of Ground Penetrating Radar Application in Civil Engineering: A 30-Year Journey from Locating and Testing to Imaging and Diagnosis. NDT E Int. 2018, 96, 58–78. [Google Scholar] [CrossRef]
- Gorshkov, B.G.; Yüksel, K.; Fotiadi, A.A.; Wuilpart, M.; Korobko, D.A.; Zhirnov, A.A.; Stepanov, K.V.; Turov, A.T.; Konstantinov, Y.A.; Lobach, I.A. Scientific Applications of Distributed Acoustic Sensing: State-of-the-Art Review and Perspective. Sensors 2022, 22, 1033. [Google Scholar] [CrossRef]
- Shang, Y.; Sun, M.; Wang, C.; Yang, J.; Du, Y.; Yi, J.; Zhao, W.; Wang, Y.; Zhao, Y.; Ni, J. Research Progress in Distributed Acoustic Sensing Techniques. Sensors 2022, 22, 6060. [Google Scholar] [CrossRef] [PubMed]
- Xie, T.; Zhang, C.-C.; Shi, B.; Wang, Z.; Zhang, S.-S.; Yin, J. Seismic Monitoring of Rockfalls Using Distributed Acoustic Sensing. Eng. Geol. 2023, 325, 107285. [Google Scholar] [CrossRef]
- Zhang, Y.; Zhao, W.; Dong, L.; Zhang, C.; Peng, G.; Shang, Y.; Liu, G.; Yao, C.; Liu, S.; Wan, N.; et al. Intrusion Event Identification Approach for Distributed Vibration Sensing Using Multimodal Fusion. IEEE Sens. J. 2024. [Google Scholar] [CrossRef]
- Stajanca, P.; Chruscicki, S.; Homann, T.; Seifert, S.; Schmidt, D.; Habib, A. Detection of Leak-Induced Pipeline Vibrations Using Fiber—Optic Distributed Acoustic Sensing. Sensors 2018, 18, 2841. [Google Scholar] [CrossRef]
- Fang, N.; Wang, L.; Jia, D.; Shan, C.; Huang, Z. Walking Intrusion Signal Recognition Method for Fiber Fence System. In Proceedings of the 2009 Asia Communications and Photonics conference and Exhibition (ACP), Shanghai, China, 2–6 November 2009; pp. 1–6. [Google Scholar]
- Sun, Q.; Feng, H.; Yan, X.; Zeng, Z. Recognition of a Phase-Sensitivity OTDR Sensing System Based on Morphologic Feature Extraction. Sensors 2015, 15, 15179–15197. [Google Scholar] [CrossRef] [PubMed]
- Wang, B.; Pi, S.; Sun, Q.; Jia, B. Improved Wavelet Packet Classification Algorithm for Vibrational Intrusions in Distributed Fiber-Optic Monitoring Systems. Opt. Eng. 2015, 54, 055104. [Google Scholar] [CrossRef]
- Zhao, Y.; Zhong, Z.; Li, Y.; Shao, D.; Wu, Y. Ensemble Empirical Mode Decomposition and Stacking Model for Filtering Borehole Distributed Acoustic Sensing Records. Geophysics 2023, 88, WA319–WA334. [Google Scholar] [CrossRef]
- Xu, C.; Guan, J.; Bao, M.; Lu, J.; Ye, W. Pattern Recognition Based on Enhanced Multifeature Parameters for Vibration Events in φ-OTDR Distributed Optical Fiber Sensing System. Microw. Opt. Technol. Lett. 2017, 59, 3134–3141. [Google Scholar] [CrossRef]
- Wang, X.; Liu, Y.; Liang, S.; Zhang, W.; Lou, S. Event Identification Based on Random Forest Classifier for Φ-OTDR Fiber-Optic Distributed Disturbance Sensor. Infrared Phys. Technol. 2019, 97, 319–325. [Google Scholar] [CrossRef]
- Wu, H.; Qian, Y.; Zhang, W.; Tang, C. Feature Extraction and Identification in Distributed Optical-Fiber Vibration Sensing System for Oil Pipeline Safety Monitoring. Photonic Sens. 2017, 7, 305–310. [Google Scholar] [CrossRef]
- Xu, C.; Guan, J.; Bao, M.; Lu, J.; Ye, W. Pattern Recognition Based on Time-Frequency Analysis and Convolutional Neural Networks for Vibrational Events in φ-OTDR. Opt. Eng. 2018, 57, 016103. [Google Scholar] [CrossRef]
- Li, Z.; Zhang, J.; Wang, M.; Zhong, Y.; Peng, F. Fiber Distributed Acoustic Sensing Using Convolutional Long Short-Term Memory Network: A Field Test on High-Speed Railway Intrusion Detection. Opt. Express 2020, 28, 2925–2938. [Google Scholar] [CrossRef]
- Grosse, C.U. Acoustic Emission Testing: Basics for Research-Applications in Civil Engineering, 1st ed.; Grosse, C., Ohtsu, M., Eds.; Springer: Berlin/Heidelberg, Germany, 2008; ISBN 978-3-540-69895-1. [Google Scholar]
- Wanliss, J.A.; Wanliss, G.E. Efficient Calculation of Fractal Properties via the Higuchi Method. Nonlinear Dyn. 2022, 109, 2893–2904. [Google Scholar] [CrossRef]
- Lever, J.; Krzywinski, M.; Altman, N. Principal Component Analysis. Nat. Methods 2017, 14, 641–642. [Google Scholar] [CrossRef]
- Reyes, J.; Morales-Esteban, A.; Martínez-Álvarez, F. Neural Networks to Predict Earthquakes in Chile. Appl. Soft Comput. 2013, 13, 1314–1328. [Google Scholar] [CrossRef]
- Tharwat, A. Principal Component Analysis—A Tutorial. Int. J. Appl. Pattern Recognit. 2016, 3, 197–240. [Google Scholar] [CrossRef]
- Abdolrasol, M.G.M.; Hussain, S.M.S.; Ustun, T.S.; Sarker, M.R.; Hannan, M.A.; Mohamed, R.; Ali, J.A.; Mekhilef, S.; Milad, A. Artificial Neural Networks Based Optimization Techniques: A Review. Electronics 2021, 10, 2689. [Google Scholar] [CrossRef]
- Geiger, D.; Verma, T.; Pearl, J. Identifying Independence in Bayesian Networks. Networks 1990, 20, 507–534. [Google Scholar] [CrossRef]
No. | Parameter | Vehicle Passage | Personnel Inspection | Animal Intrusion | Rockfall Event | Water Release | Background Noise |
---|---|---|---|---|---|---|---|
1 | T | 1850.00 | 2180.00 | 1490.00 | 2010.00 | 2630.00 | / |
2 | A | 1.10 | 2.92 | 2.16 | 1.12 | 2.98 | 0.13 |
3 | μ | 0.16 | 0.39 | 0.21 | 0.10 | 0.42 | 0.04 |
4 | σ2 | 0.05 | 0.37 | 0.16 | 0.03 | 0.55 | 0.00 |
5 | RT | 700.00 | 790.00 | 990.00 | 730.00 | 1020.00 | / |
6 | N | 26.00 | 20.00 | 10.00 | 7.00 | 23.00 | / |
7 | E | 8.75 | 81.22 | 23.62 | 6.74 | 144.88 | 0.49 |
8 | K | 6.92 | 8.62 | 14.07 | 19.07 | 8.32 | 2.84 |
9 | S | 0.36 | 1.00 | 1.32 | −0.21 | 0.02 | −0.26 |
10 | fdom | 39.78 | 47.49 | 42.67 | 34.65 | 40.53 | 40.78 |
11 | fmed | 49.46 | 49.77 | 50.00 | 50.00 | 49.62 | 50.00 |
12 | L | 1.17 | 1.15 | 1.05 | 1.17 | 1.09 | 1.16 |
13 | H | 2.14 | 2.04 | 1.84 | 1.39 | 2.02 | 2.95 |
14 | P1 | 0.71 | 0.66 | 0.67 | 0.84 | 0.65 | 0.69 |
15 | P2 | 0.16 | 0.15 | 0.28 | 0.10 | 0.16 | 0.20 |
16 | P3 | 0.09 | 0.05 | 0.04 | 0.03 | 0.11 | 0.06 |
17 | P4 | 0.01 | 0.06 | 0.00 | 0.01 | 0.06 | 0.01 |
18 | P5 | 0.01 | 0.01 | 0.00 | 0.00 | 0.00 | 0.00 |
19 | P6 | 0.02 | 0.07 | 0.00 | 0.02 | 0.01 | 0.03 |
20 | L1 | 0.73 | 0.87 | 0.70 | 0.91 | 0.91 | 0.95 |
21 | L2 | 0.95 | 0.79 | 0.88 | 0.90 | 1.09 | 0.77 |
22 | L3 | 0.80 | 0.98 | 0.55 | 1.06 | 0.88 | 1.08 |
23 | L4 | 0.47 | 1.00 | 0.25 | 0.70 | 0.83 | 0.77 |
24 | L5 | 1.12 | 1.16 | 0.42 | 1.53 | 0.70 | 1.44 |
25 | L6 | 0.86 | 0.93 | 0.51 | 0.27 | 0.56 | 0.45 |
26 | H1 | 2.48 | 2.10 | 1.92 | 1.32 | 1.97 | 3.00 |
27 | H2 | 2.27 | 2.19 | 1.96 | 1.78 | 2.28 | 2.89 |
28 | H3 | 2.95 | 2.45 | 2.43 | 2.62 | 1.84 | 2.77 |
29 | H4 | 3.02 | 2.44 | 2.30 | 2.70 | 2.12 | 2.82 |
30 | H5 | 2.92 | 2.48 | 2.28 | 2.37 | 2.50 | 2.66 |
31 | H6 | 1.57 | 1.97 | 2.11 | 2.41 | 2.14 | 2.37 |
