Article

Occurrence and Risk Assessment of Antibiotics in Urban River–Wetland–Lake Systems in Southwest China

Institute for Ecological Research and Pollution Control of Plateau Lakes, School of Ecology and Environmental Science, Yunnan University, Kunming 650504, China
*
Authors to whom correspondence should be addressed.
Water 2024, 16(8), 1124; https://doi.org/10.3390/w16081124
Submission received: 21 March 2024 / Revised: 6 April 2024 / Accepted: 9 April 2024 / Published: 15 April 2024

Abstract

:
Antibiotics in the aquatic environment are of great concern as novel contaminants. In this study, we investigated the occurrence, distribution, potential sources, and risk assessment of antibiotics in an interconnected river–wetland–lake system. Thirty-three target antibiotics, including sulfonamides (SAs), macrolides (MLs), fluoroquinolones (FQs), tetracyclines (TCs), and chloramphenicol (CLs) belong to five common groups of antibiotics, were tested from water samples collected in the Panlong River, Xinghai Wetland, and Lake Dian (or Dianchi). Mass spectrophotometry was used to detect the target antibiotics, and the water quality parameters were measured in situ. We found four antibiotics, lincomycin (LIN), trimethoprim (TMP), sulfamethoxazole (SMX), and ofloxacin (OFL), with relatively low concentrations at the ng/L level, and detection rates among sample sites ranged from 42.3% to 76.9%, with maximum concentrations of 0.71 ng/L~5.53 ng/L. TMP was not detected in the Panlong River but appeared in the wetlands and Lake Dian. Midstream urban areas of the Panlong River showed the highest pollution among sites. Antibiotic concentrations were positively correlated with total nitrogen (TN) (p < 0.05) and showed some negative correlation with pH, salinity, and DO. According to the risk assessment, antibiotics in water do not pose a threat to human health and aquatic ecosystems, but a potentially harmful combined effect cannot be excluded. Our research offers a geographical summary of the distribution of antibiotics in urban river, wetland, and lake ecosystems in the plateau (PWL), which is important for predicting the distribution characteristics of antibiotics in the plateau water environment and establishing a standardized antibiotic monitoring and management system for the government.

1. Introduction

Antibiotics are a type of antimicrobial drug produced by bacteria and fungi or synthesized artificially that have microbial inhibitory activity and are commonly used in human medicine and livestock farming [1,2], posing a higher ecological risk to water ecosystems and human health. The global antibiotic consumption was approximately 42 billion qualifying daily doses in 2015 and is estimated to increase by a further 200% by 2030 [3]. The heavy use of antibiotics has led to their entry into the aquatic environment (rivers and lakes) through a variety of pathways, including sewage discharge, agricultural activities, manure application, and runoff [4,5,6], making the aquatic environment a major sink for them and leading to many rivers already at high risk because of antibiotic concentrations [7,8].
The services of urban rivers include aquaculture, receiving surface runoff, sewage discharge and waterway transportation. It is greatly influenced by human activities. Urbanization discharges various pollutants into rivers [9], and some pollutants enter lakes via rivers and accumulate continuously, causing ecological risk problems in lakes [10]. Lake-entering rivers are important channels for land-based sources to enter lakes, constituting a tight terrestrial ecosystem of rivers and lakes and playing an important role in various ecological and economic services [11,12].
Lake Dian is the biggest freshwater lake located on the Yunnan–Guizhou Plateau in southwestern China. The Panlong River is the most important river entering Lake Dian and the main landscape river in Kunming. It originates from the Songhuaba Reservoir and runs through the whole main city of Kunming, and the watershed concentrates most of the developed economic zones of Kunming with a dense population and a high degree of human interactions with the river. The Panlong River is also the channel through which transregional water has been transferred from the Niulan River to Lake Dian and therefore plays an important role in the socioeconomic development of the Lake Dian basin in terms of flooding, pollution reduction, irrigation, urban beautification, humidity regulation, and water supply. With swift economic expansion and urban advancement, the consumption of antibiotics has increased significantly, and they may pose potential health risks to aquatic organisms in the Panlong biodiversity and even to humans. As a new pollutant, antibiotics are constantly detected in water bodies. When they cause water pollution, they can induce the generation and spread of resistant bacteria and resistant genes, which brings serious challenges to the protection of water ecology and environmental health management in river basins. Therefore, there is an urgent need to know the occurrence, amount, distribution, risks, and sources of antibiotics. Previous studies have focused on the occurrence and distribution of antibiotics in individual rivers, lakes, etc. [13,14]. Maghsodian et al. (2022) found that Lake Dian has very high levels of SMX (ranging from 17.6 to 499.2 ng/L) and OFL (ND—713.6 ng/L) [15]. However, as the most important river entering Lake Dian, antibiotic contamination in the Panlong River has rarely been reported, and none of the available literature data are sufficient for comparison with other urban rivers.
In this study, we selected a dense human activity area consisting of urban rivers, wetlands, and lakes and divided the watershed into urban river systems, wetland systems, and lake systems according to the functional distinction, aiming to (1) study the distribution characteristics of antibiotics and offer evidence to support the current distribution of antibiotics in the ecological environment of urban rivers, wetlands, and lakes in the plateau; (2) evaluate the pollution level and ecological threat posed by antibiotics in the water bodies of the Panlong River and explore the possible adverse effects to aquatic organisms at current concentrations; (3) study the pollution sources of antibiotics in the watershed; and (4) identify the antibiotics that need to be controlled as a priority and provide a scientific basis for decision-making regarding future development and integrated management of the watershed.

2. Materials and Methods

2.1. Study Area

The Panlong River (25°03′~25°27′ N, 102°40′~102°57′ E) belongs to the Jinsha River system and is located in Kunming, central Yunnan Province, China, running through the entire main city of Kunming. The basin concentrates most of the mature economic zone of Kunming, with a total length of 108 km, a runoff area of 847 km2, an average flow of 7.17 m3/s, a maximum flow of 126 m3/s, with an annual runoff of 275 million m3, and is the largest and longest river into Lake Dianchi. The Panlong River basin has a subtropical monsoon climate with an average annual temperature of 15 °C and an average annual precipitation of 1035 mm. Precipitation in the basin is unevenly distributed, with the rainy season (May–October) accounting for 85% to 90% of the annual precipitation. The vegetation cover is highly variable, and it is a typical urban-rural interlacing zone. Land use types include six categories: arable land, forestland, grassland, water, urban construction land, and bare land, of which arable land, forestland, and urban construction land account for more than 92% of the watershed area, and soil types consist of five categories: rice soil, red soil, subtropical mountain red soil, brown soil, and an urban impermeable layer.

2.2. Sample Collection and Pretreatment

On 10–12 April 2022, we collected water samples along the Panlong River to Lake Dianchi and at the Xinghai wetlands (Figure 1), with 8 sampling sites (P1, P2, P3, P4, P5, P6, P7, P8) in the Panlong River, 8 sampling sites (L1, L2, L3, L4, L5, L6, L7, L8) in the Lake Dianchi inlet, and 10 sampling sites (W1, W2, W3, W4, W5, W6, W7, W8, W9, W10) in the Xinghai wetlands. The sampling points were distributed in the main urban area of Kunming, wetlands, and shoreline where the Panlong River and Lake Dianchi meet. Each sampling site in the Panlong River consisted of 2 samples on the left and right. During the sampling process, we measured water temperature (WT), pH, dissolved oxygen (DO), conductivity, and turbidity with a YSI 6600 V multiparameter water quality monitor (Xylem, Inc., Rye Brook, NY, USA). In advance, a quantity of 150 mg antioxidant and 0.25 g of EDTA were introduced into the 1 L brown Nalgene sample bottle in which the water samples were stored. After collecting the water samples, the pH was adjusted to 2 by adding HCl immediately at the site, and the samples were stored under refrigeration and protected from light at 0 to 4 °C until they were processed.
Water samples were filtered through a 0.45 μm pore size glass fiber membrane, 0.2 g Na2EDTA was included to minimize the chelation of antibiotics with metal ions present in the water sample, 25 ng of antibiotic internal standard was included, followed by passing through an Oasis HLB (200 mg/6 cc) solid phase extraction column at a flow rate of 5 mL/min. The HLB column underwent activation sequentially with 10 mL methanol, 10 mL pure water, and 10 mL pure water (pH = 4) in turn. Then, the column was rinsed with 10 mL of distilled water, drained, dried under N2 protection for a duration of 30 min, eluted with 6 mL methanol in 3 portions, blown with nitrogen to near dryness, and redissolved with the initial mobile phase (0.1% CH2O2 NH4HCO2/CH3CN) to be measured. We also measured total nitrogen and total phosphorus according to the standard method [16,17].

2.3. Sample Treatment and Analysis

We conducted HPLC-MS/MS analysis utilizing an Agilent 6410B triple tandem quadrupole LC-MS/MS, Waters Xterra C18 separation column (100 mm × 2.1 mm, 3.5 μm) ESI ionization source. The mobile phase consisted of phase A, 0.1% CH2O2 NH4HCO2; B: CH3CN. Linear gradient: 0 min, 5% B; 0.1~10 min, 10%~60% B; 10~12 min, 60%; 12.1~22 min 10% B. The rate of flow was 0.25 mL/min. The MS conditions included a gas temperature of 350 °C, gas flow rate of 8 mL/s, nebulizer pressure of 25 psi, and capillary voltage of 4000 V. Table 1 gives the ion, fragmentation voltage, and collision energies. The MDL is the standard deviation of these measured concentrations multiplied by the t value with n-1 degrees of freedom at the 99% confidence level. The detection limits and recoveries of individual compounds in water samples are shown in Table 2.

2.4. Human Health Risk Assessment

The risk evaluation for human health was carried out using the recommended method [18]. The initial step in performing a health risk evaluation is to determine the type and toxicity of a pollutant. The carcinogenicity of various chemical compounds has been categorized and measured by several agencies or departments, such as the USEPA and the International Agency for Research on Cancer (IARC), and chemicals with varied carcinogenicity have been grouped into many groups.
As river water may be used in a variety of ways, individuals may meet contaminants in the water in a variety of ways, resulting in varying amounts of exposure. This research looked at 3 possible reuse scenarios: (1) urban greening, (2) recreational (such as swimming), and (3) agricultural usage. Individuals can be exposed to chemicals in water through one or multiple pathways in each scenario, orally, inhalationally, or dermally, and various categories of individuals experience exposure to the water at varied frequencies and quantities. Equations (1)–(4) may be utilized for calculating the life average daily dose (LADD) of pollutants consumed by people under different reuse situations and exposure pathways [19].
LADDInhal = (Ci × IR × ET × EF × F × 0.63 × ED)/(BW × LT)
LADDDermal = (Ci × SA × PC × EF × ET × 1000 × ED)/(BW × LT)
LADDoral = (Ci × IR × ET × EF × F × 0.63 × ED)/(BW × LT)
LADDInhal = (Ci × ET × EF × F × 0.63 × ED)/(24 × LT)
LADD denotes the mean daily dose of oral, exposure, and inhalation contaminants, mg/(kg·d), respectively, Ci represents the level of contaminant i, mg/L, IR is the inhalation rate (oral route in L/day), EF is the exposure frequency, day/year, BW represents body weight measured in kilograms, while LT denotes time expressed in days, SA is surface area, m2, PC is the skin surface permeability constant for a specific of chemical pollutants, m/h, ET is the exposure time in a day, h/day, 0.63 is the rate of inhalation of pollutants from the air, and F is the water mist in the air, L/m3. The values of other parameters refer to the Chinese exposure factors [20].

Noncarcinogenic Risk Assessment

We refer to Lin et al. [18], and the following formula is used for the assessment of noncarcinogenic risk.
NCRi = L A D D i R f D i   o r   R f C i
where LADDi is as above, NCRi indicates the noncarcinogenic posed by pollutant i to humans, mg/(kg·day), mg/(m3·day), and RfDi represents the reference dose, mg/(kg·d) or mg/(m3·day).
The RfD of the pollutant was found in the USEPA IRIS database [21]. Or it can be calculated using the following formula [22].
RfD = N O A E L M F × U F
where NOAEL is the no observed adverse effect level dose, MF represents the modification factor, and UF represents the uncertainty factor.
The acceptable noncarcinogenic risk limit is set at 1 [23].

2.5. Ecological Risk Assessment

The potential aquatic ecological risk of antibiotics was assessed based on the risk quotient (RQ) approach [24], calculated as follows:
RQ = M E C P N E C
PNEC = L O E C   o r   L E C 50 / A F
where MEC and PNEC represent the environmental detection concentration and predicted no effect concentration of antibiotics, respectively. The above parameters were obtained from the US EPA Ecotoxicology Knowledge Base [25] and some of the referenced literature data [24].
RQ > 1 represents a high ecological risk, 0.1 ≤ R ≤ 1 indicates a medium ecological risk, and RQ < 0.1 signifies a low ecological risk [18,26].

2.6. Source Identification Analysis

The potential sources of antibiotics in PWD were analyzed using a positive matrix factorization model (EPA 5.0). (PMF), which was solved using a bilinear model with a residual matrix and a user-supplied uncertainty matrix to estimate the minimum Q value.
X ij = k = 1 p g i k f k j   +   e i j
where p denotes the number of factors, f is the species profile of each source, g is the mass contribution of each factor to each sample, eij is the residual of each sample/species, and xij is the concentration of each sample/species.
Q = i m j n ( e i j μ i j ) 2
where uij is the uncertainty of each measured value.

3. Results

3.1. Occurrence of Target Antibiotics

We chose 34 antibiotics as targets, and 4 antibiotics were detected, including LIN, SMX, TMP and OFL, belonging to the three classes of Sas (SMX, TMP), MLs (LIN), and FQs (OFL), indicating the presence of target antibiotic residues in the PWL. The frequency and mean concentrations of sulfonamides were higher than those of macrolides and quinolones, and the levels and occurrence rates of each antibiotic class in PWL are shown in Table 1. Although tetracycline (TC) antibiotics are the most widely used antibiotics for both human and veterinary treatments in China [27,28], they were not detected at concentrations above 20 ng/L. This is because tetracyclines are photodegraded in shallow lakes [29], and tetracyclines also have complexing properties; they readily combine with calcium and similar ions to form stable complexes that bind to suspended matter and sediments [30], they may not exist as free molecules, and tetracyclines have large K values and are more distributed in sediments [31]. In addition, the detection of a limited number of tetracycline species and the detection limit of 20 ng/L for tetracycline may be incomplete and not sensitive enough.
The average detection rate of antibiotics at 26 sampling points was 92.3%. Among them, the detection rate of LIN was 57.7%, SMX was 76.9%, TMP was 38.5%, and OFL was 42.3%. For sampling sites where those four antibiotics were detected in the water, approximately 96.4% had concentrations below 5.0 ng/L (Figure 2). TMP 2.07~4.66 ng/L (mean 3.27 ng/L) and OFL (1.8~5.47 ng/L, mean 3.21 ng/L) were the top two contributors to the antibiotic concentration in water, followed by LIN 0.71~1.51 ng/L (mean 1.1 ng/L) and SMX 0.78~5.53 ng/L, with an average of 2.96 ng/L. OFL (1.8~5.47 ng/L, mean 3.21 ng/L) was the major antibiotic detected in this study. LIN is one of the five most commonly used antibiotics (amoxicillin, florfenicol, LIN, penicillin, and norfloxacin) in China [27]. In addition, LIN exhibited higher hydrophilicity and lower solubility in water collected from saltwater pools, rendering it more enduring in seawater (t1/2 = 809 days) [32]. Sulfonamides are very common antibiotics that have been detected in many Chinese rivers [33,34], and some have been detected at high concentrations. Through monitoring 1052 rivers worldwide, SMX was detected in 140 (13%) of them at concentrations exceeding their predicted no-effect concentrations for aquatic organisms. Similarly, TMP was detected in some rivers in Africa and South America at concentrations exceeding the safety target for biological resistance [35]. The high detection rate of sulfonamides (76.9%) could be attributed to the use of SMX and TMP as feed additives in livestock and aquaculture and their synergistic effect in combination with other drugs [36]. In addition, prior research indicates that sulfonamides are difficult to degrade in water, so their concentrations in the aquatic environment are relatively high [37]. QNs are frequently detected in rivers and lakes as major aquaculture inputs [38]. Previous studies have shown that QNs are the major antibiotics in sediments, accounting for 80.9% of total antibiotics [39]. This is because the chemical structure of QNs makes it extremely easy to form complexes with mineral cations or solid particulate organics, so they are more likely to be deposited in sediments [40]. Because the sediment was not tested for antibiotic content in this study, the actual QN content may be higher. Although the type of antibiotics in the sediment was not detected at this time, there is also a possibility of antibiotic contamination in the sediment because the diffusion of antibiotics in water is greater than that in sediment, and antibiotics can migrate from water to sediment [41].

3.2. Antibiotic Compositions in Different Areas and Comparison with Other Regions

The total antibiotic concentration in the Panlong River was 7.85 ng/L. Both LIN and SMX were found in every sample (Figure 3), and the highest concentrations were at site 5, at 1.37 and 5.53 ng/L, respectively (Table 3). The average concentration of LIN in each sample was approximately 1 ng/L, with little difference in concentration among the sampling sites, further confirming the stability of LIN in water. The concentration of SMX ranged from 2.56 to 5.53 ng/L (mean 3.51 ng/L), continued to increase from upstream to midstream, and began to decrease from midstream to downstream; however, at the inlet of Lake Dianchi, the concentration suddenly increased. OFL was detected in samples 1 to 6 with an average detection frequency of 75% and concentrations from 1.80 to 5.47 ng/L (mean 3.24 ng/L). At sampling 2, there was a sudden increase in concentration, reaching 5.47 ng/L. TMP was not detected. The high concentrations of target antibiotics at the inlet of Lake Dianchi suggest that the Panlong River has an important role in the source of antibiotics to Lake Dianchi. In the XingHai wetland, the detection rate of LIN was 20%, SMX was 40%, TMP was 50%, and OFL was 10%. The concentration of LIN ranged from 1.14 to 1.35 ng/L (mean 1.25 ng/L), the concentration of SMX ranged from 0.78 to 2.23 ng/L (mean 1.56 ng/L), and the concentration of TMP ranged from 2.07 to 4.09 ng/L (mean 3.12 ng/L), while OFL was not detected. The collective antibiotic concentration in the XingHai wetland measured 8.05 ng/L. In the inlet of Lake Dianchi, all four kinds of antibiotics were detected, and SMX was detected in all water samples, with the highest detection rate, followed by LIN, with a detection rate of 62.5%, TMP and OFL, both with a detection rate of 50%. The concentration range of LIN was 0.75 to 1.51 ng/L (mean 1.05 ng/L), SMX was 1.93 to 4.69 ng/L (mean 3.12 ng/L), TMP was 2.08 to 4.66 ng/L (mean 3.45 ng/L), and OFL was 2.63 to 4.55 ng/L (mean 3.44 ng/L). The total antibiotic concentration in the inlet of Lake Dian was 11.06 ng/L. The highest total antibiotic concentration was found in the inlet of Lake Dian at 11.06 ng/L, with TMP and OFL accounting for 31.2% and 31.1%, respectively. As shown in Figure 4, in the water samples, the primary antibiotics identified in the Panlong River (P) were SMX and OFL. The main antibiotic species detected in Lake Dianchi (L) were SMX, OFL, and TMP, with SMX predominating. This indicates that the same source of SMX may exist in the Panlong River and Lake Dianchi. SMX is one of the most common sulfonamides in natural waters, and the main source putatively is aquaculture, and it was detected in high concentrations in aquatic environments [42]. In contrast, the dominant antibiotic species in the Xinghai wetland (W) was TMP.
These antibiotics were detected in other aquatics [43], and the SMX and OFL concentrations in the PWD system were lower than those in the Lake Fuxian and Erhai basins, which are in Yunnan Province. In the Lake Fuxian basin, seven antibiotics at concentrations ranging from 0 to 150 ng/L were detected, with sulfonamides and OFL accounting for 100% and 82% of the total content, respectively. Sulfonamide concentrations ranged from 0.98 to 14.32 ng/L (mean 6.52 ng/L), and OFL concentrations ranged from 0.77 to 7.3 ng/L (mean 3.40 ng/L) [14]. Sulfonamides and OFL were detected in the Erhai watershed by Zhi et al. [44]. They also found sulfonamides at significantly higher concentrations and frequencies in water than in other environmental media. In comparison with other urban rivers outside Yunnan Province, SMX and OFL concentrations were lower than those of the Bohai Rim, Yangtze River, Huangshui River (Xining City, China, concentrations of OFL exceeded those found in the Huangshui River), and urban rivers in Vietnam [45]. The maximum values detected for SMX, TMP, and OFL were significantly lower than those reported for the Nanming River (Guiyang City, China), Hanjiang River (Wuhan City, China), Wangyang River (Shijiazhuang City, China), and Ter River (Girona, Spain) [46,47,48,49]. SMX and TMP concentrations were significantly lower than those of the Chaobai River (Beijing, China) [50] and the Umgeni River (Durban, South Africa) [51]. The maximum detected concentrations of SMX and TMP in African rivers are 3320 and 38.9 μg/L [52,53], respectively. Lower concentrations of SMX and TMP were detected in rivers of developed countries. Significant differences in SMX and TMP concentrations in rivers of different countries were correlated with national income levels. Developed countries have better wastewater treatment facilities and strict antibiotic stewardship systems, despite their higher antibiotic consumption rates (DDDs per 1000 inhabitants per day) [3,54]. In comparison, the detected concentrations in OFL were higher than those in the Nera River (Tuscany, Italy) [55] and Han River (Seoul, Republic of Korea) [56].
Human activity, population density, hydraulic properties of rivers and lakes, and land use type play an important role in the distribution of antibiotic concentrations. There were differences in the types of antibiotics detected between the Panlong River and Lake Dianchi. TMP were detected at the inlet of the lake, while they were not detected in the Panlong River, which indicates that there are other input sources around the river in addition to those evaluated in this study. The presence of TMP was detected at sampling sites W8, W9, and W10 in the Xinghai wetland, indicating the presence of nearby sources of contamination. The river eventually flows into Lake Dianchi, and the SMX and OFL concentrations in the inlet are higher than those in the Panlong River. Studies on Lake Dianchi have shown that the SMX and OFL concentrations in Lake Dianchi are 17.6–499.2 and ND—713.6 ng/L, respectively [57], suggesting that there are other sources in Lake Dianchi. Antibiotics carried by rivers entering the lake can affect the ecological risk and increase the uncertainty of microbial resistance risk [58,59,60]. In addition, due to the long residence time of the lake, the accumulated concentration of pollutants will increase. SMX was detected along the shoreline of Lake Dianchi by the wetland (sampling points L1 to L8), and OFL was detected at sampling points L1 to L4. Both antibiotics were also widely detected in the Panlong River, but SMX and OFL were not detected at most of the sampling points in the wetland, suggesting that there may be adsorption degradation of SMX and OFL by plants in the wetland, especially for SMX.

3.3. Correlation between Antibiotic Concentrations and Water Properties

The correlation between antibiotics and water quality parameters was evaluated (Figure 5), and the antibiotic concentrations showed some negative correlations with pH, salinity, DO, and CHl. The possible reason for the negative correlation between antibiotics and salinity is that the salinity of Dianchi (0.24) is higher than the salinity of Panlong River (0.22), and as the water flows into the lake, the salinity rises and pollutants are diluted. The salinity at the mouth of the lake was 0.225, and the injection of river water lowered the salinity at this confluence, which also indicates that the Panlong River imports antibiotics into Dianchi. This is consistent with previous reports that antibiotic concentrations exhibited a negative correlation with salinity in both the Bohai Sea and the Yellow Sea [61,62]. It has been shown that DO can affect the concentration of antibiotics because DO can directly affect the biodegradation activity of microorganisms [63], and the rate of antibiotics degradation is greater under aerobic conditions compared to anaerobic conditions [64], so antibiotics show a negative correlation with DO. Antibiotics showed a positive correlation with TN (p < 0.05), which is a similar pattern found in other water bodies. For example, a study of the Yangtze River, Pearl River, and Yellow Sea found that TN was positively correlated with antibiotics [6,65,66]. TN can reflect the degree of antibiotic pollution to some extent, and they probably have similar sources, such as human domestic sewage and aquaculture [67].

3.4. Human Health Risk Assessment

These antibiotics were subjected to human health risk evaluations. Human health hazards of several pollutants reported in the Panlong River were analyzed using reference doses from the USEPA IRIS database and peer-reviewed literature. The maximum concentrations of these pollutants discovered in the Panlong River were utilized to estimate their maximum possible risks of carcinogenic and noncarcinogenic, and the maximum exposure of various groups was chosen to calculate the worst-case scenario. Their noncarcinogenic properties were computed using detected concentrations to forecast their greatest probable health risk during water reuse. Figure 6 illustrates the estimated human noncarcinogenic hazards. The analysis contaminant’s noncarcinogenic hazard to humans was below the relevant tolerable risk level. The human health risk from various contaminants for water reuse, such as swimming, is generally higher than that in the other two scenarios, which may be due to the consideration of greater exposure methods and intake volume V than in the other two scenarios. The highest potential noncarcinogenic risk for OFL was 1.37 × 10−7 when swimming in water.
We evaluated the noncarcinogenic risk of pollutants to different populations under various scenarios examined in the human health risk assessment. Our data showed that the human health risk is low but should be monitored and controlled. Various precise human health risk evaluations should be undertaken in the future, considering variances in further features of exposure to different populations, as well as more studies on exposure parameters under diverse reuse situations.

3.5. Ecological Risk Assessment

LIN, SMX, TMP, and OFL in water samples from the Panlong River were assessed based on acute and chronic toxicity RQs with three typical freshwater organisms (fish, daphnia, and algae) in the river (Figure 7). The acute and chronic toxicity of all antibiotics to fish, daphnia, and algae were not significant. The ecological risks of SMX, TMP, OFX, and LIN were generally higher for Daphnia than for algae and fish, probably due to the lower acute and chronic toxicity of PNECs in both daphnia than in fish and algae. Most SMX, TMP, OFX, and LIN showed higher ecological risks to algae than to fish. However, SMX and TMP showed higher chronic toxicity to fish than to algae.

3.6. Pollution Source Analysis

The results of the PMF model analysis (Figure 8) showed that there were three influencing factors in the PXD region. Factor 1 contributed the most, accounting for approximately 43.7% of the total contamination contribution and mainly consisted of LIN, SMX, and OFX. These antibiotics are mainly veterinary antibiotics in China, among which SMX has been approved for veterinary use and is generally used as a sulfonamide synergist in livestock farming and aquaculture, thus enhancing antimicrobial efficacy [68]. It has been reported that most of the veterinary antibiotics in livestock farming in China are directly discharged into the environment, such as water or soil with animal manure and urine [69]; therefore, factor 1 may originate from livestock farming and aquaculture wastewater. Factor 2 accounted for 34.7% of the total pollution contribution, and its contributions to TN, DTN, and NO3-N were 59.4%, 51.9%, and 55.2%, respectively. Since fertilizers may be discharged into the lake with surface runoff, considered one of the main sources of nitrogen in the lake [70], agricultural activities may account for the high nitrogen index, and factor 2 may represent agricultural surface source pollution. Factor 3 accounted for 22.4% of the total contamination, and its contributions to TP, PO43−-P, SMX, OFX, and TMP were 43.7%, 40%, 23.7%, 25.8%, and 31.5%, respectively. It is well known that SMX and OFX are commonly used antibiotics in humans, usually for the treatment of bacterial infections [71]. The Panlong River runs through the city of Kunming, which is densely populated, and factor 3 may come from the discharge of human antibiotics, representing the impact of domestic wastewater.

4. Conclusions

In this study, we targeted 34 antibiotics, including SAs, MLs, FQs, TCs, and CLs, in the PWL. The study results indicated that sulfonamides were the most widely distributed compounds in the area. Spatially, high concentrations of antibiotics were detected at sampling sites near the city center, which may accurately represent anthropogenic pollutants in urban rivers. TMP was the predominant antibiotic in the Xinghai wetland, accounting for nearly 60% of the total antibiotic concentrations. TMP was not detected in the Panlong River but was widely present in wetlands and the lake Dianchi inlet. Our findings demonstrated that antibiotic concentrations were positively correlated with TN and showed some negative correlation with pH, salinity, and DO as water quality parameters. In addition, the risk evaluate results showed that none of the sampling sites posed a risk to human health or aquatic ecosystems. Currently, our research is limited to antibiotics in surface waters, and the next step should be to explore sediments and other environmental media. In addition, there is a need to model the sources and transport of antibiotics at the watershed scale to better understand the fate of antibiotics in shallow lakes. This study helps to deepen the understanding of the current water quality of urban river–wetland–lake systems and provides guidance for the improvement of ecological services of urban water.

Author Contributions

Conceptualization, methodology, supervision, resources, foundation acquisition, writing—review and editing, H.Z.; formal analysis, writing—original draft preparation, Y.Z.; investigation and data curation, Y.Z., L.D., T.X., P.H., J.X. and H.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the NSFC (Grant No. U2202207) and the Special Project for Social Development of Yunnan Province (Grant No. 202103AC100001).

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

We thank all the students who participated in the fieldwork and laboratory analyses.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Danner, M.C.; Robertson, A.; Behrends, V.; Reiss, J. Antibiotic pollution in surface fresh waters: Occurrence and effects. Sci. Total Environ. 2019, 664, 793–804. [Google Scholar] [CrossRef] [PubMed]
  2. Liu, X.H.; Lu, S.Y.; Guo, W.; Xi, B.D.; Wang, W.L. Antibiotics in the aquatic environments: A review of lakes, China. Sci. Total Environ. 2018, 627, 1195–1208. [Google Scholar] [CrossRef]
  3. Klein, E.Y.; Van Boeckel, T.P.; Martinez, E.M.; Pant, S.; Gandra, S.; Levin, S.A.; Goossens, H.; Laxminarayan, R. Global increase and geographic convergence in antibiotic consumption between 2000 and 2015. Proc. Natl. Acad. Sci. USA 2018, 115, E3463–E3470. [Google Scholar] [CrossRef] [PubMed]
  4. Dong, J.W.; Yan, D.D.; Mo, K.L.; Chen, Q.W.; Zhang, J.Y.; Chen, Y.C.; Wang, Z.Y. Antibiotics along an alpine river and in the receiving lake with a catchment dominated by grazing husbandry. J. Environ. Sci. 2022, 115, 374–382. [Google Scholar] [CrossRef] [PubMed]
  5. Lu, S.; Lin, C.Y.; Lei, K.; Wang, B.D.; Xin, M.; Gu, X.; Cao, Y.X.; Liu, X.T.; Ouyang, W.; He, M.C. Occurrence, spatiotemporal variation, and ecological risk of antibiotics in the water of the semi-enclosed urbanized Jiaozhou Bay in eastern China. Water Res. 2020, 184, 116187. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, J.C.; Zhang, X.R.; Zhou, Y.; Han, Q.F.; Wang, X.L.; Song, C.; Wang, S.G.; Zhao, S. Occurrence, distribution and risk assessment of antibiotics at various aquaculture stages in typical aquaculture areas surrounding the Yellow Sea. J. Environ. Sci. 2023, 126, 621–632. [Google Scholar] [CrossRef] [PubMed]
  7. Xu, L.Y.; Zhang, H.; Xiong, P.; Zhu, Q.Q.; Liao, C.Y.; Jiang, G.B. Occurrence, fate, and risk assessment of typical tetracycline antibiotics in the aquatic environment: A review. Sci. Total Environ. 2021, 753, 141975. [Google Scholar] [CrossRef]
  8. Valdez-Carrillo, M.; Abrell, L.; Ramirez-Hernandez, J.; Reyes-Lopez, J.A.; Carreon-Diazconti, C. Pharmaceuticals as emerging contaminants in the aquatic environment of Latin America: A review. Environ. Sci. Pollut. Res. 2020, 27, 44863–44891. [Google Scholar] [CrossRef] [PubMed]
  9. Liao, K.L.L.; Bai, Y.H.; Huo, Y.; Jian, Z.Y.; Hu, W.C.; Zhao, C.; Qu, J.H. Integrating microbial biomass, composition and function to discern the level of anthropogenic activity in a river ecosystem. Environ. Int. 2018, 116, 147–155. [Google Scholar] [CrossRef]
  10. Yang, Y.Y.; Song, W.J.; Lin, H.; Wang, W.B.; Du, L.N.; Xing, W. Antibiotics and antibiotic resistance genes in global lakes: A review and meta-analysis. Environ. Int. 2018, 116, 60–73. [Google Scholar] [CrossRef]
  11. Gao, J.H.; Jia, J.J.; Kettner, A.J.; Xing, F.; Wang, Y.P.; Xu, X.N.; Yang, Y.; Zou, X.Q.; Gao, S.; Qi, S.H.; et al. Changes in water and sediment exchange between the Changjiang River and Poyang Lake under natural and anthropogenic conditions, China. Sci. Total Environ. 2014, 481, 542–553. [Google Scholar] [CrossRef]
  12. Hou, L.Y.; Zhang, L.P.; Li, F.R.; Huang, S.J.; Yang, J.; Ma, C.; Zhang, D.X.; Yu, C.P.; Hu, A.Y. Urban ponds as hotspots of antibiotic resistome in the urban environment. J. Hazard. Mater. 2021, 403, 124008. [Google Scholar] [CrossRef]
  13. Perez, J.I.; Alvarez-Arroyo, R.; Arrieta, J.; Suescun, J.M.; Paunero, S.; Gomez, M.A. Occurrence of antibiotics and antibiotic-resistant bacteria (ARB) in the Nervion river. Chemosphere 2022, 288, 132479. [Google Scholar] [CrossRef]
  14. Zhao, B.; Xu, J.M.; Zhang, G.D.; Lu, S.Y.; Liu, X.H.; Li, L.X.; Li, M. Occurrence of antibiotics and antibiotic resistance genes in the Fuxian Lake and antibiotic source analysis based on principal component analysis-multiple linear regression model. Chemosphere 2021, 262, 127741. [Google Scholar] [CrossRef]
  15. Maghsodian, Z.; Sanati, A.M.; Mashifana, T.; Sillanpaa, M.; Feng, S.Y.; Nhat, T.; Ramavandi, B. Occurrence and Distribution of Antibiotics in the Water, Sediment, and Biota of Freshwater and Marine Environments: A Review. Antibiotics 2022, 11, 1461. [Google Scholar] [CrossRef] [PubMed]
  16. GB11893-89; Water Quality–Determination of Total Phosphorus–Ammonium Molybdate Spectrophotometric Method. The Ministry of Environmental Protection: Beijing, China, 1989.
  17. HJ636-2012; Water Quality—Determination of Total Nitrogen–Alkaline Potassium Persulfate Digestion UV Spectrophotometric Method. China Environmental Science Press: Beijing, China, 2012.
  18. Lin, X.H.; Xu, J.C.; Keller, A.A.; He, L.; Gu, Y.H.; Zheng, W.W.; Sun, D.Y.; Lu, Z.B.; Huang, J.W.; Huang, X.F.; et al. Occurrence and risk assessment of emerging contaminants in a water reclamation and ecological reuse project. Sci. Total Environ. 2020, 744, 140977. [Google Scholar] [CrossRef]
  19. Asano, T.; Levine, A.D. Wastewater reclamation, recycling and reuse: Past, present, and future. Water Sci. Technol. 1996, 33, 1–14. [Google Scholar] [CrossRef]
  20. The Ministry of Environmental Protection (Ed.) Exposure Factors Handbook of Chinese Population; China Environmental Press: Beijing, China, 2013. [Google Scholar]
  21. Integrated Risk Information System; Office of Research and Development, National Center for Environmental Assessment: Washington, DC, USA, 2006. Available online: http://www.epa.gov/iris (accessed on 3 February 1993).
  22. USEPA. Description and Use in Health Risk Assessments; USEPA: Washington, DC, USA, 1993. Available online: https://www.epa.gov/iris/reference-dose-rfd-description-and-use-health-risk-assessments (accessed on 3 February 1993).
  23. Sharafi, K.; Nodehi, R.N.; Yunesian, M.; Mahvi, A.H.; Pirsaheb, M.; Nazmara, S. Human health risk assessment for some toxic metals in widely consumed rice brands (domestic and imported) in Tehran, Iran: Uncertainty and sensitivity analysis. Food Chem. 2019, 277, 145–155. [Google Scholar] [CrossRef]
  24. Du, J.; Zhao, H.X.; Wang, Y.; Xie, H.J.; Zhu, M.H.; Chen, J.W. Presence and environmental risk assessment of selected antibiotics in coastal water adjacent to mariculture areas in the Bohai Sea. Ecotoxicol. Environ. Saf. 2019, 177, 117–123. [Google Scholar] [CrossRef]
  25. ECOTOX. Ecotoxicology Database. Available online: https://cfpub.epa.gov/ecotox/ (accessed on 3 February 1993).
  26. Inam, E.J.; Nwoke, I.B.; Udosen, E.D.; Offiong, N.-A.O. Ecological risks of phenolic endocrine disrupting compounds in an urban tropical river. Environ. Sci. Pollut. Res. 2019, 26, 21589–21597. [Google Scholar] [CrossRef] [PubMed]
  27. Zhang, Q.Q.; Ying, G.G.; Pan, C.G.; Liu, Y.S.; Zhao, J.L. Comprehensive Evaluation of Antibiotics Emission and Fate in the River Basins of China: Source Analysis, Multimedia Modeling, and Linkage to Bacterial Resistance. Environ. Sci. Technol. 2015, 49, 6772–6782. [Google Scholar] [CrossRef]
  28. Zhao, L.; Dong, Y.H.; Wang, H. Residues of veterinary antibiotics in manures from feedlot livestock in eight provinces of China. Sci. Total Environ. 2010, 408, 1069–1075. [Google Scholar] [CrossRef]
  29. Vione, D.; Feitosa-Felizzola, J.; Minero, C.; Chiron, S. Phototransformation of selected human-used macrolides in surface water: Kinetics, model predictions and degradation pathways. Water Res. 2009, 43, 1959–1967. [Google Scholar] [CrossRef]
  30. Hirsch, R.; Ternes, T.; Haberer, K.; Kratz, K.L. Occurrence of antibiotics in the aquatic environment. Sci. Total Environ. 1999, 225, 109–118. [Google Scholar] [CrossRef] [PubMed]
  31. Chen, Y.L.; Jiang, C.X.; Wang, Y.L.; Song, R.R.; Tan, Y.; Yang, Y.Y.; Zhang, Z.L. Sources, Environmental Fate, and Ecological Risks of Antibiotics in Sediments of Asia’s Longest River: A Whole-Basin Investigation. Environ. Sci. Technol. 2022, 56, 14439–14451. [Google Scholar] [CrossRef]
  32. Lei, K.H.; Lai, H.T. Effects of sunlight, microbial activity, and temperature on the declines of antibiotic lincomycin in freshwater and saline aquaculture pond waters and sediments. Environ. Sci. Pollut. Res. 2019, 26, 33988–33994. [Google Scholar] [CrossRef] [PubMed]
  33. Lyu, J.; Yang, L.S.; Zhang, L.; Ye, B.X.; Wang, L. Antibiotics in soil and water in China-a systematic review and source analysis. Environ. Pollut. 2020, 266, 115147. [Google Scholar] [CrossRef]
  34. Li, S.; Shi, W.Z.; Liu, W.; Li, H.M.; Zhang, W.; Hu, J.R.; Ke, Y.C.; Sun, W.L.; Ni, J.R. A duodecennial national synthesis of antibiotics in China’s major rivers and seas (2005–2016). Sci. Total Environ. 2018, 615, 906–917. [Google Scholar] [CrossRef]
  35. Wilkinson, J.L.; Boxall, A.B.A.; Kolpin, D.W.; Leung, K.M.Y.; Lai, R.W.S.; Galban-Malagon, C.; Adell, A.D.; Mondon, J.; Metian, M.; Marchant, R.A.; et al. Pharmaceutical pollution of the world’s rivers. Proc. Natl. Acad. Sci. USA 2022, 119, e2113947119. [Google Scholar] [CrossRef]
  36. Jia, J.; Guan, Y.J.; Cheng, M.Q.; Chen, H.; He, J.F.; Wang, S.; Wang, Z.Z. Occurrence and distribution of antibiotics and antibiotic resistance genes in Ba River, China. Sci. Total Environ. 2018, 642, 1136–1144. [Google Scholar] [CrossRef]
  37. Kolpin, D.W.; Furlong, E.T.; Meyer, M.T.; Thurman, E.M.; Zaugg, S.D.; Barber, L.B.; Buxton, H.T. Pharmaceuticals, hormones, and other organic wastewater contaminants in US streams, 1999–2000: A national reconnaissance. Environ. Sci. Technol. 2002, 36, 1202–1211. [Google Scholar] [CrossRef]
  38. Chen, Q.W.; Dong, J.W.; Zhang, T.; Yi, Q.T.; Zhang, J.Y.; Hu, L.M. A method to study antibiotic emission and fate for data-scarce rural catchments. Environ. Int. 2019, 127, 514–521. [Google Scholar] [CrossRef]
  39. Li, W.H.; Shi, Y.L.; Gao, L.H.; Liu, J.M.; Cai, Y.Q. Occurrence of antibiotics in water, sediments, aquatic plants, and animals from Baiyangdian Lake in North China. Chemosphere 2012, 89, 1307–1315. [Google Scholar] [CrossRef] [PubMed]
  40. Thiele-Bruhn, S. Pharmaceutical antibiotic compounds in soils—A review. J. Plant Nutr. Soil Sci. 2003, 166, 145–167. [Google Scholar] [CrossRef]
  41. Li, F.F.; Chen, L.J.; Chen, W.D.; Bao, Y.Y.; Zheng, Y.H.; Huang, B.; Mu, Q.L.; Wen, D.H.; Feng, C.P. Antibiotics in coastal water and sediments of the East China Sea: Distribution, ecological risk assessment and indicators screening. Mar. Pollut. Bull. 2020, 151, 110810. [Google Scholar] [CrossRef] [PubMed]
  42. Qin, Y.W.; Wen, Q.; Ma, Y.Q.; Yang, C.C.; Liu, Z.C. Antibiotics pollution in Gonghu Bay in the period of water diversion from Yangtze River to Taihu Lake. Environ. Earth Sci. 2018, 77, 419. [Google Scholar] [CrossRef]
  43. Ngumba, E.; Gachanja, A.; Tuhkanen, T. Occurrence of selected antibiotics and antiretroviral drugs in Nairobi River Basin, Kenya. Sci. Total Environ. 2016, 539, 206–213. [Google Scholar] [CrossRef]
  44. Zhi, S.L.; Shen, S.Z.; Zhou, J.; Ding, G.Y.; Zhang, K.Q. Systematic analysis of occurrence, density and ecological risks of 45 veterinary antibiotics: Focused on family livestock farms in Erhai Lake basin, Yunnan, China. Environ. Pollut. 2020, 267, 115539. [Google Scholar] [CrossRef]
  45. Kuang, Y.Z.; Guo, X.Y.; Hu, J.R.; Li, S.; Zhang, R.J.; Gao, Q.; Yang, X.; Chen, Q.; Sun, W.L. Occurrence and risks of antibiotics in an urban river in northeastern Tibetan Plateau. Sci. Rep. 2020, 10, 20054. [Google Scholar] [CrossRef]
  46. Linghu, K.; Wu, Q.X.; Zhang, J.; Wang, Z.H.; Zeng, J.; Gao, S.L. Occurrence, distribution and ecological risk assessment of antibiotics in Nanming river: Contribution from wastewater treatment plant and implications of urban river syndrome. Process Saf. Environ. Prot. 2023, 169, 428–436. [Google Scholar] [CrossRef]
  47. Hu, Y.; Yan, X.; Shen, Y.; Di, M.X.; Wang, J. Antibiotics in surface water and sediments from Hanjiang River, Central China: Occurrence, behavior and risk assessment. Ecotoxicol. Environ. Saf. 2018, 157, 150–158. [Google Scholar] [CrossRef]
  48. Jiang, Y.H.; Li, M.X.; Guo, C.S.; An, D.; Xu, J.; Zhang, Y.; Xi, B.D. Distribution and ecological risk of antibiotics in a typical effluent-receiving river (Wangyang River) in north China. Chemosphere 2014, 112, 267–274. [Google Scholar] [CrossRef]
  49. Rodriguez-Mozaz, S.; Chamorro, S.; Marti, E.; Huerta, B.; Gros, M.; Sanchez-Melsio, A.; Borrego, C.M.; Barcelo, D.; Balcazar, J.L. Occurrence of antibiotics and antibiotic resistance genes in hospital and urban wastewaters and their impact on the receiving river. Water Res. 2015, 69, 234–242. [Google Scholar] [CrossRef]
  50. Zhang, Y.X.; Chen, H.Y.; Jing, L.J.; Teng, Y.G. Ecotoxicological risk assessment and source apportionment of antibiotics in the waters and sediments of a peri-urban river. Sci. Total Environ. 2020, 731, 139128. [Google Scholar] [CrossRef]
  51. Matongo, S.; Birungi, G.; Moodley, B.; Ndungu, P. Occurrence of selected pharmaceuticals in water and sediment of Umgeni River, KwaZulu-Natal, South Africa. Environ. Sci. Pollut. Res. 2015, 22, 10298–10308. [Google Scholar] [CrossRef] [PubMed]
  52. Müller, B.; Thoma, R.; Baumann, K.B.; Callbeck, C.M.; Schubert, C.J. Nitrogen removal processes in lakes of different trophic states from on-site measurements and historic data. Aquat. Sci. 2021, 83, 37. [Google Scholar] [CrossRef]
  53. Ogunbanwo, O.M.; Kay, P.; Boxall, A.B.; Wilkinson, J.; Sinclair, C.J.; Shabi, R.A.; Fasasi, A.E.; Lewis, G.A.; Amoda, O.A.; Brown, L.E. High Concentrations of Pharmaceuticals in a Nigerian River Catchment. Environ. Toxicol. Chem. 2022, 41, 551–558. [Google Scholar] [CrossRef] [PubMed]
  54. Kairigo, P.; Ngumba, E.; Sundberg, L.R.; Gachanja, A.; Tuhkanen, T. Occurrence of antibiotics and risk of antibiotic resistance evolution in selected Kenyan wastewaters, surface waters and sediments. Sci. Total Environ. 2020, 720, 137580. [Google Scholar] [CrossRef] [PubMed]
  55. Sargenti, M.; Bartolacci, S.; Luciani, A.; Di Biagio, K.; Baldini, M.; Galarini, R.; Giusepponi, D.; Capuccella, M. Investigation of the Correlation between the Use of Antibiotics in Aquaculture Systems and Their Detection in Aquatic Environments: A Case Study of the Nera River Aquafarms in Italy. Sustainability 2020, 12, 5176. [Google Scholar] [CrossRef]
  56. Im, J.K.; Kim, S.H.; Noh, H.R.; Yu, S.J. Temporal-spatial variation and environmental risk assessment of pharmaceuticals in tributaries of the Han River watershed, South Korea. Sci. Total Environ. 2020, 741, 140486. [Google Scholar] [CrossRef]
  57. Li, L.; Liu, D.; Zhang, Q.; Song, K.; Zhou, X.H.; Tang, Z.; Zhou, X. Occurrence and ecological risk assessment of selected antibiotics in the freshwater lakes along the middle and lower reaches of Yangtze River Basin. J. Environ. Manag. 2019, 249, 109396. [Google Scholar] [CrossRef]
  58. Lee, J.; Ju, F.; Maile-Moskowitz, A.; Beck, K.; Maccagnan, A.; McArdell, C.S.; Dal Molin, M.; Fenicia, F.; Vikesland, P.J.; Pruden, A.; et al. Unraveling the riverine antibiotic resistome: The downstream fate of anthropogenic inputs. Water Res. 2021, 197, 117050. [Google Scholar] [CrossRef] [PubMed]
  59. Zhang, L.; Bai, J.H.; Zhang, K.G.; Wang, Y.Q.; Xiao, R.; Campos, M.; Acuna, J.; Jorquera, M.A. Occurrence, bioaccumulation and ecological risks of antibiotics in the water- plant-sediment systems in different functional areas of the largest shallow lake in North China: Impacts of river input and historical agricultural activities. Sci. Total Environ. 2023, 857, 159260. [Google Scholar] [CrossRef] [PubMed]
  60. Malnes, D.; Ahrens, L.; Kohler, S.; Forsberg, M.; Golovko, O. Occurrence and mass flows of contaminants of emerging concern (CECs) in Sweden’s three largest lakes and associated rivers. Chemosphere 2022, 294, 133825. [Google Scholar] [CrossRef] [PubMed]
  61. Zhang, R.J.; Tang, J.H.; Li, J.; Zheng, Q.; Liu, D.; Chen, Y.J.; Zou, Y.D.; Chen, X.X.; Luo, C.L.; Zhang, G. Antibiotics in the offshore waters of the Bohai Sea and the Yellow Sea in China: Occurrence, distribution and ecological risks. Environ. Pollut. 2013, 174, 71–77. [Google Scholar] [CrossRef] [PubMed]
  62. DuJuan, Z.H.X.; LiuSisi, X.H.J.; WangYan, C.J.W. Antibiotics in the coastal water of the South Yellow Sea in China: Occurrence, distribution and ecological risks. Sci. Total Environ. 2017, 595, 521–527. [Google Scholar] [CrossRef]
  63. Han, Q.F.; Zhao, S.; Zhang, X.R.; Wang, X.L.; Song, C.; Wang, S.G. Distribution, combined pollution and risk assessment of antibiotics in typical marine aquaculture farms surrounding the Yellow Sea, North China. Environ. Int. 2020, 138, 105551. [Google Scholar] [CrossRef]
  64. Ingerslev, F.; Torang, L.; Loke, M.L.; Halling-Sorensen, B.; Nyholm, N. Primary biodegradation of veterinary antibiotics in aerobic and anaerobic surface water simulation systems. Chemosphere 2001, 44, 865–872. [Google Scholar] [CrossRef] [PubMed]
  65. Wu, C.X.; Huang, X.L.; Witter, J.D.; Spongberg, A.L.; Wang, K.X.; Wang, D.; Liu, J.T. Occurrence of pharmaceuticals and personal care products and associated environmental risks in the central and lower Yangtze river, China. Ecotoxicol. Environ. Saf. 2014, 106, 19–26. [Google Scholar] [CrossRef]
  66. Yang, X.; Chen, F.; Meng, F.G.; Xie, Y.Y.; Chen, H.; Young, K.; Luo, W.X.; Ye, T.J.; Fu, W.J. Occurrence and fate of PPCPs and correlations with water quality parameters in urban riverine waters of the Pearl River Delta, South China. Environ. Sci. Pollut. Res. 2013, 20, 5864–5875. [Google Scholar] [CrossRef]
  67. Chen, H.; Liu, S.; Xu, X.R.; Zhou, G.J.; Liu, S.S.; Yue, W.Z.; Sun, K.F.; Ying, G.G. Antibiotics in the coastal environment of the Hailing Bay region, South China Sea: Spatial distribution, source analysis and ecological risks. Mar. Pollut. Bull. 2015, 95, 365–373. [Google Scholar] [CrossRef] [PubMed]
  68. Zhou, M.; Yu, S.; Hong, B.; Li, J.; Han, H.; Qie, G. Antibiotics control in aquaculture requires more than antibiotic-free feeds: A tilapia farming case. Environ. Pollut. 2021, 268, 115854. [Google Scholar] [CrossRef] [PubMed]
  69. Zhou, L.J.; Ying, G.G.; Liu, S.; Zhang, R.Q.; Lai, H.J.; Chen, Z.F.; Pan, C.G. Excretion masses and environmental occurrence of antibiotics in typical swine and dairy cattle farms in China. Sci. Total Environ. 2013, 444, 183–195. [Google Scholar] [CrossRef] [PubMed]
  70. Chen, H.Y.; Teng, Y.G.; Wang, J.S. Load estimation and source apportionment of nonpoint source nitrogen and phosphorus based on integrated application of SLURP model, ECM, and RUSLE: A case study in the Jinjiang River, China. Environ. Monit. Assess. 2013, 185, 2009–2021. [Google Scholar] [CrossRef]
  71. Wu, Q.; Xiao, S.K.; Pan, C.G.; Yin, C.; Wang, Y.H.; Yu, K.F. Occurrence, source apportionment and risk assessment of antibiotics in water and sediment from the subtropical Beibu Gulf, South China. Sci. Total Environ. 2022, 806, 150439. [Google Scholar] [CrossRef]

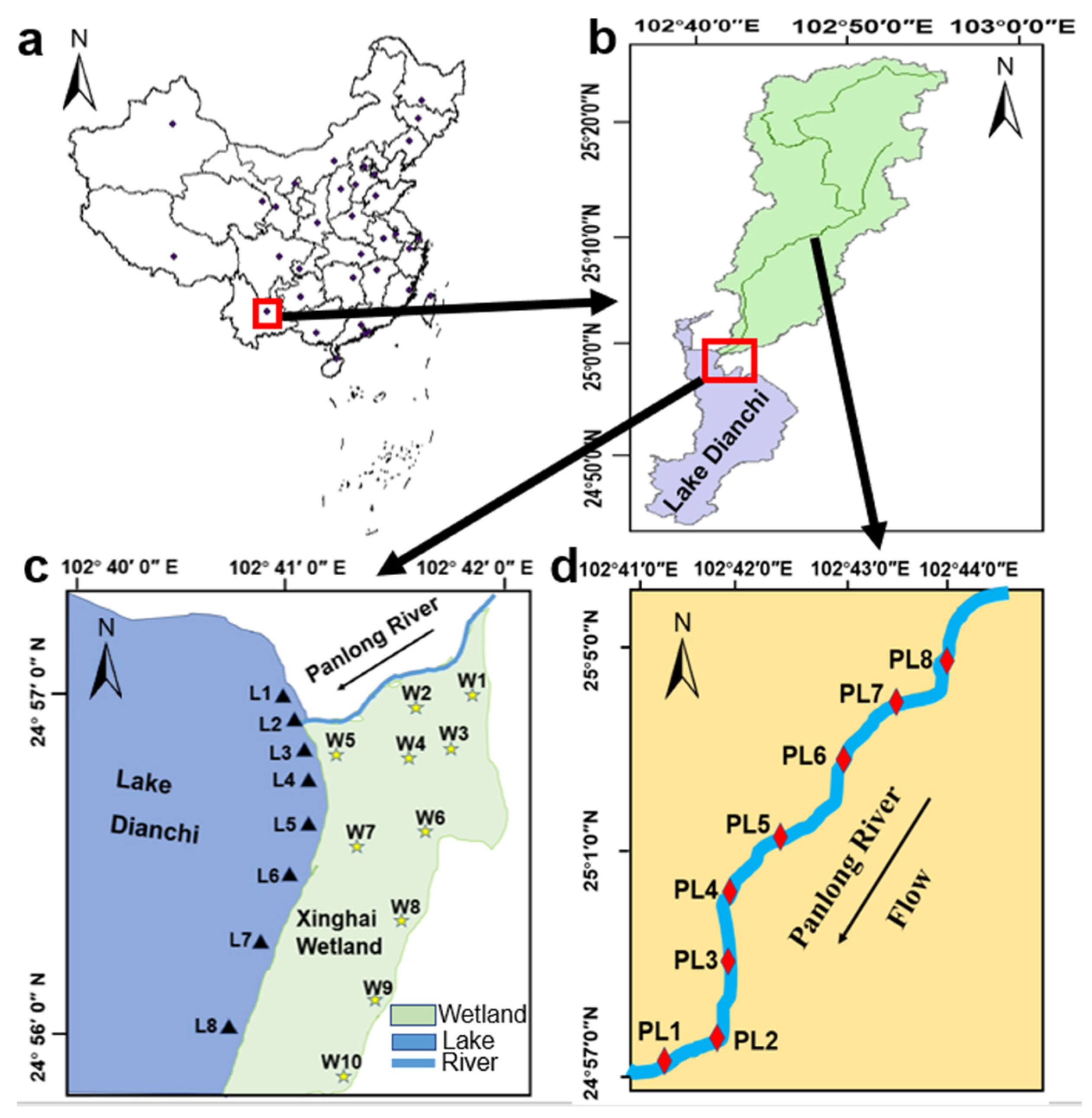

Figure 1. Locations of the sampling sites around the Panlong River, Xinghai Wetland and Lake Dianchi.
Figure 1. Locations of the sampling sites around the Panlong River, Xinghai Wetland and Lake Dianchi.
Water 16 01124 g001

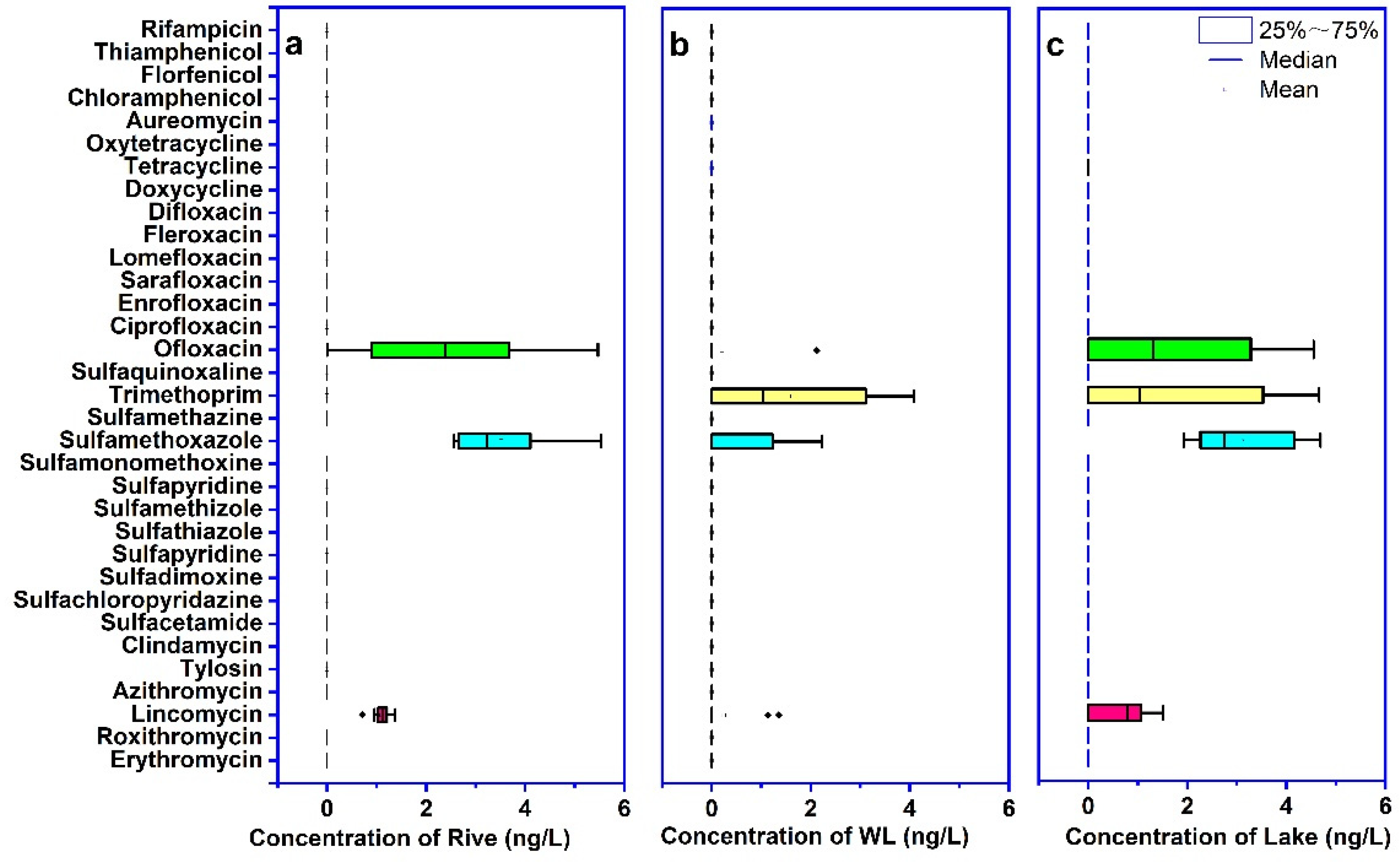

Figure 2. Box-and-whisker plots of the levels and occurrence rates of antibiotics in the water, (a) Panlong river; (b) Xinghai Wetland; (c) Lake Dianchi.
Figure 2. Box-and-whisker plots of the levels and occurrence rates of antibiotics in the water, (a) Panlong river; (b) Xinghai Wetland; (c) Lake Dianchi.
Water 16 01124 g002

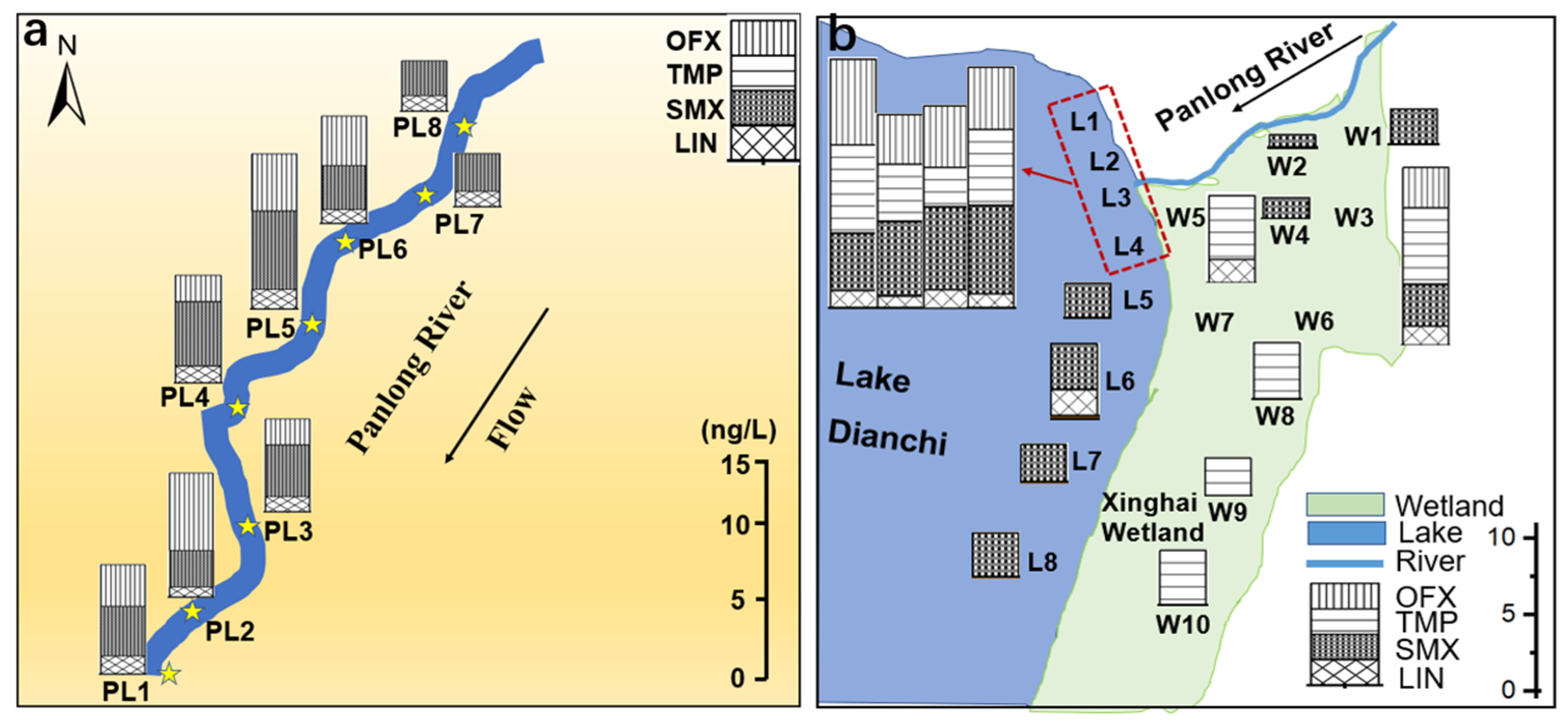

Figure 3. Spatial distribution of antibiotic concentrations in water, (a) Panlong River; (b) Xinghai Wetland and Lake Dianchi.
Figure 3. Spatial distribution of antibiotic concentrations in water, (a) Panlong River; (b) Xinghai Wetland and Lake Dianchi.
Water 16 01124 g003

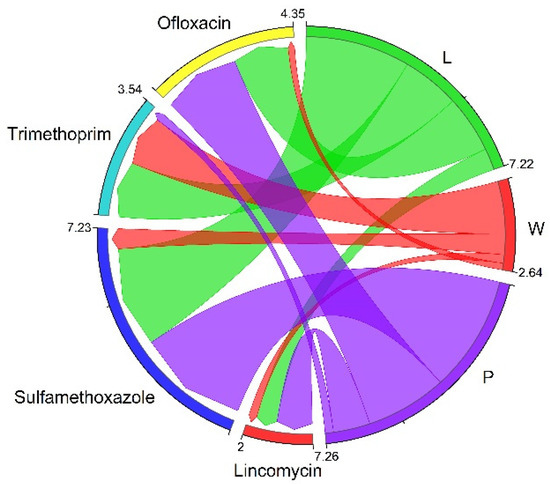

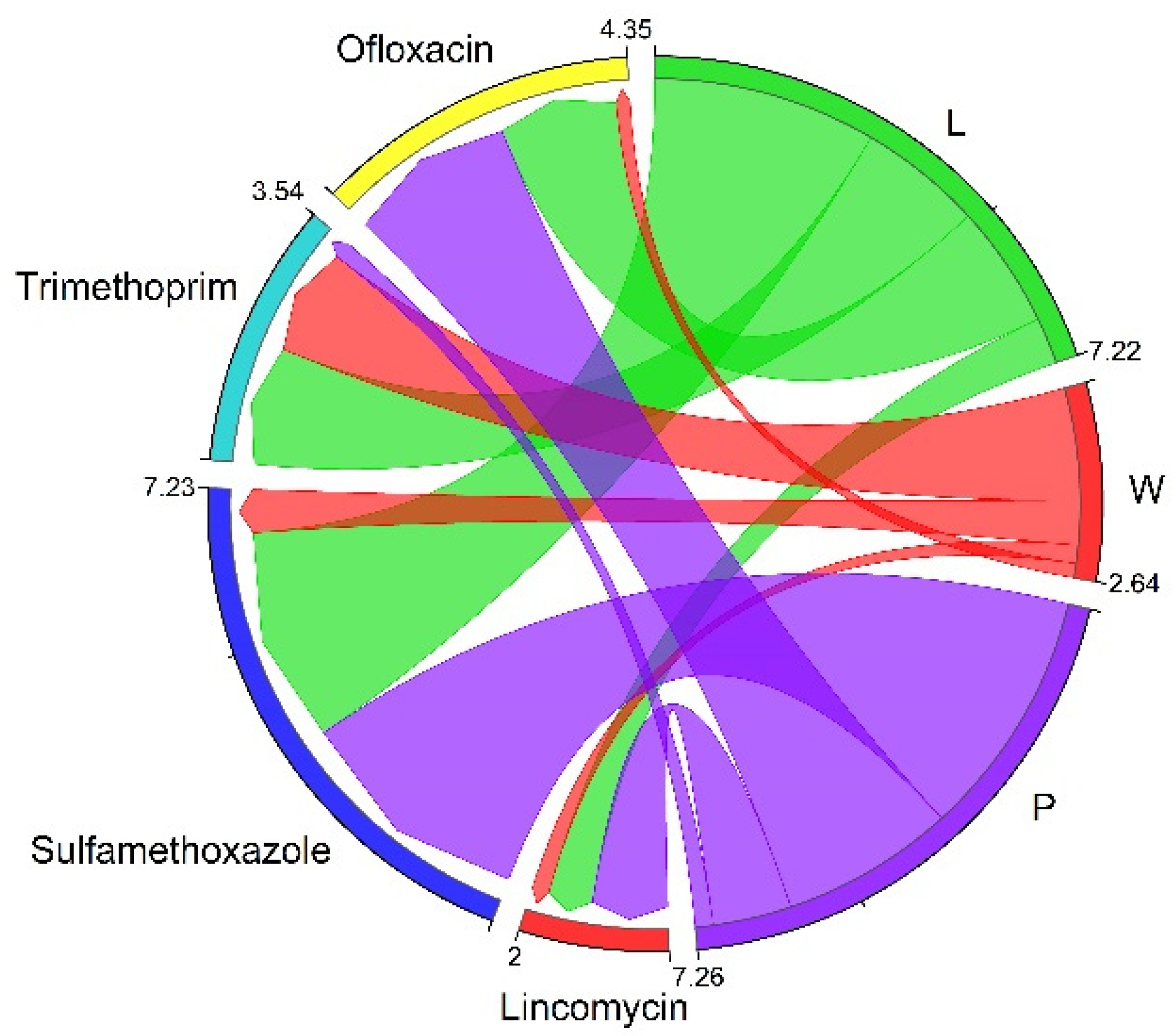

Figure 4. Composition of antibiotics at different sampling sites in water.
Figure 4. Composition of antibiotics at different sampling sites in water.
Water 16 01124 g004

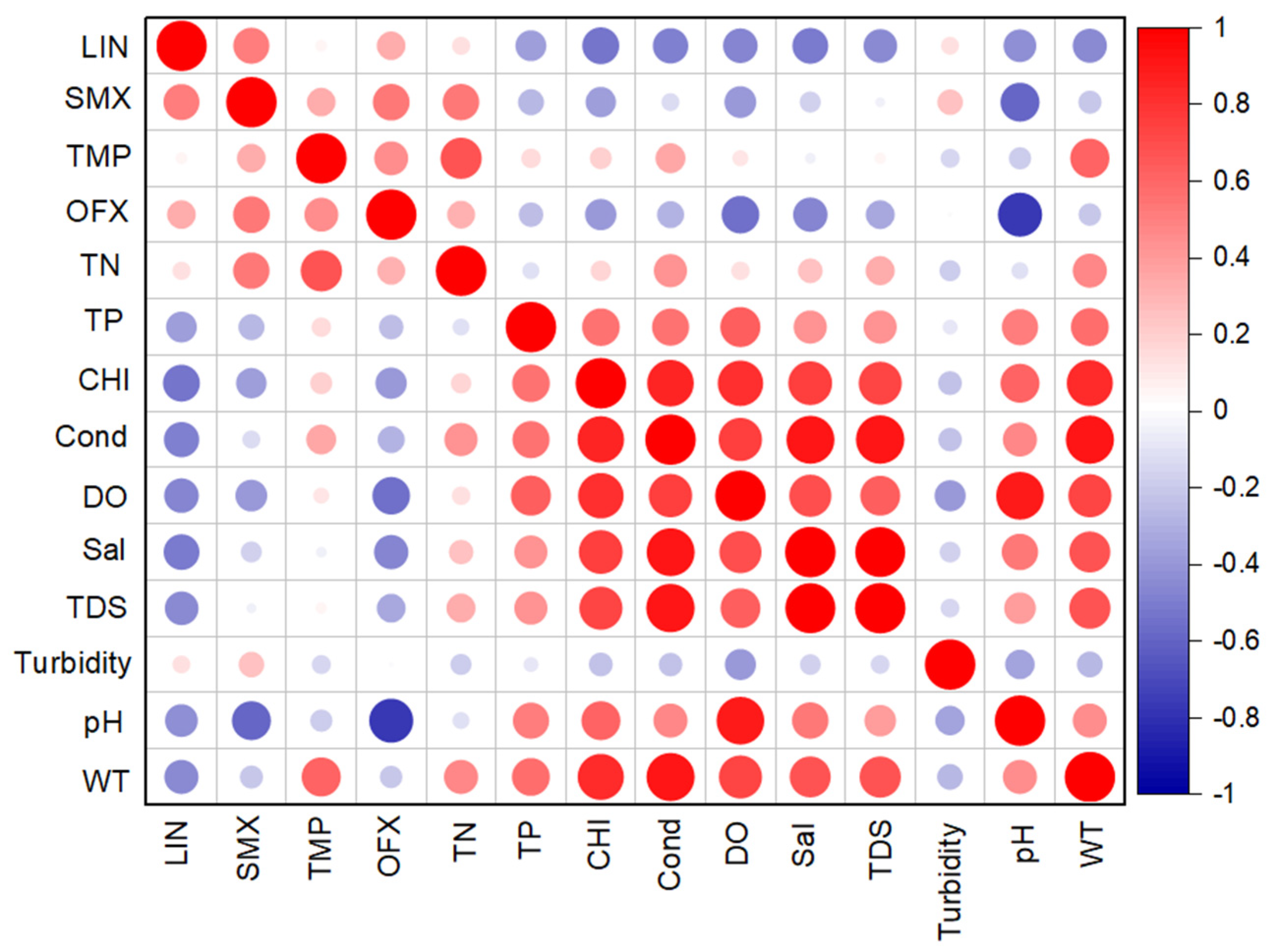

Figure 5. The correlation between antibiotics and water quality parameters.
Figure 5. The correlation between antibiotics and water quality parameters.
Water 16 01124 g005

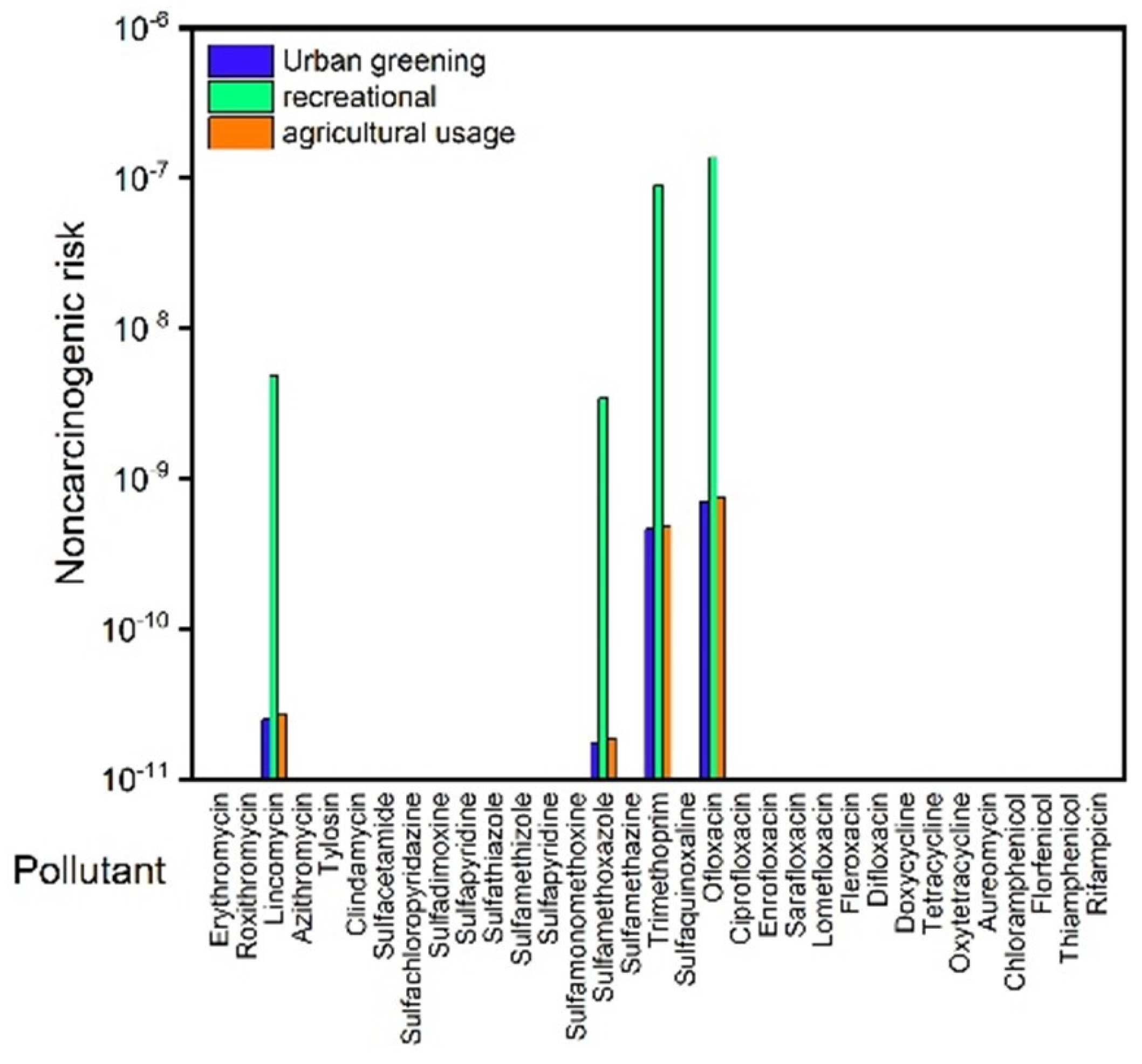

Figure 6. Noncarcinogenic risk of the Panlong River.
Figure 6. Noncarcinogenic risk of the Panlong River.
Water 16 01124 g006

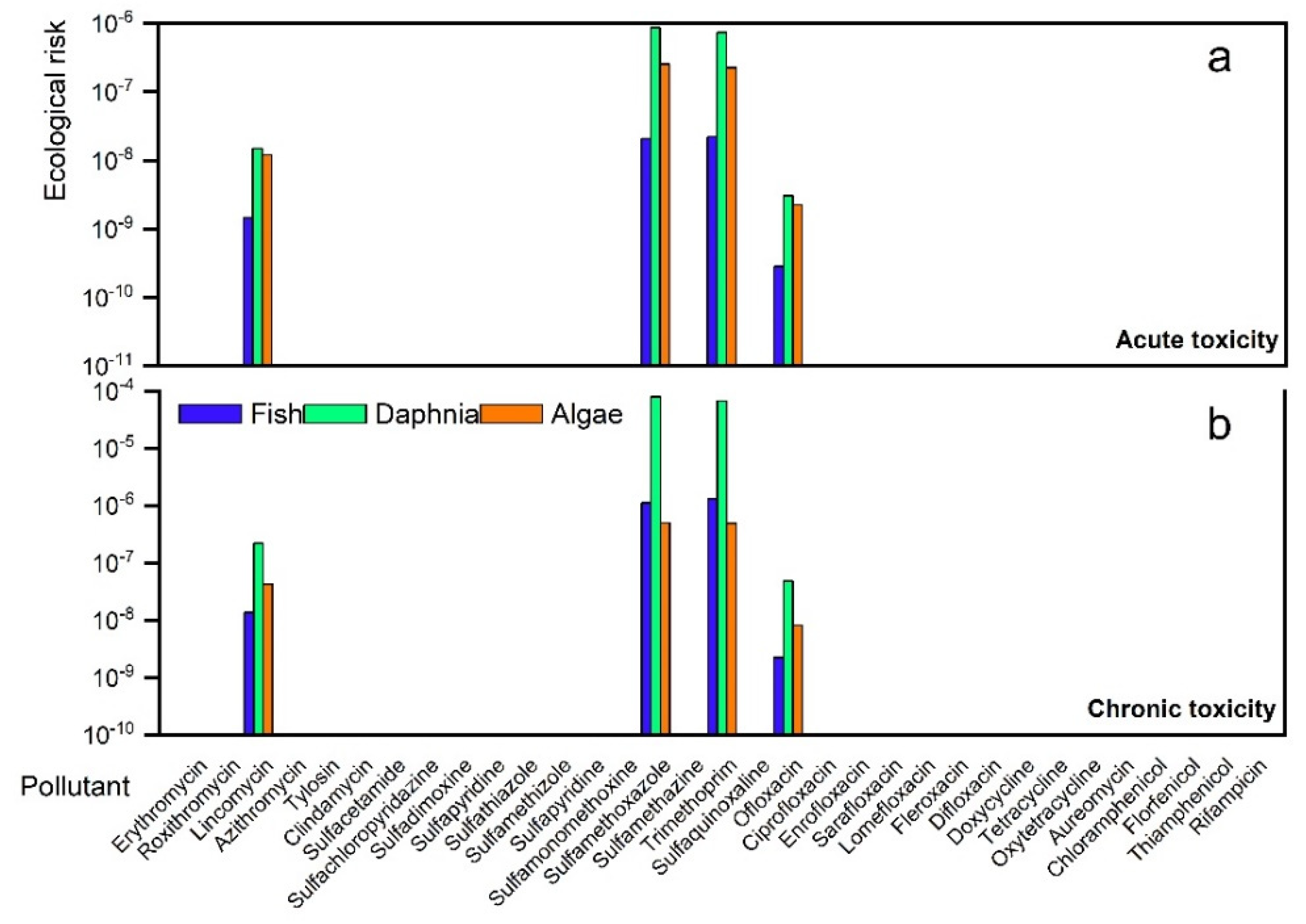

Figure 7. The ecological risk posed by antibiotics in Panlong River to three typical organisms (fish, daphnia, and algae), (a) Acute toxicity; (b) chronic toxicity.
Figure 7. The ecological risk posed by antibiotics in Panlong River to three typical organisms (fish, daphnia, and algae), (a) Acute toxicity; (b) chronic toxicity.
Water 16 01124 g007

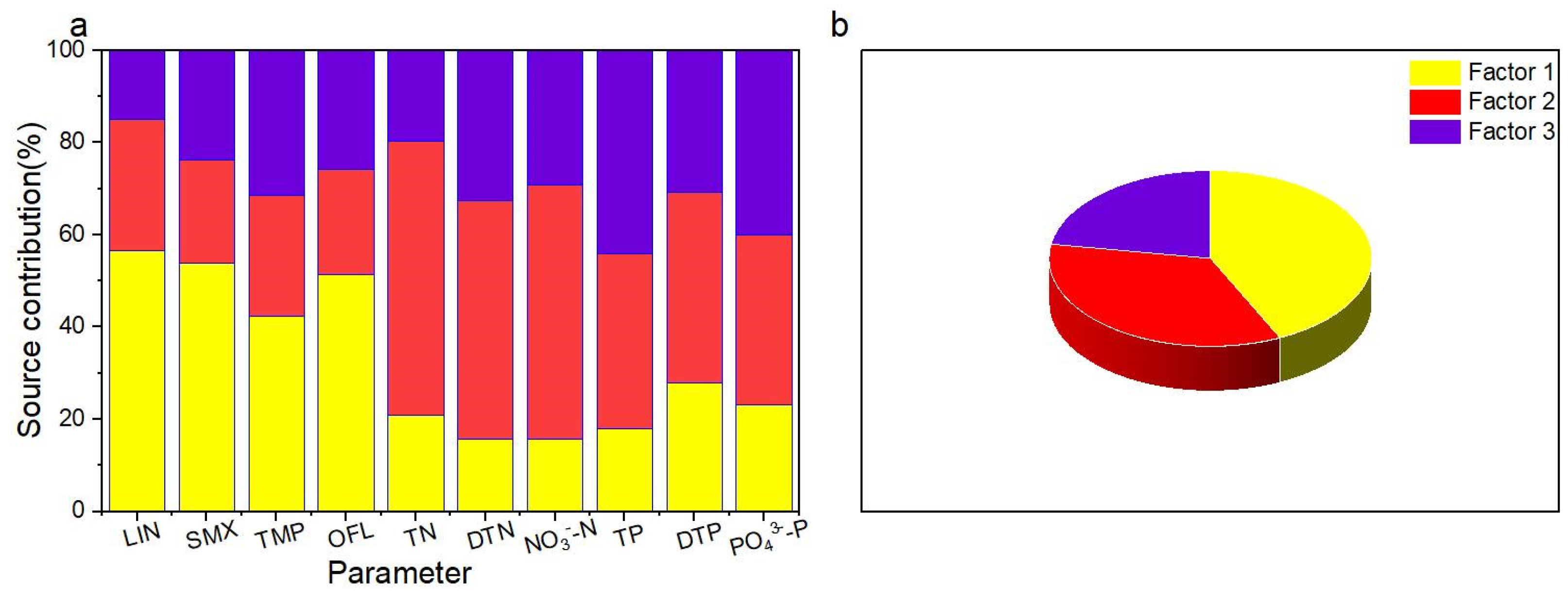

Figure 8. Source compositions (a) and mean contributions (b) of water quality variables in the PWD area according to the PMF analysis.
Figure 8. Source compositions (a) and mean contributions (b) of water quality variables in the PWD area according to the PMF analysis.
Water 16 01124 g008
Table 1. LC-MS/MS parameters for the target antibiotics.
Table 1. LC-MS/MS parameters for the target antibiotics.
NO.AntibioticsParent Ion (m/z, Da)Daughter Ion (m/z, Da)Frag (V)CE (eV)RT (min)
1Erythromycin7341581353310.218
2Roxithromycin847679.41902111.732
3Lincomycin407.5126.1150335.502
4Azithromycin749.9591.4215298.576
5Tylosin1042.48141352713.495
6Clindamycin425126.180358.779
7Sulfacetamide215156.3110102.948
8Sulfachloropyridazine285155.9110138.087
9Sulfadimoxine311155.9125179.854
10Sulfapyridine250.3155.9110135.328
11Sulfathiazole256155.992135.043
12Sulfamethizole271.1156.160217.567
13Sulfapyridine251.2156.1102133.729
14Sulfamonomethoxine281156160187.149
15Sulfamethoxazole254155.8105138.616
16Sulfamethazine279156112176.941
17Trimethoprim291230165216.406
18Sulfaquinoxaline3011561181610.120
19Ofloxacin362318180156.848
20Norfloxacin320302128216.882
21Ciprofloxacin332.1314100186.938
22Enrofloxacin360316180177.424
23Sarafloxacin386268.1180298.541
24Lomefloxacin352265180237.168
25Fleroxacin370326180166.770
26Difloxacin400356180238.122
27Doxycycline Hydrochloride445.2427.9115158.914
28Tetracycline445.2410115207.351
29Oxytetracycline461.2442.9130106.987
30Aureomycin479.3443.8142257.351
31Chloramphenicol32115211099.260
32Florfenicol356185110208.709
33Thiamphenicol354184.7140136.521
34Rifampicin8213972203012.285
Notes: Daughter ion: quantification ion/confirmation ion; CE: collision energy; RT: retention time; Frag: fragment.
Table 2. The instrument limitations and recoveries of the target antibiotics.
Table 2. The instrument limitations and recoveries of the target antibiotics.
NO.AntibioticsMDLs (ng/L)Linearity (R2)Recoveries (Average ± RSD, %)
1Erythromycin10.998681.2 ± 3.8
2Roxithromycin10.999590.1 ± 4.2
3Lincomycin0.50.994585.6 ± 3.5
4Azithromycin10.993087.2 ± 3.4
5Tylosin20.990176.9 ± 8.7
6Clindamycin10.985181.2 ± 6.7
7Sulfacetamide10.997161.23 ± 3.5
8Sulfachloropyridazine10.997689.1 ± 2.5
9Sulfadimoxine10.997485.1 ± 5.1
10Sulfapyridine10.997779.6 ± 4.6
11Sulfathiazole10.997583.7 ± 5.2
12Sulfamethizole10.999481.3 ± 6.3
13Sulfapyridine10.998798.3 ± 2.1
14Sulfamonomethoxine10.9975100.1 ± 7.2
15Sulfamethoxazole10.995679.5 ± 6.1
16Sulfamethazine10.998087.6 ± 5.5
17Trimethoprim10.999786.4 ± 3.4
18Sulfaquinoxaline10.993875.6 ± 4.2
19Ofloxacin10.997176.8 ± 3.8
20Norfloxacin10.999989.5 ± 3.8
21Ciprofloxacin10.999871.2 ± 4.5
22Enrofloxacin10.999878.6 ± 3.4
23Sarafloxacin10.999978.9 ± 4.2
24Lomefloxacin10.999861.8 ± 8.2
25Fleroxacin10.999461.2 ± 7.9
26Difloxacin10.999961.45 ± 8.7
27Doxycycline Hydrochloride200.996176.1 ± 3.8
28Tetracycline200.997164.1 ± 8.9
29Oxytetracycline200.991274.1 ± 10.1
30Aureomycin200.994182.7 ± 6.9
31Chloramphenicol10.998488.2 ± 7.7
32Florfenicol10.998685.3 ± 7.8
33Thiamphenicol10.998178.9 ± 5.6
34Rifampicin10.998782.6 ± 8.9
Note: MDLs: Method detection limits.
Table 3. Concentrations and detection frequencies of antibiotics in water.
Table 3. Concentrations and detection frequencies of antibiotics in water.
ClassesAbbreviationsPanlong River (ng/L)XH Wetland (ng/L)Lake Dianchi (ng/L)
MinMaxMeanMedianFreqMinMaxMeanMedianFreqMinMaxMeanMedianFreq
LNsLIN0.711.371.101.13100ND1.351.25020ND1.510.660.8062.5
SAsSMX2.565.533.513.24100ND2.230.630401.934.693.122.75100
TMPND2.021.01012.5ND4.091.561.0450ND4.661.731.0450
QNsOFLND5.472.433.6875ND2.120.21010ND4.551.721.3250
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zeng, Y.; Duan, L.; Xu, T.; Hou, P.; Xu, J.; Li, H.; Zhang, H. Occurrence and Risk Assessment of Antibiotics in Urban River–Wetland–Lake Systems in Southwest China. Water 2024, 16, 1124. https://doi.org/10.3390/w16081124

AMA Style

Zeng Y, Duan L, Xu T, Hou P, Xu J, Li H, Zhang H. Occurrence and Risk Assessment of Antibiotics in Urban River–Wetland–Lake Systems in Southwest China. Water. 2024; 16(8):1124. https://doi.org/10.3390/w16081124

Chicago/Turabian Style

Zeng, Yanbo, Lizeng Duan, Tianbao Xu, Pengfei Hou, Jing Xu, Huayu Li, and Hucai Zhang. 2024. "Occurrence and Risk Assessment of Antibiotics in Urban River–Wetland–Lake Systems in Southwest China" Water 16, no. 8: 1124. https://doi.org/10.3390/w16081124

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
