Assessment on Hydrologic Response by Climate Change in the Chao Phraya River Basin, Thailand

Abstract

The Chao Phraya River in Thailand has been greatly affected by climate change and the occurrence of extreme flood events, hindering its economic development. This study assessed the hydrological responses of the Chao Phraya River basin under several climate sensitivity and greenhouse gas emission scenarios. The Soil and Water Assessment Tool (SWAT) model was applied to simulate the streamflow using meteorological and observed data over a nine-year period from 2003 to 2011. The SWAT model produced an acceptable performance for calibration and validation, yielding Nash-Sutcliffe efficiency (NSE) values greater than 0.5. Precipitation scenarios yielded streamflow variations that corresponded to the change of rainfall intensity and amount of rainfall, while scenarios with increased air temperatures predicted future water shortages. High CO₂ concentration scenarios incorporated plant responses that led to a dramatic increase in streamflow. The greenhouse gas emission scenarios increased the streamflow variations to 6.8%, 41.9%, and 38.4% from the reference period (2003–2011). This study also provided a framework upon which the peak flow can be managed to control the nonpoint sources during wet season. We hope that the future climate scenarios presented in this study could provide predictive information for the river basin.

1. Introduction

Current environmental changes due to either natural or anthropogenic influences are creating a significant impact on natural resources and the living conditions of humans [1]. In particular, as a critical natural resource, water bodies have been subjected to pollution and are reaching scarcity levels around the globe [2,3]. Climate change is a key factor that has greatly affected water resources, due to its uncertainty and variability [4,5,6]; the intensities and frequencies of rainfall have been fluctuating over the years, thereby changing the spatiotemporal distributions of water resources [7]. Furthermore, it is apparent that climate change influences a change in water quality by modifying the surface and groundwater components [8,9]. Floods and droughts brought about by climate change may also lead to a change in water quality by increasing the effects of erosion or dilution [8,10,11].

There are several signs that the varying rainfall intensity has caused a change in climate change factors. These change factors include the increasing global surface temperature and significant local impacts such as high-magnitude floods, prolonged droughts, flow variability, temperature rise, and decreased rainfall [12,13,14]. As such, there is a need to change the perception of climate change and its uncertainty and vulnerability since its weaknesses should be prioritized. Though a certain level of uncertainty has always existed in water resource management and planning, alternative approaches to manage water resources have been proposed, such as creating climate change scenarios with respect to speed and intensity of changes in baseline conditions [15,16]. In addition, though it is difficult to mitigate the effect of climate on water quantity since policy makers should obtain scientific and predictive information, for effective water resources management, the accurate prediction of water quantity and quality is a necessary response to the climate change scenario [17,18,19].

The Chao Phraya River, a major river basin in the Mekong subregion and the largest watershed in Thailand, serves mostly as a source for irrigation water and a transportation route in Central Thailand [20]. Over the years, climate change has greatly affected the river, which may subsequently hinder the economic development and the eradication of poverty in adjacent countries [21]. The Chao Phraya River basin has experienced extreme floods, which has brought about the subsequent contamination water used for human consumption [22], health problems [23,24], and economic loss on Thai Rice exports [25]. For example, the flood event that occurred in 2011 caused 813 fatalities nationwide and $45.7 billion in economic damages and losses [26,27]. This event prompted several researchers to conduct further case studies in different fields, including disaster management [28] and medicine [29,30].

Water management of irrigation water is very important for the Chao Phraya River basin because it is one of the world’s major agricultural producers, having a cultivated area of approximately 51% (cropland) [31,32,33]. However, climate change has also played a significant role in the rate of landuse changes in the basin [34]. Farmers respond to weather conditions by changing crops seasonally, the timing of planting and harvesting, and other daily activities [35]. In cases such as this, there remains a need to understand the characteristics of the basin and its hydrological response to climate change.

To address the issues presented by extreme flood events and climate change, this study investigates the impact of climate change scenarios on the basin. The aims of this investigation are thus to: (1) calibrate and validate the water quantity in the Chao Phraya River basin using the Soil and Water Assessment Tool (SWAT) model; and (2) assess hydrological responses under hypothetical climate sensitivity scenarios and greenhouse gas emission scenarios. The results of this research will both help improve the foundation of water resource management based on these climate change scenarios and also provide an evaluation of highly variable climate changes on the basin.

2. Methodology

2.1. Site Description

The Chao Phraya River is an important water resource that supplies water to irrigated, urban, and domestic areas of the central part of Thailand [36]. Figure 1 presents the land use classes used in the SWAT model. It also includes the weather and outlet stations of the Chao Phraya River basin. The basin has 51.66% agriculture area, which depends on the main river and its tributaries to cultivate crops, such as rice, sugarcane, and corn. The river has four main tributaries: the Wang, Yom, Ping, and Nan Rivers and a significant lateral tributary, the Pasak River. The river drains an area of approximately 160,000 km² (98° E–103° E, 13° N–20° N), covering 30% of the country, and receives annual precipitation of about 1,179 mm/year and an average discharge of 196 m³/s at Chai Nat Station [37]. The basin is in a tropical climate, and is influenced by northeast and southwest monsoons. The northeast monsoon brings in cool and dry air from November to February, whereas the southwest monsoon brings very humid air, thus causing heavy rains from May to October [38].

Figure 1. Chao Phraya River basin is shown in the map. It includes the locations of the twelve weather stations (yellow squares) of the basin as well as the outlet stations (red circles) of the river, which also served as monitoring stations. Chai Nat Station has been chosen for the SWAT model simulation of the streamflow.

Figure 1. Chao Phraya River basin is shown in the map. It includes the locations of the twelve weather stations (yellow squares) of the basin as well as the outlet stations (red circles) of the river, which also served as monitoring stations. Chai Nat Station has been chosen for the SWAT model simulation of the streamflow.

2.2. SWAT Model

The Soil and Water Assessment Tool (SWAT) is watershed model that can be applied to simple and complex watersheds. It is a continuous-time model that operates on a daily time step and was developed for the USDA Agricultural Research Service (ARS) to predict the impact of management on water, sediment, and agricultural chemical yields in large complex watersheds [39]. The model is physically-based, uses readily available inputs, is computationally efficient, and is able to continuously simulate long-term impacts. Major model components include hydrology, weather, soil, temperature, plant growth, nutrients, pesticides, and land management. The SWAT model divides the watershed into multiple subwatersheds, which are then further subdivided into hydrologic response units (HRUs) that consist of homogenous land use, management, and soil characteristics. Models calibrated using watershed and water quality data have been used to forecast water quantity/quality in response to climate change scenarios; the SWAT model has been widely used to predict water quantity and quality in response to various management and climate scenarios [40,41,42,43,44,45,46,47,48,49,50,51].

2.3. Model Application

To construct the Chao Phraya River basin model, a model database was compiled using topographical data, consisting of a digital elevation map, landuse, soil and river basin, meteorological data (e.g., precipitation, and maximum and minimum temperature), and observed monitoring data (e.g., flow discharge). The topographical data included a digital elevation model (DEM) in GeoTiff grid tiles (5° × 5° tiles) created from a water database [52]; the data was derived from USGS/NASA Shuttle Radar Topography Mission (SRTM) data with a 90 m resolution. The land use data has a spatial resolution of 1 km that included 14 classes of landuse representations from the USGS Global Land Cover Characterization (GLCC) database [53]. There were also 14 soil types in the soil grid provided by the Food and Agriculture Organization of the United Nations [54]. We also obtained nine-year meteorological data (2003–2011) from the Thai Meteorological Department, which included daily precipitation and maximum/minimum temperatures from 12 stations within the Chao Phraya River basin.

The SWAT model was able to delineate an area of 119,663 km² of the Chao Phraya River basin. Figure 1 illustrates the Chao Phraya River basin built by SWAT. Landuse classes of the basin are listed in Table 1, showing that the basin is mainly comprised of agriculture area and broadleaf forest. The table also indicates that half of the area used for agriculture was irrigated cropland and pasture (CRIR). Streamflow was monitored at the Chai Nat Station located in Chai Nat province. The observed flow data of the said station was stable and were acquired from the Royal Irrigation Department Computer Center in Sanphaya, Chai Nat.

Table 1. Area and percentage of land cover in the Chao Phraya River basin.

Landuse	Definition	Area (ha)	Percentage (%)
CRIR	Irrigated cropland and pasture	6,181,831	51.66
FODB	Deciduous broadleaf forest	1,947,509	16.27
FOEB	Evergreen broadleaf forest	1,503,653	12.57
SAVA	Savanna	1,038,567	8.68
FOMI	Mixed forest	495,301	4.14
CRWO	Cropland/woodland mosaic	294,706	2.46
SHRB	Shrubland	270,081	2.26
WATB	Water bodies	113,731	0.95
CRDY	Dryland cropland and pasture	79,365	0.66
URMD	Urban residential medium density	37,820	0.32
GRAS	Grassland	3060	0.03
CRGR	Cropland/grassland mosaic	381	0
BSVG	Barren or sparsely vegetated	249	0
Watershed		11,966,254	100

Table 1. Area and percentage of land cover in the Chao Phraya River basin.

Landuse	Definition	Area (ha)	Percentage (%)
CRIR	Irrigated cropland and pasture	6,181,831	51.66
FODB	Deciduous broadleaf forest	1,947,509	16.27
FOEB	Evergreen broadleaf forest	1,503,653	12.57
SAVA	Savanna	1,038,567	8.68
FOMI	Mixed forest	495,301	4.14
CRWO	Cropland/woodland mosaic	294,706	2.46
SHRB	Shrubland	270,081	2.26
WATB	Water bodies	113,731	0.95
CRDY	Dryland cropland and pasture	79,365	0.66
URMD	Urban residential medium density	37,820	0.32
GRAS	Grassland	3060	0.03
CRGR	Cropland/grassland mosaic	381	0
BSVG	Barren or sparsely vegetated	249	0
Watershed		11,966,254	100

2.4. Sensitivity Analysis

The Latin Hypercube—One-factor-At-a-Time (LH-OAT) method is a sensitivity analysis technique that combined the robustness of the Latin Hypercube (LH) sampling method and a one-factor-at-a-time (OAT) design [55]. It searches for good performance using a limited parameter number of important factors for model calibration and model output for a particular basin. LH is a stratified sampling method developed by McKay et al. [56] and is based on the Monte Carlo simulation; the OAT design was developed by Morris [57] and is used to observe the changes in the output by changing a particular input. LH-OAT method firstly divides the range of the parameters into segments then takes LH samples from each parameter to create parameter sets. The OAT design can then achieve global sensitivity by changing an entire parameter range using the LH samples [58]. Table 2 shows the 15 SWAT model parameters that were subjected to sensitivity analysis.

Table 2. Soil and water assessment tool (SWAT) model parameters used for the sensitivity analysis.

Name	Definition	Range	Process
Cn2	Soil Conversion Service (SCS) runoff curve number for moisture condition 2	35–98	Runoff
Alpha_Bf	Baseflow alpha factor (days)	0.00–1.00	Groundwater
Rchrg_Dp	Deep aquifer percolation fraction	0.00–1.00	Groundwater
Esco	Soil evaporation compensation factor	0.00–1.00	Evaporation
Revapmn	Threshold depth of water in the shallow aquifer for percolation to the deep aquifer (mmH2O)	0–500	Groundwater
Ch_K2	Effective hydraulic conductivity in main channel alluvium (mm/h)	−0.01–150	Channel
Gwqmn	Threshold depth of water in the shallow aquifer required for return flow to occur (mm)	0–5000	Soil
Sol_Awc	Available water capacity of the soil layer (mm/mm soil)	0–100	Soil
Sol_Z	Maximum canopy index Soil depth	0–3000	Soil
Gw_Revap	Groundwater “revap” coefficient	0.02–0.2	Groundwater
Surlag	Surface runoff lag coefficient	0.00–10.00	Runoff
Blai	Leaf area index for crop	0.00–1.00	Crop
Slope	Average slope steepness (m/m)	0.0001–0.6	Geomorphology
Canmx	Maximum canopy index	0.00–10.00	Runoff
Epco	Threshold depth of water in the shallow aquifer to percolation to the deep aquifer (mmH2O)	0.00–1.00	Evaporation

Table 2. Soil and water assessment tool (SWAT) model parameters used for the sensitivity analysis.

Name	Definition	Range	Process
Cn2	Soil Conversion Service (SCS) runoff curve number for moisture condition 2	35–98	Runoff
Alpha_Bf	Baseflow alpha factor (days)	0.00–1.00	Groundwater
Rchrg_Dp	Deep aquifer percolation fraction	0.00–1.00	Groundwater
Esco	Soil evaporation compensation factor	0.00–1.00	Evaporation
Revapmn	Threshold depth of water in the shallow aquifer for percolation to the deep aquifer (mmH2O)	0–500	Groundwater
Ch_K2	Effective hydraulic conductivity in main channel alluvium (mm/h)	−0.01–150	Channel
Gwqmn	Threshold depth of water in the shallow aquifer required for return flow to occur (mm)	0–5000	Soil
Sol_Awc	Available water capacity of the soil layer (mm/mm soil)	0–100	Soil
Sol_Z	Maximum canopy index Soil depth	0–3000	Soil
Gw_Revap	Groundwater “revap” coefficient	0.02–0.2	Groundwater
Surlag	Surface runoff lag coefficient	0.00–10.00	Runoff
Blai	Leaf area index for crop	0.00–1.00	Crop
Slope	Average slope steepness (m/m)	0.0001–0.6	Geomorphology
Canmx	Maximum canopy index	0.00–10.00	Runoff
Epco	Threshold depth of water in the shallow aquifer to percolation to the deep aquifer (mmH2O)	0.00–1.00	Evaporation

2.5. Performance Assessment

We applied a coefficient of determination (R²), Nash-Sutcliffe efficiency (NSE), and root mean square error (RMSE) to evaluate the model performance. R² evaluated how accurate the simulated values were compared to the observed values and is defined as the squared value of Bravais-Pearson’s coefficient of correlation (r) [59,60]. It depicts the strength between the simulated and observed data and the direction of the linear relation. R² is expressed as the squared ratio between the covariance and the multiplied standard deviation of the observation and simulated values [61]. NSE measures the goodness of fit and describes the variance between the simulated and observed values [62]. NSE values can differ from negative values up to less than one [63]. Generally, the calibration and validation values of the SWAT model are considered to be acceptable or satisfactory performances when NSE is within the range of 0.5 and 0.65, 0.65–0.75 is considered satisfactory, while 0.75–1.00 indicate a very good performance [64,65,66]. Table 3 presents the performance ratings for NSE, as suggested by Moriasi et al. (2007). Lastly, RMSE was used to assess the validity of the model in this study. It measures the square root of the distance between the observed and predicted values and gives an estimate of the variability of the model compared to the observations [49]. The desired value for RMSE is 0, which depicts a perfect simulation, with lower values representing better performance [67].

Table 3. General performance rating for the recommended statistics for monthly time step [68].

Performance Rating	NSE
Very good	0.75 < NSE ≤ 1.00
Good	0.65 < NSE ≤ 0.75
Satisfactory	0.50 < NSE ≤ 0.65
Unsatisfactory	NSE ≤ 0.50

Table 3. General performance rating for the recommended statistics for monthly time step [68].

Performance Rating	NSE
Very good	0.75 < NSE ≤ 1.00
Good	0.65 < NSE ≤ 0.75
Satisfactory	0.50 < NSE ≤ 0.65
Unsatisfactory	NSE ≤ 0.50

2.6. Climate Change Scenarios

We applied a Special Report on Emission Scenario (SRES) to assess the hydrological response using a future climate change scenario. We applied the Commonwealth Scientific and Industrial Research Organisation (CSIRO) Mark 3.5 (Mk3.5) (CSIRO Atmospheric Research, Melbourne, Victoria, Australia)from the CSIRO Marine and Atmospheric Research in Australia as the future climate change model since it provides daily meteorological data for a long period for each climate change scenario. The future climate scenarios from the Intergovernmental Panel on Climate Change (IPCC) (A2, A1B, and B1) were chosen as its outputs (greenhouse gas emission scenarios) [69,70]. Mk3.5 is based on CSIRO Mark 3.0 (Mk3.0), a prior model version that has a fully coupled ocean-atmosphere system [71]. It is a spectral model that was developed to use the horizontal spectral resolution T63 [1.875° EW × 1.875° NS] with 18 vertical levels, and to remove the cold bias of Mk3.0 due to the rising of global air temperature [72].

Four different qualitative storylines were developed by IPCC that represented the different demographic, social, economic, technological, and environmental developments of the communities [73,74]. SRES scenarios A1B, A2, and B1 were chosen for this study [75,76]. A1B is under the A1 storyline and scenario family, which emphasizes globalization. A1B is described as a balance across all energy sources that do not rely heavily on a specific source [40]. The A2 scenario describes a very heterogeneous world with slower economic growth and technological advancement compared to the other storylines. Lastly, the B1 scenario stresses on rapid economic change towards service and information, social and environmental sustainability, improved equity, and global solutions without additional climate initiatives [77].

The potential future climate included a set of gridded map layers for the daily precipitation and air temperature for 2051–2059, based on the output from a set of SRES. GCM produced the climate data applied in this study; however, the coarse resolution of GCM will reduce the accuracy of the results. An interpolation method was implemented to convert the GCMs of the 12 meteorological stations to finer regional resolutions. The converted climate data was then downscaled and used as weather inputs for the SWAT model.

The change factor method, a downscaling technique, was used to adjust the observed daily temperature and daily precipitation using Equations (1) and (2), respectively. The daily temperature at the 2059 horizon was obtained by adding the difference of mean daily temperature in 2059 horizon predicted by the climate model and mean temperature of the reference period (2003–2011) to the observed daily temperature, obtained using Equation (1) [78]. The daily precipitation was calculated by multiplying the observed daily precipitation with the ratio of the mean projected daily precipitation at the 2059 horizon, and the mean precipitation of the reference period, as described in Equation (2) [79].

$$T_{adj,2059,d}=T_{obs,d}+ \left({\overline{ T }}_{CM,2059,m}- {\overline{ T }}_{CM,ref,m}\right)$$

(1)

$$P_{adj,2059,d}=P_{obs,d}\times \left({\overline{ P }}_{CM,2059,m} ÷{\overline{ P }}_{CM,ref,m}\right)$$

(2)

where T_obs,d and P_obs,d are the observed daily temperature and precipitation, T_CM,2059,m and P_CM,2059,m are the projected daily temperature and precipitation at the 2059 horizon obtained by the climate model, T_CM,ref,m and P_CM,ref,m are the temperature and precipitation during the reference period (2003–2011), and T_adj,2059,d and P_adj,2059,d are the daily temperature and precipitation at the 2059 horizon. The averages of the temperature and precipitation from the 12 meteorological stations were the data used for the T_CM,ref,m and P_CM,ref,m, respectively. The strength of the change factor (CF) method is similar to the results of factors derived from GCM or Regional Climate Model (RCM).

Table 4 shows the conditions of the hypothetical climate sensitivity scenarios. There were zero changes in precipitation and temperature at the reference point, with CO₂ concentrations at 330 ppm. Scenarios 1 to 3 have twice the CO₂ concentration (660 ppm) and high variation in the precipitation and air temperature. Scenarios 4 to 7 show variations in the precipitation, while maintaining constant CO₂ concentrations and air temperatures. Scenarios 8 to 10 have variations air temperature, while CO₂ concentrations and precipitations remain constant. The change factors of the SRES scenarios, A1B, A2, and B1, were also included in the table.

Table 4. Conditions of climate sensitivity scenarios and intergovernmental panel on climate change (IPCC) special report on emissions scenarios relative to the baseline. Scenarios 1–3 are referred to as the CO₂ scenarios, 4–7 as precipitation change scenarios, and 8–10 as temperature increase scenarios.

Scenario	CO2 Concentration (ppm)	Precipitation Change (%)	Temperature (°C)
Baseline	330	0	0
1	CO2 × 2 = 660	0	0
2	CO2 × 2 = 660	+20	0
3	CO2 × 2 = 660	0	+6
4	330	+10	0
5	330	+20	0
6	330	−10	0
7	330	−20	0
8	330	0	+1
9	330	0	+3
10	330	0	+6
A1B	330	+1.0644	Max	+2.0621
			Min	+2.4954
A2	330	+1.0338	Max	+1.8729
			Min	+2.2905
B1	330	+1.0054	Max	+0.7926
			Min	+0.6106

Table 4. Conditions of climate sensitivity scenarios and intergovernmental panel on climate change (IPCC) special report on emissions scenarios relative to the baseline. Scenarios 1–3 are referred to as the CO₂ scenarios, 4–7 as precipitation change scenarios, and 8–10 as temperature increase scenarios.

Scenario	CO2 Concentration (ppm)	Precipitation Change (%)	Temperature (°C)
Baseline	330	0	0
1	CO2 × 2 = 660	0	0
2	CO2 × 2 = 660	+20	0
3	CO2 × 2 = 660	0	+6
4	330	+10	0
5	330	+20	0
6	330	−10	0
7	330	−20	0
8	330	0	+1
9	330	0	+3
10	330	0	+6
A1B	330	+1.0644	Max	+2.0621
			Min	+2.4954
A2	330	+1.0338	Max	+1.8729
			Min	+2.2905
B1	330	+1.0054	Max	+0.7926
			Min	+0.6106

3. Results and Discussion

3.1. Model Evaluation

Thirty-five hydrological model parameters of the SWAT model underwent sensitivity and uncertainty analyses (e.g., Parameter solution (Para Sol) and Sequential Uncertainty Fitting (SUFI-2) in SWAT-CUP) to determine the optimal model parameters [80]. The top 11 parameters having sensitivity indices greater than or equal to 0.05 were then selected, as shown in Table 5 [81]. The result of the sensitivity analysis shows that the initial SCS runoff curve number for moisture condition II (CN2) and baseflow alpha factor-baseflow recession (Alpha_Bf) were the most sensitive parameters. They are followed by the deep aquifer percolation fraction (Rchrg_Dp), soil evaporation compensation factor (Esco), threshold depth of water in the shallow aquifer for percolation to the deep aquifer (Revapmn), effective hydraulic conductivity in main channel alluvium (Ch_K2), available water capacity of the soil layer (Sol_AWC), threshold depth of water in the shallow aquifer required for return flow to occur (Gwqmn), depth from soil surface to bottom of layer (Zol_Z), groundwater “revap”coefficient (Gw_Revap), and surface runoff lag coefficient (Surlag). Most parameters are related to either groundwater or soil process. The sensitive flow discharge parameters were then used to calibrate the model.

One of the limitations of this research was having a large watershed model with only 12 meteorological stations and one gauge station to calibrate the streamflow. The available data allowed nine years for the simulation period of the SWAT model. The comparison of daily observed and simulated streamflow during the nine-year (2003–2011) simulation period included a one-year spin up time (2003), a five-year (2004–2008) calibration period, and a three-year (2009–2011) validation period. Results from the statistical evaluation with the two numeric criteria including NSE, R², and RMSE, are listed in Table 6. Figure 2 shows how well-matched the daily streamflow simulations with the observations were. The NSE values of the daily streamflow simulations for the calibration and validation were 0.74 and 0.81, respectively. On the other hand, the NSE values of the monthly time step were 0.54 and 0.66 for the five-year calibration and three-year validations, respectively. The model evaluation statistics for the streamflow prediction show that there was a fair agreement between the measured and simulated flows, which were confirmed by the R² and NSE being greater than 0.5 [62].

Table 5. Top 11 parameters yielded by the sensitivity analysis.

Rank	Name	Definition	Sensitivity	Process
1	Cn2	SCS runoff curve number for moisture condition 2	1.49	Runoff
2	Alpha_Bf	Baseflow alpha factor (days)	1.42	Groundwater
3	Rchrg_Dp	Deep aquifer percolation fraction	0.66	Groundwater
4	Esco	Soil evaporation compensation factor	0.48	Evaporation
5	Revapmn	Threshold depth of water in the shallow aquifer for percolation to the deep aquifer (mm H2O)	0.22	Groundwater
6	Ch_K2	Effective hydraulic conductivity in main channel alluvium (mm/h)	0.20	Channel
7	Gwqmn	Threshold depth of water in the shallow aquifer required for return flow to occur (mm)	0.18	Soil
8	Sol_Awc	Available water capacity of the soil layer (mm/mm soil)	0.14	Soil
9	Sol_Z	Maximum canopy index Soil depth	0.078	Soil
10	Gw_Revap	Groundwater “revap” coefficient	0.06	Groundwater
11	Surlag	Surface runoff lag coefficient	0.05	Runoff

Table 5. Top 11 parameters yielded by the sensitivity analysis.

Rank	Name	Definition	Sensitivity	Process
1	Cn2	SCS runoff curve number for moisture condition 2	1.49	Runoff
2	Alpha_Bf	Baseflow alpha factor (days)	1.42	Groundwater
3	Rchrg_Dp	Deep aquifer percolation fraction	0.66	Groundwater
4	Esco	Soil evaporation compensation factor	0.48	Evaporation
5	Revapmn	Threshold depth of water in the shallow aquifer for percolation to the deep aquifer (mm H2O)	0.22	Groundwater
6	Ch_K2	Effective hydraulic conductivity in main channel alluvium (mm/h)	0.20	Channel
7	Gwqmn	Threshold depth of water in the shallow aquifer required for return flow to occur (mm)	0.18	Soil
8	Sol_Awc	Available water capacity of the soil layer (mm/mm soil)	0.14	Soil
9	Sol_Z	Maximum canopy index Soil depth	0.078	Soil
10	Gw_Revap	Groundwater “revap” coefficient	0.06	Groundwater
11	Surlag	Surface runoff lag coefficient	0.05	Runoff

Table 6. Prediction accuracy for the monthly streamflow in terms of R², Nash-Sutcliffe efficiency (NSE) and root mean square error (RMSE).

Statistical Index	Calibration	Validation
R2	0.81	0.89
NSE	0.54	0.66
RMSE (m3/s)	2.5466 × 103	3.0224 × 103

Table 6. Prediction accuracy for the monthly streamflow in terms of R², Nash-Sutcliffe efficiency (NSE) and root mean square error (RMSE).

Statistical Index	Calibration	Validation
R2	0.81	0.89
NSE	0.54	0.66
RMSE (m3/s)	2.5466 × 103	3.0224 × 103

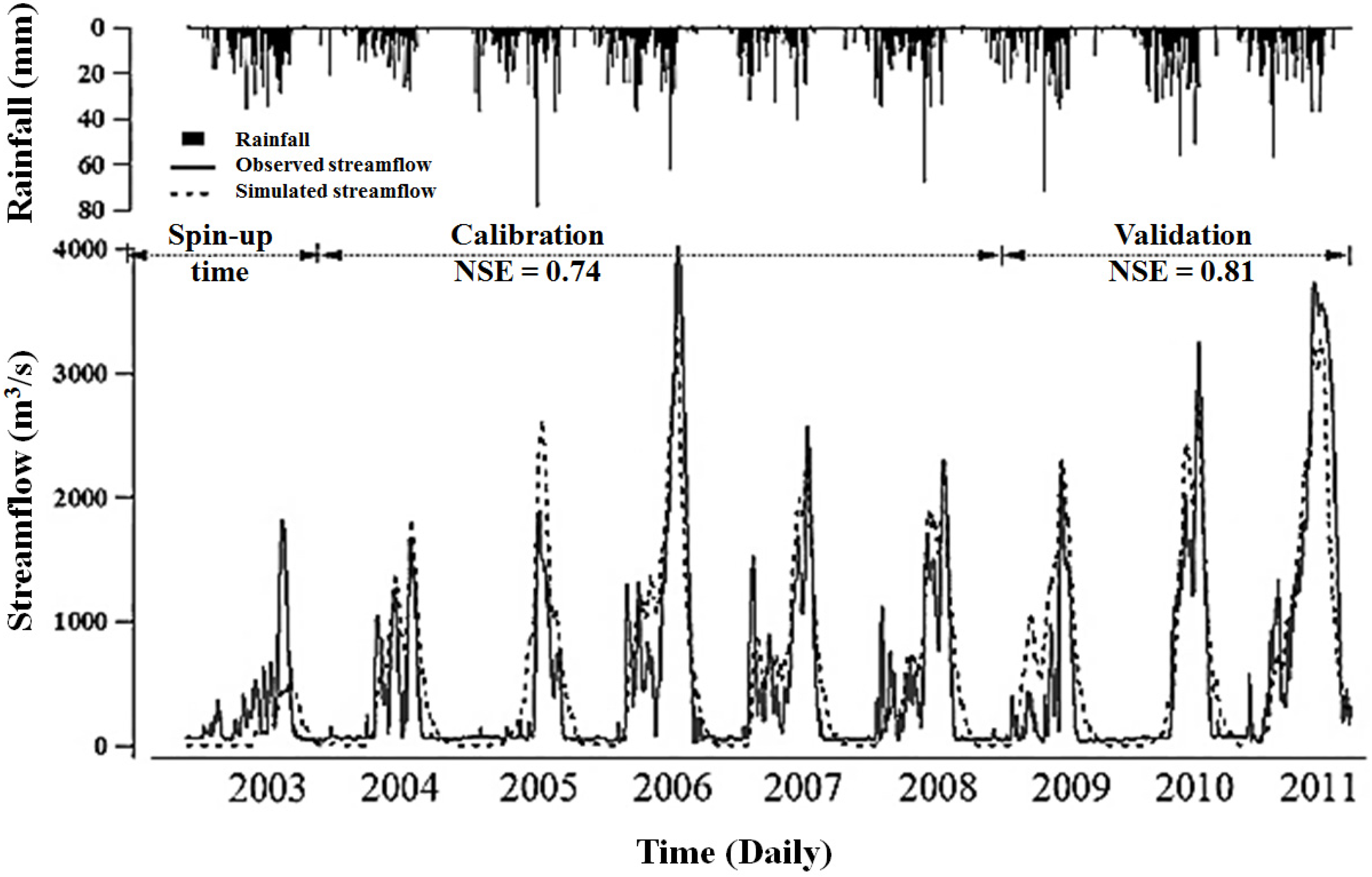

Figure 2. Observed and simulated streamflow and the corresponding daily rainfall during a nine-year period (2003–2011). Figure includes a one-year spin-up period (2003), five-year calibration period (2004–2008), and three-year validation period (2009–2011).

Figure 2. Observed and simulated streamflow and the corresponding daily rainfall during a nine-year period (2003–2011). Figure includes a one-year spin-up period (2003), five-year calibration period (2004–2008), and three-year validation period (2009–2011).

3.2. Climate Sensitivity Scenario

3.2.1. CO₂ Concentration

Scenarios 1 to 3 have atmospheric CO₂ concentrations of 660 ppm and a change in precipitation and air temperature (Table 7). These three scenarios were related to the stomatal conductance variable, which depends on the atmospheric CO₂ concentration [82]. For climate change simulations in the SWAT model, the reduction in stomatal conductance and increase in leaf area index were attributed to an increase in the CO₂ concentration [83]. According to the increasing atmospheric CO₂ concentration, variation in the streamflow was seen to be affected by the change in evapotranspiration, whereas the hydrological response depends on crop variables [84]. When the stomatal conductance of the vegetation decreases, the evapotranspiration also decreases, thus disturbing the water efficiency of the crops [84,85]. Table 7 shows the predicted relative change (percentage of baseline) in annual average streamflow with respect to the climate change scenario. In the calibration of the Chao Phraya subbasin, the annual average streamflow changed by 16.4% in calibration, another changed by 18.4%, with a maximum of 52.3% and a minimum of 1.6% in the whole basin. Scenario 2 reflects an increase of almost 48% in the annual average streamflow change of the subbasin; another subbasin increased by 52.6%, while the maximum was 128.9% and the minimum was 15.1% in the whole basin. Scenario 3, on the other hand, showed an annual average streamflow change of −5.3% at Chai Nat Station, whereas another site changed by −6.2%, with a maximum of 1.2%, and a minimum of −14.3% in the whole basin.

Table 7. Predicted relative percentage change of annual average streamflow from the baseline under different climate sensitivity scenarios and special report on emission scenario (SRES) (B1, A1B, and A2). It also includes the streamflow change at the Chai Nat Station.

Terms	Ref	Climate Sensitivity Scenario										SRES
	Stream-Flow	CO2 (%)			Precipitation (%)				Air Temperature (%)			GCM (%)
		1	2	3	4	5	6	7	8	9	10	B1	A1B	A2
Chai Nat Station	562.8	16.4	48	−5.3	15.6	30	−15.8	−32.8	−3.1	−9.3	−19.2	24.7	41.9	49.8
Max % change of the basin	671.8	52.3	128.9	1.2	35.9	70	−7	−14.5	8.2	8.2	−1.3	107.8	136.5	146.4
Min % change of the basin	1.3	1.6	15.1	−14.3	5.9	11.6	−37.3	−71.4	−8.2	−23.8	−53	−17.5	−1.1	4.1
Average % change of the basin	68.5	18.4	52.6	−6.2	16.6	32.2	−16.7	−34.5	−3.5	−10.6	−21.4	19.7	37.7	47

Table 7. Predicted relative percentage change of annual average streamflow from the baseline under different climate sensitivity scenarios and special report on emission scenario (SRES) (B1, A1B, and A2). It also includes the streamflow change at the Chai Nat Station.

Terms	Ref	Climate Sensitivity Scenario										SRES
	Stream-Flow	CO2 (%)			Precipitation (%)				Air Temperature (%)			GCM (%)
		1	2	3	4	5	6	7	8	9	10	B1	A1B	A2
Chai Nat Station	562.8	16.4	48	−5.3	15.6	30	−15.8	−32.8	−3.1	−9.3	−19.2	24.7	41.9	49.8
Max % change of the basin	671.8	52.3	128.9	1.2	35.9	70	−7	−14.5	8.2	8.2	−1.3	107.8	136.5	146.4
Min % change of the basin	1.3	1.6	15.1	−14.3	5.9	11.6	−37.3	−71.4	−8.2	−23.8	−53	−17.5	−1.1	4.1
Average % change of the basin	68.5	18.4	52.6	−6.2	16.6	32.2	−16.7	−34.5	−3.5	−10.6	−21.4	19.7	37.7	47

Figure 3a–c show streamflow variations of the basin, mostly ranging from −2% to 20%. The spatial variation for CO₂ concentration scenario displayed an increasing streamflow change in the southern area of Chao Phraya River basin that is within the range of 20% to 42% (Figure 3a). Scenario 2 (Figure 3b) showed a total streamflow increase and a more sensitive response in the southern area of the basin, while Scenario 3 (Figure 3c) indicated a decrease in streamflow in the whole basin area. Higher concentrations of CO₂ directly caused the stomata of plants to close, which then decreased their rate of transpiration and increased their water use, efficiency leading to a reduction in evapotranspiration [86]. The latter increased runoff and led to an increase in the streamflow. However, when increased CO₂ concentration is paired with an increase in temperature, as shown by Scenario 3, the streamflow will decrease—as also stated by the negative change in the annual average streamflow of Scenario 3 [87].

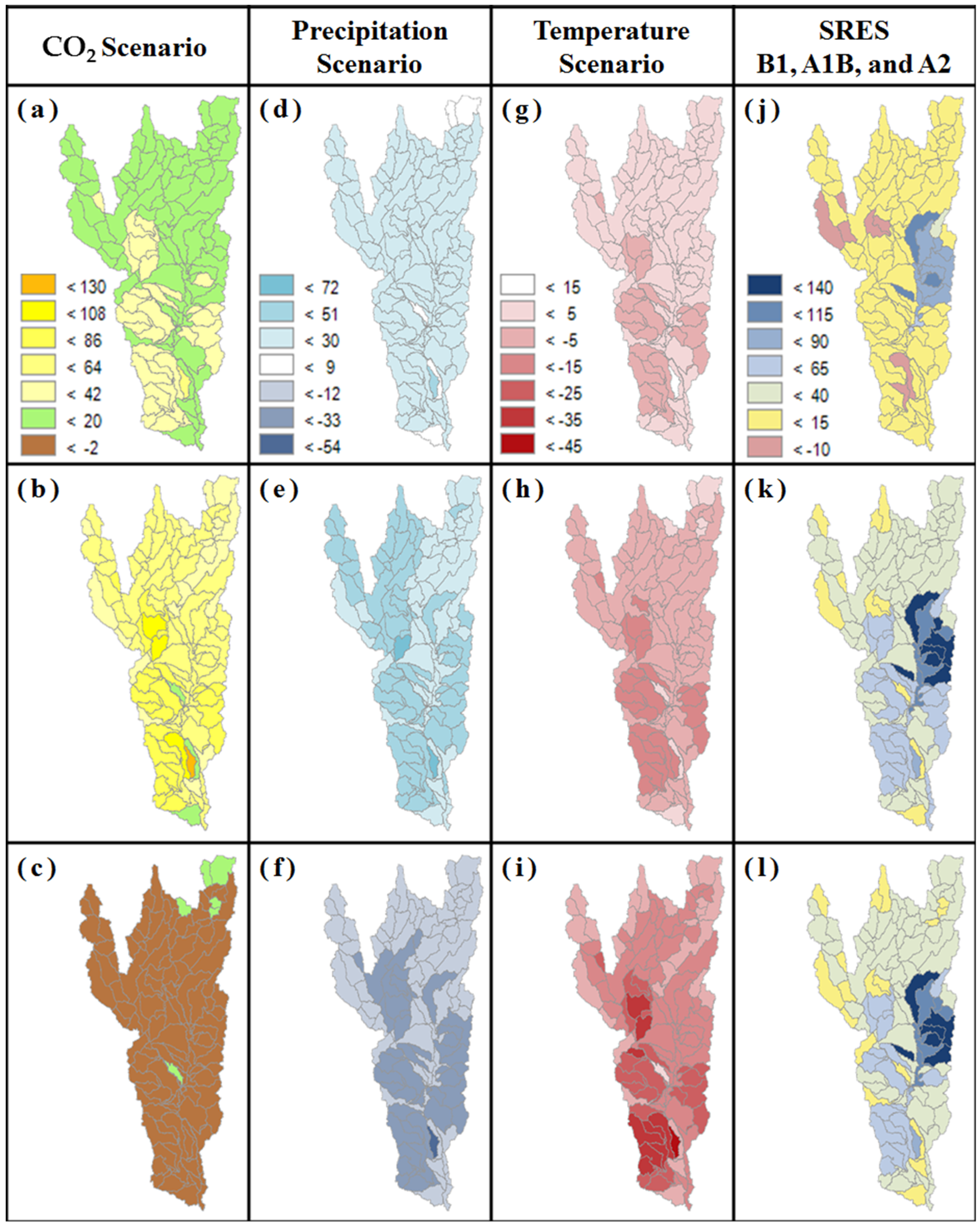

Figure 3. Spatial distributions of streamflow ratio under the climate sensitivity scenarios during the reference period (2003–2011) and SRES B1, A1B, and A2 (2051–2059). (a–c) CO₂ scenarios; (d–f) Precipitation scenarios; (g–i) Temperature scenarios; and (j–l) SRES.

Figure 3. Spatial distributions of streamflow ratio under the climate sensitivity scenarios during the reference period (2003–2011) and SRES B1, A1B, and A2 (2051–2059). (a–c) CO₂ scenarios; (d–f) Precipitation scenarios; (g–i) Temperature scenarios; and (j–l) SRES.

3.2.2. Precipitation

Scenarios 4 through 7 represent precipitation changes of +10%, +20%, −10%, and −20%, while holding the baseline CO₂ concentration (330 ppm) and air temperature constant (Table 7). Annual average streamflow changes of 15.6%, 30%, −15.8, and −32.8% correspond to the changes implemented for the annual precipitation. On the other hand, changes in the annual average streamflow in the entire Chao Phraya River basin, 16.6%, 32.2%, −16.7%, and −34.5%, corresponded to the changes at Chai Nat Station. Figure 3d–f shows the spatial distributions of streamflow ratio of Scenarios 4 to 6, which reflect the results of the average streamflow changes. Figure 3f, which shows Scenario 6, represents the spatial distribution of the decrease in precipitation. It can be concluded that Scenario 7 will have a darker shade, signifying an overall decrease of streamflow ratio in the basin. Based on these results, streamflow and precipitation have a positive linear relationship. One of the significant factors that affect streamflow is soil water content. Figure 4 shows the plots of soil water content of different scenarios. Compared to the others, the precipitation scenarios have notable differences from the baseline; as precipitation was increased, the soil water content also steadily increased. Increases or decreases in precipitation directly lead to corresponding directional changes in the streamflow [88,89].

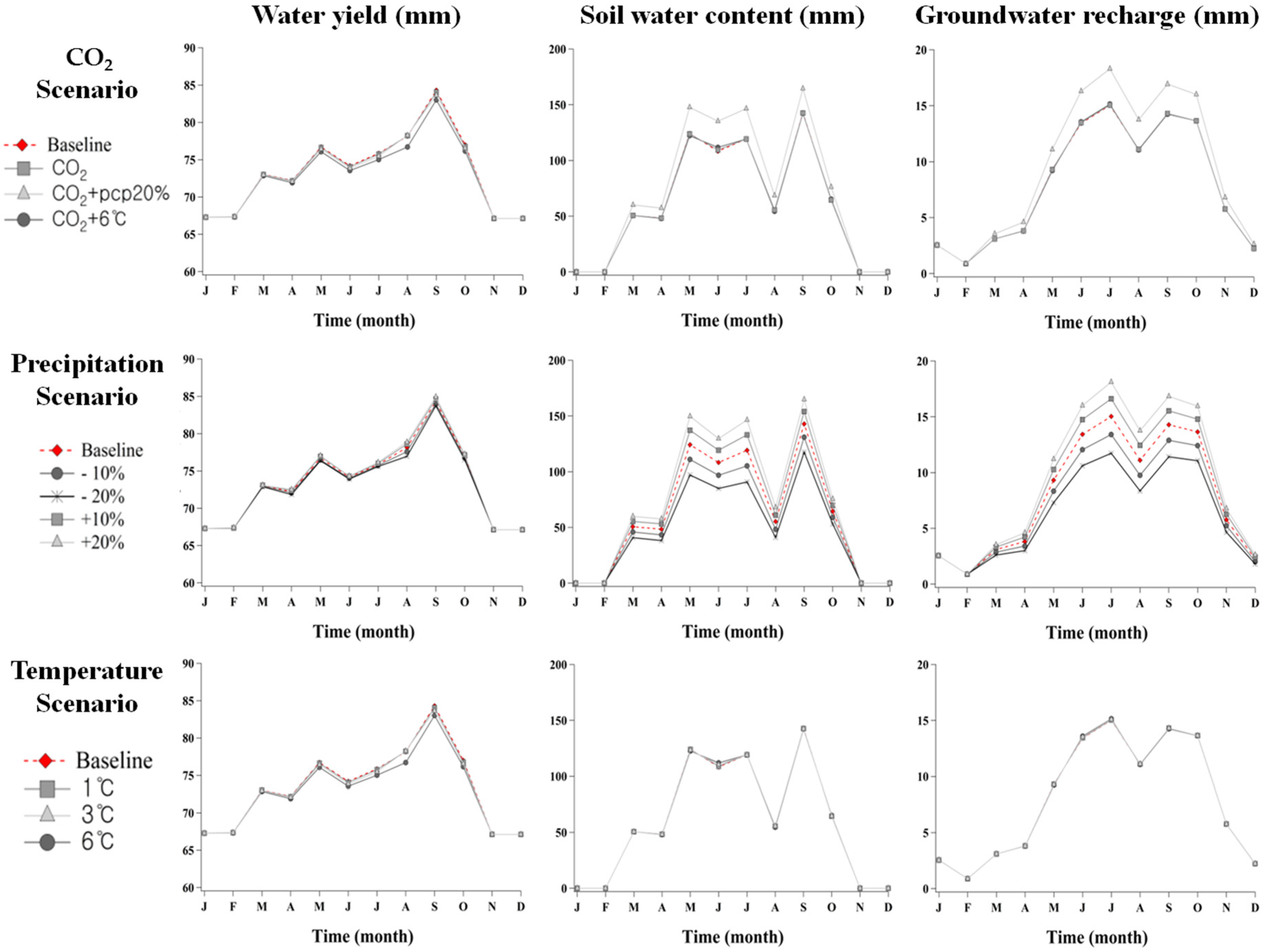

Figure 4. Water yield, soil water content, and groundwater recharge of Chao Phraya River basin under climate sensitivity scenarios.

Figure 4. Water yield, soil water content, and groundwater recharge of Chao Phraya River basin under climate sensitivity scenarios.

In terms of precipitation scenarios, the annual streamflow of Chao Phraya River have maximum changes of 35.9%, 70%, −7%, and −14.5%, and minimum changes of 5.9%, 11.6%, −37.3%, −71.4%. Figure 3g–i shows the variation of upstream flow, middle streamflow, and down streamflow from the Chao Phraya River. It can be seen that an increase in precipitation led to an increase in the annual average streamflow in the Chao Phraya Watershed, as indicated by Scenarios 4 and 5. These results coincide with other literature that investigated the hydrological impact of climate change and hydrological scenarios, which stated that the mean annual river discharge increases due to an increase in precipitation [90,91]. The decreased streamflow in Scenarios 6 and 7 also confirmed that precipitation plays a major role in streamflow variations.

During the wet season, a precipitation change was responsible for the streamflow variation [92]. In the upstream, the annual average streamflow was 249.2 m³/s in September, while the middle and down streams had around 562.8 m³/s and 671.8 m³/s, respectively. Figure 5 compares the seasonal variation of the peak streamflow for dry and wet seasons. The apparent increase in the streamflow in the increasing trend of the precipitation scenarios could lead to flooding events during the wet season. Monsoonal rains occur in the Chao Phraya River every year from May to October, making the watershed vulnerable to flood-related disasters during this season [93,94,95]. In this study, the streamflow increased in May and continued to rise until reaching their peak in September. The peak streamflow of the baseline and scenarios are highlighted in blue in Figure 5.

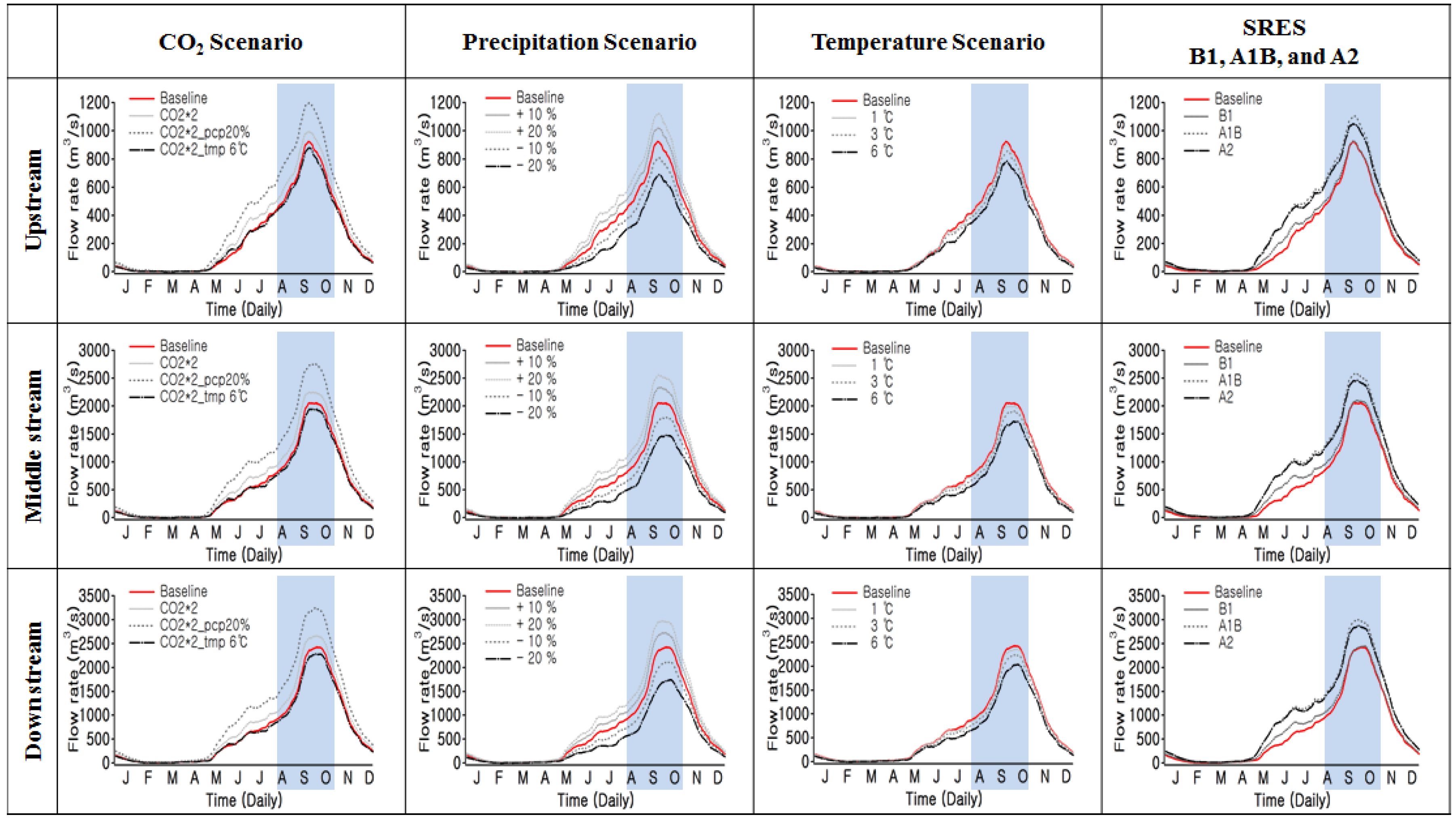

Figure 5. Seasonal variations of the peak stream flow under different climate scenarios in a year. The peak streamflow of each scenario is highlighted in blue to emphasize the difference from the baseline. It includes the upstream, middle stream, and downstream regions of the Chao Phraya River.

Figure 5. Seasonal variations of the peak stream flow under different climate scenarios in a year. The peak streamflow of each scenario is highlighted in blue to emphasize the difference from the baseline. It includes the upstream, middle stream, and downstream regions of the Chao Phraya River.

3.2.3. Air Temperature

Scenarios 8–10 represent air temperature increases of 1 °C, 3 °C, and 6 °C, respectively, from the baseline, while maintaining the CO₂ concentration at 330 ppm with no change in precipitation. Table 7 shows the variation of streamflow at the Chai Nat Station, which decreased by −3.1%, −9.3%, and −19.2% for Scenarios 8, 9, and 10. The table also includes the annual average streamflow and maximum and minimum changes in the annual average streamflow of the whole basin for each scenario. It was found that as the temperature increases, the average streamflow significantly decreases. These results indicate that a rise in temperature due to global warming may lead to a serious water shortage [96].

These results are similar to the results of spatial variations of previous scenarios, such as Scenarios 3, 6, and 7, which either increased the temperature or decreased the precipitation. In Scenario 6, Figure 3f shows that the southern area has a more sensitive response due to the significant decrease in its streamflow level. The southern part of the Chao Phraya Watershed also represents Central Thailand, which is described as a lush, fertile valley. This area is a perfect catchment basin of the mountainous Northern Thailand; thus, a drastic decrease in the streamflow will be first noticed in this area then followed by the rest of the watershed [97]. Figure 3g–i also shows a decrease in streamflow change in the entire river basin.

3.2.4. Climate Change Effects of SRES

We applied downscaled GCM outputs to modify the meteorological data in the SWAT model to predict the hydrological effect of potential future climate for the mid-21st century. Figure 3j–l illustrates baseline conditions of the monthly average precipitation and air temperature for the baseline period (2003–2011). Future climate change scenarios under three greenhouse gas emission scenarios from 2050–2059 are then projected.

Figure 3j–l show the variation of locational streamflow under different emission scenarios. The predicted streamflow displayed a higher frequency of flood events, which was expected due to a shift in the peak flow runoff in early May. Relative to the baseline conditions, the annual average percentage changes of the projected climate scenarios in streamflow under B1, A1B, and A2 were 12.3%, 45.7%, and 40.8% respectively. The maximum values of annual average percentage changes were 95.7%, 138.3%, and 132.2%, whereas the minimum values were −33.3%, 5.3%, −0.7% in the basin. The variations in streamflow for the upstream, middle stream, and downstream follow similar baseline patterns under the projected climate scenarios.

The previous spatial streamflow variations of Scenarios 8 to 10 yielded a decrease in streamflow at the southern part of the basin, whereas the middle-eastern area had a more significant increase in percentage change of the streamflow when the projected climate change scenario under SRES was applied. The middle-eastern area represents Northeast Thailand, an arid region having a rolling surface and undulating hills that often experiences harsh climatic conditions. These results are justified, as Chinvanno [98] previously stated that this part of Thailand will experience a significant shift in season with increased rainfall and a longer late season rain peak, consequently increasing its water quantity. The streamflow variation of three emission scenarios commonly displayed an increase of streamflow in this area of the river basin.

4. Conclusions

The SWAT model was used to create a hydrological model of the Chao Phraya Watershed to investigate the effect of climate sensitivity and greenhouse gas emission scenarios on its streamflow. The model yielded percentage increases of the streamflow that revealed a need to create safety measures during flood events: daily average streamflow (72.3%), during the wet season in early May (22.7%), and after May (70.1%). This study also achieved its objectives.

• The SWAT model showed a satisfactory performance in terms of calibration and validation, with R² and NSE values greater than 0.5.
• Precipitation scenarios yielded streamflow variations that corresponded to the change of rainfall intensity and amount of rainfall, while scenarios with increased air temperature yielded a decrease in water level leading to a water shortage. However, the three greenhouse gas emission scenarios from 2051–2059 had streamflow variations that increased from the baseline (2003–2011).
• Scenarios 1 to 3 were related to an increase in CO₂ concentration scenarios, which reduced stomatal conductance and increased the leaf area index. The results showed an increase in streamflow levels; however, a negative change in streamflow was also observed when the air temperature increased.
• Variations under three SRES indicate low streamflow values compared to those of the southern Chao Phraya Watershed. Hence, flood measures should be performed in the main streamline of Chao Phraya River and the southern area of the basin. As such, further water resource management will be needed in the northeastern area of the Chao Phraya river basin in the future.

Further increasing the uncertainty of climate change brings a corresponding uncertainty into the predictions of severe flood and drought. In addition, change in the landuse of the Chao Phraya River subbasins may result in a different distribution, which also depends on the changes of climate conditions such as climate sensitivity scenarios and the three emission scenarios.
