Procedural Point Cloud and Mesh Editing for Urban Planning Using Blender

Abstract

Urban planning has become increasingly complex, necessitating the use of digitized data, large-scale city scans, and advanced tools for planning and development. Recent advancements in open-source 3D modeling software—Blender, have introduced powerful procedural editing tools like geometry nodes alongside robust mesh and curve manipulation capabilities. These features position Blender as a viable and cost-effective alternative to proprietary solutions in urban planning workflows. This study identifies common requirements, tasks, and workflows associated with cityscape transformation and visualization, implementing them within Blender’s environment. Documented working examples are provided, including procedural editing, cloud painting, and mesh transformation operations, demonstrating Blender’s versatility. To evaluate its practicality and performance, we conducted a comparative analysis with the Rhinoceros Grasshopper, a widely used tool in urban planning. Metrics such as computational efficiency, workflow adaptability, and user experience were analyzed across multiple scenarios involving point cloud processing, mesh editing, and visualization tasks. Finally, we suggest further potential improvements aided by Blender’s powerful scripting framework.

1. Introduction

The increasing accessibility of high-resolution point cloud datasets has significantly enhanced urban planning capabilities, providing planners with detailed spatial data for analysis and decision-making. Advances in data acquisition technologies, such as light detection and ranging (LiDAR) and photogrammetry, have facilitated the creation of extensive urban point cloud datasets, many of which are publicly available for research and practical applications. Examples include city-scale LiDAR datasets such as Toronto-3D [1], which supports autonomous driving and urban mapping, and Paris-Lille-3D [2], designed for automatic segmentation and classification of urban infrastructure. Additional datasets, such as SemanticKITTI [3] and TUM-MLS-2016 [4], further contribute to the understanding of urban environments. National airborne LiDAR datasets, such as those from Slovenia [5,6] and the Netherlands [7], provide extensive coverage but at lower resolution and with a field of view limited to airborne acquisition.

These and similar datasets not only enable the development of machine learning algorithms for urban scene understanding but also facilitate the integration of point cloud data into urban planning workflows, promoting more data-driven and effective decision-making [8,9,10].

As demand for detailed urban modeling grows, the proliferation of such datasets is crucial for advancing research and real-world applications. Alongside this, there is an increasing need for advanced visualization and editing tools that support interactive modeling and dataset refinement. Existing point cloud processing and editing tools primarily only focus on basic operations, such as cropping, trimming, translation, rotation, scaling, and parameter adjustment. However, they lack direct editing capabilities akin to those available in common 3D modeling applications, which support various geometry representations (e.g., polygon meshes, Bézier curves, NURBS surfaces, metaballs, and constructive solid geometry). Consequently, users often convert point cloud representations into alternative geometries to enable more advanced editing, a process that introduces errors and loss of data and disrupts traceability to the original data.

To address this gap, we propose a non-destructive direct point cloud editing approach implemented within Blender, a widely used open-source 3D modeling application. Our contributions include the following:

• Efficient handling of large point cloud datasets—enabling the loading and visualization of extensive datasets with level-of-detail functionality.
• Non-destructive point cloud editing—implementing operations such as copying, conditional removal, brush-based erasing, painting, and flattening using Blender’s Geometry Nodes system.
• Advanced rendering support—utilization of various point attributes, such as color, position, classification, etc., in combination with different shaders to provide informative and appealing visualizations.

We provide the above-mentioned functionality as a Blender add-on.

The rest of this paper is structured as follows: Section 2 presents relevant prior work. Appendix A discusses existing tools and approaches in 3D modeling for urban planning. Our proposed methods and implementations are detailed in Section 3, followed by an evaluation of results in Section 4. We discuss our findings and limitations in Section 5 and conclude with a summary and future research directions in Section 6.

2. Related Work

The convergence of procedural modeling, point cloud technologies, and urban planning has driven significant advancements in urban design and visualization. Recent methodologies emphasize bridging artistic and technical aspects to enhance planning workflows. Yang [11] explores the automatic transformation of 2D sketches into detailed 3D Computer Aided Design (CAD) models using a visual transformer model, streamlining urban design for architects and planners. Similarly, Ihle and Wichmann [12] advocate for integrating scientific data with artistic representation based on an educational experiment that merges art and science to deepen landscape architecture students’ comprehension of available scientific data, enriching the discourse on landscape visualization. Urech et al. [13] highlight point clouds as a critical link between design and planning, demonstrating their role in generating accurate urban representations. Raj et al. [14] provide an overview of the LiDAR technology and point cloud construction. These studies collectively underscore the growing reliance on advanced modeling techniques to improve visualization, analysis, and sustainability in urban planning.

2.1. Procedural Methods in Urban Modeling

Procedural modeling has emerged as a powerful tool for urban design, addressing the inefficiencies of traditional methods. Yang and Delparte [15] showcase a procedural framework using CityEngine1 to generate 3D urban models from Geographic Information System (GIS) datasets, exemplifying efficient large-scale modeling. Mustafà et al. [16] extend this approach by integrating environmental factors, such as flood sensitivity, demonstrating how procedural techniques enhance urban resilience. Additionally, Župan and Frangeš [17] emphasize the automatic procedural generation of complex urban geometries, highlighting the need for scalable modeling tools.

The role of open-source tools in procedural modeling is increasingly recognized. Cress and Beesley [18] advocate for open-source software to democratize access to urban design capabilities, while Gallo and Tuzzolino [19] emphasize their potential for promoting sustainable urban development. In the Blender ecosystem, Ladybug tools2 provide environmental analysis functionalities, fostering sustainable design. Charan et al. [20] further integrate URBANopt3 and Dragonfly4 for energy-efficient modeling, streamlining workflows for practitioners. Gschwandtner et al. [21] introduce BlenSor, a Blender-based sensor simulation toolbox that facilitates the generation of synthetic LiDAR data for virtual environments, supporting procedural workflows involving simulated sensing.

Naboni et al. [22] introduce a digital workflow for quantifying regenerative urban design, demonstrating how procedural modeling supports sustainability by optimizing urban landscapes for resilience and adaptability. These studies collectively underscore procedural modeling’s transformative impact on urban visualization and planning.

2.2. Point Cloud Modeling

Advancements in LiDAR and mobile laser scanning have expanded point cloud applications in urban planning. Wang et al. [23] provide a comprehensive overview of mobile laser scanning for generating high-resolution 3D point clouds, facilitating detailed urban modeling and decision-making. You et al. [24] focus on airborne laser scanning for urban tree extraction, showcasing point clouds’ utility in managing green spaces. Schmohl et al. [25] further integrate artificial intelligence with point cloud data to improve urban forestry management, demonstrating its versatility in ecological planning.

Data augmentation and preprocessing also play key roles in improving point cloud quality and generalizability. Zhao et al. [26] simulate Monte Carlo distortions to augment missile-borne multi-sensor LiDAR data, increasing robustness in downstream applications. Zhao et al. [27] propose a robust multi-task learning framework for preprocessing complex LiDAR point clouds, enhancing denoising and segmentation capabilities. Meanwhile, Griffiths and Boehm [28] introduce SynthCity, a large-scale synthetic point cloud dataset designed to support deep learning and benchmarking in urban scenes.

Recent studies have emphasized the need for effective segmentation and reconstruction of urban structures from point cloud data. Chen et al. [29] propose an automated methodology for extracting and reconstructing 3D urban buildings from airborne LiDAR, underscoring the importance of reliable urban-scale modeling pipelines. Large-scale annotated datasets such as SensatUrban [30] and STPLS3D [31] further advance this domain by supporting a semantic understanding of complex urban scenes. These contributions provide essential context for urban-scale point cloud modeling and align with this work’s focus on flexible and non-destructive urban data manipulation.

2.3. Point Clouds in Urban Planning

The integration of point clouds into urban planning enhances data-driven decision-making. Vijaywargiya and Ramiya [32] highlight their potential in sustainable governance, including energy and resource management. Lei et al. [33] explore point-cloud-driven virtual reality systems for urban design, emphasizing stakeholder engagement through real-time interactive visualization. Zheng et al. [34] utilize point cloud data to define urban development boundaries, supporting sustainable spatial planning.

Additionally, Wang et al. [35] review the role of LiDAR in 3D urban modeling, underscoring its precision for applications such as infrastructure management and environmental monitoring. Zięba-Kulawik et al. [36] focus on urban forest monitoring, illustrating how point clouds contribute to vegetation health assessment and green space planning. These studies highlight the growing significance of point clouds in creating more sustainable, resilient urban environments.

Despite the advancements in procedural modeling and point cloud integration for urban planning, existing approaches face several limitations. Many procedural tools, such as CityEngine, prioritize large-scale city generation but lack direct editing capabilities for high-resolution point cloud datasets, restricting their adaptability in detailed urban modeling. Similarly, while point clouds serve as a crucial link between design and planning, current software solutions often focus on visualization and analysis rather than interactive editing and transformation, forcing users to convert point clouds into alternative geometric representations, leading to data loss and reduced accuracy. Proprietary solutions offer powerful but rigid workflows that limit customization and accessibility, while open-source tools, though promising, remain fragmented and underutilized in procedural urban design. Addressing these gaps, our approach leverages Blender’s procedural capabilities to introduce non-destructive point cloud editing, enabling interactive manipulation, enhanced rendering, and seamless workflow integration for urban planning tasks. By combining efficiency, flexibility, and accessibility, our work extends existing methodologies and provides an open-source alternative that supports both large-scale procedural urban modeling and detailed point cloud transformations.

3. Methods

When developing our solution, we researched the present state of the point cloud manipulation software, which we overview in Appendix A.

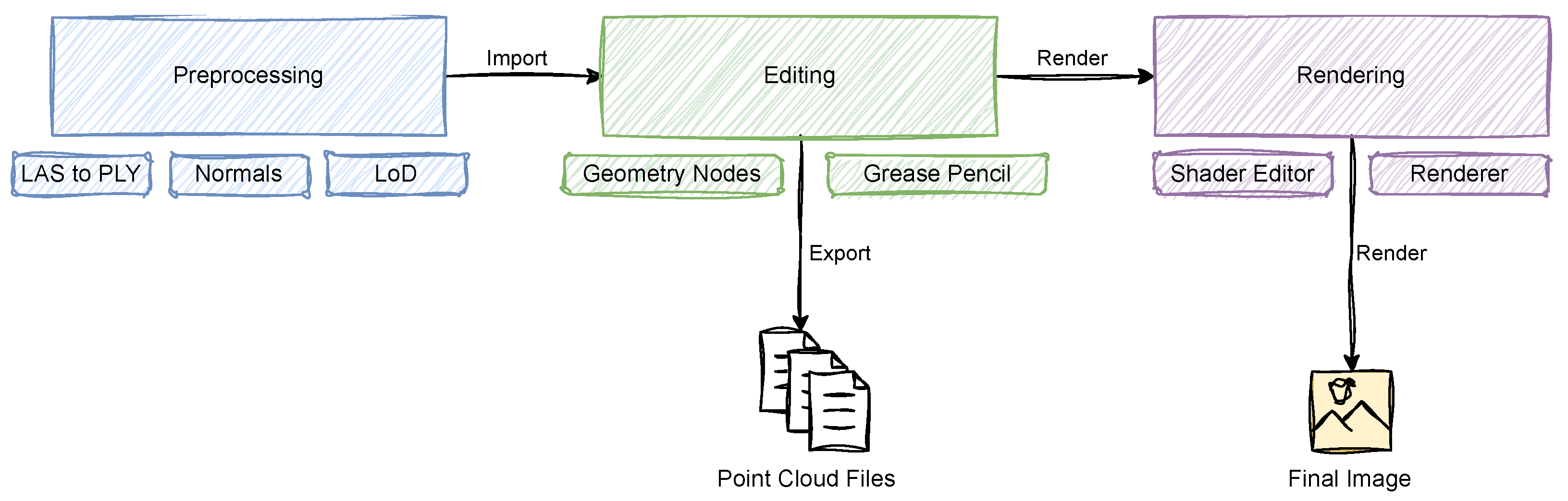

Our workflow for point cloud manipulation, as presented in Figure 1, consists of three stages: (1) preprocessing and import of the point cloud, (2) point cloud manipulation through node trees, and (3) rendering of resulting point cloud geometry.

3.1. Preprocessing

At the time of writing, both Blender and Rhinoceros provide limited native support for importing point cloud data. While both applications can handle PLY files, Rhinoceros offers broader format compatibility, including ASTM E57 and a few others.

Since LiDAR point clouds are commonly stored in the LASer (LAS) format, preprocessing is necessary to convert these files into a format suitable for Blender or Rhinoceros. To achieve this, we utilized the open-source point cloud processing software CloudCompare version 2.13.2 to convert LAS files to ASTM E57 for Rhinoceros and PLY for Blender.

One common challenge with LiDAR-acquired point clouds is that their coordinates are often located far from the world origin, which can lead to precision issues in 3D modeling software. To mitigate this, we used CloudCompare to recenter the point cloud before importing it into either application.

Blender organizes scene data into objects, which can contain different types of geometry, such as meshes, curves, and surfaces. When imported into Blender, a point cloud is represented as an object consisting of unconnected vertices, which cannot be rendered directly and appear in the 3D Viewport as simple, unshaded circles. However, using Geometry Nodes, these vertices can be converted into points represented by geometry instances, allowing them to be shaded and rendered effectively.

3.1.1. Level-of-Detail and Classifications

The current architecture of Blender imposes a fixed point buffer limit of approximately 4.2 GB per object, restricting the number of points per object that can be displayed in the 3D Viewport. Since our work involves large point clouds containing millions of points, we introduce level-of-detail (LoD) to optimize point cloud rendering and interaction across different hardware configurations. To address both memory limitations and performance concerns, we implemented LoDs as separate objects, each containing a subset of points to ensure the buffer limit is not exceeded. These objects can be hidden or revealed dynamically, allowing users to switch between lower- and higher-detail representations as needed.

In LiDAR datasets, points can be classified into 256 categories, representing features such as ground, buildings, railways, roads, and vegetation. To enable toggling the visibility of points based on classification, we considered two approaches:

1.

Storing points of different classes in separate objects—This approach leverages Blender’s standard object visibility mechanisms, allowing classification-based filtering across different LoDs via scripting.

2.

Storing the class ID as a point attributes—Here, classification visibility is controlled directly through Geometry Nodes, enabling efficient filtering and seamless color-based rendering based on class attributes.

The first approach provides better display performance and simplifies classification management, as visibility toggling can be handled efficiently at the object level. Additionally, the object creation process is highly optimized, taking only a few seconds in our implementation.

However, we ultimately adopted the second approach, as it integrates more seamlessly with Geometry Nodes, allowing each point to retain its classification information. This proved particularly useful in the shading stage, where points can be dynamically assigned colors based on their classes. Despite these advantages, this approach resulted in longer processing times due to the overhead of constructing the node tree for classification-based filtering. Specifically, since Geometry Nodes lack native support for array-based toggling, 256 boolean inputs and 512 boolean math nodes had to be generated to manage classification visibility. While this workaround is computationally expensive, it was necessary given the current limitations in Blender’s node-based system. Future updates may introduce native support for array-based operations, as this has been a recurring feature request from the Blender community.

3.1.2. Normal Computation

Computing normals for point clouds requires external tools such as CloudCompare or custom script implementations. In the case of Blender, we developed a custom PCA-based normal computation inspired by [37,38]. Our approach involves preprocessing PLY files externally, where normals are computed and updated before being reloaded into Blender. This ensures that point clouds maintain accurate normal information for subsequent shading and rendering operations.

3.1.3. Viewport Display

To ensure proper visualization of point clouds in Blender’s 3D Viewport, both materials and an initial Geometry Nodes configuration must be set up. Each point cloud object requires a Geometry Nodes modifier, which converts unconnected vertices into point instances for correct display. Additionally, a material must be applied to enable accurate point coloration.

For optimal real-time visualization, the Material Preview shading mode provides the best balance between performance and visual clarity. When using the EEVEE rendering engine, disabling shadow calculations can further improve viewport performance, reducing computational overhead and ensuring smoother interaction with large point clouds.

3.2. Editing

We evaluated Blender’s capabilities by testing a selection of operations that are commonly used in urban planning and similar applications, as identified in published workflows. All operations were implemented using Geometry Nodes, with certain parameters dynamically controlled via auxiliary objects and mesh primitives to facilitate real-time transformations in the 3D Viewport.

For instance, to define a specific region of interest, we used a Cube primitive, adjusting its position and scale to encompass the desired set of points. Within the node tree, we identified points contained within the Cube using the Object Info and Raycast nodes. As the Cube was further manipulated, the Geometry Nodes computation updated dynamically, ensuring real-time responsiveness.

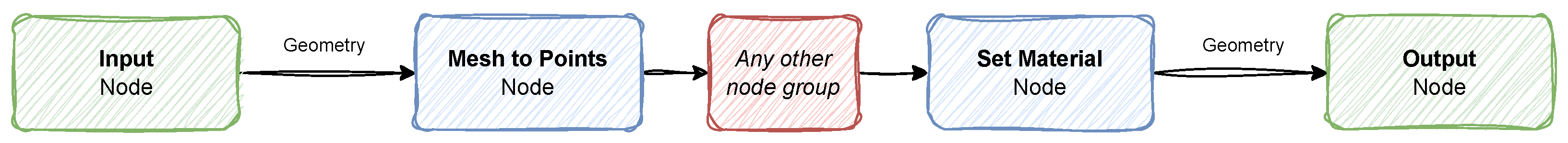

When constructing operations within Blender’s Geometry Nodes, it is important to note that point clouds are initially represented as unconnected vertices. Therefore, at some stage, the geometry must be explicitly converted into renderable points using the Mesh to Points node. This conversion can be introduced at any point in the node tree; however, we have not extensively analyzed the performance implications of different placements within our tested operations.

Additionally, we observed that the Set Material node should preferably be applied last in the node tree, as some geometry-altering nodes remove previously assigned material definitions. This workflow is visually outlined in Figure 2.

3.2.1. Point Copying

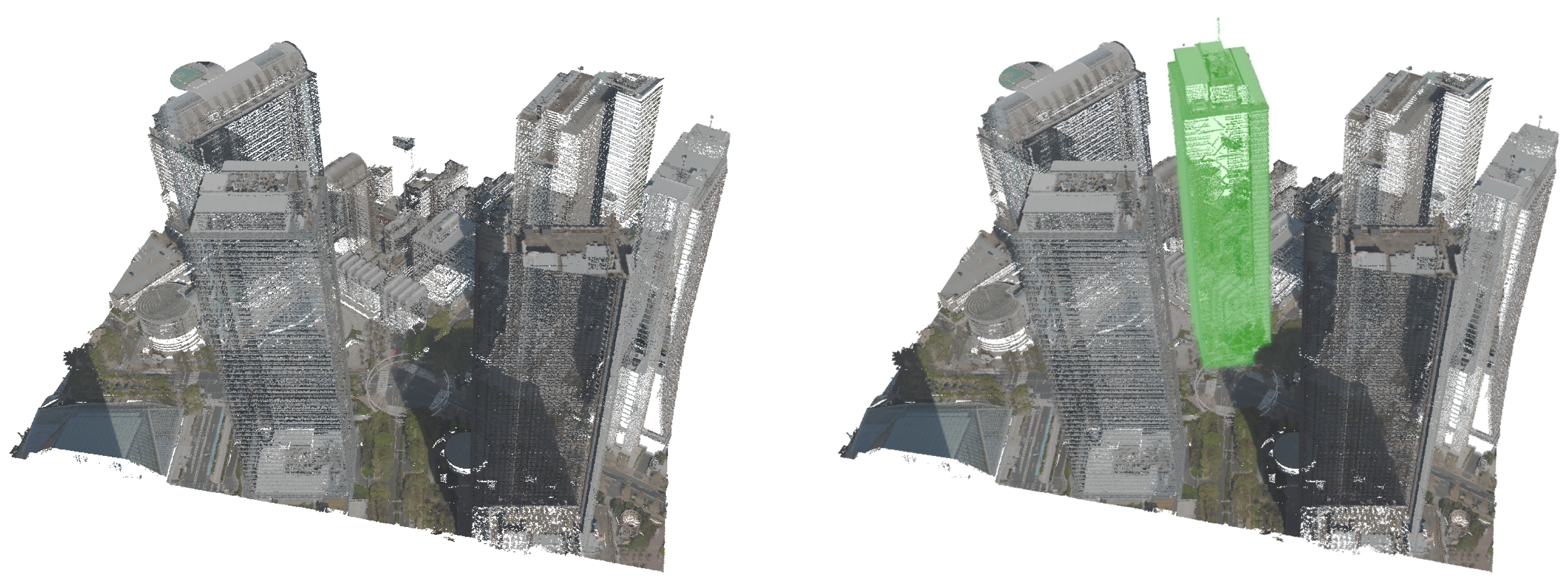

Points can be duplicated and transformed based on a specified condition, such as location, color, or classification. This functionality is particularly useful for rapid prototyping and early-stage design, where existing structures within the point cloud can be reused and repositioned in different areas.

In Blender, point duplication can be achieved by encapsulating a region of interest within a primitive, such as a Cube. The primitive’s geometry can be accessed via the Object Info node, while the Raycast node is used to determine which points fall within the Cube’s boundaries. Once the relevant points are identified, the selected geometry can be transformed and combined with both the original (untransformed) selection and the remaining unselected geometry. To facilitate interactive adjustments, the transformation can be linked to an empty object, allowing for real-time manipulation. This operation is visually demonstrated in Figure 3.

3.2.2. Point Removal

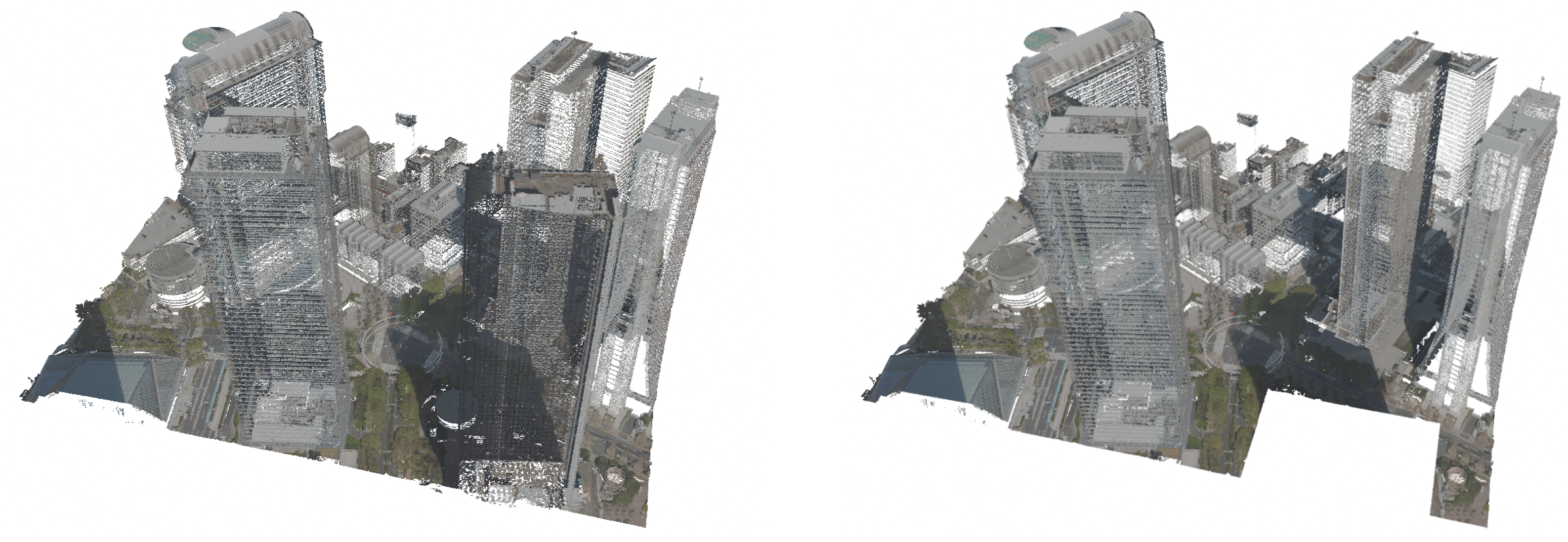

Points in the point cloud are removed based on a given condition. In Blender, we can determine the geometry to be deleted via position coordinate intervals or Raycast node and delete the selected geometry with the Delete Geometry node. The results can be seen in Figure 4.

3.2.3. Drawing Points

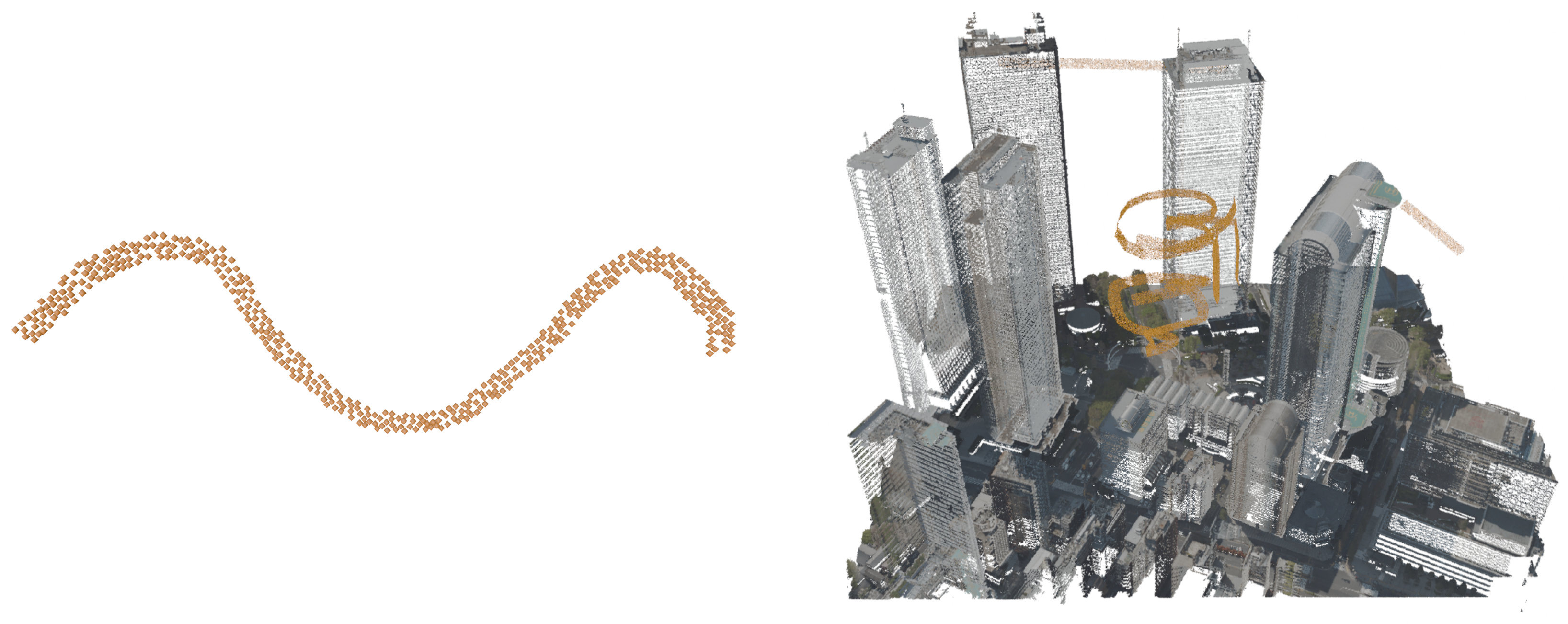

Blender features the Grease Pencil tool, which allows users to draw and paint strokes that are represented as curves within the 3D environment. These curves are first converted into mesh geometry, after which points are drawn onto the mesh faces. This functionality is particularly useful for filling small voids in point clouds and creating irregular shapes that may be difficult to generate through other modeling techniques. We show an example in Figure 5.

To the best of our knowledge, Rhinoceros and Grasshopper do not offer a comparable feature to Blender’s Grease Pencil. As a result, an equivalent implementation was not possible.

3.2.4. Painting on Points

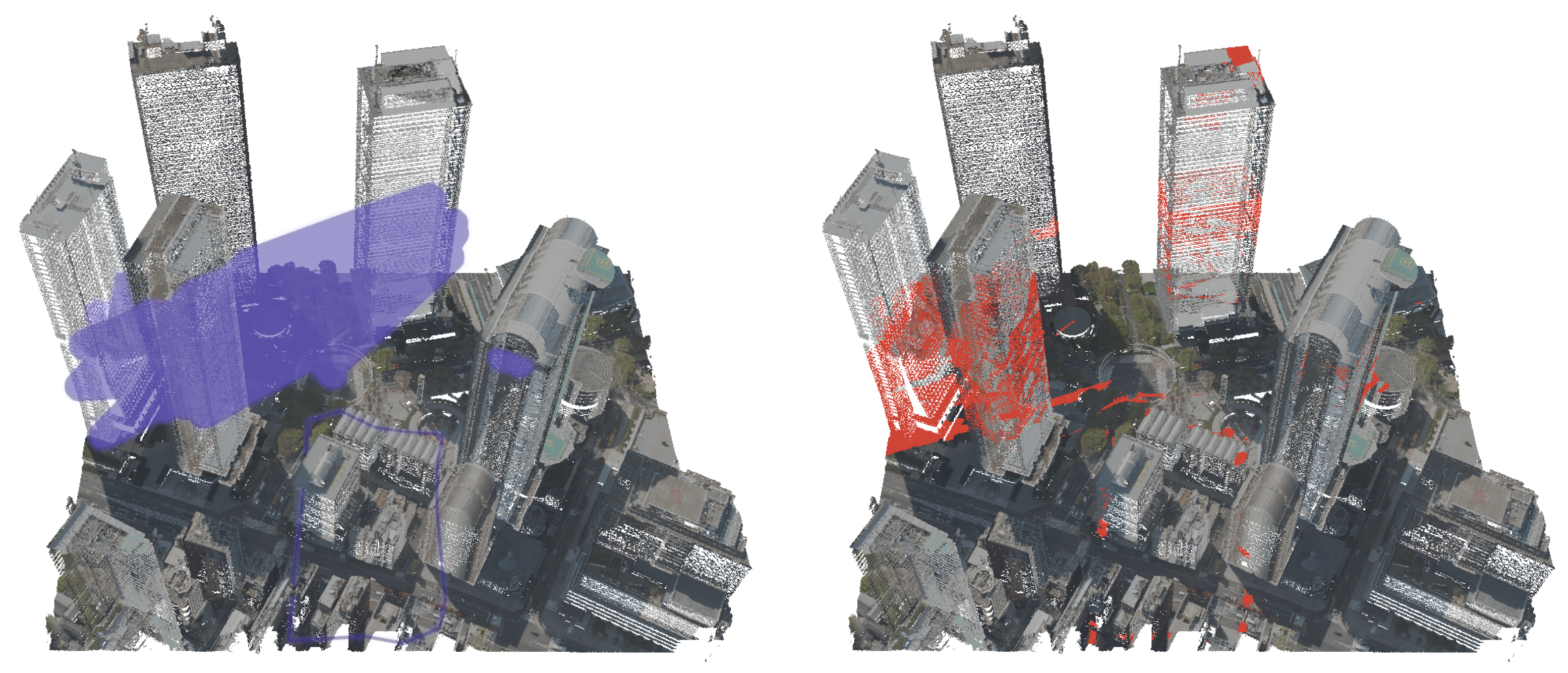

With Grease Pencil, strokes can be painted directly onto points, allowing point attributes to be modified based on their proximity to the stroke. For example, specific regions of the point cloud can be marked by painting over them, and the color attribute of the affected points can be updated accordingly.

Additionally, Grease Pencil strokes can be converted into mesh geometry, which can then be processed using the Raycast node to identify points within a defined radius of the stroke. This approach enables localized point modifications based on user-defined strokes. We were unable to replicate this functionality within Rhinoceros. An example of the functionality is illustrated in Figure 6.

3.2.5. Erasing Points

Just like Grease Pencil can be used to draw points into a point cloud, we can remove the geometry based on the distance from the stroke illustrated in Figure 7.

3.2.6. Flattening Points

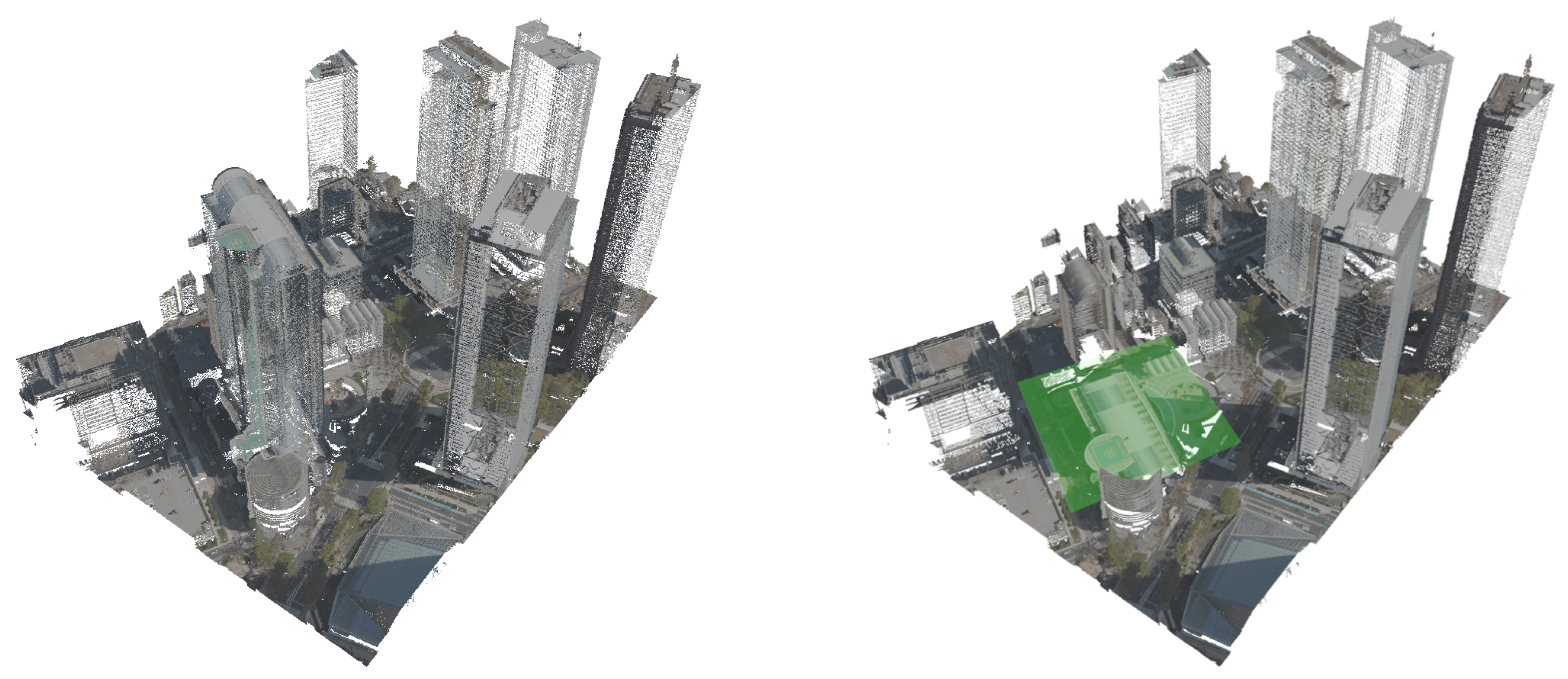

This tool enables the removal of structures from the point cloud while ensuring that the affected area is seamlessly filled rather than leaving a blank space. The process can be implemented in multiple ways, depending on the desired outcome. Our initial approach involved defining a 2D plane, removing all points that could be projected onto it along its normal direction, and then sampling new points on the plane to fill the void. The colors of these newly generated points were sampled from the nearest existing points outside the affected region, ensuring a natural transition. In contrast, our second approach modified the coordinates of existing points, projecting them onto the plane rather than deleting and resampling. While this method resulted in some redundant and overlapping points, it produced a more visually consistent and textured result in the flattened region. Here, we present results from the second implementation, which is illustrated in Figure 8.

3.2.7. Mesh Tools

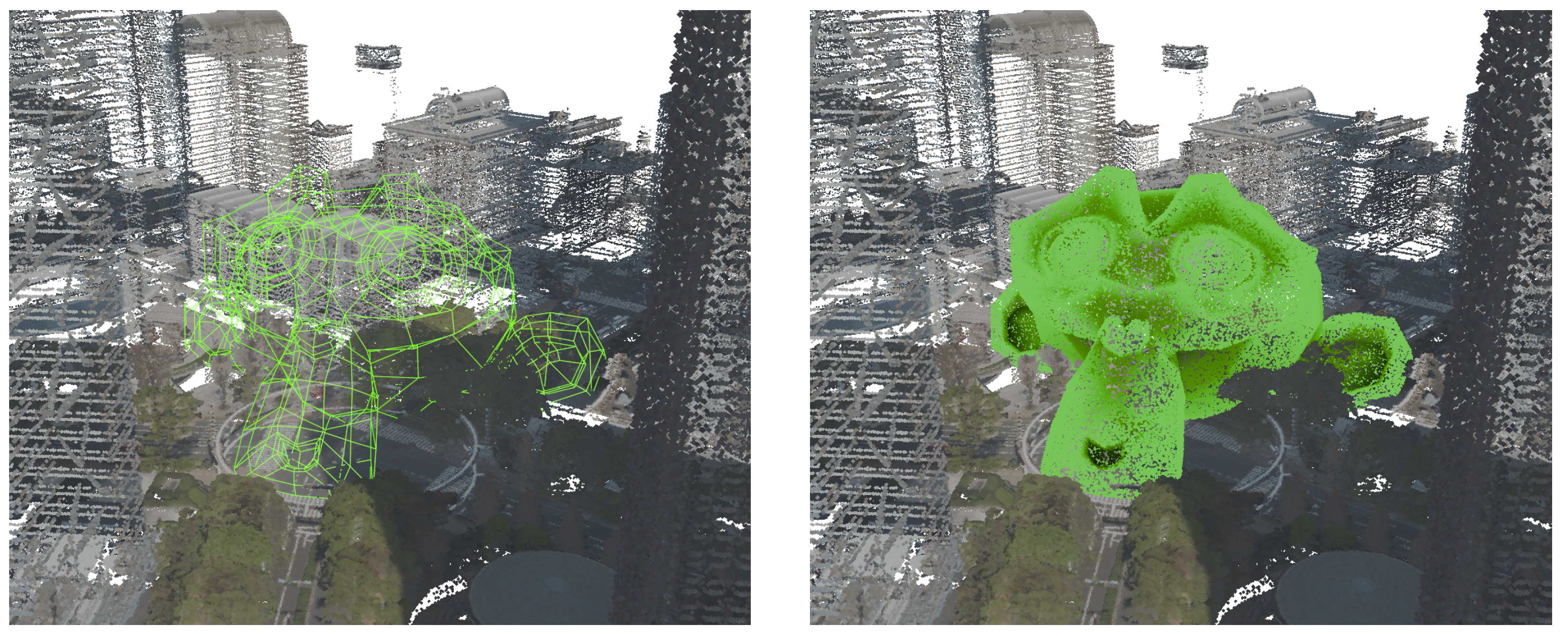

Blender’s strong emphasis on mesh and curve modeling allows its mesh primitives and modeling tools to be used for creating new structures that can be incorporated into a point cloud. These structures are integrated by sampling points from mesh surfaces, effectively converting geometric representations into point-based data.

Custom attributes can be assigned to points using the Store Named Attribute node, enabling precise control over point properties. Additionally, attributes can be derived from vertex data generated through vertex paint and mesh editing operations. When points are converted from vertices, they retain their associated attributes, ensuring consistency in the assigned properties. The use of this tool is illustrated in Figure 9.

Our proposed workflow leverages Blender’s Geometry Nodes, Grease Pencil, and rendering engines to facilitate point cloud manipulation in urban planning contexts. Through efficient preprocessing, interactive editing, and customizable rendering, we demonstrated a flexible and scalable approach for working with large-scale point clouds. The various operations—copying, removal, flattening, painting, and transformation of points—enable precise control over the dataset while preserving critical geometric attributes. In the following section, we present the performance evaluation comparison with the Rhinoceros-Grasshopper combination and present additional visual results.

4. Results

In this section, we present the experimental setup, performance analysis results, and some selected images created using the introduced approach.

4.1. Experimental Setup

We conducted our experiments in Blender 4.4 and Grasshopper in Rhinoceros 8, performing timing measurements using the internal debugging tools provided by each software. Both Blender and Grasshopper display the execution time of individual nodes, albeit with a key difference: Blender accumulates execution duration up to a specific node, whereas Grasshopper reports the execution time of each node separately. However, both programs caution that these timing values are approximate and should be interpreted primarily for coarse optimization rather than precise benchmarking.

In Grasshopper, certain operations—such as point copying—had to be executed on smaller datasets due to long processing times. For larger datasets, these operations frequently resulted in crashes, limiting the scope of direct comparisons. Additionally, manual LoD in Grasshopper was not included in our experiments.

Unless stated otherwise, experiments were conducted on a high-performance workstation equipped with two Intel Xeon Gold 6140 processors (2.30 GHz, 18 cores each), 256 GB of RAM, and an NVIDIA RTX A4000 Ada-generation GPU, running Microsoft Windows Server 2022.

When using another computer for performance comparison, a laptop was used with an Intel i7-1260P processor (1.20 GHz, 12 cores), 16 GB of RAM, and a GeForce MX570 A GPU, running Linux Mint 21.3 Cinnamon.

For our dataset, we used a subset of the Tokyo LiDAR dataset, consisting of approximately 6.4 million points.

4.2. Performance Evaluation

Blender renders the testing point cloud at roughly 25 frames per second (FPS) with material shading and 45 FPS with solid shading. On the laptop, the performance reaches 10 FPS with material shading and 25 FPS with solid shading. Since Rhinoceros refreshes the view only when necessary, measuring performance in FPS does not make sense and cannot be used for comparison.

We measured the execution times for individual implemented operations in both applications. We could directly compare three operations: Point Copying, Point Removal, and Flattening Points. The execution times for Blender and Grasshopper are shown in

Table 1. Results of operations on Tokyo LiDAR dataset performed in Blender with Geometry Nodes on the workstation. Node Count excludes the input and output node of the observed node group responsible for the operation, and execution time represents the approximate execution time of the observed node group.

Operation	Node Count	Execution Time	Number of Points	Bottleneck
Point Copying	10	0.29 s	(~340k points)	Join Geometry node
Point Removal	9	0.11 s	(~460k points)	Delete Geometry node
Drawing Points	4	0.21 s	(~18k points added)	Points on Faces node
Erasing Points	8	0.26 s	(~200k points)	Delete Geometry node
Coloring Points	7 + 7 *	0.50 s	(~200k points colored)	Store Named Attribute node
Flattening Points	13	0.11 s	(~880k points)	Store Named Attribute node
Mesh to Points	11	0.02 s	(~104k points)	Points on Faces node

* There are two node groups, one applied to the point cloud object and one applied to the Grease Pencil object

and

Table 2. Results of operations on Tokyo LiDAR dataset performed in Rhinoceros 8 Grasshopper. Execution time represents the approximate execution time of the observed node group.

Operation	Node Count	Execution Time	Number of Points	Bottleneck
Point Copying	16	91 s	(~340k points)	Point in Brep, Construct Point Cloud
Point Removal	9	90 s	(~460k points)	Point in Brep, Construct Point Cloud
Flattening Points	19	65 s	(~880k points)	Construct Point Cloud

, respectively. We also provide Blender results of operations on the laptop computer in

Table 3. Results of operations on Tokyo LiDAR dataset performed in Blender with Geometry Nodes on the laptop computer. Node Count excludes the input and output node of the observed node group responsible for the operation, and execution time represents the approximate execution time of the observed node group.

Operation	Node Count	Execution Time	Number of Points	Bottleneck
Point Copying	10	0.27 s	(~340k points)	Join Geometry node
Point Removal	9	0.18 s	(~460k points)	Delete Geometry node
Drawing Points	4	2.3 s	(~18k points added)	Points on Faces node
Erasing Points	8	0.55 s	(~200k points)	Delete Geometry node
Coloring Points	7 + 7 *	0.47 s	(~200k points colored)	Store Named Attribute node
Flattening Points	13	0.09 s	(~880k points)	Store Named Attribute node
Mesh to Points	11	0.01 s	(~104k points)	Points on Faces node

* There are two node groups, one applied to the point cloud object and one applied to the Grease Pencil object.

to show the Blender’s performance across different machines.

When using paint tools on points in Blender, we observed a significant drop in performance, as each update to the Grease Pencil geometry required recalculating attributes on affected points. Similarly, interacting with objects that controlled parameters within Geometry Node trees was severely limited due to the computational overhead incurred with each modification.

In comparing Rhinoceros and Blender, certain operations were more efficiently represented with nodes in one program than the other. For instance, checking whether a point was inside a mesh required only a single node in Grasshopper (Point in Brep), whereas, in Blender, the same operation required three to four nodes (Raycast and several vector math nodes), increasing workflow complexity. The comparable implementations of individual operations used fewer nodes in Blender on average.

Grasshopper has limited access to point cloud attributes, primarily supporting location, color, and normals. In contrast, Blender’s Geometry Nodes can read, manipulate, and store additional attributes, allowing for more flexible rendering (e.g., visualizing elevation data) and attribute-based filtering and manipulation (e.g., removing points based on specific attribute values). This greater attribute control provides enhanced customization and visualization options in Blender.

When performing basic transformations such as translation, rotation, and scaling on a point cloud object, Rhinoceros demonstrated greater efficiency, maintaining smooth real-time interaction. In contrast, Blender exhibited noticeable frame drops and viewport lag, impacting usability when working with large datasets.

While both programs faced performance challenges with certain node operations, Grasshopper was more prone to crashes or extended periods of unresponsiveness, even when previewing only selected node outputs. This made handling complex or large-scale point cloud operations more challenging in Grasshopper than in Blender.

We also compared the rendering performance of the built-in rendering engine in both applications and presented the results in

Table 4. Measurements of rendered images of Tokyo point cloud. The images were rendered on the workstation at a resolution of 1920 × 1080 pixels. The middle column notes the material shader applied on points. We did not provide measurements for the laptop computer, as rendering comparisons for different machines is out of scope of this paper.

Renderer	Shader Used	Duration
Blender EEVEE	Principled BSDF	3.9 s
	Emission	2.8 s
Blender Cycles	Principled BSDF	40 s
	Emission	19 s
Rhino Renderer	/	<1 s *

* The measurement does not include tone-mapping or gamma correction. These could take up to 3 s.

.

4.3. Output Image Comparison

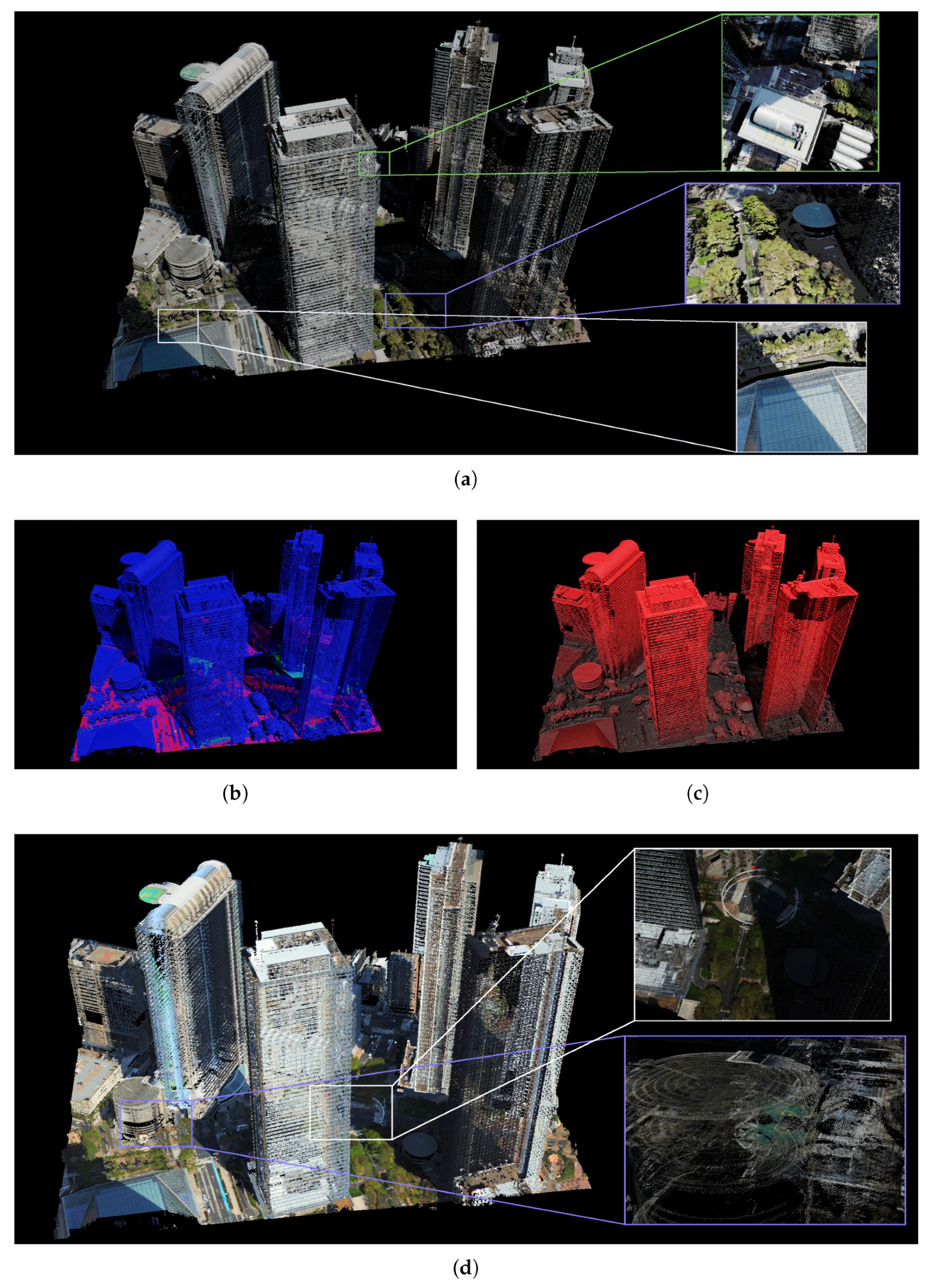

To explore different visualization possibilities, we rendered high-resolution images using Blender and Rhinoceros. In Blender, point cloud materials were customized to visualize point colors, classifications, and elevation using the Attribute node in combination with color conversion operators. The results for Blender are presented in Figure 10a–c, while the corresponding visualization in Rhinoceros is shown in Figure 10d.

Rendering in Blender was more time-intensive, particularly when using the Cycles rendering engine, which proved to be the slowest option. However, material selection significantly impacted performance—applying a pure emissive material to points resulted in faster computation times, particularly in Cycles.

On the other hand, Rhinoceros demonstrated strong initial rendering performance, quickly generating images. However, its post-processing stage, which includes tone mapping and gamma correction, introduced a significant performance drop, affecting the overall efficiency of the rendering workflow.

5. Discussion

As demonstrated in our experiments, Blender provided a more stable and responsive node-based editing experience than Rhinoceros, particularly when Geometry Nodes operations were optimized. However, some caveats remain: Our experience with Rhinoceros is limited, meaning that certain Grasshopper node configurations may not have been fully optimized. Additionally, preprocessing techniques, such as point cloud reduction before executing operations, could potentially improve performance. However, reversing such reductions in the rendering stage would likely negate any performance benefits.

Comparing the results of Blender operations on the high-performance workstation and the consumer-grade laptop, Blender holds up remarkably well on the less performant machine, sometimes even a few milliseconds better. When sampling points on surfaces, however, the drawbacks become clear, with the laptop requiring seconds to compute. This highlights room for optimization of the way the points should be sampled.

The complexity of node setups plays an important role in editing as well. Less complex setups are more maintainable and extendable while also sometimes reducing the computational costs of geometry manipulation. Where comparison was possible, we had to create larger node trees in Grasshopper, mostly due to more verbose point region selection and conversions for combining modified and original geometry. In that regard, Blender has a more direct approach, with most nodes treating the input and output geometry the same without special conversions (except in the case of Grease Pencil and curves).

Some of Blender’s tools show great potential for future point cloud editing techniques. Notably, painting in 3D space with Grease Pencil makes some more artistic or imprecise modifications easier: coloring of points, in our case, was more intuitive due to the similarity with how painting works in real life.

Blender’s flexible rendering workflow, the default inclusion of two rendering engines that rely heavily on physically based rendering, and compositing node-based tools make it a powerful tool for point cloud visualization. In renders, multiple visual features such as shadows, compositing effects, and different material properties (glossiness, specularity, roughness, etc.) could be produced. We could not observe any of these features with Rhinoceros’ default rendering of point clouds, resulting in more flat renders. However, Rhinoceros does offer some level of post-processing on the rendered images, e.g., color correction and contrast adaption.

While Blender shows promise in utilizing point clouds for urban planning workflows, several challenges still need to be addressed to fully leverage its capabilities.

Grasshopper’s strength lies in its list manipulation. Treating data as lists does have advantages, especially when introducing external non-geometric data. Blender does not provide such a list or array structures. Basic functionality could potentially be introduced through operations on strings, although that would be rigid and inefficient.

While many tools for point cloud editing provide a relatively straightforward UI, Blender, as a general-purpose 3D modeling application, poses a somewhat steeper learning curve. There are many options, operations with specific parameters, and other specifics that may require significant time and effort from new users. Users coming from Rihonceros may have to adapt to different workflows and terminology, although the Grasshopper node editing is similar to Blender’s Geometry Nodes in core aspects. Still, certain node operations require different setups and more elaborate configurations because Geometry Nodes do not have nodes for some specific tasks (as mentioned above regarding lists).

One notable limitation is the lack of shared modifier stacks. While Geometry Nodes groups can be shared between objects, the modifiers that apply them cannot. As a result, efficiently editing multiple LoDs and classification clusters is not currently possible without custom scripting. Scripted operators could automate tasks, such as applying the same Geometry Nodes group across multiple objects, reordering modifiers, and batch-processing transformations, improving workflow efficiency.5

Another key challenge involves erasing points with a Grease Pencil. The current approach lacks the performance needed for large datasets, as real-time stroke-based erasure introduces significant lag due to simultaneous geometry updates. In our tests, strokes could not be drawn continuously without severe slowdowns. A potential solution could involve temporarily disabling the Geometry Nodes tree during drawing or operating on a lower-resolution representation of the point cloud for improved responsiveness.

It is important to note that both Blender and Rhinoceros support scripting extensions to extend their functionality. Blender offers a scripting interface and an extension system, both utilizing Python. In contrast, Grasshopper supports scripting nodes that integrate directly into node trees and are written in Python or C#. While these scripting capabilities enable custom workflows and automation, they are not well suited for high-performance processing of large point clouds, as operating on millions of points in Python or C# is inherently slow.

In Blender, scripting can be particularly beneficial for improving the UI of point cloud operations—for example, automating Geometry Nodes template generation, streamlining import/export processes, and enabling modifier stack sharing. For advanced users, Blender’s open-source nature allows direct modifications to the program codebase, enabling deep customization and performance improvements. This level of extensibility is not available in Rhinoceros and Grasshopper, where users are restricted to existing API functionalities and proprietary constraints.

The workflows and operations presented in this paper required a high-end workstation for our specific datasets because the entire point cloud is stored in memory. Future research could be directed towards improving memory management and storage of point cloud data inside Blender. We provide a limited set of operations on point clouds that may not completely reflect the needs of urban planners and other professionals in the field. Therefore, extending the toolset in collaboration with experts in the urban planning field is an important goal to bring Blender closer to adoption in practice. Blender provides simulation tools for smoke, fire, cloth, and particles, so future work could also be focused on integrating point clouds with those. While we briefly address classification types in LiDAR point clouds, currently, no mechanism in Blender allows for automatic segmentation and classification of points, so integration with deep models for point cloud segmentation should be an interesting challenge to pursue in the future.

6. Conclusions

In this study, we explored procedural point cloud and mesh editing for urban planning using Blender, evaluating its capabilities in comparison to Rhinoceros Grasshopper. Our workflow introduced non-destructive point cloud manipulation through Geometry Nodes, enabling copying, removal, transformation, and visualization of large-scale datasets. Additionally, we leveraged Blender’s Grease Pencil tool for interactive point cloud modification, demonstrating its potential for tasks such as painting, erasing, and filling voids within point clouds. We packaged import processes, point-cloud management tools, and some geometry node templates into a Blender add-on to build a more user-friendly experience in the future.

Our comparative analysis found that Blender offers a more stable and scalable node-based editing experience when working with large point clouds. While Rhinoceros performed better in basic transformations, it struggled with complex node-based operations, frequently leading to crashes and unresponsiveness for large datasets. Furthermore, Blender’s ability to manipulate and store custom point attributes provided greater flexibility for rendering and classification-based filtering, which Grasshopper’s limited point cloud attribute access could not fully support. We compared Blender performances on a high-performance remote workstation and a lower-end laptop to find that on our selected dataset, the performance was mostly comparable. However, Blender’s rendering performance in Cycles proved time-intensive, while Rhinoceros excelled in initial rendering speeds but suffered in post-processing steps. We also provided visual results to highlight the differences in the visual quality of rendered images.

Despite these advantages, several challenges remain in Blender’s point cloud workflow. The lack of shared modifier stacks complicates simultaneous editing of multiple LoDs and classification clusters, requiring custom scripting for automation. Additionally, real-time Grease Pencil-based point erasure is currently too slow for large datasets, necessitating either temporary node tree deactivation or lower-resolution previewing for improved responsiveness.

Our findings highlight Blender’s growing potential as a flexible, open-source alternative for urban planning applications, particularly in procedural point cloud editing and visualization. With continued development and community-driven improvements, Blender could become an increasingly viable tool for efficient, large-scale urban modeling and design workflows.
