An Axisymmetric Problem of Suspension Filtering with Formation of Elastic–Plastic Cake Layer

by
Bakhtiyor Kh. Khuzhayorov
1,
Usmonali Saydullaev
1,
Gafurjan Ibragimov
2 and
Nadihah Wahi
2,*
1
Department of Applied Mathematics, Samarkand State University, 15, University Str., Samarkand 140100, Uzbekistan
2
Department of Mathematics and Statistics, and Institute for Mathematical Research, Faculty of Science, University Putra Malaysia, Seri Kembangan 43400, Malaysia
*
Author to whom correspondence should be addressed.
Symmetry 2022, 14(6), 1202; https://doi.org/10.3390/sym14061202
Submission received: 29 March 2022 / Revised: 16 May 2022 / Accepted: 17 May 2022 / Published: 10 June 2022

Abstract

:
The paper considers an axisymmetric problem of filtering suspensions with the formation of a cake on the filter surface. It is supposed that the cake has elastic–plastic properties. Using the mass conservation equation and Darcy’s law, the suspension filtration equations at the elastic–plastic regime are derived, which characterize the partial irreversibility of the filtration characteristics when the system is unloaded after loading. An equation is also derived that describes the increase in the thickness of the cake. Problems of suspension filtering for the derived equations are posed and numerically solved. The role of partial irreversibility of deformation on the filtration characteristics is estimated. Distributions of compression pressure, the concentration of solid particles in the cake, relative permeability in the mode of primary and secondary loading of the system, as well as in the mode of unloading after the first loading are obtained. The growth dynamics of the cake thickness are also established. The parameters of plasticity in terms of particle concentration and permeability mainly affect the corresponding indicators, i.e., on the particle concentration distribution and on the relative permeability of the cake. It is shown, that depending on the change in the model parameters characterizing the elastic–plastic properties of the cake, the filtration characteristics change significantly. This indicates a significant effect of the elastic–plastic deformation of the cake on the suspension filtration characteristics.

1. Introduction

The filtration process is widely used in many fields of human activity. When filtering suspension clarification, filters with various design and technical characteristics are used [1,2,3,4,5,6,7]. In oil and gas, mining, chemical, and food industries, as well as environmental protection, ecology, etc., filtration is the basis of different technological processes. The clarification of various mixtures is also widely applied in biology and biotechnology [8,9,10,11,12].
In the process of suspension filtering through a porous filter, the solid phase (solid particles) is separated from the liquid phase and deposited on the outer surface of the filter. The latter is called the cake, which grows in thickness during the filtration process. The filtration and physico-mechanical characteristics of the cake determine the efficiency of cleaning the suspension from solid particles by filtration.
To analyze the filtration processes of various mixtures, in particular suspensions, one of the effective methods of analysis is mathematical modeling. Many works are devoted to mathematical modeling of the processes of filtering various mixtures. The study of [13] considered mathematical models of suspension filtration with the formation of a cake on various filter wall geometries. As an example of three-dimensional filtration, the growth of filtration sediment on a spherical partition was theoretically and experimentally studied in [14].
Baffles with a large radius of curvature for rotating drum vacuum filters are flat filter surfaces. Since the radius of curvature of the filter partition in cartridge filters is relatively small, the thickness of the sediment formed on the outer filtering surface and the thickness of the partition are comparable to the radius of curvature. Therefore, the boundary of the suspension and sediment layer and the boundary of the sediment layer and cylindrical filter wall are significantly different. As a result, the flow of the liquid phase of the suspension through the cake layer and the filtering baffle becomes more complicated.
In cartridge filters, the radius of the curvature of the filter elements is comparable to the thickness of the formed sediment; therefore, the filtration patterns become much more complicated. The filter element has a cylindrical shape, through the inner or outer side surface through which the suspension is fed. To describe the filtration process with compressible sediment formed on the cylindrical elements of cartridge filters, the axisymmetric Stefan problem must be formulated [6].
Suspension particles either linger on the filter surface, forming a precipitate, which is called a cake, or penetrate the filter, eventually being deposited in the pores. Accordingly, a distinction is made between cake filtration and pore-blocking filtration, i.e., deep bed filtration [3,6]. A cake is usually formed when the average particle diameter of the suspension is comparable to or greater than the average pore diameters of the filter. However, in many real cases, suspensions are polydisperse with a wide statistical distribution of particles in diameter (size), which can be either large or small compared to the average pore size. In this case, the deposition of particles occurs both on the surface and inside the pore space of the filter, i.e., cake and deep bed filtration are observed at the same time. However, models corresponding to this process have not yet been created. One of the first approaches to the analysis of such a filtering process was shown in [15], where a new mathematical model for cake formation with deep bed filtration for two-particle-size injection was proposed.
Studies of suspension filtration with formation of a cake [16,17,18,19] led to the development of the traditional theory of cake filtration. Suspension filtration models are based on volume-averaged equations of continuity, conservation of momentum and properties of a suspension and filter. In general, models of suspension filtration through porous media at low flow rates or low-pressure decreases are represented by Darcy’s law [20,21,22,23,24,25,26,27,28,29]. The concept of cake resistivity is given in the primary work of Ruth et al. [16]. The pressure in the solid phase ps, which is called compressive pressure, increases from the suspension–cake layer boundary to the cake–layer–baffle boundary. The pressure in the liquid phase p decreases from the suspension–cake–layer interface to the cake–layer–baffle interface [26].
The authors of [4] studied the effect of p s p on cake formation. Three different dependences of p s p were considered, for which the numerical solutions of the filtering equation were compared with experimental data.
The authors of [6] presented experiments on filtration with sedimentation and showed the relative deformation curves of some sediments obtained with an increase and subsequent decrease in external pressure. Studies show that with the decrease in external pressure, the partial swelling of precipitation occurs. This means that the deformation of the cake is not purely elastic. Therefore, there are also plastic deformations of the cake when the system is loaded, which means that the cake does not fully restore its physical and mechanical characteristics after the removal of external pressure. Moreover, to the best of our knowledge, [30,31] there is no theory yet describing this phenomenon. In other words, a theory of elastic–plastic deformation of the cake has not yet been created. Until now, the cake has mainly been considered as a medium, the deformation of which occurs in a purely elastic regime. Many studies where the cake layer is considered as an elastically deformable medium can be identified [32,33]. When loading the system by creating a pressure difference or creating a filtration rate, the cake is deformed and it consolidates, causing changes in the porosity, permeability, concentration of solid particles, etc. This should be considered in the mathematical modeling of the process. In [34,35], a model of filtration was proposed for filtering suspensions with the formation of a cake, in which the filtration law had relaxation properties. Based on the numerical implementation of the model, the influence of relaxation properties on the filtration characteristics is shown. Relaxation reflects the non-equilibrium nature of the filtration law in the cake. Like the residual deformations of the cake after unloading, the relaxation of the filtration law is a violation of the usual filtration law. In this case, the classical theory of filtration with cake formation must be generalized.
In this paper, a mathematical model of the suspension filtration process is considered, where the resulting cake has elastic–plastic properties. A cylindrical filter cartridge vertically installed in the suspension was considered. On the outer surface of the cartridge, because of separation of the suspension, a cake was formed, and its thickness continuously increased during the filtration process. At first, we derived the equations for filtering a suspension through a radial filter formed by an elastic–plastic cake. To model the elastic–plastic properties of sediment, we used the general principles of elastic–plastic filtration developed in [30,31,36,37,38,39]. First, the derivation of the filtration equations with increasing pressure was given, i.e., in the cake loading mode, and then in the unloading mode, i.e., when pressure is released. Separately, the suspension filtration equations were derived under repeated loading of the system, i.e., when the filtering mode was resumed. The model was implemented numerically, and the influence of the elasto-plasticity of the cake on the filtration characteristics was established.

2. Derivation of Equations

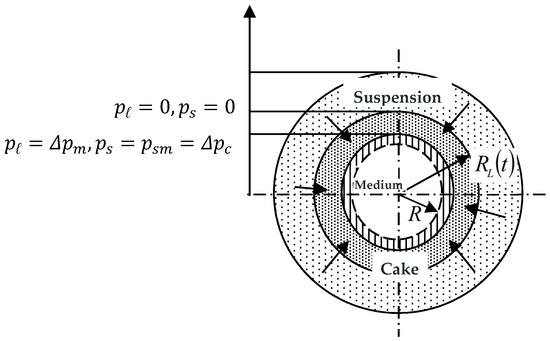

Let us consider the process of filtering a suspension through a cylindrical filter with the formation of the cake (Figure 1). In the process of filtration in the time interval 0 t T 1 , a cake is formed on the filter surface, in which the pressure increases in the range 0 p s p s ( 1 ) i.e., a sludge loading process occurs in which the permeability and solids concentration of solid particles of the cake is changed such that the permeability decreases from k 0 to some values and the particles concentration increases from ε s 0 to some values.
We suppose that, as in [4], the permeability and concentration of solid particles changed according to power laws:
k = k 0 ( 1 + p s p A ) δ
ε s = ε s 0 ( 1 + p s p A ) β
where the sign means the pressure increase mode; ε s 0 , k 0   are values of ε s , k at p s = 0 , respectively; p A is characteristic pressure; and β , δ are exponents (constant values).
At some point in time t = T 1 , the pressure is removed, and the filtration process stops, i.e., unloading begins the removal of the load. When the pressure p s drops to zero, the permeability due to the restoration of the sediment structure (swelling) increases to a value k ( 1 ) , which is less than the initial value k 0 , and the concentration of solid particles ε ε is restored to ε s ( 1 ) , which is higher than ε s 0 , i.e., the cake is not restored to its original state. If k ( 1 ) = k 0 and ε s ( 1 ) = ε s 0 , there is a complete elastic recovery of the cake.
In the process of unloading, the change in the permeability and concentration of solid particles occurs with the same power laws (1) and (2), but with different coefficients and exponents:
k = k 0 ( 1 + p s ( 1 ) p A ) δ 1 δ ( 1 + p s p A ) δ 1
ε s = ε s 0 ( 1 + p s ( 1 ) p A ) β β 1 ( 1 + p s p A ) β 1
where the sign means the pressure reduction mode, and p s ( 1 ) is the pressure of the beginning of the unloading process; the exponents β 1 , δ 1 of the dependence also have power law characteristics:
δ 1 = δ ( 1 + p s ( 1 ) p A ) γ k
β 1 = β ( 1 + p s ( 1 ) p A ) γ ε
where γ ε and γ k are exponents. If γ ε = 0 , γ k = 0 , we have a purely elastic regime.
If we repeat the filtration process, then in the range 0 p s p s ( 1 ) , the permeability decreases, and the concentration of solid particles will increase with the same pattern as under load, i.e., in accordance with laws (3) and (4) up to p s p s ( 1 ) :
ε s = ε s 0 ( 1 + p s ( 1 ) p A ) β β 1 ( 1 + p s p A ) β 1 ,   p s p s ( 1 )
k = k 0 ( 1 + p s ( 1 ) p A ) δ 1 δ ( 1 + p s p A ) δ 1 ,   p s p s ( 1 )
where means the reloading mode.
When the pressure p s reaches p s ( 1 ) , the filtration mode will change to the previous first loading mode.
In the range p s ( 1 ) p s p s ( 2 ) , the permeability decreases according to the same dependence as before unloading. When p s = p s ( 2 ) again the filtration process stops and unloading begins. The permeability is restored to a value k ( 2 ) that is less than the value of k ( 1 ) . The change of ε s occurs in the same way as for k , with the only difference that the restored values ε s will be higher than ε s 0 .
With subsequent loading, the process is similarly repeated. One can notice the fact that the greater the pressure p s from which unloading begins, the more the recovered values ε s ( 1 ) , k ( 1 ) and ε s ( 2 ) , differ from the initial ones ε s ( 0 ) , k ( 0 ) .
We will use the noted characteristic phenomena when compiling a filtration model with the formation of an elastic–plastic cake.
In the pressure increase mode, the filtration equation has the form:
ε s t = 1 r r ( ε s r k μ p r ) q m 2 π 1 r ε s r
where q m = [ 2 π r k μ p r ] r = R is filtrate flow rate at the filter outlet.
Let us give an equation for the moving radius R L ( t ) , which expresses the thickness of the cylindrical cake, i.e., border radius between suspension and cake layer:
d R L d t = ε s 0 ε s 0 ε s 0 [ k μ p r ] r = R L + 1 2 π R L q m
At the surface r = R L , the compressive stress particles are equal to zero, so ε s | R L can be taken equal to ε s 0 , the solid content at zero stress. On the other hand, ε s | R L + is equal to the concentration of solid particles in the suspension ε s 0 .
If the process starts in a new filter without preliminary pumping of liquid, then we can accept the initial condition:
R L ( 0 ) = R
If the filtration process begins with a sudden application of pressure or a flow velocity, the initial conditions for p and p s can be considered as zero, i.e.:
p ( 0 , r ) = 0 ,   p s ( 0 , r ) = 0
The boundary conditions of the problem are taken in the form:
p = p 0 ,   p s = 0 ,   ε s = ε s 0   when   r = R L ( t ) ,
2 π r k μ p r = p R m μ   when   r = R
In the unloading mode, zero is taken as the time reference. Using (3) and (4) we derive the following filtering equation:
ε s t = k 0 ε s 0 μ 1 r r ( ( 1 + p s ( 1 ) p A ) β β 1 + δ δ 1 ( 1 + p s p A ) β 1 δ 1 r p s r ) q m 2 π 1 r ε s r
The initial and boundary conditions can be specified as follows:
p s ( 0 , x ) = p s ( T 1 , x ) = p s ( 1 )
p s ( t , R L ( t ) ) = 0 ,   p s ( t , 0 ) = 0
We assume that in the unloading mode, the cake does not grow, so that R L ( t ) remains unchanged, with the value R L ( T 1 ) .
In the reloading mode, a filtering equation is derived that coincides in form with (14) and (9):
ε s t = k 0 ε s 0 μ 1 r r ( ( 1 + p s ( 1 ) p A ) β β 1 + δ δ 1 ( 1 + p s p A ) β 1 δ 1 r p s r ) q m 2 π 1 r ε s r ,   p s p s ( 1 ) ε s t = 1 r r ( ε s r k μ p r ) q m 2 π 1 r ε s r ,   p s p s ( 1 )
Let the unloading process be completed in time T 2 . During this time, zero pressure p s is established in the entire thickness of the cake. The re-loading of the system can be started with a given pressure on r = R : p s = p 0 ( 1 ) , where p 0 ( 1 ) is the given pressure, it may differ from the given pressure p 0 during the first loading. Then, the initial and boundary conditions for pressure have the following form (time again starts from zero):
p s ( 0 , r ) = 0
p s = 0 ,   ε s = ε s 0   when   r = R L ( t ) ,
2 π r k μ p r = p R m μ   when   r = R .

3. Numerical Solutions

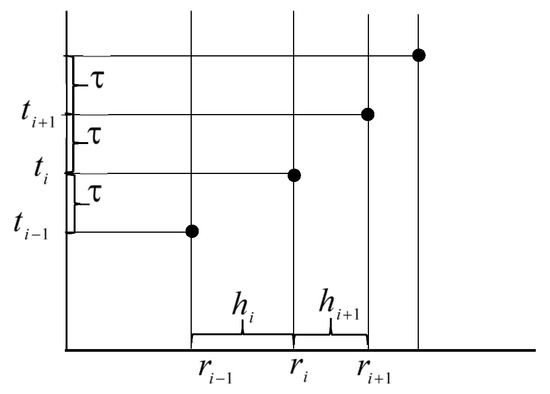

First, consider the loading regime. To solve the Equations (9)–(20) we use the finite differences method [40]. We introduce a uniform grid by t with the step τ   ω - τ = { t | t = t j = j τ , j = 0 , 1 , , N , τ N = T } , and a non-uniform grid by a coordinate r   ω - h = { r | r = r i = r i 1 + h i , i = 1 , 2 , , N ,   r N = R L } with the variable steps: h i > 0 (Figure 2). We are to choose the step h i from the segment [ r i , r i + 1 ] , so that the mobile boundary moves exactly one step along the time grid. This approach is known as the method of catching the front in a grid node [34,35,41]. We denote by p s , i j + 1 the grid function corresponding to p s . We approximate Equation (9) by an implicit difference scheme that is nonlinear with respect to the function p s , i j + 1 :
p s , i j + 1 p s , i j τ = a ( p s , i j ) r i 2 h i + h i + 1 { b ( p s , i + 1 / 2 j + 1 ) r i + 1 / 2 p s , i + 1 j + 1 p s , i j + 1 h i + 1 b ( p s , i 1 / 2 j + 1 ) r i 1 / 2 p s , i j + 1 p s , i 1 j + 1 h i } ( q m ) 0 j + 1 1 2 π r i p s , i j + 1 p s , i 1 j + 1 h i , i = 1 , , N 1 ,   j = 0 , 1 , , N 1
where r i 1 / 2 = r i 1 + r i 2 , r i + 1 / 2 = r i + 1 + r i 2 , a ( p s , i j ) = p A k 0 β μ ( 1 + p s , i j p A ) 1 β , c 0 ( p s , 0 j + 1 ) = k 0 μ ( 1 + p s , 0 j + 1 p A ) δ , b ( p s , i + 1 / 2 j + 1 ) = 1 2 [ ( 1 + p s , i + 1 j + 1 p A ) β δ + ( 1 + p s , i j + 1 p A ) β δ ] , ( q m ) 0 j + 1 = 2 π r 1 c 0 ( p s , 0 j + 1 ) ( p s , 1 j + 1 p s , 0 j + 1 h 0 ) .
Equation (10), when d R L d t h i + 1 τ after the approximation, it can be written in the form:
h i + 1 τ = [ c ( p s , i 1 / 2 j ) ( p s , i j + 1 p s , i 1 j + 1 h i + 1 ) ] 1 2 π r i ( q m ) 0 j + 1
where c ( p s , i 1 / 2 j ) = ε s 0 ε s 0 ε s 0 k 0 2 μ [ ( 1 + p s , i j p A ) δ + ( 1 + p s , i 1 j p A ) δ ] .
The approximation of initial (12) and boundary conditions (13) gives:
p s , i j = 0 ,   i = 0 , 1 , , N ,   j = 0 2 π r 1 k 0 μ ( 1 + p s , 0 j + 1 p A ) δ p s , 1 j p s , 0 j h 1 = p 0 p s , 0 j + 1 μ R m ,   j = 0 , N ¯ p s , i j + 1 = 0 ,   i = N + 1 , N + 2 , , j = 0 , 1 ,
The obtained set of equations is nonlinear, so to solve it, we use the method of simple iteration and rewrite Equation (21) in the following form:
p ( λ + 1 ) s , i j + 1 p s , i j τ = a ( p s , i j ) r i 2 h i + h i + 1 { b ( p ( λ ) s , i + 1 / 2 j + 1 ) r i + 1 / 2 p ( λ + 1 ) s , i + 1 j + 1 p ( λ + 1 ) s , i j + 1 h i + 1 b ( p ( λ ) s , i 1 / 2 j + 1 ) r i 1 / 2 p ( λ + 1 ) s , i j + 1 p ( λ + 1 ) s , i 1 j + 1 h i } ( q m ( λ ) ) 0 j + 1 1 2 π r i p ( λ + 1 ) s , i j + 1 p ( λ + 1 ) s , i 1 j + 1 h i , i = 1 , , N 1 ,   j = 0 , 1 , , N 1
where b ( p ( λ ) s , i + 1 / 2 j + 1 ) = 1 2 [ ( 1 + p ( λ ) s , i + 1 j + 1 p A ) β δ + ( 1 + p ( λ ) s , i j + 1 p A ) β δ ] , ( q m ( λ ) ) 0 j + 1 = 2 π r 1 c 0 ( p ( λ ) s , 0 j + 1 ) ( p ( λ ) s , 1 j + 1 p ( λ ) s , 0 j + 1 h 0 ) , λ is the number of iterations.
The system of Equation (24) is now linear with respect to p ( λ + 1 ) s , i j + 1 , which allows us to use the Tomas’s algorithm. As a condition to stop iteration procedure on this time layer, the following relationship can be used:
m a x i | p ( λ + 1 ) s , i j + 1 p ( λ ) s , i j + 1 | χ ,
where χ is the given accuracy of calculations. When Equation (25) is satisfied, then p ( λ ) s , i j + 1 = p s , i j .
Equation (24) leads to the system of linear equations:
A i ( λ ) p ( λ + 1 ) s , i + 1 j + 1 B i ( λ ) p ( λ + 1 ) s , i j + 1 + C i ( λ ) p ( λ + 1 ) s , i 1 j + 1 = F i ( λ ) , i = 1 , N 1 ¯ ,
where A i ( λ ) = b ( p ( λ ) s , i + 1 / 2 j + 1 ) h i + 1 r i + 1 / 2 , C i ( λ ) = b ( p ( λ ) s , i 1 / 2 j + 1 ) h i r i 1 / 2 + h i + 1 + h i 2 a ( p s , i j ) ( q ( λ ) m ) 0 j + 1 2 π h i + 1 ,
F i ( λ ) = r i 2 τ h i + 1 + h i a ( p s , i j ) p ( λ ) s , i j , B i ( λ ) = [ b ( p ( λ ) s , i + 1 / 2 j + 1 ) h i + 1 r i + 1 / 2 + b ( p ( λ ) s , i 1 / 2 j + 1 ) h i r i 1 / 2 ] + h i + 1 + h i 2 a ( p s , i j ) ( q ( λ ) m ) 0 j + 1 2 π h i + 1 + r i 2 τ h i + 1 + h i a ( p s , i j ) .
Equation (10) is used to determine the step coordinate and it can be written in the form:
( h i + 1 ) 2 τ 2 π r i ( q m ) 0 j + 1 h i + 1 τ c ( p s , i 1 / 2 j ) ( p s , i j + 1 p s , i 1 j + 1 ) = 0 .
By solving this nonlinear equation for each time layer, we can determine h i + 1 .
The system of Equation (26) is solved by the Tomas’ algorithm:
p ( λ + 1 ) s , i j + 1 = ξ i + 1 p ( λ + 1 ) s , i + 1 j + 1 + η i + 1
where ξ i + 1 = A i ( λ ) B i ( λ ) C i ( λ ) ξ i , η i + 1 = F i ( λ ) + C i ( λ ) η i B i ( λ ) C i ( λ ) ξ i .
The starting values of the coefficients ξ 1 and η 1 are determined from the boundary conditions, which have the form:
ξ 1 = R m c ( 2 ) ( p s , i j ) R m c ( 2 ) ( p s , i j ) + h 0 ,   η 1 = p c h 0 R 0 c ( 2 ) ( p s , i j ) + 1
where c ( 2 ) ( p s , i j ) = 2 π r i k 0 ( 1 + p s , i j p A ) δ .
Now t = T 1 , and the unloading regime begins. We calculate the derivatives ε s t and ε s r in (7) and (8) and substitute them into (14) to obtain the following equation with respect to p s :
p s t = a ( p s ( 1 ) , p s ) 1 r r [ b ( p s ( 1 ) , p s ) r p s r ] w ( p s ) q m 2 π r [ w 1 ( p s ( 1 ) ) w 2 ( p s ( 1 ) , p s ) ] p s ( 1 ) r q m 2 π r p s x ,
where a ( p s ( 1 ) , p s ) = k 0 p A μ β 1 ( 1 + p s ( 1 ) p A ) β 1 β ( 1 + p s p A ) 1 β 1 , b ( p s ( 1 ) , p s ) = ( 1 + p s ( 1 ) p A ) β β 1 + δ 1 δ ( 1 + p s p A ) β 1 δ 1 ,
w ( p s ) = 1 β 1 ( 1 + p s p A ) , w 1 ( p s ( 1 ) ) = γ ε β 1 ( 1 + p s ( 1 ) p A ) 1 ln ( 1 + p s ( 1 ) p A ) + ( β β 1 ) ( 1 + p s ( 1 ) p A ) 1 ,
w 2 ( p s ( 1 ) , p s ) = β 1 γ ε ( 1 + p s ( 1 ) p A ) 1 ln ( 1 + p s p A ) .
To solve Equation (29) with Equations (15) and (16), we use the finite differences method.
We approximate Equation (29) in the form:
( p s ) i j + 1 ( p s ) i j τ = a ( p s ( 1 ) , p s ) i j 1 r i 2 h i + 1 + h i [ b ( p s ( 1 ) , p s ) i + 1 / 2 j + 1 r i + 1 2 ( p s ) i + 1 j + 1 ( p s ) i j + 1 h i + 1 b ( p s ( 1 ) , p s ) i 1 / 2 j + 1 r i 1 2 ( p s ) i j + 1 ( p s ) i 1 j + 1 h i ] w ( p s ) i j ( q m ) 0 j + 1 2 π r i × × [ w 1 ( p s ( 1 ) ) i j w 2 ( p s ( 1 ) , p s ) i j ] ( p s ( 1 ) ) i ( p s ( 1 ) ) i 1 h i ( q m ) 0 j + 1 2 π r i ( p s ) i j + 1 ( p s ) i 1 j + 1 h i ,   i = 1 , 2 , , N 1 ,
where r i 1 / 2 = r i 1 + r i 2 , r i + 1 / 2 = r i + 1 + r i 2 , a ( p s ( 1 ) , p s ) i j = k 0 p A μ β 1 ( 1 + ( p s ( 1 ) ) i p A ) ( β 1 ) i i β ( 1 + ( p s ) i j p A ) 1 ( β 1 ) i j ,
b ( p s ( 1 ) , p s ) i + 1 / 2 j + 1 = 1 2 [ ( 1 + ( p s ( 1 ) ) i + 1 p A ) β ( β 1 ) i + 1 + ( δ 1 ) i + 1 δ ( 1 + ( p s ) i + 1 j + 1 p A ) ( β 1 ) i + 1 ( δ 1 ) i + 1 +
+ ( 1 + ( p s ( 1 ) ) i p A ) β ( β 1 ) i + ( δ 1 ) i δ ( 1 + ( p s ) i j + 1 p A ) ( β 1 ) i ( δ 1 ) i ] , w ( p s ) i j = 1 β 1 ( 1 + ( p s ) i j p A ) ,
w 1 ( p s ( 1 ) ) i j = γ ε ( β 1 ) i j ( 1 + ( p s ( 1 ) ) i p A ) 1 ln ( 1 + ( p s ( 1 ) ) i p A ) + ( β ( β 1 ) i j ) ( 1 + ( p s ( 1 ) ) i p A ) 1 ,
w 2 ( p s ( 1 ) , p s ) i j = ( β 1 ) i j γ ε ( 1 + ( p s ( 1 ) ) i p A ) 1 ln ( 1 + ( p s ) i j p A ) , ( δ 1 ) i = δ ( 1 + ( p s ( 1 ) ) i p A ) γ k ,
( q m ) 0 j + 1 = k 0 μ ( 1 + ( p s ( 1 ) ) i p A ) ( δ 1 ) i δ ( 1 + ( p s ) i j p A ) ( δ 1 ) i ( p s ) 1 j + 1 ( p s ) 0 j + 1 h 1 , ( β 1 ) i = β ( 1 + ( p s ( 1 ) ) i p A ) γ ε .
The approximation of initial and boundary conditions gives:
( p s ) i j = p s ( 1 ) ,   i = 0 , 1 , , N ,   j = 0 ( p s ) i j = 0 ,   i = 0 ,   j = 0 , 1 , , N , ( p s ) i j = 0 ,   i = N ,   j = 0 , 1 , N .
The set of Equation (30) is nonlinear, so to solve it, we use the method of simple iteration. The iteration procedure takes the following form:
p ( λ + 1 ) s , i j + 1 ( p s ) i j τ = a ( p s ( 1 ) , p ( λ ) s ) i j 1 r i 2 h i + 1 + h i [ b ( λ ) ( p s ( 1 ) , p s ) i + 1 2 j + 1 1 r i + 1 2 p ( λ + 1 ) s , i + 1 j + 1 p ( λ + 1 ) s , i j + 1 h i + 1 b ( λ ) ( p s ( 1 ) , p ( λ ) s ) i 1 / 2 j + 1 × × 1 r i 1 2 p ( λ + 1 ) s , i j + 1 p ( λ + 1 ) s , i 1 j + 1 h i ] w ( p s ) i j ( q ( λ ) m ) 0 j + 1 2 π r i × [ w 1 ( p s ( 1 ) ) i j w 2 ( p s ( 1 ) , p ( λ ) s ) i j ] ( p s ( 1 ) ) i ( p s ( 1 ) ) i 1 h i ( q ( λ ) m ) 0 j + 1 2 π r i p ( λ + 1 ) s , i j + 1 p ( λ + 1 ) s , i 1 j + 1 h i ,
where b ( λ ) ( p s ( 1 ) , p ( λ ) s ) i + 1 / 2 j + 1 = 1 2 [ ( 1 + ( p s ( 1 ) ) i + 1 p A ) β ( β 1 ) i + 1 + ( δ 1 ) i + 1 δ ( 1 + p ( λ ) s , i + 1 j + 1 p A ) ( β 1 ) i + 1 ( δ 1 ) i + 1 +
+ ( 1 + ( p s ( 1 ) ) i p A ) β ( β 1 ) i + ( δ 1 ) i δ ( 1 + p ( λ ) s , i j + 1 p A ) ( β 1 ) i ( δ 1 ) i ] ,
( q m ( λ ) ) 0 j + 1 = k 0 μ ( 1 + ( p s ( 1 ) ) i p A ) ( δ 1 ) i δ ( 1 + p ( λ ) s , i j p A ) ( δ 1 ) i p ( λ ) s , 1 j + 1 p ( λ ) s , 0 j + 1 h 1 ,
λ is the number of iterations.
The system of Equation (32) is linear with respect to p ( λ + 1 ) s , i j + 1 , which allows Tomas’s algorithm to be used.
Equation (32) lead to the system of linear equations:
A i ( λ ) p ( λ + 1 ) s , i + 1 j + 1 B i ( λ ) p ( λ + 1 ) s , i j + 1 + C i ( λ ) p ( λ + 1 ) s , i 1 j + 1 = F i ( λ ) ,   i = 1 , N 1 ¯
where A i ( λ ) = b ( λ ) ( p s ( 1 ) , p ( λ ) s ) i + 1 / 2 j + 1 h i + 1 r i + 1 2 , C i ( λ ) = b ( λ ) ( p s ( 1 ) , p ( λ ) s ) i 1 / 2 j + 1 h i r 1 1 2 + h i + 1 + h i 2 h i a ( p s ( 1 ) , p s ) i j ( q m ( λ ) ) 0 j + 1 2 π ,
B i ( λ ) = b ( λ ) ( p s ( 1 ) , p ( λ ) s ) i + 1 / 2 j + 1 h i + 1 r 1 + 1 2 + b ( λ ) ( p s ( 1 ) , p ( λ ) s ) i 1 / 2 j + 1 h i r 1 1 2 + h i + 1 + h i 2 τ a ( p s ( 1 ) , p s ) i j r i + h i + 1 + h i 2 h i a ( p s ( 1 ) , p s ) i j ( q m ( λ ) ) 0 j + 1 2 π ,
F i ( λ ) = ( h i + 1 + h i 2 τ a ( p s ( 1 ) , p s ) i j r i h i + 1 + h i 2 a ( p s ( 1 ) , p s ) i j w ( p s ) i j ( q m ( λ ) ) 0 j + 1 2 π ( w 1 ( p s ( 1 ) ) i j w 1 ( p s ( 1 ) , p s ) i j ) ( p s ( 1 ) ) i ( p s ( 1 ) ) i 1 h i ) .
The fundamental relation for the Tomas’ algorithm has the form:
p ( λ + 1 ) s , i j + 1 = ξ i + 1 p ( λ + 1 ) s , i + 1 j + 1 + η i + 1 ,   i = 0 , N 1 ¯
where ξ i + 1 = A i ( λ ) B i ( λ ) C i ( λ ) ξ i , η i + 1 = F i ( λ ) + C i ( λ ) η i B i ( λ ) C i ( λ ) ξ i .
The starting values of the coefficients ξ 1 and η 1 are determined from the boundary conditions, which have the form ξ 1 = 0 , η 1 = 0 .
Let us consider the solution of the filtering problem in the reloading mode. In this case, Equation (17) is solved with initial and boundary conditions (18)–(20).
Approximation of the initial and boundary conditions gives:
p s , i j = 0 ,   i = 0 , 1 , , N ,   j = 0 k ( p s , 0 j ) 0 j p s , 1 j p s , 0 j h 1 = p 0 p s , 0 j + 1 R m ,   j = 0 , N ¯ p s , i j + 1 = 0 ,   i = N + 1 , N + 2 , , j = 0 , 1 ,
where k ( p s , 0 j ) 0 j = 2 π r 1 k 0 ( 1 + ( p s ( 1 ) ) 0 p A ) ( δ 1 ) 0 δ ( 1 + ( p s ) 0 j p A ) ( δ 1 ) 0 .
The starting values of the coefficients ξ 1 and η 1 are determined from the boundary conditions (35), which have the form:
ξ 1 = R m k ( p s , 0 j ) R m k ( p s , i j ) + h 0 ,   η 1 = p c h 0 R 0 k ( p s , i j ) + 1

4. Results of Numerical Analysis

The numerical results of solving Equations (26) and (27) were obtained for the following parameter values: p A = 10 4 Pa, p 0 = 10 5 Pa, R m = 10 12 1/m, μ = 10 3   P a s , k 0 = 5 10 13 m2, ε s 0 = 0.20 , ε s 0 = 0.0076 , β = 0.13 , δ = 0.57 .

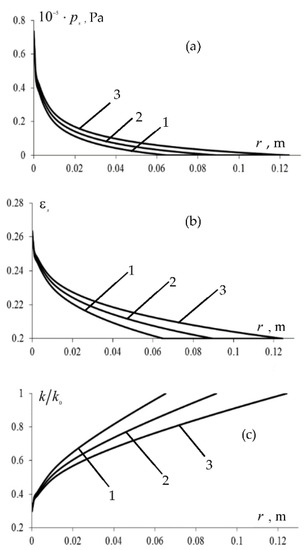

Some of the results are shown in Figure 3. As can be seen from the presented results, as the filtration process continues, the compression pressure decreases from the filter surface to the border of the cake and suspension (Figure 3a). The value ε s monotonically decreases from the filter surface to the common border of the cake and suspension (Figure 3b). The relative permeability in the cake is shown in Figure 3c. As can be seen from the figure, as the thickness of the cake increases, the permeability decreases from the initial value k 0 . As time increases along the thickness of the cake in the distribution of p s and ε s an increase in values is noted, and there is a decrease in k / k 0 . This is due to the consolidation (compaction) of the cake with increasing time. The range of change in the graphs by r has a finite value, limited by the thickness of the cake. The dynamics of the cake layer thickness are shown below.

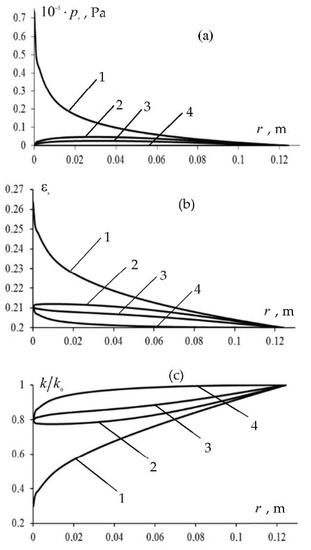

Some results of numerical calculations using (33) and (34) are shown in Figure 4, Figure 5 and Figure 6. From the curves in the figures, with the beginning of the unloading process at the boundary of the sediment and the filter, the pressure vanishes due to the hydraulic resistance of the filter. Porosity (curves b in Figure 4, Figure 5 and Figure 6) and permeability (curves c in Figure 4, Figure 5 and Figure 6) are not restored to their original values at the sediment–filter boundary, i.e., residual effects are observed. This is due to the plastic properties of the sediment.
As mentioned above, at γ ε = 0 , γ k = 0 we have a purely elastic regime, when all the characteristics of the sediment layer after unloading are restored to their previous values. When these parameters are different from zero, plastic effects should appear. To show the influence of parameters γ ε and γ k on the filtration performance, calculations were carried out for a certain set of values of these parameters. Figure 4, Figure 5 and Figure 6 are compiled for three pairs of values: γ ε and γ k .
The first case refers to the values of the parameters γ ε = 0.1 , γ k = 0.1 (Figure 4). Over time, the compression pressure p s gradually decreases to zero (Figure 4a). However, with increasing time, ε s and k / k 0 do not fully reach their original values, which they had before the system was loaded. After removing the load at the border of the cake and the filter, ε s decreases to ~0.21, and k / k 0 recovers to ~0.8. The results of decreasing the values of γ ε and γ k one by one up to 0.001 are shown in Figure 5 and Figure 6, respectively. Reducing the value γ ε from 0.1 to 0.001 mainly affects the distribution of ε s . At the same time, the residual phenomena in the ε s distribution weakens at the border of the filter, and the cake, ~0.202–0.203 is obtained, which is very close to the initial value of ε s 0 = 0.2 . The results when the γ k value decreases from 0.1 to 0.001 at γ ε = 0.1 are shown in Figure 6.

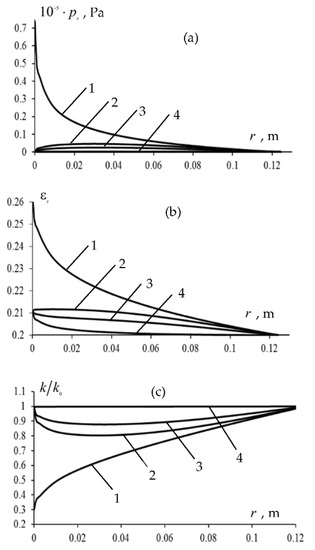

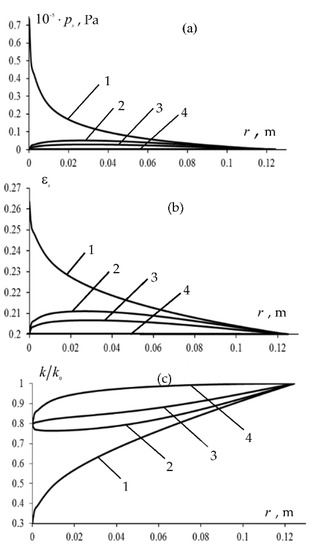

For this case, the main changes occur in the k / k 0 distribution (Figure 6). The permeability is almost restored to its original values, i.e., the plastic effects are very weak. Thus, calculations show that an increase in γ ε and γ k leads to an increase in plastic effects. When these parameters tend to infinity, a completely irreversible mode of change of ε s   and k / k 0 is obtained, i.e., a purely plastic regime.
An analysis of the change in filtration characteristics during the repeated loading of the system after rest (unloading) was given based on Equation (17) with Equations (18)–(20) in a discretized form (35). The difference equations for (17) are composed in the same way as Equations (9) and (14).

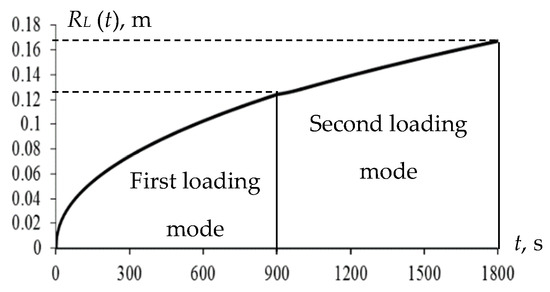

Some results of numerical calculations are shown in Figure 7, Figure 8 and Figure 9. The growth dynamics of the cake thickness both for the first and the second loading of the system are shown in Figure 7. It can be seen from the graph that the growth of the layer does not occur during unloading, and with repeated loading, a further increase in the thickness of the sediment is observed. This is a consequence of the assumption made above that the thickness of the deposit remains unchanged when the system is unloaded. Strictly speaking, the thickness of the cake after unloading, i.e., in the unloading mode, can change due to the repacking of solid particles, reduction in compressive stress between particles, and changes in porosity, compression pressure, etc. However, these factors are not considered here. In general, both in the first and second modes of loading the system, a monotonous increase in the thickness of the cake occurs.

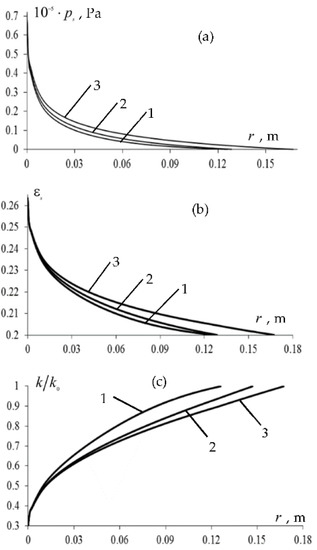

Figure 8 shows the distribution of compression pressure p s , solids concentration ε s   and relative permeability k / k 0   of the cake when the system is reloaded. Residual deformations after unloading affect the nature of the subsequent deformation of the sediment.
There is a further change in the characteristics starting from the last state, partially restored in the unloading mode after the first loading. The model parameters characterizing the plastic properties of cake layer deformation in the first loading mode may be different in the second loading mode.
The change in filtration characteristics at individual points of the cake layer is shown in Figure 9. As can be seen from the graphs, when the system is reloaded, there is a further increase in the compression pressure and the concentration of solid particles at a fixed point of the cake. The relative permeability decreases significantly when the system is reloaded. Primary loading and residual effects in the unloading mode significantly change the initial state of the system before the repeated (second) loading of the system, which affects the filtration characteristics in the repeated loading mode.

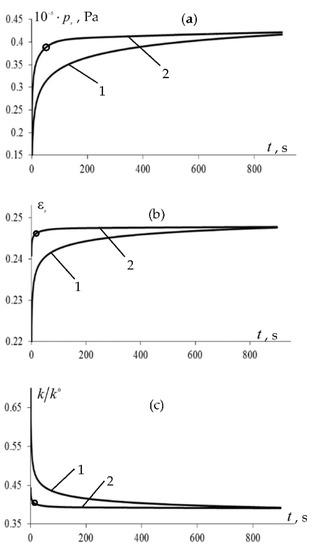

Figure 9 shows the dynamics of characteristics at a given point for both loadings. As can be seen from the figure, the plastic deformation of the sediment layer significantly alters the dynamics of changes in characteristics under repeated loading. At the same time, the system quickly reaches the state of the first loading, and filtering occurs according to its conditions. The circles on the graphs show the state of reaching the compressive pressure p s to p s ( 1 ) value upon reloading.
Note that only the results of Figure 3 and Figure 4 can be explained in terms of the usual cake filtration models. The results of Figure 5 and Figure 6 reflect the change in filtration characteristics in the pressure reduction mode and were obtained based on Equation (14), derived here from Equations (15) and (16). Figure 8 and Figure 9 correspond to the solution of Equation (17), which was derived from Equations (18)–(20). Therefore, the results shown in Figure 5, Figure 6, Figure 8 and Figure 9, and the loading mode of Figure 7, cannot be obtained and explained within the framework of the classical theory of cake filtration.

5. Conclusions

This paper considers the axisymmetric problem of filtering a suspension with the formation of an elastic–plastic cake. It is supposed that the cake is formed on the filter surface, consisting of solid suspension particles, the thickness of which monotonically increases during filtration. Filtration characteristics in the cake, such as the concentration of solid particles, the relative permeability of the layer after unloading the system, when the compression pressure and the pressure in the liquid phase are reduced to zero, are not restored to their original values. This is due to the plastic deformation of the cake layer during the first loading of the system. When the system is reloaded, i.e., during the resumption of filtration, there is a further change in filtration parameters depending on the residual state of the system after the unloading mode.
For all these regimes, suspension filtration equations were derived considering the partial irreversibility of cake deformation. Separately, an equation was derived that described the increase in the thickness of the cake during filtration. For these equations, filtering problems were numerically formulated and solved. Since the mathematical model includes an unknown moving boundary, for calculating the thickness of the cake, in the numerical solution by the finite difference method, a special technique was used called “catching the front”, along the spatial coordinates at a given time step. The systems of nonlinear difference equations were solved by the iterative method. The iterative scheme was constructed in such a way that, at each iterative step, a system of linear difference equations was obtained, which were solved by the elimination method (Tomas’ algorithm). Numerical results were obtained in all three modes: first loading, unloading, second loading.
In all modes, the influence of the model parameters characterizing the plastic properties of cake deformation on the filtration performance was studied. It was shown that plastic (residual) deformations of the cake significantly affected the distribution of compression pressure, particle concentration, and relative permeability of the cake. At the same time, the parameters of plasticity in terms of particle concentration ( γ ε ) and permeability ( γ k ) mainly affected the corresponding indicators, i.e., on the particle concentration distribution and on the relative permeability of the cake. The higher the values of these parameters, the more pronounced the plastic properties of the cake.
Within the framework of the compiled model at γ ε , γ k , a purely plastic regime was obtained. The results of numerical calculations show a monotonic increase in the thickness of the cake layer. It was shown that the filtering characteristics during repeated loading of the system were determined by the initial state that occurred after unloading the first loading mode. In this case, the plasticity parameters γ ε and γ k for the second loading mode may be different from those in the first mode. In general, the mathematical model proposed here gives physically reasonable and correctly interpreted results.
The results obtained can be used in the analysis of suspension purification processes by filtering them through radial filters in various cyclic loading and unloading modes.

Author Contributions

Investigation: B.K.K., U.S., G.I. and N.W. The authors contributed equally. All authors have read and agreed to the published version of the manuscript.

Funding

This research is made possible by the Fundamental Research Grant Scheme by the Ministry of Higher Education of Malaysia (Ref: FRGS/1/2019/STG06/UPM/02/11).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors are grateful to anonymous reviewers for useful comments, which helped us to improve the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tien, C.; Bai, R.; Ramarao, B.V. Analysis of cake growth in cake filtration: Effect of fine particle retention. AIChE J. 1997, 43, 33–44. Available online: http://scholarbank.nus.edu.sg/handle/10635/67365 (accessed on 28 March 2022). [CrossRef]
  2. Tien, C. Principles of Filtration, 1st ed.; Elsevier: Amsterdam, The Netherlands, 2012. [Google Scholar] [CrossRef]
  3. Tien, C.; Ramarao, B.V. Granular Filtration of Aerosols and Hydrosols; Elsevier Science & Technology Books: Syracuse, NY, USA, 2007; p. 522. [Google Scholar] [CrossRef]
  4. Tien, C. Introduction to Cake Filtration: Analysis, Experiments, and Applications, 1st ed.; Elsevier: Amsterdam, The Netherlands, 2006; p. 304. [Google Scholar]
  5. Zhuzhikov, V.A. Filtration. Theory and Practice of Separation of Suspensions; Khimia Publish: Moscow, Russia, 1980; p. 440. [Google Scholar]
  6. Fedotkin, I.M.; Vorobev, E.I.; Vyun, V.I. Hydrodynamic Theory of Suspension Filtration; Vishashkola Publisher: Kiev, Ukraine, 1986; p. 166. [Google Scholar]
  7. Fedotkin, I.M. Mathematical Modelling of Technological Processes; Vishashkola Publisher: Kiev, Ukraine, 1988; p. 415. [Google Scholar]
  8. Mortimer, C.J.; Burke, L.; Wright, C.; Wright, C. Microbial interactions with nanostructures and their importance for the development of electrospun nanofibrous materials used in regenerative medicine and filtration. J. Microb. Biochem. Technol. 2016, 8, 195–201. [Google Scholar] [CrossRef]
  9. Alinezhad, E.; Haghighi, M.; Rahmani, F.; Keshizadeh, H.; Abdi, M.; Naddafi, K. Technical and economic investigation of chemical scrubber and biofiltration in removal of H2S and NH3 from wastewater treatment plant. J. Environ. Manag. 2019, 241, 32–43. [Google Scholar] [CrossRef]
  10. Li, S.; Xie, B.; Hu, S.; Jin, H.; Liu, H.; Tan, X.; Zhou, F. Removal of dust produced in the roadway of coal mine using a mining dust filtration system. Adv. Powder Technol. 2019, 30, 911–919. [Google Scholar] [CrossRef]
  11. Lim, A.E.; Lim, C.Y.; Lam, Y.C. Electroosmotic flow hysteresis for dissimilar anionic solutions. Anal. Chem. 2016, 88, 8064–8073. [Google Scholar] [CrossRef] [PubMed]
  12. Lim, A.E.; Lam, Y.C. Electroosmotic Flow Hysteresis for Fluids with Dissimilar pH and Ionic Species. Micromachines 2021, 12, 1031. [Google Scholar] [CrossRef] [PubMed]
  13. Tosun, I. Formulation of cake filtration. Chem. Eng. Sci. 1986, 41, 2563. [Google Scholar] [CrossRef]
  14. Brenner, H. Three-Dimensional Filtration on a Circular Leaf. AIChE J. 1961, 7, 666–671. [Google Scholar] [CrossRef]
  15. Sacramento, R.N.; Yang, Y.; You, Z.; Waldmann, A.; Martins, A.L.; Vaz, A.S.; Zitha, P.L.; Bedrikovetsky, P. Deep bed and cake filtration of two-size particle suspension in porous media. J. Pet. Sci. Eng. 2015, 126, 201–210. [Google Scholar] [CrossRef]
  16. Ruth, B.F.; Montillon, G.H.; Montonna, R.E. Studies in filtration II. Fundamental axiom of constant pressure filtration. Ind. Eng. Chem. 1933, 25, 153. [Google Scholar] [CrossRef]
  17. Grace, H.P. Resistance and compressibility of filter cakes. Part I. Chem. Eng. Prog. 1953, 49, 303–318. [Google Scholar]
  18. Grace, H.P. Resistance and compressibility of filter cakes. Part II: Under conditions of pressure filtration. Chem. Eng. Prog. 1953, 49, 367–377. [Google Scholar]
  19. Shirato, M.; Iwata, M.; Wakita, M.; Murase, T.; Hayashi, N. Constant rate expression of semisolid materials. J. Chem. Eng. Jpn. 1987, 20, 1–6. [Google Scholar] [CrossRef]
  20. Vorobiev, E. Model of the filtration process for suspensions with compressible cakes. Theor. Fundam. Chem. Technol. Acad. Sci. USSR 1983, 17, 147–153. [Google Scholar]
  21. Atsumi, K.; Akiyama, T.A. Study of cake filtration. Formulation as a Stefan problem. Chem. Technol. 1979, 31, 487–492. [Google Scholar] [CrossRef]
  22. Wakeman, R.J. A numerical integration of the differential equations describing the formation of and flow in compressible filter cakes. Trans. IChemE 1978, 56, 258–265. [Google Scholar]
  23. Ismail, T.; Willis, M. Brief communication fluid velocity variation in filter cakes. Int. J. Multiph. Flow 1983, 9, 763–766. [Google Scholar]
  24. Stamatakis, K.; Tien, C. Cake formation and growth in cake filtration. Chem. Eng. Sci. 1991, 46, 1917–1933. [Google Scholar] [CrossRef]
  25. Landman, K.A.; White, L.R.; Eberl, M. Pressure filtration of flocculated suspensions. AIChE J. 1995, 41, 1687–1700. [Google Scholar] [CrossRef]
  26. Tien, C.; Bai, R. An assessment of the conventional cake filtration theory. Chem. Eng. Sci. 2003, 58, 1323. [Google Scholar] [CrossRef]
  27. Burger, R.; Concha, F.; Karlsen, K.H. Phenomenological model of filtration processes. Cake formation and expression. Chem. Eng. Sci. 2001, 56, 4537–4553. [Google Scholar] [CrossRef]
  28. Vorobiev, E.; Tarasenko, A. Effect of cake compressibility on suspension filtration process regularities. Theor. Fundam. Chem. Technol. Acad. Sci. USSR 1987, 21, 507–513. [Google Scholar]
  29. Vorobjov, E.I.; Anikeev, J.V.; Samolyotov, V.M. Dynamics of filtration and expression: New methods for combined analysis and calculation of the processes with due to account of the cake consolidation dynamics and the filter medium compressibility. Chem. Eng. Process. 1993, 32, 45–51. [Google Scholar] [CrossRef]
  30. Khuzhayorov, B.K.; Saydullaev, U.Z.; Kholiyarov, E.C. Numerical solution of the suspensions filtering equations with forming an elasto–Plastic cake layer. Uzb. J. Probl. Mech. 2015, 1, 38–41. [Google Scholar]
  31. Khuzhayorov, B.K.; Saydullaev, U.Z. Solution of a suspension filtration equation with forming an elasto-plastic cake layer. Sci. J. Samarkand State Univ. 2017, 1, 97–103. [Google Scholar]
  32. Rezaei, A.; Abdollahi, H.; Gharabaghi, M.; Mamghaderi, H. Studies on the effects of physical parameters of filtration process on the fluid flow characteristics and de-watering efficiency of copper concentrate. Int. J. Min. Geo-Eng. IJMGE 2021, 55, 109–116. [Google Scholar]
  33. Li, S.; Xing, Y.; Honglei, S.; Xiaodong, P.; Zonghao, Y.; Yuanqiang, C. A new approach for determining compressibility and permeability characteristics of dredged slurries with high water content. Can. Geotech. J. 2021, 99, 1–13. [Google Scholar] [CrossRef]
  34. Khuzhayorov, B.K.; Saydullayev, U.J. Numerical solution of relaxation filtration equations with forming a consolidating cake layer. Int. J. Adv. Res. Sci. Eng. Technol. 2018, 5, 5102–5110. [Google Scholar]
  35. Khuzhayorov, B.K.; Saydullaev, U.; Fayziev, B. Relaxation Equations of Consolidating Cake Filtration. J. Adv. Res. Fluid Mech. Therm. Sci. 2020, 74, 168–182. [Google Scholar] [CrossRef]
  36. Barenblatt, G.I.; Krylov, A.P. On the elastic–plastic regime of flow in porous media. Izv. Akad. Nauk SSSR OTN 1955, 2, 5–13. [Google Scholar]
  37. Khuzhayorov, B.K.; Davidenko, M.A.; Shodmonov, I.E. Filtration of a homogeneous liquid at the elastic–plastic regime with destruction of beds. Uzb. J. Probl. Mech. 1997, 3, 40–43. [Google Scholar]
  38. Khuzhayorov, B.K.; Shodmonov, I.E.; Kholiyarov, E.C.; Zokirov, A.A. Elastoplastic Filtration of Liquid in Unstable Seams. J. Eng. Phys. Thermophys. 2003, 76, 1340–1347. [Google Scholar] [CrossRef]
  39. Khuzhayorov, B.K.; Kholiyarov, E.C. Inverse problems of elastoplastic filtration of liquid in a porous medium. J. Eng. Phys. Thermophys. 2007, 80, 517–525. [Google Scholar] [CrossRef]
  40. Samarsky, A.A. Finite-Difference Schemes Theory; Nauka: Moscow, Russia, 1977. [Google Scholar]
  41. Samarskiy, A.A.; Vabishchevich, P.N. Computational Heat Transfer; Editorial URSS: Moscow, Russia, 2003; p. 784. [Google Scholar]
Figure 1. A schematic of filtering suspensions through a cylindrical filter.
Figure 1. A schematic of filtering suspensions through a cylindrical filter.
Symmetry 14 01202 g001
Figure 2. Introduction of new variables r , t for the problem on the continuous ingot.
Figure 2. Introduction of new variables r , t for the problem on the continuous ingot.
Symmetry 14 01202 g002
Figure 3. Distributions of p s (a), ε s (b), k / k 0 (c) at pressure increasing regimes: t = 225 (1); 450 (2); 900 (3) s.
Figure 3. Distributions of p s (a), ε s (b), k / k 0 (c) at pressure increasing regimes: t = 225 (1); 450 (2); 900 (3) s.
Symmetry 14 01202 g003
Figure 4. Distributions of p s (a), ε s (b), k / k 0 (c) at pressure decreasing regimes: γ ε = 0.1 ,   γ k = 0.1 , 1—( t = 0 s), 2—( t = 25 s), 3—( t = 50 s), 4—( t = 300 s).
Figure 4. Distributions of p s (a), ε s (b), k / k 0 (c) at pressure decreasing regimes: γ ε = 0.1 ,   γ k = 0.1 , 1—( t = 0 s), 2—( t = 25 s), 3—( t = 50 s), 4—( t = 300 s).
Symmetry 14 01202 g004
Figure 5. Distributions of p s (a), ε s (b), k / k 0 (c) at pressure decreasing regimes: γ ε = 0.001 , γ k = 0.1 , 1—( t = 0 s), 2—( t = 25 s), 3—( t = 50 s), 4—( t = 300 s).
Figure 5. Distributions of p s (a), ε s (b), k / k 0 (c) at pressure decreasing regimes: γ ε = 0.001 , γ k = 0.1 , 1—( t = 0 s), 2—( t = 25 s), 3—( t = 50 s), 4—( t = 300 s).
Symmetry 14 01202 g005
Figure 6. Distributions of p s (a), ε s (b), k / k 0 (c) at pressure decreasing regimes: γ ε = 0.1 , γ k = 0.001 , 1—( t = 0 s), 2—( t = 25 s), 3—( t = 50 s), 4—( t = 300 s).
Figure 6. Distributions of p s (a), ε s (b), k / k 0 (c) at pressure decreasing regimes: γ ε = 0.1 , γ k = 0.001 , 1—( t = 0 s), 2—( t = 25 s), 3—( t = 50 s), 4—( t = 300 s).
Symmetry 14 01202 g006
Figure 7. Dynamics of the cake thickness at γ ε = 0.6 , γ k = 0.6 .
Figure 7. Dynamics of the cake thickness at γ ε = 0.6 , γ k = 0.6 .
Symmetry 14 01202 g007
Figure 8. Distribution of p s (a), ε s (b), k / k 0 (c) in the mode of repeated loading at γ ε = 0.6 , γ k = 0.6 ; 1—( t = 50 ), 2—( t = 100 ), 3—( t = 450 ), 4—( t = 900 s).
Figure 8. Distribution of p s (a), ε s (b), k / k 0 (c) in the mode of repeated loading at γ ε = 0.6 , γ k = 0.6 ; 1—( t = 50 ), 2—( t = 100 ), 3—( t = 450 ), 4—( t = 900 s).
Symmetry 14 01202 g008
Figure 9. Dynamics of p s (a), ε s (b), k / k 0 (c) in the point x = 0.002 m at the first (1) and second (2) loading modes, γ ε = 0.6 , γ k = 0.6 .
Figure 9. Dynamics of p s (a), ε s (b), k / k 0 (c) in the point x = 0.002 m at the first (1) and second (2) loading modes, γ ε = 0.6 , γ k = 0.6 .
Symmetry 14 01202 g009
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Khuzhayorov, B.K.; Saydullaev, U.; Ibragimov, G.; Wahi, N. An Axisymmetric Problem of Suspension Filtering with Formation of Elastic–Plastic Cake Layer. Symmetry 2022, 14, 1202. https://doi.org/10.3390/sym14061202

AMA Style

Khuzhayorov BK, Saydullaev U, Ibragimov G, Wahi N. An Axisymmetric Problem of Suspension Filtering with Formation of Elastic–Plastic Cake Layer. Symmetry. 2022; 14(6):1202. https://doi.org/10.3390/sym14061202

Chicago/Turabian Style

Khuzhayorov, Bakhtiyor Kh., Usmonali Saydullaev, Gafurjan Ibragimov, and Nadihah Wahi. 2022. "An Axisymmetric Problem of Suspension Filtering with Formation of Elastic–Plastic Cake Layer" Symmetry 14, no. 6: 1202. https://doi.org/10.3390/sym14061202

APA Style

Khuzhayorov, B. K., Saydullaev, U., Ibragimov, G., & Wahi, N. (2022). An Axisymmetric Problem of Suspension Filtering with Formation of Elastic–Plastic Cake Layer. Symmetry, 14(6), 1202. https://doi.org/10.3390/sym14061202

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
