A Theoretical Study of the In Situ Structural Reconstruction of Pdn (n = 6, 19, 44) Clusters for Catalytic Hydrogen Evolution

by
De Zhang
and
Guangfeng Wei
*
Shanghai Key Laboratory of Chemical Assessment and Sustainability, School of Chemical Science and Engineering, Tongji University, Shanghai 200092, China
*
Author to whom correspondence should be addressed.
Symmetry 2022, 14(9), 1753; https://doi.org/10.3390/sym14091753
Submission received: 9 July 2022 / Revised: 10 August 2022 / Accepted: 17 August 2022 / Published: 23 August 2022
(This article belongs to the Section Chemistry: Symmetry/Asymmetry)
Browse Figures
Versions Notes

Abstract

:
How in situ structural reconstructions affect the hydrogen evolution reaction (HER) activity of small Pd clusters is a long-standing problem in the field of heterogeneous catalysis. Herein, we reveal the structural evolution of Pdn (n = 6, 19, 44) clusters under the HER environment via stochastic global potential energy surface searching. We theoretically demonstrated that the HER activity of Pdn clusters first increases and then decreases under long-term working conditions. The intrinsic nature of these phenomenons includes interior H formations and structural reconstructions caused by the supersaturated adsorption of H atoms. This proves that carefully adjusting the hydrogenation degree of Pd clusters is a good strategy for improving the HER’s catalytic performance.

1. Introduction

The application of clean hydrogen energy is one of the most promising methods for reducing carbon emissions and for coping with global climate change [1,2]. As a key component of water splitting, catalytic hydrogen evolution reaction (HER, 2H+ + 2e− → H2) is critical for the achievement of highly efficient hydrogen production on a large-scale [3,4,5]. Among all the transition metals, due to the higher energy efficiency and faster kinetics, platinum nanoparticles have long been used as commercial catalysts for this reaction [6,7]. However, in order to develop the hydrogen industry and solve renewable energy problems, finding catalysts with a comparative or superior performance as Pt is still a long-term pursuit [8].
In the past decades, other platinum group elements and their compounds, as catalysts with the most potential to replace platinum, have been widely studied in both theory and experiments [9,10,11,12]. Among them, Pd has similar hydrogen adsorption energy with Pt [13], which is a prerequisite for improved HER performance. However, the HER kinetics of Pd is much slower than that of Pt [9,14]. This is generally attributed to the in situ formation of palladium hydride, which suppresses the subsequent hydrogen evolution reaction [14,15]. However, the formation of palladium hydride was also recognized to promote hydrogen evolution kinetics in the recent experimental study of Zou and his coworkers [16]. They reported that Pd nanoparticles with a size of ~10 nm achieved the optimum catalytic activity after 130,000 CV cycles, in which the activity is superior to that of initial Pd and even outperformed commercial Pt/C. Thus far, whether the hydrogenation increases or decreases the HER activity of Pd remains quite unclear. Recently, Long and his coworkers used the stochastic collision electrochemistry method to study the HER activity of a single Pd nanoparticle. They observed a 2–5 orders of magnitude enhancement of the HER activity of Pd nanoparticles under different working conditions [17]. Therefore, the critical problem here is to reveal the effect of the in situ reconstruction of Pd clusters on their catalytic performance.
Considering the influences of real reaction conditions on the structure of Pd-based catalysts, the active site’s transformation generally includes changes in size, morphology, and compositions [18,19]. In this paper, we focused on small-sized Pdn clusters, which are more significantly affected by the reaction environment. The cluster size of Pdn clusters was selected to be Pd6, Pd19, and Pd44. Pd6 and Pd19 clusters represent the ultra-small sub-nano-sized Pd cluster, and the Pd44 cluster corresponds to a Pd nanoparticle with a size of about 1 nm. All these clusters have an octahedral shape and the same face-centered cubic (fcc)-packing mode as bulk Pd. The in situ structural reconstructions of these Pd clusters under HER condition (standard conditions of 1 atm H2 pressure, 298 K) were studied by the stochastic surface walking (SSW) global optimization method [20,21] and grand canonical ensemble Monte Carlo (GCMC) simulations [22]. The HER kinetics was further investigated via first-principle based density functional theory calculations. We revealed that the initial hydrogenation of Pd clusters is helpful for promoting the hydrogen evolution reaction, while the supersaturated surface H atoms adsorbed under HER working conditions will lead to the reconstruction of highly active apex-sites of Pd clusters, which is the intrinsic reason for the reduction in catalytic activity.

2. Calculation Methods

The most stable structures of PdnHm (n = 6, 19, 44) were determined by Neural Network Stochastic Surface Walking (NN-SSW) [20,21] structure searches. The Hydrogen content and the equilibrium structures were obtained via the grand canonical Monte Carlo (GCMC) simulation [22]. In the GCMC simulations, we evaluate the chemical potential of adsorbed H atom with respect to that of H in the gas phase, ΔGad, in Equation (1) based on the current most stable configuration. According to the value ΔGad < or > 0, we will decide to accept or refuse the current most stable configuration:
ΔGad = ΔEad + ZPE − 1/2 G(H2)
where ΔEad and ZPE are the differential adsorption energy and the zero-point energy of the newly arrived H atom on the cluster, and G(H2) is the free energy of H2 in the gas phase at the standard state.
All density functional theory (DFT) calculations were performed using VASP 6.2.1 packages [23] with projected augmented wave (PAW) pseudo-potentials [24,25]. The exchange-correlation energy was treated based on the generalized gradient approximation (GGA) by using Perdew–Burke–Ernzerhof (PBE) functional [26]. The plane-wave cutoff energy was set to 400 eV. The Monkhorst–Pack scheme with a k-point separation length of 0.05 Å−1 was utilized for sampling the first Brillion zone [27]. Transition states (TSs) were searched using the constrained Broyden-based TS-searching methods [28,29] and the Double-Ended Surface Walking (DESW) method [21]. Liu’s group implemented these TS searching methods and the global optimization methods in a neural-network computing program (LASP, www.lasphub.com, accessed on 1 January 2022). LASP can interface with VASP for all functionalities. All atoms are fully relaxed in the calculations. The Quasi-Newton l-BFGS method is used for geometry relaxation until the maximal force on each degree of freedom is less than 0.05 eV/Å.
To derive the reaction energy profile, the large entropy term of gaseous molecules at 298 K has also been taken into account. We utilize the standard thermodynamic data [30] to obtain the temperature and pressure contributions for the G of the gaseous H2, which is −0.31 eV compared to the total energy of the corresponding free molecule (E, 0 K) [31]. The Gibbs free energy change (ΔG) of each reaction step was obtained after ZPE correction. The calculated zero-point energies (ZPE) of different H species are listed in Table S1.

3. Results

3.1. Structure Reconstruction of Pdn (n = 6, 19, 44) Clusters under HER Environment

To investigate the structure reconstruction of small Pd clusters, here, we selected the three smallest Pdn (n = 6, 19, 44) clusters with octahedral structure as the research object. Firstly, their most stable structures were searched by the SSW-NN global optimization and then determined by the first-principle-based DFT calculations. The effect of surface hydrogen adsorption on the structure of Pdn clusters in a real HER environment was further studied by grand canonical ensemble Monte Carlo simulation. The interaction energies (ΔEint) of PdxHy clusters referring to a single Pd atom and gaseous H2 molecule are listed in Table S2. Not surprisingly, the hydrogen adsorption and cluster size increase are generally exothermic. As shown in Figure 1, we found that before hydrogen adsorption, the global minimum (GM) structures of all three Pdn clusters (low-lying isomers can be found in SI, Figure S1) remain as highly symmetrical (Oh) octahedrons. However, with the increase in hydrogen adsorption on the surface, all three clusters finally undergo significant structural reconstruction.

3.1.1. Pd6

As shown in Figure 1a, we can find that even the initial hydrogen adsorption would lead to the structural distortion of the Pd6 cluster. The average adsorption energy (ΔGad) of the first two H atoms is −0.34 eV. These H atoms prefer to adsorb on the opposite edge sites of the Pd6 octahedron. For such a small Pd cluster, the formation of Pd-H bonds weakens the bonding ability of bonded Pd atoms, which also results in the connection between the top and bottom Pd atoms of the Pd6 octahedron, and forms a capped trigonal bipyramid structure with C2v symmetry. In this structure, all Pd atoms are located in three Pd4 tetrahedrons with shared triangle facets. From Pd6H2 to Pd6H7, the ΔGf of the cluster decreased to −2.52 eV with the increase in H. In this process, the C2v structure of the cluster is maintained well, and most adsorbed H atoms are uniformly distributed on bridge sites of the cluster. We noticed that the cluster reaches the equilibrium H adsorption amount on Pd6H7 under HER conditions. Furthermore, by adding an H atom into the system, the hydrogen evolution reaction begins to occur on the cluster of Pd6H8. The adsorption free energy of the additional H is positively 0.18 eV. Except for the two coupling H atoms reacting on an apex site, all other H atoms sit on the edge sites of Pd6H8.

3.1.2. Pd19

Figure 1b shows the most stable structures of the Pd19 cluster with different H adsorption amounts. We can find that the adsorbed H atoms prefer to uniformly adsorb on the 3-fold hollow sites on the surface of the Pd19 octahedron at the initial stage. The average ΔGad of the first eight H atoms on the Pd19H8 cluster is −0.68 eV, which is much larger than that on the Pt6 cluster. With the additional H adsorption, from Pd19H10 to Pd19H22, the structures of Pd clusters were reconstructed into a rod-like structure with D5d symmetry. To expose more free 3-fold surface sites, the core structure of this rod-like structure turns to be a two-atom dimmer. At this stage, the differential H adsorption energy gradually decreased from −0.44 eV to −0.12 eV. The surface H-H coupling on the Pd19 cluster surface was first observed when the H amount reaches Pd19H22, in which the reacting H atoms were located at the apex of one end of the nanorod. If the hydrogen content continues to increase, although the hydrogen adsorption energy becomes slightly positive (0.08 eV), the supersaturated adsorbed hydrogen triggers further structural reconstructions to accommodate more H atoms. During the reconstruction, one of the Pd atoms in the core of the Pd19H22 cluster moves back to the surface in the most stable structures of the Pd19H24 cluster. The ΔGf of Pd19H24 of further reduced to −12.21 eV. This implies that the reconstruction is thermodynamically irreversible under the HER environment. The cluster reached the equilibrium H adsorbed structure under HER conditions at Pd19H28. One subsurface H can be found in the structure of the Pd19H28 cluster. The additional H adsorption energy on Pd19H28 increases to positive 0.26 eV, preventing the subsequent H adsorption.

3.1.3. Pd44

For the cluster of Pd44, as shown in Figure 1c, the most stable structure of the cluster maintained the initial octahedron in a wide range of H content. Similarly to that on the surface of the Pd19 cluster, most surface H atoms are distributed uniformly on the surface 3-fold hollow sites. Increasing the number of H atoms, from Pd44 to Pd44H56, the average H adsorption energy gradually reduced from −0.42 eV to −0.34 eV, which is close to that reported on the Pd single crystal surface [32]. Compared with the smaller Pd19 cluster, the larger Pd44 cluster can accommodate more (up to five) hydrogen atoms into its interior region before it undergoes an obvious structural reconstruction. The first subsurface H was observed after the H content reached Pd44H40. The interior H is located at the center of the [Pd6] octahedron core of the Pd44 cluster. According to GCMC simulations, the surface H-H coupling on Pd44 starts from Pd44H45, in which the reacting H atoms were located at the apex site of the octahedron. From Pd44H45 to Pd44H56, along with the formation of the H2 molecule, the number of the subsurface H atoms also increased from one to five. It should be mentioned that the differential H adsorption energy between Pd44H56 and the Pd44H57 (the molecular H2 adsorbed state) is only −0.09 eV, which is very close to the ideal H adsorption energy for the HER. This will be discussed in the later parts of this manuscript. Being similar to that of the Pd19 cluster, the H content of Pd44H56 to Pd44H60 increases, and the supersaturated adsorbed H also results in the thermodynamically irreversible structural reconstruction with a free energy change of −1.00 eV. The Pd44H60 cluster has an ellipsoidal low symmetry (C1) structure, in which three additional H atoms are embedded into the interior of the cluster. To accommodate these newly embedded H atoms, the core Pd structure unit of the Pd44H60 cluster also transferred from a [Pd6] octahedron to [Pd7]-capped triangular prism. The cluster reaches the equilibrium structure at Pd44H61 under HER conditions, and the core Pd structure unit finally turned into a [Pd7] double penta-pyramid. Additional H adsorption on the Pd44H61 cluster could not further reduce the free energy of the cluster, and the number of hydrogen atoms in the cluster remains at 8.
For all the Pdn clusters, we found the adsorbed H atoms can not only embed into the interior of the clusters but also induce significant structural reconstructions under HER conditions. We also observed that no matter whether the cluster structure is reconstructed or not, the hydrogen evolution reaction can take place on the surface of the Pdn cluster. Therefore, for the purpose of understanding the HER mechanisms of Pdn clusters under real reaction conditions, studying how these structural reconstructions affect the catalytic performance is critical.

3.2. Effects of Structural Reconstruction on HER Activity

Here, we mainly focused on the cluster of Pd19 and Pd44, which may have significant structural reconstruction. The possible candidates for the intermediate structure of the Pdn cluster in the process of in situ structural evolution were selected to study the effect of structural reconstruction on HER catalytic performance. Under the HER conditions, the reaction is most likely to occur when the differential ΔGad of hydrogen is close to zero. The number of H atoms in the cluster was, thus, determined by calculating the differential ΔGad (see Figure S2) of newly added H atoms.
There are two possible reaction routes for HER: One is the reaction of surface H with a proton (Heyrovsky route: Had + H+ + e− → H2), and the other is the coupling of two surfaces H (Tafel route: 2Had → H2). Our previous studies [33,34,35] have shown that the Tafel mechanism is a key pathway for platinum group metal-based HER catalysts, and the free energy barrier of H-H coupling (ΔGa H-H) is a good indicator for comparing the activities of different HER catalysts. In Figure 2, it shows the reaction profiles of H-H coupling reactions on representative H-adsorbed Pd19 and Pd44 clusters under reaction conditions. For all these clusters, the reaction takes place between a surface adsorbed hydrogen atom and an additional hydrogen atom adsorbed on the surface with positive ΔGad. The Volmer step occurs first with one proton from the solution to adsorb on the surface (Sur states) and with a simultaneous electron transfer, * + H+ + e− → H*, to form an additional H atom adsorbed state (Had). Moreover, this additional H reacts with the nearby surface H to achieve the transition state (TS). The TS is a [H-H] complex nearby the Pd catalytic site with the H-H distance in the range of 0.80–1.40 Å. It should be mentioned that the reaction barriers of the structural reconstruction are generally ~1 eV higher than the H-H coupling. Therefore, HER will take place preferentially in kinetics, but the reconstruction of the cluster is still possible under long-term reaction conditions. As an example, the reaction profiles of the first structural reconstruction step of the octahedral Pd44H60 cluster are shown in Figure S3.
For Pd19, as shown in Figure 2a, the ΔGa H-H on the rod-like Pd19H21 cluster is only 0.30 eV, which is much lower than the 0.53eV on the reconstructed Pd19H28 cluster. By comparing the free energy of the additional H adsorbed (Had) state and the transition state (TS), we found that the surface H-H coupling becomes easier when there are more adsorbed H atoms. However, at the same time, the structural reconstruction significantly increased the adsorption energy of the additional adsorbed reacting H atoms (from 0.04 eV to 0.40 eV), resulting in an increase in the overall reaction barrier by 0.23 eV. The structures of the key reaction intermediates can be found in Figure S4. On the cluster of Pd19H21, the reacting H atoms are located at the 3-fold hollow sites nearby the apex of the cluster. At the TS, the H-H distance is reduced from 2.32 Ǻ to 1.18 Ǻ and eventually forms the molecular H2 at the apex site. On the Pd19H28 cluster, due to the denser distribution of surface H atoms, the newly adsorbed H atom must share a surface square hollow site with other surface H atoms at the Had state. The H-H distance of the reacting H atoms at the Had state is 2.27 Ǻ, and then it is reduced to 1.18 Ǻ at the TS. These results clearly show that the reconstruction of Pd19 clusters allows the cluster to accept more adsorbed H atoms, but it also leads to a rapid increase in H adsorption energy with the increase in H adsorption and inhibits HER activities.
With respect to the clusters of Pd44Hm, the optimized structures of the reaction intermediates are shown in Figure 3. The reaction processes on Pd44H45 and Pd44H56 are very similar. An additional adsorbed H is first adsorbed as the act of the cluster; then, it reacts with the H nearby the apex site. The apex Pd atom bonds with four surface hydrogen atoms. At the TSs, one of the reacting H moves to the top site on the apex of the cluster. The ΔGad of additional adsorbed H on Pd44H45 is 0.35 eV and the ΔGa H-H on Pd44H45 is 0.42 eV. It corresponds to the situation that the hydrogen evolution reaction only started to take place on the cluster’s surface. The substructure of Pd maintains the octahedral structure of the Pd44 cluster. There are 44 H atoms adsorbed on the cluster’s surface, and only one interior H atom sat at the core of cluster Pd44H45. The Pd44H56 cluster corresponds to the H-saturated octahedral Pd44. Structurally, the fcc packing mode of Pd atoms and the octahedral shape of the cluster is maintained well in the structure of Pd44H56. The major difference between the structures of Pd44H45 and Pd44H56 is the boosted interior H content (increased from one to eight) of Pd44H56. From Pd44H45 to Pd44H56, due to the expansion of the Pd lattice caused by subsurface H insertion, the number of surface H atoms slightly increased from 44 to 48. On cluster Pd44H56, the free energy change between the Sur state and Had state reduced to 0.13 eV and ΔGa H-H also decreases to 0.27 eV. This clearly shows that the interior H can render additional H adsorptions easier on the Pd cluster with the fcc Pd substructure and, thus, promote the surface H-H coupling. Excess H adsorption on the Pd44H56 cluster will lead to the reconstruction of the octahedron structure. After the reconstruction, the energy cost for the additional H adsorption and the H-H coupling on Pd44H56 once again increases to 0.29 eV and 0.35 eV, respectively. At the TS, the reacting H atoms are both located at a bridge site on the ellipsoidal cluster surface. The coordination number of Pd atoms at the active center is also higher than that on the clusters without reconstitution.
In summary, the high active sites for HER on these Pd clusters are generally at the apex sites of the cluster. The increase in H content at the interior of the clusters is helpful for reducing barriers to the H-H coupling reaction, while the reconstruction of the Pd substructure will eliminate the highly active sites on the surface of clusters and, thus, inhibit the HER. The calculated ΔGa H-H on PdxHy clusters are in the range of 0.27~0.53 eV. In contrast, according to our previous study [22], ΔGa H-H on Pt nanoparticles with a size of about 1 nm and crystalline Pt(111) surface is 0.48 eV and 0.78 eV, respectively. The results show that small Pd clusters do have the potential to exhibit outstanding catalytic performance for HER.

4. Discussion

Since the structural reconstruction of the Pd clusters significantly affects their HER activity, we examined the local structural features of the Pd clusters. In Figure 4, we plotted the Pd-Pd distance distribution function of representative Pd clusters at different stages of the in situ structural reconstruction. For comparison, each plot was normalized according to the area of the first Pd-Pd distance peak at ~2.80 Å, which corresponds to the shortest Pd-Pd bond length (L).
At the early stage of HER, the Pd-Pd distance peaks of the octahedral Pd44H45 cluster are at 2.80, 3.95, 4.83, 5.58, 6.24, and 6.83 Å, corresponding to 1L, √2L, √3L, 2L, √5L, and √6L (L = 2.80 Å), respectively. Then, as adsorbed H atoms are gradually embedded into the Pd lattice, for Pd44H56, all peaks significantly widened, and the Pd-Pd bond length increased to 2.84 Å. This reflects that the interior hydrogen atoms weaken Pd-Pd bonds in the cluster, which leads to the lattice expansion of the cluster. Finally, under the working conditions of long-term hydrogen evolution reaction, excess H adsorption will eventually cause the collapse of the Pd44 octahedron. The shape of the Pd44H61 cluster changes from octahedron to quasi-ellipsoid. At this stage, one immediate observation is that the peak around √2L (L = 2.75 Å) is diminished for Pd44H61. Interestingly, although the cluster contains more interior H atoms, the major peak of the Pd-Pd bond shortened to 2.75 Å. This can be attributed to the transformation of the core structural unit from the rigid [Pd6] octahedron to the more flexible [Pd7]. Similarly, for the Pt19 clusters, the same attenuation of the √2L peak also occurs (Figure S5). These structural features are consistent with the structural versatility of small Pd nanoparticles.
The effects of hydrogenation and in situ reconstruction can be summarized as follows: (i) The early-stage hydrogenation of the Pd cluster can improve HER activity, which is consistent with the experiment that the catalytic performance of HER improves after hydrogen diffuses into the subsurface layer of bulk Pd [16]; (ii) the apex of Pd cluster is the active site for HER. Under long-term HER working conditions, the structural reconstruction allows the adsorption of additional interior H atoms but will reduce the number of surface high active sites, eventually inhibiting the HER activity.

5. Conclusions

In this study, we present a systematic approach to reveal the in situ structural reconstructions of small-sized Pdn (n = 6, 19, 44) clusters for catalytic HER. The H adsorption on ultra-small Pd6 quickly leads to the decomposition of the cluster. For the Pd19 and Pd44, the structural evolution of the Pd clusters undergoes three stages. The H-H coupling can occur at all three stages. The first stage is surface H adsorption. At this stage, H atoms are adsorbed on the surface of the Pd cluster. In the second stage, saturated surface hydrogen atoms gradually enter the interior of the cluster. The Pd lattice is expanded in this stage. Meanwhile, the surface H adsorption energy decreases, which helps improve the HER’s activity. At the last stage, excess H adsorption further results in the substantial reconstruction of the Pd cluster to accommodate more hydrogen atoms. The reduced number of surface high active sites inhibits HER activity. These results reveal the intrinsic properties of the catalytic performance evolution of small Pd clusters under the HER reaction environment. It proves that carefully adjusting the hydrogenation degree of Pd clusters is a good strategy for improving the HER’s catalytic performance.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/sym14091753/s1, Figure S1: the low-lying isomers; Figure S2: differential H adsorption energies; Figure S3: reaction profiles of the initial structural reconstruction; Figure S4: optimized structures of the key reaction intermediates of HER on Pd19Hm (m = 21 and 28) clusters; Figure S5: Pd-Pd distance distributions of Pd19H8, Pd19H21, and Pd19H28 clusters; Figure S6: DOS and pDOS of Pd44H45 and Pd44H56; Table S1. Calculated zero-point energies of different H species; Table S2. Interaction energies per Pd atom (ΔEint*) of PdxHy clusters and bulk Pd.

Author Contributions

Conceptualization, D.Z. and G.W.; theoretical calculation, D.Z.; data analysis, D.Z. and G.W.; writing—original draft preparation, D.Z.; writing—review and editing, D.Z. and G.W.; supervision and project administration, G.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (22173069), the Research Project of Shanghai Science and Technology Commission (21ZR1467800) and Fundamental Research Funds for the Central Universities.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chu, S.; Majumdar, A. Opportunities and challenges for a sustainable energy future. Nature 2012, 488, 294–303. [Google Scholar] [CrossRef] [PubMed]
  2. Norskov, J.K.; Christensen, C.H. Chemistry—Toward efficient hydrogen production at surfaces. Science 2006, 312, 1322–1323. [Google Scholar] [CrossRef] [PubMed]
  3. Turner, J.A. Sustainable hydrogen production. Science 2004, 305, 972–974. [Google Scholar] [CrossRef] [PubMed]
  4. Walter, M.G.; Warren, E.L.; McKone, J.R.; Boettcher, S.W.; Mi, Q.X.; Santori, E.A.; Lewis, N.S. Solar Water Splitting Cells. Chem. Rev. 2010, 110, 6446–6473. [Google Scholar] [CrossRef]
  5. Durst, J.; Siebel, A.; Simon, C.; Hasche, F.; Herranz, J.; Gasteiger, H.A. New insights into the electrochemical hydrogen oxidation and evolution reaction mechanism. Energy Environ. Sci. 2014, 7, 2255–2260. [Google Scholar] [CrossRef] [Green Version]
  6. McKone, J.R.; Warren, E.L.; Bierman, M.J.; Boettcher, S.W.; Brunschwig, B.S.; Lewis, N.S.; Gray, H.B. Evaluation of Pt, Ni, and Ni-Mo electrocatalysts for hydrogen evolution on crystalline Si electrodes. Energy Environ. Sci. 2011, 4, 3573–3583. [Google Scholar] [CrossRef] [Green Version]
  7. Seh, Z.W.; Kibsgaard, J.; Dickens, C.F.; Chorkendorff, I.B.; Norskov, J.K.; Jaramillo, T.F. Combining theory and experiment in electrocatalysis: Insights into materials design. Science 2017, 355, eaad4998. [Google Scholar] [CrossRef] [Green Version]
  8. Faber, M.S.; Jin, S. Earth-abundant inorganic electrocatalysts and their nanostructures for energy conversion applications. Energy Environ. Sci. 2014, 7, 3519–3542. [Google Scholar] [CrossRef]
  9. Koper, M.T. Blank voltammetry of hexagonal surfaces of Pt-group metal electrodes: Comparison to density functional theory calculations and ultra-high vacuum experiments on water dissociation. Electrochim. Acta 2011, 56, 10645–10651. [Google Scholar] [CrossRef]
  10. Koutauarapu, R.; Reddy, C.V.; Babu, B.; Reddy, K.R.; Cho, M.; Shim, J. Carbon cloth/transition metals-based hybrids with controllable architectures for electrocatalytic hydrogen evolution—A review. Int. J. Hydrog. Energy 2020, 45, 7716–7740. [Google Scholar] [CrossRef]
  11. Lai, W.H.; Zhang, L.F.; Hua, W.B.; Indris, S.; Yan, Z.C.; Hu, Z.; Zhang, B.W.; Liu, Y.N.; Wang, L.; Liu, M.; et al. General pi-Electron-Assisted Strategy for Ir, Pt, Ru, Pd, Fe, Ni Single-Atom Electrocatalysts with Bifunctional Active Sites for Highly Efficient Water Splitting. Angew. Chem. Int. Ed. 2019, 58, 11868–11873. [Google Scholar] [CrossRef] [PubMed]
  12. Peng, X.; Pi, C.R.; Zhang, X.M.; Li, S.; Huo, K.F.; Chu, P.K. Recent progress of transition metal nitrides for efficient electrocatalytic water splitting. Sustain. Energy Fuels 2019, 3, 366–381. [Google Scholar] [CrossRef]
  13. Huang, H.; Bao, S.X.; Chen, Q.L.; Yang, Y.A.; Jiang, Z.Y.; Kuang, Q.; Wu, X.Y.; Xie, Z.X.; Zheng, L.S. Novel hydrogen storage properties of palladium nanocrystals activated by a pentagonal cyclic twinned structure. Nano Res. 2015, 8, 2698–2705. [Google Scholar] [CrossRef]
  14. Durst, J.; Simon, C.; Hasche, F.; Gasteiger, H.A. Hydrogen Oxidation and Evolution Reaction Kinetics on Carbon Supported Pt, Ir, Rh, and Pd Electrocatalysts in Acidic Media. J. Electrochem. Soc. 2015, 162, F190–F203. [Google Scholar] [CrossRef]
  15. Ludwig, W.; Savara, A.; Madix, R.J.; Schauermann, S.; Freund, H.J. Subsurface Hydrogen Diffusion into Pd Nanoparticles: Role of Low-Coordinated Surface Sites and Facilitation by Carbon. J. Phys. Chem. C 2012, 116, 3539–3544. [Google Scholar] [CrossRef]
  16. Wang, G.X.; Liu, J.Y.; Sui, Y.M.; Wang, M.; Qiao, L.; Du, F.; Zou, B. Palladium structure engineering induced by electrochemical H intercalation boosts hydrogen evolution catalysis. J. Mater. Chem. A 2019, 7, 14876–14881. [Google Scholar] [CrossRef]
  17. Chen, M.J.; Lu, S.M.; Peng, Y.Y.; Ding, Z.F.; Long, Y.T. Tracking the Electrocatalytic Activity of a Single Palladium Nanoparticle for the Hydrogen Evolution Reaction. Chem. Eur. J. 2021, 27, 11799–11803. [Google Scholar] [CrossRef]
  18. Fan, J.X.; Du, H.X.; Zhao, Y.; Wang, Q.; Liu, Y.N.; Li, D.Q.; Feng, J.T. Recent Progress on Rational Design of Bimetallic Pd Based Catalysts and Their Advanced Catalysis. ACS Catal. 2020, 10, 13560–13583. [Google Scholar] [CrossRef]
  19. Newton, M.A.; Belver-Coldeira, C.; Martinez-Arias, A.; Fernandez-Garcia, M. Dynamic in situ observation of rapid size and shape change of supported Pd nanoparticles during CO/NO cycling. Nat. Mater. 2007, 6, 528–532. [Google Scholar] [CrossRef]
  20. Shang, C.; Liu, Z.-P. Stochastic Surface Walking Method for Structure Prediction and Pathway Searching. J. Chem. Theory Comput. 2013, 9, 1838–1845. [Google Scholar] [CrossRef]
  21. Zhang, X.-J.; Shang, C.; Liu, Z.-P. Double-ended surface walking method for pathway building and transition state location of complex reactions. J. Chem. Theory Comput. 2013, 9, 5745–5753. [Google Scholar] [CrossRef] [PubMed]
  22. Wei, G.F.; Liu, Z.P. Restructuring and Hydrogen Evolution on Pt Nanoparticle. Chem. Sci. 2015, 6, 1485–1490. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Kresse, G.; Furthmuller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 1996, 6, 15–50. [Google Scholar] [CrossRef]
  24. Blochl, P.E. Projector augmented-wave method. Phys. Rev. B 1994, 50, 17953–17979. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Kresse, G.; Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 1999, 59, 1758–1775. [Google Scholar] [CrossRef]
  26. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef] [Green Version]
  27. Monkhorst, H.J.; Pack, J.D. Special points for brillouin-zone integrations. Phys. Rev. B 1976, 13, 5188–5192. [Google Scholar] [CrossRef]
  28. Wang, H.-F.; Liu, Z.-P. Comprehensive mechanism and structure-sensitivity of ethanol oxidation on platinum: New transition-state searching method for resolving the complex reaction network. J. Am. Chem. Soc. 2008, 130, 10996–11004. [Google Scholar] [CrossRef]
  29. Shang, C.; Liu, Z.-P. Constrained Broyden minimization combined with the dimer method for locating transition state of complex reactions. J. Chem. Theory Comput. 2010, 6, 1136–1144. [Google Scholar] [CrossRef]
  30. Haynes, W.M.; Lide, D.R.; Bruno, T.J. CRC Handbook of Chemistry and Physics, 84th ed.; CRC Press: Boca Raton, FL, USA, 2003. [Google Scholar]
  31. Liu, Z.P.; Jenkins, S.J.; King, D.A. Car exhaust catalysis from first principles: Selective NO reduction under excess O-2 conditions on Ir. J. Am. Chem. Soc. 2004, 126, 10746–10756. [Google Scholar] [CrossRef]
  32. Zhang, L.N.; Qiao, L.J.; Bligaard, T.; Su, Y.J. A first-principle study of H adsorption and absorption under the influence of coverage. Appl. Surf. Sci. 2018, 457, 280–286. [Google Scholar] [CrossRef]
  33. Fang, Y.H.; Wei, G.F.; Liu, Z.P. Catalytic Role of Minority Species and Minority Sites for Electrochemical Hydrogen Evolution on Metals: Surface Charging, Coverage, and Tafel Kinetics. J. Phys. Chem. C 2013, 117, 7669–7680. [Google Scholar] [CrossRef]
  34. Wei, G.F.; Zhang, L.R.; Liu, Z.P. Group-VIII transition metal boride as promising hydrogen evolution reaction catalysts. Phys. Chem. Chem. Phys. 2018, 20, 27752–27757. [Google Scholar] [CrossRef] [PubMed]
  35. Chen, L.; Zhang, L.R.; Yao, L.Y.; Fang, Y.H.; He, L.; Wei, G.F.; Lu, Z.P. Metal boride better than Pt: HCP Pd2B as a superactive hydrogen evolution reaction catalyst. Energy Environ. Sci. 2019, 12, 3099–3105. [Google Scholar] [CrossRef]
Symmetry 14 01753 g001 550

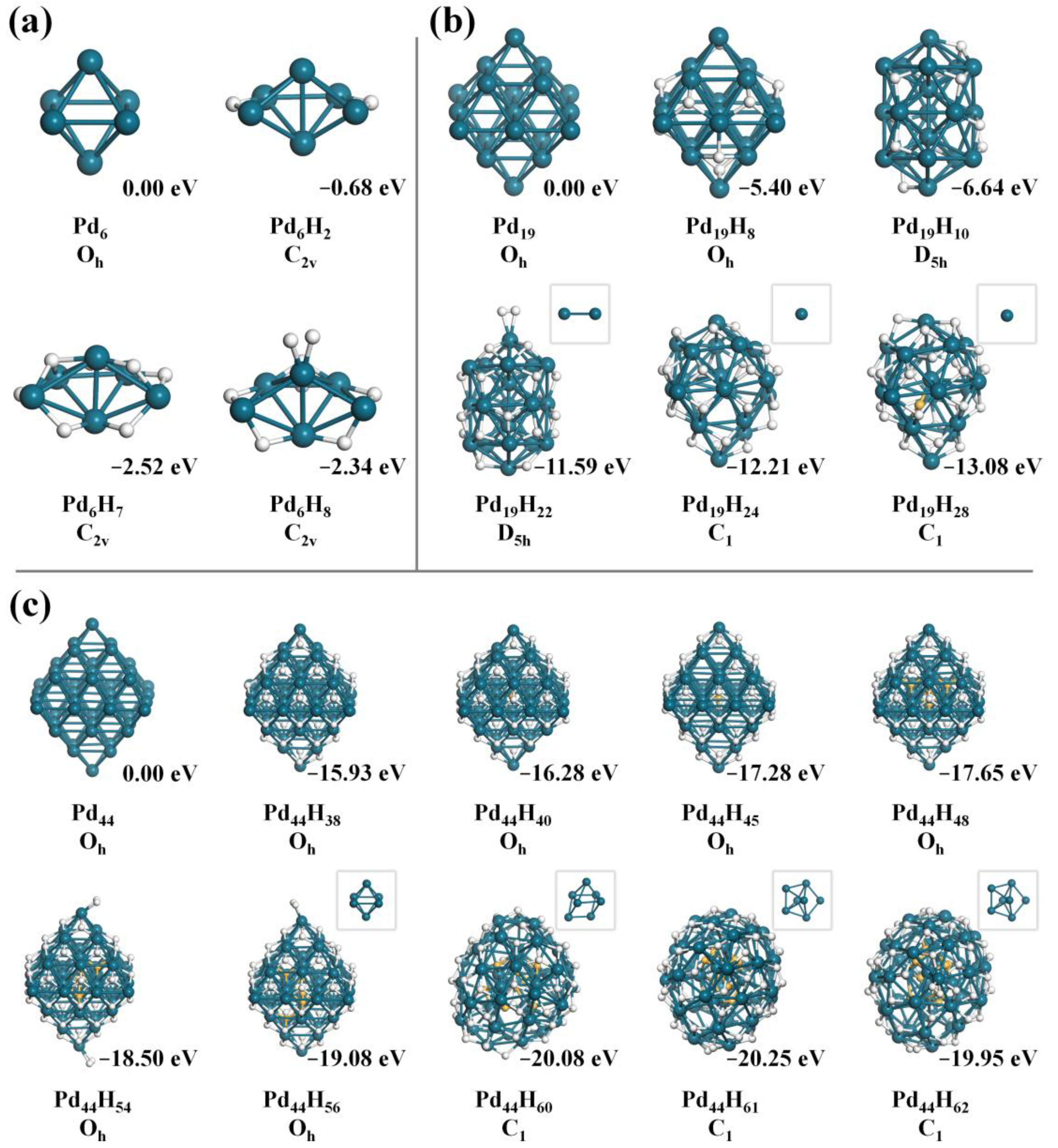

Figure 1. The optimized most stable structures of Pdn and PdnHm (n = 6, 19, 44) clusters. (a) Pd6 and Pd6Hm; (b) Pd19 and Pd19Hm; (c) Pd44 and Pd44Hm. The symmetry group of the Pd sub-structure of each cluster was labeled. The structures of the core Pd atoms of representative Pd19Hm and Pd44Hm clusters were illustrated in the inserted small squares. The relative formation energies (ΔGf) relative to the GM of pure Pd cluster and gaseous H2 are listed at the bottom-right corners of the structure. Dark blue balls: Pd; small white balls: H.
Figure 1. The optimized most stable structures of Pdn and PdnHm (n = 6, 19, 44) clusters. (a) Pd6 and Pd6Hm; (b) Pd19 and Pd19Hm; (c) Pd44 and Pd44Hm. The symmetry group of the Pd sub-structure of each cluster was labeled. The structures of the core Pd atoms of representative Pd19Hm and Pd44Hm clusters were illustrated in the inserted small squares. The relative formation energies (ΔGf) relative to the GM of pure Pd cluster and gaseous H2 are listed at the bottom-right corners of the structure. Dark blue balls: Pd; small white balls: H.
Symmetry 14 01753 g001
Symmetry 14 01753 g002 550

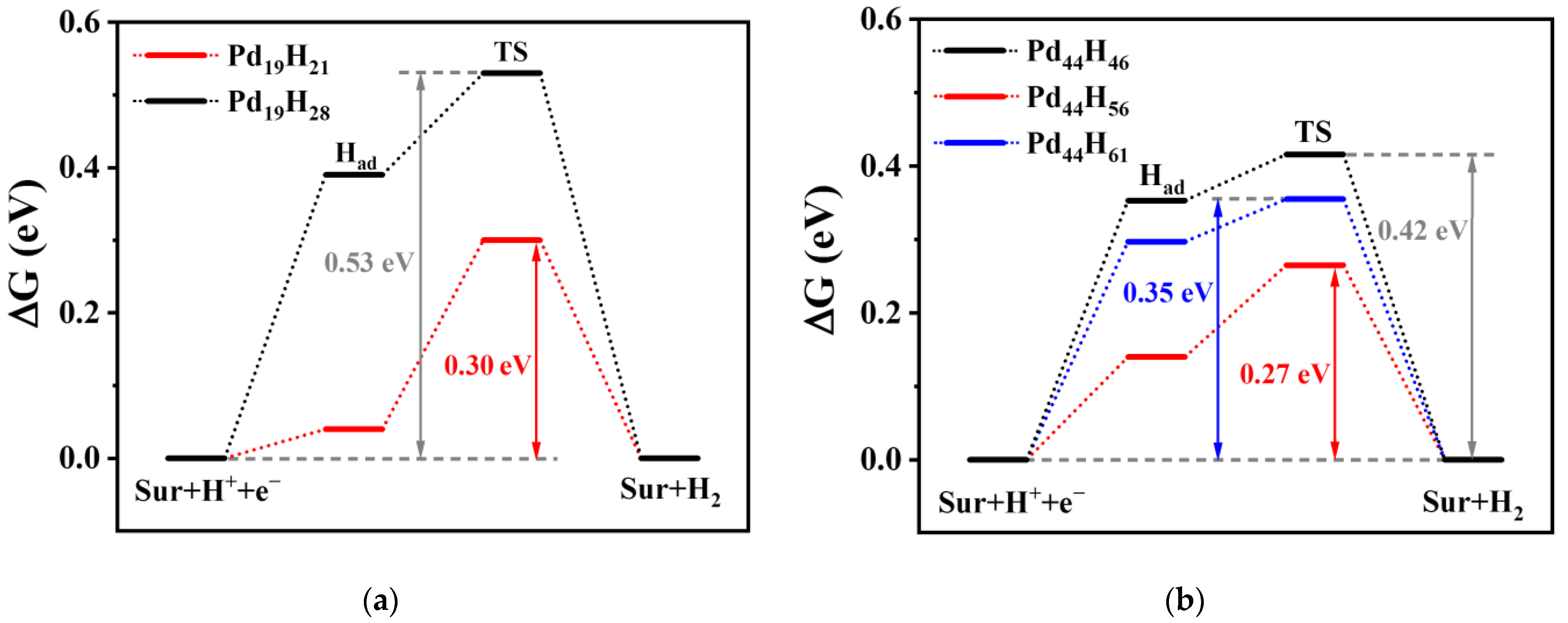

Figure 2. The reaction profiles of H-H coupling reactions on H covered Pdn clusters. (a) On Pd19H21 and Pd19H28 clusters. (b) On Pd44H45, Pd44H56, and Pd44H61 clusters. The calculated free energy barriers were also illustrated in the graphs.
Figure 2. The reaction profiles of H-H coupling reactions on H covered Pdn clusters. (a) On Pd19H21 and Pd19H28 clusters. (b) On Pd44H45, Pd44H56, and Pd44H61 clusters. The calculated free energy barriers were also illustrated in the graphs.
Symmetry 14 01753 g002
Symmetry 14 01753 g003 550

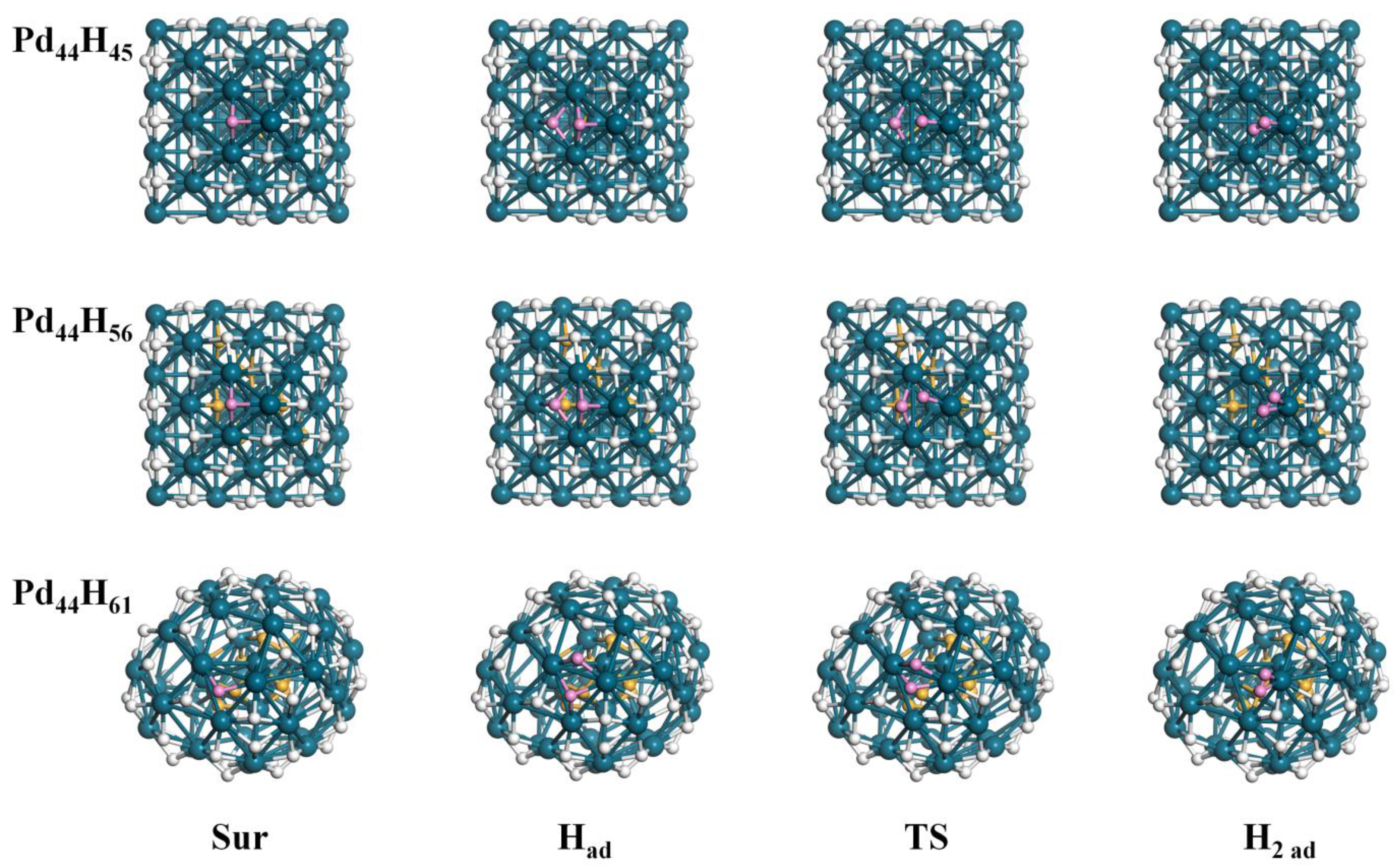

Figure 3. Optimized structures of the key reaction intermediates of HER on Pd44Hm (m = 45, 56, 61) clusters. Dark blue balls: Pd; small white balls: surface H; small yellow balls: interior H; small pink balls: reacting H.
Figure 3. Optimized structures of the key reaction intermediates of HER on Pd44Hm (m = 45, 56, 61) clusters. Dark blue balls: Pd; small white balls: surface H; small yellow balls: interior H; small pink balls: reacting H.
Symmetry 14 01753 g003
Symmetry 14 01753 g004 550

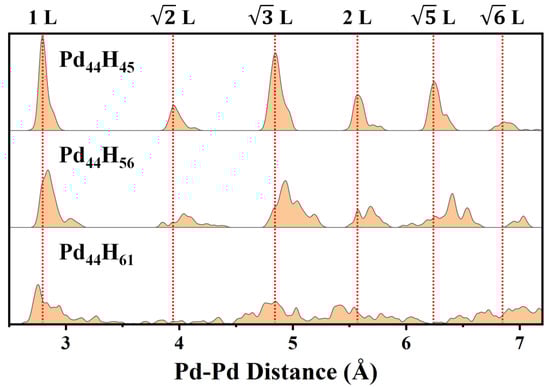

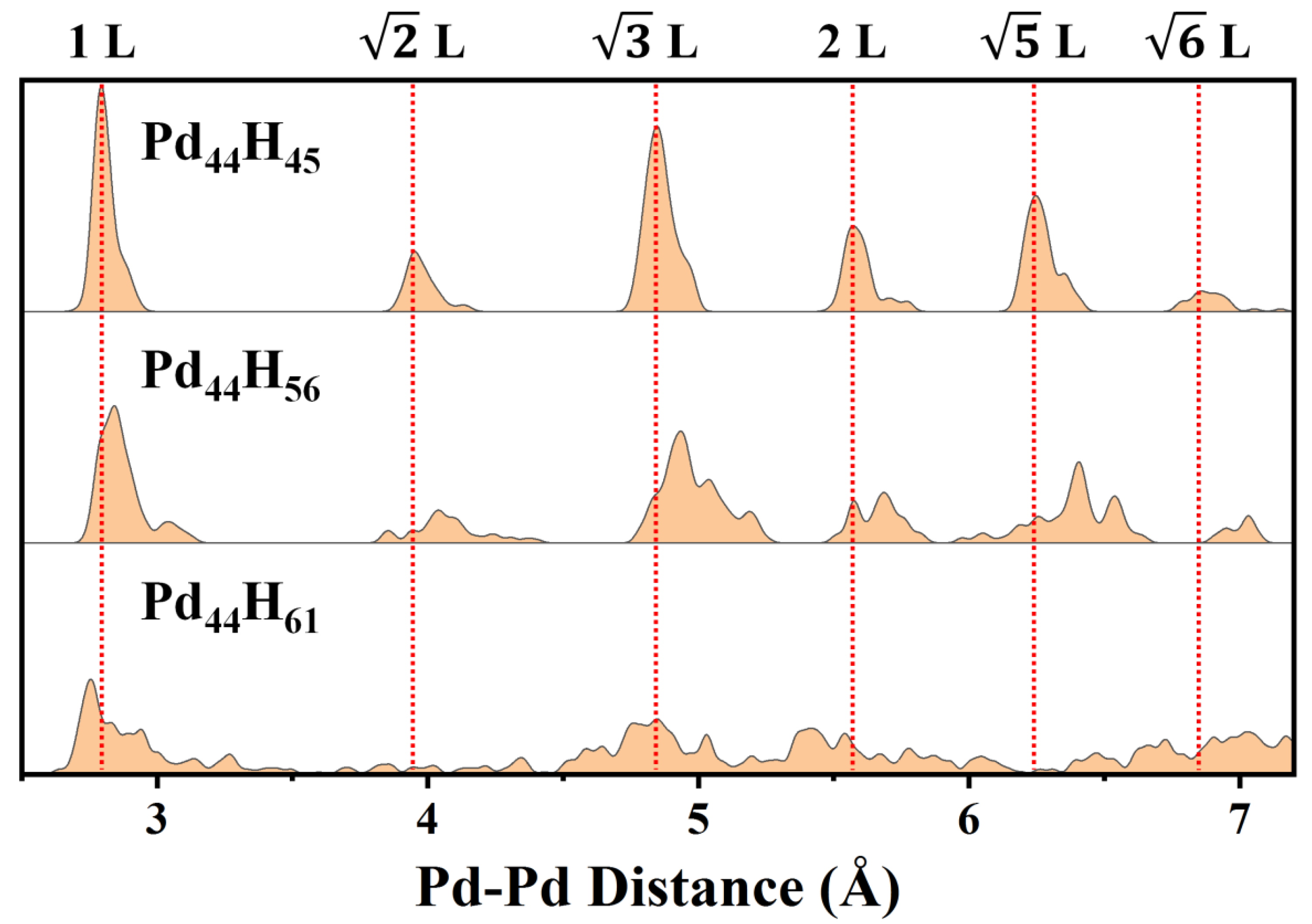

Figure 4. Pd-Pd distance distributions for Pd44H45, Pd44H56, and Pd44H61.
Figure 4. Pd-Pd distance distributions for Pd44H45, Pd44H56, and Pd44H61.
Symmetry 14 01753 g004
