Cutting-Edge Machine Learning Techniques for Accurate Prediction of Agglomeration Size in Water–Alumina Nanofluids

Abstract

Nanoparticle agglomeration is one of the most problematic phenomena during nanofluid synthesis by a two-step procedure. Understanding and accurately estimating agglomeration size is crucial, as it significantly affects nanofluids’ properties, behavior, and successful applications. To the best of our knowledge, the literature has not yet applied machine learning methods to estimate alumina agglomeration size in water-based nanofluids. So, this research employs a range of machine learning models—Random Forest, Adaptive Boosting, Extra Trees, Categorical Boosting, and Multilayer Perceptron Neural Networks—to predict alumina agglomeration sizes in water-based nanofluids. To this end, a comprehensive experimental database, including 345 alumina agglomeration sizes in water-based nanofluids, compiled from 29 various sources from the literature, is utilized to train these models and monitor their generalization ability in the testing stage. The models estimate agglomeration size based on multiple factors: alumina concentration, ultrasonic time, power, frequency, temperature, surfactant type and concentration, and pH levels. The relevancy test based on the Pearson method clarifies that Al₂O₃ agglomeration size in water primarily depends on ultrasonic frequency, ultrasonic power, alumina concentration in water, and surfactant concentration. Comparative analyses based on numerical and graphical techniques reveal that the Categorical Boosting model surpasses others in accurately simulating this complex phenomenon. It effectively captures the intricate relationships between key features and alumina agglomeration size, achieving an average absolute relative deviation of 6.75%, a relative absolute error of 12.83%, and a correlation coefficient of 0.9762. Furthermore, applying the leverage method to the experimental data helps identify two problematic measurements within the database. These results validate the effectiveness of the Categorical Boosting model and contribute to the broader goal of enhancing our understanding and control of nanofluid properties, thereby aiding in improving their practical applications.

1. Introduction

Nanofluids, a relatively new class of working fluids, consist of stable, suspended solid particles ranging from 1 to 100 nm in size [1,2]. These nanoscale particles are typically derived from metals [3], metal oxides [4], and carbon-based materials [5,6]. Already utilized in various engineering [7] and everyday applications [8], nanofluids offer significant advantages in fields such as heat and mass transfer [9,10], thermal energy storage [11], solar energy harvesting [12], medical and biomedical technologies [13,14], lubrication [15], and wastewater/environmental remediation [16]. These areas have particularly benefited from the enhanced properties provided by this innovative technology.

Alumina (Al₂O₃)–water is not only a non-toxic and low-cost nanofluid [17], but it also benefits from relatively good stability [18] and suitable thermophysical properties [19]. These interesting characteristics of alumina–water nanofluid make it a promising candidate for application in heat exchangers [20], solar collectors [21], enhanced oil recovery [22], electronic liquid cooling systems [23], and air conditioning units [24].

While alumina–water nanofluids offer numerous potential benefits, a comprehensive understanding of their challenges is essential before widespread adoption in industrial applications. Nanoparticle agglomeration is a critical issue that can significantly compromise the stability and performance of nanofluids [25,26] and may even damage operating equipment [27]. This problem occurs when alumina nanoparticles cluster together, forming larger particles. These resultant agglomerates, being too heavy to remain suspended, can settle out of the base liquid. Consequently, large (>100 nm) and dense alumina particles reduce the concentration of nanoparticles in suspension, diminishing the effectiveness of the nanofluids [28].

Hence, many laboratory-scale tests have been suggested to monitor nanoparticle size after adding to the base fluid. Dynamic light scattering [29], transmission electron microscopy [30], atomic force microscopy [31], scanning electron microscopy [32], light extinction spectroscopy [33], and tunable resistive pulse sensing [34] are available tools to measure nanoparticle size in nanofluids. The choice of the appropriate method depends on the nanoparticle type, the size range of interest, and the availability of equipment and expertise. Reliable measurement of nanoparticle size using these methods is expensive, time-consuming, and requires careful sample preparation, appropriate instrumentation, and selection of a proper measurement technique that considers the nanofluids’ properties.

Estimating agglomeration size from the properties of nanoparticles and preparation techniques that are readily and consistently available is a valuable strategy to address the limitations of experimental measurements [35]. Such an estimation model enables researchers to discern how each specific property of nanoparticles and each synthesis technique influences nanoparticle agglomeration [35]. Furthermore, accurately predicting nanoparticle agglomeration size in nanofluids has practical implications, contributing to developing more efficient and reliable nanofluid-based systems.

The Derjaguin–Landau–Verwey–Overbeek (DLVO) theory is instrumental in predicting the stability of nanofluids and estimating agglomerate size based on the attractive and repulsive forces between nanoparticles in a fluid [36]. Additionally, the Smoluchowski equation provides another method to calculate the agglomeration rate and size distribution [37]. Monte Carlo simulations employ statistical techniques to model the behavior of nanoparticles in a fluid and predict their agglomeration patterns [38]. Furthermore, fractal analysis is utilized to forecast agglomerate structure and size distribution [39].

Machine learning (ML) methods are adept at analyzing complex phenomena using historical data to uncover the inherent relationships between dependent and independent variables [40,41,42,43,44]. Given that alumina agglomeration size is influenced by various factors—including nanoparticle properties, preparation techniques such as surfactant use [45] and sonication [46], as well as operating conditions like temperature and pH [45]—it may not be accurately modeled using traditional statistical methods. Also, the relationships between these factors and agglomeration size are complex and poorly understood. Furthermore, the literature includes no attempt to apply machine learning methods to estimate alumina agglomeration size in water-based nanofluids. So, this current study utilizes Random Forest, Adaptive Boosting (AdaBoost), Extra Tree, Categorical Boosting (CatBoost), and Multilayer Perceptron Neural Networks to predict the agglomeration size in water-based nanofluids as a function of alumina size and dose in the base fluid, ultrasonication properties (power, frequency, and power), pH, surfactant type and concentration, and temperature, as well as their corresponding agglomeration sizes. These models can provide valuable insights into the behavior of nanoparticles in nanofluids and help optimize their performance for various applications. Also, the stability of nanofluids is directly related to the agglomeration of nanoparticles. Determining this stability in the laboratory is time-consuming and often expensive. Our work utilizes some simple and available features to estimate agglomeration size and help decide whether the water–alumina nanofluid is stable or not.

2. Literature Data for the Agglomeration Size in Water–Alumina Nanofluids

Table 1. Summary of the literature data for the alumina agglomeration size in water-based nanofluids [45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73].

Variable	Min	Average	Max	Std. Deviation	Observations
Alumina dose (vol%)	0	0.41	3	0.64	345
Temperature (K)	288	298.8	320	4.9	345
pH (-)	1.0	6.9	13.4	2.25	345
Ultrasonic time (min)	0	1042.6	40,505	5085.8	345
Ultrasonic power (W)	50	303.9	750	239.6	345
Ultrasonic frequency (kHz)	19	28.9	60	10.6	345
Surfactant concentration (wt%)	0	0.04	0.99	0.14	345
Agglomeration size (nm)	5.5	170.1	1173	541.6	345

provides a detailed summary of 345 experimental datasets meticulously compiled from the existing literature. This table includes essential information relevant to alumina agglomeration in water-based environments, such as alumina dosage, operational temperature, pH levels, and ultrasonication properties (duration, power, and frequency). It also details the observed agglomeration sizes (Da) in these studies. It must be noted that the nanoparticles’ size has been considered as the agglomeration size in the literature that reported no values for the Da. Notably, the literature sources frequently used surfactants like sodium dodecylbenzene sulfonate (SDBS), sodium dodecyl sulfate (SDS), polyvinyl alcohol (PVA), and polyvinylpyrrolidone (PVP). The interaction and variation in these parameters significantly influence the size of alumina agglomerates in aquatic media, providing crucial insights for this research study.

3. Description of Machine Learning Models

This section describes the working process of the intelligent models involved in this current study.

3.1. CatBoost

CatBoost is a gradient boosting algorithm [74], used for sequentially incorporating decision trees into a model, each designed to rectify the errors of its predecessors [75]. As the left-hand side of Figure 1 shows, the process initiates with a basic model, typically a single leaf, that predicts the average outcome for the entire dataset. By moving in a left–right direction, as shown in Figure 1, new trees are gradually integrated, with their predictions amalgamated with those from the existing trees. It must be noted that samples with higher errors are allocated more weight, depicted by expanded circles. As the model evolves, additional trees are incorporated into the samples, and estimation errors are reduced. This division continues until the minimal number of samples required for a split is met or the trees reach their maximum depth. Several variables, including the splitting criterion, the number of trees or estimators, the learning rate, the loss function, and the leaf’s regularization coefficient, are crucial in shaping the tree structure and need fine-tuning before the model is deployed. Interested readers may refer to Prokhorenkova et al.’s work for a deeper understanding of this topic [75]. CatBoost employs two distinct methods for feature splitting. Numerical features utilize a non-symmetric split method, where all potential split points are considered. Conversely, the symmetric method assigns two child nodes to each node, ensuring similar subtrees on both sides. This balanced approach not only aids in creating symmetric trees but also enhances the model’s accuracy.

A standout feature of CatBoost is its ‘ordered boosting’ technique, an innovation in gradient boosting algorithms. Unlike the traditional sequential or random training sequences, ordered boosting trains trees in a specific order based on the importance of their features. This strategic approach effectively constructs more precise models by giving precedence to the most impactful features, thus leading to a more informed and accurate predictive model.

CatBoost is a supervised learning algorithm that provides samples as (X, y) pairs. The objective is to develop a mapping function, f(X), capable of precise estimation of the outputs (y) from the inputs (X). The difference between the actual and predicted outputs (L) must be minimized according to Equation (1) in order to design such a mapping function.

$$L\left(f\right) = {\displaystyle \sum _{s=1}^{N}L\left(y_s, f\left(X_s\right)\right)}$$

(1)

where $N$ is the number of training samples.

The optimization problem can be formulated as follows:

$$min L\left(f\right) = min {\displaystyle \sum _{s=1}^{N}L\left(y_s, f \left(X_s\right) \right)}$$

(2)

Considering M gradient boosting steps, new estimators (h_M) can be added to the model.

$$f_{M+1} \left(X_s\right) = f_M \left(X_s\right) + h_M \left(X_s\right)$$

(3)

where f_M+1(X_s) is the new model.

The gradient boosting role is to find the new estimator by leveraging the steepest descent, i.e., h_M = −α_M g_M, where α_M is the learning rate, and g_M is the gradient of the loss function [74].

$$g_M = - {\left[\partial L\left(y_s, f\left(X_s\right)\right)/\partial f \left(X_s\right)\right]}_{f \left(X_s\right) = f_{M-1} \left(X_s\right) }$$

(4)

Now, the new tree/estimator is found as follows:

$$f_{M+1}\left(X\right) = f_M\left(X\right) + \left\{min{\displaystyle \sum _{s=1}^{N}L\left(y_s, f_M\left(X_s\right)+h_M\left(X_s\right)\right)}\right\}$$

(5)

$$f_{M+1}\left(X\right) = f_M\left(X\right) - {\alpha }_M g_M$$

(6)

These steps are repeated M times as there are M gradient boosting steps.

3.2. AdaBoost

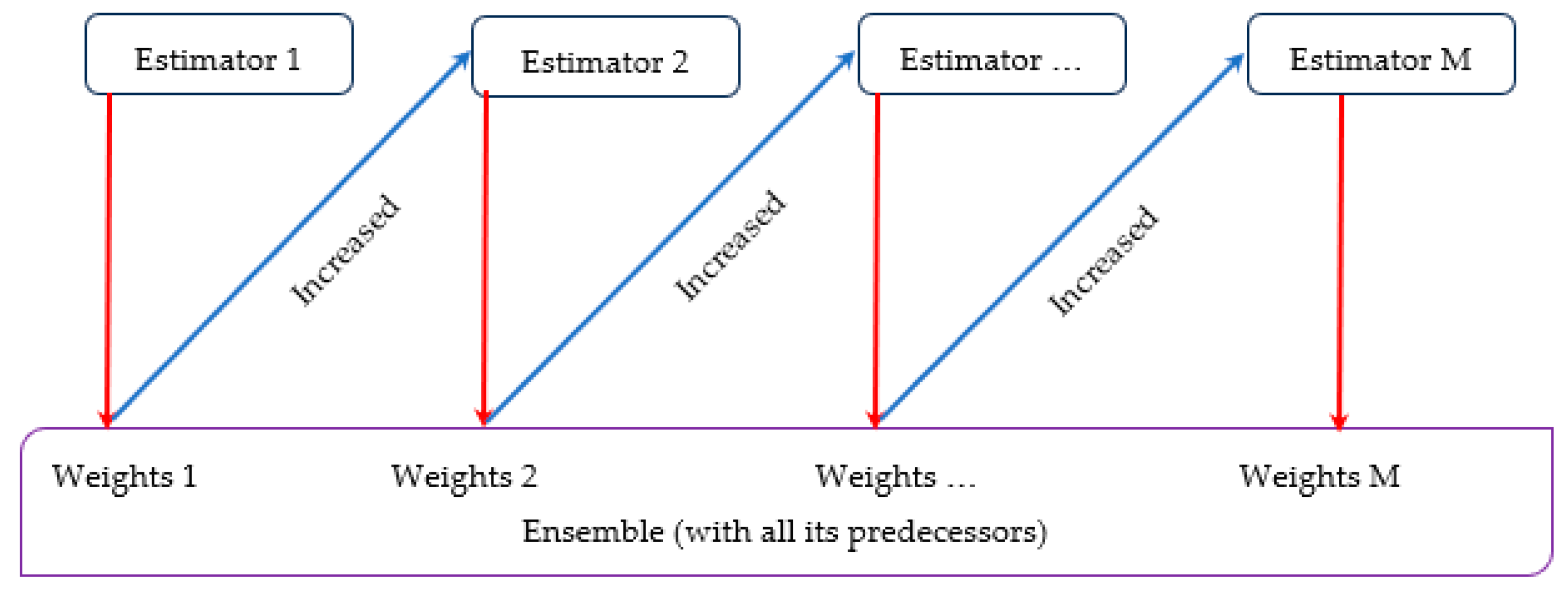

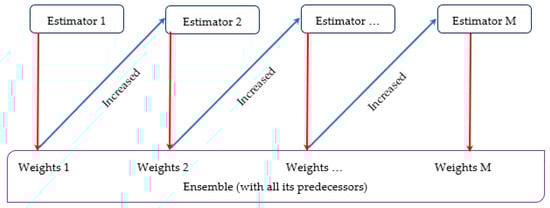

Adaptive Boosting, commonly known as AdaBoost, is a sophisticated ensemble boosting learning algorithm applicable to both classification and regression tasks [76]. AdaBoost’s core principle involves amalgamating the outputs of numerous weak learners, such as decision stumps, into a weighted sum that forms a powerful, more effective learner. The algorithm is termed ‘adaptive’ because each new weak learner is specifically tailored to address the mistakes of its predecessors, thereby progressively refining the model’s accuracy in areas where it is most deficient. This characteristic is depicted in Figure 2, which illustrates the AdaBoost learning process. AdaBoost often experiences lower overfitting than other learning methods on specific problems [77].

The AdaBoost algorithm unfolds through the following sequential steps:

• Initial stage: All data points are assigned equal weight.
• Iterative training: Weak learners are trained in sequence, with an increased emphasis on data points that previously yielded high prediction errors.
• Performance evaluation: At the end of each cycle, the weak learner’s effectiveness is assessed, and higher weights are assigned to more accurate learners.
• Adjusting weights: The algorithm amplifies the weights of incorrectly predicted data points, making them pivotal in subsequent iterations.
• Final output: The ultimate prediction target is determined by the weighted average of the predictions made by all the weak learners.

A typical loss function employed in AdaBoost training is the mean squared error (MSE) [78], i.e., Equation (7).

$$L\left(f\right) = \left(1/N\right) {\displaystyle \sum _{s=1}^N{\left(y_s - f\left(X_s\right)\right)}^2}$$

(7)

The weights of the samples (W) are updated based on the value of the loss function. Equation (8) introduces the weights update process in the presence of the observed error of Δ.

$$W^{t+1} = W^t \times e^{\pm \Delta }$$

(8)

where W^t+1 represents the new weights, and W^t is the old weights. The sign of Δ will be positive for correctly predicted samples and negative for samples with high prediction errors.

The process concludes once a predetermined number of learners (estimators) have been trained or when optimal performance is attained. Therefore, key control parameters in AdaBoost include the number of estimators, the loss function, and the learning rate. The learning rate, often multiplied by a factor $\alpha$, regulates the extent of weight adjustments in each iteration.

3.3. Random Forest (RF)

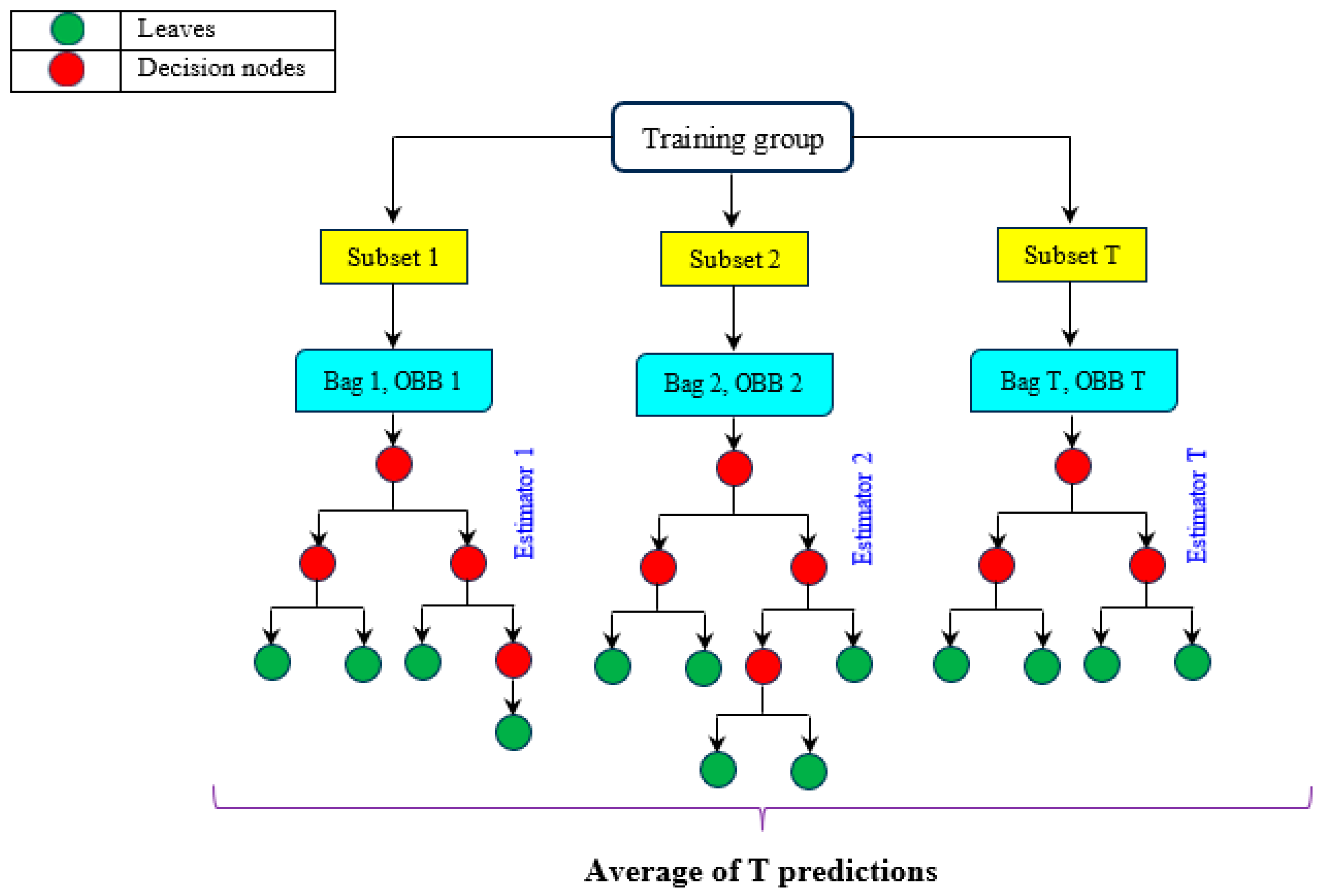

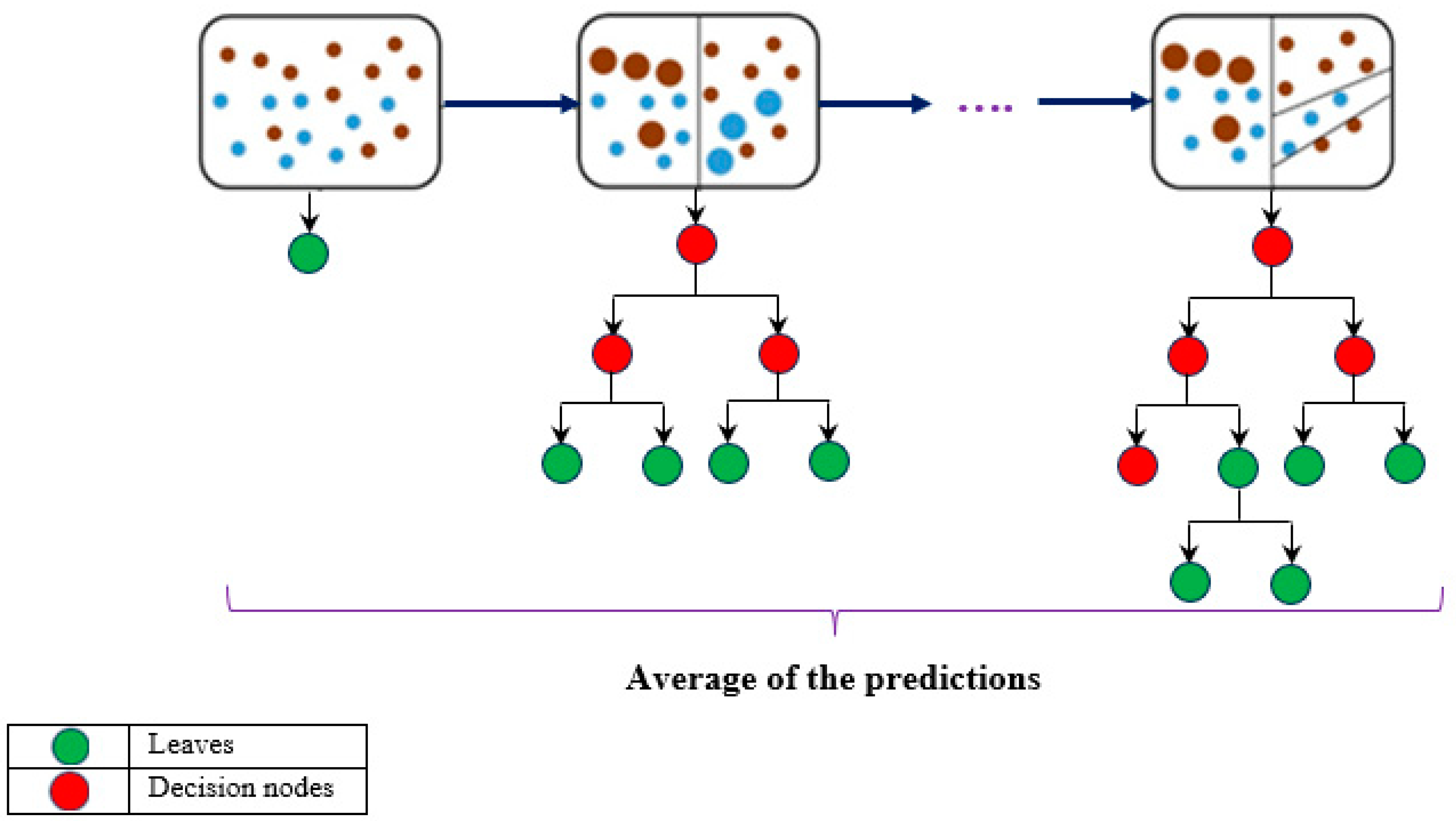

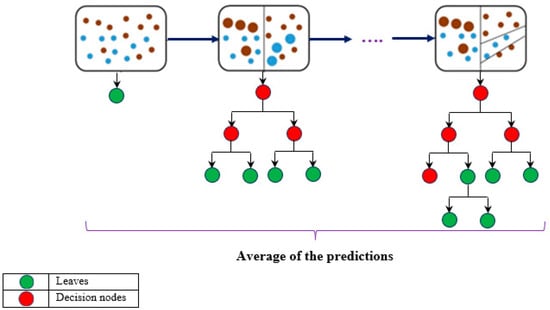

Random Forest, a well-known ensemble learning algorithm, utilizes the bagging method, where the outputs of multiple decision trees are aggregated to produce the final prediction. Each decision tree—acting as a learner—is trained on a unique random subset of the initial dataset [79]. The structure of a decision tree includes root, branch, and leaf nodes. Branch nodes, or internal nodes, categorize features based on specific criteria like squared error, absolute error, Friedman’s mean squared error, or Poisson error, thus establishing the decision rules. However, final decisions are made at the leaf nodes, not at these internal nodes [80,81]. Unlike boosting algorithms, which focus on correcting errors from previous iterations, Random Forest trains trees independently on different subsets of the data. This process continues until a predefined number of trees, known as estimators, is achieved. During training, the dataset is divided into ‘bag’ and ‘out-of-bag’ (OOB) segments, with the ‘bag’ part used to build the trees and the OOB part serving as a validation set for each tree, as depicted in Figure 3.

In Random Forest regression tasks, the final output is determined by averaging the predictions from all individual trees (${\widehat{y}}_1,\dots ,{\widehat{y}}_T$).

$$\widehat{y}=(1/T)\times \sum _{t=1}^T{\widehat{y}}_t$$

(9)

where $T$ is the number of estimators, and ${\widehat{y}}_t$ is the output of estimator $t$.

This averaging process contributes to Random Forest’s enhanced stability over traditional decision trees [82]. Training proceeds until the maximum number of estimators is trained, an optimal performance is attained, or the minimum sample count required for a split is met.

Therefore, key control parameters in Random Forests include the number of estimators, the criterion for determining split quality, the maximum depth allowed for trees, the maximal number of features considered for tree construction, and the minimum number of samples essential for a split.

3.4. Extra Trees (ET)

Extra Trees, an abbreviation of Extremely Randomized Trees, serves as an ensemble learning algorithm applicable for both regression and classification tasks [83]. Originating from the Random Forest algorithm, Extra Trees distinguishes itself through its unique tree construction methodology. This method selects a random subset of features for each split within a tree, and the split threshold is also chosen randomly. This introduces a higher level of randomness than traditional Random Forests, where the optimal feature from a subset is selected for each split.

Despite these differences, Extra Trees share several characteristics with random forests. Both algorithms employ bagging, training numerous trees on various random subsets of the data. Furthermore, they utilize averaging and voting mechanisms for regression and classification outputs. A significant advantage of Extra Trees is their reduced variance and enhanced resilience against overfitting compared to singular decision trees. However, a notable drawback is the complexity of interpreting the model due to the less straightforward nature of feature importance.

In terms of hyperparameters, Extra Trees and Random Forests are similar. Key parameters affecting model performance include the number of trees (estimators), the criterion for split quality, the maximum depth of trees, the maximum number of features considered, and the minimum number of samples required for a node split. Fine-tuning these hyperparameters is essential to optimize the performance of both algorithms. The tree-building process and control parameters of Extra Trees and Random Forests resemble each other.

3.5. Multilayer Perceptron (MLP) Neural Networks

Multilayer Perceptron is likely the most well-known type of artificial neural network that consists of multiple layers of nodes so that each one is connected to the next layer of nodes. This intelligent tool is mainly applied to handle either classification or regression tasks. The node uses a series of mathematical operations according to Equations (10) and (11) to compute output (O) from input signals.

$$\eta =W·X+b$$

(10)

$$O = \varphi \left(\eta \right)$$

(11)

Here W, b, and ϕ are weight, bias, and activation function, respectively.

Multilayer Perceptron (MLP) Neural Networks typically consist of input, hidden, and output layers, although the number of layers can vary. The input layer receives the initial data, acting as the interface for the influential features, which are then connected to the nodes in the hidden layer through weighted connections. These hidden nodes execute mathematical operations on the input data and relay the processed information to the output layer. The output layer is responsible for generating the final output of the MLP Neural Network. The dimensions of the input and output layers are determined by the number of influential and target features, respectively. By contrast, the number of nodes in the hidden layer is variable and must be carefully selected to optimize performance. Key hyperparameters in an MLP Neural Network include the number of hidden nodes, the activation functions in the hidden and output layers, and the choice of training algorithm.

4. Results and Discussion

A step-by-step description of machine learning model development, selection, and reliability evaluation is given in this section.

4.1. Training and Testing Series

Machine learning (ML) models are typically developed through a two-step process—k-fold cross-validation followed by testing. The initial step combines training and validation, where the ML models’ parameters are adjusted, and hyperparameters are determined using an internal dataset (containing known values for both independent and dependent variables). Parameter adjustment involves minimizing the discrepancy between predicted and actual values of the target variable using an optimization technique. Hyperparameters are often determined through a trial-and-error process or via a search method. Once trained, the model can predict target values from unseen datasets. During the testing stage, the model is given the numerical values of independent variables from these new datasets to evaluate its generalizability.

This study used 283 out of the 345 datasets for five-fold cross-validation, while the remaining 62 unseen datasets were allocated to the testing group.

4.2. Statistical Accuracy Monitoring

Measuring the deviation between actual and predicted values of a target variable is necessary to adjust the ML model’s parameters, determine proper hyperparameters, and assess generalizability. In this study, we measure the deviation between actual and predicted values of the alumina agglomeration size by regression coefficient (R), relative absolute error (RAE%), absolute average relative deviation (AARD%), and root mean squares error (RMSE). R, RAE%, AARD%, and RMSE can be obtained from Equations (12)–(15), respectively [84].

$$\begin{gathered} R=\sqrt{1- \left[{\displaystyle \sum _{s=1}^N{\left(D_a^{act} - D_a^{pred}\right)}_s^2/{\displaystyle \sum _{s=1}^N{\left(D_a^{act}- D_a^{ave}\right)}_s^2}}\right]},\mathrm{where} \\ {D}_a^{ave} = \left(1/N\right) \times {\displaystyle \sum _{s=1}^N{D}_a^{act}} \end{gathered}$$

(12)

$$RAE\%=100 \times \left({\displaystyle {\sum }_{s=1}^N{\left|D_a^{act}-D_a^{pred}\right|}_s/{\displaystyle {\sum }_{s=1}^N\left|D_a^{act}-D_a^{ave}\right|}}\right)$$

(13)

$$AARD\%= \left(100/N\right) \times {\displaystyle \sum _{s=1}^N{\left|D_a^{act} - D_a^{pred}\right|}_s/D_a^{act}}$$

(14)

$$RMSE= \sqrt{\left(1/N\right) \times {\displaystyle \sum _{s=1}^N{\left(D_a^{act} - D_a^{pred}\right)}_s^2}}$$

(15)

In these equations, actual and predicted values of the alumina agglomeration size are shown by $D_a^{act}$ and $D_a^{pred}$, respectively.

4.3. Models’ Design

This study utilizes grid search to determine the proper hyperparameters of ML models. Hence, providing the grid search with each ML tool’s feasible ranges of hyperparameters is necessary.

Table 2. The key topological features (hyperparameters) of the ML methodologies, their investigated ranges/types, and the best candidate for each hyperparameter.

ML Methodology	Hyperparameter	Investigated Domain	The Best One
Random Forest	No. of estimators	10–100 (with an increment size of 10)	20
	Split quality condition	squared error, absolute error, Friedman MSE, Poisson	Friedman MSE
	Max. depth of trees	2–9 (with an increment size of 1)	8
	Max. features	sqrt, log2, 1, 2	sqrt
	Min. samples split	2–4 (with an increment size of 1)	2
AdaBoost	No. of estimators	10–100 (with an increment size of 10)	30
	Learning rate	0.1–0.7 (with an increment size of 0.2)	0.5
Extra Trees	No. of estimators	10–100 (with an increment size of 10)	20
	Split quality condition	linear, absolute error, exponential, square	Absolute error
	Max. depth of trees	2–8 (with an increment size of 1)	8
	Max. features	sqrt, log2, 1, 2	log2
	Min. samples split	2–4 (with an increment size of 1)	3
CatBoost	No. of estimators	10–100 (with an increment size of 10)	20
	Model size regularization	0–30 (with an increment size of 5)	0
	Max. depth of trees	2–9 (with an increment size of 1)	8
	L2 regularization	0–30 (with an increment size of 5)	0
	Learning rate	0.1–0.7 (with an increment size of 0.2)	0.5
MLP	No. of hidden neurons	1–10 (with an increment size of 1)	9
	Activation function of hidden layer	Linear, radial basis function, tangent, and logarithm sigmoid	Tangent sigmoid
	Activation function of output layer		Logarithm sigmoid
	Training algorithm	Gradient descent, Scaled conjugate gradient, Bayesian regularization, Levenberg–Marquardt	Scaled conjugate gradient

introduces the hyperparameters of the ML models involved in this current study, along with the ranges investigated by the grid search. The grid search technique applies all possible combinations of hyperparameters of each ML model to perform the cross-validation stage and testing phase. Finally, it is possible to select the best hyperparameters based on the ML performances (low AARD%, RAE%, and RMSE and large R) in the cross-validation and testing stages.

The last column of this table presents the most suitable hyperparameters identified by this search technique.

4.4. The Best Model Selection

The previous analysis determined the best combination of hyperparameters for each ML model. Measuring and reporting the deviation between actual and predicted values of the alumina agglomeration size is necessary. The observed deviations between actual agglomeration sizes and AdaBoost, CatBoost, ET, RF, and MLP predictions were computed in the cross-validation and testing stages and are reported in

Table 3. Comparing the performance of involved ML methodology by four statistical uncertainty indices.

ML Methodology	Category	AARD%	RAE%	RMSE	R
AdaBoost	Cross-validation	39.10	50.17	857.65	0.7486
	Testing	38.57	50.88	765.47	0.9659
	Whole database	39.02	50.28	844.40	0.7785
CatBoost	Cross-validation	6.38	14.11	271.96	0.9745
	Testing	8.86	6.23	45.31	0.9991
	Whole database	6.75	12.83	251.25	0.9762
Extra Trees	Cross-validation	25.14	50.77	892.29	0.8660
	Testing	25.94	49.30	813.78	0.9241
	Whole database	25.26	50.53	880.90	0.8727
RF	Cross-validation	13.02	34.38	724.06	0.8710
	Testing	18.39	28.09	399.54	0.9960
	Whole database	13.83	33.36	685.06	0.8744
MLP	Cross-validation	9.75	33.93	646.23	0.8558
	Testing	9.88	19.92	300.35	0.9967
	Whole database	9.77	31.65	606.84	0.8717

. This table also introduces the observed uncertainty for predicting the whole database, i.e., cross-validation + testing.

It can be easily concluded that the AdaBoost, ET, and RF models are not accurate enough even to predict the cross-validation datasets. Contrarily, the MLP Neural Network and CatBoost provide reliable predictions for the alumina agglomeration size in laboratory-scale conditions. The acceptable performance of these two ML models was approved by the observed deviations between their results and actual data in terms of AARD%, RAE%, RMSE, and R.

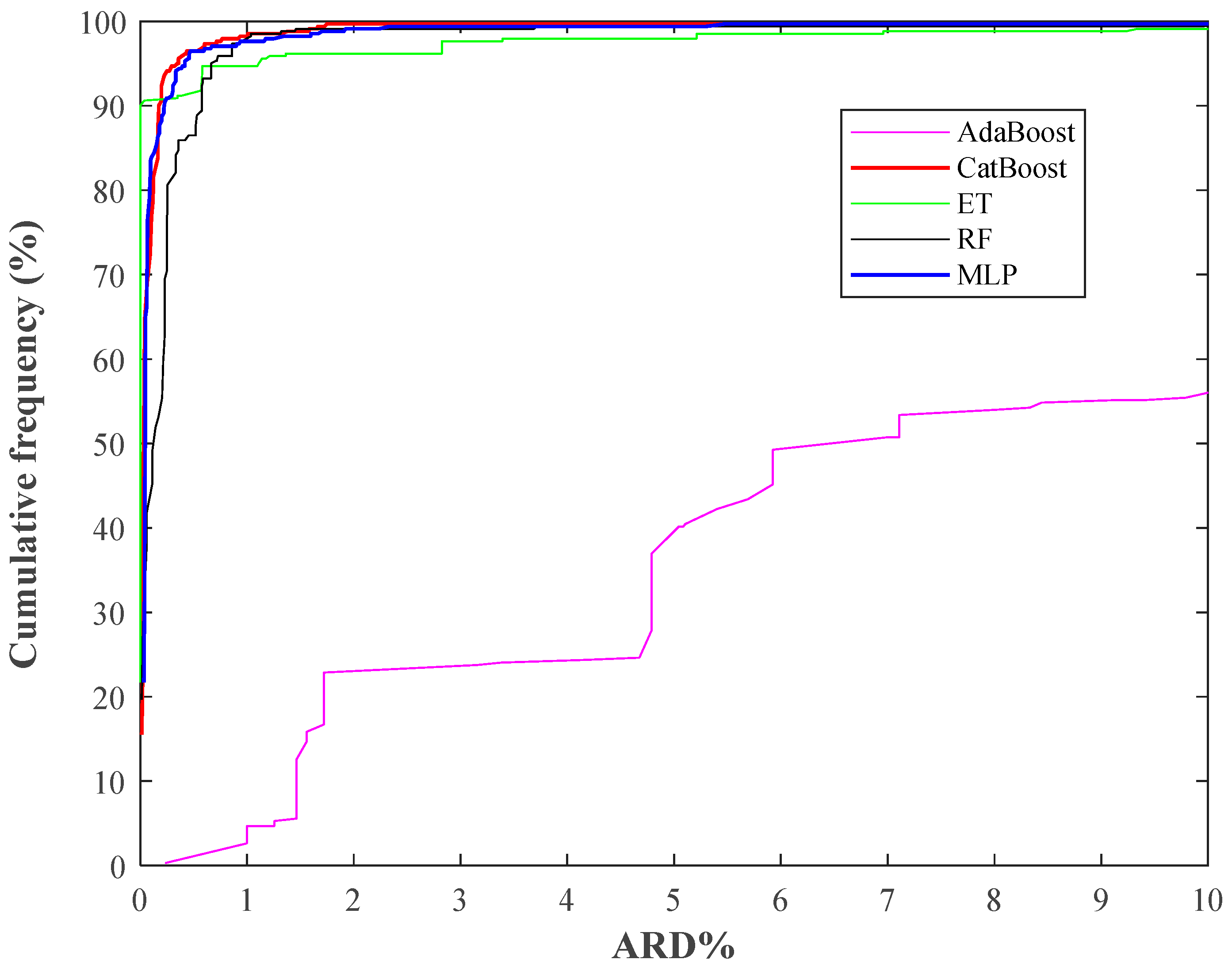

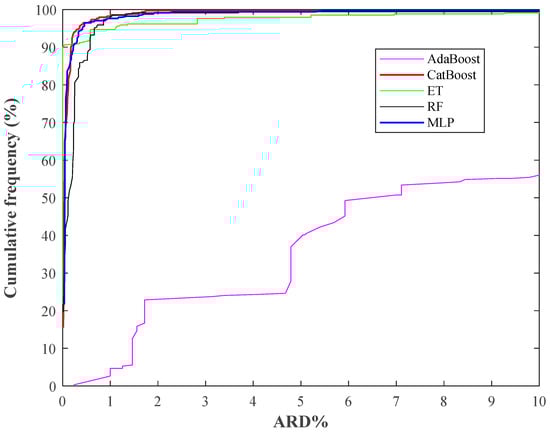

Figure 4 compares the cumulative frequency versus absolute relative deviation (ARD%, Equation (16)) for the designed ML models.

$$ARD\%= 100 \times {\left|D_a^{act} - D_a^{pred}\right|}_s/D_a^{act}$$

(16)

This figure explains how the percent of the experimental data has been estimated with a specific ARD%. Indeed, it helps visually determine which model offers the most accurate predictions for the alumina agglomeration size. This visual analysis proves that CatBoost best estimates the alumina agglomeration size in aquatic media. This model estimates a small fraction of the experimental database with an ARD higher than 2%. The MLP Neural Network is the second-best ML model for simulating the considered problem. On the other hand, AdaBoost is the worst model for simulating the considered task (it predicts ~56% of the actual agglomeration sizes with ARD < 10%, and the remaining 44% of the datasets are estimated with ARD > 10%).

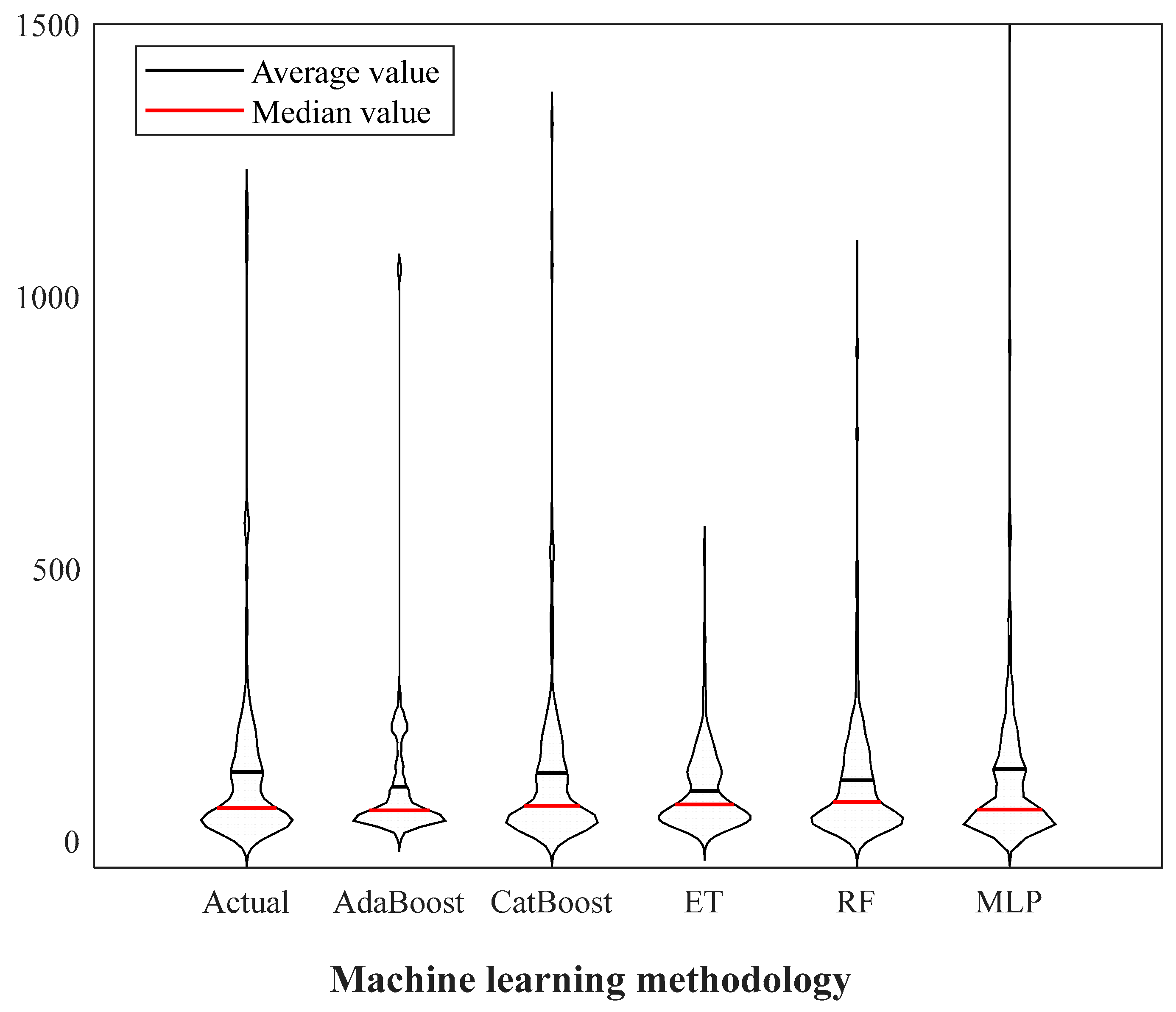

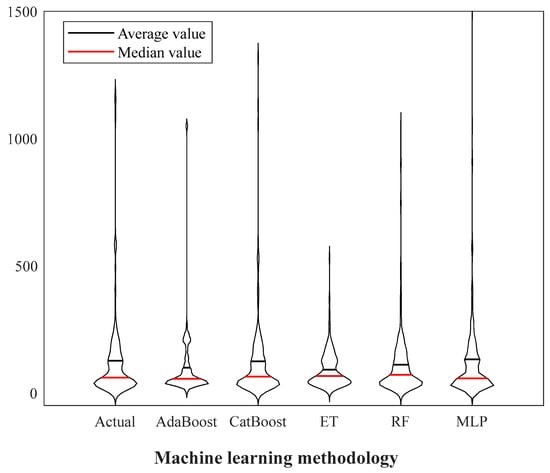

The violin plot, which displays the distribution of a data series along with their key statistical characteristics (such as the average and median), is another visual technique to compare the performance of ML models toward predicting alumina agglomeration size in water-based nanofluids. Figure 5 introduces the violin plots of the actual alumina agglomeration size and predictions by the five designed ML models. Considering shape, spread, outliers, and consistency, this investigation demonstrates that the CatBoost model aligns closely with the actual data. On the other hand, the AdaBoost and actual violin plots have the highest difference in their shapes.

4.5. Inspection of the Performance of the Best Model

This part of the study employs various visual inspection methods—such as cross-plots, histograms of residual errors, Bland–Altman plots, and Kernel Density Estimation (KDE) against magnitude profiles—to evaluate the congruence between actual alumina agglomeration sizes and their predictions made by the CatBoost model.

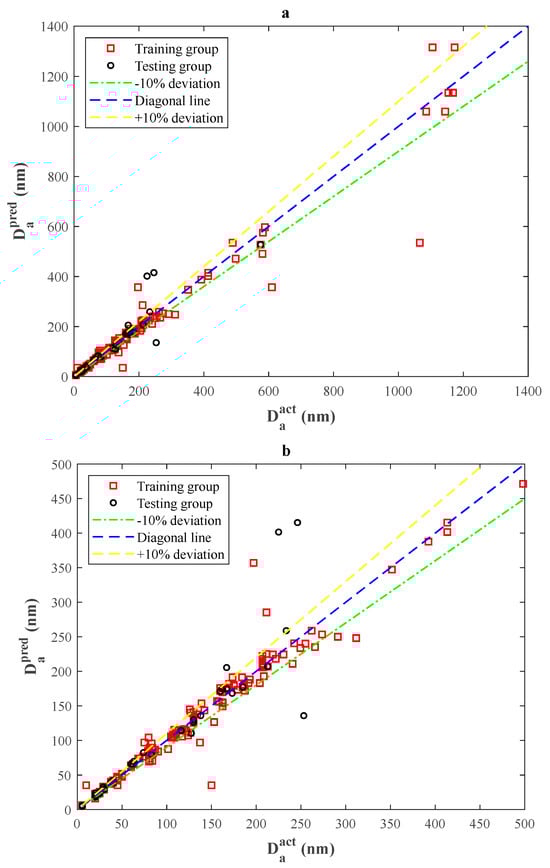

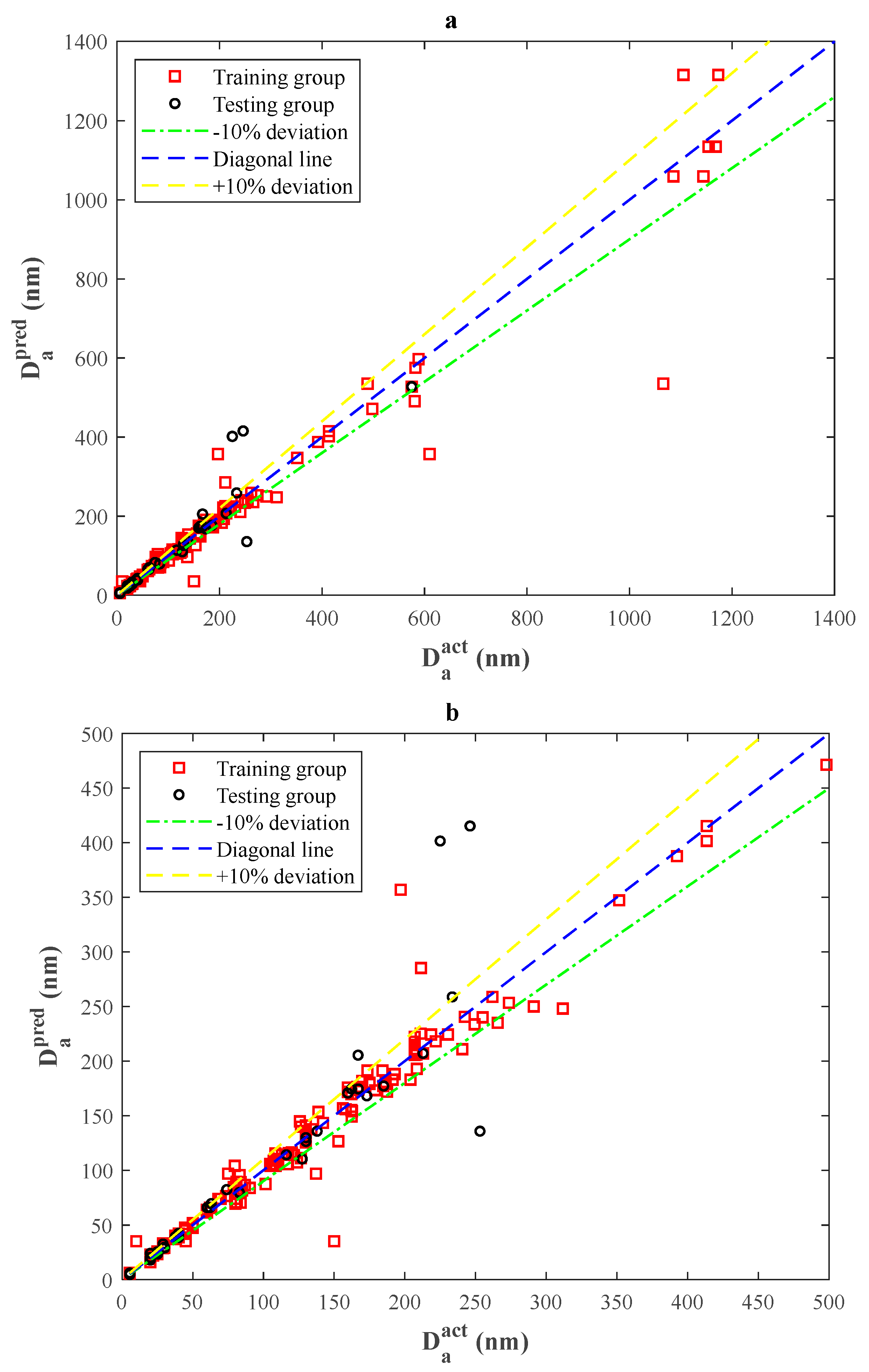

Figure 6 presents a scatter plot of the predicted alumina agglomeration sizes versus their laboratory-measured counterparts. The close alignment of both cross-validation and testing data points with the diagonal line in this figure highlights the CatBoost model’s exceptional ability to accurately predict Al₂O₃ agglomeration sizes in real-world scenarios. Notably, the regression coefficients for the cross-validation and testing phases are 0.9745 and 0.9991, respectively. Additionally, the overall regression coefficient for the entire database is 0.9762, further demonstrating the model’s robust predictive capability. The CatBoost model also achieves excellent average absolute relative deviations (AARDs%) of 6.38 and 8.86 for the cross-validation and testing groups, respectively.

The difference between actual and predicted values of the alumina agglomeration size (Δ) can be obtained from Equation (17).

$${\Delta }_s = {\left(D_a^{act} - D_a^{pred}\right)}_s s=1,2, \dots , N$$

(17)

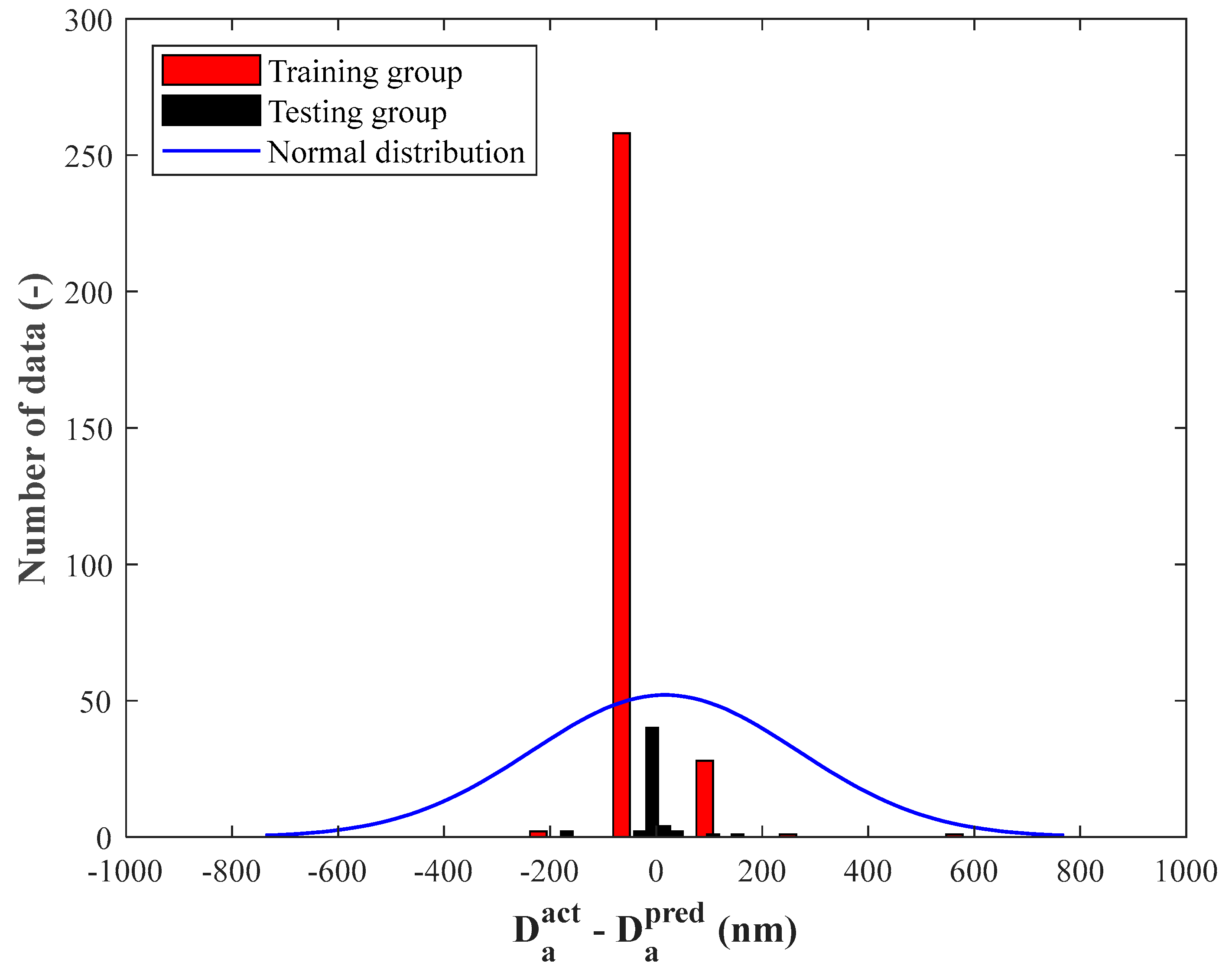

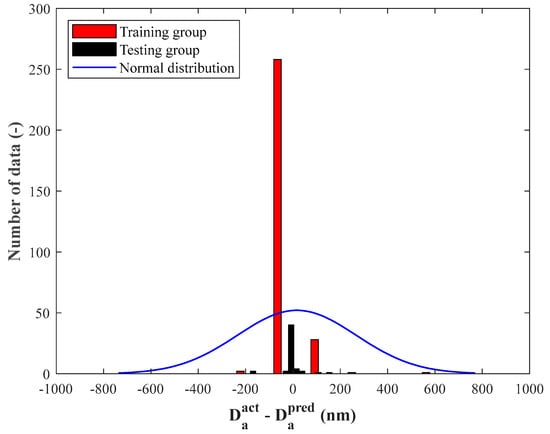

The histogram of the observed residual errors in the cross-validation and testing stages is shown in Figure 7. It can be seen that the CatBoost model is accurate enough to estimate the maximum number of cross-validation (~250 data) and testing (~45 data) samples with the lowest residual error, i.e., almost equal to zero. This investigation also shows that the error histogram has a normal distribution shape.

The results of analyzing the CatBoost model performance to simulate Al₂O₃ agglomeration size in water by the Bland–Altman technique is presented in Figure 8. This technique plots residual errors versus their average values (${\Delta }^{ave}$, Equation (18)).

$${\Delta }^{ave} = {\displaystyle \sum _{s=1}^N{\Delta }_s/N}$$

(18)

The Bland–Altman method determines the bounds of the feasible region by the upper and lower limits of agreement (LoA, Equation (19)). These upper and lower LoAs can be obtained from Equation (19).

$$LoA = {\Delta }^{ave} \pm 1.96 SD$$

(19)

Equation (20) can be used to calculate the standard deviation (SD).

$$SD = \sqrt{{\displaystyle {\sum }_{s=1}^N{\left({\Delta }_s - {\Delta }^{ave}\right)}^2/\left(N-1\right)}}$$

(20)

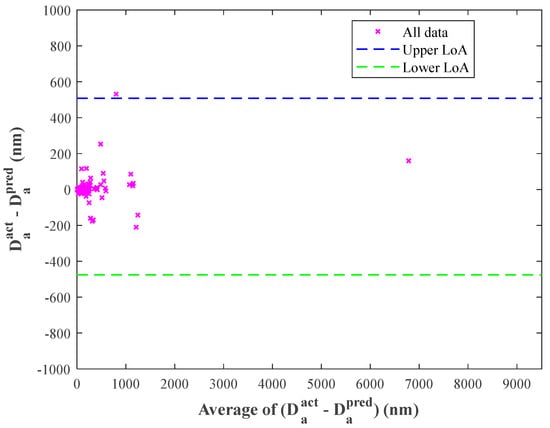

The following figure shows that only one of the predictions of the CatBoost model is out of the feasible region. This analysis can be viewed as a validation of the CatBoost model.

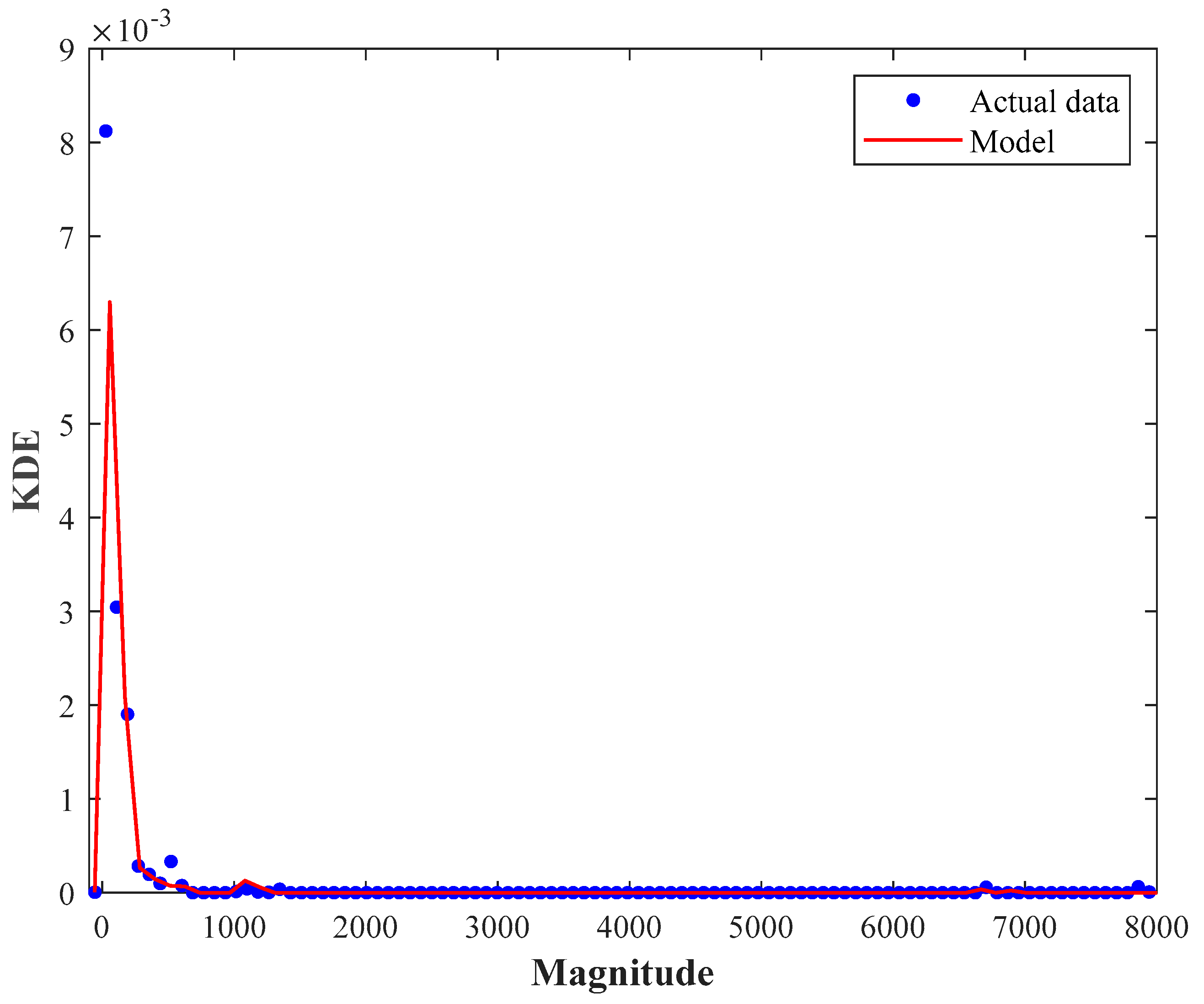

Figure 9 exhibits/compares the actual and predicted KDE magnitude profiles of the alumina agglomeration size in aqueous suspensions. This analysis clarifies that only two predicted results have an observable deviation from their associated actual records.

4.6. Validity Domain Inspection

As the last analysis, this section applies the leverage technique to determine the outlier, out-of-leverage, and valid samples among the collected records from the literature for the alumina agglomeration size. As Figure 10 shows, this technique plots standardized residual (STR, Equation (21)) as a function of the Hat index (HI, Equation (22)).

$$ST{R}_s = {\Delta }_s/SD s=1, 2, \dots , N$$

(21)

$$HI = diag\left(X {\left(X^T X\right)}^{-1} X^T\right)$$

(22)

It must be noted that the HI values are the diagonal element of the above matrix. In addition, X, −1, and T indicate the matrix of input features of ML models, matrix inverse operator, and transpose, respectively.

The feasible region of the leverage method is determined by the STR = ±3 and HI < leverage limit (Equation (23)).

$$Leverage limit = 3\times \left(p +1\right)/N$$

(23)

Here, p designates the number of input features of ML models (i.e., 8).

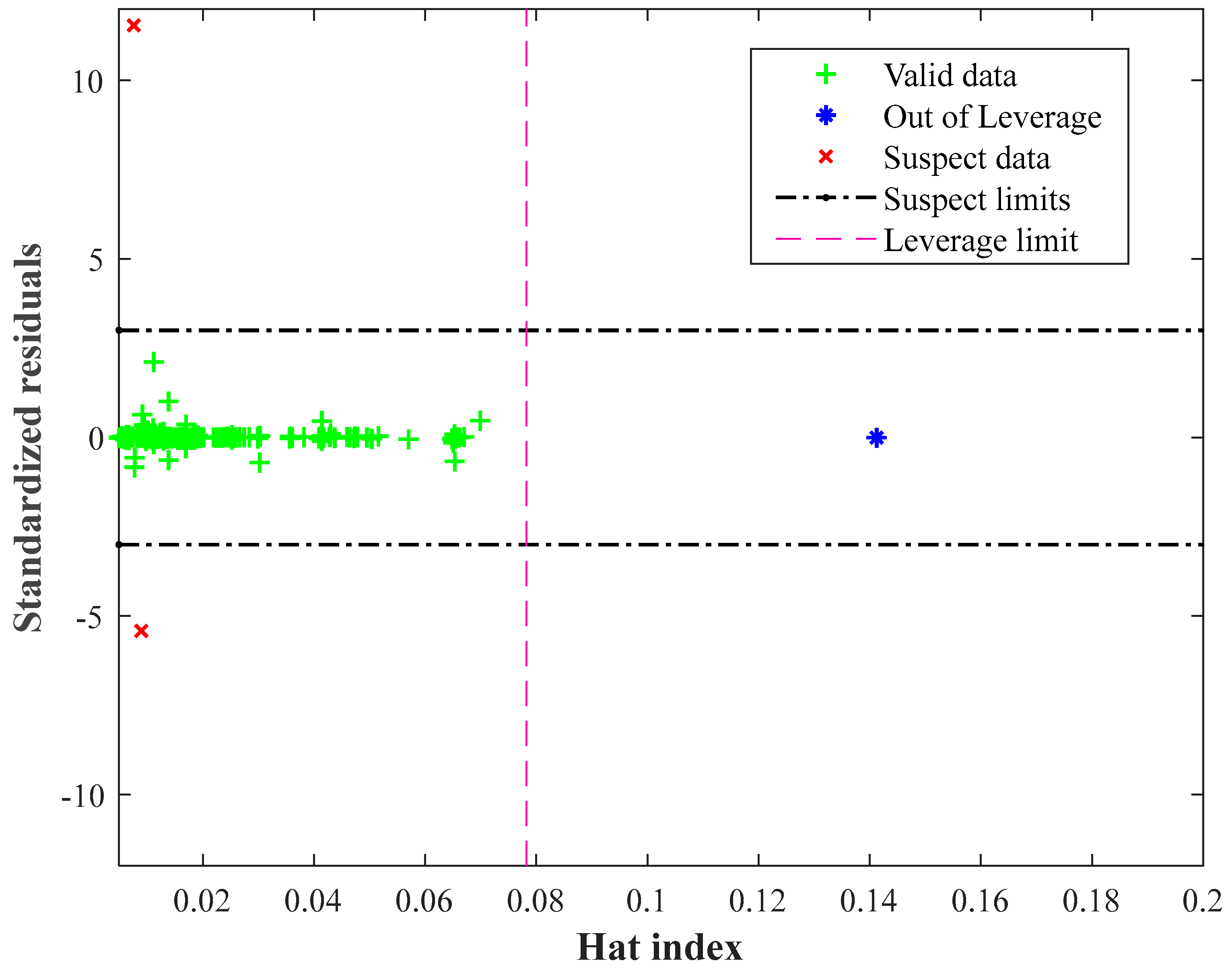

The following figure shows only two outliers and one out-of-leverage record among the 345 alumina agglomeration sizes collected from the literature.

4.7. Relevancy Test

This section employs the Pearson method to sort the independent variables based on the importance of their role in the agglomeration size. The Pearson method shows the strength and direction of a relationship between two series of variables using a factor ranging from −1 to +1 [85]. The sign of the Pearson factor clarifies the relationship type, i.e., direct and inverse relationships. Also, the Pearson factor magnitude shows the relationship’s strength.

Table 4. The relevancy between agglomeration size and independent variables.

Variable	Pearson Coefficient	Meaning	Relevancy (%)
Alumina dose (vol%)	0.0427	Direct relation	15.0
Surfactant concentration (wt%)	−0.0276	Inverse relation	9.7
pH (-)	0.0183	Direct relation	6.4
Ultrasonic time (min)	−0.0079	Inverse relation	2.8
Ultrasonic power (W)	0.0719	Direct relation	25.3
Ultrasonic frequency (kHz)	−0.1088	Inverse relation	38.3
Temperature (K)	0.0071	Direct relation	2.5

reports the Pearson factors between the agglomeration size and each independent variable. This table also introduces the relationship type and relevancy degree for all pairs of target–feature combinations. It can be seen that ultrasonic frequency, ultrasonic power, alumina dose in water, and surfactant concentration have the most crucial role in the agglomeration size. On the other hand, temperature, ultrasonic time, and pH have the slightest impact on the agglomeration size.

If a high level of scattering exists in the databank, the Pearson method may wrongly anticipate the direction and strength of a relationship between dependent and independent variables [86]. For example, pH is one of the most important parameters determining agglomeration levels, and Zeta potential measurement devices are designed based on this property. However, due to the high level of data scattering, the Pearson method failed to anticipate agglomeration size dependency on the pH precisely.

4.8. Trend Analysis

The concentration of nanoparticles in water-based nanofluids and the duration of ultrasonic treatment can influence the size of agglomerates in aquatic media. Figure 11 demonstrates the effect of ultrasonic time (200 W and 24 kHz) across three alumina concentration levels on agglomeration size, incorporating both experimental and modeling insights. The figure clearly shows an outstanding agreement between laboratory-measured results and their corresponding predictions using the CatBoost model. The observed average absolute relative deviations (AARDs%) for 1 to 3 vol% alumina concentrations are 9.18%, 9.83%, and 12.18%, respectively.

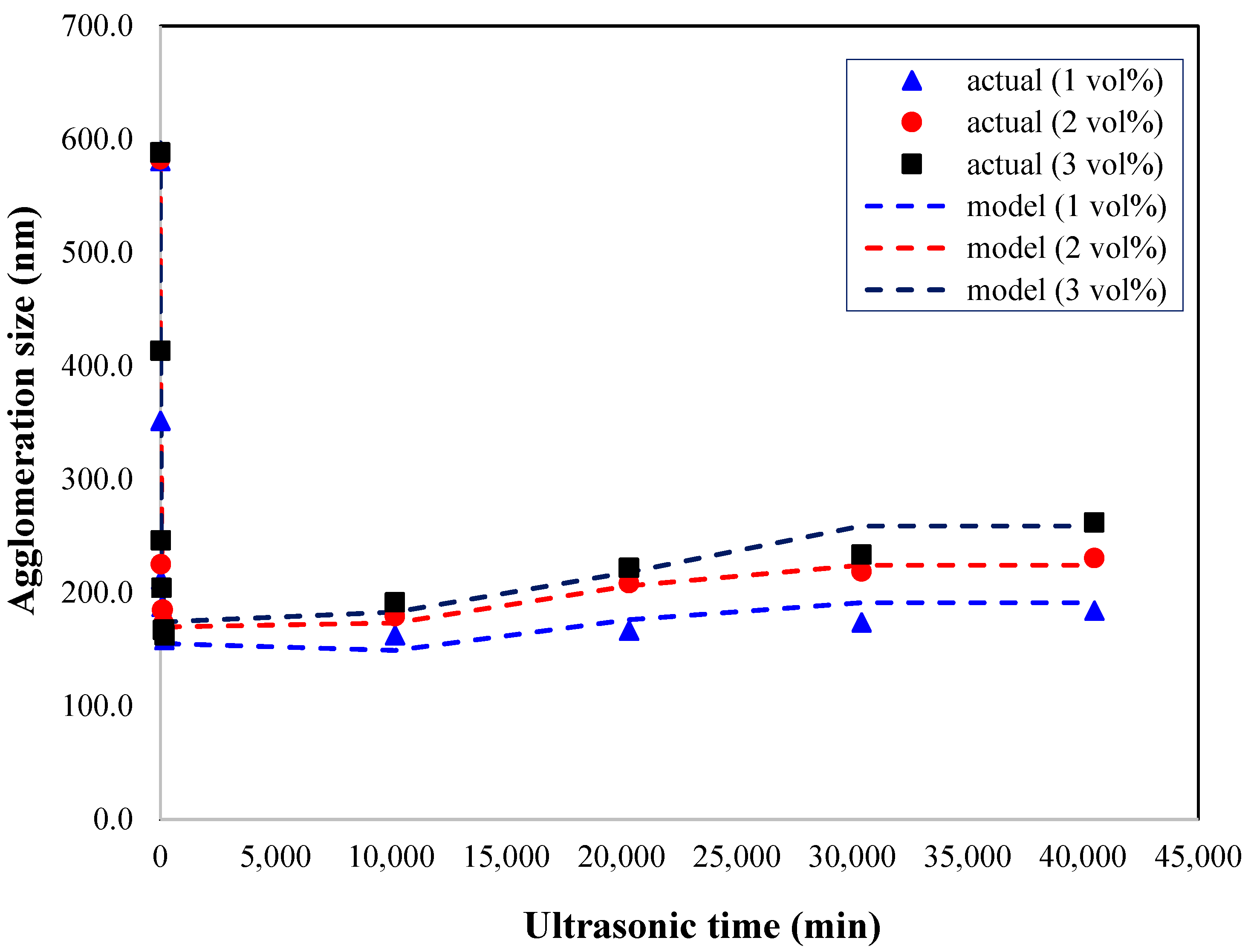

Additionally, the figure reveals that agglomeration size increases with alumina concentration in water. This trend may be attributed to the increased likelihood of nanoparticle collisions and subsequent adhesion. Initially, ultrasonic mixing disrupts the agglomerates, significantly reducing their size. However, as sonication time extends, a slight increase in agglomeration size is observed due to continued collisions and particle adhesion.

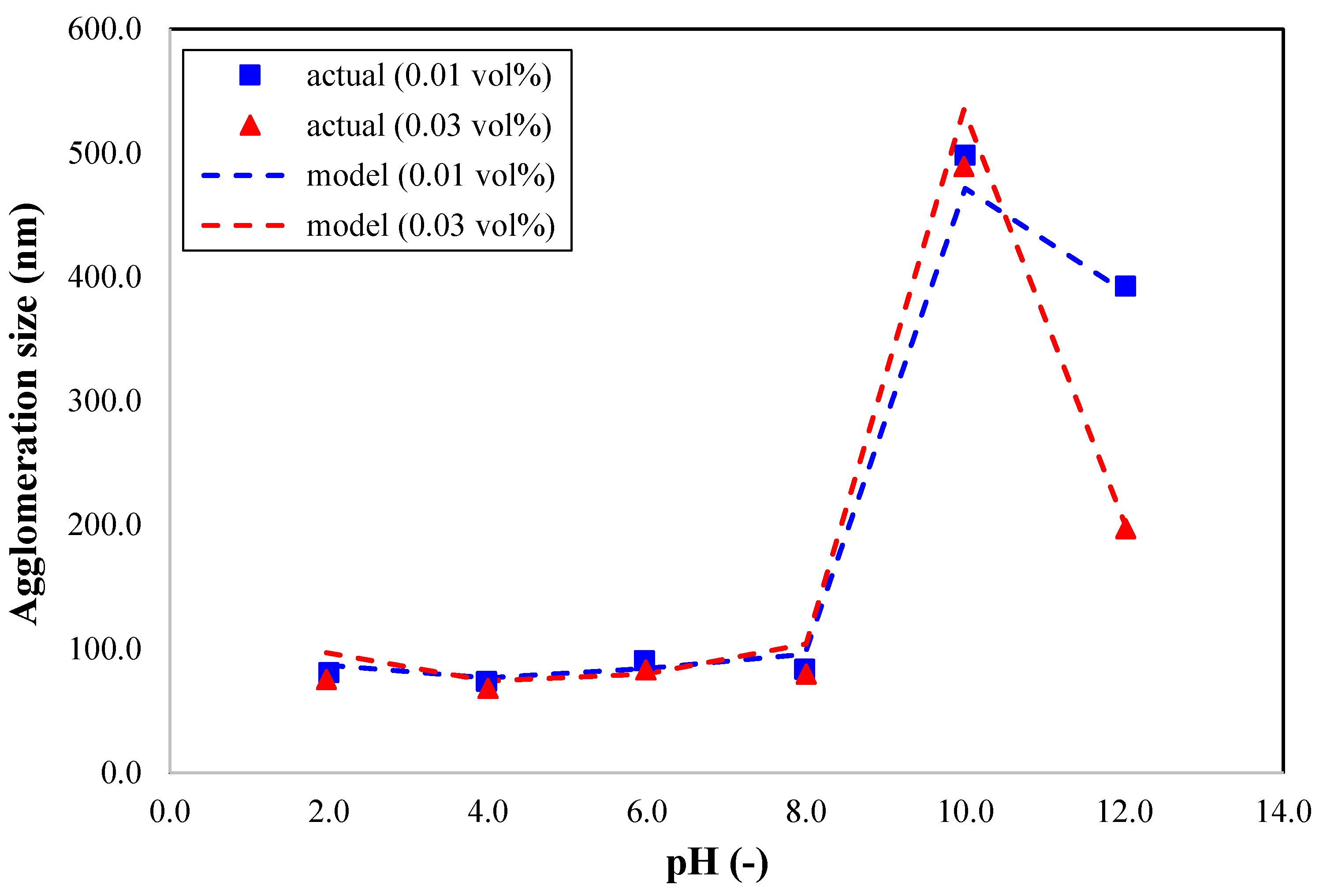

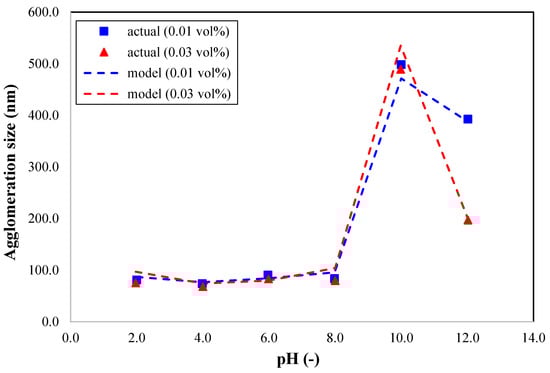

Figure 12 investigates the effect of pH on the agglomeration size at two alumina concentrations in aqueous suspension using experimental and modeling results. The agreement between actual and modeling profiles can be approved by the observed AARDs% of 6.67 (0.01 vol%) and 11.8 (0.03 vol%). The nanofluid’s pH can affect the alumina nanoparticles’ surface charge, influencing their size distribution. This analysis shows that the maximum agglomeration size of ~500 nm occurs at pH = 10. This means that the alumina nanoparticles have the maximum tendency to adhere to each other in this condition.

5. Conclusions

This study utilized five machine learning models to accurately estimate the agglomeration size of alumina in aquatic media. The models—Random Forest, AdaBoost, Extra Trees, CatBoost, and a Multilayer Perceptron Neural Networks—relied on parameters such as alumina dose, temperature, pH, surfactant type and concentration, and ultrasonication properties (power and frequency). According to the Pearson method, ultrasonic frequency, ultrasonic power, alumina dose, and surfactant concentration were identified as the most influential factors on agglomeration size in water-based nanofluids. Conversely, temperature, ultrasonic time, and pH had minimal impact.

The CatBoost model outperformed its counterparts in predicting alumina agglomeration sizes through a combination of statistical analysis and grid search techniques. This efficacy is highlighted by its performance metrics: an average absolute relative deviation (AARD) of 6.75%, a relative absolute error (RAE%) of 12.83%, and a correlation coefficient (R-value) of 0.9762. Various graphical analyses confirmed the excellent alignment between the actual agglomeration sizes and predictions made by the CatBoost model. The leverage method was also applied to validate the experimental data, confirming the reliability of 342 out of 345 datasets, representing over 99% validity. This method also identified two suspect samples and one outlier, pinpointing a total of three problematic data points in the database.

Future research in this field may explore the interactions between alumina nanoparticles and water molecules to understand further the factors controlling agglomeration size and the stability of nanofluids.
