Lepton Flavour Universality in Rare B Decays

Abstract

Tests of lepton flavour universality in rare decays of b hadrons mediated by flavour-changing neutral-current transitions constitute sensitive probes for physics beyond the standard model. In recent years, such tests have become increasingly precise and have attracted significant theoretical and experimental attention. In this article, we review the status of searches for lepton flavour universality violations in these processes and discuss prospects for future measurements at various facilities.

1. Introduction

In the standard model (SM), the couplings of the gauge bosons to the leptons are independent of the lepton flavour. As a consequence, the properties of leptonic and semileptonic decays, differing only in the flavour of the leptons produced, are expected to be identical—up to the effects related to the lepton mass. This so-called lepton flavour universality (LFU) can, however, be violated in many new physics (NP) scenarios, making searches for violations of universality particularly effective as probes for physics beyond the SM.

Lepton flavour universality has been thoroughly tested in the past. It has been verified directly in the comparison of decay widths of the W and Z bosons to different families of leptons and it has been established in the study of multiple decays of leptons and hadrons [1]. A compilation of some of these tests is shown in Figure 1. The variety of the tests performed to date reflect the complementarity between different measurements in the search for physics beyond the SM, as different kinds of NP models could modify the leptonic couplings in specific decays while respecting other LFU constraints [2,3,4]. The exploration of LFU in all of these sectors is, therefore, crucial to maximise the potential of an NP discovery.

The decays of b hadrons involving the flavour-changing neutral–current $b\to s\left(d\right){\ell }^{+}{\ell }^{-}$ transition, where ℓ represents any lepton, can also be used as a particularly powerful test of lepton flavour universality. These processes are suppressed in the SM where they can only proceed through electroweak loop diagrams. Beyond the SM, these rare decays are sensitive to virtual contributions from new heavy particles and can probe mass scales far beyond what is accessible to direct production at current colliders. One of the lowest-level diagrams for the $b\to s\left(d\right){\ell }^{+}{\ell }^{-}$ decay in the SM is shown in Figure 2, together with an example of a tree-level process that could result in a measurable effect.

In recent years, measurements of branching ratios [5,6,7,8] and angular observables [9,10,11,12,13,14,15,16,17,18,19] in several of these $b\to s{\ell }^{+}{\ell }^{-}$ decays have shown tensions with SM predictions. A model-independent interpretation of all of these measurements in the context of an effective theory points to a modification of the $b\to s$ coupling with a significance of around 4$\sigma$ [20,21,22,23]. However, theoretical predictions for exclusive $b\to s{\ell }^{+}{\ell }^{-}$ decays are complicated by the non-perturbative nature of QCD and the uncertainties on the predictions needed for such interpretations are subject to considerable debate [24,25,26,27]. In contrast, lepton-universality tests in these decays can be precisely predicted in the SM, as the hadronic effects are expected to be identical in decays involving different flavours of leptons. Consequently, any sign of lepton flavour non-universality here would be a direct sign for physics beyond the SM.

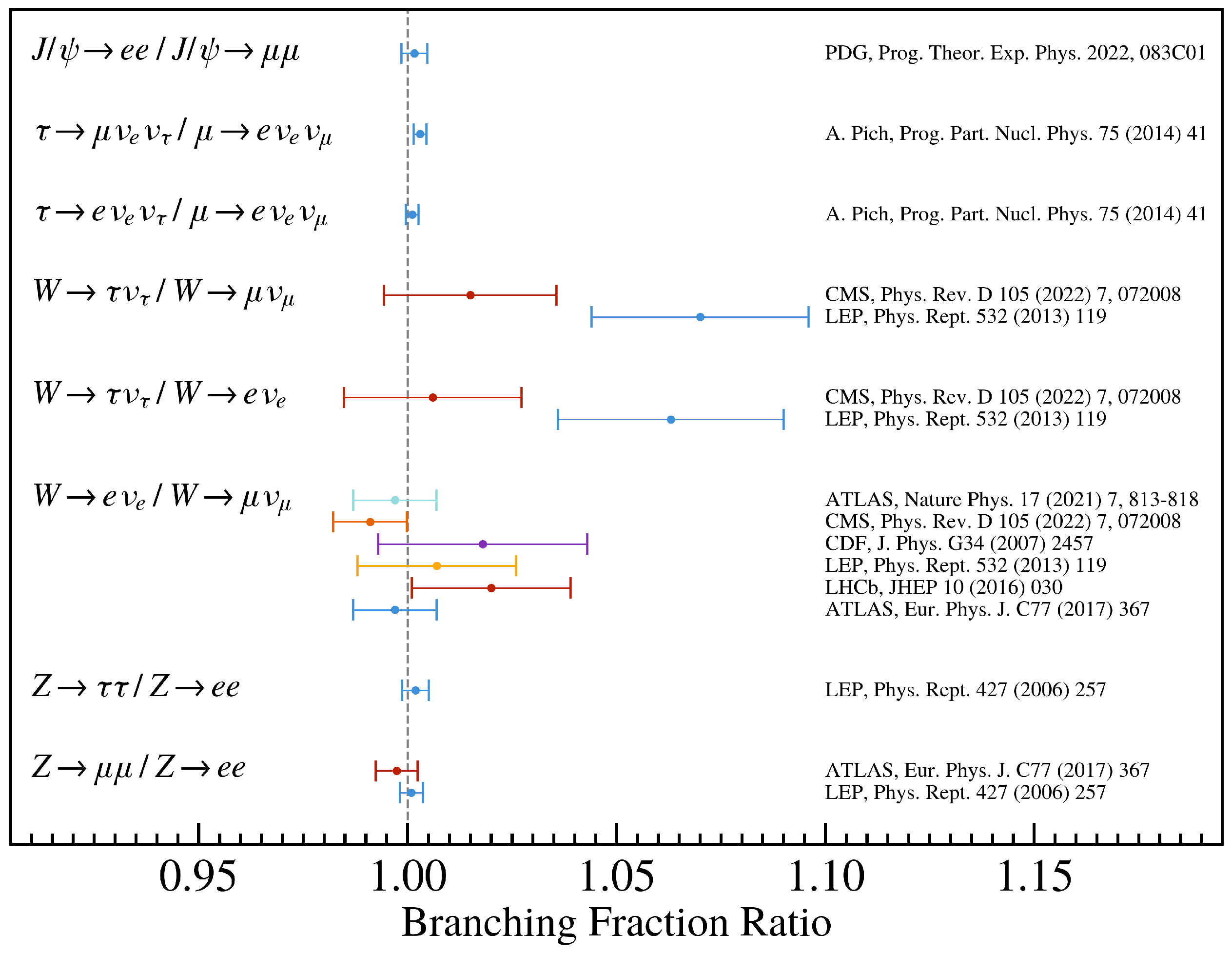

Figure 1. Summary of LFU measurements in different decays [1,28,29,30,31,32,33,34,35].

Figure 1. Summary of LFU measurements in different decays [1,28,29,30,31,32,33,34,35].

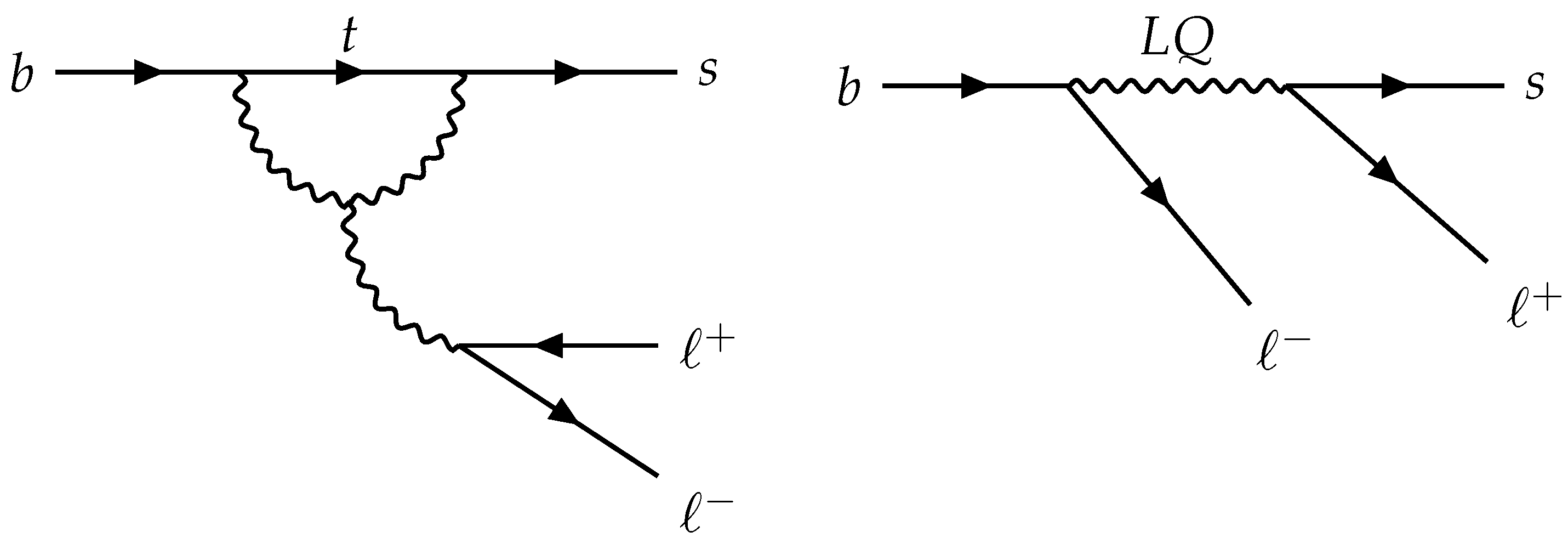

Figure 2. Contributions to the $b\to s\ell \ell$ decay: (left) the lowest order SM loop process and (right) a hypothetical tree-level NP contribution from a leptoquark ($LQ$).

Figure 2. Contributions to the $b\to s\ell \ell$ decay: (left) the lowest order SM loop process and (right) a hypothetical tree-level NP contribution from a leptoquark ($LQ$).

A summary of the most recent searches for LFU violation in rare b-hadron decays is presented in this article, focusing on comparisons between electrons and muons. Additional tests of LFU are also performed in the more abundant decays of b hadrons mediated by the charged-current $b\to c{\ell }^{-}{\overline{\nu }}_{\ell }$ transition. Persistent tension between the couplings of $\tau$ and $\mu$ leptons has been observed in $B\to D^{(*)}{\ell }^{+}{\nu }_{\ell }$ decays [36,37,38,39,40,41,42,43,44,45] (The inclusion of charge-conjugate processes is implied throughout this document). Different models trying to explain these observations would predict significant effects in the rare decays of b-mesons, particularly in processes mediated by the $b\to s{\tau }^{+}{\tau }^{-}$ transition [46,47,48]. Because of the challenging experimental reconstruction of $\tau$ leptons, no such transitions have been observed to date. A short discussion on the status of $b\to s{\tau }^{+}{\tau }^{-}$ searches and prospects in current and future experiments is also included.

2. Experimental Challenge

Branching ratios of $b\to s{\ell }^{+}{\ell }^{-}$ decays have been measured to be of $\mathcal{O}\left({10}^{-6}\right)$ or smaller. Therefore, to achieve the required precision for LFU tests in such processes, large data samples of b hadrons are required. The small rates for these rare decays also call for efficient discrimination against different kinds of background processes. Currently, these processes are mainly studied by two active experiments: the Belle II experiment [49] operating at the SuperKEKB B-factory and the LHCb experiment [50] at the LHC. The different production mechanisms of b hadrons in these two environments drastically influence the design of the detectors, as shown in Figure 3. Other general-purpose detectors, such as ATLAS [51] and CMS [52], also study the properties of b hadrons but they are usually limited by the bandwidth dedicated to this part of the physics program.

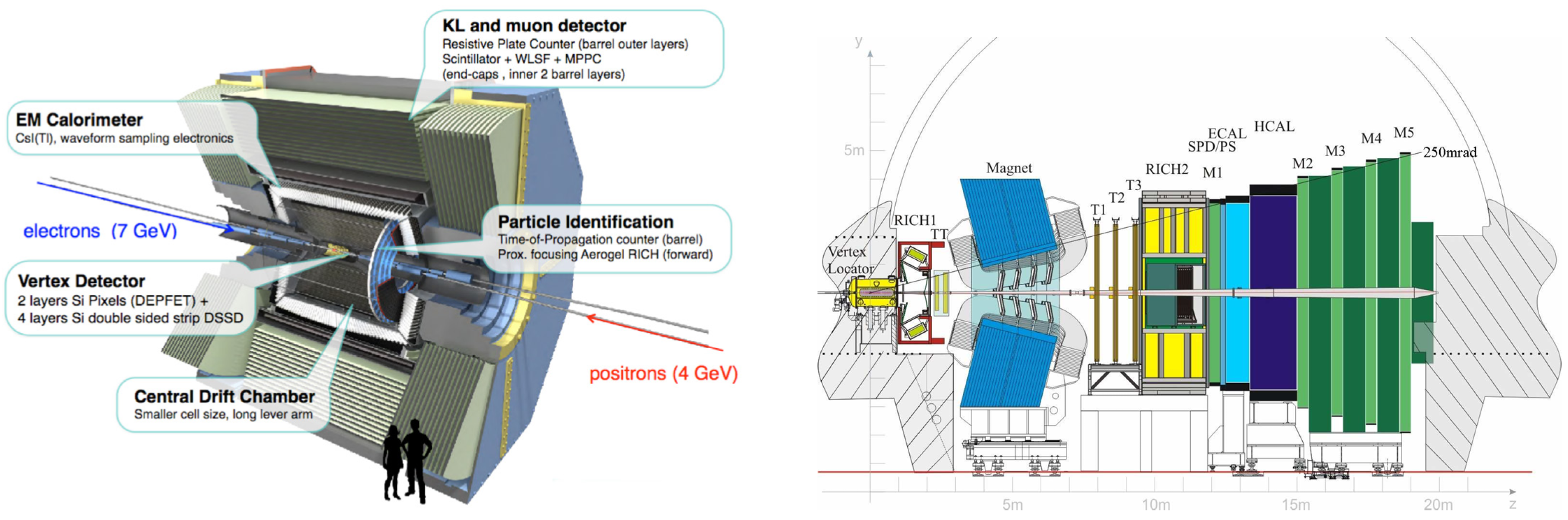

At the B-factories, electrons and positrons collide at a centre-of-mass energy corresponding to the $\mathsf{{\rm Y}}\left(4S\right)$ resonance, which promptly decays into a pair of quantum correlated b-mesons ($B^{+}{B}^{-}$ or $B^0\overline{B^0}$). This mechanism provides very clean samples with a low amount of incoherent background. In addition, the full reconstruction of one of the B-mesons produced in the $\mathsf{{\rm Y}}\left(4S\right)\to B\overline{B}$ decay ($B_{\mathrm{tag}}$), can be used to infer information regarding the other B-meson ($B_{\mathrm{sig}}$) on which the search for the desired signal can be performed. This approach is particularly useful for decays with missing energy. As the $\mathsf{{\rm Y}}\left(4S\right)$ resonance is produced with a small total momentum, detectors such as Belle II are slightly asymmetric and cover most of the solid angle around the interaction point.

In the proton–proton collisions at the LHC, b hadrons are produced predominantly in the forward and backward directions with respect to the beam axis, and their kinematic variables are largely uncorrelated. Consequently, the LHCb experiment was designed as a single-arm forward spectrometer covering the rapidity region $2\le \eta \le 5$. The higher cross-section for b-quark production at the LHC compared to that at the B-factories [53,54], translates into larger b-hadron samples available at the LHC. However, the busier environment of the hadron machine means that these measurements contain a much larger amount of background originating from the primary proton-proton interaction vertex. The main strategy to reduce this background is provided by the long lifetime of the b-quark, which, combined with the large boost with which b hadrons are produced, results in a significant displacement between the decay vertices of b hadrons and the primary vertex, At the B-factories, mainly $B^0$ and $B^{+}$ mesons are studied – small samples of $B_s^0$ mesons are accumulated when running at the $\mathsf{{\rm Y}}\left(5S\right)$ resonance, whose mass sits above the $B_s^0\overline{B_s^0}$ threshold. The hadronization of b-quarks at LHCb gives access to significant samples of other b-hadron species, such as $B_s^0$ or $B_c^{+}$ mesons or ${\Lambda }_b$ baryons.

In addition to an incoherent background, a diverse and often abundant array of misreconstructed b-hadron decays that mimic the signal needs to be suppressed with effective selection methods. These selections often rely on the experiments’ efficient particle identification capabilities and typically exploit multivariate techniques to combine kinematic and topological features into more powerful variables.

For the study of lepton universality, the ability to identify decays into electrons and muons and to describe the detector response for both final states is required. The latter is a more important challenge for the LHCb experiment, where electron and muon responses differ significantly more than at the B-factories. The trigger is the first important difference between the two experiments. At Belle II, the signature of the $\mathsf{{\rm Y}}\left(4S\right)$ decay means that the trigger efficiency is close to 100% for events containing b-decays into either muons or electrons [54]. At LHCb, the trigger efficiency varies significantly for the two types of leptons. Muon candidates are triggered by hits left in the muon stations at the far end of the detector, whereas electrons are triggered through their energy deposits in the electromagnetic calorimeter, which suffers from higher occupancy. On average, this results in trigger efficiencies for decays into muons that are around three times larger than those for electrons [55].

The signal extraction in LFU measurements usually relies on some variation of the reconstructed invariant mass of the B candidate, which is used as the final discriminating variable. The resolution in the reconstructed mass is, therefore, another factor central to the precision of LFU measurements, and represents the second important difference between the two experiments. Electron channels are generally reconstructed with worse mass resolution due to the effect of bremsstrahlung radiation, which is more important for electrons than for heavier muons. This effect is emphasised at LHCb due to the larger boost of the b hadron (and, hence, of the decay products) compared to the B-factories. A bremsstrahlung recovery procedure is employed to correct the electron momentum measurement by reconstructing radiated photons around the electron candidate. As shown in Figure 4, the final difference in mass resolution between electrons and muons is small at Belle II. At LHCb, however, the difference between electrons and muons is still significant after the correction, which considerably complicates the LFU analyses.

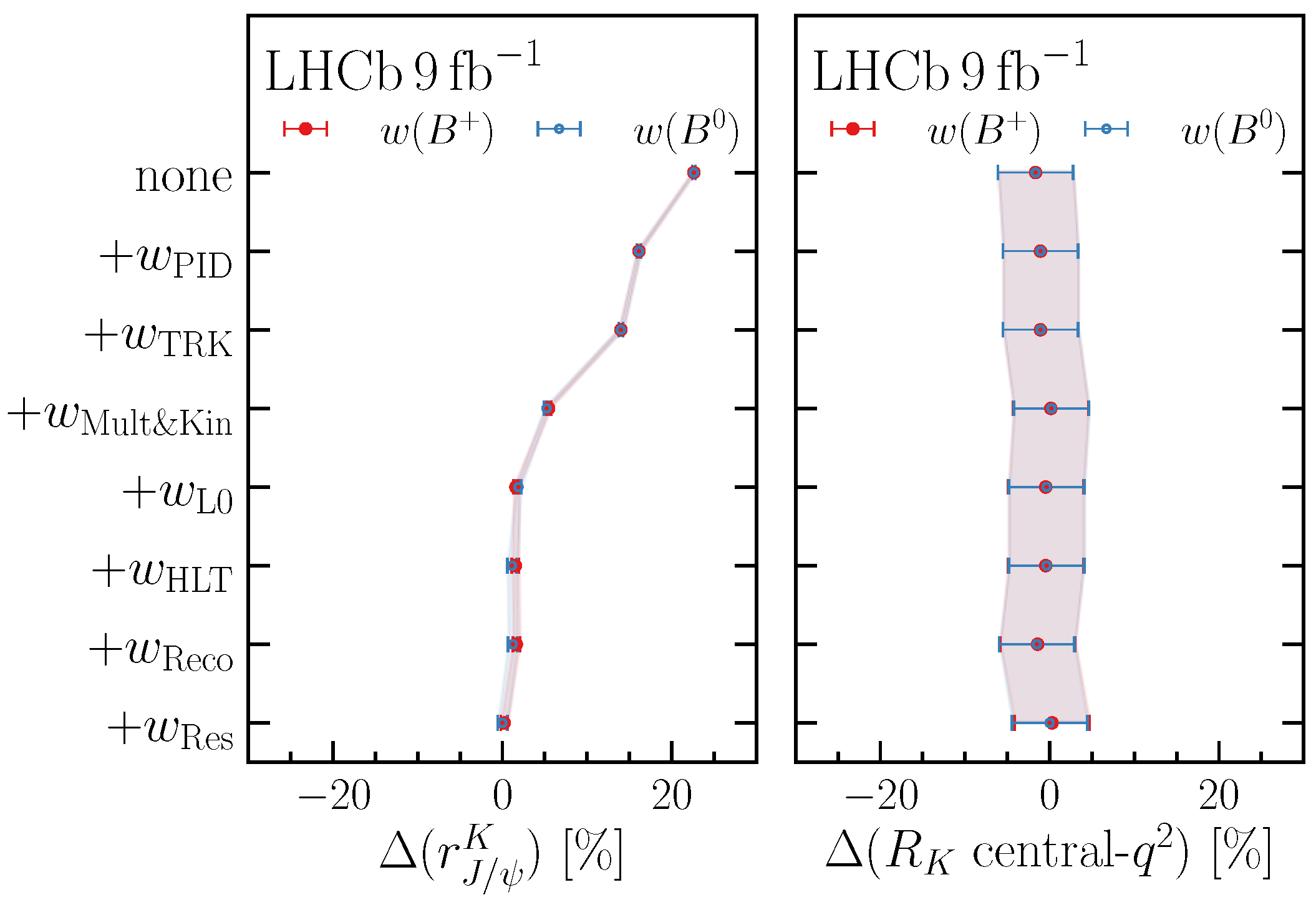

Controlling systematic effects, such as uncertainties in the determination of signal efficiencies, presents another challenge. This tends to be more critical in measurements at LHCb, but both experiments use other b-meson decays as control channels to validate the detector response. The accessibility to suitable and high-statistics control modes contributes to the fact that all LFU measurements reported so far are statistically limited.

Table 1. Samples used for LFU measurements in rare b-hadron decay until 2024. The B-factory samples were collected at the $\mathsf{{\rm Y}}\left(4S\right)$ resonance. The LHCb sample is divided into two according to the different centre-of-mass energies of the proton–proton collisions in Run I (7–8$\mathrm{Te}\mathrm{V}$) and Run II (13$\mathrm{Te}\mathrm{V}$) of the LHC.

Experiment	Integrated Luminosity	$\mathit{b}\overline{\mathit{b}}$-Production Cross-Section
BaBar	433${\mathrm{fb}}^{-1}$	1.1 nb
Belle	711${\mathrm{fb}}^{-1}$	1.1 nb
Belle II	190${\mathrm{fb}}^{-1}$	1.1 nb
LHCb Run I	3${\mathrm{fb}}^{-1}$	72 μb
LHCb Run II	6${\mathrm{fb}}^{-1}$	154 μb

summarises the data samples from the different experiments on which these measurements are based.

3. Semileptonic Decays

The most precise LU tests in rare decays involve the measurement of the ratio of branching ratios of semileptonic $X_b\to h{\ell }^{+}{\ell }^{-}$ decays, where $X_b$ is a b hadron ($B^{+}$, $B^0$, $B_s^0$, or ${\Lambda }_b^0$), h represents one or more hadrons, and ℓ is either a muon or an electron. These $R_h$ ratios are defined as follows:

$$R_h=\frac{{\int }_{{q^2}_{\min }}^{{q^2}_{\max }}\mathcal{B}(X_b\to h{\mu }^{+}{\mu }^{-})}{{\int }_{{q^2}_{\min }}^{{q^2}_{\max }}\mathcal{B}(X_b\to h{e}^{+}{e}^{-})},$$

(1)

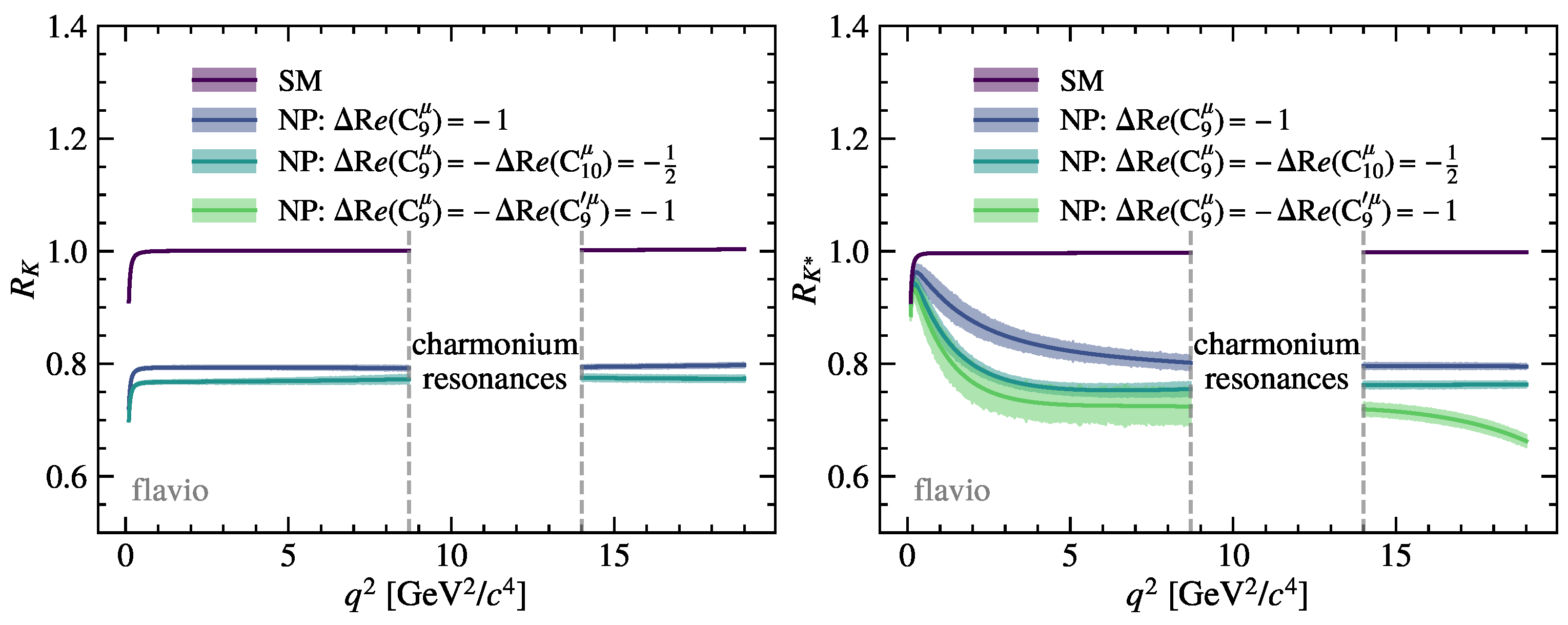

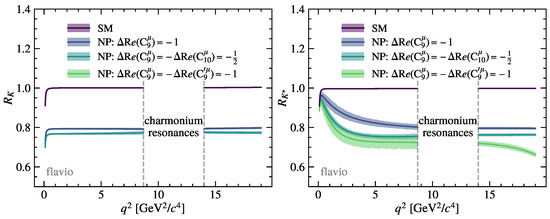

and are measured over a range of dilepton invariant mass-squared, $q^2\in [{q^2}_{\min },{q^2}_{\max }]$. In the SM, the value of $R_h$ is predicted to be close to unity, owing to the small mass of electrons and muons. Deviations from unity are expected in regions close to the kinematic limits of the decay, specifically at very low $q^2$ as the dilepton threshold is approached. Estimates of the SM values for the corresponding ratios in $B^{+}\to K^{+}{\ell }^{+}{\ell }^{-}$ and $B^0\to K^{*0}{\ell }^{+}{\ell }^{-}$, $R_K$ and $R_{K^{*}}$, are shown in Figure 5. Crucially, the challenges of computing QCD contributions that complicate SM estimates for branching fractions and angular observables do not impact the predictions of the $R_h$ ratios, which benefit from the cancellation of hadronic contributions. The dominant uncertainty is, therefore, driven by QED radiative corrections, which differentially affect the electron and muon modes. These effects are corrected for in the experimental determination using the PHOTOS package [58]. Recent QED calculations [59,60] have estimated the residual uncertainty to be on the order of $\mathcal{O}(1\%)$. Regions where $q^2$ approaches the mass of the $J/\psi$ and $\psi \left(2S\right)$ mesons are excluded from measurements and predictions because they are dominated by tree-level $b\to c\overline{c}s$ resonant processes, such as $B^{+,0}\to K^{+,0}J/\psi$, followed by the $J/\psi \to \ell \ell$ decay.

Experimentally, $R_h$ can be determined from the following equation:

$$R_h=\frac{N(X_b\to hee)}{N(X_b\to h\mu \mu )}\frac{ϵ(X_b\to h\mu \mu )}{ϵ(X_b\to hee)}$$

(2)

where N is the number of decays observed for the corresponding decay and $ϵ$ is the total efficiency with which that decay is reconstructed in the detector. The optimisation of the selection criteria to minimise uncertainty in the signal yields and precise estimation of the signal efficiencies are, therefore, the main drivers of precision.

Measurements at the B-factories suffer from larger statistical uncertainties due to the lower $b\overline{b}$-production cross-section at the $e^{+}{e}^{-}$ machines. On the other hand, measurements in both low and high $q^2$ have been reported; the latter have so far been measured exclusively in this environment. Current measurements explore $B\to K\ell \ell$ and $B\to K^{*}\ell \ell$ decays. These include both charged and neutral modes, as the detectors can reconstruct final states with $K_S$ or ${\pi }^0$ mesons with good resolution. The variables commonly used to discriminate the signal from the continuum $B\overline{B}$ background are the beam energy-constrained mass,

$$M_{bc}=\sqrt{E_{\mathrm{beam}}^2/c^4-{\left|p_B\right|}^2/c^2},$$

(3)

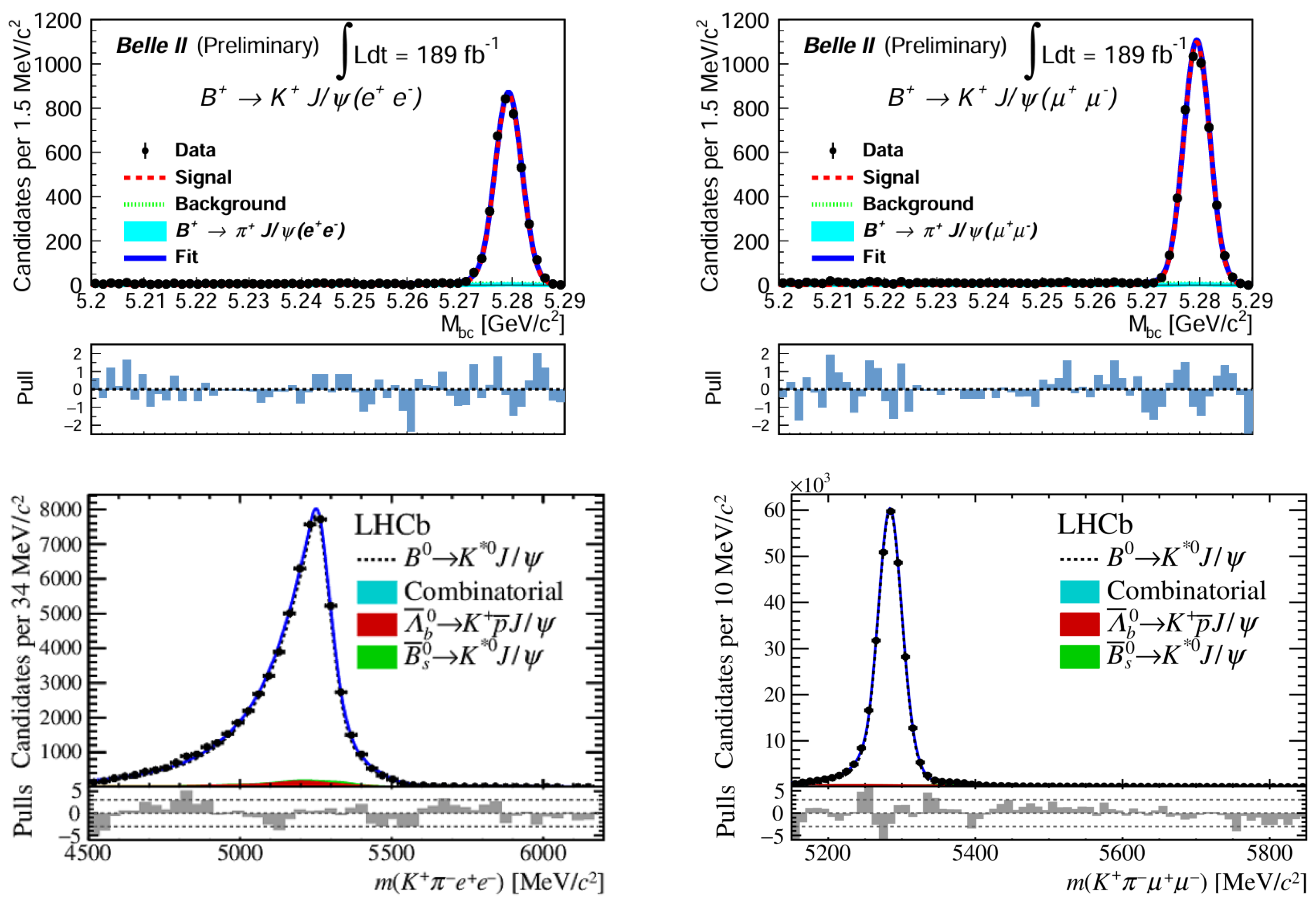

and the energy difference, $\Delta E=E_B-E_{\mathrm{beam}}$, where $p_B$ and $E_B$ are the momentum and energy of the B candidate in the $\mathsf{{\rm Y}}\left(4S\right)$ rest frame and $E_{\mathrm{beam}}$ is the beam energy in the centre-of-mass frame. For signal events, the $\Delta E$ distribution peaks at zero, whereas the $M_{bc}$ distribution peaks near the B mass. Other variables describing the shape of the event and the topology and kinematics of the signal candidates are also employed to further reduce the continuum background. The combination of requirements in these variables with particle identification information from the detector reduces also the contribution of background from other misreconstructed B decays to negligible levels. Efficiencies are generally extracted using simulation, and the values obtained are validated by calculating the ratio of branching fractions for the corresponding resonant mode [56].

At LHCb, the higher signal yields achieved due to the larger cross-section significantly improve the statistical uncertainty and, hence, the control of the systematic effects becomes the main challenge in the $R_h$ measurements. In particular, the different detector signatures of electrons and muons summarised in Section 2, could lead to sizeable uncertainties in the efficiencies. To reduce these systematic effects, $R_h$ is measured relative to the equivalent ratio for the resonant decay $X_b\to hJ/\psi$,

$$R_h=\frac{\mathcal{B}(X_b\to hee)}{\mathcal{B}(X_b\to h\mu \mu )}/\frac{\mathcal{B}(X_b\to hJ/\psi (\to \mu \mu ))}{\mathcal{B}(X_b\to hJ/\psi (\to ee))},$$

(4)

exploiting the fact that $J/\psi \to \ell \ell$ decays have been observed to respect lepton universality within 0.4% [1]. With this approach, $R_h$ can be determined as a double ratio from the observed yields and the relative efficiencies between electrons and muons in the two modes. Furthermore, particle kinematics and detector responses are broadly similar between the rare and resonant modes; hence, the systematic effect of any efficiency mismodelling is expected to largely cancel in the measurement of $R_h$. The robustness of this approach is illustrated in Figure 6, where the shifts induced by subsequent detector calibrations are compared between the measured ratio of branching ratios for $B^{+}\to K^{+}J/\psi (\to \ell \ell )$ decays, referred to as single ratio or $r_{J/\psi }^K$, and the measured double ratio, $R_K$ [55]. While systematic variations can induce shifts of $\mathcal{O}(20\%)$ in the single ratio, the double ratio remains insensitive. Additional resonant modes are used for calibration and cross-checking in different $q^2$ regions. The $X_b\to H\psi \left(2S\right)(\to \ell \ell )$ decays can be employed at high $q^2$ values, while the charm decays $D_{\left(s\right)}^{+}\to {\pi }^{+}\varphi (\to \ell \ell )$ have recently been used as a validation of the approach at low $q^2$ [61].

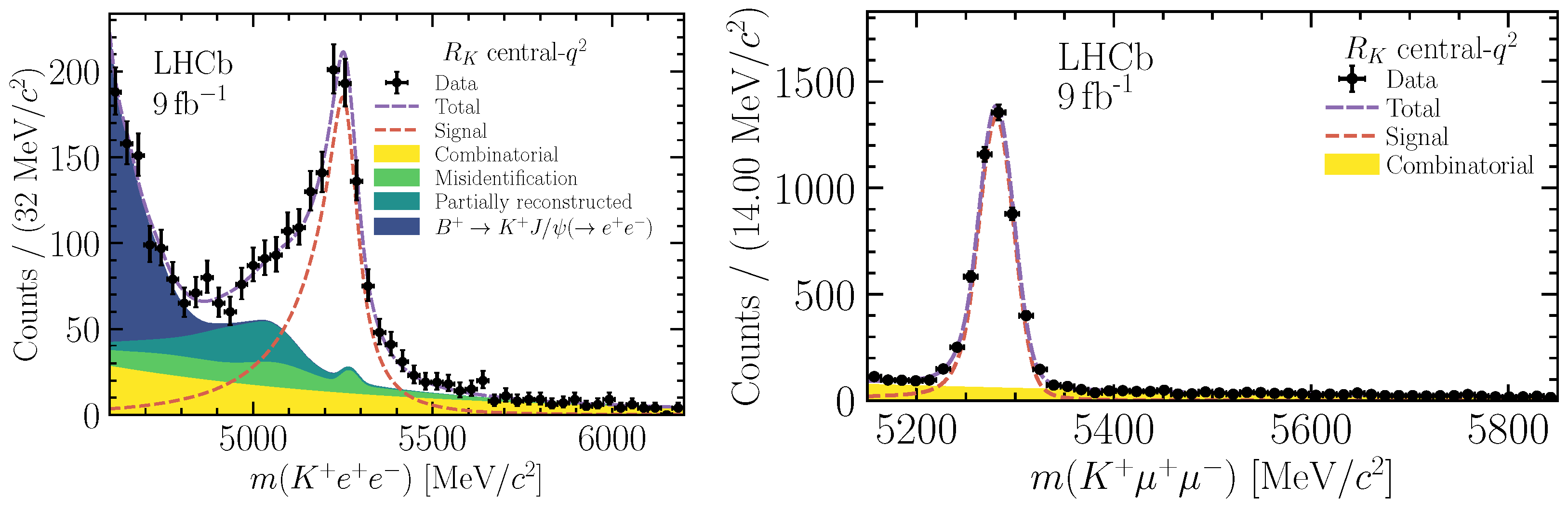

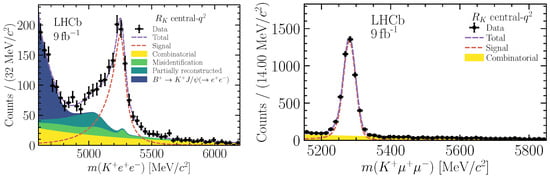

The invariant mass of the reconstructed $X_b$ candidates is used to extract the yield of the different processes. Here, the relevance of the bremsstrahlung losses for electrons in LHCb constitutes the second challenge of the analysis. Even with the bremsstrahlung recovery procedure introduced in Section 2, the invariant mass of the electron signals is still degraded, as illustrated in Figure 7. This degradation complicates the separation between the signal and background contributions, which may come from random combinations of reconstructed particles or misreconstructed B-decays. In particular, substantial leakage from the $J/\psi$ charmonium resonant mode is observed, even after the imposed $q^2$ veto. At high-$q^2$, leakage from the $\psi \left(2S\right)$ resonance makes measurements more challenging.

Background contributions from other b-hadron decays arising from particle misidentification could accumulate at the true $X_b$ mass and, hence, bias the determination of the signal yield. Misidentification of hadrons as electrons is especially dangerous when studying electron channels. Electron identification, provided mainly by the electromagnetic calorimeter in LHCb, can achieve efficiencies of 80 to 90%, and small misidentification rates at the sub-percent level [62]. However, contributions from fully hadronic B decays, where two of the hadrons are misidentified as electrons, can still be significant, since the branching fractions for these decays can be up to three orders of magnitude higher than that of the signal electron mode. In the most recent $R_K$ and $R_{K^{*}}$ measurement [55], the stability of the result with respect to the electron identification criteria was crucial for identifying an issue with the underestimation of these backgrounds, and the consequent overestimation of the electron mode yield, in previous analyses [63]. A data-driven method was used to constrain the contribution from particle misidentification backgrounds in the final signal fit, as seen in Figure 7.

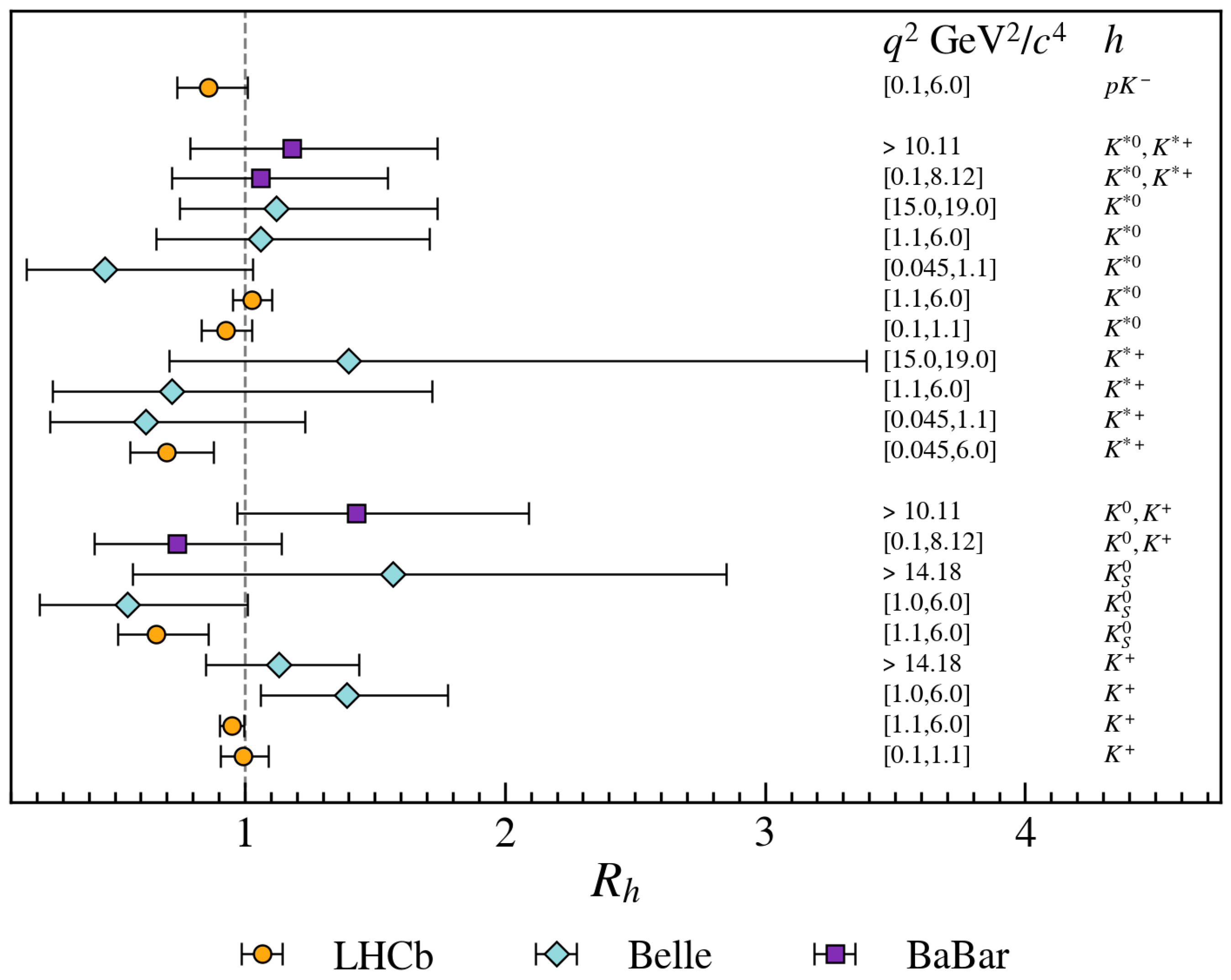

Measurements of $R_K$ and $R_{K^{*}}$ have been performed by LHCb [55,64,65] in the low-$q^2$ region and BaBar [66], Belle [67,68,69], and Belle II [70] in both low- and high-$q^2$ regions. In addition, LHCb has measured the corresponding ratios in ${\Lambda }_b^0\to p{K}^{-}{\ell }^{+}{\ell }^{-}$ [71]. All of these results, summarised in Figure 8, remain statistically limited. Recently, the $R_K$ ratio has also been measured by the CMS experiment [72] using a dedicated trigger strategy to collect samples enriched in b-hadron decays. Even though this measurement is still not competitive with those from other experiments, it showcases an interesting possibility for future b-physics studies at the LHC. A scan of the results in Figure 8 shows good agreement with lepton universality, with most measurements agreeing with the SM prediction within 1–2$\sigma$.

Angular Observables

Aside from the branching ratios, rare semileptonic decays offer a number of additional observables that can be determined from the study of the angular distribution of the decay products. See, for example, Ref. [73] for a complete account of the accessible observables in $B\to K^{+}{\pi }^{-}\ell \ell$. These observables have different sensitivities to NP contributions and can also be used to test models including lepton universality violation [74].

In particular, the decay $B^0\to K^{*0}{\mu }^{+}{\mu }^{-}$ has been extensively studied in recent years [10,11,12,13,14,15]. This decay can be fully described as a function of the invariant mass squared of the muon pair, $q^2$, and three decay angles ${\theta }_K$, ${\theta }_{\ell }$, and $\varphi$ (see [75] for a full description of these variables). On this basis, the differential decay rate can be expressed in terms of eight observables: $F_L$, the longitudinal polarisation fraction of the $K^{*0}$, $A_{FB}$, the forward–backward asymmetry of the dilepton system, and the $S_i$ observables with $i=3,4,5,7,8,9$ [12]. From these, an additional set of optimised observables, $P_i$, can be defined, in which the leading-order form factor uncertainties cancel [76].

In the most recent LHCb analysis of the $B^0\to K^{*0}{\mu }^{+}{\mu }^{-}$ decay [9], a full comparison of the angular observables with the corresponding SM predictions indicates that the data would favour a modified $b\to s$ vector coupling strength. Interestingly, this modification would also help alleviate other tensions observed in measurements of branching ratios and angular distributions in other $b\to s{\ell }^{+}{\ell }^{-}$ transitions [5,6,7,8,18,19]. To test whether this potential NP contribution is lepton-universal, a comparison of these measurements with the equivalent ones for $B^0\to K^{*0}{e}^{+}{e}^{-}$ is required.

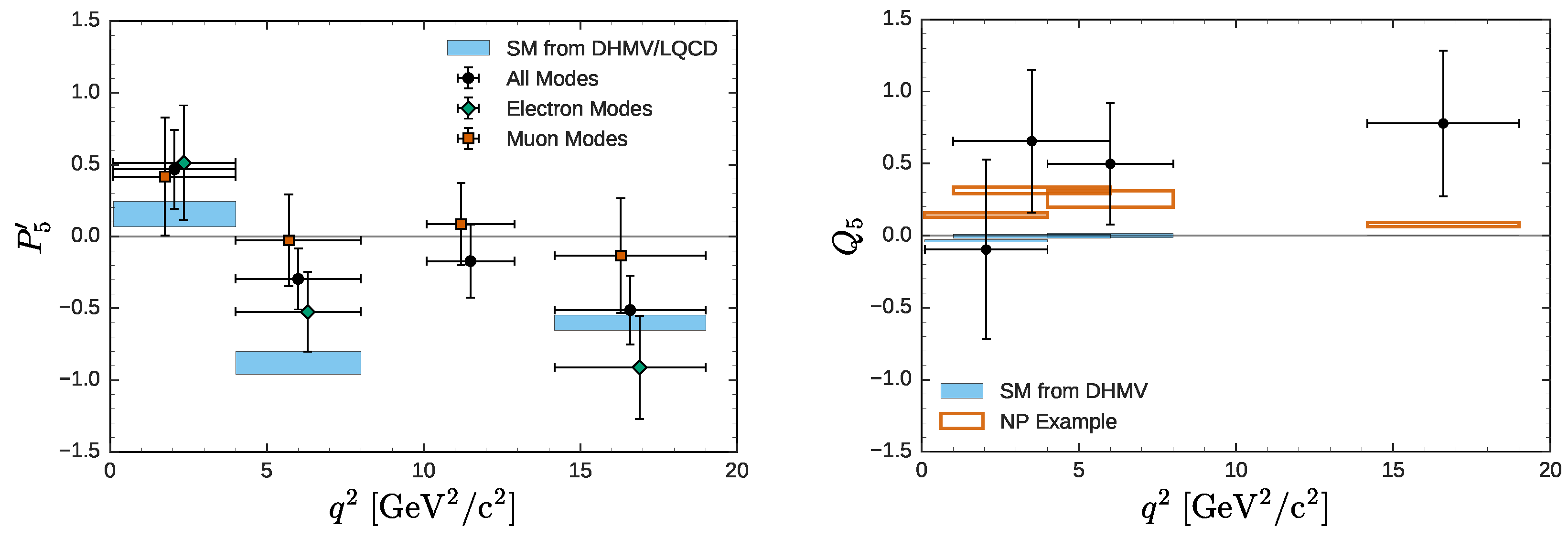

The Belle experiment studied the angular distribution of $B^{0,+}\to K^{*0,+}{\ell }^{+}{\ell }^{-}$ decays using the full $\mathsf{{\rm Y}}\left(4S\right)$ data sample, combining the $K^{*0}\to K^{+}{\pi }^{-}$, $K^{*+}\to K^{+}{\pi }^0$, and $K^{*+}\to K_S^0{\pi }^{+}$ final states [16]. Due to limited statistics in the sample, with $127\pm 15$ and $185\pm 17$ signal candidates obtained for the electron and muon channels, respectively, a folding technique was employed to extract a subset of the angular observables [77,78]. This transformation is applied to certain regions of the angular space, exploiting the symmetries of the system to simplify the expression for the differential decay rate. The analysis measured the optimised observables, $P_4^{\prime }$ and $P_5^{\prime }$, in four $q^2$ bins, for both the electron and muon modes, as well as the difference between lepton flavours, $Q_4$ and $Q_5$ [74]. Figure 9 shows the comparison between electrons and muons for the $P_5^{\prime }$ observable, and the measurement of $Q_5$, which, as expected, is predicted with more precision in the SM. The results were found to be compatible with the SM predictions within the statistical precision, with the largest tension observed in the muon $P_5^{\prime }$ observable at the 2.6$\sigma$ level. Further measurements of these and other $Q_i$ observables from Belle II and LHCb are, therefore, highly anticipated.

4. Fully Leptonic Decays

The leptonic $B_{\left(s\right)}\to \ell \ell$ decays are even rarer in the SM than their semileptonic counterparts due to helicity suppression. This suppression, which scales with $m_{\ell }/m_b$, affects decays into $\mu$, e, and $\tau$ leptons differently. As these processes contain only leptons in the final state, predictions of the branching fractions can be made very accurately within the SM [80,81]:

$$\begin{array}{ccc}\hfill & \mathcal{B}(B_s^0\to ee)=(8.54\pm 0.55)\times {10}^{-14}\hfill & \hfill \mathcal{B}(B^0\to ee)=(2.48\pm 0.21)\times {10}^{-15}\end{array}$$

(5)

$$\begin{array}{ccc}\hfill & \mathcal{B}(B_s^0\to \mu \mu )=(3.66\pm 0.14)\times {10}^{-9}\hfill & \hfill \mathcal{B}(B^0\to \mu \mu )=(1.03\pm 0.05)\times {10}^{-9}\end{array}$$

(6)

$$\begin{array}{ccc}\hfill & \mathcal{B}(B_s^0\to \tau \tau )=(7.73\pm 0.49)\times {10}^{-7}\hfill & \hfill \mathcal{B}(B^0\to \tau \tau )=(2.22\pm 0.19)\times {10}^{-9}.\end{array}$$

(7)

For this reason, these decays are powerful probes for NP contributions mediated, for example, by leptoquarks, heavy $Z^{\prime }$ bosons, or exotic Higgs bosons [82]. In particular, new scalar contributions breaking the helicity suppression would contribute to lepton non-universality in these decays.

Experimentally, $B_s^0\to \mu \mu$ is the only one of these decays that has been observed so far. The most precise determination of its branching fraction has come from the LHC, with measurements from ATLAS [83], CMS [84], and LHCb [85] yielding the following:

$$\mathcal{B}{(B_s^0\to \mu \mu )}^{\mathrm{ATLAS}}=\left({2.8}_{-0.7}^{+0.8}(\mathrm{stat}+\mathrm{syst})\right)\times {10}^{-9}$$

(8)

$$\mathcal{B}{(B_s^0\to \mu \mu )}^{\mathrm{CMS}}=\left({3.83}_{-0.36}^{+0.38}{\left(\mathrm{stat}\right)}_{-0.16}^{+0.19}{\left(\mathrm{syst}\right)}_{-0.13}^{+0.14}(f_s/f_u)\right)\times {10}^{-9}$$

(9)

$$\mathcal{B}{(B_s^0\to \mu \mu )}^{\mathrm{LHCb}}=\left({3.09}_{-0.43}^{+0.46}{\left(\mathrm{stat}\right)}_{-0.11}^{+0.15}\left(\mathrm{syst}\right)\right)\times {10}^{-9},$$

(10)

where the uncertainties are statistical (stat), systematic (syst), and related to the ratio of hadronisation fractions ($f_s/f_u$), which is needed when decays from different B-meson species are used as normalisation. All of these measurements are in good agreement with the SM predictions. As part of these analyses, searches for the further suppressed $B^0\to \mu \mu$ decay are performed. No evidence has been found for this decay yet, and the best limit on its branching ratio is estimated at $\mathcal{B}(B^0\to {\mu }^{+}{\mu }^{-})<1.2\times {10}^{-10}$ at a 95% confidence level (CL) [85]. For a detailed discussion of these measurements, see the dedicated article in this issue [86].

Searches for $B_{\left(s\right)}^0\to e^{+}{e}^{-}$ decays have been performed at the LHCb experiment using data collected during Run I and Run II of the LHC, corresponding to a total of 5${\mathrm{fb}}^{-1}$. The strategy of these searches closely follows that of other measurements with electrons at LHCb, where the search is divided into several categories based on the data-taking conditions and whether the energy of the electron has been corrected using reconstructed bremsstrahlung photons. Apart from combinatorial background, the main source of background in the signal region arises from the misidentification of hadrons from $B\to \pi e\nu$ and $B\to h{h}^{\prime }$ decays, where h represents pions or kaons. These predominantly contribute to the categories where bremsstrahlung photons have been added to (at most) one electron, and are included in the fit to the B-meson reconstructed invariant mass used to extract the observed signal yield. In order to reduce systematic uncertainties, this yield is then normalised to that of the decay $B^{+}\to K^{+}J\psi$ with the $J/\psi \to e^{+}{e}^{-}$. No significant signal is found for either the $B^0$ or $B_s^0$ meson, and the following limits on the branching fractions are calculated as follows: $\mathcal{B}(B_s^0\to e^{+}{e}^{-})<9.4\left(11.2\right)\times {10}^{-9}$ and $B(B^0\to e^{+}{e}^{-})<2.5\left(3.0\right)\times {10}^{-9}$ at 90 (95) % CL. Each limit assumes no contribution from the other corresponding decay. These limits are far from the SM prediction but begin to probe regions of interest for many NP models.

5. Decays Involving $\tau$ Leptons

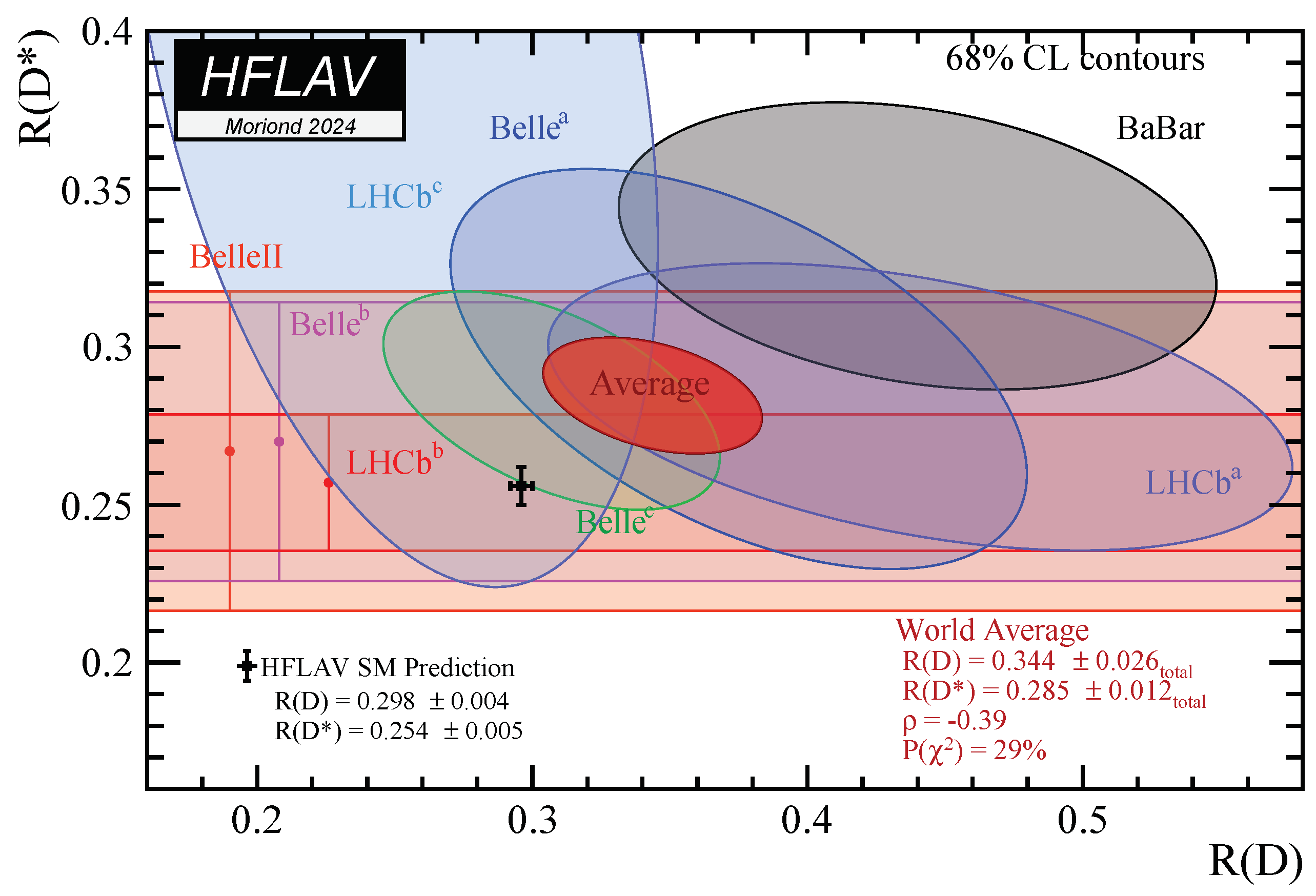

The previous sections focused on comparisons between the properties of decays involving electrons and muons. Of course, comparisons between taus and the lighter leptons are equally powerful probes for NP. Furthermore, tension with the LU prediction in tree-level decays of type $b\to c{\ell }^{-}{\overline{\nu }}_{\ell }$ has been demonstrated in several experiments. In particular, the observables $R\left(D\right)$ and $R\left(D^{*}\right)$, defined as the ratio of branching fractions of $B\to D^{(*)}{\tau }^{+}{\nu }_{\tau }$ and $B\to D^{(*)}{\mu }^{+}{\nu }_{\mu }$ decays, are predicted to be $0.298\pm 0.004$ and $0.254\pm 0.005$ in the SM [87], and differ from unity mainly because of phase-space effects due to the $\tau -\mu$ mass difference. Measurements of these quantities performed by the BaBar, Belle, and LHCb collaborations [36,37,38,39,40,41,42,43,44,45] showed an excess with respect to the SM prediction, as can be seen in Figure 10. It has been highlighted that under fairly model-independent assumptions, NP contributions attempting to resolve the tension in $b\to c{\ell }^{-}{\overline{\nu }}_{\ell }$ transitions would also significantly enhance $b\to s{\tau }^{+}{\tau }^{-}$ processes [46]. Furthermore, higher-order contributions of the same type of NP could also induce lepton-universal effects in $b\to s{\mu }^{+}{\mu }^{-}$ and $b\to s{e}^{+}{e}^{-}$ transitions, which could help address the anomalies observed while respecting the bounds from LU ratios presented in the previous sections [47].

Experimentally, $\tau$ leptons are reconstructed through their leptonic or hadronic decays, as their lifetime is too short to be directly detected. Due to the multiple neutrinos in the final state, the invariant mass signature for these decays does not exhibit a peaking structure, making these searches significantly more challenging than those involving electrons or muons. This explains why, although their branching ratio is predicted to be on the order of $\mathcal{O}\left({10}^{-7}\right)$ in the SM, no such process has been observed so far.

Searches for semileptonic $B\to K^{+}{\tau }^{+}{\tau }^{-}$ decays have been performed at B-factories [88] using only leptonic decays of the tau: ${\tau }^{-}\to {\mu }^{-}{\overline{\nu }}_{\mu }{\nu }_{\tau }$ and ${\tau }^{-}\to e^{-}{\overline{\nu }}_e{\nu }_{\tau }$. In this analysis, the accompanying B-meson is reconstructed exclusively via its decay into one of several hadronic decay modes. This provides a measurement of the missing energy carried away by the neutrinos, which allows discrimination against multiple backgrounds. In addition, a dedicated neural network selection targets background events containing semileptonic $b\to c{\ell }^{-}{\overline{\nu }}_{\ell }$ decays, such as $B\to D^{(*)}\ell {\overline{\nu }}_{\ell }$ with $D^{(*)}\to K{\ell }^{\prime }{\overline{\nu }}_{{\ell }^{\prime }}$, which have the same detected final-state particles as signal events as well as missing energy. No significant signal was observed and the upper limit $\mathcal{B}(B^{+}\to K^{+}{\tau }^{+}{\tau }^{-})<2.25\times {10}^{-3}$ at 90% CL was set.

LHCb has performed a search for the fully leptonic decays $B_s^0\to \tau \tau$ and $B^0\to \tau \tau$, where the $\tau$ is reconstructed through its hadronic decay into three charged pions and a neutrino, assuming specific intermediate resonances: ${\tau }^{-}\to a_1^{-}\left({\rho }^0{\pi }^{-}\right){\nu }_{\tau }$. For this analysis, a multivariate classifier combines kinematic and topological information of the decay and allows the signal yield to be extracted. In particular, the amplitude structure of the tau hadronic decay is exploited to define control regions that allow better control of the background in the signal-enriched regions. No signal was observed here either, and the 95% CL upper limits $B(B_s^0\to \tau \tau )<3.0\times {10}^{-3}$ and $B(B^0\to \tau \tau )<1.3\times {10}^{-3}$ were set [89].

In both cases, the branching ratio limits are far from the predictions based on lepton universality. The large datasets expected from Belle II and the upgrades at LHCb, combined with significant efforts to improve tau reconstruction techniques, will help enhance these limits. These improvements will begin to probe interesting areas of parameter space in many NP models, though they will most likely remain above the SM predictions.

6. Prospects

In the coming years, larger samples of $b\to s{\ell }^{+}{\ell }^{-}$ decays will become available, which will allow significant improvements in the precision of LU observables, as well as the exploration of new measurements currently hindered by the lack of statistical power.

The Belle II experiment is expected to collect a data sample of 50${\mathrm{ab}}^{-1}$ [90] by 2035, which will significantly improve the precision of the LU ratios. The statistical sensitivity values in $R_K$ and $R_{K^{*}}$ are expected to be below 2% for the entire $q^2$ region and approximately 3% for $q^2\in [1-6]\mathrm{Ge}{\mathrm{V}}^2/c^4$, with the full data sample [91].

The LHCb experiment has resumed data taking after a detector upgrade, enabling operation at a data rate approximately five times higher than in Run II [92]. It is expected that a sample corresponding to 50${\mathrm{fb}}^{-1}$ will be collected by the end of Run IV. With this data sample, the expected statistical precision in $R_K$ and $R_{K^{*}}$ is expected to reach the percent level [93]. Thus, a second upgrade is planned to fully exploit the capabilities of the high-luminosity LHC, where the data rate will increase by an additional order of magnitude, collecting a total sample corresponding to 300${\mathrm{fb}}^{-1}$. The measurements of angular observables in $b\to s{e}^{+}{e}^{-}$ decays will significantly benefit from this, where a precision comparable to that of the corresponding $b\to s{\mu }^{+}{\mu }^{-}$ modes today will become accessible [93].

The additional data will also enable extending the study of lepton universality to the further suppressed $b\to d{\ell }^{+}{\ell }^{-}$ transitions. While processes with final-state muons have been observed by LHCb [94,95,96], no evidence for equivalent modes with electrons has been found to date [1,97]. The first observation of $B^{+}\to {\pi }^{+}{e}^{+}{e}^{-}$ could soon be within reach for both Belle II and LHCb, if LU is respected. A precise measurement of $R_{\pi }=\mathcal{B}(B^{+}\to {\pi }^{+}{\mu }^{+}{\mu }^{-})/\mathcal{B}(B^{+}\to {\pi }^{+}{e}^{+}{e}^{-})$ will likely need to wait until the end of LHCb’s second upgrade, where statistical precision of a few percent could be achieved [93].

In the future, the proposed Future Circular Collider (FCC) at CERN could significantly impact LU studies in rare b-decays. The proposal includes an initial phase, running in electron–positron mode (FCC-ee), with the machine operating at centre-of-mass energies ranging from the Z-pole (91 $\mathrm{Ge}\mathrm{V}$) and the $t\overline{t}$ threshold (365 $\mathrm{Ge}\mathrm{V}$). Such a machine would offer the opportunity to accumulate unprecedented samples of b-quarks when operating at the Z-pole, owing to the large production rate of Z-bosons and the large branching ratio of the $Z\to b\overline{b}$ decay. In addition, the initial energy constraint from the resonant production would provide ideal conditions for measurements of decays with missing energy, such as those involving $b\to s\tau \tau$ transitions [98] or $b\to s\nu \overline{\nu }$ processes [99].

7. Conclusions

The observation of lepton-flavour non-universality would be a clear indicator of physics beyond the standard model. Tests of lepton universality in rare b-hadron decays, mediated by FCNC $b\to s\left(d\right){\ell }^{+}{\ell }^{-}$ transitions, are particularly sensitive to new physics scenarios at high energy scales. Despite earlier hints of tensions with the standard model predictions, no indication of lepton-universality violation in these decays has been found so far. Further improvements in these measurements and the exploration of additional $b\to s\left(d\right){\ell }^{+}{\ell }^{-}$ processes and observables remain well-motivated. Future datasets from the Belle II and LHCb experiments hold great potential for precise exploration of lepton universality in these transitions.
