Article

The Character of Couples and Couple Stresses in Continuum Mechanics

by
Ali R. Hadjesfandiari
Department of Engineering, Central Connecticut State University, New Britain, CT 06053, USA
Symmetry 2024, 16(8), 1046; https://doi.org/10.3390/sym16081046
Submission received: 25 June 2024 / Revised: 6 August 2024 / Accepted: 9 August 2024 / Published: 14 August 2024
(This article belongs to the Special Issue Symmetry in Statistical Mechanics and Complex Dynamical Systems)

Abstract

:
In this paper, the concepts of moments and couples in mechanics are examined from a fundamental perspective. Representing a couple by its moment vector is very useful in rigid body mechanics, where the states of internal stresses and deformation are not studied. This is because only the moment of couples appears in the governing equation of moment equilibrium. On the other hand, when considering the state of internal stresses and deformation in continuum mechanics, not only the moment of couples but also the line of action of their constituent parallel opposite forces must be specified. In defining a well-posed problem for a continuum, including the governing equations of moment equilibrium or motion, boundary conditions, and constitutive relations, only the moment of couples (e.g., body couples, couple tractions, couple stresses) appear without specifying the line of action of the constituent parallel forces. Nevertheless, the physical state of stress and deformation in the continuum must be unique and determinate. Therefore, this physical requirement imposes some restrictions on the form of body couples, couple tractions, and couple stresses. Here, the uniqueness of interactions in the continuum is used to establish that the continuum does not support a distribution of body couples or a distribution of surface twisting couple tractions with normal moments. Furthermore, the mechanism of action of the couple traction as a double layer of shear force tractions is established, along with the skew-symmetric character of the couple stress moment tensor.

1. Introduction

There have been many experiments that show that the mechanical behavior of materials at small scales is different from their behavior at macro scales (e.g., Poncharal et al. [1] and Salvetat et al. [2]). Correspondingly, this requires a continuum mechanics theory that accounts for size effects and reduces to classical continuum mechanics when the size effect is negligible. In order to have a length scale in such a theory, couple stresses with moments μ i j inevitably appear along with force stresses σ i j in a complete theory of continuum mechanics. As a result, the force stress tensor σ i j is not symmetric as is the case in classical theory. Voigt [3] was the first to postulate the existence of couple stresses in continuum mechanics. Later, Cosserat and Cosserat [4] developed the original mathematical model for couple stress continuum mechanics. Mindlin and Tiersten [5] and Koiter [6] developed an initial version of couple stress theory, which uses the four foundational mechanical quantities (i.e., force, displacement, couple, rotation) that are compatible with linear and angular momentum principles in continuum mechanics. Subsequently, Stokes [7] brought this formulation into fluid mechanics to model the size dependency effect in fluids. However, this original couple stress theory suffers from some fundamental inconsistencies, which are mainly:
  • The indeterminacy in the spherical part of the couple stress moment tensor μ i j ;
  • The inconsistency in boundary conditions, as the normal component of couple traction moment vector appears in the formulation;
  • The appearance of the body couple moment in the relation for the force stress tensor.
The appearance of the indeterminacy of the spherical part of the couple stress moment tensor is troublesome in most cases, especially those with torsional deformation. Surprisingly, Koiter [6] and Stokes [7] make the claim that without any loss of generality, the indeterminate spherical part may be taken as equal to zero to make the couple stress tensor deviatoric. However, a deviatoric couple stress theory, where μ i i = μ 11 + μ 22 + μ 33 = 0 , is a non-physical theory and still suffers from ill-posed boundary conditions. Surprisingly, in this deviatoric theory, a uniaxial torsional deformation with a distribution of uniform normal couple stress becomes impossible. Based on physical grounds, if one can exert torsional couple stresses μ 11 , μ 22 , and μ 33 on some element of the body, these three components must be independent of each other. However, the mathematical deviatoric condition μ i i = μ 11 + μ 22 + μ 33 = 0 contradicts this physical fact. Enforcing this condition is as absurd as enforcing the mathematical constraint σ i i = σ 11 + σ 22 + σ 33 = 0 on the force stress tensor in classical continuum mechanics theory. The three components σ 11 , σ 22 , and σ 33 acting on any element of the body are generally independent of each other. More discussion on the original couple stress theory can be found in [8].
Eringen [9] realized this indeterminacy as a major mathematical problem in the Mindlin, Tiersten, and Koiter couple stress theory. As a result, he called this theory the indeterminate couple stress theory. It is obvious that to have a consistent couple stress theory, it is necessary to resolve the inconsistencies, especially the criticism of Eringen [9] about the indeterminacy of the couple stress moment tensor.
More recently, Hadjesfandiari and Dargush [10] have demonstrated the subtle skew-symmetric character of the couple stress moment tensor μ i j and the impossibility of an independent body couple distribution in the continuum. This has been achieved by examining kinematics, well-posed boundary conditions, and the virtual work principle. Elements of establishing this character are based on the work by Mindlin and Tiersten [5] and Koiter [6], which established the impossibility of normal couple traction (surface couple traction with normal moment) in a continuum. It is remarkable to note that the well-posed form of boundary conditions imposes the skew-symmetric character of the couple stress moment tensor (Hadjesfandiari and Dargush [10] and Hadjesfandiari et al. [11]. Interestingly, this development shows that there is an interrelationship between the consistent mechanical boundary conditions and the determinacy of the couple stress moment tensor: resolving one resolves the other.
This theory has already provided a fundamental basis for the development of size-dependent theories in many multi-physics disciplines, such as size-dependent piezoelectricity (i.e., flexoelectricity) [12] and size-dependent thermoelasticity [13]. Remarkably, this theory has recently demonstrated its self-consistency by resolving fundamental issues in the existing continuous defect theory, which has resulted in consistent continuous defect theory [14]. In this theory, the dislocation density tensor is skew-symmetric analogous to the mean curvature tensor and can be represented by a vector. Interestingly, this development also establishes the dualism between geometry and statics of consistent continuous defect theory.
This determinate couple stress theory has enjoyed an increasing number of applications in many branches of mechanics. Jensen and Revell [15] used the theory in the vertex model of cellular monolayers. This theory has been successfully employed to analyze micro/nano-beam, -plate, and -shell structures [16,17,18,19,20,21,22]. The size effect in elastic waves based on this theory has been studied by [23,24,25,26]. Fundamental solutions in the framework of this consistent couple stress theory have also been developed [27,28]. There have been some computational mechanics developments, such as finite element and boundary element methods, based on this theory [27,29,30,31,32,33,34,35,36,37,38]. Furthermore, this consistent couple stress theory has been successfully used to investigate the state of stresses in nano-/micro-contact mechanics [39,40].
Although the discovery of the skew-symmetric character of the couple stress moment tensor μ i j resolves the quest for the consistent continuum mechanics (Hadjesfandiari and Dargush [10]; Hadjesfandiari et al. [11]), its form of establishment seems very intriguing. One might ask why it is necessary to use the concept of work and kinematics and specify the independent degrees of freedom as well as their conjugate generalized forces, or if there exists any other method to establish this statement. Moreover, this method of proof does not specify the mechanism of action of couple tractions and couple stresses. Experience shows that there are usually a few different methods to prove a lemma. Here, it is demonstrated that this is the case, and the skew-symmetric character of the couple stress moment tensor μ i j is established by a different fundamental method, which does not depend on using the work concept and kinematics. This character is systematically established by examining the concepts of moment and couple and the fundamental governing equations. Remarkably, this new fundamental method of proof is more complete because it reveals the mechanism of action of couple traction as a double layer of shear force tractions.
First, it is shown that representing the moment of a force using a vector in mechanics, although quite convenient, has been very misleading. This is because it usually gives the impression that a moment is a vector exerted to a point (moment center) like a concentrated force. However, the vector moment of a force is a pseudo-vector without any real vectorial character. Interestingly, the moment of a force is a skew-symmetric second-order true tensor. Because working with a skew-symmetric moment tensor is awkward in practice, its dual pseudo-vector has become standard. Remarkably, this vectorial representation of moment also simplifies the governing equations in mechanics.
However, using this misperception has been more misleading for a couple. As it is known, the moment of a couple remains the same for all points and directly appears in the governing equations of motion or equilibrium. It is only in rigid body mechanics that the effect of a couple is completely represented by its moment vector because the state of stresses and deformation are not considered. Note that replacing this couple by a different equipollent couple does not change the state of equilibrium or motion of the rigid body. Therefore, in rigid body mechanics, a couple is considered equivalent to its moment, which is also treated as a free vector. However, when one studies the deformation and internal stresses in continuum mechanics, the couple moment is not a free vector and cannot completely describe its effect. This is also the case for a concentrated couple, where the line of action of its opposite parallel concentrated forces are approaching each other. To specify the effect of a concentrated couple in continuum mechanics, either its constituent opposite parallel forces or its moment and the line of action of these parallel forces must be specified. As will be shown, the incomplete representation of a general couple by its pseudo-vector moment is the main reason for the indeterminacy of the couple stress tensor in the original couple stress theory. In this original theory, it was assumed that the general distributions of body couples and couple stresses can exist and can be completely represented by their moment densities without any restriction. This can be attributed to the fact that in the governing equations of equilibrium or motion of the continuum, boundary conditions, and constitutive relations, only the moment of the body couple, moment of the couple tractions, and moment of the couple stresses appear without specifying the line of action of any couple density forces. However, this results in the non-uniqueness of the state of stresses and deformation in the continuum, which has shown itself in the indeterminacy of the couple stress tensor in Mindlin–Tiersten–Koiter couple stress theory. Nevertheless, the physical state of stress and deformation in the continuum is unique and determinate. Obviously, this contradiction enforces some restrictions on the form of distribution of body couples, couple tractions, and couple stresses so that their effect is completely described by their moment densities without requiring the specification of the line of action of opposite parallel constituent couple forces. In this paper, the uniqueness of interactions in the continuum is used to establish that:
  • An independent distribution of body couples does not exist;
  • A distribution of surface twisting couple tractions (with a normal moment) does not exist on any arbitrary surface;
  • A distribution of surface bending couple tractions (with a tangential moment) can exist;
  • The surface bending couple traction is a double layer of shear force tractions;
  • The pseudo-moment tensor of couple stresses is skew-symmetric and has a true vectorial character.
This development shows more fundamentally why arbitrary surface and body couple distributions cannot be completely represented by their moment densities in a consistent couple stress theory. Importantly, this development also reveals the character of tangential bending couple traction as a double layer of shear force tractions. Interestingly, this is the tensorial analogy of a double layer in electrostatics, where a single tangential shear force traction distribution is analogous to a single layer of electric charge.
The remainder of the paper is organized as follows. Section 2 provides an overview of some important aspects of mechanics. This includes the review of forces and their moments, the governing equations of motion for a system of particles, and the equipollent system of forces. Section 3 briefly presents the concepts of a couple and its moment, a concentrated couple, and the reduction of a system of forces to an equipollent system of one force and one couple. It is seen that in rigid body mechanics, and to some extent in the strength of materials and structural mechanics, equipollent systems of forces are equivalent. Section 4 considers the state of loading in continuum mechanics by reviewing the body force, body couple, surface force traction, and couple traction. Section 5 provides the governing equations in continuum mechanics by introducing force and couple stresses. In this section, the uniqueness of interactions in continuum mechanics is discussed. Afterwards, by using this uniqueness or determinacy character, the impossibility of a distribution of a body couple and a distribution of a surface twisting couple traction is established in Section 6. From this, the mechanism of action of the couple traction as a double layer of shear force tractions and the skew-symmetric character of a couple stress moment tensor in continuum mechanics are established. Finally, a summary and some general conclusions are presented in Section 7.

2. Preliminaries

Let us consider the three dimensional orthogonal right-handed (positive) coordinate system x 1 x 2 x 3 as the reference frame with unit base vectors e 1 , e 2 , and e 3 . This is the coordinate system used to represent the components of fundamental vectors, tensors, and vector and tensor equations.

2.1. Forces and Their Moments

Point forces acting on individual particles and bodies are concentrated forces. This means that a force vector F is characterized by its magnitude, point of application, and its direction.

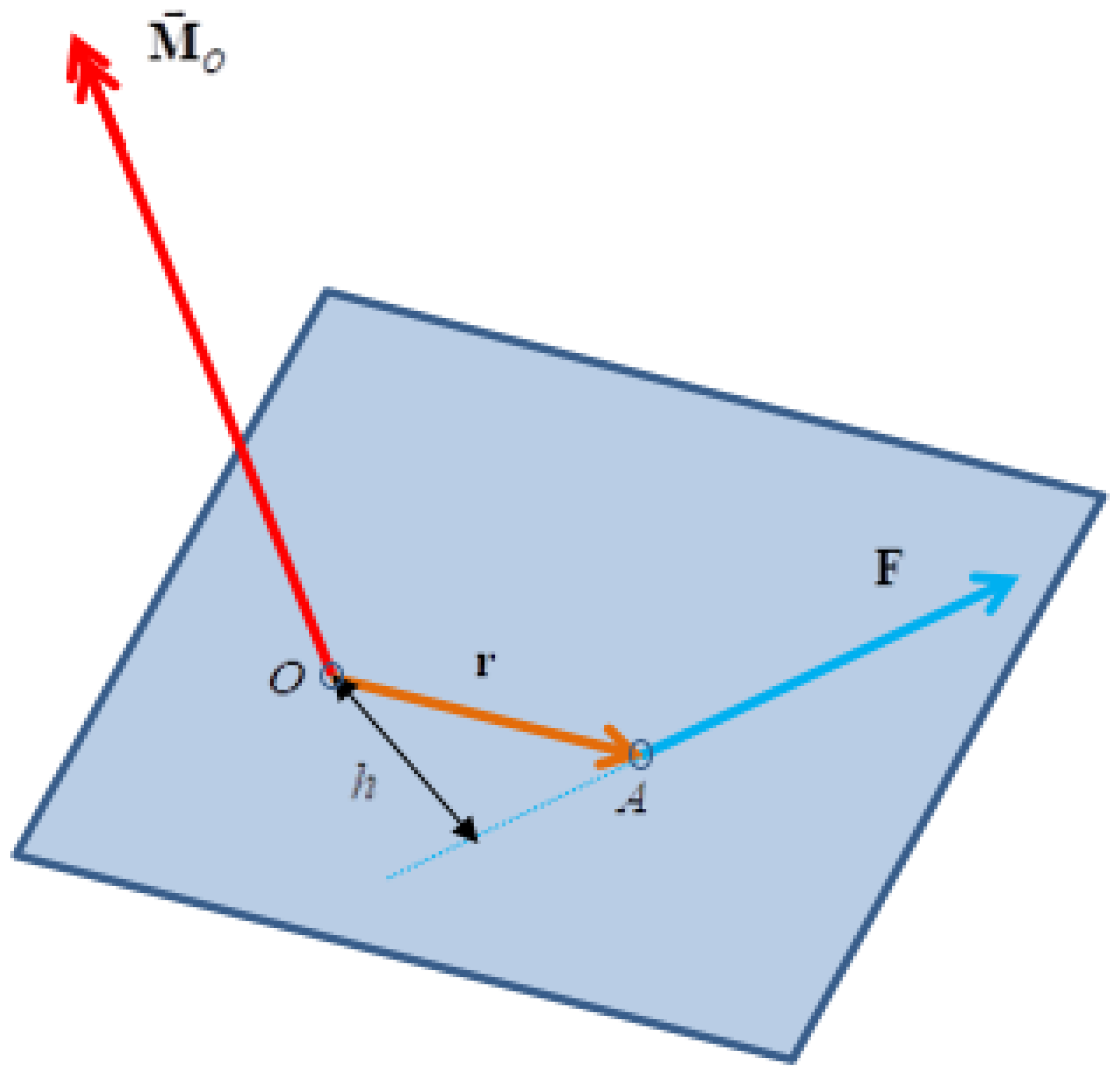

Consider the force F acting at point A with the position vector r relative to fixed point O, as shown in Figure 1.
Although it is possible to define the dyadic product r F ( x i F j ) as a general moment, it turns out that the skew-symmetric part of this tensor plays an important role in mechanics. Therefore, the tensorial moment of the force F at r about the point O, called the moment center, is defined as
M O = 1 2 r F F r M i j = 1 2 x i F j x j F i
where
M O T = M O M j i = M i j
In terms of components, this skew-symmetric moment tensor can be written as
M i j = 0 M 12 M 13 M 12 0 M 23 M 13 M 23 0 = 0 1 1 2 x 1 F 2 x 2 F 1 1 2 x 1 F 3 x 1 F 3 1 2 x 1 F 2 x 2 F 1 0 1 2 x 2 F 3 x 3 F 2 1 2 x 1 F 3 x 1 F 3 1 2 x 2 F 3 x 3 F 2 0
As this tensor is specified by three independent components, it looks more convenient to represent it by its dual pseudo-vector or axial vector M O (Figure 1), where
M O = r × F M i = ε i j k x j F k
Here, ε i j k is the Levi-Civita alternating symbol. Interestingly, the dual relations are
M i = ε i j k M j k M i j = 1 2 ε i j k M k
where
M 1 = 2 M 23 ,   M 2 = 2 M 31 ,   M 3 = 2 M 12
It should be noted that the moment vector M O , defined by the vector product (cross-product) r × F , is perpendicular to the plane containing point O and force vector F . The magnitude of this moment vector is M O = F h , where h is the perpendicular distance of point O to the line of action of force F . By definition, the pseudo-vector (axial vector) M O is attributed to the point O, as shown in Figure 1. Note that the moment vector M O has been presented as double-headed arrows. It should also be mentioned that the moment of the force vector F can be considered about many arbitrary points simultaneously. It is obvious that the vector moment M O is not applied at the point O physically; it is only the force F , which acts at the point A, not its moment. Although the representation of moment of a force by a pseudo-vector has been very convenient in practice, it has created some troubles in the progress of continuum mechanics. This will be illustrated in detail in subsequent sections.
As the second-order moment tensor M O is skew-symmetric, it is singular. This means its determinant vanishes:
det M O = 0
det M i j = ε i j k M 1 i M 2 j M 3 k = 0
As a result, the tensor M O has a zero eigenvalue. Interestingly, the eigenvector corresponding to this zero eigenvalue is in the direction of the pseudo-vector M O ; thus,
M O M O = 0 M i j M j = 0
The skew-symmetric tensor M O or its more popular dual moment vector M O , which is also preferred in this paper, are very important from a physical point of view. This will be reviewed next, where governing equations of a system of particles are presented.

2.2. Fundamental Governing Equations of Motion for a System of Particles

Consider the motion of a particle with mass m under the influence of the resultant force F . The location of the particle in space at time t is specified by the position vector r = r t . The velocity and acceleration vectors are defined as v = d r d t and a = d v d t , respectively. The governing equations of motion of the particle are given by Newton’s second law as
F = m a F i = m a i
where the vector m a is called an effective force. Therefore, the vector Equation (10), which is also called the force equation, states that the resultant force F acting on the particle equals the effective force m a .
Now, consider a system of particles interacting with each other. This system can represent a continuous body with infinite particles. The Equation (10) can be considered for each particle. Note that the resultant force F for each particle can be decomposed as
F = F e x t + F i n t F i = F i e x t + F i i n t
Here, F e x t is the external resultant force, whereas F i n t represents the internal resultant force on the particle exerted by other particles in the system.
By adding the force and moment equations about point O for all individual particles in the system, one obtains
F = m a F i = m a i
M O = r × m a M i = ε i j k x j m a k
Note that the total force F and the total moment M O are a combination of the external and internal forces and moments, respectively, where
F = F e x t + F i n t
M O = M O e x t + M O i n t
However, due to Newton’s third law of action and reaction, the effect of internal forces and moments disappear, that is F i n t = 0 and M O i n t = 0 (Goldstein [41], Beer and Johnston [42], and Shames [43]). Therefore, the force and moment equations for the system of particles become
F e x t = m a
M O e x t = r × m a
These equations state that the resultant external force F e x t and the resultant external moments M O e x t are equal to the total effective force m a and effective moment r × m a , respectively. Interestingly, this result shows that Newton’s third law of action and reaction is the reason for defining the moment of a force by (4) so that the effect of internal moments disappears for a system of particles. Therefore, it is realized that although defining higher moments of forces and momentum is possible, they do not have fundamental significance from a physical point of view. For example, defining the dyadic product r F ( x i F j ) and its symmetric part 1 2 r F + F r ( 1 2 x i F j + x j F i ) as general moments does not result in governing equations, because the effect of these moments for internal forces does not vanish for a system of particles. However, it is noted that the state of stresses and governing equations in distortion gradient theory and strain gradient theory are based on defining moments as r F and 1 2 r F + F r , respectively. Surprisingly, in the development of modified couple stress theory, a new non-physical equilibrium equation based on the higher moment r × r × F has been introduced. If adding new moment equations were possible, there would not have been any indeterminate structure! It is only the skew-symmetric part of the tensor r F ( x i F j ) defined in (1) that plays a fundamental role in mechanics. It is seen that not paying attention to the fundamental concepts of mechanics in standard texts has been the main reason for confusion in continuum mechanics and for the creation of so many theories, such as indeterminate couple stress theory, modified couple stress theory, micropolar theory, various gradient theories, and micromorphic theories.
Therefore, it is very important to note that the two vectorial Equations (16) and (17) are the only possible equations for the system of particles, in which the internal forces and internal moments are cancelled based on Newton’s third law of action and reaction. This is the reason why these equations are considered as fundamental governing equations for system of particles or a continuum body. These governing Equations (16) and (17) can be used to describe the motion of bodies in integral form. This will be discussed in Section 3. However, note that the governing Equations (16) and (17) are not enough to describe the motion of a system of particles or a deformable body. To study these systems, it is necessary to consider the individual particle or an infinitesimal element of matter, which means applying Newton’s second law (10) to individual particles or applying the governing Equations (16) and (17) to all infinitesimal elements of matter for a continuum.
Also note that the moment equation regarding any other arbitrary point can be written as a linear combination of the force and moment Equations (16) and (17). Therefore, the governing moment equation about point O
M O e x t = r × m a
is not a new independent governing equation.
By introducing the concept of total linear momentum P and total angular momentum L O for the system of particles as
P = m v P i = m v i
L O = r × m v L O = ε i j k x j m v k
the force and moment Equations (16) and (17) can be expressed as
F e x t = m a = d P d t
M O e x t = r × m a = d L O d t
The total linear momentum P and effective forces m a can be simplified by the introduction of the center of mass [41,42,43].
When the resultant external forces vanish, i.e., F e x t = 0 in the force governing Equation (21), the total linear momentum of the system P is conserved. If the external moment about point O is zero, i.e., M O e x t = 0 in the moment governing Equation (22), the total angular momentum L O is conserved about point O. Note that based on Noether’s theorem (Noether [44]), conservation laws are the result of the symmetry properties of nature. In mechanics, the conservation laws of linear and angular momentum are the result of the translational and rotational symmetry of space, respectively.

2.3. Equipollent System of Forces

If two systems of forces have the same resultant force F and the same resultant moment M O about an arbitrary point O, they are called equipollent [42]. Interestingly, the system of internal forces is equipollent to zero ( F i n t = 0 and M O i n t = 0 ). However, this does not mean the internal forces have no effect on the state of motion of individual particles or elements of matter.
Remarkably, Equations (16) and (17) express the fact that the systems of external forces F e x t and effective forces m a are equipollent. This means these systems have the same resultant and same resultant moment about any point.
The governing Equations (16) and (17) show that if the system of external forces is replaced with an equipollent force system in their left-hand sides, their right-hand sides do not change. This means the system of effective forces changes to a new equipollent system of effective forces. However, note that the internal forces, and condition of equilibrium, and motion of individual particles can change in this replacement. Therefore, the systems of equipollent forces acting on a deformable body are not equivalent because they create different states of stress and deformation.

3. The Concept of Couples in Mechanics

In this section, the important concept of couples in mechanics is introduced, and their character in continuum mechanics is investigated. The effect of a couple cannot be completely represented by its moment vector in continuum mechanics, especially when the deformation and internal stresses in continuum mechanics are studied.

3.1. Couples and Their Moments

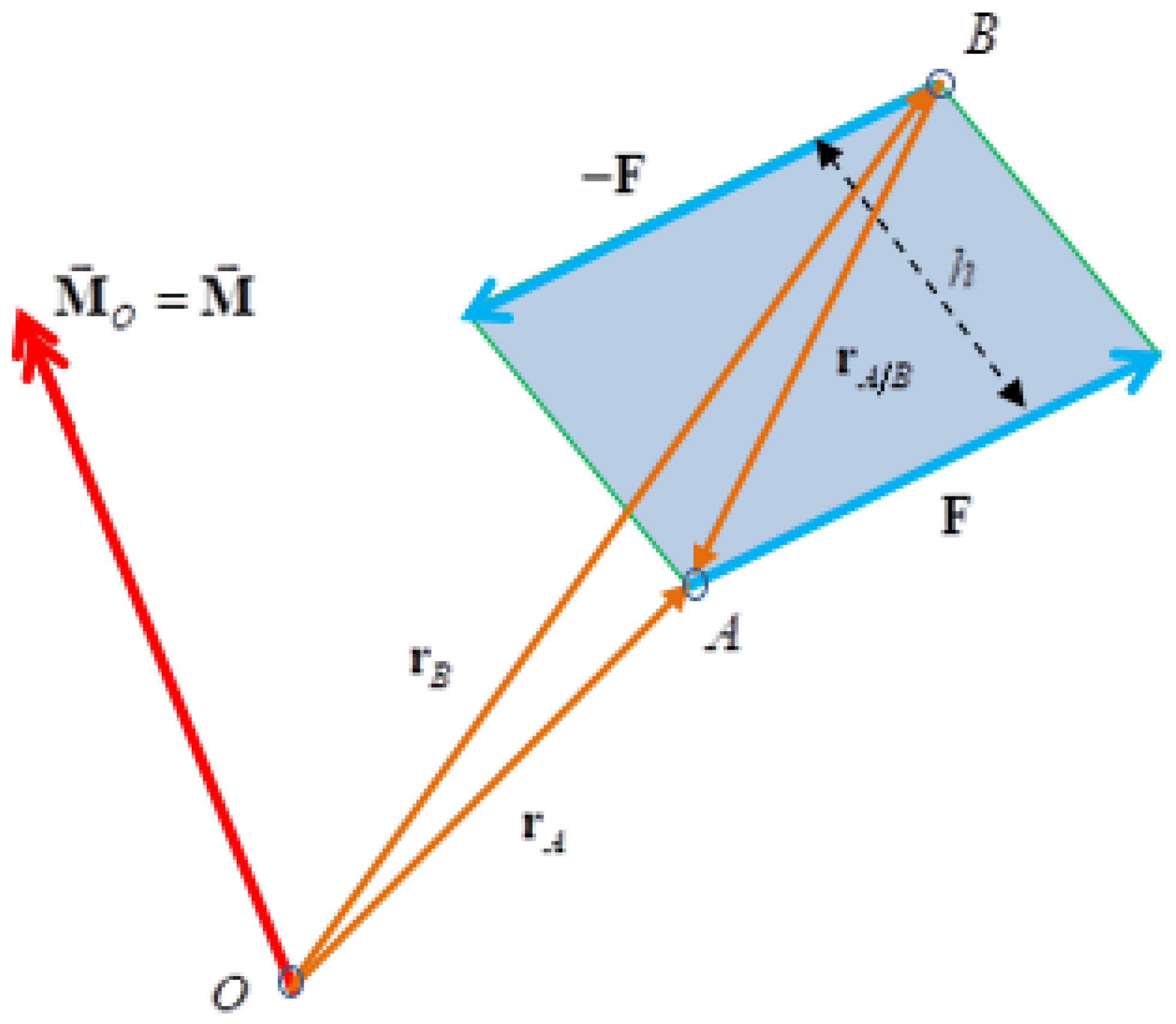

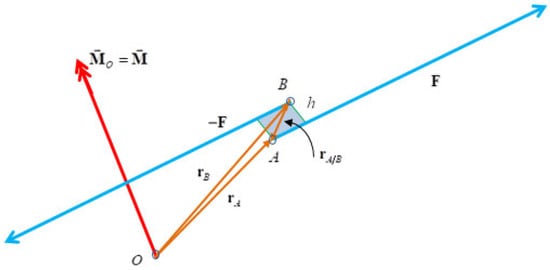

The system of two parallel forces F and F , which have the same magnitude but opposite direction, form a couple (Figure 2). Let us denote the position vectors of the points of application of F and F with r A and r B , respectively. The sum of the moment of forces M about any arbitrary point O is the same
M = r A r B × F = r A / B × F
where r A / B = r A r B is the vector joining the position vectors r A and r B . The constant vector M is called the moment of the couple, which is perpendicular to the plane of the two forces. Note that the magnitude of this constant moment M is M = F h , where h is the perpendicular distance of the line of action of forces (Figure 2).

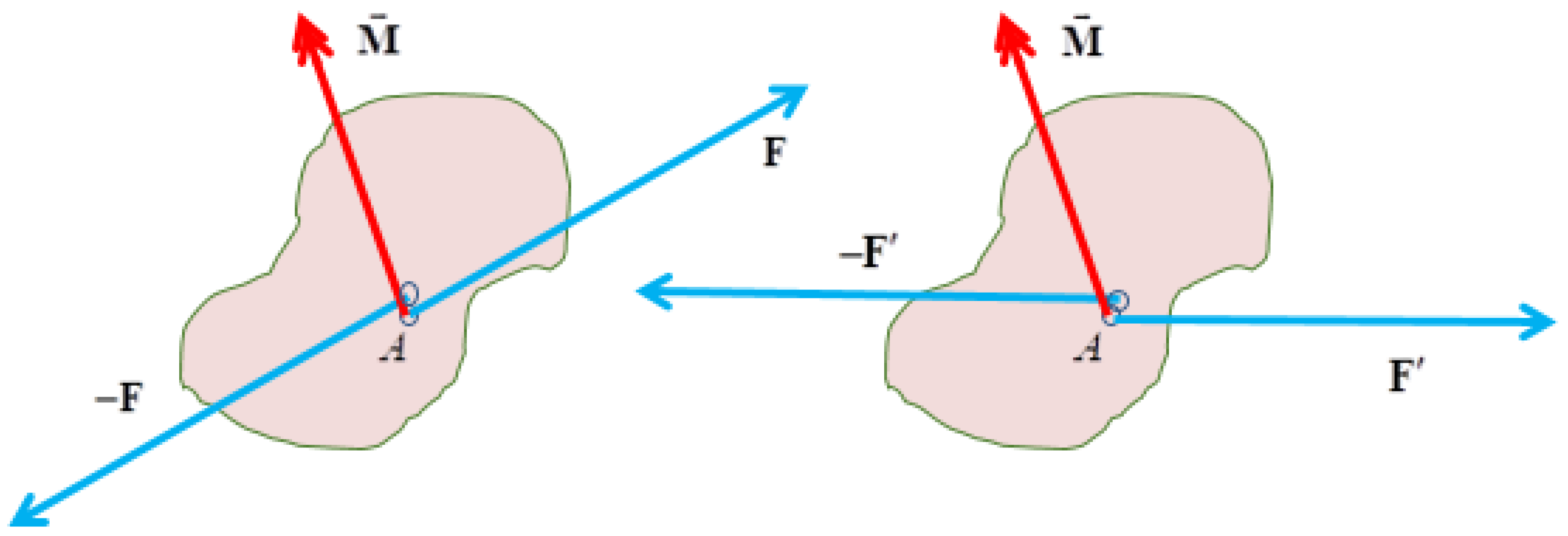

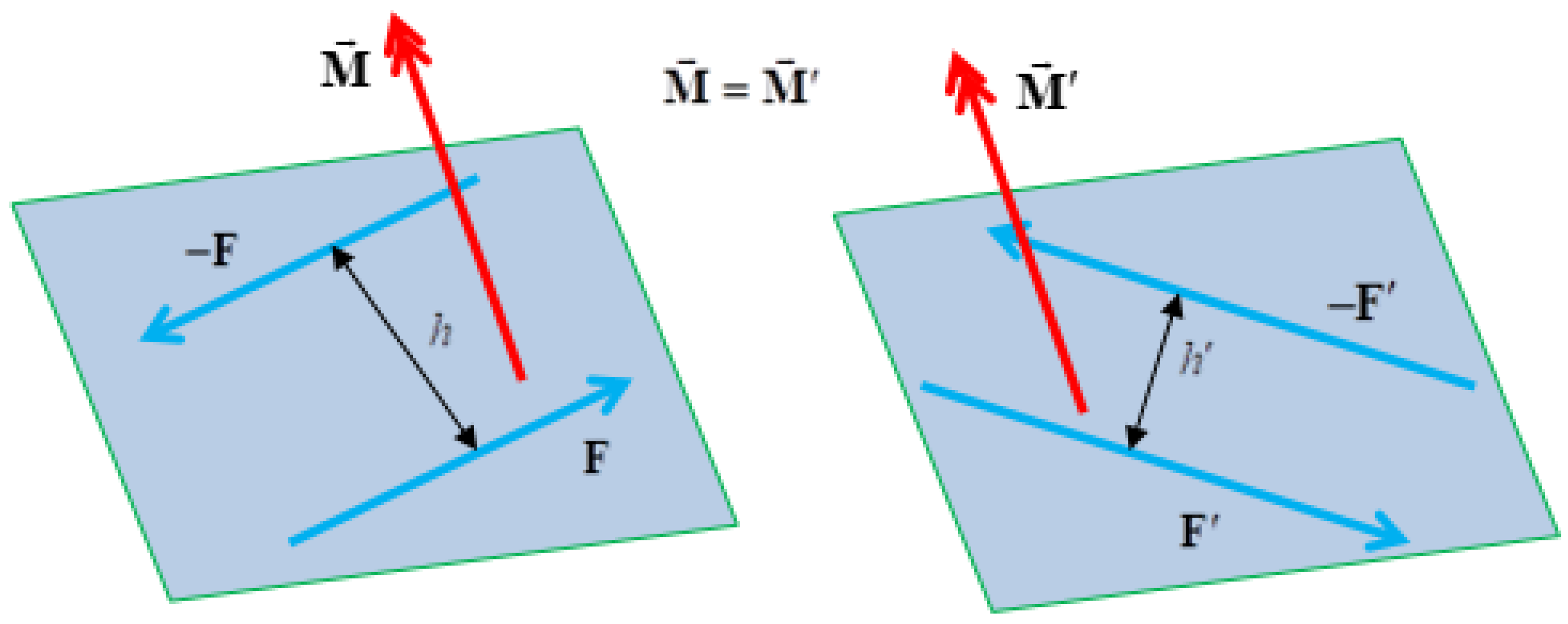

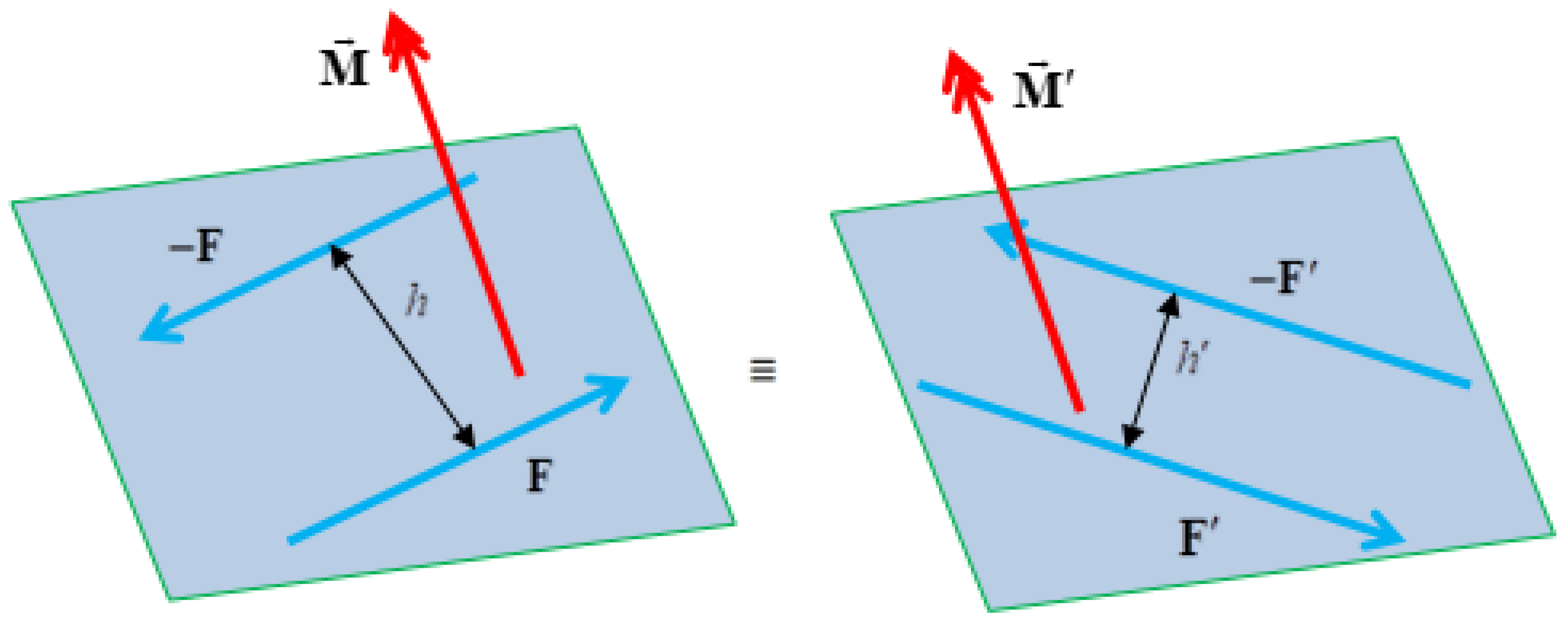

Note that there are an infinite set of equipollent couples with the vector moment M = M O . For example, the system of couple forces F and F is equipollent to the system of couple forces F and F with the same moment M = M = M O (Figure 3). However, these equipollent couples are not equivalent because they create different states of stress and deformation in the body.
Based on the definition, the pseudo-vector moment M = M O can be attributed to any arbitrary point. However, this has given the impression that couple is the vector moment M = M O acting on the body. This incorrect notion seems to have been more convincing for a concentrated couple, as will be discussed next.

3.2. Concentrated Couples

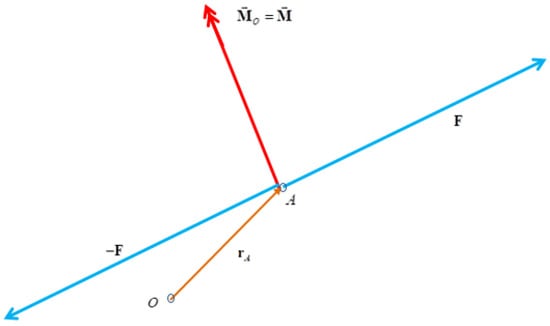

In couple stress theory, the concept of a concentrated couple plays a fundamental role. A concentrated couple with moment M acting at point A can be considered as the limit of system of parallel forces F and F when B approaches A, such that the moment vector M remains constant (Figure 4). This means that the perpendicular distance h approaches zero, whereas F (the magnitude of F ) approaches infinity, such that

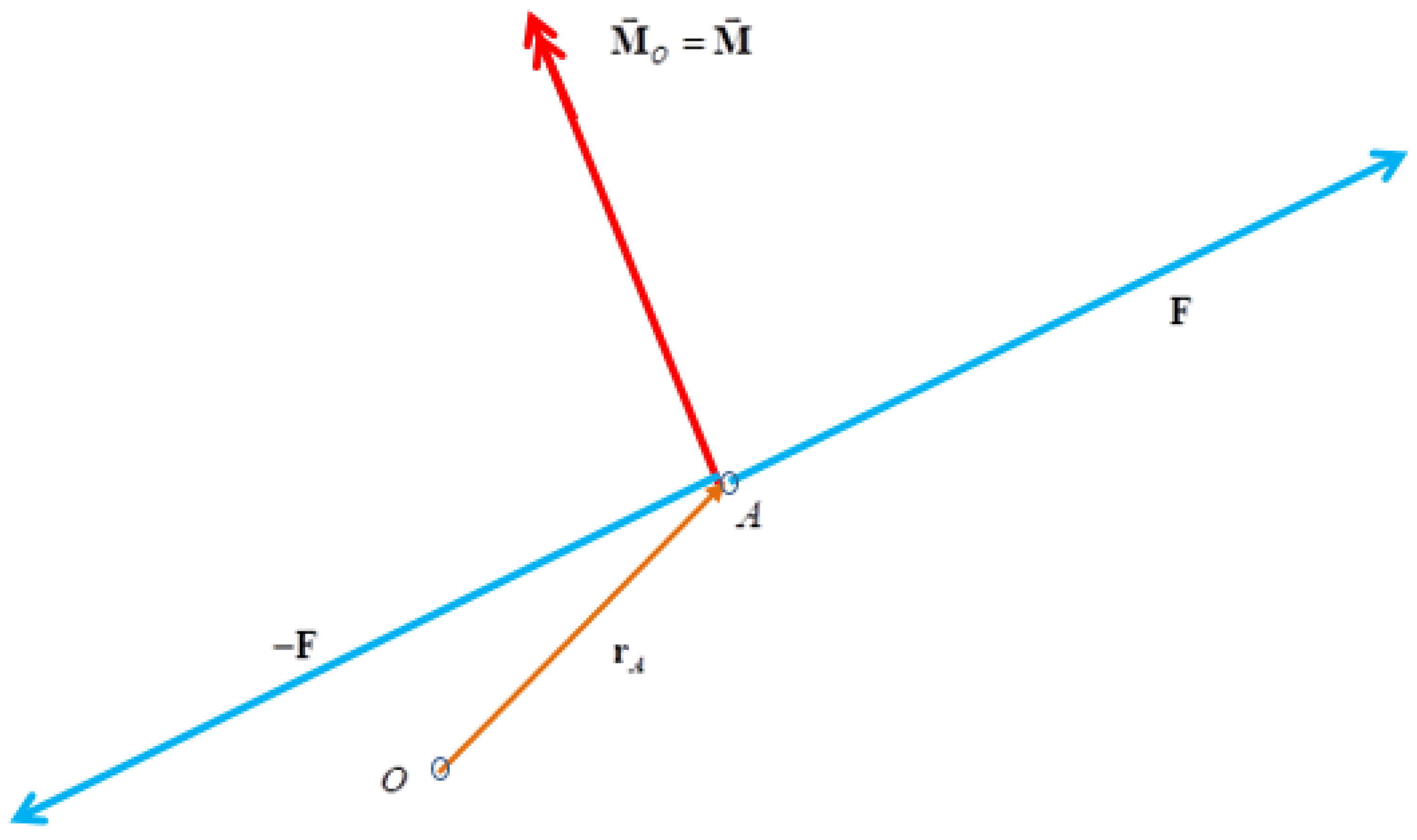

F h = M   for   h 0   and   F
Although the moment of concentrated couple M can still be attributed to any arbitrary point, it is usually attributed to the limiting point at A (Figure 5). However, this has been very misleading because:
  • It has given the false notion that the moment vector M is a real vector exerted to the point A, analogous to application of a force to a point;
  • It has given the false impression that the couple moment vector M by itself completely describes the effect of a concentrated couple at A.
However, it is only the forces F and F that are acting on the body, not the moment vector M . Note that if M had been defined based on a left-hand rule in (23), its direction would have been opposite. Furthermore, the effect of the concentrated couple with moment M acting at point A is not completely specified by the moment M = M O . The vector M does not uniquely specify the force system F and F at A. Note that there are countless sets of infinitely long parallel concentrated forces at point A with the same moment M = M O . For example, the concentrated couple with moment M acting at A can be the result of either the equipollent concentrated couples with concentrated forces F and F or concentrated forces F and F in Figure 6. However, the deformation and state of stresses in the body are different, even for these two equipollent concentrated couples. Interestingly, if the material is isotropic and infinitely extended, the deformation and state of stresses from the effect of couple with concentrated forces F and F can be obtained by rotating the deformation and state of stresses from the effect of a couple with concentrated forces F and F with the same angle of rotation of F to F (Figure 6).

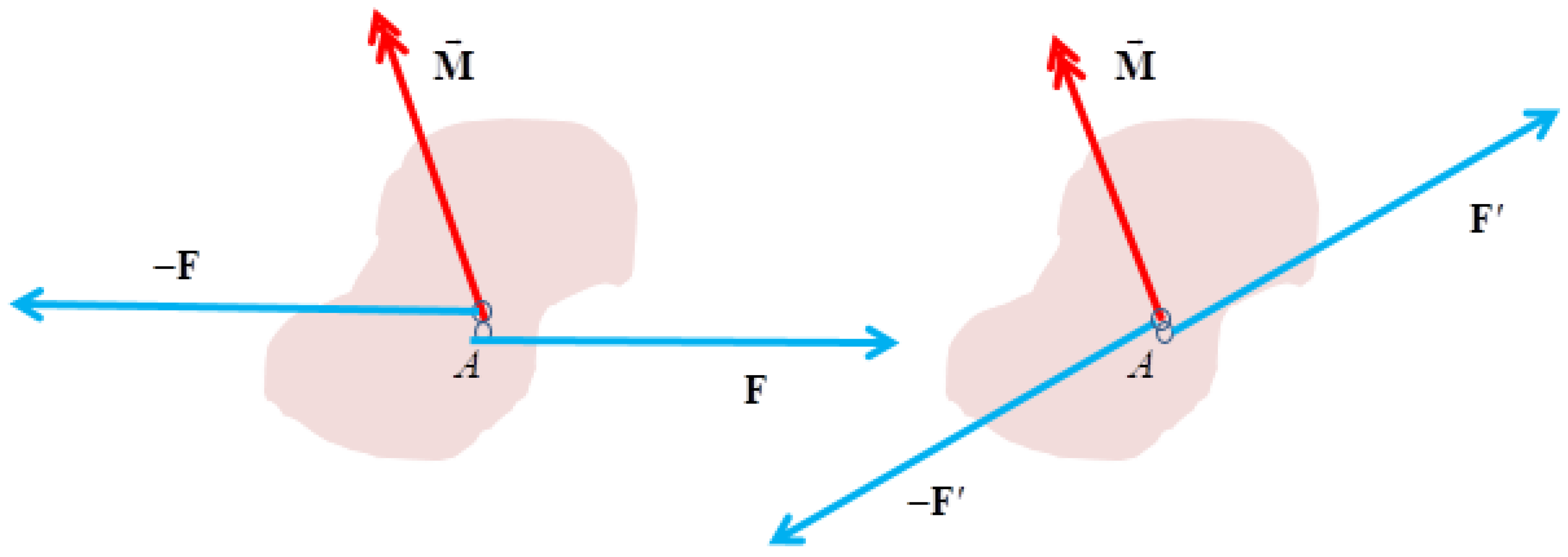

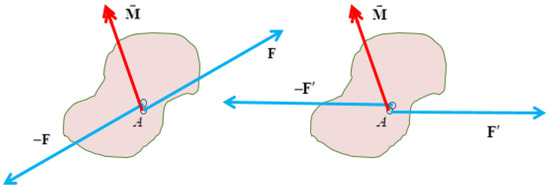

The specification of concentrated couple moment M at point A specifies the plane of parallel couple forces F and F , not their directions. This clearly shows that the effect of a concentrated couple cannot be completely defined by the moment vector M at point A.

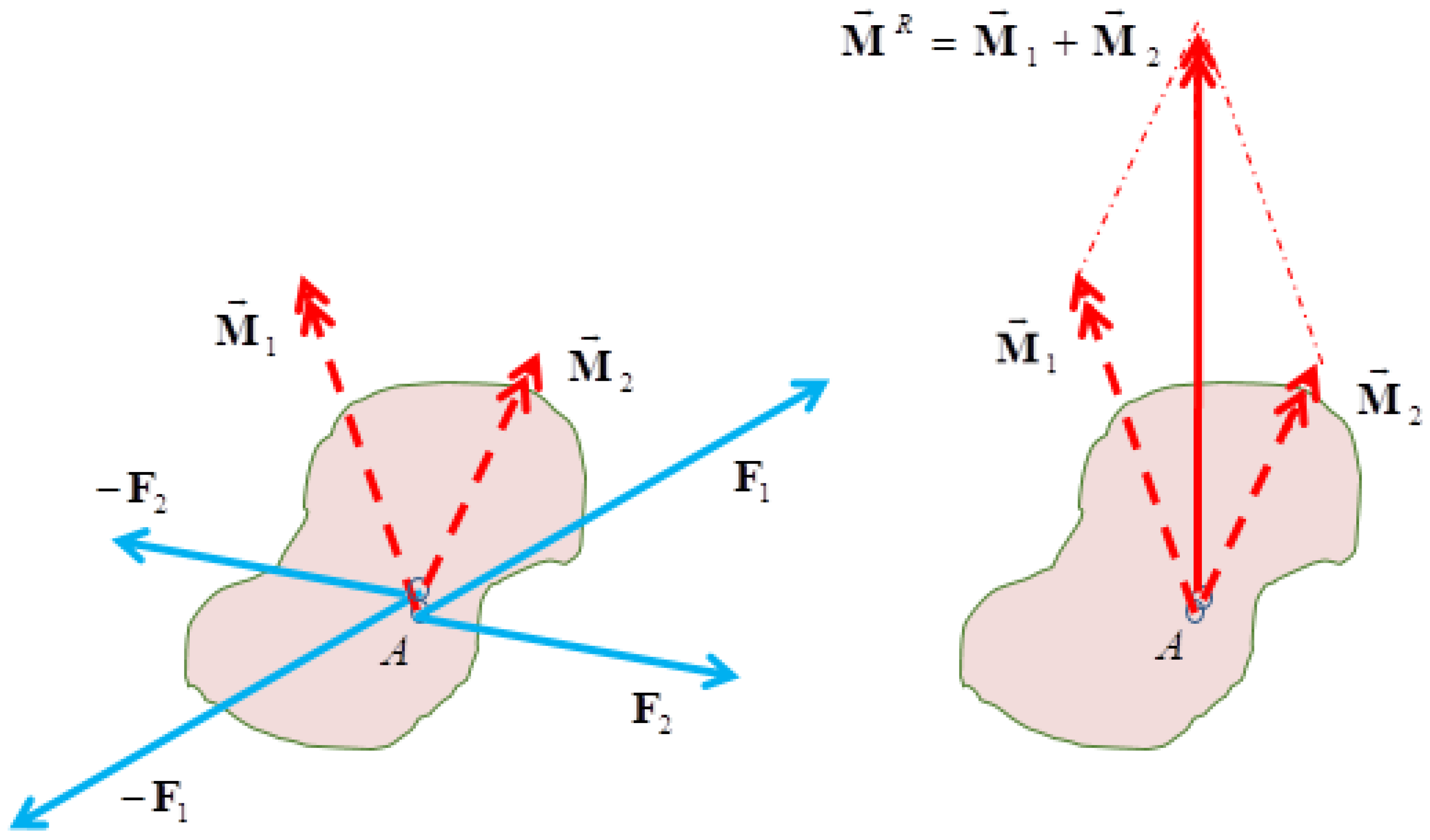

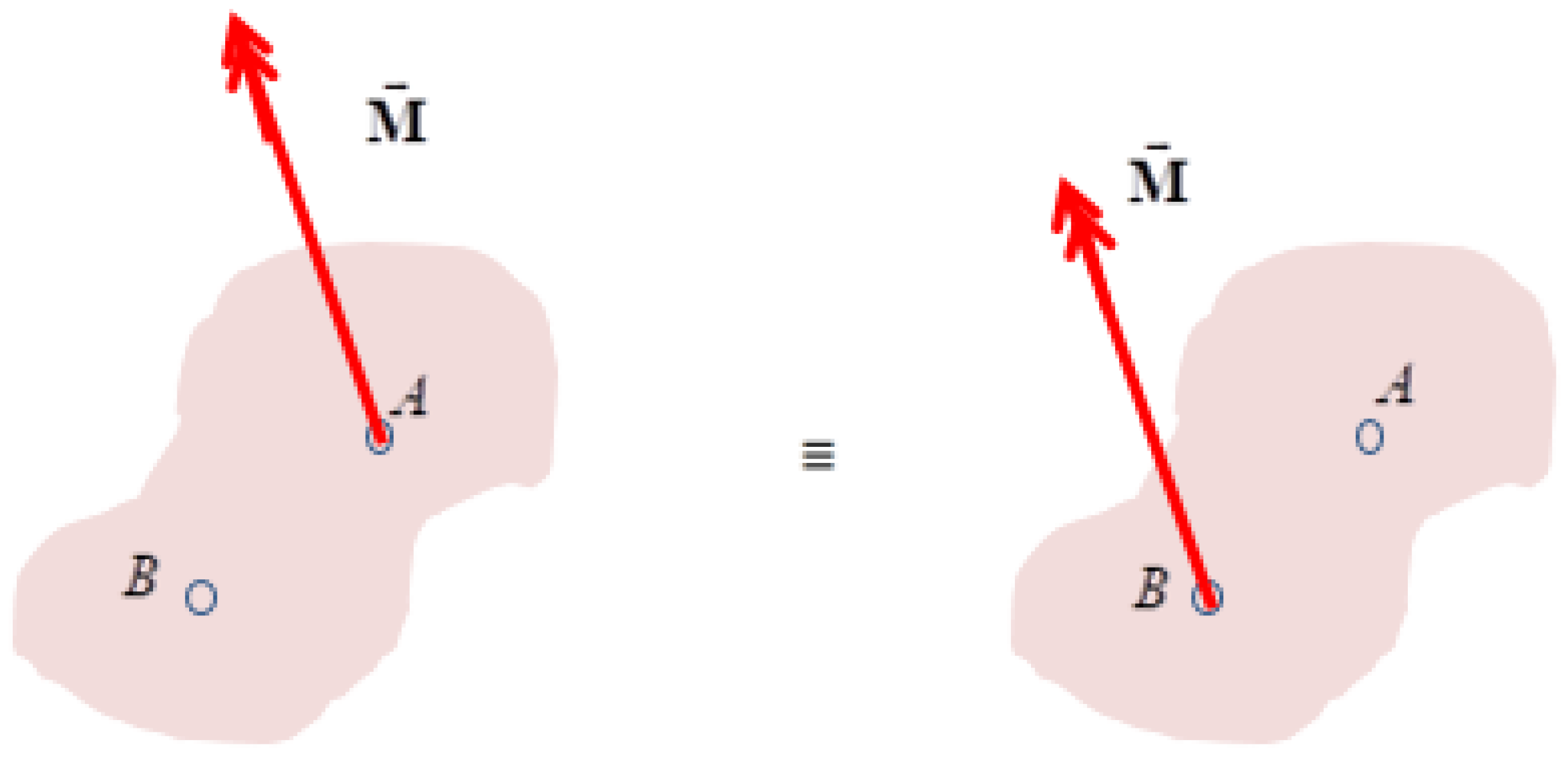

Furthermore, the effect of a system of concentrated couples applied at point A cannot be replaced by a single resultant couple. For example, two concentrated couples with couple moments M 1 and M 2 acting at a point cannot be generally replaced with a couple with resultant moment couple M R = M 1 + M 2 in Figure 7. This means that the parallelogram law for the addition of the moment of concentrated couples is not generally valid for concentrated couples. Interestingly, the resultant of concentrated couples with moments M 1 and M 2 represents a concentrated quadrupole, not a concentrated couple (or dipole).
It is only when the concentrated forces of couples act on the same points A and B before limiting process that the parallelogram law can be used for forces and couple moments. As a result, the system of two couples M 1 and M 2 can be replaced by a resultant couple moment of M R = M 1 + M 2 . However, the moments M 1 , M 2 , and M R = M 1 + M 2 cannot completely describe the effect of these couples. Interestingly, the inverse is true, that is, a given concentrated couple with moment M at point A can be decomposed to some components by using the parallelogram law if the corresponding forces follow the parallelogram law.

3.3. System of Forces Equipollent to a System of One Force and One Couple

The introduction of a couple shows that a system of forces acting on a body is equipollent to a system of one resultant force F R and one resultant couple with moment M O R at point O [42], where
F R = F
M O R = M O = r × F

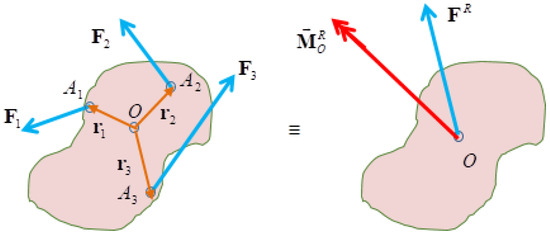

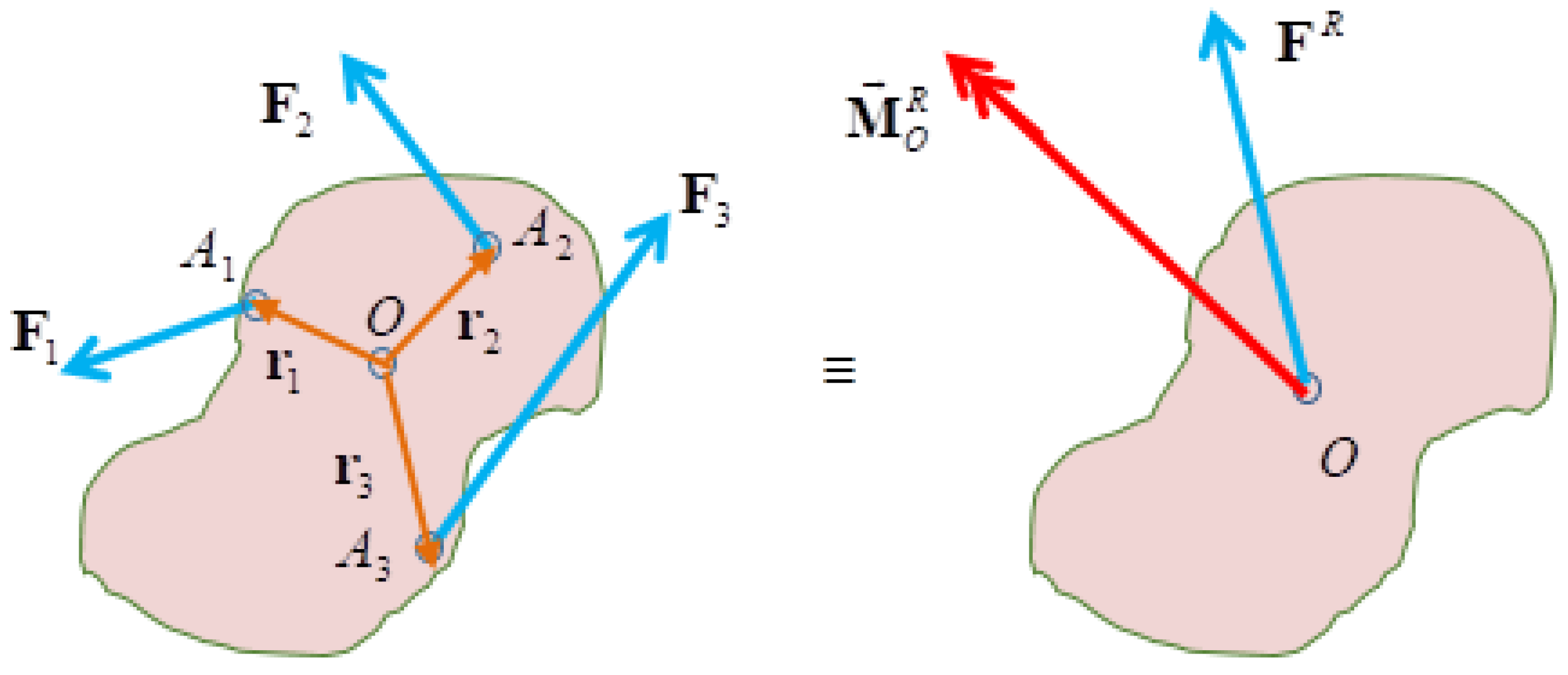

Figure 8 shows that the reduction of the system of forces F 1 , F 2 , and F 3 acting on a body has been replaced with an equipollent system of one resultant force F R and one resultant couple with moment M O R at point O.
However, the effect of this new simple equipollent system is not generally equivalent to the original system of forces because it creates a different state of stress and deformation. As discussed previously, equipollent systems have different effects on the internal interactions and deformation of the body.
Despite this character, the concept of an equipollent system of one resultant force F R and one resultant couple with moment M O R still plays an important role in mechanics. For example, for investigating the condition of equilibrium or motion of rigid bodies or for determining the deformation of beams, plates, and shells in the structural mechanics and elementary strength of materials, the reduction of forces to an equipollent system of one force and one couple is very useful. This will be discussed in the following sections.

3.4. Equipollent System of Forces in Rigid Body Mechanics

The motion of a rigid body is specified by the motion of one point describing its translation and rotation about this point. Interestingly, the force and moment governing equations
F R = F = m a
M O R = M O = r × m a
are enough to describe the motion of a rigid body [41,42,43], where each scalar equation of (27) and (28) describes the motion corresponding to a degree of freedom of the rigid body. Consequently, an equipollent system of external forces creates the same condition of equilibrium or motion for a rigid body. This means that although the internal forces might not remain the same, the motion of individual particles remain the same. Therefore, in rigid body mechanics, systems of equipollent forces are considered equivalent.
Note, however, that the effective forces m a and r × m a are usually simplified for a rigid body by introducing the center of mass and the moment of inertia tensor [41,42,43].

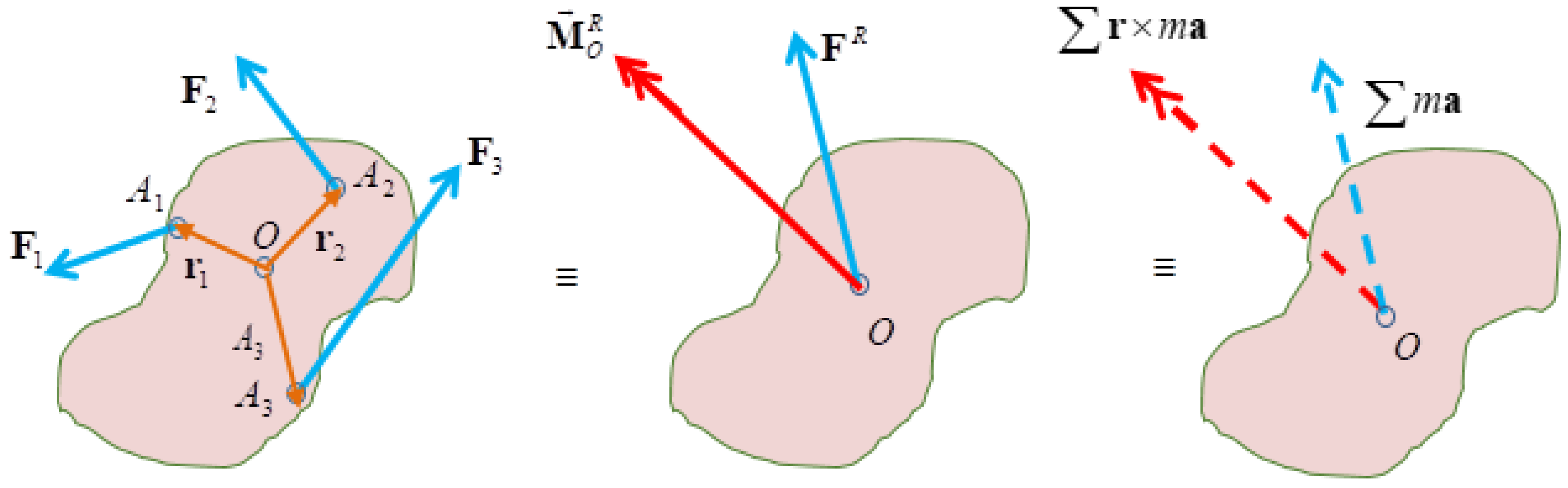

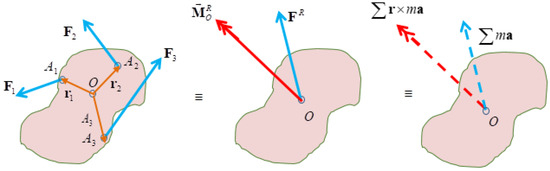

Figure 9 shows that the reduction of the system of forces F 1 , F 2 , and F 3 acting on a rigid body has been replaced with an equivalent (equipollent) system of one resultant force F R and one resultant couple M O R at point O, which in turn is equivalent to a system of effective force m a and couple with moment r × m a .
Interestingly, in the mechanics of rigid bodies, very important results are obtained as follows.

3.4.1. Sliding Force (Transmissibility Principle)

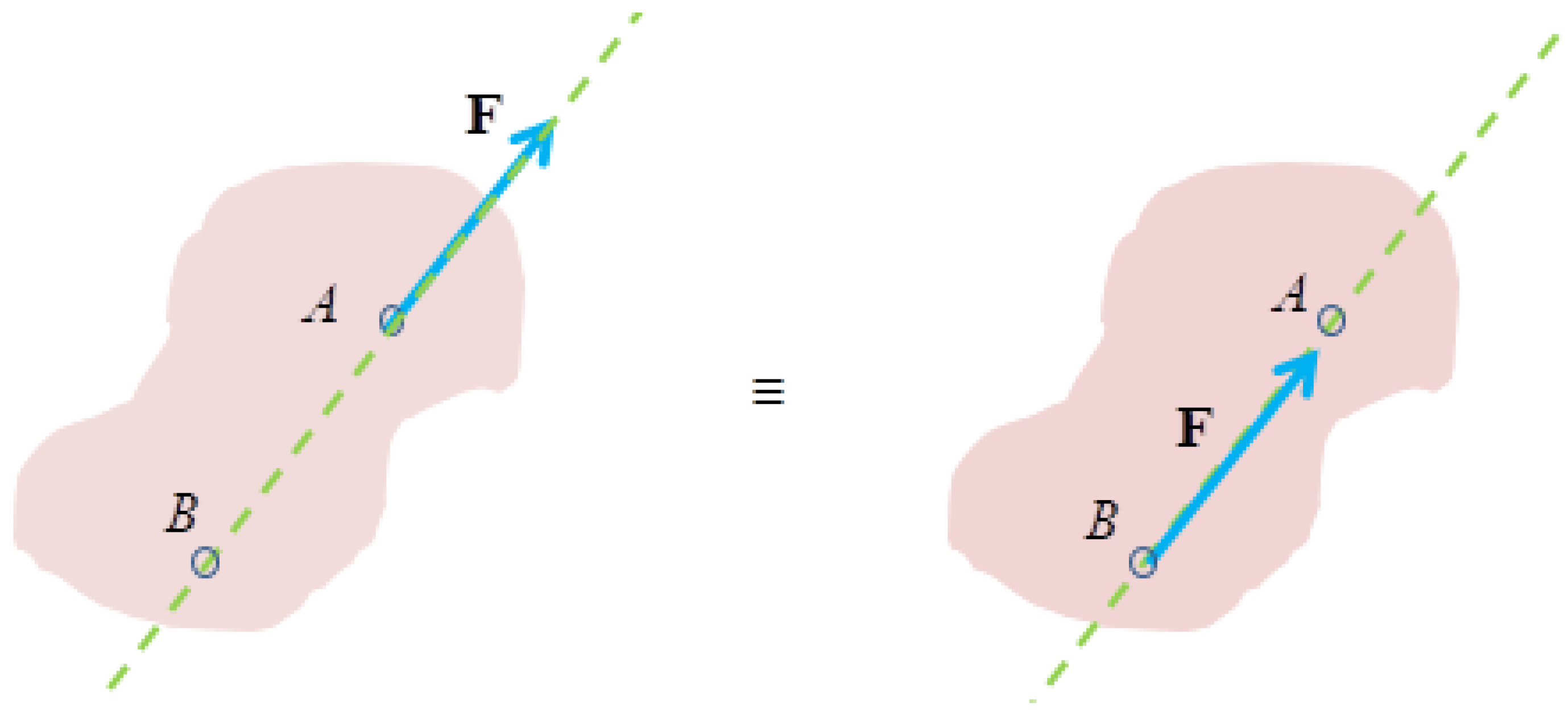

By sliding an external force vector F along its line of action, the state of equilibrium or motion of a rigid body does not change. In other words, in rigid body mechanics, the forces with the same magnitude and line of action are not only equipollent but also equivalent. This is called the principle of transmissibility for rigid bodies, which states that the action of a force F on a rigid body may be transmitted along its line of action, as shown in Figure 10.
However, the transmissibility principle is not valid when considering the state of internal stresses and deformation, where forces are concentrated and cannot be transmitted on their line of action.

3.4.2. Freedom of Couples

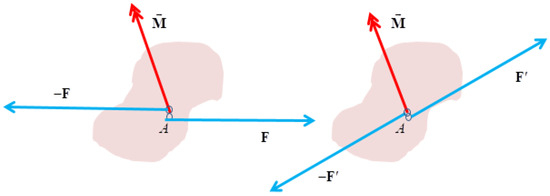

Note that replacing a couple with an equipollent couple does not change the state of equilibrium or motion of a rigid body. This means in rigid body mechanics, equipollent couples are equivalent [42,43]. For example, the couple of forces F and F can be replaced by the equipollent couple of forces F and F , as shown in Figure 11. As a result, in rigid body mechanics, two couples are equivalent if they have the same moment M , regardless of whether they act in the same plane or in parallel planes [42,43].
Also, notice that the effect of two couples with moments M 1 and M 2 can be replaced by a couple with a moment equal to the sum M 1 + M 2 . This result suggests that a couple can be completely represented by its moment in rigid body mechanics.
Accordingly, in rigid body mechanics, the effect of couple forces F and F can be completely represented by its pseudo-vector moment M applied to any arbitrary point. Therefore, the couple is usually denoted with its moment M instead of the term “couple with moment M ”. Therefore, one can simply use “couple M ”. Note that only for a rigid body can a couple be represented by its free moment vector M and be attributed to any arbitrary point without affecting the condition of equilibrium or motion of the rigid body, as shown in Figure 12.
Couple freedom is not valid when considering the state of internal stresses and deformation. In this case, a couple cannot be completely represented by its moment.

3.5. Equipollent System of Forces in Continuum Mechanics and the Strength of Material

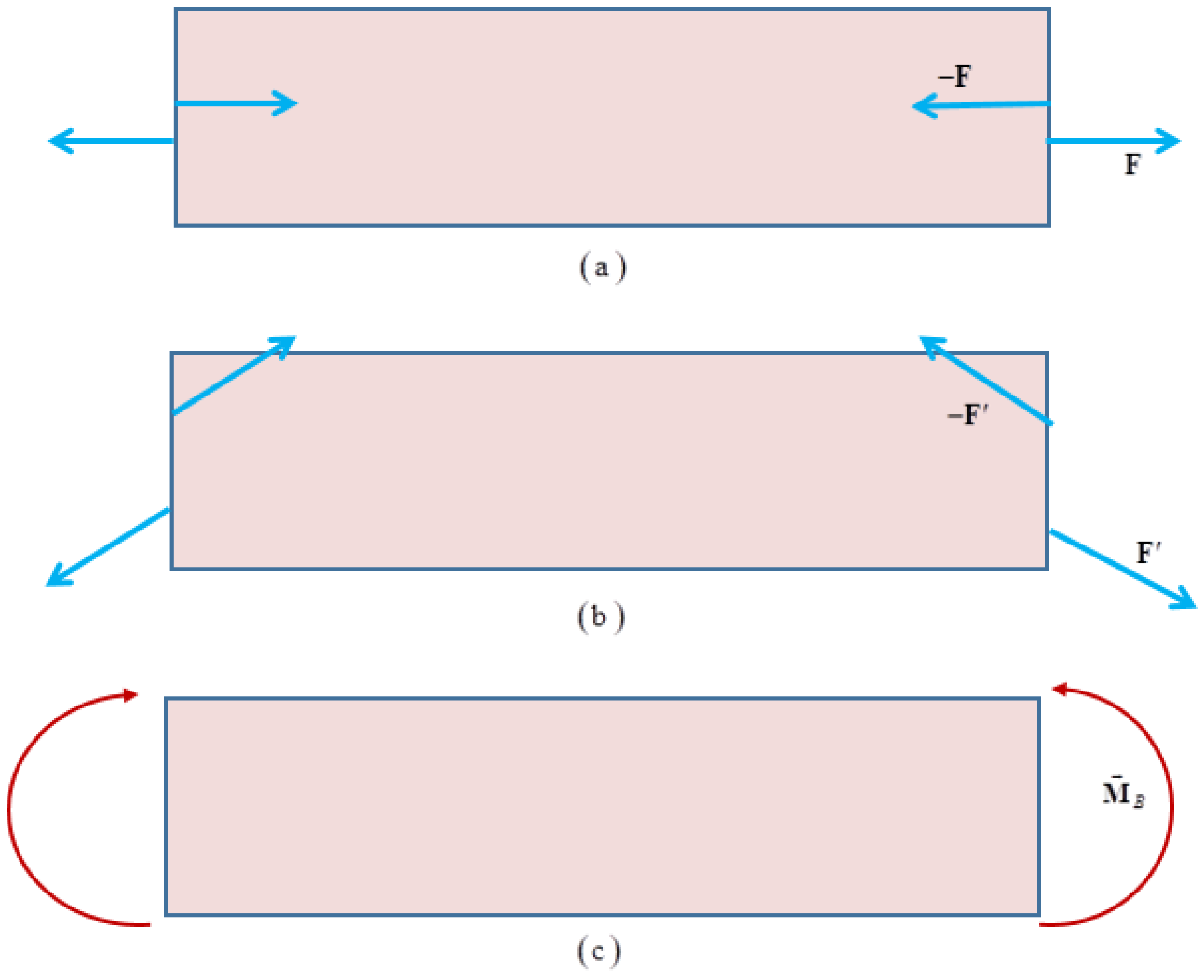

In continuum mechanics, where the state of internal forces and deformation are studied, the equipollent systems of forces are not equivalent. This means the system of forces F 1 , F 2 , and F 3 acting on a deformable body, shown in Figure 9, cannot be replaced with an equipollent system of one resultant force F R and one resultant couple M O R at point O. Therefore, forces are not sliding (transmissible) vectors, and couples cannot be completely represented by their moments as free vectors. This is more essential for concentrated couples. There are infinite sets of concentrated couples at point A with the same moment M . Figure 13 shows two of these equipollent concentrated couples, one with concentrated forces F and F and the other with concentrated forces F and F . The deformation and state of stresses associated with these two equipollent concentrated couples are different.
Consequently, even a concentrated couple cannot be completely represented by its moment M as a free vector. Unfortunately, representing a couple by its corresponding pseudo-vector moment has carelessly created some fundamental misunderstanding in the development of couple stress continuum mechanics. It seems this is the result of the confusion of continuum mechanics with the structural mechanics and strength of material, which is explained as follows.
Although equipollent systems of forces are not equivalent, it turns out that the state of stresses and deformation are approximately the same for some elastostatic cases. This is the result of Saint-Venant’s principle in elastostatics, which states that the deformation and state of stresses for static equipollent system of forces are approximately the same for parts of continuum far away from loading points. Saint-Venant’s principle allows us to replace boundary loadings by an equipollent system of forces to find analytical solutions far away from loadings. This principle is generally used in the semi-inverse method to solve elasticity problems, such as extension, pure bending, torsion and flexure of elastic bars (Sadd, [45]). It turns out that Saint-Venant’s principle is an important part of the strength of materials, such as beam, plate, and shell bending, where the loading on boundary cross-sections is replaced by the equipollent loading that the far-field deformation predicts. For example, the equipollent couples ( F , F ) and ( F , F ) on the end cross-sections of the beam create almost the same deformation and stresses far away from these ends. Therefore, their loadings are represented by their moment M B at the ends of the beam, as shown in Figure 14.

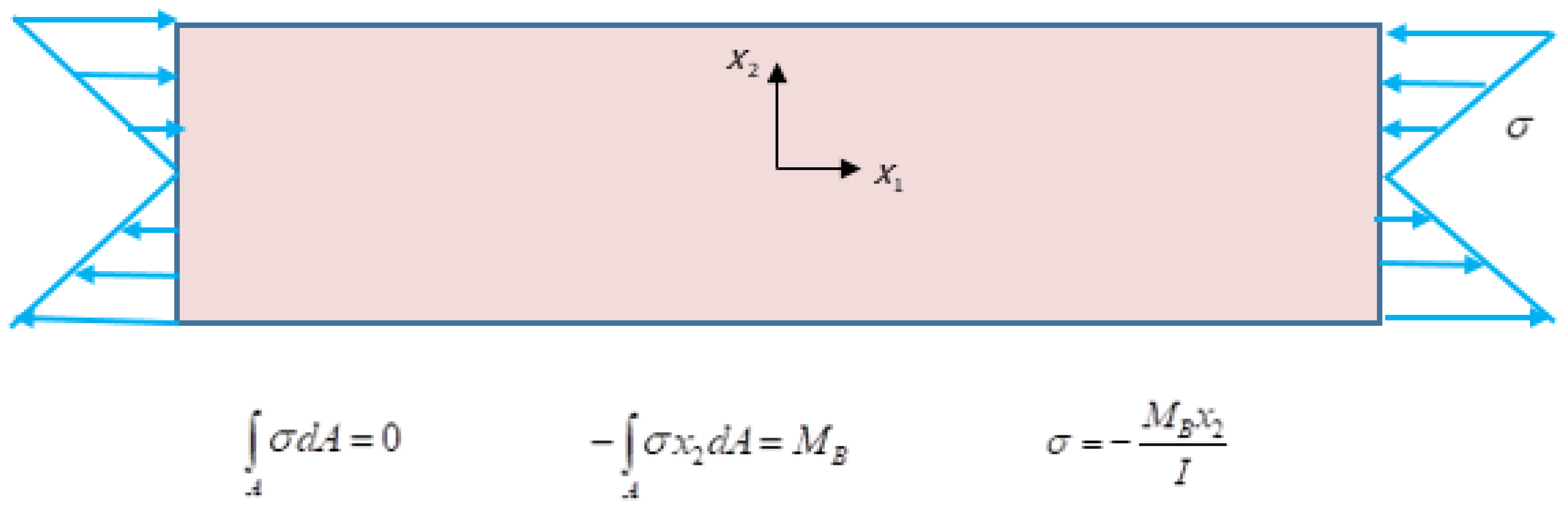

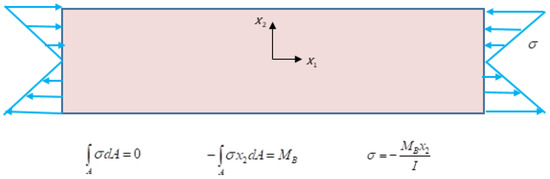

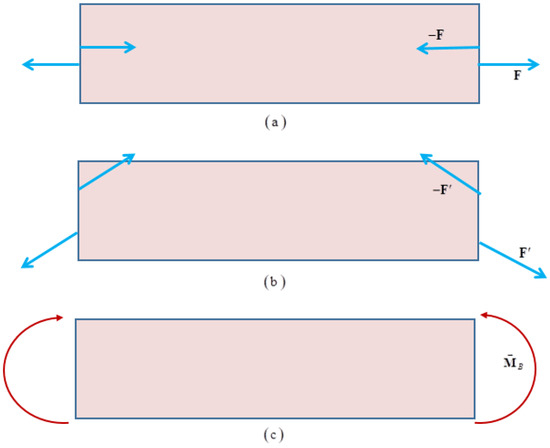

In the elementary strength of materials, the couple M B is replaced with the triangular normal force stress distribution predicted by beam theory, as shown in Figure 15. Based on Saint-Venant’s principle, the deflection and stresses from beam and plate theories are accurate enough when they are far away from the loaded regions. However, at the vicinity of loading regions, such as those shown in Figure 14, these elementary strength of materials results are not accurate and can even be misleading. Importantly, this fundamental fact must be considered in the development of couple stress continuum mechanics.

4. Loading in Continuum Mechanics

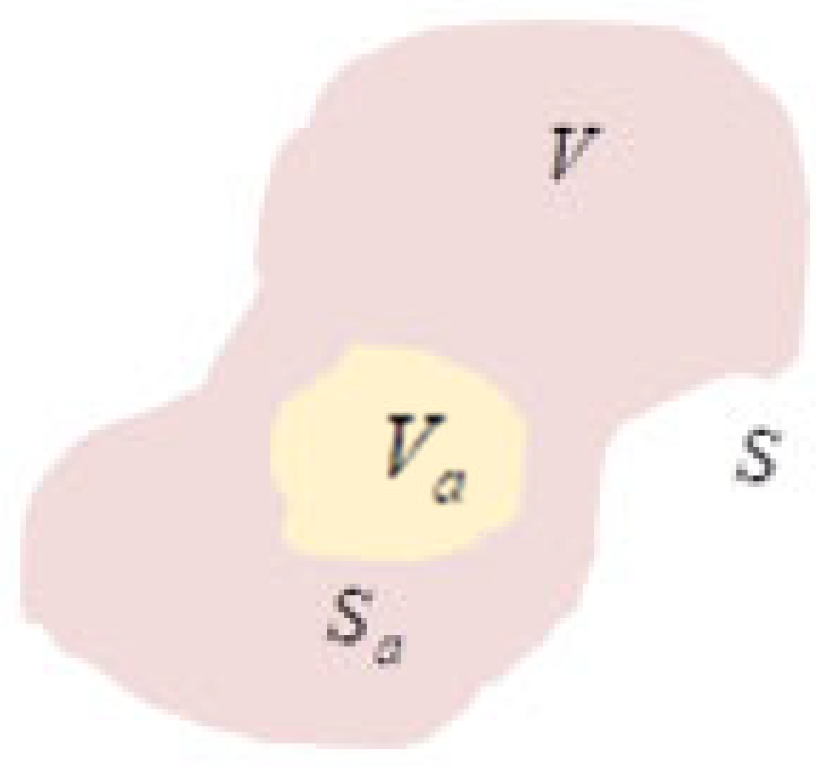

Consider a continuous body occupying a volume V bounded by a surface S , as shown in Figure 15. Also, for future reference, an arbitrary subdomain volume V a having surface S a is considered, as shown in Figure 16.
It is assumed that the body is under the influence of external loading, such as body and surface loading. These loadings may be a concentrated force and couple or distributed force and couple in the volume or on the surface.

4.1. Distributed Loads

In continuum mechanics, it is postulated that the distributed quantities such as body force, surface force, body couple, and surface couple are piecewise continuous if they exist.

4.1.1. Body Force and Body Couple

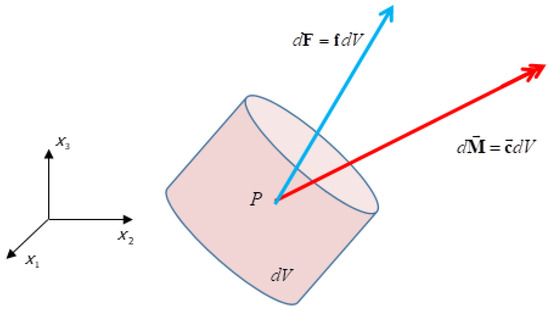

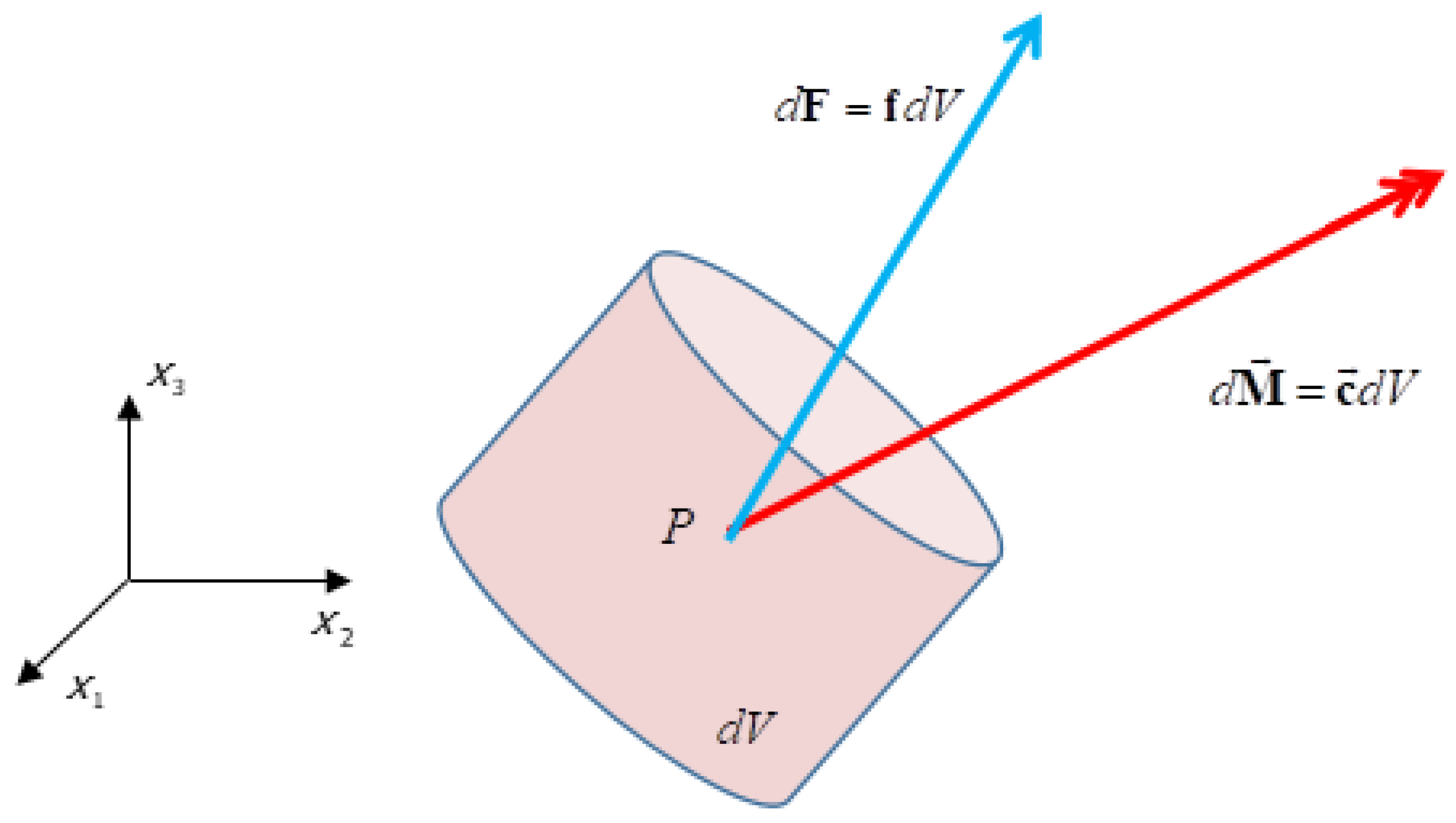

Body loads are those external distributed forces and couples that act on the elements of volume or mass in the body. Therefore, the system of forces exerting to a volume element d V at a point P is equipollent (not equivalent) to the general force couple system with force d F = f d V and couple with moment d M = c d V , as shown in Figure 17. Here, f and c are the body force and moment of the body couple, respectively, which are considered piecewise continuous in V .

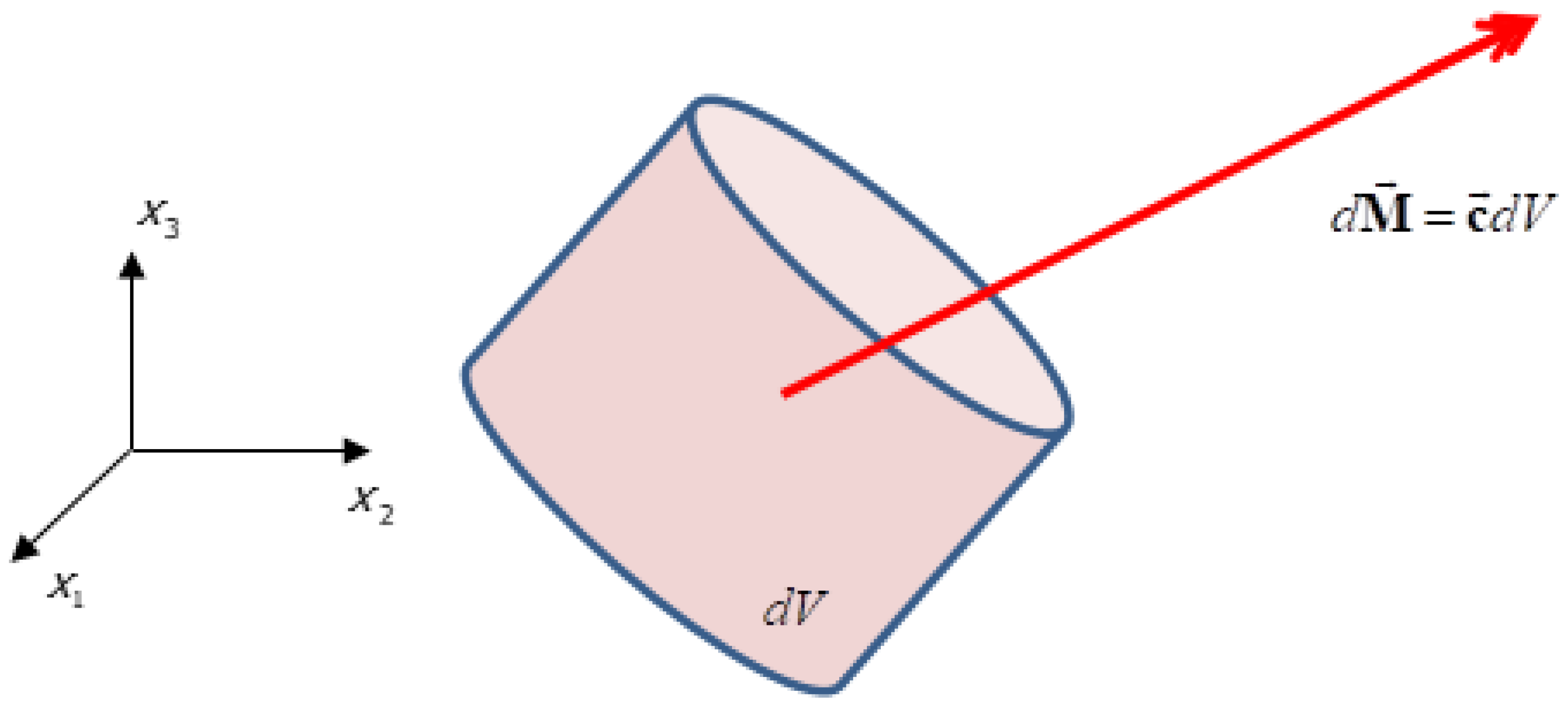

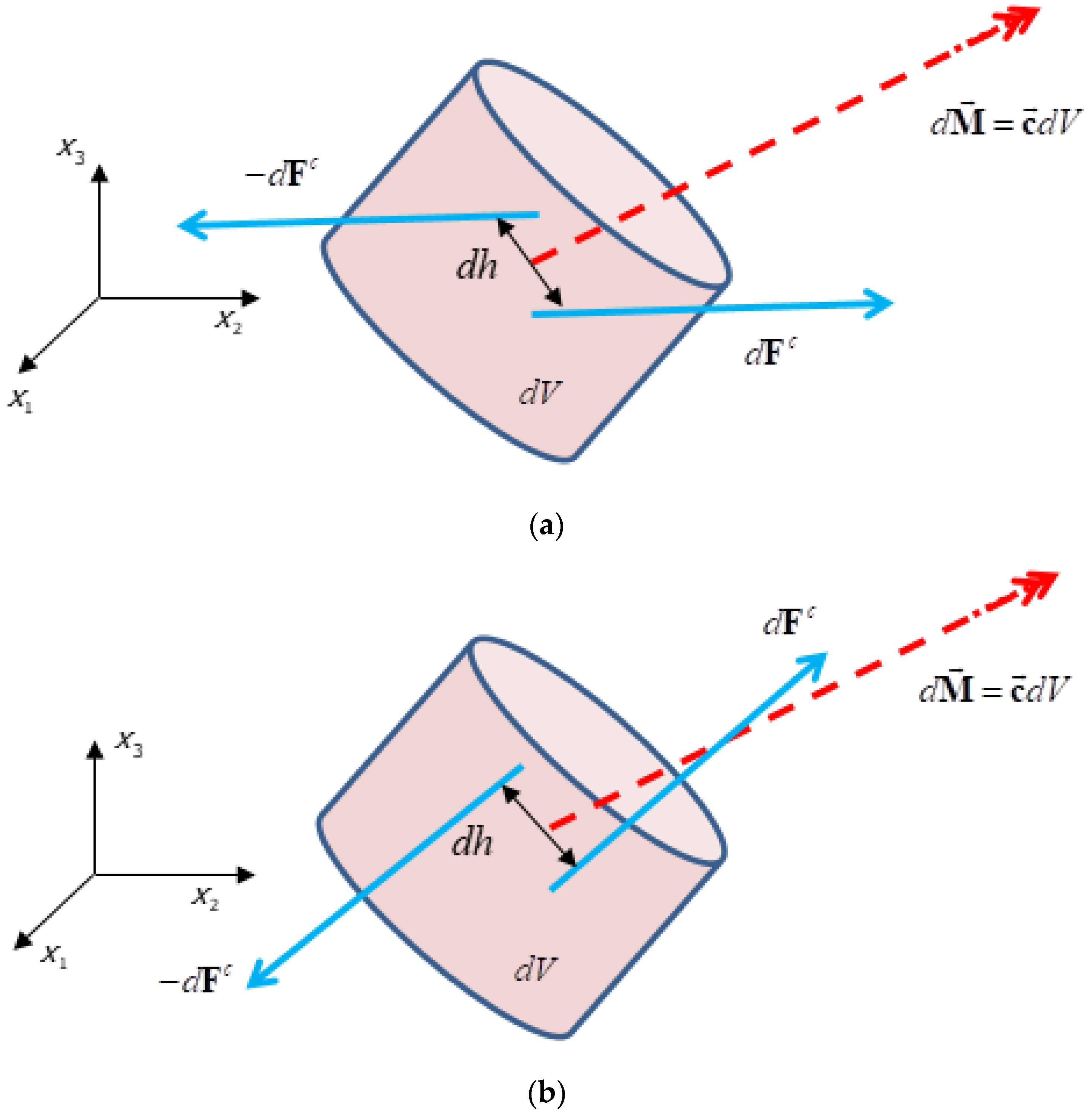

However, note that the pseudo-vector moment d M = c d V does not completely describe the effect of the couple in the volume element d V . It is also necessary to specify the line of action of forces creating the couple. This obviously imposes some restriction on the form of the body couple, which will be examined in more detail later.

4.1.2. Force and Couple Tractions

Surface loads are those forces and couples acting on the elements of the surface of the body. Interestingly, the state of interactions inside the body among elements of matter can also be represented with surface forces and couples by using the method of sections.
Let us consider the state of interactions inside a continuous body. For this, the interactions on a surface element d S with a unit normal vector n at point P on an arbitrary surface S a in the body are considered as follows (Figure 16). It is generally assumed that the system of forces through this surface element d S is equipollent (not equivalent) to the force couple system with force d F = t ( n ) d S and couple moment d M = m ( n ) d S , as shown in Figure 18. Here, t ( n ) and m ( n ) are the force traction and moment of couple traction, respectively, which are considered piecewise continuous on S a .

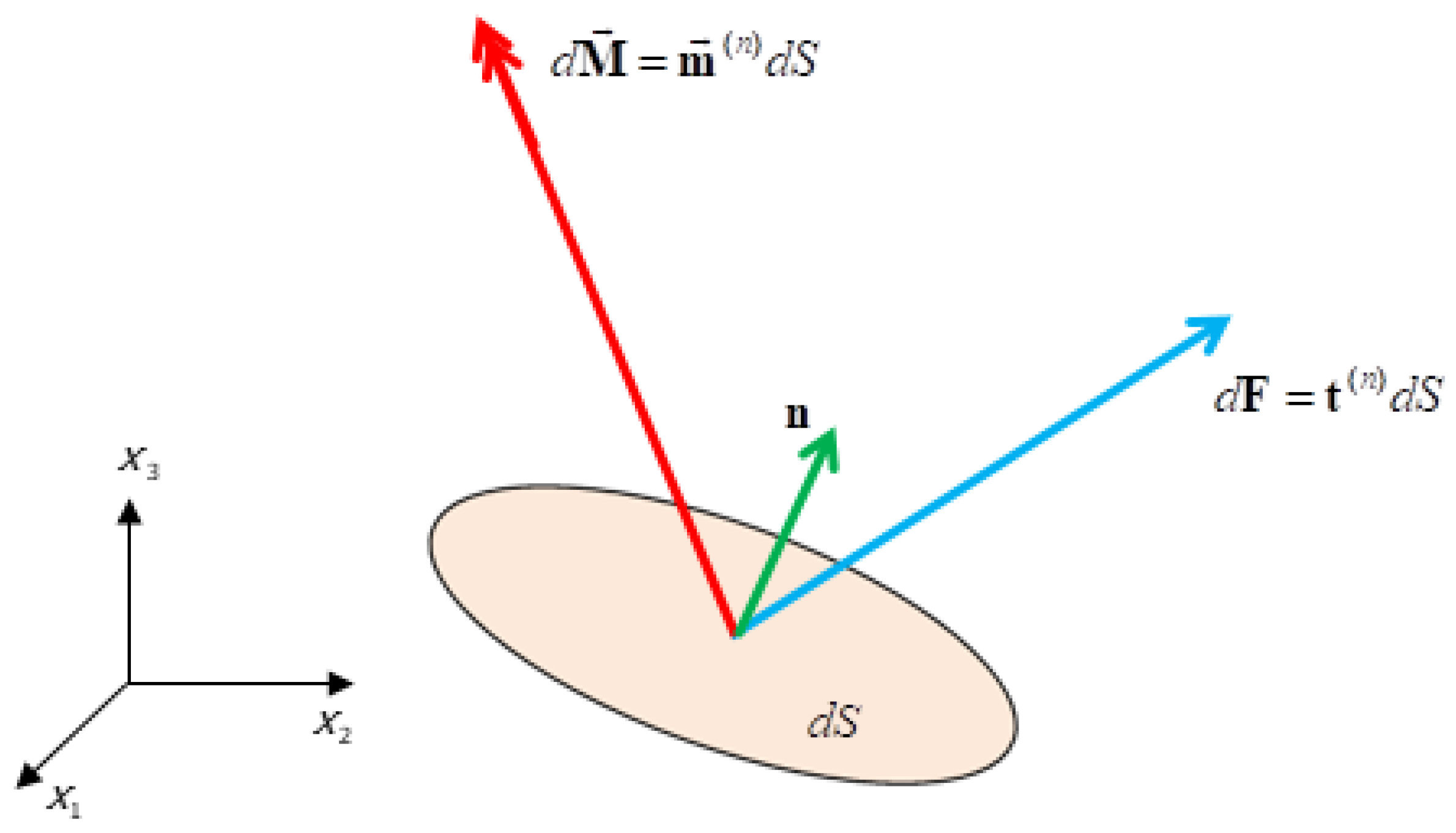

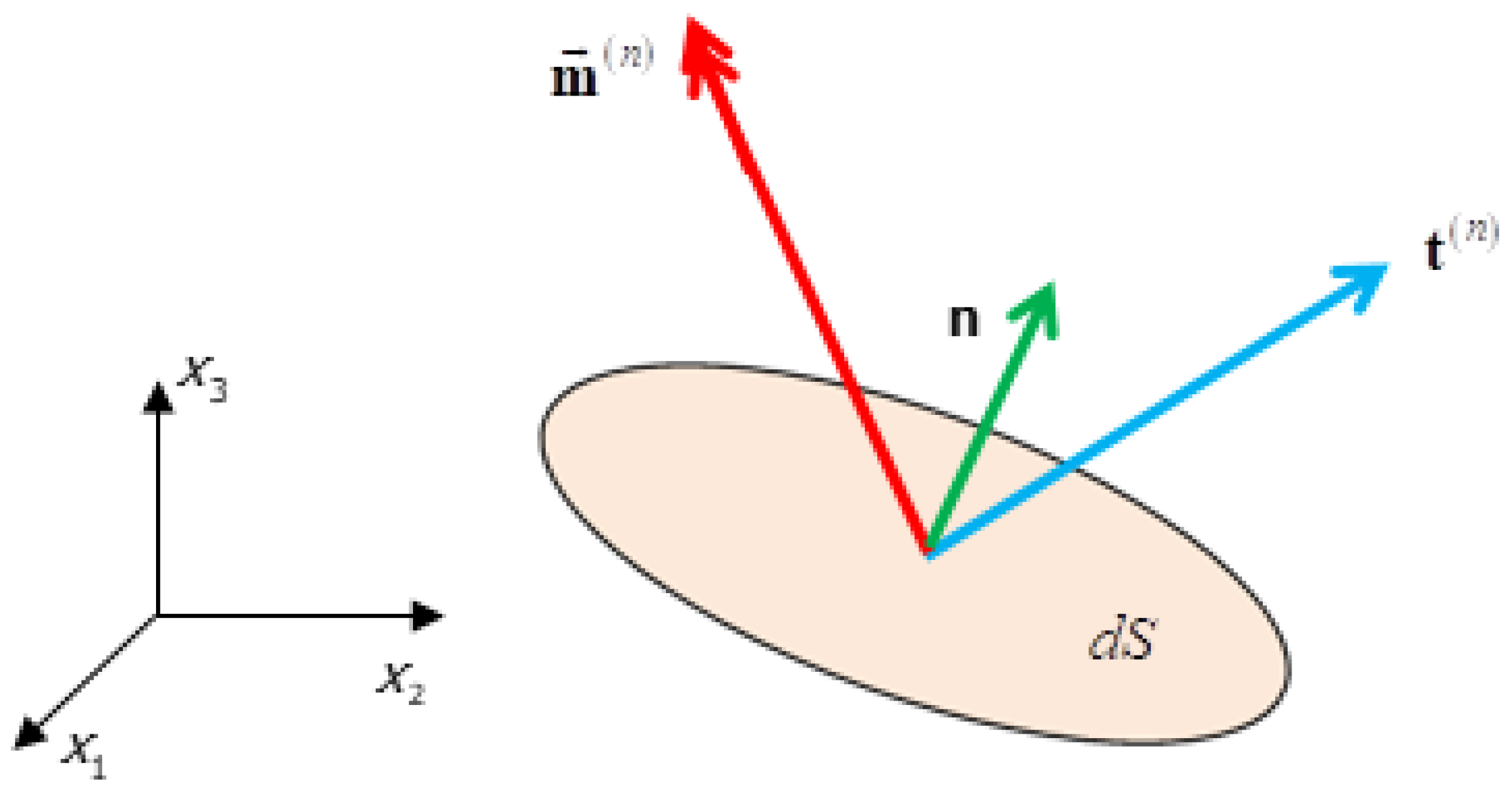

Figure 19 shows the force traction vector t n and couple traction moment pseudo-vector m n , which are considered continuous on the arbitrary surface S a .
However, the couple with pseudo-vector moment d M = m ( n ) d S does not completely describe the effect of this surface couple on the surface element d S . Obviously, this character imposes some restrictions on the form of couple traction, which will be also discussed in more detail later.

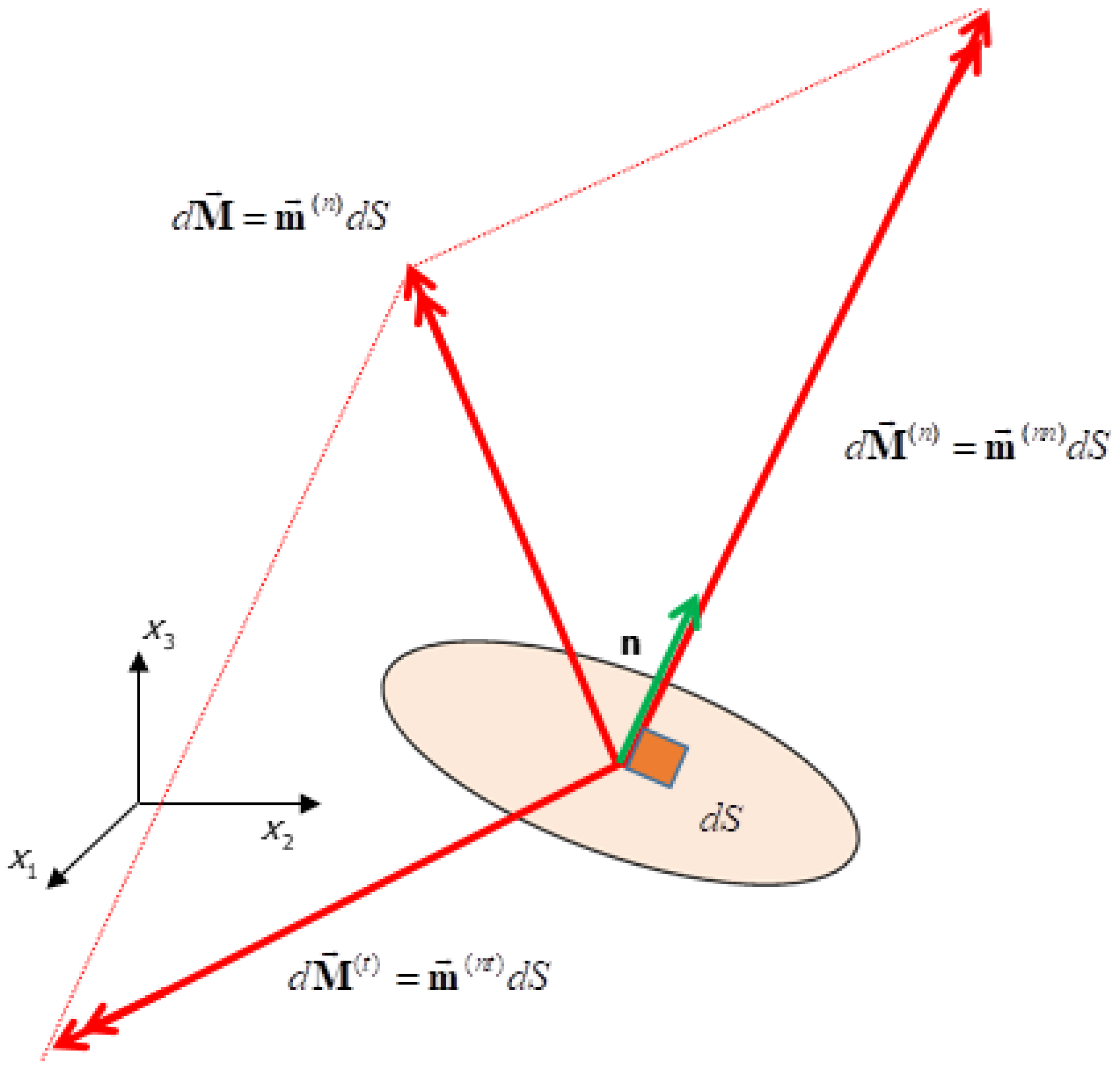

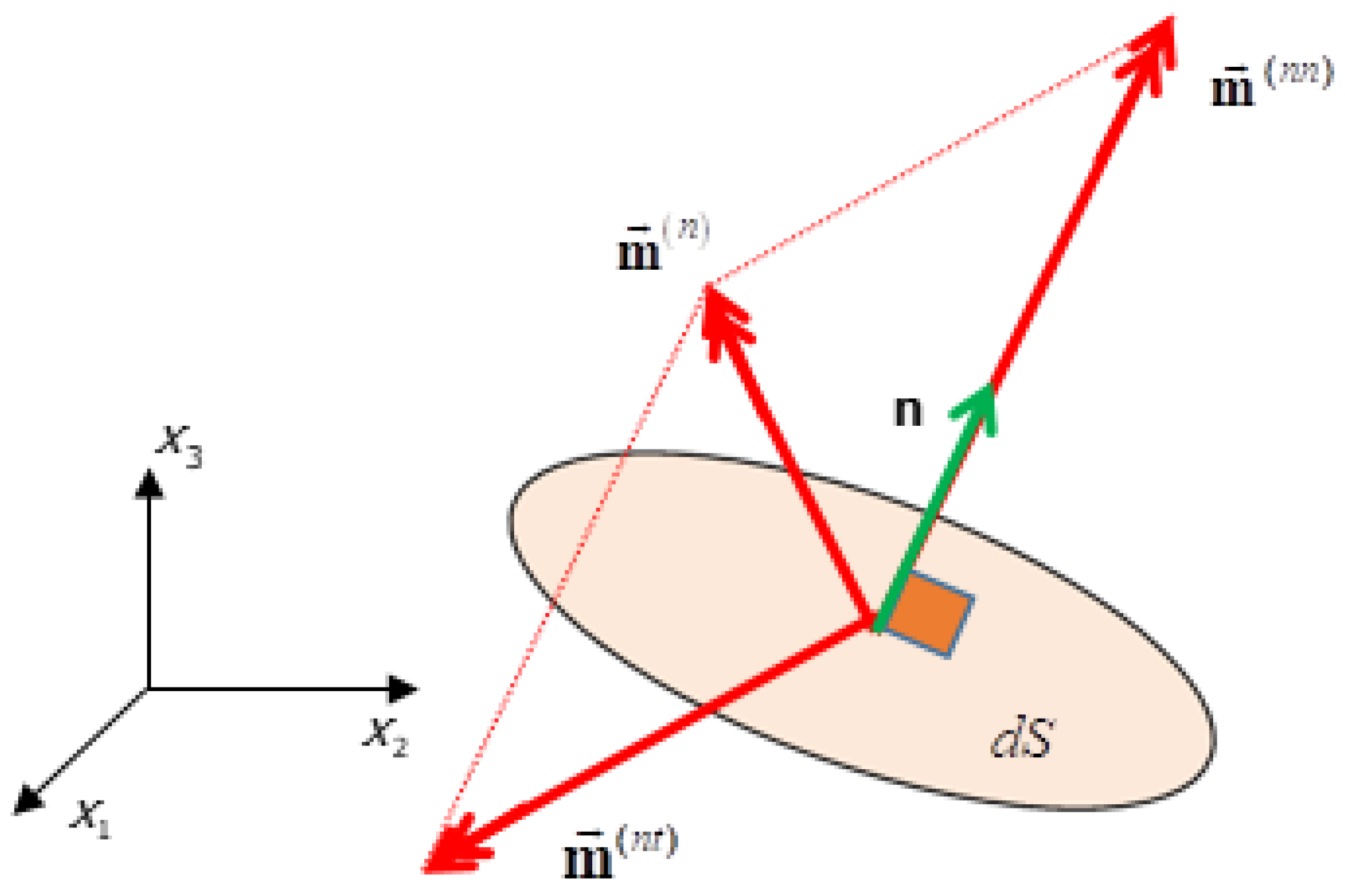

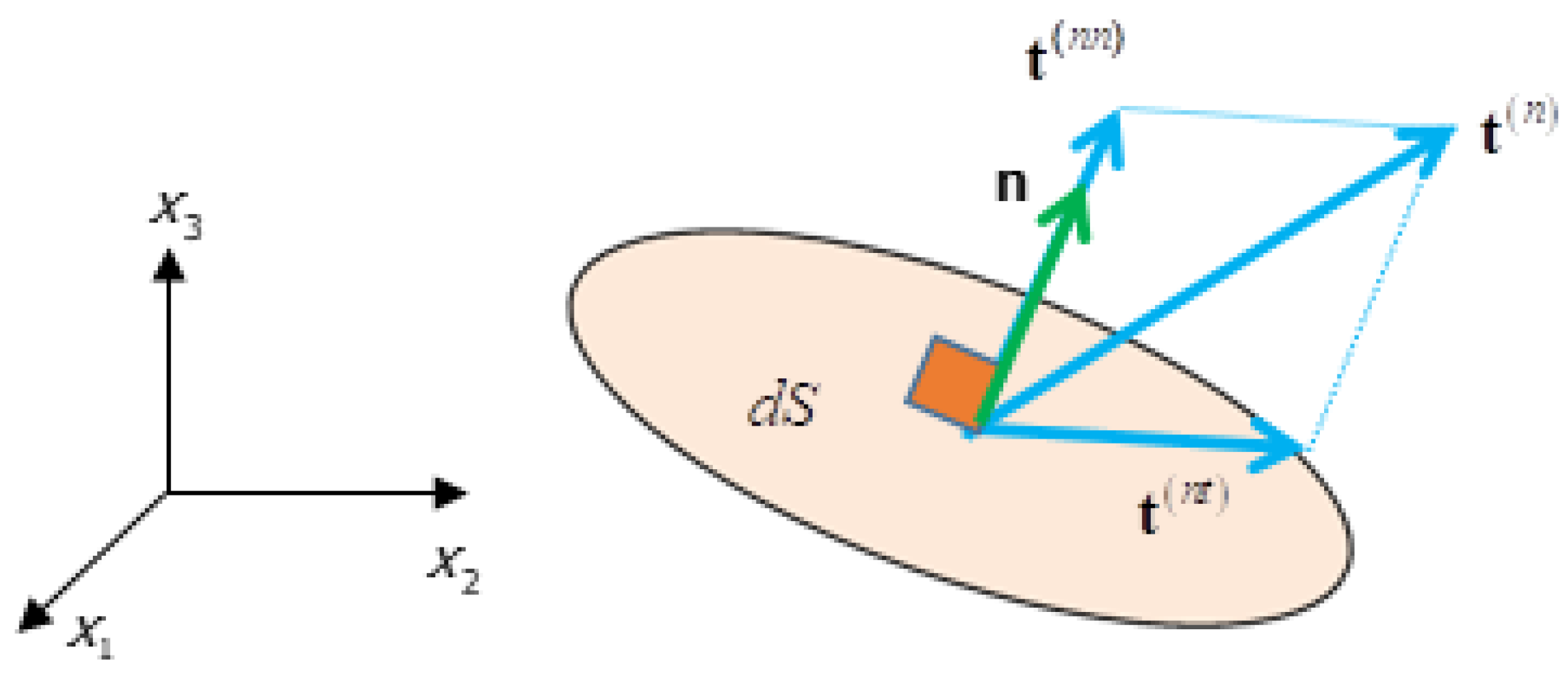

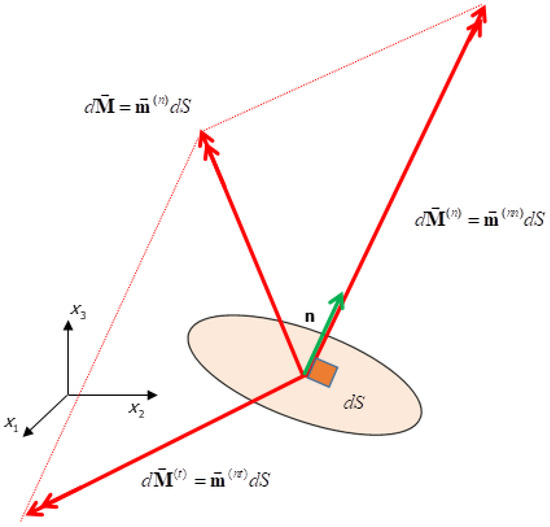

The tractions t n and m n can be decomposed into their normal and tangential components as
t n = t n n + t n t t i n = t i n n + t i n t
m n = m n n + m n t m i n = m i n n + m i n t
Note that the normal force traction t ( n n ) pulls or pushes material, whereas the tangential transverse force traction component t ( n t ) creates shear, as shown in Figure 20.

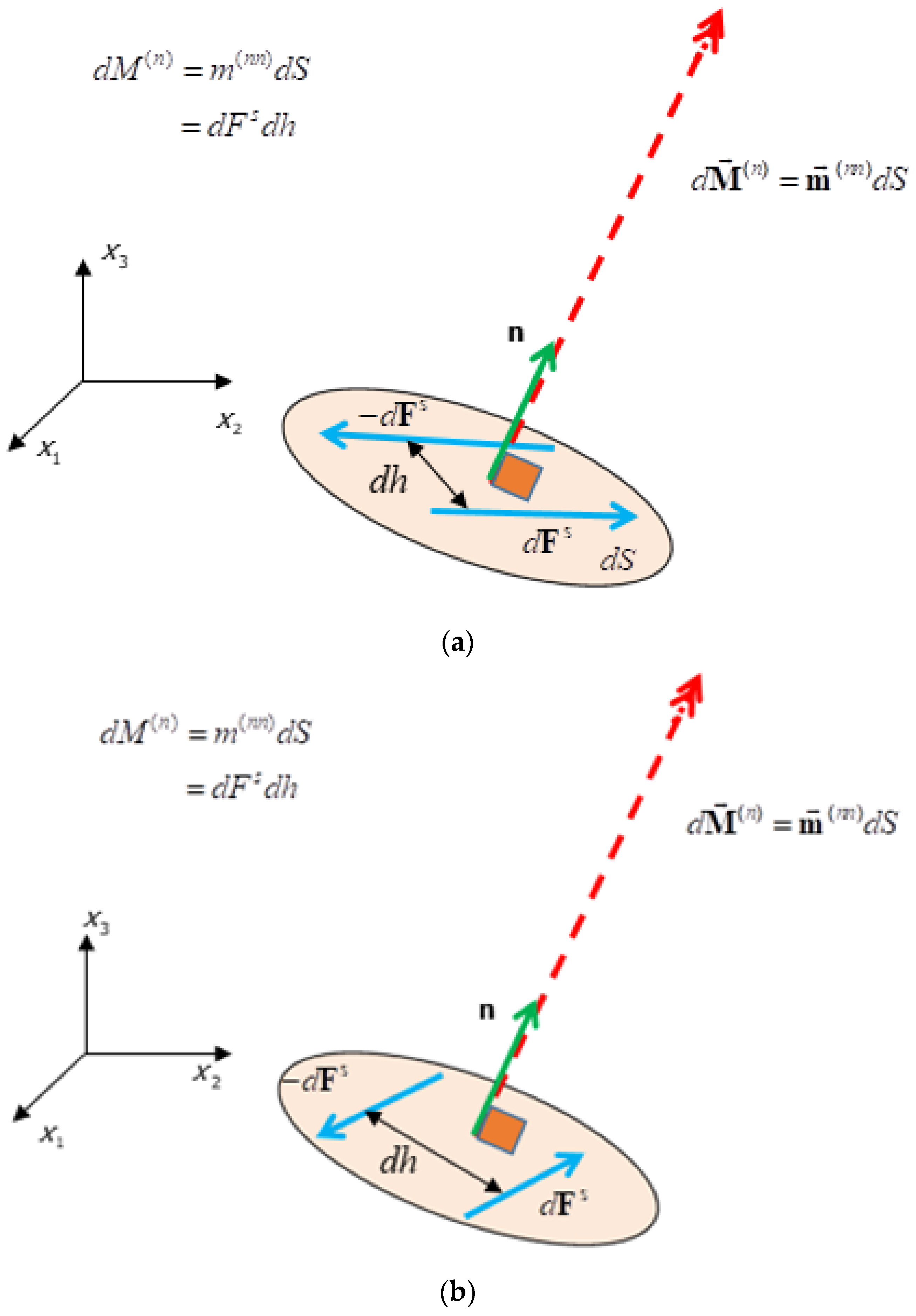

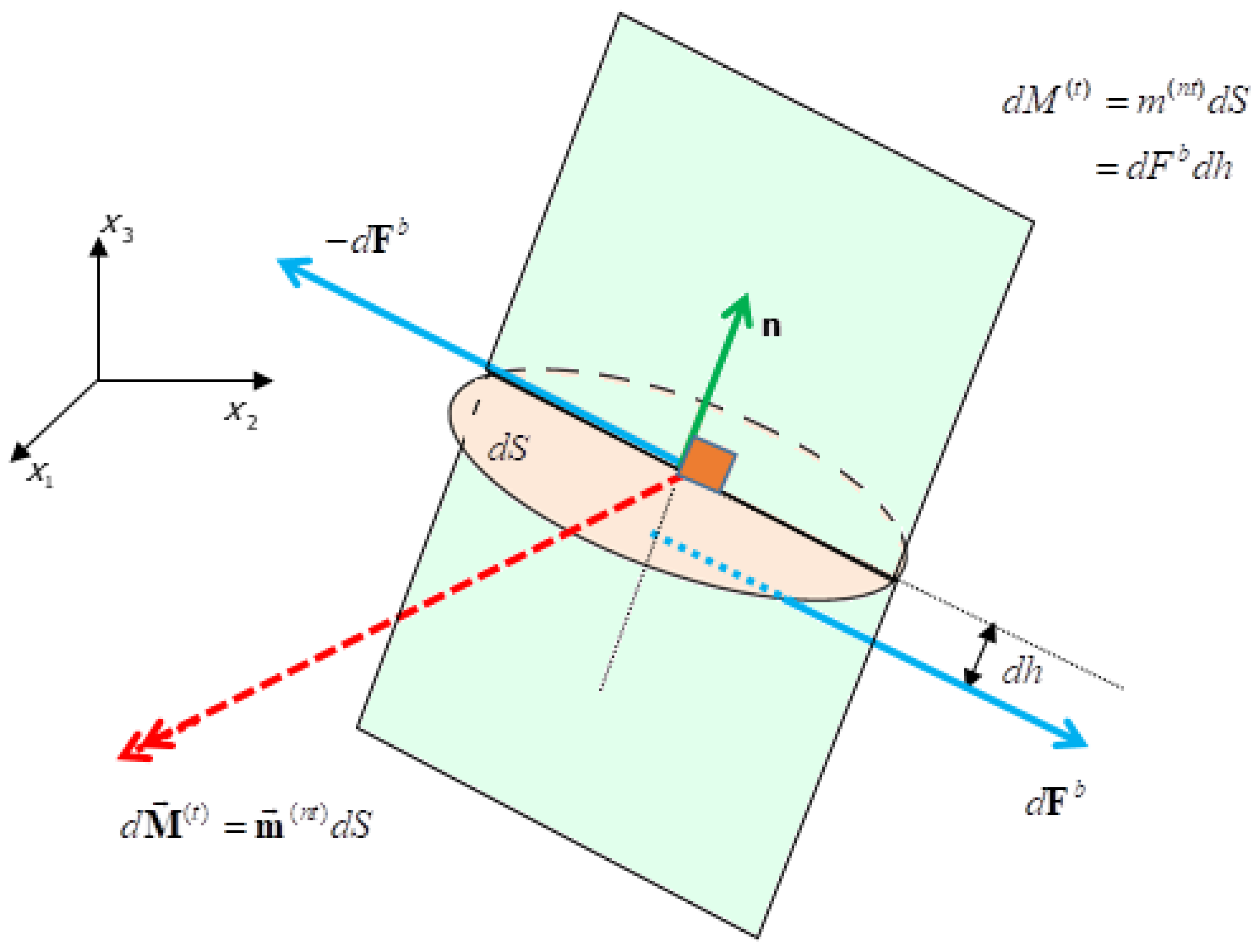

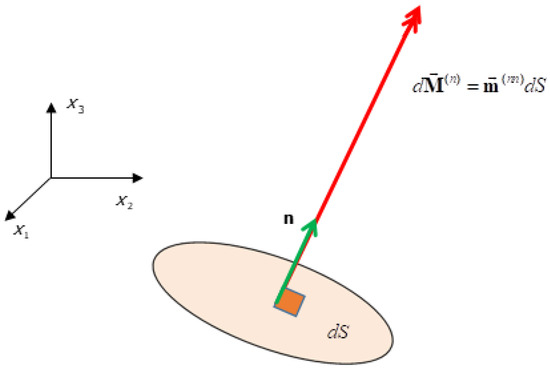

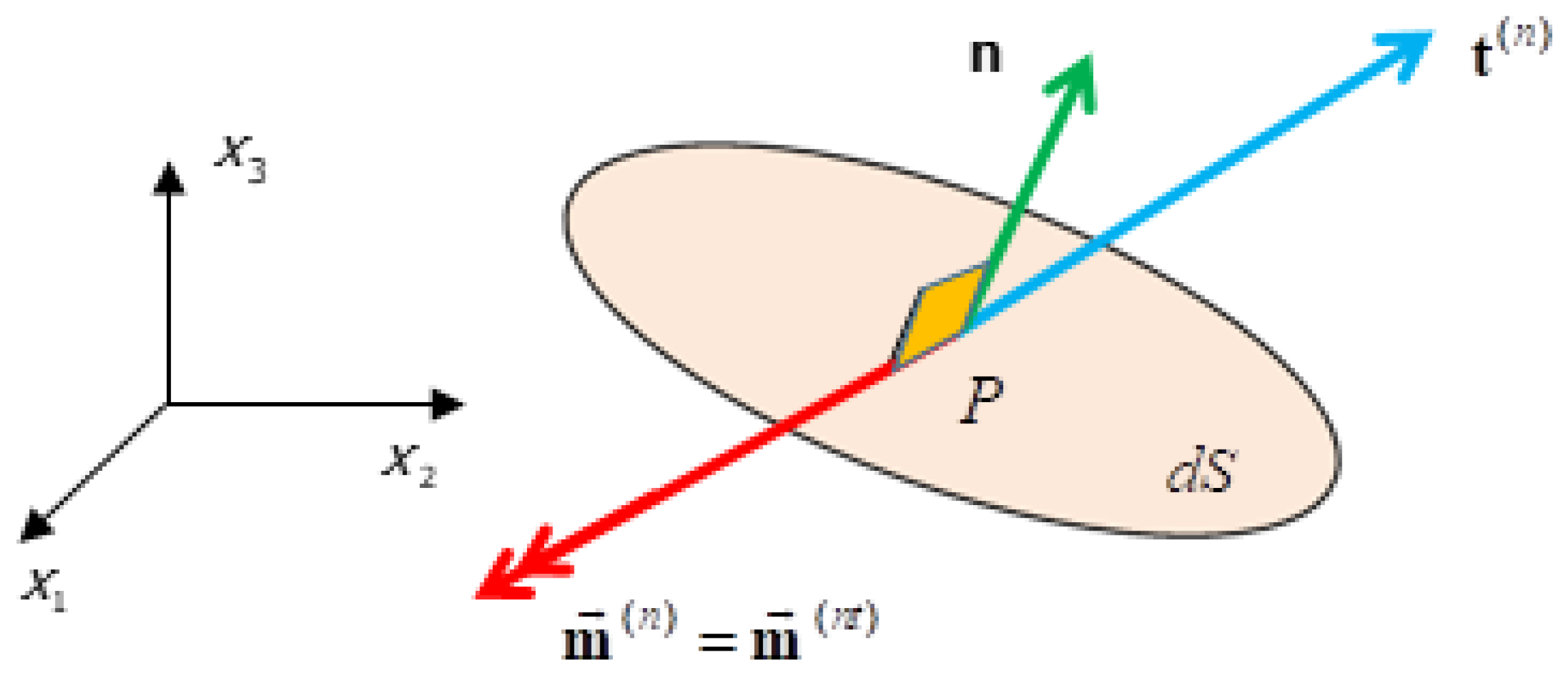

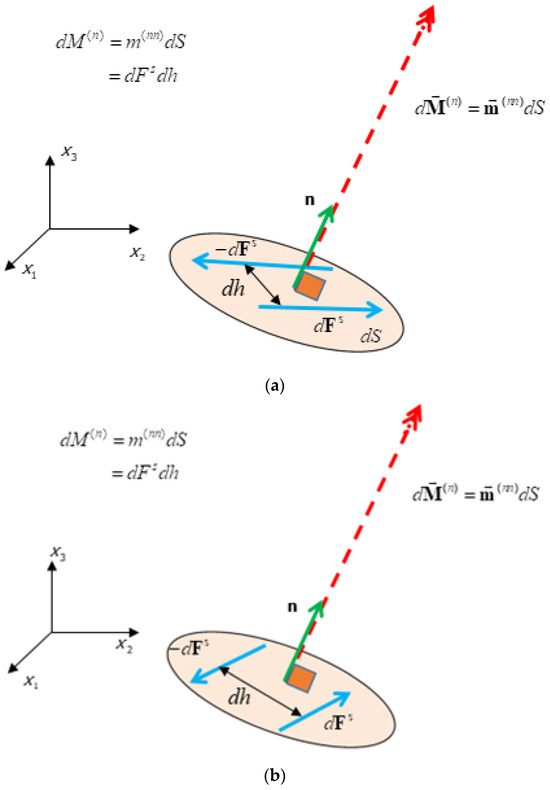

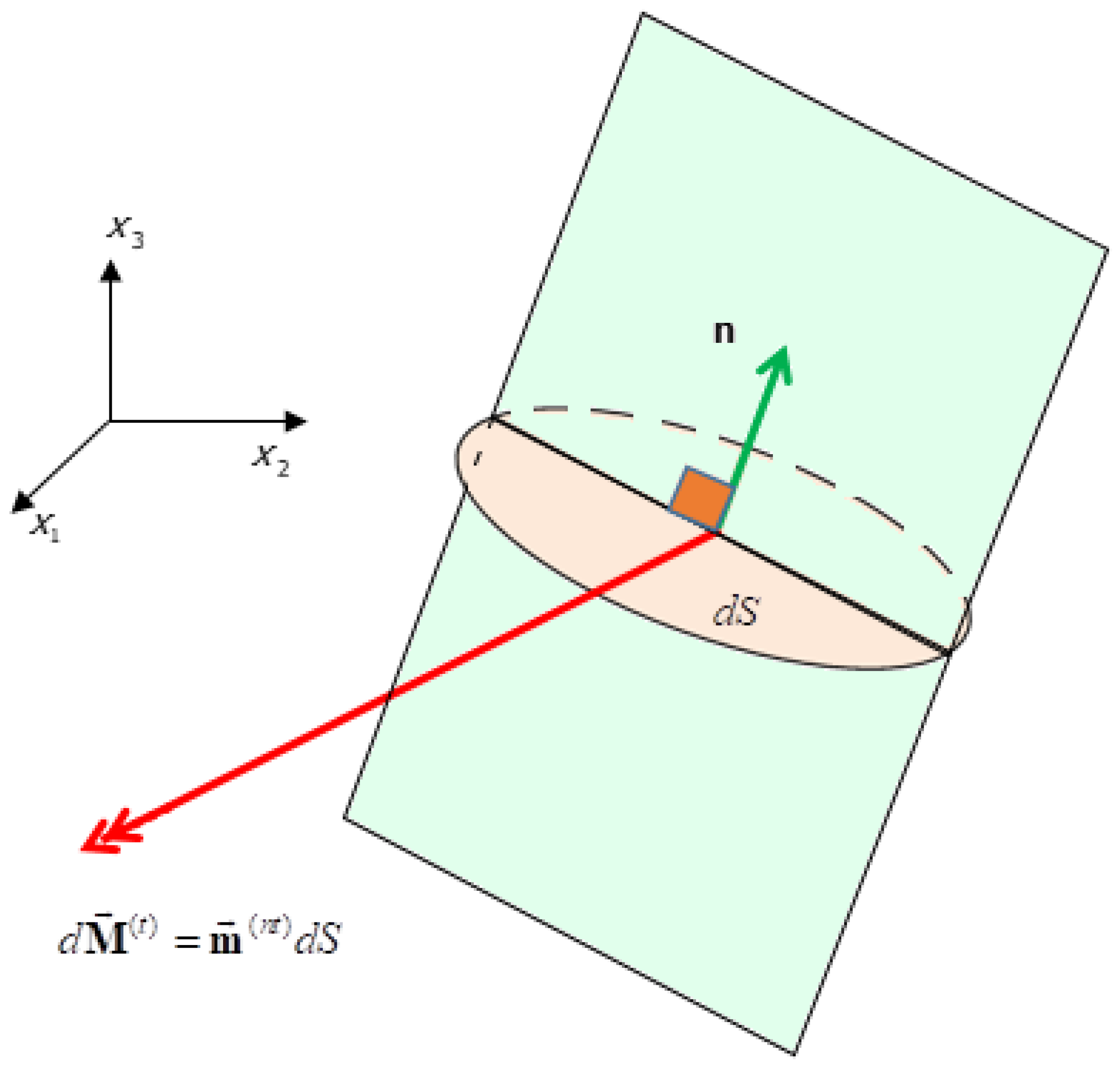

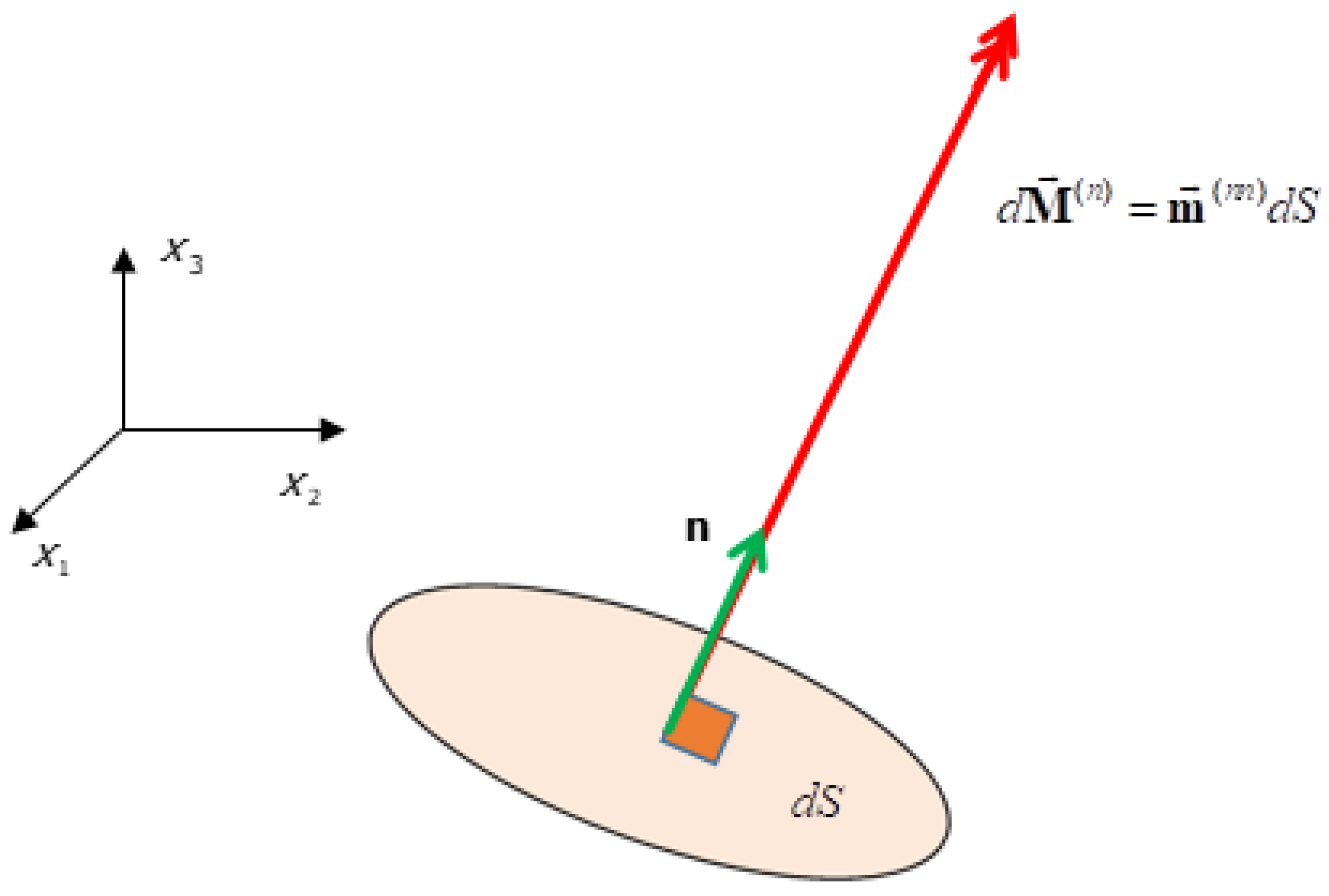

Note that the normal moment of couple traction m ( n n ) causes torsion or twisting, whereas the tangential moment m ( n t ) of couple traction creates bending, as shown in Figure 21.
The magnitude of normal components are
t n n = t n n = t i n n i
m n n = m n n = m i n n i
Therefore, these components are
t n n = t n n n t i n n = t j n n j n i
t n t = t n t n n n = 1 n n t n t i n t = t i n t j n n j n i = δ i j n i n j t j n
m n n = m n n n m i n n = m j n n j n i
m n t = m n m n n n = 1 n n m n m i n t = m i n m j n n j n i = δ i j n i n j m j n

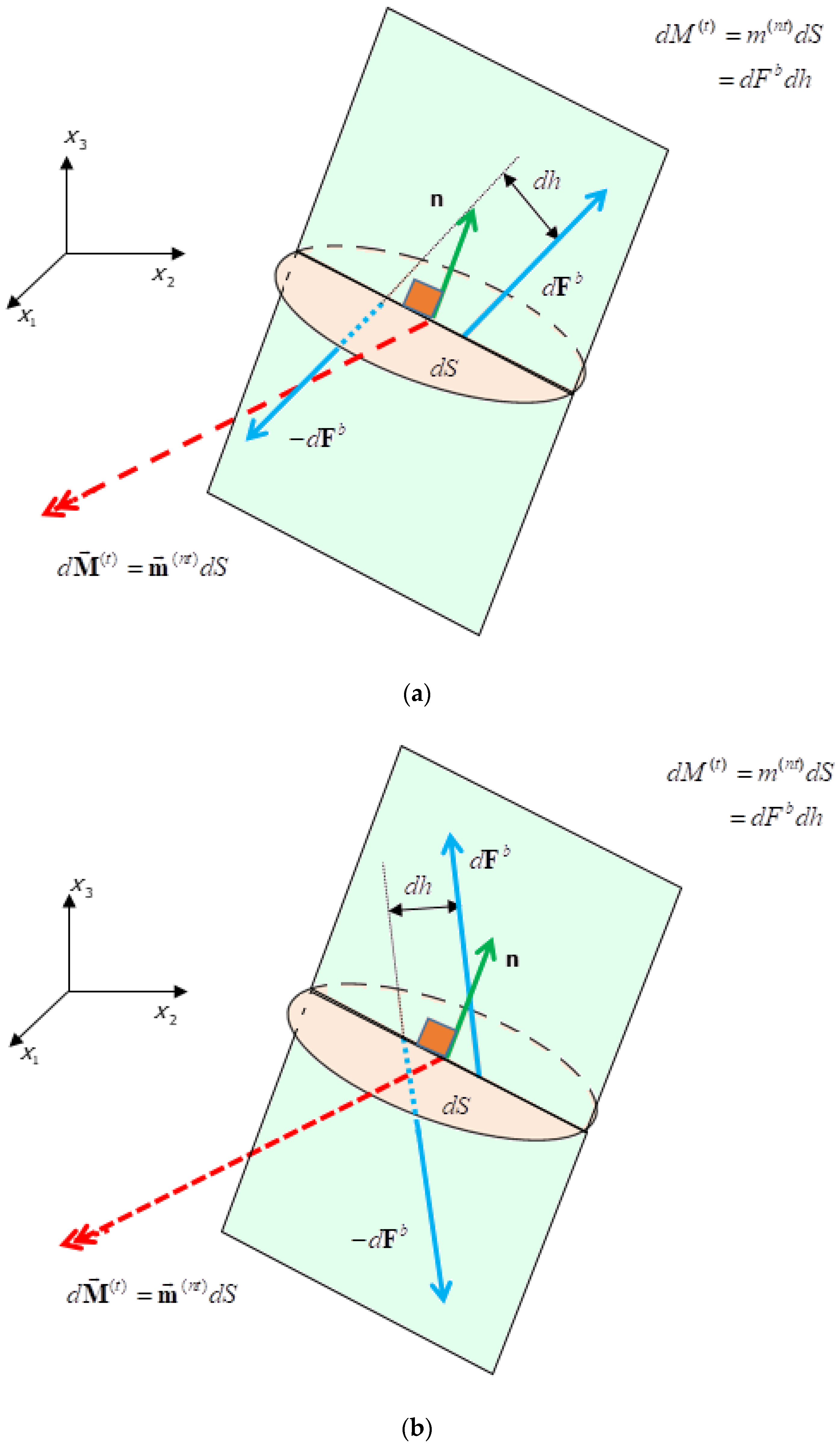

It seems instructive if the distribution of the tangential shear force traction vector t ( n t ) is considered as a single layer of shear force traction. This is the vectorial analogy to a single layer of electric charge in electrostatics. This analogy is helpful in revealing the character of the bending couple traction with moment m ( n t ) , as will be seen later.

5. Fundamental Governing Equations for Continua

The fundamental governing equations in continuum mechanics are based on the force and moment Equations (16) and (17) for a system of particles. This means that there are no other governing equations in continuum mechanics. Therefore, the force and moment equations for the arbitrary part of the material continuum occupying the volume V a enclosed by the boundary surface S a , shown in Figure 16, are
S a t n d S + V a f d V = V a ρ a d V
S a r × t n + m n d S + V a r × f + c d V = V a r × ρ a d V
where ρ is the mass density. Note that in the moment governing Equation (38), only the moment of body couples and moment of couple tractions appear without requiring the line of action of any constituent couple density forces. In terms of components, Equations (37) and (38) become
S a t i n d S + V a f i d V = V a ρ a i d V
S a [ ε i j k x j t k n + m i n ]   d S + V a ε i j k x j f k + c i   d V = V a ε i j k x j ρ a k d V
Note that these equations are the integral form of the governing equations of motion in continuum mechanics. To obtain the differential form of the governing equations, the force stress tensor and couple stress moment tensor are introduced as follows.

5.1. Force and Couple Stress Tensors

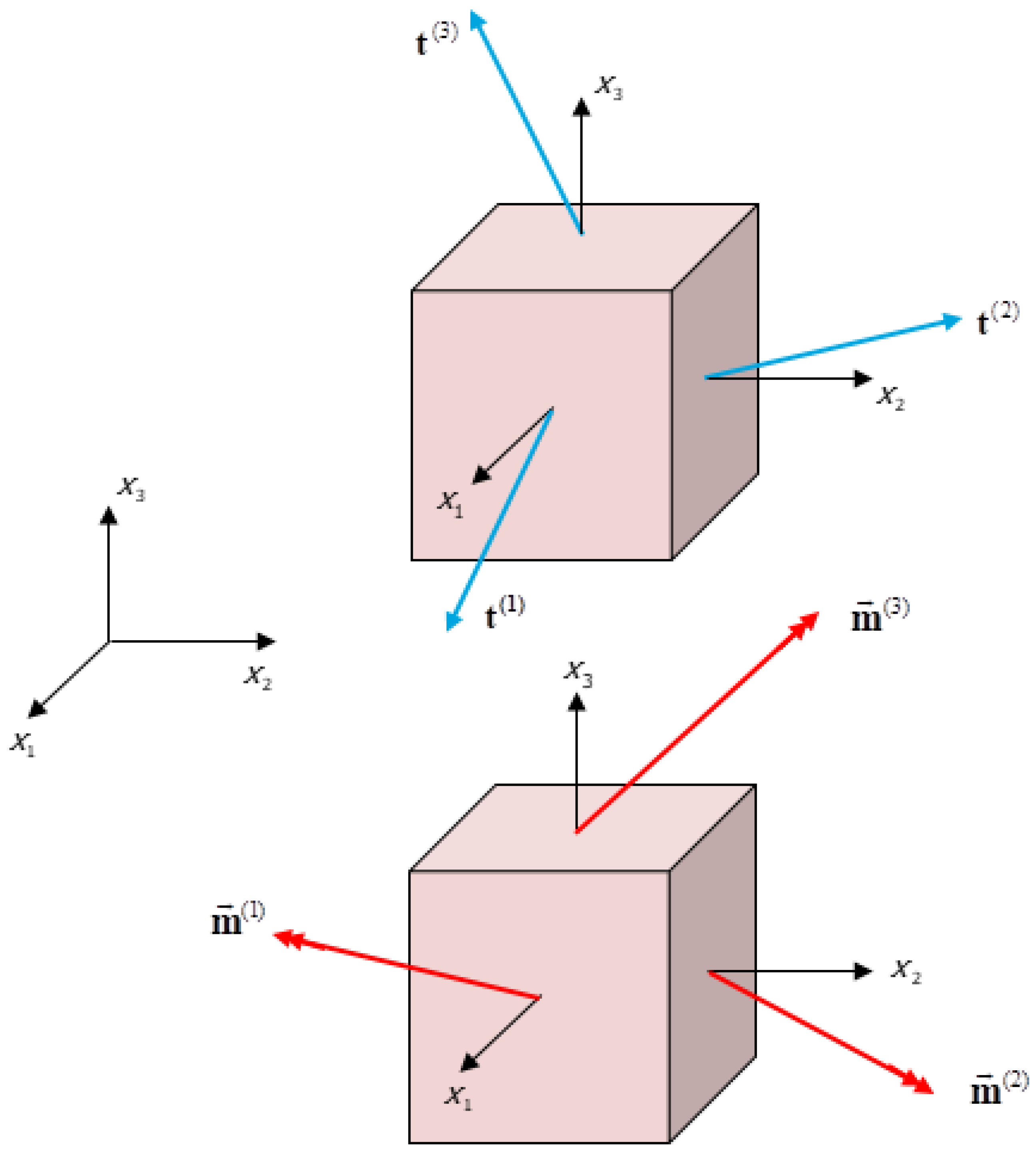

The state of internal stress at point P is known if the force traction vector t ( n ) and couple traction with moment m ( n ) on arbitrary surfaces at that point are known. This requires knowledge of only the force traction and couple traction on three mutually independent planes passing the point. When these planes are taken perpendicular to coordinate axes, the force traction vectors are t ( 1 ) , t ( 2 ) , and t ( 3 ) , and the couple traction moment vectors are m ( 1 ) , m ( 2 ) , and m ( 3 ) , as shown in Figure 22.
Consequently, the internal stresses are represented by the second-order force stress tensor σ i j and couple stress system with the second-order moment tensor μ i j , where the following relations hold:
σ i j = t j i
μ i j = m j i
Note that the tensors σ i j and μ i j each can have at most nine components, respectively. In terms of components, these tensors are represented as
σ i j = σ 11 σ 12 σ 13 σ 21 σ 22 σ 23 σ 31 σ 32 σ 33 = t 1 1 t 2 1 t 3 1 t 1 2 t 2 2 t 3 2 t 1 3 t 2 3 t 3 3
μ i j = μ 11 μ 12 μ 13 μ 21 μ 22 μ 23 μ 31 μ 32 μ 33 = m 1 1 m 2 1 m 3 1 m 1 2 m 2 2 m 3 2 m 1 3 m 2 3 m 3 3

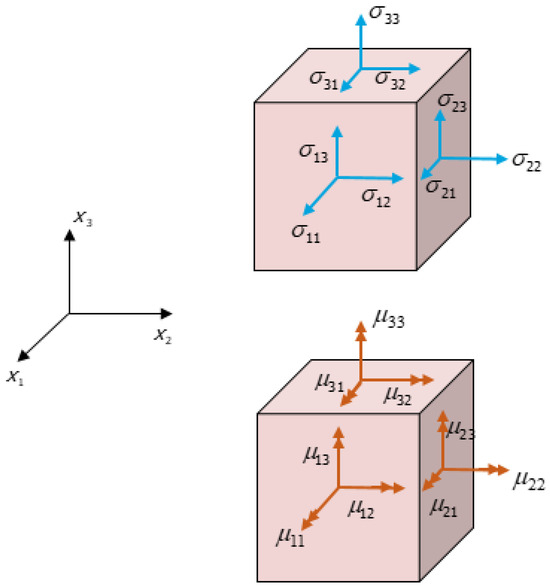

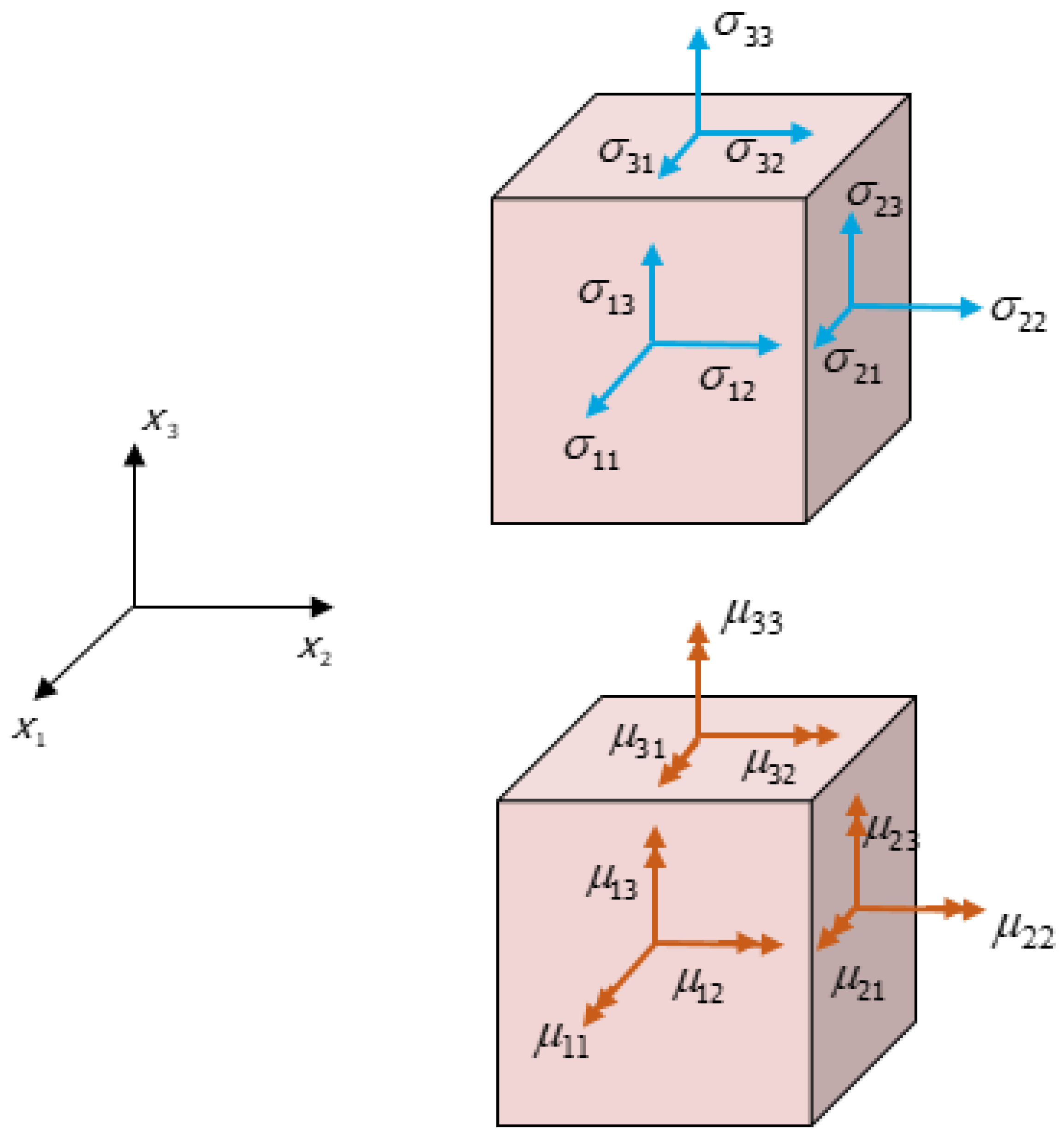

The components of the general force stress σ i j and couple stress moment μ i j tensors are shown in Figure 23.
The force traction vector t ( n ) and couple traction moment vector m ( n ) at point P on a surface element d S with unit normal vector n are obtained by applying the governing Equations (39) and (40) for a Cauchy tetrahedron (Malvern, [46]) at given point P as
t ( n ) = n σ t i n = σ j i n j
m ( n ) = n μ m i n = μ j i n j

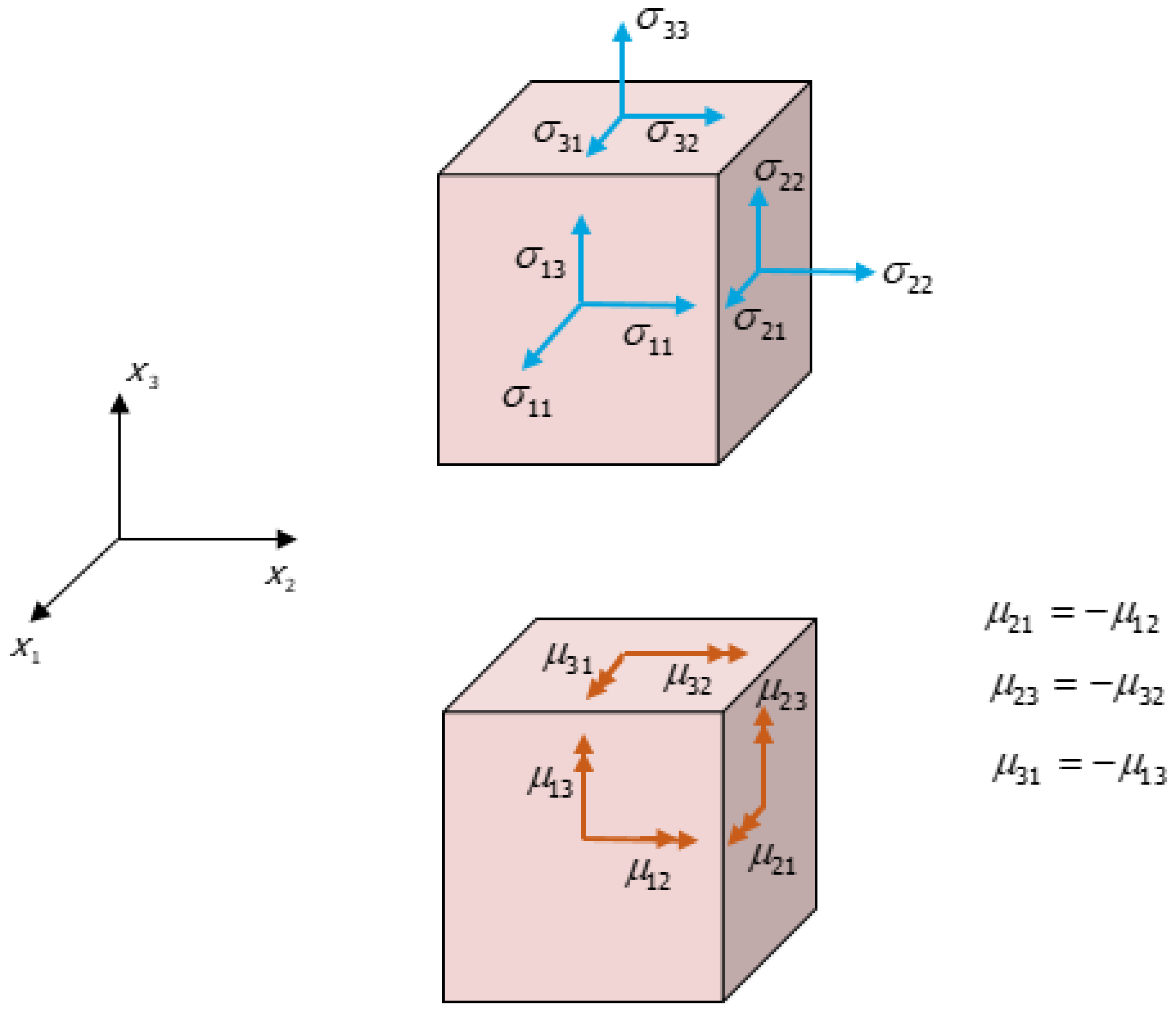

It is important to note that the general couple stress moment pseudo-tensor μ cannot completely describe the effect of couple stresses, because the moment pseudo-vectors m ( 1 ) , m ( 2 ) , and m ( 3 ) do not completely describe their corresponding couple tractions. This is the fundamental source of the indeterminacy in the original couple stress theory. The requirement that the state of stresses and deformation in the continuum is physically determinate and unique imposes some restrictions on the form of couple stresses. This will be demonstrated in Section 6.

5.2. Fundamental Governing Equations of Motion in Differential Form

The differential form of the governing equations of motion for an infinitesimal element of matter are obtained by using the relations (45) and (46) for tractions in (39) and (40), along with the divergence theorem, and noticing the arbitrariness of volume V a as
σ + f = ρ a σ j i , j + f i = ρ a i
μ + ε : σ + c = 0 μ j i , j + ε i j k σ j k + c i = 0
These equations were derived by [4,5,6]. Note that the moment governing Equation (48) and the traction relation (46) involve only the body couple moment density c , couple traction moment m ( n ) , and couple stress moment tensor μ . This means that the line of action of opposite parallel couple forces does not affect these equations. However, the general moment pseudo-vectors c and m ( n ) and the general moment pseudo-tensor μ , respectively, cannot completely represent the effect of body couples, couple traction, and couple stresses in a continuum. This is the result of the fact that the moments of couples do not specify their corresponding couples uniquely. As explained, there are infinitely many possible equipollent system of forces that represent the body couple with moment c , the couple traction with moment m ( n ) , and the couple stress with moment μ . These systems of equipollent couples have a different effect on the deformation and internal interactions (stresses) of the continuum. This character is the fundamental source of the indeterminacy of the couple stress tensor in the original couple stress theory.
As mentioned, the state of stresses in the body is physical and unique. This means that the line of action of these couple forces is unique if they exist. This requires that the effects of body couples, couple traction, and couple stress are completely described by their moments c , m ( n ) , and μ , respectively, without requiring the specification of the line of action of opposite parallel couple forces. This is the statement of the determinacy or uniqueness of interactions in the continuum mechanics, which imposes some restrictions on the form of body couple, couple traction, and couple stress distributions as follows:
  • If a body couple with moment vector  c  exists in a volume, its effect on the continuum must be completely represented by its moment vector  c ;
  • If couple traction with moment vector  m ( n )  exists on an arbitrary surface with unit normal vector  n , its effect on the continuum must be completely represented by its moment vector  m ( n ) .
In the next section, the consequences of the determinacy of interactions in the continuum are investigated.

6. Fundamental Character of Body Couple, Couple Traction, and Couple Stresses in Continuum

Now the consistent form of body couple, couple traction, and couple stress based on the determinacy of interactions in the continuum is established, such that their effect is completely described by their moments c , m ( n ) , and μ , respectively, without requiring the specification of the line of action of their constituent opposite parallel couple forces.

6.1. Body Couple Distribution Does Not Exist in Continuum Mechanics

Note that the pseudo-vector moment d M = c d V does not completely describe the effect of an external body couple in the volume d V (Figure 24).
One needs to know the line of action of couple forces d F c and d F c creating this couple. However, the system of couple forces d F c and d F c is not unique. The couple can be represented by forces d F c and d F c in d V in an infinite number of ways, where d M ( n ) = c d V = d F c d h . Here, d h is the relative perpendicular distance between the line of action of forces d F c and d F c . For example, this system of couple tangential forces d F c and d F c can be arbitrarily chosen as either of the systems in Figure 25. However, these system of equipollent couples create different states of stresses and deformation. Therefore, the couple with moment d M = c d V can never be completely represented by its moment. This contradicts the uniqueness of interactions in the continuum. This contradiction indicates that the volume couple with moment d M = c d V cannot exist, which results in c = 0 . Therefore, a body couple distribution does not exist in continuum mechanics.
Interestingly, the distributed volume couples have been observed in liquid crystals and magnetic fluids. Therefore, one might claim the possibility of a distribution of body couples with a specified piecewise continuous distribution of external couple forces d F c and d F c creating the moment d M = c d V in the volume d V . However, by using the reduction method, it can be always shown that this body couple can be replaced with an equivalent body force and a surface force traction. This means the supposed body couple distribution with moment density c is not distinguishable from a body force f in continuum mechanics, and its effect is simply equivalent to a system of body force and surface force traction. Interestingly, the volume polarization density and volume magnetization density distributions in electrodynamics have some similarity to a body couple. It should be noted that these vector densities are also transformed to a volume charge density and surface charge density for electric polarization and a volume current density and surface current density for magnetization, respectively (Griffiths [47]).

6.2. Fundamental Character of the Couple Traction

Based on the uniqueness of interactions in the continuum, the couple traction with moment m ( n ) must be in such a form that its effect on a surface element d S of any arbitrary surface S a is completely described by its pseudo-vector moment m ( n ) . Interestingly, this requirement does not impose the condition m ( n ) = 0 inside the body. Instead, it imposes some restriction on the form of couple traction and its moment m ( n ) as follows.
For more insight, let us decompose the moment vector d M = m ( n ) d S into its normal and tangential components on the surface element d S as
d M = d M n + d M t
where
d M ( n ) = m ( n n ) d S d M ( t ) = m ( n t ) d S
These components have been shown in Figure 26.
Note that the normal moment d M ( n ) = m ( n n ) d S is the moment of the couple component that causes twisting or torsion on the surface element d S , whereas the tangential moment d M ( t ) = m ( n t ) d S is the moment of the couple component that causes bending.
It also seems instructive if the distribution of the tangential shear force traction vector t ( n t ) is considered as a single layer. This is the vectorial analogy to a single layer of electric charge in electrostatics.
Next, the character of normal and tangential couple traction components with moments m ( n n ) and m ( n t ) , respectively, are investigated.

6.2.1. Twisting Couple Traction Does Not Exist in Continuum Mechanics

The possible surface twisting couple traction with normal moment d M ( n ) = m ( n n ) d S , as shown in Figure 27, creates torsion on the surface element d S .
Theorem 1.
A twisting couple traction with a normal moment vanishes on any surface in the continuum; that is, m ( n n ) = 0 .
Proof.
If the surface twisting couple with moment d M ( n ) = m ( n n ) d S exists on the surface element d S of any surface S a , it represents a system of couple tangential forces d F s and d F s on the surface creating twisting. However, this system of couple tangential forces d F s and d F s is not unique for a given m ( n n ) . Note that the twisting couple with moment d M ( n ) = m ( n n ) d S can be represented by tangential forces d F s and d F s on d S in infinite number of ways. For example, this system of couple tangential forces d F s and d F s can be arbitrarily chosen as either of the equipollent systems in Figure 28. Therefore, the normal couple with moment d M ( n ) = m ( n n ) d S cannot be completely represented by its moment d M ( n ) = m ( n n ) d S . This contradicts the uniqueness of interactions in the continuum where the effect of a normal couple can be completely represented by its moment d M ( n ) = m ( n n ) d S . This contradiction shows that the surface normal twisting couple with moment d M ( n ) = m ( n n ) d S cannot exist in a continuum, which results in m ( n n ) = 0 . This means that a continuum does not support a normal twisting couple traction on any surface. □
Although it has been rigorously established that a twisting couple traction does not exist on any surface in continuum mechanics, one might claim the possibility of a distribution of twisting couple traction with a specified piecewise continuous distribution of external couple forces d F s and d F s creating the normal moment d M ( n ) = m ( n n ) d S on the surface element d S of the physical bounding surface S . It can be shown that this twisting surface couple traction always can be replaced with an equivalent shear force and some line force on the physical surface [6]. Therefore, the possible distribution of normal twisting couple traction with moment m ( n n ) on the physical bounding surface S is not distinguishable from a shear force distribution in continuum mechanics. However, there is no need for such a replacement on an arbitrary surface S a inside the bulk of the continuum, where m ( n n ) does not exist.

6.2.2. Bending Couple Traction Can Exist in Continuum Mechanics

The possible surface bending couple with tangential moment d M ( t ) = m ( n t ) d S , as shown in Figure 29, creates bending on the surface element d S .
Theorem 2.
The bending couple traction with tangential moment can exist on any surface as a double layer of shear force tractions.
Proof.
If the surface bending couple with tangential moment d M ( t ) = m ( n t ) d S exists on the surface element d S , it represents the effect of the system of couple forces d F b and d F b in the plane normal to the surface element d S and normal to the moment vector d M ( t ) = m ( n t ) d S (Figure 29). Two possible cases are examined as follows:
  • The couple forces d F b and d F b are not parallel to the surface element d S .
Note that the system of couple forces d F b and d F b is not unique for this case. This means that the bending couple with moment d M ( t ) = m ( n t ) d S can be represented by a system of equipollent forces d F b and d F b in an infinite number of ways. For example, this system of couple forces d F b and d F b can be arbitrarily chosen as either of equipollent systems of forces (a) and (b) non-parallel to the surface element d S in Figure 30. Therefore, if the tangential couple exists, it cannot be represented by a unique two-force system d F b and d F b non-parallel to the surface element d S . This is in contradiction with the uniqueness of interactions in the continuum. Therefore, the couple forces d F b and d F b cannot be non-parallel to the surface element d S .
II.
The couple forces d F b and d F b are parallel to the surface element d S .
Figure 31 shows the unique system of couple forces d F b and d F b parallel to the surface element d S . Therefore, the tangential moment d M ( t ) = m ( n t ) d S completely describes the effect of bending couple forces d F b and d F b parallel to the surface element d S . This is in accordance with the uniqueness of interactions in the continuum, which not only shows that the bending couple d M ( t ) = m ( n t ) d S can exist, but also reveals its structure as a system of couple forces d F b and d F b parallel to the surface element d S . □
Therefore, the bending couple traction with moment m ( n t ) can exist as a double layer of shear force tractions t b = d F b d S and t b = d F b d S , where t b d h = m ( n t ) , on the arbitrary surface S a . Interestingly, this is the vectorial analogy of the double layer in electrostatics, where the tangential shear traction force distribution is analogous to a single layer of electric charge.
Therefore, a continuum supports piecewise continuous distributions of bending couple traction with tangential moment m ( n t ) on any arbitrary surface S a as a double layer of shear force tractions.
Because the bending couple traction is completely described by its tangential moment vector m ( n t ) , it can be denoted by m ( n t ) . Therefore, in consistent continuum mechanics, the load density acting at point P on an arbitrary surface with unit normal vector n is equivalent to a system of force traction vector t ( n ) and bending couple traction with tangential moment m ( n ) = m ( n t ) , as shown in Figure 32.

6.3. Skew-Symmetric Character of the Couple Stress Tensor and Its Consequences

As there is no twisting couple traction with the normal moment component m n n on any surface element d S on the arbitrary S a :
m n n = m n = m i n n i = 0   on   S a
This means
m n n = μ j i n j n i = 0   on   S a
However, in this relation, n i is arbitrary at each point; one may construct subdomains with any surface normal orientation at a point. Consequently, in (52), n j n i is an arbitrary symmetric second-order tensor of rank one at each point. Therefore, for (52) to hold in general, the moment stress pseudo-tensor μ i j must be skew-symmetric, that is
μ T = μ μ j i = μ i j
This is the fundamental character of the couple stress moment tensor in continuum mechanics, which guarantees that the couple traction moment vector m n is tangent to the surface, thus creating a bending effect. It should be emphasized that there is no mention of constitutive relations in any of this development, so these results are in no way limited to linear elastic materials or to isotropic response. In this development, there are no additional assumptions beyond that of the continuum as a domain-based concept having no special characteristics associated with the actual bounding surface S over any arbitrary internal surface S a .
Because the couple stress system is completely described by its skew-symmetric moment tensor μ i j , it can be denoted by μ i j , and the term couple stress tensor μ i j can be used. Therefore, in consistent continuum mechanics, the state of stresses at any arbitrary point is specified by the force stress tensor σ i j and skew-symmetric couple stress tensor μ i j . The skew-symmetric character immediately resolves the indeterminacy problem in the original couple stress theory developed by [5,6]. Because the diagonal components of the couple stress tensor vanish, the couple stress tensor is automatically determinate in this consistent couple stress theory.
The components of the force stress σ i j and couple stress μ i j tensors in this consistent theory are shown in Figure 33.
In terms of components, the skew-symmetric couple stress tensor (couple stress moment tensor) can be written as
μ i j = 0 μ 12 μ 13 μ 12 0 μ 23 μ 13 μ 23 0
As a result, the couple traction vectors m 1 , m 2 , and m 3 reduce to
m i 1 = 0 μ 12 μ 13 T
m i 2 = μ 12 0 μ 23 T
m i 3 = μ 13 μ 23 0 T
As the couple stress tensor μ is skew-symmetric, it is singular. This means its determinant vanishes
det μ i j = ε i j k μ 1 i μ 2 j μ 3 k = 0
and its rank is two. Interestingly, the determinant (56) can also be expressed as
det μ i j = ε i j k m i 1 m j 2 m k 3 = 0
or in vectorial form
det μ i j = m 1 × m 2 m 3 = 0
Remarkably, the relation (58) shows that the three couple traction vectors m 1 , m 2 , and m 3 are linearly dependent. This interestingly means that these three vectors are coplanar. Then, any two of these vector tractions span a plane Γ , while the third traction vector is a linear combination of the first two.
Also, notice that the three independent components μ 12 , μ 13 , and μ 23 of the couple stress tensor μ i j are specified by the components of only two rows or columns of the matrix representation (54). Therefore, the couple stress tensor μ i j is specified by only two of the coplanar couple traction vectors m 1 , m 2 , and m 3 ( m i 1 , m i 2 , and m i 3 ). This means that the state of couple stress in the continuum is completely specified by two of the couple traction vectors, e.g., m i 1 and m i 2 . Note that this is an important implication of the skew-symmetric couple stress tensor.
Interestingly, the skew-symmetric tensor μ can be represented by its dual true couple stress vector μ [10], where
μ i = 1 2 ε i j k μ k j
This relation can also be written in the form
ε i j k μ k = μ j i
which simply shows
μ 1 = μ 32 ,   μ 2 = μ 13 ,   μ 3 = μ 21

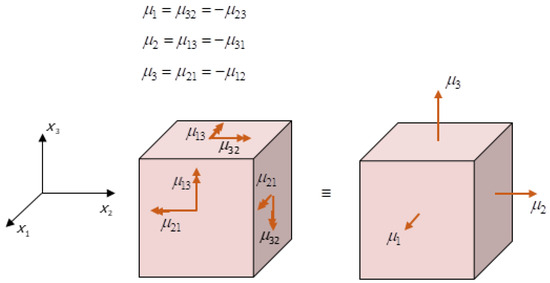

Components of the couple stress tensor μ and its dual couple stress vector μ are shown in Figure 34. Note that the components of couple stress vector μ have been presented as single-headed arrows.
Therefore, the couple stress pseudo-tensor μ i j and couple traction true vector μ i can be represented as
μ i j = 0 μ 3 μ 2 μ 3 0 μ 1 μ 2 μ 1 0 ,   μ i = μ 1 μ 2 μ 3
The magnitude of the couple stress vector μ i is
μ = μ = μ 1 2 + μ 2 2 + μ 3 2 = μ 32 2 + μ 13 2 + μ 12 2

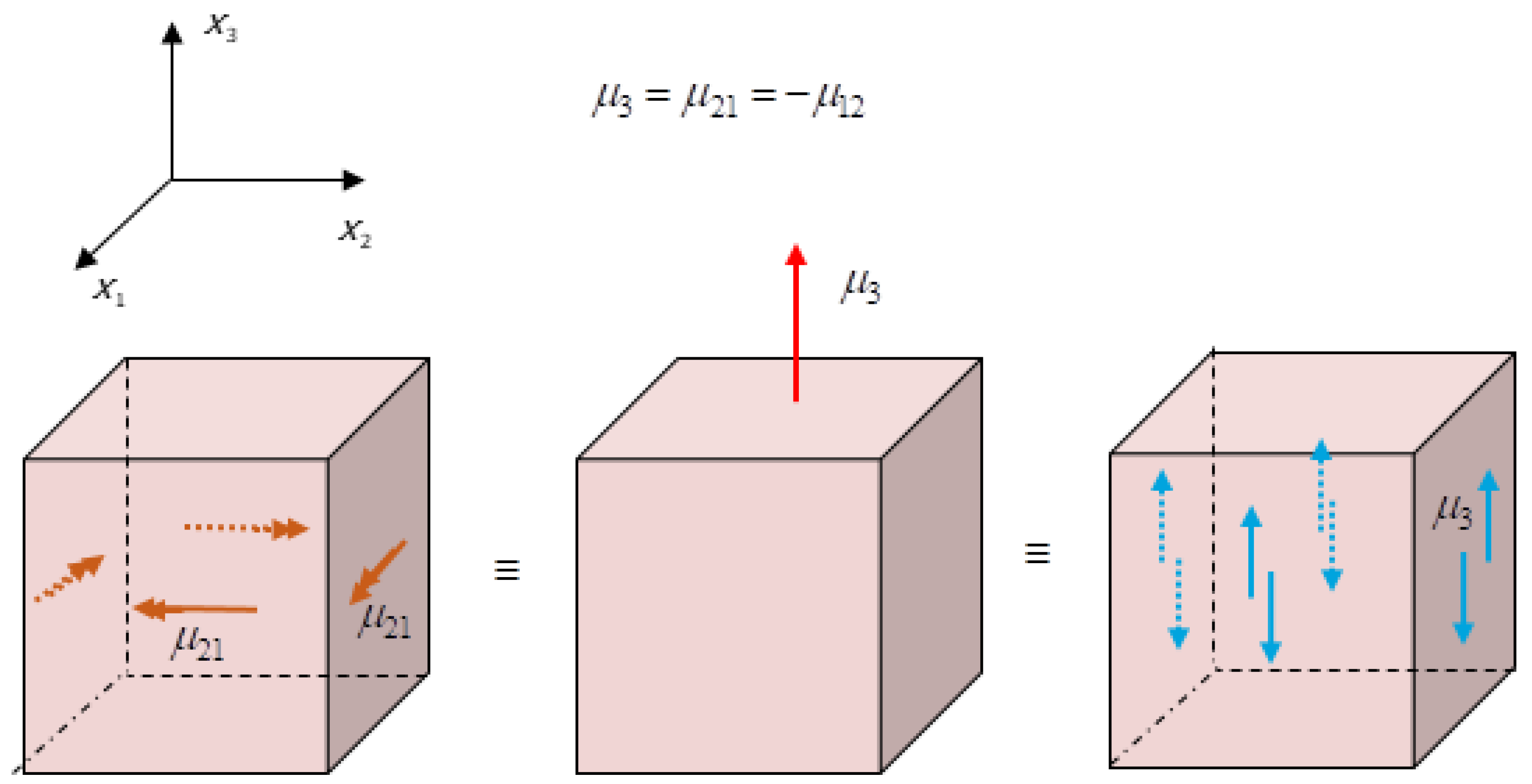

Note that the couple stress components μ 32 , μ 13 , and μ 21 represent the bending effect of the double layer of tangential shear force stresses on planes normal to coordinate axis x 1 , x 2 , and x 3 , respectively. Interestingly, their dual couple stress vector components μ 1 , μ 2 , and μ 3 are in the direction of double layers of shear force stresses associated with the couple stress components μ 32 , μ 13 , and μ 21 , respectively. For example, Figure 35 shows this double layer of shear force stresses for the couple stress component μ 3 corresponding to μ 21 .

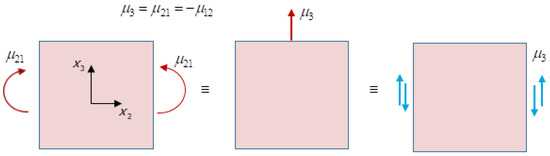

Figure 36 shows this fact from a two-dimensional perspective.
Consequently, one can completely represent the effect of the couple stresses by using double-layer shear force stresses. It is remarkable to note that in couple stress continuum mechanics, the bending can be created not only by couple normal force stresses (Figure 15) but also by couple shear force stresses in the form of double-layer shear force tractions (Figure 36).
Interestingly, it is noted that the couple stress vector μ is normal to the three couple traction vectors m 1 , m 2 , and m 3 , that is
m 1 μ = m i 1 μ i = 0
m 2 μ = m i 2 μ i = 0
m 3 μ = m i 3 μ i = 0
These relations indicate that the couple traction vector μ is normal to the plane Γ . Remarkably, the couple traction pseudo-vector m n can be expressed as
m i n = μ j i n j = ε i j k n j μ k
or vectorial form
m n = n × μ
This obviously shows that the couple traction pseudo-vector m n is in the plane Γ and is perpendicular to the true couple stress vector μ .
The singularity of the skew-symmetric couple stress tensor μ i j also shows that it has one and only one zero eigenvalue. Therefore, to comprehend the character of this zero eigenvalue and its corresponding eigenvector, the eigenvalue problem for the couple stress tensor μ i j is considered as follows.
Because m i n n i = 0 , there is no direction n i for which the couple traction m i n is parallel to the direction n i . However, one can mathematically look for this direction, where
m i n = λ n i
Therefore, the eigenvalue problem is obtained by using (67) in (46) as
μ i j n j = λ n i ,
where λ is the eigenvalue of the couple stress tensor μ i j . This relation can be written as
μ i j λ δ i j n j = 0
Note that the condition for (69) to have a non-trivial solution for n i is
det μ i j λ δ i j = 0
This is the characteristic equation for the tensor μ i j , which can also be written as
det λ μ 3 μ 2 μ 3 λ μ 1 μ 2 μ 1 λ = 0
As a result, the characteristic equation is the cubic equation
λ 3 + μ 1 2 + μ 2 2 + μ 3 2 λ = 0
which can be written as
λ 3 + μ 2 λ = 0
This equation shows that the tensor μ i j has one zero eigenvalue and two purely imaginary conjugate eigenvalues. This is consistent with our expectation that there is no non-zero real eigenvalue. Let us call the eigenvalues λ 1 , λ 2 , and λ 3 and arbitrarily choose the third eigenvalue to be the zero eigenvalue. As a result, for these eigenvalues, the following relations hold:
λ 1 = i μ ,   λ 2 = i μ ,   λ 3 = 0
Note that only for λ 3 = 0 , the associated unit eigenvector n i 3 is real, where
n i 3 = 1 μ μ 1 μ 2 μ 3
This shows that the couple stress vector μ is in the direction of the eigenvector n 3 of the tensor μ i j corresponding to the zero eigenvalue λ 3 = 0 , where
μ = μ n 3 μ i = μ n i 3
Now choose the orthogonal coordinate system x 1 x 2 x 3 such that the axis x 3 coincides with the direction of the real unit eigenvector n 3 . Therefore, relative to coordinate system x 1 x 2 x 3 , the unit eigenvector n 3 is represented as
n i 3 = 0 0 1
Interestingly, it is noticed that the plane x 1 x 2 and the plane Γ are the same. Therefore, one may choose the orthogonal axes x 1 and x 2 arbitrarily in the plane Γ . The representation of the couple stress tensor and vector in this special coordinate system x 1 x 2 x 3 become
μ i j = 0 μ 12 0 μ 12 0 0 0 0 0 , μ i = 0 0 μ 3
where
μ 12 = μ 3 = μ , μ 3 = μ = μ

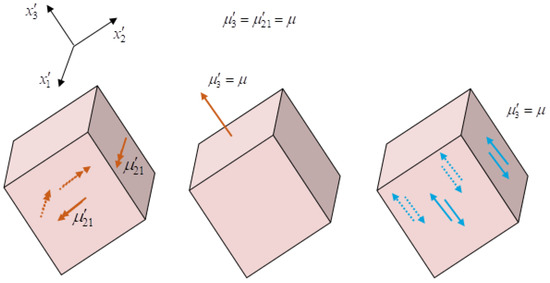

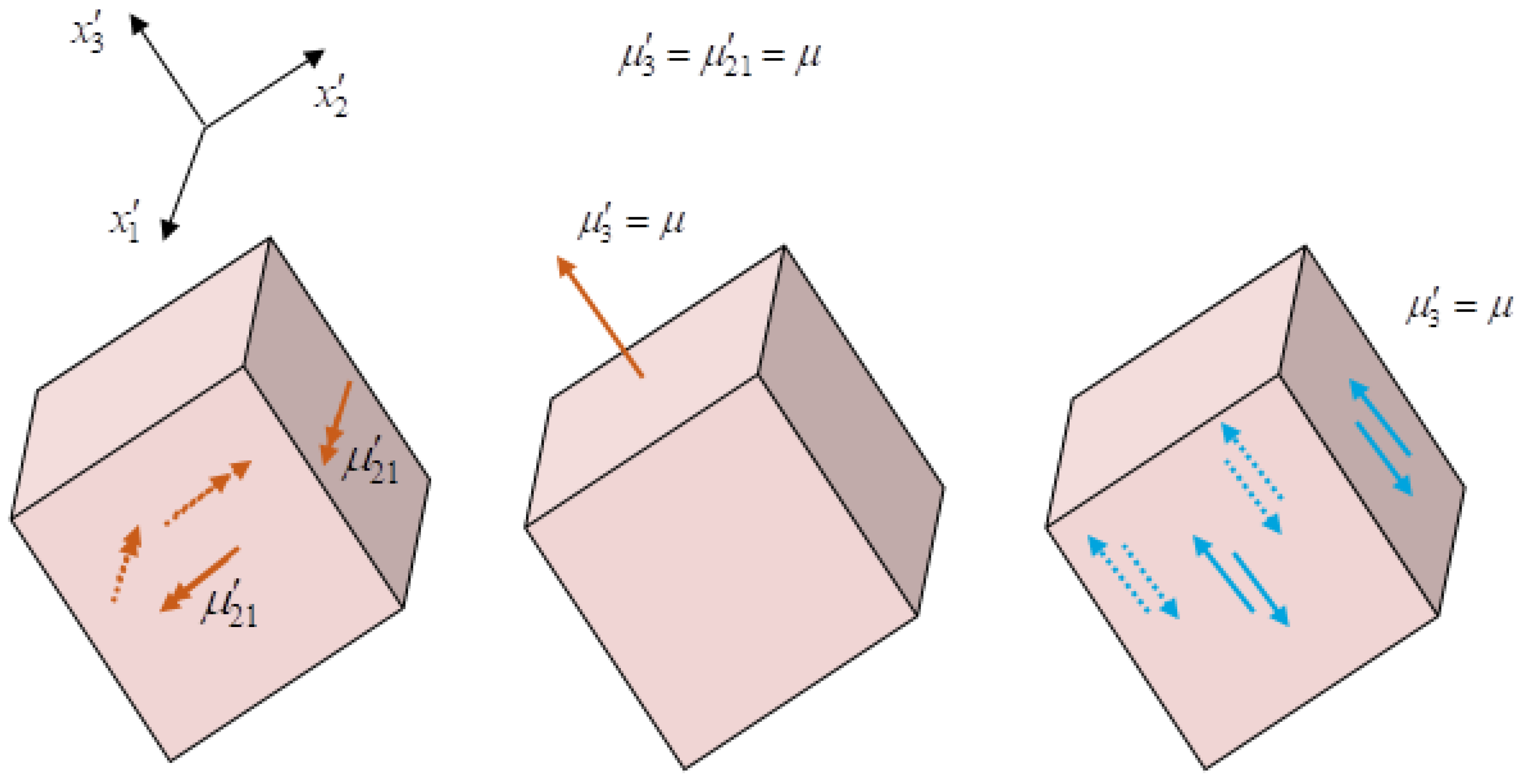

Figure 37 shows the double layer of shear force tractions for the total couple stress vector μ corresponding to μ 21 .

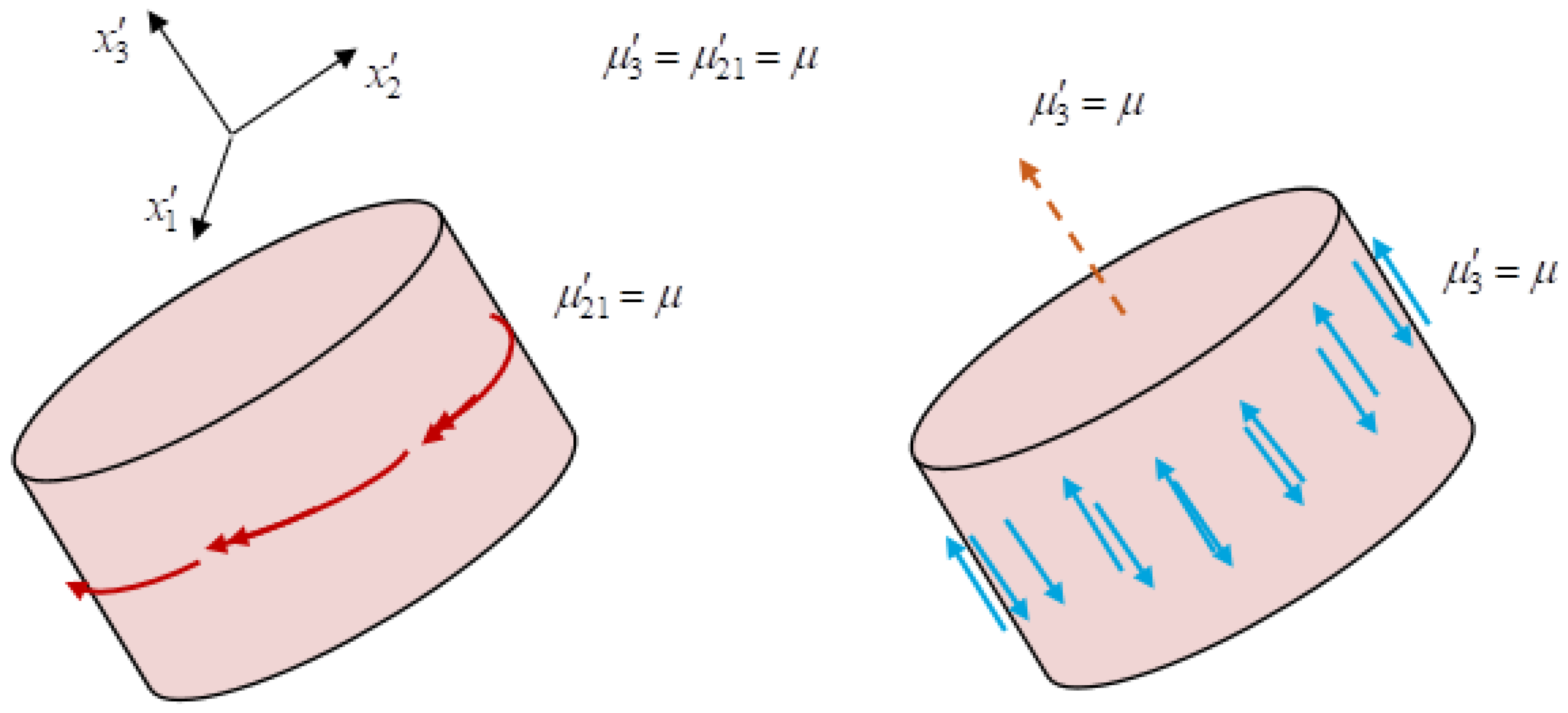

The effect of this couple stress on an infinitesimal cylindrical element along the x 3 axis has been represented in Figure 38, which causes pure bending specified with the mean curvature vector along the x 3 axis [10].

6.4. Consistent Fundamental Governing Equations of Motion in Differential Form

The differential form of the governing equations of motion for an infinitesimal element of matter is finally obtained as
σ j i , j + f i = ρ a i
μ j i , j + ε i j k σ j k = 0
where the couple stress moment tensor is skew-symmetric; that is, μ j i = μ i j .
It should be emphasized that the derivatives of stresses in the governing Equations (80) and (81) are of the first order. This is the character of the general fundamental laws of continuum mechanics in that their basic form should have first derivatives of stresses, not second or higher orders.
The force stress tensor is generally non-symmetric and can be decomposed as
σ i j = σ i j + σ i j
where σ i j and σ i j are the symmetric and skew-symmetric parts, respectively. The relation (60) can be used to express the moment Equation (81) as
ε i j k μ k , j + σ j k = 0
which indicates that μ k , j + σ j k is symmetric. Therefore, its skew-symmetric part vanishes, so it follows that
σ j i = μ j , i
Thus, the total force stress tensor can be expressed as
σ j i = σ j i + μ j , i
Therefore, there are nine independent stress components in consistent couple stress theory or general size-dependent continuum mechanics. This includes six components of σ j i and three components of μ i .
Consequently, the force governing equation reduces to
σ j i + μ j , i , j + f i = ρ a i
which can be called the reduced force governing equation. Because this equation is a combination of the basic force and moment Equations (80) and (81), it cannot be considered as a fundamental law by itself. This can be confirmed by noticing that the highest derivative in the governing Equation (86) is of the second order.
Interestingly, relation (84) can be elaborated further by considering the pseudo (axial)-vector s i as dual to the skew-symmetric part of the force stress tensor σ i j , where
s i = 1 2 ε i j k σ [ k j ] = 1 2 ε i j k σ k j
Then, by using (84) in (87), the following relation is obtained:
s = 1 2 × μ s i = 1 2 ε i j k μ k , j
It is amazing to notice that the apparently complicated moment Equation (81) reduces to the simple curl relation (88). This is the result of the skew-symmetric character of the couple stress tensor.

7. Conclusions

In this paper, it has been demonstrated that the confusion in the concept of couple and its moment vector has been the main reason for the troubles in the progress of couple stress continuum mechanics in the last century. Here, it has been shown that the representation of a couple by its pseudo-moment vector in rigid body mechanics and to some extent in the elementary strength of materials and structural mechanics has been very misleading. This has given the false notion that the moment of a concentrated couple is a real concentrated vector and completely describes its effect. However, in continuum mechanics, the effect of a couple cannot be completely represented by its moment vector when investigating the deformation and internal stresses. There are an infinite set of equipollent couples with the same moment, which create different states of deformation and stresses. To represent the effect of a concentrated couple in a continuum completely, the couple moment and line of action of its opposite parallel forces must be specified. However, in the governing equations of motion, only moments of body couples, couple tractions, and couple stresses appear. This requires that if body couples, couple tractions, and couple stresses exist, their effects must be completely described by their moment densities c , m n , and μ , respectively, without requiring the specification of the line of action of opposite parallel couple forces. This is the statement of the uniqueness of interactions in continuum mechanics, which imposes some restrictions on the form of body couple, couple traction, and couple stress distributions. Here, the uniqueness of interactions in the continuum has been used to establish that:
  • A distribution of body couple with moment c does not exist;
  • A given body couple can be replaced with an equivalent body force and a surface shear force traction;
  • A distribution of surface twisting couple traction with normal moment m ( n n ) does not exist on any arbitrary surface inside the body;
  • A distribution of surface bending couple traction with tangential moment m ( n t ) can exist;
  • The surface bending couple traction is a double layer of shear force tractions;
  • The pseudo-couple stress moment tensor μ is skew-symmetric and has a true vectorial character;
  • The effect of couple stress is completely described by its skew-symmetric moment tensor μ ; thus, it can be called the couple stress tensor μ . However, more precisely, this is a pseudo-tensor.
It is remarkable that the skew-symmetric character of the couple stress moment tensor has been systematically established by examining the concepts of moment and couple and fundamental governing equations. Interestingly, by using elements of the work of Mindlin and Tiersten [5] and Koiter [6] regarding boundary conditions in the indeterminate couple stress theory, Hadjesfandiari and Dargush [10] realized that twisting couple traction with moment m ( n n ) does not exist in a continuum and established the skew-symmetric character of the couple stress moment tensor μ . However, this original proof does not specify the mechanism of action of the bending couple traction and couple stresses. This clearly shows the superiority of the new more fundamental proof based on the uniqueness of interactions in continuum mechanics, which also reveals the structure of bending couple traction as a double layer of shear force tractions. Interestingly, this is the tensorial analogy of the double layer in electrostatics, where the single layer of tangential shear traction force distribution is analogous to a single layer of electric charge. As a result, couple stresses act as a double layer of tangential shear force stresses on their associated planes.
The present systematic discovery of the skew-symmetric character of couple stress tensor consistently results in the complete form of size-dependent continuum mechanics, which can give us more fundamental insights about the behavior of solids and fluids at the smallest scales for which a continuum theory is valid. For example, it provides a fundamental basis for the development of size-dependent nonlinear elastic, elastoplastic, and damage mechanics formulations that may govern the behavior of solid continua at the smallest scales.

Funding

This research received no external funding.

Data Availability Statement

No new data were created or analyzed in this study.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Poncharal, P.; Wang, Z.L.; Ugarte, D.; De Heer, W.A. Electrostatic deflections and electromechanical resonances of carbon nanotubes. Science 1999, 283, 1513–1516. [Google Scholar] [CrossRef] [PubMed]
  2. Salvetat, J.P.; Briggs, G.A.D.; Bonard, J.M.; Bacsa, R.R.; Kulik, A.J.; Stöckli, T.; Burnham, N.A.; Forró, L. Elastic and shear moduli of single-walled carbon nanotube ropes. Phys. Rev. Lett. 1999, 82, 944. [Google Scholar] [CrossRef]
  3. Voigt, W. Theoretische studien fiber die elastizitatsverhiltnisse der kristalle (Theoretical studies on the elasticity relationships of crystals). Abh. Gesch. Wiss. 1887, 34, 3–52. [Google Scholar]
  4. Cosserat, E.; Cosserat, F. Théorie des Corps déformables (Theory of Deformable Bodies); A. Hermann et Fils: Paris, France, 1909. [Google Scholar]
  5. Mindlin, R.D.; Tiersten, H.F. Effects of couple-stresses in linear elasticity. Arch. Ration. Mech. Anal. 1962, 11, 415–488. [Google Scholar] [CrossRef]
  6. Koiter, W.T. Couple stresses in the theory of elasticity, I and II. Proc. Ned. Akad. Wet. 1964, 67, 17–44. [Google Scholar]
  7. Stokes, V.K. Couple stresses in fluids. Phys. Fluids 1966, 9, 1709–1715. [Google Scholar] [CrossRef]
  8. Hadjesfandiari, A.R.; Dargush, G.F. Couple stress theories: Theoretical underpinnings and practical aspects from a new energy perspective. arXiv 2016, arXiv:1611.10249. [Google Scholar]
  9. Eringen, A.C. Theory of Micropolar Elasticity, 2nd ed.; Liebowitz, H., Ed.; Academic Press: New York, NY, USA, 1968; pp. 662–729. [Google Scholar]
  10. Hadjesfandiari, A.R.; Dargush, G.F. Couple stress theory for solids. Int. J. Solids Struct. 2011, 48, 2496–2510. [Google Scholar] [CrossRef]
  11. Hadjesfandiari, A.R.; Hajesfandiari, A.; Dargush, G.F. Skew-symmetric couple-stress fluid mechanics. Acta Mech. 2015, 226, 871–895. [Google Scholar] [CrossRef]
  12. Hadjesfandiari, A.R. Size-dependent piezoelectricity. Int. J. Solids Struct. 2013, 50, 2781–2791. [Google Scholar] [CrossRef]
  13. Hadjesfandiari, A.R. Size-dependent thermoelasticity. Lat. Am. J. Solids Struct. 2014, 11, 1679–1708. [Google Scholar] [CrossRef]
  14. Hadjesfandiari, A.R.; Dargush, G.F. Consistent continuous defect theory. Int. J. Multiscale Comput. Eng. 2022, 20, 25–66. [Google Scholar] [CrossRef]
  15. Jensen, O.E.; Revell, C.K. Couple stresses and discrete potentials in the vertex model of cellular monolayers. Biomech. Model. Mechanobiol. 2023, 22, 1465–1486. [Google Scholar] [CrossRef]
  16. Alavi, S.E.; Sadighi, M.; Pazhooh, M.D.; Ganghoffer, J.F. Development of size-dependent consistent couple stress theory of Timoshenko beams. Appl. Math. Model. 2020, 79, 685–712. [Google Scholar] [CrossRef]
  17. Qu, Y.; Li, P.; Jin, F. A general dynamic model based on Mindlin’s high-frequency theory and the microstructure effect. Acta Mech. 2020, 231, 3847–3869. [Google Scholar] [CrossRef]
  18. Roshanbakhsh, M.Z.; Tavakkoli, S.M. A size-dependent functionally graded nanocomposite Mindlin plate model based on consistent generalized continuum theory. Arch. Mech. 2024, 76, 93–141. [Google Scholar]
  19. Wang, Y.W.; Li, X.F. Synergistic effect of memory-size-microstructure on thermoelastic damping of a micro-plate. Int. J. Heat Mass Transf. 2021, 181, 122031. [Google Scholar] [CrossRef]
  20. Wu, C.P.; Hu, H.X. A unified size-dependent plate theory for static bending and free vibration analyses of micro-and nano-scale plates based on the consistent couple stress theory. Mech. Mater. 2021, 162, 104085. [Google Scholar] [CrossRef]
  21. Wu, C.P.; Lu, Y.A. A Hermite-family C1 finite layer method for the three-dimensional free vibration analysis of exponentially graded piezoelectric microplates based on the consistent couple stress theory. Int. J. Struct. Stab. Dyn. 2023, 23, 2350044. [Google Scholar] [CrossRef]
  22. Wu, C.P.; Wu, M.L.; Hsu, H.T. 3D Size-Dependent Dynamic Instability Analysis of FG Cylindrical Microshells Subjected to Combinations of Periodic Axial Compression and External Pressure Using a Hermitian C2 Finite Layer Method Based on the Consistent Couple Stress Theory. Materials 2024, 17, 810. [Google Scholar] [CrossRef]
  23. Sharma, V.; Kumar, S. A study of plane and Rayleigh waves in a microstructural medium: The role of size dependency and thermal effects. Mech. Solids 2023, 58, 1335–1350. [Google Scholar] [CrossRef]
  24. Sharma, V.; Kumar, S. Microscale size effects on transmission of surface waves in an exponentially graded CoFe2O4 piezomagnetic material. Appl. Phys. A 2024, 130, 546. [Google Scholar] [CrossRef]
  25. Mario A, J.S.; Alam, P. Impacts on SH-Waves Regulating Through a FGPM Plate Clamped Between a Temperature Dependent Plate and a Microstructural Coupled Stressed Substrate Subjected to the Perfect and Imperfect Boundary Conditions. J. Vib. Eng. Technol. 2024, 7, 1–15. [Google Scholar]
  26. Huang, H.; Guan, W.; He, X. Modal displacement analyses of Lamb waves in micro/nano-plates based on the consistent couple stress theory. Ultrasonics 2024, 138, 107272. [Google Scholar] [CrossRef] [PubMed]
  27. Lei, J.; Shao, C.; Zhang, C. Frequency-domain fundamental solutions and boundary element method for consistent couple stress elastodynamic problems. Int. J. Numer. Methods Eng. 2023, 124, 4992–5019. [Google Scholar] [CrossRef]
  28. El-metwaly, A.R.; Kamal, M.A.; Rashed, Y.F. Systematic derivation of the fundamental solutions for couple stress theory. In Proceedings of the International Conference on Aerospace Sciences and Aviation Technology, the Military Technical College, Cairo, Egypt, 8–10 May 2023. [Google Scholar]
  29. Hadjesfandiari, A.R.; Dargush, G.F. Boundary element formulation for plane problems in couple stress elasticity. Int. J. Numer. Methods Eng. 2012, 89, 618–636. [Google Scholar] [CrossRef]
  30. Hajesfandiari, A.; Hadjesfandiari, A.R.; Dargush, G.F. Boundary element formulation for plane problems in size-dependent piezoelectricity. Int. J. Numer. Methods Eng. 2016, 108, 667–694. [Google Scholar] [CrossRef]
  31. Kim, M. A coupled formulation of finite and boundary element methods for flexoelectric solids. Finite Elem. Anal. Design. 2021, 189, 103526. [Google Scholar] [CrossRef]
  32. Darrall, B.T.; Hadjesfandiari, A.R.; Dargush, G.F. Size-dependent piezoelectricity: A 2D finite element formulation for electric field-mean curvature coupling in dielectrics. Eur. J. Mech.-A/Solids 2015, 49, 308–320. [Google Scholar] [CrossRef]
  33. Mikulich, O.; Pasternak, I.; Andriichuk, O. Modification of boundary integral equation method for investigation of dynamic stresses for couple stress elasticity. Mech. Res. Commun. 2018, 91, 107–111. [Google Scholar] [CrossRef]
  34. Dargush, G.F.; Apostolakis, G.; Hadjesfandiari, A.R. Two-and three-dimensional size-dependent couple stress response using a displacement-based variational method. Eur. J. Mech.-A/Solids 2021, 88, 104268. [Google Scholar] [CrossRef]
  35. Deng, G.; Dargush, G. Mixed convolved Lagrange multiplier variational formulation for size-dependent elastodynamic couple stress response. Acta Mech. 2022, 233, 1837–1863. [Google Scholar] [CrossRef]
  36. Apostolakis, G.; Dargush, G.F. Size-dependent couple stress natural frequency analysis via a displacement-based variational method for two-and three-dimensional problems. Acta Mech. 2023, 234, 891–910. [Google Scholar] [CrossRef]
  37. Mao, Y.H.; Shang, Y.; Wang, Y.D. Non-conforming Trefftz finite element implementation of orthotropic Kirchhoff plate model based on consistent couple stress theory. Acta Mech. 2023, 234, 1857–1887. [Google Scholar] [CrossRef]
  38. Lei, J.; Ding, P.; Zhang, C. Boundary element analysis of static plane problems in size-dependent consistent couple stress elasticity. Eng. Anal. Bound. Elem. 2021, 132, 399–415. [Google Scholar] [CrossRef]
  39. Hadjesfandiari, A.R.; Hajesfandiari, A.; Dargush, G.F. Size-dependent contact mechanics via boundary element analysis. Eng. Anal. Bound. Elem. 2022, 136, 213–231. [Google Scholar] [CrossRef]
  40. Hadjesfandiari, A.R.; Hajesfandiari, A.; Liu, J.; Dargush, G.F. Couple stress-based flexoelectricity of frictionless contact in dielectrics. Eur. J. Mech.-A/Solids 2023, 100, 104972. [Google Scholar] [CrossRef]
  41. Goldstein, H. Classical Mechanics; Addison-Wesley: Boston, MA, USA, 1980. [Google Scholar]
  42. Beer, F.P.; Johnston, E.R. Vector Mechanics for Engineers: Statics and Dynamics; McGraw-Hill: New York, NY, USA, 1988. [Google Scholar]
  43. Shames, I.H. Engineering Mechanics: Statics and Dynamics; Prentice-Hall, Inc.: Englewood Cliffs, NJ, USA, 1980. [Google Scholar]
  44. Noether, E. Invariante variations probleme. Transp. Theory Stat. Phys. 1971, 1, 186–207. [Google Scholar] [CrossRef]
  45. Sadd, M.H. Elasticity: Theory, Applications, and Numerics; Academic Press: New York, NY, USA, 2009. [Google Scholar]
  46. Malvern, L.E. Introduction to the Mechanics of a Continuous Medium; Prentice-Hall Inc.: Englewood Cliffs, NJ, USA, 1969. [Google Scholar]
  47. Griffiths, D.J. Introduction to Electrodynamics, 2nd ed.; Prentice Hall: Hoboken, NJ, USA, 1989. [Google Scholar]
Figure 1. Moment of force F about point O.
Figure 1. Moment of force F about point O.
Symmetry 16 01046 g001
Figure 2. The couple F and F and its moment about point O.
Figure 2. The couple F and F and its moment about point O.
Symmetry 16 01046 g002
Figure 3. Equipollent couples on the body M = F h = F h .
Figure 3. Equipollent couples on the body M = F h = F h .
Symmetry 16 01046 g003
Figure 4. The couple F and F and its moment when approaching to a concentrated couple.
Figure 4. The couple F and F and its moment when approaching to a concentrated couple.
Symmetry 16 01046 g004
Figure 5. The concentrated couple F and F and its moment M at point A.
Figure 5. The concentrated couple F and F and its moment M at point A.
Symmetry 16 01046 g005
Figure 6. Equipollent concentrated couples at point A.
Figure 6. Equipollent concentrated couples at point A.
Symmetry 16 01046 g006
Figure 7. A system of two concentrated couples with moments M 1 and M 2 and the equipollent resultant couple with moment M R = M 1 + M 2 at point A.
Figure 7. A system of two concentrated couples with moments M 1 and M 2 and the equipollent resultant couple with moment M R = M 1 + M 2 at point A.
Symmetry 16 01046 g007
Figure 8. A system of one resultant force F R and one resultant couple with moment M O R at point O, equipollent to a system of forces.
Figure 8. A system of one resultant force F R and one resultant couple with moment M O R at point O, equipollent to a system of forces.
Symmetry 16 01046 g008
Figure 9. A system of one resultant force F R and one resultant couple with moment M O R at point O, equivalent to a system of external forces and effective forces.
Figure 9. A system of one resultant force F R and one resultant couple with moment M O R at point O, equivalent to a system of external forces and effective forces.
Symmetry 16 01046 g009
Figure 10. Transmissibility of force F on a rigid body.
Figure 10. Transmissibility of force F on a rigid body.
Symmetry 16 01046 g010
Figure 11. Equipollent couples on a rigid body are equivalent.
Figure 11. Equipollent couples on a rigid body are equivalent.
Symmetry 16 01046 g011
Figure 12. Freedom of a couple with moment M on a rigid body.
Figure 12. Freedom of a couple with moment M on a rigid body.
Symmetry 16 01046 g012
Figure 13. Equipollent concentrated couples at point A are not equivalent in continuum mechanics.
Figure 13. Equipollent concentrated couples at point A are not equivalent in continuum mechanics.
Symmetry 16 01046 g013
Figure 14. Equipollent couples (a,b) on the end cross-sections are represented by their moment M B in (c).
Figure 14. Equipollent couples (a,b) on the end cross-sections are represented by their moment M B in (c).
Symmetry 16 01046 g014
Figure 15. Moment M B on the end cross-sections are replaced with an equipollent triangular normal force stress distribution predicted from beam theory.
Figure 15. Moment M B on the end cross-sections are replaced with an equipollent triangular normal force stress distribution predicted from beam theory.
Symmetry 16 01046 g015
Figure 16. The body configuration.
Figure 16. The body configuration.
Symmetry 16 01046 g016
Figure 17. Force d F = f d V and couple with moment d M = c d V in the volume element d V .
Figure 17. Force d F = f d V and couple with moment d M = c d V in the volume element d V .
Symmetry 16 01046 g017
Figure 18. Force d F = t n d S and couple with moment d M = m ( n ) d S on the surface element d S .
Figure 18. Force d F = t n d S and couple with moment d M = m ( n ) d S on the surface element d S .
Symmetry 16 01046 g018
Figure 19. Force traction t n and couple traction moment m n on the surface element d S .
Figure 19. Force traction t n and couple traction moment m n on the surface element d S .
Symmetry 16 01046 g019
Figure 20. Normal and tangential components of surface force traction t n .
Figure 20. Normal and tangential components of surface force traction t n .
Symmetry 16 01046 g020
Figure 21. Normal and tangential components of surface couple traction moment m n .
Figure 21. Normal and tangential components of surface couple traction moment m n .
Symmetry 16 01046 g021
Figure 22. Force and couple traction vectors on planes perpendicular to coordinate axes.
Figure 22. Force and couple traction vectors on planes perpendicular to coordinate axes.
Symmetry 16 01046 g022
Figure 23. Components of force stress and indeterminate stress moment tensors.
Figure 23. Components of force stress and indeterminate stress moment tensors.
Symmetry 16 01046 g023
Figure 24. Couple with moment d M = c d V in the volume d V .
Figure 24. Couple with moment d M = c d V in the volume d V .
Symmetry 16 01046 g024
Figure 25. Different equipollent couple force systems (a,b) with moment d M = c d V in the volume element d V .
Figure 25. Different equipollent couple force systems (a,b) with moment d M = c d V in the volume element d V .
Symmetry 16 01046 g025
Figure 26. Normal and tangential components of moment d M = m ( n ) d S of the surface couple.
Figure 26. Normal and tangential components of moment d M = m ( n ) d S of the surface couple.
Symmetry 16 01046 g026
Figure 27. A twisting couple with normal moment d M ( n ) = m ( n n ) d S on the surface element d S .
Figure 27. A twisting couple with normal moment d M ( n ) = m ( n n ) d S on the surface element d S .
Symmetry 16 01046 g027
Figure 28. Equipollent surface twisting couples (a,b) with moment d M ( n ) = m ( n n ) d S .
Figure 28. Equipollent surface twisting couples (a,b) with moment d M ( n ) = m ( n n ) d S .
Symmetry 16 01046 g028
Figure 29. A bending couple with tangential moment d M ( t ) = m ( n t ) d S on the surface element d S .
Figure 29. A bending couple with tangential moment d M ( t ) = m ( n t ) d S on the surface element d S .
Symmetry 16 01046 g029
Figure 30. Equipollent bending couples (a,b) with moment d M ( t ) = m ( n t ) d S , represented by forces non-parallel to surface element d S in the normal plane.
Figure 30. Equipollent bending couples (a,b) with moment d M ( t ) = m ( n t ) d S , represented by forces non-parallel to surface element d S in the normal plane.
Symmetry 16 01046 g030
Figure 31. Couple forces parallel to surface element d S in the normal plane with the tangential moment d M ( t ) = m ( n t ) d S .
Figure 31. Couple forces parallel to surface element d S in the normal plane with the tangential moment d M ( t ) = m ( n t ) d S .
Symmetry 16 01046 g031
Figure 32. Force traction t ( n ) and the consistent couple traction m ( n ) = m ( n t ) system.
Figure 32. Force traction t ( n ) and the consistent couple traction m ( n ) = m ( n t ) system.
Symmetry 16 01046 g032
Figure 33. Components of force and couple stress tensors in consistent couple stress theory.
Figure 33. Components of force and couple stress tensors in consistent couple stress theory.
Symmetry 16 01046 g033
Figure 34. Components of couple stress tensor μ and couple stress vector μ .
Figure 34. Components of couple stress tensor μ and couple stress vector μ .
Symmetry 16 01046 g034
Figure 35. The couple stress component μ 3 in the direction of its corresponding double-layer shear force stresses.
Figure 35. The couple stress component μ 3 in the direction of its corresponding double-layer shear force stresses.
Symmetry 16 01046 g035
Figure 36. The couple stress component μ 3 parallel to its corresponding double-layer shear force stresses in the x 1 x 3 plane.
Figure 36. The couple stress component μ 3 parallel to its corresponding double-layer shear force stresses in the x 1 x 3 plane.
Symmetry 16 01046 g036
Figure 37. The couple stress vector in the direction of its double-layer shear force tractions.
Figure 37. The couple stress vector in the direction of its double-layer shear force tractions.
Symmetry 16 01046 g037
Figure 38. The couple stress vector in the direction of its double-layer shear force stresses creating pure bending along the x 3 axis.
Figure 38. The couple stress vector in the direction of its double-layer shear force stresses creating pure bending along the x 3 axis.
Symmetry 16 01046 g038
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Hadjesfandiari, A.R. The Character of Couples and Couple Stresses in Continuum Mechanics. Symmetry 2024, 16, 1046. https://doi.org/10.3390/sym16081046

AMA Style

Hadjesfandiari AR. The Character of Couples and Couple Stresses in Continuum Mechanics. Symmetry. 2024; 16(8):1046. https://doi.org/10.3390/sym16081046

Chicago/Turabian Style

Hadjesfandiari, Ali R. 2024. "The Character of Couples and Couple Stresses in Continuum Mechanics" Symmetry 16, no. 8: 1046. https://doi.org/10.3390/sym16081046

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
