Article

Effect of Commercial Amendments on Immobilization of Arsenic, Copper, and Zinc in Contaminated Soil: Comprehensive Assessing to Plant Uptake Combined with a Microbial Community Approach

by
Tuan Nguyen Quoc
,
Zahra Derakhshan Nejad
and
Myung Chae Jung
*
Environmental Geochemistry Laboratory, Department of Energy Resources and Geosystem Engineering, Sejong University, Seoul 05006, Korea
*
Author to whom correspondence should be addressed.
Minerals 2021, 11(10), 1143; https://doi.org/10.3390/min11101143
Submission received: 2 September 2021 / Revised: 14 October 2021 / Accepted: 16 October 2021 / Published: 18 October 2021
(This article belongs to the Special Issue Environmental Geochemistry in the Mining Environment)
Browse Figures
Versions Notes

Abstract

:
Identifying the proper chemical and biological materials as soil amendments is a great concern because they replace soil properties and subsequently change the soil quality. Hence, this study was conducted to evaluate the effects of a diverse range of soil amendments including bentonite (B), talc (T), activated carbon (AC), and cornstarch (CS) in form of sole and composite on the immobilization and bioavailability of As, Cu, and Zn. The amendments were characterized by SEM, FT-IR, and XRF, and applied at 2% (w/w) in the experimental pots with an Asteraceae (i.e., lettuce) for 45 days to monitor plant growth parameters and soil microbial community. Soil pH from 6.1 ± 0.02 significantly increased in the amended soils with the maximum value found for TAC (7.4 ± 0.04). The results showed that soil amendments reduced easily in an exchangeable fractionation of As, Cu, and Zn with the maximum values found for BAC by 66.4%, AC by 84.2%, and T by 89.7% respectively. Adding B, T, AC, and their composites induced dry biomass of lettuce >40 wt.%, while CS and its composites did not affect the dry biomass of the plant. The average content of Cu and Zn in plant tissues decreased >45 wt.% in B, AC, and their composites amended soils; meanwhile, AC and its composites mitigated As uptake by >30 wt.% in lettuce. The results of Biolog Ecoplate showed that the amending soils improved the microbial community, especially for composites (e.g., TCS). The results demonstrated that adding composites amendments provided an efficient method for the immobilization of metals and metalloids, and also induced plant growth parameters and microbial community.

1. Introduction

The contamination of soil by potentially toxic metal(loid)s is becoming a major global concern which may pose a high risk for environmental and human health. Mining activities are known as one of the most influential anthropogenic activities leading to land resource degradation, habitat destruction, and soil and water contamination with heavy metal(loid)s [1]. Literature reviews showed that an inefficient processing procedure of mining ores in Korea caused an abundance of heavy metal(loid)s residues in mine tailings which may leach into to the farmland soils around the mining sites [2,3]. Recently, the general shortage of arable land in Korea was considered as the reason for increasing the cultivation of farmland around mining sites that could make a significant contribution to Korean food production, but that may later cause human health problems [4]. Both essential and non-essential metals can be toxic to living organisms at excessive concentrations and may adversely affect soil quality, human health, and ecosystems.
Over the past decades, varieties of physical, chemical, and biological techniques have been employed for remediating heavy metal(loid)s contaminated soils, such as soil excavation, soil washing, solidification/stabilization, phytoremediation, etc. [5,6,7,8,9]. Immobilization technology for the remediation of heavy metals in contaminated soils has been popular for its effectiveness and low cost. Immobilization technology using soil amendments can decrease the heavy metals fractions or change their redox states, and thus effectively decrease the mobility, bioavailability, and toxicity of the heavy metals with an improvement in soil properties, thus inducing plant growth parameters [10]. Many studies have been reported on the application of different soil amendments to immobilize heavy metals in contaminated soils such as calcareous materials, phosphates, clay minerals, and so on [1,11,12]. Indeed, choosing an appropriate soil amendment is a big challenge because it changes soil properties, which can result in adverse impacts on soil quality and microorganisms.
Bentonite clays and activated carbon as cost-effective amendments have attracted much attention for the immobilization of heavy metals in soil because of their ready availability, isomorphic substitution, permanent negative charges at surfaces as well as their environmental compatibility [13,14,15,16,17,18]. Besides, talc as a composite silicate with the chemical formula Mg3Si4O10(OH)2 seems to be a practical and potential amendment to soil contamination [19]. Cornstarch, as a biopolymer, has been known as a soil conditioning agent, in that it reduces the frequency of irrigation, erosion, and evaporation of water in the soil, and also improves soil quality by lowering soil degradation [20].
Besides, soil microbes play an essential role in an agricultural ecosystem as an active component. Microorganisms react to soil heavy metals and microbial metabolisms can mediate pollutants’ speciation change [21]. Soil microbial activities are related to the type of content of pollutants, and the physicochemical characteristics of soil regulate the chemical behavior of pollutants in soil and thus pollutants’ bioavailability. Soil microbial activities are recognized as markers of any disturbance occurring in the soil ecosystem. However, soil microbial activities are difficult to gauge using a single monitoring approach. Therefore, the purpose of this study was to examine the effect of varying types of soil amendments, including activated carbon, bentonite, talc, cornstarch, and a combination of them on mitigating soil heavy metal mobility and plant bioavailability. Using this approach, this study examined the hypothesis that soil microbial activity would vary with changes in soil properties after adding the amendment and explored the effect of the amendments on the soil environment.

2. Materials and Methods

2.1. Soil Samples and Amendments Preparation

Contaminated soil was sampled from surface soil (<20 cm from depth) of a farmland site nearby the vicinity of the abandoned Indae mine (35°42′37″ N and 127°21′22″ S) located in the Republic of Korea. About 50 kg of contaminated soil was collected, stored in plastic bags, and transferred to the laboratory for future experiments. After that, soil samples were dried and sieved to have particle size fractions <2 mm.
Two groups of organic and inorganic amendments were considered for the current study. Bentonite (B) and talc (T), as inorganic soil amendments, with activated carbon (AC) and cornstarch (CS), as organic amendments, were purchased from Daejung Chemical Company. Soil amendments were applied solely (i.e., B, T, AC, and CS) and in the form of composites (i.e., BAC, BCS, TAC, and TCS) for soil remediation. Composites of the amendments were prepared with equally mixing (1/1 wt./wt.) a pair of amendments together. It is hypothesized that combining amendments may provide more binding sites for stabilizing heavy metal(loid)s in soil. Hence, the composites of soil amendments were prepared for further study on the effect of multiplex amendments on the soil quality.

2.2. Greenhouse Experiment

A leaching pot experiment was carried out in a greenhouse in the Sejong University, located in Seoul, the Republic of Korea, to explore the effect of the aforementioned amendments and their composites on heavy metal immobilization and plant growth. A mixture of washed sand and contaminated soil with a ratio of 1/3 (w/w) was added to each pot. Soil amendments (solus and composites) were added to the experimental pots at rates of 2 wt.%., and thoroughly mixed to obtain homogeneity. Before planting, the soil was incubated in the dark for 8 weeks and left to be equilibrated. The average temperature in the greenhouse was 23 °C with a humidity of 65%. A control soil sample was also prepared following the same procedure without adding amendments. All treatments were performed in three replicates. After the equilibration finished, two lettuce seedlings from unpolluted soils were translocated in each experimental pot and watered three times a week (100 mld−1) with distilled water (DW). Forty-five days after planting, the lettuce was harvested, and soil was sampled for further analysis. The harvested plants were separated into groups of root and shoot samples. Plant samples were rinsed with DW, oven-dried (45 °C), ground, and stored in a plastic bag at room temperature before analysis. Moreover, soil samples were collected and stored in a refrigerator at −70 °C before analysis.

2.3. Samples Analysis

The pH of the soil and amendments was measured in a solid to solution ratio of 1:5 using a pH meter (Orion StarTM A211 pH Benchtop Meter, Waltham, MA, USA). The total concentration of As, Cu, and Zn in soil and amendment samples was measured by flame atomic absorption spectrometry (AAS, AA240, Varian, Australia), after the digestion of samples using an aqua regia method [22]. The sequential extraction method for As was measured based on [23], while for Cu and Zn, the method of [24] was applied. These methods are demonstrated in Table 1.
Total concentrations of heavy metal(loid)s in plant tissues were measured using AAS after digestion of plant tissue samples (1 g) in the solution of 5 mL HNO3 (70% w/w) for 1 h at 120 °C and a subsequent addition of 1 mL H2O2.
The specific surface area (SSA) of the amendments was measured by N2 adsorption using the Micrometrics BET method by Tristar 3000, UK [25]. The morphology of each amendment as well as the elemental composition were examined using a scanning electron microscopy (SEM-EDS) Coxem S-100 production microscope (COXEM, Daejeon, Korea). Fourier transform infrared spectroscopy (FT-IR) was used to determine functional groups of the amendments. The chemical composition of inorganic amendments (B and T) was determined using X-ray fluorescence (micro-XRF, M4 Tornado, Bruker).

2.4. Microbial Metabolic Activity

Biolog EcoPlate™ (Biolog, Inc., Hayward, CA, USA) was used to identify the metabolic characteristics of microbial communities present in the soil samples based on the utilized carbon source, before and after soil amending. Biolog EcoPlate™ is a quick, effective, and low-cost method to detect the dynamic variation of microbial metabolic and community diversity in soil [26]. Biolog EcoPlate™ is composed of 31 carbon sources (10 carbohydrates, 4 polymers, 9 carbonxylic and ketonic acids, 6 amino acids, and 2 amines/amides) and a control. It contains three replicates of the carbon source and control which became a total of 96 wells. A multichannel pipette was applied in the microplate to dispense the rhizosphere soil diluent into the 96 wells (150 μL per hole) under aseptic conditions. A redox dye (tetrazolium violet) was added to each well, which turned purple when the carbon source used by the microbial communities was present in the sample. For this, 5 g soil was suspended in 0.85% sterile organic salt (NaCl) solution (1:9 v/v) and then rotated for 30 min at 150 rpm. After settling down the suspension for 10 min, 1 mL extractant was diluted in 9 mL of tetrazolium violet solution. About 0.125 µL of the diluted solution was added to the plate wells. Plates were incubated at 28 °C for 5 days in a dark place. To identify metabolic diversity, the well absorbance was read automatically every day by the computerized MicroStation™ system [27].
The capability of microorganisms to utilize different carbon sources in microbial communities was calculated by average well-color development (AWCD) [28]. Samples with larger variation were considered as higher carbon source utilization capability and indicated to higher abundance of microorganisms [29]. AWCD was calculated as follows [28]:
AWCD = ∑(Ci − R)/31
where Ci is the absorbance value of each reaction well at 590 nm in each carbon source well at time t and R is the absorbance value of the control well at time t.
SAWCD (Substrate Average Well-Color Development) was calculated with the same equation:
SAWCD = ∑(Ci − R)/(number of substrate)
where Ci is the absorbance value of substrate within the substrate category [30].

2.5. Statistical Analysis

The experimental data were calculated from triple replicates experiments. The data were statistically analyzed by one–way analysis of variance (ANOVA) and Tukey’s test (p < 0.05) via SPSS version 20.0. Origin software version 9.1 was applied to figure out the data. The heatmap for monitoring microbial metabolism activities was plotted using a web tool for visualizing clustering of multivariate data https://biit.cs.ut.ee/clustvis/.

3. Results and Discussions

3.1. Physicochemical Properties of Initial Soil and Amendments

The initial soil texture was of loamy sand with slightly acidic (pH 5.9 ± 0.01), and contaminated with total concentrations of As, Cu, and Zn at 39.5 ± 1.3, 33.6 ± 1.5, and 108.5 ± 1.3 mg/kg, respectively (Table 2). These levels are much higher than the average in the world [31]. The soil was rich in organic matter content (2.9 wt.%) compared to the average value (2–3 wt.%) of the cultivable soils in Korea [32]. However, the soil was nutrient-poor with only 0.15 mg/kg of T-N.
As shown in Table 3, soil amendments had alkaline pH with average values of 7.8 ± 0.04, 8.8 ± 0.02, 7.2 ± 0.04, 8.2 ± 0.01 for B, T, AC, and CS, respectively. A small amount of heavy metal(loid)s was found in the soil amendments (Table 3). Thus, from a heavy metal(loid)s contamination viewpoint, these amendments are safe to apply for soil treatment. Among soil amendments, a high SSA was found for AC with an average value of 1082 m2/g, which was a good match with previous studies [33,34]. In contrast, a small value of SSA was found for T (1.8 m2/g) and CS (0.15 m2/g). The results of XRF analysis showed that SiO2 and Al2O3 are the major components of bentonite with average contents of 67.8 wt.% and 15.8 wt.%, respectively (Table 4). Meanwhile, the major components of talc included SiO2, MgO, and CaO with the average contents of 35.3 wt.%, 34.9 wt.%, and 26.9 wt.%, respectively.
Scanning electron microscopy was conducted to compare the morphology of B, T, AC, and CS. The different morphology of amendments was shown in Figure 1. Bentonite tended to aggregate and formed large size particles as white squares in Figure 1a [35]. Figure 1b reveals that the particle size of talc was very heterogeneous and angular. Figure 1c shows the morphology of AC was an angular and irregular material, and also had micro pores [36]. Cornstarch in this research had a sphere shape, and homogeneous size particle distribution as shown in Figure 1d [37].

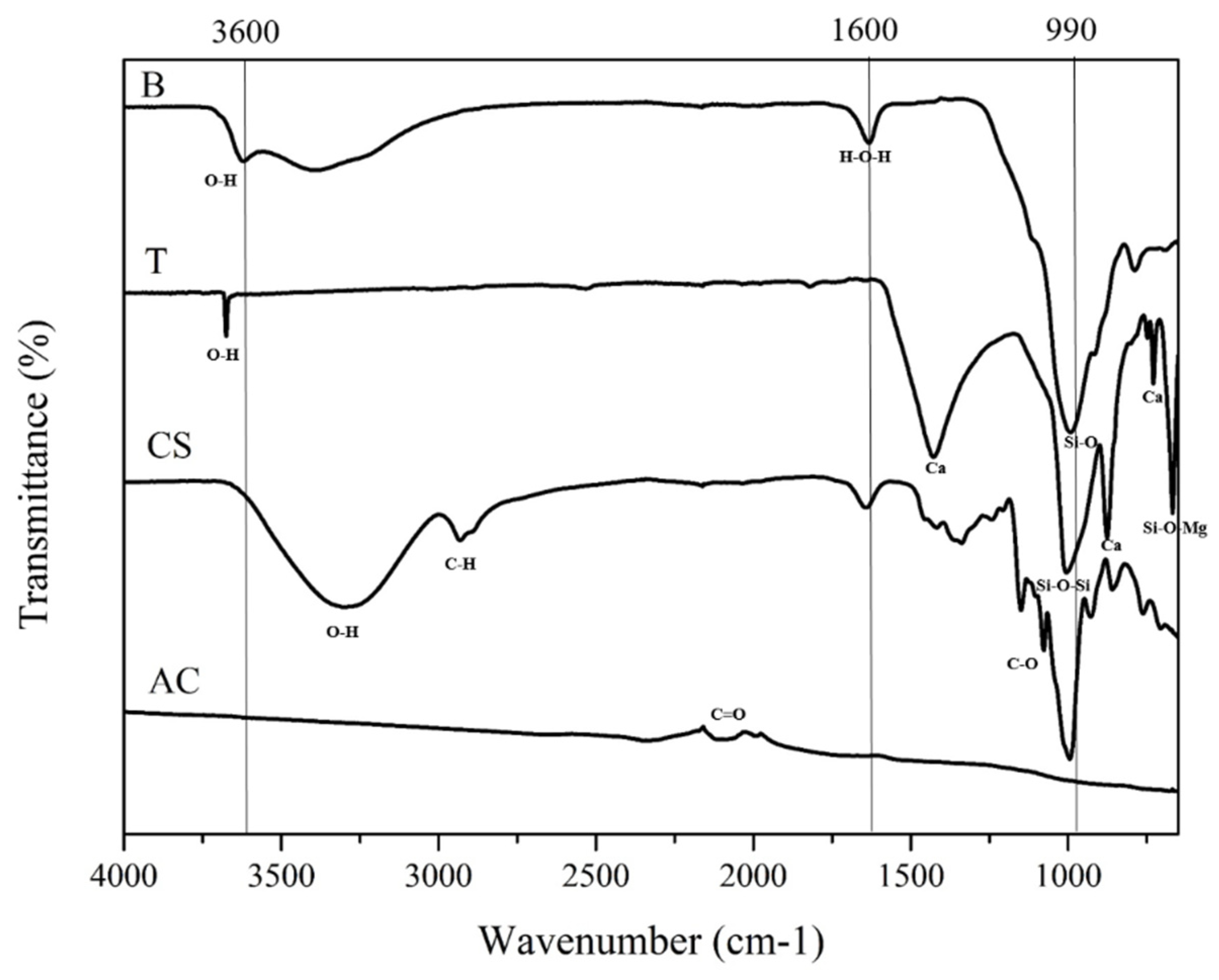

Figure 2 showed the FT-IR spectrum of the bentonite samples. The absorption band at 3619 cm−1 is belong to structural OH groups of the bentonite. The band at 691 cm−1 is due to the deformation and bending modes of the Si-O bond. The very strong absorption band at 991 cm−1 is due to Si-O bending vibration [38]. The band at 3629 cm−1 is responsible for free uncompleted hydroxyls, and the band at 1654 cm−1 is responsible for bending H-O-H vibration in water.
The FT-IR spectrum for talc powder is shown in Figure 2, where wave numbers of 3675; 1427; 1004; 876; and 667 cm−1 dominate. The siloxane group (Si-O-Si) stretching vibrational bands is for peaks at 476 and 1040 cm−1, respectively, while the band at 667 cm−1 reflects the Si-O-Mg bond [39]. The bands 3676 cm−1 are ascribed to the vibrations of hydroxyl groups linked to Si (Si-OH) and Mg (MgOH), respectively [40]. The talc used in this study was not pure as confirmed in XRF results with including CaO as Table 4. The results from FT-IR showed the same results when the appearance of bands of 1427; 875; and 712 cm−1 referred to calcite [41,42].
FT-IR spectra of AC could be attributed to the antisymmetric stretching vibration of the nonsymmetric vibration absorption of C = O (at 1996 to 2085 cm−1) [43]. The absorbance peak at 2328 cm−1 implied the presence of uncommon CO2, which might result from the measuring conditions [44].
The FT-IR spectra of cornstarch are described in Figure 2. In the spectrum absorbance of CS, the band at 3293 cm−1 and 2931 cm−1 were allocated to the O–H stretching and the C–H stretching vibrations, respectively. Meanwhile, the bands at 1149, 1077, and 993 cm−1 were characteristic of the C–O stretching vibrations [45,46].
Generally, the results of amendment characterization reveal that they offer the potential application of heavy metal immobilization in soil due to their capacity to adsorb and co-precipitate contaminants.

3.2. Effects of Amendments on Soil Properties

The studied soil from farmlands nearby the mining area was slightly acidic (Table 2). As shown in Figure 3, pH of soil significantly (p < 0.05) increased in the amended soil especially for T, TAC, and TCS amended soils from 6.1 ± 0.02 to 7.3 ± 0.01, 7.4 ± 0.04, and 7.3 ± 0.04 after planting. The maximum increase value of pH in soil was found for treatment with TAC. Soil pH also increased slightly for the soil applied with AC, CS, and BCS from 6.1 ± 0.02 to 6.6 ± 0.02, 6.5 ± 0.04, and 6.5 ± 0.05 after 45 days from planting, respectively. Moreover, no significant difference in soil pH was found in B and BAC amended soils compared to control soil.

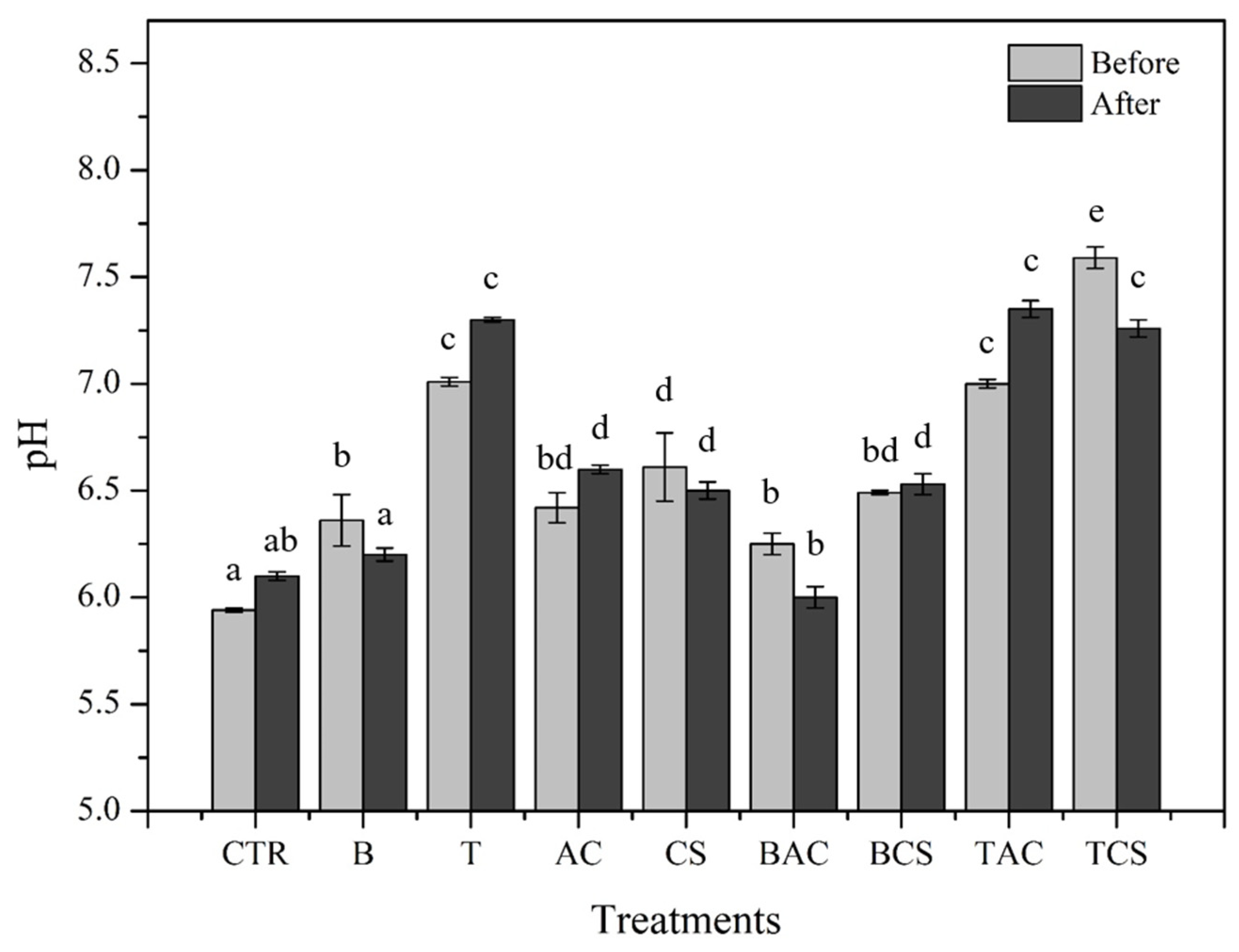

Soil pH is an important factor that affects the behavior of metals in soil and directly or indirectly changes their mobility and toxicity to plants and microorganisms. Our results showed high efficiency for increasing soil pH using T and its composites. Indeed, T typically contains calcite as confirmed with the characterization of talc using the FT-IR and XRF results in Figure 2 and Table 4. The calcite and H+ in soil colloids could be replaced with Ca2+ and subsequently released into the soil solution and increase soil pH. Besides, Ca2+ may further react with HCO3 to form CO2 and H2O which led to an increase in the pH of soil [47].
An increase in soil pH amended with AC and CS is mainly attributed to the existence of the carbonaceous materials and the surface oxygen-containing functional groups such as carboxyl and hydroxyl groups [48].

3.3. Effects of Amendments on As, Cu, and Zn Fractional Distribution in Soil

The chemical formation of metal(loid)s in the treated/non-treated soils after 45 days of planting was explored using a sequential extraction method (Figure 4). In general, sequential extraction methods still have limitations due to loss and/or gain in the extraction process. They relatively reflect the heavy metal(loid) concentrations in soils existing in chemical forms. Nevertheless, the results from sequential extraction play an important role in assessing the correlation and variation of chemical speciation in soils with amendments.

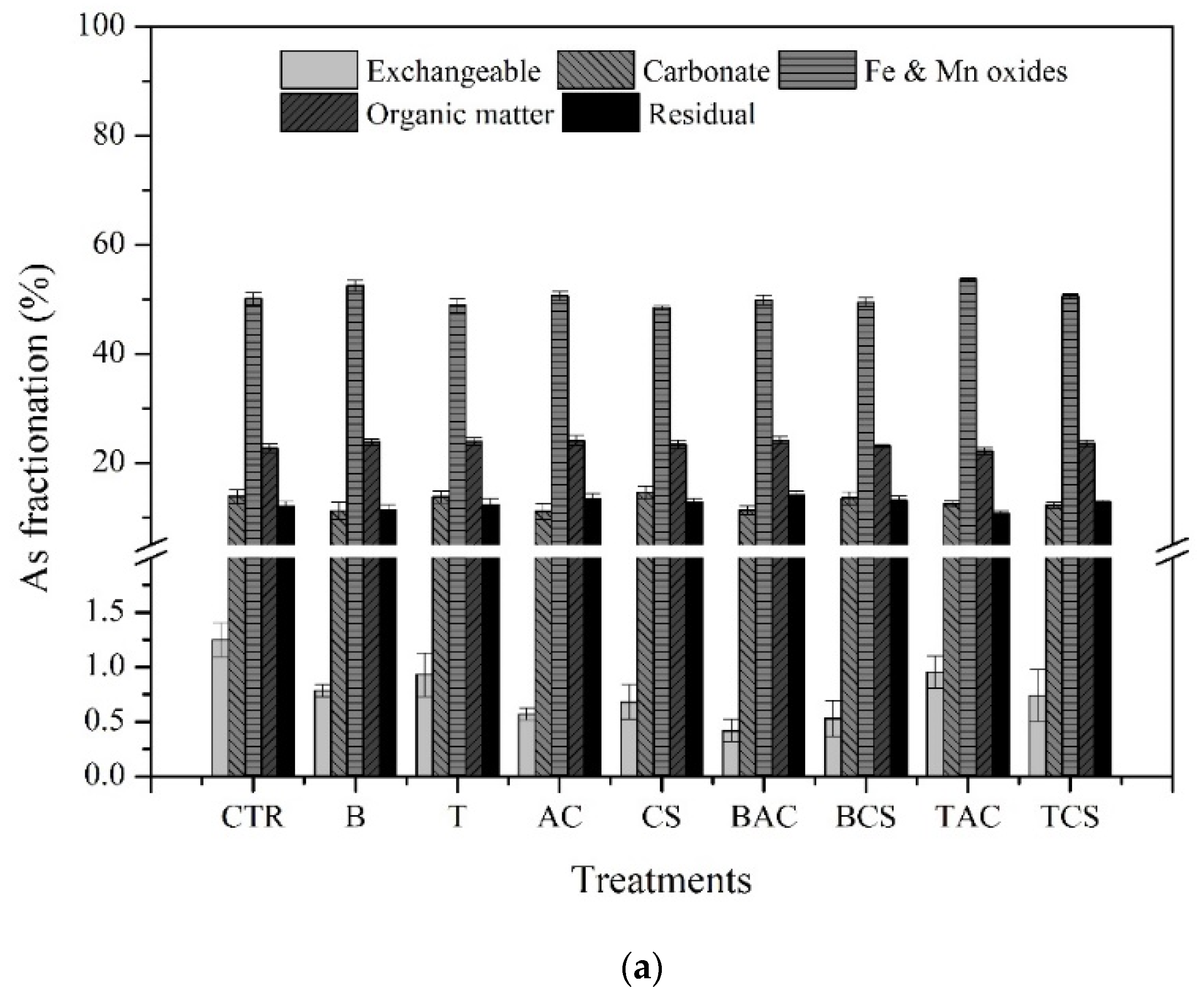

Based on the sequential extraction results, As was mainly distributed in the organic matter, Fe and Mn oxides, and carbonate fractions with the average values of 50, 25, and 18 wt.%, respectively (Figure 4a). No significant change was found for these fractions of As after amending soil. However, As was related more with exchangeable fraction in the control soil than treated soils. Comparing to the control soil, an exchangeable fraction of As was reduced by 36.8, 25.6, 54.4, 45.6, 66.4, 57.6, 23.2, and 40.8 wt.%, after amending soil with B, T, AC, CS, BAC, BCS, TAC, and TCS, respectively. Arsenic in soils can be associated with several reactive components. Although the total As concentration may manifest the overall level of As in soils, it does not provide information regarding the chemical form or potential mobility and bioavailability of a particular element. Indeed, the bioavailability of heavy metal(loid)s relates to their easily leachable fractions (e.g., exchangeable and carbonate) [10]. A promising result for As immobilization through a reduction in the exchangeable fraction was found in the amended soils especially for AC and its composites.

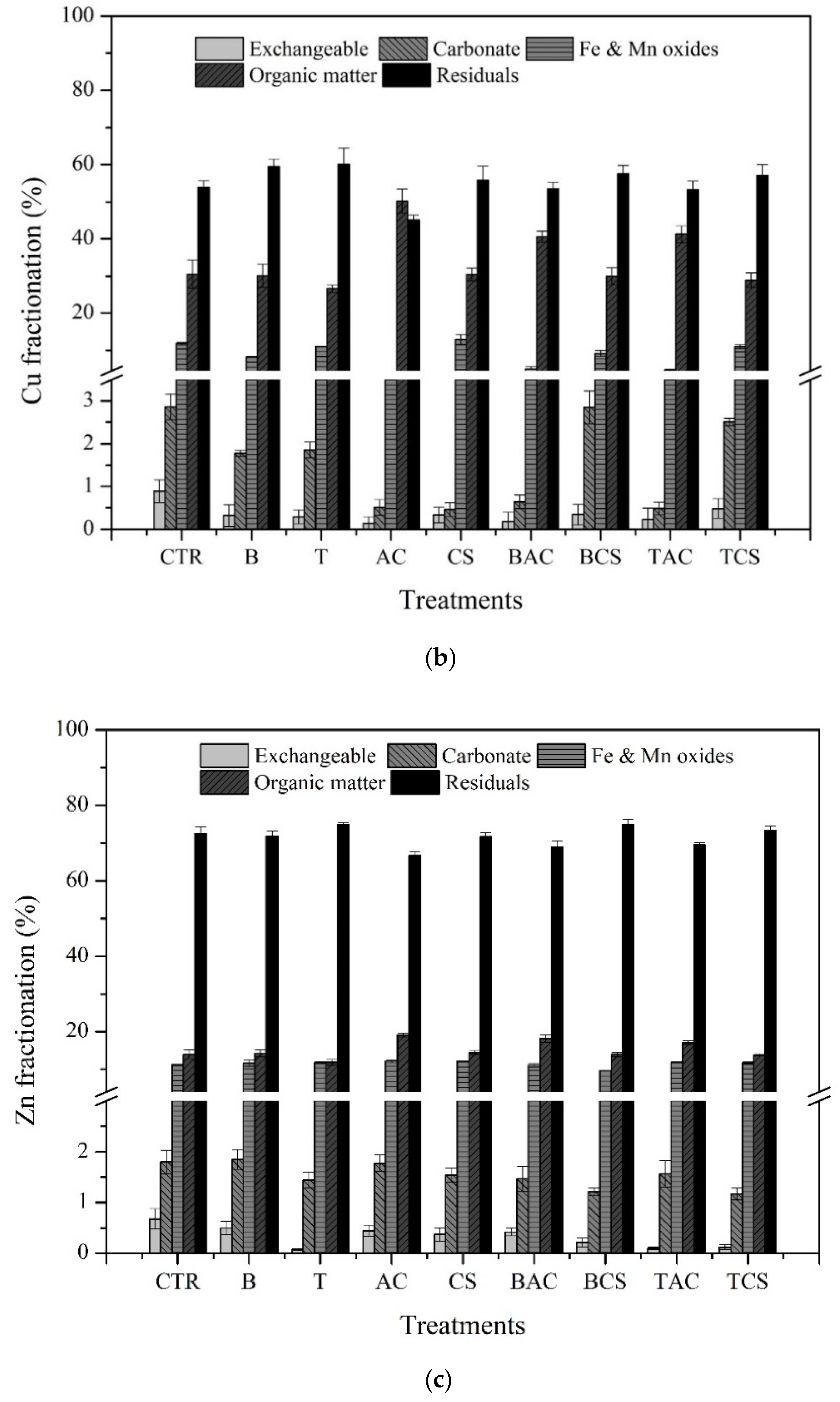

As it is shown in Figure 4b, Cu was mainly distributed in the un-bioavailable forms of residual (60 wt.%) and organic matter (33 wt.%) fractions. Adding soil amendments showed a significant increase (p < 0.05) in the organic matter fractions of Cu with the maximum values for AC (55 wt.%) amended soils. In contrast, a significant decrease in the bioavailable form of an exchangeable fraction of Cu was found after amending soil. Compared to the control soil, the exchangeable fraction of Cu was reduced by 84.2, 79.7, and 74.4 wt.%, after amending soil with AC, BAC, and TAC, respectively. Among soil amendments, AC and its composite were the most effective agents to change the distribution of the Cu in soil.
Based on the sequential extraction results, Zn was associated mostly with a residual fraction with an average value of 75 wt.% (Figure 4c). Amending soil did not change the share of the residual fraction of Zn. However, a slight increase in the organic matter fractionation of Zn was observed after adding to soil with AC and its composites (from 17 to 20 wt.%). A significant reduce in the easily leachable fractions (i.e., exchangeable and carbonate) of Zn was found after amending soil amendments. For Zn immobilization, T and its composites showed higher efficiency than other treatments. In detail, T, TAC, and TSC reduced the Zn mobility in the exchangeable phase by 89.7%, 86.7%, and 82.3%.
Generally, B and AC showed promising results to immobilize As and Cu in the soil through a reduction in the bioavailable forms, while T and CS were more effective in mitigating the bioavailability of Zn.
Arsenic and Cu are more related to an organic compound, which is why AC showed a more significant effect on As and Cu immobilization. Meanwhile, Zn is related more to inorganic compounds, and T originated from clay minerals with high pH, showing more efficiency to immobilize Zn.
In detail, according to the results of amendment characterization, AC had the highest specific surface area (1082 m2/g) that shows the potential capacity for heavy metal adsorption. The effect of activated carbon on As, Cu, Zn, and Cd immobilization has been reported in the previous study and also concurred with the results of this study [33,34,49]. In addition, activated carbon includes C = O functional group, which can induce heavy metal immobilization via cation exchange and functional group complexation.
In the case of bentonite, XRF results showed that bentonite had a high percent amount of SiO2 which is the most abundant component in nature and plays an important role as As storage mineral. Arsenic can be incorporated into mineral structure as impurities and adsorbed onto a mineral surface [50]. Bentonite also had a functional group as O-H can immobilize heavy metals like Cu and Zn via adsorption, functional group complexation, and surface precipitation, as confirmed by other research works [51,52].
In this study, talc had a high chemical composition of MgO (34.9%) and CaO (26.9%) which could increase the pH in soil lead to a corresponding increase in the net negative charge of variably charged colloids in soils and sediments, such as clays, organic matter, and Fe and Al oxides [53]. That is the reason why the soil treated with talc showed the highest pH which led to the increase the heavy metal sorption, especially for Zn. The mechanism of surface complexation on talc surface can be explained as follows [54]:
≡POH + Zn2+ = ≡POZn+ + H+ (pH < 6.0)
≡PO− + Zn2+ = ≡POZn+ (7.5 < pH < 9.0)
≡CaOH + Zn2+ = ≡CaOZn+ + H+ (pH > 10.5)
In this study, cornstarch also showed a high pH value (8.2) which also has a potential capacity for heavy metal immobilization in soil via adsorption, inner-sphere surface complexation, and precipitation techniques. Besides, the functional group of cornstarch as O-H, C-O also played an important role for Cu, Zn, and Cd adsorption, surface precipitation as other research works confirmed [55,56].

3.4. Effects of Amendments on Plant Growth Index and Phytotoxicity

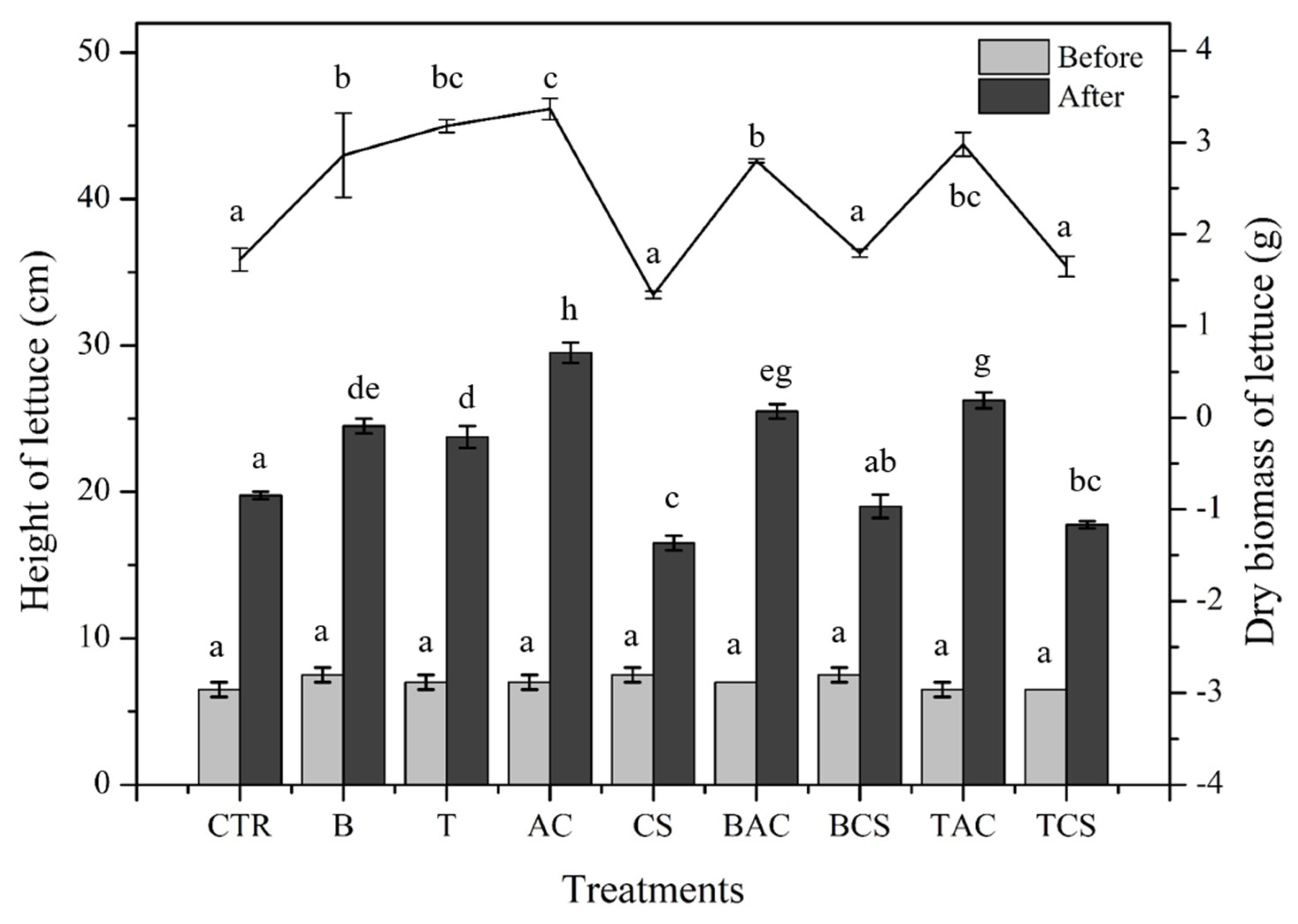

The study revealed that the response of plant to amendment application varied between amendment types (Figure 5). Amending soil, except for CS and its composites, significantly (p < 0.05) induced plant growth index after 45 d planting. Compared with the control samples (19.75 ± 0.25 cm), lettuce height significantly increased in B (24.5 cm ± 0.5 cm), T (23.75 cm ± 0.75 cm), AC (29.5 cm ± 0.7 cm), BAC (25.5 cm ± 0.5 cm), TAC amended soils (26.25 cm ± 0.55 cm). Adding soil amendments meaningfully increased the dry mass of lettuce from 1.73 ± 0.13 g in the control samples to 2.86 ± 0.46, 3.18 ± 0.07, 3.37 ± 0.12, 2.8 ± 0.02, 2.98 ± 0.13 g, in B, T, AC, BAC, and TAC, respectively. Previous studies showed that AC, T, and/or B can induce plant growth parameters mainly due to nutrient supply by these amendments [33]. Noteworthy, no significant change in the plant growth index was found using CS and its composites. This may be attributed to a decrease in soil respiration by the decomposition of CS which later reduces plant growth [57].

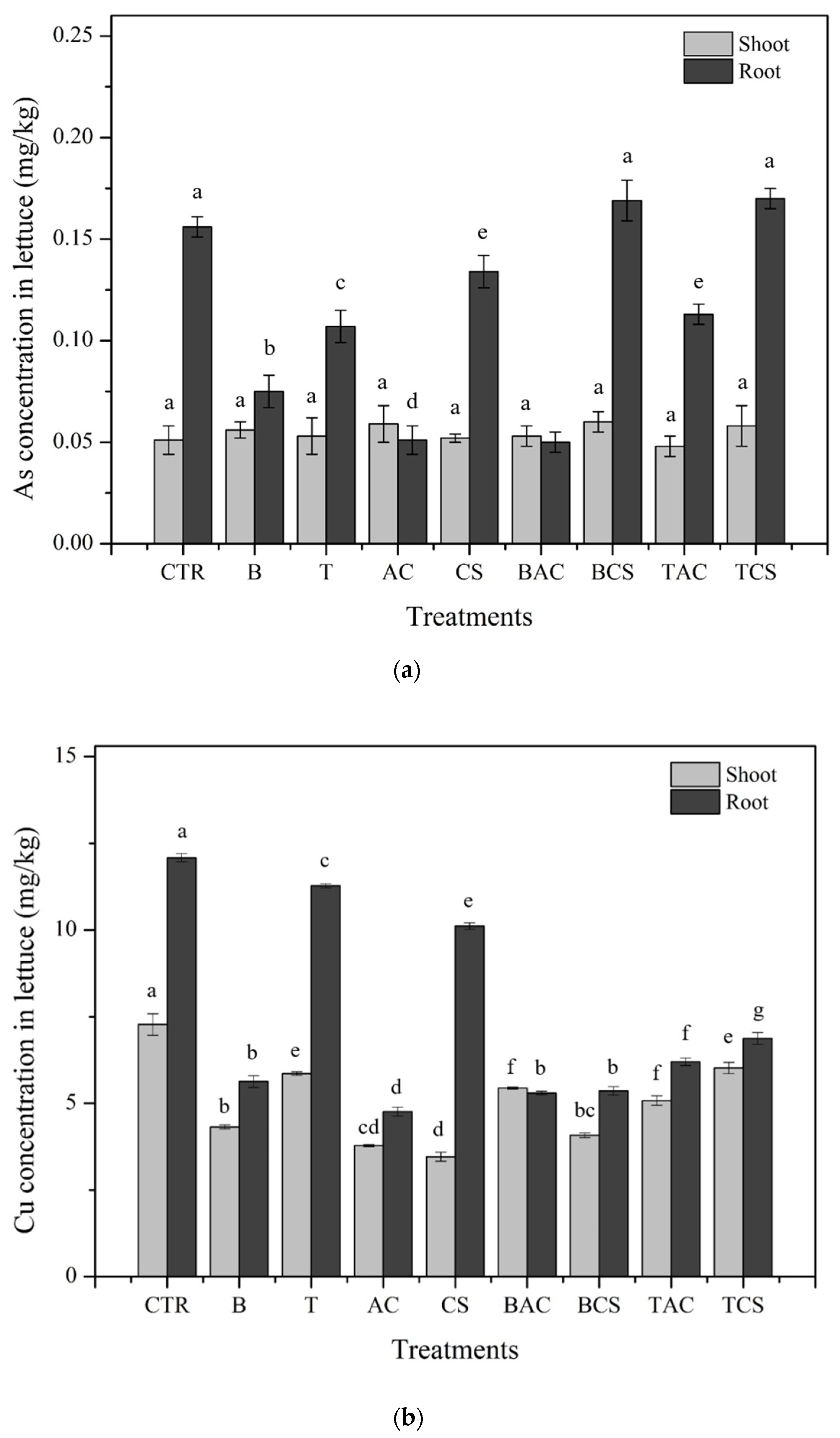

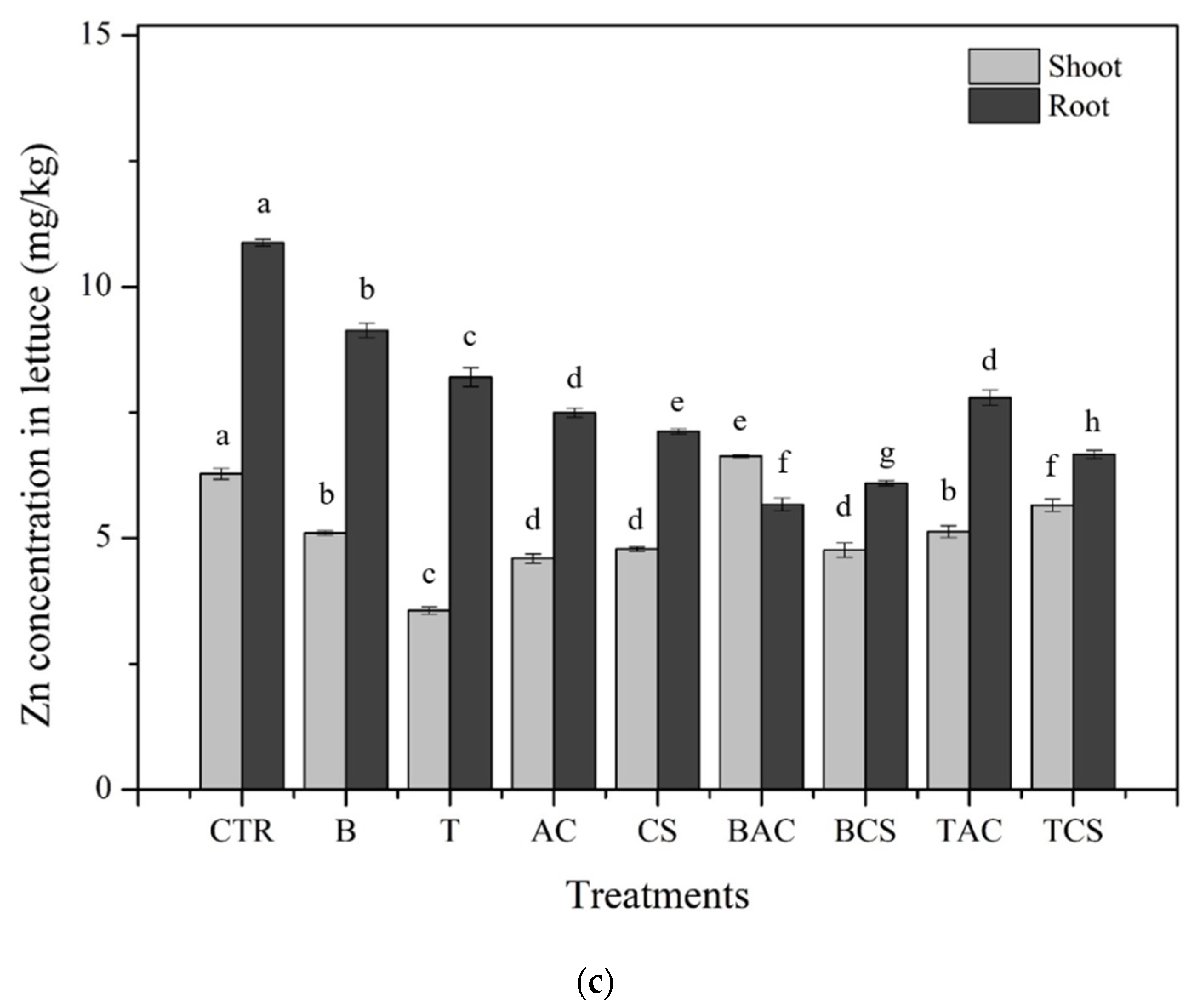

Figure 6 shows concentrations of heavy metal(loid)s in lettuce tissues after 45 days of planting. In Figure 6a, a small amount of As was observed in the plant shoots after amending soil with B (0.075 ± 0.008 mg/kg), AC (0.051 ± 0.007 mg/kg), BAC (0.05 ± 0.005 mg/kg), T (0.107 ± 0.008 mg/kg), and TAC (0.113 ± 0.005 mg/kg) compared with the control samples (0.156 ± 0.005 mg/kg), while the other treatments did not affect As accumulation in roots. Amending soil samples did not affect as uptake by plant shoots after 45 days of planting. Our study concurred with previous work that found an effect of AC and B on reducing the plant uptake of heavy metal contaminated in soil [16,34].
The results also showed that adding amendments reduced Cu uptake by both plant roots and shoots (Figure 6b). Amending soil with AC significantly (<0.05) reduced Cu uptake by plant root (4.76 ± 0.13 vs. 12.08 ± 0.12 mg/kg in control) and shoot (3.78 ± 0.03 vs. 7.28 ± 0.31 mg/kg in control). Although no consistency was found between soil amendments and Zn uptake by root and shoot, the concentration of Zn in plant tissues decreased after amending soil samples (Figure 6c). A great decrease in Zn uptake by root (6.09 ± 0.05 vs. 10.88 ± 0.07 mg/kg in control) and shoot (4.76 ± 0.04 vs. 6.28 ± 0.11 mg/kg in control) was found in the amended soils with BCS. The low level of Zn uptake by plants could be explained by the low Zn mobility in soil when applied CS and its composites, which are presented in Figure 4.

3.5. Effect of Amendments on Metabolic Function of Soil Microbial Communities

The capability of carbon source utilization is a satisfactory factor to describe the metabolic profile of microorganisms and the quality of soil environmental because it reflects the potential of microbes to respond promptly to changes in the environment. Biolog Ecoplate is a rapid, efficient, and inexpensive method used to detect the dynamic variation of microbial metabolism and community diversity in soil. The metabolic activity of microorganisms in the soil was assessed by the AWCD of Biolog Ecoplate; a higher AWCD shows a higher microbial metabolic activity [27,28,29].

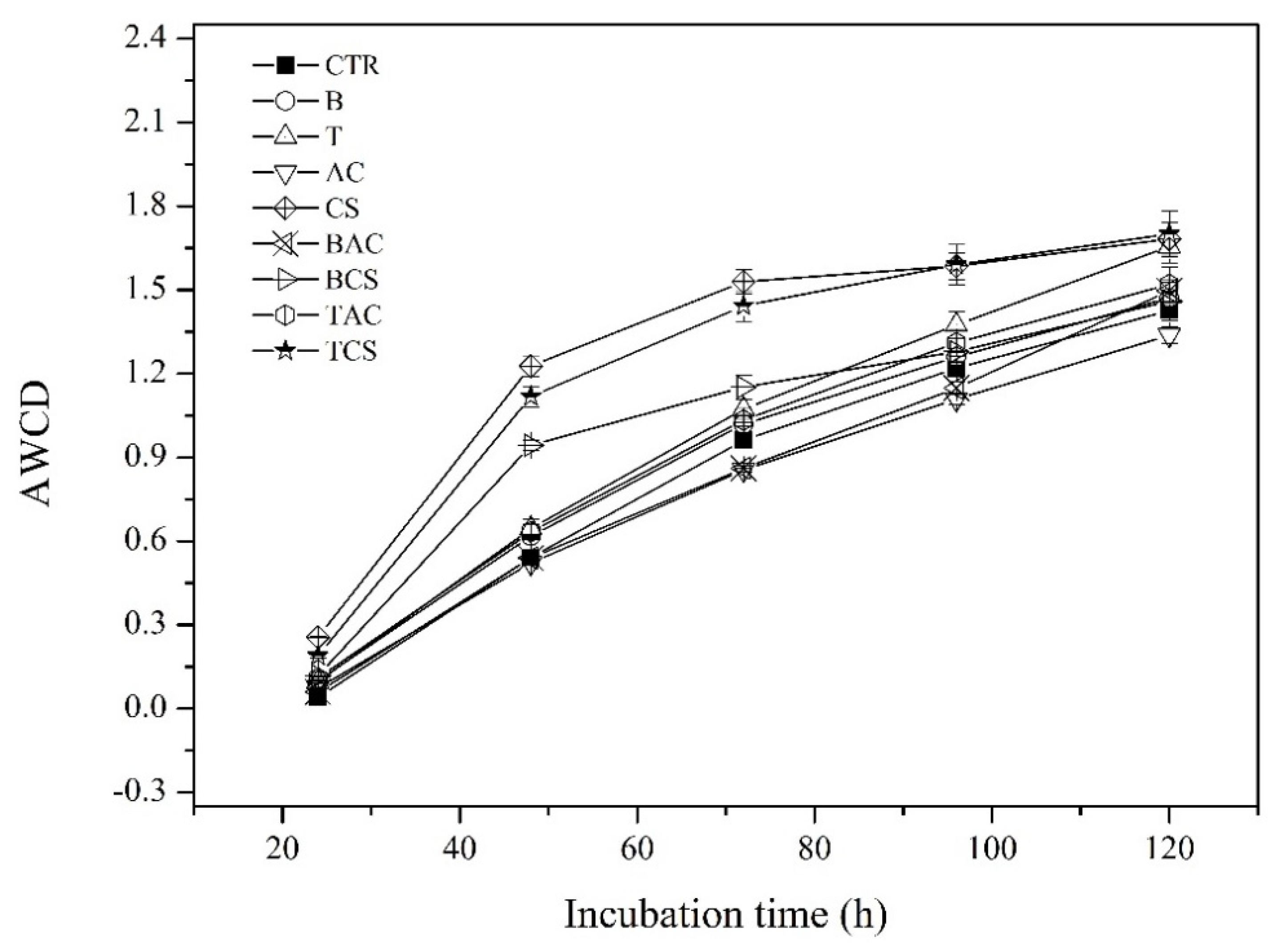

Among these treatments, Figure 7 shows that the AWCD of treatments with B, AC, BAC was stabilized at 1.47, 1.34, and 1.50, respectively, and had no significant difference compared to the control; the AWCD of the control was 1.43 after 120 h incubation time. Meanwhile, the AWCD of treatments with T, CS, TAC, TCS showed a significant difference compared to the control at 1.66, 1.68, 1.52, 1.70, respectively. Generally, the AWCD was slightly inhibited with the presence of B, AC, and BAC in the soil; meanwhile, T, CS, TAC, and TCS promoted microorganism activity by improving the AWCD index. These results concurred with other research on the effects of B and AC on microbial community. For example, Yuebing Sun showed that bentonite had a negative effect on a microbial community when applied to soil [58]. Wei Que also showed that the microbial community was destroyed when AC was applied to the sediment [33].

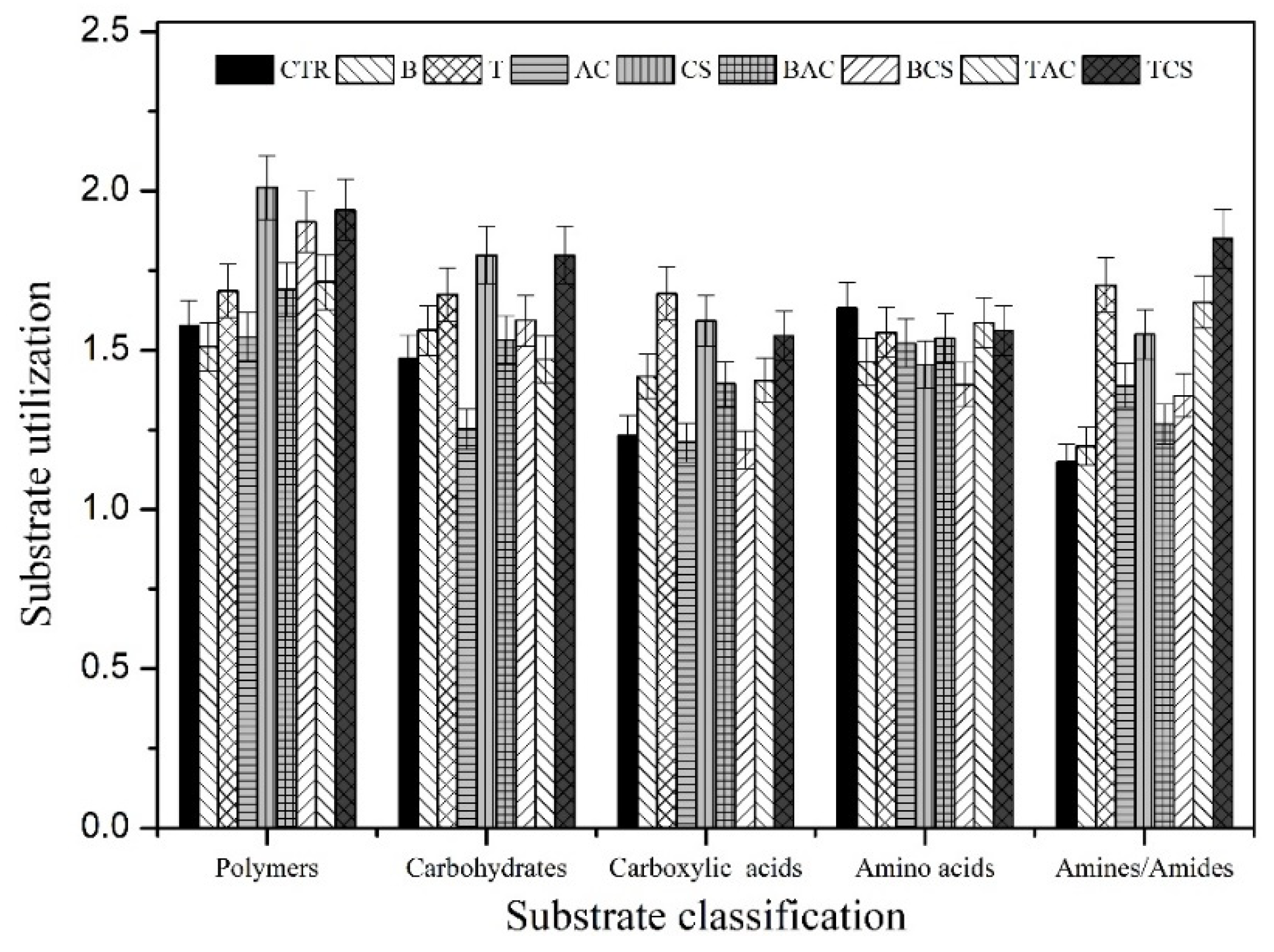

The SAWCD value is presented in Figure 8. When comparing the distribution of SAWCD for each amendment treatment, we can see that by applying the amendments, the amino acid SAWCD value decreased compared to the untreated soil, while all of these soils increased the amines/amides SAWCD value up to 0.7 units in TCS; however, the increases of B, AC, and BAC were not significantly different from the control soil. In the polymers, carbohydrates, and carboxylic acid utilization, the control soil showed a lower value of SAWCD than most of the treatments, excepting B, AC, BCS.

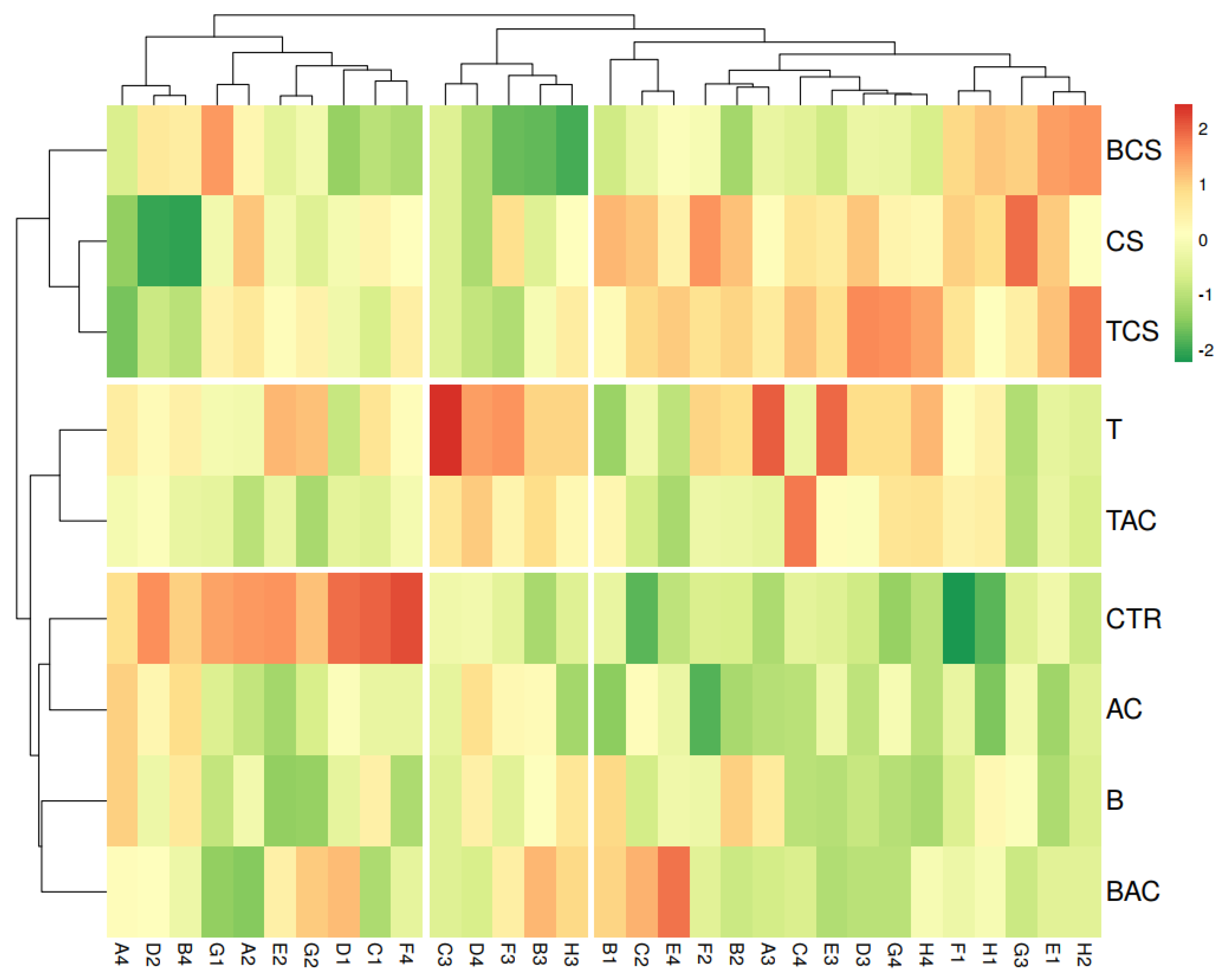

In Figure 9, the heatmap analysis with cluster dendrogram presents in more detail the effect of various amendment treatments on soil microbial community. It can be seen that the groups B, AC, and BAC were similar to the control response to carbon sources utilization compared to T, CS, and TCS. Furthermore, the groups of carbon sources utilized by microbes such as A3, C4, E3, D3, G4, H4, F1, H1, G3, E1, and H2 were the most affected when applying amendments. For the addition of B, AC, and CS, these carbon sources had no significant different change compared to the control; in contrast, T, CS, and TCS increased the carbon source utilization. Other carbon sources had fluctuating changes compared to the control soil when the amendments were added.
A large number of research works have shown the influence of changing soil properties such as pH on soil microbial [59,60]. Most microorganisms had the intracellular pH around neutral, which is why increasing or decreasing pH is sufficient to impose stress and likely affects microbial diversity [61]. In this study, B, AC, and BAC applied to soil slightly changed pH but not significantly different than the control while T, CS, TCS increased the soil pH nearly neutrally. That is the reason why the microbial community in soil treated with T, CS, and TCS was more diverse than B, AC, and BAC. On the other hand, the available Zn content also played an important factor in the microbial community structure [62]. Zn is known as one of the necessary micronutrients for cell metabolism, but Zn content above a specific threshold can be toxic to living organisms, especially soil microbes, and largely affects the functional groups of microbial communities [63]. Our results agree with this, as T and CS showed a higher efficiency of immobilizing Zn compared to B and AC. Furthermore, talc is easily loaded with microorganisms and cornstarch has amylose and amylopectin, which can be fermented by bacteria [64,65]. This might explain the microbial diversity in these amendment treatments.

4. Conclusions

The remediation of contaminated soil using soil amendments for heavy metals immobilization has been studied for many years; however, there still is a gap in the research to find appropriate amendments for immobilizing metals and metalloids at the same time without negatively affect plant growth and microorganism activities. Therefore, this study was conducted to simultaneously examine the effect of various soil amendments on metals bioavailability and its subsequent influence on the phytotoxicity and microbial diversity in contaminated farmland.
Our results indicated that the soil amendments and their composites significantly affected the soil, plant, and microbial metabolic functions as follows:
(1)
Amending soil-induced pH caused a heavy metal(loid)s immobilization.
(2)
Among soil amendments, B and AC and their composites show a higher efficiency for As and Cu immobilization in soil with a great reduction in their easily bioavailable fractions.
(3)
T, CS, and their composites showed a great effect on Zn immobilization in soil.
(4)
The lettuce grew well in B, AC, and their composites amended soils with the minimum amount of As and Cu found in its tissue, while Zn concentration in plant tissue was higher.
(5)
No significant change in the microbial communities was found for the B, AC, and their composite amended soils, while T, CS, and their composites induced soil microbial diversity.
Our study suggested that using the composites of amendments has the most beneficial effects on soil, plants, and microbial metabolic functions.

Author Contributions

Experiment set-up, investigation, writing—original preparation, T.N.Q.; writing—review and editing, Z.D.N. and T.N.Q.; supervision, M.C.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Korea Environmental Industry & Technology Institute (KEITI) through the “Establishment of clean-up soil recycling management systems linked to soil health” project funded by Korea Ministry of Environmental (MOE) (Project number: 202000248004).

Data Availability Statement

Not applicable.

Acknowledgments

I want to express my gratefulness to my wife Ngoc Yen Le who help me to analyze the Biolog Ecoplate. She always encourages me on the path of scientific research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Derakhshan Nejad, Z.; Rezania, S.; Jung, M.C.; Al-Ghamdi, A.A.; Mustafa, A.E.-Z.M.A.; Elshikh, M.S. Effects of fine fractions of soil organic, semi-organic, and inorganic amendments on the mitigation of heavy metal(loid)s leaching and bioavailability in a post-mining area. Chemosphere 2021, 271, 129538. [Google Scholar] [CrossRef]
  2. Li, C.; Zhou, K.; Qin, W.; Tian, C.; Qi, M.; Yan, X.; Han, W. A Review on Heavy Metals Contamination in Soil: Effects, Sources, and Remediation Techniques. Soil Sediment Contam. Int. J. 2019, 28, 380–394. [Google Scholar] [CrossRef]
  3. Govarthanan, M.; Lee, G.-W.; Park, J.-H.; Kim, J.S.; Lim, S.-S.; Seo, S.-K.; Cho, M.; Myung, H.; Kamala-Kannan, S.; Oh, B.-T. Bioleaching characteristics, influencing factors of Cu solubilization and survival of Herbaspirillum sp. GW103 in Cu contaminated mine soil. Chemosphere 2014, 109, 42–48. [Google Scholar] [CrossRef] [PubMed]
  4. Kim, J.-Y.; Kim, K.-W.; Lee, J.-U.; Lee, J.-S.; Cook, J. Assessment of As and Heavy Metal Contamination in the Vicinity of Duckum Au-Ag Mine, Korea. Environ. Geochem. Health 2002, 24, 213–225. [Google Scholar] [CrossRef]
  5. Yao, Z.; Li, J.; Xie, H.; Yu, C. Review on Remediation Technologies of Soil Contaminated by Heavy Metals. Procedia Environ. Sci. 2012, 16, 722–729. [Google Scholar] [CrossRef] [Green Version]
  6. Derakhshan-Nejad, Z.; Jung, M.C. Remediation of multi-metal contaminated soil using biochars from rice husk and maple leaves. J. Mater. Cycles Waste Manag. 2019, 21, 457–468. [Google Scholar] [CrossRef]
  7. Liu, L.; Li, W.; Song, W.; Guo, M. Remediation techniques for heavy metal-contaminated soils: Principles and applicability. Sci. Total Environ. 2018, 633, 206–219. [Google Scholar] [CrossRef]
  8. Fan, J.; Cai, C.; Chi, H.; Reid, B.J.; Coulon, F.; Zhang, Y.; Hou, Y. Remediation of cadmium and lead polluted soil using thiol-modified biochar. J. Hazard. Mater. 2020, 388, 122037. [Google Scholar] [CrossRef] [PubMed]
  9. Chen, X.; Dai, Y.; Fan, J.; Xu, X.; Cao, X. Application of iron-biochar composite in topsoil for simultaneous remediation of chromium-contaminated soil and groundwater: Immobilization mechanism and long-term stability. J. Hazard. Mater. 2021, 405, 124226. [Google Scholar] [CrossRef]
  10. Palansooriya, K.N.; Shaheen, S.M.; Chen, S.S.; Tsang, D.C.W.; Hashimoto, Y.; Hou, D.; Bolan, N.S.; Rinklebe, J.; Ok, Y.S. Soil amendments for immobilization of potentially toxic elements in contaminated soils: A critical review. Environ. Int. 2020, 134, 105046. [Google Scholar] [CrossRef]
  11. Govarthanan, M.; Park, S.-H.; Park, Y.-J.; Myung, H.; Krishnamurthy, R.R.; Lee, S.-H.; Lovanh, N.; Kamala-Kannan, S.; Oh, B.-T. Lead biotransformation potential of allochthonous Bacillus sp. SKK11 with sesame oil cake extract in mine soil. RSC Adv. 2015, 5, 54564–54570. [Google Scholar] [CrossRef]
  12. Govarthanan, M.; Selvankumar, T.; Mythili, R.; Srinivasan, P.; Ameen, F.; AlYahya, S.A.; Kamala-Kannan, S. Biogreen remediation of chromium-contaminated soil using Pseudomonas sp. (RPT) and neem (Azadirachta indica) oil cake. Int. J. Environ. Sci. Technol. 2019, 16, 4595–4600. [Google Scholar] [CrossRef]
  13. Zaitan, H.; Bianchi, D.; Achak, O.; Chafik, T. A comparative study of the adsorption and desorption of o-xylene onto bentonite clay and alumina. J. Hazard. Mater. 2008, 153, 852–859. [Google Scholar] [CrossRef] [PubMed]
  14. Gilmour, C.C.; Riedel, G.S.; Riedel, G.; Kwon, S.; Landis, R.; Brown, S.S.; Menzie, C.A.; Ghosh, U. Activated carbon mitigates mercury and methylmercury bioavailability in contaminated sediments. Environ. Sci. Technol. 2013, 47, 13001–13010. [Google Scholar] [CrossRef]
  15. Meynet, P.; Hale, S.E.; Davenport, R.J.; Cornelissen, G.; Breedveld, G.D.; Werner, D. Effect of activated carbon amendment on bacterial community structure and functions in a PAH impacted urban soil. Environ. Sci. Technol. 2012, 46, 5057–5066. [Google Scholar] [CrossRef] [PubMed]
  16. Xie, Y.; Xiao, K.; Sun, Y.; Gao, Y.; Yang, H.; Xu, H. Effects of amendments on heavy metal immobilization and uptake by Rhizoma chuanxiong on copper and cadmium contaminated soil. R. Soc. Open Sci. 2018, 5, 181138. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Gomez-Eyles, J.L.; Yupanqui, C.; Beckingham, B.; Riedel, G.; Gilmour, C.; Ghosh, U. Evaluation of biochars and activated carbons for in situ remediation of sediments impacted with organics, mercury, and methylmercury. Environ. Sci. Technol. 2013, 47, 13721–13729. [Google Scholar] [CrossRef]
  18. Wu, B.; Cheng, G.; Jiao, K.; Shi, W.; Wang, C.; Xu, H. Mycoextraction by Clitocybe maxima combined with metal immobilization by biochar and activated carbon in an aged soil. Sci. Total Environ. 2016, 562, 732–739. [Google Scholar] [CrossRef]
  19. Li, Y.; Liang, X.; Huang, Q.; Xu, Y.; Yang, F. Inhibition of Cd accumulation in grains of wheat and rice under rotation mode using composite silicate amendment. RSC Adv. 2019, 9, 35539–35548. [Google Scholar] [CrossRef] [Green Version]
  20. León, O.; Soto, D.; González, J.; Piña, C.; Muñoz-Bonilla, A.; Fernandez-García, M. Environmentally Friendly Fertilizers Based on Starch Superabsorbents. Materials 2019, 12, 3493. [Google Scholar] [CrossRef] [Green Version]
  21. Bolan, N.; Kunhikrishnan, A.; Thangarajan, R.; Kumpiene, J.; Park, J.; Makino, T.; Kirkham, M.B.; Scheckel, K. Remediation of heavy metal(loid)s contaminated soils—To mobilize or to immobilize? J. Hazard. Mater. 2014, 266, 141–166. [Google Scholar] [CrossRef] [PubMed]
  22. Derakhshan Nejad, Z.; Jung, M.C. The effects of biochar and inorganic amendments on soil remediation in the presence of hyperaccumulator plant. Int. J. Energy Environ. Eng. 2017, 8, 317–329. [Google Scholar] [CrossRef] [Green Version]
  23. Walter, W.; Kirchbaumer, N.; Prohaska, Y.; Stingeder, G.; Lombi, E.; Domy, A. Arsenic fractionation in soils using an improved sequential extraction procedure. Anal. Chim. Acta 2001, 436, 309–323. [Google Scholar]
  24. Tessier, A.; Campbell, P.G.C.; Bisson, M. Sequential extraction procedure for the speciation of particulate trace metals. Anal. Chem. 1979, 51, 844–851. [Google Scholar] [CrossRef]
  25. Chen, C.-X.; Huang, B.; Li, T.; Wu, G.-F. Preparation of phosphoric acid activated carbon from sugarcane bagasse by mechanochemical processing. BioResources 2012, 7, 5109–5116. [Google Scholar] [CrossRef] [Green Version]
  26. Gryta, A.; Frac, M.; Oszust, K. The application of the Biolog EcoPlate approach in ecotoxicological evaluation of dairy sewage sludge. Appl. Biochem. Biotechnol. 2014, 174, 1434–1443. [Google Scholar] [CrossRef] [Green Version]
  27. Feigl, V.; Ujaczki, E.; Vaszita, E.; Molnar, M. Influence of red mud on soil microbial communities: Application and comprehensive evaluation of the Biolog EcoPlate approach as a tool in soil microbiological studies. Sci. Total Environ. 2017, 595, 903–911. [Google Scholar] [CrossRef] [Green Version]
  28. Garland, J.L.; Mills, A.L. Classification and characterization of heterotrophic microbial communities on the basis of patterns of community-level sole-carbon-source utilization. Appl. Environ. Microbiol. 1991, 57, 2351–2359. [Google Scholar] [CrossRef] [Green Version]
  29. Ge, Z.; Du, H.; Gao, Y.; Qiu, W. Analysis on Metabolic Functions of Stored Rice Microbial Communities by BIOLOG ECO Microplates. Front. Microbiol. 2018, 9, 1375. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Kenarova, A.; Radeva, G.; Traykov, I.; Boteva, S. Community level physiological profiles of bacterial communities inhabiting uranium mining impacted sites. Ecotoxicol. Environ. Saf. 2014, 100, 226–232. [Google Scholar] [CrossRef]
  31. Bowen, H.J.M. Environmental Chemistry of the Elements; Academic Press: New York, NY, USA, 1979; p. 333. [Google Scholar]
  32. Jo, I.S.; Koh, M.H. Chemical changes in agricultural soils of Korea: Data review and suggested countermeasures. Environ. Geochem. Health 2004, 26, 105–117. [Google Scholar] [CrossRef]
  33. Que, W.; Zhou, Y.-H.; Liu, Y.-G.; Wen, J.; Tan, X.-F.; Liu, S.-J.; Jiang, L.-H. Appraising the effect of in-situ remediation of heavy metal contaminated sediment by biochar and activated carbon on Cu immobilization and microbial community. Ecol. Eng. 2019, 127, 519–526. [Google Scholar] [CrossRef]
  34. Oliveira, L.M.; Suchismita, D.; Gress, J.; Rathinasabapathi, B.; Chen, Y.; Ma, L.Q. Arsenic uptake by lettuce from As-contaminated soil remediated with Pteris vittata and organic amendment. Chemosphere 2017, 176, 249–254. [Google Scholar] [CrossRef]
  35. Bejarano, A.; Sauer, U.; Mitter, B.; Preininger, C. Parameters influencing adsorption of Paraburkholderia phytofirmans PsJN onto bentonite, silica and talc for microbial inoculants. Appl. Clay Sci. 2017, 141, 138–145. [Google Scholar] [CrossRef]
  36. Benedetti, V.; Patuzzi, F.; Baratieri, M. Characterization of char from biomass gasification and its similarities with activated carbon in adsorption applications. Appl. Energy 2018, 227, 92–99. [Google Scholar] [CrossRef]
  37. Ciesielskia, Y.; Lii, C.-y.; Yen, M.T.; Tomasikc, T. Interactions of starch with salts of metals from the transition groups. Carbohydr. Polym. 2003, 51, 47–56. [Google Scholar] [CrossRef]
  38. Zhirong, L.; Azhar Uddin, M.; Zhanxue, S. FT-IR and XRD analysis of natural Na-bentonite and Cu(II)-loaded Na-bentonite. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2011, 79, 1013–1016. [Google Scholar] [CrossRef]
  39. Ossman, M.E.; Mansour, M.S.; Fattah, M.A.; Taha, N.; Kiros, Y. Peanut shells and talc powder for removal of hexavalent chromium from aqueous solutions. Bulg. Chem. Commun. 2014, 46, 629–639. [Google Scholar]
  40. Lagdic, L.; Mitchell, M.K.; Payne, B.D. Highly effective adsorption of heavy metal ions by a thiolfunctionalized magnesium phyllosilicate clay. Environ. Sci. Technol. 2001, 35, 84–90. [Google Scholar]
  41. Jovanovski, G.; Stefov, V.; Šoptrajanov, B.; Boev, B. Minerals from Macedonia. IV. Discrimination between some carbonate minerals by FTIR spectroscopy. Neues Jahrb. Mineral.-Abh. 2002, 177, 241–253. [Google Scholar] [CrossRef]
  42. Bayat, M.; Nasernejad, B.; Falamaki, C. Preparation and characterization of nano-galvanic bimetallic Fe/Sn nanoparticles deposited on talc and its enhanced performance in Cr(VI) removal. Sci. Rep. 2021, 11, 7715. [Google Scholar] [CrossRef] [PubMed]
  43. Xie, Z.; Guan, W.; Ji, F.; Song, Z.; Zhao, Y. Production of Biologically Activated Carbon from Orange Peel and Landfill Leachate Subsequent Treatment Technology. J. Chem. 2014, 2014, 1–9. [Google Scholar] [CrossRef]
  44. Abdullah, A.H.D.; Chalimah, S.; Primadona, I.; Hanantyo, M.H.G. Physical and chemical properties of corn, cassava, and potato starchs. IOP Conf. Ser. Earth Environ. Sci. 2018, 160, 012003. [Google Scholar] [CrossRef] [Green Version]
  45. Pal, S.; Mal, D.; Singh, R.P. Cationic starch: An effective flocculating agent. Carbohydr. Polym. 2005, 59, 417–423. [Google Scholar] [CrossRef]
  46. Wang, Y.; Xie, W. Synthesis of cationic starch with a high degree of substitution in an ionic liquid. Carbohydr. Polym. 2010, 80, 1172–1177. [Google Scholar] [CrossRef]
  47. Warton, B.; Matthiessen, J.N. The crucial role of calcium interacting with soil pH in enhanced biodegradation of metam-sodium. Pest Manag. Sci. 2005, 61, 856–862. [Google Scholar] [CrossRef]
  48. Zhu, J.; Gao, W.; Ge, L.; Zhao, W.; Zhang, G.; Niu, Y. Immobilization properties and adsorption mechanism of nickel(II) in soil by biochar combined with humic acid-wood vinegar. Ecotoxicol. Environ. Saf. 2021, 215, 112159. [Google Scholar] [CrossRef] [PubMed]
  49. Brendova, K.; Zemanova, V.; Pavlikova, D.; Tlustos, P. Utilization of biochar and activated carbon to reduce Cd, Pb and Zn phytoavailability and phytotoxicity for plants. J. Environ. Manag. 2016, 181, 637–645. [Google Scholar] [CrossRef] [PubMed]
  50. Alam, M.S.; Wu, Y.; Cheng, T. Silicate Minerals as a Source of Arsenic Contamination in Groundwater. Water Air Soil Pollut. 2014, 225, 2201. [Google Scholar] [CrossRef]
  51. Huang, D.; Li, B.; Wu, M.; Kuga, S.; Huang, Y. Graphene Oxide-Based Fe-Mg (Hydr)oxide Nanocomposite as Heavy Metals Adsorbent. J. Chem. Eng. Data 2018, 63, 2097–2105. [Google Scholar] [CrossRef]
  52. Yi, X.; Sun, F.; Han, Z.; Han, F.; He, J.; Ou, M.; Gu, J.; Xu, X. Graphene oxide encapsulated polyvinyl alcohol/sodium alginate hydrogel microspheres for Cu(II) and U(VI) removal. Ecotoxicol. Environ. Saf. 2018, 158, 309–318. [Google Scholar] [CrossRef]
  53. Zhang, Y.; Zhang, H.; Wang, M.; Zhang, Z.; Marhaba, T.; Sun, C.; Zhang, W. In situ immobilization of heavy metals in contaminated sediments by composite additives of hydroxyapatite and oxides. Environ. Earth Sci. 2019, 78, 94. [Google Scholar] [CrossRef]
  54. Wu, L.; Forsling, W.; Schindler, P.W. Surface complexation of calcium minerals in aqueous solution: 1. Surface protonation at fluorapatite—water interfaces. J. Colloid Interface Sci. 1991, 147, 178–185. [Google Scholar] [CrossRef]
  55. Pourbeyram, S. Effective Removal of Heavy Metals from Aqueous Solutions by Graphene Oxide-Zirconium Phosphate (GO-Zr-P) Nanocomposite. Ind. Eng. Chem. Res. 2016, 55, 5608–5617. [Google Scholar] [CrossRef]
  56. Huang, Q.; Chen, Y.; Yu, H.; Yan, L.; Zhang, J.; Wang, B.; Du, B.; Xing, L. Magnetic graphene oxide/MgAl-layered double hydroxide nanocomposite: One-pot solvothermal synthesis, adsorption performance and mechanisms for Pb2+, Cd2+, and Cu2+. Chem. Eng. J. 2018, 341, 1–9. [Google Scholar] [CrossRef]
  57. Mizuta, K.; Taguchi, S.; Sato, S. Soil aggregate formation and stability induced by starch and cellulose. Soil Biol. Biochem. 2015, 87, 90–96. [Google Scholar] [CrossRef]
  58. Sun, Y.; Sun, G.; Xu, Y.; Liu, W.; Liang, X.; Wang, L. Evaluation of the effectiveness of sepiolite, bentonite, and phosphate amendments on the stabilization remediation of cadmium-contaminated soils. J. Environ. Manag. 2016, 166, 204–210. [Google Scholar] [CrossRef]
  59. Deng, L.; Zeng, G.; Fan, C.; Lu, L.; Chen, X.; Chen, M.; Wu, H.; He, X.; He, Y. Response of rhizosphere microbial community structure and diversity to heavy metal co-pollution in arable soil. Appl. Microbiol. Biotechnol. 2015, 99, 8259–8269. [Google Scholar] [CrossRef] [PubMed]
  60. Hmid, A.; Al Chami, Z.; Sillen, W.; De Vocht, A.; Vangronsveld, J. Olive mill waste biochar: A promising soil amendment for metal immobilization in contaminated soils. Environ. Sci. Pollut. Res. Int. 2015, 22, 1444–1456. [Google Scholar] [CrossRef]
  61. Wang, M.; Chen, S.; Han, Y.; Chen, L.; Wang, D. Responses of soil aggregates and bacterial communities to soil-Pb immobilization induced by biofertilizer. Chemosphere 2019, 220, 828–836. [Google Scholar] [CrossRef]
  62. Wu, W.; Wu, J.; Liu, X.; Chen, X.; Wu, Y.; Yu, S. Inorganic phosphorus fertilizer ameliorates maize growth by reducing metal uptake, improving soil enzyme activity and microbial community structure. Ecotoxicol. Environ. Saf. 2017, 143, 322–329. [Google Scholar] [CrossRef]
  63. Navarrete, A.A.; Mellis, E.V.; Escalas, A.; Lemos, L.N.; Junior, J.L.; Quaggio, J.A.; Zhou, J.; Tsai, S.M. Zinc concentration affects the functional groups of microbial communities in sugarcane-cultivated soil. Agric. Ecosyst. Environ. 2017, 236, 187–197. [Google Scholar] [CrossRef] [Green Version]
  64. Choubey, S.; Kulkarni, A.; Awale, K.; Godbole, S. Microbiological quality of different brands of talcum powder in India. World J. Pharm. Med. Res. 2017, 8, 206–211. [Google Scholar]
  65. Wang, X.; Conway, P.L.; Brown, I.L.; Evans, A.J. In vitro utilization of amylopectin and high-amylose maize (Amylomaize) starch granules by human colonic bacteria. Appl. Environ. Microbiol. 1999, 65, 4848–4854. [Google Scholar] [CrossRef] [Green Version]
  66. Weber, K.P.; Legge, R.L. One-dimensional metric for tracking bacterial community divergence using sole carbon source utilization patterns. J. Microbiol. Methods 2009, 79, 55–61. [Google Scholar] [CrossRef] [PubMed]
Minerals 11 01143 g001 550
Figure 1. Scanning electron microscopy (SEM) images of (a) bentonite, (b) talc, (c) activated carbon, and (d) cornstarch.
Figure 1. Scanning electron microscopy (SEM) images of (a) bentonite, (b) talc, (c) activated carbon, and (d) cornstarch.
Minerals 11 01143 g001
Minerals 11 01143 g002 550
Figure 2. Fourier transform infrared spectroscopy (FT-IR) of various amendments applied to the soil (B: bentonite, T: talc, AC: activated carbon, CS: cornstarch).
Figure 2. Fourier transform infrared spectroscopy (FT-IR) of various amendments applied to the soil (B: bentonite, T: talc, AC: activated carbon, CS: cornstarch).
Minerals 11 01143 g002
Minerals 11 01143 g003 550
Figure 3. pH of soils at various amendment treatments before and after phytotoxicity test. Means with the same letters are not significantly different from each other under different amendment treatments according to Tukey’s test (p < 0.05, n = 3) (CTR: control, B: bentonite, T: talc, AC: activated carbon, CS: cornstarch).
Figure 3. pH of soils at various amendment treatments before and after phytotoxicity test. Means with the same letters are not significantly different from each other under different amendment treatments according to Tukey’s test (p < 0.05, n = 3) (CTR: control, B: bentonite, T: talc, AC: activated carbon, CS: cornstarch).
Minerals 11 01143 g003
Minerals 11 01143 g004a 550Minerals 11 01143 g004b 550
Figure 4. Arsenic, Cu, and Zn fractionation by sequential extraction of soil with different treatments after 45 days planting lettuce (Arsenic extracted by Wenzel et al., 2001, Cu and Zn extracted by Tessier et al. 1979, CTR: control, B: bentonite, AC: activated carbon, CS: cornstarch). Data are mean ± standard deviation (n = 3). (a) Arsenic fractionation, (b) Copper fractionation, (c) Zinc fractionation.
Figure 4. Arsenic, Cu, and Zn fractionation by sequential extraction of soil with different treatments after 45 days planting lettuce (Arsenic extracted by Wenzel et al., 2001, Cu and Zn extracted by Tessier et al. 1979, CTR: control, B: bentonite, AC: activated carbon, CS: cornstarch). Data are mean ± standard deviation (n = 3). (a) Arsenic fractionation, (b) Copper fractionation, (c) Zinc fractionation.
Minerals 11 01143 g004aMinerals 11 01143 g004b
Minerals 11 01143 g005 550
Figure 5. Plant growth at various amendment treatments after 45 days. Means with the same letters are not significantly different from each other under different amendment treatments according to Tukey’s test (p < 0.05, n = 3) (CTR: control, B: bentonite, AC: activated carbon, CS: cornstarch).
Figure 5. Plant growth at various amendment treatments after 45 days. Means with the same letters are not significantly different from each other under different amendment treatments according to Tukey’s test (p < 0.05, n = 3) (CTR: control, B: bentonite, AC: activated carbon, CS: cornstarch).
Minerals 11 01143 g005
Minerals 11 01143 g006a 550Minerals 11 01143 g006b 550
Figure 6. Arsenic, Cu, and Zn concentration uptake by lettuce with the presence of various amendment treatments after 45 days. Means with the same letters are not significantly different from each other under different amendment treatments according to Tukey’s test (p < 0.05, n = 3) (CTR: control, B: bentonite, AC: activated carbon, CS: cornstarch). (a) Arsenic in lettuce tissue, (b) Copper in lettuce tissue, (c) Zinc in lettuce tissue.
Figure 6. Arsenic, Cu, and Zn concentration uptake by lettuce with the presence of various amendment treatments after 45 days. Means with the same letters are not significantly different from each other under different amendment treatments according to Tukey’s test (p < 0.05, n = 3) (CTR: control, B: bentonite, AC: activated carbon, CS: cornstarch). (a) Arsenic in lettuce tissue, (b) Copper in lettuce tissue, (c) Zinc in lettuce tissue.
Minerals 11 01143 g006aMinerals 11 01143 g006b
Minerals 11 01143 g007 550
Figure 7. Changes in average well-color development (AWCD) of various amendment treatments with incubation time (CTR: control, B: bentonite, AC: activated carbon, CS: cornstarch). Data are mean ± standard deviation (n = 3).
Figure 7. Changes in average well-color development (AWCD) of various amendment treatments with incubation time (CTR: control, B: bentonite, AC: activated carbon, CS: cornstarch). Data are mean ± standard deviation (n = 3).
Minerals 11 01143 g007
Minerals 11 01143 g008 550
Figure 8. Carbon substrate classification of various amendment treatments after 120 h incubation (CTR: control, B: bentonite, AC: activated carbon, CS: cornstarch). Data are mean ± standard deviation (n = 3).
Figure 8. Carbon substrate classification of various amendment treatments after 120 h incubation (CTR: control, B: bentonite, AC: activated carbon, CS: cornstarch). Data are mean ± standard deviation (n = 3).
Minerals 11 01143 g008
Minerals 11 01143 g009 550
Figure 9. Heatmap of microorganism in various amendment treatments depending on carbon substrates in Biolog EcoPlate. Explanation: A1 to H4 see Table 5. (CTR: control, B: bentonite, AC: activated carbon, CS: cornstarch).
Figure 9. Heatmap of microorganism in various amendment treatments depending on carbon substrates in Biolog EcoPlate. Explanation: A1 to H4 see Table 5. (CTR: control, B: bentonite, AC: activated carbon, CS: cornstarch).
Minerals 11 01143 g009
Table
Table 1. The procedure of sequential extraction methods.
Table 1. The procedure of sequential extraction methods.
MethodsTarget PhaseReagents
Wenzel et al., 2001 for As fractionation
Fraction I. ExchangeableEasily exchangeable0.05 M (NH4)2SO4; 4 h
Fraction II. Bound to carbonatesPhosphate competes with adsorbed As0.05 M (NH4)H2PO4; 16 h
Fraction III. Bound to Fe and Mn oxidesOxalate competes with adsorbed As on amorphous Fe oxides0.2 M NH4-oxalate buffer,
pH 3.25 in dark; 4 h
Fraction IV. Bound to organic matterAssociated with crystalline Fe oxides0.2 M NH4-oxalate buffer + 0.1 M ascorbic acid, pH 3.25; 30 min/96 °C
Fraction V. ResidualBound to silicatesHCl/HNO3 3/1 v/v
Tessier et al., 1979 for Cu and Zn fractionation
Fraction I. ExchangeableAdsorbed metals1 g sample, 0.5 M MgCl2; 20 min
Fraction II. Bound to carbonatesSpecially adsorbed metals as well as carbonate-bound fractions1 M NaOAc, pH 5.0 with HOAc; 5 h
Fraction III. Bound to Fe and Mn oxidesExtraction of reducible Fe and Mn oxides0.04 M NH2∙OH∙HCl in 25% (v/v) HOAC; 6 h/96 °C
Fraction IV. Bound to organic matterBound to various forms of organic matter and sulfide minerals0.02 M HNO3 30% H2O2, pH 2.0 with HNO3, 3.2 M NH4OAc in 20% (v/v) HNO3; 3 h/85 °C
Fraction V. ResidualDetrital silicate minerals, resistant sulfides, and a small quantity of refractory organic materialHCl/HNO3 3/1 v/v
Table
Table 2. Physicochemical properties of the initial soil.
Table 2. Physicochemical properties of the initial soil.
SamplepHAs
(mg/kg)		Cu
(mg/kg)		Zn
(mg/kg)		T-N
(mg/kg)		T-P
(mg/kg)		T-K
(mg/kg)		OM
(%)		Texture
Soil5.9 ± 0.0139.45 ± 0.3833.60 ± 0.52108.5 ± 0.910.1556.8880.12.9Loamy sand
T-N: total Nitrogen, T-P: total Phosphorus, T-K: total Potassium, OM: organic matter contents.
Table
Table 3. Physicochemical properties of amendments.
Table 3. Physicochemical properties of amendments.
SamplepHAs (mg/kg)Cu (mg/kg)Zn (mg/kg)SSA(m2/g)
B7.8 ± 0.040.56 ± 0.0133.20 ± 0.0535.22 ± 0.0460.56
T8.8 ± 0.020.69 ± 0.021.40 ± 0.0129.50 ± 0.061.80
AC7.2 ± 0.049.06 ± 0.014.6 ± 0.031.12 ± 0.021081.9
CS8.2 ± 0.010.44 ± 0.0050.01 ± 0.0020.58 ± 0.0060.15
B: bentonite, T: talc, AC: activated carbon, CS: cornstarch, SSA: specific surface area.
Table
Table 4. Chemical composition (wt.%) of inorganic amendments using XRF.
Table 4. Chemical composition (wt.%) of inorganic amendments using XRF.
SampleSiO2Al2O3Fe2O3K2OMgOCaOTiO2MnOSO3P2O5
B67.815.86.942.602.132.120.660.250.10.07
T35.30.651.590.0334.926.90.10.060.020.05
B = bentonite, T = talc.
Table
Table 5. Biolog EcoplateTM carbon source substrate category [66].
Table 5. Biolog EcoplateTM carbon source substrate category [66].
Well NumberCarbon SourceCategory
B1Pyruvic acid and methyl esterCarbohydrates
G1D-CellobioseCarbohydrates
H1α-D-LactoseCarbohydrates
A2β-Methyl-D-glucosideCarbohydrates
B2D-XyloseCarbohydrates
C2i-ErythritolCarbohydrates
D2D-MannitolCarbohydrates
E2N-Acetyl-D-glucosamineCarbohydrates
G2Glucose-1-phosphateCarbohydrates
H2D,L-α-Glycerol phosphateCarbohydrates
C1Tween 40Polymers
D1Tween 80Polymers
E1α-CyclodextrinPolymers
F1GlycogenPolymers
F2D-Glucosaminic acidCarboxylic and ketonic acids
A3D-Galactonic acid-γ-lactoneCarboxylic and ketonic acids
B3D-Galacturonic acidCarboxylic and ketonic acids
C32-Hydroxybenzoic acidCarboxylic and ketonic acids
D34-Hydroxybenzoic acidCarboxylic and ketonic acids
E3γ-Hydroxybutyric acidCarboxylic and ketonic acids
F3Itaconic acidCarboxylic and ketonic acids
G3α-Ketobutyric acidCarboxylic and ketonic acids
H3D-Malic acidCarboxylic and ketonic acids
A4L-ArginineAmino acids
B4L-AsparagineAmino acids
C4L-PhenylalanineAmino acids
D4L-SerineAmino acids
E4L-ThreonineAmino acids
F4Glycyl-L-glutamic acidAmino acids
G4PhenylethylamineAmines/amides
H4PutrescineAmines/amides
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Nguyen Quoc, T.; Nejad, Z.D.; Jung, M.C. Effect of Commercial Amendments on Immobilization of Arsenic, Copper, and Zinc in Contaminated Soil: Comprehensive Assessing to Plant Uptake Combined with a Microbial Community Approach. Minerals 2021, 11, 1143. https://doi.org/10.3390/min11101143

AMA Style

Nguyen Quoc T, Nejad ZD, Jung MC. Effect of Commercial Amendments on Immobilization of Arsenic, Copper, and Zinc in Contaminated Soil: Comprehensive Assessing to Plant Uptake Combined with a Microbial Community Approach. Minerals. 2021; 11(10):1143. https://doi.org/10.3390/min11101143

Chicago/Turabian Style

Nguyen Quoc, Tuan, Zahra Derakhshan Nejad, and Myung Chae Jung. 2021. "Effect of Commercial Amendments on Immobilization of Arsenic, Copper, and Zinc in Contaminated Soil: Comprehensive Assessing to Plant Uptake Combined with a Microbial Community Approach" Minerals 11, no. 10: 1143. https://doi.org/10.3390/min11101143

APA Style

Nguyen Quoc, T., Nejad, Z. D., & Jung, M. C. (2021). Effect of Commercial Amendments on Immobilization of Arsenic, Copper, and Zinc in Contaminated Soil: Comprehensive Assessing to Plant Uptake Combined with a Microbial Community Approach. Minerals, 11(10), 1143. https://doi.org/10.3390/min11101143

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
