Thermodynamic Study on the Direct Reduction of Specularite by Lignite and the Coupling Process for the Preparation of Cementitious Material

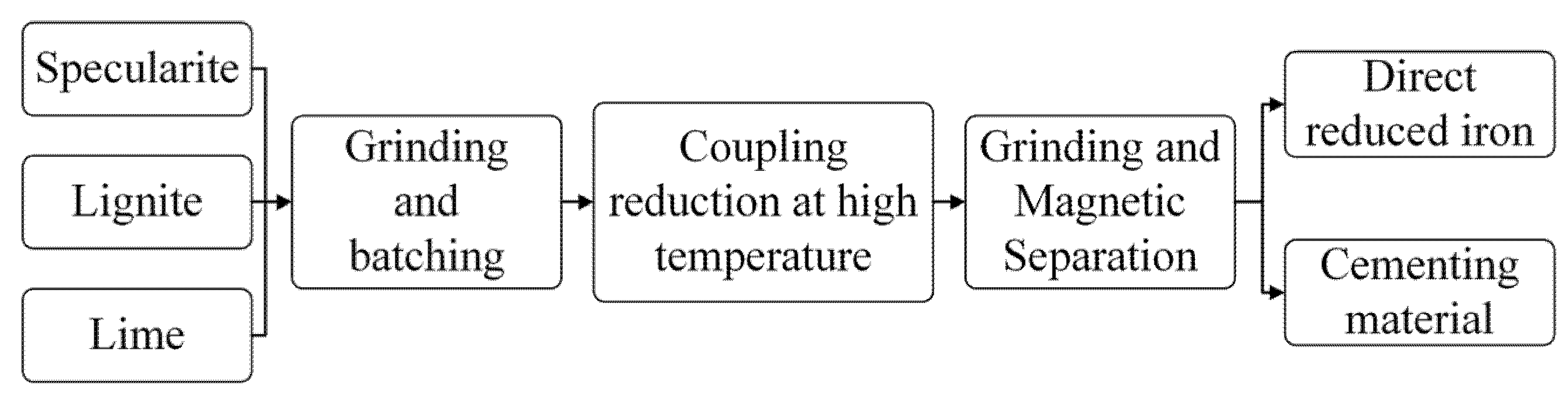

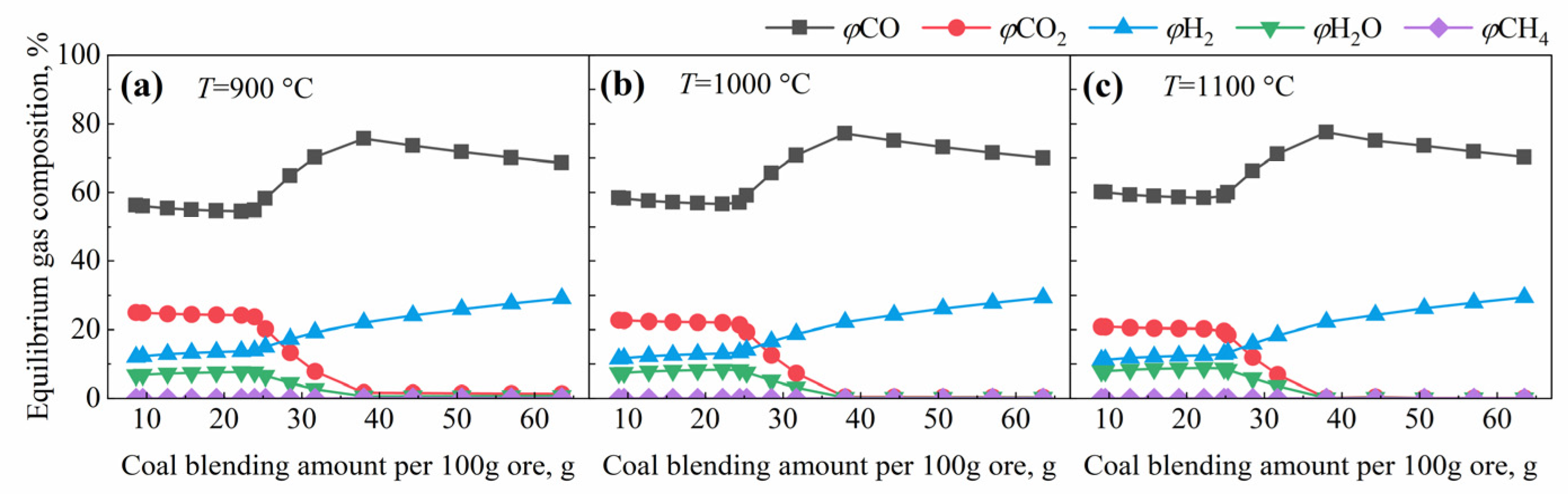

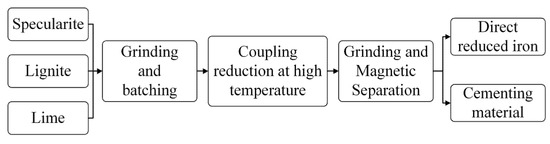

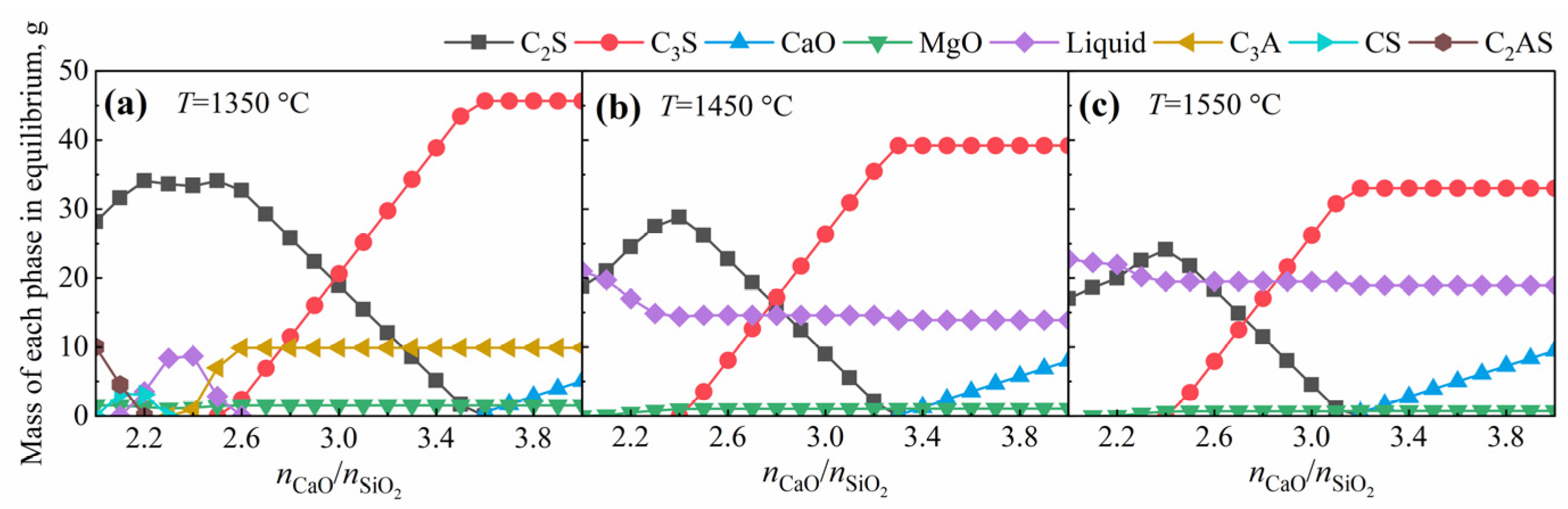

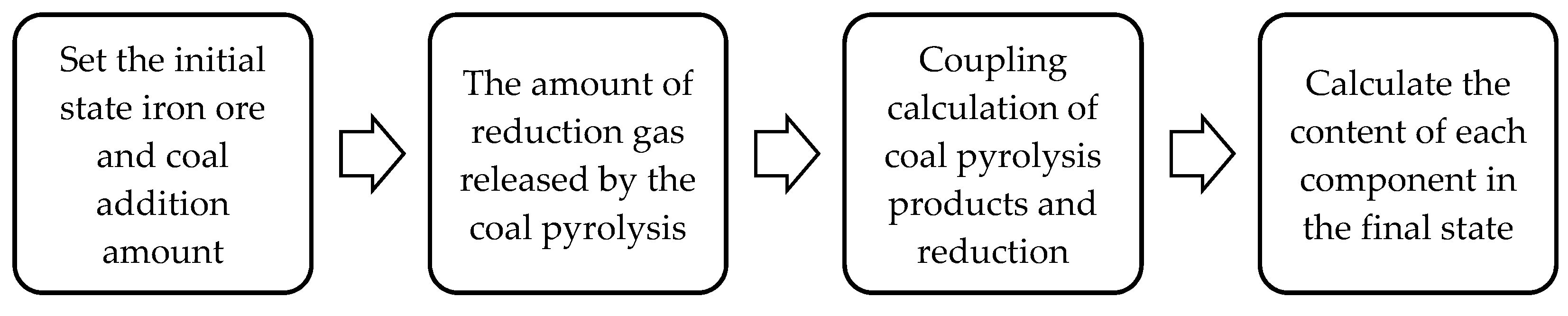

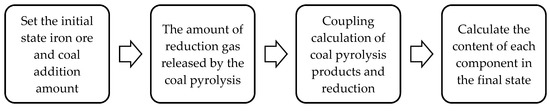

To realize the efficient and comprehensive utilization of specularite resources, combined with the cement clinker production technology of rotary kilns, the coupling process of the direct reduction of specularite by lignite and the preparation of cementitious material was proposed, with the additional aim of achieving the reduction of iron oxide and transforming the gangue component into cementitious material. Thermodynamic software was used to calculate the product composition when the reaction reached equilibrium under the set conditions. By analyzing the influence of the ratio of C/O, basicity, temperature, and other parameters on the reduction of iron oxide and cementitious material generation, the feasibility of the process was judged and experimentally verified. The results showed that the coupling process of the direct reduction of specularite and the preparation of cementitious material was thermodynamically feasible when using highly volatile lignite with added calcium oxide. The optimal C/O ratio of the reducing agent was 1.2 for the complete reduction of iron oxide (Fe₂O₃, Fe₃O₄, FeO) without the gangue fraction; reduced iron could stably coexist with the cementitious material components, but the unreduced FeO would result in a substantial reduction in tricalcium silicate generation. Using lignite as a reducing agent, the hydrogen-rich volatiles in coal created a good reducing atmosphere, strengthened the reduction process of iron oxide, and provided favorable conditions for the generation of cementitious material. A two-stage heating system must be adopted to realize the reduction of iron oxide and the generation of cementitious material. The process parameters conducive to the reduction of specularite and cementitious materials were determined, the basicity range of the system was regulated to 2.4–3.3, the reasonable reduction temperature was close to and not higher than 1137 °C, and the optimal temperature of cementitious material generation was 1450 °C.
