Accuracy and Precision of the Geopyörä Breakage Test

Abstract

The Geopyörä breakage test uses two counter-rotating wheels to nip and crush rock specimens with a tightly controlled gap between rollers. This paper presents the detailed measures conducted to evaluate the accuracy and precision of energy measurements across various ore types using the Geopyörä. Force measurement was assessed just for its precision. The outputs were compared directly to the drop weight test (DWT) measures of fragmentation at the same energy and fitted A and b parameters. Test reproducibility was evaluated using a Round-Robin methodology, testing several samples in multiple laboratories. The results confirmed that the new test has sufficient accuracy to match DWT results and excellent precision to assure reproducibility.

1. Introduction

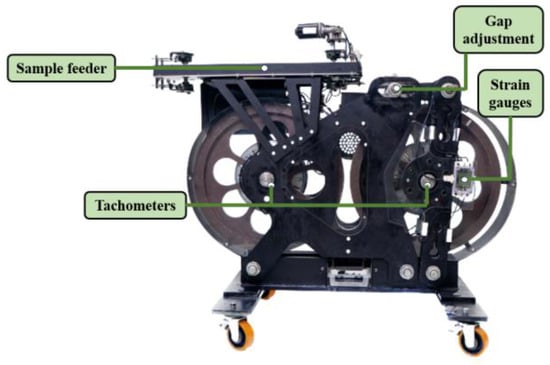

The Geopyörä breakage test device, which is pictured in Figure 1, was developed to fulfil a need in the industry for improved precision in the characterisation of an orebody. The method developed addresses this by enabling rapid measurements while measuring the input energy and force needed to fracture every particle [1]. The outcome is a single test that delivers multiple breakage parameters, bypassing the need for a suite of expensive tests. The target application is in orebody modelling for process performance prediction.

The concept behind the Geopyörä breakage test is to use counter-rotating wheels to nip and crush a rock with a tightly controlled reduction ratio from the feed to a defined gap between rollers, as illustrated in Figure 2. However, before delving into its mechanics and performance, the context of measurement precision compared to current standard test methods should be addressed.

The drop weight test is an industry accepted standard test method used to characterise the degree of breakage as a function of energy input of a sample of ore using a drop weight apparatus. It is widely used in the mining industry to evaluate the ore’s breakage characteristics and to optimize grinding circuit design. The test involves breaking a sample of ore of a specific size using predetermined energy levels and measuring the size distribution of the resulting fragments [2]. The test results, including the specific energy consumption, Ecs (kWh/t) and the t₁₀ parameter (percentage passing 1/10th of their original particle size), are then used to calculate the ore’s breakage parameters A and b values from Equation (1) [3]

t₁₀ = A x (1 − e^{−bx Ecs})

(1)

The standard test method requires about 50 kg of rock, so is only suited to bulk samples or requires the compositing of long lengths of precious drill core. Due to these sample constraints and the cost of the test, only a few samples are tested for an entire orebody in the design phase and only occasionally are samples tested during production. To help overcome these limitations, the standard testing method was modified by Morrell [4] to enable the use of a reduced mass of a sample and thus the application of the DWT to drill core samples. The resultant SMC (Steve Morrell comminution) method has enabled the DWT outcomes to be applied to a far greater extent across drill cores and extended into orebody characterisation. Morrell [4] also introduced new energy-size reduction equations based on the outputs of the SMC test, demonstrating its validity across several comminution processes. It does, however, remain somewhat costly and uses 20 kg of core (representing about 15 m of split core). The Geopyörä test aimed to further reduce the uptake barrier to testing more of the drill core within an orebody, thus providing greater resolution to modelling and predicting the mill performance and mine production over the life of a mine.

The purpose of this paper is to assess the accuracy and precision of the Geopyörä breakage test (GPT) energy and force measurements in order to provide the levels of confidence required by the industry for uptake of this ore characterisation technique. The accuracy was indirectly assessed by comparing the fragmentation (t₁₀ parameter) obtained when testing duplicate samples at the same energy level using the well-established drop weight test (DWT). In addition, the precision (i.e., reproducibility) of the test was evaluated using a Round-Robin methodology [5], similarly to that reported by Mosher [6] and Weier [7] in comparative testing undertaken by over 30 metallurgical laboratories located around the world to determine the precision of the Bond test [8].

1.1. Equipment Description

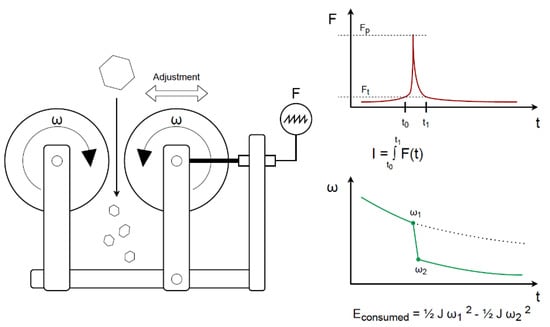

The testing method is described in some detail in Bueno et al. [1], so only an overview of the pertinent operating principles is provided here. The principle of the method is illustrated in Figure 2, with the idealised force response during a breakage event and the change in angular velocity of the wheel during a breakage event. The counter-rotating wheels allow the automated feeding of rocks one at a time through the spinning wheels, with no requirements for stopping, resetting, and sweeping away broken fragments between each rock breakage.

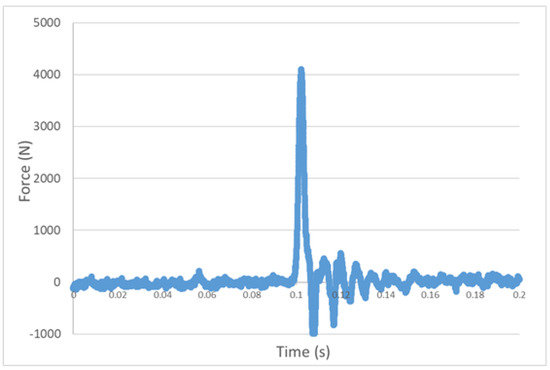

The mechanical set-up enables measurement of the applied force during each breakage event with a loadcell providing a high sampling frequency of 5000 Hz to provide a force-to-fracture value, as illustrated in Figure 3. The force applied to break a rock with a given degree of compression is a function of the rock compressive strength. The force plot can thus be related to standard rock strength measures, an aspect not explored in this paper. Once the force measured by the load cell, due to rock fracture between the wheels, surpasses a predetermined threshold (Ft), the recording of force will commence for a specific duration (t₁–t₀). The highest force peak within this timeframe (Fp) will be registered.

The traditional ore characterisation of the drop weight test (DWT) [2,4] controls the energy input through the kinetic energy of a falling weight. Regardless of what is absorbed during the fracture event, this is given as the input energy to the breakage event. From this the specific comminution energy (Ecs in J/g or kWh/t) is calculated. In contrast, for the Geopyörä, the crushing is conducted at a stiff (fixed) gap and the energy is measured through the loss of momentum of the spinning wheels [1]. Thus, the breakage energy used for characterisation is not a controlled input, but rather a measure of the response of the system to the breakage characteristics of the rock—determined by the applied stress and properties intrinsic to the rock material (mineral composition, texture, grain structure, internal flaws, microcracks, etc.). By varying the degree of reduction, i.e., the ratio of the crushing gap to the particle diameter, a range of breakage energies can be achieved to map the response of the rock. It should be noted that the use of fixed energy points on the typical Ecs vs. t₁₀ plot, which are then translated to the breakage function parameters of A and b, is only a matter of standard testing procedure.

The Geopyörä distinguishes itself from traditional drop weight tests by its ability to measure the breakage force and energy on a per-particle basis within a given sample. This unique feature enables the generation of distinct distributions of breakage energy and force for each sample, as depicted in Figure 4 and Figure 5. The detailed nature of these distributions facilitates the application of statistical analyses, including the Student’s t-test and ANOVA, providing a robust framework for comparing outcomes across varying samples.

The energy consumed in each breakage event is measured via the momentum loss of the crushing wheels. Triggered by the release of a rock from the feed system, the power is disconnected from the direct-drive system and the breakage wheels are allowed to be idle. The resultant momentum loss arising from the rock breakage provides the measure of energy applied to compressing and breaking the rock particle. The losses due to mechanical back electromotive force and friction are carefully calibrated for every machine and accounted for in the energy calculation [1].

The mechanical operation of the Geopyörä is described in more detail in [1]. In such a design it is necessary to measure the absorbed energy per rock breakage with sufficient precision, while ensuring non-slip grip and compression of the rocks to the point of fracture.

1.2. Assessing Accuracy

In wishing to assess the accuracy of a new testing device, there are two major aspects to be verified:

Precision: measurements are reproducible and replicable between different test devices.

Accuracy: the measurement yields a value within a required uncertainty when assessed against an absolute value, such as in the SI standards.

However, there is no ‘truth’ of the breakage energy or rock strength in terms of the energy needed to produce crushed product. This has been explored by a number of researchers trying to define the efficiency of comminution devices. Fuerstenau [9] assessed the absolute efficiency of breakage energy to be below 1%, while Tromas [10] concluded the maximum possible efficiency is in the range of 2.5% to 7.5%. All devices have an inherent inefficiency. One of the best benchmarks for measuring breakage as a function of the energy input is the instrumented loadcell method, in which the energy absorbed by the rock is measured, as opposed to the applied energy. The impact loadcell studies of Tavers and King [11] and of Bourgeois and Banini [12] provide a measure of the absorbed versus applied energy, with measures varying depending on the specific applied energy and the rock competence—whereby softer rocks absorb less energy than stiffer rocks. Tavares [13] measured the absorbed energy as varying between 67% and 99% of the applied impact energy. The objective function for determining the accuracy of a new test thus tends to be taken relative to existing tests. The objective at this stage of introducing the new test is to replicate the measures of the DWT, so as to enable these well-accepted measures to be propagated across the orebody in far greater detail than can be achieved using DWT equipment.

Accuracy: statistically match the measurements derived from full DWTs.

A complication of comparing to another test is that the base test has an inherent degree of precision. Thus, the precision of the DWT should be included in an assessment of accuracy. The work of Tavares and King [11] illustrates the natural variability of precision measures conducted on the impact load cell (UFLC) apparatus, which is in essence an instrumented DWT. JK Tech has conducted a study of reproducibility between repeat tests conducted on the JK DWT [7]. The study revealed that when the same rock sample was tested at various laboratories worldwide, the results from the Bond test differed by ±14.2%, while for the SMC test, the difference was ±9.2%. This uncertainty must be incorporated into any test of accuracy.

2. Materials and Methods

The overall approach taken in this work to assess precision and accuracy is through comparative data and repeat tests using carefully sampled ore samples.

2.1. Accuracy Assessment Experiments

Samples from seven different ore deposits with different mineralogy, as is shown in

Table 1. Samples used in this test work.

Sample	Ore Type
DOL	Calcium carbonate
KEV	Copper
KIT	Gold
KYL	Copper-zinc
PYH	Copper-zinc
TRF	Nickel-cobalt
YAR	Phosphate

, were used in this research. Bulk samples were crushed and sieved to obtain particles of 22 × 19 mm. From each sample population, eight samples of 20 particles were selected. To ensure consistency between duplicate samples, the particle selection methodology of the SMC Test^® [4] was applied, which limits the particle mass to within the mean ±30%.

To assess the accuracy of energy measurement in the Geopyörä test, various tests were conducted. In total, 56 sets of 20 particles were tested, with each ore type having four sets tested using the Geopyörä and four sets subjected to a custom drop weight test at the University of Sao Paulo (USP). This resulted in eight sets for each ore type, enabling a detailed analysis of the results.

The Geopyörä tests were conducted with two repeats (1 and 2) performed at a wider gap setting of 50% of the particle size, and two other repeats (3 and 4) carried out at a closer gap setting of 25%. The gap ratio is defined as the proportion between the geometrical means of the tested particles, which was 20.6 mm in this case, and the gap aperture between the wheels. The gap ratios of 50% and 25% represent low and high specific energy levels, respectively.

The standard drop weight test uses fixed, predetermined energy values, whereas the Geopyörä test measures the actual specific breakage energy of each particle, which is a response of the tested material rather than a test input. As a result, custom drop weight tests were conducted by adjusting the energy input to match the mean specific energies as measured by the Geopyörä test, ensuring that the results were directly comparable to those obtained from the Geopyörä test.

The products of both the Geopyörä and drop weight tests were sieved to determine the t₁₀ parameter, which was compared. The hypothesis is that the Geopyörä energy measurements can be quantified by comparing the t₁₀ at equivalent Ecs values to the DWT. This methodology had been previously attempted by Chaves Matus [14], but he had to use Equation (1) to interpolate t₁₀ values at the standard Ecs values used in the JK DWT.

2.2. Precision Assessment (Round-Robin)

Round-robin tests, also known as interlaboratory tests or proficiency tests, are a type of testing where a set of samples are distributed to multiple laboratories or testing facilities to determine their performance and compare results. The samples used in the tests are typically prepared in such a way as to represent a range of materials and/or properties that may be encountered in real-world applications [5].

Each laboratory conducts the same test on the samples and reports their results. The results are then compiled and analysed to determine the degree of variability between the different labs and the accuracy and precision of the testing methods. The data obtained from the round-robin tests can be used to identify sources of error and variability in testing methods and to improve the quality and consistency of the testing process.

Round-robin tests were conducted with a few duplicate samples from the bulk ore samples that had previously been used in the accuracy assessment—except for the PHY ore. The repeat tests were conducted using four different Geopyörä devices/laboratories (anonymised as A, B, C and D) under the same operating conditions (i.e., particle size, gap aperture and wheel speed) for each ore type, which are summarized in

Table 2. Comparative test samples, devices and operating conditions.

Sample	Particle Size (mm)	Gap (mm)	Speed (rpm)	Number of Repeat Tests per Sample/Device
				A	B	C	D	Total
DOL	−22.4 + 19	10.3	80	2	2	2	2	8
KEV	−22.4 + 19	10.3	80	2	2	2	2	8
KIT	−16 + 13.2	7.3	80	2	2	1	-	5
KYL	−16 + 13.2	7.3	80	2	2	1	-	5
TRF	−16 + 13.2	7.3	80	2	2	1	-	5
YAR	−19 + 16	8.7	80	2	2	1	-	5
Total number of tests per device				12	12	8	4	36

. The precision of both energy and force measurements were assessed using analysis of variance (ANOVA) tests.

3. Results and Discussion

3.1. Accuracy Assessment

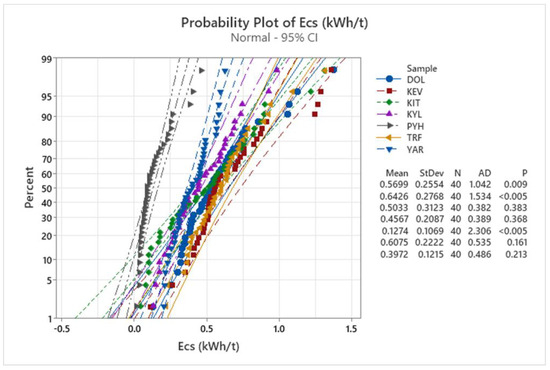

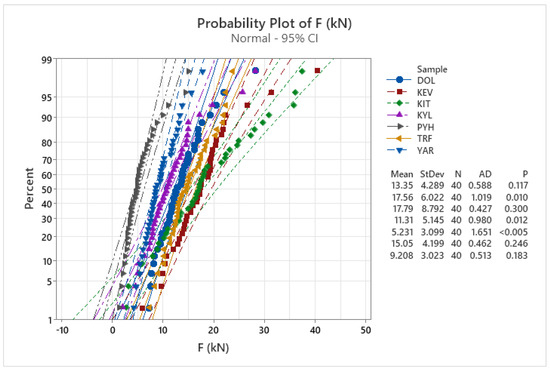

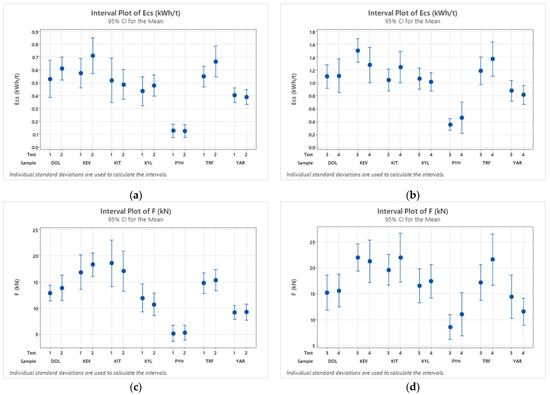

Before sending the duplicate samples for the comparative custom drop weight tests, the precision of the specific energy and force measurements made using the Geopyörä were statistically confirmed using the Student’s t-test on the repeat tests. The mean Ecs and force values with a confidence interval of 95% for both low energy (T1 and T2) and high energy (T3 and T4) repeat tests are plotted as repeat pairs in Figure 6. The error bars show 95% confidence limits, allowing a visual assessment of the repeat data for each test overlap between repeats—which is obeyed for all repeat tests for both Ecs and force. It can be seen that the tests with a smaller gap (3 and 4) absorb far higher energy, shown in the graphs on the right, than the ones with a wider gap (1 and 2), typically around twice the specific energy. The peak fracture force, shown in the lower plots, does increase with the higher compression of tests 3 and 4, but by a lesser degree than the energy.

The t-test values are presented in

Table 3. t-test p-values.

Sample	t-Test p-values
	T1 and T2		T3 and T4
	Ecs	Force	Ecs	Force
DOL	0.327	0.474	0.926	0.857
KEV	0.118	0.456	0.160	0.742
KIT	0.749	0.598	0.162	0.380
KYL	0.510	0.453	0.636	0.705
PYH	0.933	0.876	0.409	0.292
TRF	0.099	0.668	0.270	0.132
YAR	0.706	0.952	0.541	0.235

. If the p-values are less than 0.05, we could reject the null hypothesis that there is a difference between the means and conclude that a significant difference does exist. However, since all the p-values were larger than 0.05, we cannot conclude that a significant difference exists with 95% confidence between pairs of repeat tests.

The t₁₀ fragmentation parameter from the products of the Geopyörä and drop weight tests conducted at the same energy levels are presented in

Table 4. Mean specific energy, Ecs (kWh/t), and t₁₀ values for Geopyörä (GPT) and drop weight tests (DWT).

Sample	Test 1				Test 2				Test 3				Test 4
	Ecs	t10 (%)			Ecs	t10 (%)			Ecs	t10 (%)			Ecs	t10 (%)
		GPT	DWT	% diff		GPT	DWT	% diff		GPT	DWT	% diff		GPT	DWT	% diff
DOL	0.51	11.1	12.2	9%	0.62	14.4	16.2	11%	1.09	28.9	30.2	4%	0.98	26.3	26.7	1%
KEV	0.60	13.9	13.2	−5%	0.71	16.0	15.8	−1%	0.91	32.4	31.6	−3%	1.22	27.6	30.0	8%
KIT	0.50	11.5	10.2	−13%	0.49	9.8	9.6	−2%	1.06	23.0	24.3	5%	1.35	29.4	31.1	5%
KYL	0.41	14.2	13.4	−6%	0.47	15.6	17.6	11%	1.06	38.1	39.5	4%	0.98	36.8	36.8	0%
PYH	0.12	26.7	27.0	1%	0.13	26.7	29.3	9%	0.35	54.2	52.8	−3%	0.4	53.3	52.2	−2%
TRF	0.55	11.4	9.8	−16%	0.67	12.3	14.3	14%	1.25	27.9	25.8	−8%	1.29	27.5	28.1	2%
YAR	0.42	19.9	19.5	−2%	0.40	19.9	21.0	5%	0.89	42.9	41.5	−3%	0.81	38.6	37.2	−4%

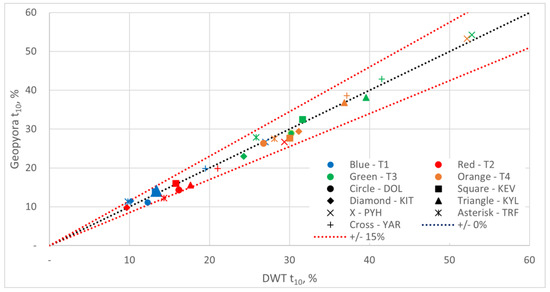

. No significant difference was observed and the t₁₀ values were within ±15% of each other, as show in Figure 7. This indicates that the Geopyörä test energy measurements were accurate and reliable in estimating the breakage characteristics of the tested rock material. Therefore, the hypothesis that the Geopyörä energy measurements are accurate if we obtain the same fragmentation that is obtained when we break the same rock material in a drop weight test using the same energy input can be confirmed.

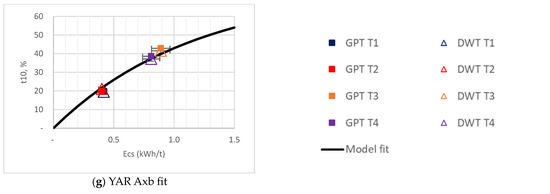

The relationships between Ecs and t₁₀, which are plotted in Figure 8, were also assessed to identify potential differences in the fitting of breakage parameters A and b from Equation (1). Since the Geopyörä and the drop weight tests were conducted at the same energies and the measured fragmentation (t₁₀) was practically the same, no significant difference was found in the resulting A and b parameters obtained using the Geopyörä and drop weight data.

As presented in

Table 5. Comparison of the fitted Axb parameters using the Geopyörä and DWT test data.

Sample	Fitted A and b		Difference
	Geopyörä	DWT	Value	%
DOL	39.8	42.4	2.6	6.1%
KEV	41.6	42.2	0.6	1.4%
KIT	34.2	35.6	1.4	3.9%
KYL	61.7	63.8	2.1	3.3%
PYH	323	326	3	0.9%
TRF	33.3	32.8	−0.5	−1.5%
YAR	75	73	−2	−2.7%

, the results were within −2.7 to 6.1% from one another. While this is a confirmation that the Geopyörä test can be a reliable alternative to the DWT in estimating the breakage characteristics of rock material, a more extensive validation is presented in Bueno et al. [15].

3.2. Precision Test Results

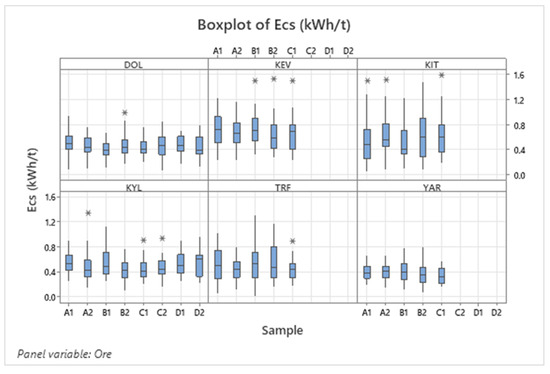

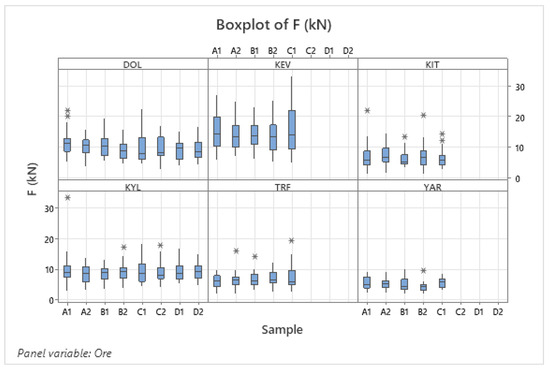

The Geopyörä test measures the specific comminution energy, Ecs (kWh/t), and applied force, F (kN), for each single particle in a sample, resulting in distributions of Ecs and F values. The data obtained for the repeat tests conducted with six different ore samples across four devices are presented as box plots in Figure 9 and Figure 10. The range of Ecs or force in any given test represents the natural variability of the ore, within a carefully constructed subsample of near identical rocks, and the difference in rock dimensions within a screened size range. It should be noted that such information is not available for the DWT results as no input data are measured.

A one-way ANOVA test was conducted to compare the mean Ecs and F values of each test to determine whether they were significantly different or not. The calculated p-values presented in

Table 6. ANOVA calculated p-values.

Sample	ANOVA p-Values
	Ecs (kWh/t)	F (N)
DOL	0.354	0.065
KEV	0.821	0.843
KIT	0.516	0.149
KYL	0.136	0.275
TRF	0.258	0.552
YAR	0.393	0.369

are greater than 0.05, confirming the precision of the tests as there are no significant differences with 95% confidence.

Since there are no significant differences among the tests, the overall precision of the Ecs and orce measurements was determined on the basis of the 95% confidence interval of the mean calculated using all the available data for each ore type. The summary results presented in

Table 7. Mean, standard error of the mean, standard deviation and 95% confidence intervals for Ecs and force measurements.

Ore	N	Ecs (kWh/t)			95% CI		F (kN)			95% CI
		Mean	SE	SD	(+/−)	%	Mean	SE	SD	(+/−)	%
DOL	199	0.46	0.01	0.17	0.02	5.1%	10.1	0.3	3.7	0.51	5.1%
KEV	137	0.69	0.02	0.27	0.05	6.5%	14.5	0.5	5.4	0.90	6.2%
KIT	146	0.59	0.03	0.33	0.05	9.1%	6.8	0.3	3.4	0.55	8.1%
KYL	198	0.50	0.01	0.20	0.03	5.6%	9.2	0.2	3.5	0.49	5.3%
TRF	143	0.50	0.02	0.25	0.04	8.3%	6.8	0.2	2.8	0.46	6.8%
YAR	140	0.38	0.01	0.15	0.02	6.3%	5.0	0.2	1.9	0.31	6.2%
					Mean	6.8%				Mean	6.3%

show an average precision of 6.8% for specific energy measurements and 6.3% for force measurements across all different devices and ore types.

4. Conclusions

In conclusion, this study evaluated the accuracy and precision of the Geopyörä breakage test for assessing the specific energy required for rock fragmentation. The results showed that the Geopyörä test provides accurate energy measurements, as confirmed by the close agreement with the results obtained from the custom drop weight tests. The precision of the Geopyörä test was also demonstrated through round-robin tests, which showed good agreement of the breakage energy and force measurements conducted with several ores and four different devices. The repeatability achieved by the Geopyörä test outweigh that achieved with the commercial drop weight test and the Bond test. Therefore, the Geopyörä test is a reliable and efficient method for accurately measuring the specific breakage energy of rock breakage, with the potential to improve the efficiency and sustainability of mining operations. Further research is needed to investigate the accuracy of its force measurements against other methods, such as the UFLC [11]. More extensive round-robin tests with other rock types and across more laboratories will also be conducted in the near future.
