Article

Comparative Proteomic Analysis of the Venoms from the Most Dangerous Scorpions in Morocco: Androctonus mauritanicus and Buthus occitanus

by
Ines Hilal
1,2,*,
Soukaina Khourcha
1,2,
Amal Safi
2,
Abdelaziz Hmyene
2,
Syafiq Asnawi
3,
Iekhsan Othman
3,
Reto Stöcklin
4 and
Naoual Oukkache
1
1
Laboratory of Venoms and Toxins, Pasteur Institute of Morocco, Casablanca 20360, Morocco
2
Laboratory of Biochemistry, Environment and Food Technology, Faculty of Sciences and Techniques of Mohammedia, Mohammedia 20650, Morocco
3
Jeffrey Cheah School of Medicine and Health Sciences, Monash University Malaysia, Bandar Sunway 47500, Malaysia
4
Atheris Laboratories, Case Postale 314, CH-1233 Bernex, Geneva, Switzerland
*
Author to whom correspondence should be addressed.
Life 2023, 13(5), 1133; https://doi.org/10.3390/life13051133
Submission received: 6 March 2023 / Revised: 27 April 2023 / Accepted: 3 May 2023 / Published: 5 May 2023
(This article belongs to the Special Issue Proteotranscriptomics-Guided Research on Insects and Arachnids Toxins)
Browse Figures
Versions Notes

Abstract

:
Morocco is known to harbor two of the world’s most dangerous scorpion species: the black Androctonus mauritanicus (Am) and the yellow Buthus occitanus (Bo), responsible for 83% and 14% of severe envenomation cases, respectively. Scorpion venom is a mixture of biological molecules of variable structures and activities, most of which are proteins of low molecular weights referred to as toxins. In addition to toxins, scorpion venoms also contain biogenic amines, polyamines, and enzymes. With the aim of investigating the composition of the Am and Bo venoms, we conducted an analysis of the venoms by mass spectrometry (ESI-MS) after separation by reversed-phase HPLC chromatography. Results from a total of 19 fractions obtained for the Am venom versus 22 fractions for the Bo venom allowed the identification of approximately 410 and 252 molecular masses, respectively. In both venoms, the most abundant toxins were found to range between 2–5 kDa and 6–8 kDa. This proteomic analysis not only allowed the drawing of an extensive mass fingerprint of the Androctonus mauritanicus and Buthus occitanus venoms but also provided a better insight into the nature of their toxins.

1. Introduction

From their iconic appearance to their venomous stings, scorpions are a captivating group of arthropods. These living fossils have persisted and kept their morphological characteristics for more than 400 million years [1]. They are represented by over 2000 different species classified into six families: Bothriuridae, Scorpionidae, Buthidae, Vejovidae, Chlaerilidae, and Chactidae [2,3]. The Buthidae family is widespread around the world, with 86 genera and 990 species. Scorpions belonging to this family are the most widely distributed and include the most dangerous genera, the Androctonus and Buthus in North Africa, Parabuthus in South Africa, Leiurus in the Near and Middle East, Tityus in South America, Centruroides in North and Central America and Mesobuthus in Asia [4,5,6,7,8]. Like most venomous animals, scorpions use their venom for predation or defense when threatened. This viscous secretion has a complex and specific composition; it consists of a cocktail of substances such as biogenic amines (histamine and serotonin), polyamines, and many enzymes [9,10]. However, the majority of scorpion venom bioactive molecules are peptides and small proteins. These toxins are mostly active on the ionic channels Na+ [11,12], K+ [13,14,15], Ca2+ [16], and Cl− [17], on which they act with high potency and selectivity. These neurotoxins are characterized by a low molecular weight and a huge diversity of structures and modes of action that disrupt the transmission of nerve impulses [18]. Scorpion envenomation is a life-threatening emergency and a critical public health issue [19,20], causing more than 1.5 million cases, of which 2600 are lethal, especially in children [21]. This number is worryingly still growing over the world each year, and many cases remain unreported. In Morocco, scorpion envenomation is the leading cause of intoxication, accounting for 30 to 50% of cases reported by the Moroccan Poison Control Center, with 25,000 to 40,000 stings annually [22]. Most of the stings are observed in the southwestern provinces of the kingdom, in Kalaat-sraghna, El-Jadida, Agadir, and Tan-Tan [23], where the most incriminated species are mainly Androctonus mauritanicus (Am) known as ‘the black scorpion’ followed by Buthus occitanus (Bo) ‘the yellow scorpion’ [24,25,26]. During a sting, the toxins of these venoms diffuse rapidly from the injection site to different vascular compartments and induce peripheral nervous system stimulation with a massive release of neurotransmitters and cell mediators, thus generating various pathophysiological disorders at all the organic systems [27]. An exhaustive screening of scorpion venom bioactive molecules will be a good source of novel pharmacological tools for studying the toxins and understanding their activities, improving envenomation therapeutics, and discovering new drug candidates [28]. Until recently, different analytical techniques were used for the characterization of scorpion venom; most of the current knowledge has been obtained by conventional biochemical and pharmacological approaches, which consist in targeting the toxins or the fractions of interest without making an exhaustive characterization of the total venom of the scorpion, thus minimizing, indirectly, the characterization of other toxins or other venom components [29,30].
A new era in the characterization of scorpion venoms was developed, the venomics strategies allowing a major knowledge on the biochemical constitution of venoms of high potential impact in medicine and beyond. Mass spectrometry and next-generation sequencing remain the most widely used and well-documented [31]. Different types of mass spectrometers give access to a large amount of knowledge, going from simple molecular masses of intact components to primary sequences of peptides [32,33]. The most widely used is ESI-MS because its advantage of being more accurate and sensitive in mass determination [34]. Even though several studies have been done for these two venoms [25,35,36,37,38,39], no comparative proteomic study has been conducted before. The present work offers an exhaustive view of the mass fingerprinting of the most dangerous scorpions in Morocco, Androctonus mauritanicus and Buthus occitanus, using the proteomic strategies focusing on mass spectrometry, intending to obtain more fundamental knowledge on the compositional, toxical, and structural characteristics of these venoms.

2. Methods

2.1. Ethical Statements

The animals were handled according to the ethical guidelines adopted by the World Health Organization (WHO) and approved by a local Ethics Committee of the Institut Pasteur of Morocco under agreement number 8.3.A-2015.

2.2. Venom Preparation

A total of 500 specimens (male and female, juvenile and adult) of Androctonus mauritanicus and Buthus occitanus were captured from the region of Essaouira, where scorpion envenomation cases are recorded in abundance. The scorpions were kept in captivity in the scorpionarium of the Pasteur Institute of Morocco, with water ad libitum, and fed with insects in individual boxes to avoid scorpion cannibalism. The crude venom was milked by electrical stimulation, pooled, centrifuged at 12,000× g for 20 min, frozen, freeze-dried, and kept at −20 °C until use [26]. The concentration of the protein content of the venoms was determined using the estimation at 280 nm method, assuming that 1 unit of absorbance in a quartz cuvette with 1 cm optical path equals 1 mg/mL protein concentration [40,41].

2.3. Venom Lethality (LD50)

Lethal potency of the venoms was evaluated by measuring the Median Lethal Dose 50 (LD50) following the recommendations of the World Health Organization (WHO) [42]. The LD50 represents the dose that kills 50% of a homogeneous population of Swiss mice (18–22 g). Increasing doses of Am and Bo venoms were adjusted in isotonic NaCl solution, then injected, and mortality rates were recorded after 24 h. Two injection routes were used: intravenous (IV) and intraperitoneal (IP) [43]. The analysis of the different results was done using the GraphPad Prism 5 software (Version 5, Dotmatics, Boston, MA, USA) in accordance with the supplied algorithm [44].

2.4. Venom Separation by SDS-PAGE

Following Laemmli SDS-PAGE method [45], electrophoretic analysis of Am and Bo venoms was performed on 15% polyacrylamide gel under reducing conditions in the presence of SDS. All samples were dissolved in a sample buffer (50 mM Tris–HCl, pH 6.8, 0.1 M DTT, 10% glycerol, 2% SDS, and 0.1% bromophenol blue). A constant electric current of 70 mA was applied for two hours. After migration, the gel was stained with Coomassie Brilliant Blue R250 [46,47]. Molecular weights were estimated using standard low-rank markers (Bio-Rad, Hercules, CA, USA).

2.5. Venom Fractionation by RP-HPLC

Crude venom samples were resuspended at 1 mg/mL 0.1% TFA in water (solution A) and submitted to a solid phase extraction on a Sep-Pak Plus C18 cartridge (360 mg, 55–105 μm, Waters, Milford, MA, USA), conditioned with methanol and equilibrated with solution A. After loading and washing with 10 mL solution A, the elution of peptides and proteins was performed using 3–5 mL of solution B (0.1% TFA in 70% acetonitrile and 30% water). The eluate was collected and freeze-dried on a SpeedVac concentrator (SC 250 DDA SpeedVac Plus, Thermo Savant, Waltham, MA, USA).
Am and Bo extracts (1 mg) were subsequently fractionated by RP-HPLC using a C-18 analytical column (4.6 × 250 mm, 4 µm particle size, 300 A pore size) as previously described [48]. Briefly, the column was equilibrated with solvent A, and fractions were eluted using a 0–100% gradient of solvent B (acetonitrile/0.08% TFA) over 120 min at a flow rate of 1.0 mL/min at 25 °C. The elutate medium was monitored by UV absorbance at wavelength of 280 nm, and fractions were collected using an automated Gilson fraction collector at detector output. Three different HPLC runs were performed.

2.6. Mass Spectrometry Analysis

An aliquot of each fraction obtained by RP-HPLC has been submitted to a mass spectrometry (online LC-ESI-MS) analysis. Peptide profiles were assessed using an Alliance 2795 HPLC separation module (Waters, Milford, MA, USA) fitted with a post-column split; 5% of the eluate was directed towards the electrospray ionization source of a Quattro Micro mass spectrometer (Micromass-Waters, Milford, MA, USA) and 95% towards a 2487 UV diode array detector (Waters), using a 1%/min gradient of acetonirine in 0.1% formic acid (FA) in water. The Masslynx 4 Micromass® software (Waters, Milford, MA, USA) was used for data analysis.

2.7. Tryptic Digestion

The fractions obtained by HPLC (0.5 mg) were mixed with 25 μL of 100 mM ammonium bicarbonate (pH 7.0), 25 μL of trifluoroethanol and 1 μL of 200 mM DTT, agitated and incubated at 90 °C for 20 min. After cooling samples at room temperature, proteins were alkylated with 4 μL of 200 mM iodoacetamide in the dark at room temperature for 1 h. Excess of iodoacetamide was blocked by addition of 1 μL DTT through incubation for 1 h at room temperature. Samples were diluted with water and ammonium bicarbonate to adjust pH (7–9). Proteolytic digestion was performed using a trypsin solution at a ratio of 1/20 (enzyme/substrate), followed by overnight incubation at 37 °C. Trypsin activity was removed using 1 μL FA. The samples were freeze-dried and stored at −20 °C until use.

2.8. LC/MS/MS Characterization

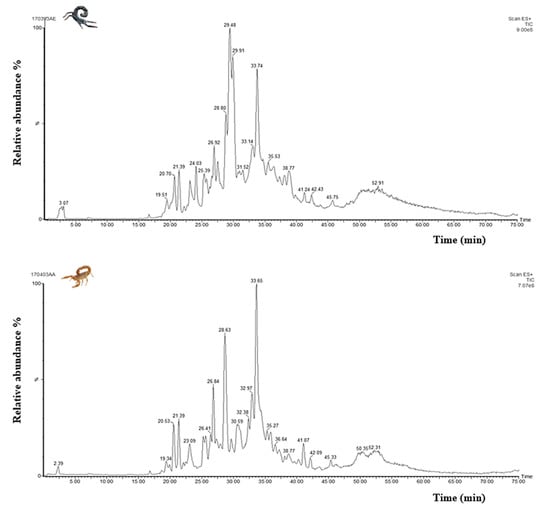

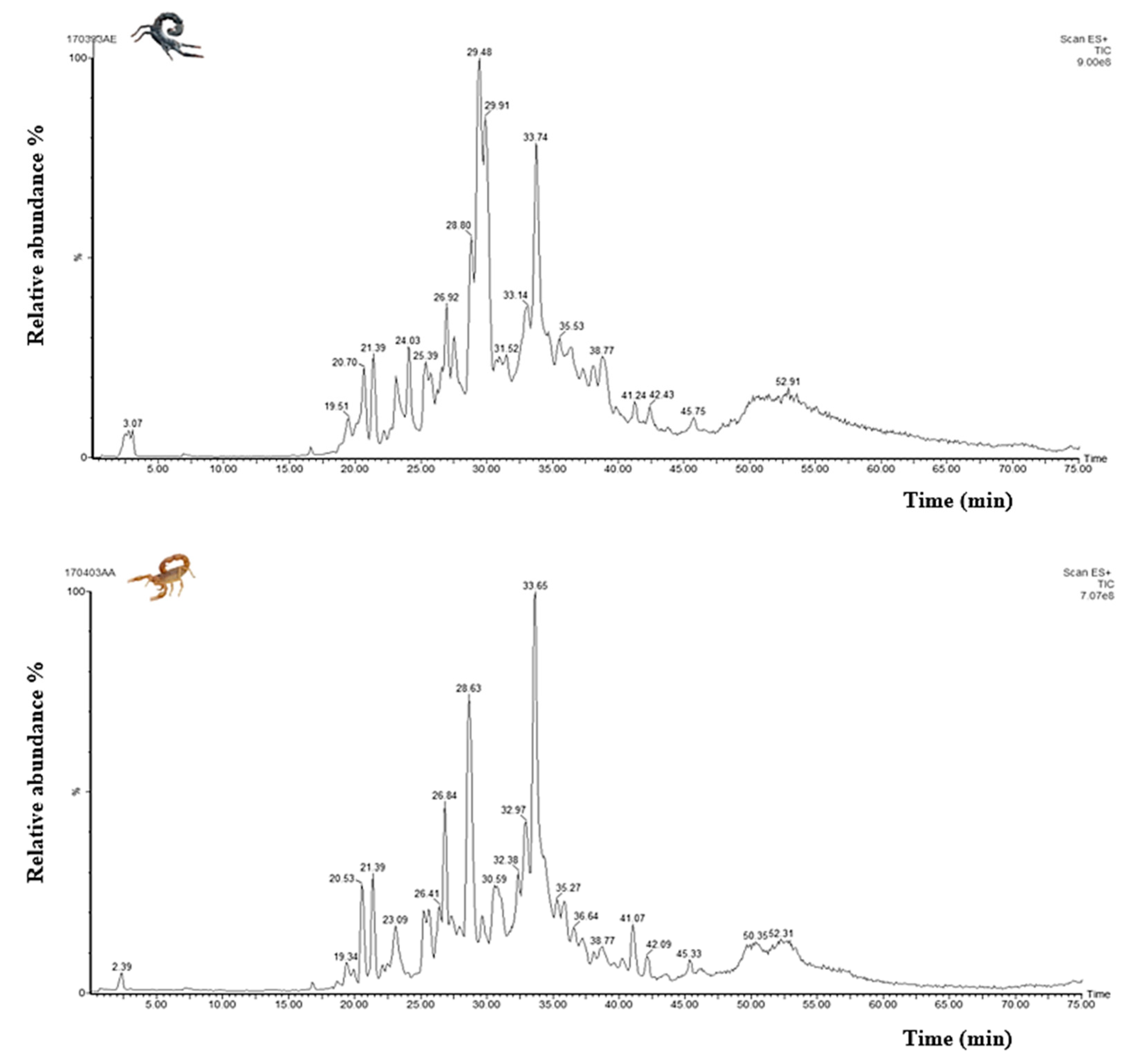

Online LC/MS/MS of venom samples dissolved in 0.1% TFA to a concentration of 1 mg/mL was performed using a C8 analytical column (75 µm × 43 mm, 5 µm particle size, 300 Å) with solvent A (0.1% TFA) and solvent C (90% acetonitrile in 0.1% TFA). Electrospray mass spectra were acquired on a PE-SCIEX API 300 LC/MS/<MS system with an Ionspray atmospheric pressure ionization source. Samples (1 µL) were infused into the LC/MS/MS system and analyzed in positive ionization mode. Full scan data were acquired at an orifice potential of 80 V over the ion range 600–3000 m/z with a step size of 0.2 u. Data processing was performed with the aid of the software package Biomultiview (PE-SCIEX, Concord, ON, Canada). MS/MS analysis and N-terminal sequence were straightforwardly assigned by BLAST analysis (http://www.ncbi.nlm.nih.gov/BLAST) to a previously reported protein or to a known protein family.

3. Results

3.1. Protein Quantification

The results obtained revealed that the yield of proteins after the SepPak extraction was 0.897 and 0.771 mg/mL for the Am and Bo venoms, respectively.

3.2. Lethality of A. mauritanicus and B. occitanus Venoms

The toxicity of the venoms was determined by measuring the LD50 with 95% confidence intervals. The results show that the Am venom is three times more toxic compared to that of the Bo (Table 1). The LD50 measured using the intravenous route (IV) was almost the same as that obtained by the intraperitoneal route (IP). This reveals that the molecules responsible for mortality in the case of scorpion envenomation are molecules with low molecular weights diffusing rapidly through the bloodstream and that their bioavailability is very high.

3.3. Electrophoretic Profile

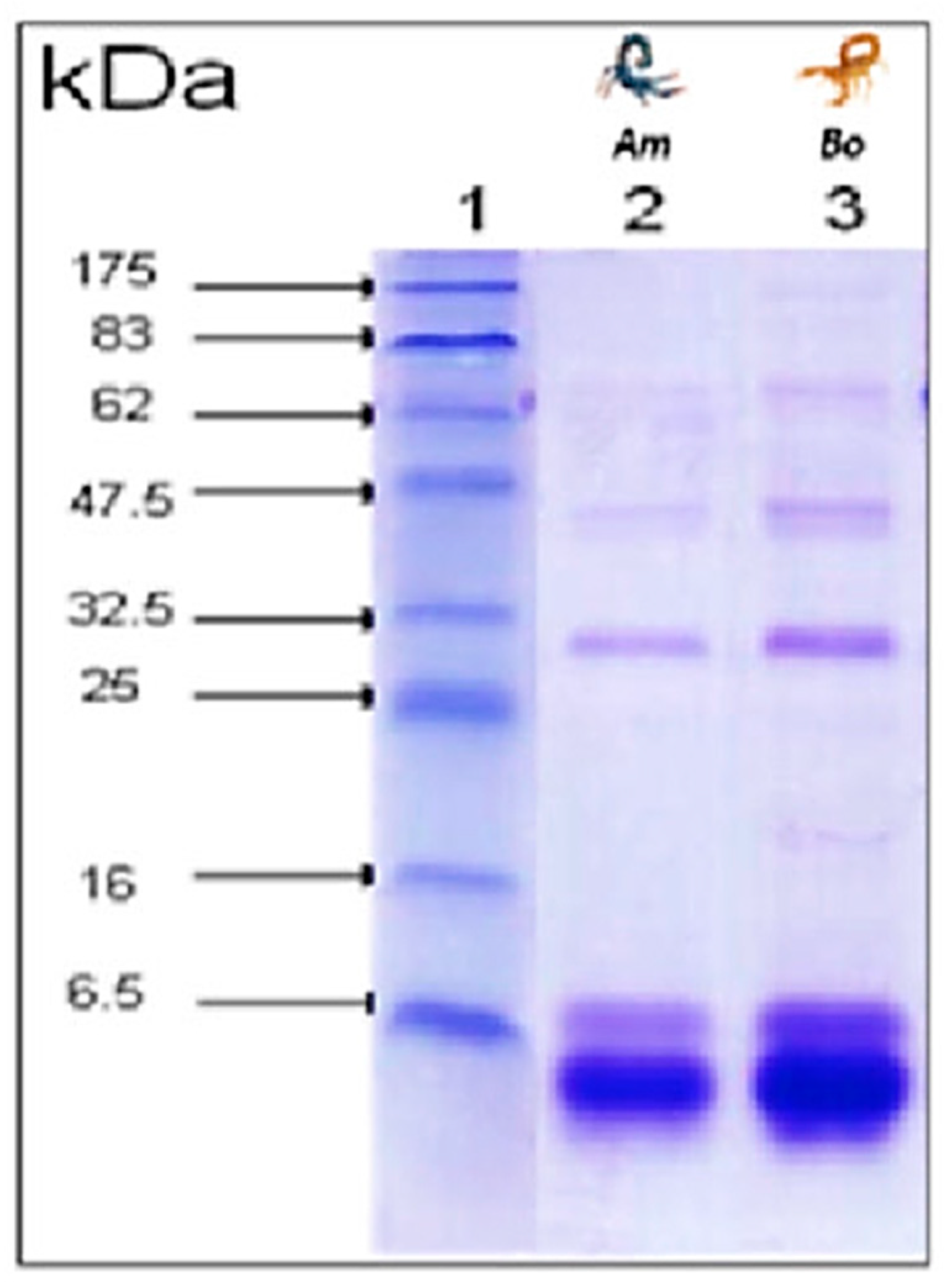

The venom proteins were analyzed by SDS-PAGE separation and Coomassie staining. Electrophoresis analysis revealed that the venom consisted primarily of one major protein band with a molecular weight of approximately 6.5 kDa, consistent with low molecular weight toxins (Figure 1).

3.4. HPLC

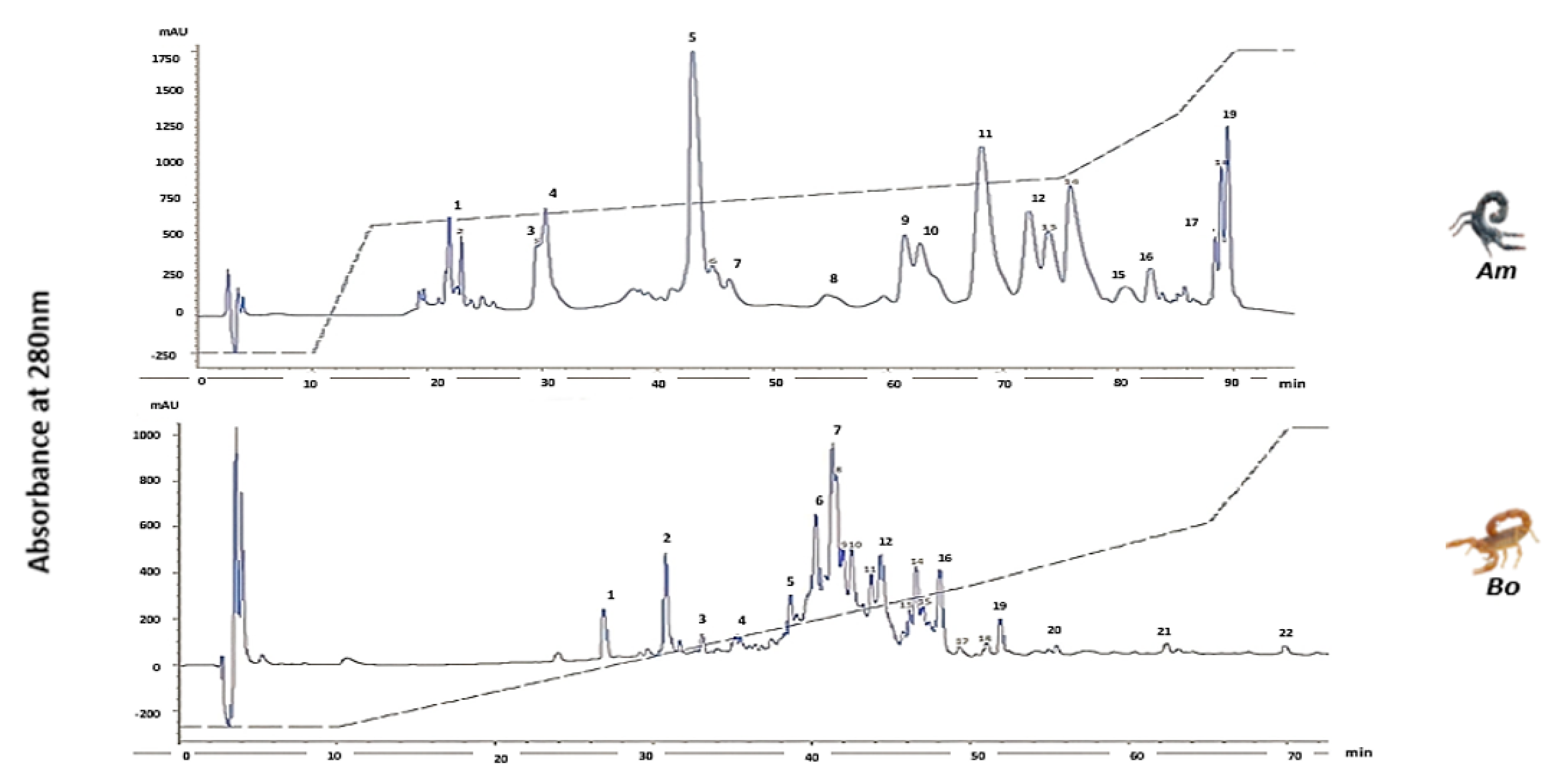

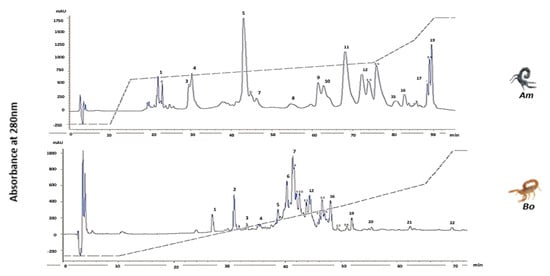

The HPLC chromatograms revealed the complexity of the venoms, which were found to contain hundreds of bioactive molecules with diverse biological properties. Interestingly, each venom displayed a unique profile, underscoring the distinctiveness of each species. HPLC analysis facilitated the isolation of 19 fractions from the Am venom and 22 from the Bo venom (Figure 2), suggesting that the Bo venom is more complex than that of the Am.

3.5. Mass Fingerprinting of Am and Bo Venoms

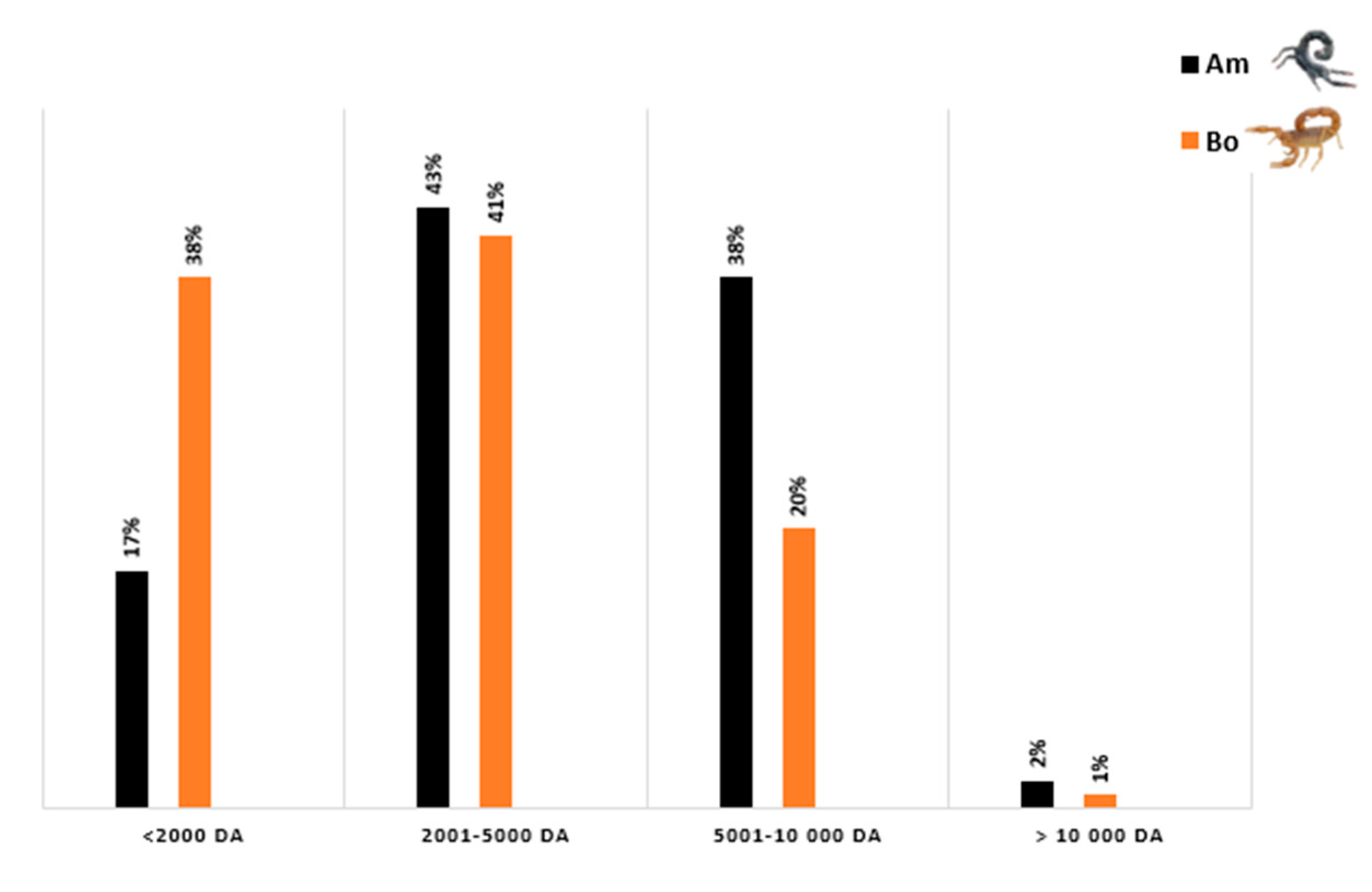

Through the analysis of the different fractions obtained from HPLC separation, we were able to detect 410 and 252 different molecular masses in the Am and Bo venoms, respectively (Figure 3). These findings confirmed that the Am venom is richer in molecules than the Bo venom, potentially explaining why it is associated with more severe cases of envenomation.
Our initial proteomic approach allowed us to create a mass fingerprint of each venom by identifying molecular masses between 500 and 8000 Da for the Am venom and 500 and 7000 Da for the Bo venom, which were then categorized into different ranges. In both venoms, the greatest number of signals were identified in masses ranging from 2–5 kDa, followed by those over 5 kDa in the case of the Am venom and under 2 kDa for the Bo venom. Although other masses were also identified, they were present at a lower percentage, particularly those over 10 kDa (Figure 4).

3.6. Composition of Am and Bo Venoms

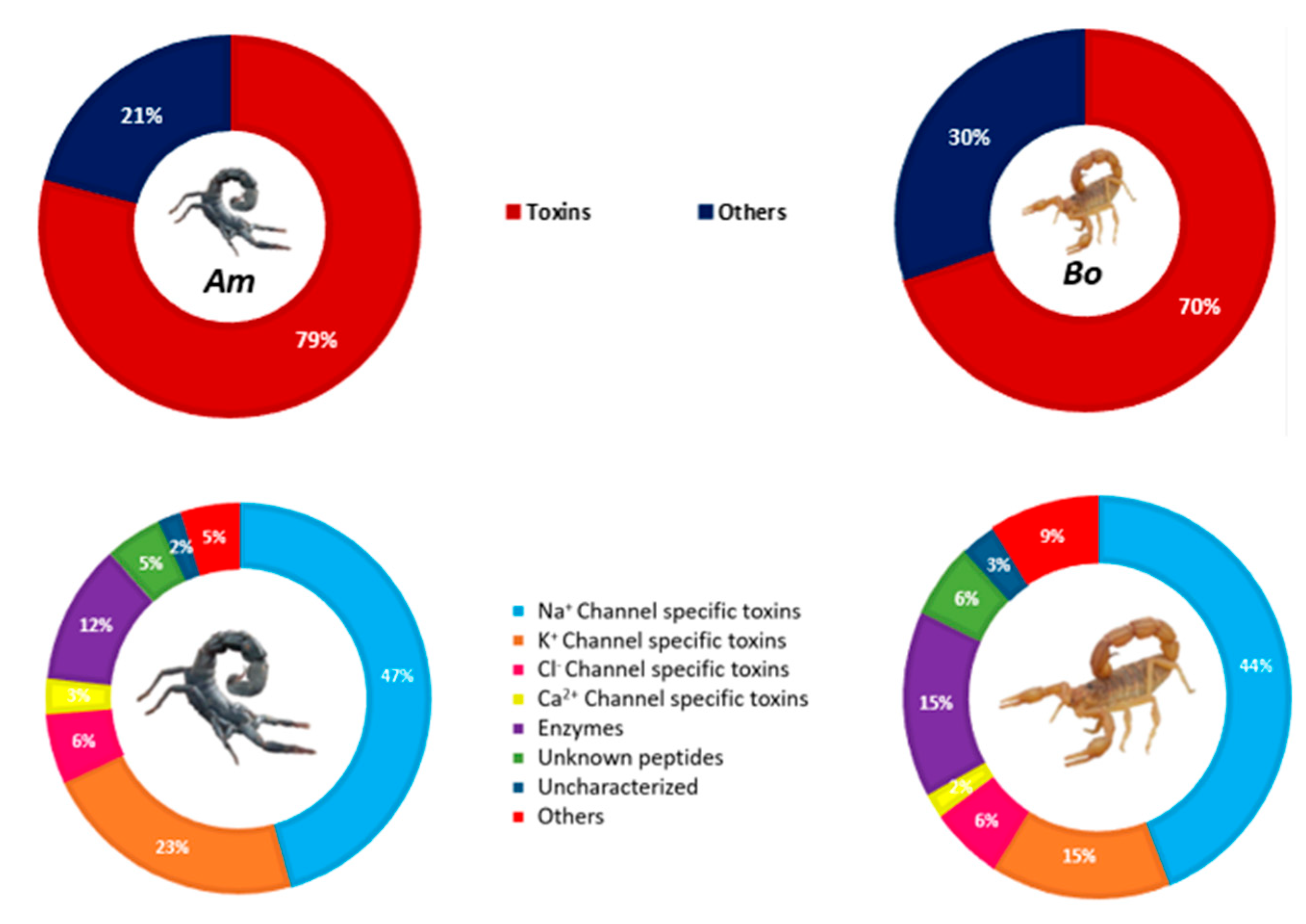

Based on the results of our comparative analysis, we found that the Am venom is composed of 79% neurotoxins (relative values based on MS signal intensities), with 47% of these toxins targeting Na+ channels, referred to as NaScTxs. Among NaScTxs, α-NaScTxs were found to be more abundant than β-NaScTxs, making up 88% of the total. We also identified Toxin AaHIT4 (P21150), which can target both site 3 and site 4 of the sodium channel. Additionally, we detected α and β-KScTxs, which account for 23% of the total composition. Toxins targeting Cl− channels (ClScTxs) and Ca2+ channels (CaScTxs) were less prevalent, constituting only 6% and 3%, respectively. The enzymatic composition was estimated at 12%.
Concerning the Bo venom, neurotoxins were once again the major toxins, representing 70% of the composition, with 44% targeting Na+ channels. Both α-NaScTxs and β-NaScTxs were detected, with a predominance of the alpha group comprising 75% of NaScTxs. KscTxs, ClScTxs, and CaScTxs represented 15%, 6%, and 2% of the total composition, respectively, while enzymes were estimated to make up 15% (Figure 5).

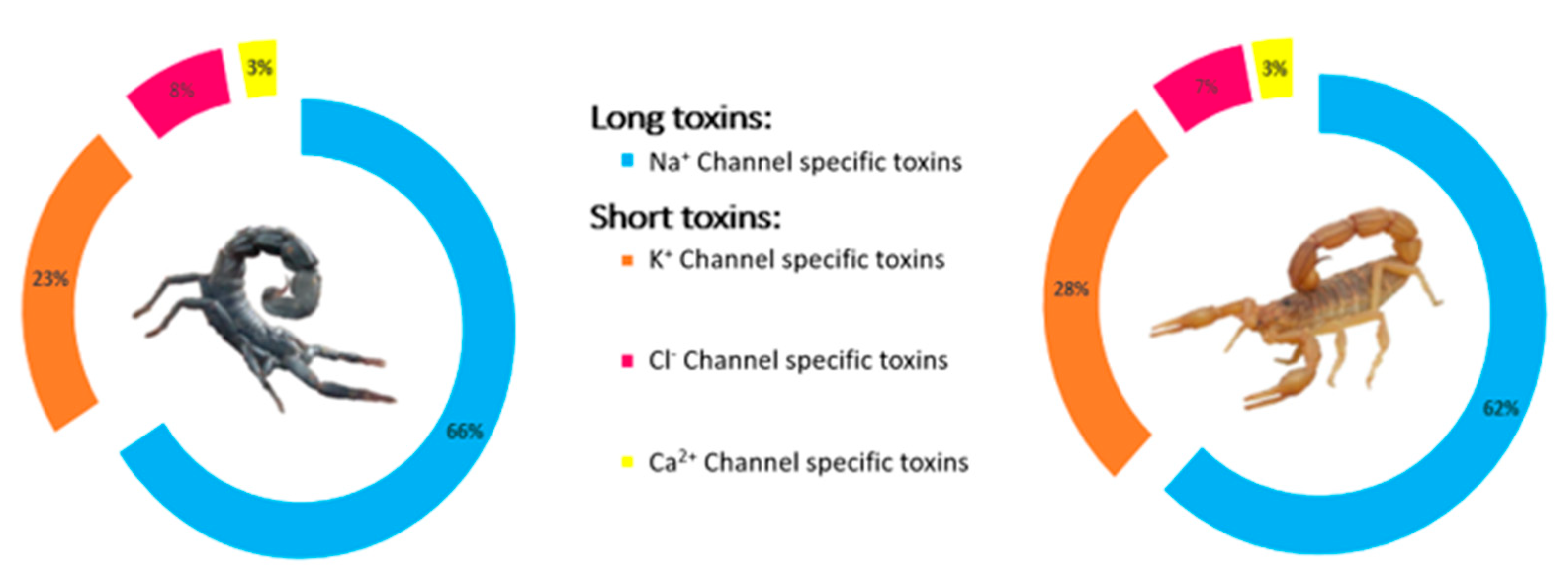

The toxic fractions of the venoms of both Am and Bo contain a high proportion of NaScTxs, which constitute more than 60% of the total venom content (Figure 6). These long toxins, with molecular masses ranging from 4 to 8 kDa, exert their biological effects on both the peripheral and central nervous systems. Remarkably, NaScTxs are the main contributors to the mortality caused by these venoms, accounting for over 73% of the lethal effects. In contrast, the shorter toxins found in the 3–4 kDa mass range, such as KScTxs, ClScTxs, and CaScTxs, predominantly affect the function of these specific ion channels. These toxins display activity only on the central nervous system and contribute to the toxic effects of the venom but not to its lethality, as is the case for the NaScTxs.

3.7. Mass Spectrometry Identification

MS/MS data processing was performed using the ProteomeDiscover 2.2 software (Thermo Fisher Scientific, Waltham, MA, USA), and the identification of the different peptides/proteins was achieved by sequence homology, querying the Uniprot database (https://www.uniprot.org). The identified proteins were classified into different families according to their function by referring to the UniProt and InterPro databases (https://www.ebi.ac.uk). The list of potential proteins obtained from the analysis has been inserted in a dedicated of proteins and related peptides identifiable with sequences matching known proteins. The analysis of the mass spectrometry data also indicated that there is a high sequence homology with other scorpion venoms species such as Leiurus quinquestriatus quinquestriatus, Androctonus australis, Mesobuthus martensii, and Lychas mucronatus.
Previously identified peptides were found in the Am venom, corresponding to neurotoxins, namely alpha-toxin Amm3, alpha-toxin Amm5, alpha-toxin Amm8, neurotoxin P2, potassium channel toxin alpha-KTx 15. 3, potassium channel toxin alpha-KTx 3.1, potassium channel toxin alpha-KTx 5.2 and potassium channel toxin alpha-KTx 8.1 (Table 2).
However, some identified sequences share sequence similarities with peptides characterized in the venom of other scorpions. Thus, for the Am venom, we found 19 homologies of sequences matching other scorpion venom peptides (Table 2).
Similarly, the Bo venom also contained peptides corresponding to previously identified neurotoxins, including alpha-like toxin Bom3, alpha-like toxin Bom4, alpha-mammal toxin Bot3, alpha-toxin Bot1, alpha-toxin Bot11, Beta-toxin BotIT2, and Neuro-toxin Bot2. Interestingly, a peptide previously identified in the venom of the viper Daboia russelli siamensis was also found in the Bo venom (Table 3). In total, 71% of the peptides in the Bo venom showed similarity with other species, while the Am venom shared 61% of its peptides with other species. This finding is of great importance in the development of antivenoms with a broad spectrum of protection.

4. Discussion

Despite their small size, Scorpions are feared for their potent venom. It is a complex mixture of different components, of which folded peptides are the most dominant [49,50]. They have been studied for decades using conventional bioactivity-guided approaches broadly used with natural substances that consist of purifying the biomolecule of interest prior to studying its structure and function. Unfortunately, these studies only reflected a partial picture of the whole venom, and the information obtained is in favor of the abundant toxins in the venoms of the most incriminated species, leaving aside those rare or more difficult to collect that remain largely unexplored. Analytical studies of venoms have ongoingly improved with the help of technological developments. The implementation of recent venomics approaches (mass spectrometry, NextGen sequencing) in the field facilitated the obtaining of information from these matrices [51].
Venom profiling by mass spectrometry initiated in the early Nineties remains a fundamental approach to global venom exploration. Such data, with or without chromatographic fractionation, produces a global picture of the venom and reveals its complex composition. For this purpose, a mass fingerprint of the Moroccan scorpion venoms of Androctonus mauritanicus and Buthus occitanus was performed after an HPLC separation and by using mass spectrometry (ESI-MS and ESI-LC/MS/MS).
LD50 results have confirmed what was already known: A. mauritanicus and B. occitanus venoms are very toxic. Previous biochemical characterization studies had reported the medical importance of A. mauritanicus and B. occitanus, which are involved in 83% and 14% of envenomation cases in Morocco, respectively. These studies have shown that A. mauritanicus is the most dangerous scorpion in Morocco [52]. Its venom is highly toxic, with an LD50 of 2.4 µg/mouse, and responsible for adverse pathophysiological effects and intense electrolyte imbalance. Meanwhile, B. occitanus is considered the second most dangerous scorpion in the kingdom, with an LD50 of 5.7 µg/mouse [36,38,43].
Buthidae venoms are known to be harmful since numerous of their components (especially NaTxs) have an affinity for human receptors [53]. The main difference between the venom of a Buthidae and a non-Buthidae scorpion is that NaTxs are predominant and more abundant in the venom of the Buthidae family [17,54,55,56]. They are responsible for the lethality, the neurotoxic effects and have a leading role in the complications of scorpionism [57]. According to their physiological effects on voltage-gated sodium ion channels, NaTxs can be divided into two groups, named α-NaTx and β-NaTx [58]. The difference between these two groups is that α-NaTxs bind to site 3 and delay or inhibit the channel’s normal inactivation process, while β-NaTxs bind to site 4 and encourage the channel opening at more negative membrane potentials [59].
This study correlates well with previous works of proteomic analysis of scorpion venom, in which toxins that impair Na+ and K+ channels constitute the main toxin components of Buthidae venoms [60,61]. Thus, our findings show that the majority of mass in A. mauritanicus and B. occitanus venoms are composed of long toxins that target Na+ channels, accounting for 66% and 62%, respectively. Short toxins, which act on K+, Cl−, and Ca2+ ion channels, constitute 34% of A. mauritanicus venom and 38% of B. occitanus venom. On the other hand, peptides with molecular masses less than 2 kDa and enzymes with molecular masses greater than 10 kDa are less abundant in both venoms. These results corroborate previous studies on A. mauritanicus and B. occitanus venoms, which identified NaScTxs and KScTx neurotoxins as the main components [25,39,62,63,64,65,66,67,68,69,70,71].
Similarly, the proteomic analysis of the venom of the species Centruroides tecomanus (family Buthidae) showed an abundance of molecular masses (7–8 kDa) corresponding to neurotoxins targeting voltage-gated Na+ channels followed by those corresponding to neurotoxins acting on K+, Cl−, and Ca2+ ion channels (4–5 kDa) [72]. A neurotoxin-rich composition has been demonstrated as well in other venoms of scorpions belonging to the Buthidae family: Tityus serrulatus, Centruroides limpidus, Centruroides hirsutipalpus, Mesobuthus martensii, Tityus metuendus, Androctonus bicolor and Mesobuthus tamulus as well as to the Scorpionidae family: Heterometrus longimanus and Heterometrus petersii [49,72,73,74,75,76,77]. At the same time, the venom composition of the scorpions Rhopalurus agamemnon (family Buthidae), Megacormus gertschi (family Euscorpiidae), and Thorellius atrox (family Vaejovidae) present a composition rich in enzymes [78,79,80].
The abundance of toxins targeting Na+ channels in these venoms explains why these scorpions are so dangerous, as these toxins are responsible for mortality. This raises the hypothesis that scorpions can be classified according to their dangerousness based on the percentage of sodium-channel toxins present in their venom. Noteworthy, the development of an adjuvant able to block Na+ channel receptors would significantly reduce the mortality rate in populations at high risk of scorpionism. In contrast, short toxins specific to K+, Cl−, and Ca2+ channels are responsible for toxicity and are less involved in lethality.
A total of 410 masses were found in the Am venom and 252 masses in that of the Bo. Although more molecular weights have been detected in the venom of Leiurus quinquestriatus hebraeus (554 masses), Tityus stigmurus (632 masses), and Pandinus cavimanus (700 masses), fewer compounds were obtained from the venoms of Centruroides limpidus (52 masses), Androctonus crassicauda (80 masses), Tityus costatus (90 masses), Tityus pachyrus (104 masses), Mesobuthus tamulus (110 masses), Tityus serrulatus (147 masses), Rhophalurus junceus, Tityus metuendus and Mesobuthus martenssi (200 amasses), Serradigitus gertschi (204 masses), Tityus discrepans (205 masses), Paravaejovis schwenkmeyeri (212 masses), and Rhopalurus agamemnon (230 masses) [72,75,77,80,81,82,83,84,85,86,87,88,89,90,91,92,93].
However, we noted that A. mauritanicus scorpion venom is richer in NaScTxs that target mammalian Na+ channels, namely the alpha toxin Amm5, which is considered the most lethal toxin identified so far in Moroccan scorpion venom [25]. In addition, the identification of alpha-toxin Amm3 and the alpha-toxin-like toxin Lqq 5, the most lethal toxin of the scorpion Leiurus quinquestriatus that shares a 95.3% sequence similarity with alpha-toxin Amm 5, explains why the venom of the scorpion A. mauritanicus is estimated to be the most toxic and responsible for the most severe envenomations in Morocco [52,70].
These results illustrate the great polymorphism of the toxins of scorpions A. mauritanicus and B. occitanus. Among those involved in the pathophysiology of envenomations, we found NaScTxs and KscTxs; these two families work in synergy to generate a prolonged depolarization of the cell membrane and thus a neuronal excitation which causes the stimulation of the sympathetic and parasympathetic nervous system leading to the release of cellular mediators responsible for all the alterations observed during a scorpion envenomation. The high content of these neurotoxins in the venoms A. mauritanicus and B. occitanus explains their toxicity and their involvement in the most serious cases of envenomation in our country.

5. Conclusions

Herein, we have demonstrated that a multi-faceted proteomic strategy, including cutting-edge separation and characterization techniques, can provide valuable insights into the composition and toxicology of scorpion venoms. Specifically, our results show that the venoms of Androctonus mauritanicus and Buthus occitanus scorpions contain a highly complex mixture of hundreds of distinct peptides, mainly neurotoxins, with NaScTxs and KScTxs as the predominant components, representing 70% and 59% of the venom composition, respectively. By elucidating the toxicological profiles of these venoms, our findings provide a critical foundation for improving the understanding of the pharmacological mechanisms involved in envenomation and for developing effective antivenom therapies. Overall, this study highlights the importance of using advanced proteomic techniques for the characterization and analysis of complex biological samples, with broad implications for biomedical research and drug discovery.

Author Contributions

Conceptualization, I.H. and N.O.; Methodology, I.H.; Validation, A.S., R.S. and N.O.; Formal analysis, I.H. and N.O.; Data curation, I.H. and R.S.; Writing—original draft, I.H., S.K., A.S. and N.O.; Writing—review & editing, A.H., S.A., I.O. and R.S.; Visualization, I.H. and A.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The animals were handled according to the ethical guidelines adopted by the World Health Organization (WHO) and approved by a local Ethics Committee of the Institut Pasteur of Morocco under agreement number 8.3.A-2015.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank the staff of the Experimental Center of Tit Mellil, Institut Pasteur of Morocco, for providing the laboratory animals, as well as the facilities to support this research.

Conflicts of Interest

The authors declared no potential conflict of interest with respect to the research, authorship, and/or publication of this article.
