Abstract

:

This paper describes the in situ spores of the Calamospora type, macerated from sixty-one specimens of calamitean cones belonging to sixteen species of genera, such as the Palaeostachya, Macrostachya, Calamostachys, and Huttonia from the Pennsylvanian Czech Republic period, specifically from the Moscovian/Kasimovian ages (i.e., Duckmantian-Stephanian). The in situ spores were compared to twenty dispersed species of Calamospora. The majority of spores were microspores; however, some cones yielded both micro- and megaspores. Morphological variations of the in situ spores, including the diameter, labrum, contact area, ontogenetic stages, and secondary folds of the exine, are described, including their importance for the classification of calamospores. The relationships of Elaterites, Pteroretis, Vestispora, and some monopseudosaccate spores are discussed. All Paleozoic Calamospora-producing parent plants are summarized.

Keywords:

sphenophytes; calamites; in situ spores; Calamospora; Pennsylvanian

1. Introduction

Sphenophytes are an important group of both extant and extinct plants. The first specimens come from the Devonian period [1,2,3] but were never abundant. The “Golden age” for sphenophytes was the Carboniferous period, especially in Pennsylvanian times when arborescent forms reached up to 30 m [4]. After the Permian period, their diversity gradually declined until recent times. We know of only one recent genus, Equisetum Linnaeus, which has fifteen to eighteen species [4]. Some phylogenetic analyses [5] suggest that sphenophytes and ferns can be a monophyletic group [6]. Paleozoic sphenophytes are divided into two main groups: calamiteans and sphenophyllaleans. All Paleozoic calamiteans produced spores of the Calamospora type. Sphenophyllaleans can be palynologically divided into 6–7 groups, and only one of them produced Calamospora microspores [7].

Calamospora Schopf et al. is a spore genus consisting of mio- and megaspore species with long stratigraphical ranges from the Silurian [8] to Tertiary periods [9]. It is the morphologically simplest spore type, with circular to oval amb, simple trilete rays, and laevigate exine. Many morphologically simple spore types were produced by parent plants of different affinities, including Calamospora [7]. This is the reason why Calamospora has no stratigraphical and palaeoecological significance.

The genus was established [8] with the species type C. hartungiana Schopf et al. The number of classification criteria is low [10,11]. These include the contact area, length of rays of the trilete mark, labrum, number, size, shape, position of the secondary folds of the exine, and diameter. Biologically, calamospores were both male and female spores that cannot be distinguished morphologically but only by their diameter; 200 µm is an artificial “boundary” for the recognition of calamospores into male and female spores [7]. However, this boundary size does not always correspond with the biological function of calamospores. The main producers of Calamospora calamitean cones were the genera Calamostachys Schimper, Palaeostachya Weiss, Macrostachya Schimper, and Paracalamostachys Weiss. Other parent plants mainly include noeggerathialeans and certain sphenophyllaleans [7]. The relationship of Calamospora from Elaterites Wilson, Vestispora (Wilson & Hoffmeister) Wilson & Venkatachala, and some monopseudosaccate forms of the Remysporites/Auroraspora/Perotrilites type has been discussed [10,12]. This paper describes sixty-one specimens of four calamitean Calamospora-producing genera from the Kladno-Rakovník, Radnice, and the Czech part of the Intra-Sudetic basins of the Czech Republic. All palynological aspects of Calamospora are summarized, including the morphology, ontogeny, and origin. Their classification is taken from [13]. The most important papers on Carboniferous calamites were published by [13,14], which documented in situ spores [15].

2. Geological Setting

Specimens of calamitean cones come from the Kladno-Rakovník Basin, Moscovian-Kasimovian (Upper Duckmantian-Lower Stephanian), Moscovian (Upper Duckmantian) of the Radnice Basin (Figure 1) and Bashkirian-Moscovian of the Intra-Sudetic Basin (Langsettian-Duckmantian, Stephanian, Figure 1).

The Central and Western Permo-Carboniferous limnic basins of the Czech Republic consist of the Kladno-Rakovník, Pilsen, and Radnice basins and a part of the Žihle Basin. The stratigraphical range of these sediments is Moscovian to Kasimovian (Duckmantian to Stephanian) and consists of the Kladno, Týnec, Slaný, and Líně formations. Sediments are up to 1400 m thick [16].

The oldest sediments of the Kladno-Rakovník Basin are early Moscovian (Duckmantian), and the youngest are Gzhelian (upper Stephanian) in age (Table 1).

The Radnice Basin is a small erosional remnant west of the Pilsen Basin (Figure 1). Sedimentation started in the early Moscovian (late Duckmantian) and lasted until the early Permian (Asselian). Stratigraphically, the oldest sediments of the Radnice Member consist of the Radnice group of coals with lower and upper Radnice coal seams and the fossiliferous Whetstone Horizon between them. The Whetstone Horizon is well-known for its rich plant fossils, including the specimens described herein. The lower part of the overlying Nýřany Member is preserved following post-Permian erosion [16,17]. The thickness of members is variable due to the fluvial valleys incised by rivers into the basement.

The Intra-Sudetic Basin belongs to a large complex of Late Palaeozoic continental basins of the Bohemian Massif (Figure 1). The majority of the area (1800 km²) is in Poland, with only about a third in the Czech Republic (Figure 1). The sedimentation started in Serpukhovian (late Viséan) and, including several hiatuses, continued for over 80 Ma until the Triassic [18,19]. A detailed overview of the depositional history is described by [17,19]. Serpukhovian (Late Viséan to early Namurian) alluvial deposits of the Blazkow Formation are the oldest in the Czech part of the basin [19]. After a short break, sedimentation resumed in the Bashkirian (late Namurian-middle Westphalian) times by fluvial facies of the Žacléř Formation. After another short break [18], red beds of the Moscovian (late Westphalian to middle Stephanian) Odolov Formation were deposited. The overlying Chvaleč Formation, with other red bed complexes, spans the late Gzhelian (Stephanian) and early Permian (Asselian) periods. The profile continues with the early Permian fluvial red bed [18].

3. Material and Methods

The specimens labeled E are housed in the National Museum, Prague, Czech Republic. Some specimens are from the collection of S. Opluštil, Faculty of Sciences, Prague, Czech Republic. A Nikon Eclipse BX51 light microscope was used for the study of palynological slides. Digital photomicrographs of all the in situ microspores are stored in the Laboratory of Palaeobiology and Palaeoecology, Institute of Geology v.v.i., Academy of Sciences, Prague. Spores were recovered by dissolving small portions of sporangia with the aid of nitric acid for 24–40 h and in KOH for 1 h. The majority of spores were mounted in glycerine jelly for a direct microscopic examination. A minority of them were coated with gold and prepared for SEM observation. The terms used for the descriptions of the in situ spores were obtained from the latest edition of the Glossary of Pollen and Spore Terminology [20]. In situ, the spores were compared according to the system of classification of dispersed spores [21,22,23].

4. Systematic Paleontology

Equisetales

Calamitaceae

Palaeostachya Weiss 1876

Type species: Palaeostachys elongata (Presl) Weiss 1876

Palaeostachya ettingshausenii Kidston 1903

Figure 2, Figure 3 and Figure 4

Material: The specimens are from the S. Opluštil’s collection and are as follows: Nos. 935 and 1451 are from the Tuchlovice Mine, Kladno-Rakovník Basin, Czech Republic, Bashkirian (Upper Duckmantian); E2414, E3624, E3626, E2412, and E3623 are from the Mayray Mine, Kladno; E3618 is from the Max Mine, Kladno; E3635 is from the Ronna Mine, Kladno; and E3596 is from the Břasy locality. All are from the Kladno-Rakovník Basin. The following specimens are from the Intra-Sudetic Basin as follows: E3622 is from the Maria-Julia Mine near Třemošín, Kasimovian (Stephanian); and E2500 is from the Žacléř locality, with an unknown stratigraphic position.

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. Two kinds of spores probably represent the microspores (Figure 2d–i,k,l, Figure 3c–f, and Figure 4c,d,f–i) and megaspores (Figure 2b,c, Figure 3b, and Figure 4a,b). The laevigate exine of the microspores is up to 4 µm thick, and that of the megaspores is 6–9 µm thick. The rays of the trilete mark reach a third to two-thirds of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers. Three size categories of the in situ spores were recognized (Table 2): the first with a size range of 44 (71) 171 µm (the majority of specimens), and the second is 80 (139) 181 µm; the megaspores are 234 (448) 708 µm. The contact area is sometimes developed. The in situ microspores can be compared to the dispersed miospore species Calamospora microrugosa (Ibrahim) Schopf et al., C. cf. microrugosa, C. pedata Kosanke, C. cf. pedata, C. pallida (Loose) Schopf et al., C. cf. pallida, C. cf. liquida, C. breviradiata Kosanke, and C. hartungiana Schopf et al., and the megaspores to the species C. perrugosa (Loose) Schopf et al.

Palaeostachya distachya (Sternberg) Jongmans 1911

Figure 5 and Figure 6a–e

Material: E3608, E3598, and E3604 are from Hnidousy, near Kladno; and E1132, E3599, E3603, E1132, and E1134 are from the Ronna Mine. All of them are from the Kladno-Rakovník Basin, Bashkirian-Moscovian (Upper Duckmantian/Lower Bolsovian).

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 3 µm thick. The rays of the trilete mark reach a third to two-thirds of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers. The size range is 34 (65) 119 µm (Table 3). The contact area (Figure 5b–d) and labrum (Figure 5f,j,l and Figure 6d,e) are sometimes developed. The in situ microspores can be compared to the dispersed miospore species Calamospora mutabilis (Loose) Schopf et al., C. cf. pedata, C. minuta Bharadwaj, C. cf. minuta, C. hartungiana, C. cf. hartungiana, C. breviradiata, C. cf. breviradiata, and C saariana Bharadwaj.

Palaeostachya pedunculata Williamson 1874

Figure 6f–k

Material: No. E1125, from the Ronna Mine near Kladno, Kladno-Rakovník Basin, Bashkirian (Upper Duckmantian).

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 2 µm thick. The rays of the trilete mark reach half of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 6g–k). The size range is 51 (70) 89 µm. The labrum is sometimes developed (Figure 6g,i). The in situ microspores can be compared to the dispersed miospore species Calamospora cf. pedata, C. cf. microrugosa, and C. cf. straminea.

Palaeostachya elongata (Presl) Weiss 1976

Figure 7a–o

Material: No. E1122 is from Bashkirian (Upper Duckmantian), Kladno locality, Kladno-Rakovník Basin; No. E1121 is from Moscovian (Bolsovian), Rakovník locality, Kladno-Rakovník Basin; Nos. E3607 and E 3616 are from Moscovian (Bolsovian), the Šamotka locality, Věnec Coal Seam near Lubná; No. E3631 is from Bashkirian (Langsettian-Duckmantian) of the Intra-Sudetic Basin, Maria-Julia Mine near Žacléř.

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 2 µm thick. The rays of the trilete mark reach a third to two-thirds of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 7b–d,j–o). The size range is 60 (112) 141 µm (Table 4). The contact area and labrum are up to 6 µm in size and sometimes developed (Figure 7c,h,j,l,n,o). Sometimes, fragments of the perispore can occur on the surface of the exine (Figure 7d). The in situ microspores can be compared to the dispersed miospore species Calamospora hartungiana, C. cf. hartungiana, C. falkenbergensis Venkatachala & Bharadwaj, and C. mutabilis. It is possible that some spores that are classified as Calamospora falkenbergensis, C. cf. hartungiana, and C. mutabilis, with size ranges of 82 to 152 µm, may be megaspores.

Figure 8 shows the bimodal distribution of the in situ spores isolated from Palaeostachya elongata.

Palaeostachya gracillima Weiss 1876

Figure 7p–v

Material: No. E1119 is from the Kladno locality, Kladno-Rakovník Basin, Moscovian (Bolsovian), and No. E1127 is from the Příčina-Na Brantech locality near Lubná, Kladno-Rakovník Basin, Moscovian (Bolsovian).

A description of the in situ spores is as follows: Trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 2 µm thick. The rays of the trilete mark reach a third to two-thirds of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 7q–v). The size range is 34 (65) 95 µm (Table 5). The labrum is 2–4 µm broad and is sometimes developed (Figure 7v). The in situ microspores can be compared to the dispersed miospore species Calamospora braviradiata, C. minuta, C. cf. pedata, and C. cf. microrugosa.

Palaeostachya feistmantelii Němejc 1953

Figure 9a–f

Material: Nos. E3492 and E3493 are from the Štilec locality near Žebrák, Kladno, Rakovník Basin, Moscovian (Bolsovian).

A description of the in situ spores is as follows: The trilete are subcircular microspores. The size range is 55 (69) 108 µm. The laevigate exine is up to 2 µm thick. The labrum is 2–4 µm in size (Figure 9b,e). Rays of the trilete mark reach a third to two-thirds of the radius. The microspores are poorly preserved and only as fragments and incomplete specimens (Figure 9c,d,f), probably due to oxidation of the rock. This is the reason why in situ spores can be only described as the Calamospora type.

Figure 9g–k, Figure 10 and Figure 11a–f

Macrostachya carinata (Germar) Zeiller 1879

Material: Collection of S. Opluštil, No. 861 from the Slaný Mine, Kladno-Rakovník Basin, Moscovian. No. E3641 is from the Mirošov locality, Kladno-Rakovník Basin, Moscovian (Asturian) E1178, E1181 (material type).

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores (Figure 9j and Figure 10a,b) is up to 2 µm and the megaspores (Figure 9h,i,k, Figure 10c–e,i,j, and Figure 11b–f) are up to 3 µm thick. The rays of the trilete mark reach a third to three-quarters of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 9j, Figure 10a,b,e, and Figure 11e,d). The size range (Table 6) of the microspores is 54 (76) 125 µm, and the megaspores are 156 (265) 372 µm (Table 7). The contact area and labrum are 2–4 µm in size and sometimes developed. The in situ microspores can be compared to the dispersed miospore species Calamospora mutabilis, C. cf. pedata, and C. cf. liquida. Megaspores are classified as Calamospora sp. due to their large diameters.

Calamostachys Schimper 1869

Calamostachys germanica Weiss 1976

Figure 11g, Figure 12 and Figure 13a–l

Material: Nos. E1161 and E2409 are from the Třemošná locality, Kladno-Rakovník Basin, Moscovian (Bolsovian); No. E2408 is from the Ignác Mine, Kladno-Rakovník Basin, Moscovian (Bolsovian); No. E3620 is from the Kladno locality, Kladno-Rakovník Basin, Moscovian (Bolsovian); No. E5641 is from the Na Brantech locality, Lubná, Kladno-Rakovník Basin, Moscovian (Bolsovian).

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 2 µm thick. The rays of the trilete mark reach a quarter to a half of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 12a–h and Figure 13c–j). The size range of the microspores is 54 (94) 126 µm, and the megaspores are 180 (357) 684 µm (Table 8). The labrum is 2–4 µm broad, and the dark contact areas (Figure 12a,d,f) are sometimes developed (Figure 12e and Figure 13a). The in situ microspores can be compared to the dispersed miospore species Calamospora microrugosa, C. cf. mutabilis, C. pallida, C. cf. pallida, C. cf. pedata, C. breviradiata, and C. hartungiana; the megaspores are classified as Calamospora sp. due to their large diameters (up to 684 µm).

Calamostachys incrassata Němejc 1953

Figure 13m and Figure 14a–g

Material: No. E1114, is from the V Krčeláku locality, Rako Mine near the Lubná, Kladno-Rakovník Basin, Moscovian (Bolsovian).

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 2 µm thick. The rays of the trilete mark reach a third of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 14a–f). The size range is 51 (73) 88 µm. The labrum is 2–4 µm broad and is sometimes developed. The in situ microspores can be compared to the dispersed miospore species Calamospora cf. hartungiana. Some spores are 54 (75) 94 µm large and are enveloped in a very thin monopseudosaccate layer (Figure 14c–f) and may resemble some forms of the miospores genera Auroraspora Hoffmeister et al., Remysporites Butterworth & Williams, Perotrilites Couper, Phyllothecotriletes Luber, or even Diaphanospora Balme.

Calamostachys longibracteata Němejc 1953

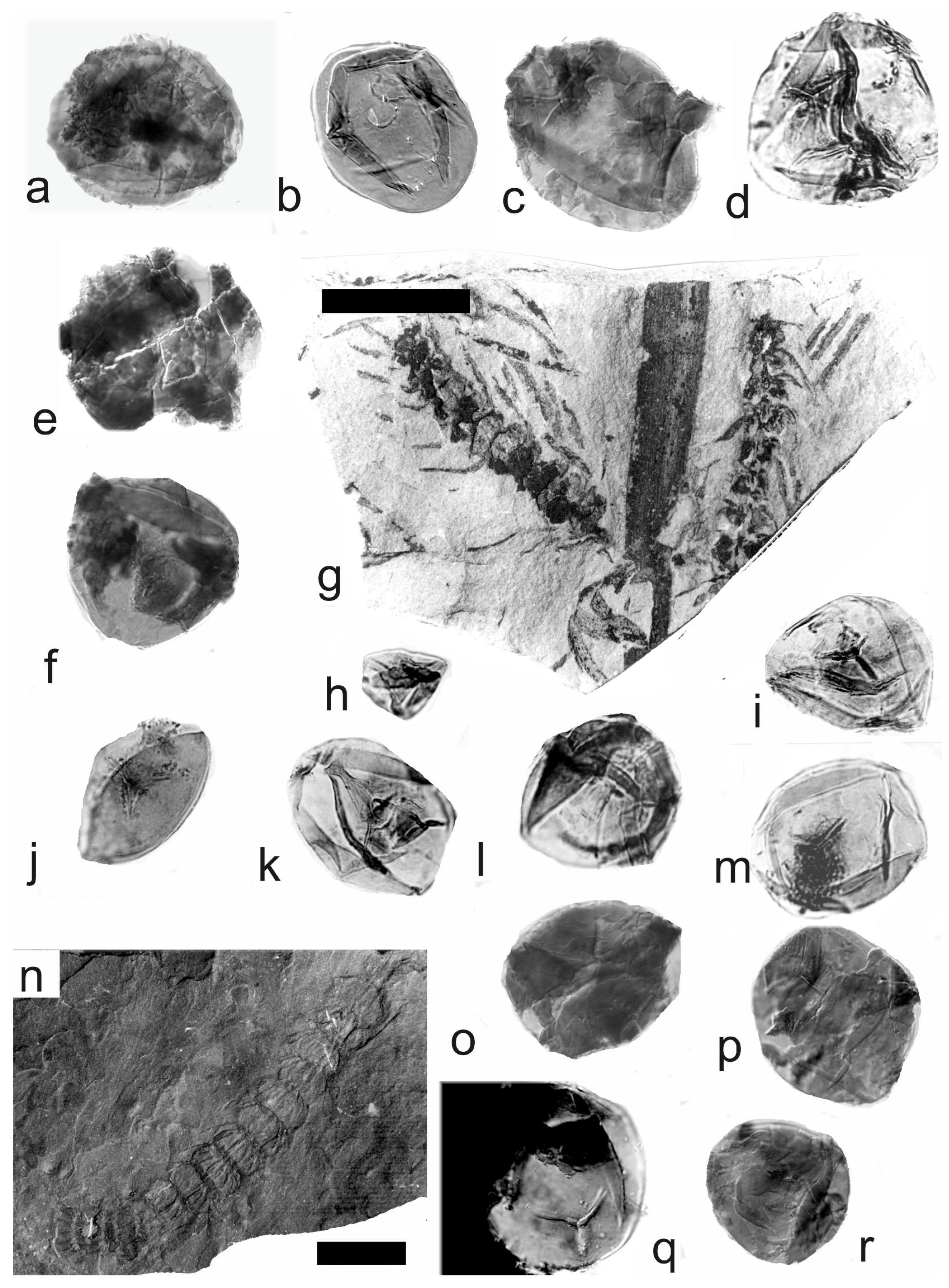

Figure 14h–q and Figure 15a–m

Material: No. E3605 is from the Kladno locality, Kladno-Rakovník Basin, Moscovian (Bolsovian); Nos. E1154 and E1155 are from the Max Mine, Libušín, Kladno-Rakovník Basin, Moscovian (Bolsovian); No. E1163 is from the Mayrau Mine, Vinařice, Kladno-Rakovník Basin, Moscovian (Bolsovian).

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 2 µm thick. The rays of the trilete mark reach a third to two-thirds of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 14a–c,i,j,m–o). The size range is 45 (60) 83 µm (Table 9). Sometimes, the outer perispore-like layer envelopes the central body of the Calamospora type (Figure 14k,l,p). The in situ microspores can be compared to the dispersed miospore species Calamospora microrugosa, C. pallida, and C. pedata.

Calamostachys tuberculata (Sternberg) Jongmans 1911

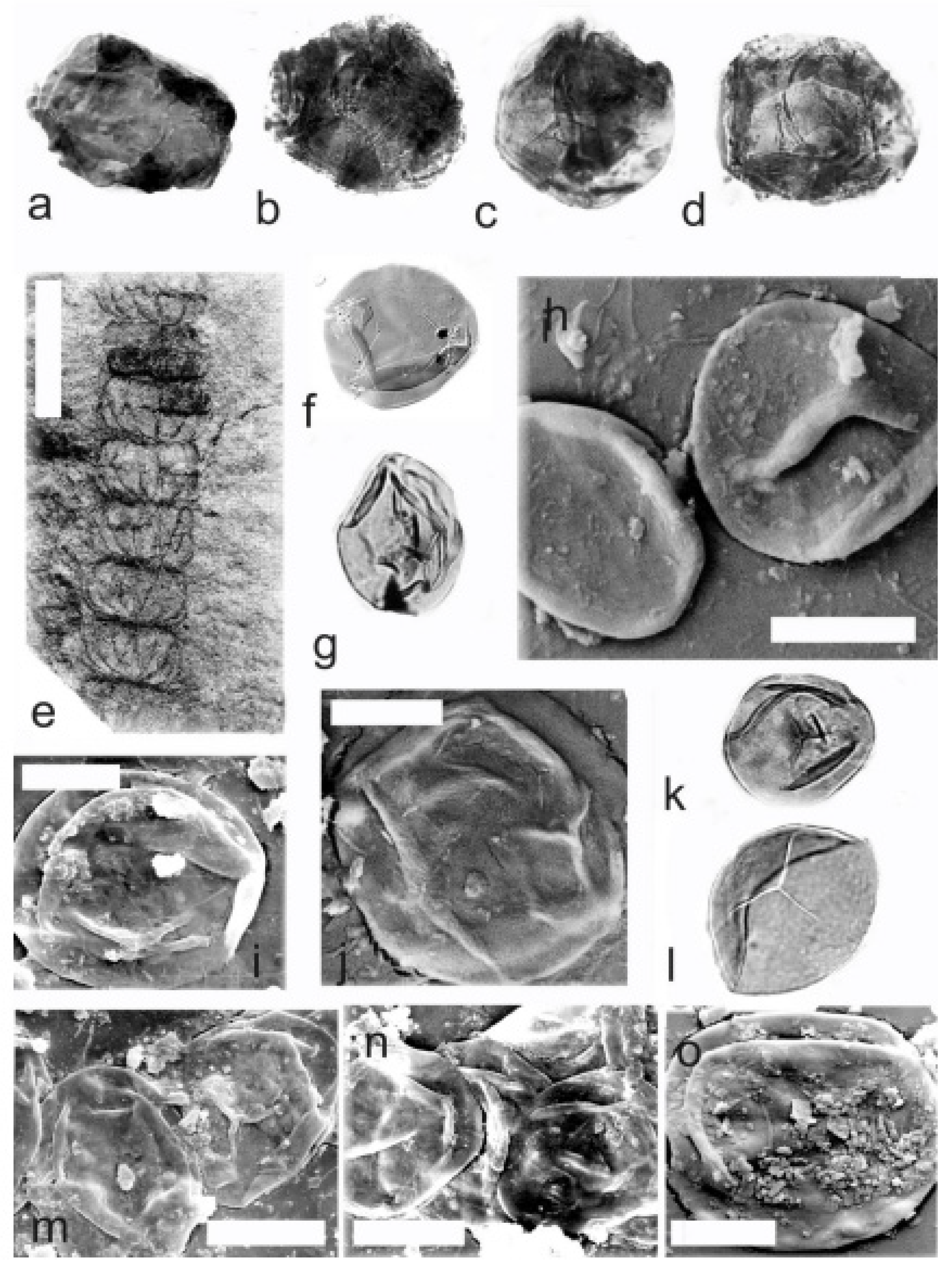

Figure 15n–r and Figure 16

Material: Collection of S. Opluštil: Nos. 1238 and 1951 are from the Kladno locality, Kladno-Rakovník Basin, Kasimovian (Lower Stephanian); No. E3589 is from the Lubná locality, Kladno-Rakovník Basin, Moscovian (Bolsovian); E1152 is from the Mirošov locality, Kladno-Rakovnk Basin, Moscovian (Asturian); No. E1148 is from the Doubrava locality, Kladno-Rakovník Basin, Moscovian (Asturian); No. E1147 is from the Kladno locality, Kladno-Rakovník Basin, Moscovian (Bolsovian).

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 2 µm thick. The rays of the trilete mark reach a third to two-thirds of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 15q and Figure 16c,d). The size range is 30 (61) 110 µm in diameter (Table 10). The labrum is 2–4 µm broad and is sometimes developed. Some specimens have irregular fragments of perisporial tissue (Figure 15o,p,r and Figure 16a–d). The in situ microspores can be compared to the dispersed miospore species Calamospora microrugosa, C. cf. pedata, C. straminea, and C. breviradiata.

Calamostachys cf. ramosa Weiss 1884

Figure 17a–l

Material: No. E3634 is from the Maria-Julia Mine, Žacléř, Intra-Sudetic Basin, Bashkirian (Langsettian-Duckmantian); No. E3627 is from the Ronna Mine, Kladno-Rakovník Basin. Moscovian (Bolsovian).

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 2 µm thick. The rays of the trilete mark reach a third of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 17c,d,h,j,l). The size range is 48 (62) 89 µm in diameter. The in situ microspores can be compared to the dispersed miospore species Calamospora cf. microrugosa. Some specimens are 49 (65) 99 µm in size and are enveloped by a thin monopseudosaccate layer and can resemble some forms of the miospore genera Auroraspora, Remysporites, Perotrilites, Phyllothecotriletes, or even Diaphanospora, and some others have irregular fragments of perisporial tissue (Figure 17e,h,i,k,l).

Calamostachys intermedia Feistmantel 1872

Figure 17m–q

Material: Nos. E2410 and E1174 are from the Stradonice locality near Beroun, Kladno-Rakovník Basin, Moscovian (Bolsovian).

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 2 µm thick. The rays of the trilete mark reach half to two-thirds of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 17n–q). The size range is 34 (85) 137 µm. The labrum is 2–4 µm broad and is sometimes developed (Figure 17n,o). The in situ microspores can be compared to the dispersed miospore species Calamospora cf. liquida and C. cf. pedata.

Calamostachys grandis (Zeiller) Jongmans 1911

Figure 18a–f

Material: Collection of S. Opluštil, No. 1625, from the Kladno locality, Kladno-Rakovník Basin, Moscovian (Bolsovian).

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 2 µm thick. The rays of the trilete mark reach a third to a half of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 18b–f). The size range is 52 (58) 70 µm. The in situ microspores can be compared to the dispersed miospore species Calamospora breviradiata.

Figure 18g–j

Material: Nos. E3638 and E3639 are from the Tuchlovice locality, Kladno-Rakovník Basin, Moscovian (Bolsovian).

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 2 µm thick. The rays of the trilete mark reach three-quarters of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 18i,j). The size range of the microspores is 45 (67) 82 µm, and the megaspores are (Figure 18h) 610 (703) 815 µm. The labrum is 2–4 µm broad and is sometimes developed. The in situ microspores can be compared to the dispersed miospore species Calamospora cf. liquida and C. cf. flexilis, and the megaspores are classified as Calamospora sp. due to their large diameters.

Huttonia Sternberg 1837

Huttonia spicata Sternberg 1837

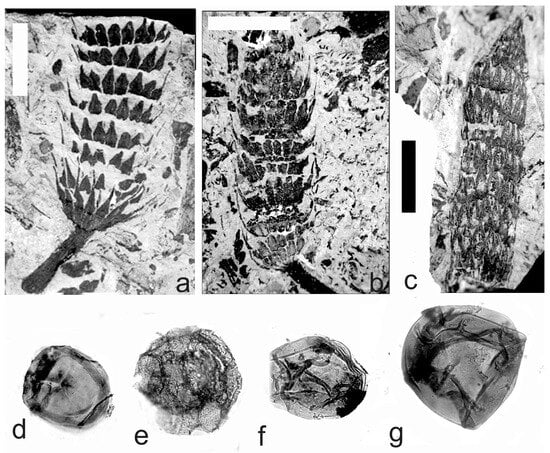

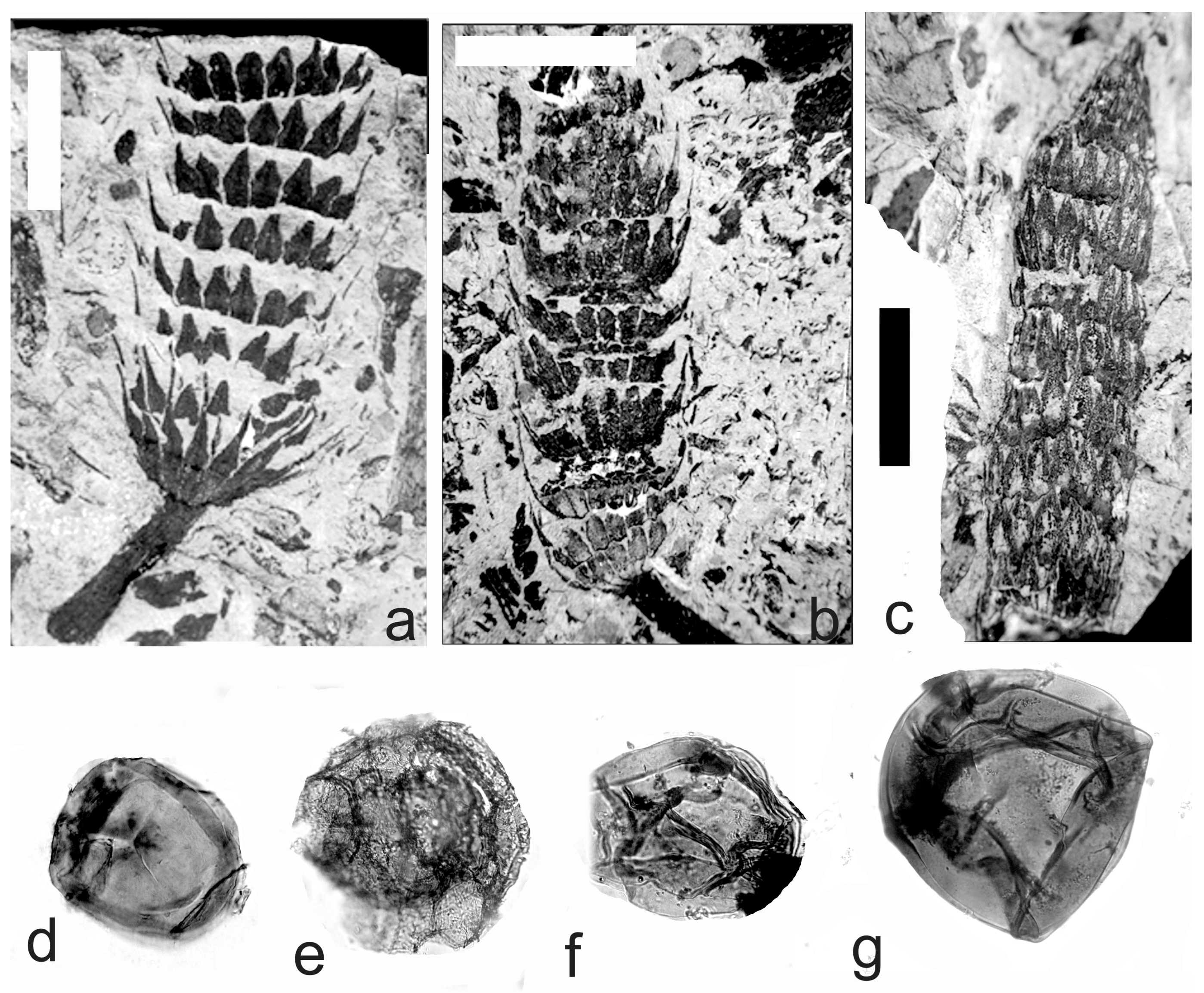

Figure 19

Material: No. E3614 is from the Ovčín locality, Radnice Basin, Moscovian (Bolsovian); Nos. E2419, E75, and E76 are from the Vranovice locality, Kladno-Rakovník Basin, Moscovian (Bolsovian).

A description of the in situ spores is as follows: The trilete spores are circular, subtriangular, or oval in amb. The laevigate exine of the microspores is up to 1–4 µm thick. The rays of the trilete mark reach a third to two-thirds of the radius. Secondary folds of the exine possess variable sizes, shapes, positions, and numbers (Figure 19d,f,g). The size range of the microspores is 66 (84) 114 µm, and the megaspores are (Figure 19g) 115 (166) 240 µm. The labrum is 2–4 µm broad and is sometimes developed. The in situ microspores can be compared to the dispersed miospore species Calamospora cf. breviradiata, C. cf. pedata, and the megaspores are of the Calamospora laevigata type. Some specimens are enveloped in a thin monopseudosacccate exine layer (Figure 18e) and can resemble some forms of miospore genera Auroraspora, Remysporites, Perotrilites, or even Diaphanospora.

5. Calamospora Spores

5.1. Morphological Criteria

The majority of morphological features are important for the classification of dispersed calamospores, but some others, like the thickness of the exine and the sculpture, are not as significant. Some species are morphologically closely similar, and it is possible that they can be synonymous. We can divide the dispersed calamospores into a few main morphological groups, e.g., by contact area, by contact area and labrum, and only by the labrum.

Only a few authors have described a significant number of calamitean cones and their in situ Calamospora micro- and megaspores [11,15,24].

5.1.1. Diameter

The size range given for every dispersed Calamospora species is not a significant criterion for their natural classification. In every Calamospora in situ population, the size range is variable, with specimens ranging from about 20–30 µm to more than 100 µm. One of the morphological species groups shares the same features and may be the only criterion for distinguishing it among different species of dispersed spore species [11]. The average size range of the in situ Calamospora microspores is 24 (75.02) 181 µm, and 147.0 (399.15) 815.0 µm for the Calamospora megaspores. The average difference (i.e., among the smallest and largest spores in a slide) in size is 40 µm. Dispersed calamospores are assigned to miospore and megaspore species based on their size, but the arbitrary size criterion of at least 200 µm for megaspores need not always correspond with their biological function. For example, the spore population from Palaeostachya elongata (E3631) is divided into two size groups. The smaller group ranges in size from 35 to 55 µm, and the larger group ranges from 105 to 150 µm in diameter. Similarly, in another specimen of P. elongata (E1121), spores fall into two size categories: the first category includes spores 35 to 55 μm in diameter, and the second group includes spores ranging from 85 to 140 μm in diameter. The definition of 200 μm or more for megaspores is artificial and may not apply to many Calamospora megaspores. The diameter of calamospores can be influenced by stages of maturity. It seems that calamitean cones matured gradually from apical to basal sporangia. The difference in the diameter for Calamospora from apical and basal sporangia is 5 (12) 16 µm, with an extreme example of cones of Palaeostachya elongata, where it is 79 µm. The difference between relatively immature and mature specimens was about 91 µm on average for the megaspores.

5.1.2. Contact Area

Usually, all spores in a Calamospora in situ population either do or do not have a contact area. This could mean that the occurrence of the contact area may be a reliable criterion for the classification of dispersed calamospores. However, the number of in situ microspores with a contact area is higher in apical than in basal microsporangia, i.e., it implies that this morphological feature may be related to different degrees of maturity because the contact area means that the exine at the proximal pole is thickened and the thickness of the exine may be influenced by stages of maturity. The diameter of the contact area is usually equal to the length of the rays of the trilete marks or maybe sometimes slightly shorter. Sometimes, under SEM, the contact area can be seen to be slightly elevated, i.e., it is slightly thickened proximally. We know (minimally) of ten Pennsylvanian Calamospora species with contact areas with a size range from 34 to 146 µm and with the length of the trilete marks being a third to two-thirds of the radius. This indicates that the size of the contact area is not an easy way to distinguish among Calamospora dispersed species.

5.1.3. Length of Rays of the Trilete Mark

The length of the rays of the trilete mark of a majority of Calamospora specimens is from a third to three-fourths of the radius. Almost all dispersed calamospores fit into this size range. Only a few dispersed Calamospora species have longer rays of the trilete mark, e.g., Calamospora liquida.

5.1.4. Labrum

The presence or absence of a labrum need not be a constant morphological feature. Some spores from one sporangium possess a labrum, but some other spores from the same sporangium do not. A labrum is usually seen well using SEM. Only a few dispersed Calamospora species are defined with a labrum, e.g., C. flava and C. elliptica.

5.1.5. Secondary Folds of Exine

We can imagine Calamospora spores in sporangium like small circular balloons without any folding, only with trilete marks on the exine surface. Due to the fossilization (adpression specimens, not petrifactions), the spore body is compressed, and the thin laevigate exine becomes folded. Different types of folding are purely occasional and not biological. Many dispersed Calamospora species are distinguished based on different foldings. It shows the arbitrary character of the classification of dispersed Calamospora species. For example, C. pedata is typified by one major secondary fold that covers about a half of the spore body; C. flexilis is typical by its folds parallel with the rays of the trilete mark, and C. mutabilis, C. straminea, C. parva, and C. breviradiata have folds parallel with the margins of the spores.

5.1.6. Fragments of Tapetal Tissues

Sometimes, it is possible to observe calamospores with various fragments of probable tapetal tissues on the exine surface. These fragments have irregular sizes, shapes, thicknesss, and numbers. Sometimes, they cover the majority of the exine surface, and sometimes, only a small part. These forms are not comparable to any dispersed miospore species and are more likely related to the ontogenetic stages.

Another feature associated with the ontogenetic stages is a delicate circular monopseudosaccate-like layer that envelopes spores of the Calamospora type. These forms were described in [25] for the Calamostachys calathifera [26], C. williamsoniana [27], Palaeostachya feistmanteli, Calamostachys calathifera, C. binneyana, C. germanica [28,29], C. incrassata, and Huttonia spicata. Here, these forms were observed in spore populations isolated from Palaeostachya feistmanteli, P. distachya, Calamostachys longibracteata, C. carinata and C. cf. ramosa, and Huttonia spicata. Some authors [26,27] compared these forms with some species of miospore genera, such as Auroraspora, Perotrilites, Remysporites, Callialasporites, Phyllothecotriletes, or even Diaphanospora. But they are immature forms, i.e., younger ontogenetic stages, and are not different spore taxa. Fully matured spores lack a monopseudosaccus-like layer.

6. Elaterites

Spores of the genus Elaterites Wilson are very rare in the dispersed record. The genus was established [30] for spores with three elaters enveloping a central body of the Calamospora type. These microspores are very rarely reported [30,31,32,33]. Seventeen species of genera, such as the Calamocarpon Baxter, Calamostachys, Mazostachys, Palaeostachya, Pendulostachys Good, Pothocites Paterson, and Weissistachys Rothwell & Taylor, yielded spores of the Elaterites type from mainly petrified (Table 11) [9,21] and adpression [15] specimens. The size range of these microspores is 38 (78) 280 µm, and almost all of them are 38–112 µm in diameter, except for those isolated from Calamostachys americana Arnold, which is unusually large (140–280 µm) [10]. Some authors [10,12,34] propose that all calamiteans produced microspores of the Elaterites type. We have studied hundreds of palynological slides with in situ Calamospora populations in different stages of ontogeny, macerated from sixty specimens of calamitean cones, and we have never seen any elaters or any elater-like structures or their fragments. It is evident that there is a group of calamitean cones that produced spores of the Elaterites type, but the majority of them yielded only spores of the Calamospora type. Some authors [10,12,24] have proposed that Vestispora represents an ontogenetic stage of Calamospora. The authors of [35] excluded this theory based on some main points, and the authors confirmed their conclusions.

Vestispora is characterized by a homogeneous outermost exine layer and small circular operculum lying above the proximal pole of the central body of the Calamospora type. Elaterite spores lack an operculum, and there is always a space among three elaters, i.e., the outer layer is not homogeneous. Elaters of Elaterites originate from a small triangular area on the distal pole, i.e., opposite to the proximal surface with a small circular operculum. Anything resembling such a triangular distal structure has never been observed on the Calamospora spores described herein. The structure of Elaterites is monotonous, but the sculpture of Vestispora is variable, including laevigate, foveolate, costate, and primary and secondary reticulate.

The second point is that Vestispora and Calamospora spores were produced by different plants. Vestispora was not produced by any calamiteans. The major Vestispora producer was one group of sphenophyllaleans [33]. Another small group of sphenophyllaleans produced calamospores but only Calamospora and not Calamospora and Vestispora together. Calamospora ranges from the Devonian to the Cenozoic, whereas Vestispora-producers range from the Brigantian to late Kasimovian. As a consequence, almost all Vestispora-producing sphenophyllaleans are good stratigraphical markers, but calamitean spores are not. Elaterites have an even shorter stratigraphical range, ranging through only a part of the Pennsylvanian [36]. Almost all Vestispora-producing sphenophyllaleans are good stratigraphical markers [37], but calamiteans are not. Elaterites have an even shorter stratigraphical range, only a part of the Pennsylvanian [35].

The third point concerns different ultrastructure sections of the exine (TEM) of Elaterites [38] and Vestispora [39]. Elaters of Elaterites are three-layered [39], while the exospore of Vestispora is only bi-layered [40].

When in situ, Elaterites are reported only from coal-ball calamitean cones and not from adpressions. The only roughly similar spore structures are hygroscopic elaters of the recent Equisetum spores, which show that their ultrastructure is different. The sporoderm of Equisetum spores has an endospore, exospore, perispore, and bi-layered elaters [38], but the Elaterites are only bi-layered, and elaters have three layers.

Vestispora spores have a circular laevigate central body with trilete marks and outer exospores with a circular operculum. Sometimes, in palynological slides with in situ Vestispora, it is possible to observe various degrees of mechanical damage in the exospores and that the central body is of the Calamospora type. However, Vestispora is not a relatively immature Calamospora because we have never observed any ontogenetic stages of Vestispora. Table 11 shows all the Elaterites producing calamitean plants.

7. Parent Plants

The main Calamospora producers are calamitean cones, especially the genera Calamostachys, Palaeostachya, and Macrostachya. Minor producers of Calamospora are the genera Pothocites, Paracalamostachys Weiss, Huttonia, Weissistachys, Cingularia Weiss, Pendulostachys, and Calamocarpon. Non-calamitean producers are sphenophyllaleans (Table 12) and noeggerathialeans. Sphenophyllaleans and calamiteans are closely related. The noeggerathialean genus Discinites K. Feistmantel produced micro- and megaspores of the Calamospora type and Noeggerathiaestrobus O. Feistmantel-only Calamospora megaspores (Table 12).

Calamospora was produced by several parent plant species of different affinity [7], but its main producers were Pennsylvanian calamiteans. The first record of the in situ spores was interpreted as Calamospora (Calamospora atava (Naumova) McGregor and C. pannucea Richardson) or Retusotriletes type) and is known as the zosterophyll species Sawdonia acanthotheca Gensel et al. [41]. Note that Retusotriletes is curvaturate and, therefore, distinct from Calamospora and that most of the zosterophylls possess Retusotriletes-type spores. Calamospora-type spores, which are reported in some zosterophylls, such as S. acanthotheca, may be immature. From the Paleozoic plants of possible lycophyte affinity, we know only one record of an in situ Calamospora, Mississippian genus Eleutherophyllum Stur [42].

Other non-calamitean Calamospora records [7] include the Triassic Bustia ludowici Grauvogel-Stamm, Echinostachys cylindrica Schimper and Mougeot, E. oblongus Brongniart (Calamospora keuperiana and C. mesozoica types), E. verticillata Grauvogel-Stamm (Calamospora tener type), Equisetostachys nathorstii Halle, E. suecius (Nathorst) Halle (Calamospora mesozoica type), and Devonian Protobarinophyton obrutschevii Ananiev (Calamospora atava type.

8. Conclusions

A comparison of hundreds of palynological slides with in situ populations, isolated from sixty-one specimens of Pennsylvanian calamitean cones belonging to sixteen species of four genera, allows the definition of morphological variations of in situ Calamospora. The classification of dispersed Calamospora is purely arbitrary because all morphological criteria, including the diameter, thickness of exine, number, shape, position, and size of the secondary folds of the exine, as well as the length of rays of the trilete marks, are variable within one in situ Calamospora population. Some features are variable, and others are related to different ontogenetic stages.

The calamitean cones matured gradually from the base to the apex, as demonstrated by the different diameters of spores and a more frequent occurrence of contact areas on the spores isolated from basal and apical sporangia. The calamitean cones were bisporangiate, and an arbitrary size criterion for the division of micro- and megaspores (200 µm) may not be biologically meaningful. Some cones yielded spores with a bimodal size distribution, so even though the larger spores were less than 200 μm, they probably represent megaspores because the size in these populations exhibits a bimodal curve.

There is no evidence that Elaterites and Vestispora are ontogenetic stages of Calamospora, as demonstrated by the morphological and stratigraphical differences. However, it is evident that some Paleozoic calamitaleans produced not only Calamospora but also the Elaterites spores.

The majority of Paleozoic Calamospora producers were calamitean cones, mainly the genera Calamostachys, Palaeostachya, and Macrostachya. Sphenophyllaleans were a minor source of Calamospora. Some noeggerathialeans also produced Calamospora.

Author Contributions

Conceptualization, J.B.; Methodology, J.B.; Formal analysis, J.B.; Investigation, J.B. and J.V.F.; Data curation, J.V.F.; Project administration, J.V.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Grant Agency of the Czech Republic (19-06728S) and the research plan of the Institute of Geology of the Czech Academy of Sciences (RVO67985831).

Institutional Review Board Statement

No applicable.

Informed Consent Statement

No applicable.

Data Availability Statement

Material including plant specimens is stored in the National Museum, Prague, Czech Republic and palynological slides are in the Institute of Geology, Academy of Sciences of the Czech Republic, Prague, Czech Republic.

Acknowledgments

We are much obliged to C. Cleal, University of Bristol, UK, for the linguistic revision and helpful remarks.

Conflicts of Interest

The authors declare no conflicts of interest.

References

Bonamo, P.M.; Banks, H.P. Calamophyton in the Devonian of New York state. Am. J. Bot. 1965, 53, 778–791. [Google Scholar] [CrossRef]
Feng, S.N.; Ma, J. Studies on the genus Hamatophyton. Acta Bot. Sin. 1991, 33, 140–146, (In Chinese with English Abstract). [Google Scholar]
Huang, P.; Liu, L.; Deng, Z.; Basinger, J.F.; Xue, J. Xihuphyllum, a novel sphenopsid plant with large laminate leaves from the Upper Devonian of South China. Palaeogeogr. Palaeoclimatol. Palaeoecol. 2017, 466, 7–20. [Google Scholar] [CrossRef]
Schweitzer, H.J. Die Oberdevon-flora der Bäreninsel. I. Pseudobornia ursina. Nathorst. Palaeontographica 1967, B123, 116–137. [Google Scholar]
Taylor, T.N.; Taylor, E.L.; Krings, M. Paleobotany: The Biology and Evolution of Fossil Plants, 2nd ed.; Academic Press: Cambridge, MA, USA, 2009; p. 1231. [Google Scholar]
Pryer, C.M.; Schneider, H.; Cranfill, R.; Wolf, P.G.; Hunt, J.S.; Sipes, S.D. Horsetails and ferns are a monophyletic group and the closest living relatives to seed plants. Nature 2001, 409, 618–622. [Google Scholar] [CrossRef]
Nishiyama, T. Evolutionary developmental biology of nonflowering land plants. Int. J. Plant Sci. 2007, 168, 37–47. [Google Scholar]
Balme, B.A. Fossil in situ spores and pollen grains: An annotated catalogue. Rev. Palaeobot. Palynol. 1995, 87, 81–323. [Google Scholar]
Schopf, J.M.; Wilson, L.R.; Bentall, R. An annotated synopsis of Paleozoic fossil spores and the definition of generic groups. Ill. St. Geol. Surv. Rep. Investig. 1944, 91, 1–82. [Google Scholar]
Trivedi, G.K. Palynofloral diversity in the Kopili Formation (Late Eocene) from north-east India. Acta Mus. Nat. Prag. Ser. B Hist. Nat. 2009, 65, 9–24. [Google Scholar]
Good, C.W. Taxonomic and stratigraphic significance of the dispersed spore genus Calamospora. In Geobot; Romans, R.C., Ed.; Plenum: New York, NY, USA, 1977; pp. 43–64. [Google Scholar]
Bek, J. Spore Populations of Some Plants of Groups Lycophyta, Sphenophyta, Pteridophyta and Progymnospermophyta from Carboniferous Limnic Basins of the Czech Republic. Ph.D. Thesis, Geological Institute of the Academy of Sciences of the Czech Republic, Prague, Czech Republic, 1998. (In Czech). [Google Scholar]
Good, C.W.; Taylor, T.N. The morphology and systematic position of Calamitean elater-bearing spores. Geosci. Man. 1975, 11, 133–139. [Google Scholar] [CrossRef]
Němejc, F. Taxonomical studies on the fructifications of the Calamitaceae collected in the coal districts of Central Bohemia. Sbor. Nár. Mus. B 1953, 9, 1–62. [Google Scholar]
Boureau, É. Traité de Paléobotanique. Tome III. Sphenophyta, Noeggerathiophyta; Masson et Cie: Paris, France, 1964; pp. 1–545. [Google Scholar]
Hartung, W. Die Sporenverhaltnisse der Calamariaceen. Arb. Inst. Paläobot. Petrogr. Brenn. 1933, 3, 95–149. [Google Scholar]
Pešek, J.; Holub, V.; Jaroš, J.; Malý, L.; Martínek, K.; Prouza, V.; Spudil, J.; Tásler, R. Geologie a Ložiska Svrchnopaleozoických Limnických Pánví ČESKÉ Republiky; Český Geologický Ústav: Praha, Czech Republic, 2001. [Google Scholar]
Opluštil, S.; Schmitz, M.; Cleal, C.J.; Martínek, K. A review of the Middle-Late Pennsylvanian west European regional substages and floral biozones, and their correlation to the Global Time Scale based on new U-Pb ages. Earth Sci. Rev. 2016, 154, 301–335. [Google Scholar] [CrossRef]
Tásler, R.; Čadková, Z.; Dvořák, J.; Fediuk, F.; Chaloupský, J.; Jetel, J.; Kaiserová-Kalibová, M.; Prouza, V.; Skřivánková-Hrdličková, D.; Středa, J.; et al. Geology of the Bohemian Part of the Intra-Sudetic Basin; Academia: Praha, Czech Republic, 1979; p. 296, (In Czech with English summary). [Google Scholar]
Opluštil, S.; Šimůnek, Z.; Pšenička, J.; Bek, J.; Libertín, M. A 25 million year macrofloral record (Carboniferous–Permian) in the Czech part of the Intra-Sudetic Basin; biostratigraphy, plant diversity and vegetation patterns. Rev. Palaeobot. Palynol. 2017, 244, 241–307. [Google Scholar] [CrossRef]
Punt, W.; Hoen, P.P.; Blackmore, S.; Nilsson, S.; LeThomas, A. Glossary of pollen and spore terminology. Rev. Palaeobot. Palynol. 2007, 143, 1–81. [Google Scholar] [CrossRef]
Potonié, R.; Kremp, G. Die Gattungen der paläozoischen Sporae dispersae und ihre Stratigraphie. Geo Jahr 1954, 69, 111–193. [Google Scholar]
Potonié, R.; Kremp, G. Die Sporae dispersae des Ruhrkarbons, ihre Morphographie und Stratigraphie mit Ausblicken auf Arten anderer Gebiete und Zeitabschnitte. Teil I. Palaeontogr. B 1955, 98, 65–121. [Google Scholar]
Smith, A.H.; Butterworth, M.A. Miospores in the coal seams of the Carboniferous of Great Britain. Spec. Pap. Palaeontol. 1967, 1, 1–324. [Google Scholar]
Good, C.W. Pennsylvanian-age calamitean cones, elater-bearing spores, and associated vegetative organs. Palaeontogr. B 1975, 153, 28–99. [Google Scholar]
Barthel, M. Die Rotliegendflora Sachsens. Abh. Staat. Mus. Miner. Geol. Dresden. 1976, 24, 1–190. [Google Scholar]
Serret, L.; Brousmiche, C. Quelques fructifications de Calamitaceae (Arthrophytes recoltées dans le bassin houiller sarro-lorrain (organisation—Sporae in situ). Palaeontogr. B 1987, 203, 135–179. [Google Scholar]
Coquel, R.; Brousmiche-Delcambre, C. Comparaisons spores in situ-spores dispersées chez quelques Equisétales, Marattiales et Lépidodendrales du Carbonifere supérieur: Considérations sur l‘utilisation de morphoespeces en Paléopalynologie. Rev. Paléobiol. 1996, 15, 121–154. [Google Scholar]
Libertín, M.; Bek, J. Proposal of the new classification of Palaeozoic sphenophyllalean cones. In Proceedings of the Abstracts of 7th European Palaeobotany Palynology Conference, Prague, Czech Republic, 6–11 September 2006; p. 82. [Google Scholar]
Libertín, M.; Bek, J. Bolsovian Calamostachys incrassata (Němejc) emend. and its spores from the Kladno-Rakovnik Basin of the Czech Republic. Bull. Geosci. 2006, 81, 207–213. [Google Scholar] [CrossRef]
Wilson, L.R. Elater-bearing spores from the Pennsylvanian strata of Iowa. Am. Midl. Nat. 1943, 30, 518–523. [Google Scholar] [CrossRef]
Wilson, L.R. Palynological assemblage resemblance in the Croweburg coal of Oklahoma. Geol. Notes 1964, 24, 138–143. [Google Scholar]
Peppers, R.A. Correlation and palynology of coals in the Carbondale and Spoon Formations (Pennsylvanian) of the northeastern part of the Illinois Basin. Ill. Geol. Surv. Bull. 1970, 93, 1–173. [Google Scholar]
Ravn, R.L. An Introduction to the Stratigraphic Palynology of the Cherokee Group (Pennsylvanian) Coals of Iowa; Iowa Geological Survey: Iowa City, IA, USA, 1979; Volume 6, p. 117. [Google Scholar]
Good, C.W.; Taylor, T.N. The establishment of Elaterites triferens spores in Calamocarpon insignis microsporangia. Trans. Am. Microsc. Soc. 1974, 93, 148–151. [Google Scholar] [CrossRef]
Ravn, R.L. Paleobotanical relationship and stratigraphic importance of the Carboniferous miospore genus Vestispora and questionably allied genera. J. Paleontol. 1983, 57, 568–580. [Google Scholar]
Bek, J. Paleozoic in situ spores and pollen. Sphenopsida. Palaeontogr. B 2021, 301, 141–201. [Google Scholar] [CrossRef]
Bek, J.; Dimitrova, T. Taxonomy and stratigraphic importance of the Carboniferous miospore genus Vestispora. Rev. Palaeobot. Palynol. 2013, 174, 122–135. [Google Scholar] [CrossRef]
Kurrmann, M.H.; Taylor, T.N. Comparative ultrastructure of the sphenophyte spores Elaterites and Equisetum. Grana 1984, 23, 109–116. [Google Scholar] [CrossRef]
Lugardon, B.; Brousmiche-Delcambre, C. Exospore ultrastructure in Carboniferous sphenopsids. In Ultrastructure of Fossil Spores and Pollen; Kurmann, M.H., Doyle, J.A., Eds.; The Royal Botanic Gardens: Kew, London, 1994; pp. 53–66. [Google Scholar]
Gensel, P.G.; Andrews, H.N.; Forbes, W.H. A new species of Sawdonia with notes on the origin of microphylls and lateral sporangia. Bot. Gaz. 1975, 136, 50–62. [Google Scholar] [CrossRef]
Remy, R.; Remy, W. Eleutherophyllum drepanophyciforme n. sp. aus Namur A von Niederschlesien. Sencken. Lethaia 1960, 41, 89–100. [Google Scholar]

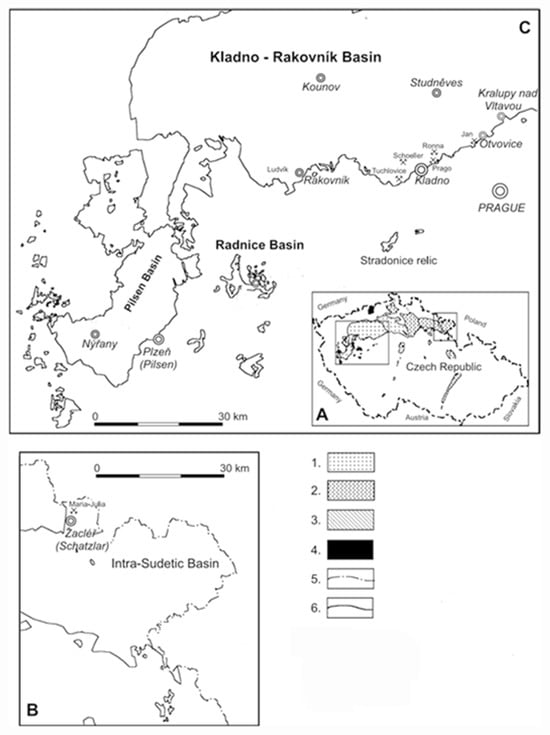

Figure 1. (A) Late Palaeozoic continental basins of the Czech Republic. (B) Position of localities in the Intra-Sudetic Basin. (C) Localities in the basins in central and western Bohemia. Explanation: 1. Central and Western Bohemian Upper Palaeozoic Basins; 2. Lusatian Upper Palaeozoic Basins; 3. Grabens; 4. Krušné Hory Upper Palaeozoic; 5. state border; and 6. present-day limit of continental basins.

Figure 2. Palaeostachya ettingshausenii Kidston. (a–h) Specimen No. E3622. Maria Julia Mine near Třemošín, Intra-Sudetic Basin, Stephanian. (a) General view. Scale bar 20 mm. (b,c) In situ megaspores of the Calamospora type. All ×100. (d,e) In situ microspores of the Calamospora type. Note the number of irregular folds of exine. All ×500. (f) In situ microspore of the Calamospora type. Note that the rays of the trilete mark reach minimally three-quarters of the radius. ×500. (g) In situ microspore of the Calamospora type. Note that the rays of the trilete mark reach about three-quarters of the radius. ×500. (h) Immature microspore. ×500. (i) In situ microspore of the Calamospora type. ×500. (j) General view of specimen No. E2414. Mayray Mine near Kladno, Kladno-Rakovník Basin, Moscovian. Scale bar 20 mm. (k,l) In situ microspores of the Calamospora type. ×500.

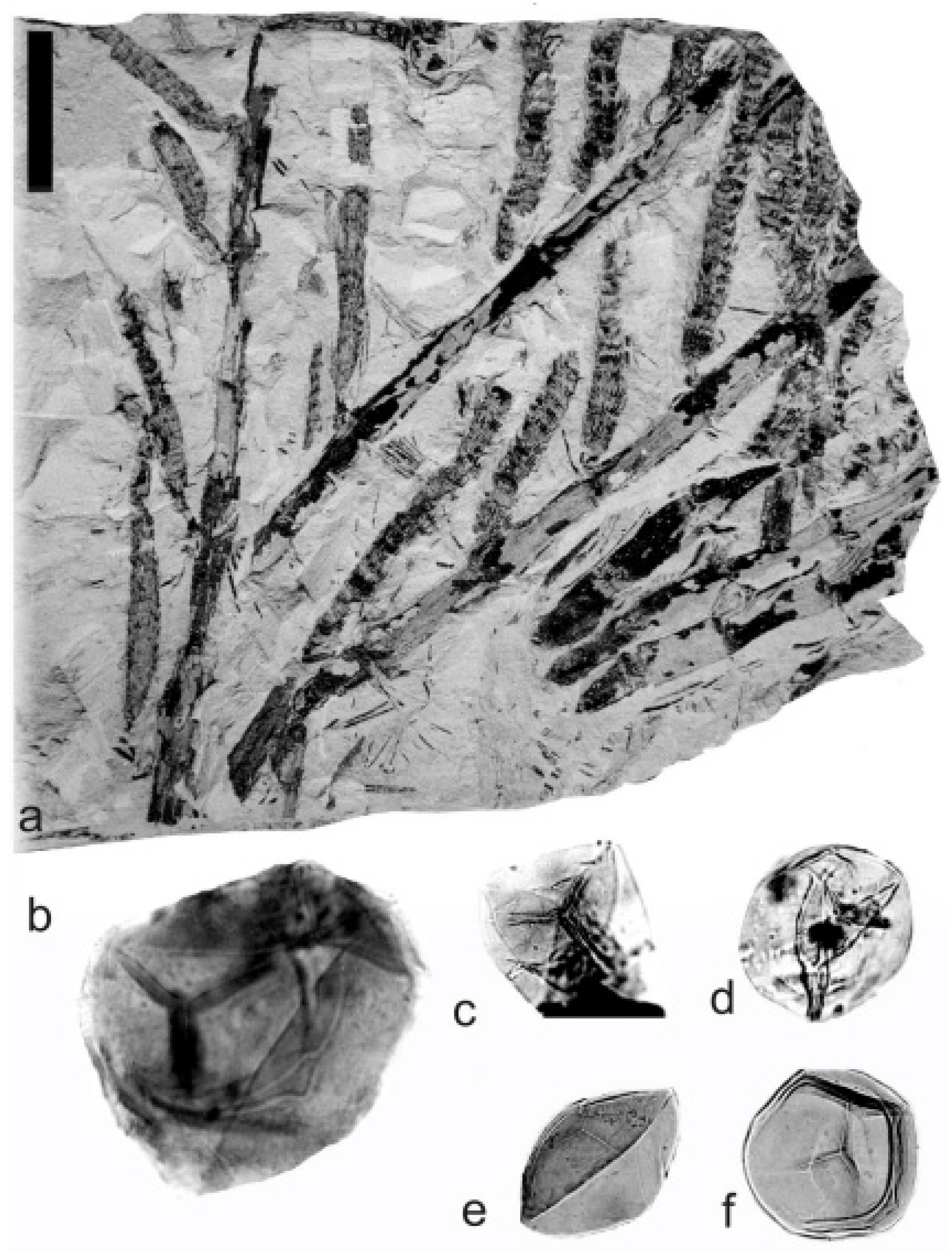

Figure 3. Palaeostachya ettingshausenii Kidston. (a) General view of the whole specimen No. E3624, Mayray Mine near Kladno, Kladno-Rakovník Basin, Moscovian. Natural size. (b) Megaspore of the Calamopora type. ×100. (c–f) Microspores of the Calamospora type. (e) Note one major fold of exine covers the spore body. (f) Note a secondary fold of exine parallels the margin of the spore. All ×500.

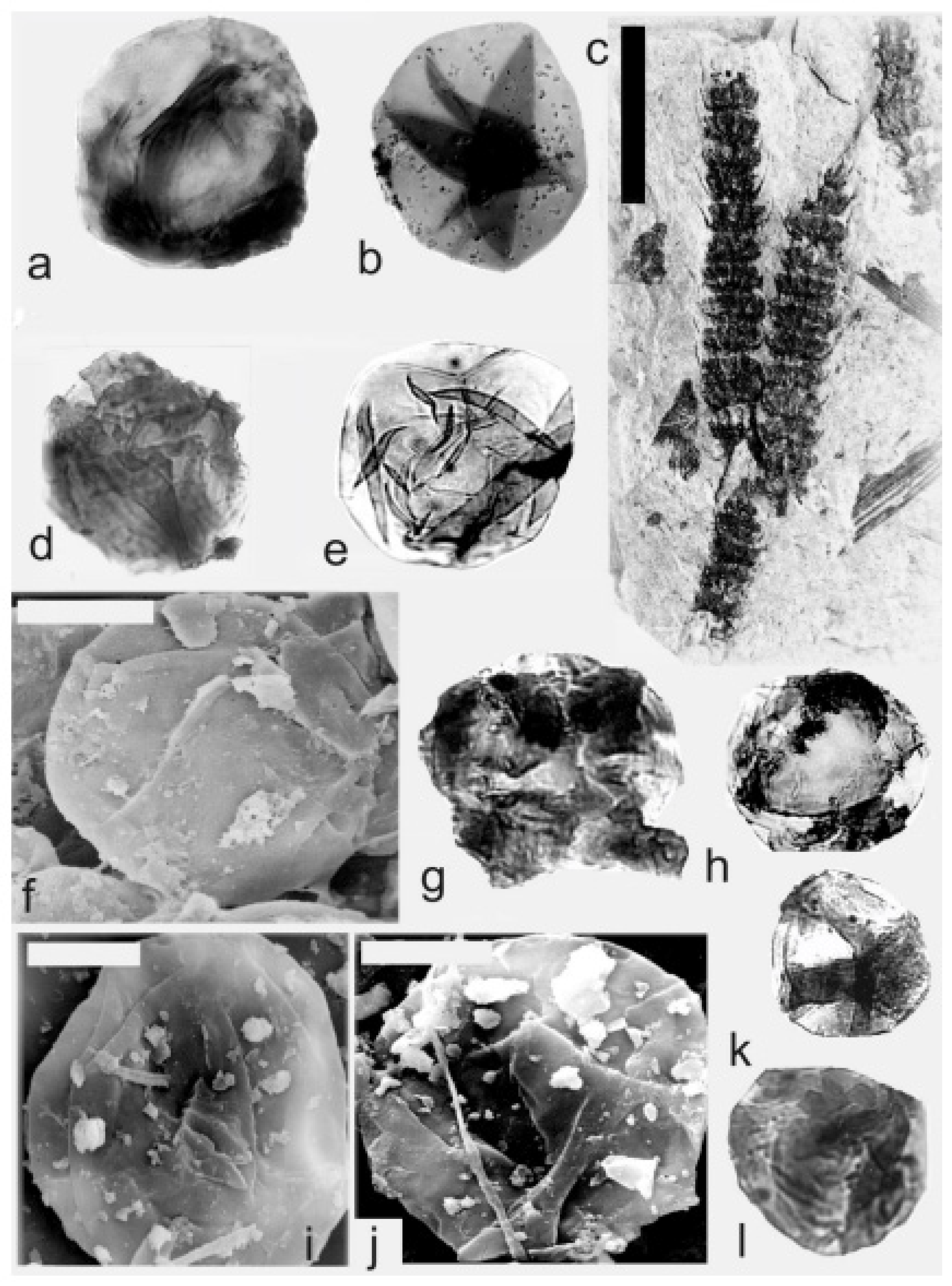

Figure 4. Palaeostachya ettingshausenii Kidston. (a,b) In situ megaspores of the Calamospora type isolated from specimen No. 3624, Mayray Mine near Kladno, Kladno-Rakovník Basin, Moscovian. (c) Specimen No. E935, Tuchlovice Mine near Kladno, Kladno-Rakovník Basin. Scale bar 175 mm. (d,g,h,k,l) In situ microspores of the Calamospora type. Note that irregular fragments of probable tapetal tissues cover the microspore body. All ×500. (e) In situ microspore of the Calamospora type. ×500. (f,i,j) In situ microspores of the Calamospora type. SEM. Scale bars 20 µm.

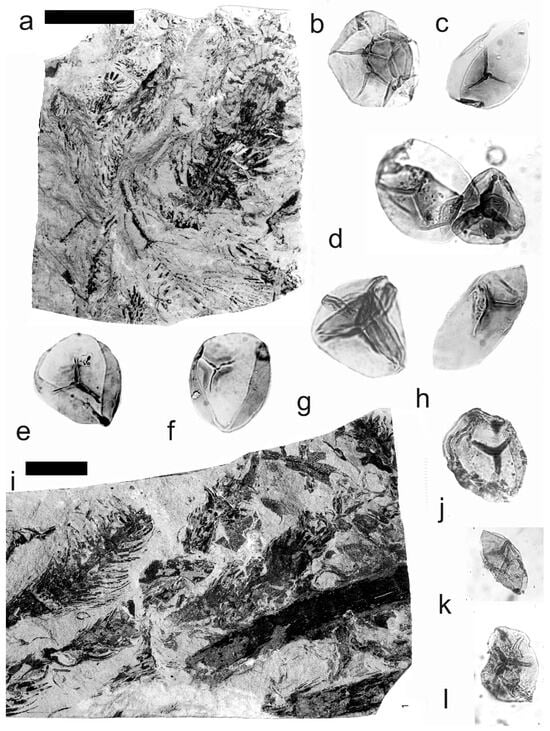

Figure 5. Palaeostachya distachya (Sternberg) Jongmans. (a) Specimen No. E1132, Ronna Mine near Kladno, Kladno-Rakovník Basin, Moscovian. Scale bar 20 mm. (b) In situ microspore of the Calamospora type. Note the dark contact area. ×500. (c) In situ microspore of the Calamospora type. Note that one major fold covers the microspore body. ×500. (d) Two in situ microspores of the Calamospora type. The left specimen represents a mature microspore, while the right specimen is relatively immature. ×500. (e) In situ microspore of the Calamospora type. Note the two major folds of exine. ×500. (f) In situ microspore of the Calamospora type. Note the dark, thickened labrum. ×500. (g) In situ microspore of the Calamospora type. ×500. (h) In situ microspore of the Calamospora type. Note the dark labrum. ×500. (i) Specimen No. E3608, Hnidousy near Kladno, Kladno-Rakovník Basin, Moscovian. Scale bar 20 mm. (j) In situ microspore of the Calamospora type. Note the dark, thin labrum. ×500. (k,l) In situ microspores of the Calamospora type. All ×500.

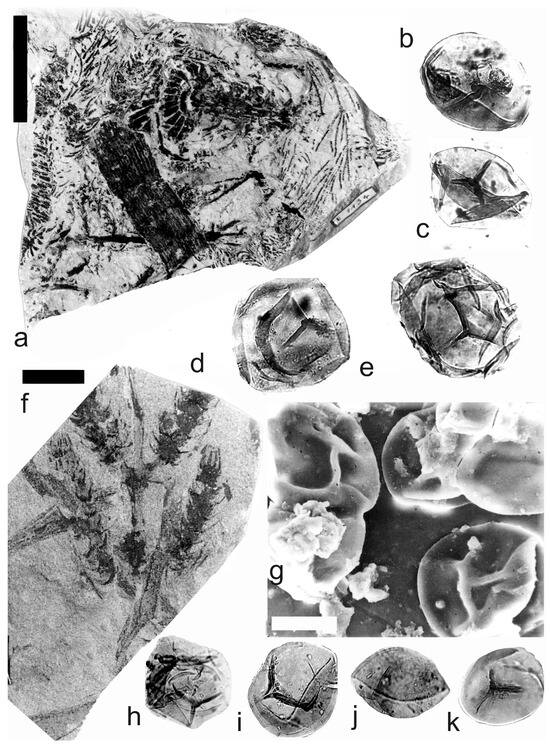

Figure 6. (a–e) Palaeostachya distachya (Sternberg) Jongmans. (a) Specimen No. E3608, Hnidousy near Kladno, Kladno-Rakovník Basin, Moscovian. Scale bar 20 mm. (b) In situ microspore of the Calamospora type. Note that one major fold covers the microspore body. ×500. (c) In situ microspore of the Calamospora type. Note the dark labrum. ×500. (d,e) In situ microspores of the Calamospora type. All ×500. (f–k) Palaeostachya pedunculata Williamson. (f) Specimen No. E1125, Ronna Mine Kladno, Kladno-Rakovník Basin, Moscovian. Scale bar 10 mm. (g) In situ microspores of the Calamospora type. Note the elevated labrum. SEM. Scale bar 25 µm. (h–k) In situ microspores of the Calamospora type. All ×500.

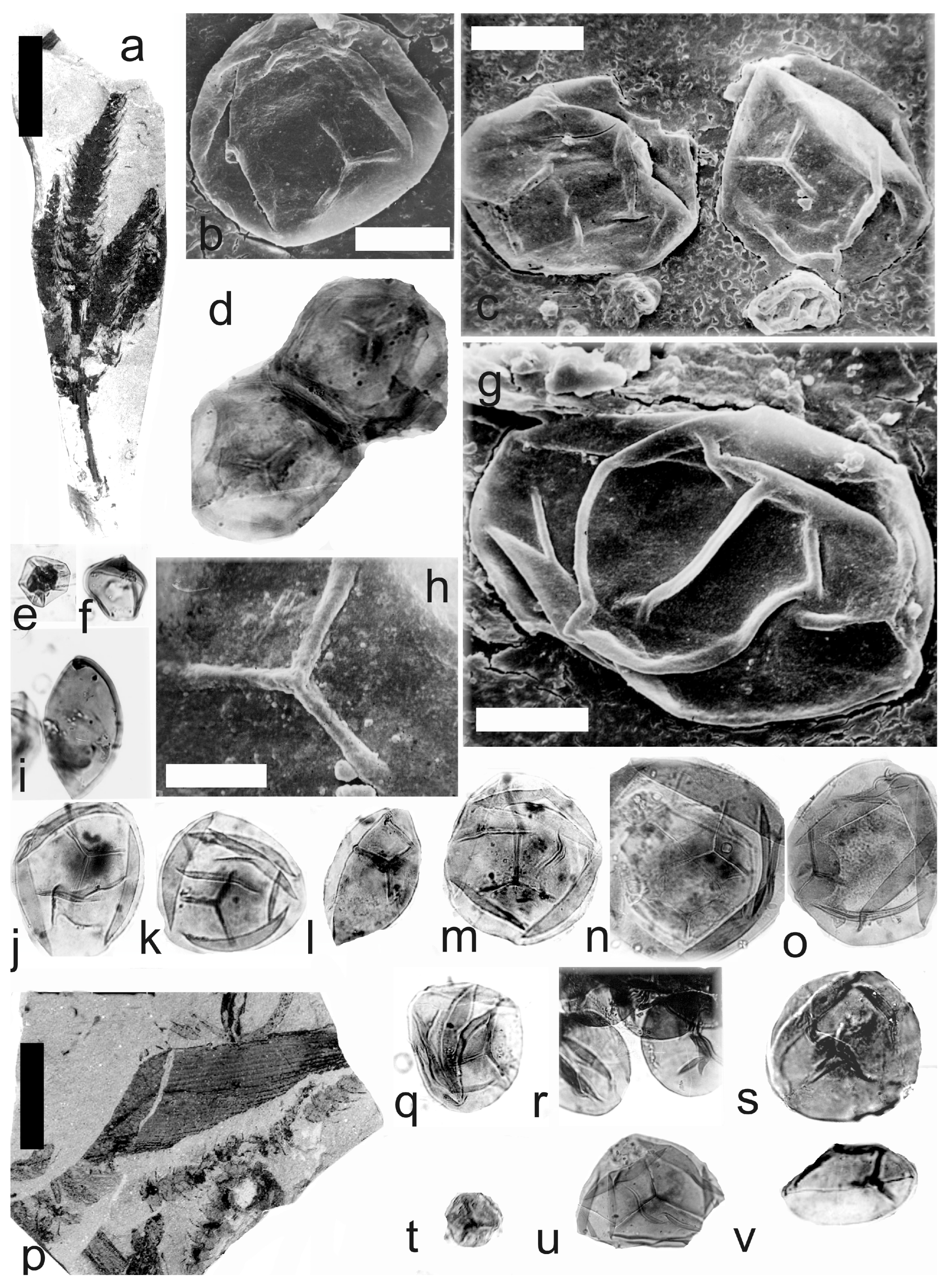

Figure 7. (a–o) Palaeostachya elongata (Presl) Weiss. (a) Specimen No. E1122, Kladno Locality, Kladno-Rakovník Basin, Moscovian. Scale bar 20 mm. (b,c) In situ microspores of the Calamospora type. SEM, scale bar 20 µm. (d) Two in situ microspores of the Calamospora type with fragments probably of tapetal tissues. ×500. (e,f) Two immature in situ microspores. All ×500. (g) In situ microspore of the Calamospora type. SEM, scale bar 20 µm. (h) Elevated labrum of in situ microspore of the Calamospora type. Detail of Figure (c) (right specimen). SEM, scale bar 10 µm. (i) In situ microspore of the Calamospora type. Note one major fold covering the body. ×500. (j,k,m–o) In situ microspores of the Calamospora type. Note the dark contact area. All ×500. (l) In situ microspore of the Calamospora type. Note one major fold covers half of the spore body. ×500. (p–v) Palaeostachya gracillima Weiss. (p) Specimen No. E1119. Kladno locality, Kladno-Rakovník Basin. Moscovian. Scale bar 20 mm. (q–s,u) In situ microspores of the Calamospora type. All ×500. (t) Immature in situ microspore. ×500. (v) In situ microspore of the Calamospora type. Note one major fold of the exine covers half of the spore body. ×500.

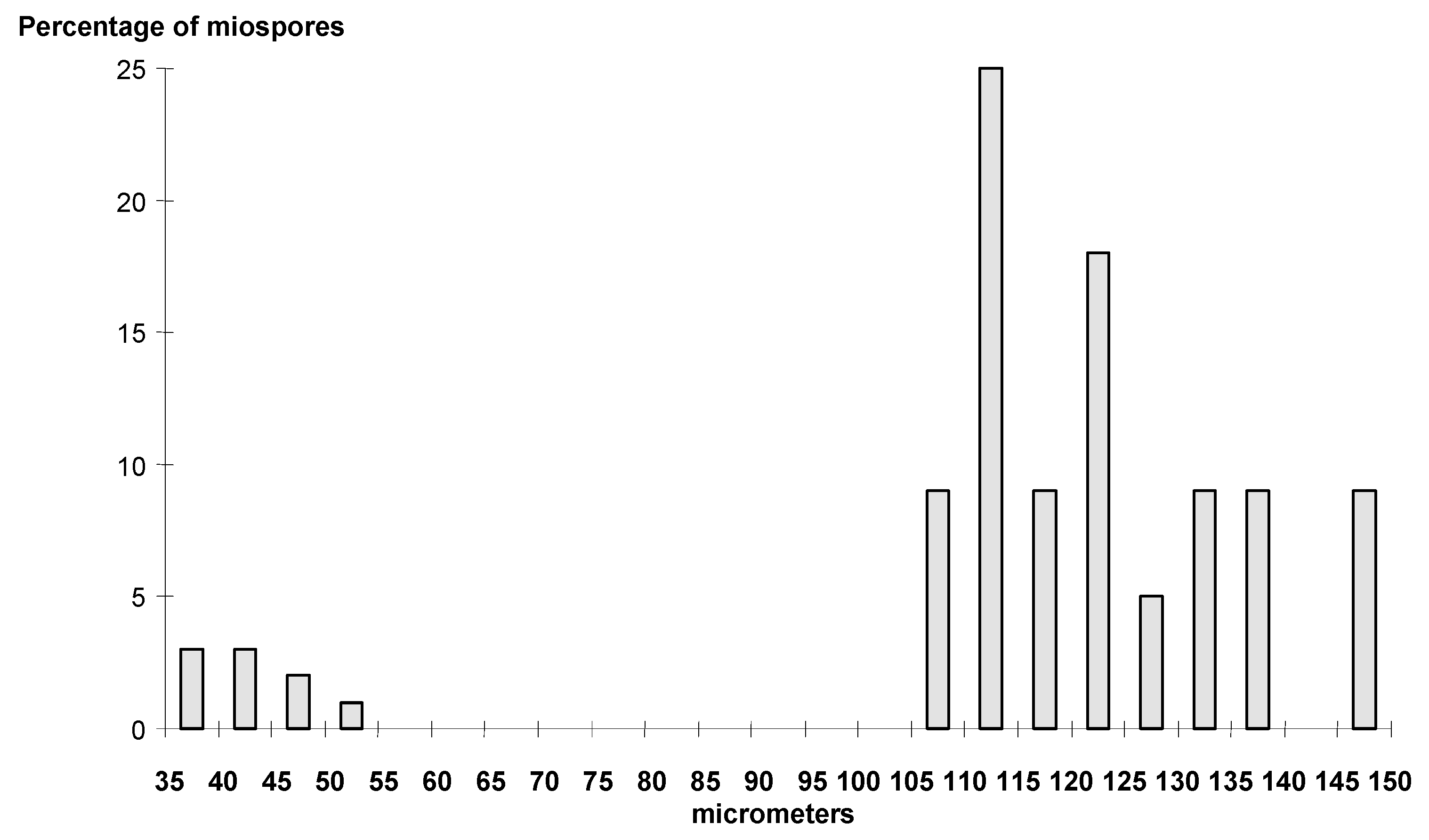

Figure 8. Size distribution of the in situ spores of Palaeostachya elongate (Presl) Weiss, (E 3631).

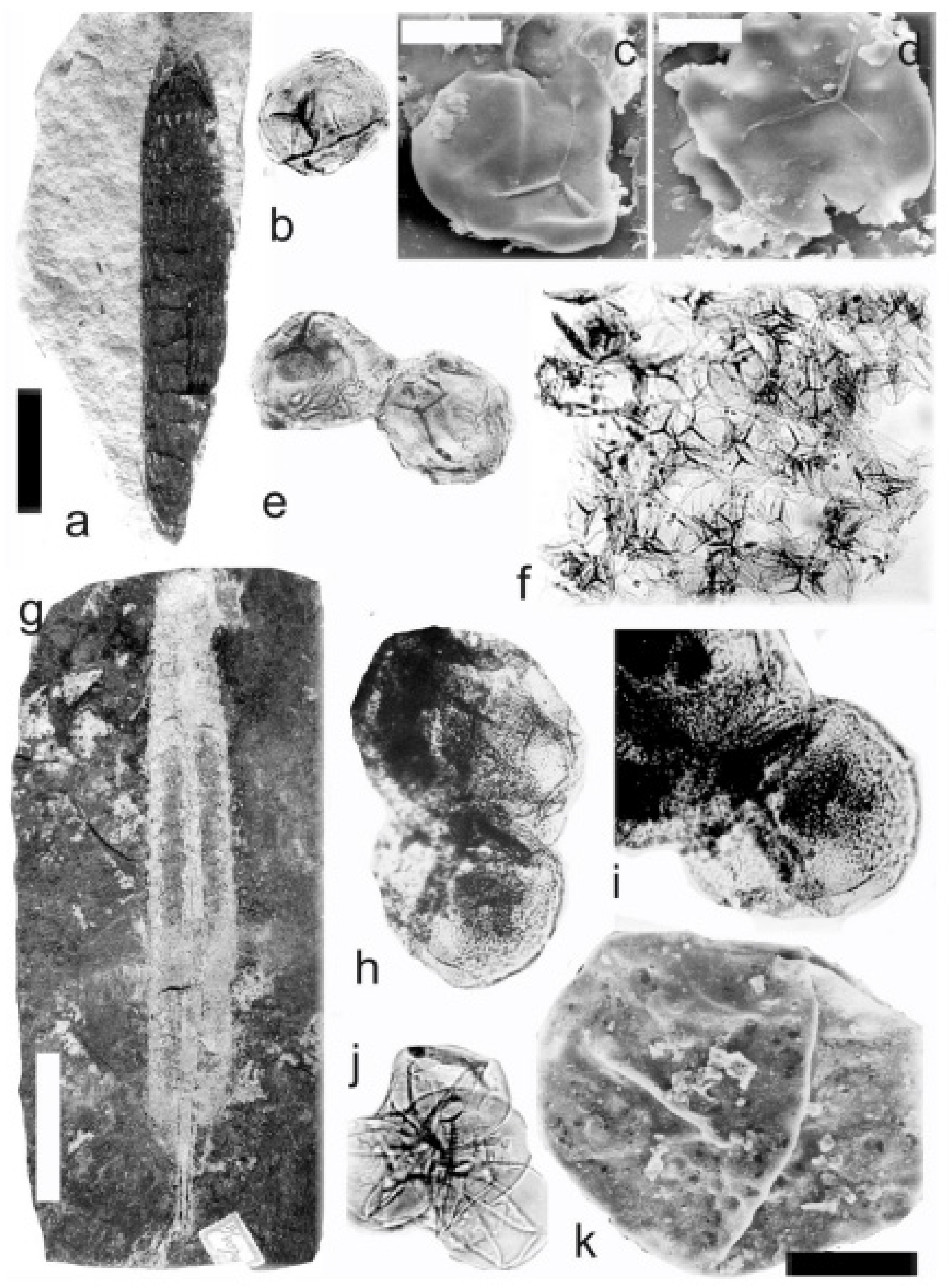

Figure 9. (a–f) Palaeostachya feistmantelii Němejc. (a) Specimen No. E3492. Štilec locality near Žebrák, Kladno-Rakovník Basin. Moscovian. Scale bar 20 mm. (b,e) In situ microspores of the Calamospora type. All ×500. (c,d) Fragments of in situ microspores of the Calamospora type. SEM, scale bar 20 µm. (f) Mass of damaged in situ microspores of the Calamospora type. ×500. (g–k) Macrostachya carinata (Germar) Zeiller. (g) Specimen No. E3637, Mirošov locality, Kladno-Rakovník Basin, Moscovian. Scale bar 50 mm. (h,i) In situ megaspores of the Calamospora type. All ×150. (j) In situ microspores of the Calamospora type. ×500. (k) In situ megaspore of the Calamospora type. SEM, scale bar 80 µm. Macrostachya Schimper 1869.

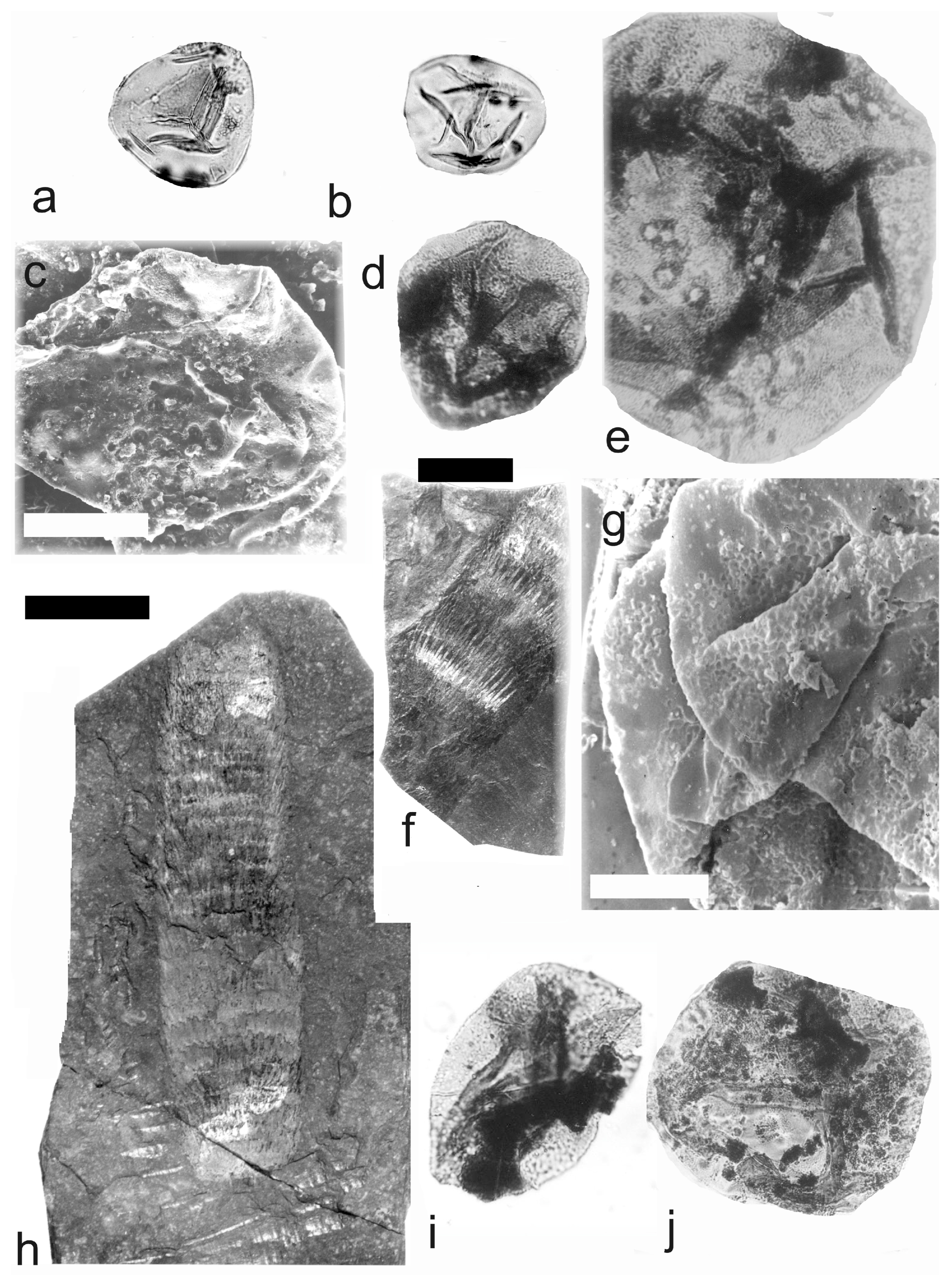

Figure 10. Macrostachya carinata (Germar) Zeiller. (a–e) Specimen No. E3637, Mirošov locality, Kladno-Rakovník Basin, Moscovian. (a,b) In situ microspores of the Calamospora type. All ×500. (c) In situ megaspore of the Calamospora type. SEM, scale bar 170 µm. (d,e) In situ megaspores of the Calamospora type. (d) ×120. Scale bar, (e) ×250. (f,g) Specimen No. E1180, Mirošov locality, Kladno-Rakovník Basin, Moscovian. (f) General view of the specimen. Scale bar 20 mm. (g) In situ megaspore of the Calamospora type. SEM. Note the negative sculpture of exine. Scale bar 700 µm. (h–j) Specimen No. E1181, Mirošov locality, Kladno-Rakovník Basin, Moscovian. (h) General view of the specimen. Scale bar 20 mm. (i,j) In situ megaspores of the Calamospora type. (i) ×120, (j) ×200.

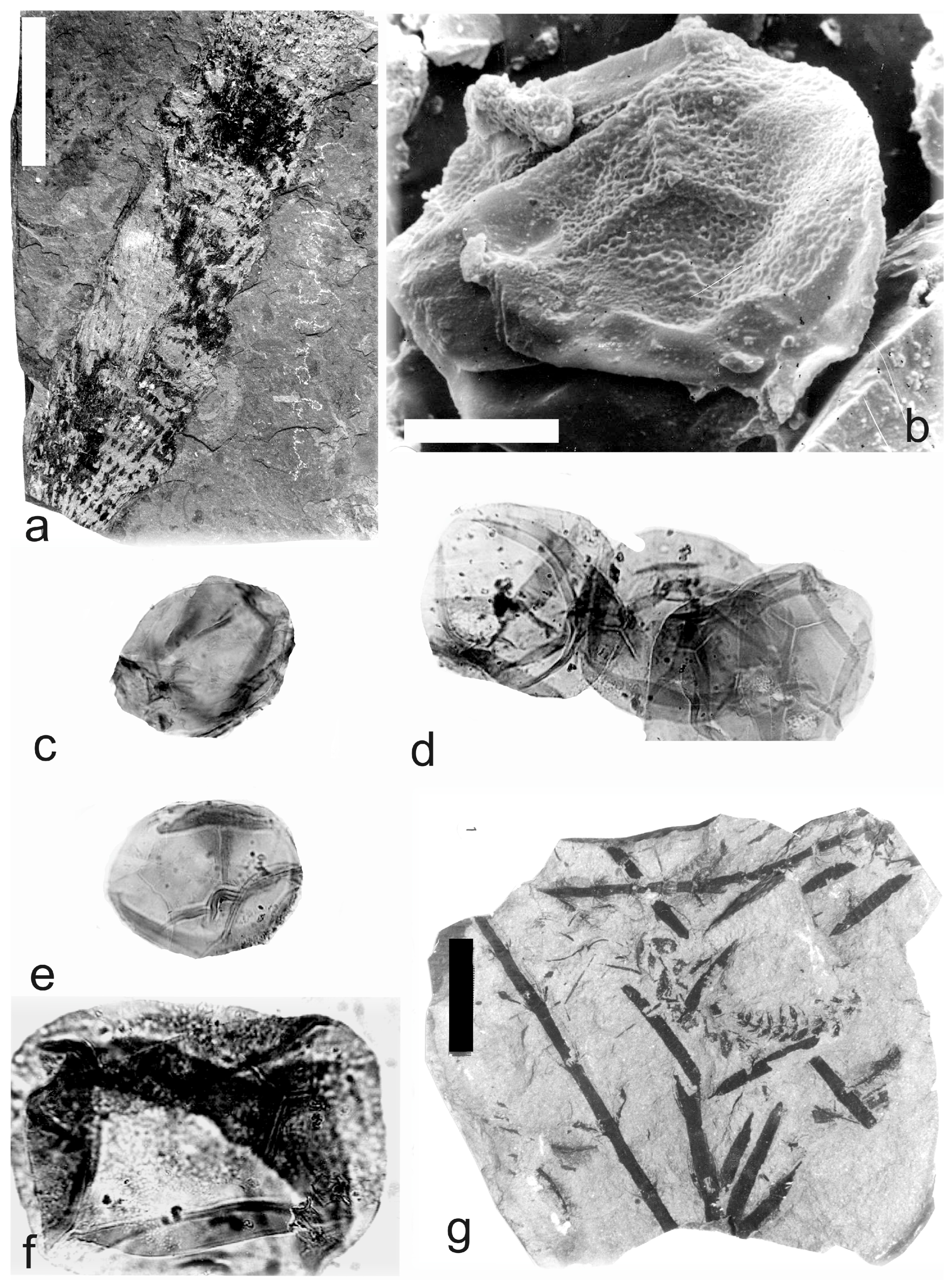

Figure 11. (a–f) Macrostachya carinata (Germar) Zeiller. (a) Specimen No E1178, Mirošov locality, Kladno-Rakovník Basin, Moscovian. Scale bar 40 mm. (b) In situ megaspore of the Calamospora type. Note the slightly elevated contact area and elevated labrum. SEM, scale bar 70 µm. (c–e) In situ microspores of the Calamospora type. All ×500. (f) In situ megaspore of the Calamospora type. ×150. (g) Calamostachys germanica Weiss, specimen E5641, Na Brantech locality, Lubná, Kladno-Rakovník Basin, Moscovian. Scale bar 40 mm.

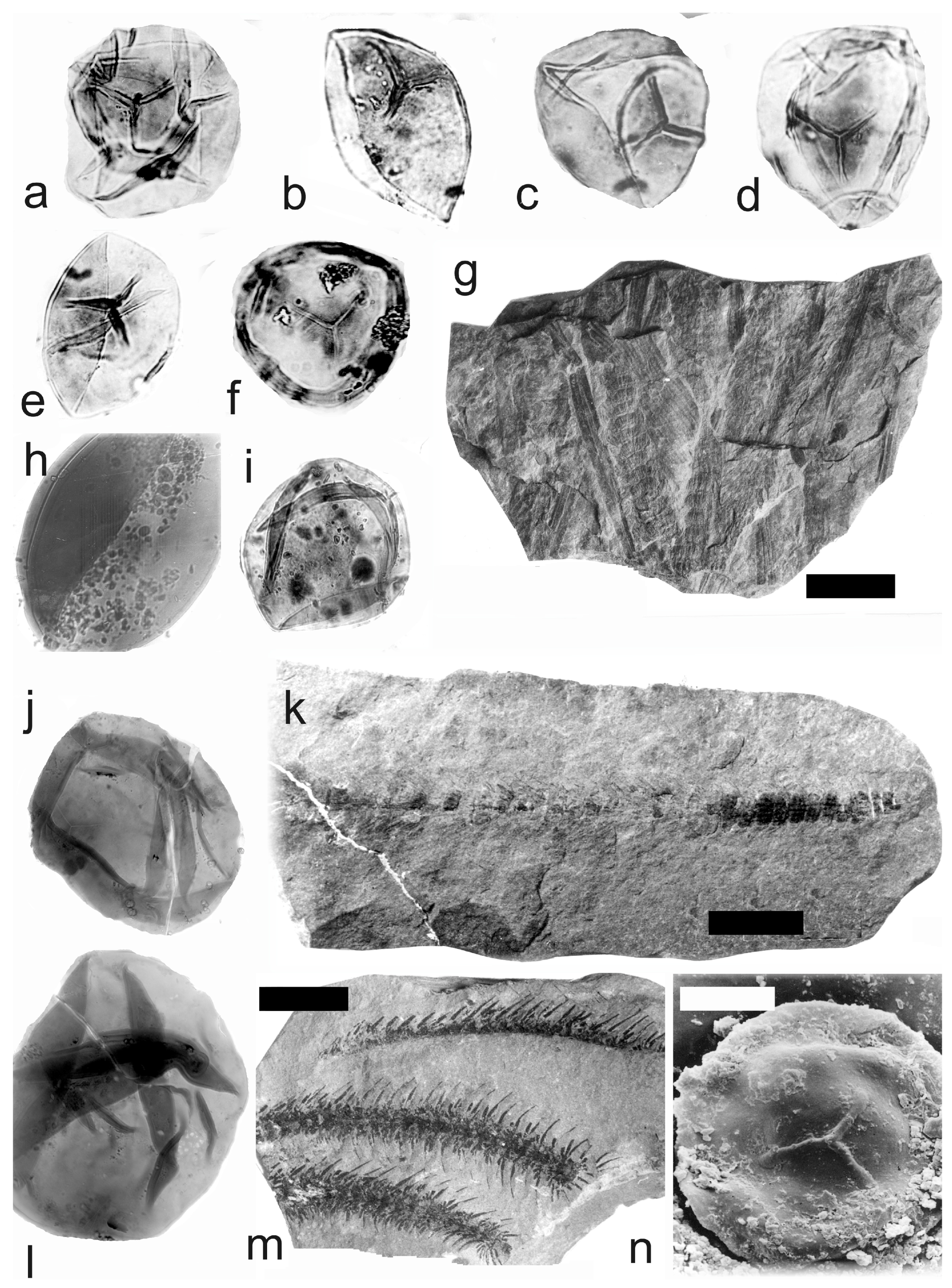

Figure 12. Calamostachys germanica Weiss. (a–f) Specimen E5641, Na Brantech locality, Lubná, Kladno-Rakovník Basin, Moscovian. (a–f) In situ microspores of the Calamospora type. Note the dark contact area (a,c–f). All ×500. (g–j) Specimen E5641, Třemošná locality, Lubná, Kladno-Rakovník Basin, Moscovian. (g) General view of the specimen. Scale bar 20 mm. (h,j) In situ megaspores of the Calamospora type. (h) ×150, (j) ×90. (i) In situ microspore of the Calamospora type. ×500. (k,l) Specimen No. E2409, Třemošná locality, Lubná, Kladno-Rakovník Basin, Moscovian. (k) General view of specimen. Scale bar 20 mm. (l) In situ megaspore of the Calamospora type. ×160. (m,n) Specimen No. E1159, Třemošná locality, Lubná, Kladno-Rakovník Basin, Moscovian. (m) General view of specimen. Scale bar 20 mm. (n) In situ microspore of the Calamospora type. Proximal surface. SEM, scale bar 20 µm.

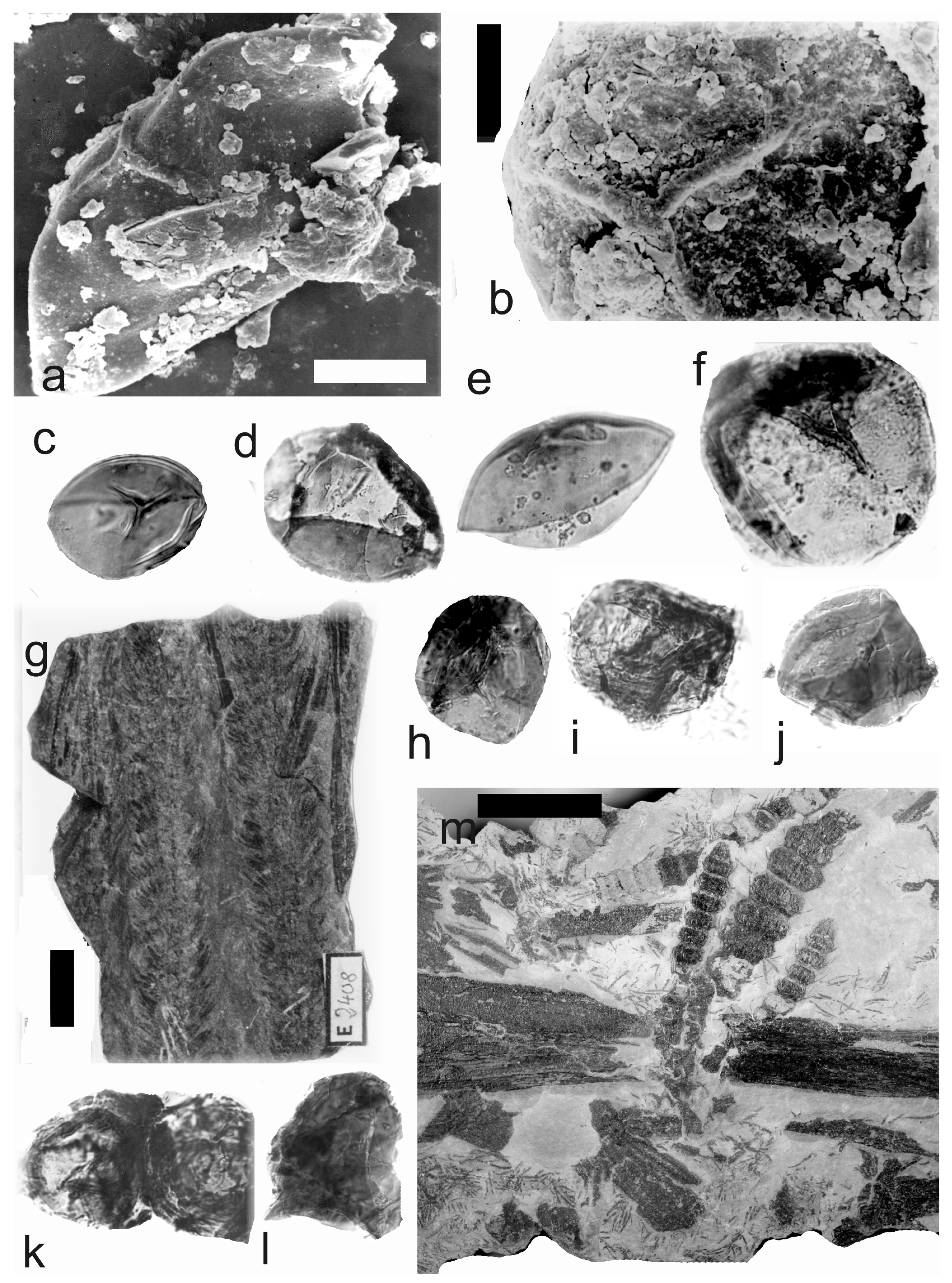

Figure 13. (a–k) Calamostachys germanica Weiss. (a–f) Specimen No. E1159, Třemošná locality, Lubná, Kladno-Rakovník Basin, Moscovian. Scale bar. (a) In situ microspore of the Calamospora type. SEM, scale bar 20 µm. (b) In situ megaspore of the Calamospora type. SEM, scale bar 40 µm. (c–e) In situ microspores of the Calamospora type. ×500. (f) In situ megaspore of the Calamospora type. Scale bar. (g–l) Specimen No. E2408, Ignác Mine, Kladno-Rakovník Basin, Moscovian. (g) General view of the specimens. Scale bar 15 mm. (h–l) In situ microspores of the Calamospora type. Note the irregular fragments of the exospore. All ×500. (m) Calamostachys incrassata Němejc. Specimen No. E. E1114, V Krčeláku locality, Rako Mine near Lubná, Kladno-Rakovník Basin, Moscovian. Scale bar 50 mm.

Figure 14. (a–g) Calamostachys incrassata Němejc, specimen No. E. E1114, V Krčeláku locality, Rako Mine near Lubná, Kladno-Rakovník Basin, Moscovian. (a–f) In situ microspores of the Calamospora type. Note the fragments of probably tapetal tissues. All ×500. (g) Immature in situ microspore. ×500. (h–q) Calamostachys longibracteata Němejc. (h–p) Specimen No. E1163, Mayrau Mine, Vinařice, Kladno-Rakovník Basin, Moscovian. (h) General view of the specimen. Scale bar 20 mm. (i,j,n,o) In situ microspores of the Calamospora type. All ×500. (k) In situ microspore of the Calamospora type. Note that monopseudosaccate-like layer envelopes the inner body of the Calamospora type. ×500. (l) In situ microspore of the Calamospora type. Note the monopseudosaccate-like layer. ×500. (m) In situ microspore of the Calamospora type. Note that one major fold covers the microspore body. ×500. (p) In situ microspores of the Calamospora type. Note that monopseudosaccate-like exine layers enveloped central bodies. ×450. (q) Specimen No. E1155, Max Mine, Libušín, Kladno-Rakovník Basin, Bolsovian. Scale bar 30 mm.

Figure 15. (a–m) Calamostachys longibracteata Němejc. (a–f) Specimen No. E1155, Max Mine, Libušín, Kladno-Rakovník Basin, Moscovian. (a,c,e,f) In situ microspores of the Calamospora type. Note the fragments of the monopseudosaccate-like exine layer. All ×500. (b,d) In situ microspores of the Calamospora type. All ×500. (g–m) Specimen E1154. Max Mine, Libušín, Kladno-Rakovník Basin. Moscovian. General view. (g) General view of the specimen. Scale bar 20 mm. (h) Immature in situ microspore. ×500. (i) In situ microspore of the Calamospora type. ×500. (j) In situ microspore of the Calamospora type. Note that one major fold of exine covers the body. ×500. (k–m) In situ microspores of the Calamospora type. All ×500. (n–r) Calamostachys tuberculata Sternberg, E 1147, Doubrava locality, Kladno-Rakovník Basin, Moscovian. General view. Scale bar. (n) General view of specimen. Scale bar 20 mm. (o,p,r) In situ microspore of the Calamospora type. Note the fragments of probable tapetal tissues. All ×500. (q) In situ microspores of the Calamospora type. ×500.

Figure 16. Calamospora tuberculata Sternberg. (a–d) Specimens E 1147, Doubrava locality, Kladno-Rakovník Basin, Moscovian. (a–d) In situ microspores of the Calamospora type. Note the irregular fragments of probable tapetal tissues. All ×500. (e–o) Specimen 1951, Kladno locality, Kladno-Rakovník Basin, Kasimovian. (e) General view of the specimen. Scale bar 15 mm. (f,g,k,l) In situ microspores of the Calamospora type. All ×500. (h–j,m–o) In situ microspores of the Calamospora type. SEM. (h) Scale bar 40 µm. (i) Scale bar 35 µm. (j) Scale bar 30 µm. (m) Scale bar 40 µm. (n) Scale bar 40 µm. (o) Scale bar 25 µm.

Figure 17. (a–l) Calamostachys cf. ramosa Weiss, specimen E3627, Ronna Mine, Kladno-Rakovník Basin, Moscovian. (a) General view of specimens. Scale bar 15 mm. (b) Immature in situ microspore. ×500. (c) In situ microspores of the Calamospora type. ×500. (d) In situ microspore of the Calamospora type. Note one major fold covering the body. ×500. (e) In situ microspore of the Calamospora type with fragments of probable tapetal tissues. ×500. (f–l) Specimen E E3634, Maria-Julia Mine, Žacléř, Intra-Sudetic Basin. (f) General view of the specimen. Scale bar 15 mm. (g) Immature in situ microspore. ×500. (h–l) In situ microspores of the Calamospora type. Note the fragments of probable tapetal tissues. (j) Note the dark contact area. All ×500. (m–q) Calamostachys intermedia Feistmantel. Specimen E2410, Stradonice locality near Beroun, Kladno-Rakovník Basin. (m) General view of the specimen. Scale bar 40 mm. (n–q) In situ microspores of the Calamospora type. All ×500.

Figure 18. (a–f) Calamostachys grandis (Zeiller) Jongmans, specimen 1625, Kladno locality, Kladno-Rakovník Basin, Moscovian. (a) General view of the specimen. Scale bar 12 mm. (b–d) In situ microspores of the Calamospora type. Note the fragments of probable tapetal tissues. All ×500. (e) In situ microspores of the Calamospora type. SEM, scale bar 30 µm. (f) In situ microspore of the Calamospora type. ×500. (g–j) Calamostachys sp. E3639, Tuchlovice locality, Kladno-Rakovník Basin, Moscovian. (g) General view of the specimen. Scale bar 25 mm. (h) In situ megaspore of the Calamospora type. ×150. (i,j) In situ microspores of the Calamospora type. All ×500. Calamostachys sp.

Figure 19. Huttonia spicata Sternberg. (a) Specimen E74, Vranovice locality. Radnice Basin, Moscovian, Scale bar 20 mm. (b) Specimen E2419. Vranovice locality. Radnice Basin, Moscovian. Scale bar 20 mm. (c) Specimen E75. Vranovice locality. Radnice Basin, Moscovian. Scale bar 20 mm. (d) In situ microspore of the Calamospora type. ×500. (e) In situ microspores of the Calamospora type. Note the outer exine monopseudosaccate-like layer. ×500. (f) In situ microspore of the Calamospora type. ×500. (g) In situ megaspore of the Calamospora type. ×120.

Table 1. Stratigraphical position of studied calamitean cones.

Period	Age
303 Ma	Kasimovian	Stephanian
Pennsylvanian 307 Ma	Moscovian	Asturian
		Bolsovian
315 Ma	Bashkirian	Duckmantian
		Langsettian

Table 2. The size of the in situ spores of Palaeostachya ettingshausenii Kidston.

Specimen Number	Diameter of In Situ Spores (µm)
E 2500—basal part	55.0 (67.64) 84.0
apical part	44.0 (62.3) 72.0
E 2412 right cone, basal part	84.0 (121.1) 181.0
apical part	62.0 (105.77) 131.0
left cones	461.0 (576.75) 708.0
E 3623	56.0 (90.27) 121.0
E 3625	58.0 (92.33) 126.0
E 2414	48.0 (71.19) 101.0
E 1117 upper cone, basal part	49.0 (64.6) 74.0
middle part	48.0 (61.22) 79.0
lower cone	43.0 (63.2) 74.0
E 3596	56.0 (92.25) 131.0
E 3622	76.0 (84.52) 94.0
	234.0 (398.58) 602.0
E 3624	390.0 (494.38) 621.0
E 3618	330.0 (420.88) 592.0 54.0 (69.99) 79.0
E 3626	75.0 (119.5) 151.0
935 left cone, basal part	60.0 (83.1) 100.0
apical part	52.0 (67.44) 74.0
right cone, basal part	71.0 (75.97) 80.0
apical part	58.0 (64.22) 70.0
1451 left cone, basal part	64.0 (71.63) 89.0
right cone, basal part	60.0 (67.81) 80.0
apical part	52.0 (59.32) 70.0

Table 3. Size of the in situ spores of Paleostachya distachya.

Specimen Number	Diameter of In Situ Spores (µm)
E 3599	54.0 (64.36) 79.0
E 3603	55.0 (63.14) 76.0
E 3500	55.0 (66.2) 78.0
E 3608	36.0 (60.82) 108.0
E 3598	41.0 (62.6) 99.0
E 1132	33.0 (76.4) 92.0
E 1134	59.0 (90.58) 119.0
E 3604	71.0 (87.38) 111.0

Table 4. Size of the in situ spores of Palaeostachya elongata.

Specimen Number	Diameter of In Situ Spores (µm)
E 3607	84.0 (112.2) 123.0
E 3631	35.0 (42.35) 50.0, 108.0 (123.35) 149.0
E 3616	84.0 (124.9) 152.0
E 1122	49.0 (75.93) 92.0
E 1121	35.0 (44.5) 56.0, 82.0 (103.42) 141.0

Table 5. Size of the in situ spores of Palaeostachya gracillima Weiss.

Specimen Number	Diameter of In Situ Spores (µm)
E 3635	48.0 (65.94) 83.0
E 1127	24.0 (62.57) 83.0
E 1119	42.0 (68.38) 95.0

Table 6. Size of the in situ spores of Macrostachya carinata (Germar) Zeiller.

Specimens Number	Diameter of In Situ Spores (µm)
E 3541	66.0 (81.9) 102.0
E 3637 basal part	265.0 (318.57) 366.0
E 3637 middle part	221.0 (294.47) 372.0
E 3637 apical part	156.0 (203.2) 232.0
E 3637 apical part	58.0 (64.11) 69.0
E 1178	69.0 (119.67) 167.0
E 1180	183.0 (244.8) 342.0
E 1181	71.0 (93.0) 116.0

Table 7. Diameters of the in situ megaspores of the Calamospora type isolated from different portions (basal, middle, and apical) of the cone of Macrostachya carinata (Germar) Zeiller.

Number of Specimens	Diameter of Megaspores (µm)
E 3637 basal part	265.0 (318.57) 366.0
E 3637 middle part	221.0 (294.47) 372.0
E 3637 apical part	156.0 (203.2) 232.0

Table 8. Size of the in situ spores of Calamostachys germanica Weiss.

Specimen Number	Diameter of In Situ Spores (µm)
E 3620	75.0 (107.4) 126.0, 181.0 (247.83) 329.0
E 3621	261.0 (389.5) 485.0
E 2408	54.0 (61.27) 73.0
E 5641	55.0 (62.43) 91.0
E 1159	54.0 (79.9) 96.0
E 1161	180.0 (350.56) 438.0
E 2409	147.0 (442.05) 684.0

Table 9. Size of the in situ spores of Calamostachys longibracteata Němejc.

Specimen Number	Diameter of In Situ Spores (µm)
E 3605	45.0 (54.5) 72.0
E 1154	45.0 (63.33) 78.0
E 1155	48.0 (58.5) 77.0
E 1163	47.0 (62.21) 84.0

Table 10. Size of the in situ spores of Calamostachys tuberculata (Sternberg) Jongmans.

Specimen Number	Diameter of In Situ Spores (µm)
E 3589	318.0 (352.67) 396.0
E 1147 basal part	56.0 (67.36) 74.0
apical part	54.0 (64.3) 75.0
E 1148	51.0 (65.21) 78.0
E 1152	52.0 (65.9) 79.0
1238	31.0 (66.23) 110.0
1951	30.0 (62.6) 107.0

Table 11. Parent plants produced spores of the Elaterites type.

Parent Plant	Diameter of Microspores (µm)	Classification of In Situ Spores	References
Calamocarpon insigne	38–60	Calamospora/Elaterites	[24] Good 1975
Calamostachys americana	140–280	Calamospora/Elaterites	[24] Good 1975
C. binneyana	38–61	Calamospora/Elaterites	[24] Good 1975
C. casheana	75	Calamospora/Elaterites	[24] Good 1975
C. inversibractus	44–74	Calamospora/Elaterites	[24] Good 1975
C. ludwigi	74–112	Calamospora/Elaterites?	[15] Hartung 1933
C. magnae-crucis	45	Calamospora/Elaterites?	[7] Balme 1995
Mazostachys noei	45–50	Calamospora/Elaterites	[24] Good 1975
M. pedunculata	52–100	Calamospora/Elaterites	[24] Good 1975
Palaeostachya andrewsii	56–100	Calamospora/Elaterites	[24] Good 1975
P. decacnema	54	Calamospora/Elaterites	[24] Good 1975
P. distachya	70–105	Calamospora/Elaterites?	[24] Good 1975
P. feistmanteli	45–95	Calamospora/Elaterites?	[26] Serret Brousmiche 1986
P. vera	75–80	Calamospora/Elaterites	[24] Good 1975
Pendulostachys cingulariformis	63–89	Calamospora/Elaterites	[24] Good 1975
Pothocites grantoni	82–104	Calamospora/Elaterites?	[7] Balme 1995
Weissistachys kentuckiensis	39–75	Calamospora/Elaterites	[24] Good 1975

Table 12. Paleozoic spores of Equisetales and their parent plants.

Spore Genus	Calamiteans
Calamospora (micro- and megaspores)	Pothocites grantonii, P. pettycurensis, Calamostachys americana, C. Binneyana, C. calathifera, C. casheana, C. dumasi, C. germanica, C. grandis, C. gunlongii, C. incrassata, C. intermedia, C. inversibractus, C. longibraceata, C. ludwigi, C. magnae-crucis, C. paeniculata, C. cf. ramosa, C. solmsii, C. tuberculata, C. cf. tuberculata, C. williamsoniana, C. zeilleri, C. sp (sensu Moore), C. sp. A (sensu Bek), C. sp. B (sensu Serret and Brousmiche), Macrostachya carinata, M. carinata var. approximata, M. caudata, M. hauchecornei, M. infundibuliformis, M. thompsonii, Palaeostachya andrewsii, P. aperta, P. decacnema, P. dircei, P. distachya, P. elongata, P. ettingshausenii, P. equisetoformis, P. feistmantelii, P. gracilis, P. gracillima, P. pedunculata, P. superba, P. thuringiaca, P. trabeculata, P. vera, P sp. (sensu Moore), P. sp. A (sensu Bek), Paracalamostachys scatervillei, P. heterospora, P. minor, P. spadiciformis, P. striata, Macrostachya noei, M. pendulata, Kallostachys scottii, Huttonia spicata, Weissistachys kentuckiensis, Cingularia typica, Calamocarpon insignis, Pendulostachya cinguliformis
Elaterites	Calamostachya americana, C. inversibractus, Palaeostachya andrewsii, P. decacnema, Macrostachya noei, M. pendulata, Weissistachys kentuckiensis, Calamocarpon insignis, and Pendulostachys cinguliformis
	Sphenophyllaleans
Calamospora	Bowmanites moorei, B. myriophyllus, B. nindelii, B. priveticensis, B. stimulosus, B. verticillatus, B. sp. (herein), B. tenerrimum, Sphenophyllum aguensis, S. beinertii, S. waldenburgense, Cheirostrobus pettycurensis, Pothocites grantonii, and P. pettycurensis
	Noeggerathialeans
Calamospora (micro- and megaspores)	Discinites bohemicus, D. sp. (cf. bohemicus), D. delectus, D. hanchengensis, D. hlizae, D. major, D. nemejcii, D. cf. raconicensis, D. vicinalis, Lacoea seriata, Paratingia wudensis, Tingia unita, T sp., Tingiostachya tetralocularis, and T. sp., Noeggerathiaestrobus (only megaspores)
Verrucosisporites	Noeggerathiaestrobus bohemicus

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

© 2024 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

Share and Cite

MDPI and ACS Style

Bek, J.; Votočková Frojdová, J. Calamitean Cones and Their In Situ Spores from the Pennsylvanian Limnic Basins of the Czech Republic. Life 2024, 14, 701. https://doi.org/10.3390/life14060701

AMA Style

Bek J, Votočková Frojdová J. Calamitean Cones and Their In Situ Spores from the Pennsylvanian Limnic Basins of the Czech Republic. Life. 2024; 14(6):701. https://doi.org/10.3390/life14060701

Chicago/Turabian Style

Bek, Jiří, and Jana Votočková Frojdová. 2024. "Calamitean Cones and Their In Situ Spores from the Pennsylvanian Limnic Basins of the Czech Republic" Life 14, no. 6: 701. https://doi.org/10.3390/life14060701

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Menu

Calamitean Cones and Their In Situ Spores from the Pennsylvanian Limnic Basins of the Czech Republic

Abstract

1. Introduction

2. Geological Setting

3. Material and Methods

4. Systematic Paleontology

5. Calamospora Spores

5.1. Morphological Criteria

5.1.1. Diameter

5.1.2. Contact Area

5.1.3. Length of Rays of the Trilete Mark

5.1.4. Labrum

5.1.5. Secondary Folds of Exine

5.1.6. Fragments of Tapetal Tissues

6. Elaterites

7. Parent Plants

8. Conclusions

Author Contributions

Funding

Institutional Review Board Statement

Informed Consent Statement

Data Availability Statement

Acknowledgments

Conflicts of Interest

References

Share and Cite

Article Metrics

Article Access Statistics

Further Information

Guidelines

MDPI Initiatives

Follow MDPI
