Development of a Multiplex Loop-Mediated Isothermal Amplification (LAMP) Method for Simultaneous Detection of Spotted Fever Group Rickettsiae and Malaria Parasites by Dipstick DNA Chromatography

by
Lavel Chinyama Moonga
1,
Kyoko Hayashida
1,*,
Naoko Kawai
1,
Ryo Nakao
2,
Chihiro Sugimoto
1,
Boniface Namangala
3 and
Junya Yamagishi
1
1
Division of collaboration and education, Research Center for Zoonosis Control, Hokkaido University, Sapporo 001-0020, Hokkaido, Japan
2
Laboratory of Parasitology, Graduate School of Infectious Diseases, Faculty of Veterinary Medicine, Hokkaido University, Kita-18, Nishi-9, Sapporo 060-0818, Hokkaido, Japan
3
Department of Paraclinical Studies, School of Veterinary Medicine, University of Zambia, P.O. Box 32379, Lusaka 10101, Zambia
*
Author to whom correspondence should be addressed.
Diagnostics 2020, 10(11), 897; https://doi.org/10.3390/diagnostics10110897
Submission received: 8 October 2020 / Revised: 30 October 2020 / Accepted: 31 October 2020 / Published: 2 November 2020
(This article belongs to the Special Issue Trends in Multiplex and Smart Technologies for In Vitro Diagnostics and Point-of-Care Testing)
Browse Figures
Versions Notes

Abstract

:
Spotted fever group (SFG) rickettsiae causes febrile illness in humans worldwide. Since SFG rickettsiosis’s clinical presentation is nonspecific, it is frequently misdiagnosed as other febrile diseases, especially malaria, and complicates proper treatment. Aiming at rapid, simple, and simultaneous detection of SFG Rickettsia spp. and Plasmodium spp., we developed a novel multiple pathogen detection system by combining a loop-mediated isothermal amplification (LAMP) method and dipstick DNA chromatography technology. Two primer sets detecting SFG Rickettsia spp. and Plasmodium spp. were mixed, and amplified products were visualized by hybridizing to dipstick DNA chromatography. The multiplex LAMP with dipstick DNA chromatography distinguished amplified Rickettsia and Plasmodium targeted genes simultaneously. The determined sensitivity using synthetic nucleotides was 1000 copies per reaction for mixed Rickettsia and Plasmodium genes. When genomic DNA from in vitro cultured organisms was used, the sensitivity was 100 and 10 genome equivalents per reaction for Rickettsia monacensis and Plasmodium falciparum, respectively. Although further improvement will be required for more sensitive detection, our developed simultaneous diagnosis technique will contribute to the differential diagnosis of undifferentiated febrile illness caused by either SFG Rickettsia spp. or Plasmodium spp. in resource-limited endemic areas. Importantly, this scheme is potentially versatile for the simultaneous detection of diverse infectious diseases.

Graphical Abstract

1. Introduction

Undifferentiated febrile illnesses (UFIs) are the most common clinical presentation at healthcare centers in low- and middle-income countries [1,2]. With the decline in global malaria incidence, other infectious causes of febrile illness presumptively misdiagnosed as malaria have been identified [3,4,5]. Rickettsioses and malaria are among the common cause of acute UFI, with the disease distribution partly overlapping [6,7]. The acute undifferentiated febrile manifestation leads to challenges in the differential diagnosis of the definitive cause of acute UFI, mostly in incapacitated diagnostic settings. Most clinical diagnostic approaches tend to specifically target more common diseases, such as malaria, hence missing out on other pathogens, including rickettsiae [4,6].
Malaria is still a common cause of febrile illness and death worldwide. The five Plasmodium spp. that infect humans and cause malaria include Plasmodium falciparum, P. vivax, P. ovale, P. malaraie, and P. knowlesi. Sub-Saharan Africa carries almost 80% of the global malaria burden, with P. falciparum being the predominant causative agent. Effective management of malaria depends on accurate diagnosis as misdiagnosis can result in significant morbidity and mortality [8]. The current gold standard for malaria diagnosis is microscopy, with more feasible rapid diagnostic tests (RDTs) becoming commonly used. Spotted fever group (SFG) rickettsioses are neglected diseases and represent a large proportion of emerging and re-emerging infectious diseases with a worldwide distribution. Rickettsiosis caused by Rickettsia africae causes a significant proportion of acute febrile illnesses among returning travelers from sub-Saharan Africa [9]. Rickettsia felis is also a common cause of febrile illness in sub-Saharan Africa, with reported co-infection with Plasmodium spp [7]. Other SFG rickettsiae associated with fever in sub-Saharan Africa include Rickettsia conorii, R. sibrica, R. massiliae, and R. aeschlimannii [10]. Diagnosis of SFG rickettsiae is based on serological and nucleic acid detection methods, which have limitations depending on the time since infection and sample collection [11]. Nucleic acid detection methods are mostly utilized at the onset of illness, while serological methods are more appropriate after antibody response, which may be late for disease management [12]. The co-infection of rickettsiosis and malaria in humans has been reported in sub-Saharan Africa [7]. Additionally, many cases of non-malarial febrile illnesses have been reported to be attributed to SFG rickettsiae infection [13,14]. As such, differential molecular tests of SFG Rickettsia spp. and Plasmodium spp. are warranted to correctly diagnose infectious causes of febrile illness in low-resource settings. Therefore, the utilization of molecular methods for multiplex detection of malaria and SFG rickettsia is inevitable.
Nucleic acid amplification tests (NAATs) have been widely used to detect pathogens, including malaria parasites [15,16] and SFG rickettsiae [17,18], of which PCR-based methods have been the mainstay method. However, PCR-based methods are not readily available in resource-limited endemic areas for routine diagnostic procedures because they require expensive and specialized instruments, such as thermocyclers, for accurate temperature fluctuation during amplification. Loop-mediated isothermal amplification (LAMP) is one of the promising alternatives, which is a rapid, simple, and highly specific DNA amplification technique at a constant temperature using DNA polymerases with strand displacement activity [19]. LAMP methods for the detection of Plasmodium spp. [20,21,22] and SFG rickettsiae [23,24] have been developed. Despite the high sensitivity of the developed LAMP systems, they can only detect an individual target due to the use of turbidity and/or fluorescence for visualization [25]. Since the amplified LAMP product shows a laddering pattern, the size differentiation by the gel electrophoresis is impossible. For the multiplex LAMP assay, which is aimed at the simultaneous detection of multiple DNA targets in a single reaction, the amplified products can be distinguished by melting curve analysis [26] or DNA lateral flow dipstick techniques [27]. Many other multiplexing LAMP techniques have also been developed using oligo fluorophores and quencher-based probes to differentiate the multiple simultaneous detected amplicons [28,29,30]. However, all these fluorescence-based methods require special equipment, which is often expensive, preventing its use in resource-limited laboratories.
DNA lateral flow dipstick is a DNA detection technique by using DNA-DNA hybridization of a free single strand of amplicons to their complementary probes in the dipstick without amplicon denaturation, and the reaction can be visualized by colorant accumulation [31,32]. Single-stranded tag hybridization chromatographic printed-array strip (C-PAS) is one of the DNA lateral flow dipstick technology designed by Tohoku Bio-Array Company Limited (Miyagi, Japan) [33]. The technique was initially optimized for PCR products and allows discrimination of multiple amplified products simultaneously. The multiple targets amplified with biotin-labeled primer and unique single-stranded sequence tagged primer are developed on C-PAS with streptavidin-coated blue latex beads. The amplified DNA targets with a single-stranded unique tag sequence hybridize to the complementary tag sequence printed on the C-PAS and will show a blue line due to the accumulation of blue latex beads indicating a positive result. Multiple single-stranded unique tag sequences can be used in the multiplex reaction. The specific complementary tag sequences on the chromatographic strip will discriminate the amplified products by hybridizing to the unique tag sequences attached to amplification primers [32,34]. The C-PAS method enables easy differentiation and visualization of multiplex DNA signals in a single tube within a short time (15 min). The simplicity of the C-PAS visualization method makes it suitable for easy visualization of multiple amplified LAMP products. Multiplex LAMP amplification and visualization with C-PAS has been applied in the food industry [27,35] but has not been utilized for differential and simultaneous detection of infectious diseases.
In this study, we aimed at establishing a simple and rapid diagnostic method that could simultaneously detect SFG rickettsiae and Plasmodium spp., using optimized multiplex LAMP and C-PAS. The established system can be applied in point-of-care diagnostics and will improve the identification of UFI, especially in resource-poor settings. The concept can also be utilized in other clinically or epidemiologically related infectious diseases.

2. Materials and Methods

2.1. Multiplex LAMP

The LAMP primers were synthesized based on the previously reported LAMP assays targeting the 17kDA protein-encoding gene of SFG rickettsiae [23] and mitochondrial genomic DNA of human infective Plasmodium spp. [22]. The multiplex LAMP reaction consisted of two sets of six LAMP primers (total of 12 primers). The LAMP primer sets consisted of a 5′-terminal modified forward loop primer (LF) for each target template, which was tagged with a carbon spacer and a unique tag sequence complementary to the specific oligos on the C-PAS. The backward loop primer (LB) and backward inner primer (BIP) targeting SFG rickettsiae and Plasmodium species, respectively, were labeled with biotin at the 5′-terminal (Tohoku Bio-Array, Miyagi, Japan). All the other primers were not modified (Table 1).
The LAMP mixture was basically the same as the previously reported condition [36,37], except the primer concentration was a quarter for each primer set to avoid primer dimer formation. We optimized the concentration of primers experimentally so that the assay showed the same sensitivity with original primer sets without primer dimer formations. Each 25-µL LAMP reaction mix consisted of 0.25 µL of each primer, resulting in a final concentration of 0.4 µM FIP, 0.4 µM BIP, 0.2 µM LB, 0.2 µM LF, 0.05 µM F3, and 0.05 µM B3 of each LAMP system primer set. Other reagents in the reaction mix were 2.25 µL LAMP reaction buffer (consisting of 1 mM Tris-HCl (pH 10), 1 mM KCl and 1 mM (NH4)2SO4 in 0.1% TritonX-100), 1 µL of Colori-Fluorometric Indicator (CFI; consisting of 3 mM hydroxylnaphthol blue [MP Biomedicals, Aurora, OH, USA]) and 0.35% v/v GelGreen (10,000X solution in DMSO, Biotium, Hayward, CA, USA) in distilled water) [36], 2 µL of 2 M Trehalose solution, 1.4 µL of 25 mM each deoxyribonucleotide triphosphates (dNTPs) (Nippon Gene, Tokyo, Japan), 1 µL of 8 U/μL Bst 2.0 WarmStart DNA polymerase (New England Bio Labs Inc.,Ipswich, MA, USA), 1.5 µL of 100 mM MgSO4, and 10.85 µL of distilled water with 0.1% Triton X-100. The reaction mix was prepared in the cleanroom and then transferred to the amplification room, where 2 μL of template were added.
The LAMP reactions were performed at 62 °C for 60 min and monitored using the Rotor-Gene 3000 thermocycler FAM channel, which detected the fluorescence of the GelGreen in the LAMP reagents (Corbett Research, Sydney, Australia), and then melting curve analysis was performed.

2.2. Visualization of Multiplex Amplified Products by Dipstick DNA Chromatography C-PAS

The C-PAS F4-V2 membrane strip (Tohoku Bio-Array) was inserted into a 21-μL reaction mix containing 10 μL of developing solution (300 mM NaCl) (Tohoku Bio-Array), 9 μL distilled water, 1 μL of LAMP product, and 1 μL of streptavidin-coated blue latex suspension (Tohoku Bio-Array). The band was observed after 15 min at ambient condition (20–25 °C and 30–40% humidity). The blue line on the C-PAS strip test position indicated a positive test result for the presence of the amplified target DNA sequence tagged with the complementary oligonucleotide and biotin. LAMP amplification and the visualization with dipstick chromatography was performed in the post-amplification room, which is independent from the pre-amplification clean room.

2.3. The Determination of the Sensitivity of Multiplex LAMP Assay Using Synthetic Genes

The pEX-A2J2 plasmid carrying the synthetic 361 bp of 17kDa protein-encoding gene of R. felis (accession number CP000053), which is conserved among SFG rickettsiae, was obtained from the company (Eurofins Genomics, Tokyo, Japan). This template was referred to as Rickettsia gene in this manuscript. DNA fragment (361 base pair) of the pan-Plasmodium genus was also inserted into the plasmid based on the P. falciparum mitochondrial sequence (accession number AJ276844), thereby referred to as the Plasmodium gene. The Qubit 4.0 fluorometer dsDNA HS assay kit (Thermo Fischer Scientific, Waltham, MA, USA) was used to quantify the concentration of the plasmids. The templates were normalized to equal copy numbers and mixed in equal proportions. The mixed template was then serially diluted by 10-fold every time before use. The serially diluted copy number ranged from 10 to 1x106 gene copies per µL. The assays were performed in five replicates for each template concentration, with five non-template controls.

2.4. The Determination of the Sensitivity of Multiplex LAMP Assay Using Genomic DNA from In Vitro Cultured R. monacensis or P. falciparum

Rickettsia monacensis, one of the SFG rickettsiae, was maintained in the C6/36 cell line described in a previous study [38]. Genomic DNA was extracted from the cultured R. monacensis by Takara Simpleprep kit (Takara, Shiga, Japan) and purified by ethanol precipitation. The R. monacensis genomic copy number was then quantified by real-time qPCR using a single copy SFG-specific OmpA gene using previously described primers [39]. DNA quantification was determined using the Bio-Rad CFX Manager software based on the standard curve. The determined DNA copy number was assumed to be equivalent to the genomic copy number (genome equivalents). P. falciparum HB3 strain was cultured in vitro according to Trager and Jensen [40] at 0.1–1.0% parasitemia. The genomic DNA was extracted using a Nucleospin blood kit (Takara). The obtained DNA concentration was then measured by the dsDNA HS assay kit with a Qubit 4.0 fluorometer. The DNA quantities were converted to the genome equivalents by taking the Plasmodium genome size to be 22.9 Mb. The genomic DNA of in vitro cultured R. monacensis and P. falciparum were 10-fold serially diluted. The multiplex LAMP was tested using the templates as above. The same templates were also used for comparative sensitivity analysis of multiplex LAMP and real-time qPCR. The previously reported OmpA [39] and 18S rRNA [41] gene-based qPCR was tested on the R. monacensis and P. falciparum genomic DNA, respectively. In brief, the SYBR green-based qPCR was performed in the CFX96 Touch Real-Time PCR Detection System (Bio-Rad, Hercules, CA, USA). All reaction mixtures had a final volume of 20 μL with 12.5 μL of TB Green Premix Ex Taq II (Takara, Japan), 1 μL (0.4 μM final concentration) of each primer, and 2 μL of quantified genomic DNA template. After the initial denaturation cycle at 95 °C for 30 s, reactions were cycled 40 times as follows: 95 °C for 5 s and 50 °C for 30 s with a final melting curve step.

2.5. Detection of R. monacensis and P. falciparum Spiked with Human Blood from DNA Card Using Heating Block and Dipstick Chromatography

Rickettsia monacensis from in vitro culture was spiked with human blood at 5000 bacteria copies per µL of blood. The Rickettsia spiked with blood was then spotted on the classic Whatman FTA Classic card (GE Healthcare, Buckinghamshire, UK) and dried. Similarly, red blood cells infected with P. falciparum at 1% parasitemia were dried on the Whatman FTA Classic card (GE Healthcare, UK). A negative template control was prepared by applying uninfected blood onto the Whatman FTA Classic card (GE Healthcare, UK) and dried it. The DNA from dried blood spots was extracted by the modified boiling method [42]. In brief, two dried blood spots of 3 mm were punched out and soaked in 40 µL of nuclease-free water in the PCR tube. The mixed template was prepared by mixing two dried blood spot punches from R. monacensis and P. falciparum in a single tube. The samples were then incubated at 60 °C for 30 min and boiled at 99 °C for 10 min. The multiplex LAMP was performed on a heating block, powered by a portable rechargeable battery, at 62 °C for 60 min. The amplicon was then visualized using a portable fluorometer [36] and dipstick chromatography.

3. Results

3.1. Multiplex LAMP Using Individual Synthetic Templates of Rickettsia or Plasmodium Genes in Plasmids

The reported two LAMP primer sets targeting Rickettsia 17kDa protein-encoding gene [23] and Plasmodium mitochondrial DNA [22] were utilized for multiplex LAMP reaction. We first tested the multiplex LAMP reaction by mixing two primer sets at a 25%, 50%, and 100% quantity from the original condition. Since the 50% and 100% primer quantity produced nonspecific amplification, most possibly by primer dimerization, we decided to use the 25% each primer concentration for multiplexing. The selected 25% primer concentration did not affect the detection sensitivity, although a delay of the amplification time was observed when compared with the 100% primer concentration (Supplementary Materials Figure S1). The target loci for the two LAMP reactions were synthesized and inserted in the plasmids. Using this condition, the multiplex LAMP successfully detected up to 100 template copies per reaction using either the Rickettsia or Plasmodium gene in individual reaction tubes (Figure 1b,e). The amplification was monitored by a real-time PCR machine, and its specificity was confirmed by melting curve analysis [43]. The melting temperature (Tm) for the Rickettsia and Plasmodium gene was 87 and 83 °C, respectively (Figure 1c,d, respectively). Based on this result, we concluded that the SFG rickettsiae and Plasmodium spp. LAMP systems were compatible for multiplexing.

3.2. Optimization of Multiplex LAMP Using Mixed Synthetic Templates of Rickettsia and Plasmodium Gene, and Discrimination by C-PAS

To test if the multiplex LAMP could amplify multiple targets simultaneously in a single reaction, equally mixed templates of Rickettsia and Plasmodium genes were amplified, and discrimination by C-PAS was tested. The amplification efficiency was observed by fluorescence by real-time PCR machine monitoring, but multiple target amplified products cannot be distinguished based on amplification fluorescence (Figure 2b). The simultaneously amplified products of Rickettsia and Plasmodium target gene were first discriminated by melting curve analysis. Two melting temperatures were observed at 87 and 83 °C, indicating successful simultaneous amplification of Rickettsia and Plasmodium target genes (Figure 2c). The simultaneously amplified products were further discriminated by C-PAS, which showed a consistent result as the melting temperature analysis. According to the results, the multiplex LAMP amplified both targets, and the simultaneously amplified products were distinguishable by C-PAS (Figure 2d). The multiplex LAMP for the simultaneous detection of both Rickettsia and Plasmodium genes detected up to 1000 copies of each template per reaction. The discrimination of mixed Rickettsia and Plasmodium genes amplified by multiplex LAMP was consistently comparable for C-PAS and melting curve analysis in five independent experiments. The non-template controls were consistently negative in all assays (Table 2). This result showed the potential of C-PAS to be applied for distinguishing multiplex amplified products without using a thermocycler.

3.3. Validation of Multiplex LAMP Using Genomic DNA from In Vitro Cultured R. monacensis or P. falciparum Organisms

The multiplex LAMP amplification was further tested with genomic DNA from the individual target of in vitro cultured R. monacensis or P. falciparum organisms as reaction templates (Figure 3a,d). Multiplex LAMP detected up to 100 genome equivalents of R. monacensis per reaction and was identifiable on C-PAS (Figure 3b,c). When genomic DNA from P. falciparum was used, multiplex LAMP detected up to 0.26 pg, which was equivalent to 10 genome per reaction, and was also identifiable on C-PAS (Figure 3e,f). The observed 10 genome equivalents detection limit was greater than the result from the synthetic gene (Figure 2b–e) because Plasmodium LAMP targets mitochondrial cytochrome b gene, which has 20–120 copies in one parasite depending on its lifecycles [44].

3.4. Comparative Sensitivity of the Multiplex LAMP System against the Real-Time qPCR System

The multiplex LAMP performance was compared to the reported real-time qPCR system using a single target genomic DNA of either in vitro cultured R. monacensis or P. falciparum. The real-time qPCR targeting the SFG Rickettsia outer membrane protein A (OmpA) gene detected up to 100 genomic DNA copies per reaction, indicating that our multiplex LAMP was comparable to the real-time qPCR method (Figure 3b and Figure 4a). Similarly, real-time qPCR targeting pan-Plasmodium 18S rRNA detected up to 10 genome equivalents (0.26 pg), showing the same sensitivity with our multiplex PCR system (Figure 3e and Figure 4b).

3.5. Simplified LAMP Reaction Using Human Blood Spiked Samples and Field-Deployable Amplification Methods

To test the developed method’s applicability in a simple field condition, the multiplex LAMP was performed on the heating block powered by a portable battery using cultured parasites spiked with normal human blood. The multiplex LAMP successfully amplified R. monacensis and P. falciparum (Figure 5a,b). The amplified product was visualized by the fluorescent detection method using a portable fluorometer (Figure 5c). The amplified products were further confirmed to the detected species by dipstick chromatography. The test clearly distinguished the amplified Rickettsia spp. and Plasmodium spp. as well as simultaneous amplification. The negative control using genomic DNA extracted from known negative blood was negative, indicating no nonspecific amplification (Figure 5d).

4. Discussion

Differential diagnosis of the diseases with similar clinical manifestation is critical for successful case management outcomes. Spotted fever group rickettsia, such as R. felis, has been reported to co-infect febrile patients with Plasmodium spp. in endemic areas [7]. Co-infection of Plasmodium spp. with other pathogens, such as dengue virus and Leptospira spp., is associated with severe malaria [45]. Other rickettsial infections have been reported to be mixed with either Plasmodium, Leptospira, or Coxiella burnetii, resulting in complicated clinical management and poor prognosis [46,47,48,49]. Therefore, the development of multiplex differential diagnostic tools is essential for improved diagnosis and case management of undifferentiated fevers.
Our established multiplex LAMP system can be applied in both differential and simultaneous detection of SFG rickettsiae and Plasmodium spp. The multiplex LAMP primer design was adopted from the previously described LAMP systems [23,50], suggesting that already developed LAMP systems could be improved by multiplexing. This proof of concept shows that LAMP methods can be multiplexed to detect infectious diseases and discriminate by dipstick DNA chromatography (C-PAS) visualization, hence easing their application as a point-of-care differential diagnostic tool. The use of C-PAS makes it possible to differentiate multiple amplified targets and visualize without any sophisticated equipment, such as a thermocycler, for melting curve analysis. Since LAMP can also be performed on a heating block or water bath for amplification without a thermocycler [51,52], the whole procedure of our established multiplex LAMP and C-PAS requires minimal resources. The differentiation and visualization of multiple amplified products by C-PAS, which shows multiple blue lines for multiple amplified products, allows easy differential diagnosis in clinical settings. However, it is recommended to use different rooms to prepare the multiplex LAMP master mix and perform dipstick chromatography where the LAMP reaction tube is opened to avoid cross-contamination. Herein, we demonstrated the multiplexing of SFG rickettsia and pan-Plasmodium LAMP and distinguished the specific amplicons by C-PAS. This technique can also be applied in various differential diagnoses. For example, multiplexing of P. falciparum and non-P. falciparum LAMP could be beneficial for their differentiation as artemisinin tends to fail to clear non-P. falciparum malaria [53].
Multiplex LAMP was a combination of two LAMP primer sets in the same reaction. The target template was either mixed (two) or single (one) target templates. The multiplex LAMP’s sensitivity on the mixed targets was 10 times (1000 copies/reaction) lower than the single target template (100 copies/reaction). The discrepancy could be attributed to the competitiveness of multiplex reactions for reagents in mixed target template reactions. However, the multiplex LAMP is potentially applicable in clinical diagnosis as the malaria parasitemia was reported to be approximately 1000 parasites per µL [44,54], translating into detectable quantities by the multiplex LAMP system with dipstick DNA chromatography. SFG rickettsia pathogens, such as R. rickettsii, have shown bacteremia of more than 100 copies per µL in fatal cases [55], which can be detected by our multiplex LAMP.

5. Conclusions

In summary, a multiplex LAMP system to simultaneously detect SFG rickettsiae and pan-Plasmodium spp was developed. The differentiation of the multiple amplified targets was accomplished by dipstick DNA chromatography (C-PAS). Our results show that LAMP can be multiplexed for the simultaneous detection of infectious diseases and easily visualized by dipstick DNA chromatography. Multiplex LAMP is simple and can be applied at a resource-limited point of care as it does not require sophisticated equipment and simple analysis for multiple pathogen diagnosis. Nevertheless, the multiplex LAMP method still needs further improvements on its sensitivity for its application in non-fatal clinical cases with low parasitemia.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-4418/10/11/897/s1, Figure S1. Optimization of the primer concentration for multiplexing.

Author Contributions

Conceptualization, L.C.M., K.H., J.Y., C.S., R.N., and B.N.; investigation, L.C.M., K.H., and N.K.; formal analysis, L.C.M., K.H. and J.Y.; resources, N.K., K.H., and R.N.; visualization, LC.M; writing—original draft preparation, L.C.M.; writing—review and editing, B.N., R.N., K.H., and J.Y.; supervision, K.H., and J.Y.; funding acquisition, K.H., and J.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the “Japan Program for Infectious Diseases Research and Infrastructure” from Japan Agency for Medical Research and Development (AMED) under grant number JP20w m0125008

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Petit:, P.L.; van Ginneken, J.K. Analysis of hospital records in four African countries, 1975-1990, with emphasis on infectious diseases. J. Trop. Med. Hyg. 1995, 98, 217–227. [Google Scholar]
  2. Prasad, N.; Murdoch, D.R.; Reyburn, H.; Crump, J.A. Etiology of severe febrile illness in low- and middle-income countries: A systematic review. PLoS ONE 2015, 10, 1–25. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Kamau, A.; Mogeni, P.; Okiro, E.A.; Snow, R.W.; Bejon, P. A systematic review of changing malaria disease burden in sub-Saharan Africa since 2000: Comparing model predictions and empirical observations. BMC Med. 2020, 18, 1–11. [Google Scholar] [CrossRef] [PubMed]
  4. Reyburn, H.; Mbatia, R.; Drakeley, C.; Carneiro, I.; Mwakasungula, E.; Mwerinde, O.; Saganda, K.; Shao, J.; Kitua, A.; Olomi, R.; et al. Overdiagnosis of malaria in patients with severe febrile illness in Tanzania: A prospective study. Br. Med. J. 2004, 329, 1212–1215. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Brah, S.; Daou, M.; Salissou, L.; Mahaman, S.; Alhousseini, D.; Iroungou, A.; Moussa, S.; Malam-Abdou, B.; Adamou, H.; Adehossi, E. Fever of Unknown Origin in Africa: The Causes Are Often Determined! Health Sci. Dis. 2015, 16, 1–8. [Google Scholar]
  6. Wangdi, K.; Kasturiaratchi, K.; Nery, S.V.; Lau, C.L.; Gray, D.J.; Clements, A.C.A. Diversity of infectious aetiologies of acute undifferentiated febrile illnesses in south and Southeast Asia: A systematic review. BMC Infect. Dis. 2019, 19, 1–17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Mediannikov, O.; Socolovschi, C.; Edouard, S.; Fenollar, F.; Mouffok, N.; Bassene, H.; Diatta, G.; Tall, A.; Niangaly, H.; Doumbo, O.; et al. Common epidemiology of Rickettsia felis infection and malaria, Africa. Emerg. Infect. Dis. 2013, 19, 1775–1783. [Google Scholar] [CrossRef] [PubMed]
  8. Amexo, M.; Tolhurst, R.; Barnish, G.; Bates, I. Malaria misdiagnosis: Effects on the poor and vulnerable. Lancet 2004, 364, 1896–1898. [Google Scholar] [CrossRef]
  9. Raoult, D.; Fournier, P.E.; Fenollar, F.; Jensenius, M.; Prioe, T.; De Pina, J.J.; Caruso, G.; Jones, N.; Laferl, H.; Rosenblatt, J.E.; et al. Rickettsia africae, a tick-borne pathogen in travelers to sub-Saharan Africa. N. Engl. J. Med. 2001, 344, 1504–1510. [Google Scholar] [CrossRef]
  10. Mediannikov, O.; Diatta, G.; Fenollar, F.; Sokhna, C.; Trape, J.F.; Raoult, D. Tick-borne rickettsioses, neglected emerging diseases in rural Senegal. PLoS Negl. Trop. Dis. 2010, 4. [Google Scholar] [CrossRef] [Green Version]
  11. Robinson, M.T.; Satjanadumrong, J.; Hughes, T.; Stenos, J.; Blacksell, S.D. Diagnosis of spotted fever group Rickettsia infections: The Asian perspective. Epidemiol. Infect. 2019, 147, e286. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Santibáñez, S.; Portillo, A.; Santibáñez, P.; Palomar, A.M.; Oteo, J.A. Usefulness of rickettsial PCR assays for the molecular diagnosis of human rickettsioses. Enferm. Infecc. Microbiol. Clin. 2013, 31, 283–288. [Google Scholar] [CrossRef]
  13. Crump, J.A.; Morrissey, A.B.; Nicholson, W.L.; Massung, R.F.; Stoddard, R.A.; Galloway, R.L.; Ooi, E.E.; Maro, V.P.; Saganda, W.; Kinabo, G.D.; et al. Etiology of Severe Non-malaria Febrile Illness in Northern Tanzania: A Prospective Cohort Study. PLoS Negl. Trop. Dis. 2013, 7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Punjabi, N.H.; Taylor, W.R.J.; Murphy, G.S.; Purwaningsih, S.; Picarima, H.; Sisson, J.; Olson, J.G.; Baso, S.; Wangsasaputra, F.; Lesmana, M.; et al. Etiology of acute, non-malaria, febrile illnesses in Jayapura, Northeastern Papua, Indonesia. Am. J. Trop. Med. Hyg. 2012, 86, 46–51. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Pinheirob, V.E.; Thaithongc, S.; Browna, K.N. High sensitivity of detection of human malaria parasites by the use of nested polymerase chain reaction. Mol. Biochem. Parasitol. 1993, 61, 315–320. [Google Scholar] [CrossRef]
  16. Cnops, L.; Jacobs, J.; Van Esbroeck, M. Validation of a four-primer real-time PCR as a diagnostic tool for single and mixed Plasmodium infections. Clin. Microbiol. Infect. 2011, 17, 1101–1107. [Google Scholar] [CrossRef] [Green Version]
  17. Choi, Y.J.; Lee, S.H.; Park, K.H.; Koh, Y.S.; Lee, K.H.; Baik, H.S.; Choi, M.S.; Kim, I.S.; Jang, W.J. Evaluation of PCR-based assay for diagnosis of spotted fever group rickettsiosis in human serum samples. Clin. Diagn. Lab. Immunol. 2005, 12, 759–763. [Google Scholar] [CrossRef] [Green Version]
  18. Renvoisé, A.; Rolain, J.M.; Socolovschi, C.; Raoult, D. Widespread use of real-time PCR for rickettsial diagnosis. FEMS Immunol. Med. Microbiol. 2012, 64, 126–129. [Google Scholar] [CrossRef] [Green Version]
  19. Notomi, T.; Okayama, H.; Masubuchi, H.; Yonekawa, T.; Watanabe, K.; Amino, N.; Hase, T. Loop-mediated isothermal amplification of DNA. Nucleic Acids Res. 2000, 28, e63. [Google Scholar] [CrossRef] [Green Version]
  20. Hayashida, K.; Kajino, K.; Simukoko, H.; Simuunza, M.; Ndebe, J.; Chota, A.; Namangala, B.; Sugimoto, C. Direct detection of falciparum and non-falciparum malaria DNA from a drop of blood with high sensitivity by the dried-LAMP system. Parasites Vectors 2017, 10, 1–9. [Google Scholar] [CrossRef] [Green Version]
  21. Han, E.T.; Watanabe, R.; Sattabongkot, J.; Khuntirat, B.; Sirichaisinthop, J.; Iriko, H.; Jin, L.; Takeo, S.; Tsuboi, T. Detection of four Plasmodium species by genus- and species-specific loop-mediated isothermal amplification for clinical diagnosis. J. Clin. Microbiol. 2007, 45, 2521–2528. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Polley, S.D.; Mori, Y.; Watson, J.; Perkins, M.D.; González, I.J.; Notomi, T.; Chiodini, P.L.; Sutherland, C.J. Mitochondrial DNA targets increase sensitivity of malaria detection using loop-mediated isothermal amplification. J. Clin. Microbiol. 2010, 48, 2866–2871. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Noden, B.H.; Martin, J.; Carrillo, Y.; Talley, J.L.; Ochoa-Corona, F.M. Development of a loop-mediated isothermal amplification (LAMP) assay for rapid screening of ticks and fleas for spotted fever group rickettsia. PLoS ONE 2018, 13, 1–11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Pan, L.; Zhang, L.; Wang, G.; Liu, Q. Rapid, simple, and sensitive detection of the ompB gene of spotted fever group rickettsiae by loop-mediated isothermal amplification. BMC Infect. Dis. 2012, 12. [Google Scholar] [CrossRef] [Green Version]
  25. Mori, Y.; Kitao, M.; Tomita, N.; Notomi, T. Real-time turbidimetry of LAMP reaction for quantifying template DNA. J. Biochem. Biophys. Methods 2004, 59, 145–157. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, N.; Zou, D.; Dong, D.; Yang, Z.; Ao, D.; Liu, W.; Huang, L. Development of a multiplex loop-mediated isothermal amplification method for the simultaneous detection of Salmonella spp. and Vibrio parahaemolyticus. Sci. Rep. 2017, 7, 1–7. [Google Scholar] [CrossRef]
  27. Takabatake, R.; Kagiya, Y.; Minegishi, Y.; Futo, S.; Soga, K.; Nakamura, K.; Kondo, K.; Mano, J.; Kitta, K. Rapid Screening Detection of Genetically Modified Crops by Loop-Mediated Isothermal Amplification with a Lateral Flow Dipstick. J. Agric. Food Chem. 2018, 66, 7839–7845. [Google Scholar] [CrossRef]
  28. Tanner, N.A.; Zhang, Y.; Evans, T.C. Simultaneous multiple target detection in real-time loop-mediated isothermal amplification. Biotechniques 2012, 53, 81–89. [Google Scholar] [CrossRef] [Green Version]
  29. Wang, Y.; Wang, Y.; Lan, R.; Xu, H.; Ma, A.; Li, D.; Dai, H.; Yuan, X.; Xu, J.; Ye, C. Multiple endonuclease restriction real-time loop-mediated isothermal amplification: A novel analytically rapid, sensitive, multiplex loop-mediated isothermal amplification detection technique. J. Mol. Diagnostics 2015, 17, 392–401. [Google Scholar] [CrossRef]
  30. Ball, C.S.; Light, Y.K.; Koh, C.Y.; Wheeler, S.S.; Coffey, L.L.; Meagher, R.J. Quenching of Unincorporated Amplification Signal Reporters in Reverse-Transcription Loop-Mediated Isothermal Amplification Enabling Bright, Single-Step, Closed-Tube, and Multiplexed Detection of RNA Viruses. Anal. Chem. 2016, 88, 3562–3568. [Google Scholar] [CrossRef]
  31. Monden, Y.; Takasaki, K.; Futo, S.; Niwa, K.; Kawase, M.; Akitake, H.; Tahara, M. A rapid and enhanced DNA detection method for crop cultivar discrimination. J. Biotechnol. 2014, 185, 57–62. [Google Scholar] [CrossRef]
  32. Shanmugakani, R.K.; Akeda, Y.; Yamamoto, N.; Sakamoto, N.; Hagiya, H.; Yoshida, H.; Takeuchi, D.; Sugawara, Y.; Kodera, T.; Kawase, M.; et al. PCR-dipstick chromatography for differential detection of carbapenemase genes directly in stool specimens. Antimicrob. Agents Chemother. 2017, 61, 1–4. [Google Scholar] [CrossRef] [Green Version]
  33. Niwa, K.; Oribe, A.; Okumura, H.; Shimono, M.; Nagai, K.; Hirota, T.; Yasue, H.; Kawase, M. Tag/hybridization-based sensitive detection of polymerase chain reaction products. Anal. Biochem. 2014, 464, 12–16. [Google Scholar] [CrossRef]
  34. Tian, L.; Sato, T.; Niwa, K.; Kawase, M.; Mayanagi, G.; Washio, J.; Takahashi, N. PCR-dipstick DNA chromatography for profiling of a subgroup of caries associated bacterial species in plaque from healthy coronal surfaces and periodontal pockets. Biomed. Res. 2016, 37, 29–36. [Google Scholar] [CrossRef] [Green Version]
  35. Sugita-Konishi, Y.; Kobayashi, N.; Takasaki, K.; Kanno, T.; Itoh, M.; Riztyan; Futo, S.; Asakura, H.; Taira, K.; Kawakami, Y. Detection of Sarcocystis spp. and Shiga toxin-producing Escherichia coli in Japanese sika deer meat using a loop-mediated isothermal amplification-lateral flow strip. J. Vet. Med. Sci. 2019, 81, 586–592. [Google Scholar] [CrossRef] [Green Version]
  36. Hayashida, K.; Kajino, K.; Hachaambwa, L.; Namangala, B.; Sugimoto, C. Direct Blood Dry LAMP: A Rapid, Stable, and Easy Diagnostic Tool for Human African Trypanosomiasis. PLoS Negl. Trop. Dis. 2015, 9, 1–14. [Google Scholar] [CrossRef]
  37. Hayashida, K.; Orba, Y.; Sequeira, P.C.; Sugimoto, C.; Hall, W.W.; Eshita, Y.; Suzuki, Y.; Runtuwene, L.; Brasil, P.; Calvet, G.; et al. Field diagnosis and genotyping of chikungunya virus using a dried reverse transcription loop-mediated isothermal amplification (LAMP) assay and MinION sequencing. PLoS Negl. Trop. Dis. 2019, 13, e0007480. [Google Scholar] [CrossRef]
  38. Thu, M.J.; Qiu, Y.; Kataoka-Nakamura, C.; Sugimoto, C.; Katakura, K.; Isoda, N.; Nakao, R. Isolation of Rickettsia, Rickettsiella, and Spiroplasma from Questing Ticks in Japan Using Arthropod Cells. Vector-Borne Zoonotic Dis. 2019, 19, 474–485. [Google Scholar] [CrossRef]
  39. Moonga, L.C.; Hayashida, K.; Nakao, R.; Lisulo, M.; Kaneko, C.; Nakamura, I.; Eshita, Y.; Mweene, A.S.; Namangala, B.; Sugimoto, C.; et al. Molecular detection of Rickettsia felis in dogs, rodents and cat fleas in Zambia. Parasites Vectors 2019, 12, 168. [Google Scholar] [CrossRef] [Green Version]
  40. Trager, W.; Jensen, J.B. Human malaria parasites in continuous culture. Science (80-. ) 1976, 193, 673–675. [Google Scholar] [CrossRef]
  41. Lefterova, M.I.; Budvytiene, I.; Sandlund, J.; Färnert, A.; Banaei, N. Simple real-time PCR and amplicon sequencing method for identification of Plasmodium species in human whole blood. J. Clin. Microbiol. 2015, 53, 2251–2257. [Google Scholar] [CrossRef] [Green Version]
  42. Choi, E.H.; Lee, S.K.; Ihm, C.; Sohn, Y.H.; Kwang, S.; Ihm, C.; Sohn, Y.H. Rapid DNA Extraction from Dried Blood Spots on Filter Paper: Potential Applications in Biobanking. Osong Public Health Res. Perspect. 2014, 5, 351–357. [Google Scholar] [CrossRef] [Green Version]
  43. Rolando, J.C.; Jue, E.; Barlow, J.T.; Ismagilov, R.F. Real-time kinetics and high-resolution melt curves in single-molecule digital LAMP to differentiate and study specific and nonspecific amplification. Nucleic Acids Res. 2020, 48, e42. [Google Scholar] [CrossRef] [Green Version]
  44. Gill, C.; Id, H.; Kristine, M.; Elizabeth, G.; Str, A.; Langeland, N.; Hanevik, K.; Mohn, S.C. Assessment of malaria real-time PCR methods and application with focus on low- level parasitemia. PLoS ONE 2019, 14, e0218982. [Google Scholar]
  45. Mandage, R.; Kaur, C.; Pramanik, A.; Kumar, V.; Kodan, P.; Singh, A.; Saha, S.; Pandey, S.; Wig, N.; Pandey, R.M.; et al. Association of Dengue Virus and Leptospira Co-Infections with Malaria Severity. Emerg. Infect. Dis. 2020, 26, 1645–1653. [Google Scholar] [CrossRef]
  46. McGready, R.; Blacksell, S.D.; Luksameetanasan, R.; Wuthiekanun, V.; Jedsadapanpong, W.; Day, N.P.J.; Nosten, F. First report of an orientia tsutsugamushi type TA716-related scrub typhus infection in Thailand. Vector-Borne Zoonotic Dis. 2010, 10, 191–193. [Google Scholar] [CrossRef] [Green Version]
  47. Watt, G.; Parola, P. Scrub typhus and tropical rickettsioses. Curr. Opin. Infect. Dis. 2003, 16, 429–436. [Google Scholar] [CrossRef]
  48. Rolain, J.M.; Gouriet, F.; Brouqui, P.; Larrey, D.; Janbon, F.; Vene, S.; Jarnestrom, V.; Raoult, D. Concomitant or consecutive infection with Coxiella burnetti, tickborne diseases. Clin. Infect. Dis. 2005, 40, 82–88. [Google Scholar] [CrossRef] [Green Version]
  49. Phimda, K.; Hoontrakul, S.; Suttinont, C.; Chareonwat, S.; Losuwanaluk, K.; Chueasuwanchai, S.; Chierakul, W.; Suwancharoen, D.; Silpasakorn, S.; Saisongkorh, W.; et al. Doxycycline versus azithromycin for treatment of leptospirosis and scrub typhus. Antimicrob. Agents Chemother. 2007, 51, 3259–3263. [Google Scholar] [CrossRef] [Green Version]
  50. Haanshuus, C.G.; Mohn, S.C.; Mørch, K.; Langeland, N.; Blomberg, B.; Hanevik, K. A novel, single-amplification PCR targeting mitochondrial genome highly sensitive and specific in diagnosing malaria among returned travelers in Bergen, Norway. Malar. J. 2013, 12, 26. [Google Scholar] [CrossRef] [Green Version]
  51. Gandasegui, J.; Fernández-Soto, P.; Muro, A.; Simões Barbosa, C.; Lopes de Melo, F.; Loyo, R.; de Souza Gomes, E.C. A field survey using LAMP assay for detection of Schistosoma mansoni in a low-transmission area of schistosomiasis in Umbuzeiro, Brazil: Assessment in human and snail samples. PLoS Negl. Trop. Dis. 2018, 12, 1–16. [Google Scholar] [CrossRef]
  52. Oriero, E.C.; Van Geertruyden, J.P.; Nwakanma, D.C.; Dalessandro, U.; Jacobs, J. Novel techniques and future directions in molecular diagnosis of malaria in resource-limited settings. Expert Rev. Mol. Diagn. 2015, 15, 1419–1426. [Google Scholar] [CrossRef] [PubMed]
  53. Dinko, B.; Oguike, M.C.; Larbi, J.A.; Bousema, T.; Sutherland, C.J. Persistent detection of Plasmodium falciparum, P. malariae, P. ovale curtisi and P. ovale wallikeri after ACT treatment of asymptomatic Ghanaian school-children. Int. J. Parasitol. Drugs Drug Resist. 2013, 3, 45–50. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Imwong, M.; Woodrow, C.J.; Hendriksen, I.C.E.; Veenemans, J.; Verhoef, H.; Faiz, M.A.; Mohanty, S.; Mishra, S.; Mtove, G.; Gesase, S.; et al. Plasma concentration of parasite DNA as a measure of disease severity in falciparum malaria. J. Infect. Dis. 2015, 211, 1128–1133. [Google Scholar] [CrossRef] [Green Version]
  55. Kato, C.; Chung, I.; Paddock, C. Estimation of Rickettsia rickettsii copy number in the blood of patients with Rocky Mountain spotted fever suggests cyclic diurnal trends in bacteremia. Clin. Microbiol. Infect. 2016, 22, 394–396. [Google Scholar] [CrossRef] [Green Version]
Diagnostics 10 00897 g001 550
Figure 1. Multiplex LAMP amplification using a synthetic single target gene template. (a) shows the multiplex LAMP primer mix and Rickettsia gene template. The amplification curve in (b) shows the detection of up to 100 Rickettsia gene copies per reaction. The melting temperature for Rickettsia gene is shown to be 87 °C in (c). (d) shows the multiplex primer mix and the Plasmodium gene template for the reaction mix. The multiplex LAMP sensitivity shows the detection of up to 100 Plasmodium gene copies per reaction (e). The Plasmodium gene melting temperature shows 83 °C (f).
Figure 1. Multiplex LAMP amplification using a synthetic single target gene template. (a) shows the multiplex LAMP primer mix and Rickettsia gene template. The amplification curve in (b) shows the detection of up to 100 Rickettsia gene copies per reaction. The melting temperature for Rickettsia gene is shown to be 87 °C in (c). (d) shows the multiplex primer mix and the Plasmodium gene template for the reaction mix. The multiplex LAMP sensitivity shows the detection of up to 100 Plasmodium gene copies per reaction (e). The Plasmodium gene melting temperature shows 83 °C (f).
Diagnostics 10 00897 g001
Diagnostics 10 00897 g002 550

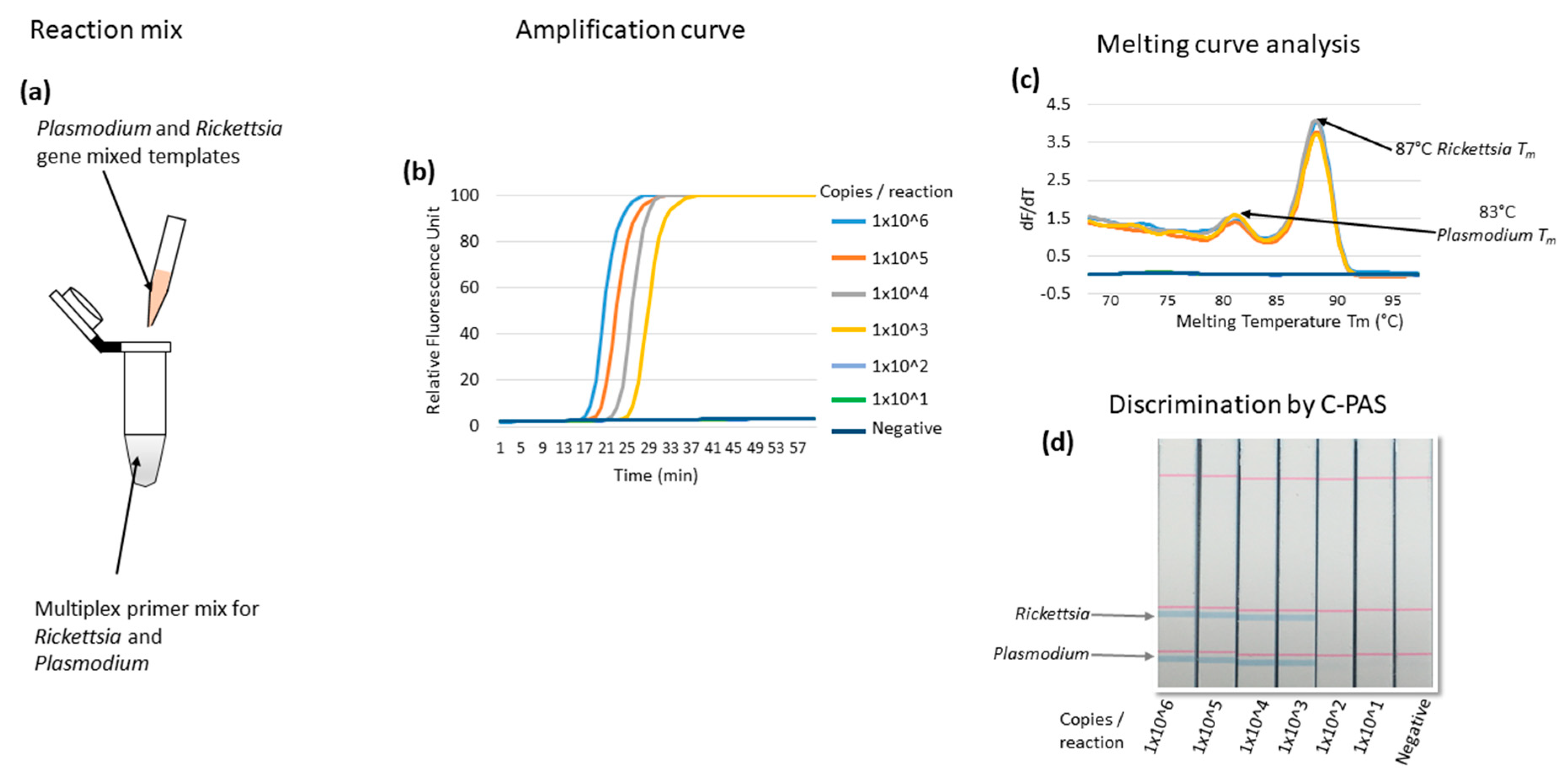

Figure 2. Multiplex LAMP amplification and discrimination by dipstick DNA chromatography (C-PAS) using mixed target gene templates. The reaction mix contained multiplex LAMP primer sets and the two-template mix for Rickettsia and Plasmodium gene target templates (a). The amplification curve detected up to 1000 indistinguishable gene copies per reaction (b). The melting curve analysis panel shows two melting temperatures for Rickettsia and Plasmodium genes at 87 and 83 °C, respectively (c). (d) shows the dipstick DNA chromatography panel, indicating Rickettsia and Plasmodium genes, amplified products distinguished as two bands. The C-PAS result is consistent with the melting curve analysis.
Figure 2. Multiplex LAMP amplification and discrimination by dipstick DNA chromatography (C-PAS) using mixed target gene templates. The reaction mix contained multiplex LAMP primer sets and the two-template mix for Rickettsia and Plasmodium gene target templates (a). The amplification curve detected up to 1000 indistinguishable gene copies per reaction (b). The melting curve analysis panel shows two melting temperatures for Rickettsia and Plasmodium genes at 87 and 83 °C, respectively (c). (d) shows the dipstick DNA chromatography panel, indicating Rickettsia and Plasmodium genes, amplified products distinguished as two bands. The C-PAS result is consistent with the melting curve analysis.
Diagnostics 10 00897 g002
Diagnostics 10 00897 g003 550

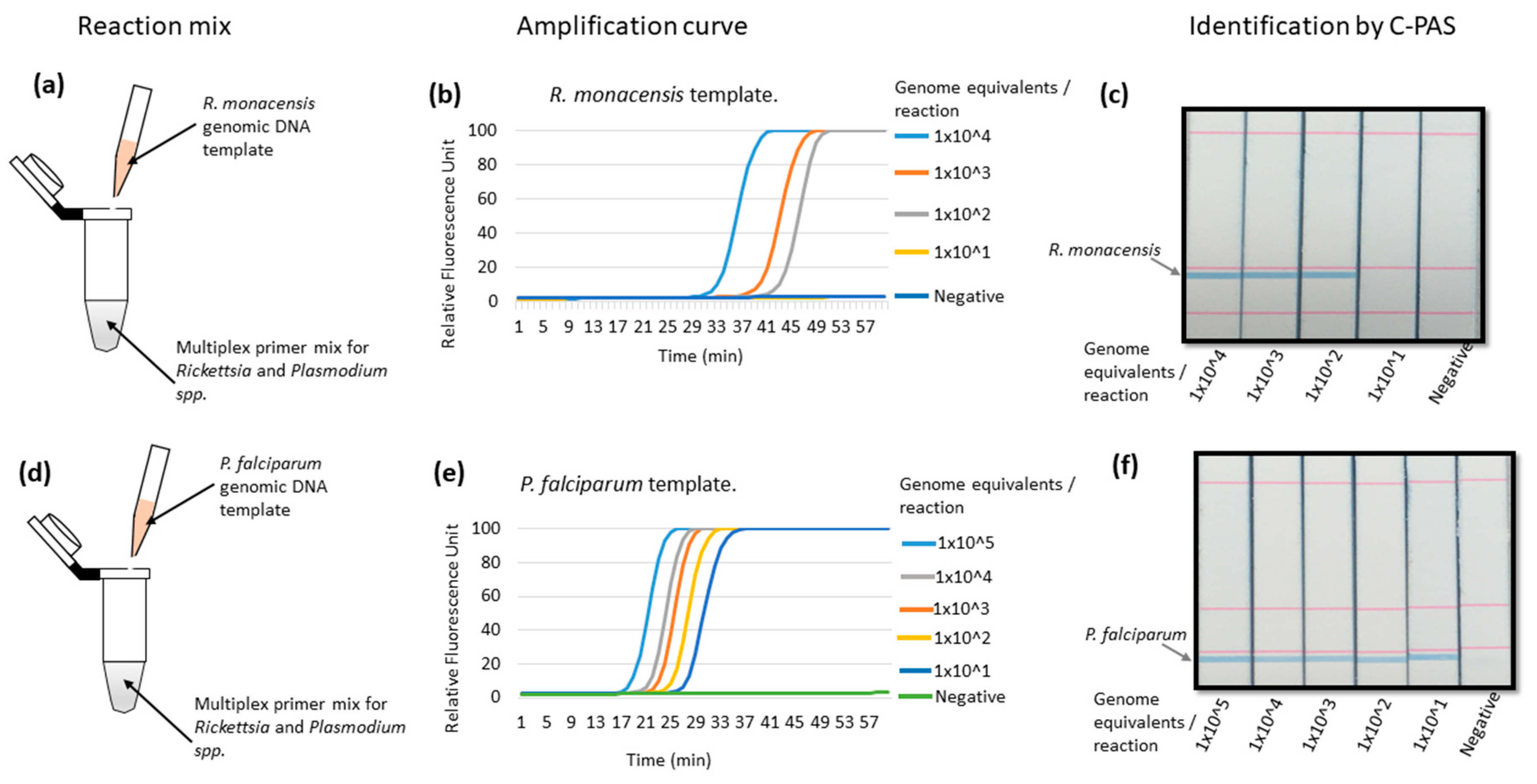

Figure 3. Multiplex LAMP amplification using genomic DNA from in vitro cultured organisms. (a) shows the multiplex LAMP primer sets with R. monacensis genomic DNA in the reaction mix. The amplification curve shows detection up to 100 genome equivalents per reaction of R. monacensis (b) and identification of amplicons as Rickettsia by C-PAS (c). The reaction mix contained multiplex LAMP primer sets with P. falciparum genomic DNA (d). (e) shows the amplification curve of P. falciparum detecting up to 10 genome equivalents per reaction. C-PAS identified the amplified product as Plasmodium (f).
Figure 3. Multiplex LAMP amplification using genomic DNA from in vitro cultured organisms. (a) shows the multiplex LAMP primer sets with R. monacensis genomic DNA in the reaction mix. The amplification curve shows detection up to 100 genome equivalents per reaction of R. monacensis (b) and identification of amplicons as Rickettsia by C-PAS (c). The reaction mix contained multiplex LAMP primer sets with P. falciparum genomic DNA (d). (e) shows the amplification curve of P. falciparum detecting up to 10 genome equivalents per reaction. C-PAS identified the amplified product as Plasmodium (f).
Diagnostics 10 00897 g003
Diagnostics 10 00897 g004 550

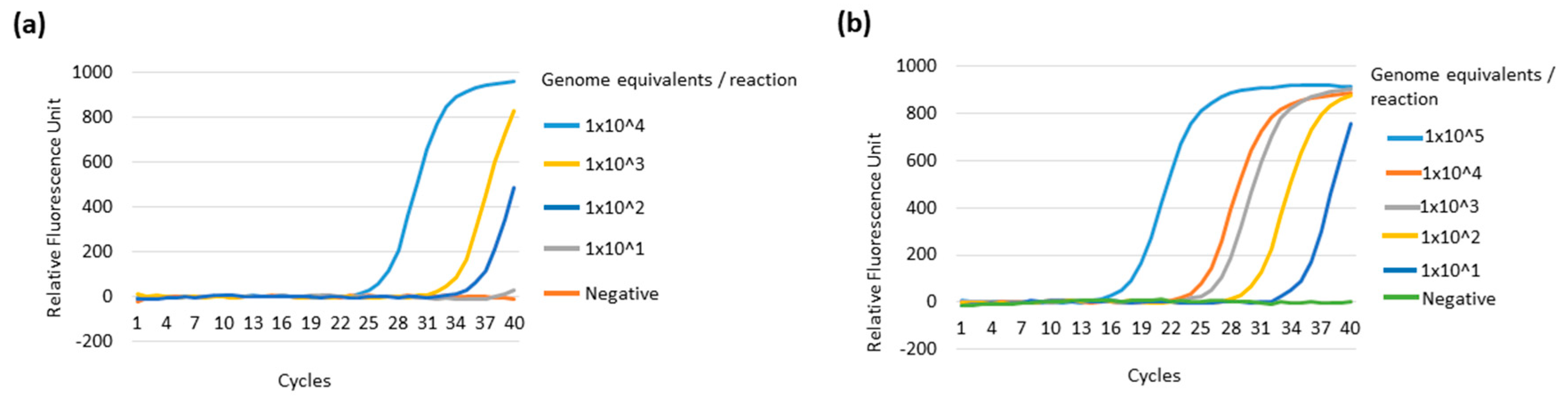

Figure 4. The sensitivity of real-time qPCR using genomic DNA from in vitro cultured organisms. (a) shows the amplification curve of R. monacensis by qPCR based on the Rickettsia OmpA gene. (b) shows the Plasmodium 18S rRNA gene amplification curve using the P. falciparum. The qPCR showed detection up to 100 (a) and 10 (b) genome equivalents for in vitro cultured R. monacensis and P. falciparum, respectively.
Figure 4. The sensitivity of real-time qPCR using genomic DNA from in vitro cultured organisms. (a) shows the amplification curve of R. monacensis by qPCR based on the Rickettsia OmpA gene. (b) shows the Plasmodium 18S rRNA gene amplification curve using the P. falciparum. The qPCR showed detection up to 100 (a) and 10 (b) genome equivalents for in vitro cultured R. monacensis and P. falciparum, respectively.
Diagnostics 10 00897 g004
Diagnostics 10 00897 g005 550

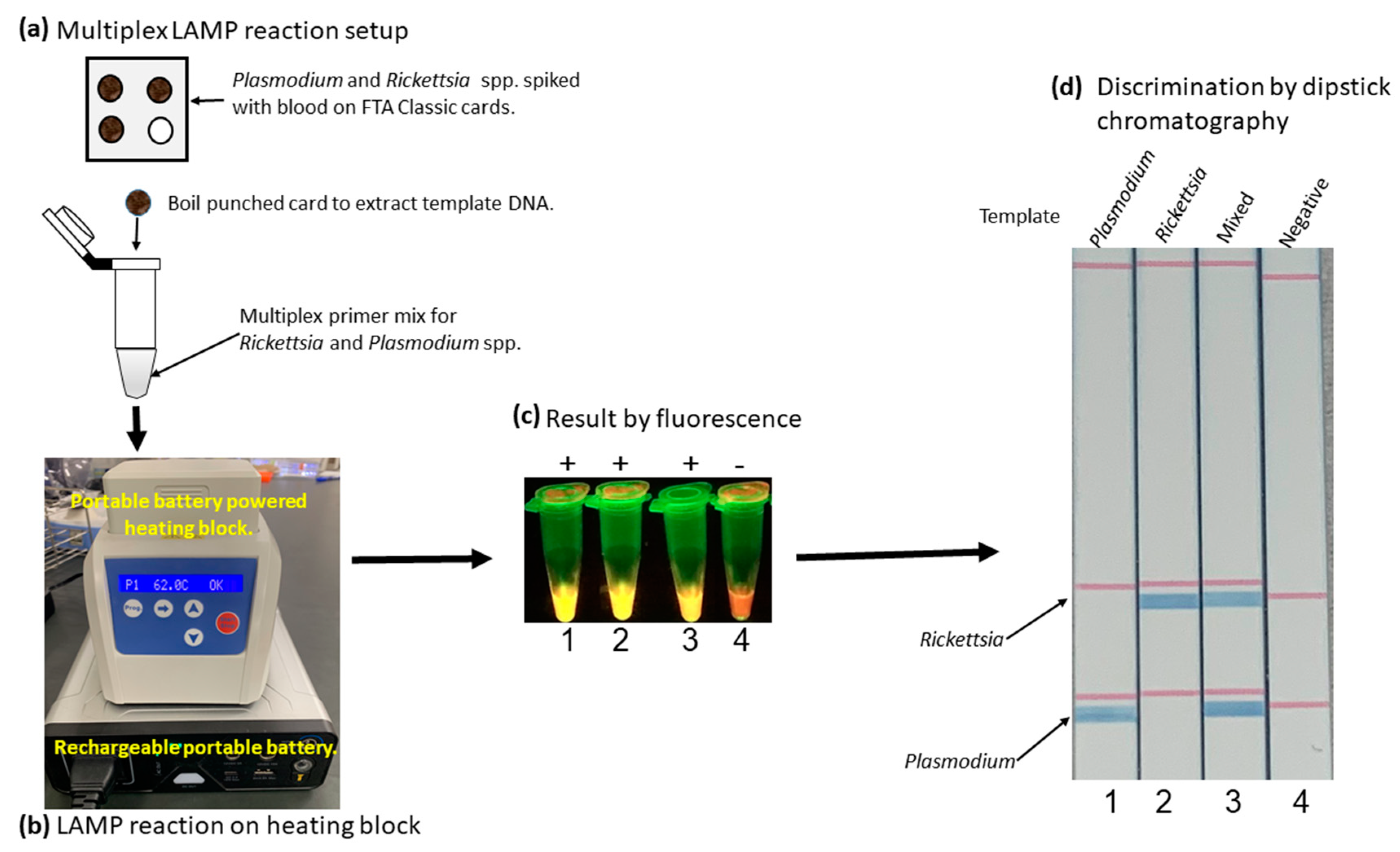

Figure 5. Simplified multiplex LAMP detection of R. monacensis and P. falciparum spiked with human blood. (a) shows the multiplex LAMP reaction setup using R. monacensis and P. falciparum spiked with blood, dried on Whatman FTA Classic card, and genomic DNA extracted by boiling. (b) shows the performance of LAMP using a rechargeable battery-powered heating block. (c) shows the detection result by fluorescence, while (d) shows multiple amplicon discrimination by dipstick chromatography.
Figure 5. Simplified multiplex LAMP detection of R. monacensis and P. falciparum spiked with human blood. (a) shows the multiplex LAMP reaction setup using R. monacensis and P. falciparum spiked with blood, dried on Whatman FTA Classic card, and genomic DNA extracted by boiling. (b) shows the performance of LAMP using a rechargeable battery-powered heating block. (c) shows the detection result by fluorescence, while (d) shows multiple amplicon discrimination by dipstick chromatography.
Diagnostics 10 00897 g005
Table
Table 1. Loop-mediated isothermal amplification primer sequences that were used for multiplex LAMP. Tagged and biotin-labeled primers are shown with F1 and F4, representing a unique tag sequence. “X” indicates the position of spacer C3 between the unique tag sequence and the LAMP primer sequence.
Table 1. Loop-mediated isothermal amplification primer sequences that were used for multiplex LAMP. Tagged and biotin-labeled primers are shown with F1 and F4, representing a unique tag sequence. “X” indicates the position of spacer C3 between the unique tag sequence and the LAMP primer sequence.
Target PathogenTarget Gene NamePrimer Name [Reference]Primer Sequence NamePrimer Sequence
Spotted fever and Transitional group rickettsiae17 kDa protein-encoding (htrA) gene17 kDA [23]Rr17F35′-TGTTACAAGCCTGTAACGG-3′
Rr17B35′-TCCTGTTCATCCATACCTG-3′
Rr17FIP5′-GAGAACCAAGTAATGCGCCGGGCGGTATGAATAAACAAGG-3′
Rr17BIP5′-AATTCGGTAAGGGCAAAGGACCACCGATTTGTCCACCAA-3′
Rr17LoopF5′-F1-X-CCGCCAAGAAGTGTTCCTGTA-3′
Rr17LoopB5′-Biotin-AGCTTGTTGGAGTAGGTGTAGGTG-3′
Plasmodium spp.Mitochondrial Cytochrome b (cytb) gene PgMt19 [22]PgMt19-F35′-TCGCTTCTAACGGTGAAC-3′
PgMt19-B35′-AATTGATAGTATCAGCTATCCATAG-3′
PgMt19-FIP5′-GGTGGAACACATTGTTTCATTTGATCTCATTCCAATGGAACCTTG-3′
PgMt19-BIP5′-Biotin-GTTTGCTTCTAACATTCCACTTGCCCGTTTTGACCGGTCATT-3′
PgMt19-LF5′-F4-X-CACTATACCTTACCAATCTATTTGAACTTG-3′
PgMt19-LB5′-TGGACGTAACCTCCAGGC-3′
Table
Table 2. The sensitivity of the multiplex LAMP system based on the melting curve analysis and C-PAS detection technique. Melting curve analysis and C-PAS showed the same sensitivities for detecting synthetic genes of Plasmodium and Rickettsia in five independent experiments. All experiments were performed in five replicates. NTC: no template control.
Table 2. The sensitivity of the multiplex LAMP system based on the melting curve analysis and C-PAS detection technique. Melting curve analysis and C-PAS showed the same sensitivities for detecting synthetic genes of Plasmodium and Rickettsia in five independent experiments. All experiments were performed in five replicates. NTC: no template control.
Copy Number Per Reaction 1,000,000100,00010,000100010010NTC
Melting peak analysis resultPlasmodium gene5/5 (100%)5/5 (100%)5/5 (100%)5/5 (100%)3/5 (60%)1/5 (20%)0/5 (0%)
Rickettsia gene5/5 (100%)5/5 (100%)5/5 (100%)5/5 (100%)0/5 (0%)0/5 (0%)0/5 (0%)
C-PAS resultPlasmodium gene5/5 (100%)5/5 (100%)5/5 (100%)5/5 (100%)3/5 (60%)1/5 (20%)0/5 (0%)
Rickettsia gene5/5 (100%)5/5 (100%)5/5 (100%)5/5 (100%)0/5 (0%)0/5 (0%)0/5 (0%)
