Postmortem Ocular Findings in the Optical Coherence Tomography Era: A Proof of Concept Study Based on Six Forensic Cases

by
Matteo Nioi
1,*,†,
Pietro Emanuele Napoli
2,†,
Roberto Demontis
1,
Emanuela Locci
1,
Maurizio Fossarello
2 and
Ernesto d’Aloja
1
1
Forensic Medicine Unit, Department of Clinical Sciences and Public Health, University of Cagliari, 09124 Cagliari, Italy
2
Eye Clinic, Department of Surgical Science, University of Cagliari, 09124 Cagliari, Italy
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Diagnostics 2021, 11(3), 413; https://doi.org/10.3390/diagnostics11030413
Submission received: 18 January 2021 / Revised: 23 February 2021 / Accepted: 25 February 2021 / Published: 28 February 2021
(This article belongs to the Special Issue Anterior-Segment Optical Coherence Tomography as a Diagnostics Tool)
Browse Figures
Versions Notes

Abstract

:
Postmortem analysis of the ocular globe is an important topic for forensic pathology and transplantology. Although crucial elements may be gathered from examining cadaveric eyes, the latter do not routinely undergo in-depth analysis. The paucity of quantitative and objective data that are obtainable using current, invasive necroscopic techniques is the main reason for the limited interest in this highly specialized procedure. The aim of the current study is to describe and to object for the first time the postmortem ocular changes by mean of portable optical coherence tomography for evaluating ocular tissues postmortem. The design involved the postmortem analysis (in situ, and without enucleation) of 12 eyes by portable spectral-domain Optical Coherence Tomography. The scans were performed, in corneal, retinal and angle modality at different intervals: <6 h, 6th, 12th, and 24th hour and after autopsy (25th–72nd hour). The morphological changes in the cornea, sclera, vitreous humor and aqueous humor were easy to explore and objectify in these tissues in first 72 h postmortem. On the other hand, the “in situ” observation of the retina was difficult due to the opacification of the lenses in the first 24 h after death.

1. Introduction

Evaluation of postmortem ocular signs is part of a standard autopsy. However, cadaveric eyes are rarely analyzed in-depth by forensic pathologists as a routine examination or by ophthalmologists for transplantation, which is probably because it is a highly invasive procedure. However, a theoretical viewpoint suggests that postmortem ocular findings may be of great use for estimating postmortem interval (PMI), or in some case, for determine the cause of death.
For the past two centuries, pathologists have drawn attention to postmortem ocular findings [1,2,3]. In the 1950s and 1960s, Kevorkian and colleagues focused their studies on postmortem ocular changes, particularly of the retina and optic disk [4,5,6]. In 1965, Aoki and colleagues suggested the importance of postmortem ocular changes in determining the postmortem interval [7]. In the late 1970s, other authors, such as Wroblewski and colleagues [8,9] studied postmortem ocular findings in a sample of 300 patients macroscopically (i.e., without technical instruments).
During the same historical period, Tsunenari and colleagues studied the variations of corneal turbidity using a laser, and they explained the role of mucopolysaccharides and water in postmortem corneal clouding phenomenon [10,11,12]. From the 1970s to the early 1990s, no major articles were published that considered postmortem ocular changes.
In the latter half of 1990’s, Jaafar and colleagues highlighted the importance of corneal opacity, retinal vessels segmentation, pupil reaction, retinal changes, and intraocular pressure in estimating the early postmortem interval [13].
In this century, although most authors privileged the evaluation of ocular biochemistry [14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29], some studies described the postmortem ocular variations using classical, anatomical findings [30,31,32] or novel technologies. There was also new interest in assessing ocular postmortem findings, which was supported by the possibility of diagnosing shaken baby syndrome [33,34,35,36,37,38,39] or analyzing tissue for transplantation purposes [40,41,42,43,44,45].

1.1. State of the Art

As technology has progressed, medical science has acquired new methods in increasing accuracy, and in some cases, decreasing invasiveness when studying the ocular globe during the postmortem period.
Lanz, Tsujinaka, Davis, and colleagues demonstrated the usefulness of indirect ophthalmoscopic techniques to evaluate the retina after death [46,47,48]. Cantürk, Zhou, Kawashim, and the Lantz group estimated the postmortem interval using corneal image analysis [49,50,51,52,53]. Li and colleagues applied elaboration software to study thickness changes at different postmortem intervals [54].
Stemberga and colleagues tested different methods to demonstrate the usefulness of retro-bulbar translucency in the lens after death [55]. Saripalle and colleagues tested the applicability of iris biometric analysis for postmortem eye investigation in an animal model [56]. Balci and colleagues demonstrated the importance of measuring intraocular pressure to estimate the postmortem interval [57]. Prieto-Bonete and Luna proposed a histological analysis to detect morphological lens changes for postmortem interval estimation [58]. Dogariou’s group evaluated corneal postmortem changes using fluorescent staining [59].

1.2. The Optical Coherence Tomography Era

In the latter half of the 1990s, the advent of optical coherence tomography (OCT) revolutionized the diagnostic possibilities in clinical ophthalmology, thus, indicating the onset of a new era. OCT is an imaging technique that is based on low-coherence interferometry, which allows tissue to be studied in a non-contact, cross-sectional, tridimensional, and real-time manner [60].
The application of this imaging technique in forensic sciences was limited [61] by the need to examine the patient in the orthostatic position. Therefore, only a limited number of studies were possible using enucleate eyes for transplantation. The recent introduction of a portable OCT (p-OCT) has allowed scanning of ocular tissue in the clinostatic position, in situ, in real time, and without enucleation [62]. To the best of our knowledge, only OCT studies with enucleated eyes have been performed [63,64,65,66,67].
Our group demonstrated the reliability of p-OCT for evaluating morphometric changes in the cornea in the postmortem period in an animal model [68,69,70], and we performed a preliminary study in humans [71,72,73].
The goal of the current research was to describe, for first time, a set of novel postmortem signs in the eye using p-OCT in a case series of six individuals who died of various causes.

2. Materials and Methods

This study examined corpses that came to the attention of the Institute of Forensic Medicine of the University of Cagliari between January and November 2020, for which a judicial autopsy was required by the local prosecutor.
Exclusion criteria were as follows: cases in which the time of death had not been documented with certainty (medical report or witness data); those in which the epicritical analysis of the cause of death did not lead to a certain diagnosis; and corpses in which observation started beyond 20 h after death.
The remaining sample consisted of six corpses (12 eyes), of which four were men and two were women between 22 and 87 years of age (45.83 ± 19.72 years) (Table 1).
All the bodies were kept in a dedicated room (according to local laws) with controlled humidity (45% ± 5) and temperature (21−22 °C) until the end of all OCT scans.
The eyes were opened only for the OCT scans and immediately repositioned in original position.
On all the cadavers, the scans were performed using the portable iVue SD-OCT (Optovue Inc., Fremont, CA, USA), and the study aimed to determine the corneal thickness, the morphology of the anterior chamber (including the characteristics of the aqueous humor), the morphology of the posterior chamber (including the vitreous humor), and the morphological characteristics of the retina and the sclera.
The OCT scans were performed at the following intervals: first observation (<6 h); observations at 6, 12, and 24 h; and after autopsy (range 25–72 h postmortem).

3. Results

The results were divided according to the type of tissue that was examined.

3.1. Cornea and Anterior Chamber

The device allowed us to obtain morphological information about the corneal structure (sublayer alterations included) at different postmortem intervals.
Generally, corneal tissue showed a progressive tissue thickening tendency as observed using the pachymetric map tool. In 50% of cases (3/6), the eye pattern consisted of a thinner central area and a thicker peripheral area (Figure 1).
This different trend in central and peripheral cornea was dependent on the eyelid open status.
In all cases that were observed, from the morphological point of view, there was a tendency for progressive formation of waves in the endothelial layer of tissue (endothelial humps).
Previous observations were only made in corneas that had been removed from enucleated globes, and they were analyzed based on transplantation aims and experimentally exposed to different hydration states. We called this phenomenon, described this phenomenon in situ scan for the first time, NN sign (Nioi–Napoli sign), as previously described in preliminary work.
We also observed an initial change in the reflectivity between the anterior (hyper-reflective) and posterior (hypo-reflective) tissue segments, which was probably due to a different hydration status and alterations in the collagen layer spatial disposition (Figure 2).
In all cases, after 24th hour, scans also showed a progressive decrease in amplitude of the anterior chamber and a change in the corneal curvature (irido-corneal angle), which was associated with progressive formation of waves in the endothelial tissue layer (Figure 3).
We hypothesized that this finding was due to ultrastructural changes and a progressive decrease in intraocular pressure, as already described by Balci and colleagues.
In later scans, we observed full contact between the cornea and iris with loose corneal sphericity and abolition of the anterior chamber (Figure 4).
Further alterations were detected in the epithelium. In two cases in which late observations were made (>36 h) the epithelial tissue tended to disappear completely, leaving the basement membrane exposed.
Knowledge about the cause of death and the location at which the corpse was discovered permitted us to determine the environmental importance in the manifestation of corneal phenomena. In two examined cases, water permanence suggested that there was a delay in the appearance of tissue alterations (compared with other observed samples). In particular, staying in salt water delayed the initial phase of stromal swelling that was observed in two samples (cases 3 and 4) in our series after the 6th hour.

3.2. Sclera

In one case, we observed for the first time, a three-dimensional (3D) structural image of scleral postmortem tache noir. This finding seemed to be due to the drying process, which caused a progressive lack of lacrimal tears. Morphologically, this is characterized by important hyper-reflectivity of the outer layer with physical separation between the sclera and choroid. Complete understanding of this phenomenon requires new and more accurate studies because the exposure of the sclera to dry environments for long periods of time does not necessarily imply that the tache noir manifestation will develop (Figure 5).
Among the observed cases, this sign appeared to be characterized in one case by dynamics (gunshot wound to the head) involving a rapid and instantaneous increase in intracranial pressure, which inevitably had repercussions on the ocular globe.

3.3. Aqueous and Vitreous Humor

Observation of the aqueous and vitreous humor was possible at different intervals, and corpuscles were observed at tardive intervals (36 h) in one case. Graphics software may be useful to identify a change in the physical state of the humor over the time.

3.4. Retina

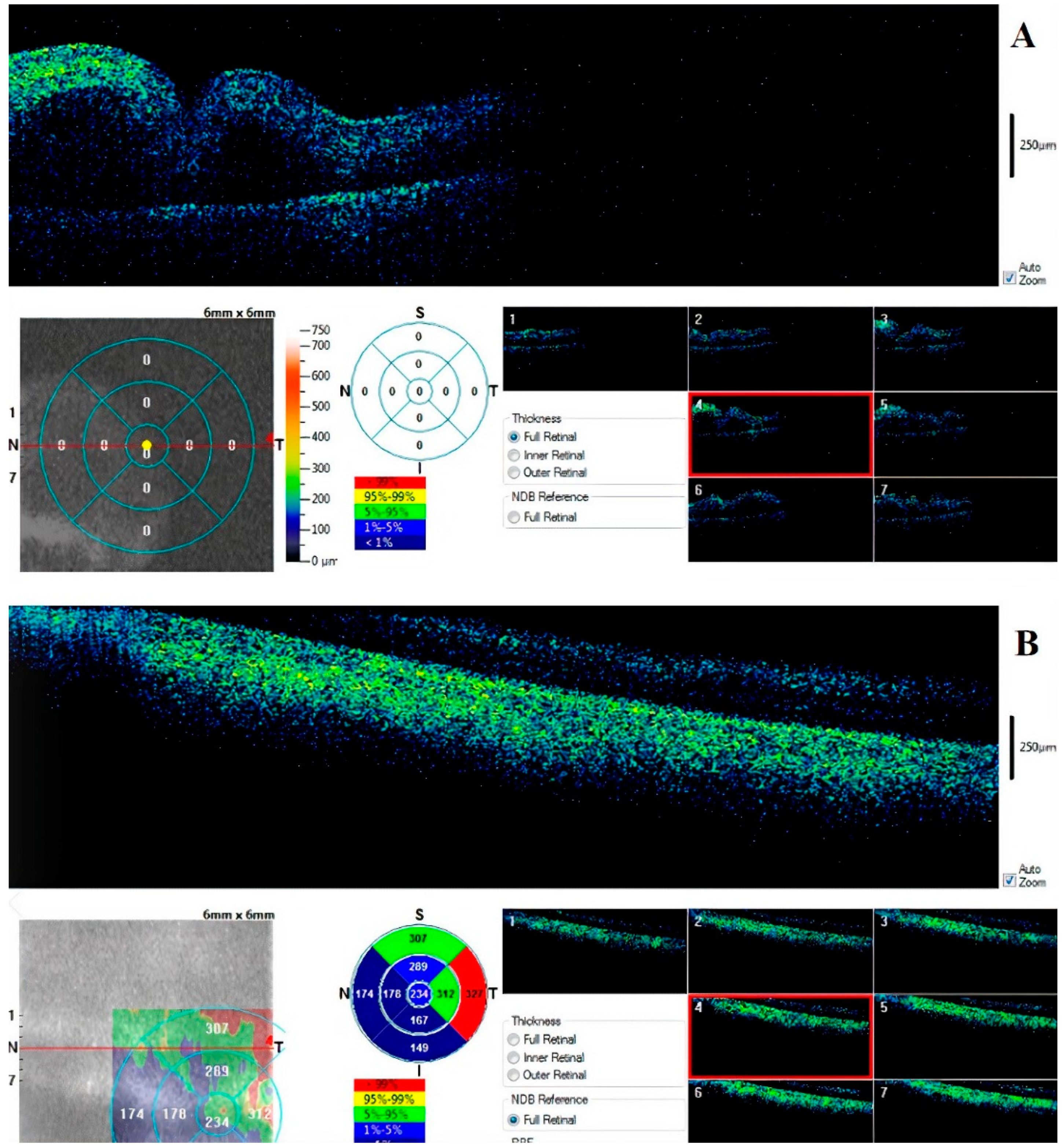

In all cases, the retina was observable in the first 6–12 h after death. Analysis of the structure was limited by the pupillary size, progressive opacification of the lens, and lack of fixation, which is important in vivo for the detection of the fovea (Figure 6).

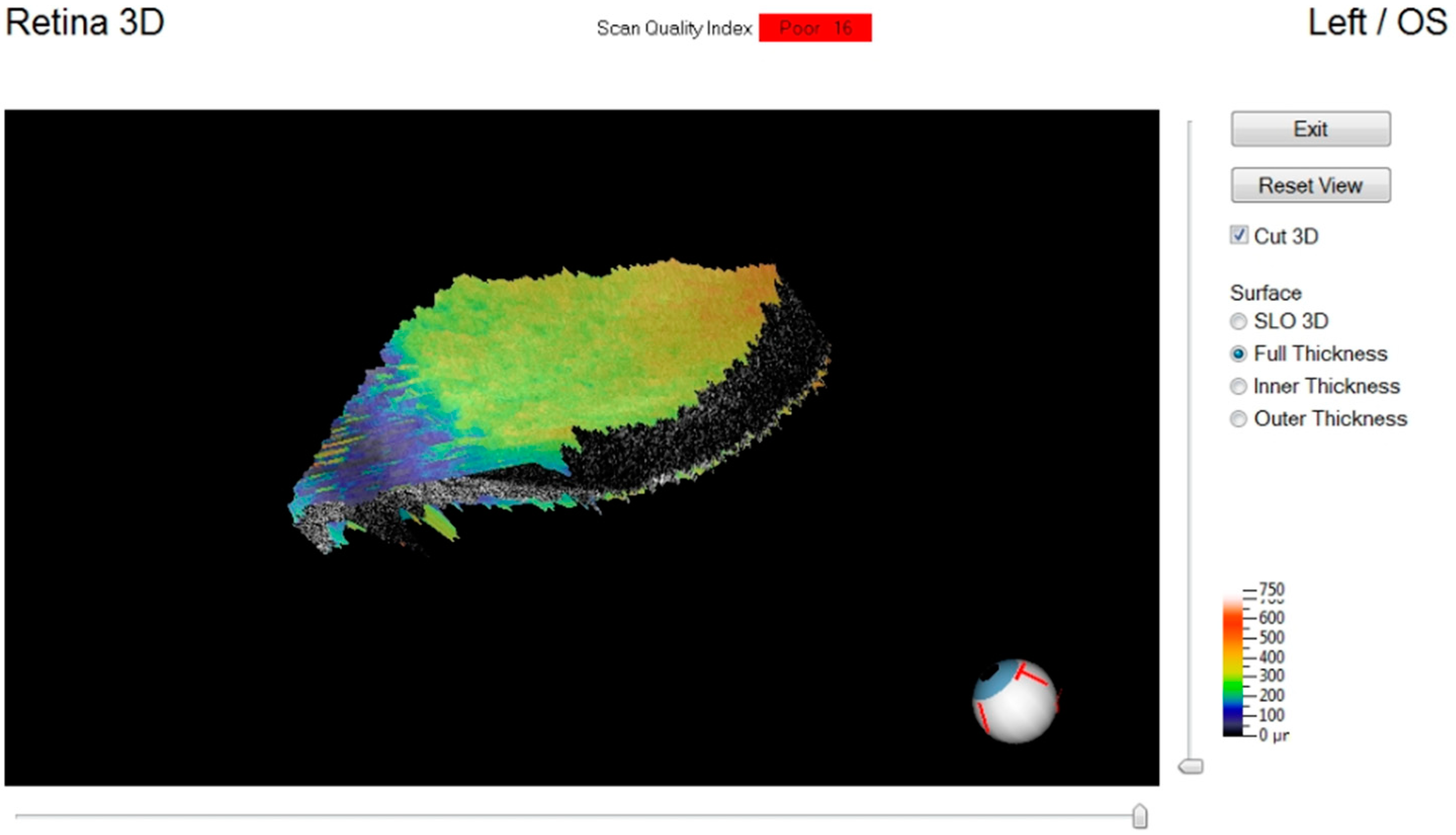

The device permits a pachymetric observation of the tissue and a 3D view of the surface (Figure 7).
Early observation showed progressive vessel segmentation and early cleavage between layers. In one of the six cases, the retina was could not be observed due to the presence of post-traumatic myosis.
The results are summarized in Table 2.

4. Discussion

In the current study, we used a portable Optical Coherence Tomography device (p-OCT) in autoptic human samples to study the following segments of the human ocular globe at different postmortem intervals: cornea and anterior chamber, aqueous and vitreous humor, retina, and sclera.
For the cornea, the macroscopic sign that was observed was opacification. In the current study, thanatogenesis of this diagnostic sign was highlighted for the first time. Compared to the gold standard, the p-OCT technique allows observation of the tissue structure without altering it. In addition to dehydration of the outer layer, the possibility of obtaining a pachymetric map of the tissue was highlighted, as reported in previous studies by our group [62,72]. This application could be used in the future for thanato-chrono-diagnostic purposes.
Data on the decrease in ocular tone, which was proposed in previous imaging studies, could also be interpreted obtained using OCT by measuring the iridocorneal angle. This has been previously observed, and it decreases in amplitude with an increasing postmortem interval.
Studying the ocular fluids (aqueous and vitreous) highlighted flaking, which began during the later intervals. This phenomenon could be a starting point for future studies that combine morphological data with biochemical data from the aqueous and vitreous humor.
Examination of the retina showed a vascular fragmentation in the first hours postmortem. However, examination of this tissue had the most technical problems. In clinical practice, examination of the retina requires the patient’s cooperation. The impossibility of obtaining fixation and the simultaneous and progressive thickening of the cornea made it possible to obtain high quality images of the retinal tissue only in the early postmortem intervals. The presence of myosis is a significant obstacle to observing the tissue. These aspects severely limited the use of OCT to study the retina postmortem.
The main limitation of the current study was the sample size, which was not sufficient to identify statistically significant changes. The second major limitation was the lack of validation of a uniform procedure for the acquisition of images postmortem. The third important limitation was the observational nature of the current study and the samples that were used. The use of a “judicial” sample did not allow observations that were close to the time of death (0–1 h) as well as at later times (>36 h).
Future studies are needed to overcome these difficulties and to introduce this tool into forensic pathology practice.
However, the use of OCT was objective and non-invasive, and it allowed observations that were only classically detected macroscopically. The application of this tool could allow future development of new methods to calculate the PMI using quantitative data, which is not currently used in forensic pathology.
A more in-depth study of the signs could provide more information on the thanatogenesis of some signs (tache noir), which were previously considered to be non-specific, and in-depth knowledge of these signs could also provide valuable information on the cause of death

5. Conclusions

Portable OCT is a useful device to study postmortem ophthalmological findings in humans. Applications of the device may have important repercussions for estimating the time of death, determining the cause of death, and allowing the pathologist to objectively quantify and preserve data that, to date, had only been acquired in a qualitative manner.

Author Contributions

Conceptualization, M.N., E.d. and P.E.N.; methodology, M.N., P.E.N., E.L.; investigation, M.N., P.E.N., E.L. and R.D.; resources, E.d, M.F., R.D. and E.L.; data curation, M.N. and P.E.N.; writing—original draft preparation, M.N. and P.E.N.; writing—review and editing, M.N., P.E.N., E.d., R.D., E.L. and M.F.; supervision E.d., E.L., M.F. and R.D.; All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Formal ethical approval by the Independent Review Board was not required in accordance with the policy of our Institution for non-pharmacological studies. Being the focus of the study on the correlation between macroscopical and OCT findings in corneas collected by autopsied human corpses (on behalf of the Local Prosecutors for purposes of justice and according to local approved protocols), only a preliminary ethical evaluation on soundness of the scientific hypothesis and on the respect of the principles of the Declaration of Helsinki (and further modifications) was carried out. For this reason, an ethical code number was not assigned to the study but only a ‘nihil obstat’ was sent to the principal investigator on 16 December 2019.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author [MN]. The data are not publicly available due to their containing information that could compromise the privacy of research participants or of their family members (the work is about forensic cases).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sommer, A.G. Dissertationis de Signis, Mortem Hominis Absolutam ante Putredinis Accessum Indicantibus, Particula Prior [at Posterior]; Forbes, J., Conolly, J., Eds.; n.p.: Copenhagen, Denmark, 1833; p. 277. [Google Scholar]
  2. Forbes, J.; Conolly, J. Sommer on the signs of death. In British and Foreign Medical Review; Sherwood Gilbert and Piper: London, UK, 1837; Volume IV. [Google Scholar]
  3. Nicati, S. Loss of eye tension as a sign of death. Med. Rec. 1894, 45, 4801. [Google Scholar]
  4. Kevorkian, J. The fundus oculi and the determination of death. Am. J. Pathol. 1956, 32, 1253–1267. [Google Scholar]
  5. Kevorkian, J. The Eye in Death; Ciba Symposia: London, UK, 1961. [Google Scholar]
  6. Kevorkian, J. The fundus oculi as a post-mortem clock. J. Forensic Sci. 1961, 6, 261–271. [Google Scholar] [PubMed]
  7. Aoki, T. Studies on the estimation of time after death. Jikeikai Med. J. 1965, 1, 3–18. [Google Scholar]
  8. Wroblewski, B.; Ellis, M. Eye changes after death. Br. J. Surg. 1970, 57, 69–71. [Google Scholar] [CrossRef]
  9. Wroblewski, B.M. Estimation of time of death by eye changes. Forensic Sci. 1973, 2, 201–205. [Google Scholar] [CrossRef]
  10. Tsunenari, S.; Watanabe, S.; Takahama, K.; Kanda, M. A method to determine the corneal turbidity by the application of Laser. 1. Nihon Hoigaku Zasshi = Jpn. J. Leg. Med. 1971, 25, 373–375. [Google Scholar]
  11. Tsunenari, S.; Mizuho, K. The Post-Mortem Changes of Corneal Turbidity and its Water Content. Med. Sci. Law 1977, 17, 108–111. [Google Scholar] [CrossRef]
  12. Tsunenari, S.; Mizuho, K. The roles of corneal mucopolysaccharides and water contents in post-mortem corneal clouding. Forensic Sci. 1978, 11, 87–92. [Google Scholar] [CrossRef]
  13. Jaafar, S.; Nokes, L.D.M. Examination of the eye as a means to determine the early postmortem period: A review of the literature. Forensic Sci. Int. 1994, 64, 185–189. [Google Scholar] [CrossRef]
  14. Madea, B.; Henssge, C.; Hönig, W.; Gerbracht, A. References for determining the time of death by potassium in vitreous humor. Forensic Sci. Int. 1989, 40, 231–243. [Google Scholar] [CrossRef]
  15. James, R.A.; Hoadley, P.A.; Sampson, B.G. Determination of postmortem interval by sampling vitreous humour. Am. J. Forensic Med. Pathol. 1997, 18(2), 158–162. [Google Scholar] [CrossRef]
  16. Muñoz, J.I.; Suárez-Peñaranda, J.M.; Otero, X.L.; Rodríguez-Calvo, M.S.; Costas, E.; Miguéns, X.; Concheiro, L. A new perspective in the estimation of postmortem interval (PMI) based on vitreous [K+]. J. Forensic Sci. 2001, 46, 209–214. [Google Scholar] [CrossRef] [PubMed]
  17. Tagliaro, F.; Manetto, G.; Cittadini, F.; Marchetti, D.; Bortolotti, F.; Marigo, M. Capillary zone electrophoresis of potassium in human vitreous humour: Validation of a new method. J. Chromatogr. B Biomed. Sci. Appl. 1999, 733, 273–279. [Google Scholar] [CrossRef]
  18. Tagliaro, F.; Bortolotti, F.; Manetto, G.; Cittadini, F.; Pascali, V.L.; Marigo, M. Potassium concentration differences in the vitreous humour from the two eyes revisited by microanalysis with capillary electrophoresis. J. Chromatogr. A 2001, 924, 493–498. [Google Scholar] [CrossRef]
  19. Bocaz-Beneventi, G.; Tagliaro, F.; Bortolotti, F.; Manetto, G.; Havel, J. Capillary zone electrophoresis and artificial neural networks for estimation of the post-mortem interval (PMI) using electrolytes measurements in human vitreous humour. Int. J. Leg. Med. 2002, 116, 5–11. [Google Scholar] [CrossRef] [PubMed]
  20. Madea, B. Is there recent progress in the estimation of the postmortem interval by means of thanatochemistry? Forensic Sci. Int. 2005, 151, 139–149. [Google Scholar] [CrossRef]
  21. Madea, B.; Rödig, A. Time of death dependent criteria in vitreous humor—Accuracy of estimating the time since death. Forensic Sci. Int. 2006, 164, 87–92. [Google Scholar] [CrossRef] [PubMed]
  22. Locci, E.; Scano, P.; Rosa, M.F.; Nioi, M.; Noto, A.; Atzori, L.; Demontis, R.; De-Giorgio, F.; d’Aloja, E. A metabolomic approach to animal vitreous humor topographical composition: A pilot study. PLoS ONE 2014, 9, e97773. [Google Scholar]
  23. Rosa, M.F.; Scano, P.; Noto, A.; Nioi, M.; Sanna, R.; Paribello, F.; De-Giorgio, F.; Locci, E.; d’Aloja, E. Monitoring the modifications of the vitreous humor metabolite profile after death: An animal model. BioMed Res. Int. 2015. [Google Scholar] [CrossRef]
  24. Locci, E.; Stocchero, M.; Noto, A.; Chighine, A.; Natali, L.; Napoli, P.E.; Caria, R.; De-Giorgio, F.; Nioi, M.; d’Aloja, E. A 1 H NMR metabolomic approach for the estimation of the time since death using aqueous humour: An animal model. Metabolomics 2019, 15, 76. [Google Scholar] [CrossRef] [PubMed]
  25. Stocchero, M.; Locci, E.; d’Aloja, E.; Nioi, M.; Baraldi, E.; Giordano, G. PLS2 in Metabolomics. Metabolites 2019, 9, 51. [Google Scholar] [CrossRef] [Green Version]
  26. Locci, E.; Bazzano, G.; Chighine, A.; Locco, F.; Ferraro, E.; Demontis, R.; d’Aloja, E. Forensic NMR metabolomics: One more arrow in the quiver. Metabolomics 2020, 16, 1–16. [Google Scholar] [CrossRef] [PubMed]
  27. Jashnani, K.D.; Kale, S.A.; Rupani, A.B. Vitreous humor: Biochemical constituents in estimation of postmortem interval. J. Forensic Sci. 2010, 55, 1523–1527. [Google Scholar] [CrossRef]
  28. Munoz, J.I.; Costas, E.; Rodrĺguez-Calvo, M.S.; Suarez-Penaranda, J.M.; Lopez-Rivadulla, M.; Concheiro, L. A high-performance liquid chromatography method for hypoxanthine determination in vitreous humour: Application to estimation of post mortem interval. Hum. Exp. Toxicol. 2006, 25, 279–281. [Google Scholar] [CrossRef] [PubMed]
  29. Zelentsova, E.A.; Yanshole, L.V.; Snytnikova, O.A.; Yanshole, V.V.; Tsentalovich, Y.P.; Sagdeev, R.Z. Post-mortem changes in the metabolomic compositions of rabbit blood, aqueous and vitreous humors. Metabolomics 2016, 12, 172. [Google Scholar] [CrossRef]
  30. Tsujinaka, M.; Nakazawa, T.; Akaza, K.; Nakamura, I.; Ohya, I.; Bunai, Y. Usefulness of postmortem ocular findings in forensic autopsy. Leg. Med. 2003, 5, S288–S291. [Google Scholar] [CrossRef]
  31. Madea, B.; Kernbach-Wighton, G. Forensic Pathology: Early and Late Postmortem Changes, 1st ed.; Houck, M.M., Ed.; Elsevier Ltd.: London, UK, 2017; pp. 41–55. [Google Scholar]
  32. Henssge, C.; Madea, B. Estimation of the time since death. Forensic Sci. Int. 2007, 165, 182–184. [Google Scholar] [CrossRef] [PubMed]
  33. Emerson, M.V.; Jakobs, E.; Green, W.R. Ocular autopsy and histopathologic features of child abuse. Ophthalmology 2007, 114, 1384–1394. [Google Scholar] [CrossRef] [PubMed]
  34. Scott, A.W.; Farsiu, S.; Enyedi, L.B.; Wallace, D.K.; Toth, C.A. Imaging the infant retina with a hand-held spectral-domain optical coherence tomography device. Am. J. Ophthalmol. 2009, 147, 364–373. [Google Scholar] [CrossRef] [Green Version]
  35. Breazzano, M.P.; Unkrich, K.H.; Barker-Griffith, A.E. Clinicopathological findings in abusive head trauma: Analysis of 110 infant autopsy eyes. Am. J. Ophthalmol. 2014, 158, 1146–1154. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Marshall, D.H.; Brownstein, S.; Dorey, M.W.; Addison, D.J.; Carpenter, B. The spectrum of postmortem ocular findings in victims of shaken baby syndrome. Can. J. Ophthal. 2001, 36, 377–384. [Google Scholar] [CrossRef]
  37. Gilliland, M.G.F.; Levin, A.V.; Enzenauer, R.W.; Smith, C.; Parsons, M.A.; Rorke-Adams, L.; Lauridson, J.R.; La Roche, G.R.; Christmann, L.M.; Mian, M.; et al. Guidelines for postmortem protocol for ocular investigation of sudden unexplained infant death and suspected physical child abuse. Am. J. Forensic Med. Pathol. 2007, 28, 323–329. [Google Scholar] [CrossRef]
  38. Ksiaa, I.; Ghachem, M.; Besbes, H.; Khochtali, S.; Chouchane, S.; Khairallah, M. Swept-source OCT findings in shaken baby syndrome: Case report. BMC Ophthal. 2020, 20, 1–4. [Google Scholar] [CrossRef]
  39. Oshima, T.; Yoshikawa, H.; Ohtani, M.; Mimasaka, S. Three cases of suprachoroidal hemorrhage associated with chest compression or asphyxiation and detected using postmortem computed tomography. Leg. Med. 2015, 17, 188–191. [Google Scholar] [CrossRef] [PubMed]
  40. Tandon, R.; Verma, K.; Vanathi, M.; Pandey, R.M.; Vajpayee, R.B. Factors affecting eye donation from postmortem cases in a tertiary care hospital. Cornea 2004, 23, 597–601. [Google Scholar] [CrossRef] [PubMed]
  41. Jhanji, V.; Tandon, R.; Sharma, N.; Titiyal, J.S.; Satpathy, G.; Vajpayee, R.B. Whole globe enucleation versus in situ excision for donor corneal retrieval-a prospective comparative study. Cornea 2008, 27, 1103–1108. [Google Scholar] [CrossRef]
  42. Lawlor, M.; Dobbins, T.; Thomas, K.A.; Billson, F. Consent for corneal donation: The effect of age of the deceased, registered intent and which family member is asked about donation. Br. J. Ophthalmol. 2006, 90, 1383–1385. [Google Scholar] [CrossRef] [Green Version]
  43. Manish, K.; Jyothi, N.S. The study of post-mortem ocular changes and eye banking. J. Evol. Med. Dent. Sci. 2014, 3, 6252–6257. [Google Scholar]
  44. Püschel, K. Qualified “full service” in post-mortem medicine. Leg. Med. 2009, 11, S4–S5. [Google Scholar] [CrossRef]
  45. Damian, A.; Seitz, B.; Langenbucher, A.; Eppig, T. Optical coherence tomography-based topography determination of corneal grafts in eye bank cultivation. J. Biomed. Opt. 2017, 22, 016001. [Google Scholar] [CrossRef] [Green Version]
  46. Lantz, P.E.; Adams, G.G.W. Postmortem monocular indirect ophthalmoscopy. J. Forensic Sci. 2005, 50, JFS2005137-3. [Google Scholar] [CrossRef]
  47. Tsujinaka, M.; Akaza, K.; Nagai, A.; Nakamura, I.; Bunai, Y. 2. Usefulness of Post-Mortem Ophthalmological Endoscopy during Forensic Autopsy. Med. Sci. Law 2005, 45, 85–88. [Google Scholar] [CrossRef] [PubMed]
  48. Davis, N.L.; Wetli, C.V.; Shakin, J.L. The retina in forensic medicine: Applications of ophthalmic endoscopy: The first 100 cases. Am. J. Forensic Med. Pathol. 2006, 27, 1–10. [Google Scholar] [CrossRef] [PubMed]
  49. Cantürk, İ.; Çelik, S.; Şahin, M.F.; Yağmur, F.; Kara, S.; Karabiber, F. Investigation of opacity development in the human eye for estimation of the postmortem interval. Biocybern. Biomed. Eng. 2017, 37, 559–565. [Google Scholar] [CrossRef]
  50. Zhou, L.; Liu, Y.; Liu, L.; Zhuo, L.; Liang, M.; Yang, F.; Ren, L.; Zhu, S. Image analysis on corneal opacity: A novel method to estimate postmortem interval in rabbits. J. Huazhong Univ. Sci. Technol. 2010, 30, 235–239. [Google Scholar] [CrossRef]
  51. Kawashima, W.; Hatake, K.; Kudo, R.; Nakanishi, M.; Tamaki, S.; Kasuda, S.; Ishitani, A. Estimating the time after death on the basis of corneal opacity. J. Forensic Res. 2015, 6, 269. [Google Scholar]
  52. Liu, F.; Zhu, S.; Fu, Y.; Fan, F.; Wang, T.; Lu, S. Image analysis of the relationship between changes of cornea and postmortem interval. In Pacific Rim International Conference on Artificial Intelligence; Springer: Berlin/Heidelberg, Germany, 2008; pp. 998–1003. [Google Scholar]
  53. Lantz, P.E.; Schoppe, C.H.; Thibault, K.L.; Porter, W.T. Smartphone image acquisition during postmortem monocular indirect ophthalmoscopy. J. Forensic Sci. 2016, 61, 238–240. [Google Scholar] [CrossRef]
  54. Li, X.N.; Zheng, J.L.; Hu, Z.G.; Wang, B.J. Relationship between corneal thickness and postmortem interval in rabbit. Fa Yi Xue Za Zhi 2013, 29, 241–243. [Google Scholar] [PubMed]
  55. Stemberga, V.; Petaros, A.; Kovacevic, D.; Coklo, M.; Simicevic, N.; Bosnar, A. The assessment of lens opacity postmortem and its implication in forensics. J. Forensic Leg. Med. 2013, 20, 1142–1144. [Google Scholar] [CrossRef]
  56. Saripalle, S.K.; McLaughlin, A.; Krishna, R.; Ross, A.; Derakhshani, R. Post-mortem iris biometric analysis in Sus scrofa domesticus. In Proceedings of the 2015 IEEE 7th International Conference on Biometrics Theory, Applications and Systems (BTAS), Arlington, VA, USA, 8–11 September 2015; pp. 1–5. [Google Scholar]
  57. Balci, Y.; Basmak, H.; Kocaturk, B.K.; Sahin, A.; Ozdamar, K. The importance of measuring intraocular pressure using a tonometer in order to estimate the postmortem interval. Am. J. Forensic Med. Pathol. 2010, 31, 151–155. [Google Scholar] [CrossRef] [PubMed]
  58. Prieto-Bonete, G.; Perez-Carceles, M.D.; Luna, A. Morphological and histological changes in eye lens: Possible application for estimating postmortem interval. Leg. Med. 2015, 17, 437–442. [Google Scholar] [CrossRef] [PubMed]
  59. Dogaroiu, C.; Zarojanu, A.; Scurtu, R.; Morosanu, G.; Tataru, C.P.; Cristina, A. Postmortem corneal changes evaluated by fluorescent staining. Rom. J. Leg. Med. 2014, 22, 13–20. [Google Scholar] [CrossRef]
  60. Huang, D.; Swanson, E.A.; Lin, C.P.; Schuman, J.S.; Stinson, W.G.; Chang, W.; Hee, M.R.; Flotte, T.; Kenton, G.; Puliafito, C.A.; et al. Optical coherence tomography. Science 1991, 254, 1178. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Nioi, M.; Napoli, P.E.; Mayerson, S.M.; Fossarello, M.; d’Aloja, E. Optical coherence tomography in forensic sciences: A review of the literature. Forensic Sci. Med. Pathol. 2019, 15, 445–452. [Google Scholar] [CrossRef]
  62. Napoli, P.E.; Nioi, M.; d’Aloja, E.; Fossarello, M. Post-mortem corneal thickness measurements with a portable optical coherence tomography system: A reliability study. Sci. Rep. 2016, 6, 30428. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Pavan, P.R.; McCartney, M.D.; Saunders, T.; Gore, P.; Sprehe, N.; Saxon, W.; Margo, C.E. Postmortem Ultrasound and OCT Imaging of the Posterior Segment. Investig. Ophthalmol. Vis. Sci. 2014, 55, 3358. [Google Scholar]
  64. Saunders, T.; Gore, P.; Sprehe, N.; Pavan, P.; Margo, C. Postmortem Imaging of the Posterior Segment of Eyes with Histopathologic Correlation. Investig. Ophthalmol. Vis. Sci. 2013, 54, 2313. [Google Scholar]
  65. Ghazi, N.G.; Dibernardo, C.; Ying, H.S.; Mori, K.; Gehlbach, P.L. Optical coherence tomography of enucleated human eye specimens with histological correlation: Origin of the outer “red line”. Am. J. Ophthalmol. 2006, 141, 719. [Google Scholar] [CrossRef]
  66. Grieve, K.; Ghoubay, D.; Georgeon, C.; Latour, G.; Nahas, A.; Plamann, K.; Crotti, C.; Bocheux, R.; Borderie, M.; Nguyen, T.M.; et al. Stromal striae: A new insight into corneal physiology and mechanics. Sci. Rep. 2017, 7, 13584. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Müller, L.J.; Pels, E.; Vrensen, G.F. The specific architecture of the anterior stroma accounts for maintenance of corneal curvature. Br. J. Ophthalmol. 2001, 85, 437–443. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Iovino, C.; Napoli, P.E.; Nioi, M.; Sanna, R.; Paribello, F.; d’Aloja, E.; Fossarello, M. Intraobserver variability of post-mortem corneal thickness measurements by using a portable OCT system. Investig. Ophthalmol. Vis. Sci. 2017, 58, 3516. [Google Scholar]
  69. Nioi, M.; Napoli, P.E.; Iovino, C.; Paribello, F.; Fossarello, M.; d’Aloja, E. Corneal findings after death: A preliminary OCT study on an animal model. Investig. Ophthalmol. Vis. Sci. 2017, 58, 4873. [Google Scholar]
  70. Nioi, M.; Napoli, P.E.; Demontis, R.; Locci, E.; Fossarello, M.; d’Aloja, E. Morphological analysis of corneal findings modifications after death: A preliminary OCT study on an animal model. Exp. Eye Res. 2018, 169, 20–27. [Google Scholar] [CrossRef] [PubMed]
  71. Nioi, M.; Napoli, P.E.; Paribello, F.; Demontis, R.; De-Giorgio, F.; Porru, E.; Fossarello, M.; D’Aloja, E. Use of Optical Coherence Tomography (OCT) on detection of postmortem Ocular Findings: Pilot data from two cases. J. Integr. OMICS 2017, 7, 9–10. [Google Scholar]
  72. Napoli, P.E.; Nioi, M.; Gabiati, L.; Laurenzo, M.; De-Giorgio, F.; Scorcia, V.; Grassi, S.; d’Aloja, E.; Fossarello, M. Repeatability and reproducibility of post-mortem central corneal thickness measurements using a portable optical coherence tomography system in humans: A prospective multicenter study. Sci. Rep. 2020, 10, 1–9. [Google Scholar] [CrossRef]
  73. Napoli, P.E.; Nioi, M.; d’Aloja, E.; Loy, F.; Fossarello, M. The architecture of corneal stromal striae on optical coherence tomography and histology in an animal model and in humans. Sci. Rep. 2020, 10, 1–8. [Google Scholar] [CrossRef] [PubMed]
Diagnostics 11 00413 g001 550

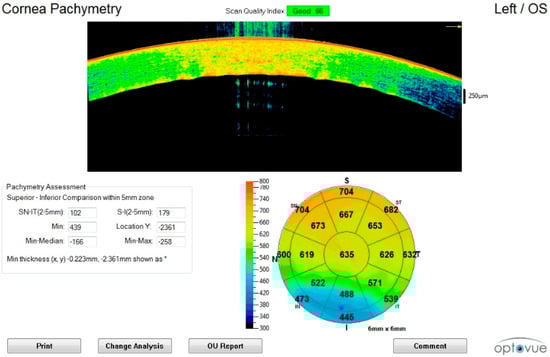

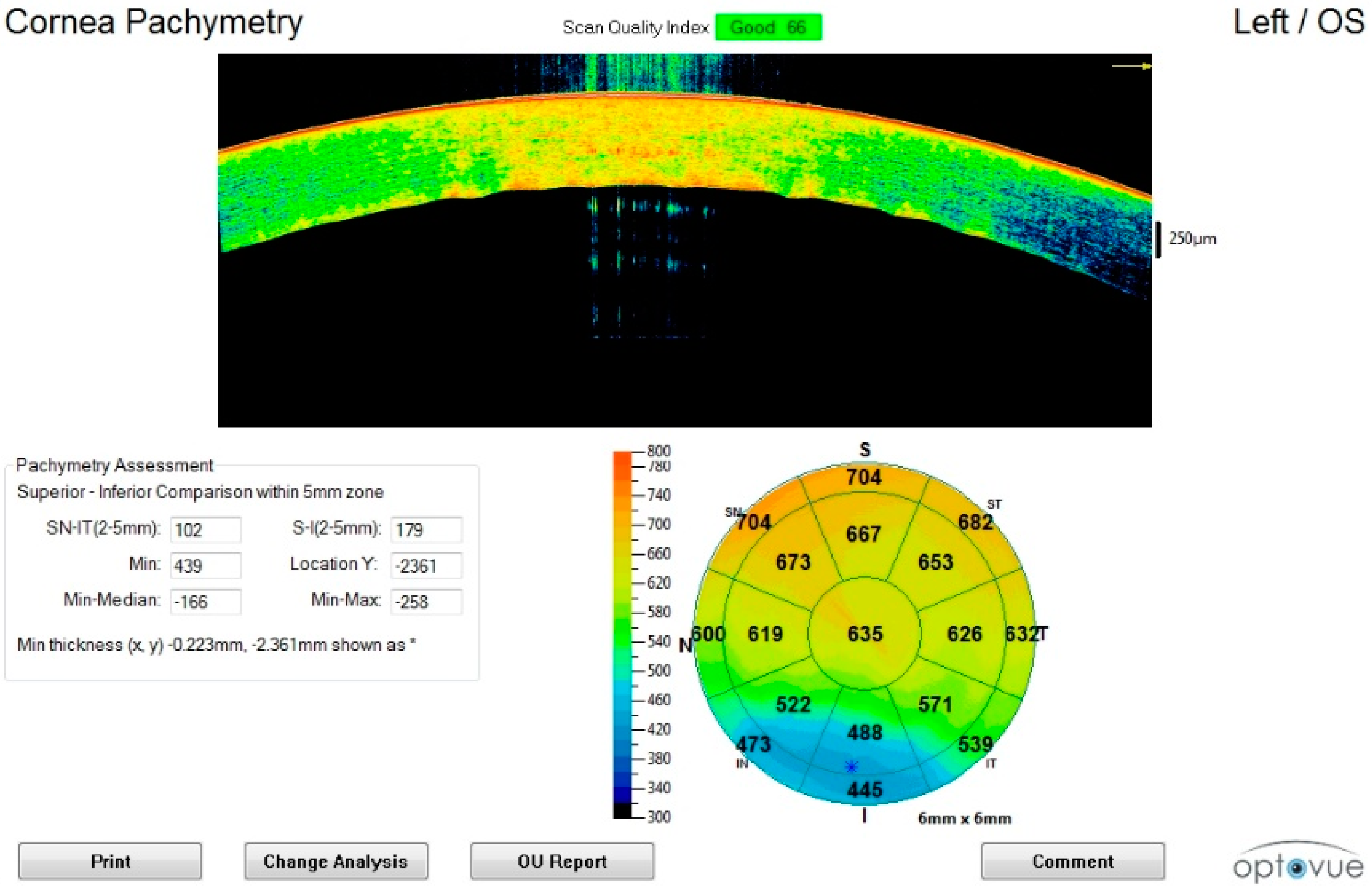

Figure 1. Corneal scan in the early postmortem interval (sixth hour). The initial thickening, disappearance of the tear film, outer hyper-reflectivity, and initial formation of endothelial humps can be observed.
Figure 1. Corneal scan in the early postmortem interval (sixth hour). The initial thickening, disappearance of the tear film, outer hyper-reflectivity, and initial formation of endothelial humps can be observed.
Diagnostics 11 00413 g001
Diagnostics 11 00413 g002 550

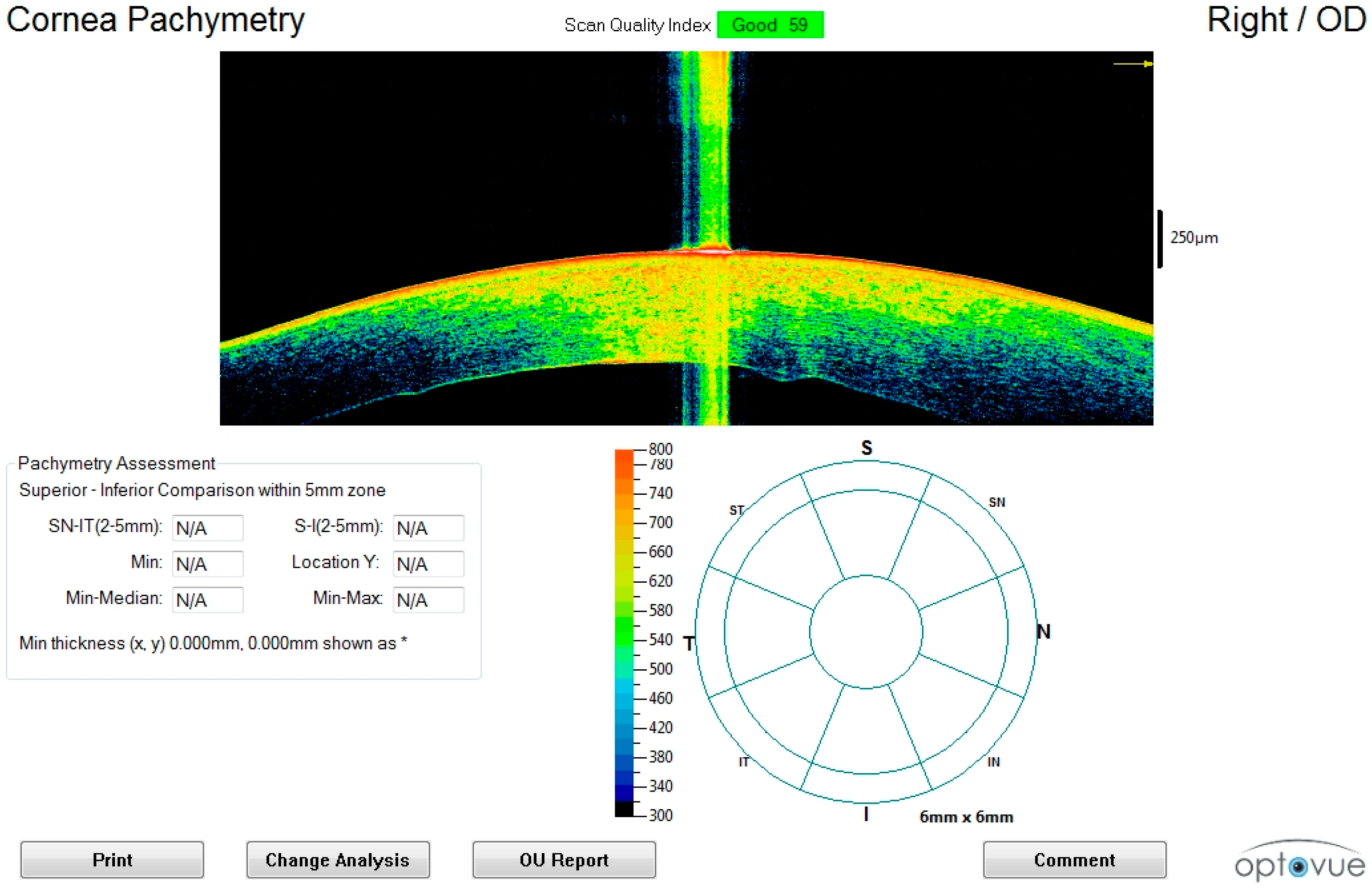

Figure 2. Corneal scan in the intermediate postmortem interval (twelvth hour) Enhancement of the thickening with differentiation between anterior (hyper-reflective) and posterior (hypo-reflective) segments of the stroma is observed.
Figure 2. Corneal scan in the intermediate postmortem interval (twelvth hour) Enhancement of the thickening with differentiation between anterior (hyper-reflective) and posterior (hypo-reflective) segments of the stroma is observed.
Diagnostics 11 00413 g002
Diagnostics 11 00413 g003 550

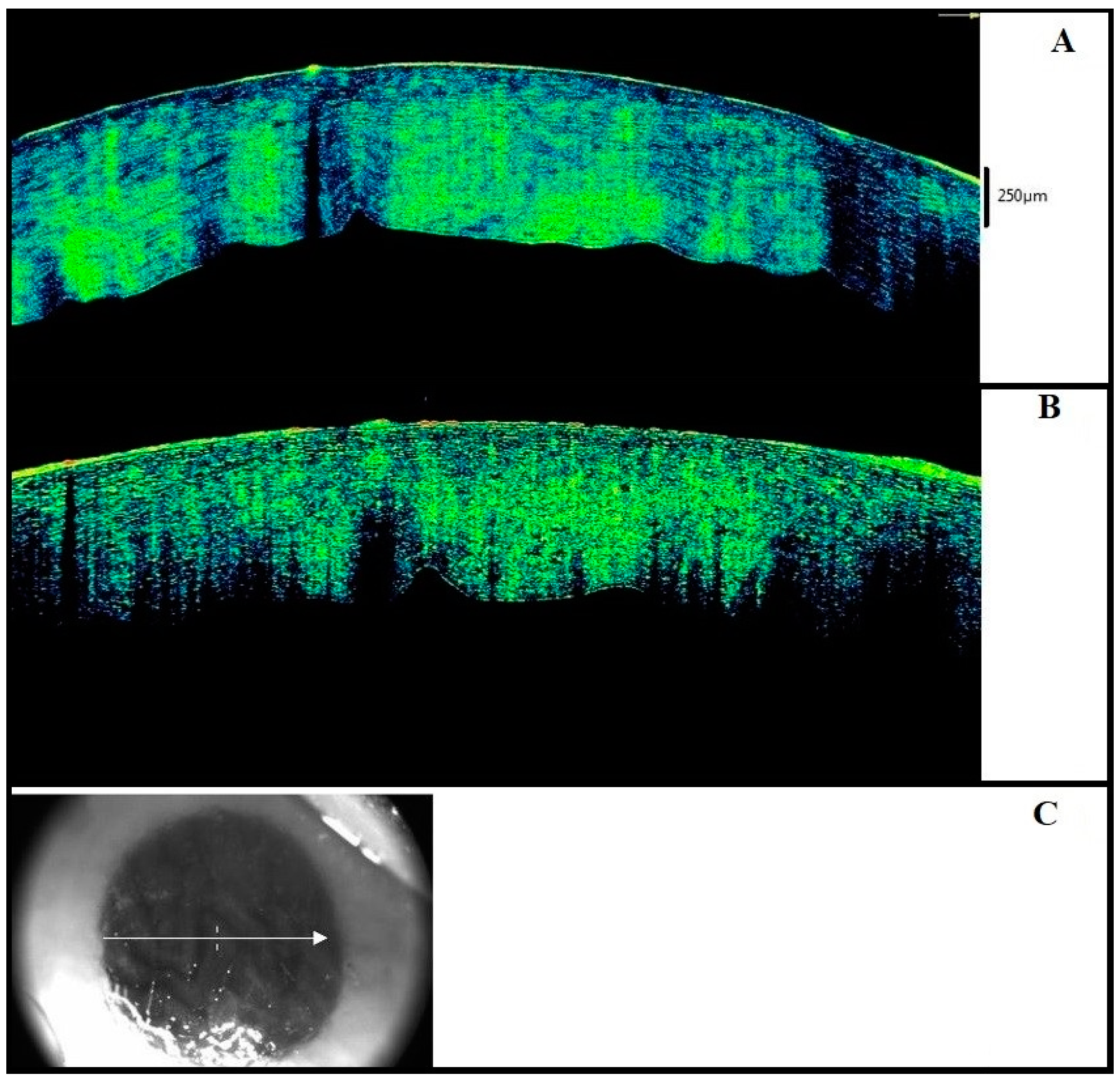

Figure 3. Advanced postmortem interval (36th hour). (A) The posterior waving with formation of endothelial humps and an advanced stage of thickening can be seen. (B) The figure shows the partial or total loss of the epithelium. (C) Macroscopic image of the eye examined in Figure 3C.
Figure 3. Advanced postmortem interval (36th hour). (A) The posterior waving with formation of endothelial humps and an advanced stage of thickening can be seen. (B) The figure shows the partial or total loss of the epithelium. (C) Macroscopic image of the eye examined in Figure 3C.
Diagnostics 11 00413 g003
Diagnostics 11 00413 g004 550

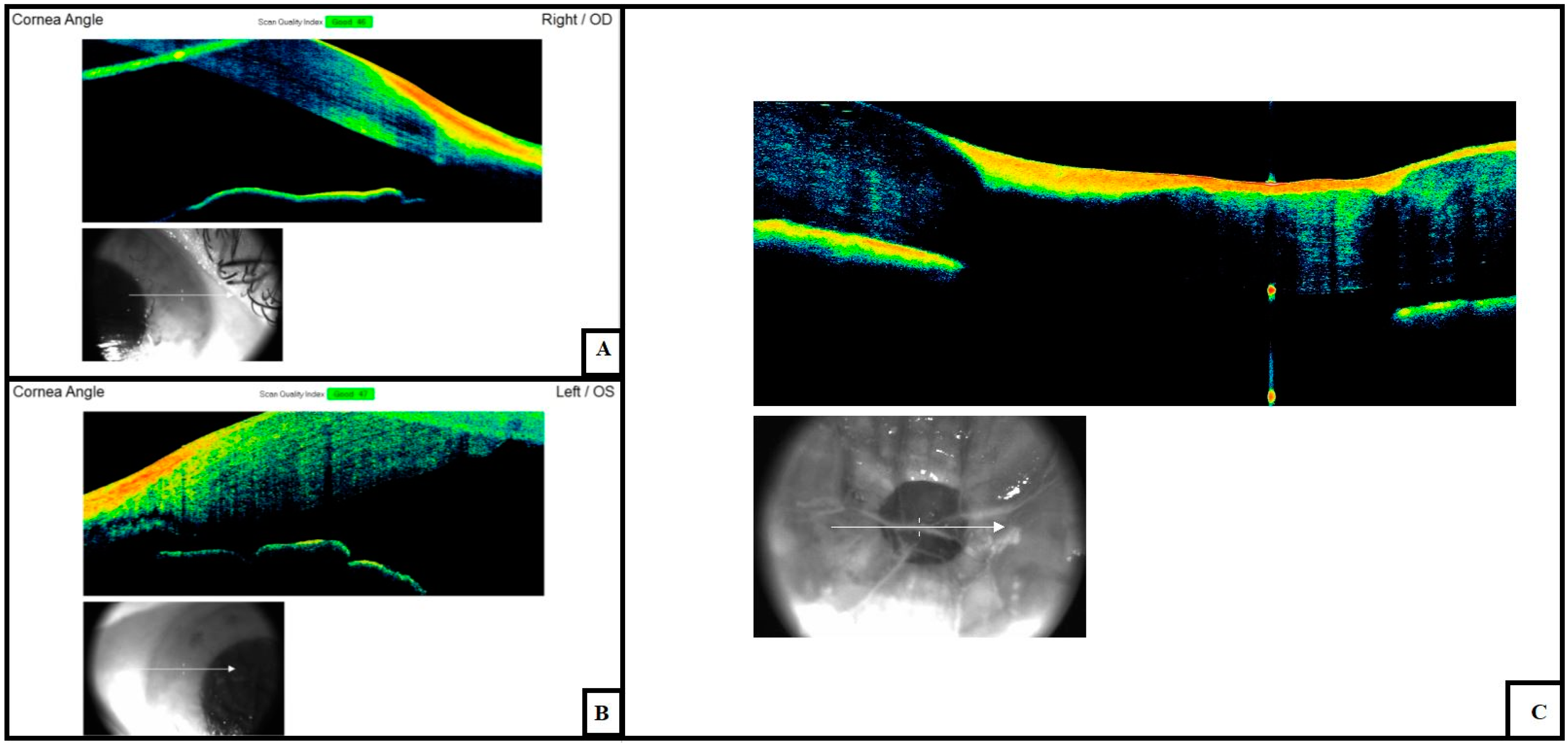

Figure 4. Changes in the anterior chamber amplitude at (A) early (6th hour), (B) intermediate (24th–36th hour) and (C) advanced (72nd hour) postmortem intervals. This phenomenon can be explained by changes in the corneal thickness and variations in the intraocular tone due to the loss of aqueous humor.
Figure 4. Changes in the anterior chamber amplitude at (A) early (6th hour), (B) intermediate (24th–36th hour) and (C) advanced (72nd hour) postmortem intervals. This phenomenon can be explained by changes in the corneal thickness and variations in the intraocular tone due to the loss of aqueous humor.
Diagnostics 11 00413 g004
Diagnostics 11 00413 g005 550
Figure 5. OCT image of postmortem tache noir. Scleral surface hyper-reflectivity and separation between the sclera and choroid.
Figure 5. OCT image of postmortem tache noir. Scleral surface hyper-reflectivity and separation between the sclera and choroid.
Diagnostics 11 00413 g005
Diagnostics 11 00413 g006 550
Figure 6. Retinal (A) full map and foveal scan at 6th hour (B). There is an appreciable separation between the inner and outer layers and early degeneration of nervous tissue.
Figure 6. Retinal (A) full map and foveal scan at 6th hour (B). There is an appreciable separation between the inner and outer layers and early degeneration of nervous tissue.
Diagnostics 11 00413 g006
Diagnostics 11 00413 g007 550
Figure 7. Retinal three-dimensional reconstruction in early postmortem intervals.
Figure 7. Retinal three-dimensional reconstruction in early postmortem intervals.
Diagnostics 11 00413 g007
Table
Table 1. Epidemiological data. TFO = Time of first observation PMI = Postmortem Interval.
Table 1. Epidemiological data. TFO = Time of first observation PMI = Postmortem Interval.
Circumstantial Data
AgeCausa MortisTFO (PMI)SexRace
Case 141Head gunshot5th hourMCaucasian
Case 242Myocardical infarction5th hourFCaucasian
Case 349Traumatic brain injury3rd hourMCaucasian
Case 442Hemorrhagic shock3rd hourFCaucasian
Case 587Myocardiopathy5rd hourMCaucasian
Case 625Brain trauma2nd hourMCaucasian
Table
Table 2. Morphological corneal alterations observed by OCT.
Table 2. Morphological corneal alterations observed by OCT.
Intervals
<6th Hour6th Hour12th Hour24th Hour25th–72nd Hour
Case 13rd 28th
C: ISSC: EN-SS; SWC: EHYR, EN-SWC: EN-SSC: TSS; EN-SW
S: I-TNS: EN-TNS: T-TNS: US: U
AVH: UAVH: UAVH: UAVH: UAVH: U
R: I-RE, I-VDR: EN-RE; T-VDR: NDR: NDR: U
Case 23rd 48th
C: I-SSC: EN-SS, I-SWC: EHYR, EN-SW; T-TNC: EN-SS; ICAADC: T-SS, ICFC, ELD
S: US: US: US: US: U
AVH: UAVH: UAVH: UAVH: -AVH: PCB
R: I-RE, VDR: EN-RE; EN-VDR: UR: NDR: ND
Case 33rd 30–36th
C: GHYC: GHY, I-SWC: EN-SS; EN-SWC: EN-SSC: T-SS, T-SW, ICAAD
S: VCS: US: US: US: U
AVH: UAVH: UAVH: UAVH: UAVH: U
R: LF: ND, RI: VDR: UR: UR: RI-NDR: ND
Case 43rd 30–36th
C: GHYC: GHY, I-SWC: I-SS; EN-SWC: EN-SS, EN-SWC: T-SS; T-SW; ICAAD
S: US: US: US: US: U
AVH: UAVH: UAVH: UAVH: UAVH: U
R: RE, VDR: EN-RER: UR: NDR: ND
Case 55th 72nd
C: I-SSC: EN-SS; I-SWC: EN-SS; EN-S.WC: EN-SS, EN-SW; ICAADC: T-SS; T-SW, ICFC
S: US: US: US: US: U
AVH: UAVH: UAVH: UAVH: UAVH: PCB
R: RE, VDR: EN-RE; T-VDR: UR: NDR: U
Case 62nd 25–29th: 30–36th
C: I-SSC: EN-SS; I-SWC: EHYR, EN-SS, EN-SWC: EN-SS, T-SWC: T-SS, T-SW, ICAAD
S: US: US: US: US: U
AVH: UAVH: UAVH: UAVH: UAVH: U
R: I-RE; VDR: EN-RE, T-VDR: UR: NDR: U
Tissues: C, cornea; AVH, aqueous and vitreous humor; R, retina; S, sclera. Type of phenomena: EHYR, epithelial hyper-reflectivity; ELD, epithelial layer disappearing; SS, stroma swelling; SW, stromal waving TN, tache noir; ICAAD, irido-corneal angle amplitude decreasing; ICFC, full contact between cornea and iris; RE, retinal edema; VD, vessel depletion; VC, vessels congestion; PCB, presence of cellular bodies: GHY, global hyper-reflectivity. Gradation of phenomena: U, unchanged; ND, not detectable; I, initial; EN, enhancement; T, terminal: LE, left; RI, right.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Nioi, M.; Napoli, P.E.; Demontis, R.; Locci, E.; Fossarello, M.; d’Aloja, E. Postmortem Ocular Findings in the Optical Coherence Tomography Era: A Proof of Concept Study Based on Six Forensic Cases. Diagnostics 2021, 11, 413. https://doi.org/10.3390/diagnostics11030413

AMA Style

Nioi M, Napoli PE, Demontis R, Locci E, Fossarello M, d’Aloja E. Postmortem Ocular Findings in the Optical Coherence Tomography Era: A Proof of Concept Study Based on Six Forensic Cases. Diagnostics. 2021; 11(3):413. https://doi.org/10.3390/diagnostics11030413

Chicago/Turabian Style

Nioi, Matteo, Pietro Emanuele Napoli, Roberto Demontis, Emanuela Locci, Maurizio Fossarello, and Ernesto d’Aloja. 2021. "Postmortem Ocular Findings in the Optical Coherence Tomography Era: A Proof of Concept Study Based on Six Forensic Cases" Diagnostics 11, no. 3: 413. https://doi.org/10.3390/diagnostics11030413

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
