Review

Aortic Annular Sizing Using Novel Software in Three-Dimensional Transesophageal Echocardiography for Transcatheter Aortic Valve Replacement: A Systematic Review and Meta-Analysis

by
Chanrith Mork
1,
Minjie Wei
1,
Weixi Jiang
1,2,
Jianli Ren
1,2 and
Haitao Ran
1,2,*
1
Department of Ultrasound, The Second Affiliated Hospital of Chongqing Medical University, Chongqing 400010, China
2
Chongqing Key Laboratory of Ultrasound Molecular Imaging, Chongqing 400010, China
*
Author to whom correspondence should be addressed.
Diagnostics 2021, 11(5), 751; https://doi.org/10.3390/diagnostics11050751
Submission received: 8 March 2021 / Revised: 15 April 2021 / Accepted: 21 April 2021 / Published: 22 April 2021
(This article belongs to the Section Medical Imaging and Theranostics)
Browse Figures
Versions Notes

Abstract

:
(1) Background: We performed this study to evaluate the agreement between novel automated software of three-dimensional transesophageal echocardiography (3D-TEE) and multidetector computed tomography (MDCT) for aortic annular measurements of preprocedural transcatheter aortic valve replacement (TAVR); (2) Methods: PubMed, EMBASE, Web of Science, and Cochrane Library (Wiley) databases were systematically searched for studies that compared 3D-TEE and MDCT as the reference standard for aortic annular measurement of the following parameters: annular area, annular perimeter, area derived-diameter, perimeter derived-diameter, maximum and minimum diameter. Meta-analytic methods were utilized to determine the pooled correlations and mean differences between 3D-TEE and MDCT. Heterogeneity and publication bias were also assessed. Meta-regression analyses were performed based on the potential factors affecting the correlation of aortic annular area; (3) Results: A total of 889 patients from 10 studies were included in the meta-analysis. Pooled correlation coefficients between 3D-TEE and MDCT of annulus area, perimeter, area derived-diameter, perimeter derived-diameter, maximum and minimum diameter measurements were strong 0.89 (95% CI: 0.84–0.92), 0.88 (95% CI: 0.83–0.92), 0.87 (95% CI: 0.77–0.93), 0.87 (95% CI: 0.77–0.93), 0.79 (95% CI: 0.64–0.87), and 0.75 (95% CI: 0.61–0.84) (Overall p < 0.0001), respectively. Pooled mean differences between 3D-TEE and MDCT of annulus area, perimeter, area derived-diameter, perimeter derived-diameter, maximum and minimum diameter measurements were −20.01 mm2 ((95% CI: −35.37 to −0.64), p = 0.011), −2.31 mm ((95% CI: −3.31 to −1.31), p < 0.0001), −0.22 mm ((95% CI: −0.73 to 0.29), p = 0.40), −0.47 mm ((95% CI: −1.06 to 0.12), p = 0.12), −1.36 mm ((95% CI: −2.43 to −0.30), p = 0.012), and 0.31 mm ((95% CI: −0.15 to 0.77), p = 0.18), respectively. There were no statistically significant associations with the baseline patient characteristics of sex, age, left ventricular ejection fraction, mean transaortic gradient, and aortic valve area to the correlation between 3D-TEE and MDCT for aortic annular area sizing; (4) Conclusions: The present study implies that 3D-TEE using novel software tools, automatically analysis, is feasible to MDCT for annulus sizing in clinical practice.

1. Introduction

Transcatheter aortic valve replacement (TAVR) has evolved as a safe and effective intervention alternative to surgical aortic valve replacement (SAVR), allowing high-risk, intermediate-risk, and recently low-surgical risk patients to be treated for severe symptomatic aortic stenosis (AS) by replacing the native valve with a bioprosthetic valve [1,2,3,4,5,6,7].
Accurate sizing of the aortic annulus is a crucial step towards the success of TAVR and is the preferred source of the transcatheter heart valve (THV) selection [8,9,10,11]. However, paravalvular aortic regurgitation (PAR), device embolization, aortic root rupture, conduction disturbances, and prosthesis-patient mismatch (PPM) have all been linked to incorrect valve selection [12,13,14,15].
A multidetector computed tomography (MDCT) procedure for pre-TAVR planning has been recommended to be the gold standard method due to the ability to accurately measure the dimensions of the ascending aorta, the aortic root, and the aortic annulus (AA) [16,17,18,19]. However, renal impairment increases the risk of contrast-induced nephropathy, making MDCT unavailable for patients with compromised renal function [20,21,22]. As a result, three-dimensional transesophageal echocardiography (3D-TEE), which does not require iodinated contrast, may be a useful imaging tool during TAVR, providing accurate measurements of the aortic root and geometry as an alternative to MDCT [23,24,25,26,27].
Recently, many studies performing automated quantification software in 3D-TEE data provided a high agreement compared to the MDCT, and reduced time consuming with less observer-dependent compared to 3D-TEE manual technique or direct planimetry for aortic annular measurements [28,29,30,31].
Therefore, the purpose of this systematic review and meta-analysis was to evaluate evidence on the comparison between 3D-TEE automated software and MDCT for TAVR annular measurements.

2. Materials and Methods

This systematic review was conducted in agreement with the PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) statement [32]. The PRISMA checklist was used to describe our study lists in Table S1.

2.1. Search Strategy

A systematic search of the PubMed, EMBASE, Web of Science, and Cochrane Library (Wiley) databases was performed by two reviewers (C.M., M.W.) independently to identify relevant studies published till 30 August 2020. Supplementary Materials lists the searched terms in Table S2.

2.2. Eligibility Criteria

Studies were considered eligible in the meta-analysis if they met the following criteria: (1) studies which included patients with symptomatic aortic stenosis or/and underwent TAVR for aortic valve replacement; (2) studies evaluating the aortic annulus measurements by automated or semiautomated 3D-TEE as an index test and MDCT as a reference standard; (3) studies which assessed the correlation coefficient or agreement between the finding of MDCT and 3D-TEE for aortic annular measurements; and (4 ) original published articles as type of study.
Exclusion criteria were (1) single-arm studies; (2) studies using 3D-TEE manually as the measurement technique; (3) studies with patients presenting normal aortic valve; (4) non-English studies; and (5) case studies.

2.3. Data Extraction

Data were independently extracted by two investigators (C.M., W.J.). We extracted the following information from published papers (1) study characteristics (author, year of publication, total number of patients, study design, study period, hospital or institution, and country; (2) patient characteristics (sex, age, body mass index, body surface area, atrial fibrillation, hypertension, diabetes mellitus, aortic valve area, mean transaortic gradient, and left ventricular ejection fraction; (3) imaging characteristics (3D-TEE technique and vendor, MDCT technique and vendor, measurement phase, software used for 3D-TEE annulus sizing); (4) study outcomes as assessed in the individual studies(correlation coefficient and sample size for pooling correlation; mean, standard deviation, and sample size for pooling mean difference). There were six parameters used for comparison in annular sizing between 3D-TEE and MDCT: annular area, annular perimeter, area derived-diameter, perimeter derived-diameter, maximum and minimum diameter.

2.4. Quality Assessment

We evaluated the methodological quality of individual studies using the QUADAS−2 tool and summarized quality assessments per fulfilled QUADAS-2 domains: patient selection, index test, reference standard, and flow and timing. Each domain was assessed in terms of risk of bias and rated as “low”, “high” or “unclear”. Concerns regarding applicability were assessed only for the first three domains and categorized into “low”, “high”, or “unclear”. Signaling questions could be answered with “yes”, “no”, or “unclear” [33].

2.5. Data Synthesis and Analyses

The correlations between novel software 3D-TEE and MDCT measurements from each study were transformed to Fisher z correlation coefficients for analysis and backtransformed to report as correlation coefficient (r) and 95% CIs, while the mean differences were pooled and reported as mean difference and 95% CIs [34]. Random-effects models of DerSimonian and Laird were used to calculate pooled effect sizes. The Cochran Q statistic and the I2 test were used to assess studies heterogeneity [35]. Funnel plot and Egger’s regression test were used to assess for potential publication bias [36].
The influencing factors of sex, age, left ventricular ejection fraction, aortic valve area, and mean transaortic gradient were analyzed using a meta-regression analysis (The DerSimonian–Laird method) on the correlation of aortic annular area.
Statistical analyses were performed using the “meta” package in R software (Version 4.0.3, R Foundation for Statistical Computing).

3. Results

3.1. Study Characteristics

The article selection process is described in detail in Figure 1. After the study selection process, a total of 889 patients from 10 studies were included in the meta-analysis [37,38,39,40,41,42,43,44,45,46]. The detailed characteristics of the included studies are reported in Table 1, Table 2 and Table 3. The sizes of the original study populations ranged from 31 to 175 patients, with the mean patient ages ranging from 80 to 88 years. All individual studies were retrospective study. Six studies included were reported using the automated techniques [38,40,41,42,45,46], while the other four studies reported semiautomated techniques [37,39,43,44] as the using novel software of 3D-TEE comparing to MDCT for annular measurements to calculate weighted effect size of this study.

3.2. Quality Assessment

The results of the QUADAS-2 assessment are presented in Figure 2. Overall, one study (10%) showed a high risk of bias in the “flow” and “timing” domains. Concerns regarding applicability were rated “low” in all the domains.

3.3. Correlation between 3D-TEE and MDCT for Annulus Measurements

The pooled correlation coefficients between 3D TEE and MDCT of annulus area, perimeter, area derived-diameter, perimeter derived-diameter, maximum and minimum diameter measurements were strong 0.89 (95% CI: 0.84–0.92), 0.88 (95% CI: 0.83–0.92), 0.87 (95% CI: 0.77–0.93), 0.87 (95% CI: 0.77–0.93), 0.79 (95% CI: 0.64–0.87), and 0.75 (95% CI: 0.61–0.84) (Overall p < 0.0001), respectively. Figure 3 summarizes the forest plots with provided heterogeneity test results. Figure 4 presents the funnel plots of each parameter showed relatively symmetric funnel plots without significant publication bias (p > 0.05).

3.4. Mean Difference between 3D-TEE and MDCT for Annulus Measurements

The pooled mean differences between 3D-TEE and MDCT of annulus area, perimeter, area derived-diameter, perimeter derived-diameter, maximum and minimum diameter measurements were −20.01 mm2 ((95% CI: −35.37 to −0.64), p = 0.011), −2.31 mm ((95% CI: −3.31 to −1.31), p < 0.0001), −0.22 mm ((95% CI: −0.73 to 0.29), p = 0.40), −0.47 mm ((95% CI: −1.06 to 0.12), p = 0.12), −1.36 mm ((95% CI: −2.43 to −0.30), p = 0.012), and 0.31 mm ((95% CI: −0.15 to 0.77), p = 0.18), respectively. Figure 5 summarizes the forest plots with provided heterogeneity test results. Figure 6 presents the funnel plots of annulus area, perimeter, area derived-diameter, maximum and minimum diameter showed relatively symmetric funnel plots without significant publication bias (p > 0.05). However, annular area derived-diameter and annular perimeter derived-diameter could not be analyzed by Egger’s test because of only two studies reported.

3.5. Meta-Regression Analysis

There were no statistically significant (p > 0.05) associated to the baseline patient characteristics of sex, age, left ventricular ejection fraction, aortic valve area, and mean transaortic gradient to the correlation between 3D-TEE and MDCT annular area. The correlation between 3D-TEE and MDCT annular area of baseline patient characteristics presented in Table 4.

4. Discussion

The aortic root, which runs from the aortic valvular cusps’ basal attachment to the sinotubular junction, is a direct continuation of the left ventricular outflow tract. The aortic annulus diameter, the virtual ring, and the complex structure initially assumed to have a circular structure, is defined as the plane transecting the three aortic cusps’ lowest hinge -points, measured in systole to determine prosthesis size and prosthetic valve selection of the TAVR procedures [10,18,47,48].
In the TAVR prep-procedural planning, accurate measurement of the aortic annulus is critical of the successful protocol [11,18,19,27]. PAR, device embolization, aortic root rupture, conduction disturbances, coronary obstruction, and PPM have all been linked to the oversizing and the undersizing of THV valve selection [12,13,14,49]. The asymmetric shape of two-dimensional echocardiography (2D) made it ineffective for annular measurements, the disadvantage of providing a diameter measurement in a single plane and assuming a circular orifice that underestimated the cross-sectional measurements of 3D-based sizing with annulus’ elliptical geometry [9,37,38].
There has been significant interest in defining the shape by alternate imaging methods. Three modality imaging, 3D-TEE, cardiovascular magnetic resonance (CMR), and MDCT have emerged as the preferred, accurate, and reproducible techniques for cross-sectional dimensions, especially the annular area and perimeter [10,50,51,52,53]. Moreover, CMR may have a developing role for annular sizing, particularly in patients with renal dysfunction, though this is less implemented in the clinical work station [54]. Recently, MDCT is routinely used as the reference standard imaging modality in assessment of the aortic annulus for pre-TAVR procedure. However, MDCT has its own radiation exposure limits, higher costs, and contraindications to kidney failure and contrast allergy that are not appropriate for screening or repetitive control, particularly with the expansion of younger individual patients at lower surgical risk [7,20,21,55].
Notably, previous studies demonstrated that cross-sectional 3D-TEE manual measurements of the aortic annulus were underestimated obtained by MDCT, thus potentially resulting in prosthesis undersizing when implanted in the sizing algorithms recommended by manufactures [56,57,58,59]. When compared to the 3D-TEE manual technique, the introduction of novel software that utilized 3D-TEE data semiautomatically and automatically for the aortic annulus has dramatically used and allowed a more systematic approach to minimize the observer’s influence and time-consuming [40,43,44,45]. Additionally, the software tools demonstrated good to excellent agreement between 3D-TEE and MDCT for the measurements of aortic annulus with low interobserver and intraobserver variability [38,39,40,42].
Our meta-analysis is the first study that extracted data from 3D-TEE using novel automated software semiautomatically and automatically compare to MDCT for annular measurements. We found that 3D-TEE sizing for annular area, perimeter, area derived-diameter, perimeter derived-diameter, maximum and minimum diameter was strongly correlated with MDCT annulus measurements. However, the mean differences between 3D-TEE and MDCT of annular area, perimeter, area derived-diameter, perimeter derived-diameter, and maximum diameter were underestimated except the annular minimum diameter found to be slightly overestimated.
To the best of the authors’ knowledge, the two previous studies have attempted to methodically compare 3D-TEE and MDCT for TAVR sizing in the same patient population [60,61]. Both studies, however, basically used the 3D-TEE manual technique for annular measurements. Elkaryoni et al. reported a strong correlation for annular area (r = 0.84, p < 0.001), mean perimeter (r = 0.85, p < 0.001), and mean diameter (r = 0.80, p < 0.001), while the Bland–Altman plots showed the mean bias was −2.22 mm2 (95%CI, LOA: −12.79 to 8.36) for annular area between 3D-TEE manual and MDCT [60]. Rong et al. reported the strong correlations between 3D-TEE manual and MDCT for annular area (0.86 (95% CI, 0.80–0.90)), annular perimeter (0.89 (95%CI, 0.82–0.93)), and mean annular diameter (0.80 (95%CI, 0.70–0.87)) measurements, while the mean differences were slightly underestimated for annular area (−0.12 cm2 (95%CI, −0.24 to 0.00), p = 0.05), annular perimeter (−0.02 cm (95%CI, −0.65 to 0.61), p = 0.95), and mean annular diameter (−0.03 cm (95%CI, −0.15 to 0.10), p = 0.68) between 3D-TEE manual and MDCT measurements [61].
PAR is one of the most common complications seen after TAVR as a result of incorrect prosthesis size selection, and accurate aortic annulus measurements are crucial in reducing the frequency [1,37,59]. There has been investigation in studies that showed that the incidence of more than mild PAR was significantly lower when sizing of the aortic annulus was performed using MDCT compared with sizing performed by 2D echocardiography [52,62]. However, Khalique et al. utilized semiautomated 3D-TEE yielded the prediction of mild or greater PAR with equivalent accuracy to MDCT [37].
The novel software’s clinical impact on the selection prosthetic heart valve may have been shown with promising evidence mainly focused on the annular area and perimeter based−3D sizing. Kato et al., using the automated software “eSieVaves”, found that the 3D-TEE automated and semiautomated measurements were 72% and 78%, respectively, for the agreement to the size of prosthetic valve implanted [40]. Podlesnikar et al., using the automated software”4D Auto AVQ”, found that the agreement between 3D-TEE automated and MDCT measurements was an excellent agreement (kappa = 0.926) for selecting the same TAVR prosthesis size [41]. Prihadi et al., using the automated software “Aortic Valve Navigator (AVN)”, found that 3D-TEE automated and MDCT measurements yielded excellent agreement (kappa = 0.90) in prosthesis size choice in the majority of patients (93.3%) [42]. Queiros et al., using the automated software “Speqle 3D”, found that the measurements of 3D-TEE were good sizing agreement against the true implanted sizes (>77%) and against MDCT-based sizes (>88%) [43].
In the era of modern medicine, artificial intelligence has been the main subject to the revolution of cardiovascular multimodality imaging that recently also applied in echocardiography [63,64,65,66]. AI has the capacity to transcend human shortcomings such as exhaustion or distraction, inter- and intraobserver uncertainty, and the time-consuming and repetitive interpretation of huge data sets [65]. This study’s operating software may be the beginning of the novel technique using 3D-TEE pre-TAVR assessment for the future algorithm of the aortic annular quantification that needs further investigation.
There are some limitations in our study. First, all the included studies were observational studies; Second, statistical heterogeneity(I2) was high for most outcomes; Third, novel software tools using in 3D-TEE for annular measurements were not totally the same commercial software tools; Finally, our study has not reported other parameters of aortic root sizing.

5. Conclusions

The present study implies that 3D-TEE using novel software tools for annulus sizing is feasible for MDCT. As the software tool of 3D-TEE does analysis automatically, it is valuable for saving time and reducing operator-dependency which may lead to the future study of artificial intelligence in echocardiography. This application may be used instead of MDCT in some situations, such as avoiding contrast nephrotoxicity, which is particularly necessary for patients who are at high risk of renal failure, or in patients with serious allergies to iodinated contrast, or in cases of arrhythmias that render ECG gating impossible for MDCT acquisition.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/diagnostics11050751/s1, Table S1: PRISMA 2009 Checklist, Table S2: Literature search terms.

Author Contributions

Conceptualization: C.M.; Methodology: C.M.; Literature Search: C.M. and M.W.; Data Extraction: C.M. and W.J.; Software Analysis: C.M. and W.J.; Validation: All the authors (C.M., M.W., W.J., J.R., and H.R.); Writing—original draft preparation: C.M.; Writing—review and editing: C.M., M.W., and J.R.; Visualization: C.M., J.R., and H.R.; Supervision: H.R; All authors have read and agreed to the published version of the manuscript.

Funding

The authors proclaim that this study has not receive any funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The author, C.M., appreciates the Chinese Scholarship Council (CSC) for offering a scholarship for his Ph.D. study in China (CSC No: 2017GBJ005606).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mack, M.J.; Leon, M.B.; Smith, C.R.; Miller, D.C.; Moses, J.W.; Tuzcu, E.M.; Webb, J.G.; Douglas, P.S.; Anderson, W.N.; Blackstone, E.H.; et al. 5-year outcomes of transcatheter aortic valve replacement or surgical aortic valve replacement for high surgical risk patients with aortic stenosis (PARTNER 1): A randomised controlled trial. Lancet 2015, 385, 2477–2484. [Google Scholar] [CrossRef]
  2. Makkar, R.R.; Thourani, V.H.; Mack, M.J.; Kodali, S.K.; Kapadia, S.; Webb, J.G.; Yoon, S.H.; Trento, A.; Svensson, L.G.; Herrmann, H.C.; et al. Five-Year Outcomes of Transcatheter or Surgical Aortic-Valve Replacement. N. Engl. J. Med. 2020, 382, 799–809. [Google Scholar] [CrossRef] [PubMed]
  3. Mack, M.J.; Leon, M.B.; Thourani, V.H.; Makkar, R.; Kodali, S.K.; Russo, M.; Kapadia, S.R.; Malaisrie, S.C.; Cohen, D.J.; Pibarot, P.; et al. Transcatheter Aortic-Valve Replacement with a Balloon-Expandable Valve in Low-Risk Patients. N. Engl. J. Med. 2019, 380, 1695–1705. [Google Scholar] [CrossRef]
  4. Popma, J.J.; Deeb, G.M.; Yakubov, S.J.; Mumtaz, M.; Gada, H.; O’Hair, D.; Bajwa, T.; Heiser, J.C.; Merhi, W.; Kleiman, N.S.; et al. Transcatheter Aortic-Valve Replacement with a Self-Expanding Valve in Low-Risk Patients. N. Engl. J. Med. 2019, 380, 1706–1715. [Google Scholar] [CrossRef]
  5. Kolte, D.; Vlahakes, G.J.; Palacios, I.F.; Sakhuja, R.; Passeri, J.J.; Inglessis, I.; Elmariah, S. Transcatheter Versus Surgical Aortic Valve Replacement in Low-Risk Patients. J. Am. Coll. Cardiol. 2019, 74, 1532–1540. [Google Scholar] [CrossRef]
  6. Polimeni, A.; Sorrentino, S.; De Rosa, S.; Spaccarotella, C.; Mongiardo, A.; Sabatino, J.; Indolfi, C. Transcatheter Versus Surgical Aortic Valve Replacement in Low-Risk Patients for the Treatment of Severe Aortic Stenosis. J. Clin. Med. 2020, 9, 439. [Google Scholar] [CrossRef] [Green Version]
  7. Otto, C.M.; Nishimura, R.A.; Bonow, R.O.; Carabello, B.A.; Erwin, J.P., 3rd; Gentile, F.; Jneid, H.; Krieger, E.V.; Mack, M.; McLeod, C.; et al. 2020 ACC/AHA Guideline for the Management of Patients with Valvular Heart Disease: A Report of the American College of Cardiology/American Heart Association Joint Committee on Clinical Practice Guidelines. J. Am. Coll. Cardiol. 2020. [Google Scholar] [CrossRef]
  8. Vahanian, A.; Alfieri, O.R.; Al-Attar, N.; Antunes, M.J.; Bax, J.; Cormier, B.; Cribier, A.; De Jaegere, P.; Fournial, G.; Kappetein, A.P.; et al. Transcatheter valve implantation for patients with aortic stenosis: A position statement from the European Association of Cardio-Thoracic Surgery (EACTS) and the European Society of Cardiology (ESC), in collaboration with the European Association of Percutaneous Cardiovascular Interventions (EAPCI). Eur. J. Cardiothorac. Surg. 2008, 34, 1–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Messika-Zeitoun, D.; Serfaty, J.M.; Brochet, E.; Ducrocq, G.; Lepage, L.; Detaint, D.; Hyafil, F.; Himbert, D.; Pasi, N.; Laissy, J.P.; et al. Multimodal assessment of the aortic annulus diameter: Implications for transcatheter aortic valve implantation. J. Am. Coll. Cardiol. 2010, 55, 186–194. [Google Scholar] [CrossRef] [PubMed]
  10. Bloomfield, G.S.; Gillam, L.D.; Hahn, R.T.; Kapadia, S.; Leipsic, J.; Lerakis, S.; Tuzcu, M.; Douglas, P.S. A practical guide to multimodality imaging of transcatheter aortic valve replacement. JACC Cardiovasc. Imaging 2012, 5, 441–455. [Google Scholar] [CrossRef] [Green Version]
  11. Bax, J.J.; Delgado, V.; Hahn, R.T.; Leipsic, J.; Min, J.K.; Grayburn, P.; Sondergaard, L.; Yoon, S.H.; Windecker, S. Transcatheter Aortic Valve Replacement: Role of Multimodality Imaging in Common and Complex Clinical Scenarios. JACC Cardiovasc. Imaging 2020, 13, 124–139. [Google Scholar] [CrossRef] [PubMed]
  12. Yang, T.H.; Webb, J.G.; Blanke, P.; Dvir, D.; Hansson, N.C.; Nørgaard, B.L.; Thompson, C.R.; Thomas, M.; Wendler, O.; Vahanian, A.; et al. Incidence and severity of paravalvular aortic regurgitation with multidetector computed tomography nominal area oversizing or undersizing after transcatheter heart valve replacement with the Sapien 3: A comparison with the Sapien XT. JACC Cardiovasc. Interv. 2015, 8, 462–471. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Nazif, T.M.; Dizon, J.M.; Hahn, R.T.; Xu, K.; Babaliaros, V.; Douglas, P.S.; El-Chami, M.F.; Herrmann, H.C.; Mack, M.; Makkar, R.R.; et al. Predictors and clinical outcomes of permanent pacemaker implantation after transcatheter aortic valve replacement: The PARTNER (Placement of AoRtic TraNscathetER Valves) trial and registry. JACC Cardiovasc. Interv. 2015, 8, 60–69. [Google Scholar] [CrossRef] [Green Version]
  14. Blanke, P.; Reinöhl, J.; Schlensak, C.; Siepe, M.; Pache, G.; Euringer, W.; Geibel-Zehender, A.; Bode, C.; Langer, M.; Beyersdorf, F.; et al. Prosthesis oversizing in balloon-expandable transcatheter aortic valve implantation is associated with contained rupture of the aortic root. Circ. Cardiovasc. Interv. 2012, 5, 540–548. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Pibarot, P.; Magne, J.; Leipsic, J.; Côté, N.; Blanke, P.; Thourani, V.H.; Hahn, R. Imaging for Predicting and Assessing Prosthesis-Patient Mismatch After Aortic Valve Replacement. JACC Cardiovasc. Imaging 2019, 12, 149–162. [Google Scholar] [CrossRef]
  16. Achenbach, S.; Delgado, V.; Hausleiter, J.; Schoenhagen, P.; Min, J.K.; Leipsic, J.A. SCCT expert consensus document on computed tomography imaging before transcatheter aortic valve implantation (TAVI)/transcatheter aortic valve replacement (TAVR). J. Cardiovasc. Comput. Tomogr. 2012, 6, 366–380. [Google Scholar] [CrossRef]
  17. Willson, A.B.; Webb, J.G.; Freeman, M.; Wood, D.A.; Gurvitch, R.; Thompson, C.R.; Moss, R.R.; Toggweiler, S.; Binder, R.K.; Munt, B.; et al. Computed tomography-based sizing recommendations for transcatheter aortic valve replacement with balloon-expandable valves: Comparison with transesophageal echocardiography and rationale for implementation in a prospective trial. J. Cardiovasc. Comput. Tomogr. 2012, 6, 406–414. [Google Scholar] [CrossRef]
  18. Otto, C.M.; Kumbhani, D.J.; Alexander, K.P.; Calhoon, J.H.; Desai, M.Y.; Kaul, S.; Lee, J.C.; Ruiz, C.E.; Vassileva, C.M. 2017 ACC Expert Consensus Decision Pathway for Transcatheter Aortic Valve Replacement in the Management of Adults with Aortic Stenosis: A Report of the American College of Cardiology Task Force on Clinical Expert Consensus Documents. J. Am. Coll. Cardiol. 2017, 69, 1313–1346. [Google Scholar] [CrossRef] [PubMed]
  19. Blanke, P.; Weir-McCall, J.R.; Achenbach, S.; Delgado, V.; Hausleiter, J.; Jilaihawi, H.; Marwan, M.; Norgaard, B.L.; Piazza, N.; Schoenhagen, P.; et al. Computed tomography imaging in the context of transcatheter aortic valve implantation (TAVI)/transcatheter aortic valve replacement (TAVR): An expert consensus document of the Society of Cardiovascular Computed Tomography. J. Cardiovasc. Comput. Tomogr. 2019, 13, 1–20. [Google Scholar] [CrossRef]
  20. Sinning, J.M.; Ghanem, A.; Steinhäuser, H.; Adenauer, V.; Hammerstingl, C.; Nickenig, G.; Werner, N. Renal function as predictor of mortality in patients after percutaneous transcatheter aortic valve implantation. JACC Cardiovasc. Interv. 2010, 3, 1141–1149. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Gupta, T.; Goel, K.; Kolte, D.; Khera, S.; Villablanca, P.A.; Aronow, W.S.; Bortnick, A.E.; Slovut, D.P.; Taub, C.C.; Kizer, J.R.; et al. Association of Chronic Kidney Disease with In-Hospital Outcomes of Transcatheter Aortic Valve Replacement. JACC Cardiovasc. Interv. 2017, 10, 2050–2060. [Google Scholar] [CrossRef]
  22. Jochheim, D.; Schneider, V.S.; Schwarz, F.; Kupatt, C.; Lange, P.; Reiser, M.; Massberg, S.; Gutiérrez-Chico, J.L.; Mehilli, J.; Becker, H.C. Contrast-induced acute kidney injury after computed tomography prior to transcatheter aortic valve implantation. Clin. Radiol. 2014, 69, 1034–1038. [Google Scholar] [CrossRef]
  23. Dima, C.N.; Gaspar, M.; Mornos, C.; Mornos, A.; Deutsch, P.; Cioloca, H.; Cerbu, S.; Dinu, M.; Hoinoiu, B.; Luca, C.T.; et al. Three-Dimensional Transesophageal Echocardiography as an Alternative to Multidetector Computed Tomography in Aortic Annular Diameter Measurements for Transcatheter Aortic Valve Implantation. Biology 2021, 10, 132. [Google Scholar] [CrossRef]
  24. Ebuchi, K.; Yoshitani, K.; Kanemaru, E.; Fujii, T.; Tsukinaga, A.; Shimahara, Y.; Ohnishi, Y. Measurement of the Aortic Annulus Area and Diameter by Three-Dimensional Transesophageal Echocardiography in Transcatheter Aortic Valve Replacement. J. Cardiothorac. Vasc. Anesth. 2019, 33, 2387–2393. [Google Scholar] [CrossRef] [PubMed]
  25. Islas, F.; Almería, C.; García-Fernández, E.; Jiménez, P.; Nombela-Franco, L.; Olmos, C.; Marcos-Alberca, P.; Cuadrado, A.; Fernández-Ortiz, A.; Macaya, C.; et al. Usefulness of echocardiographic criteria for transcatheter aortic valve implantation without balloon predilation: A single-center experience. J. Am. Soc. Echocardiogr. 2015, 28, 423–429. [Google Scholar] [CrossRef] [PubMed]
  26. Wu, V.C.; Kaku, K.; Takeuchi, M.; Otani, K.; Yoshitani, H.; Tamura, M.; Abe, H.; Lin, F.C.; Otsuji, Y. Aortic root geometry in patients with aortic stenosis assessed by real-time three-dimensional transesophageal echocardiography. J. Am. Soc. Echocardiogr. 2014, 27, 32–41. [Google Scholar] [CrossRef]
  27. Hahn, R.T.; Little, S.H.; Monaghan, M.J.; Kodali, S.K.; Williams, M.; Leon, M.B.; Gillam, L.D. Recommendations for comprehensive intraprocedural echocardiographic imaging during TAVR. JACC Cardiovasc. Imaging 2015, 8, 261–287. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Calleja, A.; Thavendiranathan, P.; Ionasec, R.I.; Houle, H.; Liu, S.; Voigt, I.; Sai Sudhakar, C.; Crestanello, J.; Ryan, T.; Vannan, M.A. Automated quantitative 3-dimensional modeling of the aortic valve and root by 3-dimensional transesophageal echocardiography in normals, aortic regurgitation, and aortic stenosis: Comparison to computed tomography in normals and clinical implications. Circ. Cardiovasc. Imaging 2013, 6, 99–108. [Google Scholar] [CrossRef] [Green Version]
  29. Khalique, O.K.; Hamid, N.B.; White, J.M.; Bae, D.J.; Kodali, S.K.; Nazif, T.M.; Vahl, T.P.; Paradis, J.M.; George, I.; Leon, M.B.; et al. Impact of Methodologic Differences in Three-Dimensional Echocardiographic Measurements of the Aortic Annulus Compared with Computed Tomographic Angiography Before Transcatheter Aortic Valve Replacement. J. Am. Soc. Echocardiogr. 2017, 30, 414–421. [Google Scholar] [CrossRef]
  30. Queirós, S.; Morais, P.; Fehske, W.; Papachristidis, A.; Voigt, J.U.; Fonseca, J.C.; D’Hooge, J.; Vilaça, J.L. Assessment of aortic valve tract dynamics using automatic tracking of 3D transesophageal echocardiographic images. Int. J. Cardiovasc. Imaging 2019, 35, 881–895. [Google Scholar] [CrossRef]
  31. Zhang, M.; Wan, L.; Liu, K.; Wu, W.; Li, H.; Wang, Y.; Lu, B.; Wang, H. Aortic roots assessment by an automated three-dimensional transesophageal echocardiography: An intra-individual comparison. Int. J. Cardiovasc. Imaging 2019, 35, 2029–2036. [Google Scholar] [CrossRef] [PubMed]
  32. Moher, D.; Liberati, A.; Tetzlaff, J.; Altman, D.G. Preferred reporting items for systematic reviews and meta-analyses: The PRISMA statement. BMJ 2009, 339, b2535. [Google Scholar] [CrossRef] [Green Version]
  33. Whiting, P.F.; Rutjes, A.W.; Westwood, M.E.; Mallett, S.; Deeks, J.J.; Reitsma, J.B.; Leeflang, M.M.; Sterne, J.A.; Bossuyt, P.M. QUADAS-2: A revised tool for the quality assessment of diagnostic accuracy studies. Ann. Intern. Med. 2011, 155, 529–536. [Google Scholar] [CrossRef]
  34. DerSimonian, R.; Laird, N. Meta-analysis in clinical trials. Control. Clin. Trials 1986, 7, 177–188. [Google Scholar] [CrossRef]
  35. Higgins, J.P.; Thompson, S.G.; Deeks, J.J.; Altman, D.G. Measuring inconsistency in meta-analyses. BMJ 2003, 327, 557–560. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Egger, M.; Davey Smith, G.; Schneider, M.; Minder, C. Bias in meta-analysis detected by a simple, graphical test. BMJ 1997, 315, 629–634. [Google Scholar] [CrossRef] [Green Version]
  37. Khalique, O.K.; Kodali, S.K.; Paradis, J.M.; Nazif, T.M.; Williams, M.R.; Einstein, A.J.; Pearson, G.D.; Harjai, K.; Grubb, K.; George, I.; et al. Aortic annular sizing using a novel 3-dimensional echocardiographic method: Use and comparison with cardiac computed tomography. Circ. Cardiovasc. Imaging 2014, 7, 155–163. [Google Scholar] [CrossRef] [Green Version]
  38. García-Martín, A.; Lázaro-Rivera, C.; Fernández-Golfín, C.; Salido-Tahoces, L.; Moya-Mur, J.L.; Jiménez-Nacher, J.J.; Casas-Rojo, E.; Aquila, I.; González-Gómez, A.; Hernández-Antolín, R.; et al. Accuracy and reproducibility of novel echocardiographic three-dimensional automated software for the assessment of the aortic root in candidates for thanscatheter aortic valve replacement. Eur. Heart J. Cardiovasc. Imaging 2016, 17, 772–778. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Mediratta, A.; Addetia, K.; Medvedofsky, D.; Schneider, R.J.; Kruse, E.; Shah, A.P.; Nathan, S.; Paul, J.D.; Blair, J.E.; Ota, T.; et al. 3D echocardiographic analysis of aortic annulus for transcatheter aortic valve replacement using novel aortic valve quantification software: Comparison with computed tomography. Echocardiography 2017, 34, 690–699. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Kato, N.; Shibayama, K.; Noguchi, M.; Makihara, Y.; Okumura, H.; Obunai, K.; Isobe, M.; Hirao, K.; Watanabe, H. Superiority of novel automated assessment of aortic annulus by intraoperative three-dimensional transesophageal echocardiography in patients with severe aortic stenosis: Comparison with conventional cross-sectional assessment. J. Cardiol. 2018, 72, 321–327. [Google Scholar] [CrossRef] [Green Version]
  41. Podlesnikar, T.; Prihadi, E.A.; van Rosendael, P.J.; Vollema, E.M.; van der Kley, F.; de Weger, A.; Ajmone Marsan, N.; Naji, F.; Fras, Z.; Bax, J.J.; et al. Influence of the Quantity of Aortic Valve Calcium on the Agreement Between Automated 3-Dimensional Transesophageal Echocardiography and Multidetector Row Computed Tomography for Aortic Annulus Sizing. Am. J. Cardiol. 2018, 121, 86–93. [Google Scholar] [CrossRef]
  42. Prihadi, E.A.; van Rosendael, P.J.; Vollema, E.M.; Bax, J.J.; Delgado, V.; Ajmone Marsan, N. Feasibility, Accuracy, and Reproducibility of Aortic Annular and Root Sizing for Transcatheter Aortic Valve Replacement Using Novel Automated Three-Dimensional Echocardiographic Software: Comparison with Multi-Detector Row Computed Tomography. J. Am. Soc. Echocardiogr. 2018, 31, 505–514.e3. [Google Scholar] [CrossRef]
  43. Queirós, S.; Morais, P.; Dubois, C.; Voigt, J.U.; Fehske, W.; Kuhn, A.; Achenbach, T.; Fonseca, J.C.; Vilaça, J.L.; D’Hooge, J. Validation of a Novel Software Tool for Automatic Aortic Annular Sizing in Three-Dimensional Transesophageal Echocardiographic Images. J. Am. Soc. Echocardiogr. 2018, 31, 515–525.e5. [Google Scholar] [CrossRef] [PubMed]
  44. Stella, S.; Italia, L.; Geremia, G.; Rosa, I.; Ancona, F.; Marini, C.; Capogrosso, C.; Giglio, M.; Montorfano, M.; Latib, A.; et al. Accuracy and reproducibility of aortic annular measurements obtained from echocardiographic 3D manual and semi-automated software analyses in patients referred for transcatheter aortic valve implantation: Implication for prosthesis size selection. Eur. Heart J. Cardiovasc. Imaging 2019, 20, 45–55. [Google Scholar] [CrossRef] [PubMed]
  45. Maia, J.; Ladeiras-Lopes, R.; Guerreiro, C.; Carvalho, M.; Fontes-Carvalho, R.; Braga, P.; Sampaio, F. Accuracy of three-dimensional echocardiography in candidates for transcatheter aortic valve replacement. Int. J. Cardiovasc. Imaging 2020, 36, 291–298. [Google Scholar] [CrossRef]
  46. Thalappillil, R.; Datta, P.; Datta, S.; Zhan, Y.; Wells, S.; Mahmood, F.; Cobey, F.C. Artificial Intelligence for the Measurement of the Aortic Valve Annulus. J. Cardiothorac. Vasc. Anesth. 2020, 34, 65–71. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Piazza, N.; de Jaegere, P.; Schultz, C.; Becker, A.E.; Serruys, P.W.; Anderson, R.H. Anatomy of the aortic valvar complex and its implications for transcatheter implantation of the aortic valve. Circ. Cardiovasc. Interv. 2008, 1, 74–81. [Google Scholar] [CrossRef] [Green Version]
  48. Leipsic, J.; Gurvitch, R.; LaBounty, T.M.; Min, J.K.; Wood, D.; Johnson, M.; Ajlan, A.M.; Wijesinghe, N.; Webb, J.G. Multidetector Computed Tomography in Transcatheter Aortic Valve Implantation. JACC Cardiovasc. Imaging 2011, 4, 416–429. [Google Scholar] [CrossRef] [Green Version]
  49. Barbanti, M.; Yang, T.H.; Rodès Cabau, J.; Tamburino, C.; Wood, D.A.; Jilaihawi, H.; Blanke, P.; Makkar, R.R.; Latib, A.; Colombo, A.; et al. Anatomical and procedural features associated with aortic root rupture during balloon-expandable transcatheter aortic valve replacement. Circulation 2013, 128, 244–253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Zamorano, J.L.; Gonçalves, A.; Lang, R. Imaging to select and guide transcatheter aortic valve implantation. Eur. Heart J. 2014, 35, 1578–1587. [Google Scholar] [CrossRef]
  51. Ruile, P.; Blanke, P.; Krauss, T.; Dorfs, S.; Jung, B.; Jander, N.; Leipsic, J.; Langer, M.; Neumann, F.-J.; Pache, G. Pre-procedural assessment of aortic annulus dimensions for transcatheter aortic valve replacement: Comparison of a non-contrast 3D MRA protocol with contrast-enhanced cardiac dual-source CT angiography. Eur. Heart J. Cardiovasc. Imaging 2015, 17, 458–466. [Google Scholar] [CrossRef] [Green Version]
  52. Binder, R.K.; Webb, J.G.; Willson, A.B.; Urena, M.; Hansson, N.C.; Norgaard, B.L.; Pibarot, P.; Barbanti, M.; Larose, E.; Freeman, M.; et al. The impact of integration of a multidetector computed tomography annulus area sizing algorithm on outcomes of transcatheter aortic valve replacement: A prospective, multicenter, controlled trial. J. Am. Coll. Cardiol. 2013, 62, 431–438. [Google Scholar] [CrossRef] [Green Version]
  53. Pontone, G.; Andreini, D.; Bartorelli, A.L.; Bertella, E.; Mushtaq, S.; Gripari, P.; Loguercio, M.; Cortinovis, S.; Baggiano, A.; Conte, E.; et al. Comparison of accuracy of aortic root annulus assessment with cardiac magnetic resonance versus echocardiography and multidetector computed tomography in patients referred for transcatheter aortic valve implantation. Am. J. Cardiol. 2013, 112, 1790–1799. [Google Scholar] [CrossRef]
  54. Rogers, T.; Waksman, R. Role of CMR in TAVR. JACC Cardiovasc. Imaging 2016, 9, 593–602. [Google Scholar] [CrossRef] [PubMed]
  55. Mach, M.; Hasan, W.; Andreas, M.; Winkler, B.; Weiss, G.; Adlbrecht, C.; Delle-Karth, G.; Grabenwöger, M. Evaluating the Association between Contrast Medium Dosage and Acute Kidney Injury in Transcatheter Aortic Valve Replacement Using Different Predictive Models. J. Clin. Med. 2020, 9, 3476. [Google Scholar] [CrossRef]
  56. Vaquerizo, B.; Spaziano, M.; Alali, J.; Mylote, D.; Theriault-Lauzier, P.; Alfagih, R.; Martucci, G.; Buithieu, J.; Piazza, N. Three-dimensional echocardiography vs. computed tomography for transcatheter aortic valve replacement sizing. Eur. Heart J. Cardiovasc. Imaging 2016, 17, 15–23. [Google Scholar] [CrossRef] [PubMed]
  57. Hafiz, A.M.; Medranda, G.A.; Kakouros, N.; Patel, J.; Kahan, J.; Gubernikoff, G.; Ray, B.; Paruchuri, V.; DeLeon, J.; Marzo, K.; et al. Is intra-procedure three-dimensional transesophageal echocardiogram an alternative to preprocedure multidetector computed tomography for the measurement of the aortic annulus in patients undergoing transcatheter aortic valve replacement? Echocardiography 2017, 34, 1195–1202. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Altiok, E.; Koos, R.; Schröder, J.; Brehmer, K.; Hamada, S.; Becker, M.; Mahnken, A.H.; Almalla, M.; Dohmen, G.; Autschbach, R.; et al. Comparison of two-dimensional and three-dimensional imaging techniques for measurement of aortic annulus diameters before transcatheter aortic valve implantation. Heart 2011, 97, 1578–1584. [Google Scholar] [CrossRef] [PubMed]
  59. Wystub, N.; Bäz, L.; Möbius-Winkler, S.; Pörner, T.C.; Goebel, B.; Hamadanchi, A.; Doenst, T.; Grimm, J.; Lehmkuhl, L.; Teichgräber, U.; et al. Aortic annulus measurement with computed tomography angiography reduces aortic regurgitation after transfemoral aortic valve replacement compared to 3-D echocardiography: A single-centre experience. Clin. Res. Cardiol. 2019, 108, 1266–1275. [Google Scholar] [CrossRef] [PubMed]
  60. Elkaryoni, A.; Nanda, N.C.; Baweja, P.; Arisha, M.J.; Zamir, H.; Elgebaly, A.; Altibi, A.M.; Sharma, R. Three-dimensional transesophageal echocardiography is an attractive alternative to cardiac multi-detector computed tomography for aortic annular sizing: Systematic review and meta-analysis. Echocardiography 2018, 35, 1626–1634. [Google Scholar] [CrossRef] [PubMed]
  61. Rong, L.Q.; Hameed, I.; Salemi, A.; Rahouma, M.; Khan, F.M.; Wijeysundera, H.C.; Angiolillo, D.J.; Shore-Lesserson, L.; Biondi-Zoccai, G.; Girardi, L.N.; et al. Three-Dimensional Echocardiography for Transcatheter Aortic Valve Replacement Sizing: A Systematic Review and Meta-Analysis. J. Am. Heart Assoc. 2019, 8, e013463. [Google Scholar] [CrossRef]
  62. Jilaihawi, H.; Kashif, M.; Fontana, G.; Furugen, A.; Shiota, T.; Friede, G.; Makhija, R.; Doctor, N.; Leon, M.B.; Makkar, R.R. Cross-sectional computed tomographic assessment improves accuracy of aortic annular sizing for transcatheter aortic valve replacement and reduces the incidence of paravalvular aortic regurgitation. J. Am. Coll. Cardiol. 2012, 59, 1275–1286. [Google Scholar] [CrossRef] [Green Version]
  63. Nolan, M.T.; Thavendiranathan, P. Automated Quantification in Echocardiography. JACC Cardiovasc. Imaging 2019, 12, 1073–1092. [Google Scholar] [CrossRef] [PubMed]
  64. Xu, B.; Kocyigit, D.; Grimm, R.; Griffin, B.P.; Cheng, F. Applications of artificial intelligence in multimodality cardiovascular imaging: A state-of-the-art review. Prog. Cardiovasc. Dis. 2020, 63, 367–376. [Google Scholar] [CrossRef] [PubMed]
  65. Davis, A.; Billick, K.; Horton, K.; Jankowski, M.; Knoll, P.; Marshall, J.E.; Paloma, A.; Palma, R.; Adams, D.B. Artificial Intelligence and Echocardiography: A Primer for Cardiac Sonographers. J. Am. Soc. Echocardiogr. 2020, 33, 1061–1066. [Google Scholar] [CrossRef]
  66. Johnson, K.W.; Torres Soto, J.; Glicksberg, B.S.; Shameer, K.; Miotto, R.; Ali, M.; Ashley, E.; Dudley, J.T. Artificial Intelligence in Cardiology. J. Am. Coll. Cardiol. 2018, 71, 2668–2679. [Google Scholar] [CrossRef] [PubMed]
Diagnostics 11 00751 g001 550

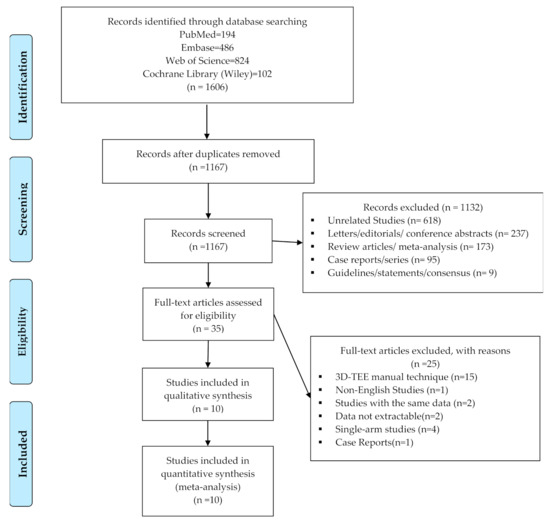

Figure 1. PRISMA flow diagram of the study selection process. 3D-TEE = Three-dimensional transesophageal echocardiography, n = Number of literatures, PRISMA = Preferred Reporting Items for Systematic Reviews and Meta-analyses.
Figure 1. PRISMA flow diagram of the study selection process. 3D-TEE = Three-dimensional transesophageal echocardiography, n = Number of literatures, PRISMA = Preferred Reporting Items for Systematic Reviews and Meta-analyses.
Diagnostics 11 00751 g001
Diagnostics 11 00751 g002 550

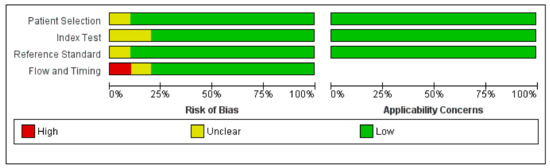

Figure 2. Quality assessment of included studies. Risk of bias and applicability of concerns domains are presented as percentages based on modified Quality Assessment of Diagnostic Accuracy Studies-2 tool. Each bar shows percentage of studies with high (red), unclear (yellow), and low (green) risks of bias and applicability of concerns.
Figure 2. Quality assessment of included studies. Risk of bias and applicability of concerns domains are presented as percentages based on modified Quality Assessment of Diagnostic Accuracy Studies-2 tool. Each bar shows percentage of studies with high (red), unclear (yellow), and low (green) risks of bias and applicability of concerns.
Diagnostics 11 00751 g002
Diagnostics 11 00751 g003 550

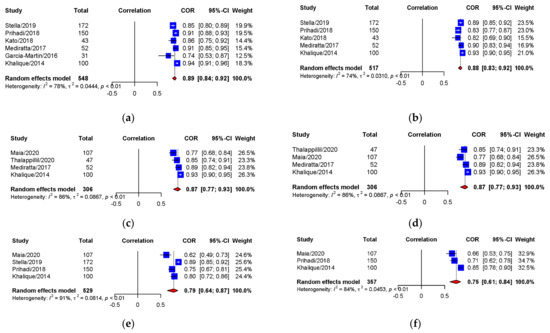

Figure 3. Forest plots of correlation between 3D-TEE and MDCT for annular sizing parameters. (a) Aortic annular area; (b) Aortic annular perimeter; (c) Annular area-derived diameter; (d) Annular perimeter-derived diameter; (e) Annular maximum diameter; (f) Annular minimum diameter. 3D-TEE = Three-dimensional transesophageal echocardiography, MDCT = Multidetector computed tomography, CI = Confidence interval, COR = Correlation coefficient.
Figure 3. Forest plots of correlation between 3D-TEE and MDCT for annular sizing parameters. (a) Aortic annular area; (b) Aortic annular perimeter; (c) Annular area-derived diameter; (d) Annular perimeter-derived diameter; (e) Annular maximum diameter; (f) Annular minimum diameter. 3D-TEE = Three-dimensional transesophageal echocardiography, MDCT = Multidetector computed tomography, CI = Confidence interval, COR = Correlation coefficient.
Diagnostics 11 00751 g003
Diagnostics 11 00751 g004 550

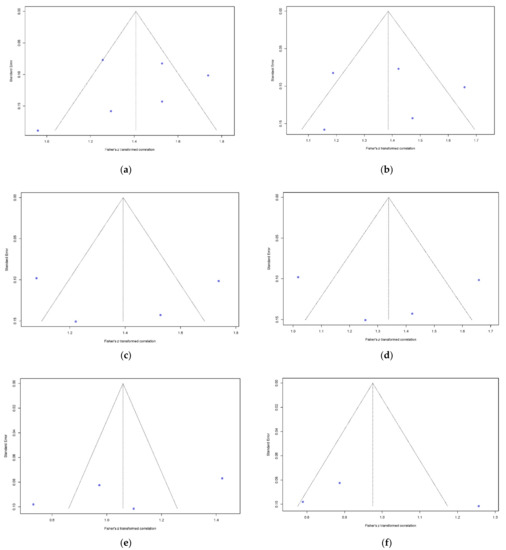

Figure 4. Funnel plots to detect publication bias of correlation between 3D-TEE and MDCT. Bias and p values of asymmetry derived from Egger’s test are shown for annular sizing parameters. (a) Aortic annular area (bias = −1.40, p = 0.67); (b) Aortic annular perimeter (bias = 0.15, p = 0.97); (c) Annular area-derived diameter (bias = 0.11, p = 0.99); (d) Annular perimeter-derived diameter (bias = 0.92, p = 0.92); (e) Annular maximum diameter (bias = −16.67, p = 0.34); (f) Annular minimum diameter (bias = 10.36, p = 0.69). 3D-TEE = Three-dimensional transesophageal echocardiography, MDCT = Multidetector computed tomography.
Figure 4. Funnel plots to detect publication bias of correlation between 3D-TEE and MDCT. Bias and p values of asymmetry derived from Egger’s test are shown for annular sizing parameters. (a) Aortic annular area (bias = −1.40, p = 0.67); (b) Aortic annular perimeter (bias = 0.15, p = 0.97); (c) Annular area-derived diameter (bias = 0.11, p = 0.99); (d) Annular perimeter-derived diameter (bias = 0.92, p = 0.92); (e) Annular maximum diameter (bias = −16.67, p = 0.34); (f) Annular minimum diameter (bias = 10.36, p = 0.69). 3D-TEE = Three-dimensional transesophageal echocardiography, MDCT = Multidetector computed tomography.
Diagnostics 11 00751 g004
Diagnostics 11 00751 g005 550

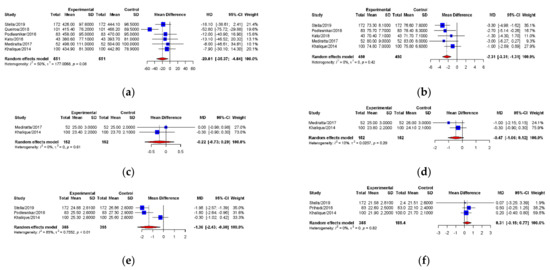

Figure 5. Forest plots of mean differences between 3D-TEE and MDCT for annular sizing parameters. p values derived from the pooled mean difference of each parameters are shown. (a) Aortic annular area (p = 0.011); (b) Aortic annular perimeter (p < 0.0001); (c) Annular area-derived diameter (p = 0.40); (d) Annular perimeter-derived diameter (p = 0.12); (e) Annular maximum diameter (p = 0.012); (f) Annular minimum diameter (p = 0.18). 3D-TEE = Three-dimensional transesophageal echocardiography (Experimental), MDCT = Multidetector computed tomography (Control), CI = Confidence interval, MD = Mean difference, SD = Standard deviation.
Figure 5. Forest plots of mean differences between 3D-TEE and MDCT for annular sizing parameters. p values derived from the pooled mean difference of each parameters are shown. (a) Aortic annular area (p = 0.011); (b) Aortic annular perimeter (p < 0.0001); (c) Annular area-derived diameter (p = 0.40); (d) Annular perimeter-derived diameter (p = 0.12); (e) Annular maximum diameter (p = 0.012); (f) Annular minimum diameter (p = 0.18). 3D-TEE = Three-dimensional transesophageal echocardiography (Experimental), MDCT = Multidetector computed tomography (Control), CI = Confidence interval, MD = Mean difference, SD = Standard deviation.
Diagnostics 11 00751 g005
Diagnostics 11 00751 g006a 550Diagnostics 11 00751 g006b 550

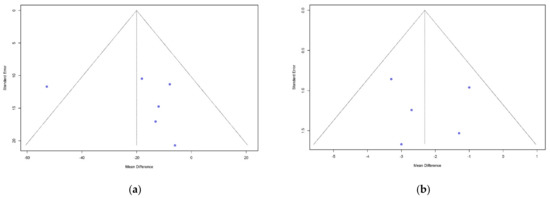

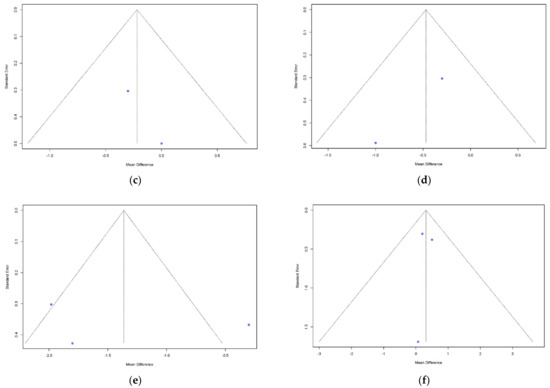

Figure 6. Funnel plots to detect publication bias of mean difference between 3D-TEE and MDCT. Bias and p values of asymmetry derived from Egger’s test are shown for annular sizing parameters. (a) Aortic annular area (bias = 1.72, p = 0.56); (b) Aortic annular perimeter (bias = 0.45, p = 0.84); (c) Annular area-derived diameter (Unable to test); (d) Annular perimeter-derived diameter (Unable to test); (e) Annular maximum diameter (bias = 4.62, p = 0.80); (f) Annular minimum diameter (bias = −0.03, p = 0.98). 3D-TEE = Three-dimensional transesophageal echocardiography, MDCT = Multidetector computed tomography.
Figure 6. Funnel plots to detect publication bias of mean difference between 3D-TEE and MDCT. Bias and p values of asymmetry derived from Egger’s test are shown for annular sizing parameters. (a) Aortic annular area (bias = 1.72, p = 0.56); (b) Aortic annular perimeter (bias = 0.45, p = 0.84); (c) Annular area-derived diameter (Unable to test); (d) Annular perimeter-derived diameter (Unable to test); (e) Annular maximum diameter (bias = 4.62, p = 0.80); (f) Annular minimum diameter (bias = −0.03, p = 0.98). 3D-TEE = Three-dimensional transesophageal echocardiography, MDCT = Multidetector computed tomography.
Diagnostics 11 00751 g006aDiagnostics 11 00751 g006b
Table
Table 1. Study characteristics of included studies.
Table 1. Study characteristics of included studies.
Study/YearTotal No. of PatientsStudy DesignStudy PeriodHospital/InstitutionCountry
Thalappillil/2020 [46]47Retrospective1 January 2017 to 1 February 2019Tufts Medical CenterUnited States
Maia/2020 [45]107RetrospectiveDecember 2015 to January 2017Centro Hospitalar de Gaia/EspinhoPortugal
Stella/2019 [44]175RetrospectiveOctober 2014 to August 2016San Raffaele University HospitalItaly
Queiros/2018 [43]101RetrospectiveAugust 2014 to September 2017St. Vinzenz-Hospital (Cologne, Germany)Germany
Prihadi/2018 [42]150RetrospectiveNAThe Leiden University Medical CenterThe Netherlands
Podlesnikar/2018 [41]83RetrospectiveJuly 2015 to March 2017The Leiden University Medical CenterThe Netherlands
Kato/2018 [40]43RetrospectiveJanuary to October 2016The Tokyo Bay Urayasu-Ichikawa Medical CenterJapan
Mediratta/2017 [39]52RetrospectiveNAUniversity of Chicago Medical CenterUnited States
Garcia-Martin/2016 [38]31RetrospectiveMarch 2012 to March 2014Ramo’n y Cajal University HospitalSpain
Khalique/2014 [37]100RetrospectiveNovember 2011 to January 2013Columbia University Medical Center/New York Presbyterian HospitalUnited States
NA = Not available.
Table
Table 2. Patient characteristics of included studies.
Table 2. Patient characteristics of included studies.
Study/YearSex
(M/F)		Age
(Mean ± SD)		BMI (kg/m2)
(Mean ± SD)		BSA(m2)
(Mean ± SD)		Atrial fibrillation (%)Hypertension
(%)		Diabetes
Mellitus (%)		AVA (cm2)
(Mean ± SD)		Mean Transaortic Gradient (mmHg) (Mean ± SD)LVEF (%)
(Mean ± SD)
Thalappillil/2020 [46]23/2480.9 ± 7NANANANANA0.74 ± 0.2332 ± 12NA
Maia/2020 [45]47/6081 ± 5.926.98 ± 4.451.74 ± 0.1837.577.548.3NA49.16 ± 15.23NA
Stella/2019 [44]77/9881.3 ± 6.325.2 ± 4.8NA30.9%NANA0.77 ± 0.348.4 ± 13.956.4 ± 11.3
Queiros/2018 [43]39/6283.0 ± 5.1NANA36.691.129.70.72 ± 0.1947.4 ± 17.454.5 ± 14.6
Prihadi/2018 [42]74/7680.7 ± 7.226.7 ± 5.5NANANANA0.8 ± 0.343.5 ± 19.650.0 ± 11.8
Podlesnikar/2018 [41]39/4481.7 ± 6.727.0 ± 4.51.84 ± 0.23NANANA0.7 ± 0.244 ± 1657.7 ± 21.5
Kato/2018 [40]16/2783.9 ± 4.9NA1.45 ± 0.18NA8190.58 ± 0.1247.0 ± 16.8NA
Mediratta/2017 [39]28/2481 ± 8NA1.9 ± 0.3NANANA0.8 ± 0.240 ± 1357 ± 16
Garcia-Martin/2016 [38]10/2181.6 ± 17NANANA3170.7 ± 0.2 46.3 ± 1658.2 ± 11
Khalique/2014 [37]45/5587.8 ± 8.3NANANANANA0.67 ± 0.17NANA
NA = Not available, M = Male, F = Female, BMI = Body mass index, BSA = Body surface area, SD = Standard deviation, AVA = Aortic valve area, LVEF = Left ventricular ejection fraction.
Table
Table 3. Imaging characteristics of included studies.
Table 3. Imaging characteristics of included studies.
Study/Year3D-TEEMDCTMeasurement PhaseSoftware Used for 3D-TEE Annulus SizingSex
(M/F)		Time for the AA Analysis (s)
(Mean ± SD)
3D-TEE TechniqueVendorMDCT TechniqueVendor
Thalappillil/2020 [46]AutomatedAcuson
SC2000 (Siemens)		Manual128-slice/ 64-slice Dual-Source CT
(Siemens)		SystoleeSie Valves AI23/24NA
Maia/2020 [45]AutomatedAcuson
SC2000 (Siemens)		Manual64-detector row
CT(Siemens)		SystoleeSie Valves47/60NA
Stella/2019 [44]SemiautomatedGE Vivid E9
(GE Healthcare)		Manual64-slice CT
(GE Healthcare)		Systole4D Auto AVQ77/9850 ± 7
Queiros/2018 [43]SemiautomatedGE Vivid E9/E95
(GE Healthcare)		ManualMultidetector 64-channel scanner
(GE Healthcare)		SystoleSpeqle3D39/6233.9 ± 9.5
Prihadi/2018 [42]AutomatediE33 and EPIQ7 (Philips Medical Systems)Manual64–detector row /320–detector row CT (Toshiba Medical Systems)SystoleAortic Valve Navigator [AVN]74/764.8 ± 1.2 (min)
Podlesnikar/2018 [41]AutomatedGE Vivid E9/E95
(GE-Vingmed)		Manual320-slice MDCT scanner (Toshiba Medical Systems)Systole4D Auto AVQ39/44NA
Kato/2018 [40]Automated Acuson
SC2000 (Siemens)		Manual320-slice MDCT scanner (Toshiba Medical Systems)SystoleeSieValves16/2730.1 ± 5.79
Mediratta/2017 [39]SemiautomatediE33 (Philips Medical Systems)Manual256-slice scanner (Philips Medical Systems)SystoleMitral Valve Quantification [MVQ]28/24NA
Garcia-Martin/2016 [38]AutomatediE33 (Philips Medical Systems)Manual64-slice MDCT (Philips Medical Systems)SystoleeSieValves10/21NA
Khalique/2014 [37]SemiautomatediE33 (Philips Medical Systems)Manual320-slice MDCT scanner (Toshiba Medical Systems)SystoleMitral Valve Quantification [MVQ]45/55NA
NA = Not available, 3D-TEE = Three-dimensional transesophageal echocardiography, MDCT = Multidetector computed tomography, AA = Aortic annulus.
Table
Table 4. Meta-regression of correlation between 3D-TEE and MDCT annular area sizing.
Table 4. Meta-regression of correlation between 3D-TEE and MDCT annular area sizing.
VariablesNo. of StudiesEstimateStandard Error95% CI (p Value)
Male 62.5101.315−0.068, 5.088 (p = 0.056)
Age60.0460.036−0.025, 0.118 (p = 0.205)
Left ventricular rejection fraction4−0.0410.031−0.102, 0.019 (p = 0.18)
Aortic valve area60.4041.420−2.379, 3.187 (p = 0.776)
Mean transaortic gradient5−0.0440.024−0.090, 0.003 (p = 0.065)
3D-TEE = Three-dimensional transesophageal echocardiography, MDCT = Multidetector computed tomography, CI = Confidence interval.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mork, C.; Wei, M.; Jiang, W.; Ren, J.; Ran, H. Aortic Annular Sizing Using Novel Software in Three-Dimensional Transesophageal Echocardiography for Transcatheter Aortic Valve Replacement: A Systematic Review and Meta-Analysis. Diagnostics 2021, 11, 751. https://doi.org/10.3390/diagnostics11050751

AMA Style

Mork C, Wei M, Jiang W, Ren J, Ran H. Aortic Annular Sizing Using Novel Software in Three-Dimensional Transesophageal Echocardiography for Transcatheter Aortic Valve Replacement: A Systematic Review and Meta-Analysis. Diagnostics. 2021; 11(5):751. https://doi.org/10.3390/diagnostics11050751

Chicago/Turabian Style

Mork, Chanrith, Minjie Wei, Weixi Jiang, Jianli Ren, and Haitao Ran. 2021. "Aortic Annular Sizing Using Novel Software in Three-Dimensional Transesophageal Echocardiography for Transcatheter Aortic Valve Replacement: A Systematic Review and Meta-Analysis" Diagnostics 11, no. 5: 751. https://doi.org/10.3390/diagnostics11050751

APA Style

Mork, C., Wei, M., Jiang, W., Ren, J., & Ran, H. (2021). Aortic Annular Sizing Using Novel Software in Three-Dimensional Transesophageal Echocardiography for Transcatheter Aortic Valve Replacement: A Systematic Review and Meta-Analysis. Diagnostics, 11(5), 751. https://doi.org/10.3390/diagnostics11050751

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
