Axonemal Symmetry Break, a New Ultrastructural Diagnostic Tool for Primary Ciliary Dyskinesia?
by
Rosana Blanco-Máñez
1,*,
Miguel Armengot-Carceller
2,3,4,5,
Teresa Jaijo
2,6,7 and
Francisco Vera-Sempere
8 1
Pathology Department, La Fe Polytechnic and University Hospital, 46020 Valencia, Spain
2
Molecular, Cellularand Genomic Biomedicine Group, IIS La Fe, 46020 Valencia, Spain
3
Surgery Department, University of Valencia, 46010 Valencia, Spain
4
CIBER of Respiratory Diseases (CIBERES), Carlos III Health Institute, Ministerio de Ciencia e Innovación, 28029 Madrid, Spain
5
ENT Department, La Fe Polytechnic and University Hospital, 46020 Valencia, Spain
6
Genetics Department, La Fe Polytechnic and University Hospital, 46020 Valencia, Spain
7
CIBER of Rare Diseases (CIBERES), Carlos III Health Institute, Ministerio de Ciencia e Innovación, 28029 Madrid, Spain
8
Pathology Department, University of Valencia, 46010 Valencia, Spain
*
Author to whom correspondence should be addressed.
Diagnostics 2022, 12(1), 129; https://doi.org/10.3390/diagnostics12010129
Submission received: 28 November 2021
/
Revised: 27 December 2021
/
Accepted: 3 January 2022
/
Published: 6 January 2022
(This article belongs to the Section Medical Imaging and Theranostics)
Abstract
:Diagnosis testing for primary ciliary dyskinesia (PCD) requires a combination of investigations that includes study of ciliary beat pattern by high-speed video-microscopy, genetic testing and assessment of the ciliary ultrastructure by transmission electron microscopy (TEM). Historically, TEM was considered to be the “gold standard” for the diagnosis of PCD. However, with the advances in molecular genetic techniques, an increasing number of PCD variants show normal ultrastructure and cannot be diagnosed by TEM. During ultrastructural assessment of ciliary biopsies of patients with suspicion of PCD, we observed an axonemal defect not previously described that affects peripheral doublets tilting. To further characterize this defect of unknown significance, we studied the ciliary axonemes by TEM from both PCD-confirmed patients and patients with other sino-pulmonary diseases. We detected peripheral doublets tilting in all the PCD patients, without any significant difference in the distribution of ciliary beat pattern or mutated gene. This defect was also present in those patients with normal ultrastructure PCD subtypes. We believe that the performance of axonemal asymmetry analysis would be helpful to enhance diagnosis of PCD.
1. Introduction
Primary ciliary dyskinesia (PCD) is a rare genetic disease of motile cilia with an estimated prevalence of 1 per 20,000–40,000 births (ORPHA244). It is associated with abnormal ciliary function and/or structure, resulting in a defective mucociliary clearance [1]. PCD is characterized by chronic upper and lower respiratory tract disease with daily wet cough and rhinorrhea, chronic rhinosinusitis, chronic otitis media and development of bronchiectasis, fertility problems secondary to sperm immotility or impaired ciliary function in the oviduct, and organ laterality defects [2,3].
A precise diagnosis of PCD may be challenging because motile cilia are highly complex structures composed of approximately 250 proteins. A mutational change in any of these proteins leads to different clinical and ciliary phenotypes [4]. Currently, the diagnosis of PCD is based on the presence of a typical clinical phenotype and a combination of technically demanding investigations, including high-speed video-microscopy analysis (HVMA), genetic testing and assessment of the ciliary ultrastructure by transmission electron microscopy (TEM) [5,6].
Since the first ultrastructural description was published in 1976 by Björn Afzelius [7], the ciliary ultrastructural analysis by transmission electron microscopy has played a key role in the PCD diagnostic workflow. However, approximately 30% of PCD cases display apparently normal ciliary ultrastructure [8,9,10].
Concurrently, developments in genomics and molecular medicine are rapidly increasing gene discovery, and nearly 40 genes have been reported to cause PCD [11]. Therefore, a new diagnostic characterization of these patients, including motility and ultrastructural typification, will be necessary.
During the ultrastructural diagnostic evaluation of nasal biopsies of patients suspected of PCD, we observed an axonemal defect not previously described. This defect affected the peripheral doublets orientation of PCD patients, and we believe it could be a new useful tool in ultrastructural diagnosis. We have termed it “axonemal asymmetry”. We proceeded to formally study this defect to test the hypothesis that its presence was predictive of the PCD diagnosis. To determine if axonemal asymmetry was specific to PCD patients, we also studied nasal biopsies from patients with a clinical suspicion for PCD but excluded from the diagnosis, patients with cystic fibrosis, immunodeficiency or idiopathic bronchiectasis.
2. Materials and Methods
2.1. Ethical Aspects
This was a retrospective, observational, single-center study. A total of 20 patients with a confirmed PCD diagnostic and a control group of 20 patients with a chronic respiratory disease were included in this study. We reviewed the clinical characteristics and diagnostic tests of all the participants.
This study was performed in the Pathology Department of La Fe Polytechnic and University Hospital of Valencia, Spain. Patient recruitment was carried out in the Otorhinolaryngology Department of the same center.
Written informed consent was obtained from all participants or their legal guardians. This study was approved by the Ethics Local Committee of La Fe Hospital (protocol 2021-278-1, 12 May 2021).
2.2. Preparation of Nasal Brushings for Analysis by Transmission Electron Microscopy
Samples of nasal curettage were fixed in 2.5% phosphate-buffered glutaraldehyde pH 7.3 for 1 day at 4 °C, washed later twice in the same buffer. The specimens were postfixed in buffered 1% osmium tetroxide for 2 h, washed, dehydrated through a graded series of acetone, cleared in propylene-oxide and embedded in EMbed 812 resin (EMS, Harrisburg, PA, USA)). Semithin sections 200 nm thick, cut with glass knives on a Leica Ultramicrotome EM UC6 and stained with 0.1% toluidine blue, were examined with the light microscope in order to make an overall assessment of the presence of ciliary structures. Ultrathin sections (70 nm thickness) from selected blocks were cut with a diamond knife (DiATOME, Nidau, Switzerland) using the same ultramicrotome, retrieved onto copper grids, double-stained with uranyl acetate and lead citrate and examined at 80 kV with a Hitachi HT7700 transmission electron microscope (Hitachi, Japan).
2.3. Diagnostic Assessment of the Ciliary Axonemes
At least 50 cross-sections of cilia from each patient were evaluated to establish the presence of ultrastructural abnormalities. A detailed ultrastructural analysis was undertaken, and all the diagnostic abnormalities were recorded. Results were expressed as a percentage of abnormal axonemes among the total number of analyzed cross-sections. The axonemal defects were classified as a Class 1 defect (hallmark diagnostic defect) or Class 2 defect (indicating a PCD diagnosis with other supporting evidence) in agreement with the BEAT PCD Criteria [12]. For the asymmetry assessment, a preserved axonemal structure is required; hence, patients with microtubular disorganization defects were excluded (Table 1).
2.4. Axonemal Asymmetry Assessment
We define the axonemal circumference—or oval—as the line joining the center of all the A-tubules (Figure 1b). In ciliary sections with preserved axonemal structure, the doublets are aligned with their axonemal circumference, and few of them show a slight inclination. These ciliary sections show axonemal symmetry.
In this study, and through a repeated observation method of ciliary sections of non-PCD patients, the axonemal symmetry break was established in those ciliary sections with more than 3 rotated peripheral doublets. To identify this misalignment, the B-tubule should be outside the axonemal circumference (Figure 2).
To assess this symmetry break as an axonemal ultrastructural defect in PCD patients, we retrospectively studied the ciliary biopsies of the PCD patients and the control group of patients excluded from the diagnosis. Axonemal asymmetry (AA) results were expressed as a percentage of axonemes with symmetry breaks among the total number of analyzed cross-sections.
2.5. Statistical Analysis
The data were summarized using the mean (SD) and median (1st and 3rd quartiles) in the case of numerical variables and using the absolute frequency (%) in the case of qualitative variables.
3. Results
3.1. Symmetry Break Analysis
The axonemal asymmetry in PCD patients ranged from 38 to 68% (Table 2). Symmetry breaking was more evident in those ciliary sections with the absence of outer dynein arms (Figure 3b,c), although it was also observed in normal-appearing ultrastructure sections (Figure 3f).
Hence, all the PCD patients in our study showed an AA beyond 38%, regardless of the mutated gene, CCI, ciliary motility or TEM results. We also observed this symmetry break in the ciliary axonemes of the patients with normal ultrastructure (7/20; 35%), even in those with a mutation in DNAH11 (patient 81) or RSPH1 (patients 91 and 92), two specific forms of PCD with apparently normal ultrastructure. All the patients showed ultrastructural defects, in diagnostic and non-diagnostic proportions (Table S1), with the exception of patients 91 and 92, in which the AA was the only detected ultrastructural defect.
The data obtained from the control group (Table 3) revealed a minimal axonemal asymmetry proportion of 2%, with a maximal value of 63% in participant 59. Their demographic and clinical characteristics are summarized in Table S2.
Participants 25 and 59 showed AA values within the range observed in PCD patients. Moreover, their detailed ultrastructural analysis revealed non-diagnostic ODA defect rates (16% and 22%, respectively), and higher ODA defect values for the control group (Table S3).
3.2. Statistical analysis
4. Discussion
This study first reports the observation that axonemal asymmetry is mainly observed in axonemes from patients with PCD and is seen across different PCD phenotypes and genotypes.
Virtually all the PCD patients in our cohort showed impairment of ciliary beat pattern, and all of them showed axonemal symmetry break. In contrast, the control group patients, with a conserved axonemal symmetry, had normal ciliary motility. The exception to this statement was two patients in the control group with raised axonemal asymmetry and moderate absence of outer dynein arms.
We propose several hypotheses for the link between axonemal asymmetry and dysfunctional cilia. It could be pointed to the following subjects: the basal body architecture, some axonemal components, as ODA or nexin link dynein regulator complex proteins (N-DRC) or acquired ciliary defects. Basal bodies give rise to cilia in the last stage of the ciliogenesis process. They provide a ninefold symmetric template on which the ninefold symmetry axonemal structure of the cilium can be built. They are modified centrioles, composed of nine triplet microtubule “blades” arranged in a barrel shape [13]. Nine peripheral doublet microtubules of the ciliary axoneme elongate from A- and B-tubules of the triplet microtubules of the basal body [14], and at the proximal cilium region, peripheral doublets have the characteristic angled-out appearance of basal body triplets. This geometry changes through the axoneme, reducing the doublets angulation but keeping the rotational symmetry of the basal body [15]. Consequently, peripheral doublets show a slight non-pathologic tilt, evidenced in 1984 by Rautiainen et al. in a study of ciliary serial sections [16]. We have termed this conformation as “axonemal symmetry”. Our observations revealed more than three clearly tilted doublets in a significant number of ciliary sections in PCD patients’ samples. A basal body abnormal template could lead to an asymmetric axoneme.
On the other hand, it is estimated that the axoneme must experience considerable distortion during the beat cycle [17]. The N-DRC provides some resistance to microtubule sliding and maintains alignment between outer doublet microtubules during ciliary bending [18]. Some genetic defects encoding the N-DRC have been reported, such as CCDC164, CCDC65 and GAS8, and the ultrastructural analysis occasionally shows not well aligned peripheral doublets [19,20,21]. Nonetheless, the main genetic defect in our cohort affects ODA structure, and the cases that revealed the higher axonemal asymmetry values had mutations on RSPH1 or genes encoding ODA components. It is also important to note that participants 25 and 59, with axonemal asymmetry values in the PCD patients’ range, were the only ones with minor ODA defects. Indeed, each stalk of heavy chains of ODA attached to an A-tubule seems to connect to a consecutive, specific protofilament on the neighboring B-tubule [22]. Considering all the presented data as a whole, peripheral doublets tilting could be due to a novel structural defect localized at ODAs or N-DRC complexes. Further studies would be necessary to elucidate the molecular basis of this finding.
A third explanation of the axonemal symmetry break would be an ultrastructural change secondary to chronic respiratory disease of these patients. Altered ciliogenesis following recurrent infections can lead to ciliary abnormalities—swollen cilia, compound cilia, disorganized axonemes, addition or deletion of peripheral microtubules, or loss of one or both of the central pair of microtubules—but these changes are present in less than 5–10% of the cilia examined and in a localized area [23,24,25]. Thus, the characteristic identifying axonemal asymmetry is shown not to represent secondary ciliary defect but rather to be a distinctive defect only present in PCD patients and widespread in distribution within the ciliary samples. To establish this novel axonemal defect as a primary abnormality, we might achieve the universal and permanent criteria, i.e., to demonstrate the presence of the same abnormality in cilia collected from at least one additional site and at least one additional point in time [26].
Although some genetic defects have been linked to specific ultrastructural ciliary defects, the relationship between clinical findings, genotype and ciliary phenotype is still not clear [27,28]. We did not find any significant difference in the distribution of axonemal asymmetry, mutated gene, clinical findings or ciliary beat pattern in our cohort, but the small number of patients does not allow speculating about a potential correlation.
As previously reported [29], our cohort of PCD patients showed apparently normal ultrastructure in 35% of them, and all of them showed an axonemal symmetry break above 38%. Furthermore, we observed more evident AA in axonemes with an ODA defect, and some of the DCP patients with a higher proportion of ODA defect also showed higher scores of AA. The results of the detailed ultrastructural study that we additionally performed in the ciliary biopsies presumably pointed out the absence of correlation between these two variables. Nevertheless, it also suggested that the AA could indicate the diagnosis in PCD patients with virtually normal axonemal ultrastructure. In this way, the quantitative assessment of the axonemal asymmetry as a new diagnostic tool would enhance the diagnostic yield of TEM.
In this study, we have focused on TEM as a diagnostic procedure of PCD, and we believe that the modified peripheral doublets arrangement detected in our study provides another point of view of the underlying pathogenesis of this condition. Further investigations will be required to validate our findings.
Our study has two main limitations: the small sample size and the potential for observer bias because the axonemal asymmetry analysis is largely based on a subjective description.
In summary, we report a not previously described ciliary ultrastructural defect that could provide a novel diagnostic approach of PCD.
Supplementary Materials
The following are available online at https://www.mdpi.com/article/10.3390/diagnostics12010129/s1, Table S1: Detailed ultrastructural axonemal defects in PCD patients with their axonemal asymmetry proportion, Table S2: Demographic and clinical characteristics of control group, Table S3: Detailed ultrastructural axonemal defects in control group with their axonemal asymmetry proportion, Table S4: Genetics, HSVA and TEM information of PCD patients, Table S5: Demographic and clinical characteristics of PCD patients.
Author Contributions
Conceptualization, R.B.-M.; funding acquisition, M.A.-C.; investigation, R.B.-M., T.J. and M.A.-C.; validation, M.A.-C. and F.V.-S.; writing—original draft, R.B.-M.; writing—review & editing, T.J., M.A.-C. and F.V.-S. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by Instituto de Salud Carlos III, grant No. FIS PI19/00949. The funding entities did not contribute to the study design or the collection, analysis and interpretation of data or to the writing of the manuscript.
Institutional Review Board Statement
The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Ethics Local Committee of La Fe Hospital (protocol 2021-278-1, 12 May 2021).
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Knowles, M.R.; Zariwala, M.; Leigh, M. Primary Ciliary Dyskinesia. Clin. Chest Med. 2016, 37, 449–461. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Lobo, J.; Zariwala, M.A.; Noone, P.G. Primary ciliary dyskinesia. Semin. Respir. Crit. Care Med. 2015, 36, 169–179. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Shapiro, A.J.; Davis, S.D.; Ferkol, T.; Dell, S.D.; Rosenfeld, M.; Olivier, K.N.; Sagel, S.D.; Milla, C.; Zariwala, M.A.; Wolf, W.; et al. Laterality defects other than situs inversus totalis in primary ciliary dyskinesia: Insights into situs ambiguus and heterotaxy. Chest 2014, 146, 1176–1186. [Google Scholar] [PubMed] [Green Version]
- Wallmeier, J.; Nielsen, K.G.; Kuehni, C.E.; Lucas, J.S.; Leigh, M.W.; Zariwala, M.A.; Omran, H. Motile ciliopathies. Nat. Rev. Dis. Primers 2020, 6, 77. [Google Scholar] [CrossRef]
- Lucas, J.S.; Barbato, A.; Collins, S.A.; Goutaki, M.; Behan, L.; Caudri, D.; Dell, S.; Eber, E.; Escudier, E.; Hirst, R.A.; et al. European Respiratory Society guidelines for the diagnosis of primary ciliary dyskinesia. Eur. Respir. J. 2017, 49, 1601090. [Google Scholar] [CrossRef]
- Shapiro, A.J.; Davis, S.D.; Polineni, D.; Manion, M.; Rosenfeld, M.; Dell, S.D.; Chilvers, M.A.; Ferkol, T.W.; Zariwala, M.A.; Sagel, S.D.; et al. Diagnosis of Primary Ciliary Dyskinesia. An Official American Thoracic Society Clinical Practice Guideline. Am. J. Respir. Crit. Care Med 2018, 197, e24–e39. [Google Scholar] [CrossRef]
- Afzelius, B.A. A human syndrome caused by immotile cilia. Science 1976, 193, 317–319. [Google Scholar] [CrossRef]
- Shapiro, A.J.; Leigh, M.W. Value of transmission electron microscopy for primary ciliary dyskinesia diagnosis in the era of molecular medicine: Genetic defects with normal and non-diagnostic ciliary ultrastructure. Ultrastruct. Pathol. 2017, 41, 373–385. [Google Scholar] [CrossRef]
- Shoemark, A.; Dixon, M.; Corrin, B.; Dewar, A. Twenty-year review of quantitative transmission electron microscopy for the diagnosis of primary ciliary dyskinesia. J. Clin. Pathol. 2012, 65, 267–271. [Google Scholar] [CrossRef]
- Knowles, M.R.; Leigh, M.W.; Carson, J.L.; Davis, S.D.; Dell, S.; Ferkol, T.W.; Olivier, K.N.; Sagel, S.D.; Rosenfeld, M.; A Burns, K.; et al. Mutations of DNAH11 in patients with primary ciliary dyskinesia with normal ciliary ultrastructure. Thorax 2012, 67, 433–441. [Google Scholar] [CrossRef] [Green Version]
- Lucas, J.S.; Davis, S.D.; Omran, H.; Shoemark, A. Primary ciliary dyskinesia in the genomics age. Lancet Respir. Med. 2020, 8, 202–216. [Google Scholar] [CrossRef]
- Shoemark, A.; Boon, M.; Brochhausen, C.; Bukowy-Bieryllo, Z.; De Santi, M.M.; Goggin, P.; Griffin, P.; Hegele, R.G.; Hirst, R.A.; Leigh, M.W.; et al. International consensus guideline for reporting transmission electron microscopy results in the diagnosis of primary ciliary dyskinesia (BEAT PCD TEM Criteria). Eur. Respir. J. 2020, 55, 1900725. [Google Scholar] [CrossRef]
- Marshall, W.F. Basal bodies platforms for building cilia. Curr. Top. Dev. Biol. 2008, 85, 1–22. [Google Scholar]
- Hagiwara, H.; Ohwada, N.; Takata, K. Cell biology of normal and abnormal ciliogenesis in the ciliated epithelium. Int. Rev. Cytol. 2004, 234, 101–141. [Google Scholar]
- Greenan, G.A.; Vale, R.D.; Agard, D.A. Electron cryotomography of intact motile cilia defines the basal body to axoneme transition. J. Cell Biol. 2020, 219, e201907060. [Google Scholar] [CrossRef]
- Rautiainen, M.; Collan, Y.; Nuutinen, J.; Kärjä, J. Ultrastructure of human respiratory cilia: A study based on serial sections. Ultrastruct. Pathol. 1984, 6, 331–339. [Google Scholar]
- Lindemann, C.B.; Mitchell, D.R. Evidence for axonemal distortion during the flagellar beat of Chlamydomonas. Cell Motil. Cytoskelet. 2007, 64, 580–589. [Google Scholar] [CrossRef]
- Bower, R.; Tritschler, D.; VanderWaal, K.; Perrone, C.A.; Mueller, J.; Fox, L.; Sale, W.S.; Porter, M.E. The N-DRC forms a conserved biochemical complex that maintains outer doublet alignment and limits microtubule sliding in motile axonemes. Mol. Biol. Cell 2013, 24, 1134–1152. [Google Scholar] [CrossRef]
- Merveille, A.C.; Davis, E.E.; Becker-Heck, A.; Legendre, M.; Amirav, I.; Bataille, G.; Belmont, J.; Beydon, N.; Billen, F.; Clément, A.; et al. CCDC39 is required for assembly of inner dynein arms and the dynein regulatory complex and for normal ciliary motility in humans and dogs. Nat. Genet. 2011, 43, 72–78. [Google Scholar] [CrossRef]
- Austin-Tse, C.; Halbritter, J.; Zariwala, M.A.; Gilberti, R.M.; Gee, H.Y.; Hellman, N.; Pathak, N.; Liu, Y.; Panizzi, J.R.; Patel-King, R.S.; et al. Zebrafish Ciliopathy Screen Plus Human Mutational Analysis Identifies C21orf59 and CCDC65 Defects as Causing Primary Ciliary Dyskinesia. Am. J. Hum. Genet. 2013, 93, 672–686. [Google Scholar] [CrossRef] [Green Version]
- Olbrich, H.; Cremers, C.; Loges, N.T.; Werner, C.; Nielsen, K.G.; Marthin, J.K.; Philipsen, M.; Wallmeier, J.; Pennekamp, P.; Menchen, T.; et al. Loss-of-Function GAS8 Mutations Cause Primary Ciliary Dyskinesia and Disrupt the Nexin-Dynein Regulatory Complex. Am. J. Hum. Genet. 2015, 97, 546–554. [Google Scholar] [CrossRef] [Green Version]
- Bui, K.H.; Sakakibara, H.; Movassagh, T.; Oiwa, K.; Ishikawa, T. Asymmetry of inner dynein arms and inter-doublet links in Chlamydomonas flagella. J. Cell Biol. 2009, 186, 437–446. [Google Scholar] [CrossRef] [Green Version]
- Demarco, R.C.; Tamashiro, E.; Rossato, M.; Ferreira, M.D.; Valera, F.C.; Anselmo-Lima, W.T. Ciliary ultrastructure in patients with chronic rhinosinusitis and primary ciliary dyskinesia. Eur. Arch. Otorhinolaryngol. 2013, 270, 2065–2070. [Google Scholar] [CrossRef]
- Chilvers, M.A.; Rutman, A.; O’Callaghan, C. Functional analysis of cilia and ciliated epithelial ultrastructure in healthy children and young adults. Thorax 2003, 58, 333–338. [Google Scholar] [CrossRef] [Green Version]
- Rossman, C.M.; Lee, R.M.; Forrest, J.B.; Newhouse, M.T. Nasal ciliary ultrastructure and function in patients with primary ciliary dyskinesia compared with that in normal subjects and in subjects with various respiratory diseases. Am. Rev. Respir. Dis. 1984, 129, 161–167. [Google Scholar]
- Mierau, G.W.; Agostini, R.; Beals, T.F.; Carlén, B.; Dardick, I.; Henderson, D.W.; Pysher, T.J.; Weeks, D.A.; Yowell, R.L. The role of electron microscopy in evaluating ciliary dysfunction: Report of a workshop. Ultrastruct. Pathol. 1992, 16, 245–254. [Google Scholar] [CrossRef]
- Davis, S.D.; Rosenfeld, M.; Lee, H.S.; Ferkol, T.W.; Sagel, S.D.; Dell, S.D.; Milla, C.; Pittman, J.E.; Shapiro, A.J.; Sullivan, K.M.; et al. Primary Ciliary Dyskinesia: Longitudinal Study of Lung Disease by Ultrastructure Defect and Genotype. Am. J. Respir. Crit. Care Med. 2019, 199, 190–198. [Google Scholar] [CrossRef]
- Blanchon, S.; Legendre, M.; Bottier, M.; Tamalet, A.; Montantin, G.; Collot, N.; Faucon, C.; Dastot, F.; Copin, B.; Clement, A.; et al. Deep phenotyping, including quantitative ciliary beating parameters, and extensive genotyping in primary ciliary dyskinesia. J. Med. Genet. 2020, 57, 237–244. [Google Scholar] [CrossRef]
- Kouis, P.; Yiallouros, P.K.; Middleton, N.; Evans, J.S.; Kyriacou, K.; Papatheodorou, S.I. Prevalence of primary ciliary dyskinesia in consecutive referrals of suspect cases and the transmission electron microscopy detection rate: A systematic review and meta-analysis. Pediatr. Res. 2017, 81, 398–405. [Google Scholar] [CrossRef] [Green Version]

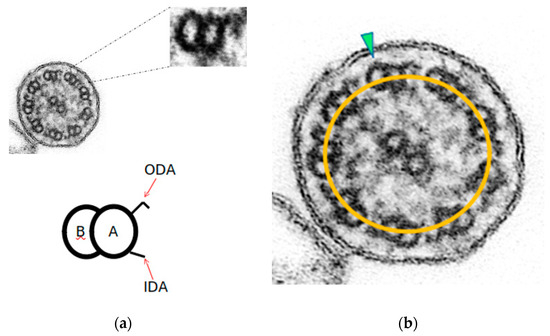

Figure 1.
Axonemal symmetry. (a) Each microtubule doublet of the ciliary axoneme contains an incomplete B-tubule and a complete A-tubule, with the outer (ODA) and inner (IDA) motor protein dynein arms. (b) Ciliary section of (a) with preserved axonemal symmetry: both microtubules of each peripheral doublets are aligned with the axonemal circumference (yellow line), and just one doublet is tilted (green arrowhead) (Original magnification ×530,000).
Figure 1.
Axonemal symmetry. (a) Each microtubule doublet of the ciliary axoneme contains an incomplete B-tubule and a complete A-tubule, with the outer (ODA) and inner (IDA) motor protein dynein arms. (b) Ciliary section of (a) with preserved axonemal symmetry: both microtubules of each peripheral doublets are aligned with the axonemal circumference (yellow line), and just one doublet is tilted (green arrowhead) (Original magnification ×530,000).

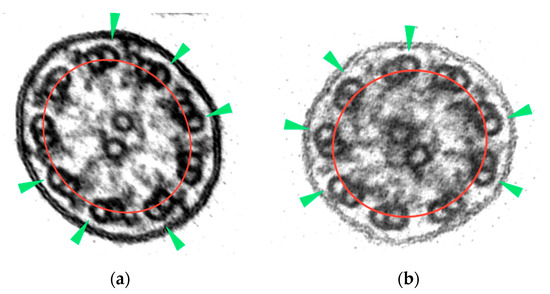

Figure 2.
Axonemal symmetry break: (a) rotating doublets of ciliary section without apparent axonemal defects; (b) rotating doublets of ciliary section with absence of ODAs. B-tubules (green arrowheads) are outside the axonemal circumference (red line) (micrographs, original magnification ×530,000).
Figure 2.
Axonemal symmetry break: (a) rotating doublets of ciliary section without apparent axonemal defects; (b) rotating doublets of ciliary section with absence of ODAs. B-tubules (green arrowheads) are outside the axonemal circumference (red line) (micrographs, original magnification ×530,000).
Figure 3.
Electron micrographs of transverse sections of cilia with axonemal symmetry break. Inset: ciliary sections with marked axonemal circumference (red line) and tilted doublets (green arrowhead).(a) Normal cilium showing conserved ultrastructure and axonemal symmetry; (b–f) ciliary axonemes with more than 3 tilted peripheral doublets: (b) partial absence of outer dynein arms (short arms); (c) absence of inner and outer dynein arms; (d) complete absence of outer dynein arms; (e) central complex defect: absence of central pair; (f) ciliary axoneme with normal ultrastructure and axonemal asymmetry. (Micrographs, original magnification ×530,000).
Figure 3.
Electron micrographs of transverse sections of cilia with axonemal symmetry break. Inset: ciliary sections with marked axonemal circumference (red line) and tilted doublets (green arrowhead).(a) Normal cilium showing conserved ultrastructure and axonemal symmetry; (b–f) ciliary axonemes with more than 3 tilted peripheral doublets: (b) partial absence of outer dynein arms (short arms); (c) absence of inner and outer dynein arms; (d) complete absence of outer dynein arms; (e) central complex defect: absence of central pair; (f) ciliary axoneme with normal ultrastructure and axonemal asymmetry. (Micrographs, original magnification ×530,000).
Table 1.
Summary of Class 1 and Class 2 defects for the ultrastructural diagnosis of PCD (Modified BEAT PCD Criteria).
Table 1.
Summary of Class 1 and Class 2 defects for the ultrastructural diagnosis of PCD (Modified BEAT PCD Criteria).
| Class 1 Defects 1 | Class 2 Defects 1 |
|---|---|
| Outer dynein arm defect (>50% cross sections) | Outer dynein arm absence from 25–50% cross sections |
| Outer and inner dynein arm defect (>50% cross sections) | Combined inner and outer dynein arm absence from 25–50% cross section |
| Central complex defect |
1 Microtubular disorganization defects are excluded.
Table 2.
Summary of diagnostic tests and CCI of PCD patients according to axonemal asymmetry.
| ID | CCI (%) | Genetic Defect | HSVA | TEM Defect | AA (%) |
|---|---|---|---|---|---|
| 23 | 40 | Not identified | Dyskinetic | No | 38 |
| 62 | 60 | DNAH9 | Dyskinetic | C1 | 38 |
| 74 | 90 | DNAH5 | Dyskinetic | C1 | 40 |
| 83 | 50 | DNAH5 | Immotile | C1 | 40 |
| 27 | 40 | DNAH5 | Immotile | C1 | 42 |
| 44 | 60 | TTC25 | Immotile | C1 | 42 |
| 47 | 70 | DNAH5 | Immotile | C1 | 44 |
| 55 | 50 | DNAH9 | Immotile | No | 44 |
| 4 | 40 | DNAAF1 | Immotile | C1 | 46 |
| 51 | 60 | Not identified | Dyskinetic | No | 46 |
| 14 | 60 | RSPH1 | Dyskinetic | C2 | 48 |
| 32 | 70 | DYX1C1 | Immotile | C1 | 48 |
| 80 | 60 | Not identified | Dyskinetic | No | 48 |
| 91 | 60 | RSPH1 | Dyskinetic | No | 48 |
| 6 | 50 | RSPH1 | Normal | C2 | 50 |
| 81 | 70 | DNAH11 | Immotile | No | 50 |
| 22 | 40 | DNAH5 | Immotile | C1 | 56 |
| 16 | 30 | Not identified | Immotile | C1 | 58 |
| 92 | 60 | RSPH1 | Dyskinetic | No | 66 |
| 21 | 60 | DNAH5 | Immotile | C1 | 68 |
Definition of abbreviations: ID = participant identification; CCI = compatible clinical index; HSVA = high-speed video-microscopy analysis; TEM = transmission electron microscopy; C1 = Class 1 defect; C2 = Class 2 defect; AA = axonemal asymmetry.
Table 3.
Summary of diagnostic tests and CCI of control group according to axonemal asymmetry.
| ID | CCI (%) | Genetic Defect | HSVA | TEM Defect | AA (%) |
|---|---|---|---|---|---|
| 78 | 30 | * | N | No | 2 |
| 66 | 40 | * | N | No | 8 |
| 2 | 20 | * | N | No | 10 |
| 69 | 50 | * | N | No | 12 |
| 73 | 30 | * | N | No | 12 |
| 43 | 20 | * | N | No | 14 |
| 68 | 50 | Not identified | N | No | 14 |
| 70 | 40 | * | N | No | 14 |
| 99 | 30 | * | N | No | 14 |
| 28 | 30 | * | N | No | 18 |
| 36 | 20 | * | N | No | 18 |
| 67 | 40 | * | N | No | 18 |
| 85 | 40 | * | N | No | 18 |
| 86 | 40 | * | N | No | 18 |
| 58 | 40 | VUS RSPH4 | N | No | 22 |
| 34 | 20 | * | N | No | 24 |
| 40 | 40 | * | N | No | 34 |
| 98 | 30 | * | N | No | 36 |
| 25 | 40 | * | N | No | 44 |
| 59 | 60 | VUS CCDC103 | N | No | 63 |
Definition of abbreviations: ID = articipant identification; CCI = compatible clinical index; VUS = variant of unknown significance; * = not tested; HSVA = high-speed video-microscopy analysis; TEM = transmission electron microscopy; AA = axonemal asymmetry.
Table 4.
Distribution of ultrastructural defects with demographic characteristics, ICC, HSVA and axonemal asymmetry.
Table 4.
Distribution of ultrastructural defects with demographic characteristics, ICC, HSVA and axonemal asymmetry.
| Class 1 Defect (n = 19) | Class 2 Defect (n = 5) | No Defect (n = 11) | |
|---|---|---|---|
| Age | 18.53 (15.9) | 22 (21.25) | 30.18 (23.17) |
| Median | 15 (8.5, 20) | 13 (6, 33) | 25 (8.5, 50.5) |
| Sex | |||
| Female | 9 (47.37%) | 2 (40%) | 7 (63.64%) |
| Male | 10 (52.63%) | 3 (60%) | 4 (36.36%) |
| CCI | 57.37 (15.93) | 56 (15.17) | 50 (16.12) |
| Median | 60 (45, 70) | 50 (50, 60) | 50 (45, 60) |
| HSVA | |||
| Dyskinetic | 5 (26.32%) | 2 (50%) | 6 (54.55%) |
| Immotile | 13 (68.42%) | 1 (25%) | 5 (45.45%) |
| Normal | 1 (5.26%) | 1 (25%) | 0 (0%) |
| AA | 48.27 (9.16) | 49.5 (6.61) | 50.29 (9.48) |
| Median | 46 (42, 52) | 49 (46.5, 52) | 48 (47, 54) |
Mean (SD)/n (%). Median (1st, 3rd Q.). Definition of abbreviations: CCI = compatible clinical index; HSVA = high-speed video-microscopy analysis; AA = axonemal asymmetry.
Table 5.
Distribution of HSVA with demographic characteristics, ICC, ultrastructural defects and axonemal asymmetry.
Table 5.
Distribution of HSVA with demographic characteristics, ICC, ultrastructural defects and axonemal asymmetry.
| Dyskinetic (n = 13) | Immotile (n = 19) | Normal (n = 2) | |
|---|---|---|---|
| Age | 29.23 (23.34) | 16.53 (13.55) | 23 (24.04) |
| Median | 20 (10, 54) | 14 (6, 20) | 23 (14.5, 31.5) |
| Sex | |||
| Female | 5 (38.46%) | 12 (63.16%) | 1 (50%) |
| Male | 8 (61.54%) | 7 (36.84%) | 1 (50%) |
| CCI | 55.38 (21.06) | 54.74 (13.07) | 50 (0) |
| Median | 60 (40, 60) | 50 (45, 70) | 50 (50, 50) |
| TEM defect | |||
| Class 1 | 5 (38.46%) | 13 (68.42%) | 1 (50%) |
| Class 2 | 2 (15.38%) | 1 (5.26%) | 1 (50%) |
| No defect | 6 (46.15%) | 5 (26.32%) | 0 (0%) |
| AA | 48.55 (10.12) | 49.5 (8.7) | 49 (1.41) |
Mean (SD)/n (%). Median (1st, 3rd Q.). Definition of abbreviations: CCI = compatible clinical index; TEM = transmission electron microscopy; AA = axonemal asymmetry.
