Artificial Intelligence and Machine Learning in the Diagnosis and Management of Gastroenteropancreatic Neuroendocrine Neoplasms—A Scoping Review

by
Athanasios G. Pantelis
1,*,
Panagiota A. Panagopoulou
2 and
Dimitris P. Lapatsanis
1
1
4th Department of Surgery, Evaggelismos General Hospital of Athens, 10676 Athens, Greece
2
Protypo Dialysis Center of Piraeus, 18233 Piraeus, Greece
*
Author to whom correspondence should be addressed.
Diagnostics 2022, 12(4), 874; https://doi.org/10.3390/diagnostics12040874
Submission received: 27 February 2022 / Revised: 27 March 2022 / Accepted: 29 March 2022 / Published: 31 March 2022
(This article belongs to the Special Issue Artificial Intelligence in Gastrointestinal Disease: Diagnosis and Management)
Browse Figures
Review Reports Versions Notes

Abstract

:
Neuroendocrine neoplasms (NENs) and tumors (NETs) are rare neoplasms that may affect any part of the gastrointestinal system. In this scoping review, we attempt to map existing evidence on the role of artificial intelligence, machine learning and deep learning in the diagnosis and management of NENs of the gastrointestinal system. After implementation of inclusion and exclusion criteria, we retrieved 44 studies with 53 outcome analyses. We then classified the papers according to the type of studied NET (26 Pan-NETs, 59.1%; 3 metastatic liver NETs (6.8%), 2 small intestinal NETs, 4.5%; colorectal, rectal, non-specified gastroenteropancreatic and non-specified gastrointestinal NETs had from 1 study each, 2.3%). The most frequently used AI algorithms were Supporting Vector Classification/Machine (14 analyses, 29.8%), Convolutional Neural Network and Random Forest (10 analyses each, 21.3%), Random Forest (9 analyses, 19.1%), Logistic Regression (8 analyses, 17.0%), and Decision Tree (6 analyses, 12.8%). There was high heterogeneity on the description of the prediction model, structure of datasets, and performance metrics, whereas the majority of studies did not report any external validation set. Future studies should aim at incorporating a uniform structure in accordance with existing guidelines for purposes of reproducibility and research quality, which are prerequisites for integration into clinical practice.

1. Introduction

Neuroendocrine neoplasms (NENs) of the gastrointestinal tract and the pancreas are rare tumors that tend to be diagnosed incidentally but with an increasing frequency [1,2]. GEP-NENs arise from the neural crest and may be located in the stomach, the small intestine, the appendix, the colon, the rectum, the pancreas, the ampulla of Vater, and the extrahepatic bile ducts, as well as the liver in the form of metastases. For the purposes of this review, we will focus on the former group of organs. For purposes of systematization, NENs can be divided into well differentiated neuroendocrine tumors (NETs) and poorly differentiated neuroendocrine carcinomas (NECs), the latter representing 10–20% of NENs [3]. This classification is not arbitrary, as NETs and NECs represent two genetically and biologically separate entities. NETs may be further classified into NETs arising from the gastrointestinal tract (GI-NETs, also known as carcinoids; ~50% of GEP-NETs) and ones affecting the pancreas (Pan-NENs; ~30% of GEP-NETs). NENs may or may not be functional. Nonfunctioning NENs are usually asymptomatic (especially early-stage ones), but may cause gastrointestinal bleeding and anemia, as well as obstructive effects which may present as jaundice, small bowel obstruction, intussusception, appendicitis and palpable abdominal mass depending on their anatomic location. Functioning GI-NENs may cause flushing, diarrhea, endocardial fibrosis and wheezing, owing to the synergistic effect of secreted vasoactive substances such as prostaglandins, kinins, serotonin and histamine. These symptoms signal the so-called carcinoid syndrome and usually herald liver metastases, because normally the liver inactivates products secreted into the portal circulation [4]. On the other hand, functioning Pan-NENs cause distinctive syndromes depending on the secreted product (i.e., gastrinoma–Zollinger-Ellison syndrome (ZES), insulinoma–Whipple’s triad, glucagonoma–necrolytic erythema and hyperglycemia, VIPoma–watery diarrhea-hypokalemia-achlorhydria syndrome, somatostatinoma–diabetes, gallstone formation and steatorrhea etc) [1,2]. Gastric NETs merit special mention, as they may manifest with atypical symptoms that are not related to hormone secretion [1]. Type 1 gastric NETs (70–80% of gastric NETs) are related to atrophic gastritis that leads to secondary hypergastrinemia, which in turn causes hyperplasia of the enterochromaffin-like (ECL) cells. With continuous stimulation, ECLs give rise to aggregates which constitute foci of NETs. Type 2 gastric NETs (approximately 30%) are associated with ZES and multiple endocrine neoplasia type 1 (MEN-1). Type 3 gastric NETs are not related to other syndromes, are sporadic and are the most aggressive, as they tend to metastasize in 50–100% of the cases. Finally, type 4 gastric NETs are poorly differentiated and typically non-amenable to surgical manipulations.
Various biomarkers (mainly in immunohistochemistry) serve different purposes in the spectrum of NENs: Ki-67 is the most well-known among them, it has a prognostic relevance and is an essential component of the WHO grading of NENs [5]; SSTR-2/5 are useful for the detection of somatostatin receptors when functional imaging (with 68Ga-DOTATATE PET/CT) is not possible; DAXX/ATRX has a prognostic relevance for Pan-NETs and is useful for distinguishing between NETs and NECs; p53/pRb are used for the classification of poorly differentiated NECs and the distinction from G3 NETs; and MGMT has a predictive response for the chemotherapeutic temozolomide [3]. Chromogranin A (CgA) is a useful circulating biomarker, especially for the diagnosis of asymptomatic NETs [1]. The NETest is a multigene mRNA assay that provides a broad molecular characterization GEP-NENs with high sensitivity and specificity and better diagnostic accuracy when compared to isolated biomarkers such as CgA [2]. Functional imaging with 68Ga-DOTATATE, which binds to somatostatin receptors (SSRTs), is the cornerstone of diagnosis (and particularly localization and staging) of NETs, especially in the cases of small intestinal NETs (SI-NETs), large NETs and metastatic NETs [1].
Artificial intelligence (AI) is the process of simulating human learning by a machine, in the context of which large quantities of digitized data (input) are fed to a computer, the computer processes them with the aid of AI algorithms, and it ultimately reaches conclusions, makes decisions, or adjusts its function (output). Input data may derive from electronic health records (EHRs) and large databases, such as the Surveillance, Epidemiology, and End-Results Program (SEER) registry, digitized histology samples and whole slide images (WSIs), digital imaging studies (computed tomography—CT, magnetic resonance imaging—MRI, endoscopic ultrasonography—EUS, positron emission tomography—PET etc.), endoscopic study videos and so forth. AI is an umbrella term and includes supervised machine learning (ML), unsupervised machine learning, deep learning (DL) and reinforcement learning [6]. Each discipline differs from the preceding one in that it entails a greater degree of autonomy from the operator’s supervision. AI with its subcategories is gradually entering healthcare and pertinent studies have had an exponential publication rate over the last five years, with various applications being integrated into clinical practice [7]. For the non-familiar clinician, AI should not be deemed as a substitute to their pivotal role in the patient care continuum or as an incomprehensible field belonging exclusively to computer experts but should rather be approached as a valuable tool in the process of decision-making, as well as a novel statistical method which, unlike traditional ones, may reveal hidden relationships between causes of disease and diagnosis, management and potentially cure.
With the present study we attempt to map the current status of AI and its applications in the diagnosis and management of gastroenteropancreatic NENs (GEP-NENs). Given on the one hand that NENs are relatively rare entities and on the other hand that AI, ML and DL are novel in the field of Medicine, we deemed it a rather uncharted area of interest and opted for a scoping review.

2. Materials and Methods

This review was performed according to the PRISMA extension for scoping reviews [8]. We performed literature search using the PubMed database in January 2021. The combined search terms were [artificial intelligence; machine learning; deep learning] AND [neuroendocrine; NET; NEN; carcinoid; insulinoma; glucagonoma; gastrinoma; VIPoma] AND [gastrointest*; GI; small intest*; appendi*; colon*; rect*; colorect *; stomach; gastric; duoden*; pancrea*; biliary; bile duct; Vater; ampulla; liver; hepa*]. There was no chronological restriction. Included articles had to have study populations with diagnosed NEN or NEN should be included in the differential diagnosis. They should also have at least 1 ML/DL algorithm for the process of their data, irrespective of the study design. The presence of a comparison group (external validation) was desired but not mandatory. Similarly, the report of at least one benchmarking metric, among accuracy, F1-score, area under receiver operator characteristic curve (AUROC) or area under precision-recall curve (AUPRC) were desired but not mandatory. Table 1 summarizes eligibility criteria. Only full-text publications were considered. Articles not in English language or not providing full text were excluded.
Data extraction was performed by two independent researchers (A.G.P., P.A.P.) using a predefined template with the eligibility and exclusion criteria. In case of disagreement, a third researcher (D.P.L.) made the decision whether to include the article or not. For the collection of relevant data we consulted the Guidelines for Developing and Reporting Machine Learning Predictive Models in Biomedical Research [9]. We collected data on year of publication, country of origin, DOI number, study design (prospective vs. retrospective), classification vs. regression, NEN type studied, dataset (number of patients or samples), input (predictors), output (outcomes), tested AI algorithm(s), training set, test set, internal and external validation sets, cross-validation method, accuracy, F1-score, AUROC (with 95% CI, if available) and AUPRC (with 95% CI, if available).
Numerical variables are presented as mean ± standard deviation (SD). Categorical variables are presented using frequencies and percentages. Calculations and statistical analysis were carried out using the online tool Prism®, GraphPad Software, San Diego, CA, USA.

3. Results

Literature search across PubMed yielded 1327 articles. In addition, 9 articles were retrieved through other sources (Google® search, screening through articles’ literature). After screening of titles and abstracts, removal of duplicates, and implementation of eligibility criteria, 44 unique articles were included in the final analysis (Figure 1) [10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53].
Regarding geographical distribution (Figure 2), the included studies originated from 12 different countries, with major contributors being the USA (22 studies, 50%), China (12 studies, 27.3%) and Italy (3 studies, 6.8%). Among them, there were 4 coalitions of countries. The studies spanned a 13-year period (2007–2021), with a significant rise over time (Figure 3). Notably, 2/3 of studies were published over 2019–2021, which follows the general increase of publications regarding AI [54].
In order to identify the prediction problem of each study, we collected data on study design, nature of the prediction, and continuity of the target variable, as per Luo et al. [9]. Consequently, there were 19 prospective (42.2%) and 26 retrospective (57.8%) analyses. Notably, one study had 2 stages, one prospective and one retrospective [13], hence the discrepancy between the total number of studies (44) and the sum of analysis based on prospective-retrospective study design (45). Regarding the nature of the prediction, we dichotomized the studies into diagnostic vs. prognostic, depending on whether the prediction referred to healthy subjects or subjects with already diagnosed NET, respectively [55]. The analysis yielded 24 diagnostic (54.5%) and 20 prognostic (45.5%) studies. Finally, all studies but one [24] had to do with classification. The prediction characteristics of each study are summarized in Table 2.
We then classified the papers according to the type of studied NET. Twenty-six studies were about Pan-NETs (59.1%) [10,11,15,16,17,18,19,20,24,25,27,28,30,31,34,38,41,42,43,45,46,47,49,51,52,53], 3 studies had to do with (metastatic) liver NETs (6.8%) [36,37,44], 2 studies analyzed SI-NETs (4.5%) [14,35], whereas colon and rectum [12], rectum [22], non-specified GEP [39], and non-specified GI NETs [50] had from 1 study each (2.3%). There were 4 studies with multiple types of NETs with separate data for each one of them provided (9.1%) [21,23,29,33], and another 2 studies with non-specified multiple types of NETs (4.5%) [13,48]. Figure 4 shows the relevant distribution of studies by NET type.
Regarding the source of data, there were 15 studies with histology-based analyses [10,15,20,23,24,33,38,39,40,41,42,43,45,47,50] and another 15 studies with imaging-based analyses (34.1% each). Six studies were structured based on patient databases (16.7%) [13,22,27,29,32,48], 5 on genetic assays (11.4%) [18,21,30,35,36], and 3 on plasma/serum (6.8%) [12,14,26]. Imaging-based studies were further distinguished in CT-based (6/15, 40%) [17,28,34,46,51,53], EUS-based (4/15, 26.7%) [11,19,25,31], MRI-based (3/15, 20%) [44,49,52], and PET/CT (2/15, 13.3%) [16,37]. Genetic assays included gene expression assays [35,36] and miRNA analyses [18,21] (2 studies each), as well as 1 genome-wide association study (GWAS) [30]. Figure 5 shows the relevant distribution of studies by source of data.
In the set of 44 studies, there were 53 outcome analyses, i.e., 7 studies with more than 1 outcome (5 with two outcomes [13,38,43,45,53], and 2 with three outcomes [15,33]). The most popular outcome analyses were tumor type identification and tumor grade (10 analyses each, 18.9%), tumor detection (5 analyses, 9.4%), and 5-year survival, cell segmentation, disease progression, disease recurrence and Ki-67 scoring (2 analyses each, 3.8%). Table 3 summarizes these outcome analyses, along with the references to relevant studies.
The next analysis we performed was on the number of AI algorithms mentioned within the included studies. As it is expected, a number of studies included more than one AI algorithms, either in an attempt to find the most accurate among them or in the form of comparison of a novel AI model against established ones. In total, we identified 47 different models, with 10 among them being the most utilized ones (Figure 6), i.e., Supporting Vector Classification/Machine (14 analyses, 29.8%) [11,17,21,22,27,28,29,33,36,38,39,47,51,53], Convolutional Neural Network (10 analyses, 21.3%) [15,17,20,23,31,37,40,41,42,49], Random Forest (9 analyses, 19.1%) [11,14,17,22,27,29,46,51,53], Logistic Regression (8 analyses, 17.0%) [11,17,27,29,32,47,51,53], Decision Tree (6 analyses, 12.8%) [11,13,29,33,48,51], Gradient Boosting Decision Tree [29,46,51,53], Multi-Layer Perceptron [25,29,33,47], and (Gaussian) Naïve Bayes [22,29,32,51] (4 analyses each; 8.5%), and AdaBoost [22,46,51], and Linear Discriminant Analysis [10,47,51] with 3 analyses each (6.4%).
We then proceeded with the potential of quantitative assessment of the included studies. Again, we utilized the seminal study of Luo et al. [9] and evaluated the included studies for reporting their training sets, testing sets, cross-validation method and external validation sets. As surrogate metrics of performance for the studied AI algorithms, we considered Accuracy, F1-score, AUROC (95% CI) and AUPRC (95% CI). Only 33 studies out of the included 44 (75%) reported clearly on their training set [10,12,14,15,16,17,19,21,22,23,25,26,27,28,29,30,31,32,33,34,37,39,41,42,43,44,45,46,47,49,50,51,53], 19 mentioned a cross-validation method (43.2%) [10,14,15,17,21,22,25,27,28,29,32,33,34,37,39,45,47,49,51], 36 reported their test set (81.8%) [10,11,13,15,17,18,19,20,21,22,23,25,27,28,29,31,33,34,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53], and only 4 had an external validation set (9.1%) [22,28,42,53]. Thirty-five studies (79.5%) reported at least 1 performance metric in at least 1 dataset (training or test). However, this feature was very heterogenous and non-consistent and we decided not to proceed with further analysis (Supplemental Table S1). Regarding training sets, the highest reported Accuracy value was 1.000 (SVM, MLP) [21,33] and the lowest was 0.540 (noisy threshold classifier) [32], the highest reported F1-score was 0.876 (SVC) [29] and the lowest was 0.578 (FCRNA) [43], and the highest reported AUROC was 1.000 (algorithm not specified) [44], while the lowest one was 0.570 (CNN) [17]. With respect to test sets, the highest reported Accuracy value was 1.000 (SVM) [21] and the lowest was 0.310 (CNN) [23], the highest reported F1-score was 0.989 (Decision Tree, Random Forest) [51] and the lowest was 0.578 (FCRNA) [43], and the highest reported AUROC was 1.000 (SVM) [35], whilst the lowest one was 0.462 (Generative Adversarial Domain Adaptation) [45]. Table 2 summarizes the prediction characteristics, the source of data, the implemented AI algorithm(s), and the datasets for each of study included in our scoping review.

4. Discussion

This scoping review deals with the current applications of artificial intelligence in the diagnosis and management of gastrointestinal and pancreatic neuroendocrine neoplasms (GEP-NENs). GEP-NENs are inherently rare neoplasms, as such an empirical approach to their management would be unreliable. One of the advantages of AI and its application through machine learning and deep learning is that it can integrate a vast amount of data collected anywhere in the world (big data) and then render them applicable into clinical practice in an individualized manner.
Despite the rarity of NENs, our research yielded a total of 44 relevant studies, the vast majority of which have been published over the last three years. On the one hand, this harmonizes with the general tendency of incremental accumulation of pertinent evidence in Medicine [54,56], on the other hand it may reflect an increasing diagnosis rate of NENs, as it has been documented by the SEER registry [2]. In any case, this establishment may pave the way for future research.
Nevertheless, available studies have several limitations. First, a major restriction are the small datasets of the majority of the studies. There were only 3 among them which used data from large databases with populations of 13,830 [48], 10,580 [22] and 9,663,315 [27] patients, whereas the rest of the studies had populations of 50–361 individuals. Another serious point is that most of the studies did not provide clear information on the structure of the prediction problem (i.e., study design, prognostic vs. diagnostic, classification vs. regression), as such these pieces of information were derived after strenuous digest through the text. Most importantly, there is a non-negligible number of studies with poorly defined training and test sets. Another area of confusion is the lack of universal nomenclature regarding the discrete data sets (i.e., training, validation and test). Some studies use the terms “test set” and “validation set” interchangeably, whereas others are structured based on all three datasets. Future studies should also present their findings on AI algorithm performance in a robust way, including accuracy, F1-score, AUROC and AUPRC, because each one measures different performance aspects and may be a better predictor than the other ones under certain circumstances [57]. Also, such quantification will pave the way for meta-analyses. Furthermore, the ultimate goal of AI is the implementation of the findings of relevant studies into clinical practice. This can be achieved only if the performance of AI algorithms is benchmarked against established tests. Given the small number of studies with an external validation dataset, there is plenty of room for improvement in the field. As mentioned earlier, future endeavors in the field should follow a universal structure as per the existing guidelines, for purposes of both reproducibility and quality [9,58].
As one proceeds from the structure to the content of relevant studies, as we documented, the most popular topics are tumor type identification and grade, tumor detection, 5-year survival, cell segmentation, disease progression, disease recurrence and Ki-67 scoring. In a recent review, Yang et al. showed similar applications of AI with satisfactory prediction accuracy in the diagnosis, risk stratification and prognosis of small intestinal tumors [59]. Interestingly, this review shares 3 studies with the review in hand [14,21,33], which is not surprising given the rarity of small intestinal tumors and the major share of NENs among them. Kim et al. performed a similar analysis of the usefulness of AI in gastric neoplasms [60].
The combination of radiomics, i.e., the multitude of features and technical parameters that can be extracted from imaging studies, with the capability of big data processing offered by AI has opened new frontiers and has led to an exponential burst of pertinent literature. The fundamentals of the process of transforming an imaging study into data that can be processed by an AI algorithm are image acquisition, segmentation (i.e., selection of a region of interest in two dimensions), preprocessing (which allows data homogenization), data extraction, data selection and modelization. Given the routine performance of a constellation of imaging studies in clinical practice, this concept could contribute to the prompt diagnosis of NENs even at a preclinical stage. Promising evidence from imaging of pancreatic tumors with CT and MRI shows that this technology could find more widespread application in the field of NENs [61]. Partouche et al. performed a systematic review and meta-analysis of 161 studies on AI and imaging for Pan-NETs [62]. In accordance with our review, they documented wide heterogeneity of practices, poor procedural compliance with international guidelines, and poor reporting of clinical protocols. They reach the conclusion that standardization and homogenization is the key to future research if AI has the aspiration to enter clinical practice as a standard of care. In an another recent review on the role of radiomics in Pan-NETs, Bezzi et al. also acknowledge the need for further validations before widespread clinical adoption, nevertheless this discipline has great potential in decision-making regarding diagnosis and management [63].
In a process similar to data extraction from imaging studies, histology images can be utilized for processing with the aid of AI algorithms, following a pipeline from whole slide images (WSIs), segmentation into tiles, biomarker visualization and classification. Kuntz et al. recently published a review of 16 studies that used CNN in order to analyze gastrointestinal cancer histology images and showed good performance metrics with external validation, but none of them had clinical implementation for the time being [64].
The main limitation of the review in hand is the heterogeneity of the included studies, on grounds of methodology, dataset allocation and performance benchmarking, which did not allow for a meta-analysis. Structured publications are consequently mandatory in order to facilitate reproducible evidence of high quality. Another predicament for our study is set by the heterogeneity of NENs itself, which may raise methodological limitations. Nevertheless, given the probing nature of our research, an inclusive search strategy was inevitable. Future reviews could focus on specific histologic neuroendocrine types or disease stages.

5. Conclusions

To our knowledge, this is the first attempt to systematize existing evidence on the applications of AI in the field of NENs. Published studies focus mostly on diagnosis (tumor detection, tumor identification and tumor grading) rather than management and decision-making, mainly with the use of imaging studies and histology samples. Future directions should take into serious consideration the reporting and quality prerequisites set by already existing guidelines.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/diagnostics12040874/s1, Table S1: Raw data.

Author Contributions

Conceptualization, A.G.P. and P.A.P.; methodology, A.G.P.; validation, A.G.P., P.A.P. and D.P.L.; formal analysis, A.G.P.; investigation, A.G.P.; resources, A.G.P.; data curation, A.G.P.; writing—original draft preparation, A.G.P.; writing—review and editing, P.A.P.; visualization, A.G.P.; supervision, D.P.L.; project administration, A.G.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bonds, M.; Rocha, F.G. Neuroendocrine Tumors of the Pancreatobiliary and Gastrointestinal Tracts. Surg. Clin. 2020, 100, 635–648. [Google Scholar] [CrossRef] [PubMed]
  2. Clift, A.K.; Kidd, M.; Bodei, L.; Toumpanakis, C.; Baum, R.P.; Oberg, K.; Modlin, I.M.; Frilling, A. Neuroendocrine Neoplasms of the Small Bowel and Pancreas. Neuroendocrinology 2020, 110, 444–476. [Google Scholar] [CrossRef] [PubMed]
  3. Pavel, M.; Öberg, K.; Falconi, M.; Krenning, E.P.; Sundin, A.; Perren, A.; Berruti, A. Gastroenteropancreatic neuroendocrine neoplasms: ESMO Clinical Practice Guidelines for diagnosis, treatment and follow-up. Ann. Oncol. 2020, 31, 844–860. [Google Scholar] [CrossRef]
  4. Modlin, I.M.; Kidd, M.; Latich, I.; Zikusoka, M.N.; Shapiro, M.D. Current Status of Gastrointestinal Carcinoids. Gastroenterology 2005, 128, 1717–1751. [Google Scholar] [CrossRef] [PubMed]
  5. IARC Publications Website—Digestive System Tumours. Available online: https://publications.iarc.fr/579 (accessed on 26 February 2022).
  6. Loftus, T.J.; Tighe, P.J.; Filiberto, A.C.; Efron, P.A.; Brakenridge, S.C.; Mohr, A.M.; Rashidi, P.; Upchurch, G.R., Jr.; Bihorac, A. Artificial Intelligence and Surgical Decision-Making. JAMA Surg. 2020, 155, 148–158. Available online: https://jamanetwork.com/journals/jamasurgery/fullarticle/2756311 (accessed on 18 December 2019). [CrossRef] [PubMed]
  7. Yu, K.H.; Beam, A.L.; Kohane, I.S. Artificial intelligence in healthcare. Nat. Biomed. Eng. 2018, 2, 719–731. [Google Scholar] [CrossRef]
  8. Tricco, A.C.; Lillie, E.; Zarin, W.; O’Brien, K.K.; Colquhoun, H.; Levac, D.; Moher, D.; Peters, M.D.J.; Horsley, T.; Weeks, L.; et al. PRISMA extension for scoping reviews (PRISMA-ScR): Checklist and explanation. Ann. Intern. Med. 2018, 169, 467–473. [Google Scholar] [CrossRef] [Green Version]
  9. Luo, W.; Phung, Q.-D.; Tran, T.; Gupta, S.; Rana, S.; Karmakar, C.; Shilton, A.; Yearwood, J.L.; Dimitrova, N.; Ho, T.B.; et al. Guidelines for Developing and Reporting Machine Learning Predictive Models in Biomedical Research: A Multidisciplinary View. J. Med. Internet Res. 2016, 18, e323. [Google Scholar] [CrossRef] [Green Version]
  10. Bevilacqua, A.; Calabrò, D.; Malavasi, S.; Ricci, C.; Casadei, R.; Campana, D.; Baiocco, S.; Fanti, S.; Ambrosini, V. A [68Ga] Ga-DOTANOC PET/CT Radiomic Model for Non-Invasive Prediction of Tumour Grade in Pancreatic Neuroendocrine Tumours. Diagnostics 2021, 11, 870. [Google Scholar] [CrossRef]
  11. Chen, K.; Zhang, W.; Zhang, Z.; He, Y.; Liu, Y.; Yang, X. Simple Vascular Architecture Classification in Predicting Pancreatic Neuroendocrine Tumor Grade and Prognosis. Am. J. Dig. Dis. 2018, 63, 3147–3152. [Google Scholar] [CrossRef]
  12. Ito, H.; Uragami, N.; Miyazaki, T.; Yang, W.; Issha, K.; Matsuo, K.; Kimura, S.; Arai, Y.; Tokunaga, H.; Okada, S.; et al. Highly accurate colorectal cancer prediction model based on Raman spectroscopy using patient serum. World J. Gastrointest. Oncol. 2020, 12, 1311–1324. [Google Scholar] [CrossRef] [PubMed]
  13. Kidd, M.; Kitz, A.; Drozdov, I.A.; Modlin, I.M. Neuroendocrine Tumor Omic Gene Cluster Analysis Amplifies the Prognostic Accuracy of the NETest. Neuroendocrinology 2021, 111, 490–504. [Google Scholar] [CrossRef] [PubMed]
  14. Kjellman, M.; Knigge, U.; Welin, S.; Thiis-Evensen, E.; Gronbaek, H.; Schalin-Jäntti, C.; Sorbye, H.; Joergensen, M.T.; Johanson, V.; Metso, S.; et al. A Plasma Protein Biomarker Strategy for Detection of Small Intestinal Neuroendocrine Tumors. Neuroendocrinology 2021, 111, 840–849. [Google Scholar] [CrossRef] [PubMed]
  15. Klimov, S.; Xue, Y.; Gertych, A.; Graham, R.P.; Jiang, Y.; Bhattarai, S.; Pandol, S.J.; Rakha, E.A.; Reid, M.D.; Aneja, R. Predicting Metastasis Risk in Pancreatic Neuroendocrine Tumors Using Deep Learning Image Analysis. Front. Oncol. 2021, 10, 593211. [Google Scholar] [CrossRef]
  16. Liu, Y.; Sadowski, S.M.; Weisbrod, A.B.; Kebebew, E.; Summers, R.M.; Yao, J. Patient specific tumor growth prediction using multimodal images. Med. Image Anal. 2014, 18, 555–566. [Google Scholar] [CrossRef] [Green Version]
  17. Luo, Y.; Chen, X.; Chen, J.; Song, C.; Shen, J.; Xiao, H.; Chen, M.; Li, Z.-P.; Huang, B.; Feng, S.-T. Preoperative Prediction of Pancreatic Neuroendocrine Neoplasms Grading Based on Enhanced Computed Tomography Imaging: Validation of Deep Learning with a Convolutional Neural Network. Neuroendocrinology 2020, 110, 338–350. [Google Scholar] [CrossRef]
  18. Nanayakkara, J.; Tyryshkin, K.; Yang, X.; Wong, J.J.M.; Vanderbeck, K.; Ginter, P.S.; Scognamiglio, T.; Chen, Y.-T.; Panarelli, N.; Cheung, N.-K.; et al. Characterizing and classifying neuroendocrine neoplasms through microRNA sequencing and data mining. NAR Cancer 2020, 2, zcaa009. [Google Scholar] [CrossRef]
  19. Nguyen, V.X.; Nguyen, C.C.; Li, B.; Das, A. Digital image analysis is a useful adjunct to endoscopic ultrasonographic diagnosis of subepithelial lesions of the gastrointestinal tract. J. Ultrasound Med. 2010, 29, 1345–1351. [Google Scholar] [CrossRef]
  20. Niazi, M.K.K.; Tavolara, T.E.; Arole, V.; Hartman, U.J.; Pantanowitz, L.; Gurcan, M.N. Identifying tumor in pancreatic neuroendocrine neoplasms from Ki67 images using transfer learning. PLoS ONE 2018, 13, e0195621. [Google Scholar] [CrossRef] [Green Version]
  21. Panarelli, N.; Tyryshkin, K.; Wong, J.; Majewski, A.; Yang, X.; Scognamiglio, T.; Kim, M.K.; Bogardus, K.; Tuschl, T.; Chen, Y.-T.; et al. Evaluating gastroenteropancreatic neuroendocrine tumors through microRNA sequencing. Endocr. Relat. Cancer 2019, 26, 47–57. [Google Scholar] [CrossRef]
  22. Cheng, X.; Li, J.; Xu, T.; Li, K.; Li, J. Predicting Survival of Patients With Rectal Neuroendocrine Tumors Using Machine Learning: A SEER-Based Population Study. Front. Surg. 2021, 8, 745220. [Google Scholar] [CrossRef] [PubMed]
  23. Hanson, J.A.; Redemann, J.; Schultz, F.A.; Martinez, C.; Harrell, M.; Clark, D.P.; Martin, D.R. Comparing deep learning and immunohistochemistry in determining the site of origin for well-differentiated neuroendocrine tumors. J. Pathol. Inform. 2020, 11, 32. [Google Scholar] [CrossRef] [PubMed]
  24. Saccomandi, P.; Larocca, E.S.; Rendina, V.; Schena, E.; D’Ambrosio, R.; Crescenzi, A.; Di Matteo, F.M.; Silvestri, S. Estimation of optical properties of neuroendocrine pancreas tumor with double-integrating-sphere system and inverse Monte Carlo model. Lasers Med. Sci. 2016, 31, 1041–1050. [Google Scholar] [CrossRef] [PubMed]
  25. Săftoiu, A.; Vilmann, P.; Gorunescu, F.; Gheonea, D.I.; Gorunescu, M.; Ciurea, T.; Popescu, G.L.; Iordache, A.; Hassan, H.; Iordache, S. Neural network analysis of dynamic sequences of EUS elastography used for the differential diagnosis of chronic pancreatitis and pancreatic cancer. Gastrointest. Endosc. 2008, 68, 1086–1094. [Google Scholar] [CrossRef] [PubMed]
  26. Soldevilla, B.; López-López, A.; Lens-Pardo, A.; Carretero-Puche, C.; Lopez-Gonzalvez, A.; La Salvia, A.; Gil-Calderon, B.; Riesco-Martinez, M.; Espinosa-Olarte, P.; Sarmentero, J.; et al. Comprehensive Plasma Metabolomic Profile of Patients with Advanced Neuroendocrine Tumors (NETs). Diagnostic and Biological Relevance. Cancers 2021, 13, 2634. [Google Scholar] [CrossRef]
  27. Song, Y.; Gao, S.; Tan, W.; Qiu, Z.; Zhou, H.; Zhao, Y. Multiple Machine Learnings Revealed Similar Predictive Accuracy for Prognosis of PNETs from the Surveillance, Epidemiology, and End Result Database. J. Cancer 2018, 9, 3971–3978. [Google Scholar] [CrossRef]
  28. Song, C.; Wang, M.; Luo, Y.; Chen, J.; Peng, Z.; Wang, Y.; Zhang, H.; Li, Z.-P.; Shen, J.; Huang, B.; et al. Predicting the recurrence risk of pancreatic neuroendocrine neoplasms after radical resection using deep learning radiomics with preoperative computed tomography images. Ann. Transl. Med. 2021, 9, 833. [Google Scholar] [CrossRef]
  29. Telalovic, J.H.; Pillozzi, S.; Fabbri, R.; Laffi, A.; Lavacchi, D.; Rossi, V.; Dreoni, L.; Spada, F.; Fazio, N.; Amedei, A.; et al. A Machine Learning Decision Support System (DSS) for Neuroendocrine Tumor Patients Treated with Somatostatin Analog (SSA) Therapy. Diagnostics 2021, 11, 804. [Google Scholar] [CrossRef]
  30. Tirosh, A.; Mukherjee, S.; Lack, J.; Gara, S.K.; Wang, S.; Quezado, M.M.; Keutgen, X.M.; Wu, X.; Cam, M.; Kumar, S.; et al. Distinct genome-wide methylation patterns in sporadic and hereditary nonfunctioning pancreatic neuroendocrine tumors. Cancer 2019, 125, 1247–1257. [Google Scholar] [CrossRef]
  31. Udriștoiu, A.L.; Cazacu, I.M.; Gruionu, L.G.; Gruionu, G.; Iacob, A.V.; Burtea, D.E.; Ungureanu, B.S.; Costache, M.I.; Constantin, A.; Popescu, C.F.; et al. Real-time computer-aided diagnosis of focal pancreatic masses from endoscopic ultrasound imaging based on a hybrid convolutional and long short-term memory neural network model. PLoS ONE 2021, 16, e0251701. [Google Scholar] [CrossRef]
  32. van Gerven, M.A.; Jurgelenaite, R.; Taal, B.G.; Heskes, T.; Lucas, P.J. Predicting carcinoid heart disease with the noisy-threshold classifier. Artif. Intell. Med. 2007, 40, 45–55. [Google Scholar] [CrossRef] [PubMed]
  33. Drozdov, I.; Kidd, M.; Nadler, B.; Camp, R.L.; Mane, S.M.; Hauso, O.; Gustafsson, B.I.; Modlin, I.M. Predicting neuroendocrine tumor (carcinoid) neoplasia using gene expression profiling and supervised machine learning. Cancer 2009, 115, 1638–1650. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Wan, Y.; Yang, P.; Xu, L.; Yang, J.; Luo, C.; Wang, J.; Chen, F.; Wu, Y.; Lu, Y.; Ruan, D.; et al. Radiomics analysis combining unsupervised learning and handcrafted features: A multiple-disease study. Med. Phys. 2021, 48, 7003–7015. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, Q.; Yu, C. Expression profiling of small intestinal neuroendocrine tumors identified pathways and gene networks linked to tumorigenesis and metastasis. Biosci. Rep. 2020, 40, BSR20193860. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, Q.; Li, F.; Jiang, Q.; Sun, Y.; Liao, Q.; An, H.; Li, Y.; Li, Z.; Fan, L.; Guo, F.; et al. Gene Expression Profiling for Differential Diagnosis of Liver Metastases: A Multicenter, Retrospective Cohort Study. Front. Oncol. 2021, 11, 725988. [Google Scholar] [CrossRef] [PubMed]
  37. Wehrend, J.; Silosky, M.; Xing, F.; Chin, B.B. Automated liver lesion detection in 68Ga DOTATATE PET/CT using a deep fully convolutional neural network. EJNMMI Res. 2021, 11, 98. [Google Scholar] [CrossRef]
  38. Xing, F.; Su, H.; Yang, L. An Integrated Framework for Automatic Ki-67 Scoring in Pancreatic Neuroendocrine Tumor. Med. Image Comput. Comput. Assist. Interv. 2013, 16, 436–443. [Google Scholar] [CrossRef]
  39. Xing, F.; Su, H.; Neltner, J.; Yang, L. Automatic Ki-67 Counting Using Robust Cell Detection and Online Dictionary Learning. IEEE Trans. Biomed. Eng. 2014, 61, 859–870. [Google Scholar] [CrossRef]
  40. Xing, F.; Yang, L. Fast Cell Segmentation Using Scalable Sparse Manifold Learning and Affine Transform-Approximated Active Contour. Med. Image Comput. Comput. Assist. Interv. 2015, 9351, 332–339. [Google Scholar] [CrossRef] [Green Version]
  41. Xing, F.; Shi, X.; Zhang, Z.; Cai, J.; Xie, Y.; Yang, L. Transfer Shape Modeling Towards High-Throughput Microscopy Image Segmentation. Med. Image Comput. Comput. Assist. Interv. 2016, 9902, 183–190. [Google Scholar] [CrossRef] [Green Version]
  42. Xing, F.; Xie, Y.; Yang, L. An Automatic Learning-Based Framework for Robust Nucleus Segmentation. IEEE Trans. Med. Imaging 2016, 35, 550–566. [Google Scholar] [CrossRef] [PubMed]
  43. Xing, F.; Cornish, T.C.; Bennett, T.; Ghosh, D.; Yang, L. Pixel-to-Pixel Learning With Weak Supervision for Single-Stage Nucleus Recognition in Ki67 Images. IEEE Trans. Biomed. Eng. 2019, 66, 3088–3097. [Google Scholar] [CrossRef] [PubMed]
  44. Fehrenbach, U.; Xin, S.; Hartenstein, A.; Auer, T.; Dräger, F.; Froböse, K.; Jann, H.; Mogl, M.; Amthauer, H.; Geisel, D.; et al. Automatized Hepatic Tumor Volume Analysis of Neuroendocrine Liver Metastases by Gd-EOB MRI—A Deep-Learning Model to Support Multidisciplinary Cancer Conference Decision-Making. Cancers 2021, 13, 2726. [Google Scholar] [CrossRef] [PubMed]
  45. Zhang, X.; Cornish, T.C.; Yang, L.; Bennett, T.D.; Ghosh, D.; Xing, F. Generative Adversarial Domain Adaptation for Nucleus Quantification in Images of Tissue Immunohistochemically Stained for Ki-67. JCO Clin. Cancer Inform. 2020, 4, 666–679. [Google Scholar] [CrossRef] [PubMed]
  46. Zhang, T.; Zhang, Y.; Liu, X.; Xu, H.; Chen, C.; Zhou, X.; Liu, Y.; Ma, X. Application of Radiomics Analysis Based on CT Combined With Machine Learning in Diagnostic of Pancreatic Neuroendocrine Tumors Patient’s Pathological Grades. Front. Oncol. 2021, 10, 521831. [Google Scholar] [CrossRef]
  47. Zhou, R.-Q.; Ji, H.-C.; Liu, Q.; Zhu, C.-Y.; Liu, R. Leveraging machine learning techniques for predicting pancreatic neuroendocrine tumor grades using biochemical and tumor markers. World J. Clin. Cases 2019, 7, 1611–1622. [Google Scholar] [CrossRef]
  48. Zimmerman, N.M.; Ray, D.; Princic, N.; Moynihan, M.; Clarke, C.; Phan, A. Exploration of machine learning techniques to examine the journey to neuroendocrine tumor diagnosis with real-world data. Futur. Oncol. 2021, 17, 3217–3230. [Google Scholar] [CrossRef]
  49. Gao, X.; Wang, X. Deep learning for World Health Organization grades of pancreatic neuroendocrine tumors on contrast-enhanced magnetic resonance images: A preliminary study. Int. J. Comput. Assist. Radiol. Surg. 2019, 14, 1981–1991. [Google Scholar] [CrossRef]
  50. Govind, D.; Jen, K.-Y.; Matsukuma, K.; Gao, G.; Olson, K.A.; Gui, D.; Wilding, G.E.; Border, S.P.; Sarder, P. Improving the accuracy of gastrointestinal neuroendocrine tumor grading with deep learning. Sci. Rep. 2020, 10, 11064. [Google Scholar] [CrossRef]
  51. Han, X.; Yang, J.; Luo, J.; Chen, P.; Zhang, Z.; Alu, A.; Xiao, Y.; Ma, X. Application of CT-Based Radiomics in Discriminating Pancreatic Cystadenomas From Pancreatic Neuroendocrine Tumors Using Machine Learning Methods. Front. Oncol. 2021, 11, 606677. [Google Scholar] [CrossRef]
  52. Huang, B.; Tian, J.; Zhang, H.; Luo, Z.; Qin, J.; Huang, C.; He, X.; Luo, Y.; Zhou, Y.; Dan, G.; et al. Deep Semantic Segmentation Feature-Based Radiomics for the Classification Tasks in Medical Image Analysis. IEEE J. Biomed. Health Inform. 2021, 25, 2655–2664. [Google Scholar] [CrossRef] [PubMed]
  53. Huang, B.; Lin, X.; Shen, J.; Chen, X.; Chen, J.; Li, Z.-P.; Wang, M.; Yuan, C.; Diao, X.-F.; Luo, Y.; et al. Accurate and Feasible Deep Learning Based Semi-Automatic Segmentation in CT for Radiomics Analysis in Pancreatic Neuroendocrine Neoplasms. IEEE J. Biomed. Health Inform. 2021, 25, 3498–3506. [Google Scholar] [CrossRef] [PubMed]
  54. Kulkarni, S.; Seneviratne, N.; Baig, M.S.; Khan, A.H.A. Artificial Intelligence in Medicine: Where Are We Now? Acad. Radiol. 2020, 27, 62–70. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Collins, G.S.; Reitsma, J.B.; Altman, D.G.; Moons, K.G.M. Transparent reporting of a multivariable prediction model for individual prognosis or diagnosis (TRIPOD): The TRIPOD statement. Eur. J. Clin. Investig. 2015, 45, 204–214. [Google Scholar] [CrossRef] [Green Version]
  56. Schaefer, J.; Lehne, M.; Schepers, J.; Prasser, F.; Thun, S. The use of machine learning in rare diseases: A scoping review. Orphanet J. Rare Dis. 2020, 15, 145. [Google Scholar] [CrossRef]
  57. F1 Score vs ROC AUC vs Accuracy vs PR AUC: Which Evaluation Metric Should You Choose?—Neptune.ai. Available online: https://neptune.ai/blog/f1-score-accuracy-roc-auc-pr-auc (accessed on 27 February 2022).
  58. de Hond, A.A.H.; Leeuwenberg, A.M.; Hooft, L.; Kant, I.M.J.; Nijman, S.W.J.; van Os, H.J.A.; Aardoom, J.J.; Debray, T.P.A.; Schuit, E.; van Smeden, M.; et al. Guidelines and quality criteria for artificial intelligence-based prediction models in healthcare: A scoping review. Npj Digit. Med. 2022, 5, 2. [Google Scholar] [CrossRef]
  59. Yang, Y.; Li, Y.-X.; Yao, R.-Q.; Du, X.-H.; Ren, C. Artificial intelligence in small intestinal diseases: Application and prospects. World J. Gastroenterol. 2021, 27, 3734–3747. [Google Scholar] [CrossRef]
  60. Kim, J.H.; Nam, S.-J.; Park, S.C. Usefulness of artificial intelligence in gastric neoplasms. World J. Gastroenterol. 2021, 27, 3543–3555. [Google Scholar] [CrossRef]
  61. Bartoli, M.; Barat, M.; Dohan, A.; Gaujoux, S.; Coriat, R.; Hoeffel, C.; Cassinotto, C.; Chassagnon, G.; Soyer, P. INVITED REVIEW CT and MRI of pancreatic tumors: An update in the era of radiomics. Jpn. J. Radiol. 2020, 38, 1111–1124. [Google Scholar] [CrossRef]
  62. Partouche, E.; Yeh, R.; Eche, T.; Rozenblum, L.; Carrere, N.; Guimbaud, R.; Dierickx, L.O.; Rousseau, H.; Dercle, L.; Mokrane, F.-Z. Updated Trends in Imaging Practices for Pancreatic Neuroendocrine Tumors (PNETs): A Systematic Review and Meta-Analysis to Pave the Way for Standardization in the New Era of Big Data and Artificial Intelligence. Front. Oncol. 2021, 11, 628408. [Google Scholar] [CrossRef]
  63. Bezzi, C.; Mapelli, P.; Presotto, L.; Neri, I.; Scifo, P.; Savi, A.; Bettinardi, V.; Partelli, S.; Gianolli, L.; Falconi, M.; et al. Radiomics in pancreatic neuroendocrine tumors: Methodological issues and clinical significance. Eur. J. Pediatr. 2021, 48, 4002–4015. [Google Scholar] [CrossRef] [PubMed]
  64. Kuntz, S.; Krieghoff-Henning, E.; Kather, J.N.; Jutzi, T.; Höhn, J.; Kiehl, L.; Hekler, A.; Alwers, E.; von Kalle, C.; Fröhling, S.; et al. Gastrointestinal cancer classification and prognostication from histology using deep learning: Systematic review. Eur. J. Cancer 2021, 155, 200–215. [Google Scholar] [CrossRef] [PubMed]
Diagnostics 12 00874 g001 550

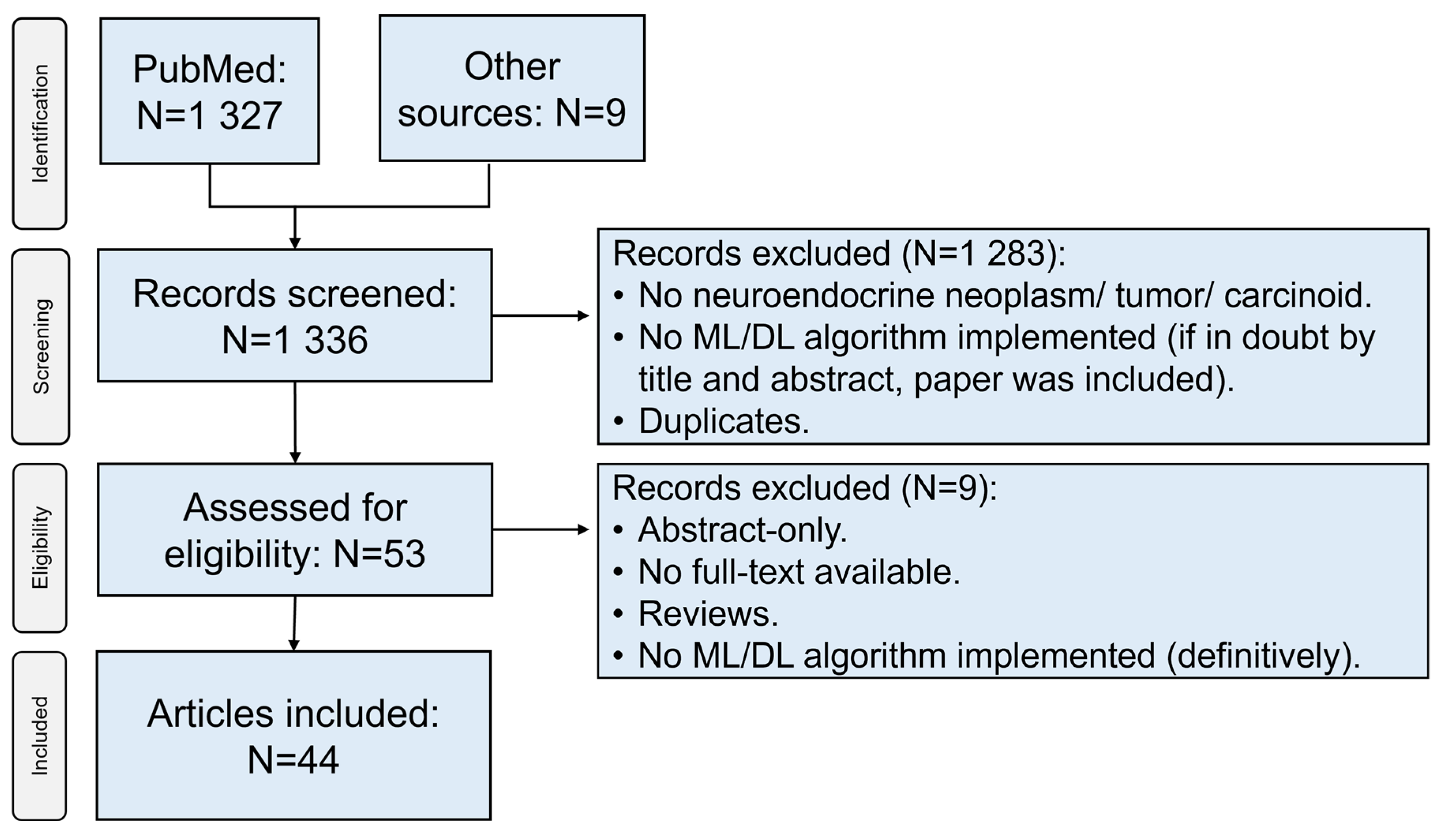

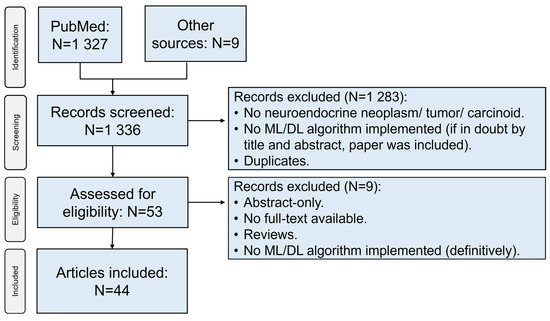

Figure 1. Flowchart depicting the selection process of sources of evidence. ML: machine learning; DL: deep learning.
Figure 1. Flowchart depicting the selection process of sources of evidence. ML: machine learning; DL: deep learning.
Diagnostics 12 00874 g001
Diagnostics 12 00874 g002 550

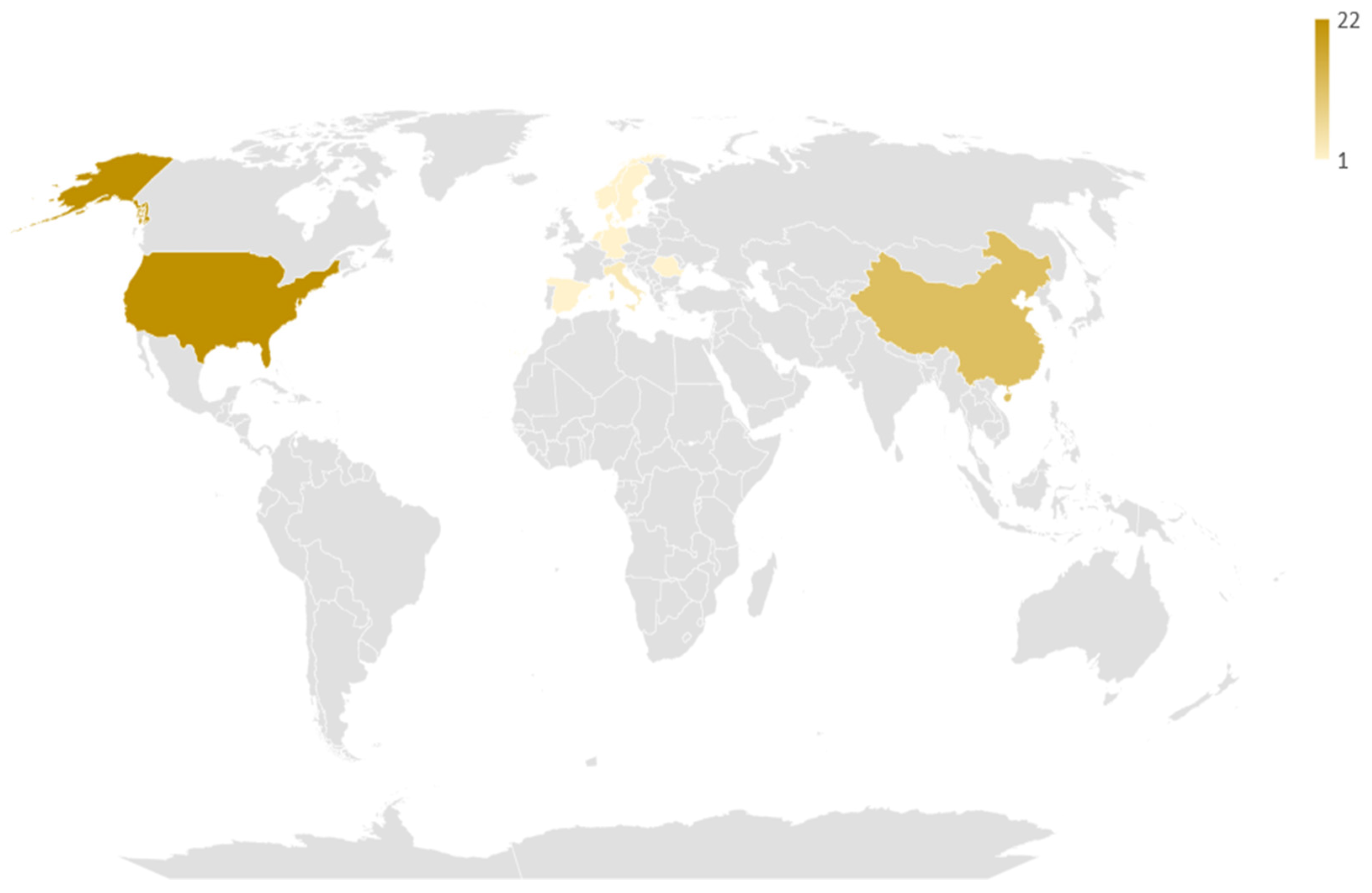

Figure 2. Geographic distribution of the studies included in the review. The darker the hue, the larger the number of studies coming from this particular country.
Figure 2. Geographic distribution of the studies included in the review. The darker the hue, the larger the number of studies coming from this particular country.
Diagnostics 12 00874 g002
Diagnostics 12 00874 g003 550

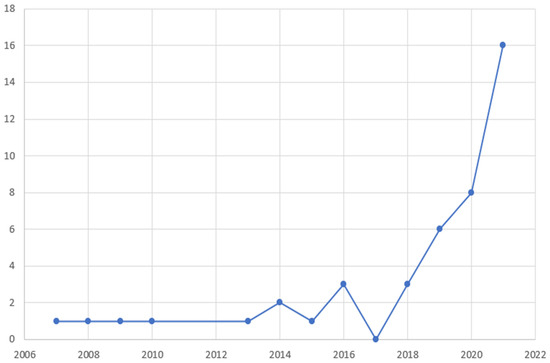

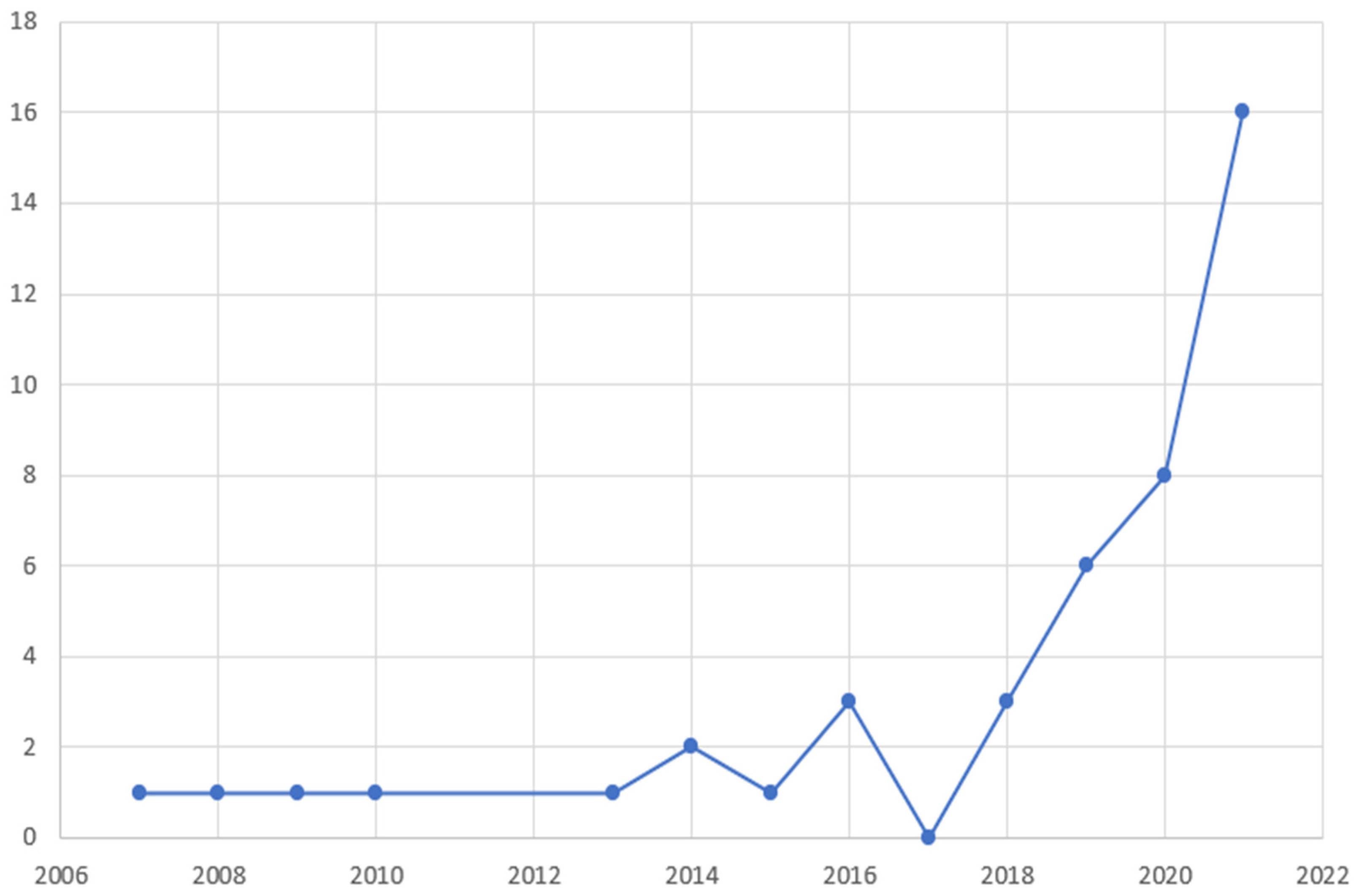

Figure 3. Temporal distribution of the studies included in the review according to year of publication.
Figure 3. Temporal distribution of the studies included in the review according to year of publication.
Diagnostics 12 00874 g003
Diagnostics 12 00874 g004 550

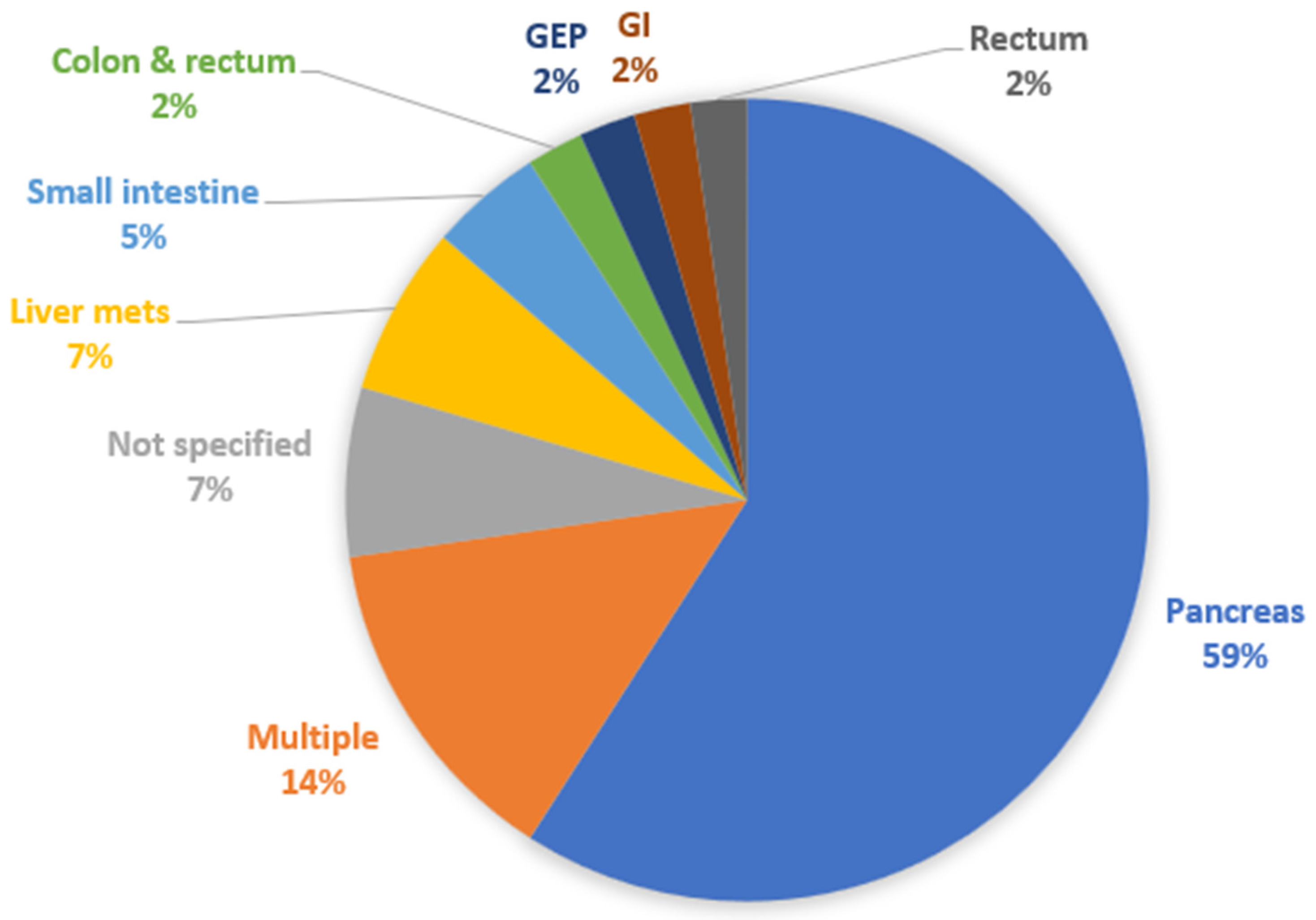

Figure 4. Distribution of studies by type of NET analyzed. GEP: gastroenteropancreatic; GI: gastrointestinal.
Figure 4. Distribution of studies by type of NET analyzed. GEP: gastroenteropancreatic; GI: gastrointestinal.
Diagnostics 12 00874 g004
Diagnostics 12 00874 g005 550

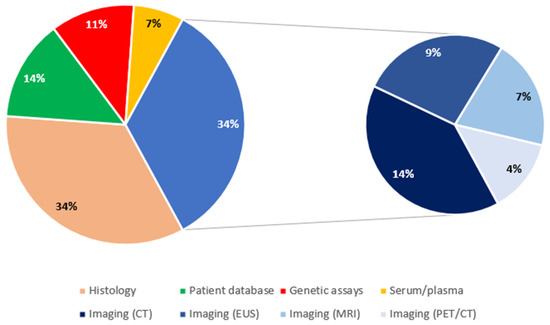

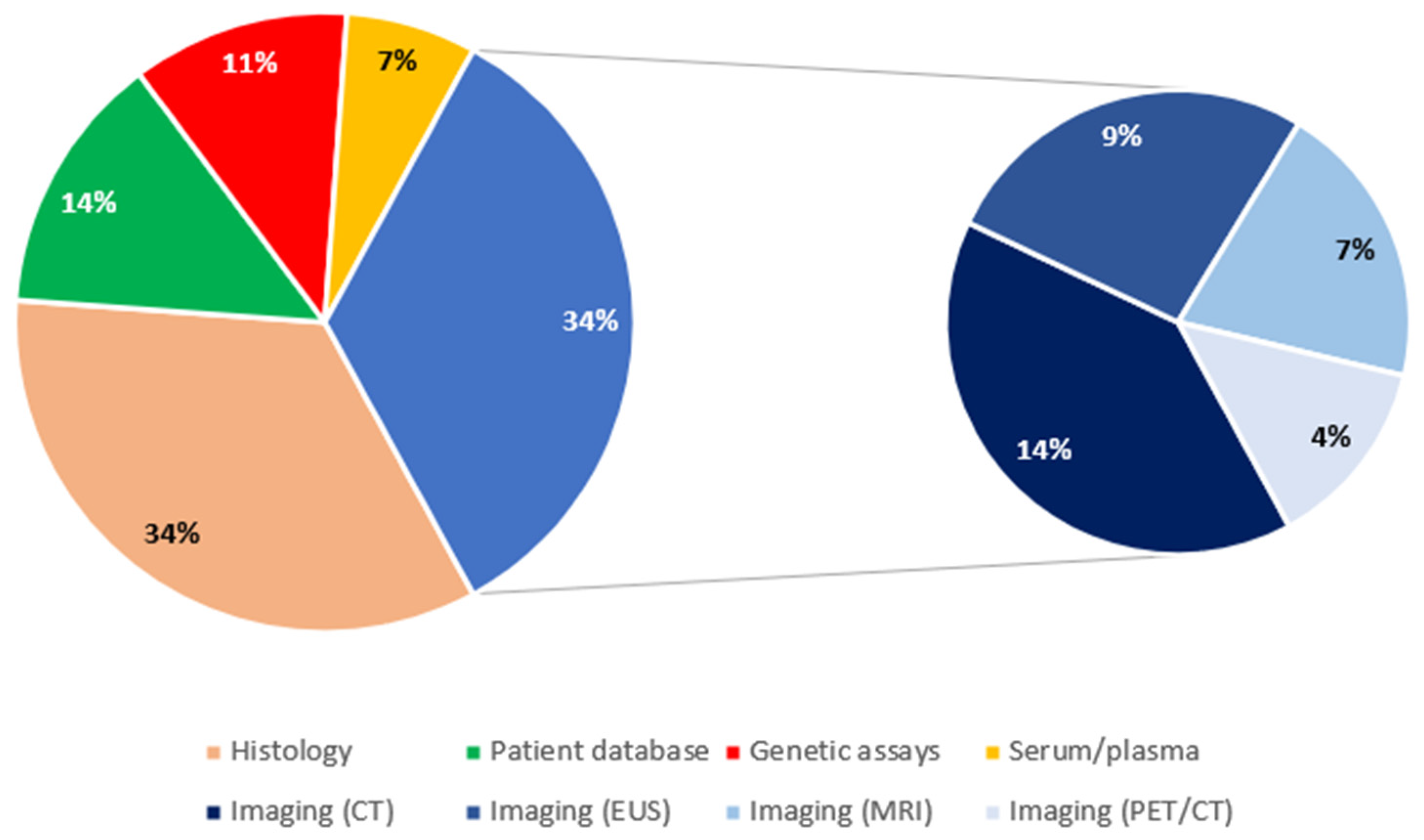

Figure 5. Distribution of studies by source of data. CT: computed tomography; EUS: endoscopic ultrasound; MRI: magnetic resonance imaging; PET: positron emission tomography.
Figure 5. Distribution of studies by source of data. CT: computed tomography; EUS: endoscopic ultrasound; MRI: magnetic resonance imaging; PET: positron emission tomography.
Diagnostics 12 00874 g005
Diagnostics 12 00874 g006 550

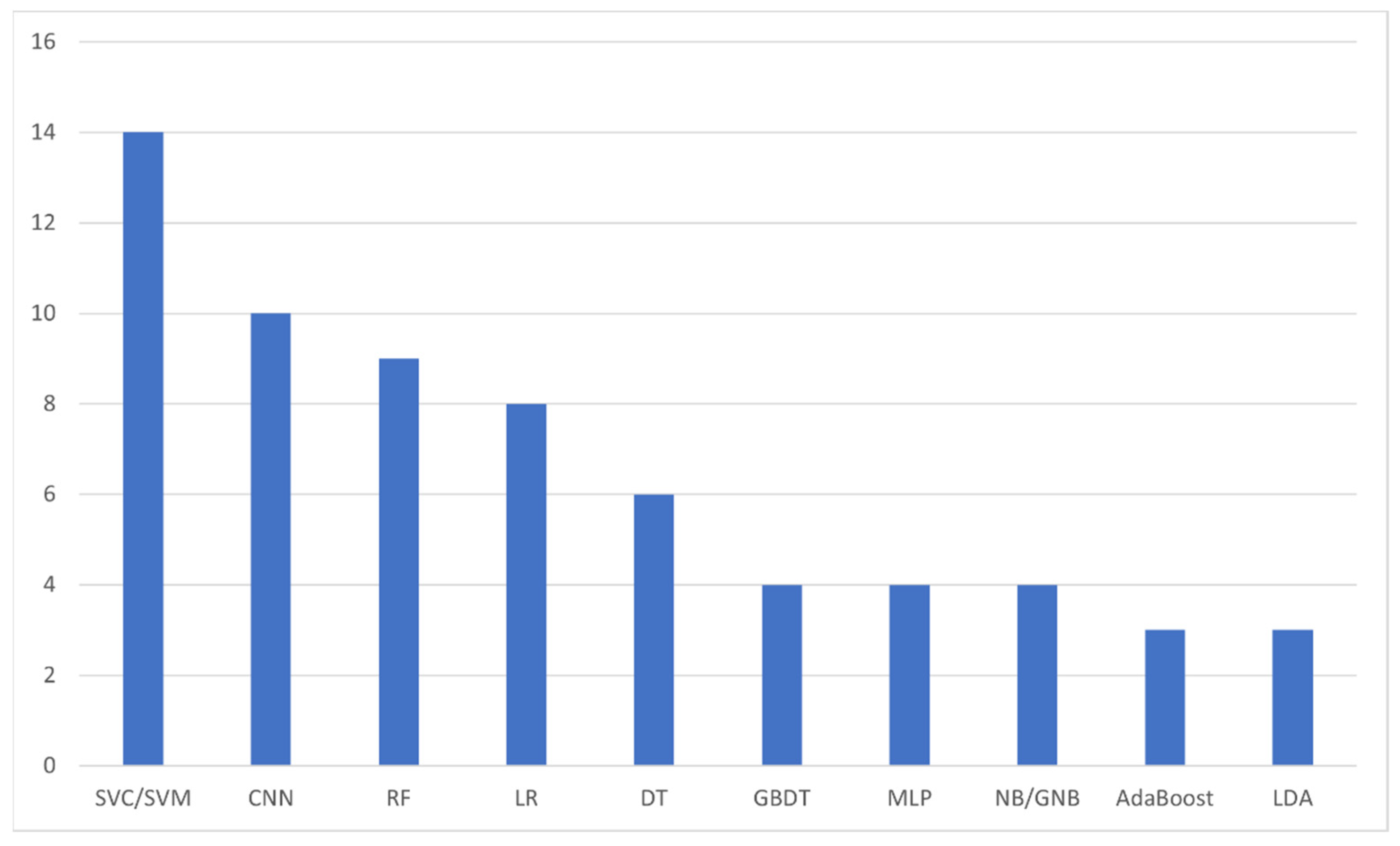

Figure 6. The most frequently appearing artificial intelligence algorithms within the included studies. SVC: Supporting Vector Classification; SVM: Supporting Vector Machine; CNN: Convolutional Neural Network; RF: Random Forest; LR: Logistic Regression; DT: Decision Tree; GBDT: Gradient Boosting Decision Tree; MLP: Multi-Layer Perceptron; NB/GNB: (Gaussian) Naïve Bayes; LDA: Linear Discriminant Analysis.
Figure 6. The most frequently appearing artificial intelligence algorithms within the included studies. SVC: Supporting Vector Classification; SVM: Supporting Vector Machine; CNN: Convolutional Neural Network; RF: Random Forest; LR: Logistic Regression; DT: Decision Tree; GBDT: Gradient Boosting Decision Tree; MLP: Multi-Layer Perceptron; NB/GNB: (Gaussian) Naïve Bayes; LDA: Linear Discriminant Analysis.
Diagnostics 12 00874 g006
Table
Table 1. Inclusion criteria.
Table 1. Inclusion criteria.
ParameterInclusion Criteria
PopulationDiagnosed cases with NEN (NET/NEC) or NEN included in the differential diagnosis.
InterventionAnalysis with a ML/DL algorithm.
ComparisonExternal validation desired but not mandatory.
OutcomeReport of accuracy, F1-score, AUROC or AUPRC desired but not mandatory.
Study designAny. Abstract-only studies were excluded
NEN: neuroendocrine neoplasm; NET: neuroendocrine tumor; NEC: neuroendocrine carcinoma; ML: machine learning; DL: deep learning; AUROC: area under receiver operator characteristic (ROC) curve; AUPRC: area under precision-recall (PR) curve.
Table
Table 2. Collective representation of the studies included in the present review, with respective prediction characteristics, technical characteristics, datasets and benchmarking. For reasons of conciseness, we have included only AUC of all the mentioned benchmarking measurements.
Table 2. Collective representation of the studies included in the present review, with respective prediction characteristics, technical characteristics, datasets and benchmarking. For reasons of conciseness, we have included only AUC of all the mentioned benchmarking measurements.
Study IDPrediction CharacteristicsTechnical CharacteristicsDatasets & Benchmarking
First AuthorYear of PublicationDOIRef. No.Study DesignNature of PredictionContinuity of OutputNET TypeSource of DataTested AI Algortihm(s)TrainingAUC-TrainingCross-Validation TestAUC-TestExt. ValidationAUC
Bevilacqua A202110.3390/diagnostics11050870[10]ProspectivePrognosticClassificationPancreasHistologyLDA-model AY0.870–0.9403-fold x100Y0.870–0.900N
Chen K201810.1016/S1470-2045(20)30323-5[11]RetrospectivePrognosticClassificationPancreasImaging (EUS)DT, LR, NN, RF, SVMN NY0.879–0.997N
Cheng X202110.3389/fsurg.2021.745220[22]RetrospectivePrognosticClassificationRectumDatabaseAdaBoost, NB, Nu-SVC, SVC, RF, XGBY0.780–0.85010-foldY0.890Y0.830–0.890
Drozdov I200910.1002/cncr.24180[33]ProspectiveDiagnosticClassificationPrimary small intestine; metastatic liverHistologyDT, SVMY 10-foldY N
Drozdov I200910.1002/cncr.24180[33]ProspectivePrognosticClassificationPrimary small intestine; metastatic liverHistologyPerceptronY NN N
Fehrenbach U202110.3390/cancers13112726[44]ProspectivePrognosticClassificationLiverImaging (MRI)Not specifiedY0.908–1.000NY N
Gao X201910.1007/s11548-019-02070-5[49]ProspectivePrognosticClassificationPancreasImaging (MRI)CNNY0.915 *5-foldY0.893 *N
Govind D202010.1038/s41598-020-67880-z[50]ProspectivePrognosticClassificationGIHistologydeep-SKIE, SKIE (GAN-based), deep-SKIE (GAN-based)Y NY N
Han X202110.3389/fonc.2021.606677[51]RetrospectiveDiagnosticClassificationPancreasImaging (CT)AdaBoost, DT, GBDT, GNB, KNN, LDA, LR, SVM, RFY 10-fold x1000Y0.946–0.997 *N
Huang B202110.1109/JBHI.2020.3043236[52]RetrospectivePrognosticClassificationPancreasImaging (MRI)DFSRN NY0.919Y0.688–0.840
Huang B202110.1109/JBHI.2021.3070708[53]RetrospectivePrognosticClassificationPancreasImaging (CT)GBDT, LR, RF, SVMY0.660–0.760NY0.700–0.870Y0.710–0.830
Ito H202010.4251/wjgo.v12.i11.1311[12]RetrospectiveDiagnosticClassificationColon & rectumSerumBTY NN N
Kidd M202110.1159/000508573[13]RetrospectivePrognosticClassificationMultipleDatabase N NN N
Kidd M202110.1159/000508573[13]ProspectivePrognosticClassificationMultipleDatabaseDTN NY N
Kjellman202110.1159/000510483: 10.1159/000510483[14]ProspectiveDiagnosticClassificationSmall intestineSerumRFY0.970–0.9905-foldN N
Klimov S202110.3389/fonc.2020.593211[15]RetrospectiveDiagnosticClassificationPancreasHistologyCNNY 5-foldY N
Klimov S202110.3389/fonc.2020.593211[15]RetrospectivePrognosticClassificationPancreasHistologyCNN, ML “zoo” (18 different models)Y 5-fold, leave-one-outN N
Liu Y201410.1016/j.media.2014.02.005.[16]ProspectivePrognosticClassificationPancreasImaging (PET/CT)RDMN NN N
Luo Y201910.1159/000503291[17]RetrospectivePrognosticClassificationPancreasImaging (CT)CNN, LR, RF, SVMY0.570–0.8108-foldY0.820N
Nanayakkara J202010.1093/narcan/zcaa009[18]RetrospectiveDiagnosticClassificationPancreasmiRNAdata miningN NY N
Nguyen VX201010.7863/jum.2010.29.9.1345[19]RetrospectiveDiagnosticClassificationPancreasImaging (EUS)ANNY NY0.890N
Niazi MKK201810.1371/journal.pone.0195621[20]RetrospectiveDiagnosticClassificationPancreasHistologyInception v3-C1 (type of CNN), Bootstrapped Inception v3-C1N NY0.922–0.973N
Panarelli N201910.1530/ERC-18-0244[21]RetrospectiveDiagnosticClassificationAppendix, GEP, ileum, pancreas, rectummiRNASVMY 10-foldY N
Redemann J202010.4103/jpi.jpi_37_20[23]RetrospectiveDiagnosticClassificationAppendix, colon & rectum, duodenum, pancreas, small intestine, stomach, total (icl. lung)HistologyCNNY NY N
Saccomandi P201610.1007/s10103-016-1948-1[24]RetrospectivePrognosticRegressionPancreasHistologyInverse Monte CarloN NN N
Saftoiu A200810.1016/j.gie.2008.04.031[25]ProspectiveDiagnosticClassificationPancreasImaging (EUS)MLPY 10-foldY N
Soldevilla B202110.3390/cancers13112634[26]ProspectiveDiagnosticClassificationNot specifiedPlasmaOPLS-DA supervised modelY0.779–0.982NN N
Song Y201810.7150/jca.26649[27]RetrospectivePrognosticClassificationPancreasDatabaseDL, LR, SVM, RFY 10-foldY0.870 (DL)N
Song C202110.21037/atm-21-25[28]RetrospectivePrognosticClassificationPancreasImaging (CT)SVM (various models)Y0.580–0.83010-foldY0.480–0.770Y0.520–0.560
Telalovic JH202110.3390/diagnostics11050804[29]RetrospectivePrognosticClassificationGI; pancreasDatabaseDT, GB GNB, KNN, MLP, MNB, LR, RF, SVC, XTY 10-foldY N
Tirosh A201910.1002/cncr.31930[30]ProspectiveDiagnosticClassificationPancreasGWASUnsupervised clustering analysisN NN N
Udristoiu AL202110.1371/journal.pone.0251701[31]ProspectiveDiagnosticClassificationPancreasImaging (EUS)CNN-LSTM (different models)Y NY0.970–0.990N
van Gerven MAJ200710.1016/j.artmed.2006.09.003[32]RetrospectivePrognosticClassificationNot specifiedDatabaseNTCY leave-one-outN N
Wan Y202110.1002/mp.15199[34]RetrospectivePrognosticClassificationPancreasImaging (CT)SAE, hybrid (SAE+handcrafted)Y0.766–0.9345-foldY0.739N
Wang Q202010.1042/BSR20193860[35]ProspectiveDiagnosticClassificationSmall intestineGene expression assayANNN NN N
Wang Q202110.3389/fonc.2021.725988[36]RetrospectiveDiagnosticClassificationLiverGene expression assaySVMN NY0.945–1.000N
Wehrend J202110.1186/s13550-021-00839-x[37]RetrospectiveDiagnosticClassificationLiverImaging (PET/CT)CNNY 5-foldY0.700–0.730 **N
Xing F201310.1007/978-3-642-40811-3_55[38]ProspectiveDiagnosticClassificationPancreasHistologySVMN NY N
Xing F201410.1109/TBME.2013.2291703[39]ProspectiveDiagnosticClassificationGEPHistologySVMN 3-foldN N
Xing F201510.1007/978-3-319-24574-4_40[40]ProspectiveDiagnosticClassificationNot specifiedHistologyCNNN NY N
Xing F201610.1007/978-3-319-46726-9_22[41]ProspectiveDiagnosticClassificationPancreasHistologyCNNY NY N
Xing F201610.1109/TMI.2015.2481436[42]ProspectiveDiagnosticClassificationPancreasHistologyCNNY NY N
Xing F201910.1109/TBME.2019.2900378[43]ProspectiveDiagnosticClassificationPancreasHistologyFCN-8s, FCRNA, FCRNB, FRCN, KiNet, SFCNOPI, U-NetY NY0.525–0.724N
Zhang X202010.1200/CCI.19.00108[45]RetrospectiveDiagnosticClassificationPancreasHistologyGADAY0.627–0.8572-foldY0.462–0.775N
Zhang T202110.3389/fonc.2020.521831[46]RetrospectivePrognosticClassificationPancreasImaging (CT)DC + AdaBoost, DC + GBDT, XGB + RFY NY0.570–0.860N
Zhou RQ201910.12998/wjcc.v7.i13.1611[47]RetrospectivePrognosticClassificationPancreasHistologyLDA, LR, MLP, SVMN leave-one-outY N
Zimmerman NM202110.2217/fon-2020-1254[48]RetrospectivePrognosticClassificationMultipleDatabaseDTN NN N
* Only the algorithm with the best performance is mentioned. ** AUPRC (instead of AUROC).
Table
Table 3. Most popular outcome analyses within the included studies.
Table 3. Most popular outcome analyses within the included studies.
OutcomeNumber of Studies (%)Reference No.
Tumor type identification10 (18.9)[12,18,19,21,23,25,31,36,37,51]
Tumor grade10 (18.9)[10,11,17,34,46,47,49,50,52,53]
Tumor detection5 (9.4)[14,20,26,33,43]
5-year survival2 (3.8)[22,27]
Cell segmentation2 (3.8)[40,42]
Disease progression2 (3.8)[13,29]
Disease recurrence2 (3.8)[28,53]
Ki-67 scoring2 (3.8)[38,39]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pantelis, A.G.; Panagopoulou, P.A.; Lapatsanis, D.P. Artificial Intelligence and Machine Learning in the Diagnosis and Management of Gastroenteropancreatic Neuroendocrine Neoplasms—A Scoping Review. Diagnostics 2022, 12, 874. https://doi.org/10.3390/diagnostics12040874

AMA Style

Pantelis AG, Panagopoulou PA, Lapatsanis DP. Artificial Intelligence and Machine Learning in the Diagnosis and Management of Gastroenteropancreatic Neuroendocrine Neoplasms—A Scoping Review. Diagnostics. 2022; 12(4):874. https://doi.org/10.3390/diagnostics12040874

Chicago/Turabian Style

Pantelis, Athanasios G., Panagiota A. Panagopoulou, and Dimitris P. Lapatsanis. 2022. "Artificial Intelligence and Machine Learning in the Diagnosis and Management of Gastroenteropancreatic Neuroendocrine Neoplasms—A Scoping Review" Diagnostics 12, no. 4: 874. https://doi.org/10.3390/diagnostics12040874

APA Style

Pantelis, A. G., Panagopoulou, P. A., & Lapatsanis, D. P. (2022). Artificial Intelligence and Machine Learning in the Diagnosis and Management of Gastroenteropancreatic Neuroendocrine Neoplasms—A Scoping Review. Diagnostics, 12(4), 874. https://doi.org/10.3390/diagnostics12040874

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
