Semantic Segmentation of Maxillary Teeth and Palatal Rugae in Two-Dimensional Images

1
Department of Mechanical Engineering, Maroun Semaan Faculty of Engineering and Architecture, American University of Beirut, Beirut P.O. Box 11-0236, Lebanon
2
Electrical and Computer Engineering Department, Faculty of Engineering, Université Saint Joseph, Beirut P.O. Box 17-5208, Lebanon
3
Division of Orthodontics and Dentofacial Orthopedics, Faculty of Medicine, American University of Beirut, Beirut P.O. Box 11-0236, Lebanon
*
Author to whom correspondence should be addressed.
Diagnostics 2022, 12(9), 2176; https://doi.org/10.3390/diagnostics12092176
Submission received: 28 June 2022 / Revised: 2 August 2022 / Accepted: 5 August 2022 / Published: 8 September 2022

Abstract

:
The superimposition of sequential radiographs of the head is commonly used to determine the amount and direction of orthodontic tooth movement. A harmless method includes the timely unlimited superimposition on the relatively stable palatal rugae, but the method is performed manually and, if automated, relies on the best fit of surfaces, not only rugal structures. In the first step, motion estimation requires segmenting and detecting the location of teeth and rugae at any time during the orthodontic intervention. Aim: to develop a process of tooth segmentation that eliminates all manual steps to achieve an autonomous system of assessment of the dentition. Methods: A dataset of 797 occlusal views from photographs of teeth was created. The photographs were manually semantically segmented and labeled. Machine learning methods were applied to identify a robust deep network architecture able to semantically segment teeth in unseen photographs. Using well-defined metrics such as accuracy, precision, and the average mean intersection over union (mIoU), four network architectures were tested: MobileUnet, AdapNet, DenseNet, and SegNet. The robustness of the trained network was additionally tested on a set of 47 image pairs of patients before and after orthodontic treatment. Results: SegNet was the most accurate network, producing 95.19% accuracy and an average mIoU value of 86.66% for the main sample and 86.2% for pre- and post-treatment images. Conclusions: Four architectural tests were developed for automated individual teeth segmentation and detection in two-dimensional photos that required no post-processing. Accuracy and robustness were best achieved with SegNet. Further research should focus on clinical applications and 3D system development.

1. Introduction

A crucial step in orthodontic treatment is the assessment of tooth movement, which has been studied using imaging modalities that include photographic 2D images, 2D X-rays, and intraoral 3D scanners. A precursor to measuring tooth movement is the detection, segmentation or separation of data that represents individual teeth [1]. In this paper, we focus on the detection and segmentation of individual teeth in 2D photographic images. Individual teeth segmentation has been achieved through a geometric approach and a machine learning approach.
With the geometric approach, teeth detection was addressed through the segmentation of maxillary individual teeth in 3D intraoral scans using minimum curvature to initiate the segmentation process [2]. However, user interaction was required at multiple stages to exclude the undesirable areas picked by the curvature-based algorithm. Li et al. [3] performed curvature calculations to identify teeth from a facial smile and intra-oral scan. The process involved contour and curvature calculations followed by thresholding and boundary refinement to achieve segmentation of the front teeth, an insufficient approach to use for further calculations. Another approach involved tooth region separation in 2D X-rays by creating a dental arch represented as a four-degree polynomial [4]. This method validated separating the teeth on 2D X-rays by placing planes between the adjacent teeth; however, the teeth were not segmented.
Trials to segment teeth using machine learning are challenging because of the high variability of teeth shapes among humans and the necessity to develop a trained network and a machine learning model capable of segmenting teeth with high accuracy. Different schemes have been used, mainly on X-rays rather than oral scans. Oktay [5] applied object detection machine learning algorithms on panoramic 2D X-ray images, whereby each tooth was labeled by a bounding box belonging to a specific class of teeth: molars, premolars, and anterior teeth (canines and incisors). Preprocessing was performed to determine regions in images where teeth were expected to be found and to define symmetry [5]. An identified tooth in the X-ray image was highlighted with an encompassing rectangular shape, but this rendition is not the actual shape of the tooth.
Mikia et al. [6] applied deep learning to classify teeth, but the input to the network consisted of the X-ray images of manually pre-segmented teeth on a limited number of 52 images, considered insufficient for training purposes. The process only classified the tooth without generating a precise segmented boundary that can be used for further calculations.
Using an Artificial Neural Network (ANN), which is typically employed in tasks involving pattern recognition in the analysis of digital images, Raith et al. [7] classified dental features from a 3D scan. The features of interest, the cusps of the teeth, were input as feature vectors. Three cusp detection approaches were compared that only classified the cusps but did not segment the individual teeth. Lee et al. [8] performed instance segmentation of teeth, gingiva, and facial landmarks limited to the frontal smile-teeth to have an accuracy above 80%. Lower accuracy was achieved for the teeth farther from the center. The method was biased towards the front teeth.
Of greater relevance was the 3D model segmentation by Xu et al. [9]. The study classified mesh faces on a two-level segmentation, the first separating the teeth from the gingiva and the second segmenting individual teeth. A label optimization algorithm was introduced after each prediction to correct wrongly predicted labels. Nevertheless, “sticky teeth” (pairs of adjacent teeth similarly labeled after optimization) were sometimes falsely predicted. This problem was corrected with Principal Component Analysis. Finally, the predicted labels of the second segmentation were back-projected to the original model. This method required three-dimensional scan data and involved pre- and post-processing steps of the input to generate a precise prediction. Our method aims to generate automated predictions without any additional steps being applied to the input while generating the prediction.
One of the most significant goals of reproducing the dentition during growth or orthodontic tooth movement is the ability to determine tooth displacement relative to fairly stable oral structures, such as the palatal rugae, obviating the need to take sequential harmful radiographs. Present methods of rugae superimposition are performed manually and, if automated, rely on the best fit of surfaces, not only rugal structures. In a first step, motion estimation requires segmenting and detecting the location of teeth and rugae at any time during the orthodontic intervention.
Considering that the available methods of tooth prediction relied on manual manipulation or did not involve tooth segmentation, we aimed to generate automated segmentation consistent with all the teeth as well as precise predictions without any manual steps applied to the input while generating the prediction. In this paper, we present the development of tooth segmentation using readily available 2D occlusal photographs of the maxillary dental arch through a process that eliminates all manual steps to attain a completely autonomous system. Different architectures are tested in this process to find the most suitable network for the investigated dataset. A secondary aim was to compare four architectural styles that we planned on using.

2. Material and Methods

The study included the creation of a labeled dataset of photographic images of actual patients taken at the occlusal view of the maxillary arch. Deep learning was implemented through a Fully Convolutional Neural Network (F-CNN) architecture to semantically segment individual teeth and palatal rugae in color images. A benchmark using different network architectures was performed to assess the effect of data augmentation on the semantic segmentation of teeth. Accuracy and associated metrics were defined to identify the best network architecture for semantic segmentation of maxillary teeth and palatal rugae.

2.1. Dataset Collection

The dataset consisted of 797 photographic images compiled by the Division of Orthodontics and Dentofacial Orthopedics at the American University of Beirut Medical Center (AUBMC). In contrast to previous publications in which X-ray images were used, colored RGB two-dimensional (2D) images of the maxillary teeth and palate belonging to various malocclusions were taken according to standards at the occlusal plane with a single-lens reflex camera using an intraoral mirror. The images were taken at different distances to generate diversity in the dataset and make the training more robust. Images from the late mixed to permanent dentitions were included to illustrate the differentiation between primary canines and molars from permanent canines and molars. Also included to widen the scope of training were images with dental appliances, significant crowding, and prosthesis (including primary teeth with stainless steel crown) (Figure 1). Excluded were images with multiple missing teeth, supernumerary, and transposed teeth. The images were saved in “PNG” format and with a 480 × 320 pixel resolution because this was the common resolution for the majority of the taken images and required less memory for training compared to high resolution images.
A total of 719 images were segmented into 5 families of anatomical structures, including 4 for teeth (molars, premolars, incisors, canines) and one for the rugae. This set of data contributed to training a network to semantically segment these families (Figure 2A–C). To test individual structures, we augmented the sample with 78 randomly selected images. A total of 797 images were segmented into individual structures, comprising 23 labels for individual primary (n = 10) and permanent (n = 12) teeth as well as the rugae (n = 1) (Figure 2D,E).
An additional dataset composed of 47 pairs of images was utilized solely to test the robustness of the trained network. Each pair of images was taken of the same patient before and after orthodontic treatment (Figure 3).

2.2. Dataset Labeling Methods

Image labels serve as the ground truth for the training, validation, and testing of various neural network architectures. Labeling for semantic segmentation consists of assigning a class to every pixel in an image. In this work, the users who performed the labeling (orthodontic residents) identified the pixels in an image in the form of polygons drawn to fit the shape of the object of interest. The labeling was applied to the entire dataset of (797 + 2 × 47 = 891) images.

2.2.1. Semantic Labeling

The pixel labeling was performed in a MATLAB application [10] by manually creating polygons following the contour of the regions of interest. For each image in the dataset (Figure 2A), an associated image of similar dimensions was created to identify the labels by assigning a different color to each label (Figure 2B,E). The teeth were captured upon superimposing the label on the original image (Figure 2C,F). All labels and contours of the teeth and the rugae area were verified by the labeling orthodontists.

2.2.2. Label Statistics

Semantic segmentation of teeth and rugae is challenging because of the variable sizes of the labels. The relatively larger size of the rugae label compared with the labels of individual teeth could skew the results of the network training. This issue was mitigated by utilizing an appropriate training accuracy metric (see Section 2.3.3. below). The number of pixels associated with each label was tallied for each labeling scheme and dataset combination.

2.3. Machine Learning and Semantic Segmentation

Deep learning is a model designed to analyze data similar to human analysis by using a layered structure of algorithms called an artificial neural network [11]. The design of such networks was inspired by the biological neural networks of the human brain. The algorithms are trained to find and identify patterns and features in massive amounts of data, enabling the network to generate predictions.
To apply semantic segmentation machine learning, we identified a labeled dataset comprised of images and their associated labels. The labeled images were fed into a chosen network with a specific architecture as input (see Section 2.3.2). The network in turn produced a prediction of the label as an output. To assess the accuracy of the network, the predicted label was compared to the input label, which is considered as ground truth. While in most instances, the training process starts with initial values referred to as a pre-trained network, such as the semantic segmentation application used by Siam et al. [12,13], in our study, the main architecture was trained from scratch because of the absence of a pre-trained network relevant to teeth segmentation.

2.3.1. Dataset Split

In typical machine learning applications, the data are split into three categories: training (in which most of the data are used), validation (against which the training progress is validated), and testing. The validation and test sets are disjoint from the training set. Nearly 90% of our dataset with the family of teeth labeling scheme were dedicated as training and validation sets (Table 1), which were further split into 92% for training (586 images), and 8% for validation (53 images). Likewise, nearly 90% of the dataset with the individual teeth labeling scheme were earmarked for training and validation, which were also further split into 91% for training (641 images) and 9% for validation (64 images). The data from the 47 pairs of before and after images of patients were entirely used for testing to assess the robustness of the trained model.

2.3.2. Network Architectures

We applied four architectures (described in Appendix A) because they would cover various characteristics of our dataset that none of them would singularly:
  • The MobileUnet network [14], comprised of a small number of layers, is hence relatively fast to train and widely used in medical applications;
  • The AdapNet network [15] designed to adapt to environmental changes and focus less on the environment when predictions are made. Images taken in different lighting conditions would not affect the predictive ability of this network. This feature was appropriate for our dataset because the images were taken at varying proximity;
  • The DenseNet network [16], a model that uses features of various complexity levels to predict smooth boundaries, enables the network to deal with datasets comprising a relatively small number of images, as in our study, compared with datasets of up to hundreds of thousands of images;
  • The SegNet network [17], designed to be efficient while using a limited amount of memory and primarily designed to perceive spatial-relationships such as road scenes, was important for our dataset that included variable distances from which images of the teeth were captured.

2.3.3. Network Assessment

Semantic segmentation predictions are typically evaluated using an average mean intersection over union (average mIoU). For semantic segmentation, given two image labels representing ground truth and its associated prediction, the IoU for a given class (c) could be defined such that:
I o U ( c ) = i o i = = c   y i = = c i o i = = c   y i = = c
where oi is the predictions pixels, yi is the ground truth labels pixels, is a logical “and” operation, and is a logical “or” operation. This computation, visually represented in Figure 4A, is similar to the originally defined equation [18]. The mean IoU (mIoU) is an average of all the IoU values for all the classes in an image pair. For a dataset comprised of several image pairs, the average mIoU is the average of the mean IoU’s for all image pairs.
In addition, other metrics were computed to assess the accuracy of the trained model, namely the pixel accuracy and pixel precision. Pixel accuracy is the percentage of pixels in an image that are correctly classified with respect to the input ground truth pixels.
For semantic segmentation, given two images representing the ground truth and its associated prediction, the pixel accuracy for a given class (c) could be defined such that:
A c c u r a c y ( c ) = i o i = = c   y i = = c i       y i = = c
where oi is the predicted pixel, yi is the ground truth label pixel, is a logical “and” operation, and is a logical “or” operation (Figure 4B).
This accuracy measure can be evaluated for a specific class in an image, as an average for all classes in an image, or as an average for a single class for the entire dataset. The latter metric is referred to as the “per-class” pixel accuracy, which can provide more information on the ability of the network to precisely segment a specific label. This metric is especially useful for classes that occupy small regions in the image.
Pixel precision is defined by the ratio of the correctly detected pixels to all predicted pixels. This metric describes how many correct predictions there are compared to the total predictions generated by the model. Similarly, given two images representing ground truth and its associated prediction, one can define the precision for a given class (c) such that:
P r e c i s i o n ( c ) = i o i = = c   y i = = c i o i = = c
where oi is the prediction pixel, yi is the ground truth label pixel, is a logical “and” operation, and is a logical “or” operation (Figure 4C).
Because the dataset exhibited a class imbalance with the dissimilar class sizes, the average mIoU is a better metric to assess the network prediction accuracy than the pixel accuracy or pixel precision. The class imbalance is exaggerated by the fact that the background (gingiva and non-teeth regions) and the rugae labels cover relatively larger areas than the rest of the classes (teeth); hence, as expected, the high pixel accuracy does not translate into a more accurate semantic segmentation [19].
One of the methodological approaches employed in the individual teeth labeling scheme involved data augmentation. We list this method and the corresponding figure under Results (Section 3.1.3) because of the sequence-dependent results.

3. Results

3.1. Machine Learning Accuracy

3.1.1. Labeling Statistics

The statistics of the family and individual structure labeling schemes demonstrate the dominance of the rugae labels. The number of pixels associated with primary teeth and third molars were insignificant in comparison with the family of teeth or individual teeth. Accordingly, the accuracy in segmenting the primary teeth and the third molars was expected to be low. In the 47 pairs of (pre- and post-treatment) images (Figure 5C), the distribution of the teeth labels was similar to the training dataset (Figure 5B).

3.1.2. Family of Teeth Labeling Scheme

Of the four network architectures, the SegNet and DenseNet exhibited the highest accuracy in terms of average mIoU (55.99% and 54.95%, respectively) (Table 2). For both networks, the predicted labels exhibited spatial shifts (Figure 6), indicating that the network model memorized the spatial position of the teeth rather than segmenting them. To mitigate this issue, data augmentation was employed.

3.1.3. Individual Teeth Labeling Scheme

Considering the result of the family of teeth scheme, whereby the networks exhibit spatial memory, and the need for data augmentation to improve the network’s accuracy, two data augmentation methods were employed. The first involved rotating the images (and their labels) and then adding them to the original set (Figure 7). The second targets changing the perspective of the images (and their labels) by shearing them (Figure 7E).
To assess the effect of the data augmentation, the top two performing architectures, SegNet and DenseNet, were re-trained on the full dataset (Table 1). The two sets were tested individually and incrementally, culminating in six training combinations (Table 3). The highest average mIoU was on the dataset that used the rotation data augmentation only. The perspective data augmentation did not improve training accuracy. Accordingly, only the rotation data augmentation was used in the dataset for the final training. Consequently, the four original architectures were retrained on the full dataset (including the rotation data augmentation) using the individual teeth labeling scheme.
SegNet remained the best architecture, with an average mIoU of 86.66% and an accuracy of 95.19% (Table 4). A sample of the results from the SegNet architecture performed on the test dataset with the rotation augmented dataset is illustrated in Figure 8, showing the worst, average, and best predictions.

3.2. Machine Learning Robustness

The Signets network was used to test the robustness of the trained model on the independent third dataset of 47 pairs of pre- and post-orthodontic treatment images.

3.2.1. Network Accuracy

Using the same statistical analysis on this dataset as on the previous two datasets, the number of pixels per class was computed. A sample result for the Right Central Incisor class is shown in the appendix (Figure A1A). The primary teeth and the third molar classes had the fewest pixels (close to 10% in all the images as shown in Figure A1O–T). Accordingly, two average mean IoU’s were computed, one including all classes and the second ignoring the low-occurrence classes. To focus on the teeth segmentation accuracy of the network, the rugae class was not included in the second computation of the average mean IoU, which we refer to as the “Teeth Only IoU” (Table 5).
The teeth only IoU value was 86.2 % (Table 5), but the average mean IoU of all teeth (including primary and third molars) and rugae was lower (82.9%), as expected, because the rugae boundaries were not consistently defined during the labeling process.

3.2.2. Network Robustness

To validate the robustness of the trained network, the accuracy of prediction was gauged for the pre- and post-treatment images separately, which were compared in the chi-square goodness of fit test. The prediction values in both sets were not statistically different (Table 5).

4. Discussion

The main contribution of this study was the segmentation of 2D clinical images through artificial intelligence and machine learning to quantify orthodontic tooth movement. To the best of the authors’ knowledge, prior reporting on semantic segmentation for teeth was not available, prompting the investigation of multiple architectures to determine the best performing method.
The goal of the segmentation was to label each pixel of the intraoral 2D image with the corresponding tooth structure. While the trained network was able to depict the spatial location of a family of teeth in the image, the initial step of segmentation was reinforced through data augmentation, resulting in a more precise estimation of a matching set of teeth. The perspective data augmentation did not improve training accuracy, possibly because the images already had perspective variability since they were taken with actual cameras.
The augmentation method is commonly used in the learning phases of segmentation to increase matching accuracy [19]. In this study, this approach induced a substantial increase in the average mIoU accuracy with the best performing architecture, SegNet, which yielded mislabeling of only 1/20th of individual tooth structure.
The rugae label exhibited the lowest accuracy, probably because the rugae area was not well-defined like the teeth. This finding was accentuated by the facts that the variation of the rugae class may have also been associated with the performance of the ground truth labels by several orthodontists, and that the defining boundary can vary between individuals. A separate investigation of the source of variation is warranted to determine the contribution of each of these factors to the rugal delineation. Operator errors in segmenting the various categories of teeth could also be explored, although in this initial project, errors in the delineation of tooth contours did not impact machine learning because tooth labeling was not affected. In addition, outliers such as those in the first row of Figure 8 show how far the worst result is from the average, demonstrating that many more such images should be included in future research for the model to be sufficiently trained on them.
The sample image exhibiting missing teeth was mislabeled by the trained model. Specifically, if one of the premolars was missing, the existing premolar could be mislabeled. For instance, in Figure 9B, the left premolar (situated on the right side of the image) was labeled correctly as the first premolar and colored in blue, while the right premolar on the opposite side was labeled incorrectly as a second premolar colored in brown. Orthodontists can label these teeth correctly because the small space between the left canine and premolar indicates the prior existence of a premolar that was extracted. The prediction of both teeth is depicted in Figure 9C. The right premolar was predicted correctly owing to the spacing; however, the left premolar was predicted falsely and was classified as a second premolar.
The lack of statistical significance between pre- and post-treatment image predictions indicates that our model was robust regardless of whether the input images were taken from the pre- or the post-treatment set. This finding reflects a valuable attribute of the trained model because most of the pre-treatment images had malaligned and crowded teeth, yet the trained model was able to correctly segment them.
Considering the high scores in accuracy and robustness, the training of the system was proven to be successful in segmenting the teeth. This achievement sets the path to validate the superimposition of images aiming to quantify tooth movement during and after the completion of orthodontic treatment. Future research should help determine stable structures or planes to superimpose images taken at different timepoints and compare them to current radiological superimposition methods for cross-validation. Thus, radiological superimposition to evaluate tooth movement would be disregarded and radiation exposure reduced.
The present two-dimensional teeth segmentation has validated the usage of machine learning tools to identify and accurately segment teeth in 2D photographs. However, the 2D imaging modality restricts the motion estimation of teeth, which is limited to planar motion (x and y) and single rotation (with respect to z), both computed in the plane of the 2D image. Hence, the estimated motion would be a projection of the actual 3D motion of the teeth. To minimize the loss of information due to projection, the next step is to apply machine learning methods to the 3D domain through estimating the 2D motion on several independent image planes or using machine learning methods on a 3D imaging modality such as intraoral 3D scans. The applicability of the 2D machine learning methods developed in this work on 3D intraoral scans should be investigated.

5. Conclusions

A semantically labeled maxillary teeth dataset taken at the occlusal view was used to develop autonomous tooth segmentation through a process that eliminated manual manipulation. The dataset consisted of colored images, in contrast to previous research in which X-ray images were used. Machine learning methods were applied to identify the best network architecture for semantic segmentation of the images. The best network was SegNet, which yielded 95.19% accuracy and an average mIoU of 86.66%. The developed method required no post-processing nor pre-training. The model robustness, verified on an independent set of pre- and post-orthodontic treatment images, yielded an average mIoU value of 86.2% for the individually tested teeth. This model should help develop the superimposition schemes of sequential occlusal images on stable structures (e.g., palatal rugae) to determine tooth movement, obviating the need for harmful radiation exposure.

Author Contributions

Conceptualization, E.S. and J.G.G.; methodology, A.R.E.B., E.S., J.G.G., A.T.M. and K.G.Z.; software, A.R.E.B. and E.S.; validation, A.R.E.B., E.S., J.G.G., A.T.M. and K.G.Z.; formal analysis, A.R.E.B., E.S., J.G.G. and A.T.M.; investigation, A.R.E.B., E.S., J.G.G., A.T.M. and K.G.Z.; resources, J.G.G., A.T.M. and K.G.Z.; data curation, A.R.E.B.; writing—original draft preparation, A.R.E.B.; writing—review and editing, A.R.E.B., E.S., D.A., G.E.S., J.G.G. and A.T.M.; visualization, A.R.E.B., E.S., J.G.G. and A.T.M.; supervision, E.S., D.A., G.E.S. and J.G.G.; project administration, E.S., D.A., G.E.S. and J.G.G.; funding acquisition, J.G.G. and E.S. All authors have read and agreed to the published version of the manuscript.

Funding

American University of Beirut Collaborative Research Stimulus Grant: Project 23720/Award 103319 and Healthcare Innovation and Technology Stimulus Grant: Project 26204/Award104083.

Institutional Review Board Statement

American University of Beirut Bio-2021-0153.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Appendix A.1. Architectures

In this work, four main architectures were included in our benchmark analysis. Our approach was similar to the network architecture study employed for urban scenes [20]. All of the network architectures share the same down-sampling factor of 32, which ensures a unified down-sampling factor that allows for the proper assessment of the decoding method. The networks include:
(1)
FC-DenseNet56 [16]: This network uses a downsampling-upsampling style encoder-decoder network. As the name suggests, it consists of 56 layers. In this architecture, denseblocks (DB) consisting of 4 layers are used. Each layer consists of a batch normalization, followed by ReLU, a 3 × 3 convolution, and dropout with probability p = 0:2. The DB has a growth rate of 12. In addition, on the downsampling side, each DB is followed by a Transition Down (TD) block that consists of batch normalization, followed by ReLU, a 1 × 1 convolution, a dropout with p = 0:2, and a non-overlapping max pooling of size 2 × 2. On the upsampling side, each DB is preceded by a Transition Up (TU) layer that has 3 × 3 transposed convolution with stride of 2 to compensate for the pooling operation. The network is terminated by a 1 × 1 convolution and a softmax layer;
(2)
MobileUNet-Skip [14]: This architecture is comprised of 28 layers such that two types of convolution layer blocks are obtained. The first type is a convolution layer consisting of a regular convolution followed by batch normalization and ReLU. The second type consists of a depth wise convolution followed by batch normalization and ReLU. Then, the layer is followed by 1 × 1 point-wise convolution, batch normalization, and ReLU. Finally, the architecture goes through a fully connected layer that feeds into a softmax layer for classification;
(3)
Encoder-Decoder-Skip based on SegNet [17]: This network uses a VGG-style encoder-decoder, where the upsampling in the decoder is done using transposed convolutions. The encoder network consists of 13 convolutional layers. For each encoder layer there exists a convolution with a filter bank to produce a set of feature maps. This is followed by batch normalization and an element-wise ReLU. Then, max-pooling with a 2 × 2 window and stride of two is performed. For every encoder layer there exists a decoder layer; hence, the decoder network consists of 13 layers similar to the encoder layers but differ in replacing the maxpooling by upsampling the input feature map followed by batch normalization.. In addition, the architecture employs additive skip connections from the encoder to the decoder;
(4)
Adapnet [15]: This architecture is a modified version of ResNet50 that uses bilinear upscaling instead of transposed convolutions. In addition, lower resolution processing is performed using a multi-scale strategy with atrous convolutions.

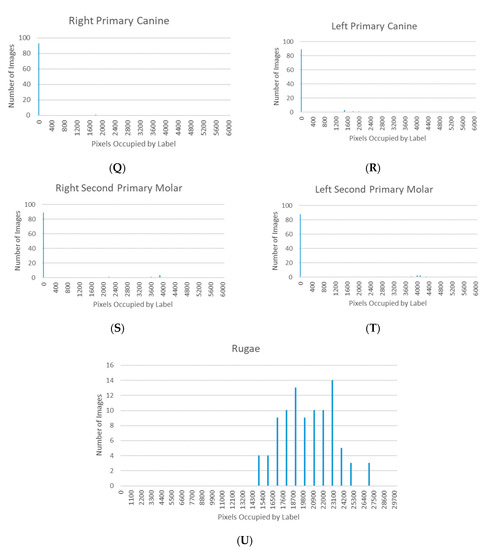

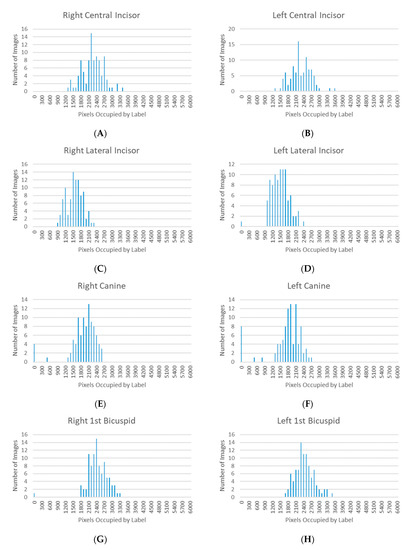

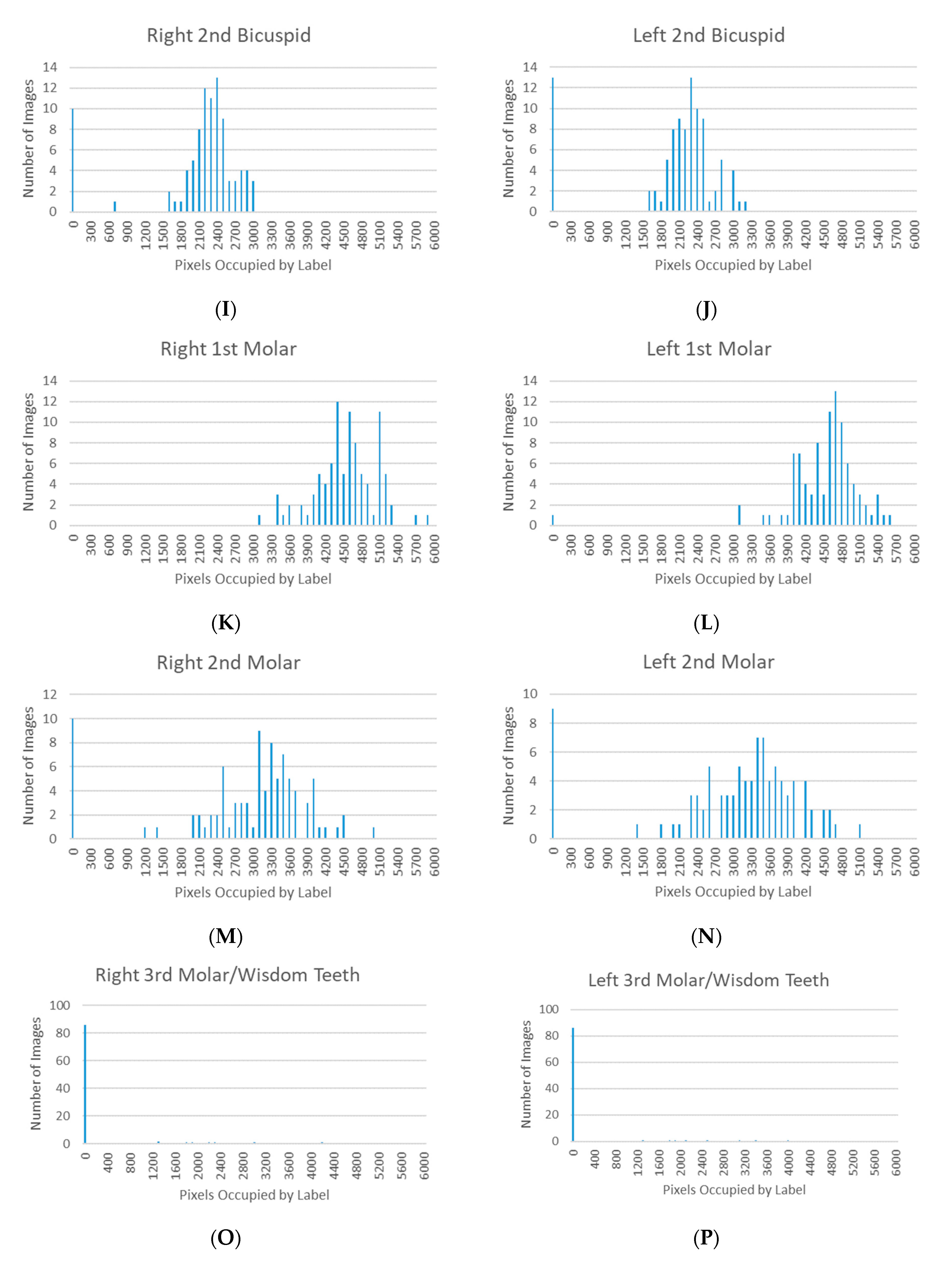

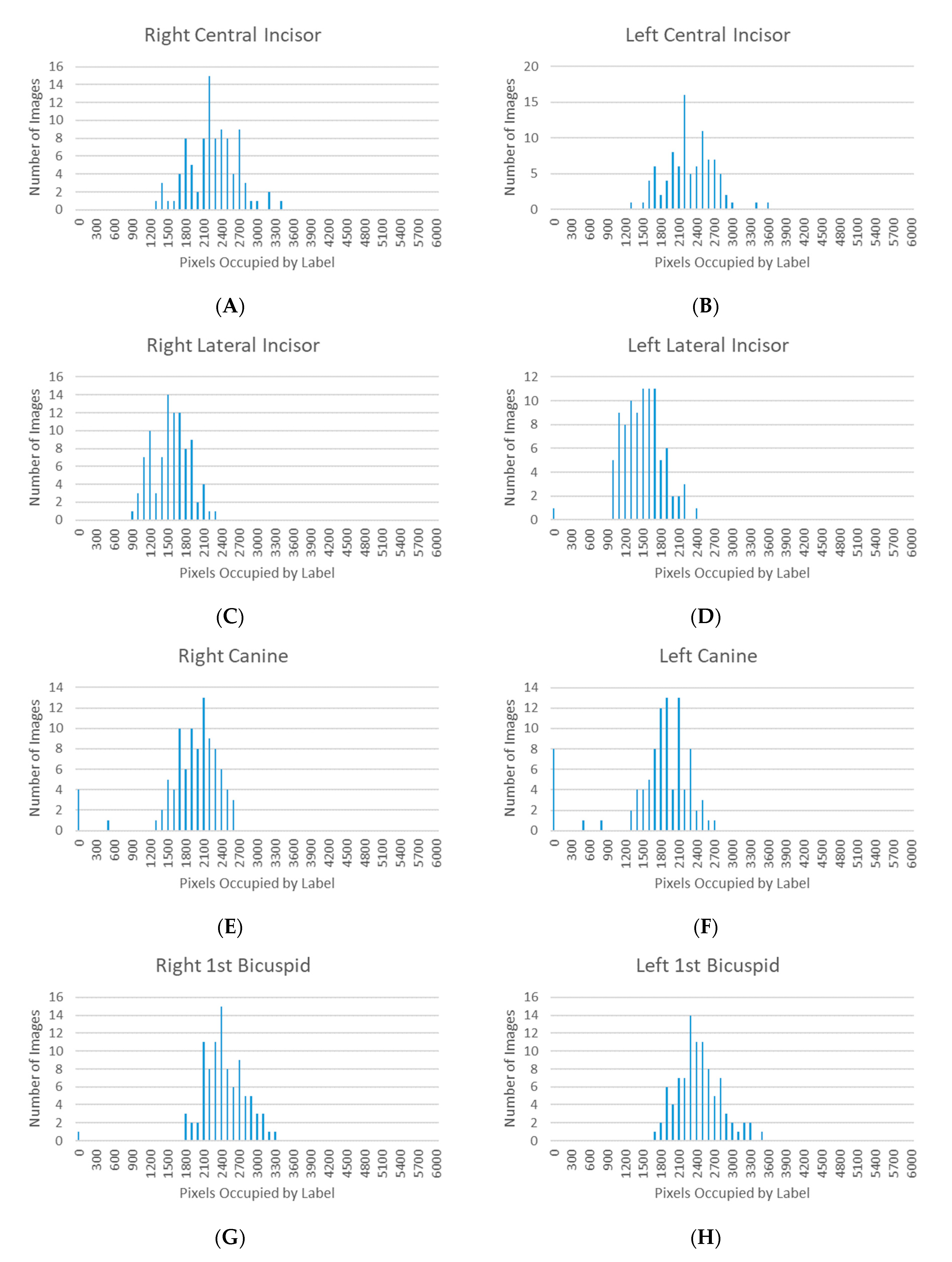

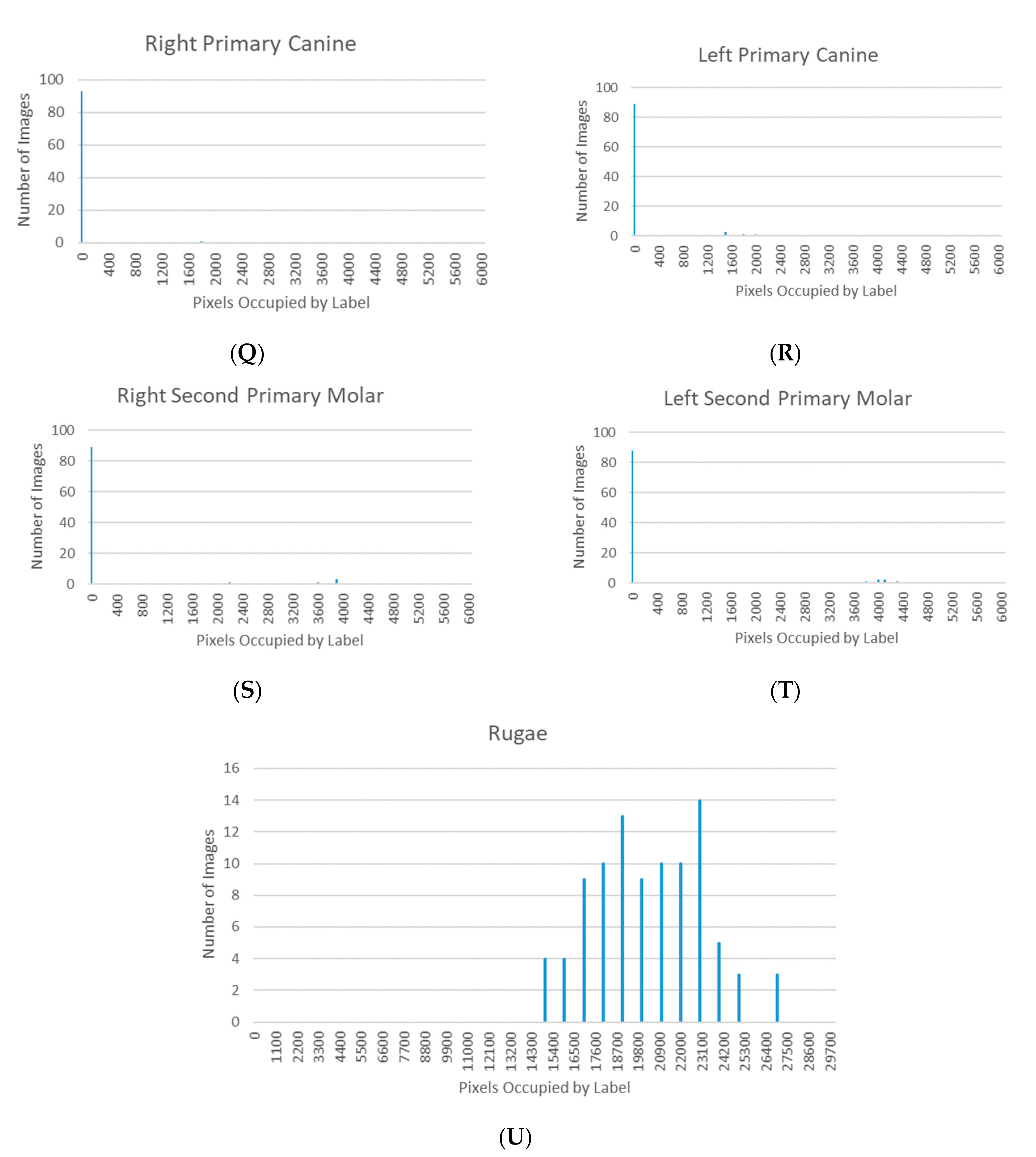

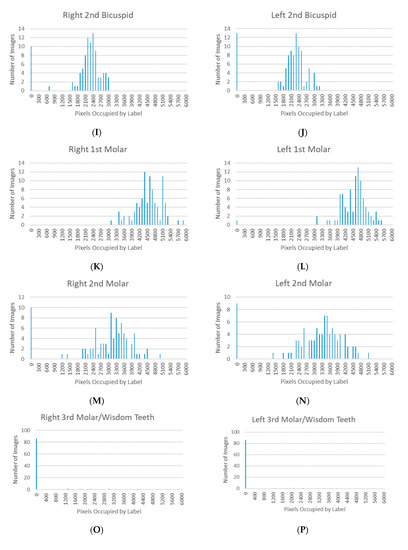

Figure A1. Graphs of the label distribution over the paired set were analyzed. The graphs show the labels’ pixel occupation in an image over the paired image set. The figure (AD) shows the distribution of the the incisor family followed by the canine family (E,F), premolars (bicuspid) (GJ), molar (KP), primary teeth (QT), and finally rugae (U).
Figure A1. Graphs of the label distribution over the paired set were analyzed. The graphs show the labels’ pixel occupation in an image over the paired image set. The figure (AD) shows the distribution of the the incisor family followed by the canine family (E,F), premolars (bicuspid) (GJ), molar (KP), primary teeth (QT), and finally rugae (U).
Diagnostics 12 02176 g0a1aDiagnostics 12 02176 g0a1bDiagnostics 12 02176 g0a1c
Figure A2. The first column shows the original image (A) from the pre-treatment set, followed by its ground truth label (C) in the second row, and its prediction from the model in the third row (E). The second column shows the same order for an image as for the post-treatment of the same patient (B,D,F).
Figure A2. The first column shows the original image (A) from the pre-treatment set, followed by its ground truth label (C) in the second row, and its prediction from the model in the third row (E). The second column shows the same order for an image as for the post-treatment of the same patient (B,D,F).
Diagnostics 12 02176 g0a2aDiagnostics 12 02176 g0a2b

References

  1. Haddani, H.; Elmoutaouakkil, A.; Benzekri, F.; Aghoutan, H.; Bourzgui, F. Quantification of 3d tooth movement after a segmentation using a watershed 3d method. In Proceedings of the 2016 5th International Conference on Multimedia Computing and Systems (ICMCS), Marrakech, Morocco, 29 September–1 October 2016; pp. 7–11. [Google Scholar]
  2. Zhao, M.; Ma, L.; Tan, W.; Nie, D. Interactive tooth segmentation of dental models. In Proceedings of the 2005 IEEE Engineering in Medicine and Biology 27th Annual Conference, Shanghai, China, 17–18 January 2006; pp. 654–657. [Google Scholar]
  3. Li, M.; Xu, X.; Punithakumar, K.; Le, L.H.; Kaipatur, N.; Shi, B. Automated integration of facial and intra-oral images of anterior teeth. Comput. Biol. Med. 2020, 122, 103794. Available online: https://www.sciencedirect.com/science/article/pii/S0010482520301633 (accessed on 23 July 2022). [CrossRef] [PubMed]
  4. Gao, H.; Chae, O. Automatic tooth region separation for dental ct images. In Proceedings of the 2008 Third International Conference on Convergence and Hybrid Information Technology, Busan, Korea, 11–13 November 2008; Volume 1, pp. 897–901. [Google Scholar]
  5. Oktay, A.B. Tooth detection with convolutional neural networks. In Proceedings of the 2017 Medical Technologies National Congress (TIPTEKNO), Trabzon, Turkey, 12–14 October 2017; pp. 1–4. [Google Scholar]
  6. Miki, Y.; Muramatsu, C.; Hayashi, T.; Zhou, X.; Hara, T.; Katsumata, A.; Fujita, H. Classification of teeth in cone-beam ct using deep convolutional neural network. Comput. Biol. Med. 2017, 80, 24–29. [Google Scholar] [CrossRef] [PubMed]
  7. Raith, S.; Vogel, E.P.; Anees, N.; Keul, C.; Guth, J.-F.; Edelhoff, D.; Fischer, H. Artificial neural networks as a powerful numerical tool to classify specific features of a tooth based on 3d scan data. Comput. Biol. Med. 2017, 80, 65–76. [Google Scholar] [CrossRef] [PubMed]
  8. Lee, S.; Kim, J.-E. Evaluating the precision of automatic segmentation of teeth, gingiva and facial landmarks for 2d digital smile design using real-time instance segmentation network. J. Clin. Med. 2022, 11, 852. Available online: https://www.mdpi.com/2077-0383/11/3/852 (accessed on 23 July 2022). [CrossRef] [PubMed]
  9. Xu, X.; Liu, C.; Zheng, Y. 3d tooth segmentation and labeling using deep convolutional neural networks. IEEE Trans. Vis. Comput. Graph. 2018, 25, 2336–2348. [Google Scholar] [CrossRef] [PubMed]
  10. Wuzheng-Sjtu, Z.W. Wuzheng-sjtu/Instance-Segment-Label-Tool-Matlab. November 2018. Available online: https://github.com/wuzheng-sjtu/instance-segment-label-tool-matlab (accessed on 17 July 2019).
  11. Malekian, A.; Chitsaz, N. Chapter 4-concepts, procedures, and applications of artificial neural network models in streamflow forecasting. In Advances in Streamflow Forecasting; Sharma, P., Machiwal, D., Eds.; Elsevier: Amsterdam, The Netherlands, 2021; pp. 115–147. Available online: https://www.sciencedirect.com/science/article/pii/B9780128206737000032 (accessed on 2 March 2022).
  12. Siam, M.; Gamal, M.; Abdel-Razek, M.; Yogamani, S. Real-time semantic segmentation benchmarking framework. In Proceedings of the 31st Conference on Neural Information Processing Systems (NIPS 2017), Long Beach, CA, USA, 4–9 December 2017. [Google Scholar]
  13. Siam, M.; Gamal, M.; Abdel-Razek, M.; Yogamani, S.; Jagersand, M. Rtseg: Real-time semantic segmentation comparative study. In Proceedings of the 2018 25th IEEE International Conference on Image Processing (ICIP), Athens, Greece, 7–10 October 2018; pp. 1603–1607. [Google Scholar]
  14. Howard, A.G.; Zhu, M.; Chen, B.; Kalenichenko, D.; Wang, W.; Weyand, T.; Andreetto, M.; Adam, H. Mobilenets: Efficient convolutional neural networks for mobile vision applications. arXiv 2017, arXiv:1704.04861. [Google Scholar]
  15. Valada, A.; Vertens, J.; Dhall, A.; Burgard, W. Adapnet: Adaptive semantic segmentation in adverse environmental conditions. In Proceedings of the 2017 IEEE International Conference on Robotics and Automation (ICRA), Singapore, 29 May–3 June 2017; pp. 4644–4651. [Google Scholar]
  16. Jegou, S.; Drozdzal, ’M.; Vazquez, D.; Romero, A.; Bengio, Y. The one hundred layers tiramisu: Fully convolutional densenets for semantic segmentation. In Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition Workshops (CVPRW), Honolulu, HI, USA, 21–26 July 2017; pp. 1175–1183. [Google Scholar]
  17. Badrinarayanan, V.; Kendall, A.; Cipolla, R. Segnet: A deep convolutional encoder-decoder architecture for image segmentation. IEEE Trans. Pattern Anal. Mach. Intell. 2017, 39, 2481–2495. [Google Scholar] [CrossRef] [PubMed]
  18. Tiu, E. Metrics to Evaluate Your Semantic Segmentation Model. 2019. Available online: https://towardsdatascience.com/metrics-to-evaluate-your-semantic-segmentation-model-6bcb99639aa2 (accessed on 24 January 2020).
  19. Sikka, M. Balancing the Regularization Effect of Data Augmentation. 2020. Available online: https://towardsdatascience.com/balancing-the-regularization-effect-of-data-augmentation-eb551be48374 (accessed on 25 March 2021).
  20. GeorgeSeif. Georgeseif/Semantic-Segmentation-Suite. 2019. Available online: https://github.com/GeorgeSeif/Semantic-Segmentation-Suite#frontends (accessed on 25 June 2019).
Figure 1. Samples of the maxillary arch images showing the variety of malocclusions, including pretreatment (A,B), during treatment (CE), and post-treatment (F) images. To retain the aspect ratio of the original images, a black border was added to avoid side stretching to match the 480 × 320 size (A,F). The background change in the image did not affect the results. A sample of the selected rugae area is shown in (C).
Figure 1. Samples of the maxillary arch images showing the variety of malocclusions, including pretreatment (A,B), during treatment (CE), and post-treatment (F) images. To retain the aspect ratio of the original images, a black border was added to avoid side stretching to match the 480 × 320 size (A,F). The background change in the image did not affect the results. A sample of the selected rugae area is shown in (C).
Diagnostics 12 02176 g001
Figure 2. Labeling for semantic segmentation. The original image (all permanent teeth) (A); family segmentation: (B,C); family segmentation showing incisors (yellow), canines (pink), premolars (blue), molars (green), and rugae (maroon) (B); label superimposed on original image (C); individual teeth segmentation (D,E); a different color is assigned to every tooth (D); label superimposed on original image (E).
Figure 2. Labeling for semantic segmentation. The original image (all permanent teeth) (A); family segmentation: (B,C); family segmentation showing incisors (yellow), canines (pink), premolars (blue), molars (green), and rugae (maroon) (B); label superimposed on original image (C); individual teeth segmentation (D,E); a different color is assigned to every tooth (D); label superimposed on original image (E).
Diagnostics 12 02176 g002
Figure 3. Occlusal views of the maxillary arches of treated patients with corresponding pre-treatment (left column, A,C) and post-treatment (right column, B,D) images. A total of 47 such pairs were used to test the robustness of the trained network to identify the teeth after their positions were altered through orthodontic treatment.
Figure 3. Occlusal views of the maxillary arches of treated patients with corresponding pre-treatment (left column, A,C) and post-treatment (right column, B,D) images. A total of 47 such pairs were used to test the robustness of the trained network to identify the teeth after their positions were altered through orthodontic treatment.
Diagnostics 12 02176 g003

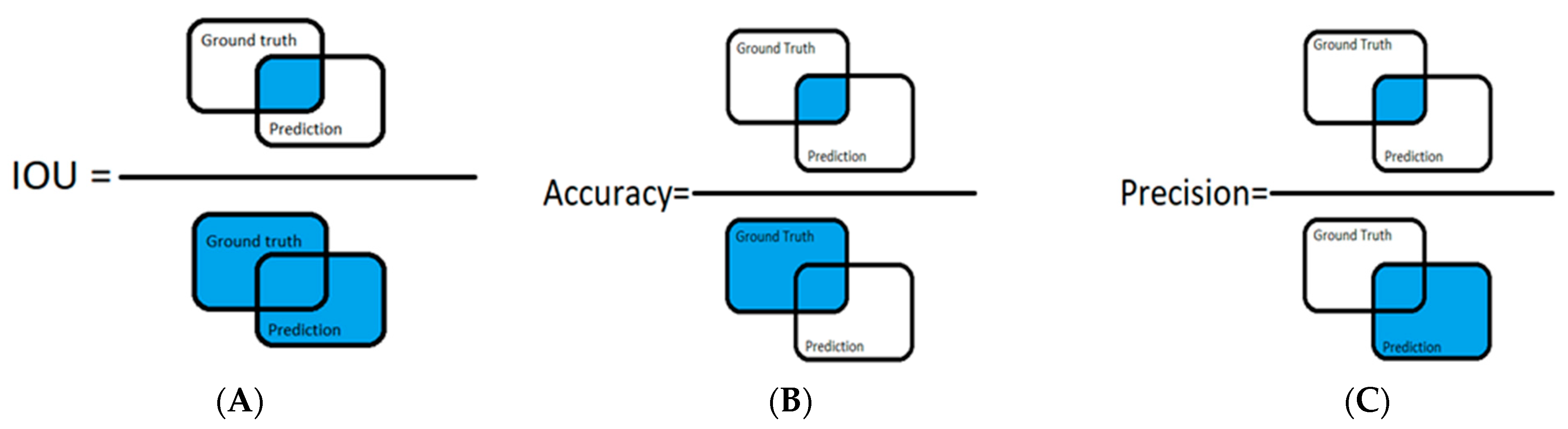

Figure 4. IoU (A), Accuracy (B), and Precision Representation (C).
Figure 4. IoU (A), Accuracy (B), and Precision Representation (C).
Diagnostics 12 02176 g004

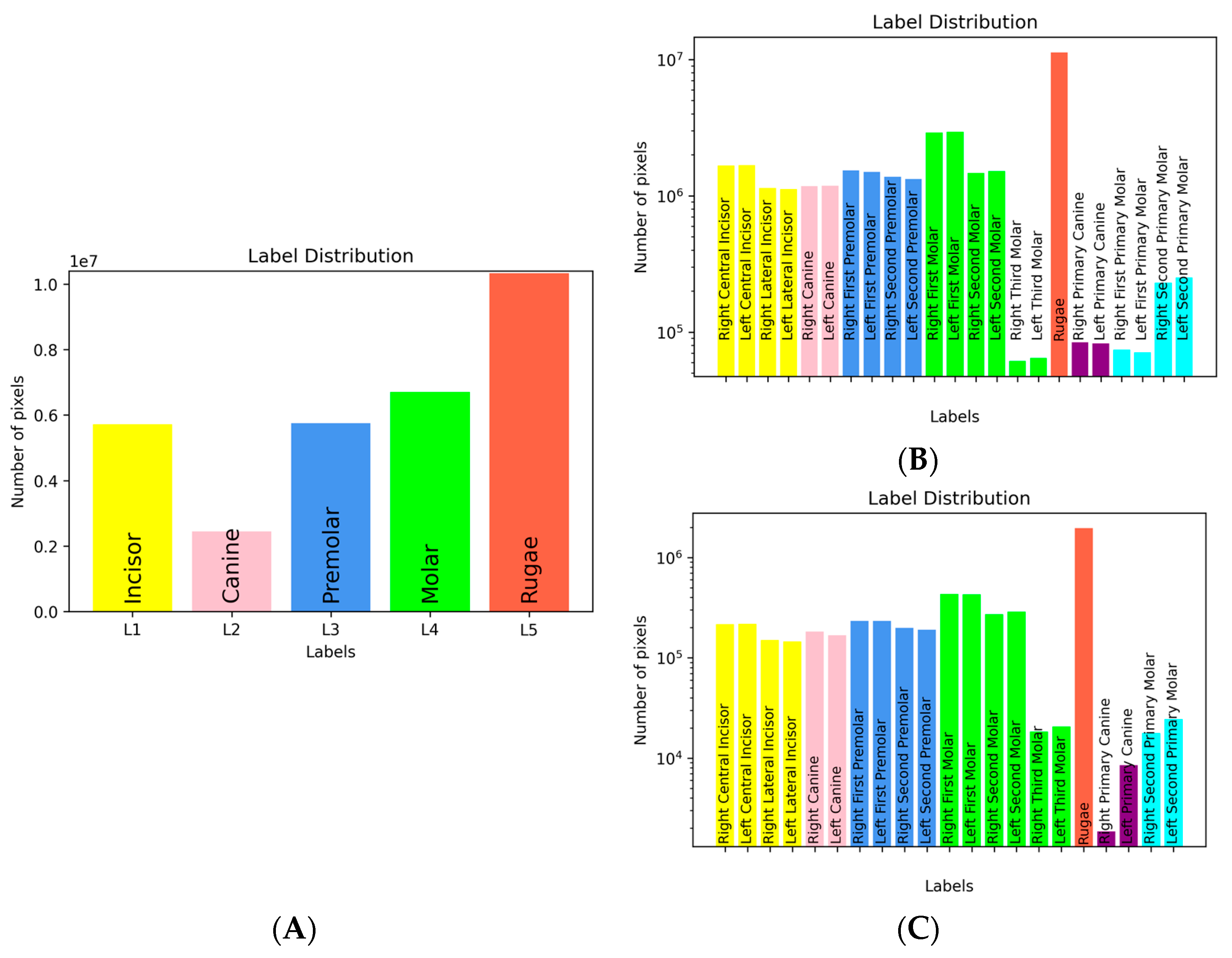

Figure 5. Statistics of the labeling schemes: Family of teeth labeling scheme: the rugae labels are the highest, whereas canine labels are the lowest, while those of the molars, premolars, and incisors were comparable (A); labeling scheme for individual adult teeth: the number of rugae pixels is greatest, and those associated with individual adult teeth are comparable (B); distribution of paired teeth labeling (C).
Figure 5. Statistics of the labeling schemes: Family of teeth labeling scheme: the rugae labels are the highest, whereas canine labels are the lowest, while those of the molars, premolars, and incisors were comparable (A); labeling scheme for individual adult teeth: the number of rugae pixels is greatest, and those associated with individual adult teeth are comparable (B); distribution of paired teeth labeling (C).
Diagnostics 12 02176 g005
Figure 6. Family of teeth/rugae average sample result for DenseNet, (AC); Family of teeth average sample result for SegNet (DF); original images (A,D); image labels (B,E); image predictions (C,F).
Figure 6. Family of teeth/rugae average sample result for DenseNet, (AC); Family of teeth average sample result for SegNet (DF); original images (A,D); image labels (B,E); image predictions (C,F).
Diagnostics 12 02176 g006
Figure 7. Data augmentation via rotation and perspective shrinking: Original image (A); 90° rotation (B); 180° rotation (C); 270° rotation (D); perspective (E).
Figure 7. Data augmentation via rotation and perspective shrinking: Original image (A); 90° rotation (B); 180° rotation (C); 270° rotation (D); perspective (E).
Diagnostics 12 02176 g007
Figure 8. Individual Teeth Labeling results for SegNet including rotation dataset: original images (A,D,G); image labels (B,E,H); image predictions (C,F,I). In the first row (AC) is the worst prediction is shown because the operator labeled the malaligned permanent lateral incisor, discarding the primary lateral (B), whereas the machine recognized the latter (C); in the second row (DF) an average prediction is shown; the best result is shown in the third row (GI).
Figure 8. Individual Teeth Labeling results for SegNet including rotation dataset: original images (A,D,G); image labels (B,E,H); image predictions (C,F,I). In the first row (AC) is the worst prediction is shown because the operator labeled the malaligned permanent lateral incisor, discarding the primary lateral (B), whereas the machine recognized the latter (C); in the second row (DF) an average prediction is shown; the best result is shown in the third row (GI).
Diagnostics 12 02176 g008
Figure 9. Mislabeling due to missing teeth: The original image (A); the ground truth label (B); the image prediction from the model (C).
Figure 9. Mislabeling due to missing teeth: The original image (A); the ground truth label (B); the image prediction from the model (C).
Diagnostics 12 02176 g009
Table 1. The image count and labeling scheme of the original and expanded datasets.
Table 1. The image count and labeling scheme of the original and expanded datasets.
TrainValidateTestTotal
Family of teeth labeling scheme
Semantic Segmentation
Count5865380719
Percent82%7%11%100%
Individual teeth labeling scheme
Semantic Segmentation
Count6416492797
Percent80%8%12%100%
Table 2. Model architecture comparison on tooth family labels.
Table 2. Model architecture comparison on tooth family labels.
ModelMobilUNet SkipAdapNetFC-DenseNet56SegNet
ClassPer-class accuracy
Incisor69.1569.770.2371.32
Canine51.6549.5956.1455.66
Premolar66.7657.7667.3670.36
Molar66.8953.1759.5466.02
Rugae80.1781.1282.9282.67
Void88.1590.8889.2588.47
Average accuracy82.6383.4383.5083.49
Average precision82.8084.5883.8083.47
Average mean IoU score53.6853.2354.9555.99
Table 3. Model architecture comparison on specific tooth labels.
Table 3. Model architecture comparison on specific tooth labels.
ModelAvg. AccuracyAvg. PrecisionMean IoU Score
DenseNet81.8482.4145.89
SegNet82.3281.9349.53
DenseNet-rotated95.0095.2385.40
SegNet-rotated95.1995.4086.66
DenseNet-rotation and perspective94.6894.7784.19
SegNet-rotation and perspective65.0981.287.90
Table 4. Model architecture comparison on specific tooth labels with rotation for all architecture candidates.
Table 4. Model architecture comparison on specific tooth labels with rotation for all architecture candidates.
ModelMobilUNet SkipAdapNetFC-DenseNet56SegNet
Right Central Incisor93.4593.2794.1293.75
Left Central Incisor93.0492.4894.1494.39
Right Lateral Incisor91.0290.9991.4291.61
Left Lateral Incisor91.5391.0993.2492.28
Right Canine92.7091.7892.0692.36
Left Canine91.6290.8192.4492.73
Right 1st Premolar93.1992.8893.2894.18
Left 1st Premolar92.3691.9694.2393.25
Right 2nd Premolar89.8490.8788.8691.49
Left 2nd Premolar90.9990.0693.0492.03
Right 1st Molar94.2092.8093.2994.58
Left 1st Molar94.4690.7092.7292.62
Right 2nd Molar92.6691.3293.0392.39
Left 2nd Molar92.3091.0093.5594.46
Right 3rd Molar96.7097.3896.7697.22
Left 3rd Molar95.7495.9095.5196.20
Right Primary Canine97.8399.7798.0999.68
Left Primary Canine98.2697.9996.6998.84
Right 1st Primary Molar98.7398.6498.7099.23
Left 1st Primary Molar96.7797.2697.0898.54
Right 2nd Primary Molar98.7698.1798.6199.58
Left 2nd Primary Molar98.6097.4097.5598.81
Rugae89.3688.0888.6588.77
Void96.6896.8297.1797.07
Average accuracy94.8294.5595.0095.19
Average precision95.0394.7695.2395.40
Average mean IoU score84.9284.4285.4086.66
Table 5. Dataset analysis results.
Table 5. Dataset analysis results.
Average mIoU Values
Teeth Pre-TreatmentPost-Treatment
Right Central Incisor 86.2%86.9%85.5%
Left Central Incisor 85.8%86.0%85.6%
Right Lateral Incisor 84.7%84.5%84.9%
Left Lateral Incisor 82.6%82.2%83.0%
Right Canine 86.5%84.5%88.5%
Left Canine 81.6%78.4%84.7%
Right 1st Premolar 90.6%89.3%92.0%
Left 1st Premolar 90.9%90.7%91.2%
Right 2nd Premolar 87.0%87.5%86.5%
Left 2nd Premolar 86.7%89.3%84.2%
Right 1st Molar 91.6%91.8%91.4%
Left 1st Molar 89.1%87.5%90.6%
Right 2nd Molar 81.4%79.1%83.5%
Left 2nd Molar 83.2%78.1%87.6%
Rugae78.6%
Average accuracy93.8%
Average precision94.3%
All teeth and rugae average mIoU82.9%
Teeth only average mIoU86.2%
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

El Bsat, A.R.; Shammas, E.; Asmar, D.; Sakr, G.E.; Zeno, K.G.; Macari, A.T.; Ghafari, J.G. Semantic Segmentation of Maxillary Teeth and Palatal Rugae in Two-Dimensional Images. Diagnostics 2022, 12, 2176. https://doi.org/10.3390/diagnostics12092176

AMA Style

El Bsat AR, Shammas E, Asmar D, Sakr GE, Zeno KG, Macari AT, Ghafari JG. Semantic Segmentation of Maxillary Teeth and Palatal Rugae in Two-Dimensional Images. Diagnostics. 2022; 12(9):2176. https://doi.org/10.3390/diagnostics12092176

Chicago/Turabian Style

El Bsat, Abdul Rehman, Elie Shammas, Daniel Asmar, George E. Sakr, Kinan G. Zeno, Anthony T. Macari, and Joseph G. Ghafari. 2022. "Semantic Segmentation of Maxillary Teeth and Palatal Rugae in Two-Dimensional Images" Diagnostics 12, no. 9: 2176. https://doi.org/10.3390/diagnostics12092176

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
