Article

Exercise-Induced Electrocardiographic Changes in Healthy Young Males with Early Repolarization Pattern

by
Loránd Kocsis
1,2,
Zsuzsanna Pap
2,*,
Szabolcs Attila László
3,
Hunor Gábor-Kelemen
1,
István Adorján Szabó
1,
Erhard Heidenhoffer
1 and
Attila Frigy
1,4
1
Department of Cardiology, Clinical County Hospital Mures, 540103 Targu Mures, Romania
2
Department of Anatomy and Embryology, George Emil Palade University of Medicine, Pharmacy, Science and Technology of Targu Mures, 540103 Targu Mures, Romania
3
Department of Pneumology, Clinical County Hospital Mures, 540103 Targu Mures, Romania
4
Department of Internal Medicine IV, George Emil Palade University of Medicine, Pharmacy, Sciences and Technology of Targu Mures, 540103 Targu Mures, Romania
*
Author to whom correspondence should be addressed.
Diagnostics 2024, 14(10), 980; https://doi.org/10.3390/diagnostics14100980
Submission received: 18 April 2024 / Revised: 4 May 2024 / Accepted: 7 May 2024 / Published: 8 May 2024
(This article belongs to the Section Medical Imaging and Theranostics)

Abstract

:
Background: Exercise-induced modifications in ECG parameters among individuals with an early repolarization pattern (ERP) have not been evaluated in detail. We aimed to assess this phenomenon, with potential associations with arrhythmogenesis. Methods: Twenty-three young, healthy males with ERP (ERP+) participated in this study, alongside a control group, which consisted of nineteen healthy males without ERP (ERP−). ECGs at baseline, at peak exercise (Bruce protocol), and during the recovery phase were analyzed and compared between the two groups. Results: The treadmill test demonstrated strong cardiovascular fitness, with similar chronotropic and pressor responses in both groups. In the baseline ECGs, the QRS complex and the QT interval were shorter in the ERP+ group. During exercise, the P-wave duration was significantly longer and the QRS was narrower in the ERP+ group. In the recovery phase, there was a longer P wave and a narrower QRS in the ERP+ group. During the treadmill test, the J wave disappeared or did not meet the criteria required for ERP diagnosis. Conclusions: The slowed intra-atrial conduction found during exercise could be predictive of atrial arrhythmogenesis in the setting of ERP. The disappearing of J waves during exercise, due to increased sympathetic activity, has potential clinical significance.

1. Introduction

The early repolarization pattern (ERP) refers to the presence of a notch- or slur-like abnormality observable on an electrocardiogram (ECG) at the end of the QRS complex, also known as the J wave (Figure 1), which is traditionally considered to be a benign phenomenon. However, recent studies have confirmed an association between the ERP and life-threatening ventricular arrhythmias (early repolarization syndrome—ERS), particularly ventricular tachycardia (VT) and ventricular fibrillation (VF) [1,2].
The prevalence of ERP in the inferior and/or lateral leads ranges from 1% to 31% in the general population and is between 15% and 70% in individuals who have experienced VF [3,4,5]. It is more common in young people, males, and athletes [6,7].
The pathophysiological mechanism behind the generation of the J wave is not yet fully understood. According to the theory developed by Antzelevitch et al. [1], an increased notch appears in the first phase of the action potential in the epicardial myocardium compared to the endocardial layer. This abnormality has been explained, among other factors, by an increase in the transient outward potassium current, attributed to a genetic mutation. Due to the varied distribution of the transient outward current, an increase in the transmural voltage gradient occurs, which manifests as a J wave on the ECG. It has subsequently been proven that dysfunction in sodium, calcium, and ATP-dependent potassium channels can also lead to the appearance of a J wave [1]. According to Haissaguerre et al., there is evidence that structural abnormalities also contribute to the genesis of the J wave, which delay the conduction of impulses at the level of the epicardium, thus inducing the appearance of the J wave [8] (the “late depolarization” theory).
ERPs are associated with bradycardia, prolonged QRS duration, short QT intervals, and various other ECG abnormalities that have been proven to correlate with arrhythmias [9,10]. Notably, individuals with ERPs have a higher arrhythmia risk when the J-wave amplitude exceeds 2 mm or is located in the inferior or infero-lateral leads, especially if the J wave is followed by a horizontal or descending ST segment [3,7,11].
Physical activity is known to reduce cardiovascular risk and mortality, but it also significantly alters certain ECG parameters. Excessive exertion is linked to a higher incidence of sudden cardiac death during and post-exercise, making exercise-induced ECG changes a potentially valuable predictor of the arrhythmia risk [12,13,14,15,16].
Exercise-induced modifications in ECG parameters among individuals with an ERP have not been evaluated in detail. The objective of our study was to investigate the impact of exercise and the post-exercise recovery period on ECG parameters with potential predictive value for arrhythmic events in individuals with ERPs.

2. Materials and Methods

2.1. Study Population

Individuals aged between 18 and 28, with and without ERPs, identified from the ECG database of Mures County Clinical Hospital, Targu Mures, Romania, were invited to participate in our study. Twenty-three young (22.9 ± 1.6 years), healthy males who met the ERP criteria (ERP+ group) published by Macfarlane et al. [17] were included, alongside a control group of nineteen individuals (22.1 ± 1.9 years) without ERP (ERP− group).
Upon registration, each participant provided signed informed consent for participation, completed a comprehensive medical history questionnaire, and underwent a physical examination. All participants were free from known diseases, including cardiovascular conditions; exhibited normal findings during physical examinations; and were not on any active medication. Subsequently, resting ECGs were recorded, and echocardiographic examinations were performed, revealing that all participants had normal baseline ECG and echocardiography findings.
This study received approval from the Ethical Committee of Research at the George Emil Palade University of Medicine, Pharmacy, Science, and Technology of Targu Mures, Romania (CEC 129/2018).

2.2. ECG Recordings and Treadmill Exercise Testing

In the 6 h prior to the stress test, participants were instructed to avoid consuming alcohol, coffee, or any supplements known to have a stimulating effect.
Each participant underwent a resting standard 12-lead ECG recording, conducted in a supine position, after 10 min of rest. This was followed by a treadmill exercise test using the Bruce protocol, the details of which are shown in Table 1. The exercise testing was conducted until at least 85% of the age-predicted maximum heart rate was achieved.
Data recording was performed with a BTL-08 SD3 ECG device, which was connected to a desktop computer running the BTL CardioPoint software, version 2.27.24476.0. The sampling frequency of the ECG device was 2000 Hz, with a digital resolution of 3.9 μV and an A/D conversion of 13 bits.

2.3. Analysis of ECG Parameters

All ECG measurements were performed at baseline, at peak exercise, and at the end of the first minute of the recovery period. Leads II, III, V2, and V5 were selected for measurements because they provided the most suitable signals for analysis.
The RR interval, P-wave duration, PQ (R) interval, QRS duration, QT interval, and T-peak to T-end time were measured. The repolarization-related intervals (QT, T-peak to T-end) were also corrected for heart rate using the Bazett formula. In addition, we evaluated the presence of atrial and ventricular ectopic beats.
In the ERP+ group, characteristics of the J waves were also assessed, including the amplitude, localization, and morphology of the J wave and the slope of the ST segment.
Measurements were conducted manually, following the current recommendations [18]. During the measurements, the region of interest on the tracing was magnified, and a digital caliper was utilized. The mean value obtained from 5 consecutive beats was calculated for each parameter at baseline, peak exercise, and during the recovery period.

2.4. Statistical Analysis

Descriptive and inferential statistical analyses were performed. Continuous variables were expressed as means ± standard deviations if they were normally distributed, as verified by the Shapiro–Wilk test, or as medians with interquartile ranges (1st quartile–3rd quartile) for non-normally distributed data.
Comparisons between groups (ERP+ vs. ERP−) were performed using Student’s t-test for normally distributed variables and the Mann–Whitney U-test for non-normally distributed variables. Categorical variables were presented as percentages, and between-group differences were assessed using the Chi-square test or Fisher’s exact test when required. A p-value of less than 0.05 was considered statistically significant.
Data analysis was performed using Microsoft Excel, version 2402 (Microsoft Corporation, Redmond, WA, USA) and IBM SPSS Statistics, version 25 (IBM, Armonk, NY, USA).

3. Results

3.1. Clinical Characteristics

In the comparative analysis between the ERP+ and ERP− groups regarding their clinical characteristics, there were no significant differences in terms of the anamnestic profile (Table 2) or regarding age and anthropometric characteristics (Table 3).
During the evaluation of vital signs, the mean resting systolic and diastolic blood pressure levels were near the optimal blood pressure range for both groups, with no significant differences detected. In the ERP+ group, blood pressure exceeded the normal thresholds for two individuals, while in the ERP− group, this was observed in one individual. Except for one case, heart rates were within the normal range. However, when comparing the groups, a significant difference was observed, with the ERP+ group showing a higher average heart rate (Table 3).

3.2. Echocardiographic Characteristics

The echocardiographic examination revealed that all participants had normal baseline echocardiography findings, with no significant differences between the ERP+ and ERP− groups (Table 4).

3.3. Treadmill Exercise Testing

In the evaluation of exercise-induced physiological responses (Table 5), both the ERP+ and ERP− groups achieved high MET values. A significant majority (87% of the ERP+ group and 94% of the ERP− group) surpassed the threshold of 12 METs, which revealed an excellent exercise capacity.
The mean peak heart rate during the treadmill test was 186 bpm for both groups. Additionally, the pressor response, marked by a systolic blood pressure at peak effort exceeding 160 mmHg and a modest rise in diastolic blood pressure at peak, was in the normal range.

3.4. Exercise-Induced ECG Changes

Figure 2 shows a representative example of the ECG modifications observed in individuals with and without ERP during exercise. The baseline values of ECG variables, along with their alterations throughout the exercise and recovery phase, are detailed in Table 6. These variations are further illustrated graphically in Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7.

3.4.1. P-Wave Duration

At baseline, the P-wave duration showed no significant difference between the ERP+ group and the control subjects.
During exercise, the P wave shortened in both groups; nevertheless, this reduction was more pronounced in the control subjects. In the recovery phase, an increase in the P-wave duration was observed in both groups, and the significant difference between them began to decrease, with the p-value approaching the significance threshold (p = 0.043) one minute after the recovery phase.

3.4.2. PR Interval

At baseline, there was no difference in the PR interval between the ERP+ and the ERP− groups.
During peak exercise, both groups showed a shortening of the PR interval, with the interval being shorter in the control subjects; however, this difference did not reach statistical significance (p = 0.076). In the recovery phase, the PR interval lengthened, and the p-value moved further away from the significance threshold.

3.4.3. QRS Duration

The duration of the QRS complex was shorter in the ERP+ group, with the difference being significant at baseline, during peak exercise, and in the recovery phase.
It was observed that the duration of the QRS complex decreased during peak exercise and approached baseline values during the recovery phase in both groups.

3.4.4. QT Interval

At baseline, the QT interval differed among the groups, being shorter in the ERP+ group. During exercise, the QT interval decreased in both groups, with no significant difference between them. During recovery, the QT interval increased in both groups.
Regarding QTc duration, there was no significant difference between the groups at baseline, peak exercise, and during the recovery phase. However, the corrected QT interval was longer at peak exercise and during the recovery period, although this difference was not statistically significant.

3.4.5. T-Peak to T-End Interval

The T-peak to T-end interval was significantly shorter in the ERP+ group before exercise, but the significance level was barely exceeded (p = 0.047); this difference disappeared during peak exercise and the recovery phase.
The T-peak to T-end interval, corrected with the Bazett formula, was similar between the groups both at baseline and during exercise and in the recovery phase.

3.4.6. Atrial and Ventricular Premature Beats

In total, atrial extrasystoles were observed in two subjects in the baseline ECG, one in each group. No atrial extrasystoles were observed at peak exercise and in the recovery phase.
Ventricular extrasystoles did not occur in either group at baseline, during peak exercise, or during the recovery phase.

3.4.7. J-Wave Characteristics

In the ECGs of the 23 individuals diagnosed with ERP, the average J-wave peak was 1.72 ± 0.4 mm, in 6 cases exceeding 2 mm. As for the ERP type, more than two-thirds were classified as type 2, which is characterized by an infero/infero-lateral J-wave localization. Regarding the morphology of the J waves, the notch type was slightly frequent (13 vs. 10 cases), and for the ST-segment slope, the majority (60.8%) were horizontal or downward (Table 7).
Examining the presence of the J wave during the different stages of the stress test, it was observed that the J wave either disappeared or did not meet the Macfarlane criteria [17]. At the end of the first stage of the treadmill exercise, about 40% of cases met the ERP criteria, and at the end of the second stage, less than 10% did. Following this, the J wave disappeared and only reappeared in the recovery phase (Figure 8).

4. Discussion

In this study, our aim was to assess the ECG parameter modifications related to exercise, which could have predictive value for arrhythmic events in individuals with ERP. Given the higher prevalence of ERP among young males and in order to eliminate gender-related ECG variations, this study was limited to male participants.
The ERP+ group was matched with a control group, herein referred to as the ERP− group, whose ECGs showed no ERP. The groups had similar anamnestic profiles and anthropometric parameters. They shared identical family and personal medical history, showed similar mental health parameters, and their behaviors and physical activities were also the same. No significant differences were observed in age, weight, height, and body surface area, and both groups had similar resting blood pressure. This congruence in anamnestic and clinical parameters indicates that these variables probably did not influence the interpretation of the differences observed in ECGs between the groups.
Parameters from the treadmill exercise test demonstrated strong cardiovascular fitness, which is expected in a healthy young population. Participants in both groups displayed similar chronotropic and pressor responses to high-intensity exercise. The heart rate and blood pressure were within the expected ranges for high-intensity exercise, indicating no significant deviations from standard physiological responses in young men [19]. Our findings indicate that the presence of ERP does not affect the chronotropic and pressor responses during exercise.
Heart rate significantly influences electrical stability through its impact on action potential membrane currents, intracellular Ca2+ dynamics, and cellular energy levels. It also reflects the autonomic balance that influences these factors. Studies demonstrate an independent association between increased heart rate and ventricular arrhythmogenesis [20,21]. While most studies report no difference in baseline heart rate between individuals with ERP and control groups [3,4,10], some findings suggest that individuals with ERP may achieve a lower maximum heart rate during exercise [22]. Our results show a slightly higher resting heart rate in individuals with ERP; however, this difference disappeared during peak exercise and in the recovery phase, indicating an adequate sympathetic response to exercise in these individuals.
We examined various intervals on the ECG that characterize the impulse conduction in the heart at baseline, during peak exercise, and in the post-exercise recovery period. There are limited data in the literature about the effect of exercise on ECG parameters among individuals with ERP.
Intra-atrial conduction is characterized by the duration of the P wave and partly by the PR interval. Our results indicate that atrial conduction is similar at baseline and accelerates during exercise in both groups, as was expected in this population [23]. Notably, atrial conduction during peak exercise was significantly slower in subjects with ERP, a difference that persisted at the beginning of the recovery phase, although it decreased and approached the significance threshold. This trend was also observed when evaluating the PR interval, although the difference between the two groups for this parameter did not reach significance. Slower intra-atrial conduction is a well-recognized precursor of atrial arrhythmogenesis [24].
Ventricular depolarization and activation are represented by the QRS complex. Prolonged QRS duration is associated with an increased risk of sudden cardiac death in the general population as well as in individuals with Brugada syndrome [25,26]. It is noteworthy that early repolarization syndrome shares several clinical similarities with Brugada syndrome, and these two pathologies are described in the recent consensus report as the two forms of J-wave syndrome [27]. Paradoxically, our results showed a significantly shorter QRS complex duration in individuals with ERP, both at rest and during exercise. This finding suggests that ventricular depolarization is unlikely to contribute to arrhythmogenesis in individuals with ERP. However, it should be noted that in large-scale studies, QRS duration was identical in individuals with and without ERP [2,3,7].
The repolarization phase of the ventricular myocardium is well characterized by the QT interval and the T-peak–T-end interval. A prolonged QT interval increases the risk of malignant ventricular arrhythmias [16,25], and prolongation of the T-peak–T-end interval has been associated with arrhythmogenesis in J-wave syndromes [28,29]. Our results showed a shorter resting QT time in the ERP+ group, a difference that can be explained by the higher resting heart rate, as it disappeared when comparing the baseline corrected QT interval (QTc) and during exercise, when the heart rate of both groups reached similar values. The T-peak–T-end interval was slightly shorter in the ERP+ group at rest, but this value barely exceeded the significancy threshold. In addition, the T-peak–T-end interval was identical between the groups when corrected with the Bazett formula during the exercise phase.
In our study, we also investigated the effects of exercise on the J wave. It was observed that the J wave disappeared from the ECG during the treadmill test or did not meet the criteria required for ERP diagnosis. A trend was also observed between the degree of exercise and the disappearance of the J wave. Furthermore, the J wave reappeared in the post-exercise period. Similar results were reported by Nouraei et al., who investigated the effect of exercise on the ECG criteria for ERP in their study [30]. The disappearance of the J wave during exertion is probably explained by the increased sympathetic activity. It is known that high vagal tone is associated with the occurrence of ventricular fibrillation, and vagal tone is also increased in individuals with ERP [31,32,33]. Lowering vagal tone could therefore potentially reduce arrhythmogenesis in individuals with ERP.
The main limitation of the present study was the small number of cases, which could lead to a type I error in the statistical analysis. In addition, this study focused exclusively on a young male population. To validate these results, a larger sample and the inclusion of both genders are needed.

5. Conclusions

In healthy young males, the presence of an ERP has no impact on the chronotropic and blood pressure response during exercise. A slowed intra-atrial conduction was observed during exercise in individuals with ERP, which could serve as a predictive factor for atrial arrhythmogenesis. Furthermore, the QRS complex, QT interval, and T-peak–T-end interval were shorter in individuals with ERP in the baseline ECGs. During exercise and the recovery phase, the QRS complex remained shorter, but the differences in the repolarization parameters disappeared. This finding suggests that exercise-related changes in ventricular depolarization and repolarization are unlikely to contribute to arrhythmogenesis in individuals with ERP. It is noteworthy that the J wave disappears due to the increased sympathetic activity during exercise, a phenomenon with potential clinical significance.

Author Contributions

Conceptualization, L.K. and A.F.; methodology, L.K., Z.P., I.A.S. and A.F.; clinical investigations L.K., S.A.L., H.G.-K., I.A.S., E.H. and A.F.; resources, A.F.; data curation, L.K., S.A.L. and A.F; writing—original draft preparation, L.K. and A.F.; writing—review and editing, L.K., Z.P. and A.F.; project administration, L.K. and A.F.; funding acquisition, A.F. All authors have read and agreed to the published version of the manuscript.

Funding

The research was supported by grant nr. 141/26 January 2017 of the Hungarian Academy of Sciences and the Studium-Prospero Foundation.

Institutional Review Board Statement

This study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Ethical Committee of Research of the University of Medicine and Pharmacy of Targu Mures, Romania (CEC 129/5 July 2018).

Informed Consent Statement

Informed consent was obtained from all subjects involved in this study.

Data Availability Statement

The dataset used for the current study is available from the corresponding author on reasonable request.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Antzelevitch, C.; Dendramis, G. Genetics, Molecular Biology, and Emerging Concepts of Early Repolarization Syndrome. In Cardiac Repolarization: Basic Science and Clinical Management, 1st ed.; El-Sherif, N., Ed.; Springer Nature: Cham, Switzerland, 2020; pp. 255–262. [Google Scholar]
  2. El-Azrak, M.; Darar, C.; Boutaybi, M.; Ouafi, N.E.; Bazid, Z. Sudden cardiac death risk Stratification of the Early repolarization Syndrome: An Updated Review of the literature. Curr. Cardiol. Rep. 2023, 25, 203–212. [Google Scholar] [CrossRef] [PubMed]
  3. Tikkanen, J.T.; Anttonen, O.; Junttila, M.J.; Aro, A.L.; Kerola, T.; Rissanen, H.A.; Reunanen, A.; Huikuri, H.V. Long-Term Outcome Associated with Early Repolarization on Electrocardiography. N. Engl. J. Med. 2009, 361, 2529–2537. [Google Scholar] [CrossRef] [PubMed]
  4. Sinner, M.F.; Reinhard, W.; Müller, M.; Beckmann, B.-M.; Martens, E.; Perz, S.; Pfeufer, A.; Winogradow, J.; Stark, K.; Meisinger, C.; et al. Association of Early Repolarization Pattern on ECG with Risk of Cardiac and All-Cause Mortality: A Population-Based Prospective Cohort Study (MONICA/KORA). PLoS Med. 2010, 7, e1000314. [Google Scholar] [CrossRef] [PubMed]
  5. Haruta, D.; Matsuo, K.; Tsuneto, A.; Ichimaru, S.; Hida, A.; Sera, N.; Imaizumi, M.; Nakashima, E.; Maemura, K.; Akahoshi, M. Incidence and Prognostic Value of Early Repolarization Pattern in the 12-Lead Electrocardiogram. Circulation 2011, 123, 2931–2937. [Google Scholar] [CrossRef] [PubMed]
  6. Hünük, B. The Impact of Testosterone Levels on J-Wave Patterns Observed in Healthy Turkish Males. Eur. Res. J. 2020, 6, 438–448. [Google Scholar] [CrossRef]
  7. Tikkanen, J.T.; Junttila, M.J.; Anttonen, O.; Aro, A.L.; Luttinen, S.; Kerola, T.; Sager, S.J.; Rissanen, H.A.; Myerburg, R.J.; Reunanen, A.; et al. Early Repolarization: Electrocardiographic Phenotypes Associated With Favorable Long-Term Outcome. Circulation 2011, 123, 2666–2673. [Google Scholar] [CrossRef] [PubMed]
  8. Haïssaguerre, M.; Nademanee, K.; Hocini, M.; Cheniti, G.; Duchateau, J.; Frontera, A.; Sacher, F.; Derval, N.; Denis, A.; Pambrun, T.; et al. Depolarization versus Repolarization Abnormality Underlying Inferolateral J-Wave Syndromes: New Concepts in Sudden Cardiac Death with Apparently Normal Hearts. Heart Rhythm. 2019, 16, 781–790. [Google Scholar] [CrossRef] [PubMed]
  9. Kocsis, L.; Pap, Z.; Frigy, A. Cardiac Morphofunctional Characteristics of Individuals with Early Repolarization Pattern: A Literature Review. J. Cardiovasc. Dev. Dis. 2023, 10, 4. [Google Scholar] [CrossRef]
  10. Frigy, A.; Gábor-Kelemen, H.; László, S.A.; Szabó, I.A.; Kocsis, L. Electrocardiographic Changes Associated with Early Repolarization Pattern in Healthy Young Males. Medicina 2022, 58, 1048. [Google Scholar] [CrossRef]
  11. Rosso, R.; Halkin, A.; Viskin, S. J Waves and Early Repolarization: Do Not Confuse Me with the Facts! Heart Rhythm. 2012, 9, 1603–1604. [Google Scholar] [CrossRef]
  12. Eijsvogels, T.M.H.; Fernandez, A.B.; Thompson, P.D. Are There Deleterious Cardiac Effects of Acute and Chronic Endurance Exercise? Physiol. Rev. 2016, 96, 99–125. [Google Scholar] [CrossRef] [PubMed]
  13. Harmon, K.G.; Asif, I.M.; Maleszewski, J.J.; Owens, D.S.; Prutkin, J.M.; Salerno, J.C.; Zigman, M.L.; Ellenbogen, R.; Rao, A.L.; Ackerman, M.J.; et al. Incidence, Cause, and Comparative Frequency of Sudden Cardiac Death in National Collegiate Athletic Association Athletes: A Decade in Review. Circulation 2015, 132, 10–19. [Google Scholar] [CrossRef] [PubMed]
  14. Corrado, D.; Basso, C.; Pavei, A.; Michieli, P.; Schiavon, M.; Thiene, G. Trends in Sudden Cardiovascular Death in Young Competitive Athletes After Implementation of a Preparticipation Screening Program. JAMA 2006, 296, 1593. [Google Scholar] [CrossRef] [PubMed]
  15. Simoons, M.L.; Hugenholtz, P.G. Gradual Changes of ECG Waveform during and after Exercise in Normal Subjects. Circulation 1975, 52, 570–577. [Google Scholar] [CrossRef] [PubMed]
  16. Mandala, S.; Di, T.C. ECG Parameters for Malignant Ventricular Arrhythmias: A Comprehensive Review. J. Med. Biol. Eng. 2017, 37, 441–453. [Google Scholar] [CrossRef]
  17. Macfarlane, P.W.; Antzelevitch, C.; Haissaguerre, M.; Huikuri, H.V.; Potse, M.; Rosso, R.; Sacher, F.; Tikkanen, J.T.; Wellens, H.; Yan, G.-X. The Early Repolarization Pattern. J. Am. Coll. Cardiol. 2015, 66, 470–477. [Google Scholar] [CrossRef]
  18. Rautaharju, P.M.; Surawicz, B.; Gettes, L.S. AHA/ACCF/HRS Recommendations for the Standardization and Interpretation of the Electrocardiogram. J. Am. Coll. Cardiol. 2009, 53, 982–991. [Google Scholar] [CrossRef] [PubMed]
  19. Wuestenfeld, J.C.; Baersch, F.; Ruedrich, P.; Paech, C.; Wolfarth, B. Blood Pressure Response to Dynamic Exercise Testing in Adolescent Elite Athletes, What Is Normal? Front. Pediatr. 2022, 10, 974926. [Google Scholar] [CrossRef]
  20. Zaza, A.; Ronchi, C.; Malfatto, G. Arrhythmias and Heart Rate: Mechanisms and Significance of a Relationship. Arrhythm. Electrophysiol. Rev. 2018, 7, 232–237. [Google Scholar] [CrossRef]
  21. Soliman, E.Z.; Elsalam, M.A.; Li, Y. The Relationship between High Resting Heart Rate and Ventricular Arrhythmogenesis in Patients Referred to Ambulatory 24 h Electrocardiographic Recording. Europace 2010, 12, 261–265. [Google Scholar] [CrossRef]
  22. Cay, S.; Cagirci, G.; Atak, R.; Balbay, Y.; Demir, A.D.; Aydogdu, S. Heart Rate Profile during Exercise in Patients with Early Repolarization. Chin. Med. J. Engl. 2010, 123, 2305–2309. [Google Scholar] [PubMed]
  23. Thomas, G.S.; Samtani, S.R.; Ellestad, M.H. Interpretation of the ECG during Exercise and Recovery. In Ellestad’s Stress Testing; Oxford University Press: Oxford, UK, 2018; pp. 160–198. [Google Scholar] [CrossRef]
  24. Johner, N.; Namdar, M.; Shah, D.C. Intra- and Interatrial Conduction Abnormalities: Hemodynamic and Arrhythmic Significance. J. Interv. Card. Electrophysiol. 2018, 52, 293–302. [Google Scholar] [CrossRef] [PubMed]
  25. Tikkanen, J.T.; Kentta, T.; Porthan, K.; Anttonen, O.; Eranti, A.; Aro, A.L.; Kerola, T.; Rissanen, H.A.; Knekt, P.; Heliövaara, M.; et al. Risk of Sudden Cardiac Death Associated with QRS, QTc, and JTc Intervals in the General Population. Heart Rhythm. 2022, 19, 1297–1303. [Google Scholar] [CrossRef] [PubMed]
  26. Rattanawong, P.; Kewcharoen, J.; Techorueangwiwat, C.; Kanitsoraphan, C.; Mekritthikrai, R.; Prasitlumkum, N.; Puttapiban, P.; Mekraksakit, P.; Vutthikraivit, W.; Sorajja, D. Wide QRS Complex and the Risk of Major Arrhythmic Events in Brugada Syndrome Patients: A Systematic Review and Meta-analysis. J. Arrhythm. 2020, 36, 143–152. [Google Scholar] [CrossRef] [PubMed]
  27. Antzelevitch, C.; Yan, G.; Ackerman, M.J.; Borggrefe, M.; Corrado, D.; Guo, J.; Gussak, I.; Hasdemir, C.; Horie, M.; Huikuri, H.; et al. J-Wave Syndromes Expert Consensus Conference Report: Emerging Concepts and Gaps in Knowledge. J. Arrhythm. 2016, 32, 315–339. [Google Scholar] [CrossRef] [PubMed]
  28. Tse, G.; Gong, M.; Li, C.K.H.; Leung, K.S.K.; Georgopoulos, S.; Bazoukis, G.; Letsas, K.P.; Sawant, A.C.; Mugnai, G.; Wong, M.C.S.; et al. Tpeak-Tend, Tpeak-Tend/QT Ratio and Tpeak-Tend Dispersion for Risk Stratification in Brugada Syndrome: A Systematic Review and Meta-analysis. J. Arrhythm. 2018, 34, 587–597. [Google Scholar] [CrossRef] [PubMed]
  29. Yoon, N.; Hong, S.N.; Cho, J.G.; Jeong, H.K.; Lee, K.H.; Park, H.W. Experimental Verification of the Value of the T peak –T end Interval in Ventricular Arrhythmia Inducibility in an Early Repolarization Syndrome Model. Cardiovasc. Electrophysiol. 2019, 30, 2098–2105. [Google Scholar] [CrossRef]
  30. Nouraei, H.; Rabkin, S.W. The Effect of Exercise on the ECG Criteria for Early Repolarization Pattern. J. Electrocardiol. 2019, 55, 59–64. [Google Scholar] [CrossRef]
  31. Fukuda, T.; Shinohara, T.; Yonezu, K.; Mitarai, K.; Hirota, K.; Kondo, H.; Fukui, A.; Akioka, H.; Teshima, Y.; Yufu, K.; et al. Vagal Response Is Involved in the Occurrence of Ventricular Fibrillation in Patients with Early Repolarization Syndrome. Heart Rhythm. 2023, 20, 879–885. [Google Scholar] [CrossRef]
  32. Matsuo, K. The Circadian Pattern of the Development of Ventricular Fibrillation in Patients with Brugada Syndrome. European Heart J. 1999, 20, 465–470. [Google Scholar] [CrossRef]
  33. Capilupi, M.J.; Kerath, S.M.; Becker, L.B. Vagus Nerve Stimulation and the Cardiovascular System. Cold Spring Harb. Perspect. Med. 2020, 10, a034173. [Google Scholar] [CrossRef] [PubMed]

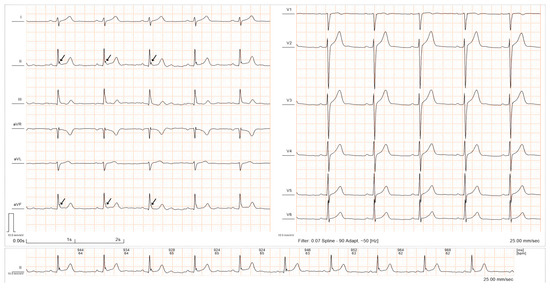

Figure 1. ECG recording showing ERP with a notching morphology in the inferior leads (from the authors’ personal collection).
Figure 1. ECG recording showing ERP with a notching morphology in the inferior leads (from the authors’ personal collection).
Diagnostics 14 00980 g001

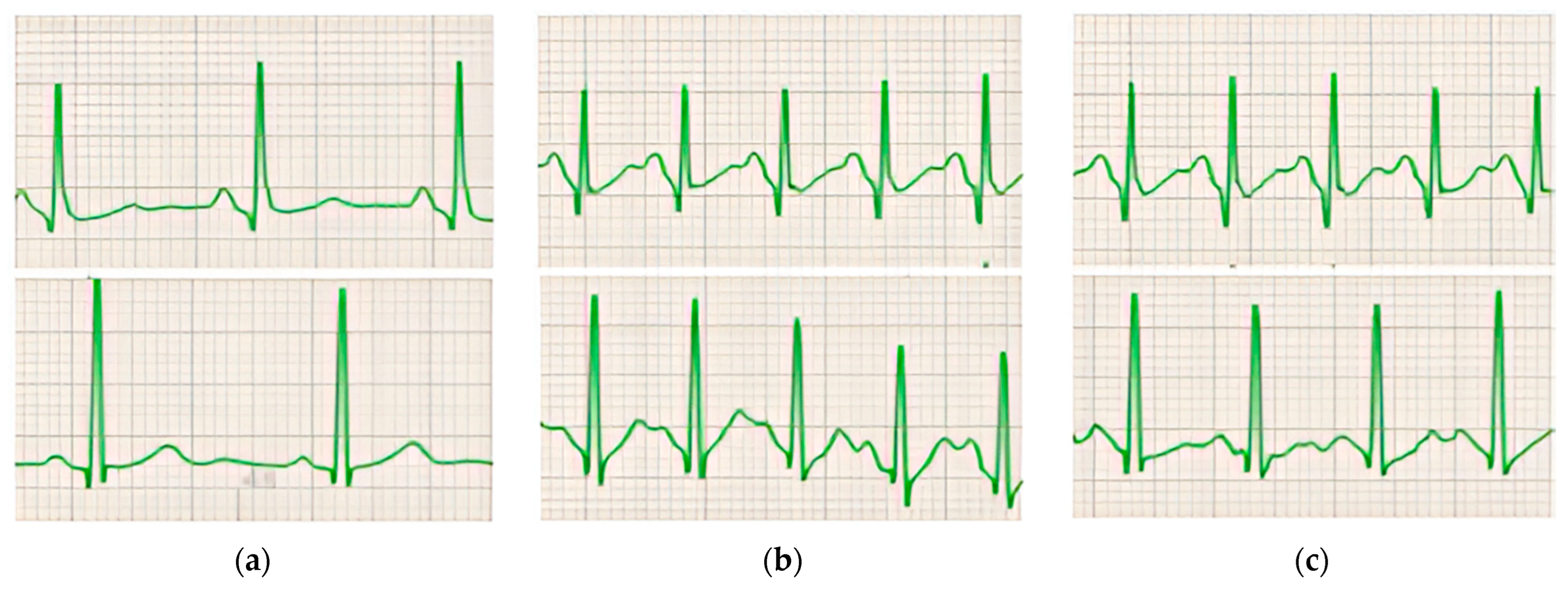

Figure 2. ECG examples obtained during exercise. Typical ECGs (lead II) recorded within 1 individual from each group (ERP+ in the upper row, ERP− in the lower row) at baseline (a), at peak exercise (b), and during recovery from exercise (c). The standard 25 mm/s and 10 mm/mV calibrations were used.
Figure 2. ECG examples obtained during exercise. Typical ECGs (lead II) recorded within 1 individual from each group (ERP+ in the upper row, ERP− in the lower row) at baseline (a), at peak exercise (b), and during recovery from exercise (c). The standard 25 mm/s and 10 mm/mV calibrations were used.
Diagnostics 14 00980 g002

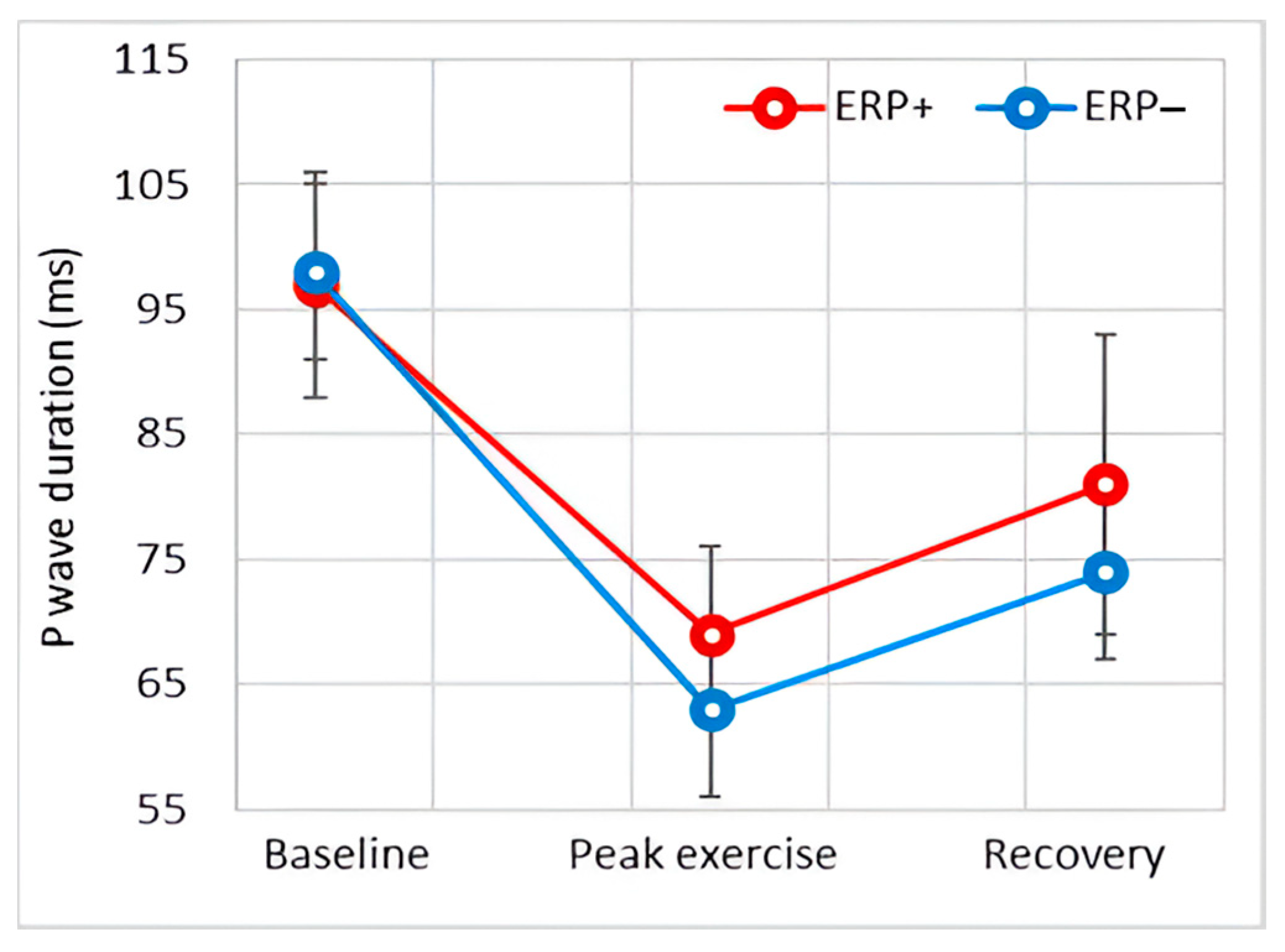

Figure 3. Effect of exercise on P-wave duration.
Figure 3. Effect of exercise on P-wave duration.
Diagnostics 14 00980 g003

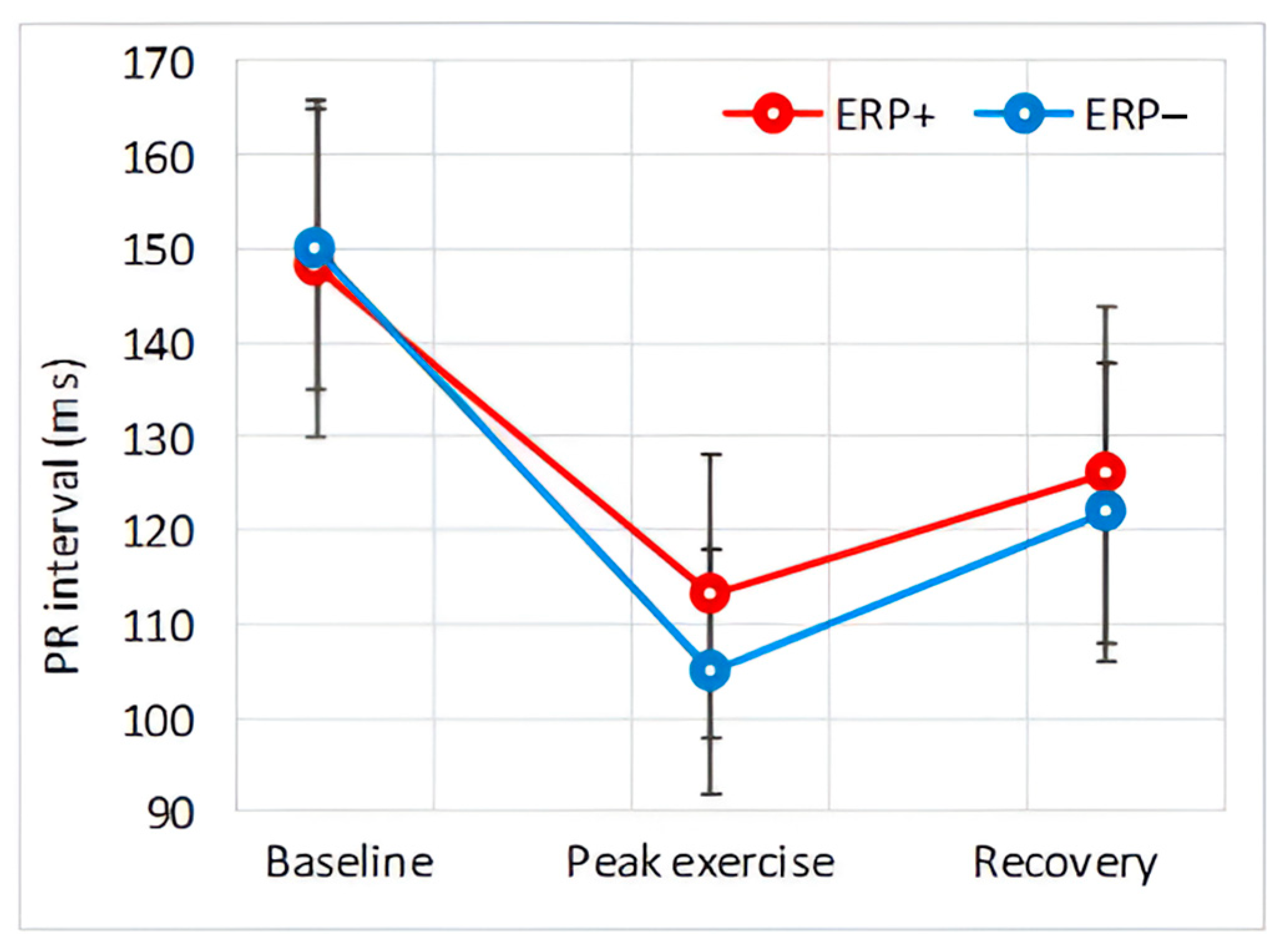

Figure 4. Effect of exercise on PR interval.
Figure 4. Effect of exercise on PR interval.
Diagnostics 14 00980 g004

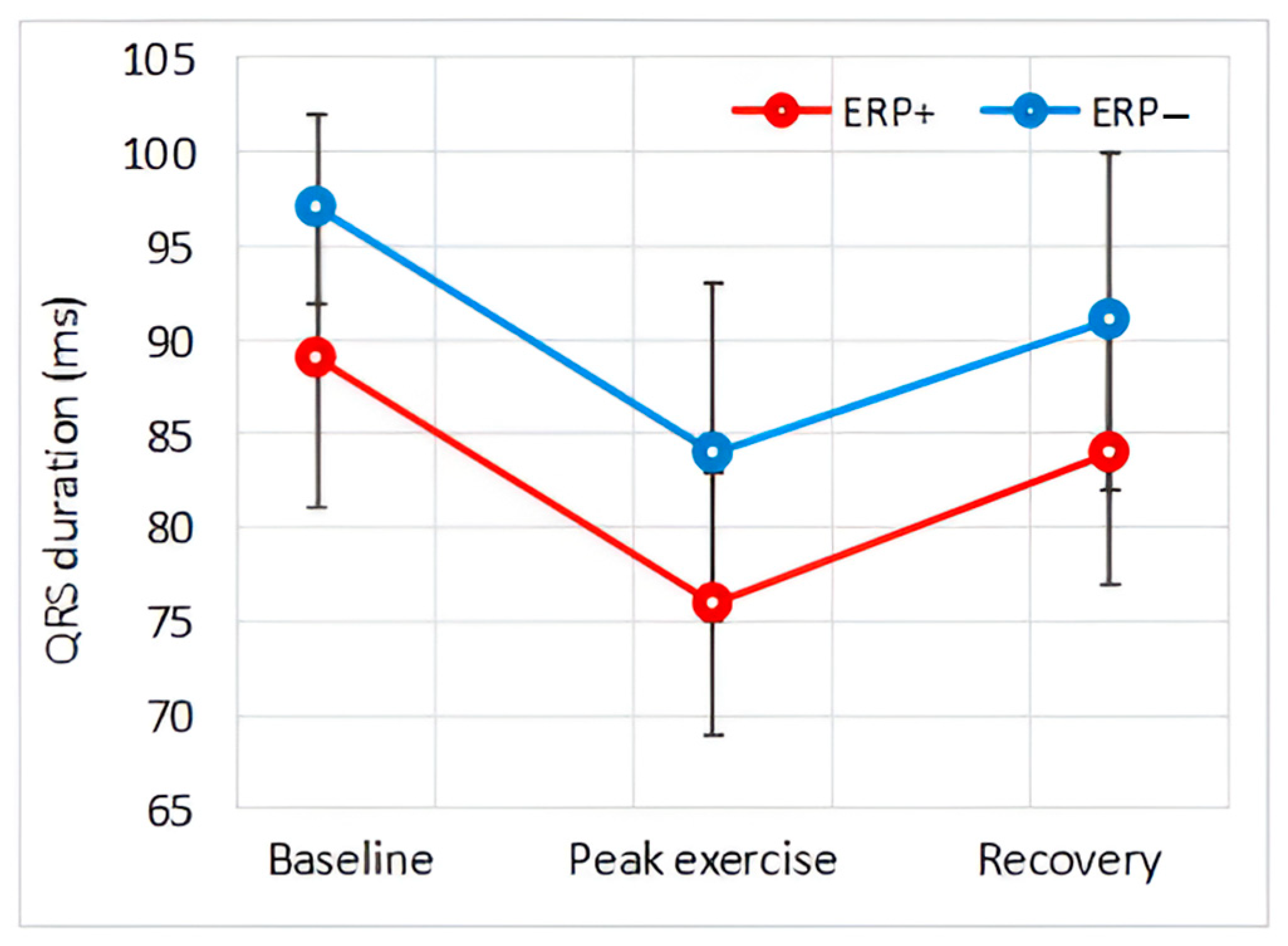

Figure 5. Effect of exercise on QRS duration.
Figure 5. Effect of exercise on QRS duration.
Diagnostics 14 00980 g005

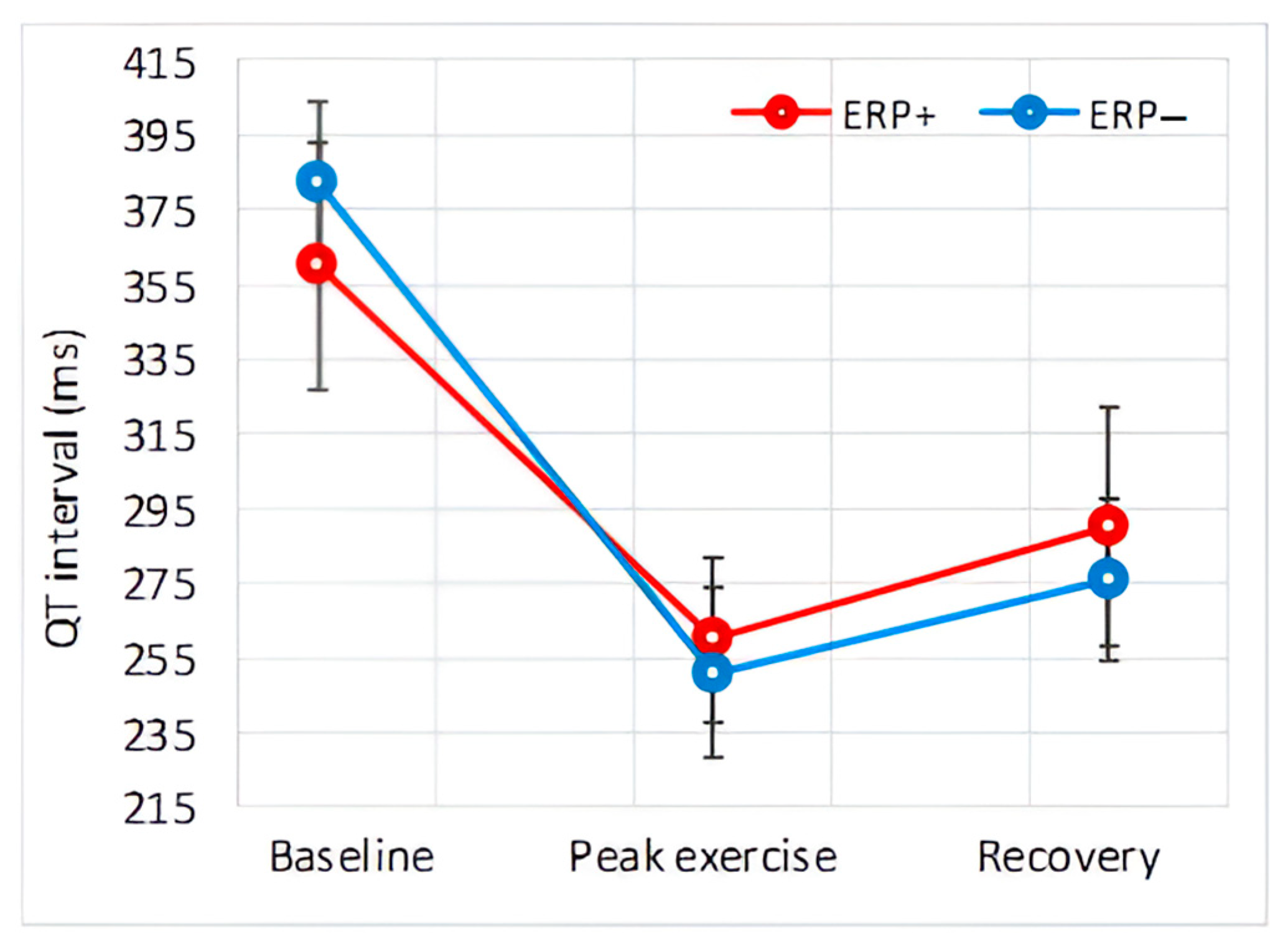

Figure 6. Effect of exercise on QT interval.
Figure 6. Effect of exercise on QT interval.
Diagnostics 14 00980 g006

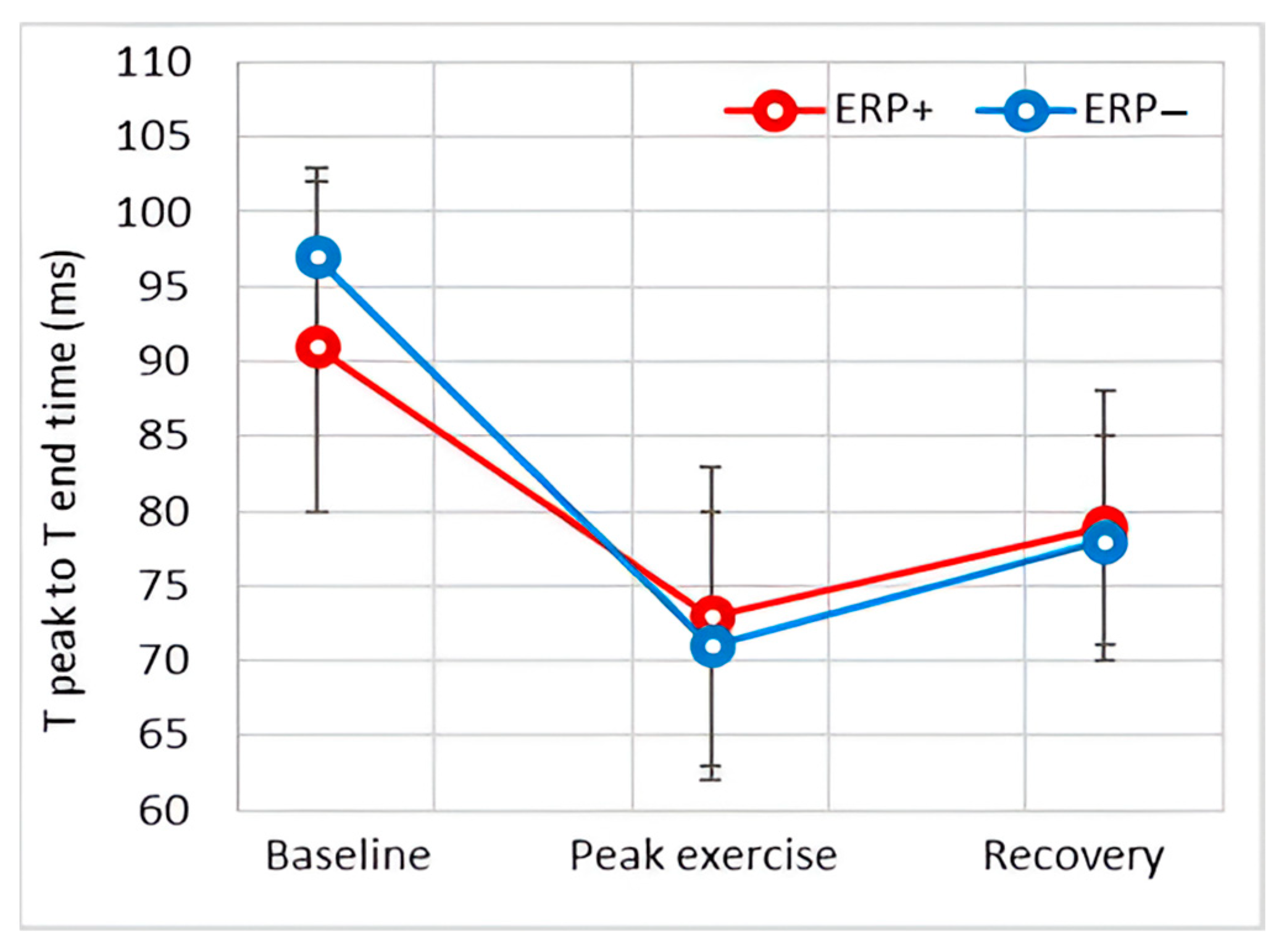

Figure 7. Effect of exercise on T-peak to T-end interval.
Figure 7. Effect of exercise on T-peak to T-end interval.
Diagnostics 14 00980 g007

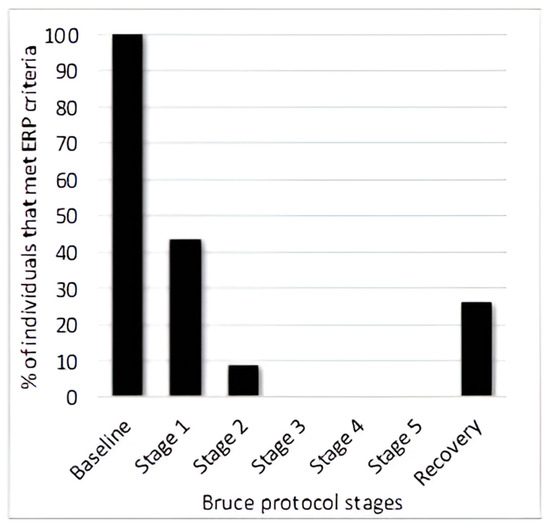

Figure 8. The percentage of participants meeting ERP criteria at various stages of exercise and recovery.
Figure 8. The percentage of participants meeting ERP criteria at various stages of exercise and recovery.
Diagnostics 14 00980 g008
Table 1. The Bruce protocol used for graded treadmill exercise testing in this study.
Table 1. The Bruce protocol used for graded treadmill exercise testing in this study.
StageTime (min)Speed (km/h)Slope (%)METs
Before starting10.801.4
Stage 132.7104.6
Stage 234.0127.0
Stage 335.41410.1
Stage 436.71613.4
Stage 5381817.2
Stage 638.82020.3
Stage 739.62223.7
Recovery10.801.4
METs: Multiples of resting metabolic equivalent.
Table 2. Comprehensive anamnesis profile of individuals with and without ERP.
Table 2. Comprehensive anamnesis profile of individuals with and without ERP.
ERP+ERP−p
Family history
Sudden Cardiac Death, %4.815.80.331
Arrhythmia, %19.026.30.712
Myocardial infarction, %4.821.10.172
Hypertension, %47.668.40.184
Personal history, after exertion
Chest pain, %4.85.30.942
Dyspnea, %33.336.80.816
Palpitations, %38.136.80.935
Syncope, %4.800.525
Dizziness, %23.836.80.369
Mental health
Stress level, scale 1–105 (3–5.5)5 (3.5–5)0.759
Anxiety, scale 1–102 (1.5–3.5)2 (2–3)0.988
Aggressiveness, scale 1–102 (1–3)2 (1–4)0.978
Mood, scale 1–109 (8–9)8 (6.5–9)0.427
Sleeping quality, scale 1–108 (6.5–8.5)8 (7–9)0.644
Behaviors
Tobacco use, %25.022.20.573
Alcohol consumption, %90.066.70.117
Coffee intake, %35.041.20.745
Physical Activity
Sport activity, %65.273.70.555
Weekly exercise, %60.973.70.381
Data are presented as percentages or as medians with interquartile ranges (1st quartile–3rd quartile).
Table 3. Physiological measurements at the physical examination before the effort test.
Table 3. Physiological measurements at the physical examination before the effort test.
ERP+ ERP− p
Anthropometric measurements
Age, years22.9 ± 1.622.1 ± 1.90.146
Weight, kg78.4 ± 9.975.3 ± 10.40.328
Height, cm178 ± 7181 ± 70.275
Body surface area, m21.97 ± 0.151.93 ± 0.160.449
Vital signs
Systolic blood pressure, mmHg123 ± 12122 ± 140.755
Diastolic blood pressure, mmHg78 ± 678 ± 80.891
Heart rate, bpm79 ± 1469 ± 120.011
Data are presented as mean ± standard deviation.
Table 4. Echocardiographic measurements of the study population before the effort test.
Table 4. Echocardiographic measurements of the study population before the effort test.
ERP+ ERP− p
Markers of the left ventricular structure
LVEDD, mm45.8 ± 4.846.8 ± 3.70.459
LVESD, mm27.5 ± 4.528.7 ± 3.30.314
IVS, mm9.5 ± 1.19.5 ± 1.20.864
LVPWD, mm9.2 ± 0.99.4 ± 1.00.638
LVM, g147.3 ± 31.8153.1 ± 29.50.555
Markers of the left ventricular systolic and diastolic function
E/A ratio1.6 ± 0.31.9 ± 0.40.068
DT, ms208.3 ± 58.5188.2 ± 59.50.290
E′, cm/s14.2 ± 3.115.3 ± 1.90.198
E/E′ ratio6.6 ± 2.25.8 ± 1.00.179
EF (Simpson), %61.9 ± 5.860.3 ± 5.70.385
GLS−21.1 ± 3.3−20.7 ± 3.00.652
Other echocardiographic parameters
LAD, mm33.1 ± 5.332.3 ± 3.50.573
AoR, mm21.3 ± 1.921.7 ± 1.80.479
RVD, mm35.4 ± 4.633.5 ± 3.00.133
TAPSE, mm25.1 ± 424.4 ± 4.50.616
Data are presented as mean ± standard deviation. LVEDD—left ventricular end-diastolic diameter; LVESD—left ventricular end-systolic diameter; IVS—interventricular septum; LVPWD—left ventricular posterior wall thickness; LVM—left ventricular mass; E—peak early diastolic transmitral flow velocity; A—peak late diastolic transmitral flow velocity; DT—deceleration time; E’—peak velocity of early diastolic mitral annular motion; EF—ejection fraction; GLS—global longitudinal strain; LAD—left atrial diameter (antero-posterior); AoR—aortic root dimension; RVD—right ventricular dimension (basal); TAPSE—tricuspid annular plane systolic excursion.
Table 5. Treadmill exercise testing parameters.
Table 5. Treadmill exercise testing parameters.
ERP+ERP−p
METs14.6 ± 2.716.5 ± 3.50.056
Duration of exercise, min11.4 ± 2.312.2 ± 2.80.348
Heart rate at peak, bpm186 ± 9186 ± 80.977
Systolic blood pressure at peak, mmHg170 ± 9162 ± 130.180
Diastolic blood pressure at peak, mmHg91 ± 1283 ± 70.126
Data are presented as mean ± standard deviation. The MET values correspond to the level of exercise which was necessary to reach the target heart rate.
Table 6. ECG parameters at baseline, peak exercise, and during recovery from exercise.
Table 6. ECG parameters at baseline, peak exercise, and during recovery from exercise.
ERP+ERP−p
RR interval, ms
Baseline777 ± 157899 ± 1870.027
Peak exercise321 ± 16322 ± 140.972
Recovery369 ± 58374 ± 260.726
P-wave duration, ms
Baseline97 ± 798 ± 90.564
Peak exercise69 ± 763 ± 70.014
Recovery81 ± 774 ± 120.043
PQ(PR) interval, ms
Baseline148 ± 15150 ± 180.678
Peak exercise113 ± 13105 ± 150.076
Recovery126 ± 16122 ± 180.579
QRS duration, ms
Baseline89 ± 597 ± 80.001
Peak exercise76 ± 984 ± 70.009
Recovery84 ± 991 ± 70.005
QT interval, ms
Baseline360 ± 22382 ± 330.016
Peak exercise260 ± 23251 ± 220.107
Recovery290 ± 22276 ± 320.387
QT interval corrected, ms
Baseline412 ± 24405 ± 240.387
Peak exercise463 ± 38443 ± 340.094
Recovery484 ± 63451 ± 460.071
T-peak-T-end, ms
Baseline91 ± 697 ± 110.047
Peak exercise73 ± 971 ± 100.562
Recovery79 ± 778 ± 90.590
T-peak–T-end corrected, ms
Baseline105 ± 14103 ± 150.783
Peak exercise129 ± 16126 ± 190.543
Recovery133 ± 20128 ± 140.355
Atrial premature beats
Baseline, %5.34.30.706
Peak exercise, %00-
Recovery, %00-
Ventricular premature beats
Baseline, %00-
Peak exercise, %00-
Recovery, %00-
Data are presented as means ± standard deviation or percentage. The corrected intervals were calculated using Bazett’s formula.
Table 7. The characteristics of the J wave prior to exercise.
Table 7. The characteristics of the J wave prior to exercise.
CharacteristicERP+ Group (n = 23)
J-wave peak, mm1.72 ± 0.4
ERP type
type 1, n (%)7 (30.4)
type 2, n (%)16 (69.6)
J-wave morphology
notch, n (%)13 (56.5)
slur, n (%)10 (43.5)
J-wave amplitude
≥2 mm, n (%)6 (26.1)
<2 mm, n (%)17 (73.9)
ST-segment slope
horizontal/downward, n (%)14 (60.8)
upward, n (%)9 (39.2)
Data are presented as mean ± standard deviation (continuous variables) or as percentages (categorical variables).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kocsis, L.; Pap, Z.; László, S.A.; Gábor-Kelemen, H.; Szabó, I.A.; Heidenhoffer, E.; Frigy, A. Exercise-Induced Electrocardiographic Changes in Healthy Young Males with Early Repolarization Pattern. Diagnostics 2024, 14, 980. https://doi.org/10.3390/diagnostics14100980

AMA Style

Kocsis L, Pap Z, László SA, Gábor-Kelemen H, Szabó IA, Heidenhoffer E, Frigy A. Exercise-Induced Electrocardiographic Changes in Healthy Young Males with Early Repolarization Pattern. Diagnostics. 2024; 14(10):980. https://doi.org/10.3390/diagnostics14100980

Chicago/Turabian Style

Kocsis, Loránd, Zsuzsanna Pap, Szabolcs Attila László, Hunor Gábor-Kelemen, István Adorján Szabó, Erhard Heidenhoffer, and Attila Frigy. 2024. "Exercise-Induced Electrocardiographic Changes in Healthy Young Males with Early Repolarization Pattern" Diagnostics 14, no. 10: 980. https://doi.org/10.3390/diagnostics14100980

APA Style

Kocsis, L., Pap, Z., László, S. A., Gábor-Kelemen, H., Szabó, I. A., Heidenhoffer, E., & Frigy, A. (2024). Exercise-Induced Electrocardiographic Changes in Healthy Young Males with Early Repolarization Pattern. Diagnostics, 14(10), 980. https://doi.org/10.3390/diagnostics14100980

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
