Article

An Assessment of a New Rapid Multiplex PCR Assay for the Diagnosis of Meningoencephalitis

1
Department of Clinical Microbiology, Hospital Clinic, 08036 Barcelona, Spain
2
Department of Infectious Diseases, Hospital Clínic-IDIBAPS, University of Barcelona, 08007 Barcelona, Spain
3
Department of Basic Clinical Practice, Faculty of Medicine, University of Barcelona, 08007 Barcelona, Spain
4
CIBER Enfermedades Infecciosas (CIBERINFEC), Instituto de Salud Carlos III, 28029 Madrid, Spain
5
Institute of Global Health of Barcelona (ISGlobal), 08036 Barcelona, Spain
6
CIBER Epidemiología y Salud Pública (CIBERESP), Instituto de Salud Carlos III, 28029 Madrid, Spain
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Diagnostics 2024, 14(8), 802; https://doi.org/10.3390/diagnostics14080802
Submission received: 1 March 2024 / Revised: 28 March 2024 / Accepted: 8 April 2024 / Published: 11 April 2024
(This article belongs to the Special Issue Diagnosis and Management of Meningitis)

Abstract

:
The rapid and broad microbiological diagnosis of meningoencephalitis (ME) has been possible thanks to the development of multiplex PCR tests applied to cerebrospinal fluid (CSF). We aimed to assess a new multiplex PCR panel (the QIAstat-Dx ME panel), which we compared to conventional diagnostic tools and the Biofire FilmArray ME Panel. The pathogens analyzed using both methods were Escherichia coli K1, Haemophilus influenzae, Listeria monocytogenes, Neisseria meningitidis, Streptococcus agalactiae, Streptococcus pneumoniae, Enterovirus, herpes simplex virus 1–2, human herpesvirus 6, human parechovirus, varicella zoster virus, and Cryptococcus neoformans/gattii. We used sensitivity, specificity, PPV, NPV, and kappa correlation index parameters to achieve our objective. Fifty CSF samples from patients with suspected ME were included. When conventional methods were used, 28 CSF samples (56%) were positive. The sensitivity and specificity for QIAstat-Dx/ME were 96.43% (CI95%, 79.8–99.8) and 95.24% (75.2–99.7), respectively, whereas the PPV and NPV were 96.43% (79.8–99.8) and 95.24% (75.1–99.7), respectively. The kappa value was 91.67%. Conclusions: A high correlation of the QIAstat-Dx ME panel with reference methods was shown. QIAstat-Dx ME is a rapid-PCR technique to be applied in patients with suspected ME with a high accuracy.

1. Introduction

Central nervous system (CNS) infections can be caused by bacteria, viruses, or fungi and are clinical entities associated with high morbidity and mortality [1,2,3]. Infections like these are frequently encountered in clinical and emergency department settings, presenting challenges due to their highly variable clinical manifestations, the significant differences in CSF characteristics between viral and bacterial infections, and the complexities involved in establishing a prompt and accurate diagnosis.
Therefore, to optimize directed therapy and hopefully improve patient outcomes, the early and accurate identification of the etiological agent is critical [3,4,5]. This has been made possible through the development of multiplex PCR (M-PCR) tests to detect the most common microorganisms causing encephalitis, meningitis, or meningoencephalitis (ME) in cerebrospinal fluid (CSF) [6]. At present, there are two M-PCR tests on the market: the Filmarray ME Panel, BioFire Diagnostics (Salt Lake City, UT, USA), launched in 2015, which is based on a nested PCR followed by a melt curve analysis in a microarray format, and the recently introduced QIAstat-Dx ME panel cassette (QIAGEN, Hilden, Germany), which is based on a multiplex real-time PCR platform. Both methods target potential ME pathogens in CSF, Escherichia coli K1, Haemophilus influenzae, Listeria monocytogenes, Neisseria meningitidis, Streptococcus agalactiae, Streptococcus pneumoniae, enterovirus, herpes simplex virus 1–2 (HSV-1 and 2), human herpes virus 6 (HHV-6), human parechovirus (HPV), varicella zoster virus (VZV), and Cryptococcus neoformans/gattii. The QIAstat-Dx ME panel has two additional bacterial targets which are for the detection of Mycoplasma pneumoniae and Streptococcus pyogenes, whereas the Filmarray ME panel has a target for CMV. The main purpose of this study was to assess the new QIAstat-Dx ME panel using comparisons with data obtained using a FilmArray ME panel, using conventional laboratory diagnostic methods and clinical diagnosis as a gold standard.

2. Materials and Methods

2.1. Study Design and Clinical Samples

This study was conducted using 50 consecutive CSF samples from patients with a clinically suspected central nervous system infection which were analyzed in parallel using Gram staining, a Filmarray ME panel (BioFire Diagnostics; Salt Lake City, UT, USA, and conventional methods, meaning culture, antigen detection, and rt-PCR methods (see Section 2.2), as indicated in algorithm Figure 1. The remaining volume of each sample was frozen at −20 °C to be thawed and analyzed later using the QIAstat-Dx ME panel (QIAGEN, Hilden, Germany). Positive samples were frozen at −20 °C for a period lasting between 1 and 6 months The motivation for this analysis stemmed from the potential advantages of the QIAstat-Dx ME test, particularly its capability to perform amplification curve analyses and assess the cycle threshold (Ct) value upon obtaining a positive result.
CSF cytology and biochemistry results, the final diagnosis tools of this study, were collected retrospectively. The initial decision to use the Filmarray ME panel was made by the attending physician after consulting with specialists in infectious diseases and/or microbiology, guided by a clinical suspicion of ME.

2.2. Conventional Methods

The conventional microbiology protocol for CSF samples with a suspicion of ME includes the inoculation of blood and chocolate agar, thioglycolate broth, an S. pneumoniae antigen (BinaxNOW S. pneumoniae Antigen Card, BinaxNOW, Abbott, Chicago, IL, USA), and the detection of a Cryptococcus neoformans antigen (Remel™ Cryptococcus Antigen Test Kits, Thermo. Scientific, Lenexa, KS, USA). Complementary tests were those that were performed additionally on the CSF samples or those in which discrepancies were observed. They included 16S rRNA amplification and Sanger sequencing in CSF (SensiFAST™ SYBR Hi-ROX kit, Meridian Bioscience, Inc., Cincinnati, OH, USA), and sequences were identified using the Blast algorithm in the National Center for Biotechnology Information [NCBI] database, Neisseria meningitidis antigen detection (latex agglutination Wellcogen™ N. meningitidis, Thermofisher, Waltham, MA, USA), pathogen isolation in blood cultures (BACTEC™ FX; BD®, NYSE, New York, NY, USA), and the detection of the S. pneumoniae antigen in urine (BinaxNOW S. pneumoniae Antigen Card, BinaxNOW, Abbott, Chicago, IL, USA). Conventional viral detections were performed by real-time PCR for HSV1/2, CMV, HHV-6, and VZV (Nanogen Advanced Diagnostics, Palex®, Barcelona, Spain) and enterovirus (OneStep RT-PCR Kit, QIAGEN ®, Hilden, Germany).
The analytical limits of detection for viruses using conventional methods were 119 copies/mL for herpes viruses, 69 copies/mL for VZV, 183 IU/mL for HHV-6, and 3.2 copies/mL for enteroviruses.

2.3. Multiplex PCRs

A volume of 200 µL of CSF was used for both the Filmarray ME, (BioFire Diagnostics Salt Lake City, UT, USA), and QIAstat-Dx ME (QIAGEN, Hilden, Germany) analyses. To keep the processes as similar as possible, all samples were handled in the same biosafety hood in the microbiology laboratory with the necessary safety and hygiene measures for handling this type of sample, cleaning the hood after processing each sample. Both techniques were performed according to the manufacturer’s instructions.
The M-PCR results were considered true (negative and positive) if they were consistent with the results obtained by conventional methods.
The detection limits for viruses for the Filmarray ME and QIAstat-Dx ME methods were 281 and 250 TCID50/mL for HSV-1, 28 and 50 TCID50/mL for HSV-2, 170 copies/mL and 1660 copies/mL for VZV, and 31,300 copies/mL and 10,000 copies/mL for HHV-6, respectively. For the enterovirus, both had a limit of detection of 5 TCID50/mL. This information was obtained from the manufacturers.

2.4. Definitions and Final Diagnosis Assignment

ME was defined by the presence of an inflammatory process of the brain in association with clinical evidence of neurologic dysfunction and/or signs of meningeal irritation. The final diagnosis of an episode was made by the investigators (G.C., P.P-A., and J.V.) after a thorough evaluation of the microbiological and radiological results, clinical evolution, response to treatment, and the presence or absence of an alternative diagnosis.

2.5. Statistical Analysis

The sensitivity of the test was calculated as (true positive, TP)/(TP + false negative (FN)), and the specificity was calculated as (true negative (TN))/(TN + false positive (FP)). The positive likelihood ratio (pLR) was calculated as sensitivity/(1–specificity), and the negative likelihood ratio (nLR) was calculated as (1–sensitivity)/specificity. The positive predictive value (PPV) was calculated as TP/(TP + FP) and the negative predictive value (NPV) was calculated as TN/(TN + FN). Accuracy was calculated as (TN + TP(TP + FP + FN + TN) [7]. Cohen’s kappa coefficient test was used to assess the level of agreement between the different assessment methods, Filmarray ME and QIAstat-Dx ME, and the conventional methodology. Classification of kappa values included “poor” (0.00), “slight” (0 to 0.20), “fair agreement” (0.21 to 0.40), “moderate agreement” (0.41 to 0.60), “substantial” (0.61 to 0.80), and “complete agreement” (>0.8). Data were analyzed using Stata Statistical Software Release 18 (StataCorp, College Station, TX, USA). A p of less than 0.5 was considered a statistical significance level. The sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV), and kappa correlation index were calculated, considering the conventional methods as the gold standard. Both techniques yielded a result of “Not detected” or “Invalid” when the result was negative or invalid, respectively. FilmArray showed the positive results as “detected” and provided melting curves. QIA/ME showed positive results as “detected” and provided a cycle threshold (Ct).

3. Results

Fifty CSF samples were analyzed. Table 1 presents the results, including the CSF cytological and biochemical characteristics. Pathogens were detected by conventional methods in 29 samples (58%): 12/29 (41%) were bacterial (five S. pneumoniae, three L. monocytogenes, two S. agalactiae, one N. meningitidis, and one Acinetobacter baumannii), and 17/29 (59%) were viral cases of ME (seven HSV-1, four VZV, three HSV-2, two HHV-6, and one enterovirus). Twelve samples were determined to be negative by conventional methods. In 32 (64%) cases, there was concordance between all three methods: conventional methods and Filmarray ME and QIAstat-Dx ME panels.
The sensitivities and specificities were 96.5% (CI95%, 79.8–99.8) and 95.4% (CI95%, 75.2–99.7), respectively, for the QIAstat-Dx ME panel, with complete agreement with the conventional method (91.8%) according to Cohen’s kappa index and 85.19% (CI95%, 55.9–90.2), and 57.14% (CI95%, 29.6–70.3), respectively, for the Filmarray ME panel; according to Cohen’s kappa, we find a moderate agreement with the conventional method (43.5%) (Table 2). These statical parameters were calculated versus the gold standard and taken into consideration the final clinical diagnosis.
The Filmarray ME panel reported seven CSF samples with single-pathogen false positive results and five CSF samples with polymicrobial false positive results. Four were false negative results. The QIAstat-Dx ME panel reported only one false positive and one false negative result. The false positives reported by Filmarray ME were as follows: nine HSV-1, two H. influenzae, two S. agalactiae, two S. pneumoniae, one E. coli K1, one CMV, and one HSV-2. The false negatives included three HSV-1 and two S. pneumoniae results. The only false positive result reported by the QIAstat-Dx ME panel was a VZV result, while the only false negative was an HSV-1 result. Table 3 shows the discrepancies observed between the M-PCR diagnostic techniques and conventional methods.

4. Discussion

The early and accurate identification of the etiological agent causing ME is crucial for patient management [1,2]. A meta-analysis of 13 articles [8] showed high sensitivity (90%) and specificity (97%) for Filmarray ME results; however, there are still doubts about the reliability of certain M-PCR results in clinical practice [9,10,11]. Trujillo-Gomez et al. conducted another meta-analysis including 19 studies and found high specificity for the technique. However, the sensitivity varied from 89.5% to 93.5% depending on the reference method used [12].
Recently, Humisto et al. [13] published a paper comparing Filmarray ME and QIAstat-Dx ME techniques for the early diagnosis of ME, reporting that Filmarray ME was more reliable than QIAstat-Dx ME, with 0% and 6.5% error rates, respectively, and concluded that the BioFire FilmArray meningitis/encephalitis panel produced more positive results than the QIAstat-Dx meningitis/encephalitis panel in herpesvirus analyses. However, no clinical data were taken into consideration in Humisto’s study. Our study was in agreement with the above-mentioned results, showing a higher number of positive samples for herpesvirus in the Filmarray panel than in the QIAstat-Dx panel; however, we considered them false positives since our specific PCR results for herpesvirus were negative and, in addition, the final clinical diagnosis in all these samples but one was not herpetic encephalitis. In contrast, another recent publication showed comparable performance between both panels without significant differences [14].
Some previous studies have reported similar results concerning the use of the Filmarray ME panel. Johan Lindström et al. [9] analyzed 4199 CSF samples and obtained a sensitivity for HSV-1 of 82.4%. Amy L. Leber et al. [11] reported low sensitivities for some viruses, especially for HHV-6 (85.7%). False positives can be explained by two different reasons: (i) the CSF collection by lumbar puncture may have been traumatic and we are actually detecting traces of pathogenic genetic material present in the blood and not in the CSF [15], as may be the case for herpesviruses; however, if this scenario occurs, it should still be detected by conventional methods; and (ii) accidental contamination has occurred at some point in the process. In patients with suspected ME, findings of a false positive, especially for herpes simplex, are problematic because they may lead to unnecessary treatment with consequent drug toxicity [16]. In addition, false positive findings may complicate the search for other possible explanations for the clinical picture.
With the FilmArray ME panel, the most frequent false positive we obtained was for HSV-1, which has also been reported in other series [17]. In contrast, HSV-1 was the main pathogen involved in false negative results in other studies [8,9,18]. The microbiological ability to interpret a positive FilmArray ME result is very limited since we can only observe the melting curve, making it difficult to differentiate between true positives and false positives or contaminations [18]. It should be noted that the microorganisms responsible for most of the false positives obtained in our study coincide with those of other studies [9,11,19,20,21]. In a review by Trujillo-Gomez et al. [12] including 7090 CSF samples, the respective sensitivities and specificities were 87.5% and 98.5% for S. pneumoniae; 71.5% and 99.5% for S. agalactiae, and 75% and 99% for HSV-1. In addition to the better overall performance of the QIAstat-Dx ME panel in this study, one additional advantage of this method is that once a microorganism is detected, the amplification curve and Ct value can be assessed (Figure S1). This can be helpful in clinical interpretation. In our cohort, only one false positive was obtained by the QIAstat-Dx ME panel for VZV. In this case, the QIAstat-Dx ME panel showed a correct sigmoidal curve with a Ct of 38.5. The patient had already been diagnosed with VZV ME 15 days earlier in another hospital. This clinical picture, together with the high Ct value obtained, allowed this case to be interpreted as the detection of remnants of past ME. The patient was finally diagnosed with VZV-associated vasculitis, which responded properly to treatment with methylprednisolone, acetylsalicylic acid, and cyclophosphamide. Figure S1 shows the difference between the Ct of this patient and that of a case of active VZV encephalitis. This case leads to the need to point out that despite the undoubtedly great usefulness of M-PCRs, the user must be trained in the interpretation of the results and must carefully place them in the context of the individual patient.
The false negative results obtained via M-PCR techniques can be explained for two different reasons: (i) the pathogen causing the ME is not included in the M-PCR targets, and (ii) the pathogen is included among the M-PCR targets but still not detected. ME caused by a pathogen not included as an M-PCR target is one of the main limitations of these techniques. In this sense, a negative M-PCR should not exclude an ME diagnosis in cases of high clinical suspicion, especially in patients with an increased probability of an “atypical” ME cause, such as immunosuppressed or neurosurgical patients. Accordingly, we detected a case of ME in which both M-PCR results were negative but A. baumannii was isolated by conventional methods. Most data regarding false negatives with the Filmarray ME panel report a low or suboptimal sensitivity for detecting C. neoformans/gatii, HSV-1/2, VZV, and enteroviruses [8,11,12]. In our study, the false negative results with the FilmArray ME panel were mainly with HSV-1 (three) and S. pneumoniae (one). With the QIAstat-Dx ME panel, we only obtained a single false negative (HSV-1).
Finally, as for invalid results, we obtained only one with a very purulent CSF sample on the FilmArray ME panel (S. pneumoniae detected by conventional methods and QIAstat-Dx ME).
This study has the following limitations: Samples were analyzed at different times with intermediate freezing. Samples that showed false positive results obtained using the Filmarray ME panel were not reanalyzed using the same technique due to the volume limitation of the CSF samples, with a preference for using another technique to confirm the results. This same volume limitation meant that the samples tested using the QIAstat-Dx ME panel were selected on the basis of availability and, since we wanted to evaluate the performance of the QIAstat-Dx ME panel against false positives and false negatives, we included a wide range of positive CSF samples, which does not represent the real situation in a clinical laboratory, where most CSF samples are negative. In addition, there are targets that could not be studied due to a lack of positive CSF samples. Furthermore, the effectiveness of both the Filmarray ME and QIAstat panels may have been constrained due to frequent use in patients with normal or minimally altered CSF characteristics, where false positives could pose issues. Finally, while the benefits of utilizing a rapid, highly sensitive, and specific molecular test for diagnosing ME are undeniable, evaluating the clinical and economic impacts of such methods was beyond the scope of this study.

5. Conclusions

The use of M-PCR in microbiology laboratories for the early detection and treatment of ME does not exempt culture and subsequent analyses by conventional methods. M-PCR panels, although they have a high cost, offer important advantages, such as a faster turn-around time, which can impact the management of the patient. The QIAstat-Dx ME is easy to use and has a fast turnaround time, and it shows a higher sensitivity and specificity (96.43% and 95.24%, respectively) as well as positive-predictive and negative-predictive values (96.43% and 95.24%, respectively). In addition, the results obtained are accompanied by an amplification curve and its corresponding Ct value, which allows for a better microbiological interpretation together with other clinical data. Conversely, while the Filmarray ME demonstrated high sensitivity (85.1%), it also yielded some false positives, yielding a low PPV of 71.8%. The additional performance of routine tests may be beneficial, especially in cases in which the diagnosis remains uncertain.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/diagnostics14080802/s1, Figure S1. Difference between the case to be interpreted as the detection of remnants of past VZV ME Ct and that of active VZV encephalitis.

Author Contributions

Conceptualization, J.V., M.Á.M., P.P.-A. and G.C.; methodology, G.C., E.R., A.V. and J.B.; software, S.S.; validation, J.V., M.Á.M. and J.B.; formal analysis, S.S.; investigation, G.C., P.P.-A. and J.V.; resources, J.V. and M.Á.M.; data curation G.C.; writing—original draft preparation, G.C., P.P.-A. and C.C.-P.; writing—review and editing, A.S. and J.V.; supervision, J.V.; project administration, J.V. All authors have read and agreed to the published version of the manuscript.

Funding

ISGlobal (CEX2018-000806-S) is recipient of a Severo Ochoa Award of Excellence from MINECO (Government of Spain). ISGlobal acknowledges support from the Generalitat de Catalunya through the CERCA Program. This work was also supported by the Instituto de Salud Carlos III [Carlos III Institute of Health] (PI20/00766) and award 2021SGR01569 from the Agència de Gestió d’Ajuts Universitaris i de Recerca of the Generalitat de Catalunya [Agency for Management of University and Research Grants of the Catalan Government].

Institutional Review Board Statement

This study was conducted in accordance with the tenets of the Declaration of Helsinki and was approved by the Hospital Clinic’s Ethics Committee (HCB/2022/0943).

Informed Consent Statement

Informed consent was waived, as no intervention was involved, and no patient-identifiable information was included.

Data Availability Statement

The data presented in this study are available on reasonable request from the corresponding author due to privacy reasons.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lepur, D.; Baršić, B. Community-acquired bacterial meningitis in adults: Antibiotic timing in disease course and outcome. Infection 2007, 35, 225–231. [Google Scholar] [CrossRef] [PubMed]
  2. Wormser, G.P.; Nath, A. Central Nervous System Infections in Childhood. Clin. Infect. Dis. 2015, 68, 1354. [Google Scholar] [CrossRef]
  3. Tunkel, A.R.; Hartman, B.J.; Kaplan, S.L.; Kaufman, B.A.; Roos, K.L.; Scheld, W.M.; Whitley, R.J. Practice guidelines for the management of bacterial meningitis. Clin. Infect. Dis. 2004, 39, 1267–1284. [Google Scholar] [CrossRef]
  4. Hagen, A.; Eichinger, A.; Meyer-Buehn, M.; Schober, T.; Huebner, J. Comparison of antibiotic and acyclovir usage before and after the implementation of an on-site FilmArray meningitis/encephalitis panel in an academic tertiary pediatric hospital: A retrospective observational study. BMC Pediatr. 2020, 20, 56. [Google Scholar] [CrossRef] [PubMed]
  5. Walker, M.; Taylor, K.; Beaulieu, R.; Laurent, M.; Hamer, D.; O’Neal, C. The Clinical Impact of the FilmArray Meningitis/Encephalitis (ME) Panel on Antimicrobial Utilization in a Tertiary Hospital Setting. Am. J. Med. Sci. 2021, 361, 550–552. [Google Scholar] [CrossRef]
  6. Vila, J.; Bosch, J.; Muñoz-Almagro, C. Molecular diagnosis of the central nervous system (CNS) infections. Enfer Infec Microb. Clin. 2021, 39, 403–410. [Google Scholar] [CrossRef] [PubMed]
  7. Monaghan, T.F.; Rahman, S.N.; Agudelo, C.W.; Wein, A.J.; Lazar, J.M.; Everaert, K.; Dmochowski, R.R. Foundational statistical principles in medical research: Sensitivity, specificity, positive predictive value and negative predictive value. Medicina 2021, 57, 503. [Google Scholar] [CrossRef]
  8. Tansarli, G.S.; Chapin, K.C. Diagnostic test accuracy of the BioFire® FilmArray® meningitis/encephalitis panel: A systematic review and meta-analysis. Clin. Microbiol. Infect. 2020, 26, 281–290. [Google Scholar] [CrossRef]
  9. Lindström, J.; Elfving, K.; Lindh, M.; Westin, J.; Studahl, M. Assessment of the FilmArray ME panel in 4199 consecutively tested cerebrospinal fluid samples. Clin. Microbiol. Infect. 2022, 28, 79–84. [Google Scholar] [CrossRef] [PubMed]
  10. Teoh, T.K.; Powell, J.; O’Keeffe, J.; Donlon, E.; Dillon, L.; Lenihan, M.; Mostyn, A.; Power, L.; Boers, P.; Stapleton, P.J.; et al. Outcomes of implementation of the FilmArray meningoencephalitis panel in a tertiary hospital between 2017 and 2020. PLoS ONE 2022, 17, e0265187. [Google Scholar] [CrossRef]
  11. Leber, A.L.; Everhart, K.; Balada-Llasat, J.M.; Cullison, J.; Daly, J.; Holt, S.; Lephart, P.; Salimnia, H.; Schreckenberger, P.C.; DesJarlais, S.; et al. Multicenter Evaluation of BioFire FilmArray Meningitis/Encephalitis Panel for Detection of Bacteria, Viruses, and Yeast in Cerebrospinal Fluid Specimens. J. Clin. Microbiol. 2016, 54, 2251–2261. [Google Scholar] [CrossRef] [PubMed]
  12. Trujillo-Gómez, J.; Tsokani, S.; Arango-Ferreira, C.; Atehortúa-Muñoz, S.; Jimenez-Villegas, M.J.; Serrano-Tabares, C.; Veroniki, A.-A.; Florez, I.D. Biofire FilmArray Meningitis/Encephalitis panel for the aetiological diagnosis of central nervous system infections: A systematic review and diagnostic test accuracy meta-analysis. eClinicalMedicine 2022, 14, 44. [Google Scholar] [CrossRef] [PubMed]
  13. Humisto, A.; Antikainen, J.; Holma, T.; Jarva, H.; Toivonen, A.; Loginov, R.; Mannonen, L. Evaluation of the Novel CE-IVD-Marked Multiplex PCR QIAstat-Dx Meningitis/Encephalitis Panel. Microbiol. Spectr. 2023, e0514422. [Google Scholar] [CrossRef] [PubMed]
  14. Sundelin, T.; Bialas, J.; de Diego, J.; Hermanowski, M.; Leibhan, H.; Ponderand, L.; Juanola-Falgarona, M.; Jones, T.; Rey, M.; Johnson, S.; et al. Evaluation of the QIAstat-Dx Meningitis/Encephalitis Panel, a multiplex PCR platform for the detection of community-acquired meningoencephalitis. J. Clin. Microbiol. 2023, 61, e0042623. [Google Scholar] [CrossRef] [PubMed]
  15. Barkovits, K.; Kruse, N.; Linden, A.; Tönges, L.; Pfeiffer, K.; Mollenhauer, B.; Marcus, K. Blood Contamination in CSF and Its Impact on Quantitative Analysis of Alpha-Synuclein. Cells 2020, 9, 370. [Google Scholar] [CrossRef] [PubMed]
  16. Hueth, D.; Thompson-Leduc, P.; Totev, T.I.; Milbers, K.; Timbrook, T.T.; Kirson, N.; Hasbun, R. Assessment of the Impact of a Meningitis/Encephalitis Panel on Hospital Length of Stay: A Systematic Review and Meta-Analysis. Antibiotics 2022, 11, 1028. [Google Scholar] [CrossRef]
  17. Vaugon, E.; Mircescu, A.; Caya, C.; Yao, M.; Gore, G.; Dendukuri, N.; Papenburg, J. Diagnostic accuracy of rapid one-step PCR assays for detection of herpes simplex virus-1 and -2 in cerebrospinal fluid: A systematic review and meta-analysis. Clin. Microbiol. Infect. 2022, 28, 1547–1557. [Google Scholar] [CrossRef] [PubMed]
  18. Rajbhandari, P.; Goodrich, N.; Nabower, A.M.; Brown, M.F.; Ekambaram, M.; Eisenberg, J.; Forbes, M.L.; Gollehon, N.; Martin, K.C.; McCulloh, R.; et al. Current state and practice variation in the use of Meningitis/Encephalitis (ME) FilmArray panel in children. BMC Infect. Dis. 2022, 22, 811. [Google Scholar] [CrossRef] [PubMed]
  19. Du, B.; Hua, C.; Xia, Y.; Li, J.; Xie, Y.; Tao, Y.; Cao, Q.; Mo, X. Evaluation of the BioFire FilmArray meningitis/encephalitis panel for the detection of bacteria and yeast in Chinese children. Ann. Transl. Med. 2019, 7, 437. [Google Scholar] [CrossRef] [PubMed]
  20. Hanson, K.E. The First Fully Automated Molecular Diagnostic Panel for Meningitis and Encephalitis: How Well Does It Perform, and When Should It Be Used? J. Clin. Microbiol. 2016, 54, 2222–2224. [Google Scholar] [CrossRef]
  21. Markovich, K.; Wingler, M.J.B.; Stover, K.R.; Barber, K.E.; Wagner, J.L.; Cretella, D.A. Analysis of the Clinical Impact of the BioFire FilmArray Meningitis Encephalitis Panel on Antimicrobial Use and Duration of Therapy at an Academic Medical Center. Diseases 2022, 10, 110. [Google Scholar] [CrossRef] [PubMed]

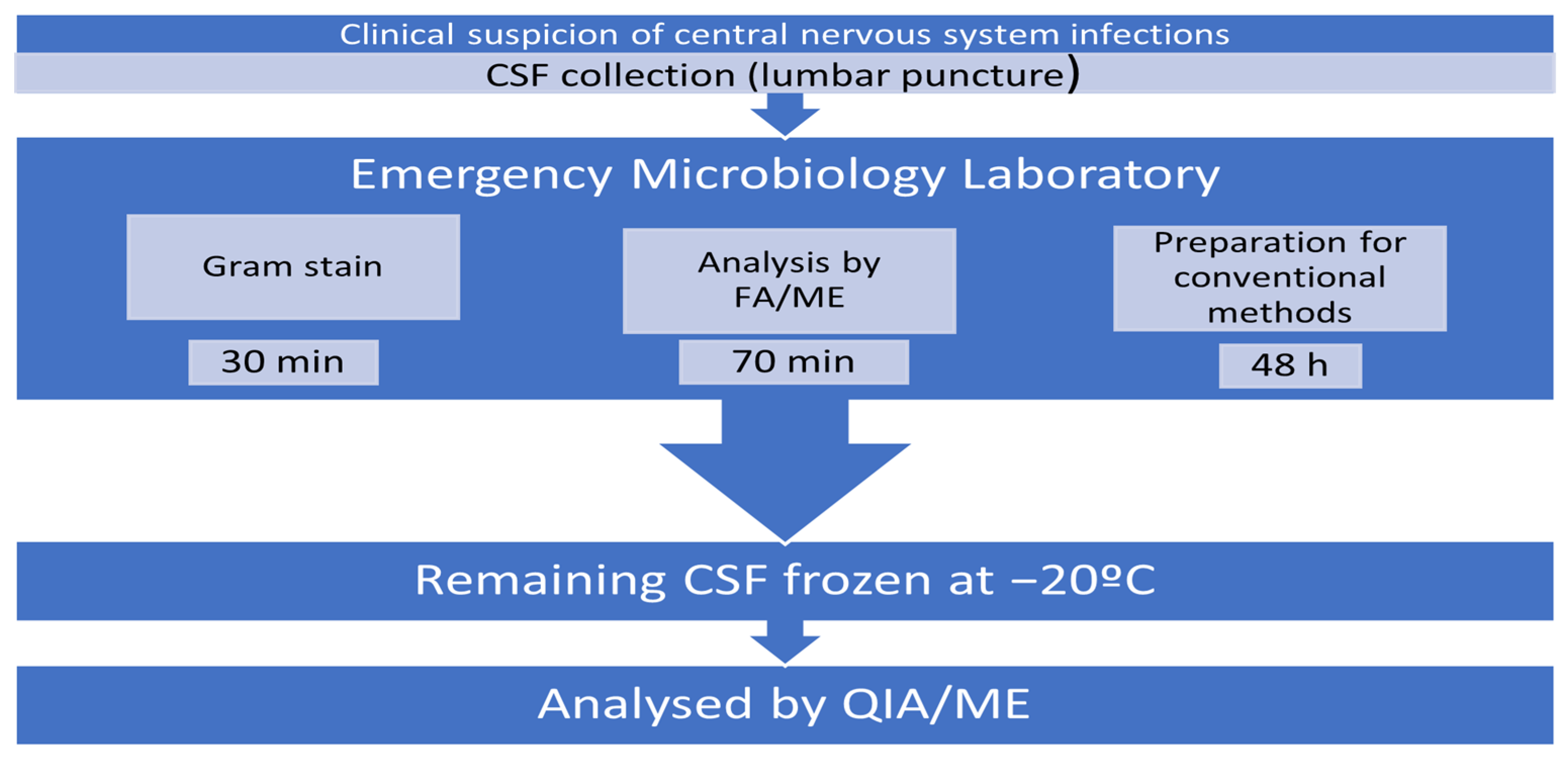

Figure 1. Sample processing algorithm.
Figure 1. Sample processing algorithm.
Diagnostics 14 00802 g001
Table 1. Summary of cases analyzed.
Table 1. Summary of cases analyzed.
SampleAge (Years)Red Blood Cells (/mm3)White Blood Cells (/mm3)Neutrophils (%)Lymphocytes
(%)
Glucose (mg/dL)Proteins (mg/L)ADA
(U/L)
LDH
(U/L)
Conventional MethodsFilmArray MEQIA-Stat-DX MEFinal Diagnosis
140815485722246.8-EnterovirusEnterovirusEnterovirusEnterovirus encephalitis
26910093032656625227.3-L. monocytogenesL. monocytogenesL. monocytogenesL. monocytogenes meningoencephalitis
348880014091563484421.4107L. monocytogenesL. monocytogenesL. monocytogenesL. monocytogenes meningoencephalitis
46013022455360560-37L. monocytogenesL. monocytogenesL. monocytogenesL. monocytogenes meningoencephalitis
5681001480888<1733--N. meningitidisN. meningitidisN. meningitidisMeningococcal meningitis
64613037855<46910--S. agalactiaeS. agalactiaeS. agalactiaeS. agalactiae meningoencephalitis
74921,120219594633574147.1-S. agalactiaeS. agalactiae + HSV-1 + HSV-2 +
H. influenzae + S. pneumoniae
S. agalactiaeS. agalactiae meningoencephalitis
8721702065954<4600048.9391S. pneumoniaeNegativeS. pneumoniaePneumococcal meningitis
96428012,960980203879434.8166S. pneumoniaeInvalidS. pneumoniaePneumococcal meningitis
106520560927157342--S. pneumoniaeS. pneumoniaeS. pneumoniaePneumococcal meningitis
115003590955<48350--S. pneumoniaeS. pneumoniaeS. pneumoniaePneumococcal meningitis
12384035307097120--S. pneumoniaeS. pneumoniaeS. pneumoniaePneumococcal meningitis
135040000788267.424HSV-1NegativeHSV-1Herpetic encephalitis
1469000076267--HSV-1NegativeHSV-1Herpetic encephalitis
1544020--888347.1-HSV-1NegativeNegativePulmonary source fever with associated low consciousness level in a low CD4 HIV patient.
16740201205070--HSV-1HSV-1HSV-1Herpetic encephalitis
17651020485753396.4-HSV-1HSV-1HSV-1Herpetic encephalitis
18451040--623917.5-HSV-1HSV-1HSV-1Herpetic encephalitis
1958010--732585.1<20HSV-1HSV-1HSV-1Herpetic encephalitis
204810302089611294.98.9-HSV-2S. agalactiae + HSV-2HSV-2Herpetic encephalitis
215260342010062550--HSV-2HSV-2HSV-2Herpetic encephalitis
225158068538239114.8163HSV-2HSV-2HSV-2Herpetic encephalitis
23351301550100575485.2<20HSV-2HSV-2HSV-2Herpetic encephalitis
245905--585979.927HHV-6HHV-6HHV-6Limbic encephalitis due to herpesvirus 6
257519204--6564511.8-HHV-6HHV-6HHV-6Herpesvirus 6 encephalitis
263020240--43155--VZVVZVVZVVZV encephalitis
276210100100707826.8-VZVVZVVZVVZV encephalitis
2878512077818858477837.8407VZVVZV + HSV-1VZVVZV encephalitis
2977302201001116743411NegativeNegativeVZVVZV encephalitis
305122033593637837.927NegativeH. influenzae + S. pneumoniae + CMVNegativePost-vaccine myelitis
318311210--1062714.4-NegativeS. agalactiae + E. coli K1NegativeConfusional syndrome
3233220000732755.2-NegativeHSV-1NegativeCytokine release syndrome in a CAR-T recipient
336330160002604958339NegativeHSV-1NegativeWernicke’s encephalopathy
34641000007944110.9-NegativeHSV-1NegativeStroke
3570758--230108010.843NegativeHSV-1NegativeHerpetic encephalitis
36880000763098.1-NegativeHSV-1NegativeHypoglycemic crisis
373350000873216.5<20NegativeHSV-1NegativeDrug intoxication
38560000616327.7<20NegativeHSV-1NegativeBrain metastases
39301900007963124.9188NegativeNegativeNegativeMELAS syndrome
40600000636673-NegativeNegativeNegativePost-COVID-19 encephalitis
412012000003687--NegativeNegativeNegativeConfusional syndrome due to fever
422717,28000055353--NegativeNegativeNegativeChronic meningococcemia
436519800003890811.285NegativeNegativeNegativePrior diagnosis of listerial meningoencephalitis; currently undergoing treatment
44834800001231800--NegativeNegativeNegativeConfusional syndrome
456730040474635319032.2271NegativeNegativeNegativeAseptic meningitis
465300--92242-21NegativeNegativeNegativeEpileptic syndrome
476413808--1081303--NegativeNegativeNegativeLymphoproliferative disease
48526304378510123516--A. baumanniiNegativeNegativePostoperative meningitis due to A. baumannii
49682037--5757613.618.4NegativeNegativeNegativeAutoimmune meningoencephalitis by anti-Mglur5
5082144057419107639--NegativeNegativeNegativeStroke
Abbreviations. HSV = herpes simplex virus; HHV-6 = human herpesvirus 6; VZV = varicella zoster virus; CMV = cytomegalovirus; CAR-T = chimeric antigen receptor T-cell; MELAS = mitochondrial encephalopathy, lactic acidosis, and stroke-like episodes. Missing results have been denoted with hyphens. In some cases, with low white blood cells, neutrophil and lymphocyte percentages were not determined. Pleocytosis (>10 leukocytes/mm3) and high protein CSF levels (>600 mg/dL) are commonly found in encephalitis and meningitis. However, normal CSF cells and protein levels can be found, particularly in early viral cases.
Table 2. Comparison of sensitivity, specificity, PPV, NPV, and kappa correlation index for both M-PCR diagnostic techniques compared to the conventional methods.
Table 2. Comparison of sensitivity, specificity, PPV, NPV, and kappa correlation index for both M-PCR diagnostic techniques compared to the conventional methods.
QIAstat-Dx-MEFilmArray-ME
Sensitivity (%)96.5% (CI95%, 79.8–99.8)85.1% (CI95%, 55.9–90.2)
Specificity (%)95.2% (CI95%, 75.2–99.7)57.1% (CI95%, 29.6–70.3)
PPV96.4% (CI95%, 79.8–99.8)71.8% (CI95%, 43.7–78.3)
NPV95.2% (CI95%, 75.1–99.7)75% (CI95%, 55.9–0.2)
Kappa correlation index91.67% (p < 0.001)43.48% (p: 0.001)
Table 3. Discrepancies observed between M-PCR diagnostic techniques and conventional methods.
Table 3. Discrepancies observed between M-PCR diagnostic techniques and conventional methods.
Positive Specimens (N)
PathogenFilmArray MEQIA-Stat DxConventional Methods
E. coli K11 a0CSF culture (−)
CSF 16S rRNA PCR sequencing (−)
H. influenzae1 b0CSF culture (−)
CSF 16S rRNA PCR sequencing (−)
1 c0CSF culture (−)
CSF 16S rRNA PCR sequencing (−)
S. agalactiae10CSF culture (−)
CSF 16S rRNA PCR sequencing (−)
10CSF culture (−)
CSF 16S rRNA PCR sequencing (−)
S. pneumoniae01CSF culture (−)
CSF Ag S. pneumoniae (invalid)
CSF 16S rRNA PCR sequencing (+)
Blood culture (+)
01CSF culture (+)
CSF Ag S. pneumoniae (+)
Blood culture (+)
1 b0CFS culture (−)
CSF S. pneumoniae Ag (−)
CSF 16S rRNA PCR sequencing (−)
Blood culture (−)
Urine S. pneumoniae Ag (−)
1 c0CFS culture (−)
CSF S. pneumoniae Ag (−)
CSF 16S rRNA PCR sequencing (−)
Blood culture (−)
Urine S. pneumoniae Ag (−)
CMV1 c0CSF CMV-PCR (−)
Blood CMV-PCR (−)
HSV-101CSF HSV-1 PCR (+)
01CSF HSV-1 PCR (+)
00CSF HSV-1 PCR (+)
9 b,e0CSF HSV-1 PCR (9−)
HSV-21 b0CSF HSV-2 PCR (−)
1 d0CSF HSV-2 PCR (−)
VZV01CSF VZV PCR (−)
CSF: cerebrospinal fluid; RT-PCR: reverse transcription PCR; ME: meningoencephalitis. a Positive results FilmArray for E. coli K1 and S. agalactiae in the same sample. b Positive FilmArray results for H. influenzae, S. agalactiae, HSV-1, HSV-2, and S. pneumoniae in the same sample. c Positive FilmArray results for H. influenzae, S. pneumoniae and Cytomegalovirus in the same sample. d Positive FilmArray results for S. agalactiae and HSV-2 in the same sample. e Positive FilmArray results for VZV and HSV-1 in the same sample.
