One Step beyond Species Description: Unveiling a Fine-Scale Diversity within the Genus Dzhanokmenia Kostjukov (Hymenoptera: Eulophidae) †

by
Bolormaa Ganbaatar
1,2,
Qin Li
3,4,
Ouyan Xi
3,4,
Huanxi Cao
5,* and
Chaodong Zhu
1,2
1
Key Laboratory of Zoological Systematics and Evolution, Institute of Zoology, Chinese Academy of Sciences, Beijing 100101, China
2
College of Life Sciences, University of Chinese Academy of Sciences, Beijing 101408, China
3
College of Life Science and Technology, Xinjiang University, Urumqi 830046, China
4
Xinjiang Key Laboratory of Biological Resources and Genetic Engineering, Urumqi 830046, China
5
National Animal Collection Resource Center, Institute of Zoology, Chinese Academy of Sciences, Beijing 100101, China
*
Author to whom correspondence should be addressed.
†
urn:lsid:zoobank.org:pub:CBEBCA76-C300-41E0-87F2-B535D91783C9.
Insects 2024, 15(6), 406; https://doi.org/10.3390/insects15060406
Submission received: 3 May 2024 / Revised: 21 May 2024 / Accepted: 28 May 2024 / Published: 1 June 2024
(This article belongs to the Collection Hymenoptera: Biology, Taxonomy and Integrated Management)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Chalcidoidea (chalcid wasps) are one of the most numerically, structurally, and biologically diverse groups in Hymenoptera. However, the conserved morphology coupled with a high intraspecific variability in certain key characters hinders research on chalcids. In this study, DNA barcoding with the COI gene was used to calibrate intra- and interspecific variation in diagnostic characters within the genus Dzhanokmenia. In addition, the nuclear gene, 28S D2, was used to infer a phylogeny to better understand the definition of Dzhanokmenia and its relationships to potentially close genera associated with Tetrastichus. A DNA barcode library that includes eight species was established for Dzhanokmenia. A new species, D. brevifunis Ganbaatar & Cao sp. nov., was described and illustrated. The results show that Dzhanokmenia is closely related to Baryscapus and suggest that the species diversity of Dzhanokmenia is underestimated. This study lays a foundation for further research on the diversity and classification of Dzhanokmenia.

Abstract

Although Chalcidoidea is one of the megadiverse superfamilies in Hymenoptera, numerous species are still being discovered and described. However, the difficulties in delimiting intra- and interspecific variation hinder this process. In this study, DNA barcoding methods using the COI gene were employed to investigate the morphological variation within Dzhanokmenia Kostjukov, 1977. The nuclear locus, 28S D2, was used to infer a phylogeny to gain an understanding of the relationship of Dzhanokmenia with other potentially close genera. Through a preliminary DNA barcode library established here, including eight species, we calibrated the intraspecific variation in certain diagnostic characters for the new species described here, D. brevifunis Ganbaatar & Cao sp. nov. Maximum likelihood results show that Dzhanokmenia is clustered with the genera associated with Tetrastichus, such as Chaenotetrastichus Graham, 1987, Baryscapus Förster, 1856, Tetrastichus Haliday, 1844, and Oomyzus Rondani, 1870 involved in this study. Our results indicate that the species diversity of Dzhanokmenia is understudied and tentatively confirm that Dzhanokmenia has a potential close relationship with Baryscapus. Along with the DNA barcode library, the referenced phylogeny datasets improve the understanding of the systematic position of Dzhanokmenia within the subfamily Tetrastichinae and the definition of this genus in terms of morphology, thereby facilitating species delimitation, discovery, and description within Dzhanokmenia.

1. Introduction

Chalcidoidea, commonly known as chalcid wasps, represent one of the most diverse superfamilies within Hymenoptera, encompassing high species abundance and biological diversity. More than 22,000 species have been documented in Chalcidoidea, yet the total species count is estimated to surpass 500,000 [1]. Currently, Eulophidae are the largest family in terms of species diversity, comprising over 6000 valid species. Eulophidae are typically divided into four subfamilies, as confirmed by molecular data in Gauthier et al. [2]: Entedoninae, Entiinae (formerly known as Euderinae), Eulophinae, and Tetrastichinae. In 2011, the Opheliminae, which were previously recognized as a tribe within the Entedoninae, were elevated to subfamily status in a phylogenetic analysis that integrated molecular and morphological data [3]. This classification has been further supported by subsequent molecular studies [4,5]. Of the five subfamilies, the Tetrastichinae is the largest subfamily in terms of both the number of genera and species, with over 100 genera and more than 2000 species [1,6]. Two prominent genera in particular, Aprostocetus Westwood, 1833 and Tetrastichus, account for more than half of the total number of species within this subfamily [1].
Dzhanokmenia is one of nineteen genera within the subfamily Tetrastichinae that contains more than ten species. Until this study, a total of fifteen described species were known for this genus, all of which originated from Asia. Based on morphology and trophic associations, Kostjukov [7] established and treated Dzhanokmenia as one of seventeen subgenera within the genus Tetrastichus and designated Tetrastichus bibikovae Dzhanokmen, 1971 as the type species for Dzhanokmenia. Later, Kostjukov [8,9] described an additional six species and provided a key to the seven species of this subgenus. In a taxonomic revision of the European genera of Tetrastichinae, Graham [10] elevated Dzhanokmenia to generic status and considered this genus to be closely related to Baryscapus, especially the evonymellae group of Baryscapus, to which most species of this genus belong.
Eight further species were subsequently described within the genus. One was documented from Turkmenistan [11], two were found in the Asiatic region of Russia [12,13], and the remaining five were described from China [14,15]. To date, all fifteen known species of Dzhanokmenia originate from the arid and semi-arid regions of Asia, including China, Kazakhstan, southern Russia, and Turkmenistan. In addition to the five species described from China, two species, D. demakovi (Kostjukov, 1978) and D. nikolskajae (Kostjukov, 1984), have been reported from Xinjiang, China [16]. The host information for Dzhanokmenia has long remained unknown until recently, when D. stefaniolae Li, Wang & Hu, 2021, was documented to emerge from stem galls induced by Stefaniola sp. (Diptera: Cecidomyiidae) on Haloxylon ammodendron (C. A. Mey, 1829) (Chenopodiaceae) [15]. This discovery suggests that Dzhanokmenia species are associated with gall-forming insects inhabiting Haloxylon spp. (Tamaricaceae) and potentially with insects inhabiting Tamarix spp. (Tamaricaceae) as well [14,15].
Although considerable progress has been made in the systematics of the Chalcidoidea [3,4,5,17,18,19,20,21], fundamental taxonomic tasks such as species inventories, identifications, and descriptions remain essential for a comprehensive understanding of the biodiversity of Chalcidoidea [22,23,24,25]. Despite these taxonomic advances in the study of Dzhanokmenia research, the species diversity within this genus may be underestimated, given the wide distribution of its insect and plant hosts, particularly in arid and semi-arid regions. Limited knowledge of the relationships between Dzhanokmenia species and of intra- and interspecific variation hinder species discoveries in this genus. Furthermore, despite its elevation from a subgenus of Tetrastichus to a valid genus, much remains unknown about the relationships between Dzhanokmenia and genera that may be closely related to Tetrastichus.
One of the objectives of this study is to describe a new species of Dzhanokmenia collected in Qinghai and Xinjiang, China, and another objective is to investigate the phylogeny of Dzhanokmenia and closely related genera. In this study, the COI barcodes were generated to investigate intra- and interspecific variation within Dzhanokmenia. Additionally, the 28S D2 gene of eight Dzhanokmenia species recorded from China was used to preliminarily discuss the relationship of Dzhanokmenia with other genera associated with Tetrastichus, by combining a filtered DNA matrix provided by Cao et al. [25]. Our DNA barcoding analysis revealed an additional species closely allied to D. brevifunis, suggesting that the species diversity, or at least the genetic diversity, of Dzhanokmenia may not yet be adequately explored. Phylogenetic analysis based on the 28S D2 gene confirmed the hypothesis that Dzhanokmenia may be closely related to Baryscapus.

2. Materials and Methods

2.1. Samples Collection

The specimens of the new species were collected in 2009, 2013, and 2017 in Xinjiang and Qinghai, China, using sweep nets and Malaise traps. Upon arrival at the laboratory in the Institute of Zoology, Chinese Academy of Sciences (IOZCAS), the Eulophidae specimens were separated from the bulk insect samples and preserved in 95–100% ethanol for subsequent analyses. The specimens of Dzhanokmenia karamayica Li, Wang & Zhu, 2016, and D. gobica Li, Wang & Zhu, 2016, were collected by sweeping herbaceous plants or shrubs in the semi-arid regions of Xinjiang, China, as documented in Li et al. [13]. Subsequently, the Dzhanokmenia specimens were sorted out in the laboratory at Xinjiang University and preserved in 95–100% ethanol before being transferred to the laboratory at IOZCAS for subsequent sequencing.

2.2. Specimen Preparations

The specimens used for morphological studies were dried with a Leica EM CPD300 automated critical point dryer (Leica Microsystems, Wetzlar, Germany). Subsequently, some specimens were mounted on cards, while others were dissected into head, mesosoma, and metasoma to obtain micrographs using a scanning electronic microscope (SEM). Specimens were examined using a Nikon SMZ 1500 stereomicroscope equipped with a 10 mm ocular grid with 100 divisions. The habitus images were taken with a Nikon D7000 digital camera connected to the stereomicroscope. The prepared parts used for the SEM were coated with gold using a Leica EM SCD050 super cool sputter coater. Micrographs were taken with an FEI Quanta 450 environmental scanning electron microscope. All color images were stacked using Helicon Focus software 8.2.2.
The terminology follows Gibson [26], except for substituting ”scutellum” with “mesoscutellum”. Abbreviations are as follows: F1–F3, funiculars 1–3; Gtn, gastral tergite number; MLM, midlobe of mesoscutum; MV, marginal vein; OOL, the shortest distance between an eye and a posterior ocellus; POL, the shortest distance between the posterior ocelli; SMV, submarginal vein. The type specimens of the new species described in this study are deposited in the National Animal Collection Resource Center of IOZCAS.

2.3. DNA Extraction, Amplification and Sequence Editing

Fifty-two specimens of Dzhanokmenia from Qinghai and Xinjiang, China, were processed for whole-genomic DNA extraction using the DNeasy Blood & Tissue Kit (Qiagen GmbH, Hilden, Germany), following the manufacturer’s instructions (see successful sequencing specimens in Table 1). The specimens of Dzhanokmenia selected for the DNA extraction of the new species were chosen to capture all observed variation. To elucidate the phylogenetic relationship between Dzhanokmenia and Baryscapus, a representative species of Baryscapus was also chosen for DNA extraction. Subsequently, the barcoding region of the COI gene was generated for all specimens. Additionally, a specimen of Tetrastichus howardi (Olliff, 1893) was included in the amplification of the COI gene. Thirty-six specimens representing all analyzed species of Dzhanokmenia were selected to generate the 28S D2 region for phylogenetic analyses. All primers used in this study are listed in Table 2. The PCR reactions for COI were performed by following the protocol described by Huangfu et al. [27], while the reactions for 28S D2 were based on the protocol established by Cao et al. [25].
The raw sequences were assembled, edited, and aligned using BioEdit version 7.0.9.0 [28]. The COI matrix was translated into amino acids in MEGA7.0 [29] to identify any stop codons. In addition to these newly generated sequences, we downloaded publicly available sequences from GenBank (Table S1), as generated or utilized in Cao et al. [25]. Three DNA matrices were generated for subsequent maximum likelihood (ML) analyses. First, the generated 28S sequences were combined and aligned with a filtered matrix of 28S sequences provided by Cao et al. [25]. Identical sequences were then merged into one to form MatrixI. Second, based on the ML tree on MatrixI (Figure S1), MatrixII was refined from MatrixI to eliminate distant sequences from Dzhanokmenia according to the ML result of MatrixI, while retaining Styotrichia pisoxylona Cao & Zhu, 2024 as an outgroup. Lastly, the aligned COI and 28S sequences for specimens that had been successfully sequenced for both genes were concatenated, resulting in MatrixIII, which enables subsequent phylogenetic analyses based on two genes.
The voucher specimens used to generate the molecular data in this study have been deposited at IOZCAS. The DNA sequences obtained in this study have been submitted to GenBase, and the accession numbers can be found in Table 1. In addition, the information of other publicly available sequences used in the above three matrices has been provided in Table S1.
Table 1. List of specimens used in molecular analyses, with GenBase accession numbers.
Table 1. List of specimens used in molecular analyses, with GenBase accession numbers.
Voucher NumberSpeciesSexLocalityCOI28S
CHX_DZH_117D. brevifunisfemaleXinjiang, AletaiC_AA071359.1C_AA071403.1
CHX_DZH_118D. cf. brevifunisfemaleXinjiang, AletaiC_AA071360.1C_AA071404.1
CHX_DZH_119D. brevifunisfemaleXinjiang, AletaiC_AA071361.1C_AA071405.1
CHX_BAR_177Baryscapus sp.femaleBeijingC_AA071358.1C_AA071402.1
CHX_DZH_737D. brevifunisfemaleQinghai, Ge-ErmuC_AA071362.1C_AA071406.1
CHX_DZH_738D. brevifunisfemaleQinghai, Ge-ErmuC_AA071363.1C_AA071407.1
CHX_DZH_739D. brevifunisfemaleQinghai, Ge-ErmuC_AA071364.1C_AA071408.1
CHX_DZH_740D. brevifunisfemaleQinghai, Ge-ErmuC_AA071365.1C_AA071409.1
CHX_DZH_741D. brevifunisfemaleQinghai, Ge-ErmuC_AA071366.1C_AA071410.1
CHX_DZH_742D. brevifunisfemaleQinghai, Ge-ErmuC_AA071367.1C_AA071411.1
CHX_DZH_743D. brevifunisfemaleXinjiang, TulufanC_AA071368.1C_AA071412.1
CHX_DZH_744D. brevifunisfemaleXinjiang, TulufanC_AA071369.1C_AA071413.1
CHX_DZH_747D. brevifunisfemaleXinjiang, TulufanC_AA071370.1C_AA071414.1
CHX_DZH_748D. brevifunisfemaleXinjiang, TulufanC_AA071371.1C_AA071415.1
CHX_DZH_888D. cf. brevifunisfemaleXinjiang, AletaiC_AA071372.1C_AA071416.1
CHX_DZH_890D. brevifunisfemaleXinjiang, AletaiC_AA071373.1-
CHX_DZH_891D. cf. brevifunisfemaleXinjiang, AletaiC_AA071374.1C_AA071417.1
CHX_DZH_892D. brevifunisfemaleXinjiang, TulufanC_AA071375.1-
CHX_DZH_893D. sp.1femaleXinjiang, TulufanC_AA071376.1-
CHX_DZH_894D. cf. brevifunisfemaleXinjiang, TulufanC_AA071377.1-
CHX_DZH_895D. brevifunisfemaleXinjiang, TulufanC_AA071378.1-
CHX_DZH_896D. cf. antonovaefemaleXinjiang, AletaiC_AA071379.1C_AA071418.1
CHX_DZH_897D. cf. antonovaemaleXinjiang, AletaiC_AA071380.1C_AA071419.1
CHX_DZH_898D. sp.2femaleXinjiang AletaiC_AA071381.1C_AA071420.1
CHX_DZH_900D. brevifunisfemaleXinjiang, TulufanC_AA071382.1-
CHX_DZH_901D. brevifunisfemaleQinghai, GermuC_AA071383.1-
CHX_DZH_902D. cf. brevifunisfemaleXinjiang, AletaiC_AA071384.1C_AA071421.1
CHX_DZH_903D. brevifunismaleXinjiang, TulufanC_AA071385.1C_AA071422.1
CHX_DZH_904D. brevifunismaleXinjiang, TulufanC_AA071386.1C_AA071423.1
CHX_DZH_906D. karamayicafemaleXinjiang, KaramayC_AA071387.1C_AA071424.1
CHX_DZH_907D. gobicafemaleXinjiang, ShiheziC_AA071388.1C_AA071425.1
CHX_DZH_908D. cf. sugonjaevifemaleXinjiang, AletaiC_AA071389.1C_AA071426.1
CHX_DZH_909D. muleicafemaleXinjiang, Karamay-C_AA071427.1
CHX_DZH_910D. gobicafemaleXinjiang, FukangC_AA071390.1C_AA071428.1
CHX_TET_054Tetrastichus howardifemaleBrazil, Sete LagoasC_AA071391.1OP538682.1
NT-04D. karamayicafemaleXinjiang, KaramayC_AA071392.1C_AA071429.1
NT-05D. karamayicafemaleXinjiang, KaramayC_AA071393.1C_AA071430.1
NT-06D. karamayicamaleXinjiang, KaramayC_AA071394.1C_AA071431.1
NT-07D. karamayicamaleXinjiang, KaramayC_AA071395.1C_AA071432.1
NT-08D. gobicamaleXinjiang, ShiheziC_AA071396.1C_AA071433.1
NT-09D. gobicafemaleXinjiang, ShiheziC_AA071397.1C_AA071434.1
NT-10D. gobicamaleXinjiang, ShiheziC_AA071398.1C_AA071435.1
NT-11D. gobicamaleXinjiang, ShiheziC_AA071399.1C_AA071436.1
NT-13D. gobicafemaleXinjiang, ShiheziC_AA071400.1C_AA071437.1
NT-16D. gobicamaleXinjiang, ShiheziC_AA071401.1C_AA071438.1
The symbol “-” indicates a failed case in PCR or sequencing. The 28S sequence of “CHX_TET_054” was deposited in GenBank by Cao et al. [25].
Table 2. List of primers used in this study.
Table 2. List of primers used in this study.
GenePrimerSequence (5′-3′)References
COILCO1490GGTCA ACAAA TCATA AAGAT ATTGG[30]
COIHCOoutCCAGG TAAAA TTAAA ATATA AACTTC[31]
COIFWPTF1CCTGG TTCTT TRATT GGTAA TGATC[32]
COILep-R1TAAAC TTCTG GATGT CCAAA AAATCA[33]
28SD2-3549FAGTCG TGTTG CTTGA TAGTG CAG[34]
28SD2-3665FAAGAGAGAGTTCAAGAGTACGTG[35]
28SD2-4068RTTGGT CCGTG TTTCA AGACG GG[34]
28SD3-4083RTAGTT CACCA TCTTT CGGGT CCC[35]

2.4. Species Delimitation

Initially, we compiled a comprehensive list of all the examined specimens and meticulously documented their morphological variability. We assigned all examined specimens to morphospecies based on our understanding of intra- and interspecific variation, referring to the related taxonomy work of Kostjukov [7,8,9,11], Kostjukov and Kosheleva [12,13], Graham [10], and Li et al. [14,15]. Two molecular methods for species delimitation, Automatic Barcode Gap Discovery (ABGD) [36] and the Generalized Mixed Yule-Coalescent (GMYC) model [37], representing a distance-based and a tree-based coalescent approach, respectively, were employed to delimit intra- and interspecific variation and evaluate the species boundaries of these morphospecies.
ABGD automatically partitions DNA barcode sequences based on the barcode gap using iterative model-based confidence limits for intraspecific divergence [36]. Pairwise distances of Dzhanokmenia COI sequences were calculated based on the Kimura 2-parameter (K2P) model [38] in MEGA7.0 [29]. In addition, a Neighbor-Joining (NJ) tree [39] was constructed based on the K2P model with 1000 bootstrap replicates to calculate support values for the branches. The resulting K2P distance matrix was then analyzed using the ABGD online tool (https://bioinfo.mnhn.fr/abi/public/abgd/abgdweb.html, accessed on 20 April 2024) for partitioning. The relative gap width was set to 0.5, while other parameters were left at their default values.
The GMYC model determines intra- and interspecific branching events in a phylogenetic tree estimated from DNA sequence data [37]. For the COI gene, we performed a GMYC analysis using the single method implemented in the ‘splits’ package [37] with R 4.3.3 [40] to infer the putative species. After removing identical sequences to avoid terminal branches with zero length, ultrametric trees were estimated in BEAST v1.10.4 [41] under an uncorrelated log-normal relaxed clock model [42], HKY [43], and Gamma substitution with all other default priors. Markov chains were run for 5 × 107 generations, sampling every 5 × 104 generations. Tracer v1.7.2 [44] was used to visualize and evaluate the convergence of the analyses.

2.5. Phylogenetic Analysis

The ML analyses were conducted using IQ-TREE version 1.6.12 [45]. ModelFinder Plus (MFP) [46] was employed in all cases to automatically select the optimal substitution model, and 1000 ultrafast bootstrap replicates were performed to assess the robustness of the results. In the ML analysis of MatrixI, which contains almost all available 28S D2 sequences of Tetrastichinae that could be aligned, species from the tribe Cirrospilini (Eulophinae) were chosen as outgroups, as suggested by Gauthier et al. [2]. Styotrichia pisoxylona served as an outgroup in the ML analyses of MatrixII and MatrixIII. The resulting ML trees were visualized and annotated using iTOL [47].

3. Results

3.1. Species Identification and Delimitation

In the initial morphological identification, all specimens resembling Dzhanokmenia brevifunis were assigned to one morphospecies, with potential intraspecific variability documented. As a result, six morphospecies of Dzhanokmenia were identified: D. brevifunis sp. nov., D. gobica, D. karamayica, D. muleica Li, Wang & Hu, 2016, D. cf. antonovae and D. cf. sugonjaevi.
However, of the 52 individuals used for sequencing, 7 failed to yield COI sequences and were consequently excluded from the DNA barcoding analysis. The specimens used for the subsequent molecular analyses are summarized in Table 1. A total of 4 of these failed individuals belong to the species Dzhanokmenia muleica, resulting in its absence from the DNA barcode library. The resulting COI matrix for species delimitation comprised 42 individuals, with a sequence length of 434 bp, including aligned gaps. The results of the two molecular methods for species delimitation were consolidated in an NJ tree. Although ABGD failed to identify a barcoding gap within all available COI sequences of Dzhanokmenia, it suggested the presence of eight molecular units stably supported by COI sequences using this distance method. Furthermore, these eight putative species were corroborated by GMYC results. These molecular species delimitation results led to the separation of one morphospecies of D. brevifunis into three distinct species (see Figure 1).

3.2. Phylogenetic Analyses

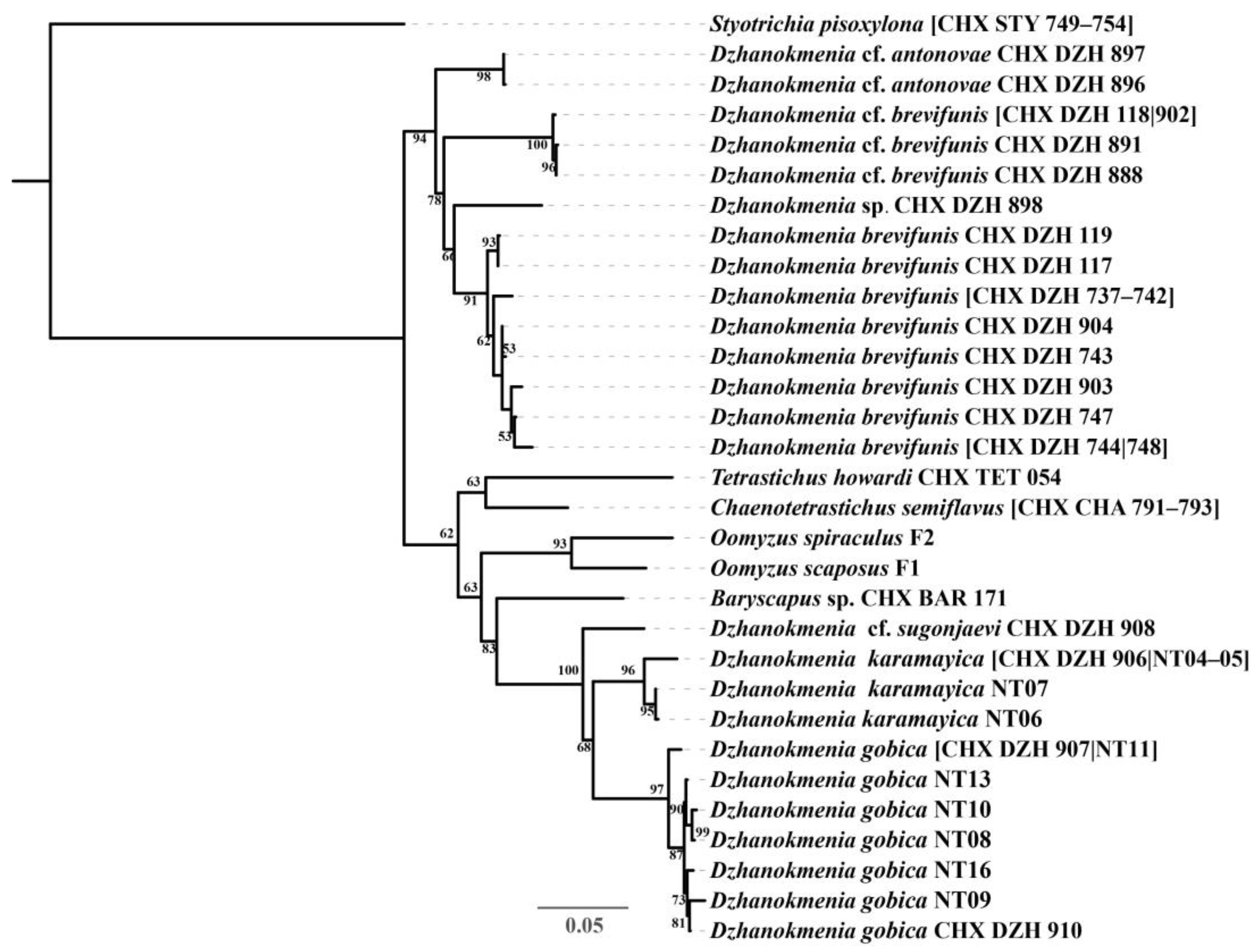

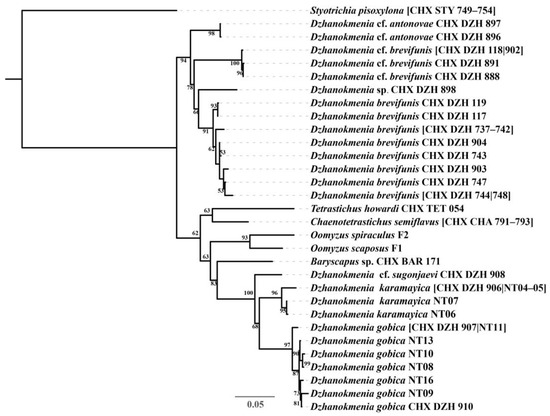

DNA barcodes were successfully generated for eight Dzhanokmenia species recorded from China (Table 1). We expanded the 28S matrix provided by Cao et al. [24] to include 97 sequences, incorporating 35 sequences from Dzhanokmenia species and 1 sequence from Baryscapus species generated in this study. After merging identical sequences, the following three matrices were generated for the phylogenetic analyses: (1) MatrixI: comprised 72 unique sequences with a length of 429 bp (28S, including aligned gaps); (2) MatrixII: comprised 30 unique sequences with a length of 419 bp (28S, including aligned gaps); (3) MatrixIII: comprised 35 unique concatenated sequences with a length of 852 bp (COI and 28S regions, including aligned gaps). The phylogenetic trees based on these three matrices are shown in Figures S1 and S2 and Figure 2, respectively.

3.3. Morphological Diagnosis and Species Treatments of Dzhanokmenia

3.3.1. Genus Dzhanokmenia Kostjukov, 1977

Dzhanokmenia Kostjukov, 1977 [7]: 189 (as subgenus of Tetrastichus). Type species: Tetrastichus bibikovae Dzhanokmen, 1971, by original designation.
Dzhanokmenia Kostjukov (as valid genus), Graham, 1991 [10]: 162–163.
Diagnosis. Mesosoma metallic green to blue, and metasoma with or without pale markings. Malar sulcus strongly curved. MLM with a single row of adnotaular setae on each side, exhibiting symmetrical or asymmetrical arrangement of setae. Antenna pale, although male pedicel sometimes darker dorsally at base; female funicle 3-segmented, male funicle 4-segmented. On hind leg, tarsomere 1 shortest, tarsomeres 2 and 3 subequal in length, and tarsomere 4 the longest. Fore wing except MV with extremely short marginal setae; MV and STV thickened, and SMV with one dorsal seta; hind wing knife-shaped, without marginal setae along upper margin.
Remarks. In terms of morphology, the most distinctive key character of Dzhanokmenia is the absence of marginal setae on the fore wing, except for MV, and the absence of marginal setae along the upper margin of the hind wing. While the MV and SMV are sometimes thickened in both the female and male, they are not as thick as those in Dzhanokmenia. In contrast, a key character of Baryscapus is the swollen scape in the male [10,48,49]. However, not all males of Baryscapus exhibit a swollen scape, and males are unknown in some species [48,49]. Furthermore, the genus Oomyzus exhibits a similar variation in male scape morphology, with some species possessing a swollen scape (O. incertus (Ratzeburg, 1844)) while others do not (e.g., O. spiraculus Song, Fei & Cao, 2020) [50]. Consequently, further studies are needed to determine whether the swollen male scape serves as a key character with phylogenetic significance. Additionally, in some Baryscapus species, the fore wing may also have short marginal setae on apical margin (e.g., B. berhidanus Erdős). We have also observed that certain species of Eulophidae (such as species of Baryscapus and Neochrysocharis Kurdjumov, 1912), Encyrtidae, Eurytomidae, and Pteromalidae, collected in semi-arid regions, possess relatively transparent fore wing discs with a reduced number of setae. This suggests that this character may be convergent due to adaptations to the environment, similar to the case of the enlarged mandibles in Chaenotetrastichus and Styotrichia LaSalle, which possibly evolved due to host adaptation [46]. While Dzhanokmenia species consistently have one dorsal seta on the SMV, Baryscapus species typically have two or more, very rarely with one seta. Therefore, the combination of characters outlined in the diagnosis of Dzhanokmenia is suggested to distinguish Dzhanokmenia species from closely related genera.

3.3.2. Dzhanokmenia brevifunis Ganbaatar & Cao, sp. nov.

Diagnosis. Body metallic green to metallic blue green, with weak to strong bronze tinge; antenna pale yellow, basal 3/4 of pedicel slightly infuscate dorsally; legs predominantly pale yellow, fore coxa pale yellow to brown at base, mid coxa infuscate basally to entirely metallic green, hind coxa metallic green with bronze tinge. Female antenna stout, and funicle 3-segmented; F1 distinctly transverse, 1.25–1.55× as broad as long; F2 subquadrate to slightly longer than broad, 1.05–1.45× as long as broad; F3 slightly transverse to subquadrate, 0.90–1.25× as broad as long; male antenna slender and funicle 4-segmented, with F1 distinctly transverse, about 2× as broad as long, and each remaining flagellomere longer than broad.
Female. Body length 0.9–1.5 mm. Body usually metallic green with a weak to strong bronze tinge, occasionally metallic blue, transscutal articulation along axilla pale yellow. Antenna pale yellow to brownish yellow, basal 3/4 of pedicel slightly infuscate dorsally. Legs predominantly pale yellow, except following parts: fore coxa pale yellow to brown at base, mid coxa infuscate basally to entirely metallic green, hind coxa metallic green with a bronze tinge, tarsomere 4 slightly infuscate, especially at apex, and claws brown. Wings hyaline, with pale yellow tegula and veins (Figure 3a,b).
Antenna with 1 transverse anellus, 3 funiculars, and 3 clavomeres (Figure 4); scape without plaque; pedicel distinctly longer than each funicular, usually shorter than and occasionally subequal in length with combined length of F1 and F2; F1 transverse, 1.25–1.55× as broad as long; F2 subquadrate to slightly longer than broad, 1.05–1.45× as long as broad, always longer than F1 and F3; F3 slightly transverse to subquadrate, 0.90–1.25× as broad as long; clava broader than funicle, 0.98–1.15× (without terminal spine) as long as funicle, clavomeres decreasing in length, clavomere 3 truncate apically, with an indistinct terminal spine (Figure 4). F1 with few scattered mushroom-shaped capitate peg sensilla apically, without longitudinal sensilla, remaining flagellomeres with longitudinal sensilla and apically with a circle of scattered, mushroom-shaped capitate peg sensilla (Figure 4).
Head slightly broader than mesoscutum and very easily collapsing after death (even if preserved in ethanol). POL about 3× as long as OOL (Figure 5a). Ocelli arranged in an obtuse-angled triangle (Figure 5a). Frons with a broad V-shaped frontofacial suture connecting to ocellar area; upper face with a weak carina between scrobes; head easily collapsing along frontofacial suture, outer margin of scrobes, and outer margin of ocelli (Figure 6a–c). Face with weak reticulation, and even more weak on scrobes. Toruli inserted almost at the same level as lower margin of eyes (Figure 6a).
Vertex, occiput, and upper face with scattered short white setae (scrobal area bare), lower face with sparse longer white setae (Figure 5a and Figure 6a–c). Eyes with short and sparse white setae, height of eye longer than malar space, about 1.8× as long as malar space. Malar space 0.8–0.9× as long as width of mouth opening, with malar sulcus strongly curved (Figure 6b). Anterior margin of clypeus bilobed; mandible bearing 3 teeth, with the length increasing (weak to strong) from the inner to the outer tooth (Figure 6b).
Pronotum strongly sloping and short in dorsal view, neck and collar not delimited, with scattered setae and raised reticulation (Figure 5a,c). Mesoscutum with raised reticulation that is slightly elongate; MLM nearly as long as maximum width, with a well-defined and complete median line, with a row of 2–4 adnotaular setae on each side, symmetric or asymmetric (i.e., with different number or position of setae on each side); axillae shifted strongly forward, with raised reticulation (Figure 5b). Mesoscutellum broader than long, about 1.3× as broad as long, convex in profile, with raised reticulation that is slightly elongate; mesoscutellum with a pair of strong submedian lines and a pair of weak but distinct sublateral lines (Figure 5b), and two pairs of setae, one pair situated slightly below the middle of mesoscutellum and the other pair situated near posterior margin; mesoscutellum with a narrow frenum, almost invisible in dorsal view because of convex mesoscutellum. Dorsellum convex, with reticulation as strong as that on mesoscutellum; lateral panels of metanotum depressed and smooth (Figure 5d).
Propodeum incised medially along anterior and especially posterior margins and thus short medially, 1.1–1.3× as long as median length of dorsellum; propodeum with raised reticulation, slightly weaker than that on dorsellum; median carina on propodeum hard to see but appears to be present due to elevated median area visible when viewed under a microscope; propodeum without plicae, but with curved paraspiracular carinae along inner margin of spiracles; spiracles medially large with entire rim exposed and separated from anterior margin of propodeum by half or more of the diameter of spiracle; callus reticulate, often with 3 short setae, occasionally with 2 setae (Figure 5b,d). Lateral panels of pronotum and prepectus with reticulation as strong as on pronotum, mesepimeron and mesepisternum with weak reticulation, almost smooth; acropleuron smooth; metapleuron reticulate (Figure 5c).
Petiole short and hidden in dorsal view (Figure 3b and Figure 5d). Gaster slender, pointed apically, 1.8–2.0× as long as broad; gastral tergites each with weak raised reticulation; Gt7 with 4 cercal setae, subequal in length; hypopygium nearly reaching to 1/2 the length of gaster (Figure 7c,d).
Legs with tarsomere 1 distinctly shorter than the other tarsomeres, tarsomere 2 and tarsomere 3 subequal in length and slightly shorter than tarsomere 4. Fore wing with only MV having long marginal setae, setae on margin of membrane are extremely short, which is challenging to discern even under a microscope, so it looks as if they are missing; fore wing disk without setae below SMV and MV; fore wing disk with short white setae becoming shorter towards base, and basal triangular area before the end of parastigma bare, and speculum is thus large and open below; PMV absent; SMV with 1 seta on dorsal surface (Figure 3a,b and Figure 7a). Hind wing knife-shaped, with the upper margin lacking marginal setae, and the lower margin with soft long white setae that are challenging to discern under a microscope and even in a SEM (Figure 7b).
Male. The males have similar body length to the females and differ from females as follows (Figure 3b,c and Figure 8a–e). Antenna more slender; the median part of scape slightly extending beyond the level of the scape; antenna with funicle 4-segmented; pedicel longer than broad, about 4.5× as long as F1; F1 distinctly transverse, about 2× as broad as long; F2 slightly longer than broad, about 2.5× as long as F1; F3 about 1.4× as long as broad, about 3.6× as long as F1; F4 about 1.2× as long as broad, and nearly as long as F3 (Figure 8c). Middle coxa predominantly metallic green, slightly pale brown apically (Figure 3b,c).
Etymology. From the Latin words ‘brevis’ (meaning ‘short’) and ‘funis’ (from ‘funicle’) (noun in apposition), referring to the transverse F1.
Type material. Holotype ♀, China, Xinjiang, the Desert Plant Garden of Tulufan (42.8542° N, 89.1928° E, −86 m), collected with Malaise Traps, 05-V-2013–15-V-2013, coll. Rui-Xia Liu (IOZCAS, IOZ(E)224671). Paratypes: 2♀2♂, same data as the holotype (IOZCAS, IOZ(E)224672–224675); 6♀, same data as the holotype, except for the collecting dates 25-IV-2013–05-V-2013 (IOZCAS, IOZ(E)224676–224681); 6♀, same data as the holotype, except for the collecting dates 05-V-2023–15-V-2013 (IOZCAS, IOZ(E)224682–224687); 3♀, China, Qinghai, Ge-Ermu, Baiyun Village on the Qinghai Province Road 303 (36.6103° N, 94.8506° E, 2805 m), swept on Tamarix sp., 17-VII-2017, coll. Qing-Tao Wu (IOZCAS, IOZ(E)224688–224690); 5♀1♂, China, Xinjiang, A-Letai, Fuhai (47.14604° N, 87.5549° E, 500 m), swept on Tamarix sp., coll. Zhi-Liang Wang (IOZCAS, IOZ(E)224691–224696).
Additional material. 6♀ voucher specimens for DNA barcodes, same data as the holotype; 4♀, same data as the holotype, except for the collecting dates 25-IV-2013–05-V-2013; 4♀, same data as the holotype, except for the collecting dates 05-V-2013–15-V-2013; 1♀1♂ on slides, China, Qinghai, Ge-Ermu, Baiyun Village on the Qinghai Province Road 303 (36.6103° N, 94.8506° E, 2805 m), swept on Tamarix sp., 17-VII-2017, coll. Qing-Tao Wu; 6♀ voucher specimens for DNA barcoding, China, Qinghai, Ge-Ermu, Baiyun Village on the Qinghai Province Road 303 (36.6103° N, 94.8506° E, 2805 m), swept on Tamarix sp., 17-VII-2017, coll. Qing-Tao Wu; 5♀ voucher specimens for DNA barcoding, China, Xinjiang, A-Letai, Fuhai (47.14604° N, 87.5549° E, 500 m), swept on Tamarix sp., coll. Zhi-Liang Wang; 16♀ preserved in 95%–100% ethanol, same data as holotype; 6♀, preserved in 95%–100% ethanol, same data as the holotype, except for the collecting dates 25-IV-2013–05-V-2013; 16♀, preserved in 95–100% ethanol, same data as the holotype, except for the collecting dates 05-V-2013–15-V-2013.
Host information. The holotype and some of the paratypes were collected by sweeping shrubs of Tamarix sp. in Xinjiang and Qinghai, China.
Distribution. Palearctic region (China: Qinghai, Xinjiang). The records of this species in semi-arid areas from both low and high altitudes suggest a potential distribution range spanning from about −100 to 2800 m above sea level.
Remarks. The specimens collected on the Tibetan Plateau at high altitudes have a larger body size than those collected in the Turpan Basin at low altitudes. Dzhanokmenia brevifunis shows variation in the coloration of the coxae on the fore and middle legs, as well as in the relative length of each funicular. In females, the fore coxa typically appears pale yellow, with a dark brown coloration that spreads to varying degrees, but never entirely covers the coxa or has a metallic green tint. However, the dark brown coloration of the middle coxa in females may extend from the base to the entire surface and sometimes have a metallic green tinge, similar to the color of the body. In addition, differences in the relative length of each funicular can be quite confusing due to their wide range of variation. However, F1 is consistently transverse and never subquadrate or longer than broad. In contrast, the fore coxa in males is typically pale yellow but may also have a dark brown color or even be entirely dark brown or metallic green. The relative length of each funicular appears to be relatively consistent compared to females. The undetectable variation in the male antenna may be attributed to the limited number of male individuals within a brood sample. The confirmation of these morphological variations was corroborated by the results of molecular species delimitation. For instance, the species represented by CHX_DZH_893 exhibits a fore coxa that is entirely metallic green and a subquadrate F1. Additionally, the species represented by CHX_DZH_898, which was also recognized from specimens swept on Tamarix sp., has antennae similar to D. brevifunis and entirely yellow fore and middle coxae but possesses a distinct gaster with yellow Gt1–2.

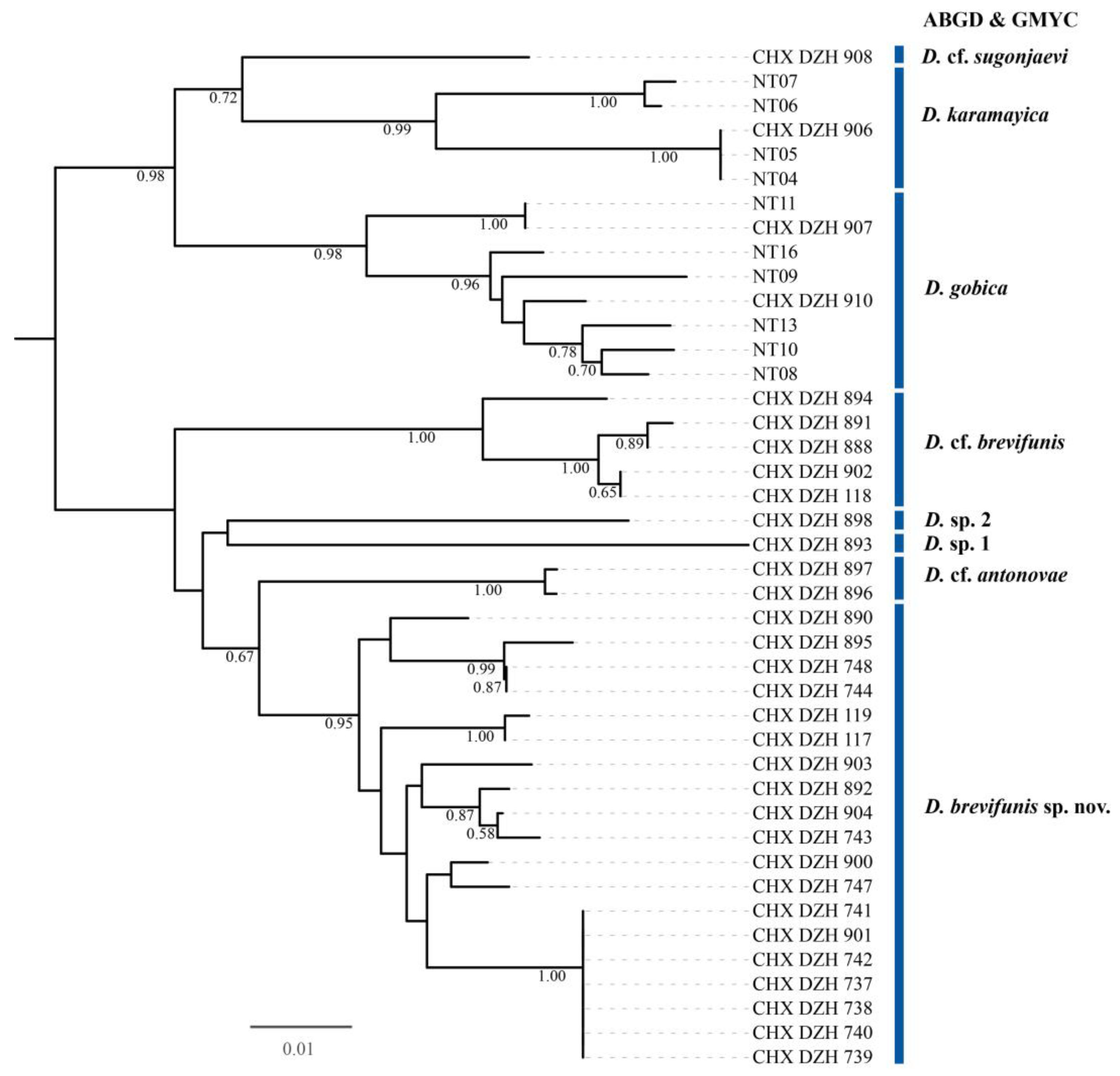

The species referred to as “D. cf. brevifunis” in Table 1 and Figure 1 (as well as in Figures S1 and S2) is a smaller species with a body length of about 0.8 mm compared to D. brevifunis. It can be distinguished from D. brevifunis by the combination of the following characters: all coxae entirely metallic green; callus with 2 setae. Sometimes the antenna of D. cf. brevifunis can be distinguished from that of D. brevifunis, with transverse F1 being longer than 1/2 length of F2 and F2 being subquadrate and subequal to F3 in length. However, this species also shows variation in the relative length of each funicular, which complicates the comparison of interspecific variation between these two species, especially when dealing with a limited number of individuals of D. cf. brevifunis. Despite few distinctions, we treated D. cf. brevifunis as a species distinct from D. brevifunis. In D. brevifunis, the fore coxa is never entirely metallic green, and the callus typically has 3 setae; if the callus has 2 setae, then F2 and F3 are both slightly longer than broad.
Morphologically, Dzhanokmenia brevifunis appears to be closely related to species of this genus that have a completely metallic gaster. Among these species, D. brevifunis appears to be most closely related to D. antonovae, as confirmed by the ML trees (Figures S1 and S2). The clearly transverse F1 distinguishes D. brevifunis from these species within Dzhanokmenia. However, D. karamayica, another Chinese species with metallic gaster, was clustered with the other three species with partially yellow gaster (D. gobia, D. muleica, and D. cf. sugonjaevi) rather than with D. brevifunis in the ML trees (Figures S1 and S2). Compared to these two clusters, the cluster containing D. antonovae and D. brevifunis has F1 transverse or at most subquadrate, while the other cluster containing D. karamayica has F1 longer than broad.

4. Discussion

In this study, we describe a new species of Dzhanokmenia distributed in Xinjiang and Qinghai, China, and it represents the first record of the genus from the semi-arid region of the Tibetan Plateau in Qinghai Province, China. A preliminary DNA barcode library for Dzhanokmenia was also constructed, revealing the potential species diversity around D. brevifunis by delimiting variation. Although the topology of the ML tree varies depending on the taxa or DNA regions included, the phylogenetic results nevertheless indicate a potential close relationship between Dzhanokmenia and Baryscapus, as well as to other genera associated with Tetrastichus, such as Chaenotetrastichus and Oomyzus.
One of the major challenges in species delimitations based on morphology arises from the complexities involved in discerning intra- and interspecific variation in morphological characters. This study unveiled that Dzhanokmenia species can manifest two extreme conditions. In one scenario, they display minor morphological variation but significant interspecific genetic differences (e.g., D. brevifunis and D. cf. brevifunis). Under this condition, specimens associated with a cluster of plant hosts may potentially represent distinct species. In the other scenario, they exhibit substantial morphological diversity yet demonstrate limited intraspecific genetic variation (e.g., the relative length of each funicular in D. brevifunis). In this case, there is a risk of mistakenly dividing one species into multiple entities. Therefore, a large number of specimens are essential for discussing intra- and interspecific morphological variation, which helps prevent the erroneous inclusion of closely related species under one classification or the excessive division of species.
The DNA barcoding analysis conducted in this study revealed a species complex containing at least two species. For specimens swept from adjacent clusters of Tamarix sp. (Tamaricaceae) and collected at a specific site with a Malaise trap, each genetically contained D. brevifunis and another distinct but occasional species. This occasional species, represented by D. cf. brevifunis (see Table 1 and Figure 2), remains undescribed due to an insufficient amount of material and was, therefore, not described here. Further extensive surveys of Dzhanokmenia in semi-arid regions and the acquisition of adequate material are needed to determine whether the currently observed variation in D. cf. brevifunis in a limited number of specimens can be classified as intra- or interspecific.
In addition, the other Dzhanokmenia species examined in this study are valuable for verifying the significance of variation in the relative length of each funicular (especially F1), the presence of a median line on the MLM, and the color of legs and gaster, as key characters for species delimitation within Dzhanokmenia. It is noteworthy that the range of variation in delimiting Dzhanokmenia species can vary between species, potentially increasing the challenges of delimitation in the absence of molecular data. The two similar species, D. gobica and D. muleica, which are primarily distinguished by differences in vertex and gaster [14], were not differentiated in the ML trees based on the 28S gene (Figures S1 and S2). In addition, D. karamayica, with an entirely metallic green gaster, is clustered with D. gobica and D. muleica, which have a predominantly yellow gaster. Future work is needed to determine whether the color variation in the gaster or vertex can be considered intraspecific in these species. In contrast, the yellow Gt1–2 directs the species represented by CHX_DZH_898 away from D. brevifunis (Figure 1 and Figure 2), while the variation in the above-mentioned characters fall within the range of D. brevifunis. All species have a slender F1 (longer than broad) in one cluster and a transverse F1 (at most subquadrate) in the other cluster in all three ML trees, suggesting that the antenna may take precedence over the other three characters mentioned above in grouping Dzhanokmenia species.
The topology of the branch containing Dzhanokmenia in the ML tree based on MatrixII (Figure S2) shows slight differences compared to that based on MatrixI (Figure S1). In the former scenario, the genus Dzhanokmenia is grouped in one cluster, whereas in the latter, it is divided into two clusters interspersed with four other genera: Baryscapus, Chaenotetrastichus, Oomyzus, and Tetrastichus. The ML tree based on MatrixIII, concatenating COI and 28S, shows a similar topology to the tree based on MatrixI. The deviations in the topologies of the ML trees based on different datasets show that the trees are not robust. Nevertheless, all scenarios suggest possible close relationships of these genera associated with Tetrastichus included in the ML analyses. Although confirming the monophyly of Dzhanokmenia or Baryscapus requires a well-resolved phylogeny of these genera, these trees provide clues for understanding the relationships among these genera. Further research on Dzhanokmenia and Baryscapus will be impeded without a comprehension of their relationships.
This study provides a preliminary DNA barcode library for the genus Dzhanokmenia that will serve as a valuable resource for the identification of both intra- and interspecific variation. It is anticipated that this library will aid in future efforts in species discovery and description within the genus. However, the construction of a more comprehensive DNA barcode library for Dzhanokmenia remains essential and requires urgent attention. Analyses of the limited DNA data suggest a potentially close relationship between Dzhanokmenia and other genera related to Tetrastichus, beyond Baryscapus. Nonetheless, the current dataset lacks the robustness necessary to definitively establish the monophyly of these genera. As Cao et al. [25] emphasized, a more comprehensive dataset that includes a broader range of taxa and incorporates multiple lines of evidence is necessary to elucidate the phylogenetic relationships of these genera.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/insects15060406/s1, Figure S1: An ML tree based on MatrixI of 28S D2 sequences, with species from the tribe Cirrospilini as outgroups; Figure S2: An ML tree based on MatrixII of 28S D2 sequences, with Styotrichia pixoxylona as the outgroup; Table S1: List of public sequences used in the ML analyses with accession numbers from GenBank.

Author Contributions

Conceptualization, H.C. and C.Z.; methodology, H.C.; software, H.C. and B.G.; validation, all authors; formal analysis, H.C.; investigation, all authors; resources, H.C., C.Z., Q.L. and O.X.; data curation, H.C. and B.G.; writing—original draft preparation, H.C. and B.G.; writing—review and editing, all authors; visualization, H.C. and B.G.; supervision, H.C. and C.Z.; project administration, H.C.; funding acquisition, C.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Key Program of the National Natural Science Foundation of China, grant number 32330013, and Chaodong Zhu’s lab was also supported by the Key Laboratory of Zoological Systematics and Evolution, grant number 2008DP173354.

Data Availability Statement

DNA data generated in this study are available on GenBase under accession numbers (see Table 1) and other public DNA data downloaded from GenBank are available under corresponding accession numbers mentioned in Table S1. Other data used in this study are deposited at the Institute of Zoology, Chinese Academy of Sciences, Beijing, China.

Acknowledgments

We thank Kuiyan Zhang (IOZCAS) for helping with SEM. Xuemei Yang (IOZCAS), Qingtao Wu (IOZCAS), Boyu Zou (IOZCAS), Chao Wang (Xinjiang University), and Ruixia Liu collected the specimens examined in this study. We thank the four anonymous reviewers for their useful comments on this manuscript. Huanxi Cao extends special thanks to Christer Hansson for his personal correspondence on the discussions of the Tetrastichus group, which significantly enhanced H.C.’s understanding of this large group within Tetrastichinae. Additionally, Christer Hansson generously assisted in refining the English language in the final version of this manuscript.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Noyes, J. Universal Chalcidoidea Database. 2019. Available online: http://www.nhm.ac.uk/chalcidoids (accessed on 18 April 2024).
  2. Gauthier, N.; LaSalle, J.; Quicke, D.L.; Godfray, H. Phylogeny of Eulophidae (Hymenoptera: Chalcidoidea), with a reclassification of Eulophinae and the recognition that Elasmidae are derived eulophids. Syst. Entomol. 2000, 25, 521–539. [Google Scholar] [CrossRef]
  3. Burks, R.A.; Heraty, J.M.; Gebiola, M.; Hansson, C. Combined molecular and morphological phylogeny of Eulophidae (Hymenoptera: Chalcidoidea), with focus on the subfamily Entedoninae. Cladistics 2011, 27, 581–605. [Google Scholar] [CrossRef] [PubMed]
  4. Cruaud, A.; Rasplus, J.-Y.; Zhang, J.; Burks, R.; Delvare, G.; Fusu, L.; Gumovsky, A.; Huber, J.T.; Janšta, P.; Mitroiu, M.-D.; et al. The Chalcidoidea bush of life: Evolutionary history of a massive radiation of minute wasps. Cladistics 2023, 40, 34–63. [Google Scholar] [CrossRef] [PubMed]
  5. Rasplus, J.Y.; Blaimer, B.B.; Brady, S.G.; Burks, R.A.; Delvare, G.; Fisher, N.; Gates, M.; Gauthier, N.; Gumovsky, A.V.; Hansson, C.; et al. A first phylogenomic hypothesis for Eulophidae (Hymenoptera, Chalcidoidea). J. Nat. Hist. 2020, 54, 597–609. [Google Scholar] [CrossRef]
  6. UCD Community. Universal Chalcidoidea Database Website. 2023. Available online: https://ucd.chalcid.org (accessed on 18 April 2024).
  7. Kostjukov, V.V. Comparative morphology of chalcids of the subfamily Tetrastichinae and the system of the genus Tetrastichus Haliday, 1844 (Hymenoptera, Eulophidae). Entomol. Obozr. 1977, 56, 177–194, (In Russian with English Summary). [Google Scholar]
  8. Kostjukov, V.V. Subfam. 5. Tetrastichinae. In Keys to the Insects of the European Part of the USSR—Volume III, Hymenoptera, Part 2; Medvedev, G.S., Trjapitzin, V.A., Eds.; Nauka Leningrad Division: Leningrad, Russia, 1978; pp. 430–467. (In Russian) [Google Scholar]
  9. Kostjukov, V.V. New species of the genus Tetrastichus Haliday, 1844 (Hymenoptera, Eulophidae) from Turkmenistan. In Entomophages of the Orchards Pests; Shtiintsa: Kishinev, Moldova, 1984; pp. 30–35. (In Russian) [Google Scholar]
  10. Graham, M.W.R.d.V. A Reclassification of the European Tetrastichinae (Hymenoptera: Eulophidae): Revision of the Remaining Genera; Associated Publishers c/o American Entomological Institute: Gainesville, FL, USA, 1991; pp. 1–322. [Google Scholar]
  11. Kostjukov, V.V. New species of Dzhanokmenia Kostjukov, 1977 and Kolopterna Graham, 1987 (Hymenoptera, Eulophidae, Tetrastichinae) from Turkmenistan. Biol. Plant Prot. Basis Ecosyst. Stab. Agroecosyst. 2014, 8, 84–91. [Google Scholar]
  12. Kostjukov, V.V.; Kosheleva, O.V. New species of Dzhanokmenia Kostjukov and Kolopterna Graham (Hymenoptera: Eulophidae: Tetrastichinae) from Russia. Proc. Russ. Entomol. Soc. 2014, 85, 160–164. [Google Scholar]
  13. Kostjukov, V.V.; Kosheleva, O.V. A new species of the eulophid-wasp genus Dzhanokmenia Kostjukov, 1977 (Hymenoptera, Eulophidae: Tetrastichinae) from Stavropol Territory. Entomol. Obozr. 2015, 94, 451–454. [Google Scholar] [CrossRef]
  14. Li, Q.; Wang, C.; Hu, H.Y.; Kostjukov, V.V.; LaSalle, J.; Zhu, C.D. Descriptions of three new species of Dzhanokmenia (Hymenoptera: Eulophidae) from China. Zootaxa 2016, 4121, 447–457. [Google Scholar] [CrossRef]
  15. Li, Q.; Wang, C.; Hu, H.Y. Two new species of Dzhanokmenia (Hymenoptera, Eulophidae) from China, with first report on a host association for the genus. ZooKeys 2021, 1009, 67–79. [Google Scholar] [CrossRef]
  16. Guo, S.H.; Kang, N.; Li, Q.; Hu, H.Y. Species and identification of Dzhanokmenia in China (Hymenoptera:Eulophidae). Sichuan Anim. 2022, 41, 63–73. [Google Scholar]
  17. Burks, R.; Mitroiu, M.-D.; Fusu, L.; Heraty, J.M.; Janšta, P.; Heydon, S.; Papilloud, N.D.-S.; Peters, R.S.; Tselikh, E.V.; Woolley, J.B.; et al. From Hell’s Heart I Stab at Thee! A Determined Approach towards a Monophyletic Pteromalidae and Reclassification of Chalcidoidea (Hymenoptera). J. Hymenopt. Res. 2022, 94, 13–88. [Google Scholar] [CrossRef]
  18. Munro, J.B.; Heraty, J.M.; Burks, R.A.; Hawks, D.; Mottern, J.; Cruaud, A.; Rasplus, J.Y.; Jansta, P. A Molecular Phylogeny of the Chalcidoidea (Hymenoptera). PLoS ONE 2011, 6, e27023. [Google Scholar] [CrossRef]
  19. van Noort, S.; Mitroiu, M.-D.; Burks, R.; Gibson, G.; Hanson, P.; Heraty, J.; Jansta, P.; Cruaud, A.; Rasplus, J.-Y. Redefining Ormyridae (Hymenoptera, Chalcidoidea) with establishment of subfamilies and description of new genera. Syst. Entomol. 2024, 1–48. [Google Scholar] [CrossRef]
  20. Zhang, J.X.; Lindsey, A.R.I.; Peters, R.S.; Heraty, J.M.; Hopper, K.R.; Werren, J.H.; Martinson, E.O.; Woolley, J.B.; Yoder, M.J.; Krogmann, L. Conflicting signal in transcriptomic markers leads to a poorly resolved backbone phylogeny of chalcidoid wasps. Syst. Entomol. 2020, 45, 783–802. [Google Scholar] [CrossRef]
  21. Cruaud, A.; Delvare, G.; Nidelet, S.; Sauné, L.; Ratnasingham, S.; Chartois, M.; Blaimer, B.B.; Gates, M.; Brady, S.G.; Faure, S.; et al. Ultra-conserved elements and morphology reciprocally illuminate conflicting phylogenetic hypotheses in Chalcididae (Hymenoptera, Chalcidoidea). Cladistics 2021, 37, 1–35. [Google Scholar] [CrossRef] [PubMed]
  22. Hong, D.; Zhuang, W.; Zhu, M.; Ma, K.; Wang, X.; Huang, D.; Zhang, Y.; Ren, G.; Bu, W.; Cai, W.; et al. Positioning taxonomic research for the future. Zool. Syst. 2022, 47, 185–187. [Google Scholar]
  23. Mitroiu, M.D.; Rasplus, J.Y.; van Noort, S. New genera of Afrotropical Chalcidoidea (Hymenoptera: Cerocephalidae, Epichrysomallidae, Pirenidae and Pteromalidae). PeerJ 2024, 12, e16798. [Google Scholar] [CrossRef]
  24. Zhu, C.; Luo, A.; Bai, M.; Orr, M.C.; Hou, Z.; Ge, S.; Chen, J.; Hu, Y.; Zhou, X.; Qiao, G.; et al. A joint call for actions to advance taxonomy in China. Zool. Syst. 2022, 47, 188–197. [Google Scholar]
  25. Cao, H.X.; Dale-Skey, N.; Guo, P.F.; Zhu, C.D. Parasitoid wasps with enlarged mandibles associated with aculeate Hymenoptera: An integrative taxonomy of Chaenotetrastichus Graham and Styotrichia LaSalle (Hymenoptera: Eulophidae). Insect Syst. Evol. 2024, 53, 1–26. [Google Scholar] [CrossRef]
  26. Gibson, G.A.P. Morphology and terminology. In Annotated Keys to the Genera of Nearctic Chalcidoidea (Hymenoptera); Gibson, G.A.P., Huber, J.T., Woolley, J.B., Eds.; NRC Research Press: Ottawa, ON, Canada, 1997; pp. 16–44. [Google Scholar]
  27. Huangfu, N.; Cao, H.-X.; Zhu, C.-D. Notes on the Genus Aceratoneuromyia Girault (Hymenoptera: Eulophidae). Insects 2022, 13, 450. [Google Scholar] [CrossRef]
  28. Hall, T. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symp. Ser. 1999, 41, 95–98. [Google Scholar]
  29. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef]
  30. Folmer, O.; Black, M.; Hoeh, W.; Lutz, R.; Vrijenhoek, R. DNA primers for amplification of mitochondrial cytochrome c oxidase subunit I from diverse metazoan invertebrates. Mol. Mar. Biol. Biotechnol. 1994, 3, 294–299. [Google Scholar] [PubMed]
  31. Carpenter, J.M. Towards simultaneous analysis of morphological and molecular data in Hymenoptera. Zool. Scr. 1999, 28, 251–260. [Google Scholar] [CrossRef]
  32. Li, Y.W.; Zhou, X.; Feng, G.; Hu, H.Y.; Niu, L.M.; Hebert, P.D.N.; Huang, D.W. COI and ITS2 sequences delimit species, reveal cryptic taxa and host specificity of fig-associated Sycophila (Hymenoptera, Eurytomidae). Mol. Ecol. Resour. 2010, 10, 31–40. [Google Scholar] [CrossRef] [PubMed]
  33. Hebert, P.D.N.; Penton, E.H.; Burns, J.M.; Janzen, D.H.; Hallwachs, W. Ten species in one: DNA barcoding reveals cryptic species in the neotropical skipper butterfly Astraptes fulgerator. Proc. Natl. Acad. Sci. USA 2004, 101, 14812–14817. [Google Scholar] [CrossRef]
  34. Campbell, B.C.; Steffen-Campbell, J.D.; Werren, J.H. Phylogeny of the Nasonia species complex (Hymenoptera: Pteromalidae) inferred from an internal transcribed spacer (ITS2) and 28S rDNA sequences. Insect Mol. Biol. 1993, 2, 225–237. [Google Scholar] [CrossRef]
  35. Gillespie, J.J.; Munro, J.B.; Heraty, J.M.; Yoder, M.J.; Owen, A.K.; Carmichael, A.E. A secondary structural model of the 28S rRNA expansion segments D2 and D3 for chalcidoid wasps (Hymenoptera: Chalcidoidea). Mol. Biol. Evol. 2005, 22, 1593–1608. [Google Scholar] [CrossRef]
  36. Puillandre, N.; Lambert, A.; Brouillet, S.; Achaz, G. ABGD, Automatic Barcode Gap Discovery for primary species delimitation. Mol. Ecol. 2012, 21, 1864–1877. [Google Scholar] [CrossRef]
  37. Pons, J.; Barraclough, T.G.; Gomez-Zurita, J.; Cardoso, A.; Duran, D.P.; Hazell, S.; Kamoun, S.; Sumlin, W.D.; Vogler, A.P. Sequence-Based Species Delimitation for the DNA Taxonomy of Undescribed Insects. Syst. Biol. 2006, 55, 595–609. [Google Scholar] [CrossRef] [PubMed]
  38. Kimura, M. A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences. J. Mol. Evol. 1980, 16, 111–120. [Google Scholar] [CrossRef] [PubMed]
  39. Saitou, N.; Nei, M. The neighbor-joining method: A new method for reconstructing phylogenetic trees. Mol. Biol. Evol. 1987, 4, 406–425. [Google Scholar]
  40. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2024; Available online: https://www.R-project.org/ (accessed on 26 April 2024).
  41. Suchard, M.A.; Lemey, P.; Baele, G.; Ayres, D.L.; Drummond, A.J.; Rambaut, A. Bayesian phylogenetic and phylodynamic data integration using BEAST 1.10. Virus Evol. 2018, 4, vey016. [Google Scholar] [CrossRef] [PubMed]
  42. Drummond, A.J.; Ho, S.Y.W.; Phillips, M.J.; Rambaut, A. Relaxed phylogenetics and dating with confidence. PLoS Biol. 2006, 4, 699–710. [Google Scholar] [CrossRef] [PubMed]
  43. Hasegawa, M.; Kishino, H.; Yano, T. Dating of human-ape splitting by a molecular clock of mitochondrial DNA. J. Mol. Evol. 1985, 22, 160–174. [Google Scholar] [CrossRef] [PubMed]
  44. Rambaut, A.; Drummond, A.J.; Xie, D.; Baele, G.; Suchard, M.A. Posterior summarization in Bayesian phylogenetics using Tracer 1.7. Syst. Biol. 2018, 67, 901–904. [Google Scholar] [CrossRef] [PubMed]
  45. Nguyen, L.T.; Schmidt, H.A.; von Haeseler, A.; Minh, B.Q. IQ-TREE: A fast and effective stochastic algorithm for estimating maximum-likelihood phylogenies. Mol. Biol. Evol. 2015, 32, 268–274. [Google Scholar] [CrossRef] [PubMed]
  46. Kalyaanamoorthy, S.; Minh, B.Q.; Wong, T.K.; von Haeseler, A.; Jermiin, L.S. ModelFinder: Fast model selection for accurate phylogenetic estimates. Nat. Methods 2017, 14, 587–589. [Google Scholar] [CrossRef]
  47. Letunic, I.; Bork, P. Interactive Tree of Life (iTOL) v6: Recent updates to the phylogenetic tree display and annotation tool. Nucleic Acids Res. 2024, gkae268. [Google Scholar] [CrossRef]
  48. LaSalle, J.; Graham, M.W.R.d.V. On the identity of Baryscapus Förster (Hymenoptera: Eulophidae: Tetrastichinae). Entomol. Gaz. 1990, 41, 121–128. [Google Scholar]
  49. LaSalle, J. North American genera of Tetrastichinae (Hymenoptera, Eulophidae). J. Nat. Hist. 1994, 28, 109–236. [Google Scholar] [CrossRef]
  50. Song, H.-T.; Fei, M.-H.; Li, B.-P.; Zhu, C.-D.; Cao, H.-X. A new species of Oomyzus Rondani (Hymenoptera, Eulophidae) reared from the pupae of Coccinella septempunctata (Coleoptera, Coccinellidae) in China. ZooKeys 2020, 953, 49–60. [Google Scholar] [CrossRef]
Insects 15 00406 g001
Figure 1. An NJ tree illustrating species delimitation results obtained using ABGD and GMYC methods based on K2P distances derived from the COI region. Bootstrap values are shown below the branches with values greater than 0.50. Each vertical bar on the right represents a distinct species delimitated by both ABGD and GMYC.
Figure 1. An NJ tree illustrating species delimitation results obtained using ABGD and GMYC methods based on K2P distances derived from the COI region. Bootstrap values are shown below the branches with values greater than 0.50. Each vertical bar on the right represents a distinct species delimitated by both ABGD and GMYC.
Insects 15 00406 g001
Insects 15 00406 g002
Figure 2. An ML tree based on MatrixIII, concatenating COI and 28S D2 regions, with Styotrichia pixoxylona as outgroup. Bootstrap values with values greater than 50 are shown to the left of the nodes.
Figure 2. An ML tree based on MatrixIII, concatenating COI and 28S D2 regions, with Styotrichia pixoxylona as outgroup. Bootstrap values with values greater than 50 are shown to the left of the nodes.
Insects 15 00406 g002
Insects 15 00406 g003
Figure 3. Dzhanokmenia brevifunis sp. nov. (a) Habitus of female holotype in dorsolateral view; (b) Habitus of female paratype in dorsolateral view; (c) Habitus of male paratype in lateral view; (d) Habitus of male paratype in dorsolateral view. Scale bar: 0.5 mm.
Figure 3. Dzhanokmenia brevifunis sp. nov. (a) Habitus of female holotype in dorsolateral view; (b) Habitus of female paratype in dorsolateral view; (c) Habitus of male paratype in lateral view; (d) Habitus of male paratype in dorsolateral view. Scale bar: 0.5 mm.
Insects 15 00406 g003
Insects 15 00406 g004
Figure 4. Dzhanokmenia brevifunis sp. nov., non-type females, variation in the antenna.
Figure 4. Dzhanokmenia brevifunis sp. nov., non-type females, variation in the antenna.
Insects 15 00406 g004
Insects 15 00406 g005
Figure 5. Dzhanokmenia brevifunis sp. nov., non-type females. (a) Head in dorsal view; (b) mesosoma in dorsal view; (c) metanotum and propodeum in dorsal view; (d) mesosoma in lateral view.
Figure 5. Dzhanokmenia brevifunis sp. nov., non-type females. (a) Head in dorsal view; (b) mesosoma in dorsal view; (c) metanotum and propodeum in dorsal view; (d) mesosoma in lateral view.
Insects 15 00406 g005
Insects 15 00406 g006
Figure 6. Dzhanokmenia brevifunis sp. nov., non-type females. (a) Head in front view of slightly collapsed specimen; (b) head in front view of specimen with collapsed face along scrobes; (c) head in front view of moderately collapsed specimen.
Figure 6. Dzhanokmenia brevifunis sp. nov., non-type females. (a) Head in front view of slightly collapsed specimen; (b) head in front view of specimen with collapsed face along scrobes; (c) head in front view of moderately collapsed specimen.
Insects 15 00406 g006
Insects 15 00406 g007
Figure 7. Dzhanokmenia brevifunis sp. nov., non-type females. (a) Fore wing; (b) hind wings; (c) gaster in dorsal view; (d) gaster in lateral view.
Figure 7. Dzhanokmenia brevifunis sp. nov., non-type females. (a) Fore wing; (b) hind wings; (c) gaster in dorsal view; (d) gaster in lateral view.
Insects 15 00406 g007
Insects 15 00406 g008
Figure 8. Dzhanokmenia brevifunis sp. nov., non-type male. (a) Mesosoma in dorsal view; (b) Head in front view; (c) Antenna; (d) Fore wing; (e) Gaster in dorsal view.
Figure 8. Dzhanokmenia brevifunis sp. nov., non-type male. (a) Mesosoma in dorsal view; (b) Head in front view; (c) Antenna; (d) Fore wing; (e) Gaster in dorsal view.
Insects 15 00406 g008
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ganbaatar, B.; Li, Q.; Xi, O.; Cao, H.; Zhu, C. One Step beyond Species Description: Unveiling a Fine-Scale Diversity within the Genus Dzhanokmenia Kostjukov (Hymenoptera: Eulophidae). Insects 2024, 15, 406. https://doi.org/10.3390/insects15060406

AMA Style

Ganbaatar B, Li Q, Xi O, Cao H, Zhu C. One Step beyond Species Description: Unveiling a Fine-Scale Diversity within the Genus Dzhanokmenia Kostjukov (Hymenoptera: Eulophidae). Insects. 2024; 15(6):406. https://doi.org/10.3390/insects15060406

Chicago/Turabian Style

Ganbaatar, Bolormaa, Qin Li, Ouyan Xi, Huanxi Cao, and Chaodong Zhu. 2024. "One Step beyond Species Description: Unveiling a Fine-Scale Diversity within the Genus Dzhanokmenia Kostjukov (Hymenoptera: Eulophidae)" Insects 15, no. 6: 406. https://doi.org/10.3390/insects15060406

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
