Functional Analysis of Forkhead Transcription Factor Fd59a in the Spermatogenesis of Drosophila melanogaster

by
Ting Tang
1,
Mengyuan Pei
1,
Yanhong Xiao
1,
Yingshan Deng
1,
Yuzhen Lu
1,
Xiao-Qiang Yu
1,
Liang Wen
1,2,* and
Qihao Hu
1,*
1
Guangdong Provincial Key Laboratory of Insect Developmental Biology and Applied Technology, Guangzhou Key Laboratory of Insect Development Regulation and Application Research, Institute of Insect Science and Technology, School of Life Sciences, South China Normal University, Guangzhou 510631, China
2
National Key Laboratory of Green Pesticide, College of Plant Protection, South China Agricultural University, Guangzhou 510642, China
*
Authors to whom correspondence should be addressed.
Insects 2024, 15(7), 480; https://doi.org/10.3390/insects15070480
Submission received: 1 March 2024 / Revised: 16 June 2024 / Accepted: 25 June 2024 / Published: 27 June 2024
(This article belongs to the Section Insect Physiology, Reproduction and Development)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Spermatogenesis, which is regulated by many different genes, is a conserved process across species to produce mature sperm for animal reproduction. Fox transcription factors can bind to DNA sequences in the promoters to regulate gene expression. FoxD subfamily members are mainly involved in metabolism and early organ development. In Drosophila melanogaster, FoxD subfamily member Fd59a may regulate the development of the nervous system and control the egg-laying behavior of females. However, the functions of insect FoxD members are still largely unknown. In this study, we investigated the role of Fd59a in the spermatogenesis of Drosophila. We found that mutations in Fd59a caused swelling of the apical region in the testis, resulting in fewer mature sperm in the seminal vesicle and significantly lower fertility of Fd59a mutant males compared to the control flies. We also found that the homeostasis of the testis stem cell niche in Fd59a mutant and RNAi flies was disrupted, causing increased apoptosis of sperm bundles. RNA sequencing and qRT-PCR results suggested that Fd59a can regulate the expression of genes related to reproductive process and cell death. Our collective results indicated that Fd59a plays a key role in Drosophila spermatogenesis, which will help to understand the role of FoxD members in insect spermatogenesis.

Abstract

Spermatogenesis is critical for insect reproduction and is regulated by many different genes. In this study, we found that Forkhead transcription factor Fd59a functions as a key factor in the spermatogenesis of Drosophila melanogaster. Fd59a contains a conversed Forkhead domain, and it is clustered to the FoxD subfamily with other FoxD members from some insect and vertebrate species. Mutations in Fd59a caused swelling in the apical region of the testis. More importantly, fewer mature sperm were present in the seminal vesicle of Fd59a mutant flies compared to the control flies, and the fertility of Fd59a2/2 mutant males was significantly lower than that of the control flies. Immunofluorescence staining showed that the homeostasis of the testis stem cell niche in Fd59a2/2 mutant and Fd59a RNAi flies was disrupted and the apoptosis of sperm bundles was increased. Furthermore, results from RNA sequencing and qRT-PCR suggested that Fd59a can regulate the expression of genes related to reproductive process and cell death. Taken together, our results indicated that Fd59a plays a key role in the spermatogenesis of Drosophila.

Graphical Abstract

1. Introduction

The Forkhead box (Fox) transcription factor, which contains a highly conserved DNA binding domain of ~100 amino acids consisting of three α helices, three β folds, and two ring connections, plays critical roles in organ development, innate immunity, and other processes [1]. Based on phylogenetic analysis, Fox proteins are assigned to different subclasses and named “Fox, subclass N, member X” [2]. FoxD subfamily members are mainly involved in metabolism and early organ development [3]. In mammals, FoxD1 regulates human early embryonic development and is associated with various diseases. For example, FoxD1 can promote SLC2A1 (Solute carrier family 2 member 1) transcription and inhibit the degradation of SLC2A1 to facilitate the proliferation, invasion, and metastasis of pancreatic cancer cells [4,5,6]. In planarian, FoxD gene expression was induced by wound signaling, and it was involved in head regeneration [7]. In Drosophila melanogaster, Fd59a/FoxD may regulate the development of the nervous system and control the egg-laying behavior of females [8]. However, the functions of insect FoxD subfamily members are still largely unknown.
Spermatogenesis is a process to produce mature sperm for reproduction. The process of spermatogenesis is conserved from insects to vertebrates; thus, insect testis is an ideal model for studying the mechanisms of spermatogenesis [9]. In D. melanogaster, germ stem cells (GSCs) differentiate into goniablasts under the control of the stem cell niche; then, goniablasts develop into spermatids through mitosis and meiosis. After nuclear elongation and individualization processes, round spermatids finally become mature sperm [10].
Spermatogenesis is regulated by multiple signaling pathways, such as TGF-β (Transforming Growth Factor β), Notch, JAK-STAT (Janus kinase-signal transducer and activator of transcription), BMP (Bone morphogenetic protein), and Hedgehog (Hh) pathways [11], and by many genes [12,13]. Recent studies showed that different genes are involved in the spermatogenesis of insects. For example, knockdown expression of ribosomal protein S3 (RpS3) strongly disrupted spermatid elongation and individualization processes in D. melanogaster [14]. The knockdown or mutation of the cytochrome c1-like (cyt-c1L) gene in early germ cells resulted in male sterility of D. melanogaster [15]. Moreover, BmHen1, a gene in Bombyx mori encoding methyltransferase that modifies piRNAs, was found to regulate eupyrene sperm development [16]. These results indicate that the molecular mechanism of insect spermatogenesis is much more complicated than what we have already known about.
In our previous study, we showed that B. mori FoxA participated in the development of wing disc [17]. Microarray data showed that Fox genes were expressed in B. mori testis, and BmFoxD was expressed at a high level [18]. In Drosophila, the expression of Fd59a/FoxD was also about 2-fold higher in the testis than in the ovary [19], suggesting that Fd59a may play a role in testis development or spermatogenesis. In this study, we found that the mutation and knockdown expression of Fd59a caused swelling in the apical region of the testis and decreased male fertility. More importantly, the loss of function of Fd59a disrupted the homeostasis of the testis stem cell niche and induced the apoptosis of sperm bundles, resulting in fewer mature sperm in the seminal vesicle. By analyzing RNA sequencing from the testis of Fd59a2/2 mutants, we found that Fd59a may regulate the expression of genes related to reproductive and metabolic processes. Our findings suggest that Fd59a plays a role in Drosophila spermatogenesis.

2. Materials and Methods

2.1. Fly Lines

The wild-type w1118 line was maintained in the laboratory [20]. Nos-Gal4 (TB00040) and UAS-GFP dsRNA (BDSC9331) fly lines were obtained from Tsinghua Fly Center in Beijing, China. Fd59a1/CyO (BDSC56819), Fd59a2/CyO (BDSC56820), Df(2R)BSC864 (BDSC29987), and UAS-Fd59a RNAi (BDSC31937) flies were purchased from the Bloomington Drosophila Stock Center (BDSC) in Indiana, USA. The Bam-Gal4 fly line was a gift from the laboratory of Professor Yufeng Wang at the School of Life Science, Central China Normal University, Wuhan, China.
To analyze the functions of Fd59a, Fd59a1/CyO males were crossed with Fd59a1/CyO females to generate Fd59a1/1 loss-of-function flies, while Fd59a2/CyO males were crossed with Fd59a2/CyO females to generate Fd59a2/2 loss-of-function flies. To knock down the expression of Fd59a, Nos-Gal4 and Bam-Gal4 flies were crossed with UAS-Fd59a RNAi flies.
All flies were reared on a fresh cornmeal/yeast/brown sugar diet with p-hydroxybenzoic acid methylester as a mold inhibitor at 25 °C with a photoperiod of approximately 12 L/12 D (light/dark) [21].

2.2. Bioinformatics Analysis

The amino acid sequences of Fd59a and its homologous proteins were obtained using protein BLAST at the National Center for Biotechnology Information (NCBI, https://blast.ncbi.nlm.nih.gov, accessed on 29 February 2024). Sequence alignment was performed by Cluster W. The construction of a phylogenetic tree was achieved by using RAxML (Random Axelerated Maximum Likelihood), approached with 1000 bootstrap replications [22]. The identification of functional protein domains in Fd59a and its homologous proteins was performed by SMART (https://smart.embl.de/, accessed on 29 February 2024). The prediction of potential Fox binding sites in the promoter sequences of selected genes was accomplished using the JASPAR program (https://jaspar.genereg.net/, accessed on 29 February 2024).

2.3. RNA Isolation and Quantitative RT-PCR

To investigate the expression profile of the Fd59a gene from the embryo to adult stages, approximately 50 adult w1118 flies (male/female ratio ~2:1) were collected in a cage for mating. Then, the flies were relocated to a fresh cage at 2 h intervals. Embryos at 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, and 24 h after egg laying; the 1st, 2nd, and 3rd instar larvae; pupae at the early, middle, and late stages; and 1-, 3-, and 5-day-old adults were collected. All samples were collected in RNAex Pro reagent (1000 µL) (Accurate Biology, Changsha, China) and stored in a −80 °C freezer for subsequent RNA isolation.
Total RNA was isolated from the above samples using a method described previously [20]. The first-strand complementary DNA (cDNA) was synthesized from 1 μg of total RNA using the HiFiScript gDNA removal cDNA Synthesis Kit (cwbiotech, Taizhou, China). To analyze the expression of target genes, gene-specific primers (Table 1) were designed based on the sequences available in the Flybase. All primers were synthesized by Tsingke Biotechnology (Beijing, China).
Quantitative reverse transcription—polymerase chain reaction (qRT-PCR) was conducted by using QuantStudio™ 6 Flex (Thermo Fisher Scientific, Waltham, MA, USA) and ChamQ SYBR qPCR Master Mix (Vazyme, Nanjing, China), following the manufacturer’s instructions. The qPCR cycling program was set as 95 °C for 30 s, succeeded by 40 cycles of 95 °C for 10 s and 60 °C for 30 s. Relative gene expression was normalized to the endogenous reference gene Rp49 by using the comparative CT (2−ΔΔCt) method [23].

2.4. Male Fertility Test

To evaluate the reproductive ability of male Fd59a mutant flies, a male fertility test was conducted. Ten 1-day-old virgin w1118 females were housed with fifteen 3-day-old w1118 or Fd59a2/2 males in vials containing egg collection plates to collect eggs. The egg collection plates were replaced every 24 h, and the number of embryos and larvae in the plates was counted as described previously [24].

2.5. Immunofluorescence Staining

Testes of 3-day-old adult flies were dissected in 10 mM phosphate-buffered saline (PBS) (137 mM NaCl, 2.7 mM KCl, 10 mM Na2HPO4, 2 mM KH2PO4, pH 7.4) and fixed in 4% paraformaldehyde (PFA) prepared in PBS for 40 min at room temperature. Testis samples were washed in 3‰ PBT (10 mM PBS with 0.3% Triton X-100) at least 3 times (each for 15 min) and treated with blocking buffer (3‰ PBT with 5% normal goat serum) for 1 h at room temperature. Then, samples were incubated at 4 °C overnight with primary antibodies diluted in dilution buffer (3‰ PBT with 3% normal goat serum), washed three times in 3‰ PBT to remove unbound antibodies, and subsequently incubated with secondary antibodies diluted in a dilution buffer at room temperature for 3 h in darkness. Samples were washed at least three times with 3‰ PBT and mounted using VECTASHIELD® antifade Mounting Medium containing 1.5 μg/mL DAPI (Vector Laboratories, Newark, NJ, USA).
The primary antibodies used in this study were as follows: rat anti-Vasa (1:50, Developmental Studies Hybridoma Bank, Iowa, IA, USA), mouse anti-Fasciclin III (Fas III) (1:100, Developmental Studies Hybridoma Bank, 7G10, Iowa, IA, USA), and mouse anti-αSpectrin (1:50, Developmental Studies Hybridoma Bank, 3A9, Iowa, IA, USA). The secondary antibodies used were Alexa Fluor-conjugated goat anti-mouse 568 and goat anti-rat 488 antibodies (1:500, Invitrogen, Carlsbad, CA, USA). Fluorescent images were captured using an FV3000 confocal microscope (Olympus, Tokyo, Japan).

2.6. TUNEL Assay

To analyze whether loss of function of Fd59a could induce cell death in sperm bundles, testes from 3-day-old adults of Fd59a2/2 and Fd59a RNAi flies were dissected. The collected testes were fixed in 4% paraformaldehyde and rinsed in 3‰ PBT, as described above.
A terminal deoxyribonucleotide transferase (TdT)-mediated dUTP nick end labeling (TUNEL) assay was conducted using the TUNEL assay kit (C1088 and C1090, Beyotime Biotechnology, Shanghai, China). Testis samples prepared as above were incubated with a TUNEL reaction mixture containing 5 μL of TdT enzyme, 45 μL of fluorescent labeling solution, and a moderate enzyme dilution buffer at 4 °C overnight and then washed three times in 3‰ PBT. DAPI staining was performed as described above.

2.7. RNA Sequencing

Testes from 3-day-old Fd59a2/2 and w1118 flies were dissected in DEPC-treated PBS (10 mM, pH7.4). Total RNA was extracted, and RNA sequencing was conducted by Shanghai Majorbio Biotech (Shanghai, China) using Illumina HiSeq 2000 (Illumina, San Diego, CA, USA).

2.8. Bioinformatics Analysis of RNA-seq Data

The transcript expression levels were quantified by Fragments Per Kilobase per Million mapped (FPKM) read values, and differentially expressed genes (DEGs) were identified based on a |log2 fold-change| > 1.5 along with a p-value adjustment below 0.05 across three biological replicates. The gene ontology (GO) enrichment of DEGs was analyzed using the GOseq R package (version 3.9).

2.9. Statistical Analysis

The size of the apical region from Fd59a2/2 and w1118 testes was quantitated by ImageJ (version 1.54j). For each sample, three biological replicates and at least three technical replicates for each biological sample were performed. Data were presented as the mean ± S.E. (standard error); significant differences were analyzed by the Student’s t-test (for comparison between two groups) or by one-way analysis of variance followed by a least significant difference test (for multiple comparisons among groups) using GraphPad Prism version 9.0.

3. Results

3.1. Expression Profile of Fd59a in Drosophila

To understand the functions of Fd59a, we first determined the expression profile of Fd59a at different developmental stages of Drosophila by qRT-PCR. The results showed that the expression of Fd59a mRNA peaked twice during development from embryo to adult stages, with the first peak around the mid-embryonic stage and then a plateau with a relatively high level from the late embryonic stage to the first instar larval stage and the second peak just at the metamorphosis period, maintaining at a relatively high level until the mid-pupal stage (Figure 1A), indicating that Fd59a may be involved in Drosophila development.
It has been reported that the loss of function of Fd59a affected the egg laying of Drosophila females [8]. Interestingly, FlyAtlas anatomical expression data from the Flybase showed that the expression level of Fd59a was about 2-fold higher in the testis than in the ovary [19]. We performed qRT-PCR and confirmed that mRNA levels of Fd59a were significantly higher in the testis than in the ovary of 3-day-old w1118 flies (Figure 1B), suggesting that Fd59a may also have a function in the testis of Drosophila.

3.2. Sequence and Phylogenetic Analyses of Fd59a

The Fd59a gene is in the second chromosome. The full-length cDNA of Fd59a is 1371 bp long, encoding a protein of 456 amino acid residues, with a calculated molecular weight of 49.1 kDa and pI of 5.19.
Fd59a belongs to the FoxD subfamily. To reveal the evolutionary relationship of Fd59a, Fd59a/FoxD homologous sequences from some insect and vertebrate species were blasted and downloaded from NCBI (Table 2), sequence alignment was performed, and a phylogenetic tree was constructed. The results showed that all the selected Fd59a/FoxD homologous proteins contained a conserved Forkhead box domain (Figure 2A). Drosophila Fd59a was the closest to FoxD3-A of Papilio Xuthus and FoxD3-like of Blattella germanica (Figure 2B) and they contained similar functional domains (Figure 2C). These results suggest that Drosophila Fd59a is evolutionarily close to insect FoxD members.

3.3. Loss of Function of Fd59a Affects Testis Development and Male Fertility

To determine the role of Fd59a in testis development in D. melanogaster, testes from Fd59a1/1 and Fd59a2/2 loss-of-function mutant flies as well as w1118 flies were dissected. Fd59a1 and Fd59a2 were two mutant types of Fd59a, with Fd59a1 as a hypomorphic mutation and Fd59a2 as a null allele [8]. We found that the apical region of testes from the Fd59a1/1 and Fd59a2/2 mutant flies was swelled (Figure 3A(a1,b1,c1),B), with fewer mature sperm in the seminal vesicle of Fd59a2/2 mutant testis compared to many mature sperm in the w1118 flies (Figure 3A(a2,a3,b2,b3,c2,c3)). As Fd59a2 was derived from EMS-based genetic screening, it may have contained unmapped mutations in the second chromosome. To exclude the possibility that the observed phenotypes were derived from other mutations in the second chromosome, we generated the hemizygous flies by crossing Fd59a2 flies with Df(2R) BSC864 flies, which contained a deletion encompassing the Fd59a locus, and similar results were observed (Figure 3A(d1–d3,e1–e3)). As the phenotype of Fa59a2/2 flies was more significant than that of Fa59a1/1 flies, we carried out the following studies in the Fa59a2/2 mutant flies. When Fd59a2/2 males were crossed with w1118 females, the hatching rate of F1 flies was significantly decreased compared to the control (Figure 3C). Together, these results suggest that Fd59a plays a critical role in the development of the testis and/or spermatogenesis of D. melanogaster.

3.4. Loss of Function of Fd59a Affects Spermatogenesis

At the apical region of testis, about 10 hub cells cluster together and are surrounded by GSCs and CySCs to form the stem cell niche, which governs the proliferation and differentiation of GSCs and CySCs. The disruption of niche homeostasis can lead to swelling of the testis and defects in spermatogenesis [25]. To clarify the role of Fd59a in spermatogenesis, Fas III and Vasa antibodies were used to specifically mark the hub cells and germ cells, respectively, and αSpectrin antibody was employed to identify spectrosomes and fusomes, which are crucial for the early development of germ cells. As a result, the distribution of GSCs and CySCs was scattered in the Fd59a2/2 testis compared to the control testis (Figure 4A(a4,b4)), and a strong pattern of spectrosome and fusome formation was displayed in the control testis, while fewer spectrosomes and fusomes were observed in the Fd59a2/2 mutant testis (Figure 4A(a2,a3,b2,b3),B,C). These results suggest that Fd59a may play a role in maintaining the homeostasis of the testis stem cell niche.
Mammalian FoxD1 is related to apoptosis, as the knockdown expression of FoxD1 facilitates apoptosis in HNSCC (head and neck squamous cell carcinoma) cells [26]. To determine whether the loss of function of Fd59a could induce apoptosis in the testis, a TUNEL assay was performed. TUNEL positive signals were detected in sperm bundles of the Fd59a2/2 mutant flies but not in the w1118 flies (Figure 5A(a1–a4,b1–b4)), suggesting that the loss of function of Fd59a induced the apoptosis of spermatid.
To further confirm the role of Fd59a in the testis, the expression of Fd59a in GSCs was knocked down by Nos-Gal4 (Figure 4D), and similar phenotypes, such as swelling in the apical region of the testis, fewer mature sperm in the seminal vesicle, and the apoptosis of sperm bundles, were observed in the Nos-Gal4>Fd59a RNAi flies (Figure 4A(c1–c3,d1–d3),B,C and Figure 5A(c1–c4,d1–d4)). The knockdown expression of Fd59a in the 4–16 stages of spermatogonia by Bam-Gal4 (Figure 5C) also induced the apoptosis of sperm bundles (Figure 5A(e1–e4,f1–f4)). Moreover, only a few mature sperm were observed in the seminal vesicles of the Nos-Gal4>Fd59a RNAi and Bam-Gal4>Fd59a RNAi flies, while the control flies were filled with mature sperm (Figure 5B). These combined results suggest that the loss of function of Fd59a in the testis resulted in the disruption of the stem cell niche during spermatogenesis and increased the apoptosis of sperm bundles, finally leading to fewer mature sperm in the seminal vesicle.

3.5. Fd59a Regulates Gene Expression in the Testis

To further clarify the role of Fd59a in spermatogenesis, RNA sequencing (RNA-seq) was performed with RNAs isolated from the testes of w1118 (control) and Fd59a2/2 males. In total, 1863 differentially expressed genes (DEGs) with at least a 1.5-fold change (p-adjust < 0.05) were identified by RNA-seq, with 854 genes upregulated and 1009 genes downregulated in the testis of Fd59a2/2 flies (Figure 6A). This result suggests that Fd59a may function as a transcription factor in the testis.
Gene ontology (GO) analysis revealed that 120 differentially expressed genes (DEGs) are associated with the reproductive process and 475 DEGs engage in the metabolic process (Figure 6B). Within DEGs related to reproduction, several have already been reported to contribute to gonad development and spermatogenesis, such as Fz2 and Zpg [27,28]. In addition, 57 DEGs were implicated in cell death, including Rnrs and Ptp52F [29,30].
To confirm the RNA-seq data, 20 DEGs associated with reproductive process and cell death were chosen for qRT-PCR validation (Table 3). The expression patterns of these DEGs in the testis were consistent with those of the RNA-seq data (Figure 6C). Then, 2000 bp promoter sequences upstream of the transcriptional start sites of these selected genes were downloaded, and the potential Fox binding sites were predicted using the JASPAR database (the relative profile score threshold was set to 85%). Except for the CG32817 promoter, several Fox binding sites were predicted in the promoter of each selected gene, with more than 10 potential Fox binding sites in the promoters of the Spd-2, Cal1, Blanks, Ptp52F, Lola, and Debcl genes (Table 3). This result further supports that Fd59a is an upstream regulator of these genes. Taken together, our results suggest that Fd59a serves as a transcription factor to regulate the expression of genes involved in reproduction, cell growth, and cell death in the testis directly or indirectly.

4. Discussion

Drosophila testis is an ideal system for studying spermatogenesis. In this study, we found that FoxD transcription factor Fd59a contributes to the spermatogenesis of Drosophila. So far, little is known about the functions of Drosophila Fd59a/FoxD and other insect FoxD members. It was reported that the loss of function of Fd59a affects the female egg-laying behavior of Drosophila [8]. Moreover, Drosophila CHES-1-like/FoxN suppressed the differentiation of germline stem cells by upregulating Dpp expression, whereas ectopic expression of CHES-1-like led to a significant decrease in male fertility [31]. In B. mori, Fox family genes were expressed in the testis, with BmFoxL2-2 and BmFoxD at a higher level than other BmFox genes [18]. However, the function of BmFoxD in the testis is still unknown.
In this study, we showed that spermatogenesis was disrupted and the apoptosis of sperm bundles was induced in Fd59a mutant and RNAi flies. Spermatogenesis is a complex process regulated by multiple signaling pathways and many different genes. The over-activation of the JAK-STAT signaling pathway led to the overgrowth of the testis and the disrupted structure of the testis stem cell niche in Drosophila [25,32]. The over-activation of the JNK or loss of the Notch signaling caused cell death in the testis of Drosophila [33,34]. In mammals, the deletion of Stat3 in the Foxd1 cell lineage protected mice from kidney fibrosis [35]. Hypoxia-inducible factors (HIFs) regulated genes related to oxygen homeostasis, and a lack of Hif-p4h-2 (HIF prolyl-4-hydroxylases) in the FoxD1 lineage led to the dysregulation of genes involved in the Notch signaling pathway [36]. These results suggest that there is a genetic interaction between mammalian FoxD subfamily members and the JAK-STAT and Notch pathways. However, mRNA levels of genes related to the above three signaling pathways did not change significantly in the Fd59a2/2 testis (RNA-seq data), indicating that Fd59a is not involved in the JAK-STAT, JNK, or Notch signaling pathway. Therefore, insect FoxD members may function differently from mammalian FoxD subfamily members.
It has been shown that Fd59a is expressed in octopaminergic neurons and that it regulates the egg-laying behavior of female Drosophila [8]. In the Chinese mitten crab (Eriocheir sinensis), the expression of the octopamine receptor changed significantly in the androgenic gland (AG) between the proliferation and secretion phases [37]. We showed that the loss of function of Fd59a caused defects in spermatogenesis. These combined results suggest that octopaminergic neurons and octopamine may play a role in spermatogenesis, which needs to be determined by further study.
The results from RNA-seq and qRT-PCR showed that many genes related to reproduction and cell death were differentially expressed in the testis of Fd59a2/2 flies. Among the reproduction-related DEGs, Fz2 and Zpg have been reported to regulate germ stem cell development in Drosophila testis [27,28], while Blanks functioned in sperm individualization [38]. Among the cell death-related DEGs, Ptp52F enhanced autophagy and apoptosis in the Drosophila midgut [30]. In addition, several potential Fox binding sites were predicted in the promoters of selected DEGs. Thus, Fd59a acts as a transcription factor to regulate the expression of genes involved in spermatogenesis and maintain the survival of sperm cells.
It was reported that octopamine was essential for increasing GSCs in mating Drosophila females [39], and the β-adrenergic-like octopamine receptor (OctβR) was strongly expressed in adult testis [40]. In Fd59a2/2 adult testis, Octβ2R expression was downregulated; thus, it is possible that Fd59a regulates spermatogenesis partly through regulating the expression of Octβ2R, and Fd59a may be a key factor linking the nervous system to the male reproduction system.

Author Contributions

Conceptualization, X.-Q.Y., L.W. and Q.H.; methodology, T.T., L.W. and Q.H.; software, M.P., Y.D. and Y.L.; validation, Y.X., Y.D. and L.W.; formal analysis, X.-Q.Y. and Q.H.; investigation, T.T., M.P., Y.X., Y.D. and Q.H.; resources, Y.X. and Q.H.; data curation, M.P., Y.L. and Q.H.; writing—original draft preparation, T.T. and Q.H.; writing—review and editing, X.-Q.Y., L.W. and Q.H.; visualization, T.T. and Y.L.; supervision, L.W. and Q.H.; project administration, X.-Q.Y. and Q.H.; funding acquisition, Q.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (no. 32300389), GuangDong Basic and Applied Basic Research Foundation (no. 2022A1515111055), and China Postdoctoral Science Foundation (no. 2022M721219).

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Acknowledgments

We thank Professor Yufeng Wang at the School of Life Sciences, Central China Normal University, Wuhan, China, for providing Bam-Gal4 flies.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Akhlaghipour, I.; Fanoodi, A.; Zangouei, A.S.; Taghehchian, N.; Khalili-Tanha, G.; Moghbeli, M. MicroRNAs as the Critical Regulators of Forkhead Box Protein Family in Pancreatic, Thyroid, and Liver Cancers. Biochem. Genet. 2023, 61, 1645–1674. [Google Scholar] [CrossRef] [PubMed]
  2. Kaestner, K.H.; Knochel, W.; Martinez, D.E. Unified nomenclature for the winged helix/forkhead transcription factors. Genes Dev. 2000, 14, 142–146. [Google Scholar] [CrossRef] [PubMed]
  3. Quintero-Ronderos, P.; Laissue, P. The multisystemic functions of FOXD1 in development and disease. J. Mol. Med. 2018, 96, 725–739. [Google Scholar] [CrossRef] [PubMed]
  4. Cai, K.; Chen, S.; Zhu, C.; Li, L.; Yu, C.; He, Z.; Sun, C. FOXD1 facilitates pancreatic cancer cell proliferation, invasion, and metastasis by regulating GLUT1-mediated aerobic glycolysis. Cell Death Dis. 2022, 13, 765. [Google Scholar] [CrossRef] [PubMed]
  5. Jiang, W.; Li, Y.; Li, R.; Chen, W.; Song, M.; Zhang, Q.; Chen, S. The Prognostic Significance of FOXD1 Expression in Head and Neck Squamous Cell Carcinoma. J. Pers. Med. 2023, 13, 530. [Google Scholar] [CrossRef] [PubMed]
  6. Qiu, S.J.; Li, D.; Shen, Z.S.; Li, Q.; Shen, Y.; Deng, H.X.; Wu, Y.D.; Zhou, C.C. Diagnostic and prognostic value of FOXD1 expression in head and neck squamous cell carcinoma. J. Cancer. 2021, 12, 693–702. [Google Scholar] [CrossRef] [PubMed]
  7. Scimone, M.L.; Lapan, S.W.; Reddien, P.W. A forkhead transcription factor is wound-induced at the planarian midline and required for anterior pole regeneration. PLoS Genet. 2014, 10, e1003999. [Google Scholar] [CrossRef] [PubMed]
  8. Lacin, H.; Rusch, J.; Yeh, R.T.; Fujioka, M.; Wilson, B.A.; Zhu, Y.; Robie, A.A.; Mistry, H.; Wang, T.; Jaynes, J.B.; et al. Genome-wide identification of Drosophila Hb9 targets reveals a pivotal role in directing the transcriptome within eight neuronal lineages, including activation of nitric oxide synthase and Fd59a/Fox-D. Dev. Biol. 2014, 388, 117–133. [Google Scholar] [CrossRef] [PubMed]
  9. Siddall, N.A.; Hime, G.R. A Drosophila toolkit for defining gene function in spermatogenesis. Reproduction 2017, 153, R121–R132. [Google Scholar] [CrossRef]
  10. Fabian, L.; Brill, J.A. Drosophila spermiogenesis: Big things come from little packages. Spermatogenesis 2012, 2, 197–212. [Google Scholar] [CrossRef]
  11. Greenspan, L.J.; de Cuevas, M.; Matunis, E. Genetics of gonadal stem cell renewal. Annu. Rev. Cell Dev. Biol. 2015, 31, 291–315. [Google Scholar] [CrossRef]
  12. Drummond-Barbosa, D. Local and Physiological Control of Germline Stem Cell Lineages in Drosophila melanogaster. Genetics 2019, 213, 9–26. [Google Scholar] [CrossRef] [PubMed]
  13. Nyberg, K.G.; Carthew, R.W. Out of the testis: Biological impacts of new genes. Genes Dev. 2017, 31, 1825–1826. [Google Scholar] [CrossRef] [PubMed]
  14. Fang, Y.; Zhang, F.; Zhan, Y.; Lu, M.; Xu, D.; Wang, J.; Li, Q.; Zhao, L.; Su, Y. RpS3 Is Required for Spermatogenesis of Drosophila melanogaster. Cells 2023, 12, 573. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, M.Y.; Duan, X.; Wang, Q.; Ran, M.J.; Ai, H.; Zheng, Y.; Wang, Y.F. Cytochrome c1-like is required for mitochondrial morphogenesis and individualization during spermatogenesis in Drosophila melanogaster. J. Exp. Biol. 2023, 226, jeb245277. [Google Scholar] [CrossRef] [PubMed]
  16. Yang, X.; Chen, D.; Zheng, S.; Yi, M.; Liu, Z.; Liu, Y.; Yang, D.; Liu, Y.; Tang, L.; Zhu, C.; et al. BmHen1 is essential for eupyrene sperm development in Bombyx mori but PIWI proteins are not. Insect Biochem. Mol. Biol. 2022, 151, 103874. [Google Scholar] [CrossRef] [PubMed]
  17. Hu, Q.; Zhu, Z.; Zhao, D.; Zeng, B.; Zheng, S.; Song, Q.; Deng, H.; Feng, Q. Bombyx mori transcription factors FoxA and SAGE divergently regulate the expression of wing cuticle protein gene 4 during metamorphosis. J. Biol. Chem. 2019, 294, 632–643. [Google Scholar] [CrossRef] [PubMed]
  18. Song, J.; Li, Z.; Tong, X.; Chen, C.; Chen, M.; Meng, G.; Chen, P.; Li, C.; Xin, Y.; Gai, T.; et al. Genome-wide identification and characterization of Fox genes in the silkworm, Bombyx mori. Funct. Integr. Genom. 2015, 15, 511–522. [Google Scholar] [CrossRef]
  19. Chintapalli, V.R.; Wang, J.; Dow, J.A. Using FlyAtlas to identify better Drosophila melanogaster models of human disease. Nat. Genet. 2007, 39, 715–720. [Google Scholar] [CrossRef]
  20. Hu, Q.; Xiao, Y.; Wei, R.; Tang, T.; Wen, L.; Lu, Y.; Yu, X.Q. Identification and functional analysis of CG3526 in spermatogenesis of Drosophila melanogaster. Insect Sci. 2024, 31, 79–90. [Google Scholar] [CrossRef]
  21. Biwot, J.C.; Zhang, H.B.; Chen, M.Y.; Wang, Y.F. A new function of immunity-related gene Zn72D in male fertility of Drosophila melanogaster. Arch. Insect Biochem. Physiol. 2019, 102, e21612. [Google Scholar] [CrossRef]
  22. Stamatakis, A. RAxML version 8: A tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics 2014, 30, 1312–1313. [Google Scholar] [CrossRef] [PubMed]
  23. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCt Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  24. Zhao, T.; Xiao, Y.; Huang, B.; Ran, M.J.; Duan, X.; Wang, Y.F.; Lu, Y.; Yu, X.Q. A dual role of lola in Drosophila ovary development: Regulating stem cell niche establishment and repressing apoptosis. Cell Death Dis. 2022, 13, 756. [Google Scholar] [CrossRef] [PubMed]
  25. Loza-Coll, M.A.; Petrossian, C.C.; Boyle, M.L.; Jones, D.L. Heterochromatin Protein 1 (HP1) inhibits stem cell proliferation induced by ectopic activation of the Jak/STAT pathway in the Drosophila testis. Exp. Cell Res. 2019, 377, 1–9. [Google Scholar] [CrossRef]
  26. Li, J.; Yan, T.; Wu, X.; Ke, X.; Li, X.; Zhu, Y.; Yang, J.; Li, Z. Aberrant overexpression of transcription factor Forkhead box D1 predicts poor prognosis and promotes cancer progression in HNSCC. BMC Cancer 2021, 21, 1205. [Google Scholar] [CrossRef]
  27. Smendziuk, C.M.; Messenberg, A.; Vogl, A.W.; Tanentzapf, G. Bi-directional gap junction-mediated soma-germline communication is essential for spermatogenesis. Development 2015, 142, 2598–2609. [Google Scholar]
  28. Wang, S.; Gao, Y.; Song, X.; Ma, X.; Zhu, X.; Mao, Y.; Yang, Z.; Ni, J.; Li, H.; Malanowski, K.E.; et al. Wnt signaling-mediated redox regulation maintains the germ line stem cell differentiation niche. eLife 2015, 4, e08174. [Google Scholar] [CrossRef]
  29. Akdemir, F.; Christich, A.; Sogame, N.; Chapo, J.; Abrams, J.M. p53 directs focused genomic responses in Drosophila. Oncogene 2007, 26, 5184–5193. [Google Scholar] [CrossRef]
  30. Santhanam, A.; Peng, W.H.; Yu, Y.T.; Sang, T.K.; Chen, G.C.; Meng, T.C. Ecdysone-induced receptor tyrosine phosphatase PTP52F regulates Drosophila midgut histolysis by enhancement of autophagy and apoptosis. Mol. Cell. Biol. 2014, 34, 1594–1606. [Google Scholar] [CrossRef]
  31. Yu, J.; Liu, Y.; Lan, X.; Wu, H.; Wen, Y.; Zhou, Z.; Hu, Z.; Sha, J.; Guo, X.; Tong, C. CHES-1-like, the ortholog of a non-obstructive azoospermia-associated gene, blocks germline stem cell differentiation by upregulating Dpp expression in Drosophila testis. Oncotarget 2016, 7, 42303–42313. [Google Scholar] [CrossRef] [PubMed]
  32. Kiger, A.A.; Jones, D.L.; Schulz, C.; Rogers, M.B.; Fuller, M.T. Stem cell self-renewal specified by JAK-STAT activation in response to a support cell cue. Science 2001, 294, 2542–2545. [Google Scholar] [CrossRef] [PubMed]
  33. Herrera, S.C.; Bach, E.A. The Emerging Roles of JNK Signaling in Drosophila Stem Cell Homeostasis. Int. J. Mol. Sci. 2021, 22, 5519. [Google Scholar] [CrossRef] [PubMed]
  34. Ng, C.L.; Qian, Y.; Schulz, C. Notch and Delta are required for survival of the germline stem cell lineage in testes of Drosophila melanogaster. PLoS ONE 2019, 14, e0222471. [Google Scholar] [CrossRef] [PubMed]
  35. Ajay, A.K.; Zhao, L.; Vig, S.; Fujiwara, M.; Thakurela, S.; Jadhav, S.; Cho, A.; Chiu, I.J.; Ding, Y.; Ramachandran, K.; et al. Deletion of STAT3 from Foxd1 cell population protects mice from kidney fibrosis by inhibiting pericytes trans-differentiation and migration. Cell Rep. 2022, 38, 110473. [Google Scholar] [CrossRef]
  36. Rosendahl, A.H.; Monnius, M.; Laitala, A.; Railo, A.; Miinalainen, I.; Heljasvaara, R.; Mäki, J.M.; Myllyharju, J. Deletion of hypoxia-inducible factor prolyl 4-hydroxylase 2 in FoxD1-lineage mesenchymal cells leads to congenital truncal alopecia. J. Biol. Chem. 2022, 298, 101787. [Google Scholar] [CrossRef] [PubMed]
  37. Fu, C.; Zeng, Q.; Li, F.; Wang, H.; Sun, J.; Wang, H. Comparative transcriptome analysis reveals related regulatory mechanisms of androgenic gland in Eriocheir sinensis. BioMed Res. Int. 2017, 2017, 4956216. [Google Scholar] [CrossRef] [PubMed]
  38. Sanders, C.; Smith, D.P. LUMP is a putative double-stranded RNA binding protein required for male fertility in Drosophila melanogaster. PLoS ONE 2011, 6, e24151. [Google Scholar] [CrossRef]
  39. Yoshinari, Y.; Ameku, T.; Kondo, S.; Tanimoto, H.; Kuraishi, T.; Shimada-Niwa, Y.; Niwa, R. Neuronal octopamine signaling regulates mating-induced germline stem cell increase in female Drosophila melanogaster. eLife 2020, 9, e57101. [Google Scholar] [CrossRef]
  40. Ohhara, Y.; Kayashima, Y.; Hayashi, Y.; Kobayashi, S.; Yamakawa-Kobayashi, K. Expression of β-adrenergic-like octopamine receptors during Drosophila development. Zool. Sci. 2012, 29, 83–89. [Google Scholar] [CrossRef]
Insects 15 00480 g001

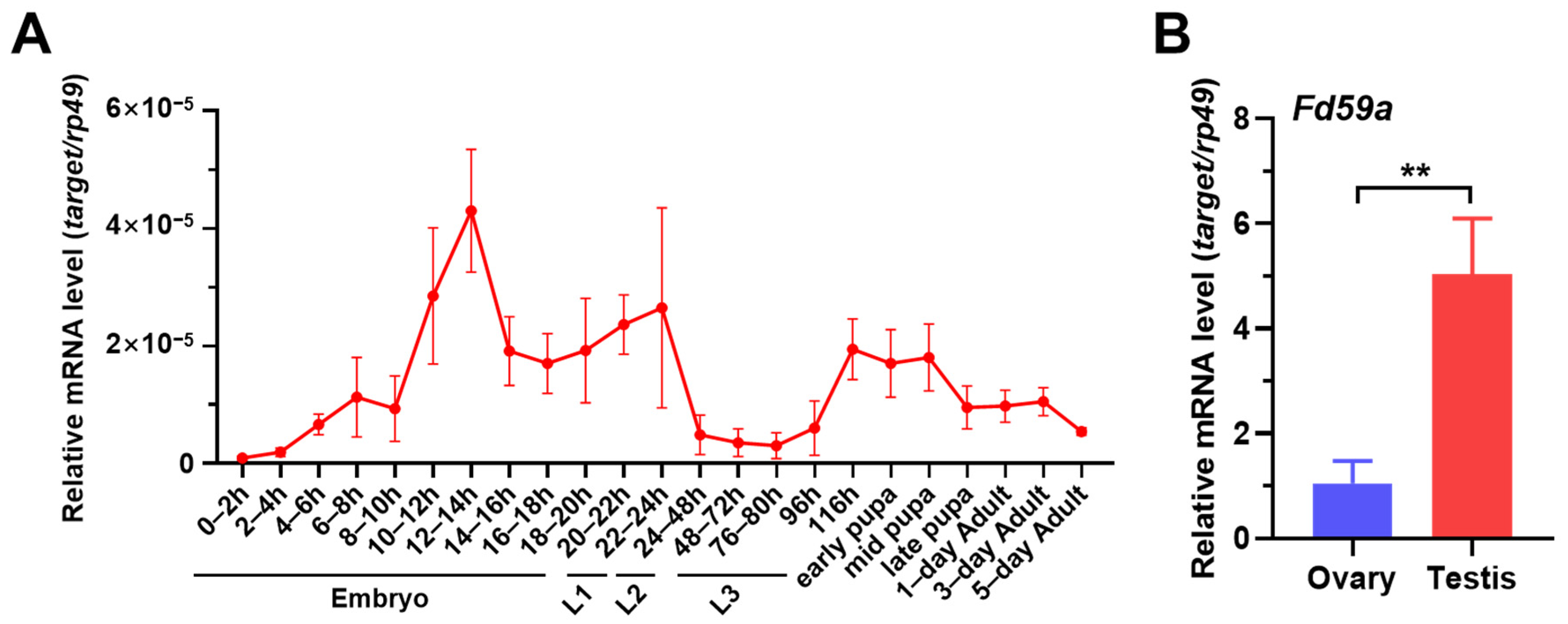

Figure 1. Expression of Fd59a at different developmental stages and in adult ovary and testis. (A) Expression of Fd59a at different developmental stages. Drosophila embryos at 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, and 24 h after egg laying; first (L1), second (L2), and third (L3) instar larvae; early, middle, and late pupae; and 1-, 3-, and 5-day-old adult flies were collected to prepare total RNAs for the analysis of the transcriptional expression of Fd59a by qRT-PCR. (B) Expression of Fd59a in the testis and ovary of 3-day-old adult flies. Data were presented as means ± S.E., and significant differences were determined by the Student’s t-test and indicated by asterisks. ** p < 0.01.
Figure 1. Expression of Fd59a at different developmental stages and in adult ovary and testis. (A) Expression of Fd59a at different developmental stages. Drosophila embryos at 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, and 24 h after egg laying; first (L1), second (L2), and third (L3) instar larvae; early, middle, and late pupae; and 1-, 3-, and 5-day-old adult flies were collected to prepare total RNAs for the analysis of the transcriptional expression of Fd59a by qRT-PCR. (B) Expression of Fd59a in the testis and ovary of 3-day-old adult flies. Data were presented as means ± S.E., and significant differences were determined by the Student’s t-test and indicated by asterisks. ** p < 0.01.
Insects 15 00480 g001
Insects 15 00480 g002

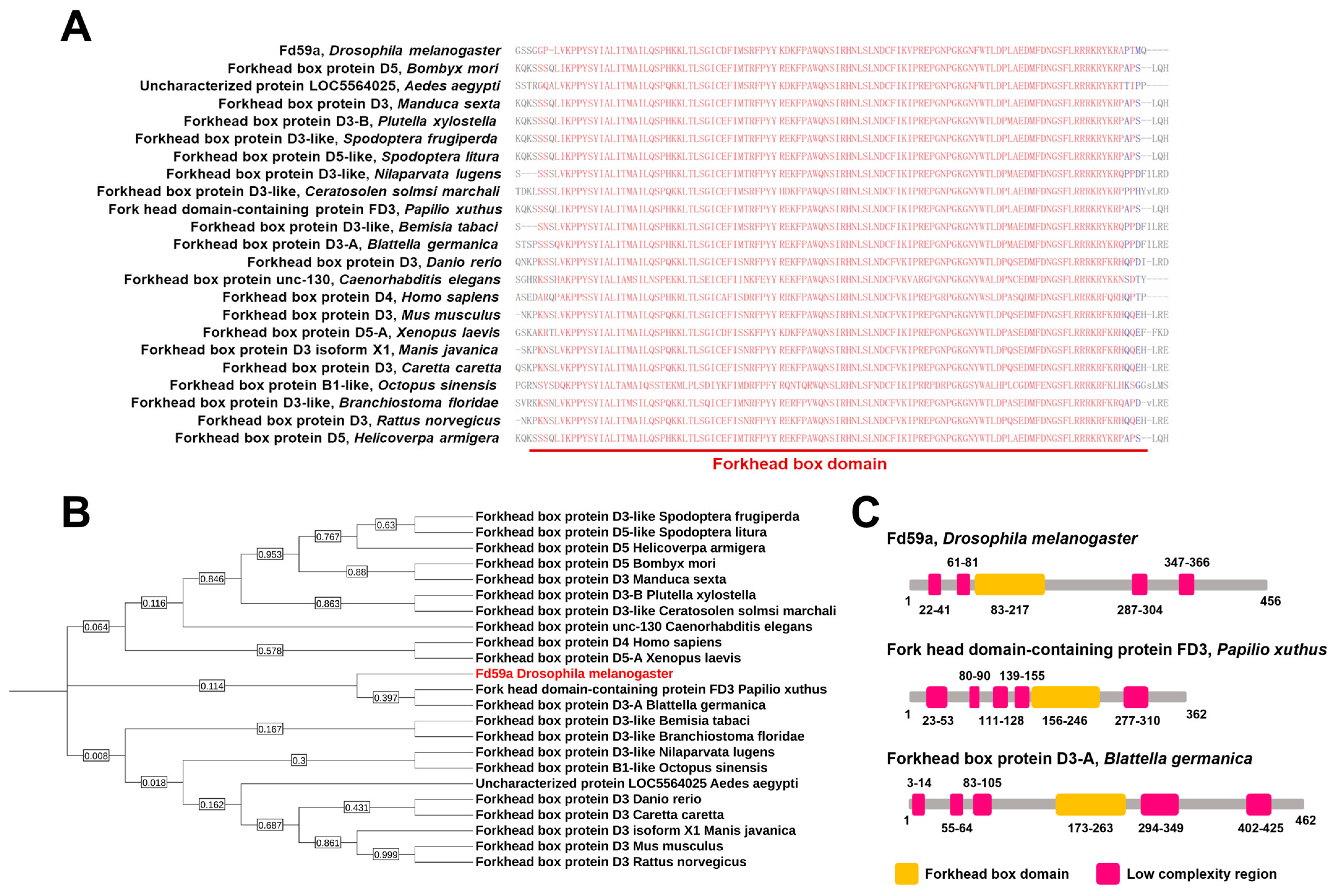

Figure 2. Sequence analysis of D. melanogaster Fd59a. Sequence alignment (A), Maximum Likelihood phylogenetic tree (B), and functional domains (C) of Fd59a with its homologous proteins from some insect and vertebrate species. For detailed information on the sequences, see Table 2.
Figure 2. Sequence analysis of D. melanogaster Fd59a. Sequence alignment (A), Maximum Likelihood phylogenetic tree (B), and functional domains (C) of Fd59a with its homologous proteins from some insect and vertebrate species. For detailed information on the sequences, see Table 2.
Insects 15 00480 g002
Insects 15 00480 g003
Figure 3. Mutations in Fd59a affect the testis development and reduce the number of mature sperm in the seminal vesicle. (A) Overall appearance of testes and seminal vesicles from w1118, Fd59a1/1, Fd59a2/2, +/Df(2R), and Fd59a2/Df(2R) flies. Nuclei were stained with DAPI. Scale bar is 100 µm in (a1,b1,c1,d1,e1), 50 µm in (a2,b2,c2,d2,e2), and 10 µm in (a3,b3,c3,d3,e3). The arrowhead in (a3) represents mature sperm. Numbers below the images indicate the pairs of testes with similar phenotypes in the images. (B) Quantitative measurements of the apical region of testis from Fd59a2/2 and w1118 flies. (C) Fertility test of w1118 and Fd59a2/2 male flies. Data are presented as means ± S.E. Significant differences were determined by the Student’s t-test and are indicated by asterisks ** p < 0.01, *** p < 0.001.
Figure 3. Mutations in Fd59a affect the testis development and reduce the number of mature sperm in the seminal vesicle. (A) Overall appearance of testes and seminal vesicles from w1118, Fd59a1/1, Fd59a2/2, +/Df(2R), and Fd59a2/Df(2R) flies. Nuclei were stained with DAPI. Scale bar is 100 µm in (a1,b1,c1,d1,e1), 50 µm in (a2,b2,c2,d2,e2), and 10 µm in (a3,b3,c3,d3,e3). The arrowhead in (a3) represents mature sperm. Numbers below the images indicate the pairs of testes with similar phenotypes in the images. (B) Quantitative measurements of the apical region of testis from Fd59a2/2 and w1118 flies. (C) Fertility test of w1118 and Fd59a2/2 male flies. Data are presented as means ± S.E. Significant differences were determined by the Student’s t-test and are indicated by asterisks ** p < 0.01, *** p < 0.001.
Insects 15 00480 g003
Insects 15 00480 g004
Figure 4. Loss of function of Fd59a in the testis disrupts the homeostasis of the testis stem cell niche. (A) Immunostaining of testis. Testes from the w1118, Fd59a2/2, Nos-Gal4>GFP RNAi, and Nos-Gal4>Fd59a RNAi flies were labeled with anti-Vasa (green), anti-FasIII (red), and anti-αSpectrin (red) antibodies, and nuclei were stained with DAPI (blue). (a1–a3,b1–b3,c1–c3,d1–d3) The apical region of the testis and (a4,b4,c4,d4) the enlarged part of the apical tip showing the stem cell niche. In the testis of Fd59a2/2 and Nos-Gal4>Fd59a RNAi flies, the distribution of germ cells labeled with anti-Vasa (green) antibody was disrupted, and fewer fusomes and spectrosomes labeled with anti-αSpectrin (red) antibody were observed. Scale bar is 50 µm in (a1–a3,b1–b3,c1–c3,d1–d3) and 10 µm in (a4,b4,c4,d4). (B,C) The numbers of spectrosomes (B) and fusomes (C) in the testes of w1118, Fd59a2/2, Nos-Gal4>GFP RNAi, and Nos-Gal4>Fd59a flies. (D) Expression of Fd59a in the testis of Nos-Gal4 RNAi flies. Data are presented as means ± S.E. Significant differences were determined by the Student’s t-test and are indicated by asterisks. * p < 0.05, ** p < 0.01, and *** p < 0.001.
Figure 4. Loss of function of Fd59a in the testis disrupts the homeostasis of the testis stem cell niche. (A) Immunostaining of testis. Testes from the w1118, Fd59a2/2, Nos-Gal4>GFP RNAi, and Nos-Gal4>Fd59a RNAi flies were labeled with anti-Vasa (green), anti-FasIII (red), and anti-αSpectrin (red) antibodies, and nuclei were stained with DAPI (blue). (a1–a3,b1–b3,c1–c3,d1–d3) The apical region of the testis and (a4,b4,c4,d4) the enlarged part of the apical tip showing the stem cell niche. In the testis of Fd59a2/2 and Nos-Gal4>Fd59a RNAi flies, the distribution of germ cells labeled with anti-Vasa (green) antibody was disrupted, and fewer fusomes and spectrosomes labeled with anti-αSpectrin (red) antibody were observed. Scale bar is 50 µm in (a1–a3,b1–b3,c1–c3,d1–d3) and 10 µm in (a4,b4,c4,d4). (B,C) The numbers of spectrosomes (B) and fusomes (C) in the testes of w1118, Fd59a2/2, Nos-Gal4>GFP RNAi, and Nos-Gal4>Fd59a flies. (D) Expression of Fd59a in the testis of Nos-Gal4 RNAi flies. Data are presented as means ± S.E. Significant differences were determined by the Student’s t-test and are indicated by asterisks. * p < 0.05, ** p < 0.01, and *** p < 0.001.
Insects 15 00480 g004
Insects 15 00480 g005

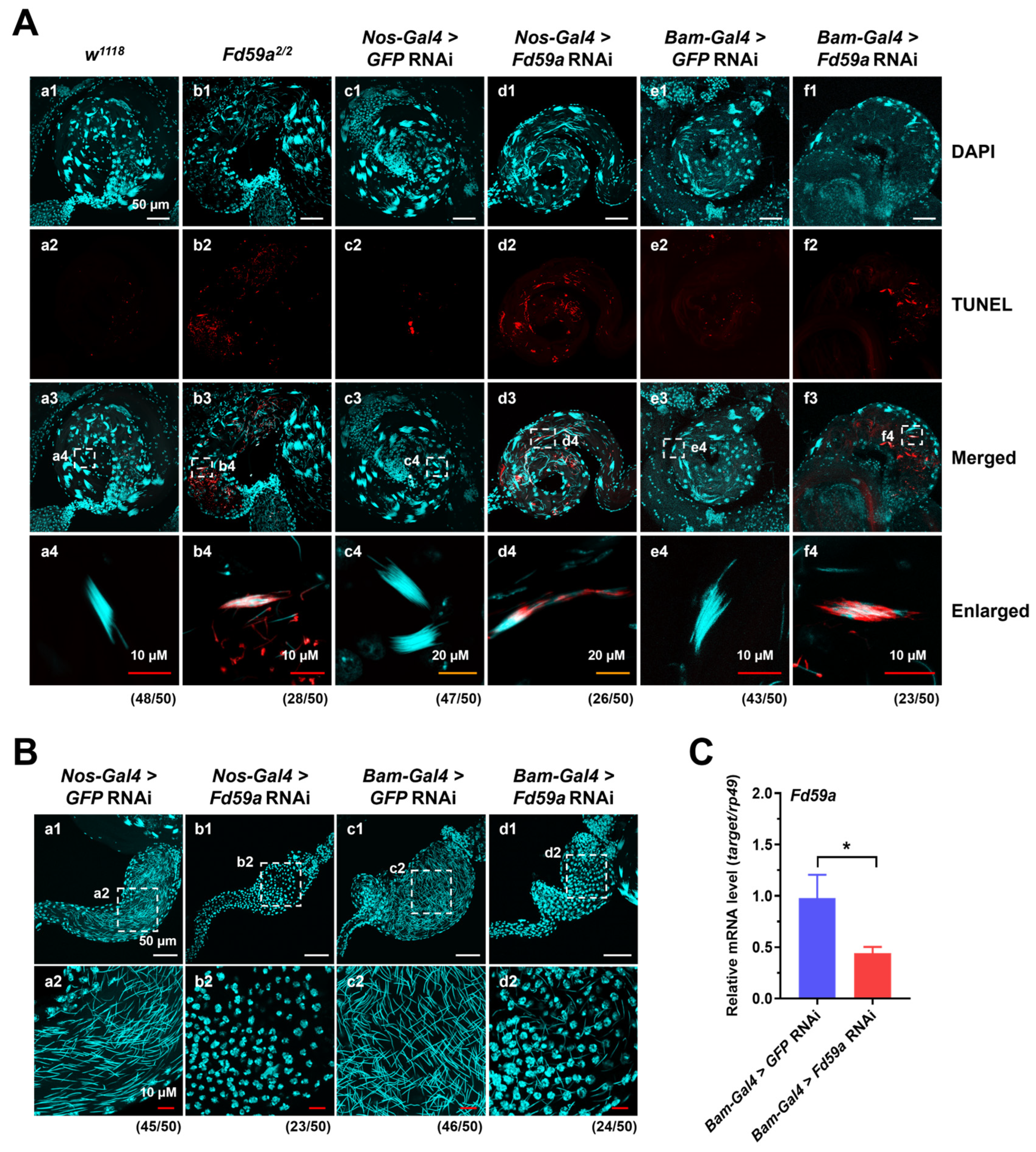

Figure 5. Loss of function of Fd59a in the testis induces apoptosis of sperm bundles. (A) Detection of apoptotic cells in the testis. Testes from the w1118, Fd59a2/2, Nos-Gal4>GFP RNAi, Nos-Gal4>Fd59a RNAi, Bam-Gal4>GFP RNAi, and Bam-Gal4>Fd59a RNAi flies were stained with TUNEL assay for apoptotic cells (red), and nuclei were stained with DAPI (blue). (a1–a3,b1–b3,c1–c3,d1–d3,e1–e3,f1–f3) The basal region of testis and (a4,b4,c4,d4,e4,f4) the enlarged part of the basal region showing the sperm bundles. In the testis of Fd59a2/2, Nos-Gal4>Fd59a RNAi, and Bam-Gal4>Fd59a RNAi flies, many TUNEL signals (red) were detected in the sperm bundles; only a few TUNEL signals were detected in the basal region of w1118, Nos-Gal4>GFP RNAi, and Bam-Gal4>GFP RNAi flies, but not in the sperm bundles. Scale bar is 50 µm in (a1–a3,b1–b3,c1–c3,d1–d3,e1–e3,f1–f3), 10 µm in (a4,b4,e4,f4), and 20 µm in (c4,d4). (B) DAPI staining of seminal vesicle. Seminal vesicles from Nos-Gal4>GFP RNAi, Nos-Gal4>Fd59a RNAi, Bam-Gal4>GFP RNAi, and Bam-Gal4>Fd59a RNAi flies were stained with DAPI. Scale bar is 50 µm in (a1,b1,c1,d1) and 10 µm in (a2,b2,c2,d2). Numbers below the images indicate the pairs of testes with similar phenotypes in the images. (C) Expression of Fd59a in the testis of Bam-Gal4 RNAi flies. Data are presented as means ± S.E. Significant differences were determined by the Student’s t-test and are indicated by asterisks. * p < 0.05.
Figure 5. Loss of function of Fd59a in the testis induces apoptosis of sperm bundles. (A) Detection of apoptotic cells in the testis. Testes from the w1118, Fd59a2/2, Nos-Gal4>GFP RNAi, Nos-Gal4>Fd59a RNAi, Bam-Gal4>GFP RNAi, and Bam-Gal4>Fd59a RNAi flies were stained with TUNEL assay for apoptotic cells (red), and nuclei were stained with DAPI (blue). (a1–a3,b1–b3,c1–c3,d1–d3,e1–e3,f1–f3) The basal region of testis and (a4,b4,c4,d4,e4,f4) the enlarged part of the basal region showing the sperm bundles. In the testis of Fd59a2/2, Nos-Gal4>Fd59a RNAi, and Bam-Gal4>Fd59a RNAi flies, many TUNEL signals (red) were detected in the sperm bundles; only a few TUNEL signals were detected in the basal region of w1118, Nos-Gal4>GFP RNAi, and Bam-Gal4>GFP RNAi flies, but not in the sperm bundles. Scale bar is 50 µm in (a1–a3,b1–b3,c1–c3,d1–d3,e1–e3,f1–f3), 10 µm in (a4,b4,e4,f4), and 20 µm in (c4,d4). (B) DAPI staining of seminal vesicle. Seminal vesicles from Nos-Gal4>GFP RNAi, Nos-Gal4>Fd59a RNAi, Bam-Gal4>GFP RNAi, and Bam-Gal4>Fd59a RNAi flies were stained with DAPI. Scale bar is 50 µm in (a1,b1,c1,d1) and 10 µm in (a2,b2,c2,d2). Numbers below the images indicate the pairs of testes with similar phenotypes in the images. (C) Expression of Fd59a in the testis of Bam-Gal4 RNAi flies. Data are presented as means ± S.E. Significant differences were determined by the Student’s t-test and are indicated by asterisks. * p < 0.05.
Insects 15 00480 g005
Insects 15 00480 g006

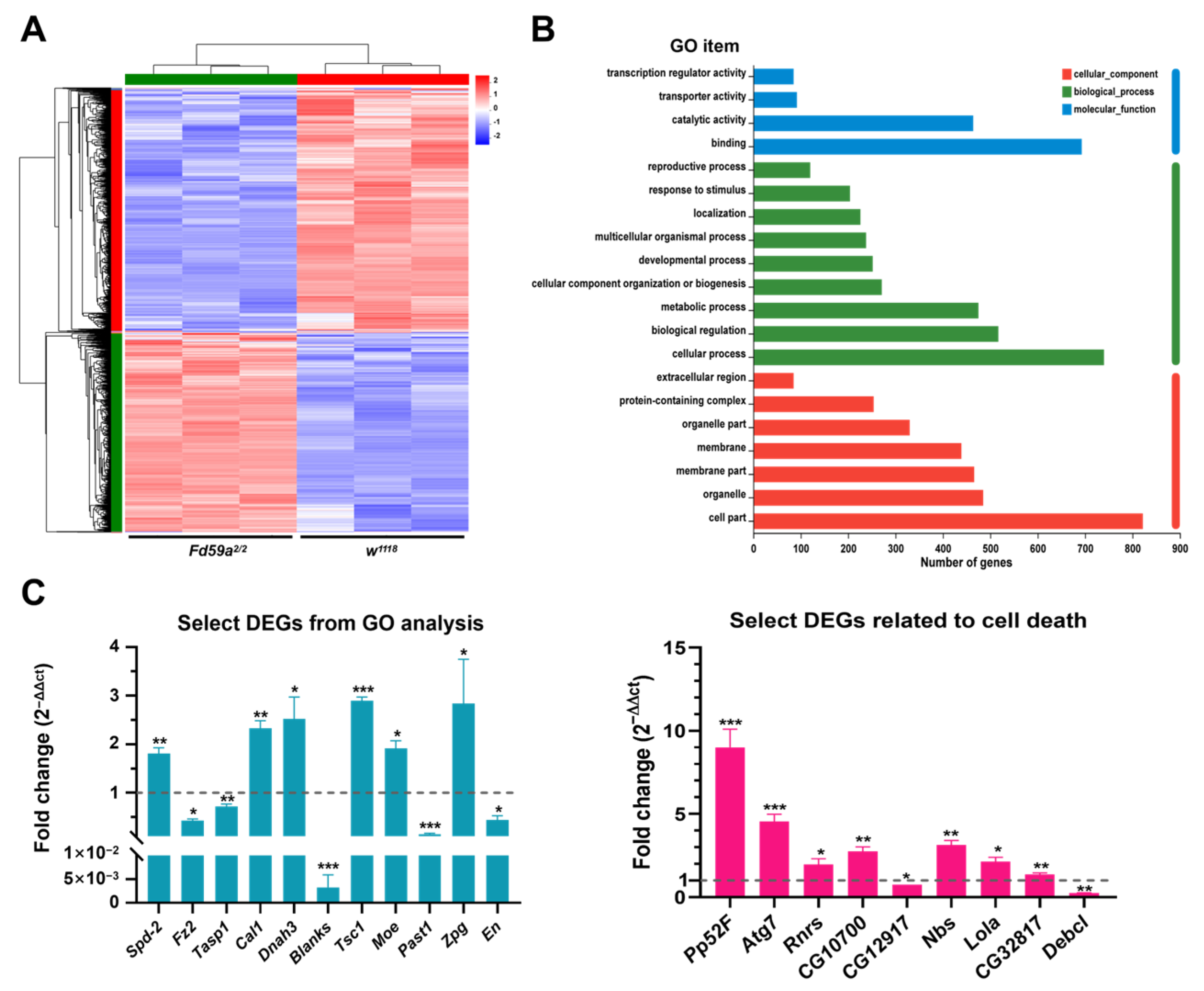

Figure 6. RNA-seq analysis of RNAs from the testes of Fd59a2/2 and w1118 flies. (A) Heatmap of differentially expressed genes (DEGs) in the testis of Fd59a2/2 flies relative to w1118 flies. (B) GO analysis of DEGs in the testes between Fd59a2/2 and w1118 flies. (C) qRT-PCR validation of selected DEGs from RNA sequencing data. Data are presented as means ± S.E. Significant differences were determined by the Student’s t-test and are indicated by asterisks * p < 0.05, ** p < 0.01, *** p < 0.001.
Figure 6. RNA-seq analysis of RNAs from the testes of Fd59a2/2 and w1118 flies. (A) Heatmap of differentially expressed genes (DEGs) in the testis of Fd59a2/2 flies relative to w1118 flies. (B) GO analysis of DEGs in the testes between Fd59a2/2 and w1118 flies. (C) qRT-PCR validation of selected DEGs from RNA sequencing data. Data are presented as means ± S.E. Significant differences were determined by the Student’s t-test and are indicated by asterisks * p < 0.05, ** p < 0.01, *** p < 0.001.
Insects 15 00480 g006
Table 1. Primers used in this study.
Table 1. Primers used in this study.
NameForward Primer (5′–3′)Reverse Primer (5′–3′)
Fd59a-qRTCAGGGAAGTCAGTCGGGGGAGTCGCCACATCGAAGGCGTA
Rp49-qRTGCCCAAGGGTATCGACAACAACCTCCAGCTCGCGCACGTT
Spd-2-qRTGTGACCCACACGACCCTCTGGCCGAATGACCAGCCGTTTG
Fz2-qRTTCGCGAGTCACAATTGCACCGGACGCCACTCTACGGTGTT
Tasp1-qRTCGGCATGCGAGTCTGTTCGGACACAAGGCAGCGCAAGTCTA
Debcl-qRTATCGACAACGGCGGATGGTTACGCGATCCCAAGCGAATCT
Ptp52F-qRTTGTCCGACGATCTTTGCGCTGGCGTAGGGGGAAAGTGGAC
Atg7-qRTTACAACTGCTGGCCGATGAGGGCACGGAAAGGCGAACCAAT
RnrS-qRTGGACCGTTTGCTCGTGGAGTGAAATCCGCGTCCAGGGTGA
CG10700-qRTTGTGGAGGCTACGGCCAATCTCACCACGGCTGTTTCCCAA
CG12917-qRTCAGGGGCTTCCTTCAGTCGGAAATAGCCAGACACGGGGGC
Nbs-qRTATTCCCAAAAGCCGCGCAAGTGGGTCACCTGCCAAATGCT
Lola-qRTCTGCTGAGATATGCGAGCCAGAGTTCACAATGGCCTCCGCCT
Cal1-qRTGGTGGTGGACGAGGAAACACTTCCACAGCCTCCTTTGCCAC
Dnah3-qRTAGAGCTGGCAAGAGCGGAAAACATTGCGAGACGTGGCACC
Blanks-qRTACGGGCCAGGAAAGAGCTTGACGGCTTCTTTGGCTCGACA
En-qRTCCAACGACGAGAAGCGTCCACTCCGCTCGGTCAGATAGCG
Tsc1-qRTGGTTGGCATGACTGGCTCCTCACGTCCCGGCTGCTTGATA
CG32817-qRTAATCAAGTGTCTAACCCTGAACTGGGTTGCGCCATCGAAAAGCAT
Moe-qRTGCCTGCGAGAGGTTTGGTTCTTTCACGTCCTGGTTCATCACCTT
Past1-qRTACACCCGATCACACAGCCTCCGCCTGCACTGTGTGGCTAA
Zpg-qRTGGGGCCTATGTGAGCGACAACCGCCCTCCCAAATCTTCCA
Table 2. Fd59a homologous protein sequences used in the phylogenetic tree.
Table 2. Fd59a homologous protein sequences used in the phylogenetic tree.
ProteinsSpeciesAccession Number
Forkhead box protein D5Bombyx moriXP_004922516.1
Uncharacterized protein LOC5564025Aedes aegyptiXP_001648348.3
Forkhead box protein D3Manduca sextaXP_030032680.1
Forkhead box protein D3-BPlutella xylostellaXP_037961710.1
Forkhead box protein D3-likeSpodoptera frugiperdaXP_035435321.1
Forkhead box protein D5-likeSpodoptera lituraXP_022815528.1
Forkhead box protein D3-likeNilaparvata lugensXP_039277739.1
Forkhead box protein D3-likeCeratosolen solmsi marchaliXP_011504225.1
Forkhead domain-containing protein FD3Papilio xuthusKPJ03207.1
Forkhead box protein D3-likeBemisia tabacXP_018914635.1
Forkhead box protein D3-ABlattella germanicaPSN41724.1
Forkhead box protein D5Helicoverpa armigeraXP_021187147.2
Forkhead box protein D3Danio rerioNP_571365.2
Forkhead box protein unc-130Caenorhabditis elegansNP_496411.1
Forkhead box protein D4Homo sapiensNP_997188.2
Forkhead box protein D3Mus musculusNP_034555.3
Forkhead box protein D5-AXenopus laevisNP_001081998.1
Forkhead box protein D3 isoform X1Manis javanicaXP_036880296.1
Forkhead box protein D3Caretta carettaXP_048718258.1
Forkhead box protein B1-likeOctopus sinensisXP_029653697.1
Forkhead box protein D3-likeBranchiostoma floridaeXP_035698942.1
Forkhead box protein D3Rattus norvegicusNP_542952.1
Table 3. Differentially expressed genes selected for qRT-PCR validation and the number of predicted Fox binding sites in the 2 kb promoter regions.
Table 3. Differentially expressed genes selected for qRT-PCR validation and the number of predicted Fox binding sites in the 2 kb promoter regions.
Gene SymbolLog2 Fold DifferenceRelative ExpressionBiological FunctionsForkhead Binding Sites
GO analysis-related genes
Spd-21.08UpregulatedInvolved in sperm aster formation13
Fz2−1.66DownregulatedGermline stem cell niche homeostasis6
Tasp1−1.35DownregulatedInvolved in spermatogenesis7
Cal10.61UpregulatedFemale meiosis chromosome segregation10
Dnah30.70UpregulatedInvolved in sperm competition6
Blanks−0.72DownregulatedInvolved in sperm individualization11
Tsc10.76UpregulatedNegative regulation of developmental growth4
Moe0.67UpregulatedOocyte anterior/posterior axis specification10
Past1−2.62DownregulatedInvolved in sperm individualization3
Zpg1.33UpregulatedMale germline stem cell population maintenance5
En−1.40DownregulatedInvolved in gonad development8
Cell death-related genes
Ptp52F3.44UpregulatedInvolved in larval midgut cell-programmed cell death15
Atg71.60UpregulatedInvolved in autophagy2
RnrS0.68UpregulatedInvolved in activation of cysteine-type Endopeptidase activity involved in apoptotic process9
CG107000.822UpregulatedInvolved in execution phase of apoptosis9
CG12917−0.62DownregulatedInvolved in apoptotic DNA fragmentation4
Nbs0.78UpregulatedInvolved in intrinsic apoptotic signaling pathway in response to DNA damage2
Lola0.74UpregulatedInvolved in nurse cell apoptotic process14
CG328170.78UpregulatedInvolved in extrinsic apoptotic signaling pathway0
Debcl−1.92DownregulatedProgrammed cell death involved in cell development11
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tang, T.; Pei, M.; Xiao, Y.; Deng, Y.; Lu, Y.; Yu, X.-Q.; Wen, L.; Hu, Q. Functional Analysis of Forkhead Transcription Factor Fd59a in the Spermatogenesis of Drosophila melanogaster. Insects 2024, 15, 480. https://doi.org/10.3390/insects15070480

AMA Style

Tang T, Pei M, Xiao Y, Deng Y, Lu Y, Yu X-Q, Wen L, Hu Q. Functional Analysis of Forkhead Transcription Factor Fd59a in the Spermatogenesis of Drosophila melanogaster. Insects. 2024; 15(7):480. https://doi.org/10.3390/insects15070480

Chicago/Turabian Style

Tang, Ting, Mengyuan Pei, Yanhong Xiao, Yingshan Deng, Yuzhen Lu, Xiao-Qiang Yu, Liang Wen, and Qihao Hu. 2024. "Functional Analysis of Forkhead Transcription Factor Fd59a in the Spermatogenesis of Drosophila melanogaster" Insects 15, no. 7: 480. https://doi.org/10.3390/insects15070480

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
