Characterisation of High Temperature Oxidation Phenomena during AISI 430 Stainless Steel Manufacturing under a Controlled H2 Atmosphere for Bright Annealing
Abstract

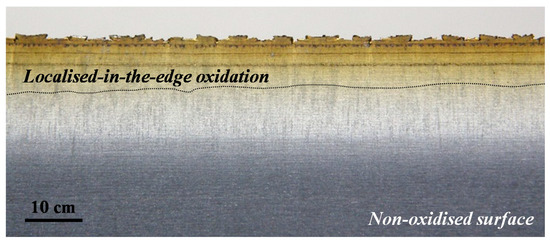

:1. Introduction
2. Materials and Methods

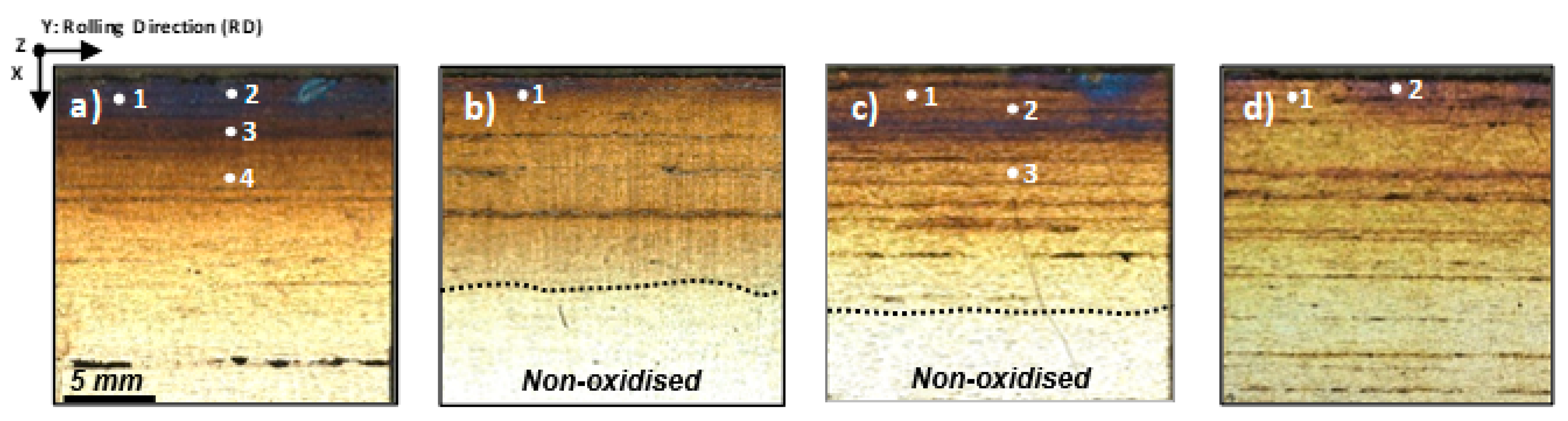

2.1. Materials and Bright Annealing Atmosphere
2.2. Oxide Scale Characterisation
3. Results
3.1. X-ray Photoelectron Spectroscopy

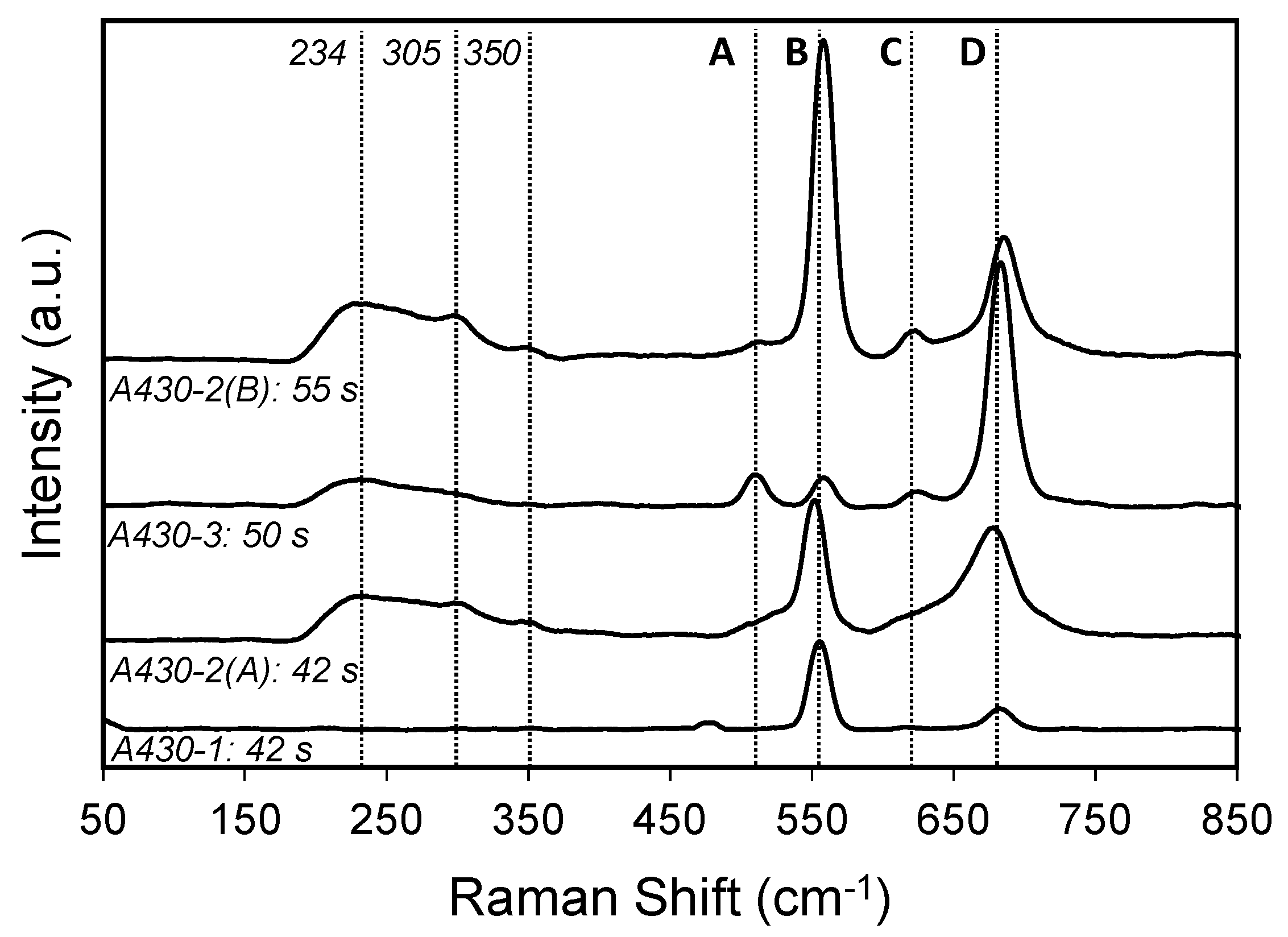

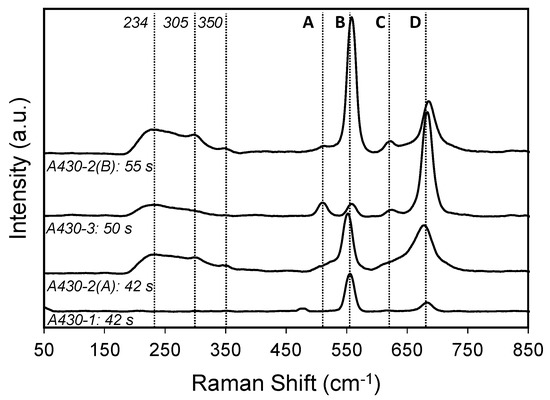

3.2. Raman Spectroscopy

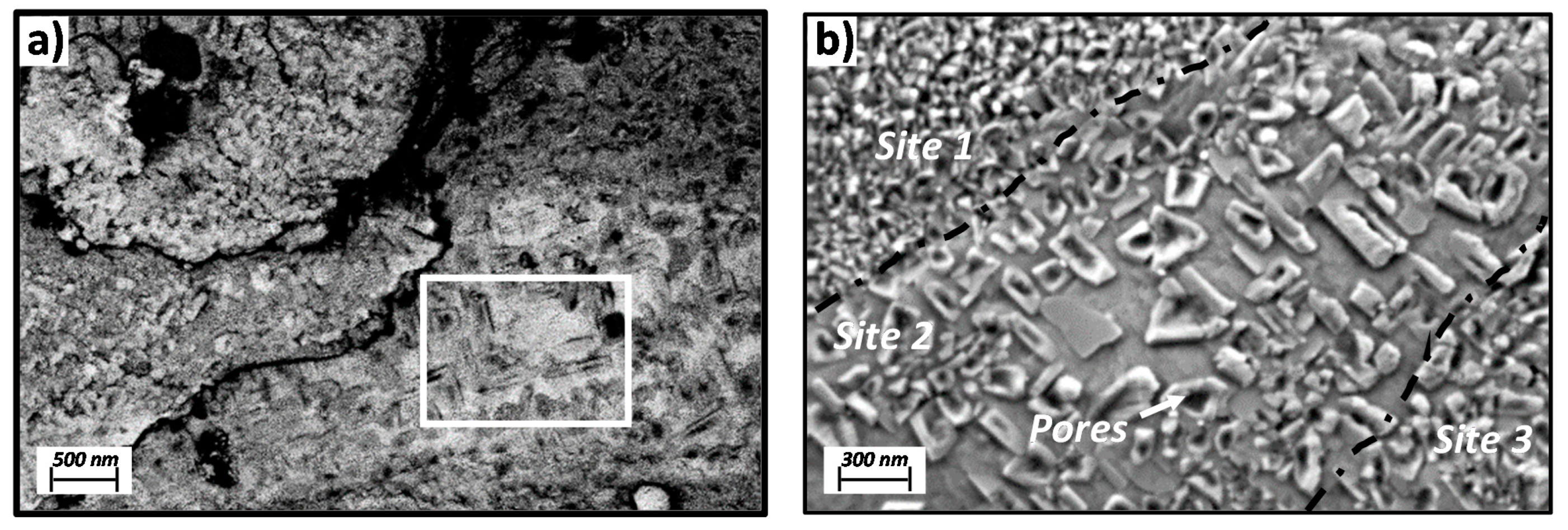

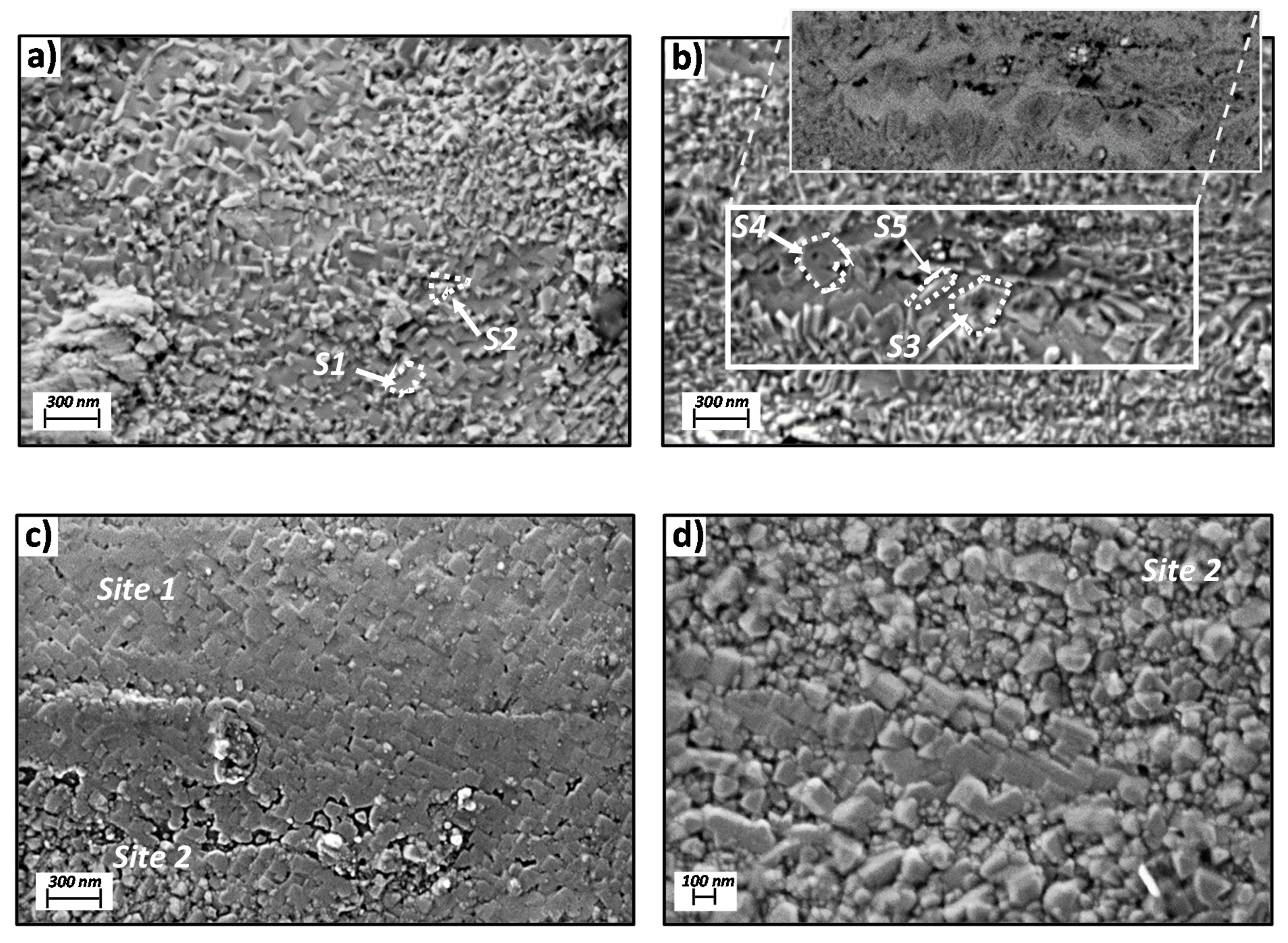

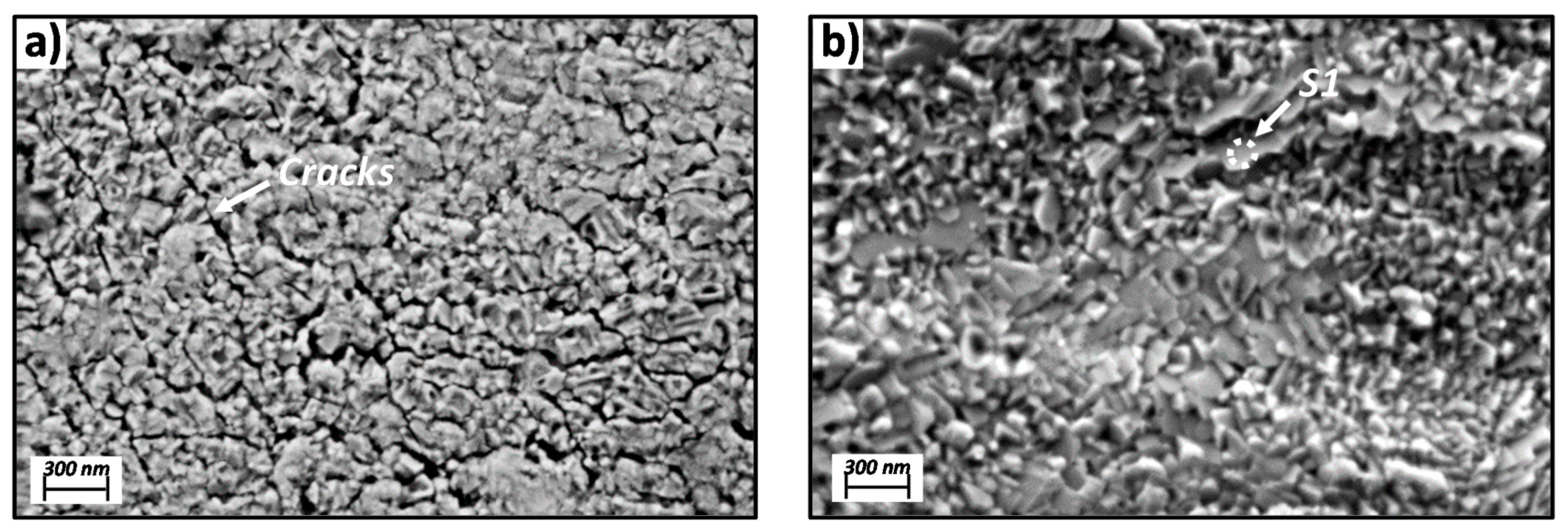

3.3. SEM Morphology
4. Discussion
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Acerinox, S.A. Cedinox Spanish Stainless Steel Investigation & Research Association, (n.d.). Available online: https://www.cedinox.es (accessed on 20 April 2020).
- Swaminathan, S.; Spiegel, M. Effect of alloy composition on the selective oxidation of ternary Fe-Si-Cr, Fe-Mn-Cr model alloys. Surf. Interface Anal. 2008, 40, 268–272. [Google Scholar] [CrossRef]
- Hashimoto, K.; Asami, K.; Kawashima, A.; Habazaki, H.; Akiyama, E. The role of corrosion-resistant alloying elements in passivity. Corros. Sci. 2007, 49, 42–52. [Google Scholar] [CrossRef]
- Young, D.J.; Zurek, J.; Singheiser, L.; Quadakkers, W.J. Temperature dependence of oxide scale formation on high-Cr ferritic steels in Ar-H2-H2O. Corros. Sci. 2011, 53, 2131–2141. [Google Scholar] [CrossRef]
- Yu, Y.; Shironita, S.; Souma, K.; Umeda, M. Effect of chromium content on the corrosion resistance of ferritic stainless steels in sulfuric acid solution. Heliyon 2018, 4, e00958. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kim, Y.; Lee, J.; Shin, K.S.; Jeon, S.H.; Chin, K.G. Effect of dew point on the formation of surface oxides of twinning-induced plasticity steel. Mater. Charact. 2014, 89, 138–145. [Google Scholar] [CrossRef]
- Schütze, M.; Renusch, D.; Schorr, M. Parameters determining the breakaway oxidation behaviour of ferritic martensitic 9%Cr steels in environments containing H2O. Corros. Eng. Sci. Technol. 2004, 39, 157–166. [Google Scholar] [CrossRef]
- Cvijović, I.; Parezanović, I.; Spiegel, M. Influence of H2-N2 atmosphere composition and annealing duration on the selective surface oxidation of low-carbon steels. Corros. Sci. 2006, 48, 980–993. [Google Scholar] [CrossRef]
- Norden, M.; Blumenau, M.; Wuttke, T.; Peters, K.J. The change of steel surface chemistry regarding oxygen partial pressure and dew point. Appl. Surf. Sci. 2013, 271, 19–31. [Google Scholar] [CrossRef]
- Young, D.J. High Temperature Oxidation and Corrosion of Metals, 2nd ed.; Elsevier: Sydney, Australia, 2008; ISBN 9780081001011. [Google Scholar]
- Ehlers, J.; Young, D.J.; Smaardijk, E.J.; Tyagi, A.K.; Penkalla, H.J.; Singheiser, L.; Quadakkers, W.J. Enhanced oxidation of the 9%Cr steel P91 in water vapour containing environments. Corros. Sci. 2006, 48, 3428–3454. [Google Scholar] [CrossRef]
- Yin, H.; Yuen, W.Y.D.; Young, D.J. Effects of water vapour and oxygen partial pressures on low carbon steel oxidation in N2–H2–H2O mixtures. Mater. Corros. 2012, 63, 869–877. [Google Scholar] [CrossRef]
- Nickel, H.; Wouters, Y.; Thiele, M.; Quadakkers, W.J. The effect of water vapor on the oxidation behaviour of 9%Cr steels in simulated combustion gases. Am. Soc. Mech. Eng. Press. Vessel. Pip. Div. PVP 1997, 359, 269–273. [Google Scholar]
- Tanahashi, M.; Furuta, N.; Yamauchi, C.; Fujisawa, T. Phase equilibria of the MnO-SiO2-CrOx system at 1873 K under controlled oxygen partial pressure. ISIJ Int. 2001, 41, 1309–1315. [Google Scholar] [CrossRef]
- Jung, I.H. Critical evaluation and thermodynamic modeling of the Mn-Cr-O system for the oxidation of SOFC interconnect. Solid State Ionics 2006, 177, 765–777. [Google Scholar] [CrossRef]
- Lins, V.D.F.C.; Madeira, L.; Vilela, J.M.C.; Andrade, M.S.; Buono, V.T.L.; Guimarães, J.P.; Alvarenga, E.D.A. Selective oxidation of dual phase steel after annealing at different dew points. Appl. Surf. Sci. 2011, 257, 5871–5878. [Google Scholar] [CrossRef] [Green Version]
- Wang, H.; Jin, X.; Hu, G.; He, Y. Changing oxide layer structures with respect to the dew point prior to hot-dip galvanizing of δ-TRIP steel. Surf. Coatings Technol. 2018, 337, 260–269. [Google Scholar] [CrossRef]
- Yang, Q.; Luo, J.L. Effects of Hydrogen on Disorder of Passive Films and Pitting Susceptibility of Type 310 Stainless Steel. J. Electrochem. Soc. 2001, 148, B29. [Google Scholar] [CrossRef]
- Guo, L.Q.; Qin, S.X.; Yang, B.J.; Liang, D.; Qiao, L.J. Effect of hydrogen on semiconductive properties of passive film on ferrite and austenite phases in a duplex stainless steel. Sci. Rep. 2017, 7, 8–13. [Google Scholar] [CrossRef]
- Bao, B.; Liu, J.; Xu, H.; Liu, B.; Zhang, K.; Jin, Z. Insight into a high temperature selective oxidation of HP40 alloy under a H2-H2O environment. RSC Adv. 2017, 7, 8589–8597. [Google Scholar] [CrossRef] [Green Version]
- Pardo Sainz, M.; Campo Ruiz, J.J. ¿Podría Estabilizarse una Fase Helicoidal en Mn1-xMgxCr2O4? Master’s Thesis, Universidad de Zaragoza, Zaragoza, Spain, 2019. [Google Scholar]
- Dutta, B.; Pal, D. Absorption and Raman spectroscopy: Ferrimagnet spinel MnCr2O4. AIP Conf. Proc. 2019, 2115, 2–6. [Google Scholar]
- Kjellqvist, L. Thermodynamic Description of the Fe-C-Cr-Mn-Ni-O System. Ph.D. Thesis, KTH Industrial Engineering and Management, Stockholm, Sweden, 2009. [Google Scholar]
- Manganese, Technetium and Rhenium. In Chemistry of the Elements, 2nd ed.; Greenwood, N.N.; Earnshaw, A. (Eds.) Butterworth-Heinemann: Oxford, UK, 1997; pp. 1040–1069. ISBN 978-0-7506-3365-9. [Google Scholar]
- Biesinger, M.C.; Payne, B.P.; Grosvenor, A.P.; Lau, L.W.M.; Gerson, A.R.; Smart, R.S.C. Resolving surface chemical states in XPS analysis of first row transition metals, oxides and hydroxides: Cr, Mn, Fe, Co and Ni. Appl. Surf. Sci. 2011, 257, 2717–2730. [Google Scholar] [CrossRef]
- Curia, M.V. Estudio Fisicoquímico y Catalítico Del Sistema Mn-O-V. Ph.D. Thesis, Universidad Nacional de La Plata, Buenos Aires, Argentina, 2010; p. 209. [Google Scholar] [CrossRef]
- Hu, L.; Wang, W.; Tu, J.; Hou, J.; Zhu, H.; Jiao, S. Self-assembled amorphous manganese oxide/hydroxide spheres via multi-phase electrochemical interactions in reverse micelle electrolytes and their capacitive behavior. J. Mater. Chem. A 2013, 1, 5136–5141. [Google Scholar] [CrossRef]
- Li, L.; Sui, J.; Qin, W. Superior capacity, rate, long cycle life and high temperature performance of multilayered porous ultralong LiMn2O4 nanorods for lithium ion batteries. J. Electroanal. Chem. 2019, 833, 304–312. [Google Scholar] [CrossRef]
- Thermo Scientific. XPS Simplified, (n.d.). Available online: https://xpssimplified.com/index.php (accessed on 8 September 2020).
- Badin, V.; Diamanti, E.; Forêt, P.; Darque-Ceretti, E. Water Vapor Oxidation of Ferritic 441 and Austenitic 316L Stainless Steels at 1100 °C for Short Duration. Procedia Mater. Sci. 2015, 9, 48–53. [Google Scholar] [CrossRef]
- Essuman, E.; Meier, G.H.; Żurek, J.; Hänsel, M.; Quadakkers, W.J. The effect of water vapor on selective oxidation of Fe-Cr alloys. Oxid. Met. 2008, 69, 143–162. [Google Scholar] [CrossRef]
- Hilson, G.; Hallam, K.R.; Flewit, P.E.J. The measurement of stresses within oxides produced on austenitic and ferritic steels using Raman spectroscopy. Mater. Sci. Forum 2006, 524–525, 957–962. [Google Scholar] [CrossRef]
- Gao, T.; Fjellvåg, H.; Norby, P. A comparison study on Raman scattering properties of α- and β-MnO2. Anal. Chim. Acta 2009, 648, 235–239. [Google Scholar] [CrossRef]
- Pettersson, R.; Enecker, J.; Liu, L. Role of nickel in the oxidation of Fe-Cr-Ni alloys in air-water vapour atmospheres. Mater. High Temp. 2005, 22, 269–281. [Google Scholar] [CrossRef]
- Asteman, H.; Svensson, J.E.; Norell, M.; Johansson, L.G. Influence of water vapor and flow rate on the high-temperature oxidation of 304L; effect of chromium oxide hydroxide evaporation. Oxid. Met. 2000, 54, 11–26. [Google Scholar] [CrossRef]
- Othman, N.K.; Othman, N.; Zhang, J.; Young, D.J. Effects of water vapour on isothermal oxidation of chromia-forming alloys in Ar/O2 and Ar/H2 atmospheres. Corros. Sci. 2009, 51, 3039–3049. [Google Scholar] [CrossRef]
- Ma, X.; Nie, X.; Zhao, J.; Shrotriya, P.; Zhang, Y.; Cui, Y.; Wang, J. Effect of nanosecond pulsed laser parameters on the color making of 304 stainless steel. Opt. Laser Technol. 2020, 126, 106104. [Google Scholar] [CrossRef]
Material | Fe (wt. %) | Si (wt. %) | Mn (wt. %) | Cr (wt. %) | C (wt. %) | N2 (wt. %) | Annealing Time (s) |
---|---|---|---|---|---|---|---|
A430-1 | Balance | 0.42 ± 0.008 | 0.34 ± 0.008 | 17.0 ± 0.061 | 0.023 ± 0.0014 | 0.019 ± 0.0013 | 42 |
A430-2(A) | Balance | 0.43 ± 0.007 | 0.52 ± 0.009 | 16.4 ± 0.060 | 0.027 ± 0.0014 | 0.023 ± 0.0014 | 42 |
A430-2(B) | Balance | 0.48 ± 0.008 | 0.54 ± 0.009 | 16.4 ± 0.060 | 0.016 ± 0.0010 | 0.030 ± 0.0016 | 55 |
A430-3 | Balance | 0.39 ± 0.007 | 0.78 ± 0.011 | 16.7 ± 0.061 | 0.030 ± 0.0015 | 0.030 ± 0.0016 | 50 |

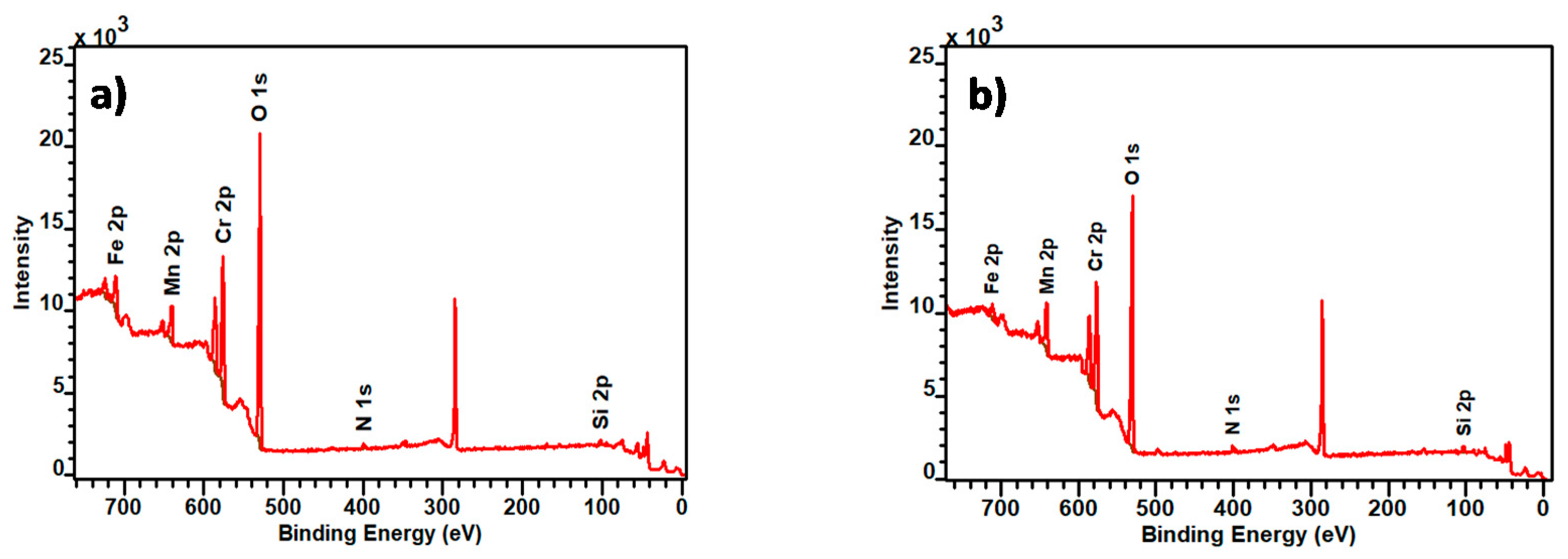

Element | at. % A430-1 | at. % A430-3 |
---|---|---|
O 1s | 69.8 ± 0.639 | 71.6 ± 0.588 |
N 1s | 2.6 ± 0.331 | 2.4 ± 0.192 |
Cr 2p | 18.8 ± 0.291 | 16.0 ± 0.289 |
Mn 2p | 2.8 ± 0.153 | 4.5 ± 0.154 |
Fe 2p | 0.5 ± 0.123 | 0.4 ± 0.125 |
Si 2p | 5.5 ± 0.719 | 5.1 ± 0.661 |

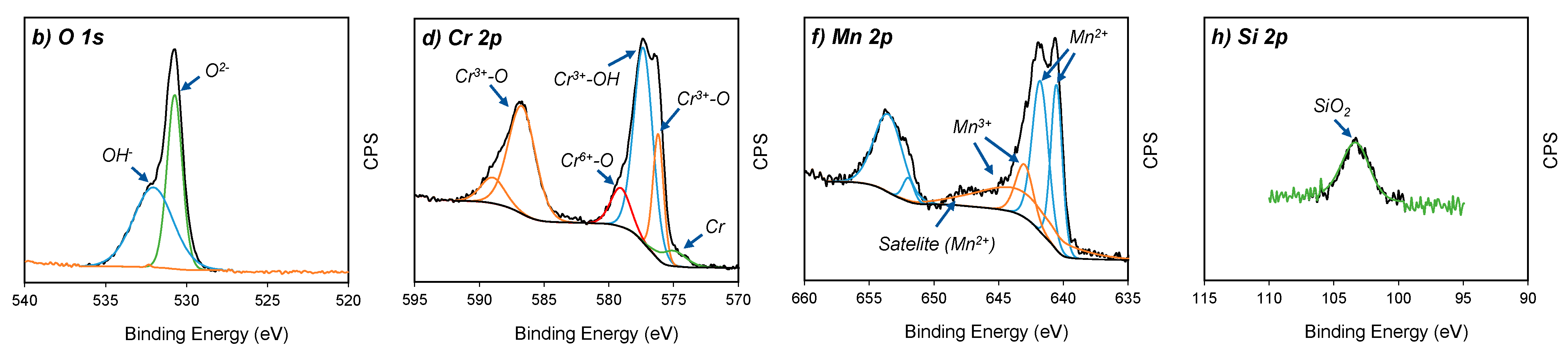

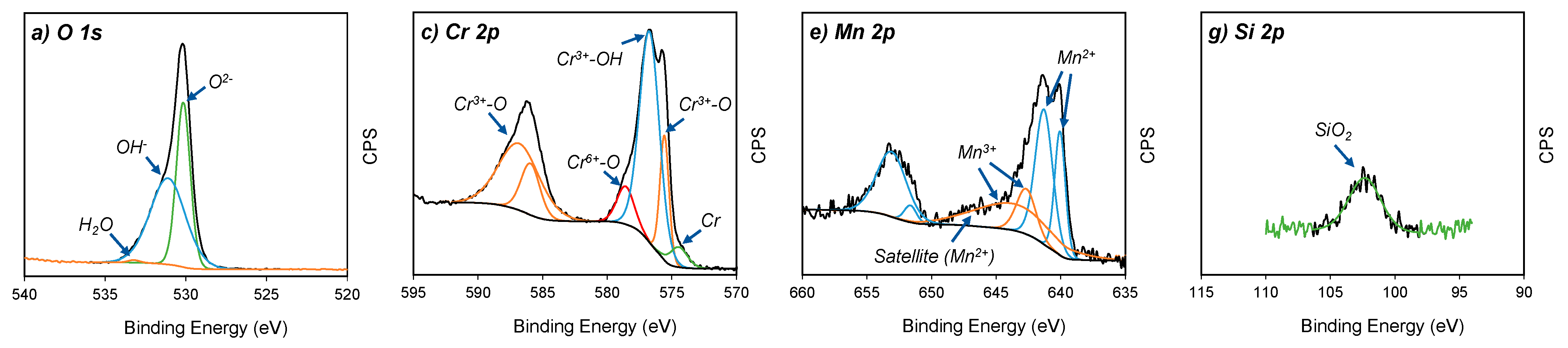

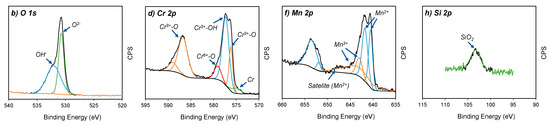

Oxidation State | A430-1 (%) | A430-3 (%) |
---|---|---|
O 1s | ||
O2− | 56.8 | 45.8 |
OH− | 42.7 | 54.2 |
H2O | 0.5 | - |
Cr 2p | ||
Cr metal | 3.6 | 4.1 |
Cr3+—oxide | 48.2 | 49.9 |
Cr3+–hydroxide | 41.7 | 38.1 |
Cr6+—oxide | 6.5 | 7.9 |
Mn 2p | ||
Mn2+—oxide | 58.3 | 58.5 |
Tetragonal site | 18.2 | 24.4 |
Octahedral site | 40.1 | 34.1 |
Mn3+—hydroxide | 41.7 | 41.5 |
Si 2p | ||
Si4+—oxide | 100 | 100 |

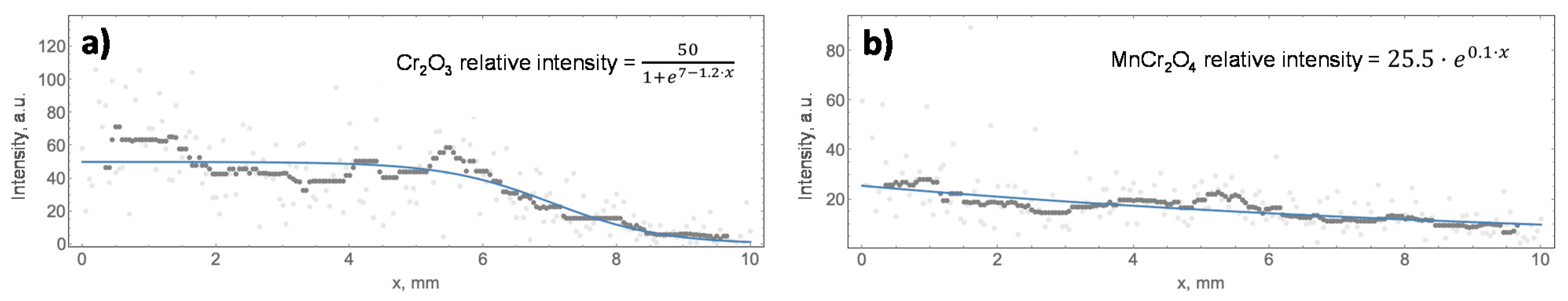

Cr2O3 | |||||||
---|---|---|---|---|---|---|---|
Sample | Annealing Time (s) | a (a.u.) | b (a.u.) | x0 (mm) | n (a.u.) | m (a.u.) | Model |
A430-1 | 42 | - | - | - | 139.0 | 0.38 | Equation (2) |
A430-2(A) | 42 | 50.0 | 1.22 | 7.0 | - | - | Equation (1) |
A430-2(B) | 55 | 89.0 | 0.55 | 6.0 | - | - | Equation (1) |
A430-3 | 50 | - | - | - | 6.0 | 0.01 | Equation (2) |
MnCr2O4 | |||||||
---|---|---|---|---|---|---|---|
Sample | Annealing Time (s) | a (a.u.) | b (a.u.) | x0 (mm) | n (a.u.) | m (a.u.) | Model |
A430-1 | 42 | - | - | - | 43.1 | 0.16 | Equation (2) |
A430-2(A) | 42 | - | - | - | 25.5 | 0.10 | Equation (2) |
A430-2(B) | 55 | 47.3 | 0.46 | 7.0 | - | - | Equation (1) |
A430-3 | 50 | - | - | - | 119.0 | 0.13 | Equation (2) |
