Kinetics of Iron Collector Leaching in HCl and HF Media

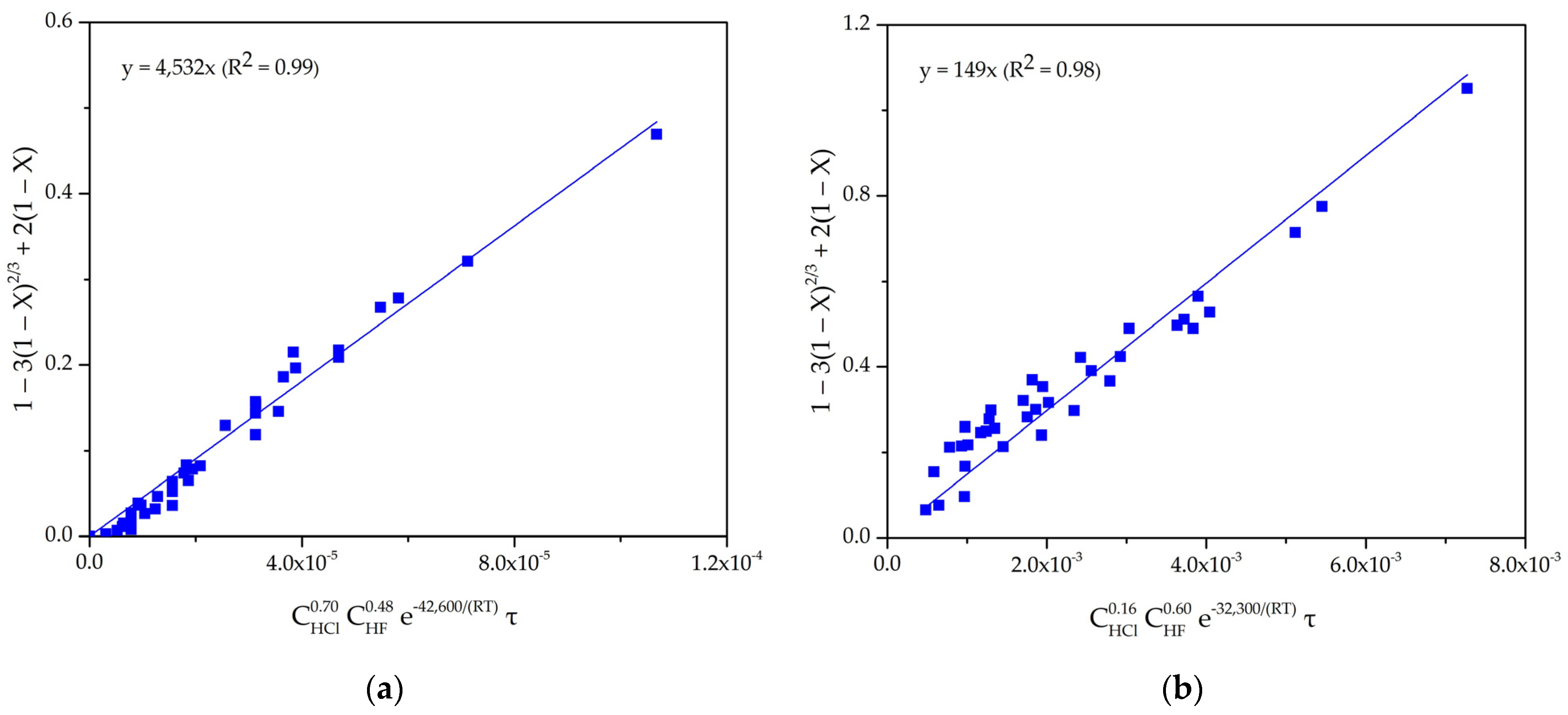

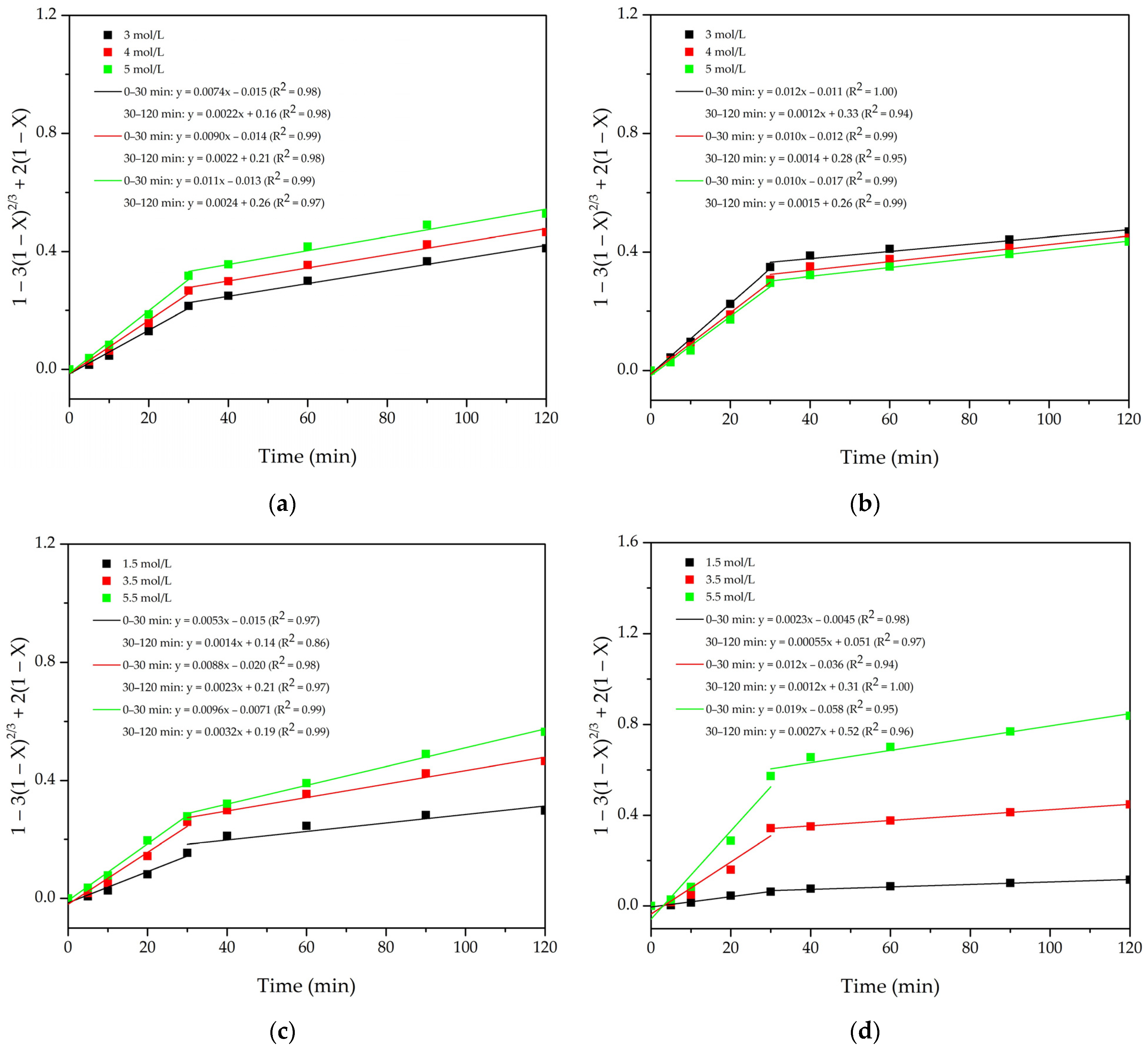

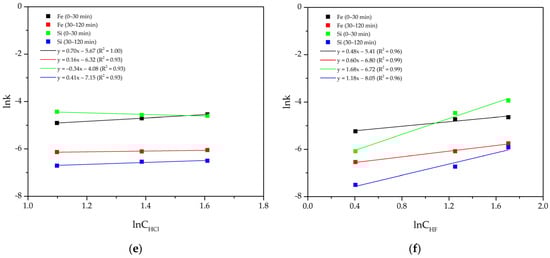

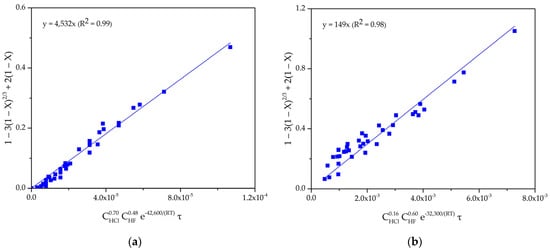

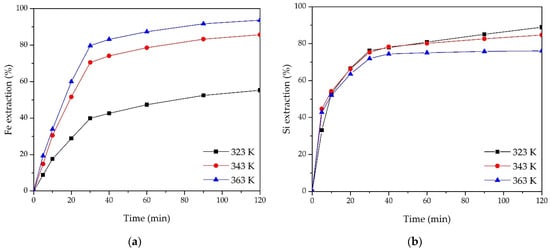

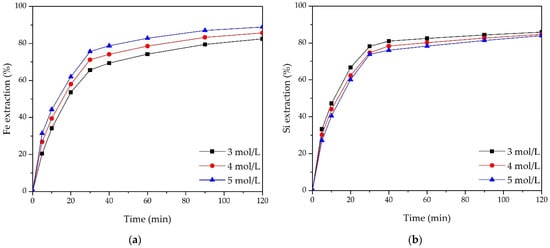

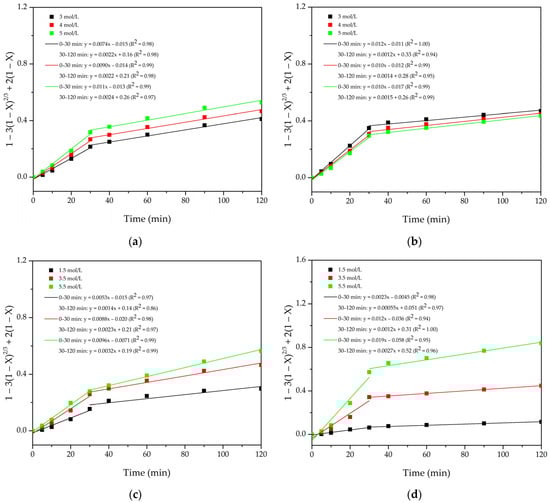

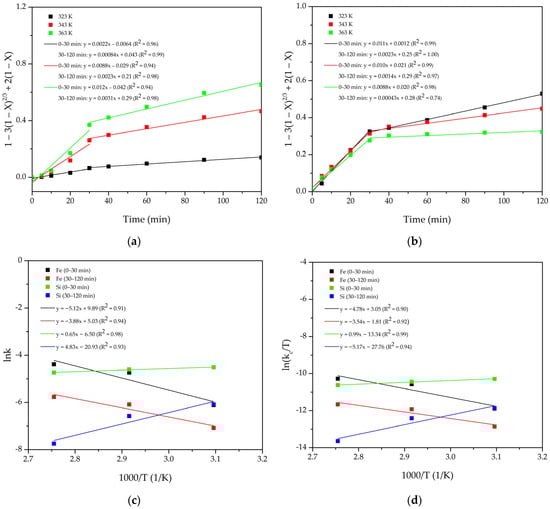

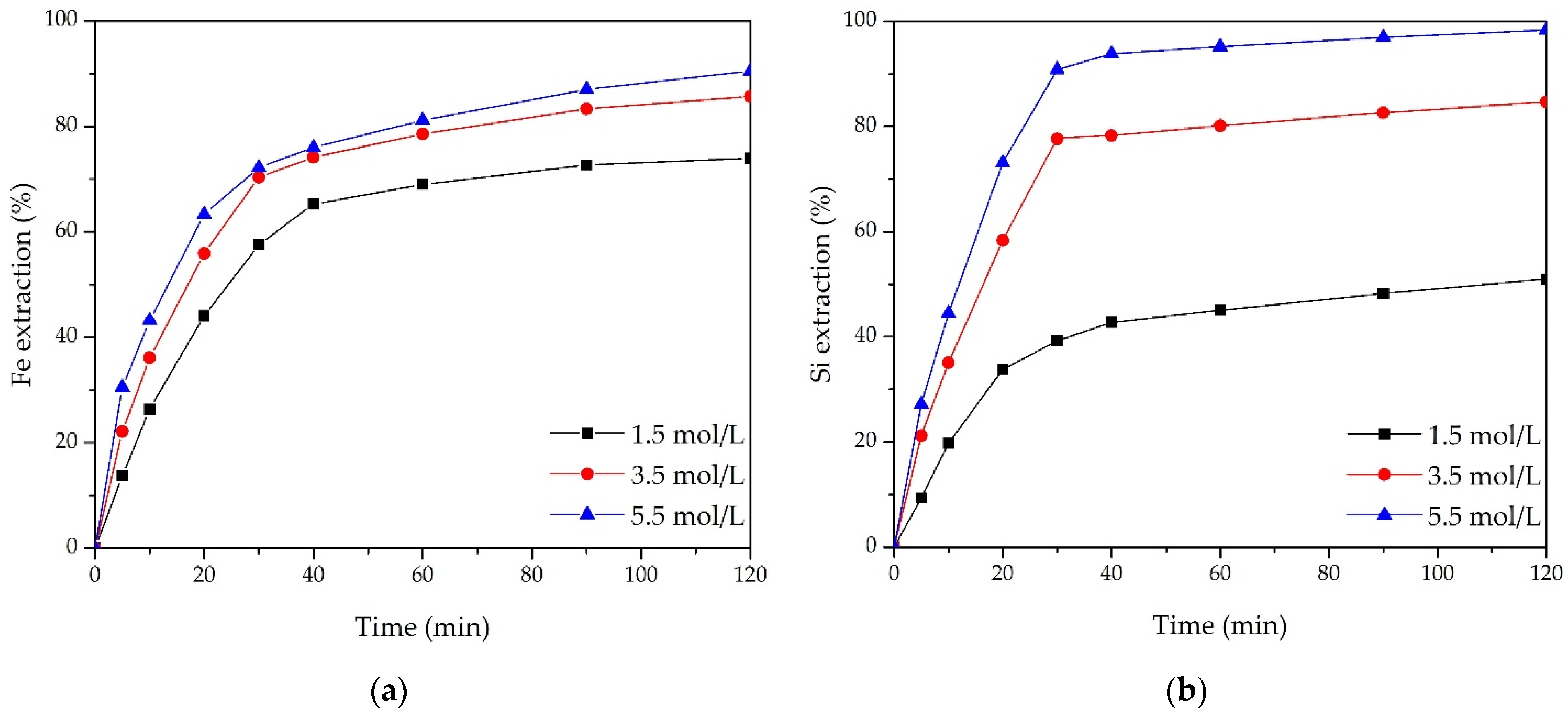

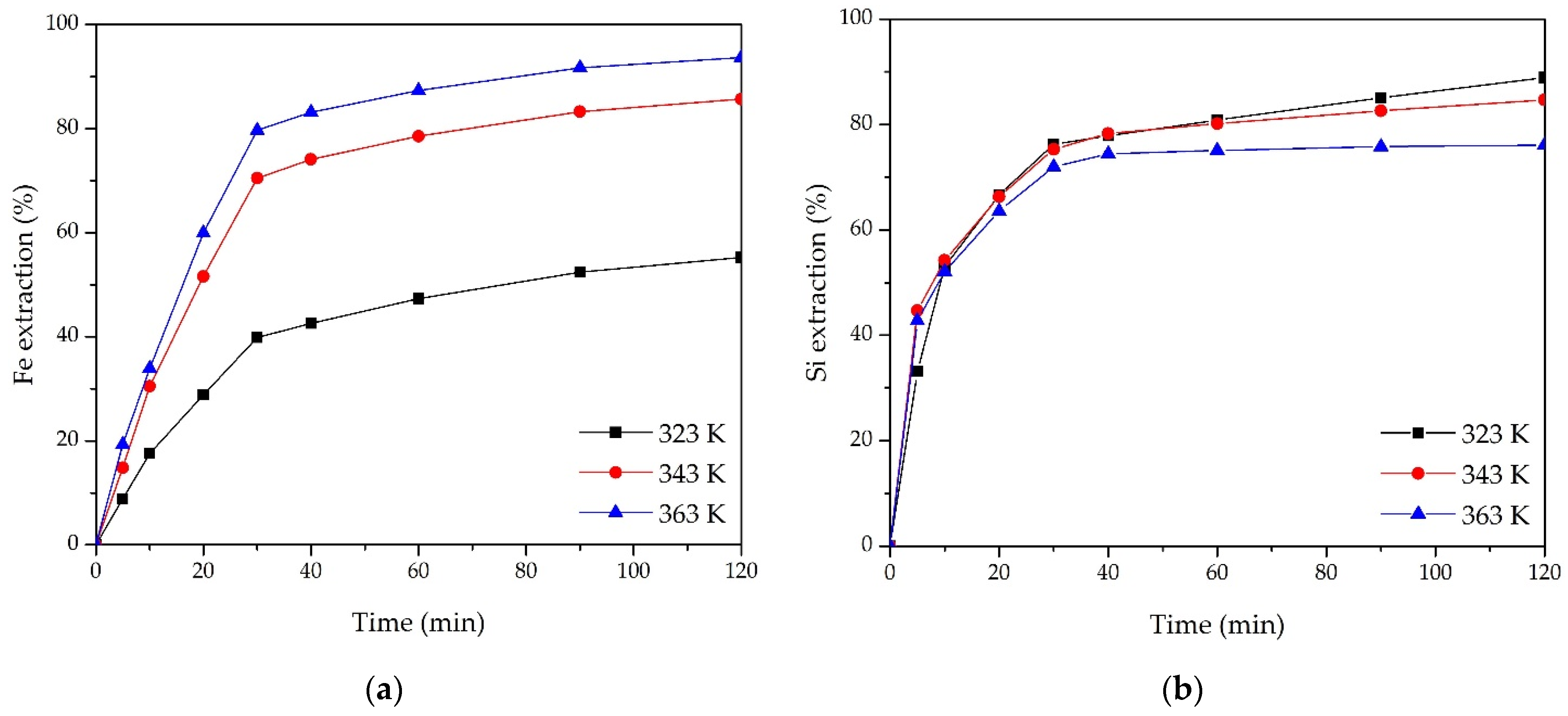

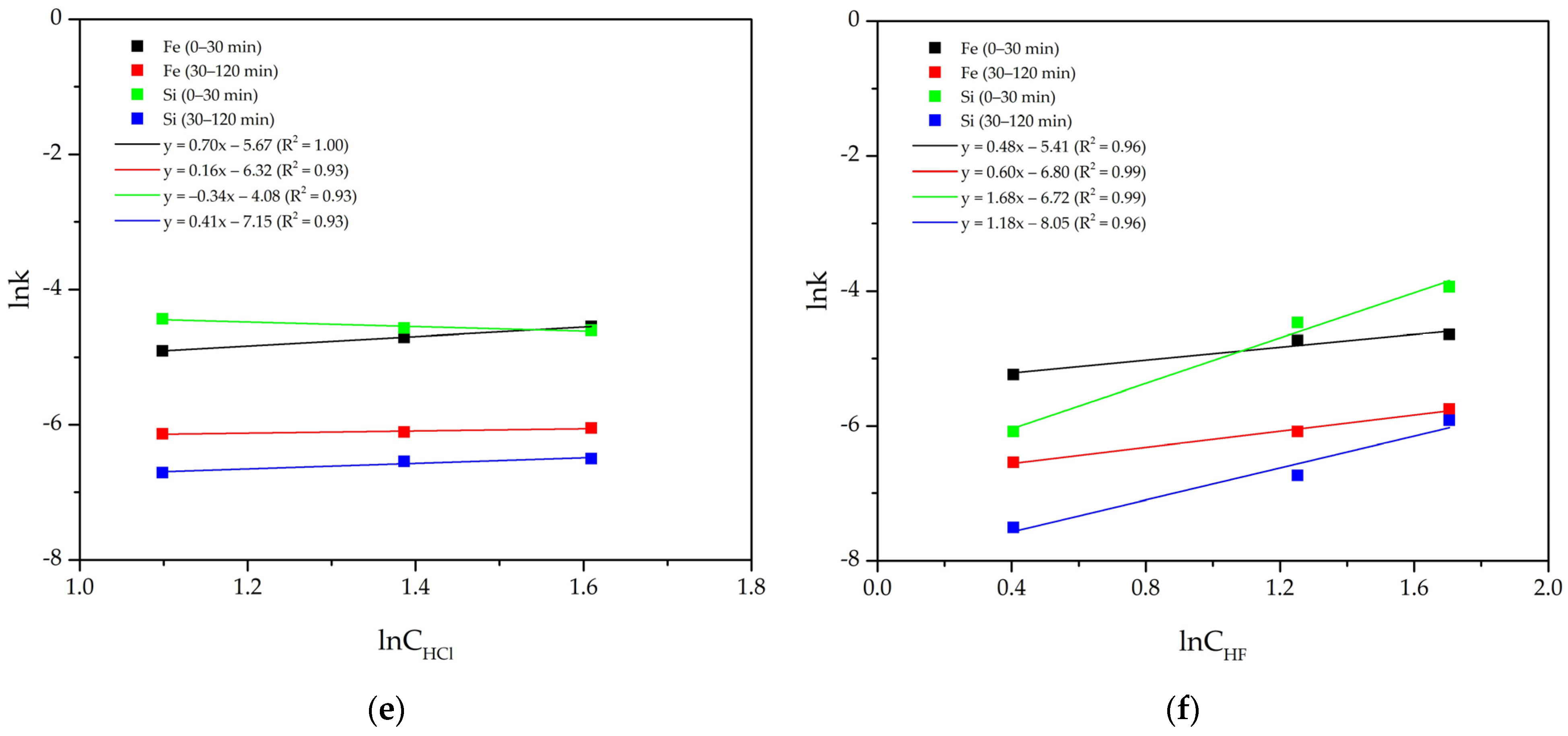

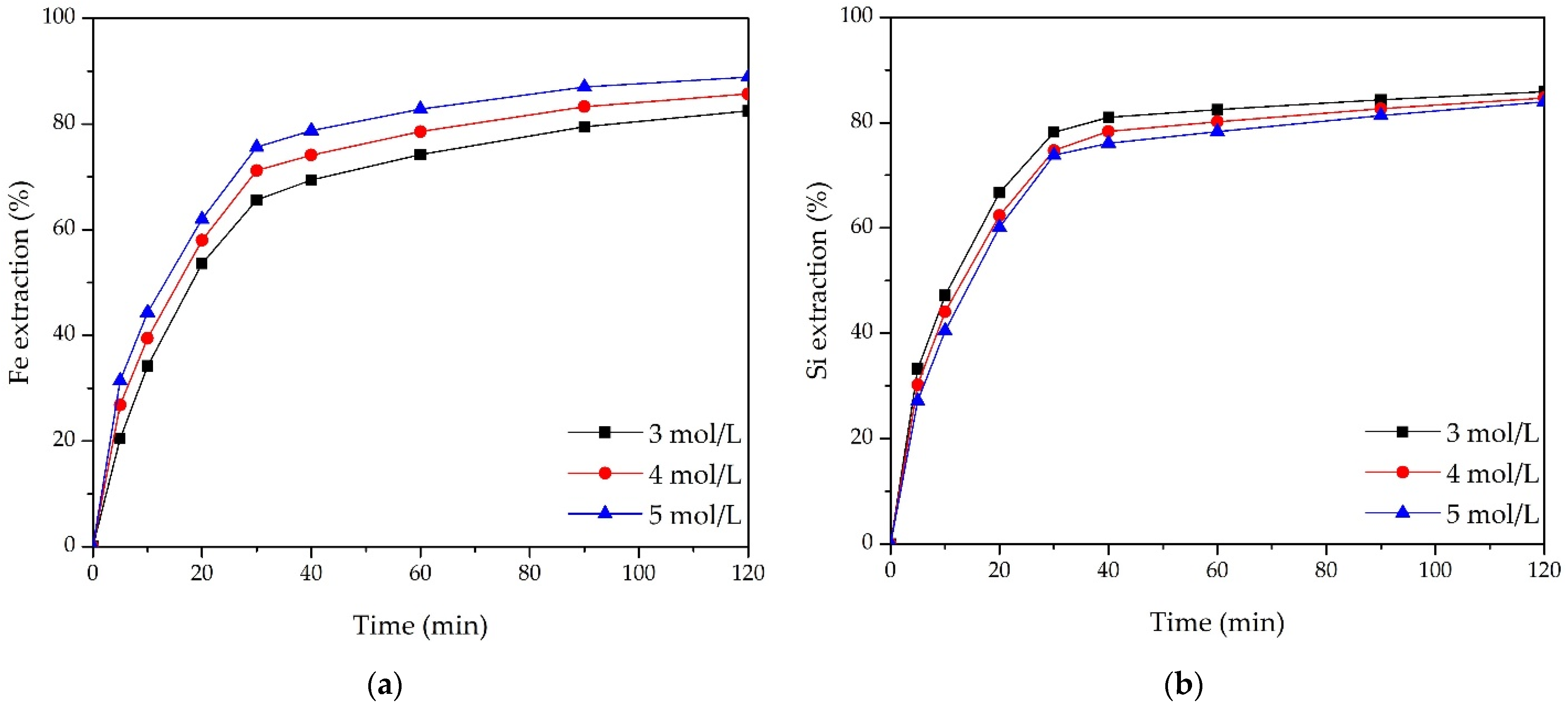

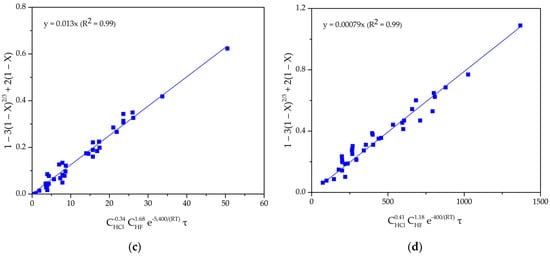

Automotive catalysts containing Platinum Group Metals (PGMs) are valuable secondary raw materials for refineries. Hydrometallurgical processing of catalysts is ineffective due to the low PGMs content—0.15–0.3%. Therefore, such raw materials are melted into an iron collector containing 1.5–5% PGMs. However, when leaching a collector containing 10–20% Si in both HCl and H₂SO₄, the recovery of PGMs does not exceed 40%. The latter indicates incomplete destroying of the PGM-encapsulating ferrosilicon matrix. To completely destroy the ferrosilicon matrix, it is proposed to carry out the leaching process in a mixture of HCl and HF. In this case, the extraction of Fe into solution and Si into the gas phase (in the form of SiF₄) exceeds 90%. This should be sufficient to completely destroy the ferrosilicon matrix and release PGMs. The current work presents the results of studies of the leaching kinetics of the iron collector containing ferrosilicon in a mixture of HCl and HF using the Shrinking Core Model (SCM). It was found that the greatest positive effect on Fe extraction into solution is exerted by HCl concentration and temperature, while Si release into the gas phase is only influenced by HF concentration. In addition, during the destroying of ferrosilicon, FeF₂ is formed and deposited on the surface of the material in the form of thin-film conglomerates. This leads to diffusion difficulties and a gradual decrease in the intensity of the iron collector leaching 30 min after the start of process. After 120 min, there may be a decrease in Fe recovery into solution.
