Numerical Investigation on Auxiliary Heat Sources for Horizontal Ground Heat Exchangers
Abstract
:1. Introduction
2. Numerical Method

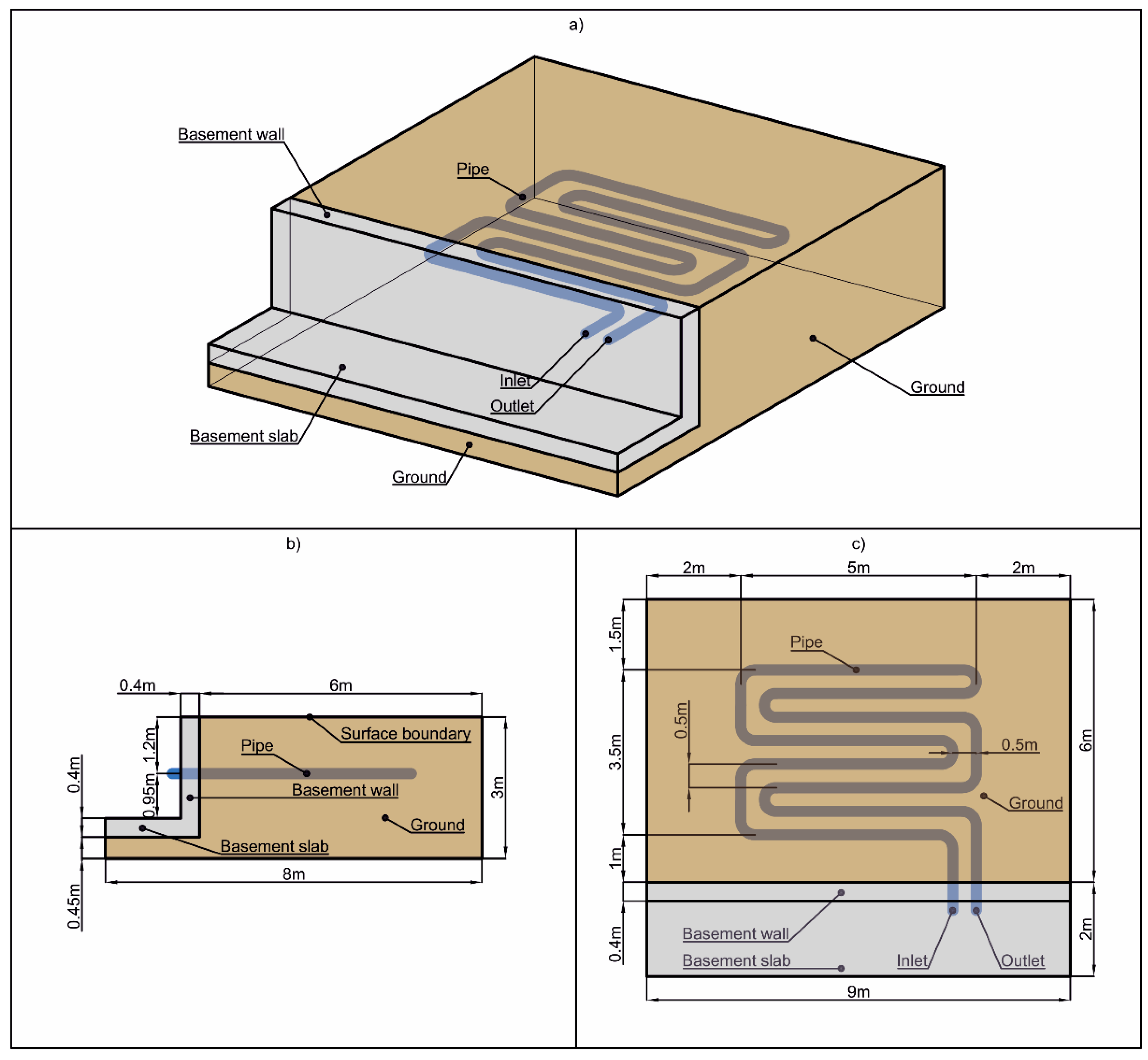

2.1. Geometric Model
- the system is simulated for the heating season;
- the ground is considered homogenous with constant thermos-physical proprieties;
- the HGHE pipes are considered one-dimensional lines with heat flux input;
- the surface heat transfer is approximated into mean temperatures of the exterior air;
- the heat transfer solved with COMSOL Multiphysics is only for solids.
2.2. Initial and Boundary Conditions
2.3. Validation of the Numerical Model
3. Results
- Case 1: HGHE with no auxiliary heat sources;
- Case 2: HGHE with heated basement;
- Case 3: HGHE with heat from solar thermal panels;
- Case 4: HGHE with heat from the heated basement and solar thermal panels combined.
- Exterior temperature;
- Heat extracted and transferred inside the HGHE;
- All physical geometry-related parameters.

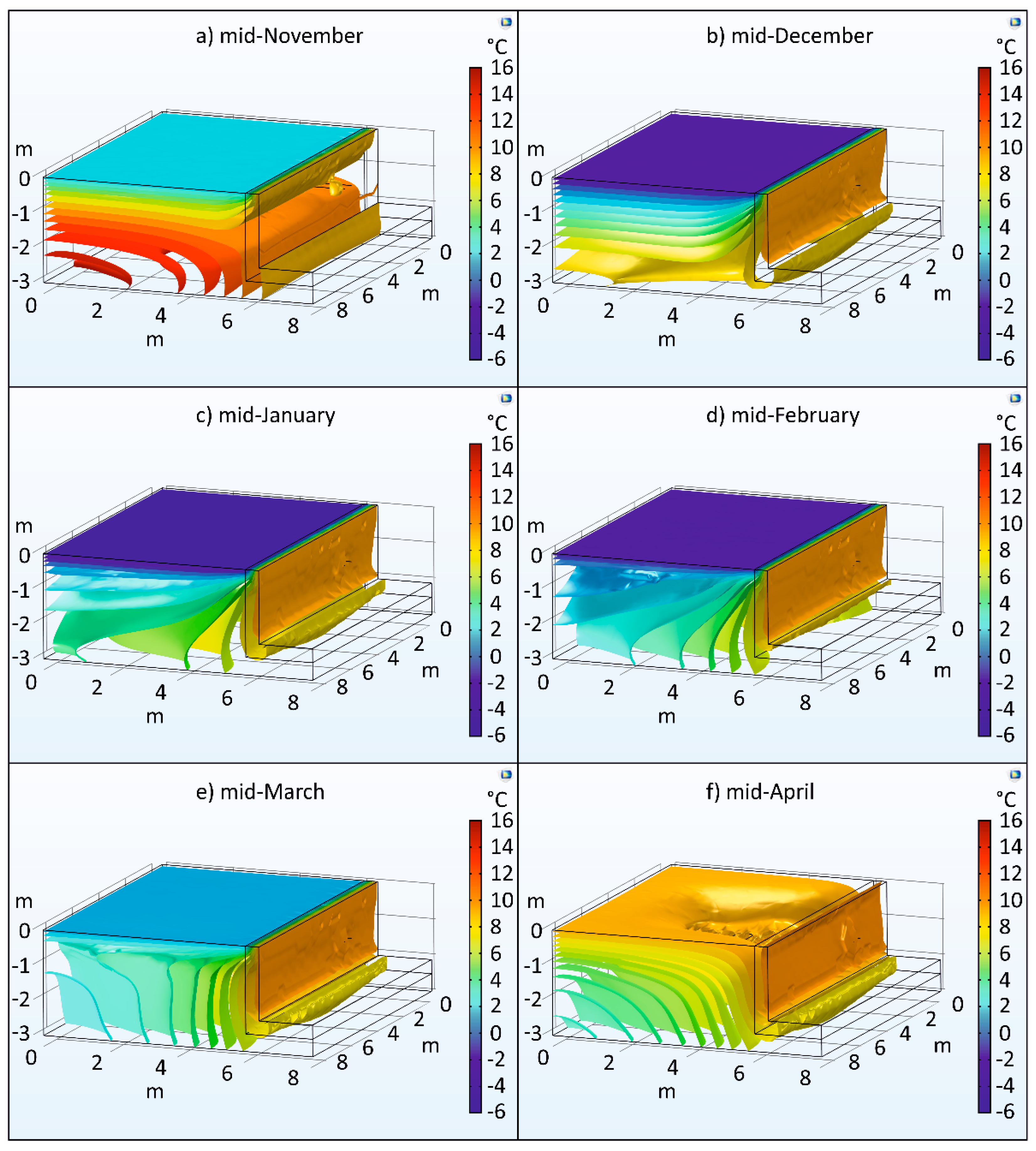

3.1. Case 1: HGHE with No Auxiliary Heat Sources

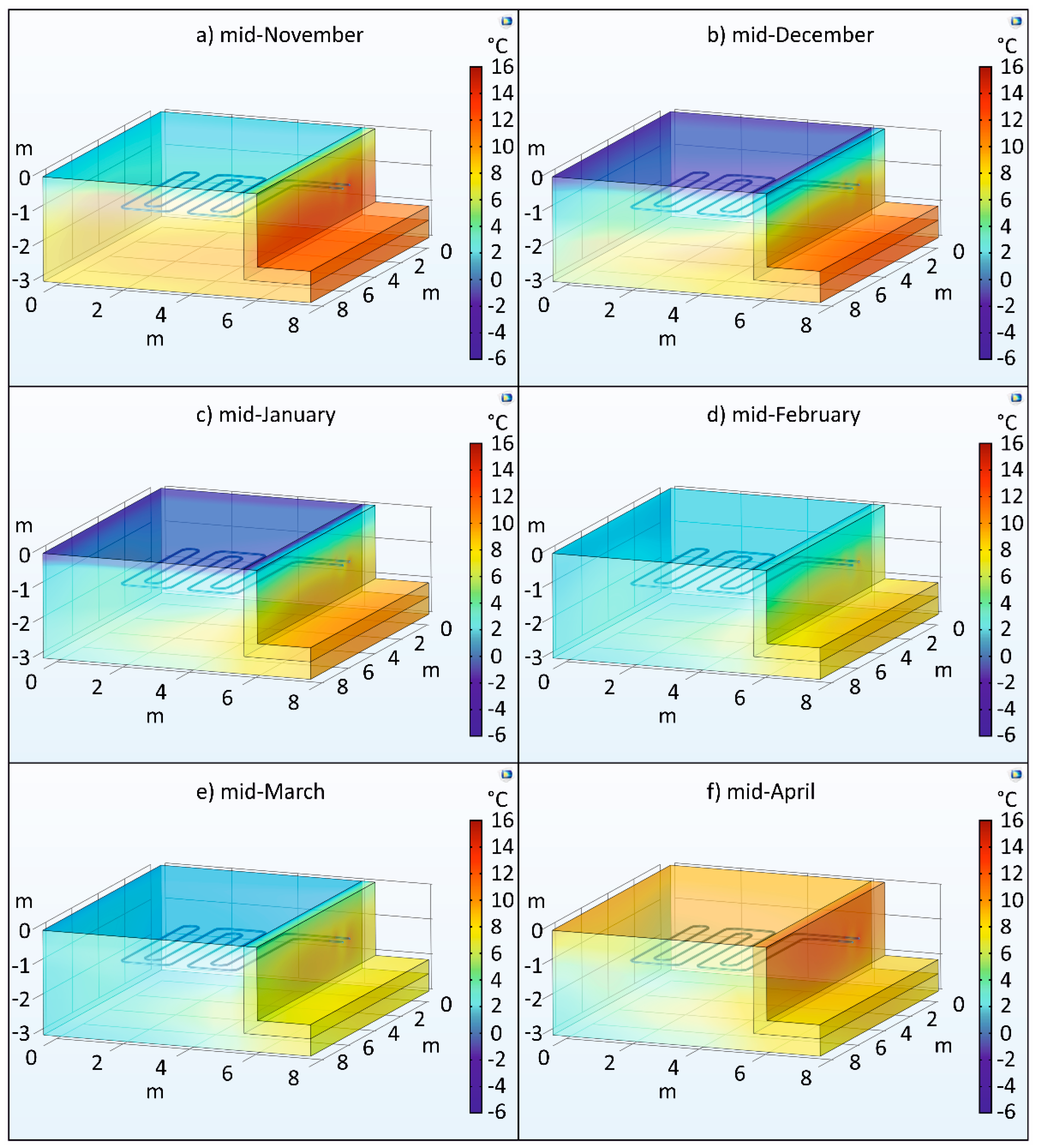

3.2. Case 2: HGHE Heated Basement
3.3. Case 3: HGHE with Heat from Solar Thermal Panels

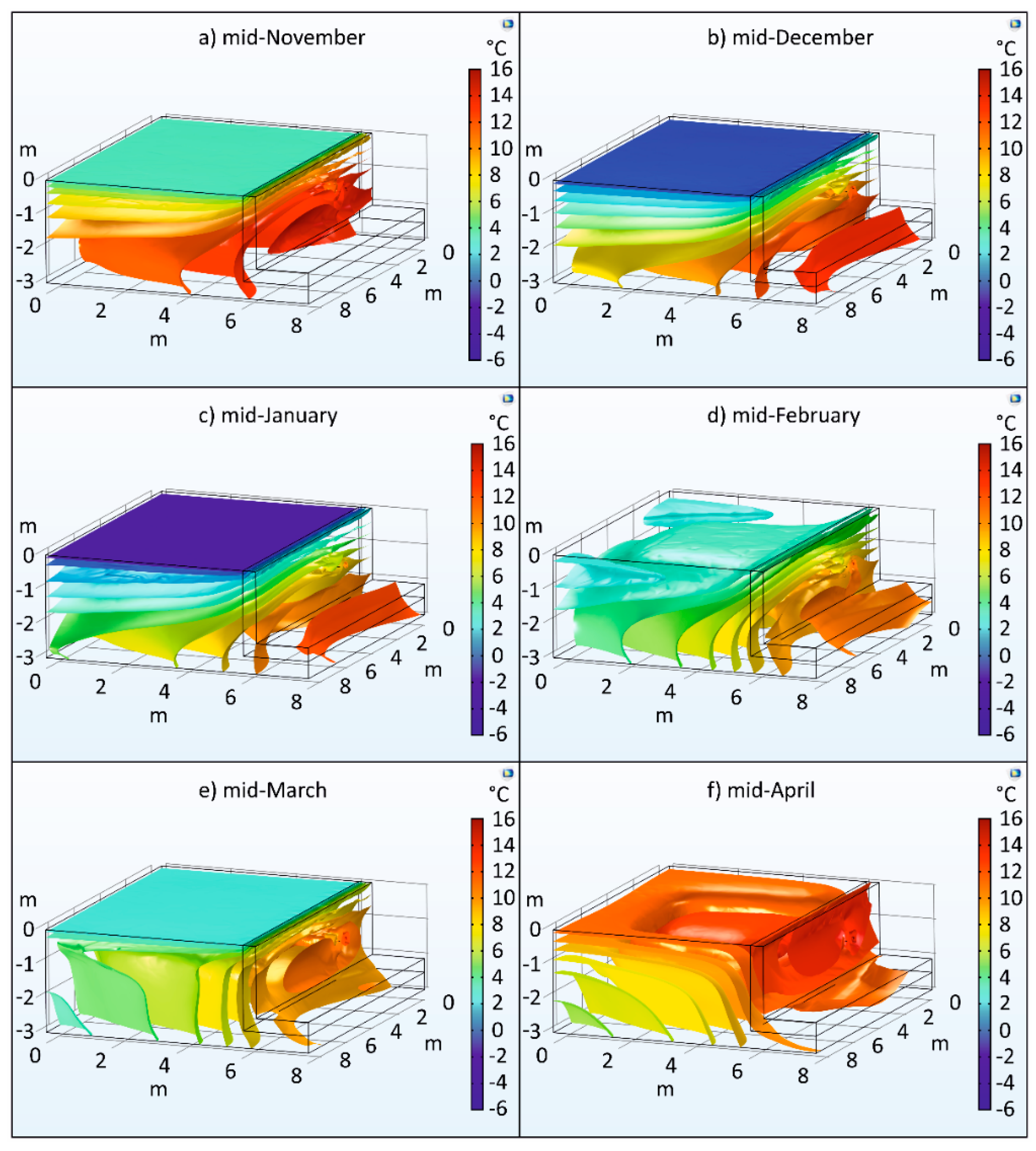

3.4. Case 4: HGHE with Heat from Heated Basement and Solar Thermal Panels Combined

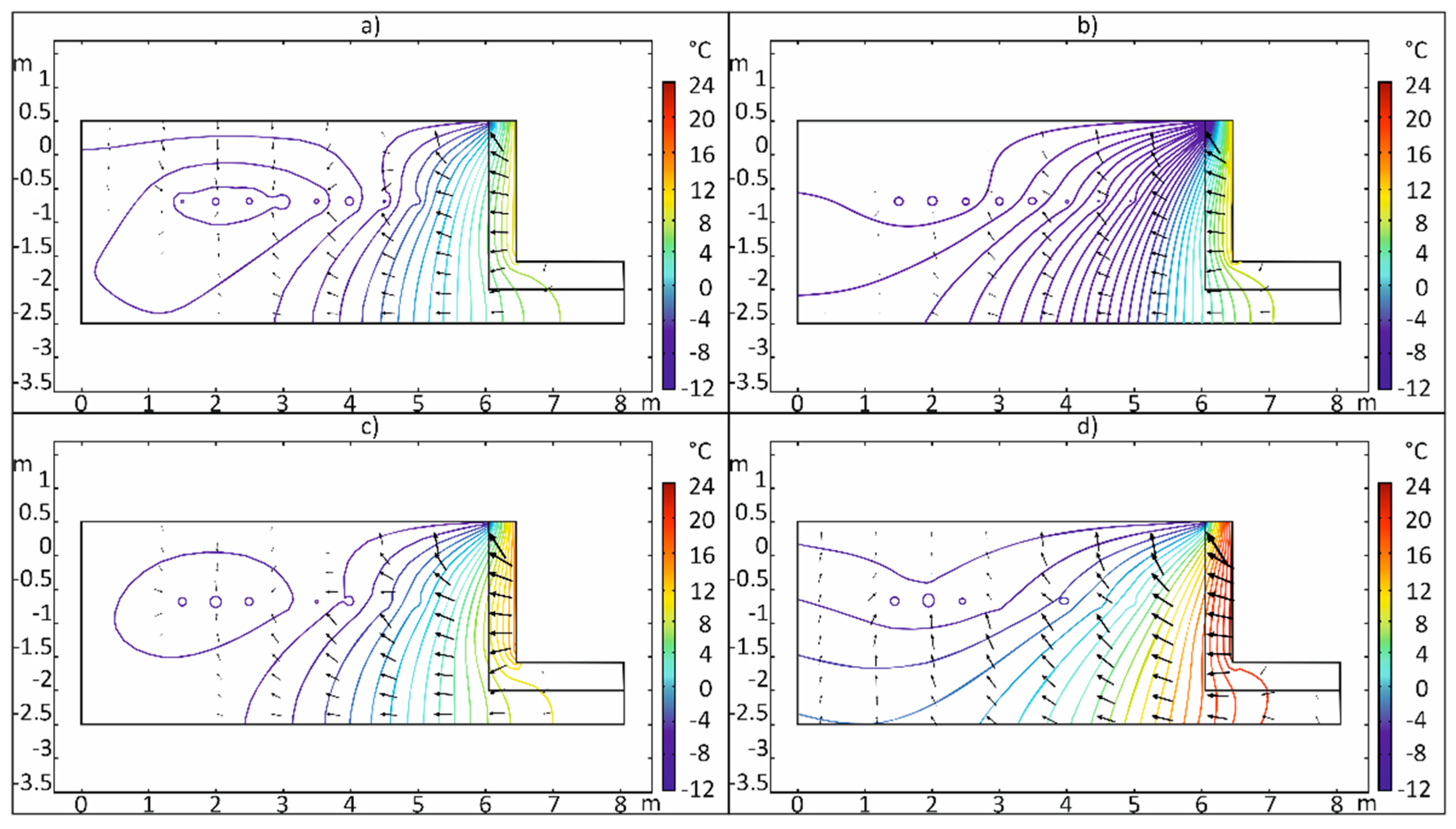

4. Discussion
5. Conclusions
- Heat transfer inside the HGHE from auxiliary heat sources increases the overall HGHE temperature at the end of the heating season, with 1.11 °C for case 2 (heated basement), 1.53 °C for case 3 (solar thermal panels), 2.53 °C for case 4 (both auxiliary heat sources).
- The ground freezing period decreased by 24.74% in the case of a heated basement, 40.20% by transferring heat inside the HGHE from thermal solar panels, and 62.88% by using both auxiliary sources combined.
- At pipe depth (1.2 m) in case 1, without auxiliary heat sources, the ground froze for 30 days, and for case 2, with a heated basement, the ground froze for 21 days. This indicates that by only positioning the HGHE near a heated basement, the freezing period at pipe depth can decrease by approximately 30%.
- With the use of auxiliary heat sources, the mean temperature at pipe depth can stop the temperature decrease under the freezing point for the entire heating season. In this study, for cases 3 and 4, the ground at a pipe depth of 1.2 m did not freeze for the entire duration of 181 days of the heating season.
- Transferring heat inside the HGHE contributes to stabilizing the overall temperature inside the HGHE heat reservoir for the duration of the heating season, thus reducing the negative effects that exterior temperature variation has on the ground at the surface.
- Due to the extreme variation of daily and seasonal exterior temperature, some quantity of heat from the heat transferred inside the HGHE is lost to the environment, from the ground surface to the exterior air. Residual heat is lost all the time, so smart positioning of the HGHE near residual auxiliary heat sources, such as heated basements, needs to be considered when designing heat pump systems using HGHEs.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Soeder, D.J. Fossil Fuels and Climate Change BT. In Fracking and the Environment: A Scientific Assessment of the Environmental Risks from Hydraulic Fracturing and Fossil Fuels; Soeder, D.J., Ed.; Springer: Berlin/Heidelberg, Germany, 2021; pp. 155–185. ISBN 978-3-030-59121-2. [Google Scholar]
- Mann, M.E. Climate Change—False Hope. Sci. Am. 2014, 310, 78–81. [Google Scholar] [CrossRef] [PubMed]
- Lelieveld, J.; Klingmüller, K.; Pozzer, A.; Burnett, R.T.; Haines, A.; Ramanathan, V. Effects of Fossil Fuel and Total Anthropogenic Emission Removal on Public Health and Climate. Proc. Natl. Acad. Sci. USA 2019, 116, 7192–7197. [Google Scholar] [CrossRef] [PubMed]
- Bahmani, M.H.; Hakkaki-Fard, A. A Hybrid Analytical-Numerical Model for Predicting the Performance of the Horizontal Ground Heat Exchangers. Geothermics 2022, 101, 102369. [Google Scholar] [CrossRef]
- Sangi, R.; Müller, D. Dynamic Modelling and Simulation of a Slinky-Coil Horizontal Ground Heat Exchanger Using Modelica. J. Build. Eng. 2018, 16, 159–168. [Google Scholar] [CrossRef]
- Hou, G.; Taherian, H.; Song, Y.; Jiang, W.; Chen, D. A Systematic Review on Optimal Analysis of Horizontal Heat Exchangers in Ground Source Heat Pump Systems. Renew. Sustain. Energy Rev. 2022, 154, 111830. [Google Scholar] [CrossRef]
- Habibi, M.; Amadeh, A.; Hakkaki-Fard, A. A Numerical Study on Utilizing Horizontal Flat-Panel Ground Heat Exchangers in Ground-Coupled Heat Pumps. Renew. Energy 2020, 147, 996–1010. [Google Scholar] [CrossRef]
- Gan, G. A Numerical Methodology for Comprehensive Assessment of the Dynamic Thermal Performance of Horizontal Ground Heat Exchangers. Therm. Sci. Eng. Prog. 2019, 11, 365–379. [Google Scholar] [CrossRef]
- Self, S.J.; Reddy, B.V.; Rosen, M.A. Geothermal Heat Pump Systems: Status Review and Comparison with Other Heating Options. Appl. Energy 2013, 101, 341–348. [Google Scholar] [CrossRef]
- Shi, Y.; Xu, F.; Li, X.; Lei, Z.; Cui, Q.; Zhang, Y. Comparison of Influence Factors on Horizontal Ground Heat Exchanger Performance through Numerical Simulation and Gray Correlation Analysis. Appl. Therm. Eng. 2022, 213, 118756. [Google Scholar] [CrossRef]
- Tang, F.; Lahoori, M.; Nowamooz, H.; Rosin-Paumier, S.; Masrouri, F. A Numerical Study into Effects of Soil Compaction and Heat Storage on Thermal Performance of a Horizontal Ground Heat Exchanger. Renew. Energy 2021, 172, 740–752. [Google Scholar] [CrossRef]
- Yang, W.; Xu, R.; Wang, F.; Chen, S. Experimental and Numerical Investigations on the Thermal Performance of a Horizontal Spiral-Coil Ground Heat Exchanger. Renew. Energy 2020, 147, 979–995. [Google Scholar] [CrossRef]
- Dinh, B.H.; Kim, Y.S.; Yoon, S. Experimental and Numerical Studies on the Performance of Horizontal U-Type and Spiral-Coil-Type Ground Heat Exchangers Considering Economic Aspects. Renew. Energy 2022, 186, 505–516. [Google Scholar] [CrossRef]
- Wu, Y.; Gan, G.; Verhoef, A.; Vidale, P.L.; Gonzalez, R.G. Experimental Measurement and Numerical Simulation of Horizontal-Coupled Slinky Ground Source Heat Exchangers. Appl. Therm. Eng. 2010, 30, 2574–2583. [Google Scholar] [CrossRef]
- Zhou, Y.; Bidarmaghz, A.; Makasis, N.; Narsilio, G. Ground-Source Heat Pump Systems: The Effects of Variable Trench Separations and Pipe Configurations in Horizontal Ground Heat Exchangers. Energies 2021, 14, 3919. [Google Scholar] [CrossRef]
- Fujii, H.; Yamasaki, S.; Maehara, T.; Ishikami, T.; Chou, N. Numerical Simulation and Sensitivity Study of Double-Layer Slinky-Coil Horizontal Ground Heat Exchangers. Geothermics 2013, 47, 61–68. [Google Scholar] [CrossRef]
- Selamat, S.; Miyara, A.; Kariya, K. Numerical Study of Horizontal Ground Heat Exchangers for Design Optimization. Renew. Energy 2016, 95, 561–573. [Google Scholar] [CrossRef]
- Tang, F.; Nowamooz, H. Outlet Temperatures of a Slinky-Type Horizontal Ground Heat Exchanger with the Atmosphere-Soil Interaction. Renew. Energy 2020, 146, 705–718. [Google Scholar] [CrossRef]
- Pu, L.; Xu, L.; Qi, D.; Li, Y. Structure Optimization for Horizontal Ground Heat Exchanger. Appl. Therm. Eng. 2018, 136, 131–140. [Google Scholar] [CrossRef]
- Ariwibowo, T.H.; Miyara, A. Thermal Characteristics of Slinky-Coil Ground Heat Exchanger with Discrete Double Inclined Ribs. Resources 2020, 9, 105. [Google Scholar] [CrossRef]
- Liu, X.; Li, C.; Zhang, G.; Zhang, L.; Wei, B. Numerical Investigation on Energy Efficiency of Heat Pump with Tunnel Lining Ground Heat Exchangers under Building Cooling. Buildings 2021, 11, 661. [Google Scholar] [CrossRef]
- Sterpi, D.; Tomaselli, G.; Angelotti, A. Energy Performance of Ground Heat Exchangers Embedded in Diaphragm Walls: Field Observations and Optimization by Numerical Modelling. Renew. Energy 2020, 147, 2748–2760. [Google Scholar] [CrossRef]
- Nam, Y.; Chae, H. Numerical Simulation for the Optimum Design of Ground Source Heat Pump System Using Building Foundation as Horizontal Heat Exchanger. Energy 2014, 73, 933–942. [Google Scholar] [CrossRef]
- Aresti, L.; Christodoulides, P.; Panayiotou, G.P.; Florides, G. Residential Buildings’ Foundations as a Ground Heat Exchanger and Comparison among Different Types in a Moderate Climate Country. Energies 2020, 13, 6287. [Google Scholar] [CrossRef]
- Bao, X.; Qi, X.; Cui, H.; Zou, J.; Xiao, X. Comparison Study on the Performance of a Novel and Traditional Energy Piles by Laboratory Tests. Symmetry 2021, 13, 1958. [Google Scholar] [CrossRef]
- Tan, L.; Love, J.A. A Literature Review on Heating of Ventilation Air with Large Diameter Earth Tubes in Cold Climates. Energies 2013, 6, 3734–3743. [Google Scholar] [CrossRef]
- Baglivo, C.; D’Agostino, D.; Congedo, P.M. Design of a Ventilation System Coupled with a Horizontal Air-Ground Heat Exchanger (HAGHE) for a Residential Building in a Warm Climate. Energies 2018, 11, 2122. [Google Scholar] [CrossRef]
- Bonuso, S.; Panico, S.; Baglivo, C.; Mazzeo, D.; Matera, N.; Congedo, P.M.; Oliveti, G. Dynamic Analysis of the Natural and Mechanical Ventilation of a Solar Greenhouse by Coupling Controlled Mechanical Ventilation (CMV) with an Earth-to-Air Heat Exchanger (EAHX). Energies 2020, 13, 3676. [Google Scholar] [CrossRef]
- Baglivo, C.; Bonuso, S.; Congedo, P.M. Performance Analysis of Air Cooled Heat Pump Coupled with Horizontal Air Ground Heat Exchanger in the Mediterranean Climate. Energies 2018, 11, 2704. [Google Scholar] [CrossRef]
- D’Agostino, D.; Esposito, F.; Greco, A.; Masselli, C.; Minichiello, F. The Energy Performances of a Ground-to-Air Heat Exchanger: A Comparison among Köppen Climatic Areas. Energies 2020, 13, 2895. [Google Scholar] [CrossRef]
- Greco, A.; Masselli, C. The Optimization of the Thermal Performances of an Earth to Air Heat Exchanger for an Air Conditioning System: A Numerical Study. Energies 2020, 13, 6414. [Google Scholar] [CrossRef]
- Kupiec, K.; Gwadera, M. Heat Balance of Horizontal Ground Heat Exchangers. Ecol. Chem. Eng. S 2018, 25, 537–548. [Google Scholar] [CrossRef]
- Leski, K.; Luty, P.; Gwadera, M.; Larwa, B. Numerical Analysis of Minimum Ground Temperature for Heat Extraction in Horizontal Ground Heat Exchangers. Energies 2021, 14, 5487. [Google Scholar] [CrossRef]
- Bulmez, A.M.; Ciofoaia, V.; Năstase, G.; Dragomir, G.; Brezeanu, A.I.; Şerban, A. An Experimental Work on the Performance of a Solar-Assisted Ground-Coupled Heat Pump Using a Horizontal Ground Heat Exchanger. Renew. Energy 2022, 183, 849–865. [Google Scholar] [CrossRef]
Material | Parameter | Value | Unit |
---|---|---|---|
Density | 1742 | kg/m3 | |
Soil | Thermal conductivity | 1.5 | W/m·K |
Specific heat capacity | 1175 | J/kg·K | |
Density | 2300 | kg/m3 | |
Basement wall/slab | Thermal conductivity | 1.8 | W/m·K |
Specific heat capacity | 880 | J/kg·K | |
Pipe length | 50 | m | |
Pipe step | 50 | cm | |
Polyethylene pipe | Pipe depth | 1.2 | m |
Outer diameter | 20 | mm | |
Thermal conductivity | 0.4 | W/m·K |
Location on Geometric Model | Boundary Condition Type |
---|---|
Exterior ground surface | Temperature |
Bottom ground surface | Heat flux |
Basement wall/slab surface | Heat flux |
Pipe | Heat flux |
All other surfaces | Periodic |

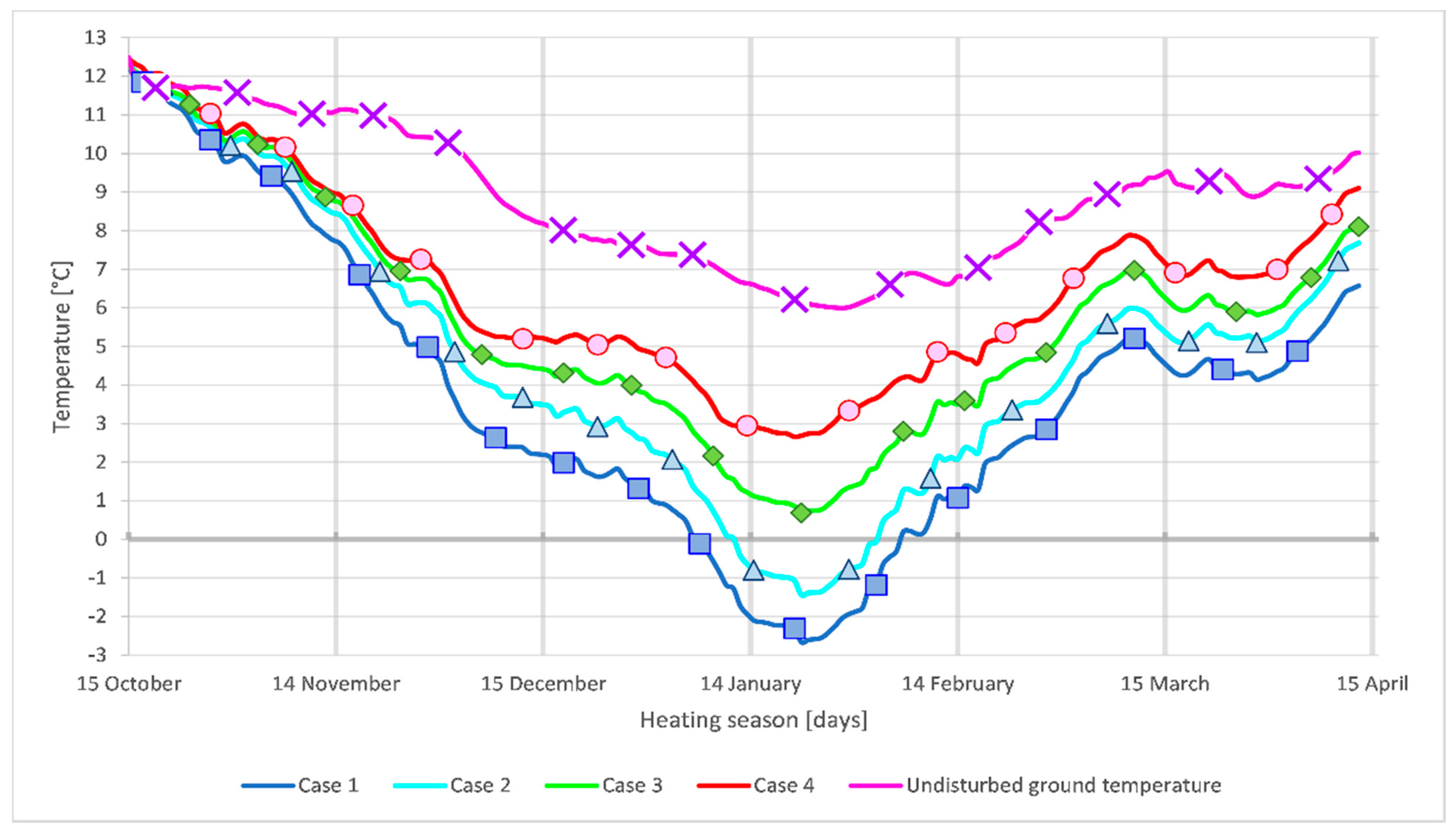

Corresponding Day | Case 1 [°C] | Case 2 [°C] | Case 3 [°C] | Case 4 [°C] |
---|---|---|---|---|
Mid-October | 12.45 | 12.45 | 12.45 | 12.45 |
Mid-November | 7.68 | 8.41 | 8.73 | 8.93 |
Mid-December | 2.19 | 3.49 | 4.41 | 5.20 |
Mid-January | −2.10 | −0.80 | 1.12 | 2.91 |
Mid-February | 1.38 | 2.37 | 3.59 | 4.69 |
Mid-March | 4.63 | 5.33 | 6.35 | 7.24 |
Mid-April | 6.49 | 6.98 | 8.50 | 9.10 |
Case | Start | End | Days | Freeze Depth |
---|---|---|---|---|
1–no auxiliary heat source | 21 November | 25 February | 97 | ~1.40 m |
2–heated basement | 6 December | 16 February | 73 | ~1.20 m |
3–solar thermal panels | 10 December | 5 February | 58 | ~1.13 m |
4–both auxiliary heat sources | 14 December | 18 January | 36 | ~0.92 m |
