Cementitious Insulated Drywall Panels Reinforced with Kraft-Paper Honeycomb Structures

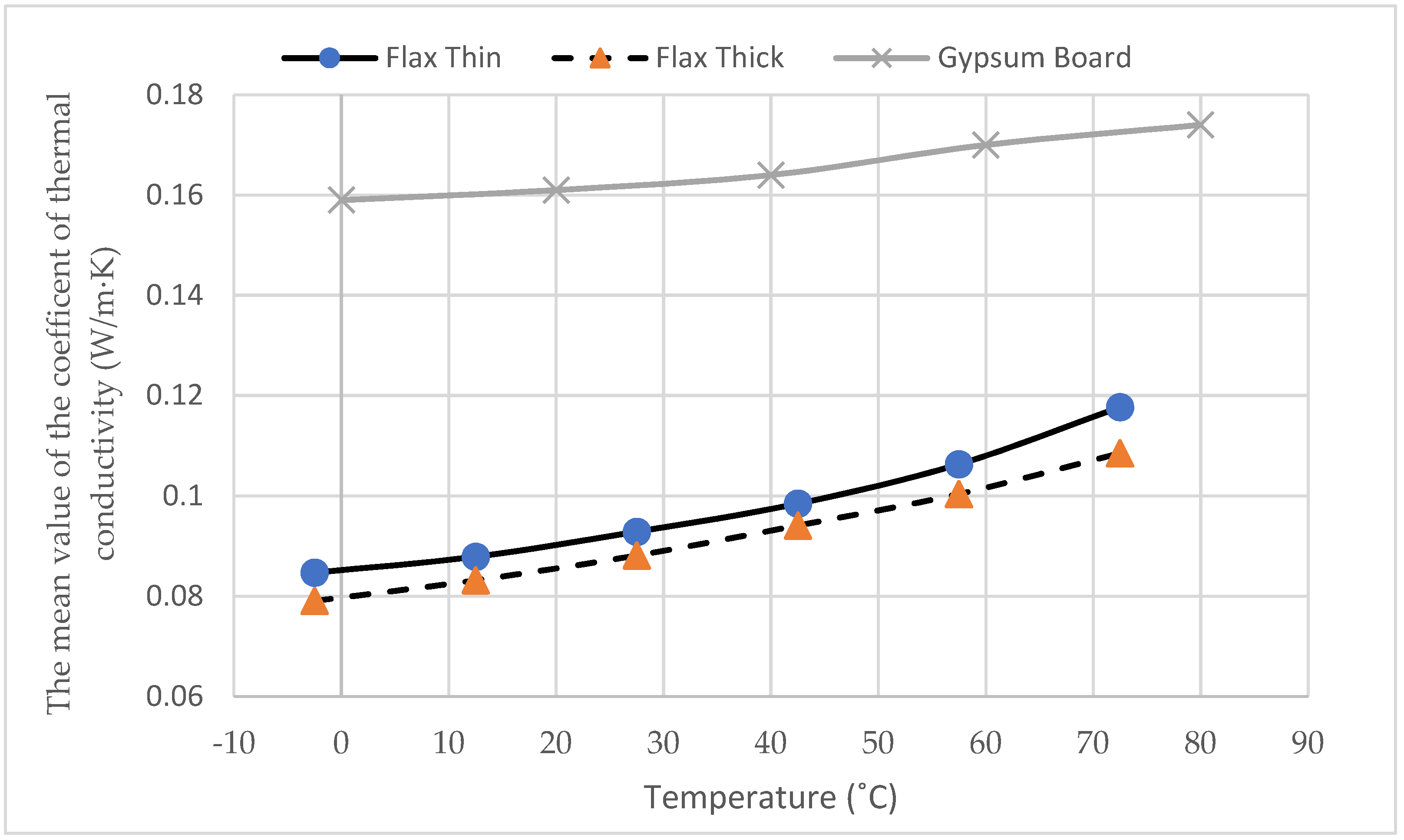

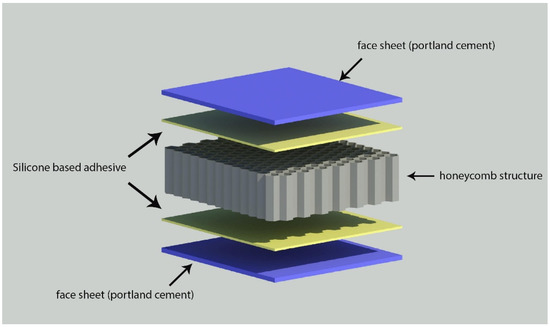

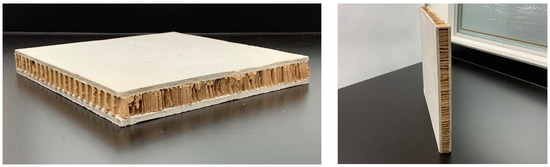

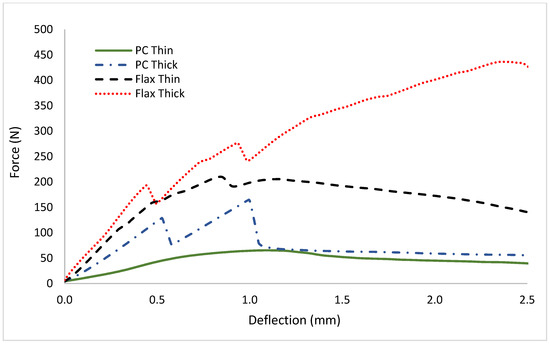

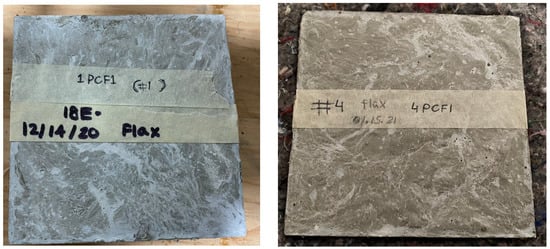

Standard building practices commonly use gypsum-based drywall panels on the interior wall and ceiling applications as a partition to protect the components of a wall assembly from moisture and fire to uphold the building code and ensure safety standards. Unfortunately, gypsum-based drywall panels have poor resistance to water and are susceptible to mold growth in humid climates. Furthermore, the accumulation of drywall in landfills can result in toxic leachate impacting the surrounding environment. A proposed solution to the pitfalls of gypsum-based drywall arises in its substitution with a new lightweight composite honeycomb sandwich panel. This study aimed to develop sandwich panels with improvements in flexural strength and thermal insulating properties through the combined use of cementitious binder mix and kraft-paper honeycomb structures. The proposed alternative is created by following standard practices outlined in ASTM C305 to create cement panels and experimenting with admixtures to improve the material performance in order to cater to a drywall panel application. The kraft-paper honeycomb structure is bonded to cured cementitious panels to create a composite “sandwich panel” assembly. The results indicate that the sample flexural strength performed well after 7 days and exhibited superior flexural strength at 28 days, while providing a substantial increase in R-value of 5.84 m²K/W when compared to gypsum-based panels, with an R-value of 5.41 m²K/W. In addition, the reinforced kraft-paper honeycomb with a thick core and addition of flax fibres to the cementitious boards possesses better thermal conductivity, with a reduction of 42%, a lower density, and a lower water vapour transmission in comparison to the thin kraft-paper honeycomb sandwich panel.
