Parametric Study on Built-Up Cold-Formed Steel Beams with Web Openings Connected by Spot Welding
Abstract
:1. Introduction
2. Summary of Experimental Investigations

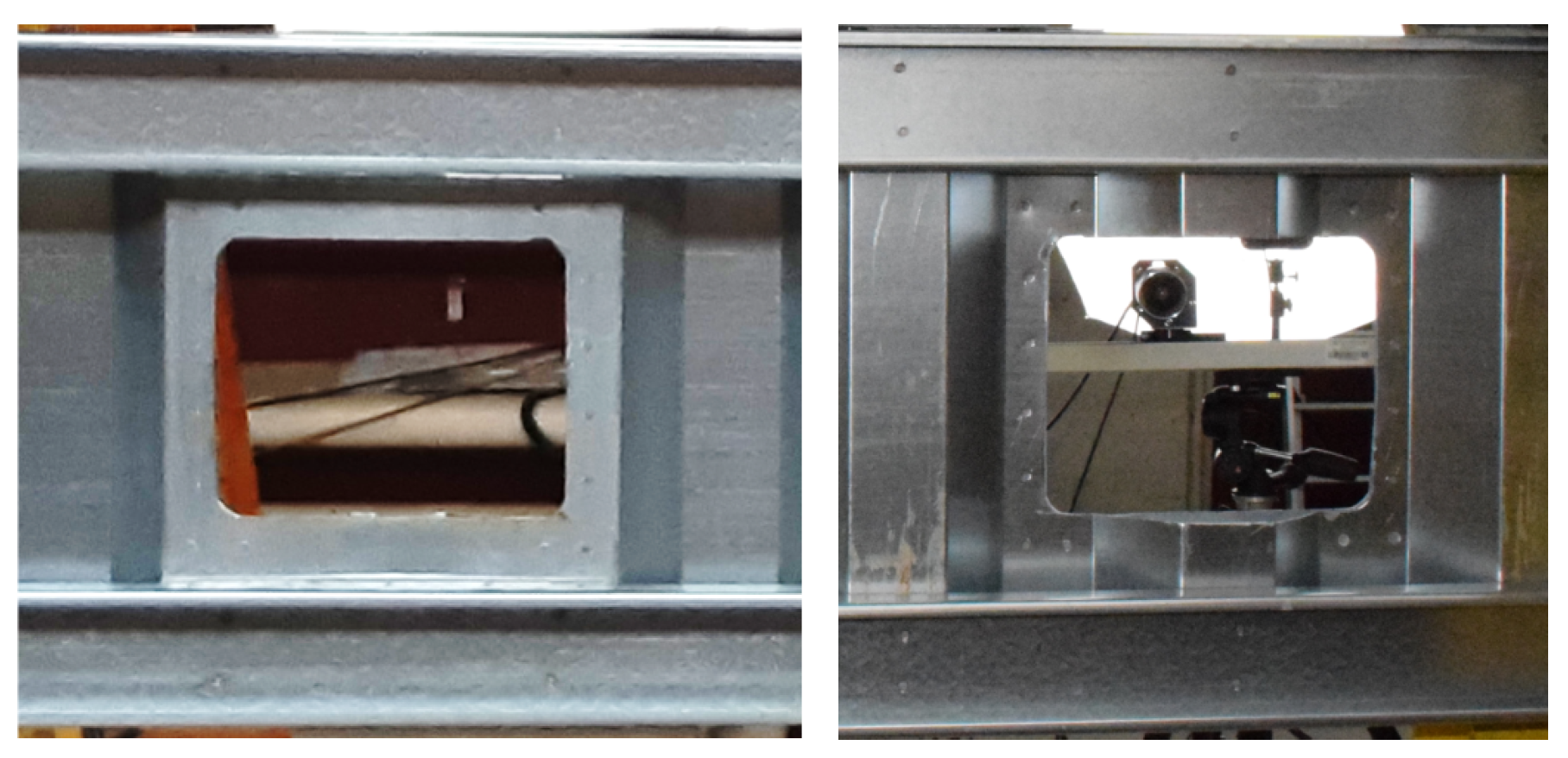

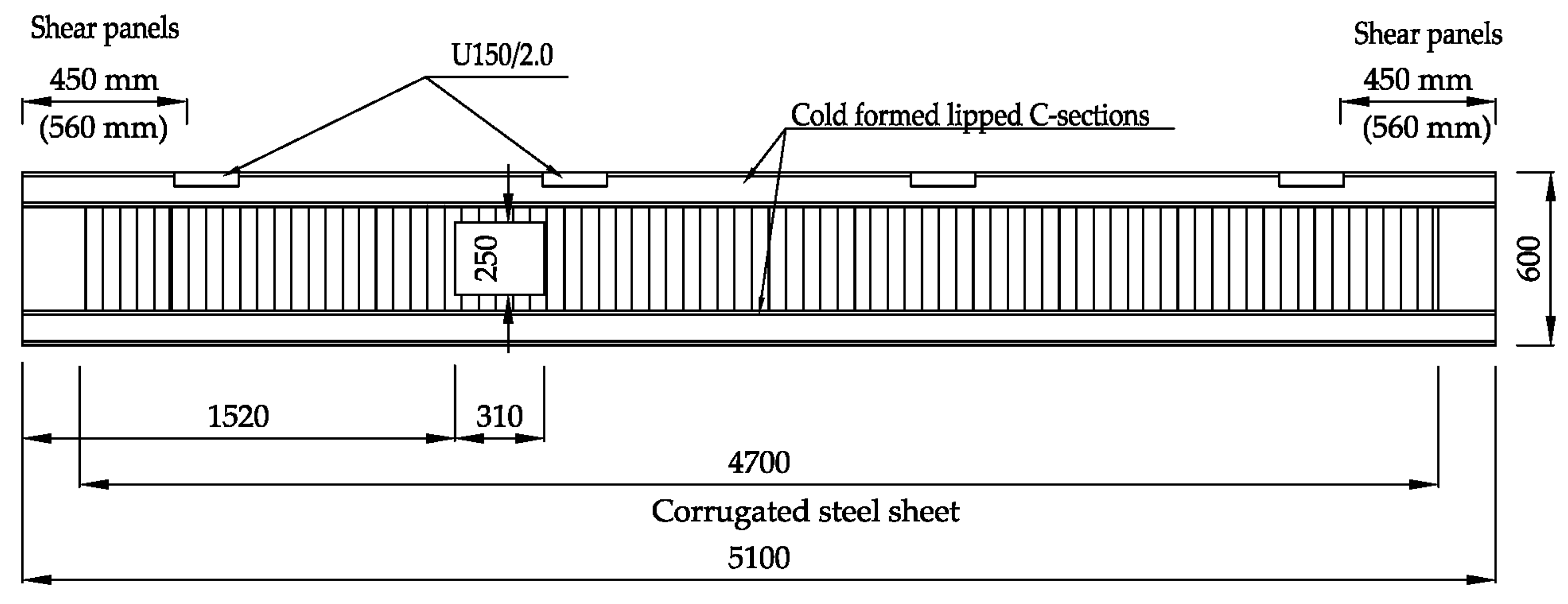

2.1. Validation Data

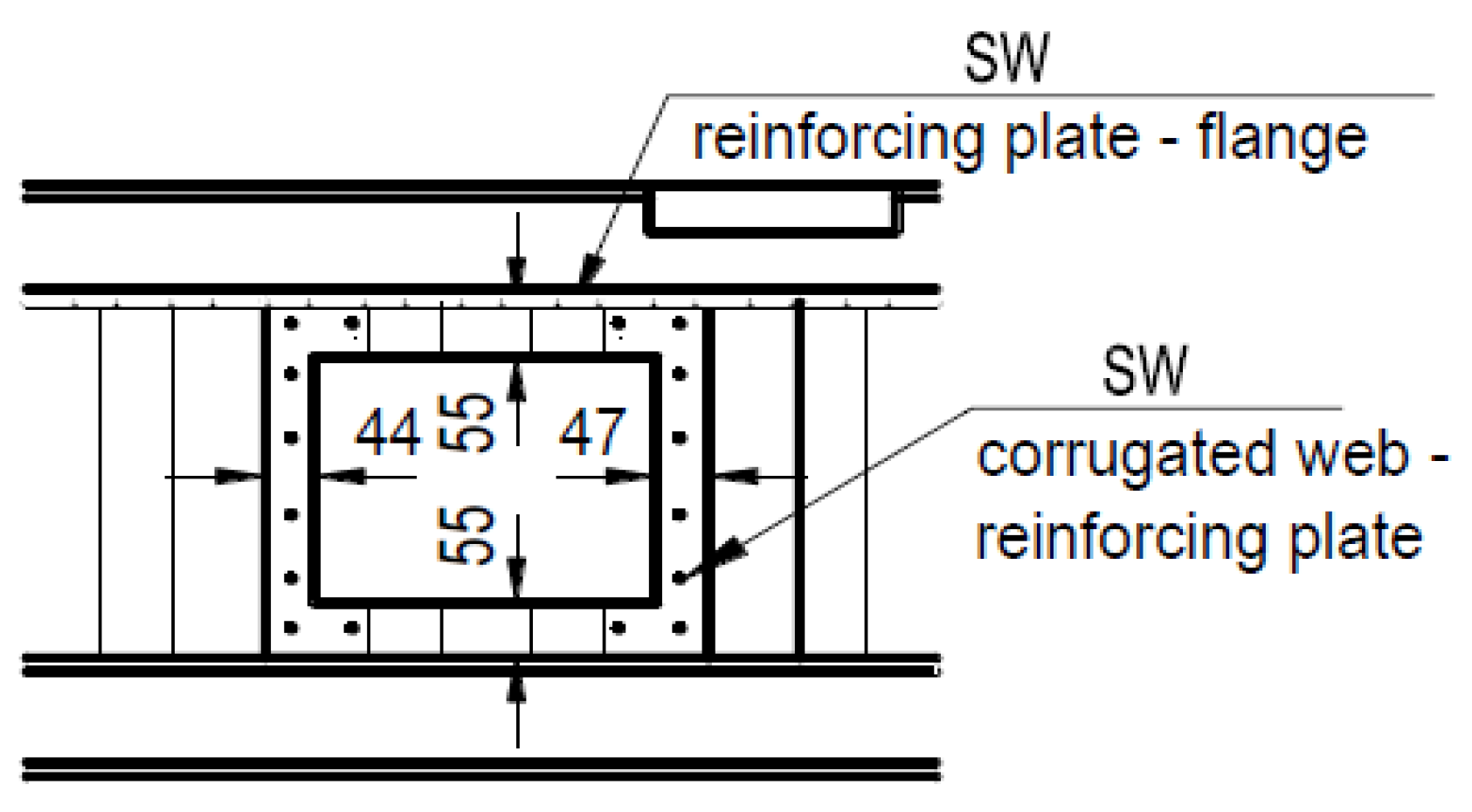

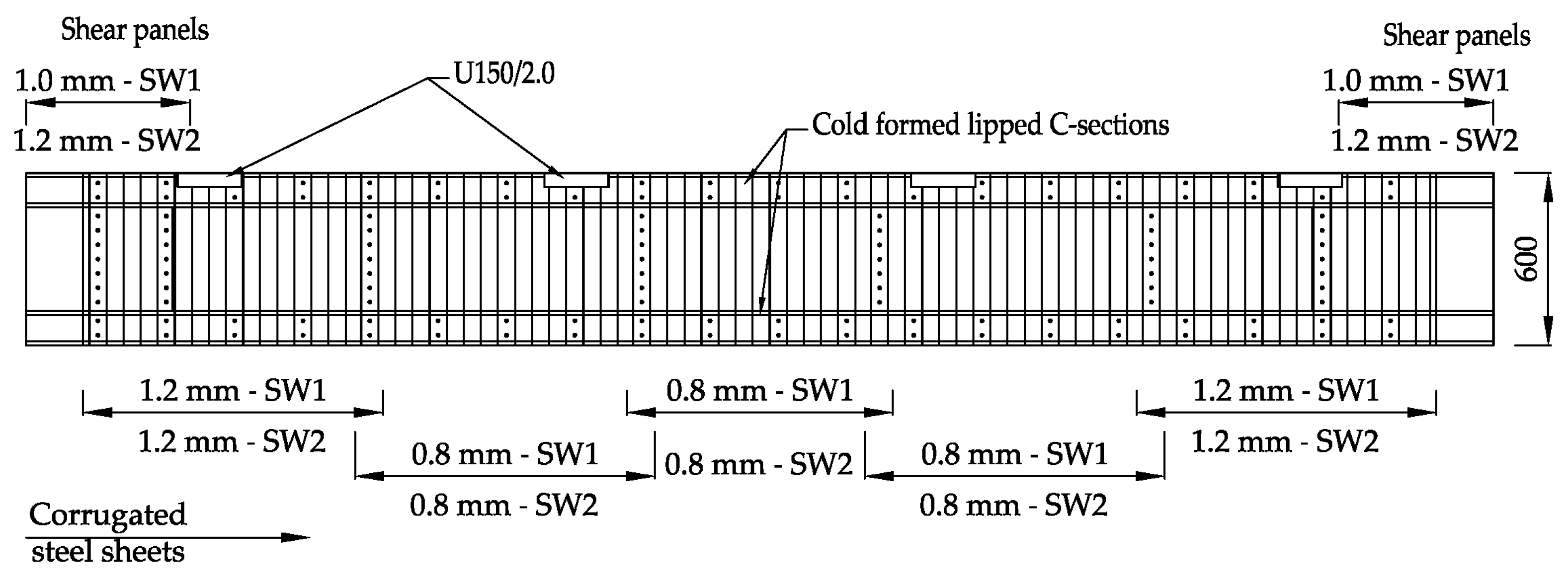

- flanges of back-to-back lipped channels with a cross-section of C120/47/2.0;
- corrugated webs made of steel sheets of 0.80 mm (mid part of the beam) and 1.20 mm (at beam ends);
- shear panels at both ends of the beam (flat plates with thicknesses of 1.00 mm or 1.20 mm), where the shear force is the highest;
- U150/70/2.0 as reinforcing profiles at the point-of-application of the forces in order to avoid excessive local deformations.

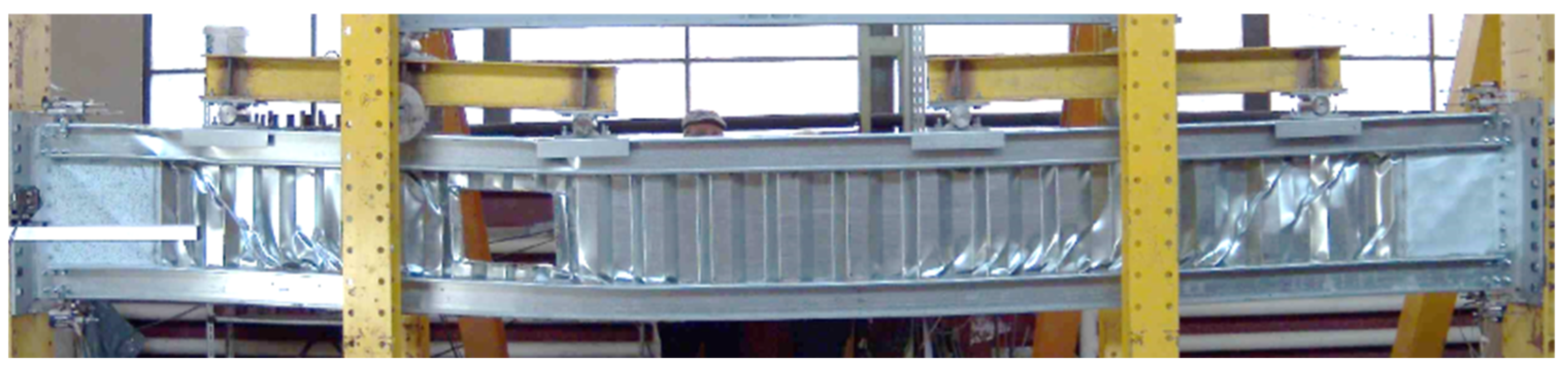

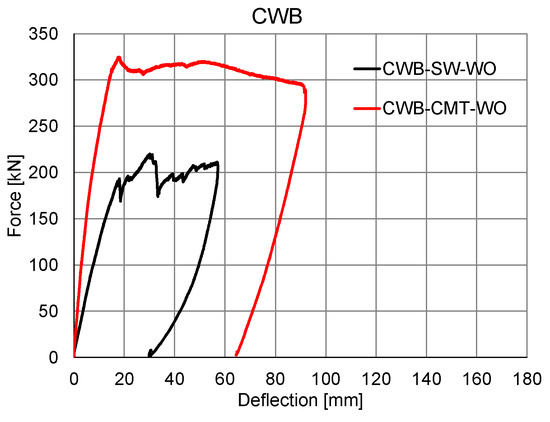

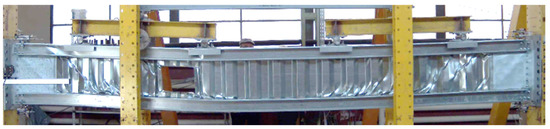

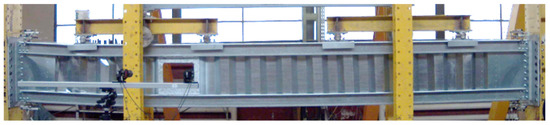

2.2. Experimental Results

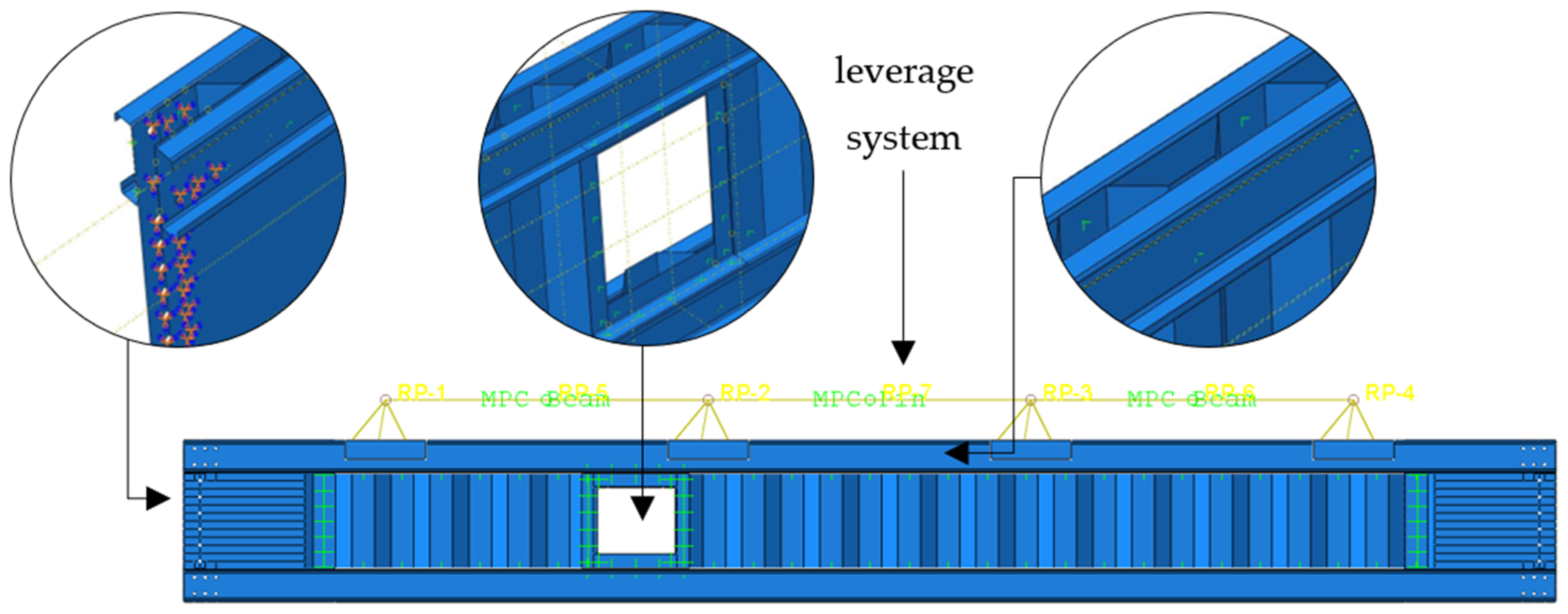

3. FE Model
3.1. Supports Boundary Conditions
3.2. Spot-Weld Modelling
3.3. Geometrical Imperfections
3.4. Solver Scheme and Loading Setup

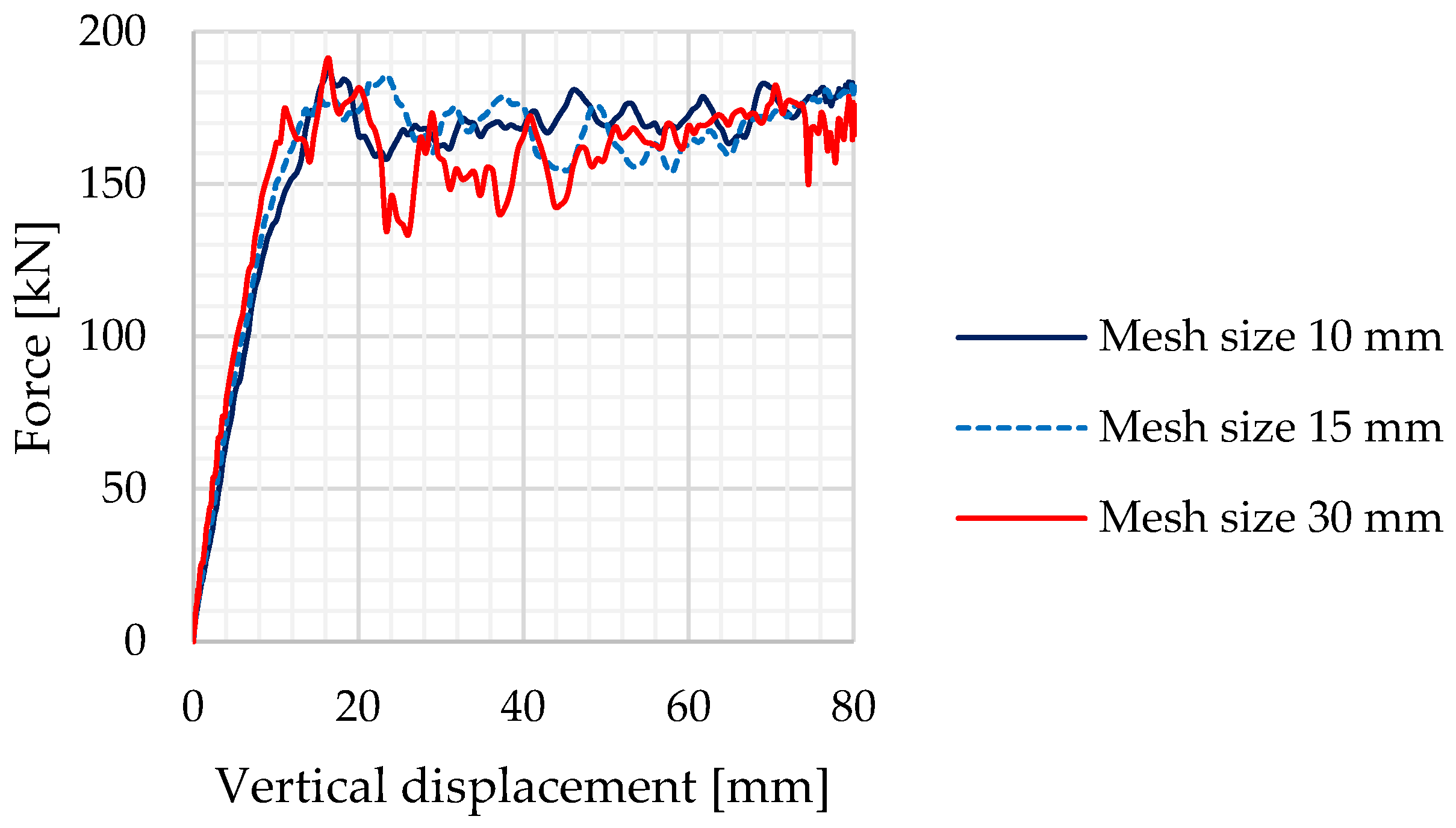

3.5. Element Selection and Mesh Sensitivity

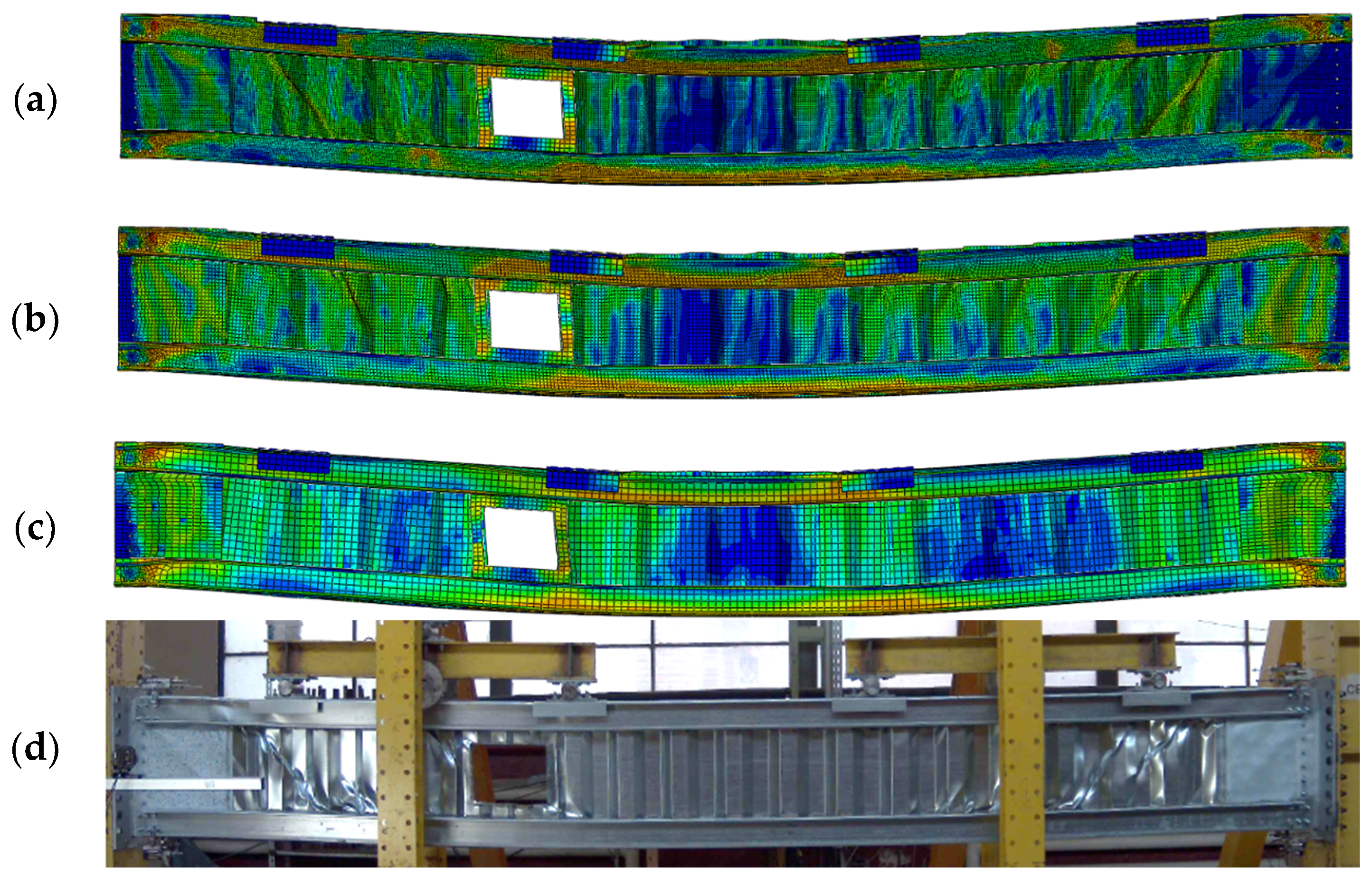

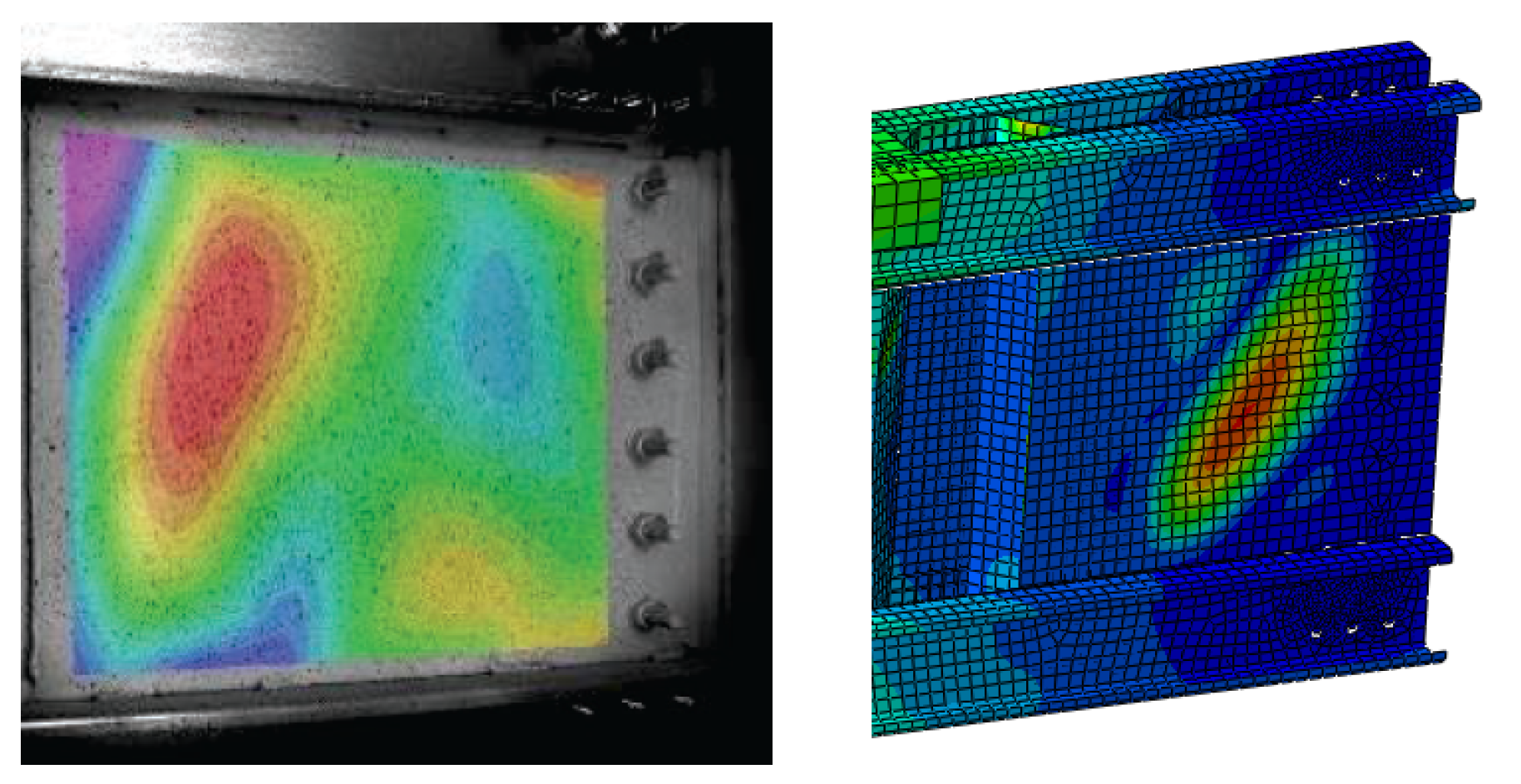

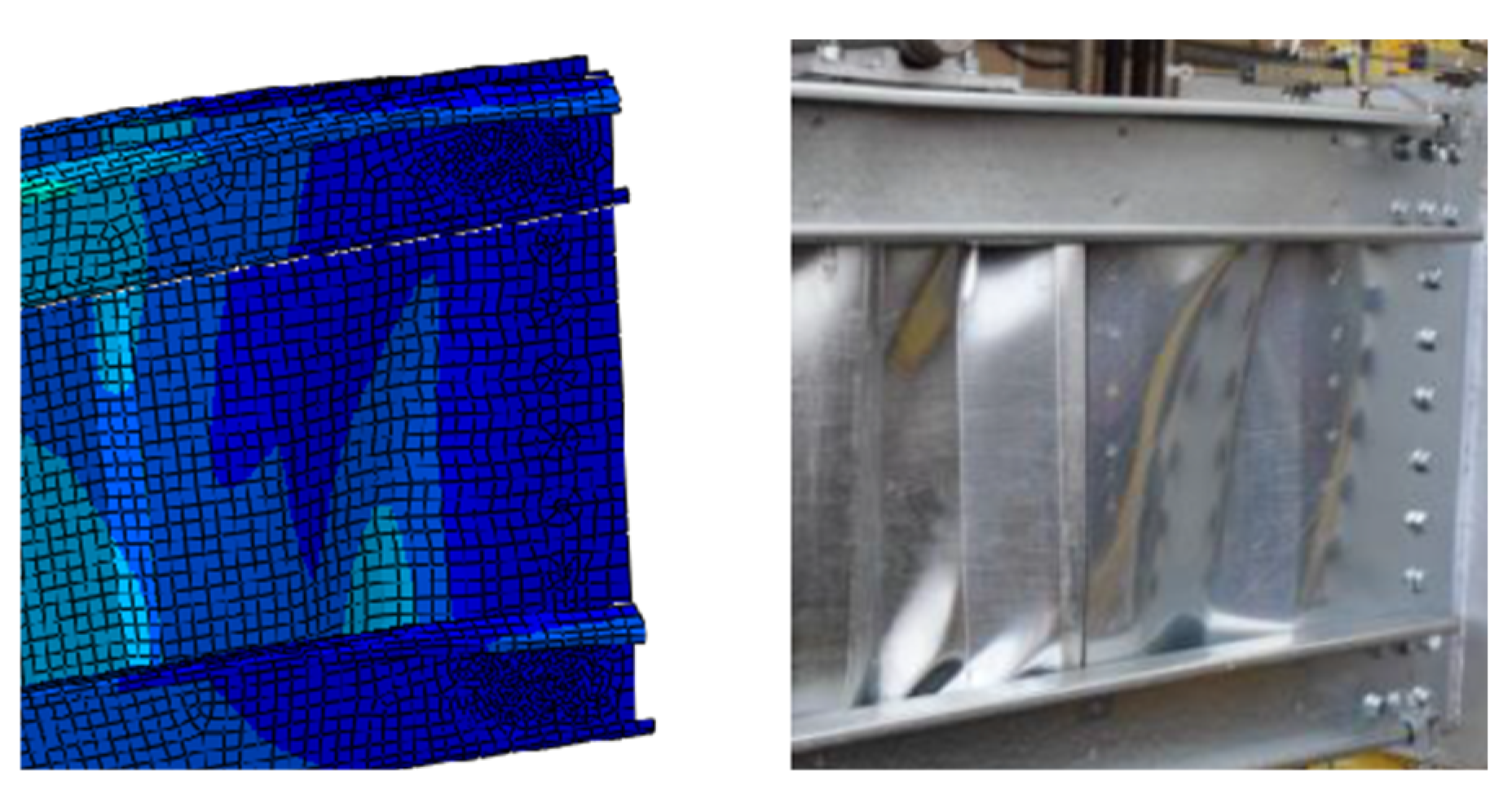

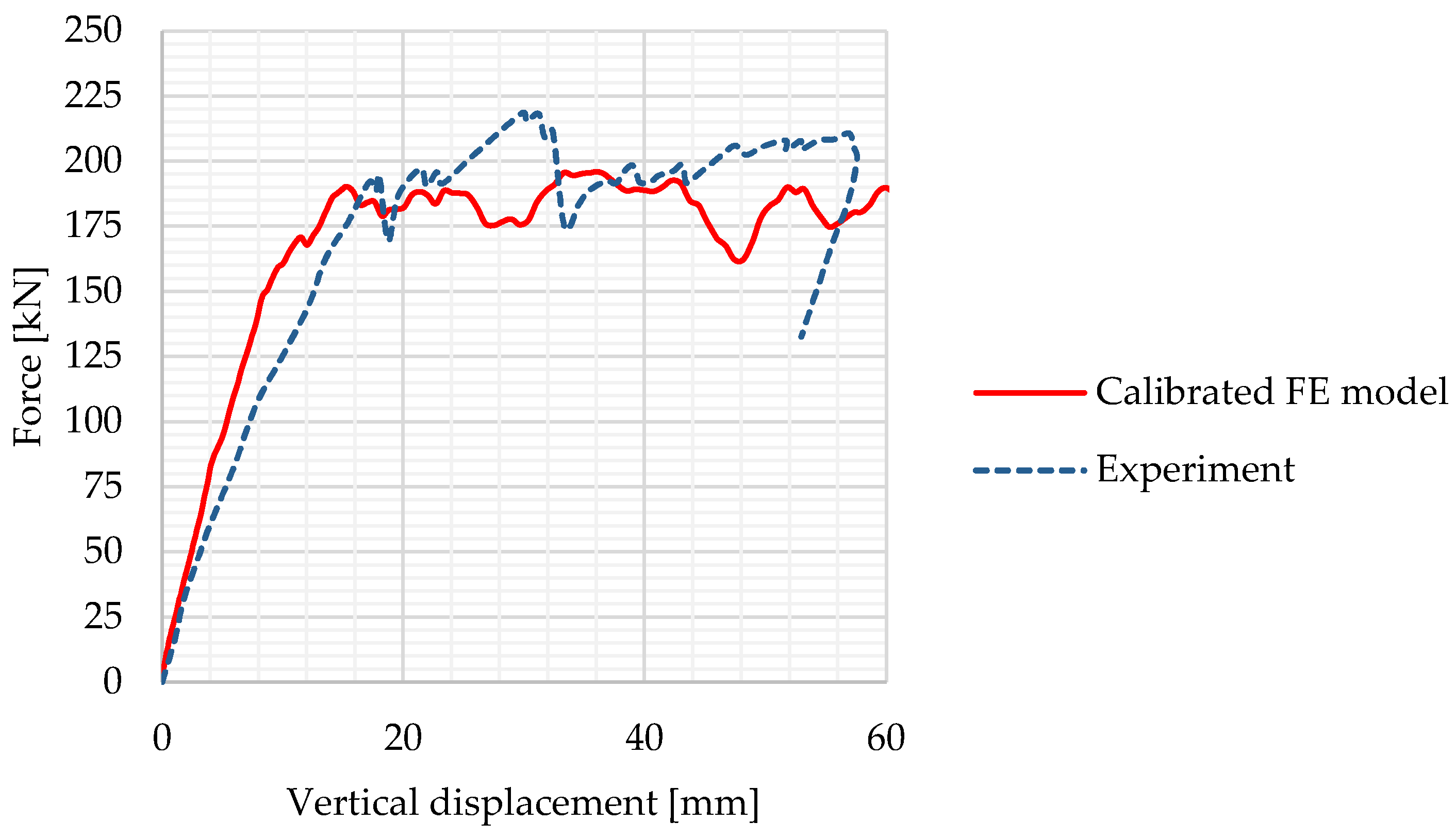

3.6. Validation of Developed FE Model

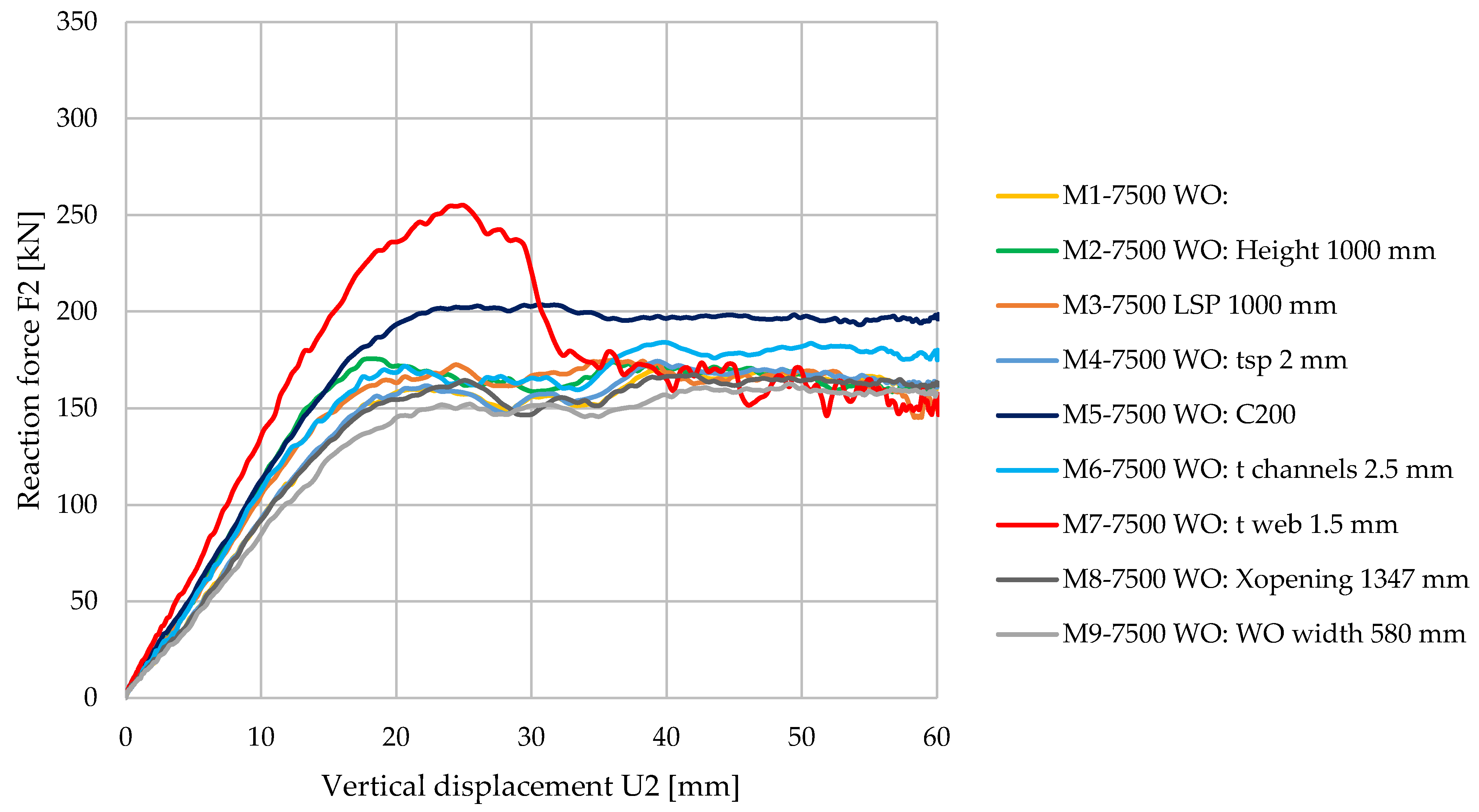

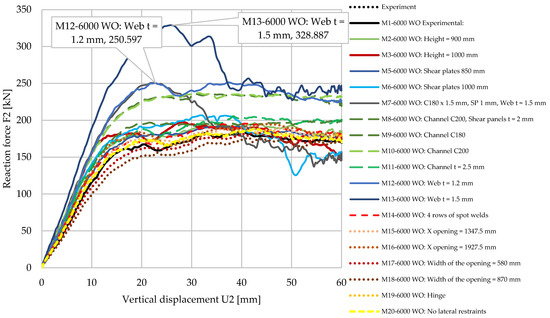

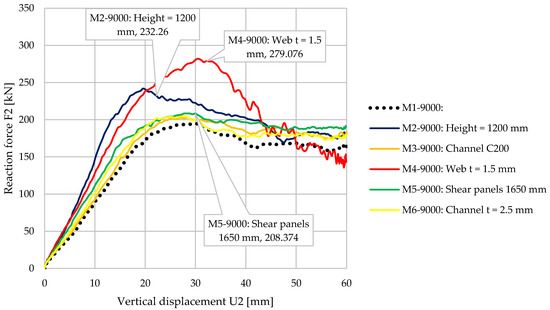

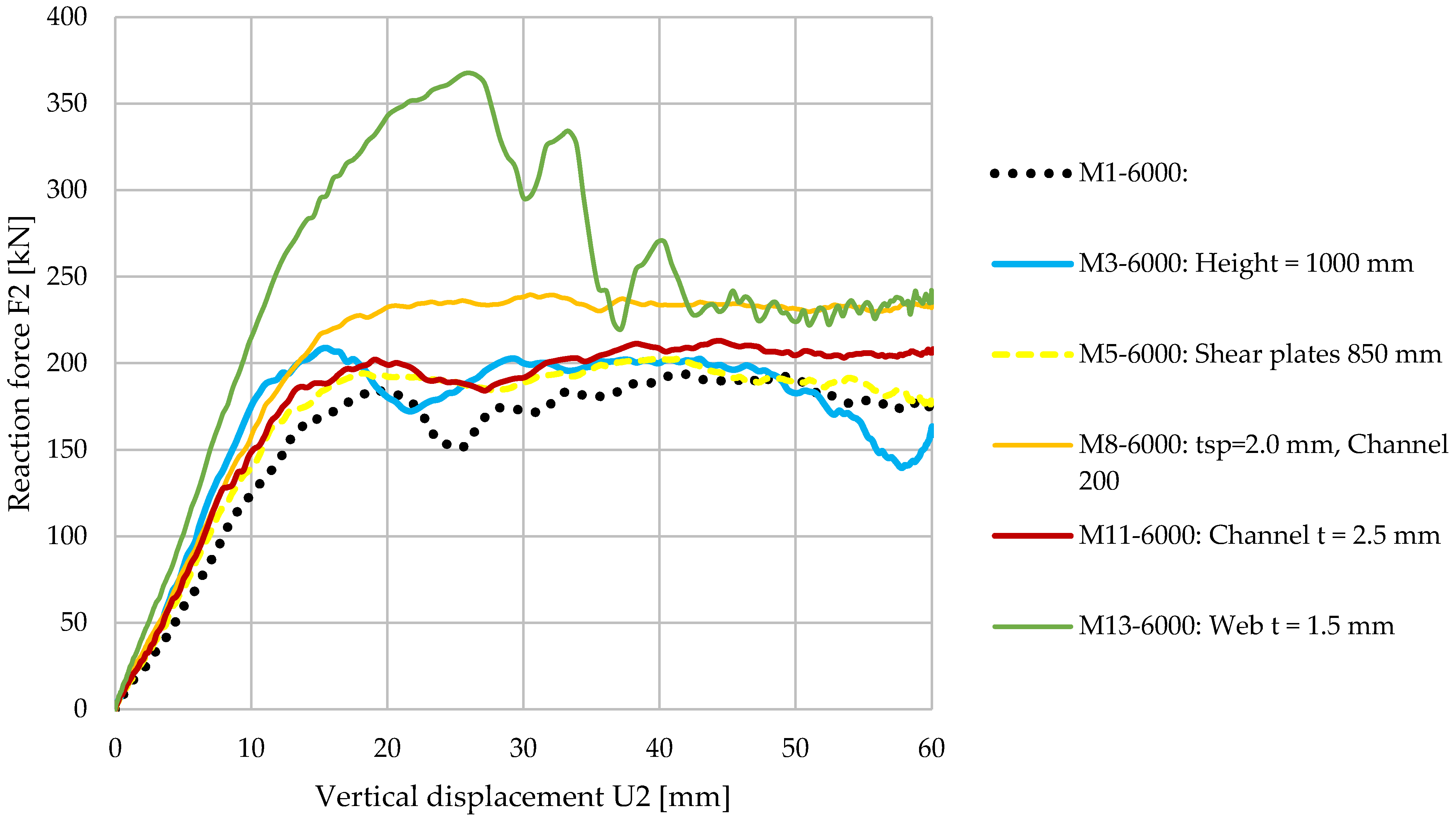

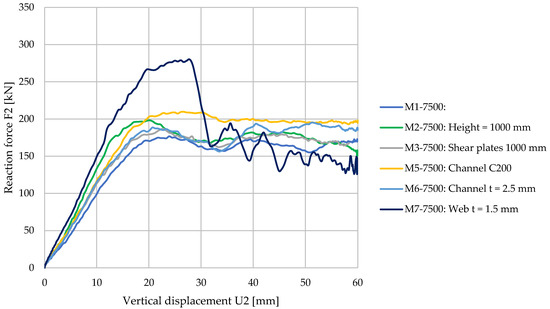

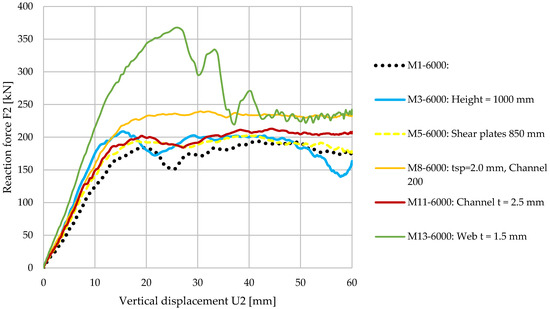

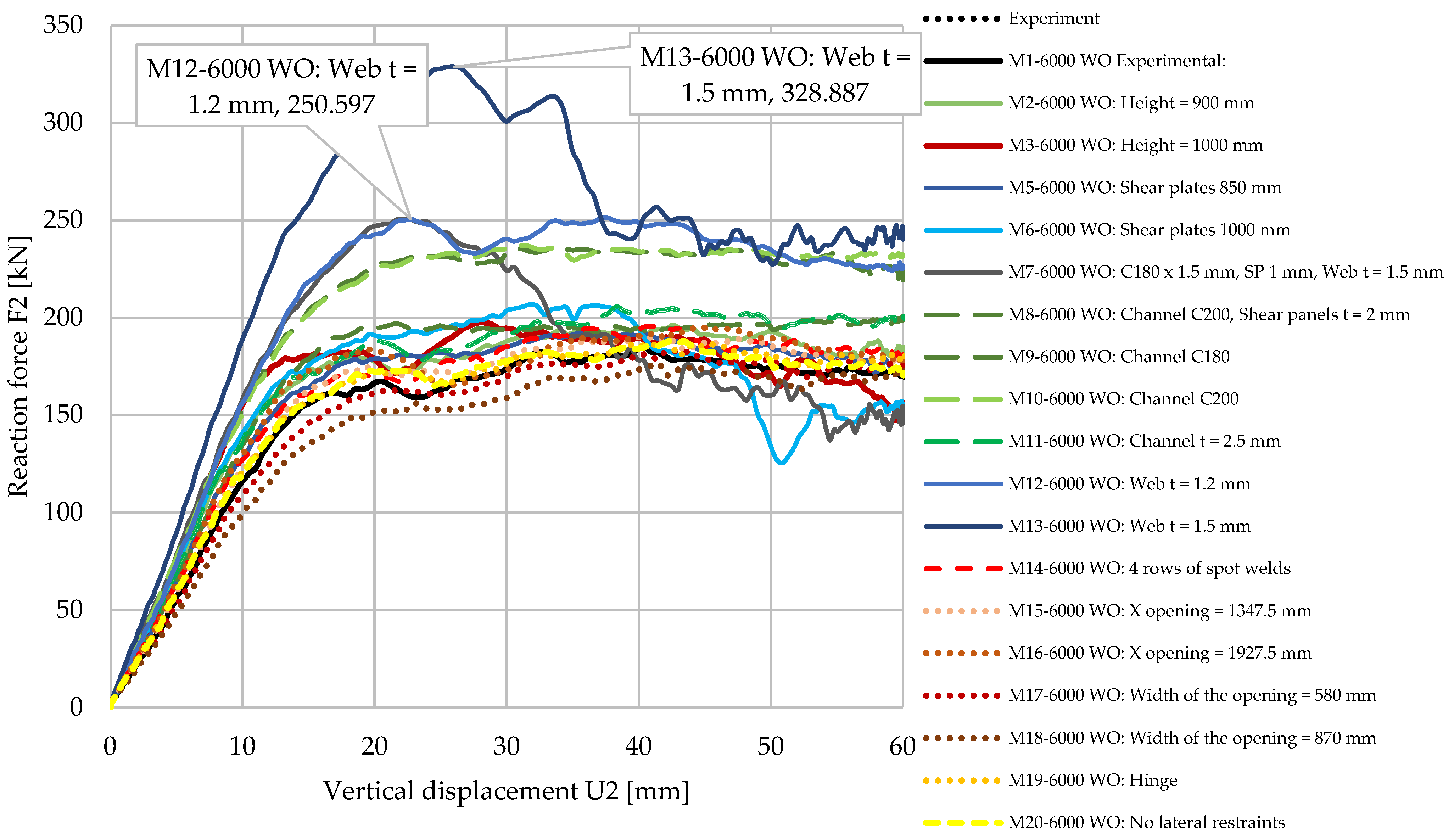

4. Parametric Numerical Study

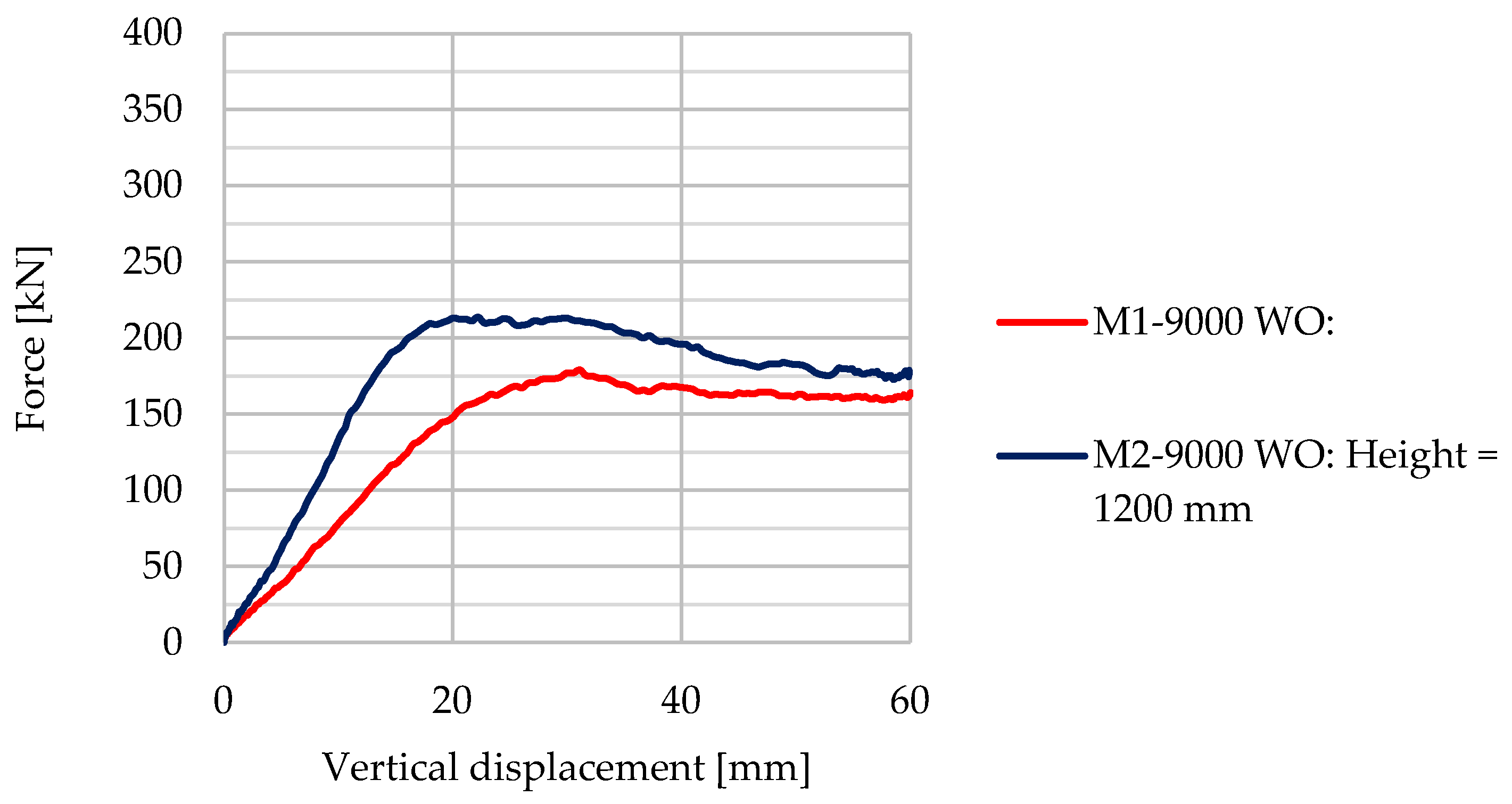

4.1. Influence of the Beam’s Height

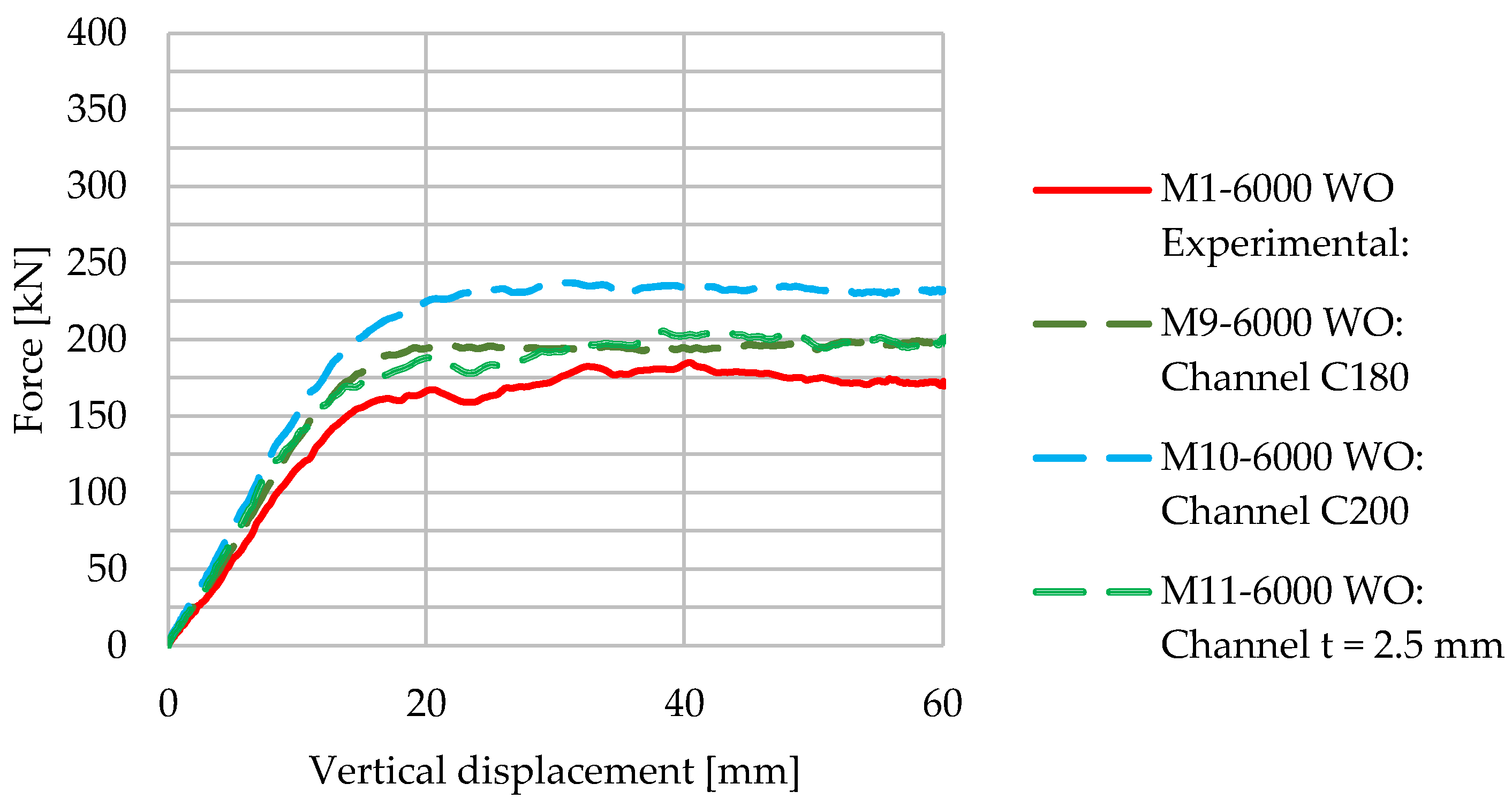

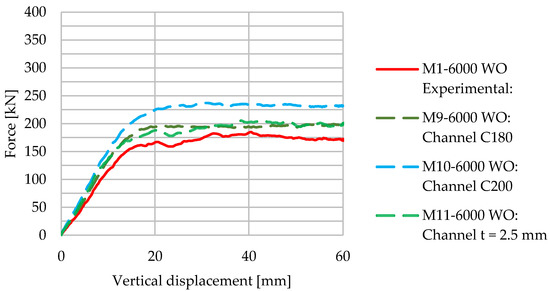

4.2. Influence of the Section and Thickness of the Flanges
4.3. Influence of the Shear Panels

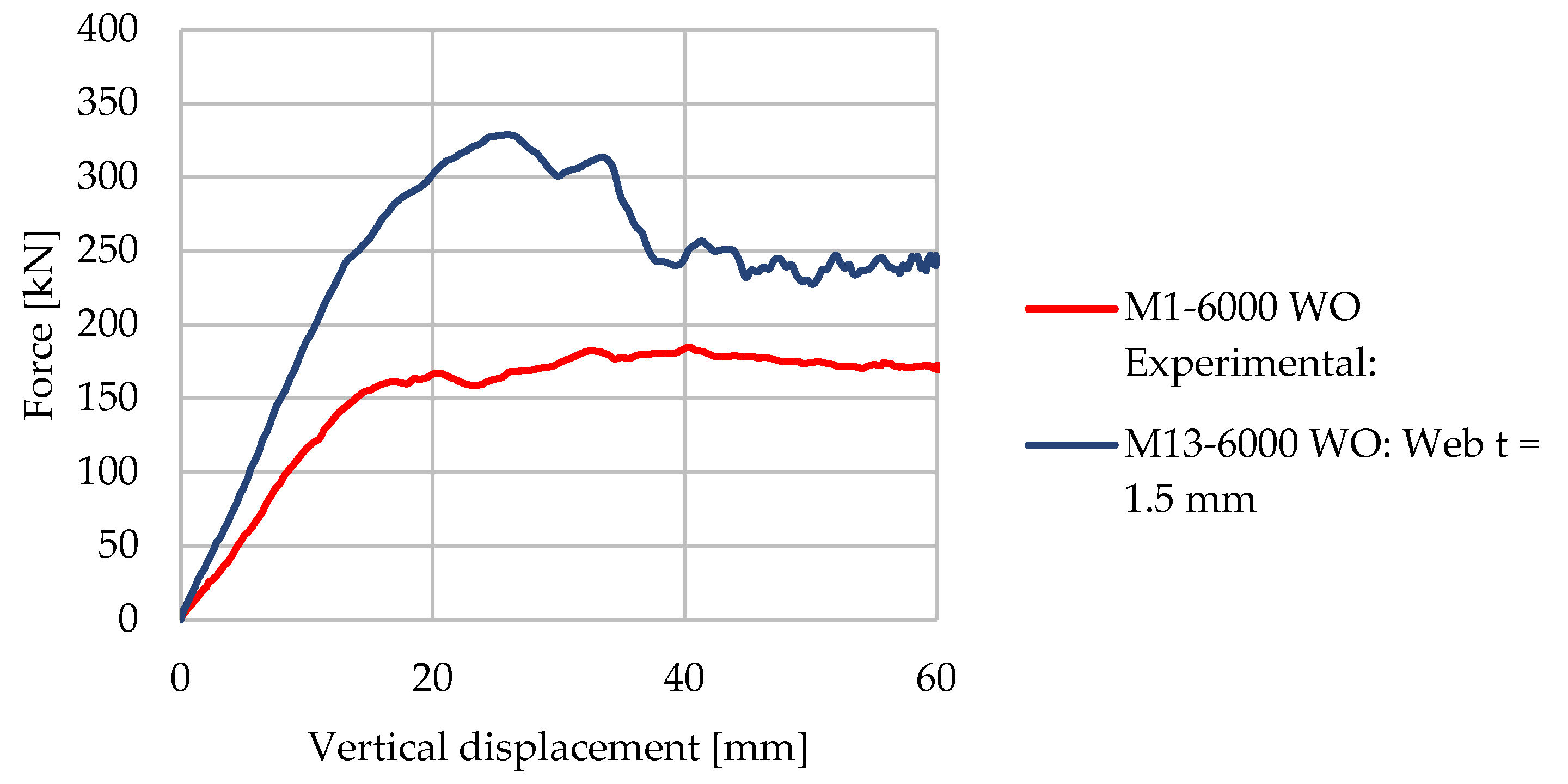

4.4. Influence of Corrugated Web Thickness

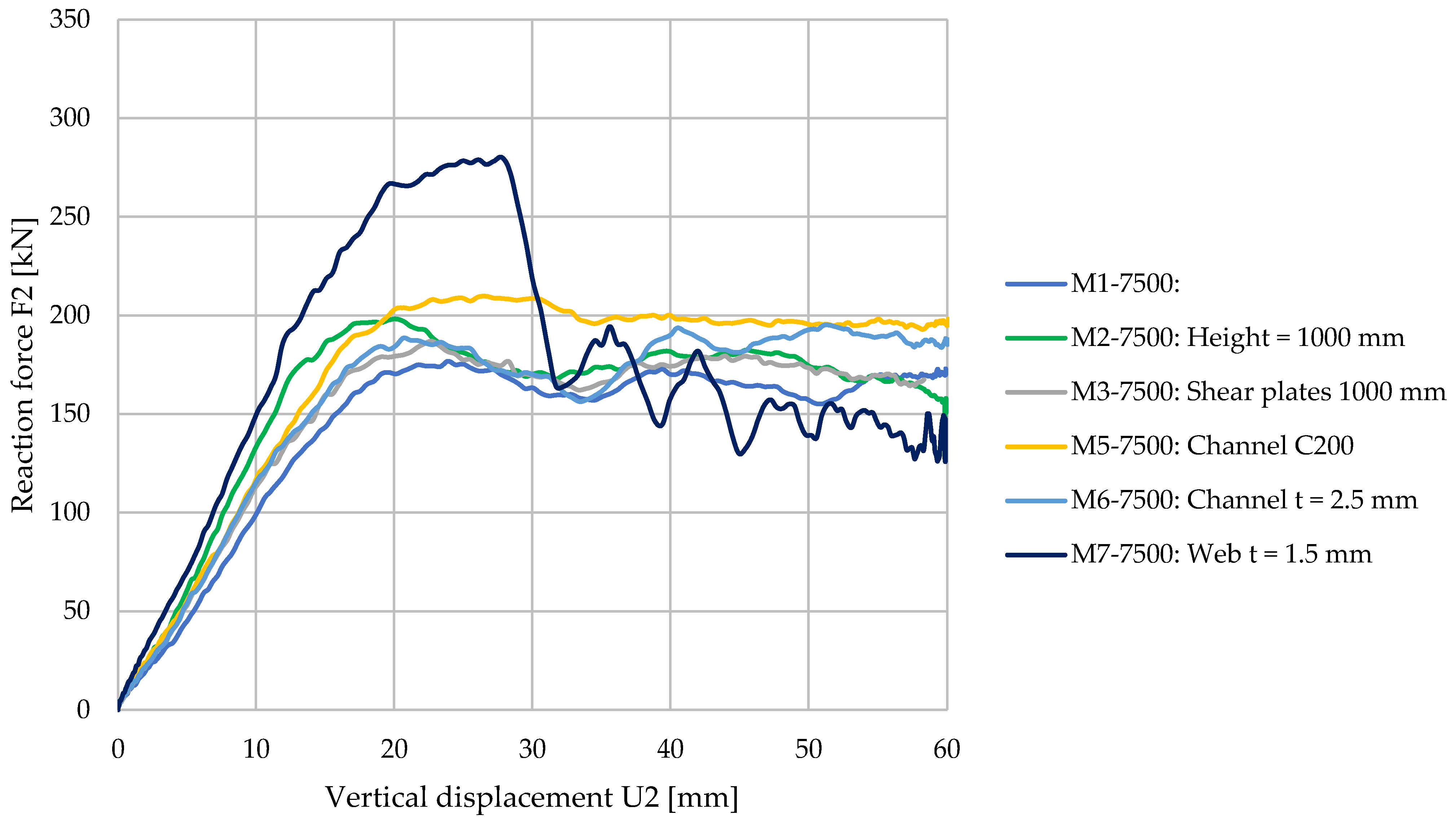

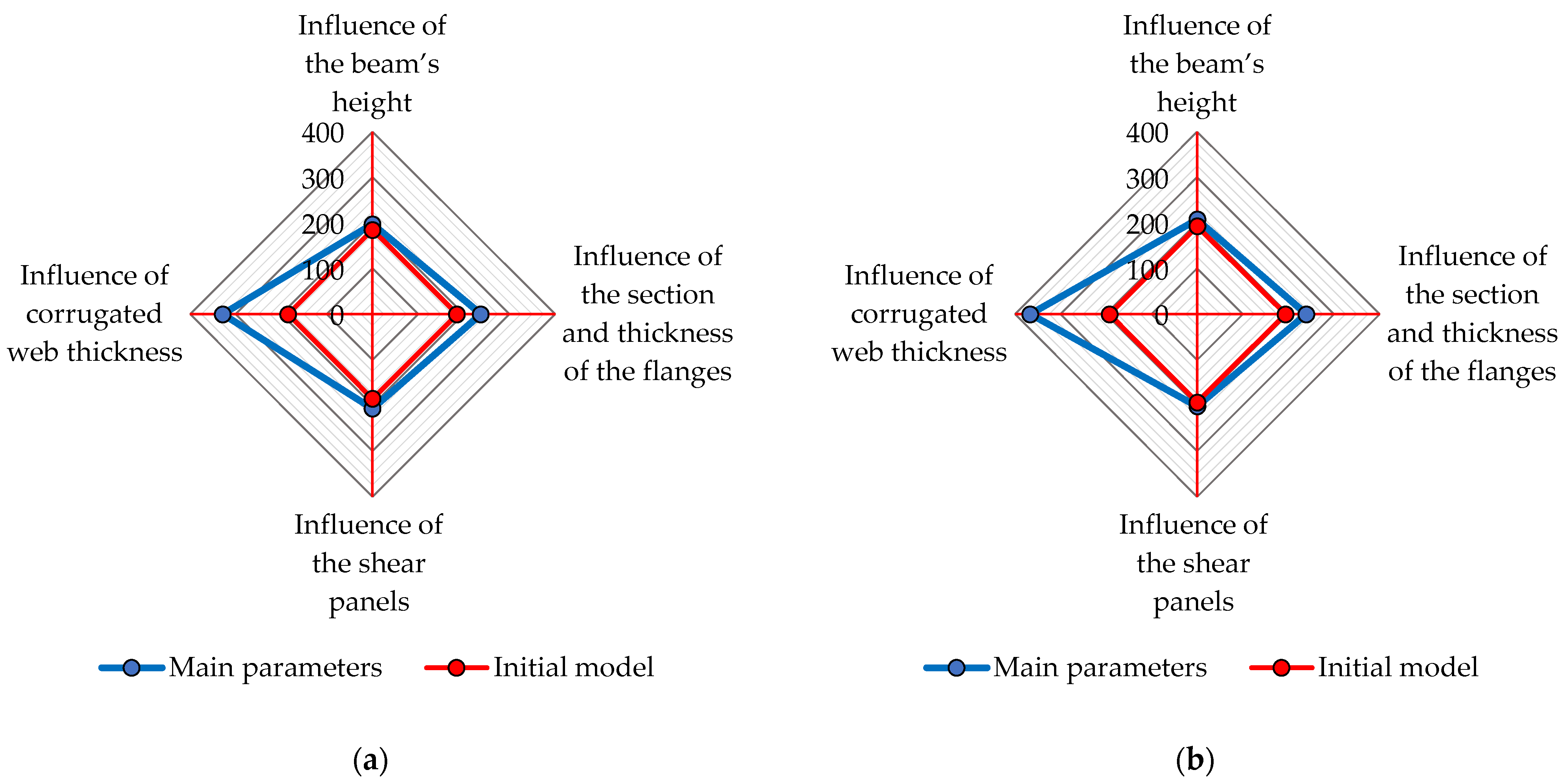

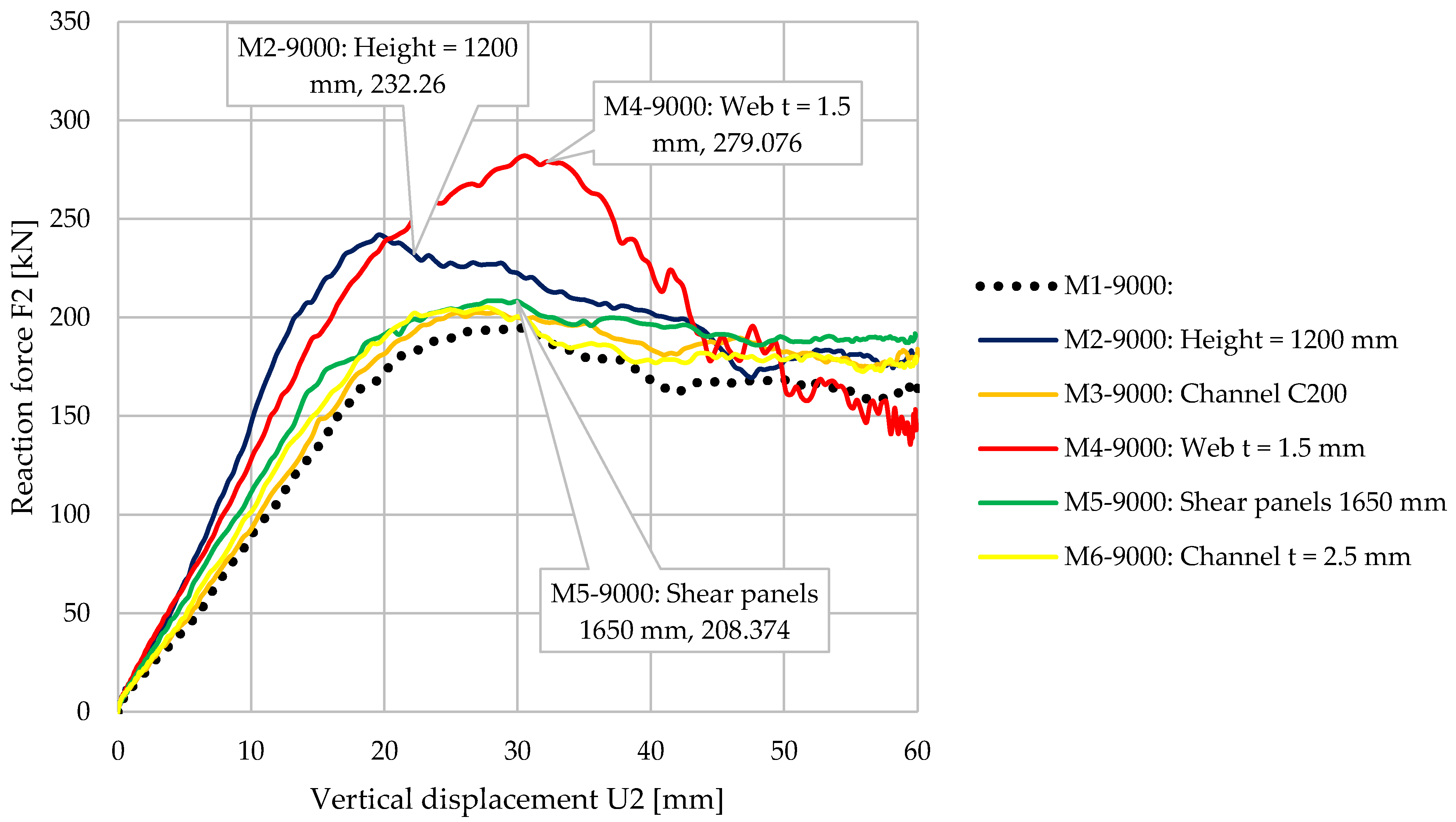

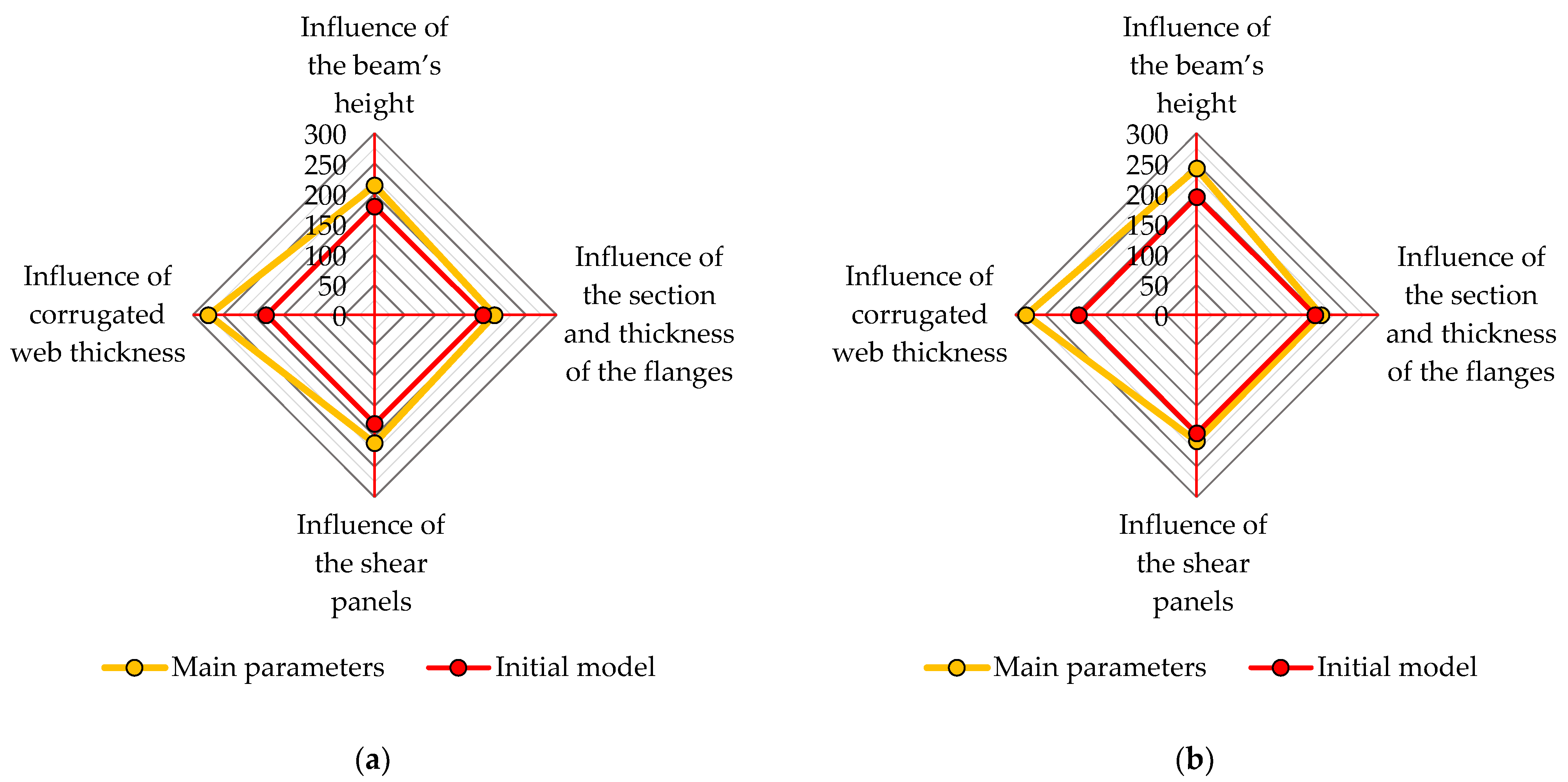

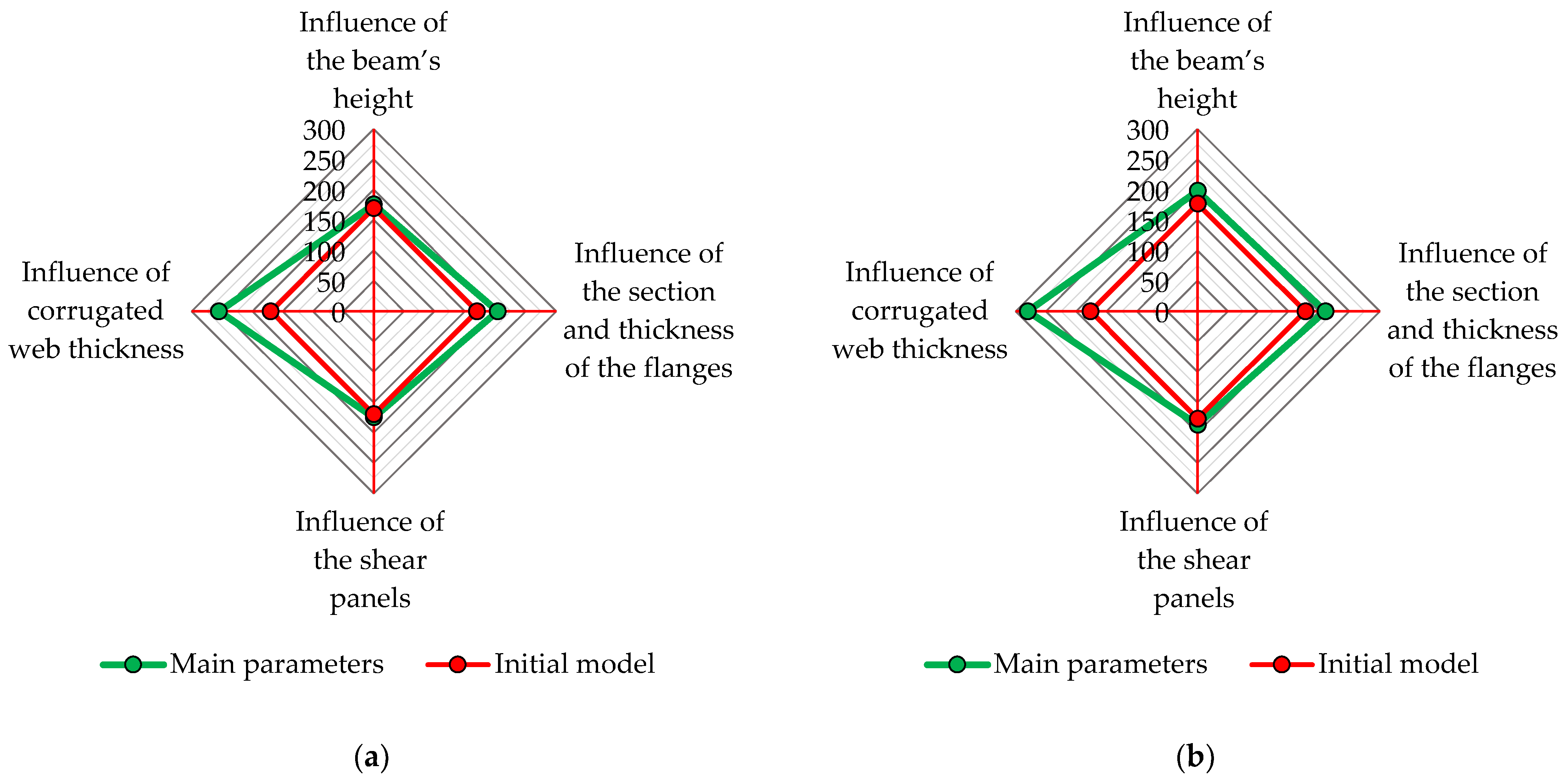

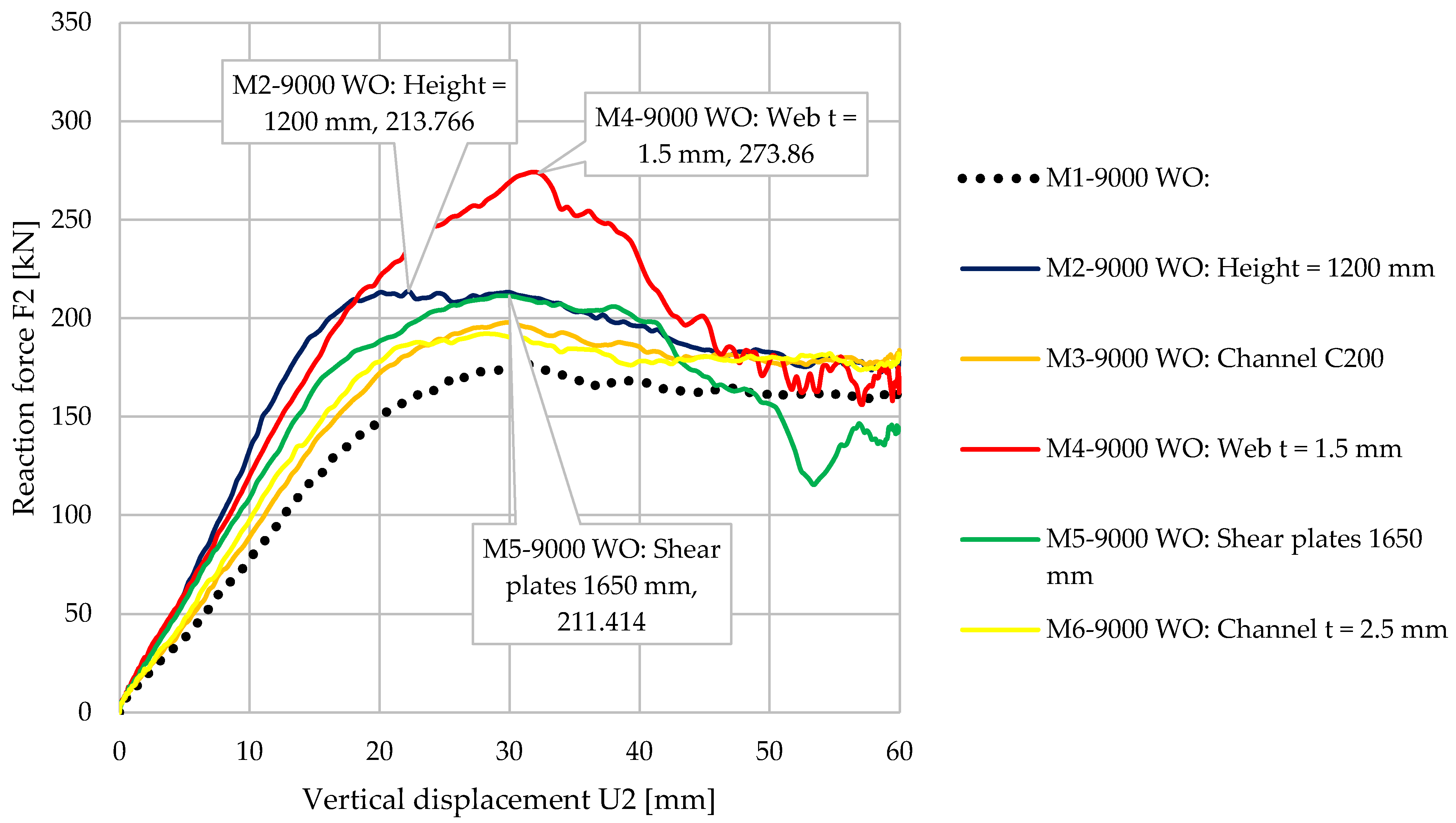

4.5. Summary of the Main Parameters
5. Conclusions and Future Research
- The flanges that carry the bending moments and the webs, due to their corrugations, are not able to carry any normal stresses, only shear stresses. Beams with corrugated webs behave similarly to lattice girders.
- By changing the area of the flange, an increase in the bearing capacity is obtained, especially increasing the height of the flange cross-section. The increase is more significant for beams where there are web openings.
- The corrugated web appears to be the weakest component of the structural system. Increased web thickness can lead to major improvements in both the strength and stiffness of the beam. The behavior of such a beam is dominated by the shear capacity of the corrugated web. An improvement in the fabrication process, by fabricating thicker webs, leads to significant improvements in the capacity and stiffness of CWB beams.
- An increase in bearing capacity can be observed when the height of the beam increases.
- The impact of changing the length of the shear panels on beam performance is much smaller than the contribution of the flanges or beam height.

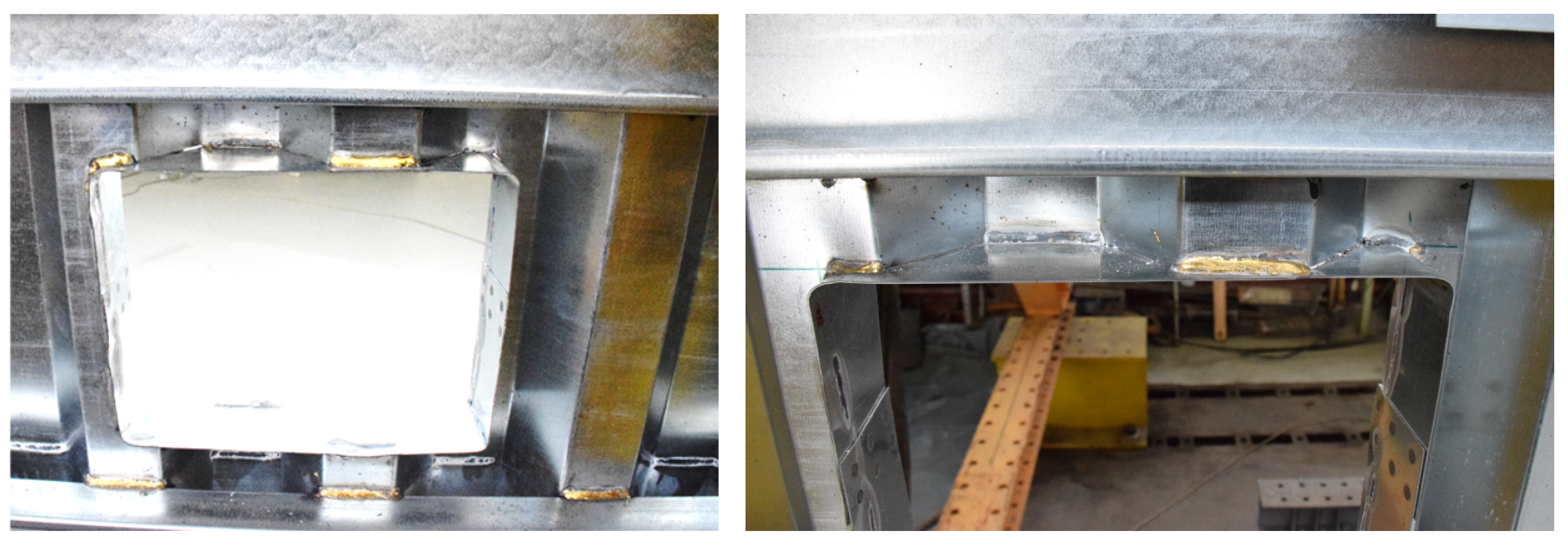

- The presence of a stiffened web opening reduces the bearing capacity of the beam. However, the proposed reinforced solution significantly decreases the impact of the web opening, which led to a decrease of up to 50% in the strength in other studies.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Elgaaly, M.; Dagher, H. Beams and Girders with Corrugated Webs. In Proceedings of the Structural Stability Research Council, Annual Technical Session, Stability of Bridges, St. Louis, MO, USA, 10–11 April 1990. [Google Scholar]
- Luo, R.; Edlund, B. Numerical Simulation of Shear Tests on Plate Girders with Trapezoidally Corrugated Webs; Division of Steel and Timber Structures; Chalmers University of Technology: Gothenburg, Sweden, 1995. [Google Scholar]
- Elgaaly, M.; Seshadri, A.; Rodriquez, R.; Ibrahim, S. Bridge Girders with Corrugated Webs. Transp. Res. Rec. J. Transp. Res. Board 2000, 5, 162–170. [Google Scholar] [CrossRef]
- Johnson, R.P.; Cafolla, J. Local Flange Buckling in Plate Girders with Corrugated Webs. Proc. Inst. Civ. Eng Struct. Build. 1997, 122, 148–156. [Google Scholar] [CrossRef]
- Chan, C.L.; Khalid, Y.A.; Sahari, B.B.; Hamouda, A.M.S. Finite Element Analysis of Corrugated Web Beams under Bending. J. Constr. Steel Res. 2002, 58, 1391–1406. [Google Scholar] [CrossRef]
- Lindner, J. Lateral-Torsional Buckling of Beams with Trapezoidally Corrugated Webs. In Proceedings of the 4th International Colloquium Stab. Steel Structures, Budapest, Hungary, 5–7 June 1990. [Google Scholar]
- Pasternak, H.; Robra, J.; Kubieniec, G. New Proposals for EN 1993-1-5, Annex D: Plate Girders with Corrugated Webs. In Proceedings of the Codes in Structural Engineering Joint IABSE-fib Conference, Dubrovnik, Croatia, 3–5 May 2010; pp. 1365–1372. [Google Scholar]
- EN 1993-1-5; Eurocode 3: Design of Steel Structures—Part 1–5: Plated Structural Elements. CEN: Brussels, Belgium, 2006.
- Luo, R.; Edlund, B. Ultimate Strength of Girders with Trapezoidally Corrugated Webs under Patch Loading. Thin Walled Struct. 1996, 24, 135–156. [Google Scholar] [CrossRef]
- Kövesdi, B.; Jáger, B.; Dunai, L. Stress Distribution in the Flanges of Girders with Corrugated Webs. J. Constr. Steel Res. 2012, 79, 204–215. [Google Scholar] [CrossRef]
- Zhao, W. Behaviour and Design of Cold-Formed Steel Sections with Hollow Flanges. Ph.D. Thesis, Queensland University of Technology, Brisbane, Australia, 2005. [Google Scholar]
- Wanniarachchi, S. Flexural Behaviour and Design of Cold-Formed Steel Beams with Rectangular Hollow Flanges. Ph.D. Thesis, Queensland University of Technology, Brisbane, Australia, 2005. [Google Scholar]
- Smith, D.A. Behavior of Corrugated Plates Subjected to Shear. Master’s Thesis, Civil Engineering, University of Maine, Orono, ME, USA, 1992. [Google Scholar]
- Landolfo, R.; Mammana, O.; Portioli, F.; Di Lorenzo, G.; Guerrieri, M.R. Thin-Walled Structures Laser Welded Built-up Cold-Formed Steel Beams. Exp. Investig. 2008, 46, 781–791. [Google Scholar] [CrossRef]
- Di, G.; Landolfo, L.R. Study of Innovative Built-Up Cold-Formed Beams Study of Innovative Built-Up Cold-Formed Beams. In Proceedings of the International Specialty Conference on Cold-Formed Steel Structures, Orlando, FL, USA, 26–27 October 2002. [Google Scholar]
- Kanthasamy, E.; Hussain, J.; Thirunavukkarasu, K.; Poologanathan, K.; Roy, K.; Beulah Gnana Ananthi, G.; Suntharalingam, T. Flexural Behaviour of Built-Up Beams Made of Optimised Sections. Buildings 2022, 12, 1868. [Google Scholar] [CrossRef]
- Dubina, D.; Ungureanu, V.; Gîlia, L. Cold-Formed Steel Beams with Corrugated Web and Discrete Web-to-Flange Fasteners. Steel Constr. 2013, 6, 74–81. [Google Scholar] [CrossRef]
- Dubina, D.; Ungureanu, V.; Gîlia, L. Experimental Investigations of Cold-Formed Steel Beams of Corrugated Web and Built-up Section for Flanges. Thin Walled Struct. 2015, 90, 159–170. [Google Scholar] [CrossRef]
- Ungureanu, V.; Both, I.; Burca, M.; Radu, B.; Neagu, C.; Dubina, D. Experimental and numerical investigations on built-up cold-formed steel beams using resistance spot welding. Thin Walled Struct. 2021, 161, 107456. [Google Scholar] [CrossRef]
- Romeijn, A.; Sarkhosh, R.; de Hoop, H. Basic Parametric Study on Corrugated Web Girders with Cut Outs. J. Constr. Steel Res. 2009, 65, 395–407. [Google Scholar] [CrossRef]
- Al-Dafafea, T.; Durif, S.; Bouchaïr, A.; Fournely, E. Experimental Study of Beams with Stiffened Large Web Openings. J. Constr. Steel Res. 2019, 154, 149–160. [Google Scholar] [CrossRef]
- Russell, M.J.; Lim, J.B.P.; Roy, K.; Clifton, G.C.; Ingham, J.M. Welded steel beam with novel cross-section and web openings subject to concentrated flange loading. Structures 2020, 24, 580–599. [Google Scholar] [CrossRef]
- Feng, R.; Zhan, H.; Meng, S.; Zhu, J. Experiments on H-shaped high-strength steel beams with perforated web. Eng. Struct. 2018, 177, 374–394. [Google Scholar] [CrossRef]
- Feng, R.; Liu, J.; Chen, Z.; Roy, K.; Chen, B.; Lim, J.B.P. Numerical investigation and design rules for flexural capacities of H-section high-strength steel beams with and without web openings. Eng. Struct. 2020, 225, 111278. [Google Scholar] [CrossRef]
- Meng, B.; Hao, J.; Zhong, W.; Tan, Z.; Duan, S. Improving collapse-resistance performance of steel frame with openings in beam web. Structures 2020, 27, 2156–2169. [Google Scholar] [CrossRef]
- Seo, J.K.; Mahendran, M. Plastic Bending Behaviour and Section Moment Capacities of Mono-Symmetric LiteSteel Beams with Web Openings. Thin Walled Struct. 2011, 49, 513–522. [Google Scholar] [CrossRef] [Green Version]
- Mahendran, M.; Keerthan, P. Experimental Studies of the Shear Behavior and Strength of LiteSteel Beams with Stiffened Web Openings. Eng. Struct. 2013, 49, 840–854. [Google Scholar] [CrossRef] [Green Version]
- Acharya, S.R.; Sivakumaran, K.S.; Young, B. Reinforcement Schemes for Cold-Formed Steel Joists with a Large Web Opening in Shear Zone—An Experimental Investigation. Thin Walled Struct. 2013, 72, 28–36. [Google Scholar] [CrossRef]
- Wang, L.; Young, B. Design of cold-formed steel built-up sections with web perforations subjected to bending. Thin Walled Struct. 2017, 120, 458–469. [Google Scholar] [CrossRef]
- Yu, N.; Kim, B.; Yuan, W.; Li, L.; Yu, F. An analytical solution of distortional buckling resistance of cold-formed steel channel-section beams with web openings. Thin Walled Struct. 2019, 135, 446–452. [Google Scholar] [CrossRef]
- Lawson, R.M.; Basta, A. Deflection of C section beams with circular web openings. Thin Walled Struct. 2019, 134, 277–290. [Google Scholar] [CrossRef]
- Osgouei, A.J.; Hosseinzadeh, Y.; Ahmadi, H. Local buckling analysis of cold-formed steel webs with stiffened rectangular openings. J. Constr. Steel Res. 2020, 167, 105824. [Google Scholar] [CrossRef]
- Uzzaman, A.; Lim, J.B.P.; Nash, D.; Rhodes, J.; Young, B. Cold-Formed Steel Sections with Web Openings Subjected to Web Crippling under Two-Flange Loading Conditions—Part I: Tests and Finite Element Analysis. Thin Walled Struct. 2012, 56, 38–48. [Google Scholar] [CrossRef] [Green Version]
- Uzzaman, A.; Lim, J.B.P.; Nash, D.; Rhodes, J.; Young, B. Cold-Formed Steel Sections with Web Openings Subjected to Web Crippling under Two-Flange Loading Conditions—Part II: Parametric Study and Proposed Design Equations. Thin Walled Struct. 2012, 56, 79–87. [Google Scholar] [CrossRef] [Green Version]
- Uzzaman, A.; Lim, J.B.P.; Nash, D.; Roy, K. Web crippling behaviour of cold-formed steel channel sections with edge-stiffened and unstiffened circular holes under interior-two-flange loading condition. Thin Walled Struct. 2020, 157, 106813. [Google Scholar] [CrossRef]
- Pham, S.H.; Pham, C.H.; Hancock, G.J. Direct Strength Method of Design for Channel Sections in Shear with Square and Circular Web Holes. J. Struct. Eng. 2017, 143, 04017017. [Google Scholar] [CrossRef]
- Pham, S.H.; Pham, C.H.; Rogers, C.A.; Hancock, G.J. Shear Strength Experiments and Design of Cold-Formed Steel Channels with Web Holes. J. Struct. Eng. 2020, 146, 04019173. [Google Scholar] [CrossRef]
- Pham, D.K.; Pham, C.H.; Pham, S.H.; Hancock, G.J. Experimental investigation of high strength cold-formed channel sections in shear with rectangular and slotted web openings. J. Constr. Steel Res. 2020, 165, 105889. [Google Scholar] [CrossRef]
- Kiymaz, G.; Coskun, E.; Cosgun, C.; Seckin, E. Transverse Load Carrying Capacity of Sinusoidally Corrugated Steel Web Beams with Web Openings. Steel Compos. Struct. 2010, 10, 69–85. [Google Scholar] [CrossRef]
- Ungureanu, V.; Both, I.; Neagu, C.; Burca, M.; Dubina, D.; Cristian, A.A. Built-Up Cold-Formed Steel Beams with Web Openings. In Proceedings of the International Colloquia on Stability and Ductility of Steel Structures (SDSS 2019), Prague, Czech Republic, 11–13 September 2019; pp. 1185–1192. [Google Scholar]
- Cristian, A.A.; Ungureanu, V. Numerical Investigation of Built-up Cold-Formed Steel Beams with Web Opening 2020. In Proceedings of the 19th National Technical-Scientific Conference “Modern Technologies for the 3rd Millennium”, Oradea, Romania, 23 October 2020; pp. 177–184. [Google Scholar]
- EN 1993-1-3; Eurocode 3: Design of steel Structures. Part 1–3: General Rules. Supplementary Rules for Cold-Formed Thin Gauge Members and Sheeting. CEN: Brussels, Belgium, 2006.
- ISO 6892-1:2019; Metallic Materials—Tensile Testing—Part 1: Method of Test at Room Temperature. ISO: Geneva, Switzerland, 2019.
- Dassault Systems. ABAQUS/CAE User’s Manual 6.14; Dassault Systems: Paris, France, 2014. [Google Scholar]
- Pasternak, H.; Kubieniec, G. Present State of Art of Plate Girders with Sinusoidally Corrugated Web. In Proceedings of the 10th International Conference on Steel, Space and Composite Structures, North Cyprus, Turkey, 16–18 May 2011; pp. 243–257. [Google Scholar]
Category | Description |
---|---|
Geometrical parameters of the beam | Length of the beam Height of the beam |
Connections | Diameter of the holes Edge distance Number of holes and distance between them |
Spot-welding parameters | Number of vertical spot-welding rows on the web Number of corrugations overlapped with the shear panels Number of spot welds between flanges and web |
Shear panels | Length of the shear panels Thickness of the shear panels (from 0.80 mm to 2.00 mm) |
Flanges | Section of the flanges (C120, C150, C180, C200, C250, C300) Thickness of the flange’s profiles (from 0.80 mm to 2.50 mm) |
Corrugated webs | Thickness of the corrugated web (from 0.80 mm to 1.50 mm) Length of the corrugated web and overlapping length with the shear panels |
Web openings | Presence of a web opening Width of the web opening—with a width multiple of the corrugation width Height of the web opening—limited to the distance between flanges Position along the length of the beam |
Boundary conditions | Suppressed degrees of freedom around the holes Block lateral displacements of the lower flange considering the presence of fly braces |
Model | Height | Maximum Force |
---|---|---|
M1-6000 WO | 800 mm | 185.14 kN |
M2-6000 WO | 900 mm | 196.36 kN |
M3-6000 WO | 1000 mm | 197.50 kN |
M1-7500 WO | 850 mm | 169.65 kN |
M2-7500 WO | 1000 mm | 175.66 kN |
M1-9000 WO | 900 mm | 179.11 kN |
M2-9000 WO | 1200 mm | 213.77 kN |
M1-6000 | 800 mm | 193.99 kN |
M3-6000 | 1000 mm | 208.91 kN |
M1-7500 | 850 mm | 176.84 kN |
M2-7500 | 1000 mm | 198.34 kN |
M1-9000 | 900 mm | 195.08 kN |
M2-9000 | 1200 mm | 241.93 kN |
Model | Section and Thickness | Maximum Force | |
---|---|---|---|
M1-6000 WO | C150 | 2.00 mm | 185.14 kN |
M9-6000 WO | C180 | 2.00 mm | 200.73 kN |
M10-6000 WO | C200 | 2.00 mm | 237.14 kN |
M11-6000 WO | C150 | 2.50 mm | 205.63 kN |
M1-7500 WO | C150 | 2.00 mm | 169.65 kN |
M5-7500 WO | C200 | 2.00 mm | 203.80 kN |
M6-7500 WO | C150 | 2.50 mm | 184.17 kN |
M1-9000 WO | C180 | 2.00 mm | 179.11 kN |
M3-9000 WO | C200 | 2.00 mm | 197.82 kN |
M1-6000 | C150 | 2.00 mm | 193.99 kN |
M8-6000 | C200 | 2.00 mm | 239.67 kN |
M1-7500 | C150 | 2.00 mm | 176.84 kN |
M5-7500 | C200 | 2.00 mm | 209.84 kN |
M6-7500 | C150 | 2.50 mm | 195.21 kN |
M1-9000 | C180 | 2.00 mm | 195.08 kN |
M3-9000 | C200 | 2.00 mm | 202.65 kN |
M6-9000 | C180 | 2.50 mm | 205.24 kN |
Model | Shear Panels | Maximum Force |
---|---|---|
M1-6000 WO | 600 mm × 1.20 mm | 185.14 kN |
M5-6000 WO | 850 mm × 1.20 mm | 192.68 kN |
M6-6000 WO | 1000 mm × 1.20 mm | 206.80 kN |
M1-7500 WO | 740 mm × 1.20 mm | 169.65 kN |
M3-7500 WO | 1000 mm × 1.20 mm | 174.85 kN |
M4-7500 WO | 740 mm × 2.00 mm | 174.50 kN |
M1-9000 WO | 900 mm × 1.20 mm | 179.11 kN |
M5-9000 WO | 1650 mm × 1.20 mm | 211.43 kN |
M1-6000 | 600 mm × 1.20 mm | 193.99 kN |
M5-6000 | 850 mm × 1.20 mm | 202.60 kN |
M1-7500 | 740 mm × 1.20 mm | 176.84 kN |
M3-7500 | 1000 mm × 1.20 mm | 186.95 kN |
M1-9000 | 900 mm × 1.20 mm | 195.08 kN |
M5-9000 | 1650 mm × 1.20 mm | 208.57 kN |
Model | Thickness | Maximum Force | Stiffness |
---|---|---|---|
M1-6000 WO | 1.00 mm | 185.14 kN | 11705 N/mm |
M12-6000 WO | 1.20 mm | 251.44 kN | 15165 N/mm |
M13-6000 WO | 1.50 mm | 328.89 kN | 18565 N/mm |
M1-7500 WO | 1.00 mm | 169.65 kN | 9155 N/mm |
M7-7500 WO | 1.50 mm | 255.06 kN | 13510 N/mm |
M1-9000 WO | 1.00 mm | 179.11 kN | 7805 N/mm |
M4-9000 WO | 1.50 mm | 274.16 kN | 11690 N/mm |
M1-6000 | 1.00 mm | 193.99 kN | 12565 N/mm |

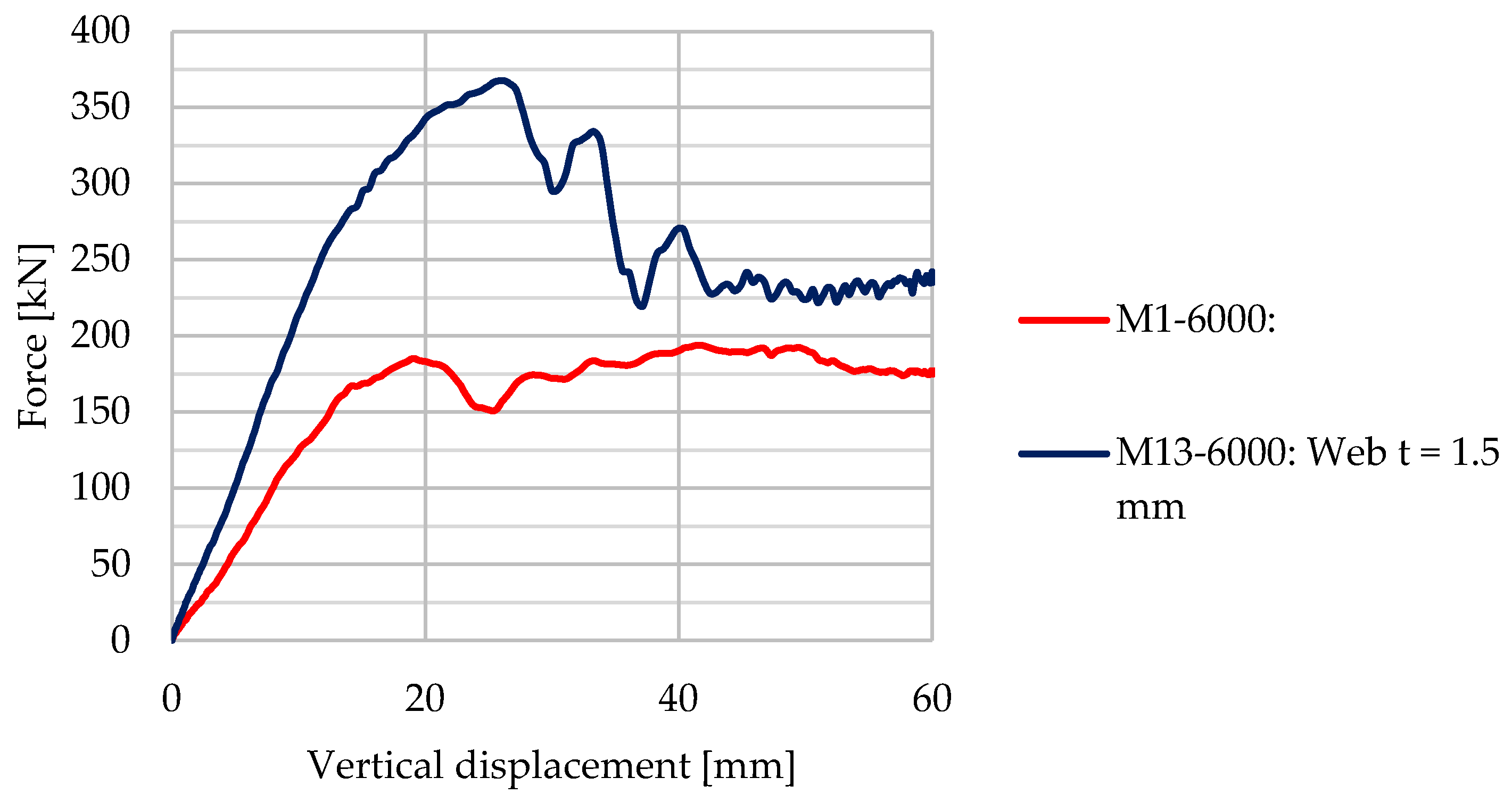

M13-6000 | 1.50 mm | 367.76 kN | 21290 N/mm |
M1-7500 | 1.00 mm | 176.84 kN | 9875 N/mm |
M7-7500 | 1.50 mm | 280.24 kN | 15040 N/mm |
M1-9000 | 1.00 mm | 195.08 kN | 8960 N/mm |
M4-9000 | 1.50 mm | 282.06 kN | 12790 N/mm |
