Performance of Epoxy-Injection and Microorganism-Based Crack-Healing Techniques on Cracked Flexural Members
Abstract
:1. Introduction
2. Experimental Program

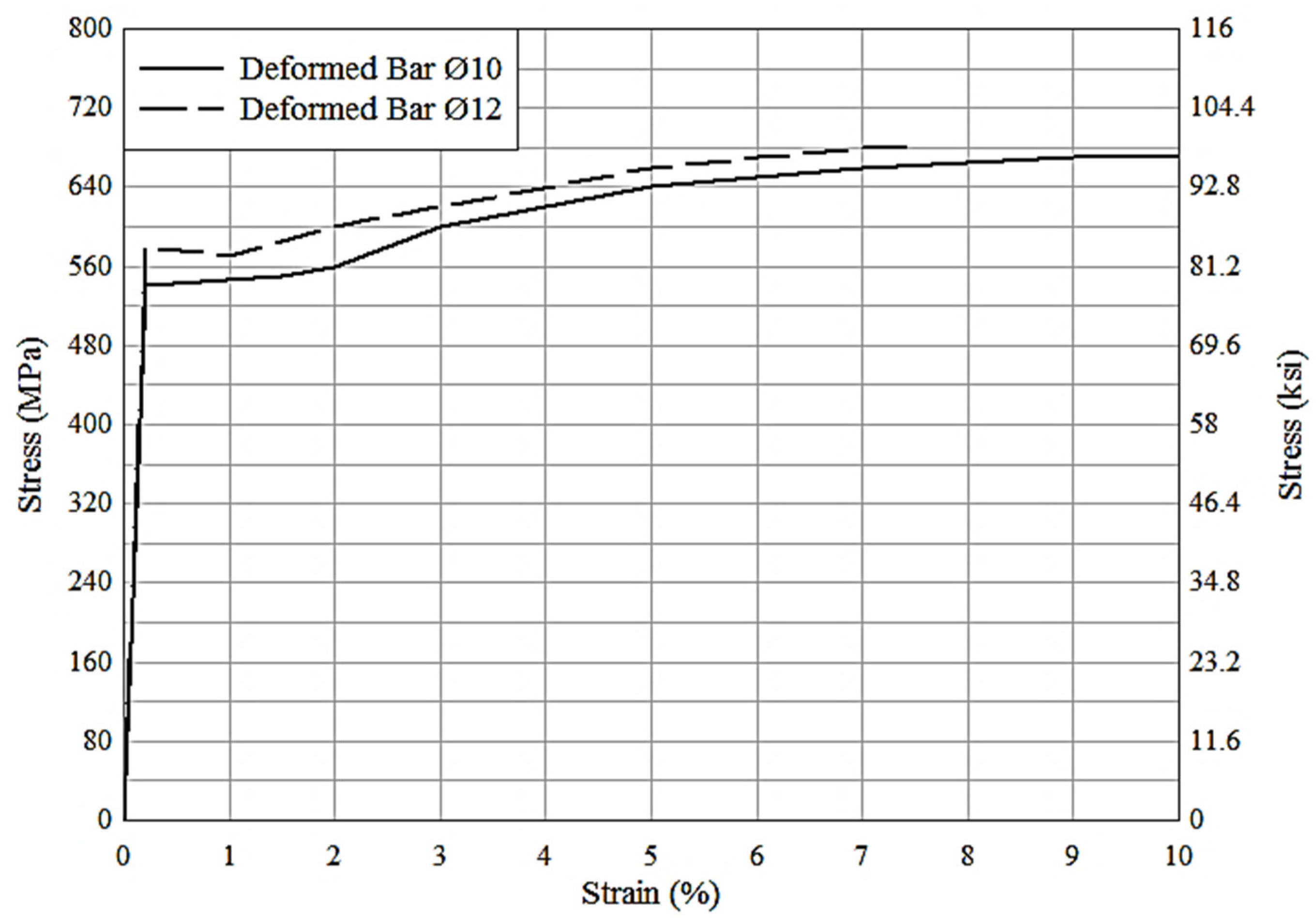

2.1. Material Properties and Mix Proportion

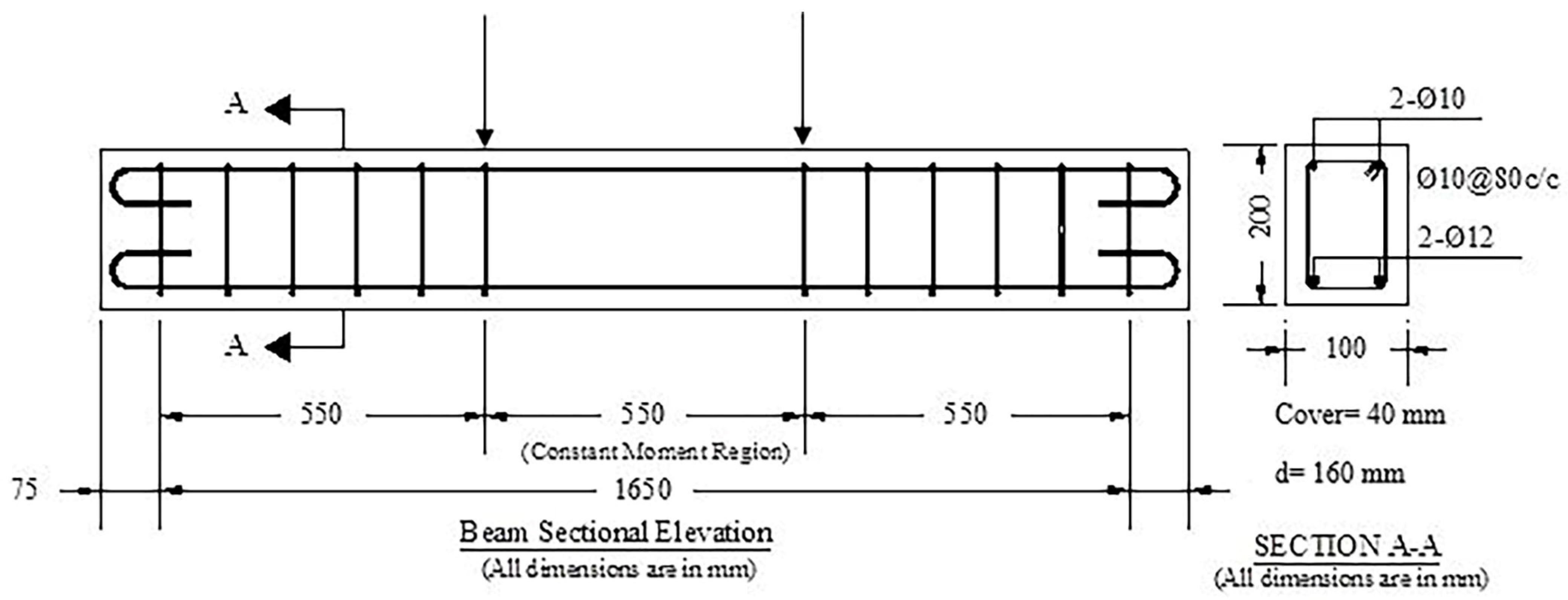

2.2. Mixing Casting and Specimens Sizes

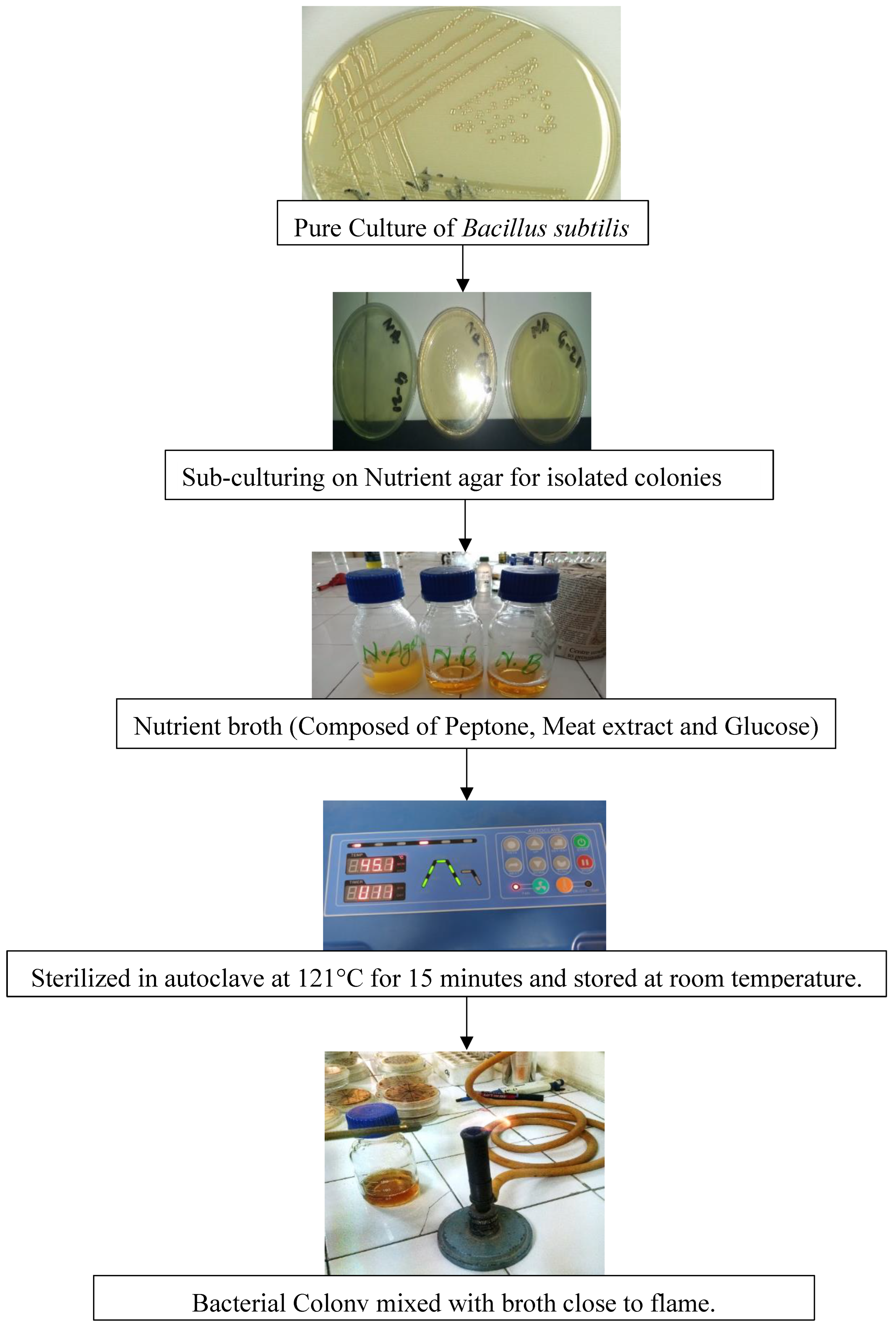

2.3. Development of the Crack-Healing Solution
2.3.1. Sterilizing
2.3.2. Medium
2.3.3. Culturing
2.3.4. Balancing
- M1—Initial concentration of bacteria in broth (9 × 108 cell/mL)
- M2—Final concentration of bacteria in broth (1 × 105 cell/mL)
- V1—Volume of solution of M1 in mL
- V2—Final volume of solution used in the test (60 mL)

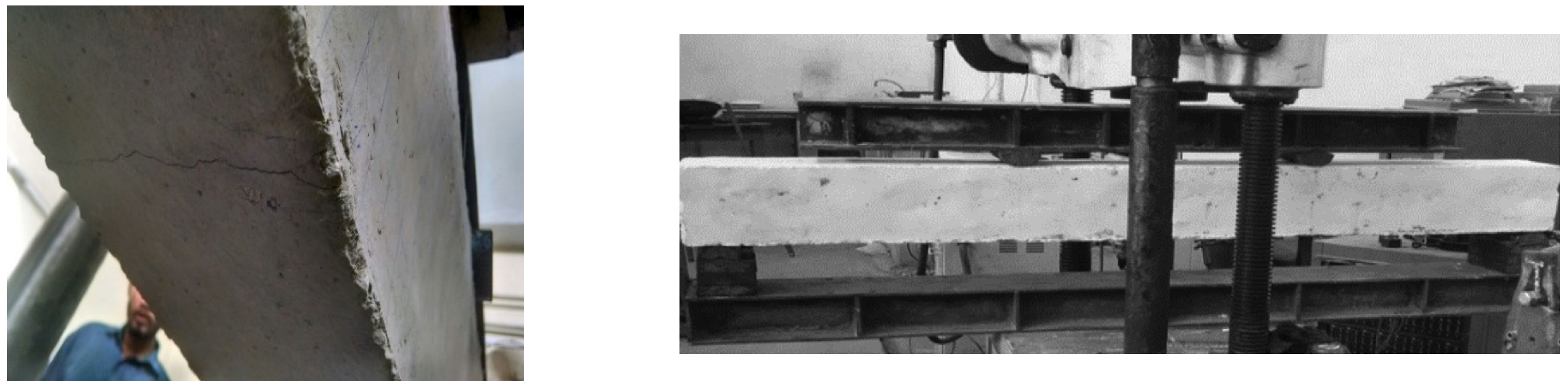

2.4. Testing Setup
2.5. Healing of Beams

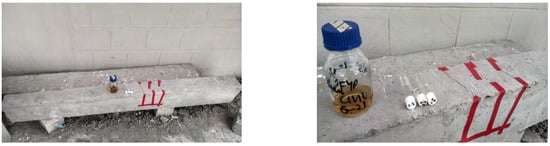

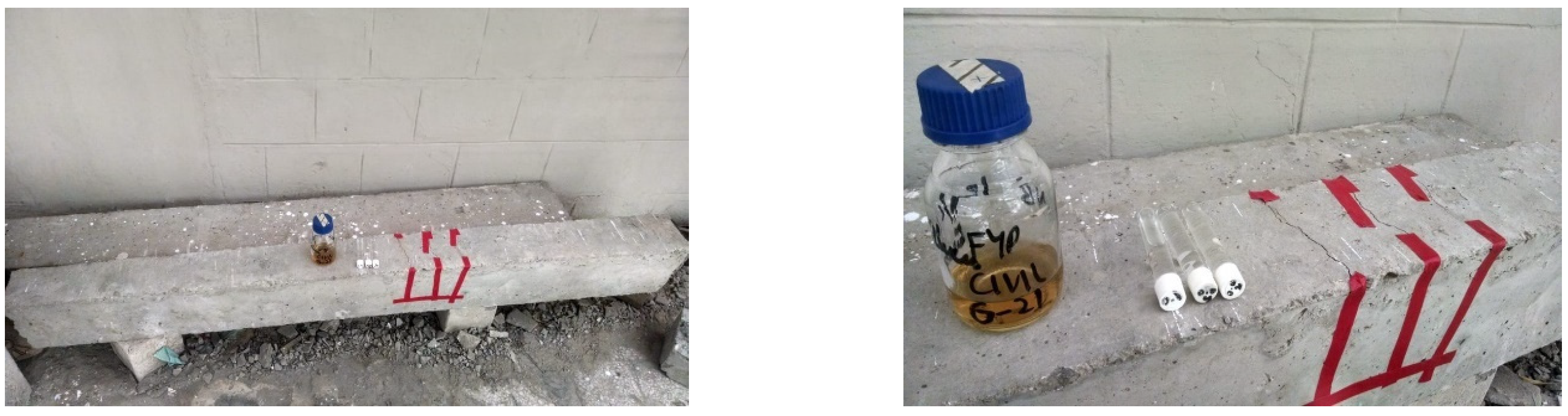

2.5.1. Application of Crack-Healing Solution on Beam “TCHS-1”

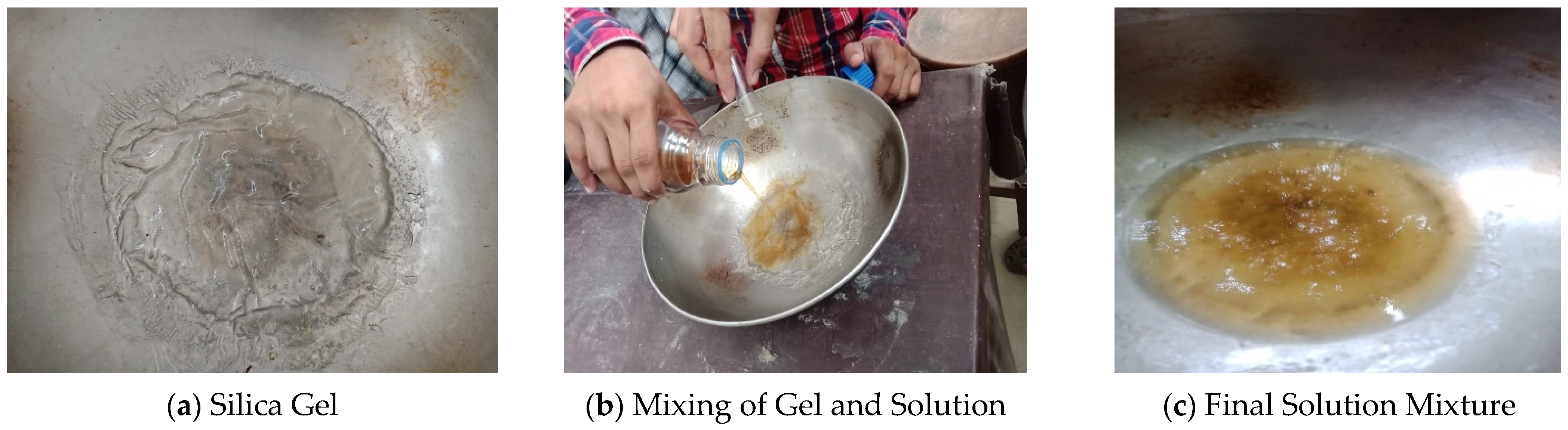

2.5.2. Application of Silica Gel Plus Crack-Healing Solution on Beam “TCHS-2”

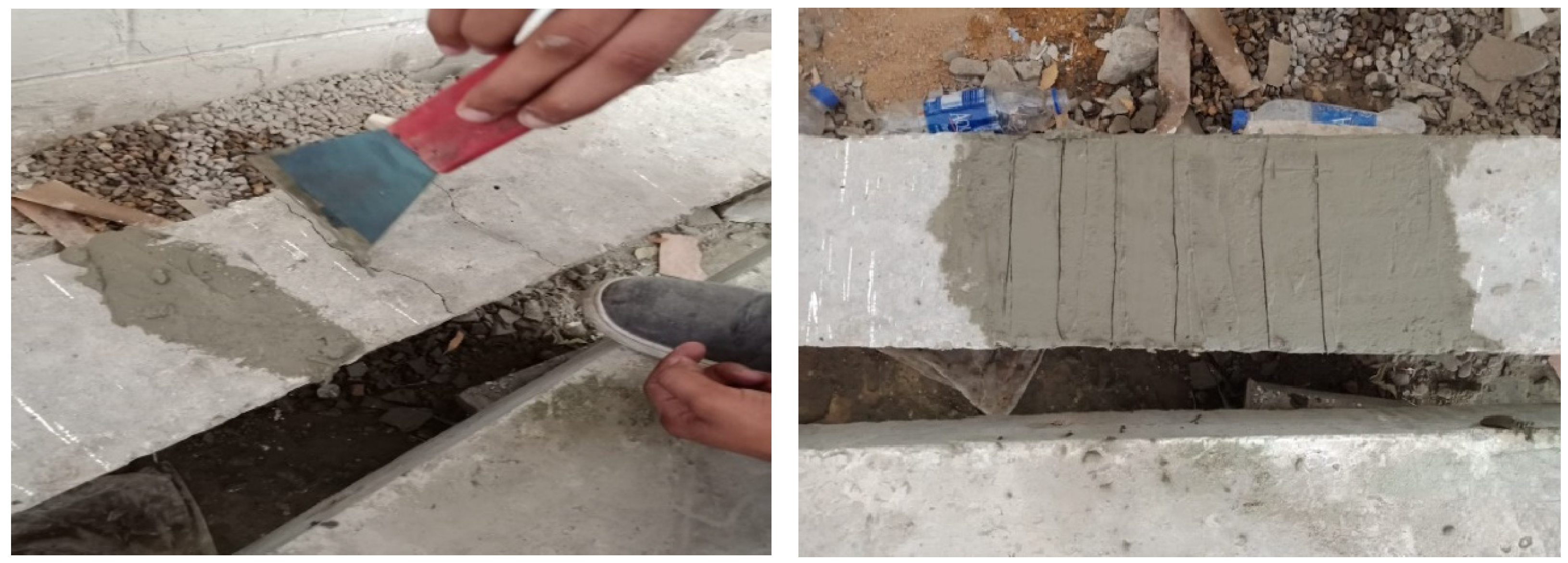

2.5.3. Application of Crack-Healing Solution with Cement Slurry on Beam “TCHS-3”

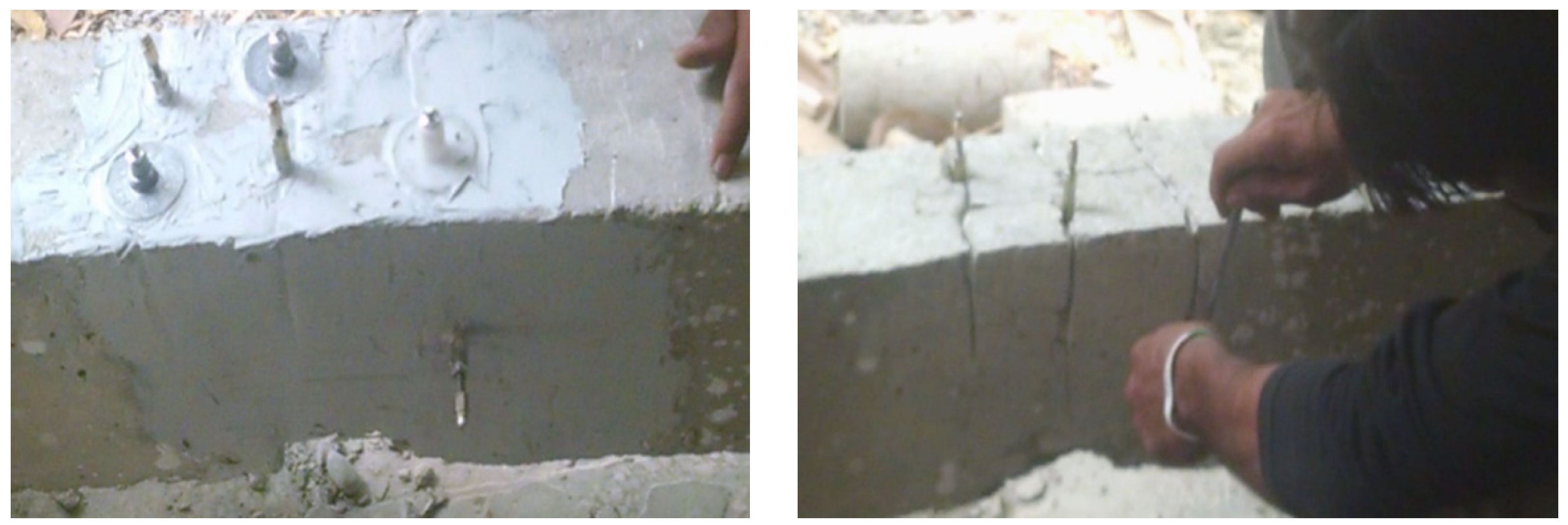

2.5.4. Application of Epoxy-Injection Method on Beam “TEIM”
3. Results and Discussion

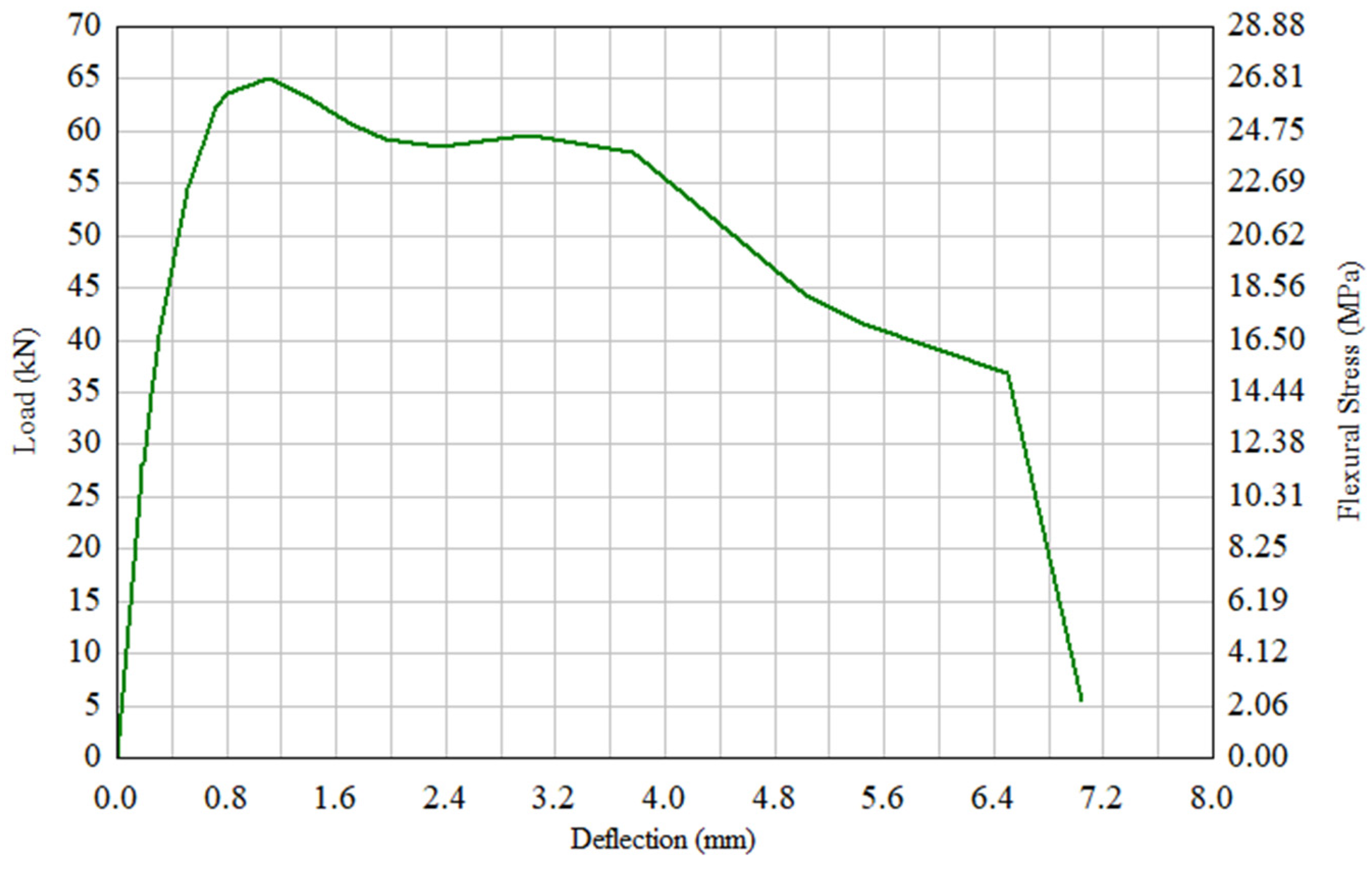

3.1. Control Beam

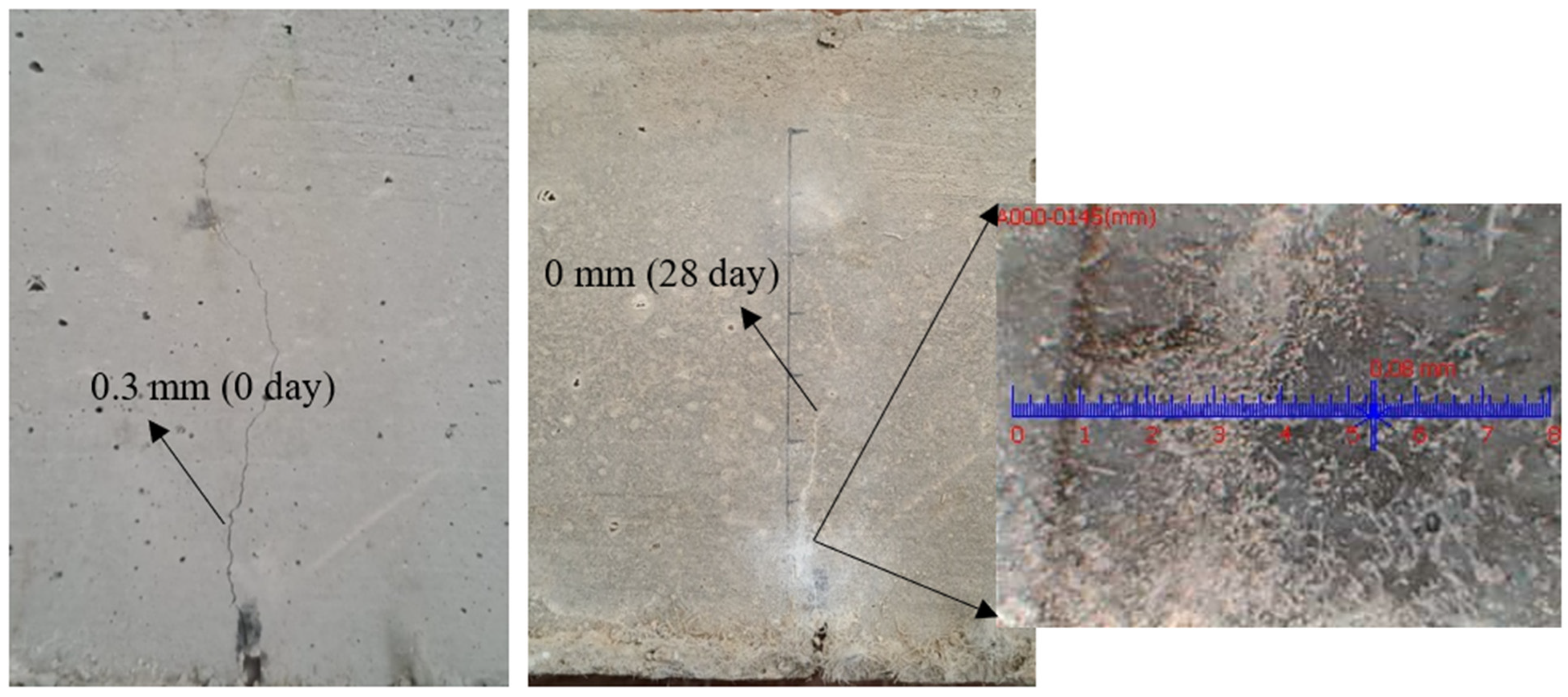

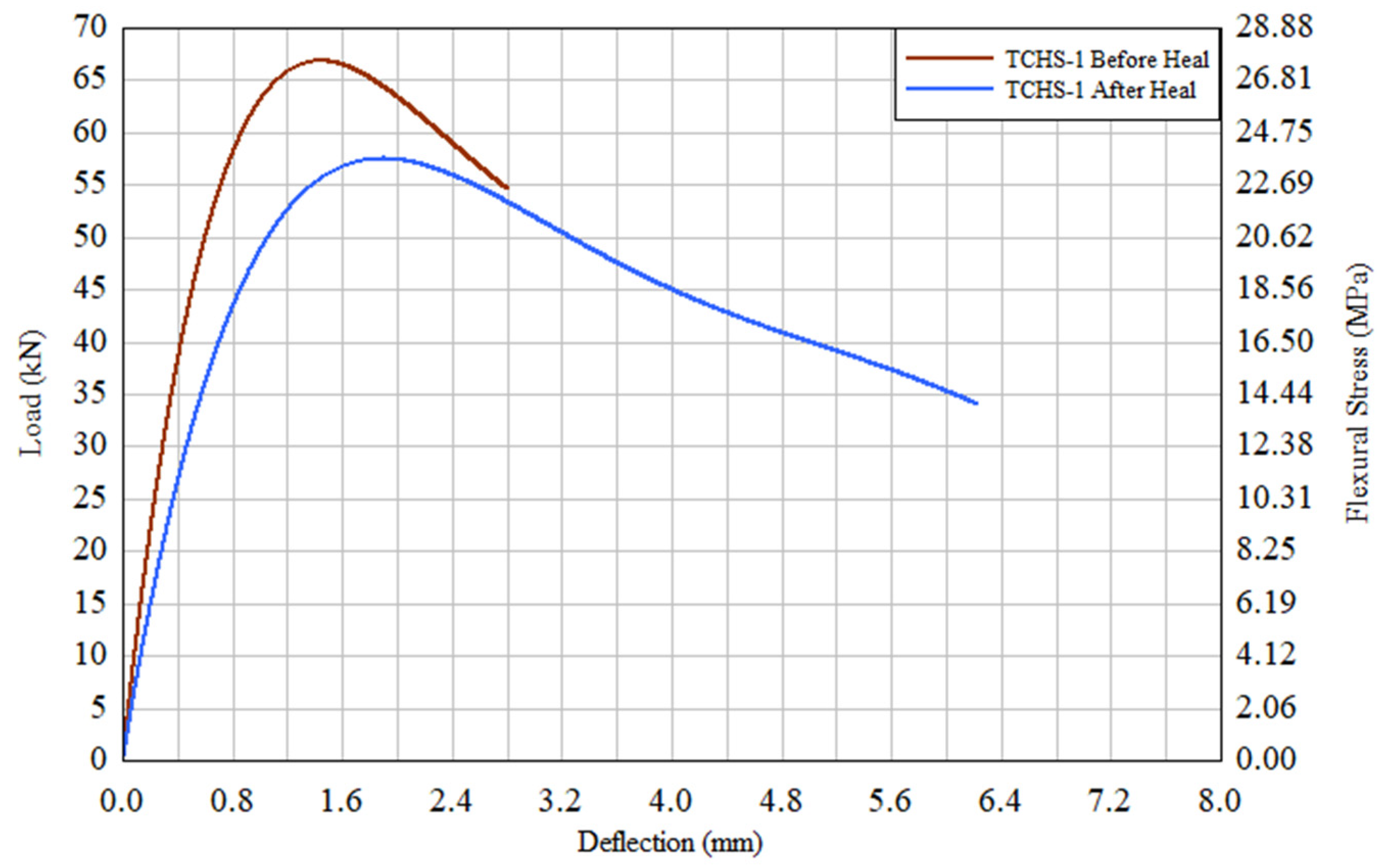

3.2. Beam “TCHS-1”

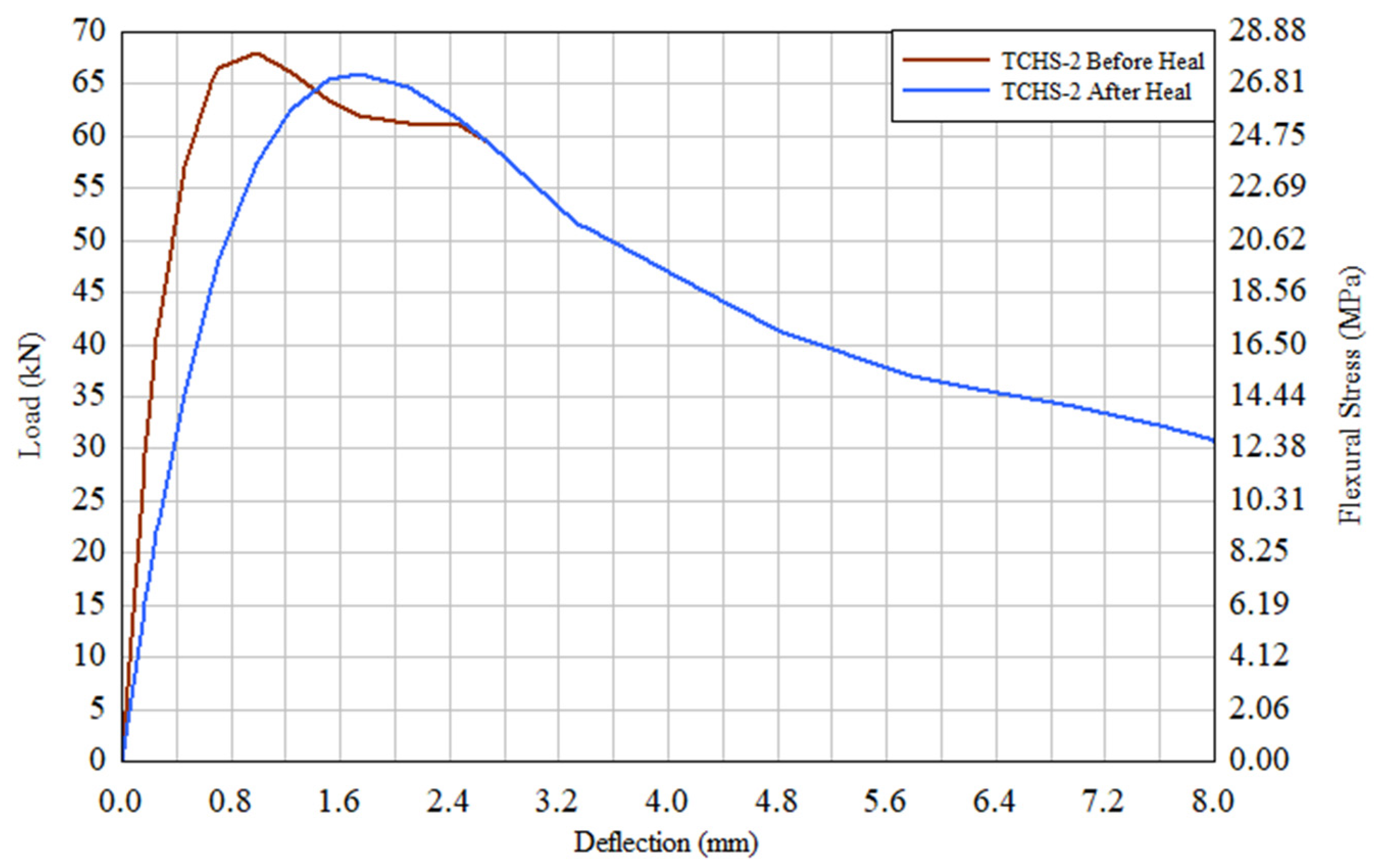

3.3. Beam “TCHS-2”

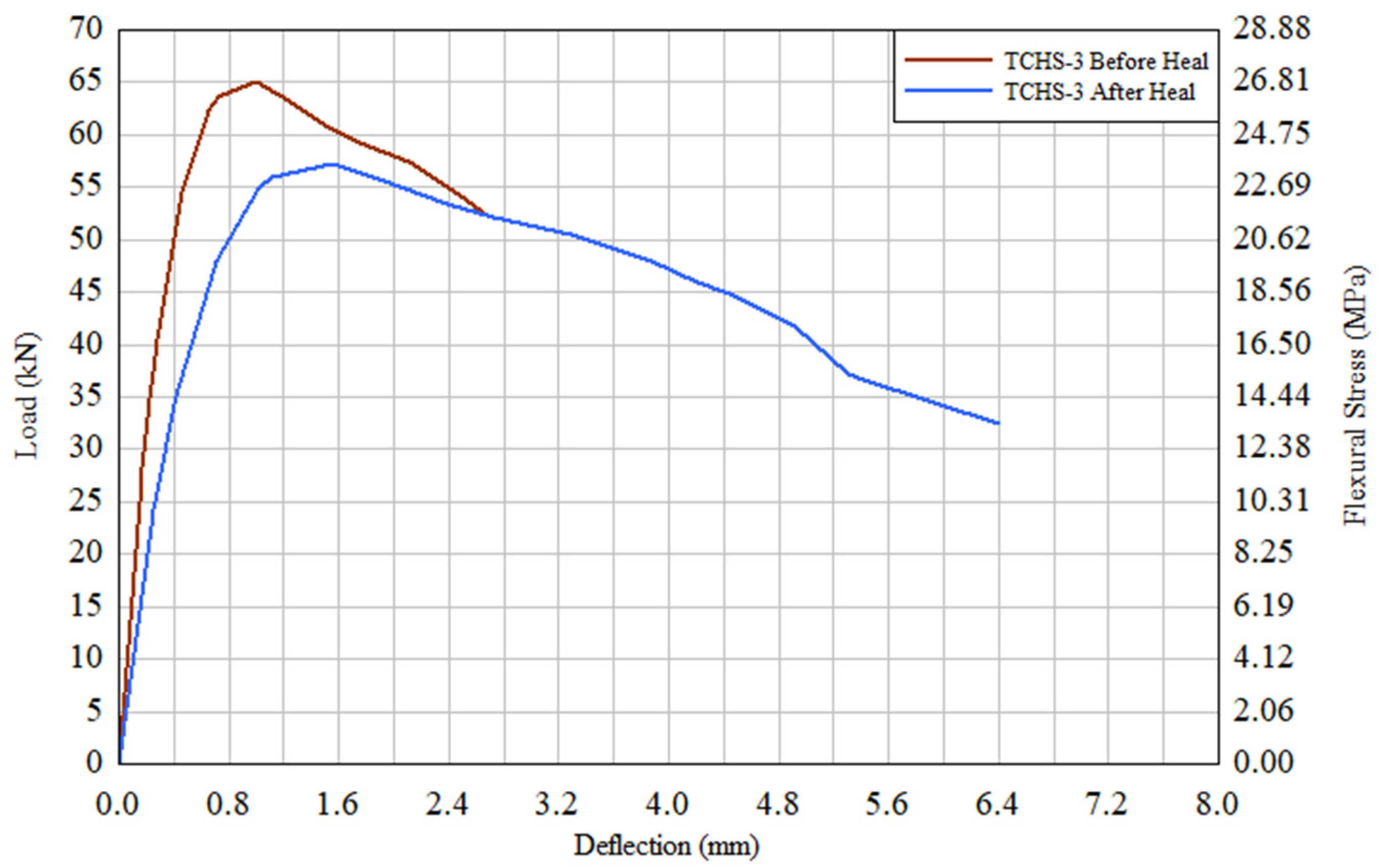

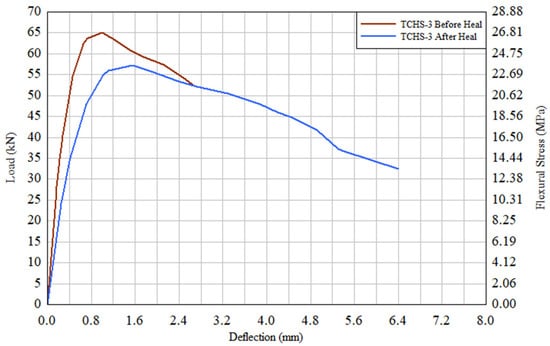

3.4. Beam “TCHS-3”

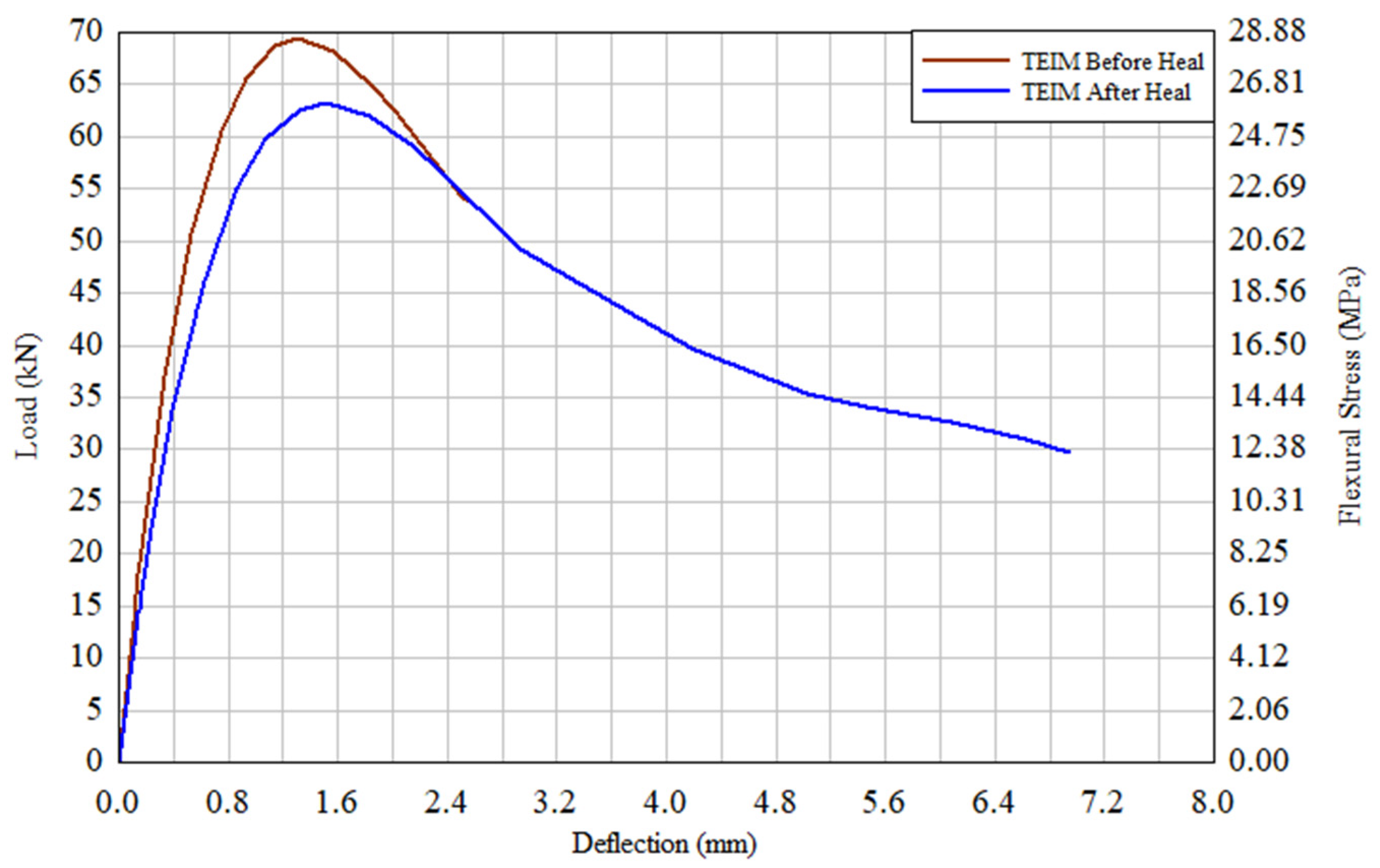

3.5. Beam “TEIM”
4. Conclusions
- A crack-healing technique utilizing bacteria like Bacillus subtilis was developed. To ensure sufficient moisture, air, a feeding medium for bacterial metabolic activity, and the resulting precipitation of CaCO3, attention must be given when applying a solution to the crack in the existing structure.
- The cement constituents are not fatal/harmful to the Bacillus subtilis; however, there will be less growth when the bacterial solution is applied with cement slurry paste over the crack for healing.
- Glucose can be used as a growth supplement for bacteria instead of sodium gluconate.
- The performance of the crack-healing solution with and without silica gel is comparable to the epoxy-injection method. However, the application of the epoxy-injection method requires more skill and experience and the epoxy-injection method is costlier than the crack-healing solution.
- Adequate moisture for crack healing through bacteria is a must. An injection system with sealed protection may be used. The crack-healing solution may be injected and remain inside until the cure of the crack.

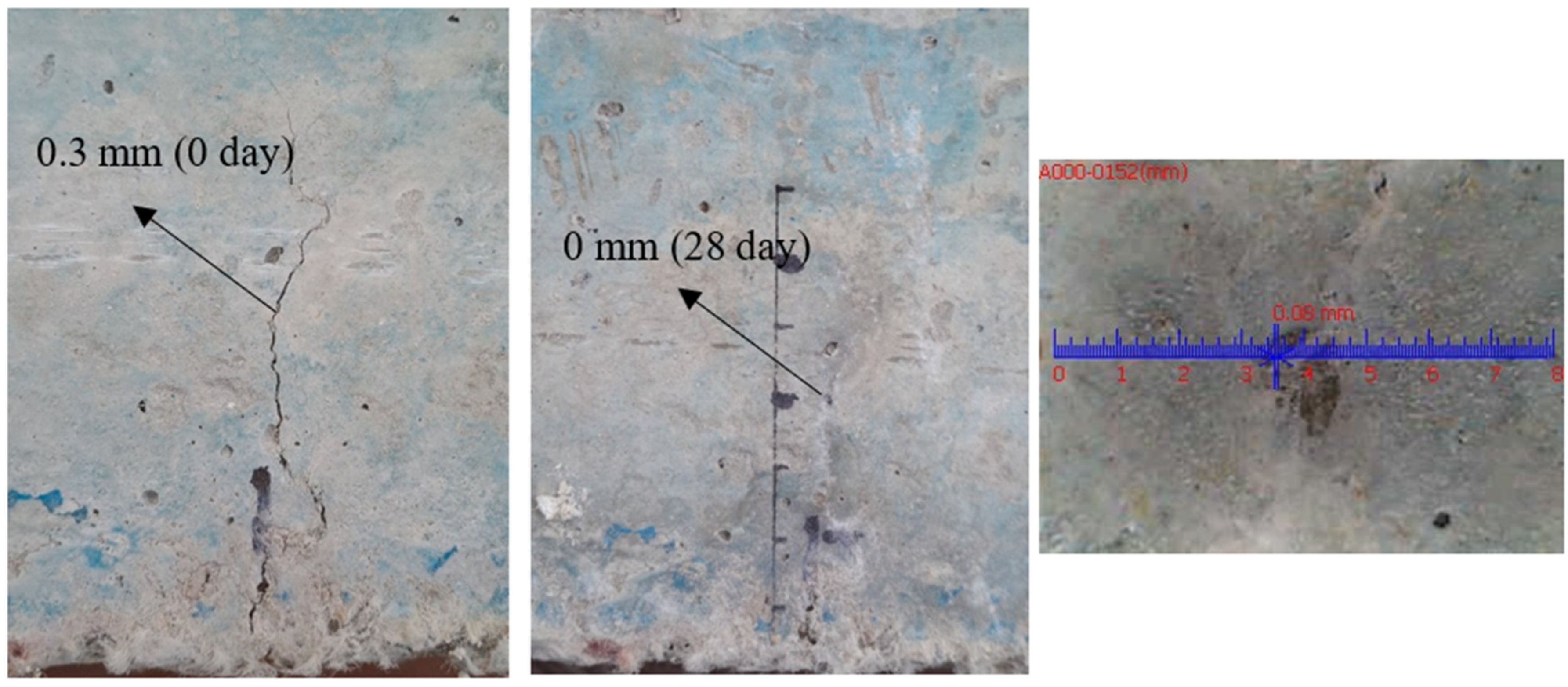

- A crack width of 0.3 mm is large enough to bring the beam into the non-linear zone, making complete recovery of stiffness after healing impossible; however, the effectiveness of the crack-healing solution up to this crack width is expected, and it will be more effective in case of cracks of a lesser width at the serviceability limit state. However, further study is recommended to confirm the effectiveness of the crack-healing solution for beams at the serviceability limit state.
- The crack-healing solution and epoxy-injection method were shown to be efficient in restoring load carrying capacity and reaching the serviceability limit condition; however, there was a little loss in stiffness, which may not be a concern for cracks healed at their initial stage.
Future Research Prospects
- Sodium gluconate should be investigated to check the amount of precipitation, instead of glucose. Calcium lactate may also be used instead of calcium nitrate when preparing crack-healing solutions.
- Other bacterial species, e.g., Bacillus cohnii and Bacillus pseudophermus may be considered to study their effects on healing.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Al-Tabbaa, A.; Litina, C.; Giannaros, P.; Kanellopoulos, A.; Souza, L. First uk field application and performance of microcapsule-based self-healing concrete. Constr. Build. Mater. 2019, 208, 669–685. [Google Scholar] [CrossRef]
- van der Bergh, J.M.; Miljević, B.; Šovljanski, O.; Vučetić, S.; Markov, S.; Ranogajec, J.; Bras, A. Preliminary approach to bio-based surface healing of structural repair cement mortars. Constr. Build. Mater. 2020, 248, 118557. [Google Scholar] [CrossRef]
- He, J.; Shi, X. Developing an abiotic capsule-based self-healing system for cementitious materials: The state of knowledge. Constr. Build. Mater. 2017, 156, 1096–1113. [Google Scholar] [CrossRef]
- Qian, C.; Zheng, T.; Zhang, X.; Su, Y. Application of microbial self-healing concrete: Case study. Constr. Build. Mater. 2021, 290, 123226. [Google Scholar] [CrossRef]
- Zhang, X.; Jin, Z.; Li, M.; Qian, C. Effects of carrier on the performance of bacteria-based self-healing concrete. Constr. Build. Mater. 2021, 305, 124771. [Google Scholar] [CrossRef]
- An, S.; Yoon, S.S.; Lee, M.W. Self-healing structural materials. Polymers 2021, 13, 2297. [Google Scholar] [CrossRef]
- Albuhairi, D.; Di Sarno, L. Low-carbon self-healing concrete: State-of-the-art, challenges and opportunities. Buildings 2022, 12, 1196. [Google Scholar] [CrossRef]
- Morgese, M.; Domaneschi, M.; Ansari, F.; Cimellaro, G.P.; Inaudi, D. Improving distributed fiber-optic sensor measures by digital image correlation: Two-stage structural health monitoring. ACI Struct. J. 2021, 118, 91–102. [Google Scholar]
- Mena-Alonso, Á.; Latorre-Carmona, P.; González, D.C.; Díez-Pastor, J.F.; Rodríguez, J.J.; Mínguez, J.; Vicente, M.A. A cost-effective stereo camera-based system for measuring crack propagation in fibre-reinforced concrete. Arch. Civ. Mech. Eng. 2023, 23, 192. [Google Scholar] [CrossRef]
- Mata-Falcón, J.; Haefliger, S.; Lee, M.; Galkovski, T.; Gehri, N. Combined application of distributed fibre optical and digital image correlation measurements to structural concrete experiments. Eng. Struct. 2020, 225, 111309. [Google Scholar] [CrossRef]
- Chynoweth, G.; Stankie, R.R.; Allen, W.L.; Anderson, R.R.; Babcock, W.N.; Barlow, P.; Bartholomew, J.J.; Bergemann, G.O.; Bullock, R.E.; Constantino, F.J. Concrete repair guide. ACI Comm. Concr. Repair Man. 1996, 546, 287–327. [Google Scholar]
- Ahmadi, A.; Kianoush, M.R.; Moslemi, M.; Lachemi, M.; Siad, H.; Booya, E. Investigation on repair of tension cracks in reinforced concrete panels. Eng. Struct. 2021, 245, 112974. [Google Scholar] [CrossRef]
- Abdulqadir, Z.M.; Karim, F.R. Evaluating the efficiency of epoxy injection technique for repairing normal and high strength concrete beams—A critical review. Construction 2022, 2, 48–55. [Google Scholar] [CrossRef]
- Ahmad, S.; Elahi, A.; Barbhuiya, S.; Farooqi, Y. Repair of cracks in simply supported beams using epoxy injection technique. Mater. Struct. 2013, 46, 1547–1559. [Google Scholar] [CrossRef]
- Wiktor, V.; Jonkers, H. Field performance of bacteria-based repair system: Pilot study in a parking garage. Case Stud. Constr. Mater. 2015, 2, 11–17. [Google Scholar] [CrossRef]
- Dhami, N.K.; Reddy, S.M.; Mukherjee, A. Biofilm and microbial applications in biomineralized concrete. In Advanced Topics in Biomineralization; IntechOpen: London, UK, 2012; pp. 137–164. [Google Scholar]
- Wiktor, V.; Jonkers, H.M. Quantification of crack-healing in novel bacteria-based self-healing concrete. Cem. Concr. Compos. 2011, 33, 763–770. [Google Scholar] [CrossRef]
- He, J.; Gray, K.; Norris, A.; Ewing, A.C.; Jurgerson, J.; Shi, X. Use of biological additives in concrete pavements: A review of opportunities and challenges. J. Transp. Eng. Part B Pavements 2020, 146, 04020036. [Google Scholar] [CrossRef]
- Dick, J.; De Windt, W.; De Graef, B.; Saveyn, H.; Van der Meeren, P.; De Belie, N.; Verstraete, W. Bio-deposition of a calcium carbonate layer on degraded limestone by bacillus species. Biodegradation 2006, 17, 357–367. [Google Scholar] [CrossRef]
- Wang, J.; Ersan, Y.C.; Boon, N.; De Belie, N. Application of microorganisms in concrete: A promising sustainable strategy to improve concrete durability. Appl. Microbiol. Biotechnol. 2016, 100, 2993–3007. [Google Scholar] [CrossRef]
- Chen, X.; Yuan, J.; Alazhari, M. Effect of microbiological growth components for bacteria-based self-healing on the properties of cement mortar. Materials 2019, 12, 1303. [Google Scholar] [CrossRef]
- Chithambar Ganesh, A.; Muthukannan, M.; Malathy, R.; Ramesh Babu, C. An experimental study on effects of bacterial strain combination in fibre concrete and self-healing efficiency. KSCE J. Civ. Eng. 2019, 23, 4368–4377. [Google Scholar] [CrossRef]
- Lucas, S.S.; Moxham, C.; Tziviloglou, E.; Jonkers, H. Study of self-healing properties in concrete with bacteria encapsulated in expanded clay. Sci. Technol. Mater. 2018, 30, 93–98. [Google Scholar] [CrossRef]
- Ferrara, L.; Van Mullem, T.; Alonso, M.C.; Antonaci, P.; Borg, R.P.; Cuenca, E.; Jefferson, A.; Ng, P.-L.; Peled, A.; Roig-Flores, M. Experimental characterization of the self-healing capacity of cement based materials and its effects on the material performance: A state of the art report by cost action sarcos wg2. Constr. Build. Mater. 2018, 167, 115–142. [Google Scholar] [CrossRef]
- Yang, S.; Aldakheel, F.; Caggiano, A.; Wriggers, P.; Koenders, E. A review on cementitious self-healing and the potential of phase-field methods for modeling crack-closing and fracture recovery. Materials 2020, 13, 5265. [Google Scholar] [CrossRef]
- C150/C150M; Standard Specification for Portland Cement. Annual Book of ASTM Standards. ASTM: Philadelphia, PA, USA, 2001.
- ACI 318-05; Building Code Requirements for Structural Concrete and Commentary. ACI: Farmington Hills, MI, USA, 2005.
- ASTM C192/C192M-19; Standard Practice for Making and Curing Concrete Test Specimens in the Laboratory. American Society of Testing Materials: West Conshohocken, PA, USA, 2019.
- ASTM D1475; Standard Test Method for Density of Liquid Coatings, Inks, and Related Products. American Society of Testing Materials: West Conshohocken, PA, USA, 2020.
- ASTM D2196; Standard Test Methods for Rheological Properties of Non-Newtonian Materials by Rotational Viscometer. American Society of Testing Materials: West Conshohocken, PA, USA, 2018.
- ASTM D695; Standard Test Method for Compressive Properties of Rigid Plastics. American Society of Testing Materials: West Conshohocken, PA, USA, 2023.
- DIN EN ISO 178; Determination of Flexural Properties. American Society of Testing Materials: West Conshohocken, PA, USA, 2019.
Cement (kg/m3) | Fine Aggregates (kg/m3) | Coarse Aggregates (kg/m3) | Viscosity Modifying Agent (VMA) (%) * | Water Cement (W/C) Ratio |
---|---|---|---|---|
329 | 660 | 1225 | 1.0 | 0.6 |
Compound | Composition |
---|---|
Peptone 5.0 from Meat | 5 g/L |
CaCl2 | 10 g/L |
NaCl | 5 g/L |
Yeast extract | 3 g/L |
Meat extract | 3.05 g/L |
Absorbance at 625 nm | Bacterial Cells/mL |
---|---|
0.08–0.10 | 1.5 × 108 |
0.14–0.17 | 3 × 108 |
0.27–0.31 | 6 × 108 |
0.38–0.42 | 9 × 108 |
0.51–0.55 | 12 × 108 |
0.67–0.70 | 15 × 108 |
0.74–0.77 | 18 × 108 |
Color | Clear |
---|---|
Specific gravity of mixed material (ASTM D1475) [29] | 1.05 kg/L |
Viscosity (ASTM D2196) [30] | 204 MPa·s |
Service temp. range | −20 °C to +60 °C |
Compressive strength (ASTM D695) [31] | >70 N/mm2 at 7 days |
Flexural strength (DIN EN ISO 178) [32] | >70 N/mm2 at 7 days |
Beam ID | Details (Application of Repair Technique) | Before Healing (kN) | After Healing (kN) | % Retained Load Capacity w.r.t Control | % Retained Load Capacity w.r.t Loading Capacity before Healing | Crack Width Healed (mm) |
---|---|---|---|---|---|---|
Control | Beam without any repair | 65 | - | - | - | - |
TCHS-1 | crack-healing solution | 68 | 66 | 101.54 | 97.06 | 0.3 |
TCHS-2 | Silica Gel Plus Crack-healing Solution | 66.86 | 57.51 | 88.48 | 84.57 | 0.3 |
TCHS-3 | Crack-healing Solution mixed with cement slurry | 65 | 57.2 | 88.00 | 84.12 | - |
TEIM | Epoxy-injection Method | 69.45 | 63.2 | 97.23 | 92.94 | 0.3 |
