An Experimental Comparison of Airborne Sound Insulation between Dovetail Massive Wooden Board and Cross-Laminated Timber Elements
Abstract
:1. Introduction
- Pure wood composition: Unlike conventional EWPs that heavily rely on adhesives derived from petroleum, the DMWBE features a composition of pure wood. This characteristic is a groundbreaking departure from the traditional use of adhesives, reducing the environmental hazards associated with petroleum-based materials.
- Absence of adhesive and metal connections: The DMWBE sets itself apart by entirely eliminating the need for adhesive and metal connections. This innovation not only contributes to improved environmental sustainability but also simplifies end-of-life disposal and enhances reusability, addressing a key challenge in the industry.
- Performance evaluation: The research introduces a rigorous comparative analysis, which, to the best of our knowledge, has not been extensively explored in the existing literature. It examines the performance of the DMWBE in terms of airborne sound insulation, a critical property in building parts. The use of standardized ISO 10140-2 testing protocols ensures the reliability and repeatability of the results.
2. Materials and Methods
2.1. Test Specimens

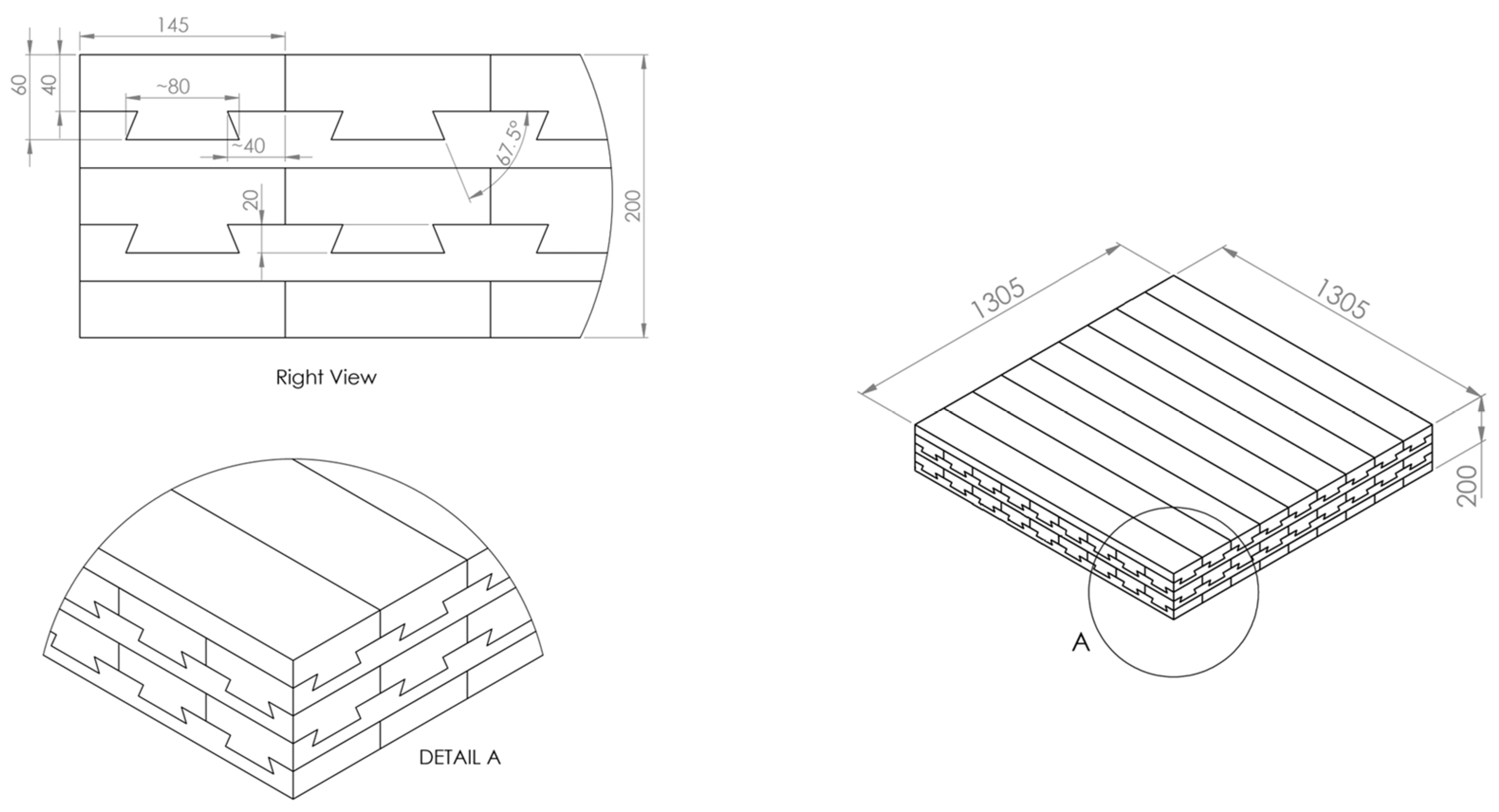

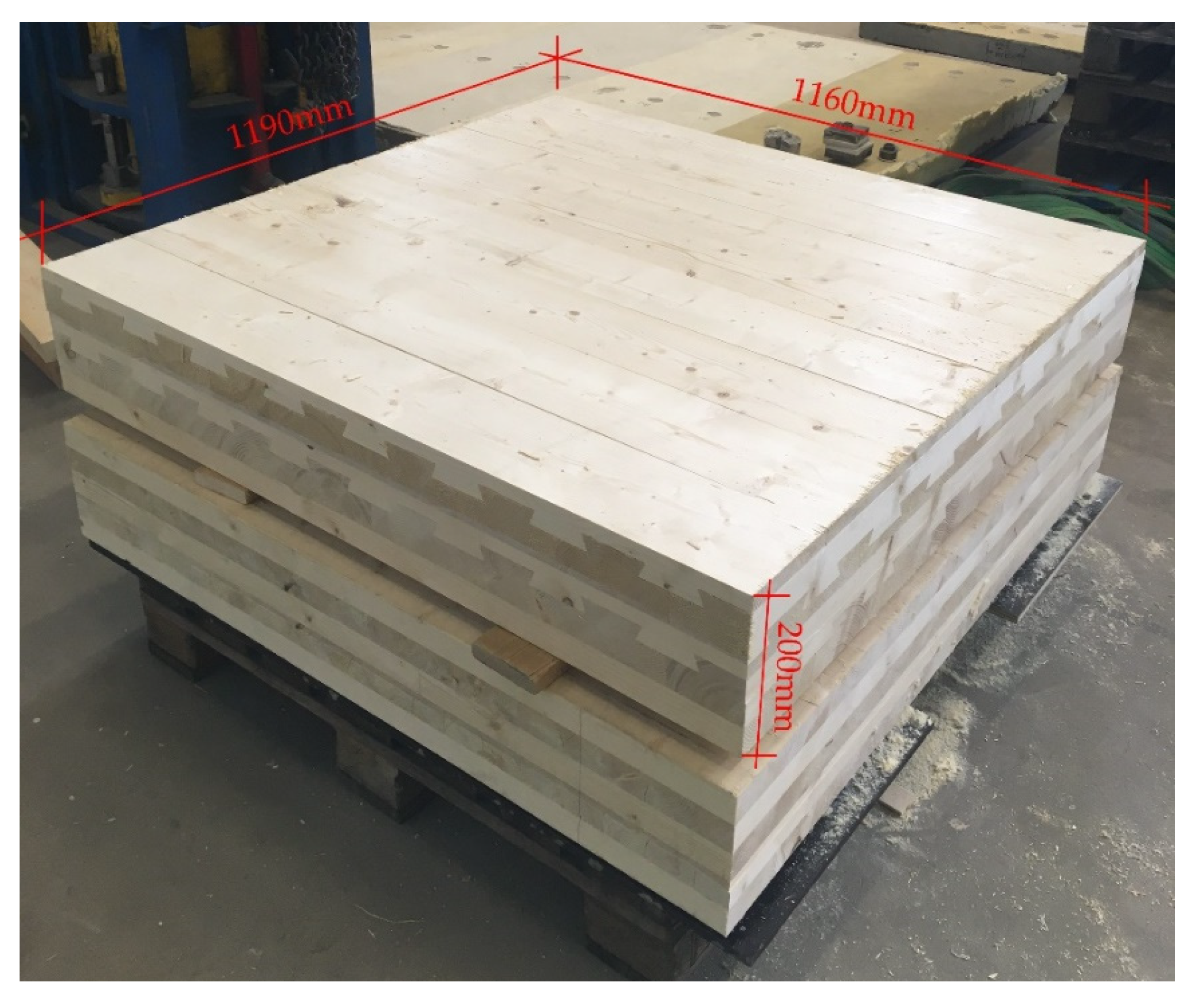

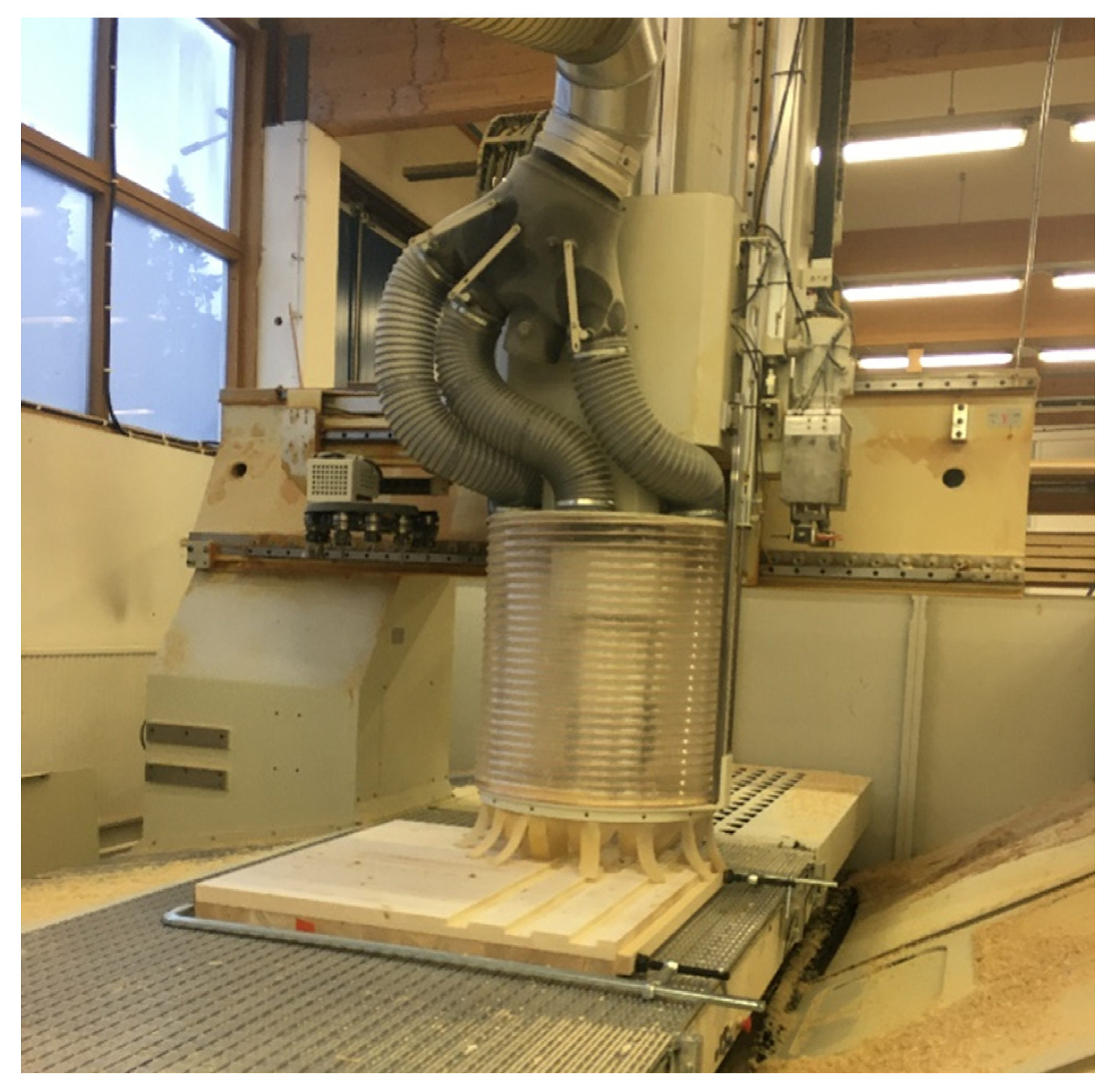

2.1.1. Dovetail Test Specimen
2.1.2. CLT Test Specimen

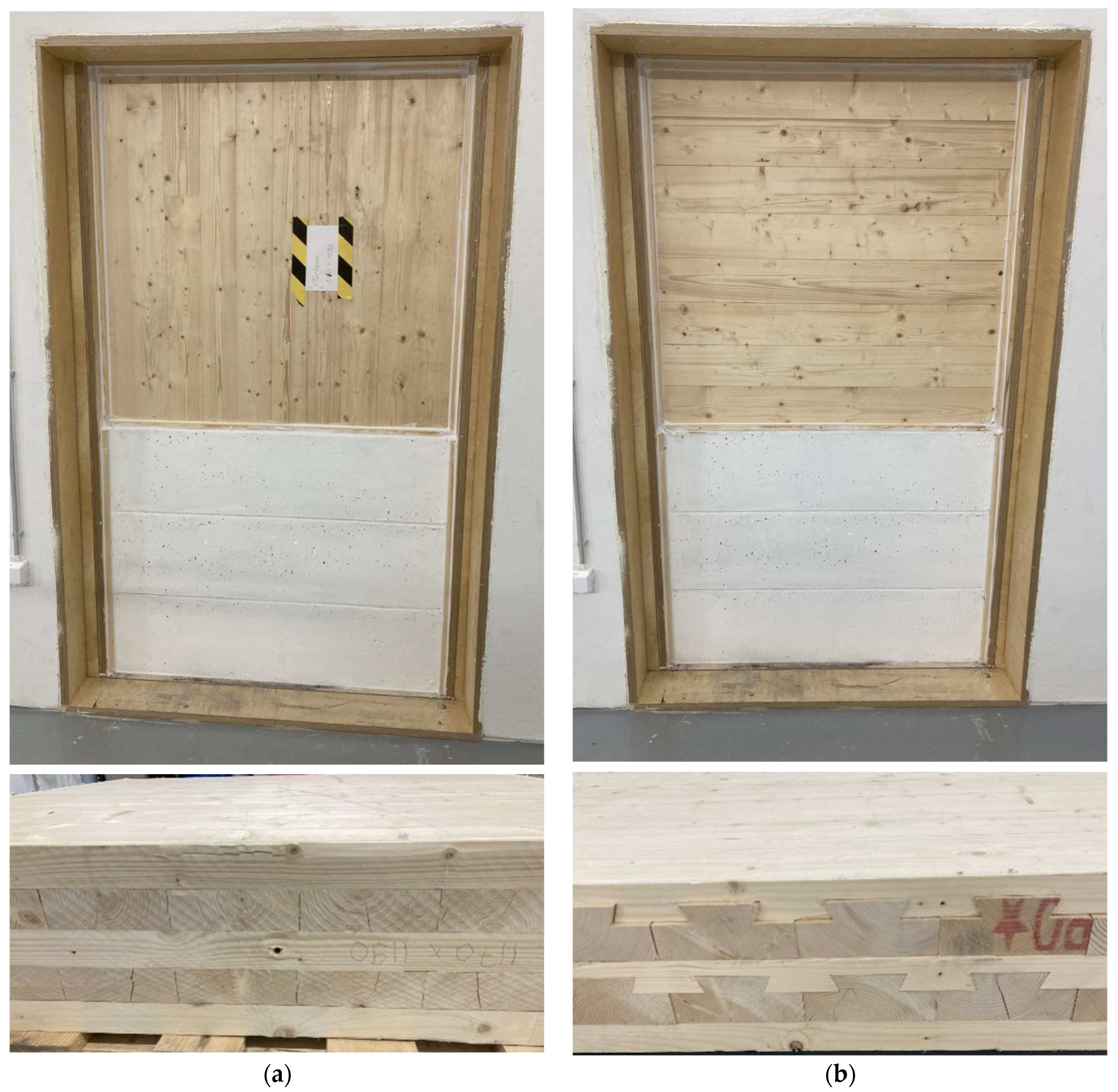

2.2. Mounting of Test Specimens
2.3. Measurement Arrangements
2.3.1. Sound Insulation Measurements
2.3.2. Measurements of TLF
2.3.3. Other Measurements
3. Results and Discussion
3.1. Airborne Sound Insulation and Loss Factor
- Structural composition: While the mass per unit area, specimen sizes, installation conditions, and raw materials used for both DMWBE and CLT panels were quite similar, the crucial distinction lies in the composition of the panel structures. This composition directly impacts the mechanical and damping properties of the panels.
- Timber lamella profiles and connection methods: The different fabrication techniques used in the DMWBE and CLT panels resulted in variations in the elastic moduli of the specimens. This affected the bending stiffness, sound insulation, and coincidence frequencies (fc) of the panels. Moreover, the absence of adhesives in DMWBE played a significant role in enhancing the damping of the panel, leading to superior sound reduction indices at least above 500 Hz.
3.2. Limitations and Need for Further Research
3.3. Practical Implementations of the Research
- (a)
- Environmental sustainability: By introducing DMWBEs with their pure wood composition and the absence of adhesives or metal connections, the research aligns with the increasing global emphasis on sustainable and eco-friendly construction materials. This makes DMWBEs a practical choice for environmentally conscious construction projects.
- (b)
- Improved sound insulation: The research highlights the superior sound insulation properties of DMWBEs. This is particularly relevant for applications where noise control is crucial, such as residential buildings, offices, and public spaces. The practical implication is that DMWBEs can be effectively used to create quieter and more comfortable indoor environments.
- (c)
- Simplified end-of-life disposal and reusability: DMWBEs’ design simplifies the disposal and reusability of construction materials. This practical aspect can significantly reduce the environmental impact of construction projects and contribute to more sustainable building practices.
- (d)
- Versatility in construction: Understanding the enhanced performance of DMWBEs in terms of sound insulation expands their potential applications. Practical implementations can include using DMWBEs in walls, ceilings, or floors to enhance acoustic performance and create better living and working spaces.
- (e)
- Reduced material complexity: The elimination of adhesives and metal connections simplifies the manufacturing process and may lead to cost savings in production. This practical advantage can make DMWBEs an economically viable choice for construction projects.
4. Conclusions
- (1)
- Absence of adhesives and enhanced damping: One of the key factors contributing to the superior sound insulation performance of DMWBEs is the absence of adhesives in their composition. As known, adhesives in traditional construction materials can introduce stiffness and reduce internal losses in structures, leading to less effective sound insulation. In contrast, DMWBEs’ pure wood composition lacks these adhesives, allowing for increased internal losses within the panel. This enhanced damping is likely due to the presence of small air gaps between individual boards comprising the DMWBE panel. These gaps create opportunities for panel vibration to be dissipated within the structure, thus improving its sound insulation properties. However, the small air gaps between the boards themselves can also contribute to the sound insulation of the DMWBE panel.
- (2)
- Structural and acoustic implications: The elevated structural damping in the DMWBE is of particular significance in its sound insulation performance. When sound waves pass through the panel, the increased damping within the DMWBE leads to a greater sound transmission loss of the structure. These structural and acoustic implications underline the effectiveness of DMWBEs as a sound-insulating material.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Sikkema, R.; Styles, D.; Jonsson, R.; Tobin, B.; Byrne, K.A. A market inventory of construction wood for residential building in Europe–in the light of the Green Deal and new circular economy ambitions. Sustain. Cities Soc. 2023, 90, 104370. [Google Scholar] [CrossRef]
- Ilhan, O. A Research on Determining the Performance Properties of Engineered Wood Products. Wood Ind. Eng. 2023, 5, 1–6. [Google Scholar]
- Pramreiter, M.; Nenning, T.; Huber, C.; Müller, U.; Kromoser, B.; Mayencourt, P.; Konnerth, J. A review of the resource efficiency and mechanical performance of commercial wood-based building materials. Sustain. Mater. Technol. 2023, 38, e00728. [Google Scholar] [CrossRef]
- Carrasco, E.V.M.; Pizzol, V.D.; Smits, M.A.; Alves, R.C.; Oliveira, A.L.C.; Mantilla, J.N.R. CLT from recycled wood: Fabrication, influence of glue pressure and lamina quality on structural performance. Constr. Build. Mater. 2023, 378, 131048. [Google Scholar] [CrossRef]
- De Araujo, V.; Aguiar, F.; Jardim, P.; Mascarenhas, F.; Marini, L.; Aquino, V.; Santos, H.; Panzera, T.; Lahr, F.; Christoforo, A. Is Cross-Laminated Timber (CLT) a Wood Panel, a Building, or a Construction System? A Systematic Review on Its Functions, Characteristics, Performances, and Applications. Forests 2023, 14, 264. [Google Scholar] [CrossRef]
- Ussher, E.; Aloisio, A.; Rathy, S. Effect of lateral resisting systems on the wind-induced serviceability response of tall timber buildings. Case Stud. Constr. Mater. 2023, 19, e02540. [Google Scholar] [CrossRef]
- Andargie, M.S.; Touchie, M.; O’Brien, W.; Müller-Trapet, M. A field study of the relationship between sound insulation and noise annoyance, activity disturbance and wellbeing in multi-unit residences. Appl. Acoust. 2023, 206, 109291. [Google Scholar] [CrossRef]
- Rasmussen, B. Sound insulation between dwellings—Comparison of national requirements in Europe and interaction with acoustic classification schemes. In Proceedings of the International Congress on Acoustics, Aachen, Germany, 9–13 September 2019; pp. 5102–5109. [Google Scholar]
- Shin, B.; Chang, S.J.; Wi, S.; Kim, S. Estimation of energy demand and greenhouse gas emission reduction effect of cross-laminated timber (CLT) hybrid wall using life cycle assessment for urban residential planning. Renew. Sustain. Energy Rev. 2023, 185, 113604. [Google Scholar] [CrossRef]
- Schoenwald, S.; Zeitler, B.; Sabourin, I.; King, F. Sound insulation performance of Cross Laminated Timber Building Systems. In Proceedings of the INTER-NOISE and NOISE-CON congress and conference proceedings, Innsbruck, Austria, 27–30 August 2013. [Google Scholar]
- Kozicki, M.; Guzik, K. Comparison of VOC Emissions Produced by Different Types of Adhesives Based on Test Chambers. Materials 2021, 14, 1924. [Google Scholar] [CrossRef] [PubMed]
- Sotayo, A.; Bradley, D.; Bather, M.; Sareh, P.; Oudjene, M.; El-Houjeyri, I.; Harte, A.; Mehra, S.; O’Ceallaigh, C.; Haller, P.; et al. Review of state of the art of dowel laminated timber members and densified wood materials as sustainable engineered wood products for construction and building applications. Dev. Built Environ. 2020, 1, 100004. [Google Scholar] [CrossRef]
- Sha, B.; Wang, H.; Li, A. The Influence of the Damage of Mortise-Tenon Joint on the Cyclic Performance of the Traditional Chinese Timber Frame. Appl. Sci. 2019, 9, 3429. [Google Scholar] [CrossRef]
- Xie, Q.; Zhang, B.; Zhang, L.; Guo, L.; Wu, Y. Normal contact performance of mortise tenon joint: Theoretical analysis numerical simulation. J. Wood Sci. 2021, 67, 31. [Google Scholar] [CrossRef]
- Keränen, J.; Hakala, J.; Hongisto, V. Measured effect of resilient edge joints on airborne sound insulation of heavyweight wall. In INTER-NOISE and NOISE-CON Congress and Conference Proceedings; Institute of Noise Control Engineering: Reston, VA, USA, 2023; Volume 265, pp. 3621–3625. [Google Scholar]
- Rindel, J.H. Sound Insulation in Buildings; CRC Press: Boca Raton, FL, USA, 2020; 476p. [Google Scholar]
- Ilgın, H.E.; Karjalainen, M.; Koponen, O. Various Geometric Configuration Proposals for Dovetail Wooden Horizontal Structural Members in Multistory Building Construction; IntechOpen: London, UK, 2022. [Google Scholar]
- Han, L.; Kutnar, A.; Sandak, J.; Šušteršič, I.; Sandberg, D. Adhesive-and Metal-Free Assembly Techniques for Prefabricated Multi-Layer Engineered Wood Products: A Review on Wooden Connectors. Forests 2023, 14, 311. [Google Scholar] [CrossRef]
- Ilgın, H.E.; Karjalainen, M.; Koponen, O. Dovetailed massive wood board elements for multi-story buildings. In Proceedings of the LIVENARCH VII Livable Environments & Architecture 7th International Congress OTHER ARCHITECT/URE(S), Trabzon, Turkey, 28–30 September 2021; Volume I, pp. 47–60. [Google Scholar]
- Ilgın, H.E.; Karjalainen, M.; Alanen, M.; Malaska, M. Evaluating Fire Performance: An Experimental Comparison of Dovetail Massive Wooden Board Elements and Cross-Laminated Timber. Fire 2023, 6, 352. [Google Scholar] [CrossRef]
- Ilgın, H.E.; Karjalainen, M.; Malaska, M.; Alanen, M. Measuring Fire Safety Performance: A Comparative Experimental Study on Dovetail Massive Wooden Board Elements and Cross-Laminated Timber. In Proceedings of the World Conference on Timber Engineering (WCTE) 2023, Oslo, Norway, 19–22 June 2023; pp. 238–243. [Google Scholar]
- ISO 10140-2:2021; Acoustics: Laboratory Measurement of Sound Insulation of Building Elements, Part 2: Measurement of Airborne Sound Insulation. ISO: Geneva, Switzerland, 2021. Available online: https://www.iso.org/standard/79487.html (accessed on 2 November 2023).
- ISO 717-1:2013 (E); Acoustics—Rating of Sound Insulation of Building Elements—Part 1: Airborne Sound Insulation. ISO: Geneva, Switzerland, 2013.
- ISO 10848-1:2017; Acoustics—Laboratory and Field Measurement of Flanking Transmission for Airborne, Impact and Building Service Equipment Sound between Adjoining Rooms—Part 1: Frame Document. ISO: Geneva, Switzerland, 2017.
- Lappia Vocational College. Available online: https://www.lappia.fi/en/ (accessed on 2 November 2023).
- Kiilto. CLT and Glulam Manufacture, Polyurethane Adhesives for Wood. Available online: https://www.kiilto.com/product/kestopur-1010/ (accessed on 2 November 2023).
- ISO 3382-2:2008 (E); Acoustics—Measurement of Room Acoustic Parameters—Part 2: Reverberation Time in Ordinary Rooms. ISO: Geneva, Switzerland, 2008.
- Keränen, J.; Hongisto, V. Effect of resilient joints on the airborne sound insulation of single-leaf heavyweight constructions. J. Build. Eng. 2022, 56, 104711. [Google Scholar] [CrossRef]
- ISO 12999-1:2014 (E); Acoustics—Determination and Application of Measurement Uncertainties in Building Acoustics—Part 1: Sound Insulation. ISO: Geneva, Switzerland, 2014.
- Churchill, C.; Nusser, B.; Lux, C. Calculating the equivalent elastic moduli and their influence on modelling the sound insulation of softwood cross laminated timber (CLT). Appl. Acoust. 2023, 205, 109277. [Google Scholar] [CrossRef]
- Meier, A.; Schmitz, A. Application of total loss factor measurements for the determination of sound insulation. Build. Acoust. 1999, 6, 71–84. [Google Scholar] [CrossRef]
- Cremer, L.; Heckl, M.; Petersson, B.A.T. Structure-Borne Sound; Springer: Berlin/Heidelberg, Germany, 2005. [Google Scholar]
Room temperature | 21.8 °C |
Relative humidity | 43% |
Source room volume | 201 m3 |
Receiving room volume | 71 m3 |
Single-Number Quantity | DMWBE | CLT |
---|---|---|
Rw | 43 dB | 40 dB |
Rw + C | 42 dB | 39 dB |
Rw + Ctr | 39 dB | 37 dB |
Rw + C100–5000 | 43 dB | 40 dB |
Rw + C50–3150 | 42 dB | 39 dB |
Rw + C50–5000 | 43 dB | 40 dB |
Rw + Ctr,100–5000 | 39 dB | 37 dB |
Rw + Ctr,50–3150 | 39 dB | 37 dB |
Rw + C50–5000 | 39 dB | 37 dB |
