Enhancing the Dynamic Stability of Pylons via Their Drag and Lift Coefficients by Finite Volume Method
Abstract
:1. Introduction
2. Material and Methodology
2.1. Finite Volume Method and Governing Equations
2.2. Material

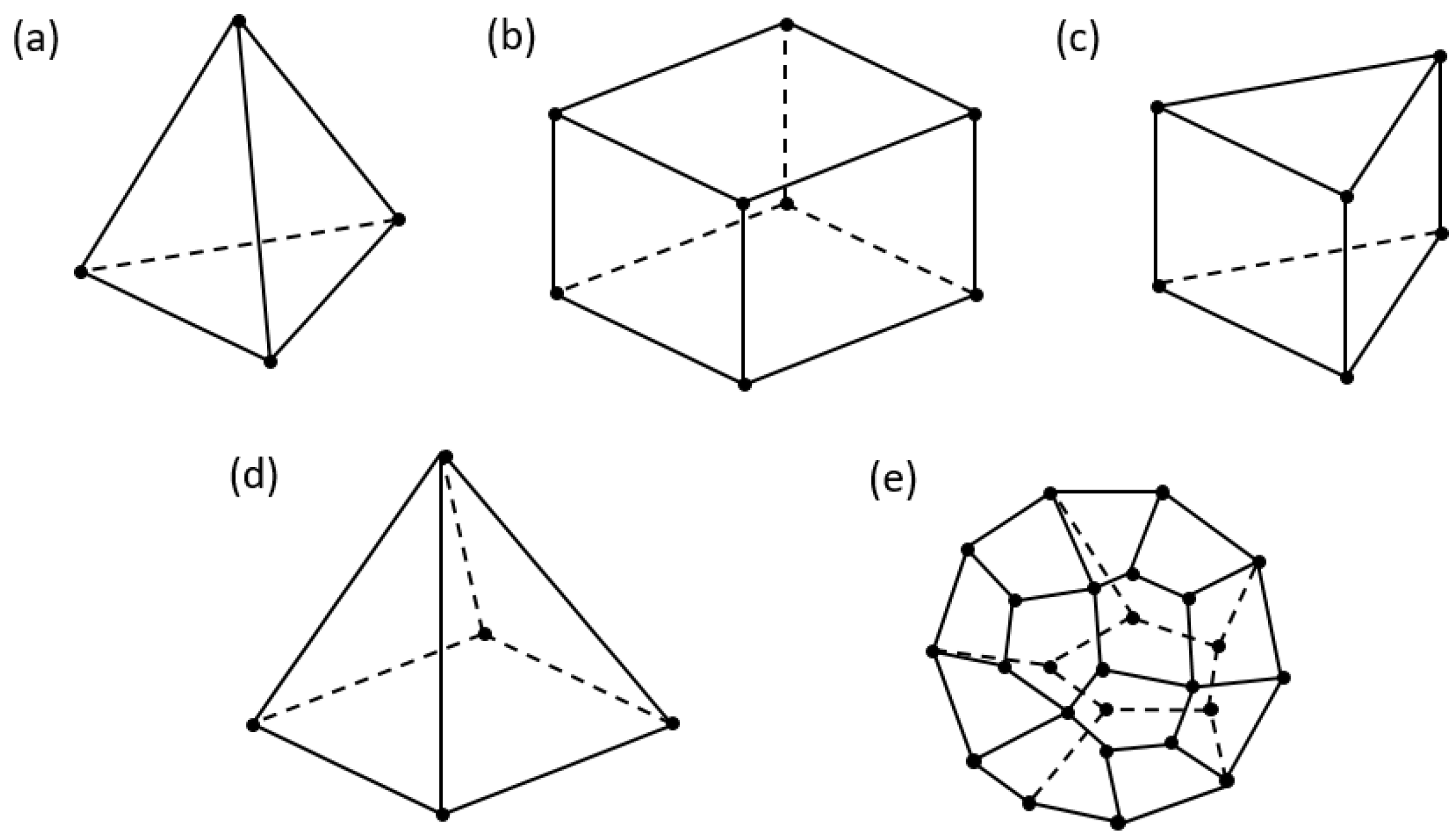

2.3. Meshes

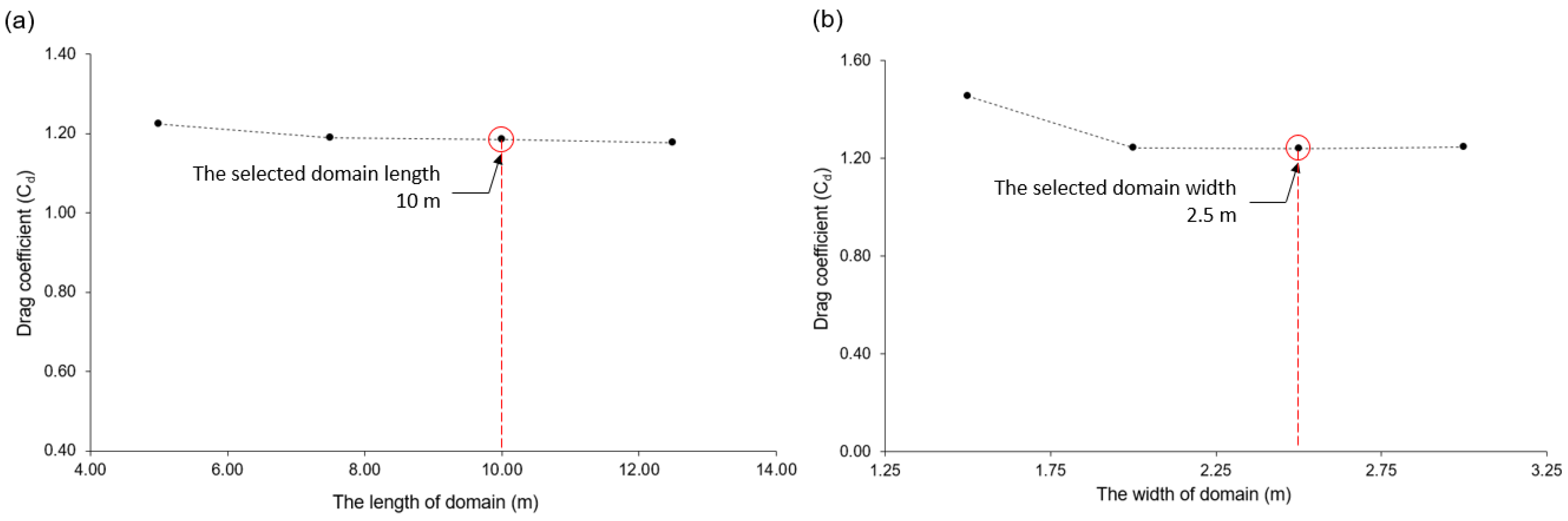

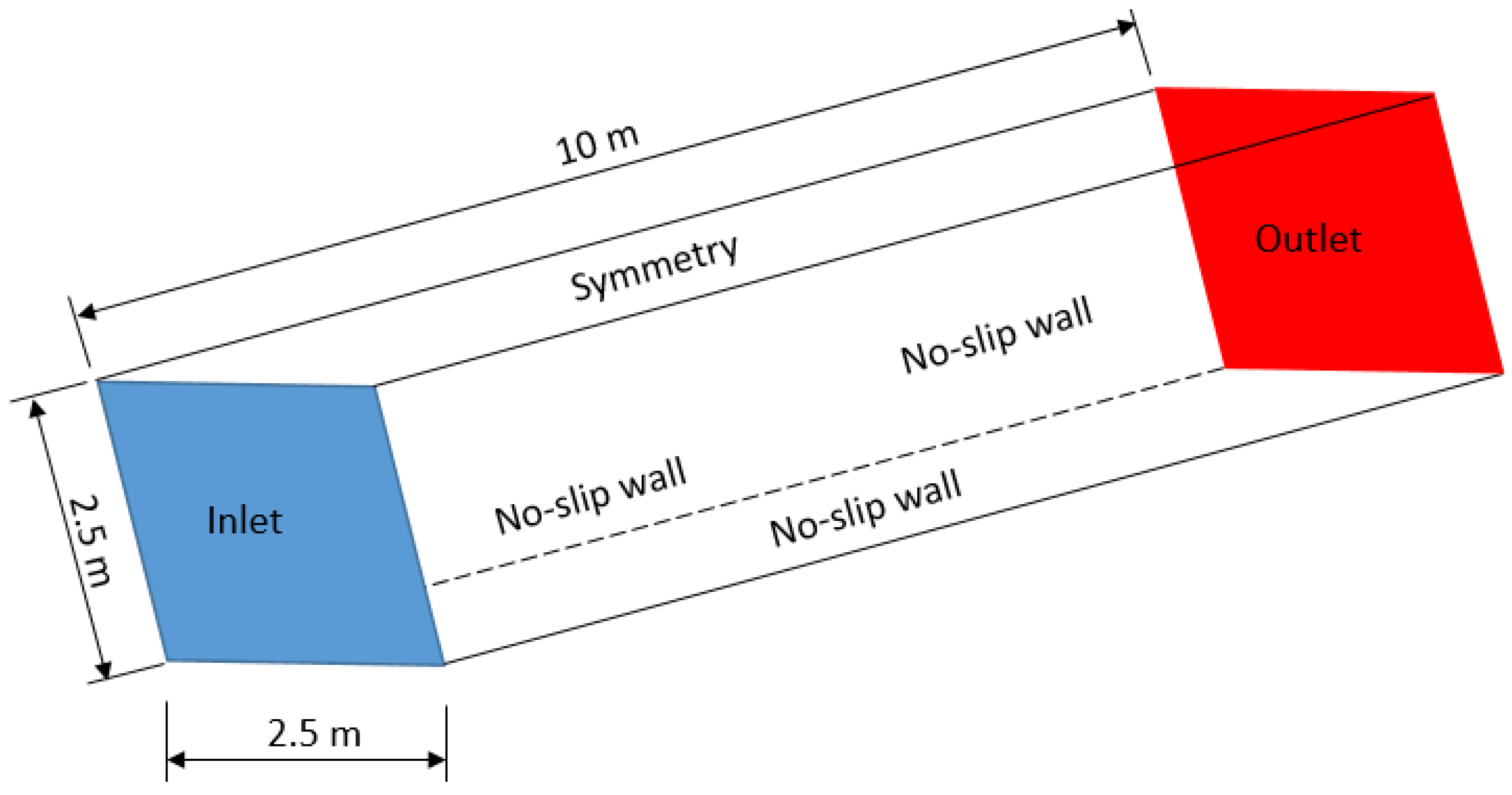

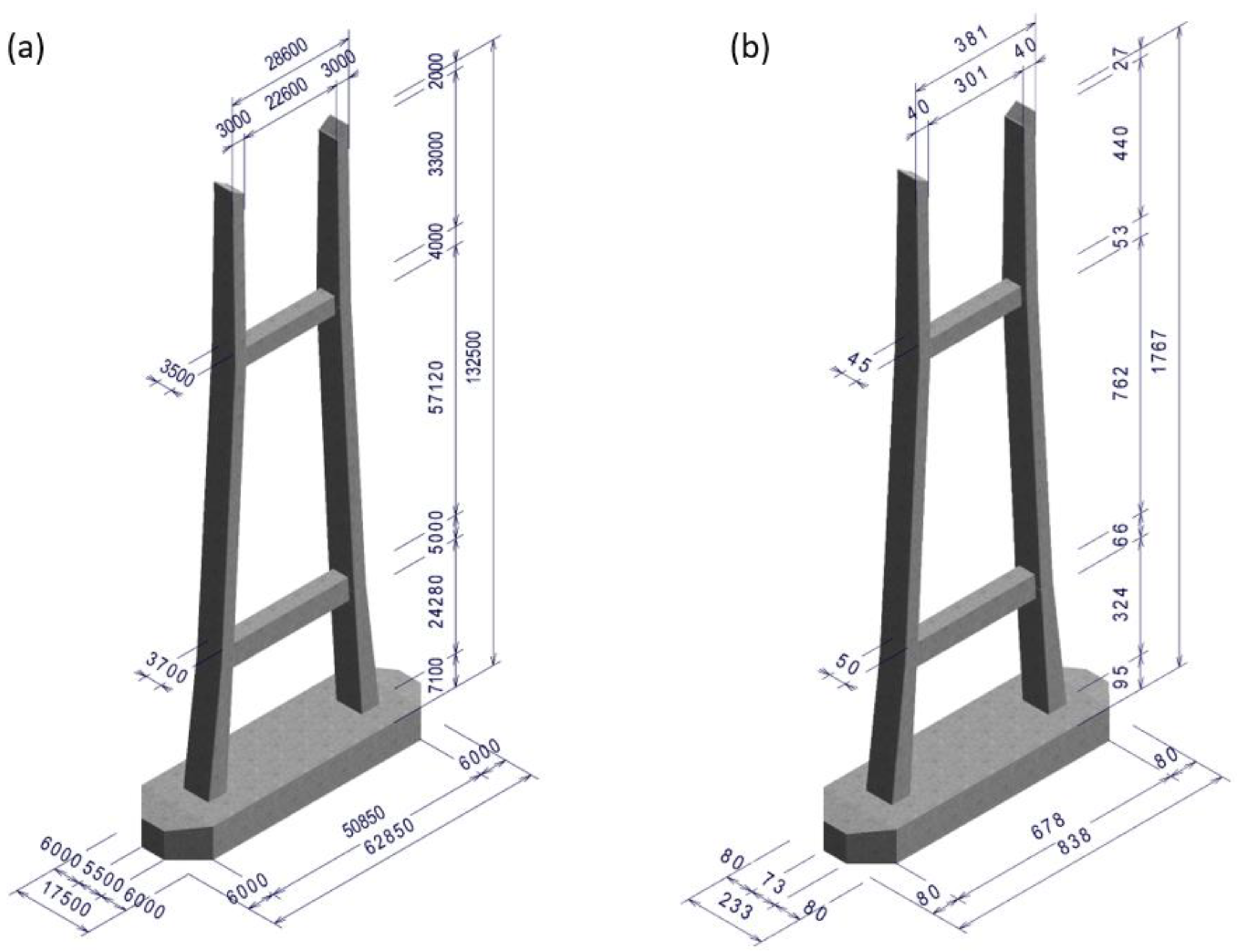

2.4. Domain

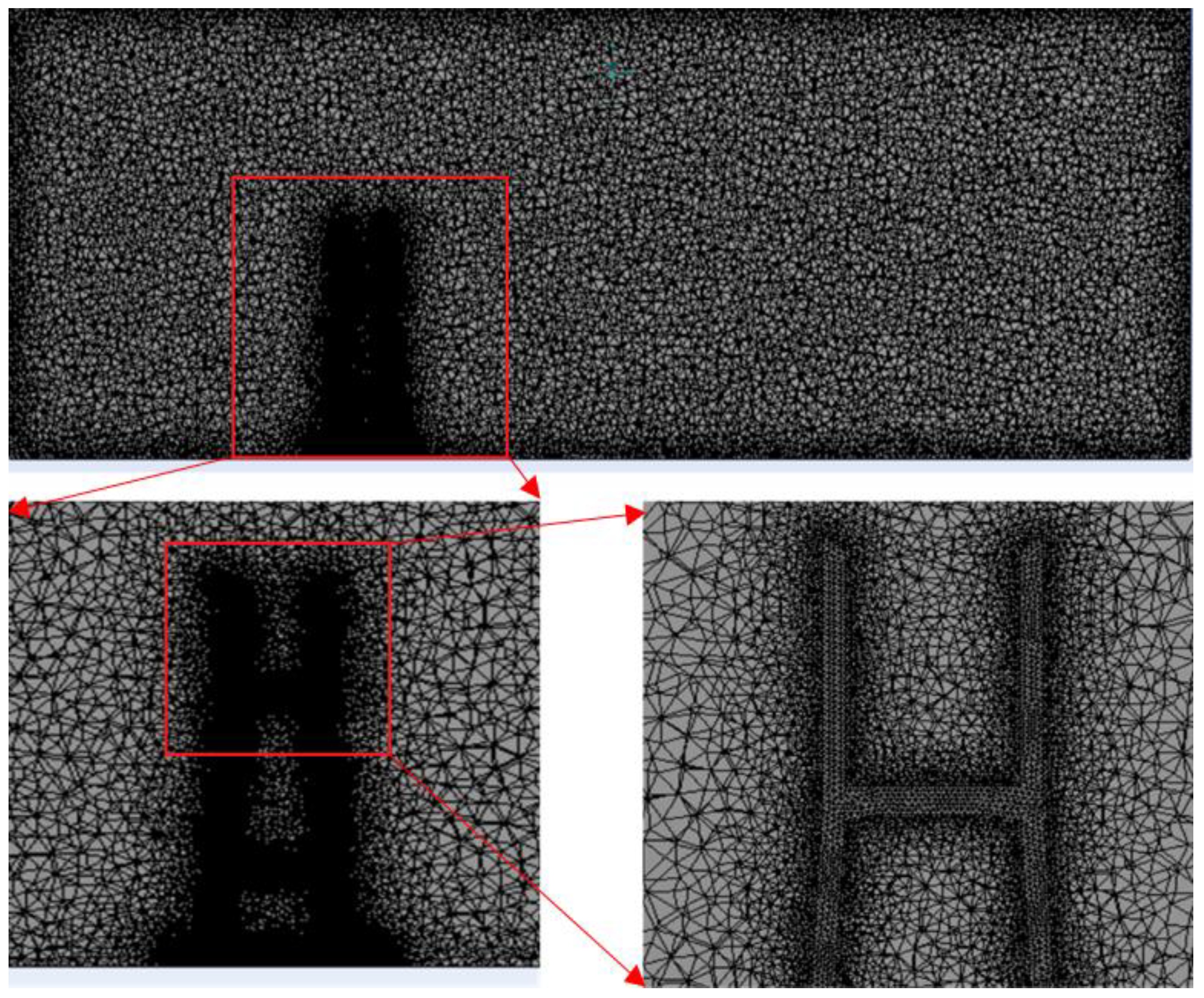

2.5. Boundary Conditions
3. Results and Discussion

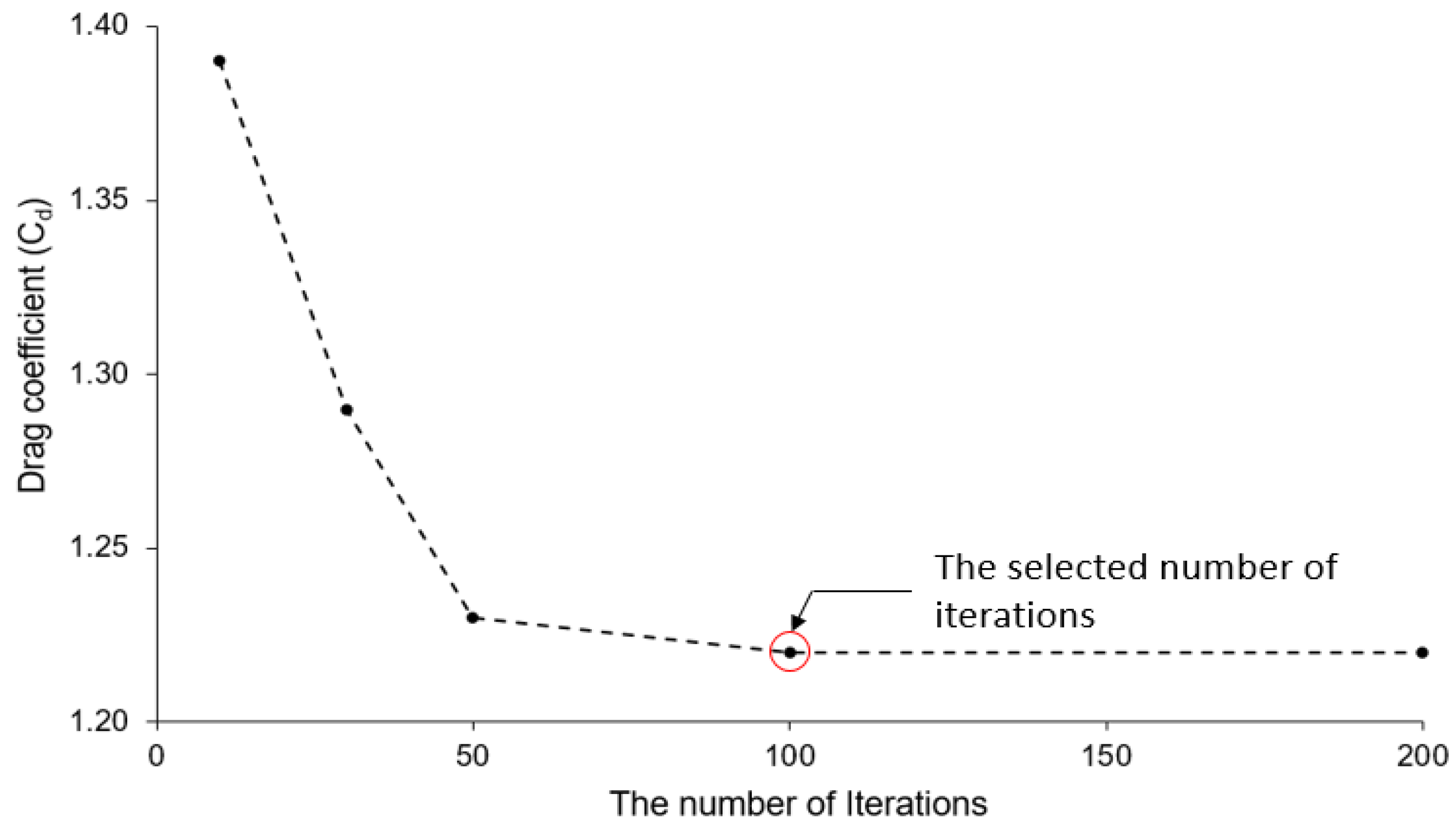

3.1. Number of Iterations
3.2. Validation

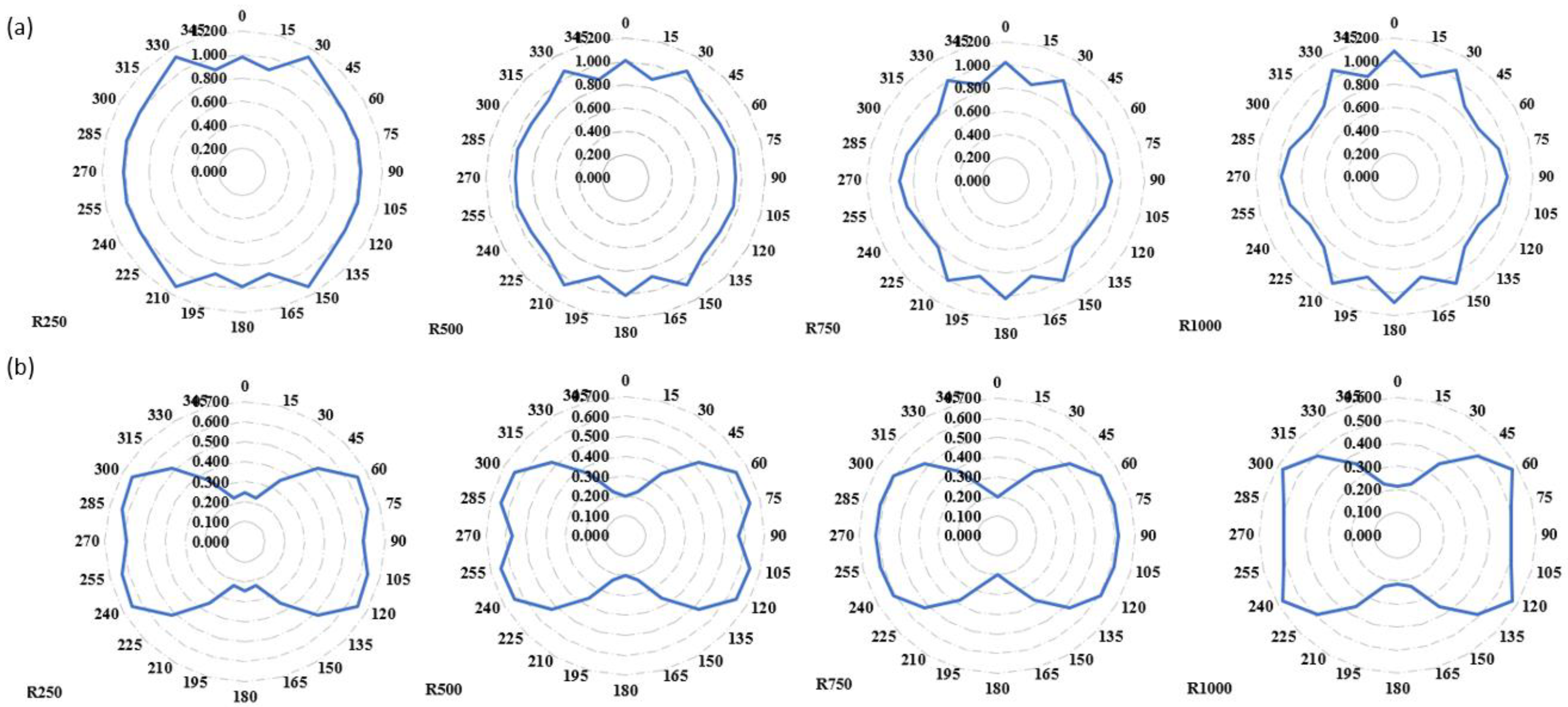

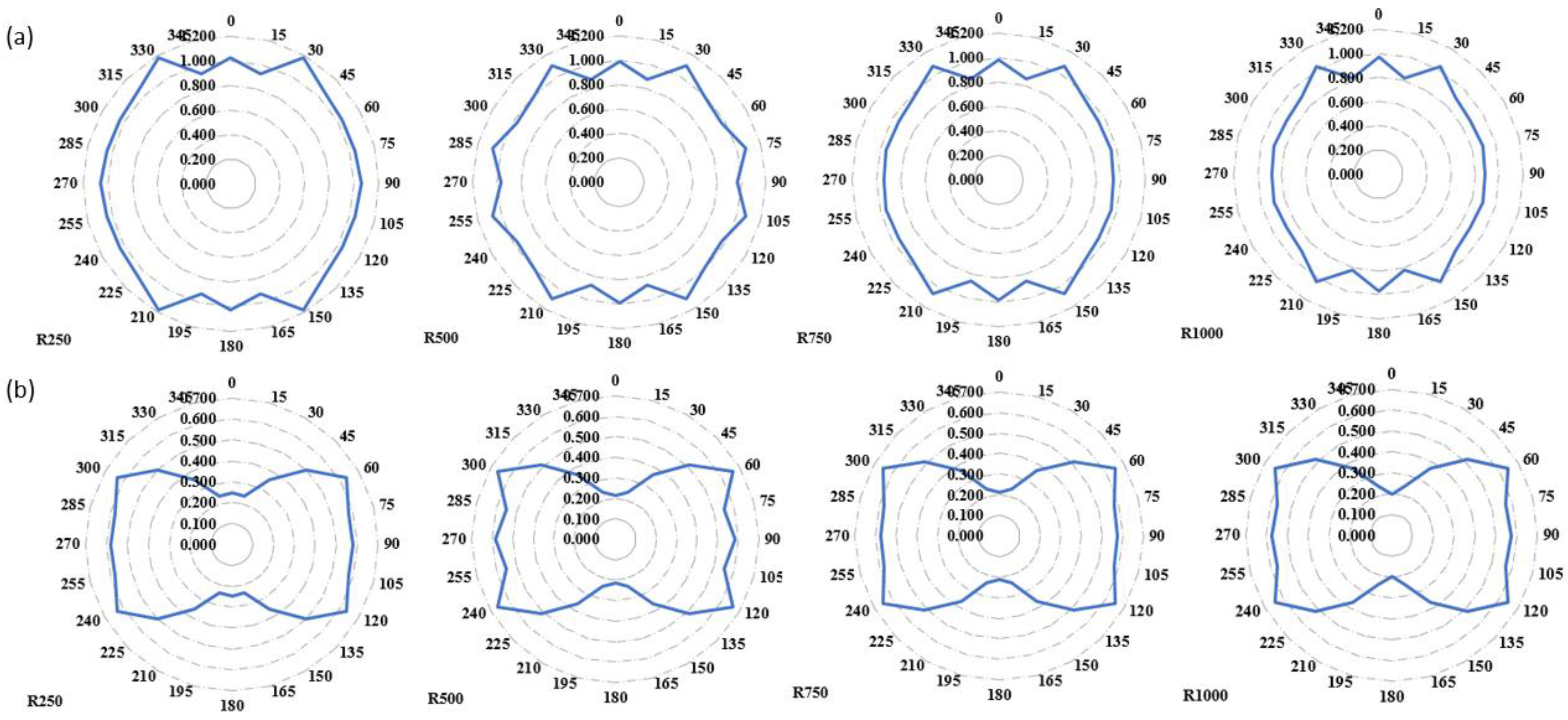

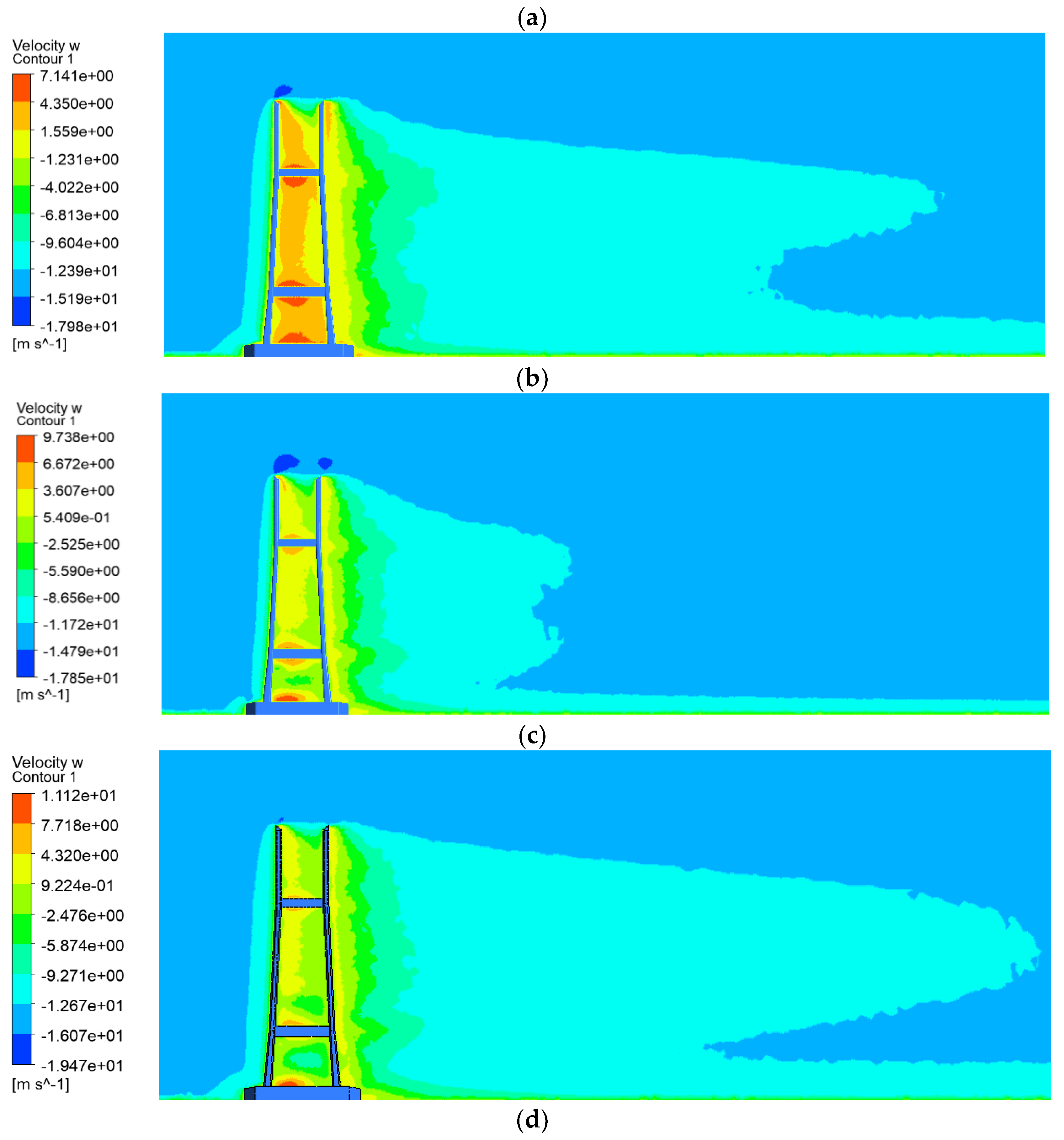

3.3. Drag and Lift Coefficients of Four Typical Cross-Sections

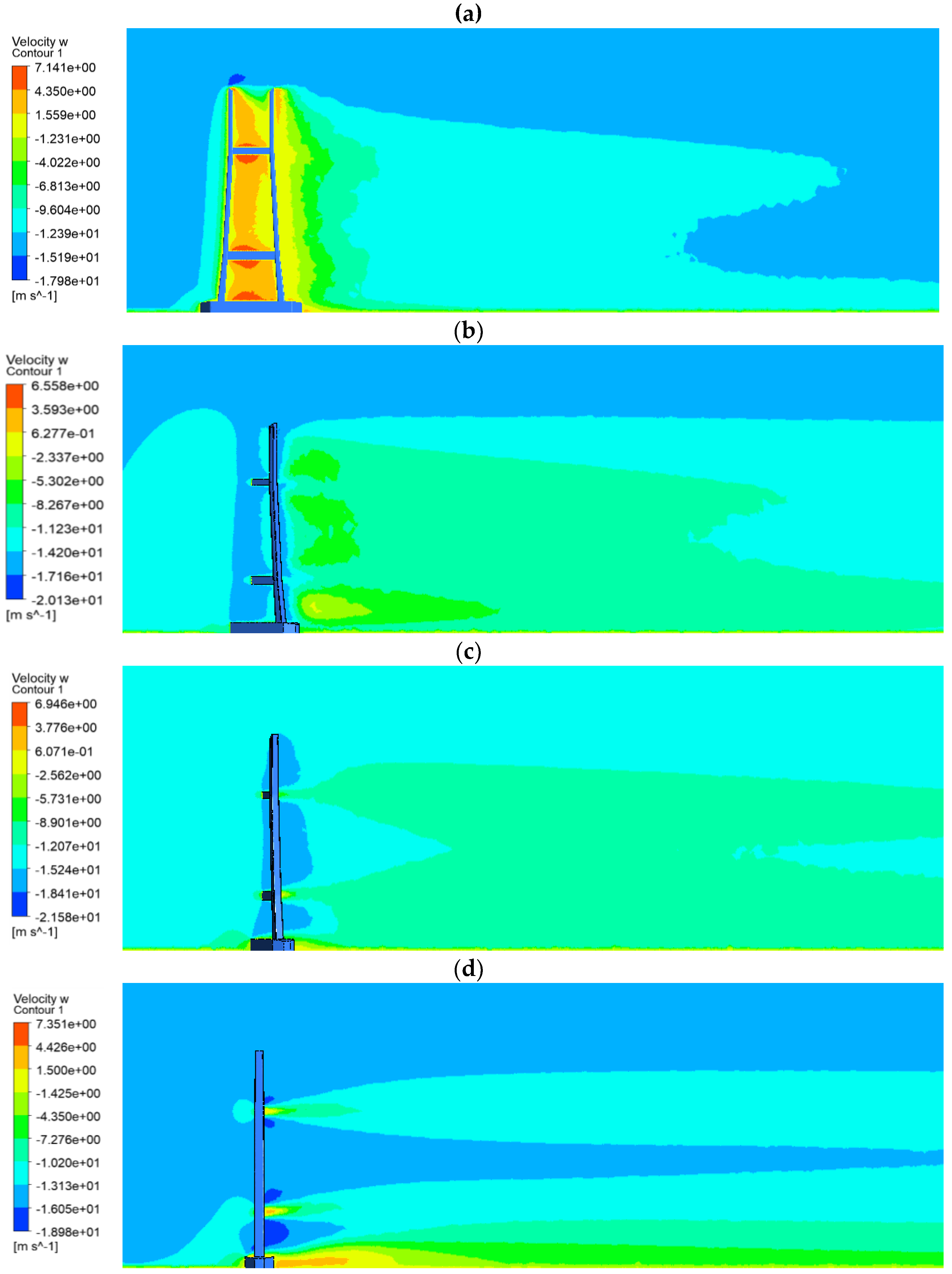

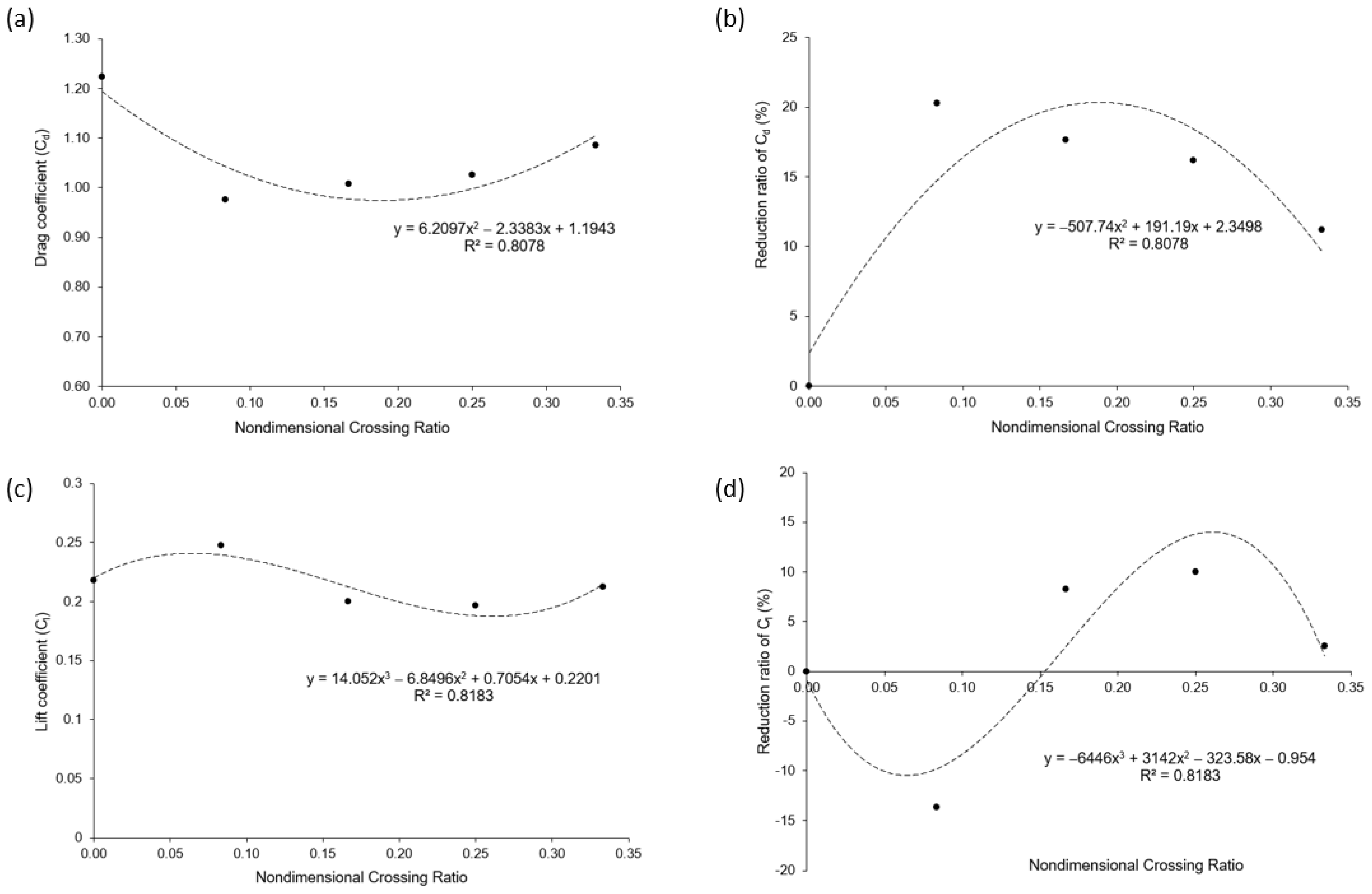

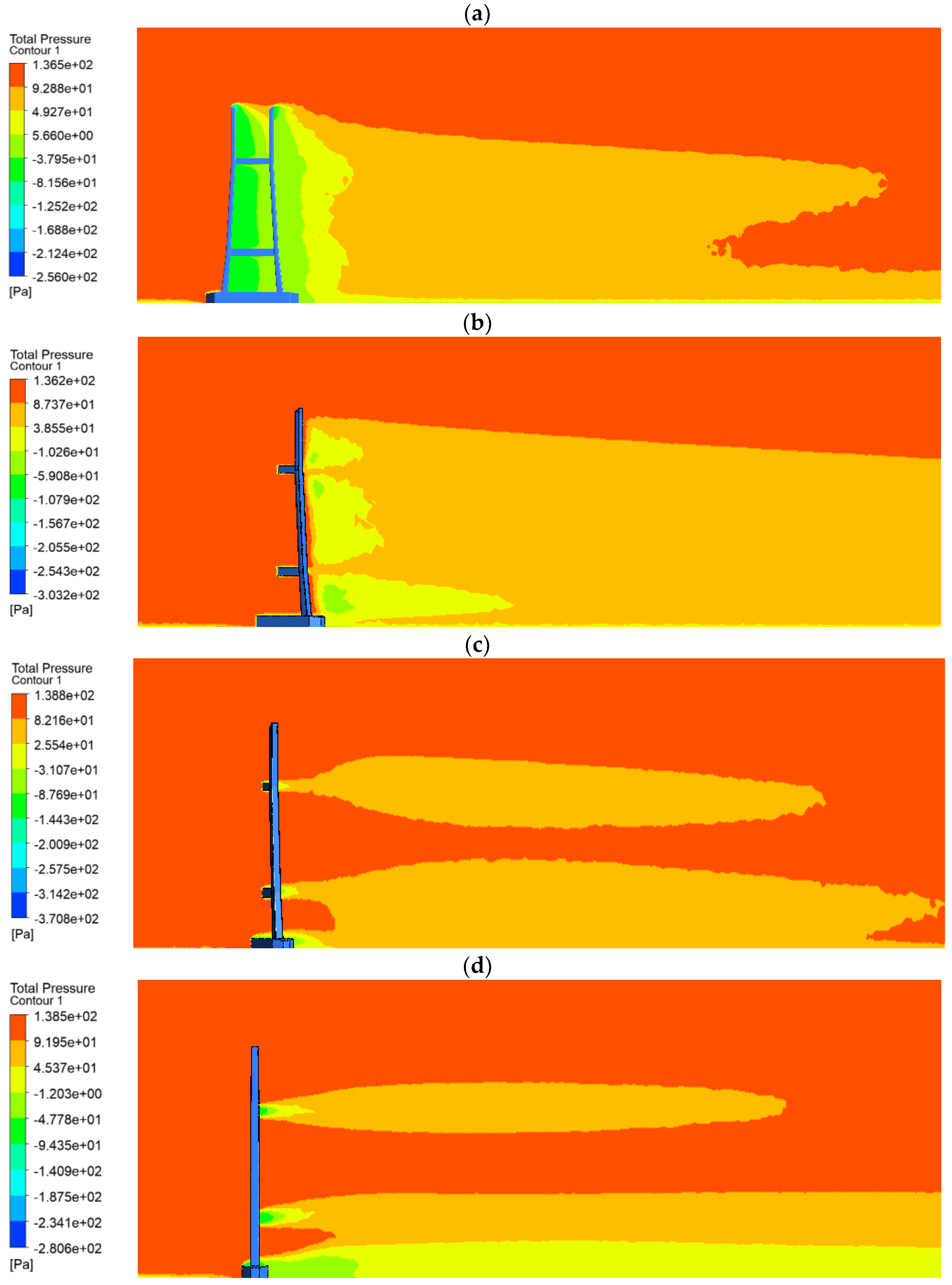

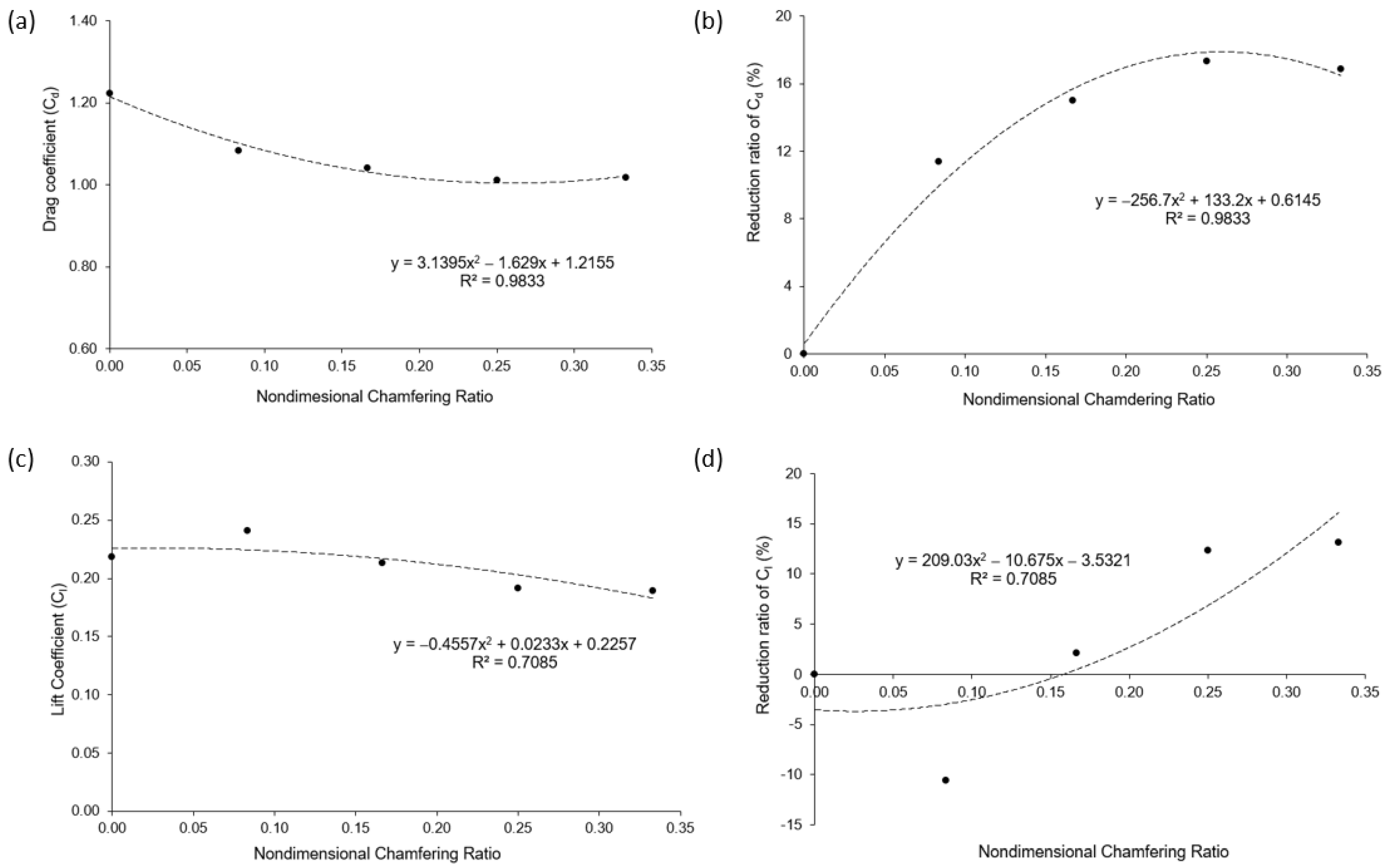

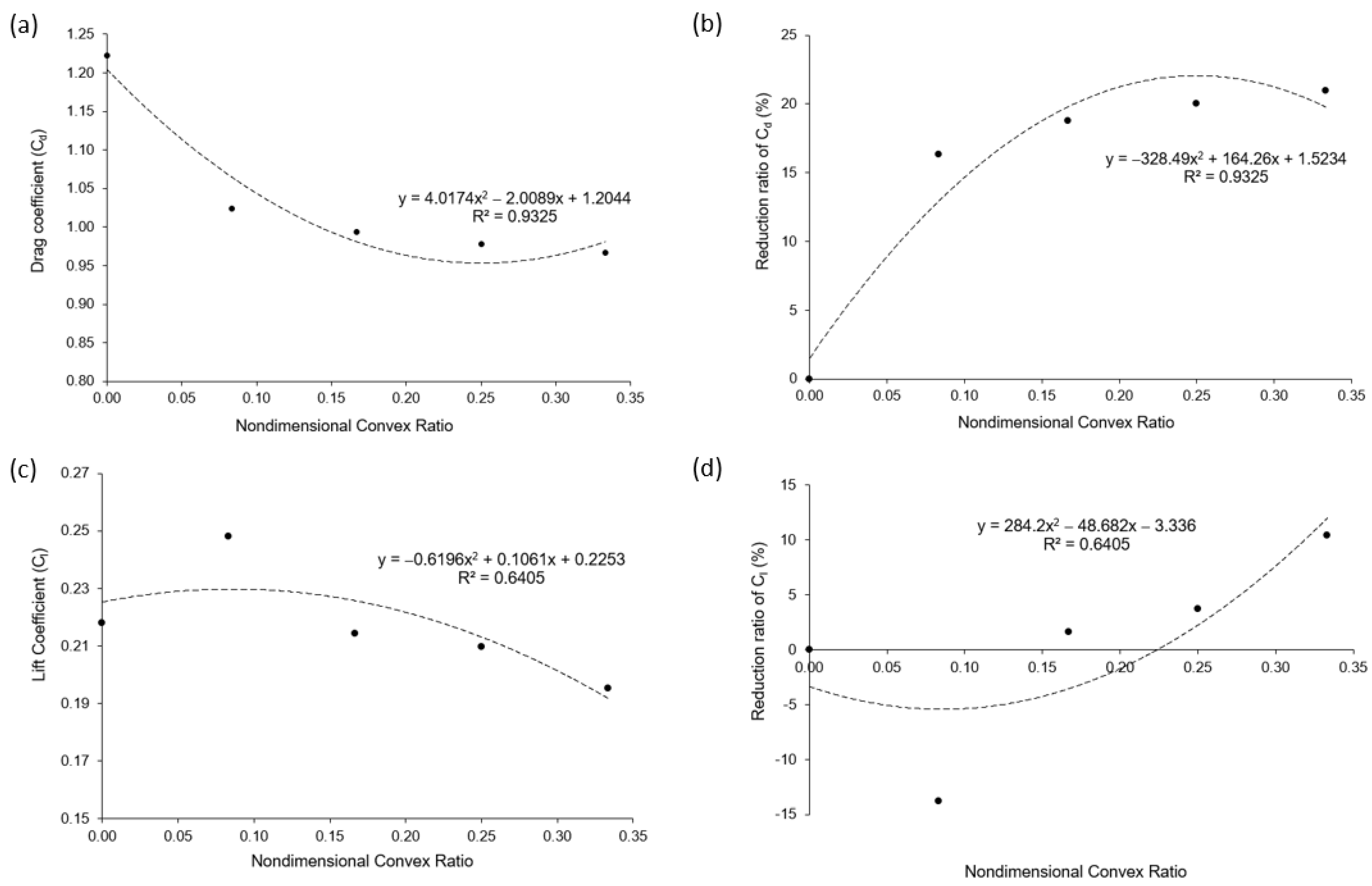

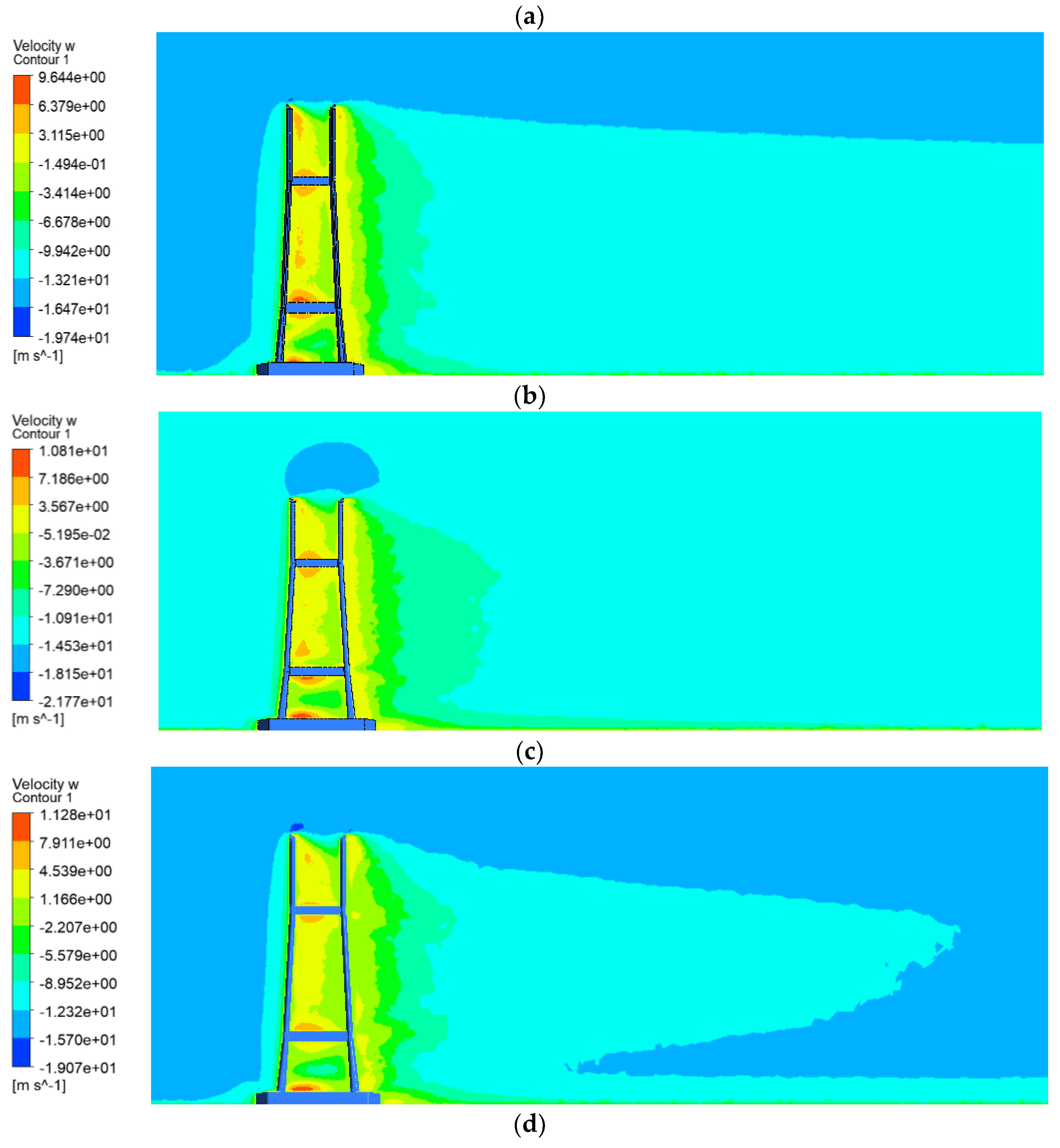

3.4. Effect of Non-Dimensional Cutting Ratio on Drag and Lift Coefficients

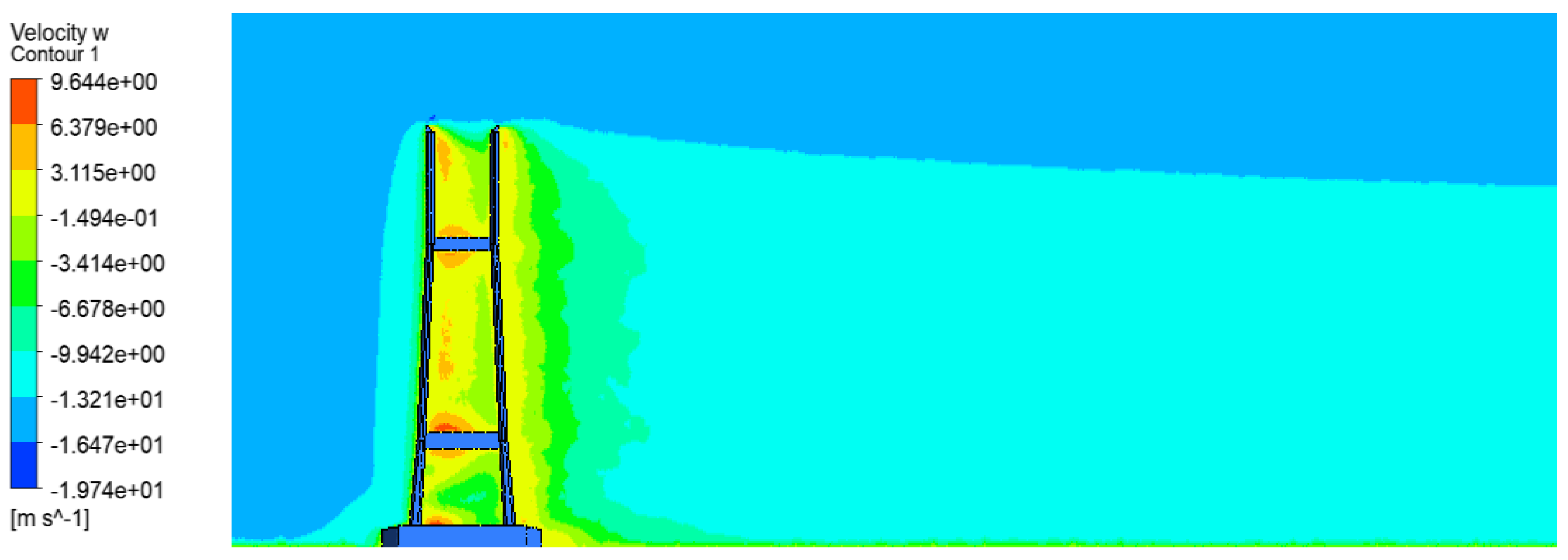

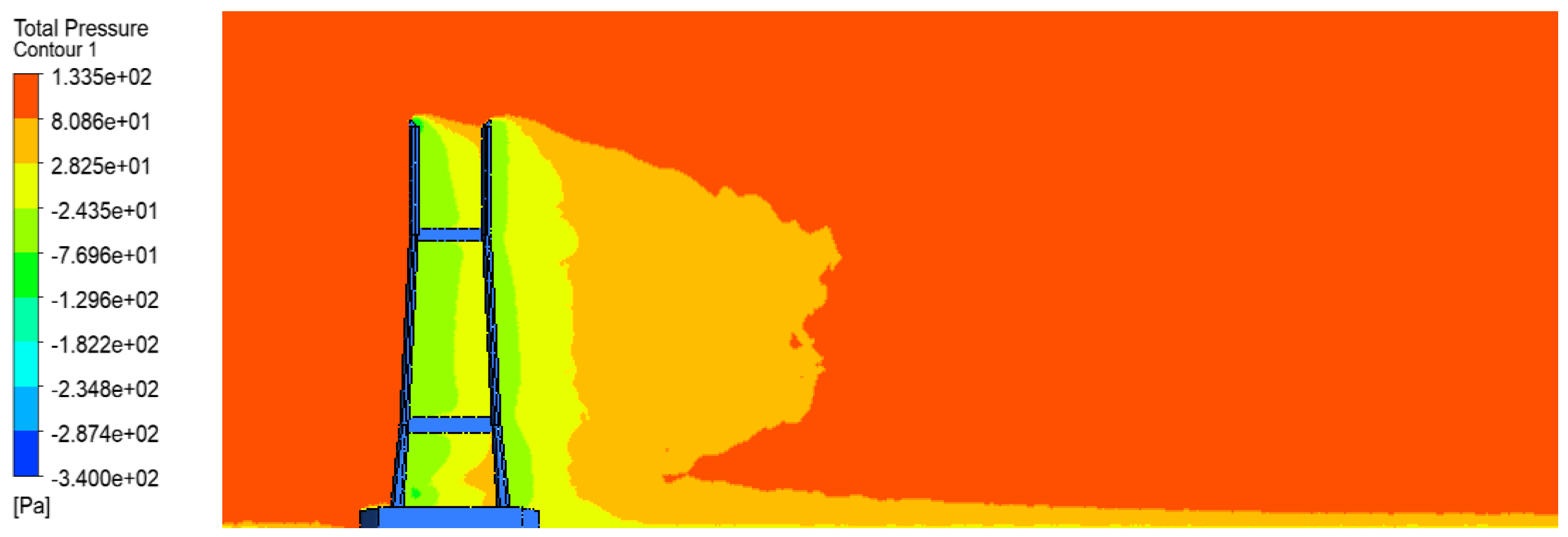

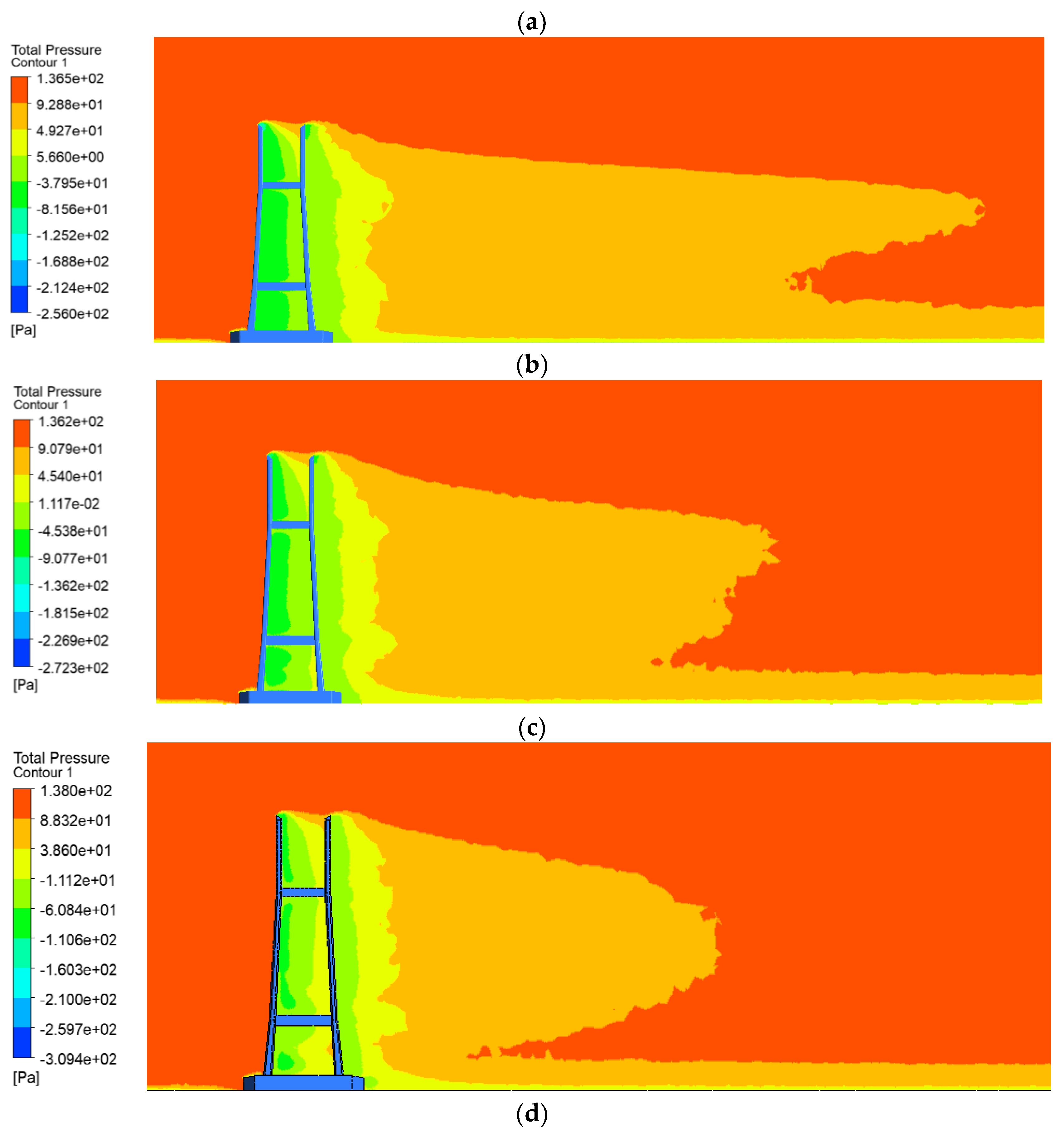

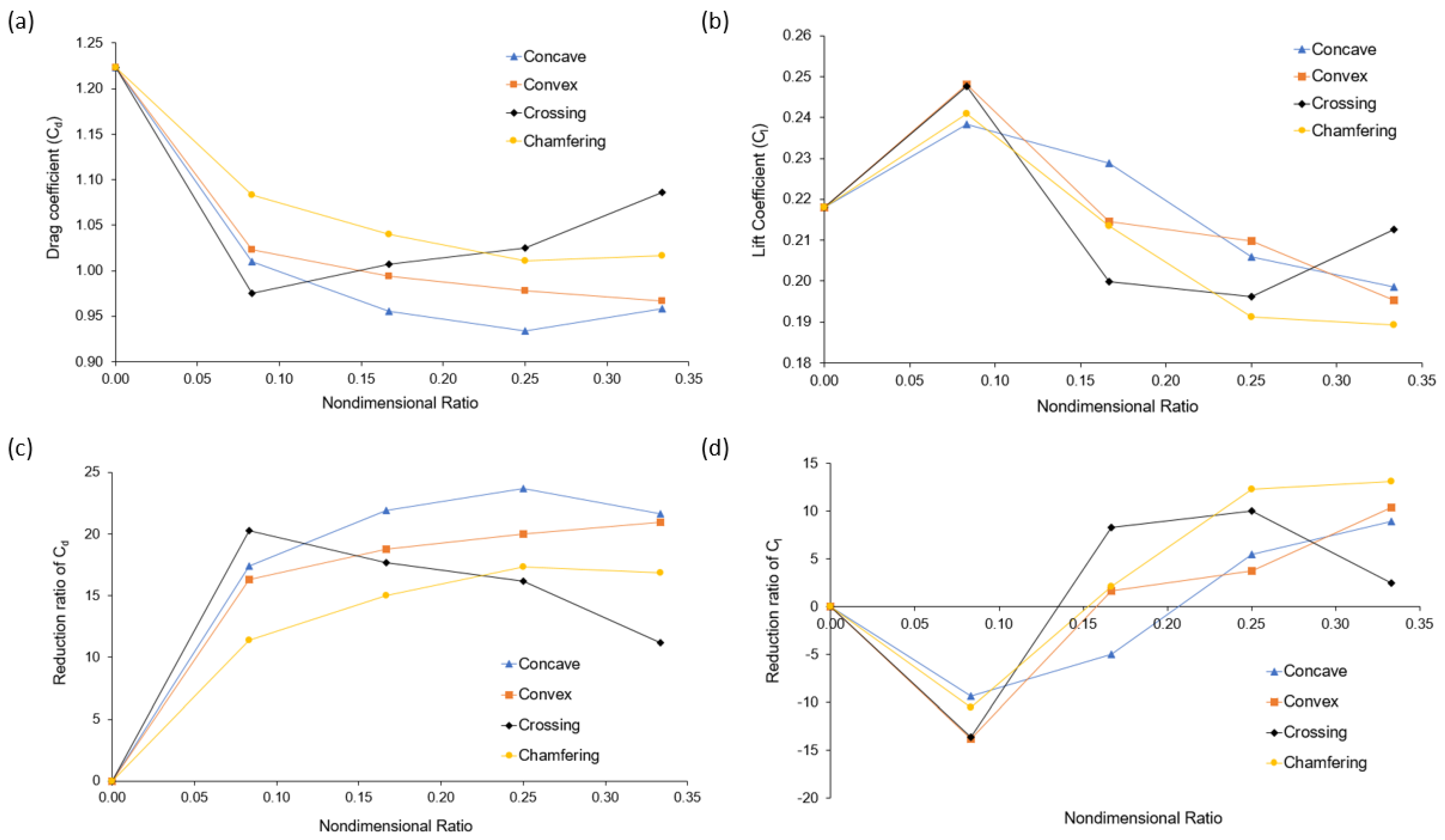

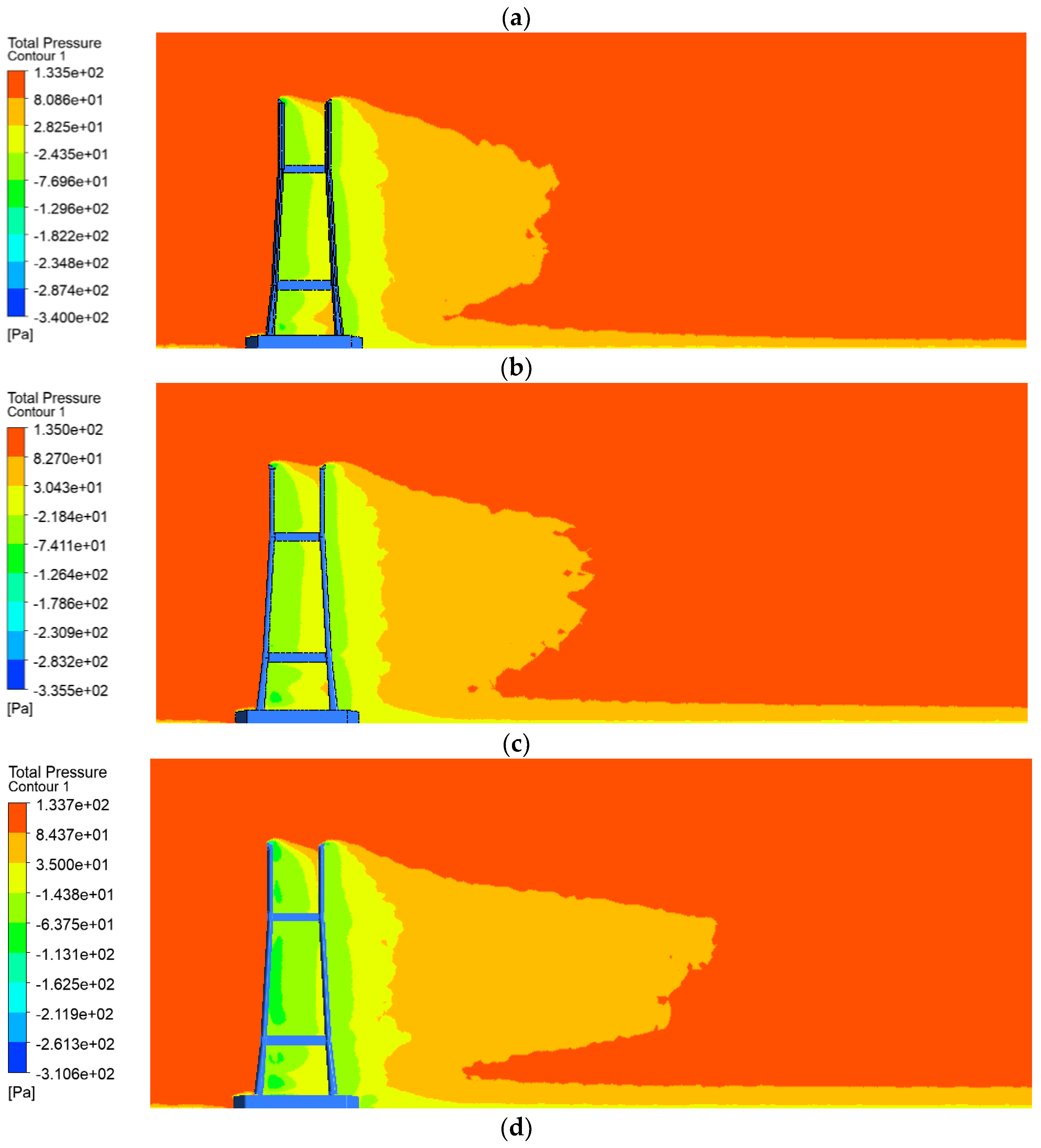

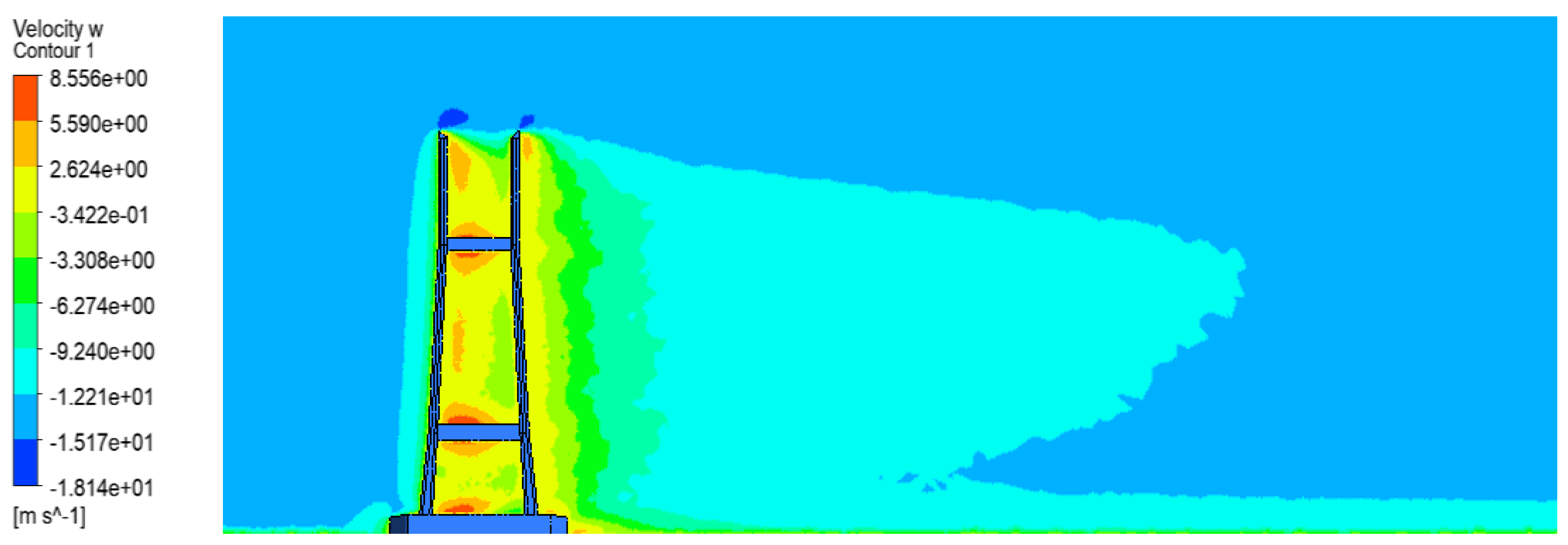

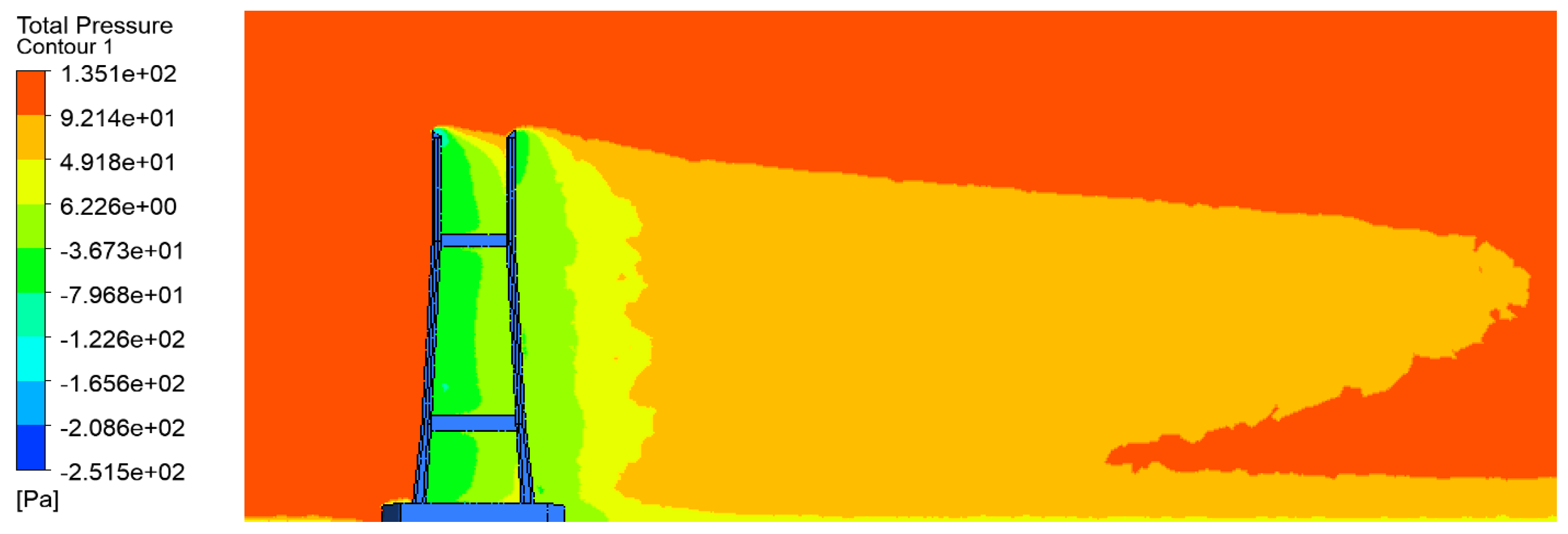

3.5. Comparison of Four Recommended Cross-Sections in Drag and Lift Coefficients
4. Conclusions
- (i)
- We have already shown an insignificant error in calculating the aerodynamic coefficients by the FVM method. Hence, this method is a low-cost method for investigating the dynamic stability of the long-span bridge, especially suitable for the pre-feasibility study step;
- (ii)

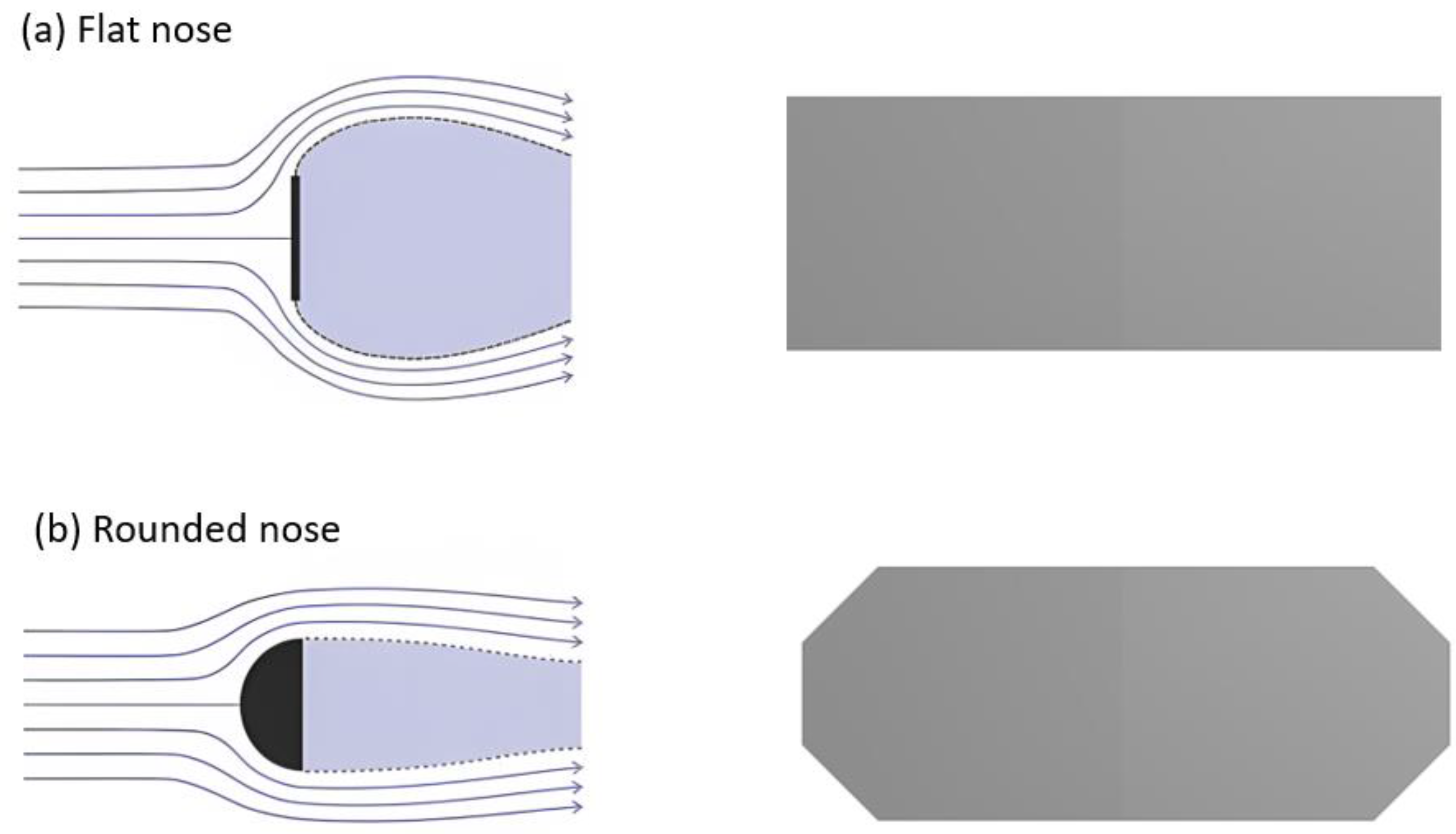

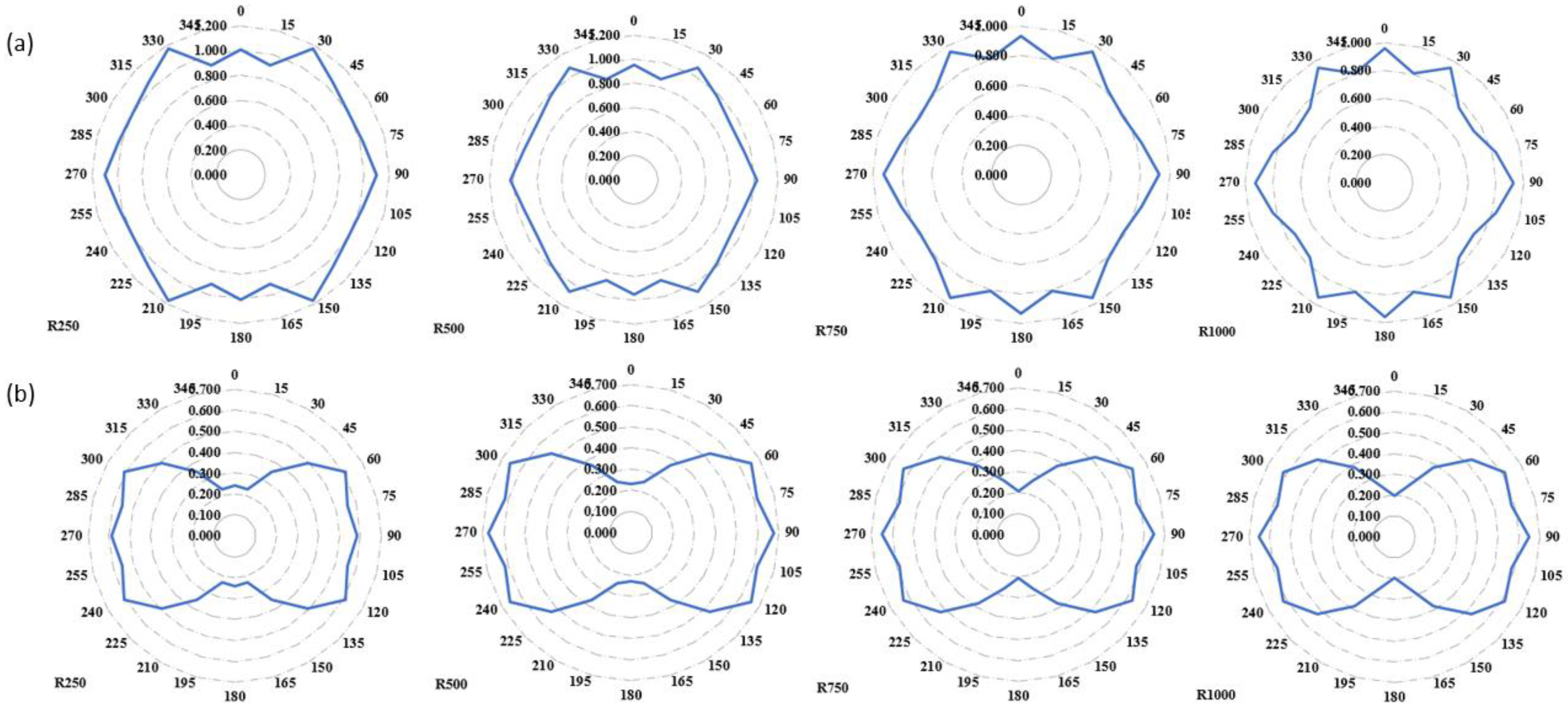

- and are characteristic for each incidence wind direction and depend on the shape of the pylon. By investigating four recommended cross-sections, the maximum of and often come from the incidence wind direction of 0 or 90 degrees, which are the front face or side face of the pylon;
- (iii)
- and , i.e., the drag and lift forces of the pylon reduced by cutting at the cross-section corner regardless of the cutting geometry and reduced up to 23.69% and 13.19%, respectively;
- (iv)
- In four recommended cross-sections, the concave and chamfering cross-sections stand out as the most effective section for increasing the aerodynamic stability of the pylon;
- (v)
- The non-dimensional cutting range is from 0.2 to 0.3 and provides the best performance in reducing the drag and lift forces of the pylon. This range is a recommended standard for adjusting the pylon cross-section to increase its dynamic stability.
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Scanlan, R.; Sabzevari, A. Experimental aerodynamic coefficients in analytical study of suspension bridge flutter. J. Mech. Eng. Sci. 1969, 11, 234–242. [Google Scholar] [CrossRef]
- Li, X.Z.; Wang, M.; Xiao, J.; Zou, Q.Y.; Liu, D.J. Experimental study on aerodynamic characteristics of high-speed train on a truss bridge: A moving model test. J. Wind Eng. Ind. Aerodyn. 2018, 179, 26–38. [Google Scholar] [CrossRef]
- Wang, J.; Yagi, T.; Ushioda, J.; Noguchi, K.; Nagamoto, N.; Uchibori, H. Experimental studies on the aerodynamic performance of two box girders with side openings. Wind Struct. 2020, 30, 119–131. [Google Scholar] [CrossRef]
- Matejicka, L.; Koss, H.H.; Georgakis, C.T. Cross-flow aerodynamics of bridge cables with wire meshes. J. Wind Eng. Ind. Aerodyn. 2022, 223, 104941. [Google Scholar] [CrossRef]
- Gaarder, A.M. Aerodynamic Wind Analysis of Bridge Girder with CFD Calculations. Master’s Thesis, Norwegian University of Life Sciences, Akershus, Norway, 2019. [Google Scholar]
- Zhang, Y.; Cardiff, P.; Keenahan, J. Wind-Induced Phenomena in Long-Span Cable-Supported Bridges: A Comparative Review of Wind Tunnel Tests and Computational Fluid Dynamics Modelling. Appl. Sci. 2021, 11, 1642. [Google Scholar] [CrossRef]
- Abbas, T.; Kavrakov, I.; Morgenthal, G. Methods for flutter stability analysis of long-span bridges: A review. Proc. Inst. Civ. Eng. Bridg. Eng. 2017, 170, 271–310. [Google Scholar] [CrossRef]
- Starossek, U.; Starossek, R.T. Flutter analysis methods for bridges stabilized with eccentric wings. J. Wind Eng. Ind. Aerodyn. 2021, 219, 104804. [Google Scholar] [CrossRef]
- Fujino, Y.; Kimura, K.; Tanaka, H. Wind Resistant Design of Bridges in Japan: Developments and Practices, Wind Resistant Design of Bridges in Japan: Developments and Practices; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2014. [Google Scholar] [CrossRef]
- Pousette, A. Cable Stayed Timber Bridges; Semantic Scholar: Seattle, WA, USA, 2001. [Google Scholar]
- Pospíšil, S.; Buljac, A.; Kozmar, H.; Kuznetsov, S.; Macháček, M.; Král, R. Influence of Stationary Vehicles on Bridge Aerodynamic and Aeroelastic Coefficients. J. Bridg. Eng. 2017, 22, 05016012. [Google Scholar] [CrossRef]
- Hu, C.; Zhou, Z.; Jiang, B. Effects of types of bridge decks on competitive relationships between aerostatic and flutter stability for a super long cable-stayed bridge. Wind Struct. 2019, 28, 255–270. [Google Scholar] [CrossRef]
- Yan, Y.; Yagi, T.; Noguchi, K.; Ito, Y.; Shimada, R. Effects of Handrail Details on Vortex-Induced Vibration for a Box-Girder Bridge. J. Bridg. Eng. 2022, 27, 04021114. [Google Scholar] [CrossRef]
- Chen, A.; Zhou, Z.; Xiang, H. On the mechanism of vertical stabilizer plates for improving aerodynamic stability of bridges. Wind Struct. 2006, 9, 59–74. [Google Scholar] [CrossRef]
- Ahmadian, A.S. Numerical Models for Submerged Breakwaters: Coastal Hydrodynamics and Morphodynamics; Elsevier: Amsterdam, The Netherlands, 2016. [Google Scholar]
- Wilcox, D.C. Re-assessment of the scale-determining equation for advanced turbulence models. AIAA J. 1988, 26, 1299–1310. [Google Scholar] [CrossRef]
- Menter Florian, R. Improved two-equation k-omega turbulence models for aerodynamic flows. NASA Tech. Memo. 1992, 103975. [Google Scholar] [CrossRef]
- Versteeg, H.; Malalasekera, W. An Introduction to Computational Fluid Dynamics. In Fluid Flow Handbook, 2nd ed.; University of Toronto: Toronto, ON, USA, 2007. [Google Scholar]
- Menter, F.R. Two-equation eddy-viscosity turbulence models for engineering applications. AIAA J. 1994, 32, 1598–1605. [Google Scholar] [CrossRef]
- Wilcox, D.C. Turbulence Modeling for CFD; DCW Industries: La Canada Flintridge, CA, USA, 1998. [Google Scholar]
- Ejeh, C.J.; Akhabue, G.P.; Boah, E.A.; Tandoh, K.K. Evaluating the influence of unsteady air density to the aerodynamic performance of a fixed wing aircraft at different angle of attack using computational fluid dynamics. Results Eng. 2019, 4, 100037. [Google Scholar] [CrossRef]
- Xu, J.; Zhao, C.; Zhang, Y.; Yang, Z. Effect of flapping trajectories on the dragonfly aerodynamics. Chin. Sci. Bull. 2006, 51, 777–784. [Google Scholar] [CrossRef]
- Kim, K.; Choi, U. Title of Report: Aerodynamic Investigation of Cao Lanh Bridge Project Description: Final Report; Chonbuk National University: Jeonju-si, Republic of Korea, 2016. [Google Scholar]
- Katz, A.; Sankaran, V. Mesh quality effects on the accuracy of CFD solutions on unstructured meshes. J. Comput. Phys. 2011, 230, 7670–7686. [Google Scholar] [CrossRef]
- Lintermann, A. Computational Meshing for CFD Simulations. Clin. Biomed. Eng. Hum. Nose A Comput. Fluid Dyn. Approach 2021, 85–115. [Google Scholar] [CrossRef]
- Kevin Zhou, S.; Fichtinger, G.; Rueckert, D. Handbook of Medical Image Computing and Computer Assisted Intervention; Academic Press: Cambridge, MA, USA, 2019; pp. 1–1043. [Google Scholar] [CrossRef]
- Tadepalli, S.C.; Erdemir, A.; Cavanagh, P.R. Comparison of hexahedral and tetrahedral elements in finite element analysis of the foot and footwear. J. Biomech. 2011, 44, 2337–2343. [Google Scholar] [CrossRef]
- Ray, N.; Sokolov, D.; Reberol, M.; Ledoux, F.; Lévy, B.; Ray, N.; Sokolov, D.; Reberol, M.; Ledoux, F.; Lévy, B.; et al. Hexahedral Meshing: Mind the Gap; HAL Open Science: Lyon, France, 2017. [Google Scholar]
- Dutt, A. Effect of Mesh Size on Finite Element Analysis of Beam. Int. J. Mech. Eng. 2015, 2, 8–10. [Google Scholar] [CrossRef]
- ANSYS Inc. Ansys Users’ Guide. Aging 2015, 7, 956–963. [Google Scholar]
- Abu-Zidan, Y.; Mendis, P.; Gunawardena, T. Optimising the computational domain size in CFD simulations of tall buildings. Heliyon 2021, 7, e06723. [Google Scholar] [CrossRef] [PubMed]
- Ying, X.; Xu, F.; Zhang, M.; Zhang, Z. Numerical explorations of the limit cycle flutter characteristics of a bridge deck. J. Wind Eng. Ind. Aerodyn. 2017, 169, 30–38. [Google Scholar] [CrossRef]
- Zhang, Y.; Cardiff, P.; Cahill, F.; Keenahan, J. Assessing the Capability of Computational Fluid Dynamics Models in Replicating Wind Tunnel Test Results for the Rose Fitzgerald Kennedy Bridge. CivilEng 2021, 2, 1065–1090. [Google Scholar] [CrossRef]
- Venkateshan, S.P.; Swaminathan, P. Computational Methods in Engineering; Elsevier: Amsterdam, The Netherlands, 2013; pp. 1–672. [Google Scholar] [CrossRef]
- de Sá Caetano, E. Cable Vibrations in Cable-Stayed Bridges; IABSE: Zürich, Switzerland, 2007. [Google Scholar] [CrossRef]
Parameter (Unit)/Material | Air |
---|---|
Density (kg·m−3) | 1.225 |
(J·kg−1·K−1) | 1006.43 |
Thermal Conductivity (W·m−1·K−1) | 0.0242 |
Viscosity (kg·m−1·s−1) | 1.7894 × 10−5 |
Molecular Weight (kg·kmol−1) | 28.966 |
Standard State Enthalpy (J·kg−1·mol−1) | - |
Standard State Entropy (J·kmol−1·K−1) | 194,336 |
Reference Temperature (K) | 298.15 |
L-J Charateristic Length (angstrom) | 3.711 |
L-J Energy Parameter (K) | 78.6 |
Thermal Accommodation Coefficient | 0.9137 |
Momentum Accommodation Coefficient | 0.9137 |
Critical Temperature (K) | 132.3 |
Critical Pressure (Pa) | 3,758,000 |
Critical Specific Volume (m3·kg−1) | 0.002875 |
Acentric Factor | 0.033 |

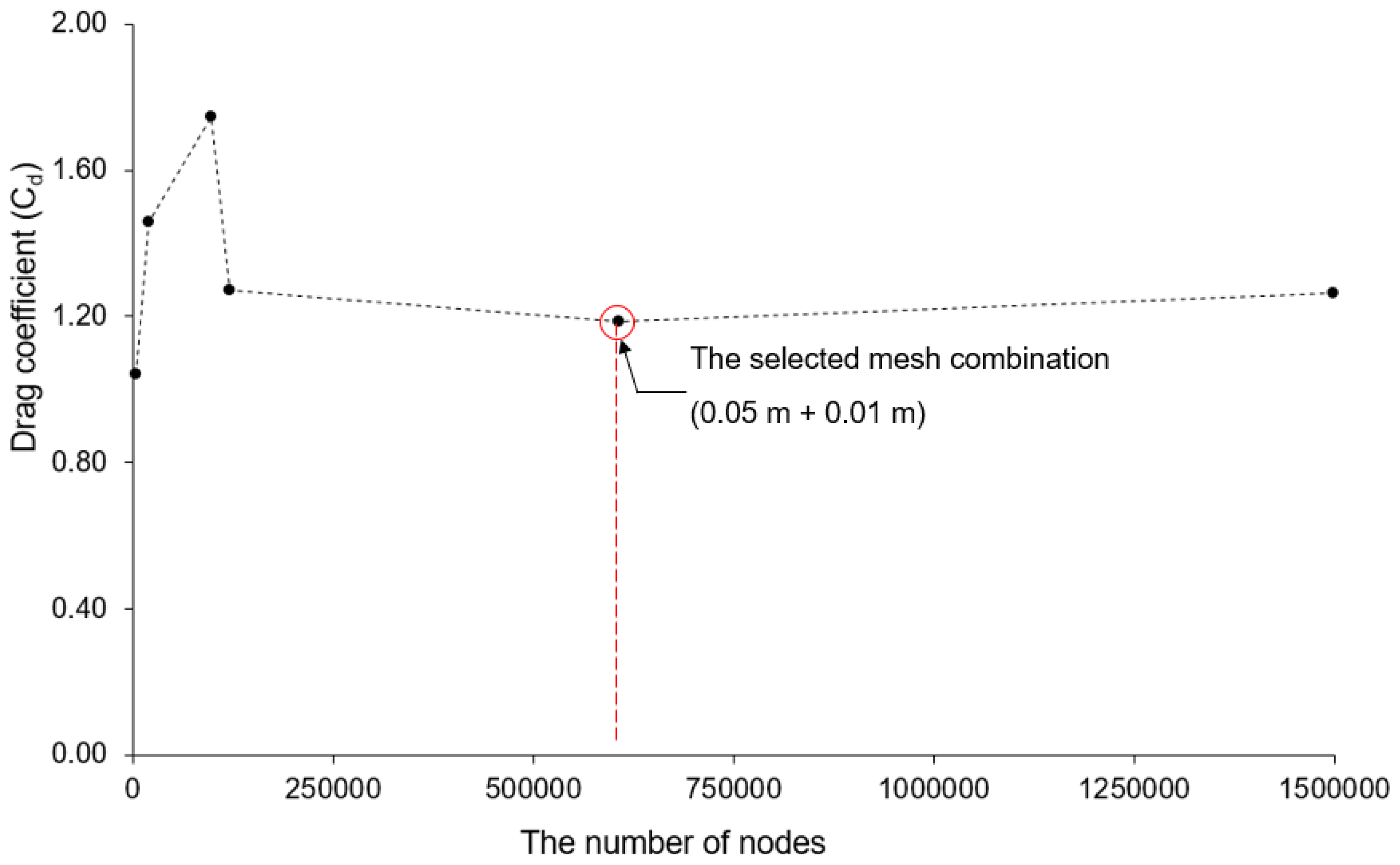

No. | Mesh Combination | Number of Nodes | Number of Elements | Skewness Quality | Orthogonal Quality |
---|---|---|---|---|---|
C1 | 0.4 m + 0.2 m | 4279 | 20,364 | 0.255 | 0.744 |
C2 | 0.2 m + 0.1 m | 20,278 | 100,991 | 0.237 | 0.762 |
C3 | 0.1 m + 0.05 m | 98,000 | 506,809 | 0.231 | 0.767 |
C4 | 0.1 m + 0.02 m | 121,911 | 640,701 | 0.229 | 0.769 |
C5 | 0.05 m + 0.01 m | 606,363 | 3,274,660 | 0.222 | 0.777 |
C6 | 0.03 m + 0.075 m | 1,499,081 | 8,120,961 | 0.221 | 0.777 |
Cross-Section | ||
---|---|---|
Concave | 0.20–0.30 (23.69%) | 0.33 (8.92%) |
Convex | 0.20–0.30 (20.19%) | 0.33 (10.40%) |
Crossing | 0.10–0.25 (17.66%) | - |
Chamfering | 0.20–0.30 (17.34%) | 0.33 (13.14%) |
